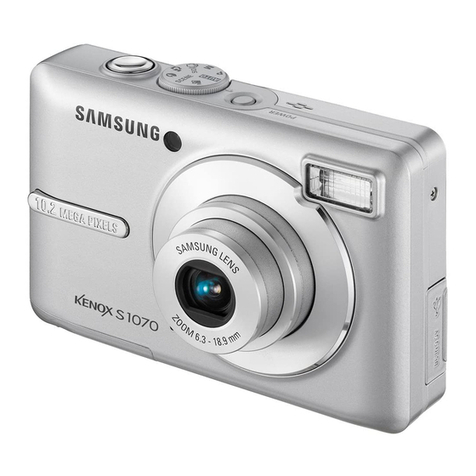

Samsung S1070 Instruction manual

English
1
Getting to know your camera
Identication of features / Contents of camera
Battery life & Number of shots (Recording time)
LCD monitor indicator
Mode dial
Taking a picture
Playing back / Deleting images
Downloading images
Specications
1
4
5
6
7
8
9
10
11
Contents
Getting to know your camera
 Microsoft, Windows and Windows logo are registered trade-
marks of Microsoft Corporation incorporated in the United States
and/or other countries
 All brand and product names appearing in this manual are
registered trademarks of their respective companies.

The contents and illustrations of this manual are subject to
change without prior notice for upgrading the camera functions.
 Refer to the user manual included on the Software CD for
more information.

PDF documents of user manual are included in the Software
CD-ROM supplied with this camera. Search the PDF les with
Windows explorer. Before opening the PDF les, you must
install the Adobe Reader included in the Software CD-ROM.

2
Getting to know your camera
DANGER
Do not attempt to modify this camera in any way. To do so
may result in re, injury, electric shock or severe damage
to you or your camera. Internal inspection, maintenance
and repairs should only be carried out by your dealer or
Samsung Camera Service centre.
Should any form of liquid or a foreign object enter the
camera, do not use it. Switch off the camera, and then
disconnect the power source. You must contact your dealer
or Samsung Camera Service centre. Do not continue to
use the camera as this may cause a re or electric shock.
Please do not use this product in close proximity to ammable
or explosive gases, as this could increase the risk of explosion.
Do not insert or drop metallic or inammable foreign
objects into the camera through access points e.g. the
memory card slot and battery chamber. This may cause a
re or electric shock.
Do not operate this camera with wet hands. This could
pose a risk of electric shock.
DANGER indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING
Do not use the ash in close proximity to people or
animals. Positioning the ash too close to your subject’s
eyes may cause eyesight damage.
For safety reasons keep this product and accessories out
of reach of children or animals to prevent accidents e.g.:
-
Swallowing battery or small camera accessories. If an accident
should occur, please consult a doctor immediately.
-
There is the possibility of injury from the camera’s moving parts.
Battery and camera may become hot during prolonged
use and it may result in camera malfunction. Should this
be the case, allow the camera to sit idle for a few minutes
to allow it time to cool.
Do not leave this camera in places subject to extremely
high temperatures, such as a sealed vehicle, direct sunlight
or other places of extreme variances in temperature.
Exposure to extreme temperatures may adversely affect
the camera’s internal components and could cause a re.
When in use, do not cover the camera or Charger. This
may cause heat to build up and distort the camera body or
cause a re. Always use the camera and its accessories in
a well-ventilated area.
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.

English
3
Getting to know your camera
Take care not to touch the lens or lens cover to avoid
taking an unclear image and possibly causing camera
malfunction.
Do not re the ash while it is in contact with hands or
objects. Do not touch the ash after using it continuously.
It may cause burns.
Leaking, overheating, or damaged battery could result in
re or injury.
- Use battery with the correct specication for the camera.
- Do not short circuit, heat or dispose of battery in re.
- Do not insert the battery with the polarities reversed.
Remove the battery when not planning to use the camera
for a long period of time.
Otherwise the battery may leak corrosive electrolyte and
permanently damage the camera’s components.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not
avoided, may result in a minor or moderate injury.
Before an important event or going on a trip, you should
check the camera condition. Samsung cannot be held
responsible for camera malfunctions.
Be sure to format the memory card if you are using a
newly purchased memory for the rst time, if it contains
data that the camera cannot recognise, or if it contains
images captured with a different camera.
Do not insert the memory card the wrong way round.
Credit cards may be demagnetized if left near a camera
case. Avoid leaving magnetic strip cards near the case.
Using an AC adapter that doesn’t match with the camera
specication may cause camera malfunction. We recommend
supplied battery or exclusive rechargeable battery.
Ä Available AC adapter :
Voltage: 3.3V, Ampere: 2.0A, Diameter: 2.35
- After turning on the camera, Check whether the battery type
and the camera setting set on the [Settings] > [Battery Type]
menu are same.

4
Ä Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy
the optional equipment, contact your nearest Samsung dealer or Samsung service centre.
Identication of features / Contents of camera
Rechargeable Battery
(SNB-2512)
SD / SDHC memory card
/ MMC
USB Cable AV Cable Camera strap
Camera AA Alkaline
Batteries
Charger (SBC-N2) AC Cord Camera case
Software CD
User manual,
Product warranty
Included
items
Optional
items
LCD monitor
Camera status lamp
E (Effects) button
Fn / Delete button
Play mode / Printer button
5 function button
Strap eyelet
Face Detection(FD) button
Zoom T button (Digital zoom)
Zoom W button (Thumbnail)
Power button
Speaker
Flash
AF sensor/
Self-timer lamp
USB / AV connection
terminal
Mode dial
Shutter button
Lens / Lens cover
Microphone

English
5
Battery life & Number of shots (Recording time)
 When using a 1GB SD memory, the specied shooting capacity will be
as follows. These gures are approximate as image capacities can be
affected by variables such as subject matter and memory card type.
Ä The zoom button doesn't use during the movie recording.
The recording times can be changed by the zoom operation.
You can record videos of up to 4GB or 2hours each.
Recorded
image size
Super
Fine Fine Normal 30 FPS 15 FPS
Still
,
About 219 About 304 About 507 - -
;
About 241 About 341 About 550 - -
.
About 282 About 395 About 619 - -
+
About 290 About 412 About 660 - -

About 366 About 507 About 825 - -
About 1089 About 1458 About 2204 - -

About 1907 About 2204 About 2419 - -
*Movie
clip
ì---
About 14'15" About 28'02"
---
About 51'32" About 01:41'47"
 SNB-2512 rechargeable battery Specication
Model SNB-2512
Type Ni-MH
Capacity 25 00mAh
Voltage 1.2V x 2
C harging time Approximately 300 Minutes (Use for SBC-N2)
Ä Included battery may vary depending on sales region.
We recommend batteries for a digital camera (Within a year from
the date of manufacture). The batteries are listed below.
- Non rechargeable batteries : 2 X AA Alkaline (High Capacity)
- Rechargeable batteries (Optional) : SNB-2512 (Ni-MH)

6
LCD monitor indicator
 The LCD monitor displays information about the shooting
functions and selections.
No. Description Icons
1Recording mode
2
Optical / Digital Zoom bar /
Digital Zoom rate
3 Voice Memo / Without Sound Ï / Ç
4
Number of available shots
remaining 3
Remaining time 00:00:00
[Image & Full Status]
No. Description Icons
5
Memory card icon / Internal
memory icon
6 Battery
7Image Size
8 Image Quality / Frame Rate
9 Metering
10 Drive mode
11 ISO
12 White Balance
13 Exposure compensation
14 Camera shake Warning
15 Auto Focus Frame
16 Saturation / Color
17 Sharpness
18 Contrast
19 Macro
20 Self-timer
21 Flash
22 Aperture Value / Shutter Speed F3.0, 1/30
23 Face Detection /
Self Portrait /


English
7
Mode dial
 You can select a desired camera mode by using the Mode dial on the top of the camera.
AUTO
Selects this mode for quick and easy picture taking
with minimal user interaction.
PROGRAM
Selecting the program mode will congure the
camera with optimal settings. You can still manu-
ally congure all functions except the aperture
value and shutter speed.
DIS
This mode will reduce the effect of camera shake
and help you get a well-exposed image in dim
conditions.
MANUAL
You can manually congure all functions with the
aperture value and shutter speed.
SCENE
Use the menu to easily congure optimal settings
for a varisty of shooting situations.
PORTRAIT
Use this menu to take a picture of a person.
MOVIE CLIP
A movie clip can be recorded for as long as the
available recording time.
PHOTO HELP GUIDE
Helps the user to learn the correct picture
taking method. This includes solutions for potential
problems that may occur, and enables the user to
practice shooting.

8
Taking a picture
 How to take a picture
 How to record a movie
Rotate the Mode dial and select ( ´ ).
1. Turn on the camera and select
a camera mode by rotating the
mode dial.
2. Hold the camera as shown
3. Conrm the composition
4. Take a picture.
Pressing halfway down
Focus and Flash status
are checked.
Pressing fully
Image is taken
1. Conrm the composition
2. Start the recording
Press the Shutter button and the
recording starts and press the
Shutter button again to stop the
recording.

English
9
 Deleting images
- This deletes images stored on the memory card.
1. Select an image that you want to delete by pressing the Left /
Right button and press the DELETE ( Õ ) button.
Playing back / Deleting images
2. To add images to delete, press the T
button.
- Left / Right button : Selects images
- T button : Checks for deletion
- OK button : deletes the selected
images.
3. Select the submenu values by pressing the Up / Down button
and then press the OK button.
- If [No] is selected : cancels "Delete Image".
- If [Yes] is selected : deletes the selected images.
 Playingback the images
-The last image stored on the memory is displayed.
Press the play button ( Î ).
Select an image that you want to play
back by pressing the Left/ Right button
Ä Manner mode : Pressing the play mode button for more than
3 seconds changes the buzzer and start-up
sound setting to OFF, even though you may
have set these to ON.
[Single Image] [Thumbnail Image]
Delete?
No
Yes
Comrm
OK
Delete?
No
Yes
Select Conrm
TOK
Prev Next
Select Delete
TOK

10
 PC connection mode
2. Download the images
1. Install the supplied Software.
- Connect the camera and Computer
with supplied USB cable and
download the image on your
computer to save them.
Downloading images
For Windows For Macintosh
USB
Connection
Specications
PC with processor better
than Pentium III 500MHz
(Pentium III 800MHz recommended)
Windows 2000 / XP / Vista
Minimum 256MB RAM
(Over 512MB recommended)
250MB of available hard disk
space (Over 1GB recommend)
1024x768 pixels, 16bit color
display compatible monitor
(24bit color display recommended)
Microsoft DirectX 9.0C
Power Mac G3 or later
Mac OS 10.3 or later
Minimum 256MB RAM
(Over 512MB recommended)
Software
Support
Specications
-

English
11
Specications
Image Sensor - Type : 1/2.33" CCD
- Effective Pixel : Approx. 10.2 Mega-pixel
- Total Pixel : Approx. 10.3 Mega-pixel
Lens - Focal Length : SAMSUNG Lens f = 6.3 ~ 18.9mm
(35mm film equivalent : 35 ~ 105mm)
- F No. : F3.0(W) ~ F5.6(T)
- Digital Zoom : ·Still Image mode :1.0X ~ 5.0X
·Play mode : 1.0X ~ 11.4X
(depends on image size)
LCD Monitor - 2.7" color TFT LCD (230,000 dots)
Focusing
- Type : TTL auto focus (Multi AF, Center AF, Face Detection AF)
- Range
Normal Macro Auto Macro
Wide 80cm ~ Infinity 10cm ~ 80cm 10cm ~ Infinity
Tele 50cm ~ 80cm 50cm ~ Infinity
Shutter - Speed 1 ~ 1/1,500 sec.
( Manual : 8 ~ 1/1,500 sec.)
Exposure - Control : Program AE, Manual Exposure,
Face Detection AE
- Metering : Multi, Spot, Center-Weighted
- Compensation : ±2EV (1/3EV steps)
- ISO : Auto, 80, 100, 200, 400, 800, 1600
Flash - Modes : Auto, Auto & Red-eye reduction, Fill-in
flash, Slow sync, Flash off
- Range : Wide : 0.4m ~ 3.0m,
Tele : 0.5m ~ 2.5m
- Recharging Time : Approx. 4 sec
Sharpness - Soft+, Soft, Normal, Vivid, Vivid+
Color Effect -
Normal, B&W, Sepia, Red, Green, Blue, Negative,
Custom Color
White Balance - Auto, Daylight, Cloudy, Fluorescent_H,
Fluorescent_L, Tungsten, Custom
Voice Recording - Voice Recording (max. 10 hours)
- Voice Memo in Still Image (max. 10 sec.)
Date Imprinting - Date, Date & Time, Off (user selectable)
Shooting - Still Image
·Mode : Auto, Program, Manual, DIS,
Photo Help Guide , Portrait, Scene
·Scene : Nightscene, Children, Landscape,
Close-up, Text, Sunset, Dawn, Backlight,
Firework, Beach & Snow
·Shooting : Single, Continuous, AEB
·Self-timer : 10 sec., 2 sec., Double,
Motion Timer

12
Specications
- Movie Clip
· With Audio or without Audio
(user selectable, recording time : max 2 hours)
·Size : 640x480, 320x240
·Frame rate : 30 fps, 15 fps
·3X Optical Zoom and Mute in Zooming
·Movie Editing (Embedded): Pause during
recording, Still Image Capture
Storage - Media
·Internal memory : About 16MB flash memory
·External Memory (Optional) :
MMC card (Up to 1GB guaranteed)
SD card (Up to 2GB guaranteed)
SDHC card (Up to 8GB guaranteed)
- File Format
·Still Image : JPEG (DCF), EXIF 2.21, DPOF 1.1,
PictBridge 1.0
·Movie Clip : AVI (MJPEG)
·Audio : WAV
- Image Size
, ; . +  
3648X
2736
3648X
2432
3648X
2056
3072X
2304
2592X
1944
1920X
1080
1024X
768
- Capacity (1GB Size)
, ; . +  
Super Fine About 219 About 241 About 282 About 290 About 366 About 1089 About 1907
Fine About 304 About 341 About 395 About 412 About 507 About 1458 About 2204
Normal About 507 About 550 About 619 About 660 About 825 About 2204 About 2419
ÄThese figures are measured under Samsung standard conditions and
may vary depending on shooting conditions and camera settings.
“E” Button - Effect : Color, Image Adjust
(Sharpness, Contrast, Saturation)
- Editing : Resize, Rotate, Color
Image Play - Type : Single image, Thumbnails,
Multi slide show, Movie Clip
Interface - Digital output connector : USB 2.0
- Audio : Mono
- Video output : NTSC, PAL (user selectable)
- DC power input connector : 3.3 V
Power Source - Primary Battery : 2x AA Alkaline
- Rechargeable battery : SNB-2512B KIT (Optional)
(2xAA Ni-MH Battery & Charger)
ÄIncluded battery may vary depending on sales region.

English
13
Specications
Dimensions (WxHxD) - 93.1 X 61.5 X 24mm
(excluding protrusions)
Weight - Approx. 120g (without batteries and card)
Operating Temperature - 0 ~ 40°C
Operating Humidity - 5 ~ 85%
Software - Samsung Master, Adobe Reader
Specifications are subject to change without prior notice.
All trademarks are the property of their respective owners.

14
Correct disposal of batteries in this product
Correct disposal of batteries in this product
(Applicable in the European Union and other European
countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that
the batteries in this product should not be disposed of with other
household waste at the end of their working life. Where marked, the
chemical symbols Hg, Cd or Pb indicate that the battery contains
mercury, cadmium or lead above the reference levels in EC Directive
2006/66. If batteries are not properly disposed of, these substances
can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please
separate batteries from other types of waste and recycle them
through your local, free battery return system.
The rechargeable battery incorporated in this product is not user replaceable.
For information on its replacement, please contact your service provider.
Correct Disposal of This Product
Correct Disposal of This Product (Waste Electrical & Electronic
Equipment) (Applicable in the European Union and other
European countries with separate collection systems)
This marking shown on the product or its literature, indicates that
it should not be disposed with other household waste at the end of
its working life. To prevent possible harm to the environment or hu-
man health from uncontrolled waste disposal, please separate this
from other types of waste and recycle it responsibly to promote the
sustainable re-use of material resources. Household users should
contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can
take this item for environmentally safe recycling. Business users
should contact their supplier and check the terms and conditions of
the purchase contract. This product should not be mixed with other
commercial waste for disposal.
Samsung Techwin cares for the environment at all
product manufacturing stages to preserve the
environment, and is taking a number of steps to provide
customers with more environment-friendly products. The
Eco mark represents Samsung Techwin's will to create
environment-friendly products, and indicates that the
product satises the EU RoHS Directive.

English
15
MEMO

16
MEMO

Français
FR-1
Découvrir votre appareil photo
Caractéristiques / Accessoires de l’appareil photo
Autonomie de la pile/batterie et nombre de prises
de vue (durée d’enregistrement)
Indications de l’écran LCD
Molette de réglage
Prendre une photo
Visionnage / Suppression des images
Téléchargement d’images
Caractéristiques
1
4
5
6
7
8
9
10
11
Table des matières
Découvrir votre appareil photo
Microsoft Windows et le logo Windows sont des marques déposées
appartenant à Microsoft Corporation incorporated aux États-Unis
et/ou dans d’autres pays.
Tous les noms de marque et de produits qui apparaissent dans
ce manuel sont des marques déposées appartenant aux sociétés
respectives.
Le contenu et les illustrations de ce manuel sont susceptibles
d’être modiés sans avertissement préalable.
Reportez-vous au manuel d’utilisation se trouvant sur le CD-ROM
pour davantage d’informations.
Les documents PDF du manuel d’utilisation sont inclus dans le
CD-ROM fourni avec cet appareil photo. Recherchez les chiers
PDF à l’aide de l’explorateur de Windows. Avant d’ouvrir ce type
de chiers, vous devez installer le logiciel Adobe Reader inclus sur
le CD-ROM.

FR-2
Découvrir votre appareil photo
DANGER
N’essayez pas de modier de quelque façon que ce soit votre
appareil photo. Toute modication pourrait entraîner une
électrocution, un incendie, des blessures corporelles ou des
dommages à l’appareil photo. L’inspection interne de l’appareil,
l’entretien et les réparations doivent être uniquement réalisées
par votre revendeur ou le Service Après-Vente de Samsung.
Si un liquide ou un objet pénètre dans l’appareil, n’utilisez pas
ce dernier. Éteignez l’appareil photo, puis coupez l’alimentation
(piles/batteries ou adaptateur secteur). Prenez contact avec
votre revendeur ou le Service Après-Vente de Samsung. D’ici
là, n’utilisez en aucun cas l’appareil pour éviter tout risque
d’incendie ou d’électrocution.
Veillez à ne pas utiliser cet appareil à proximité de produits
inammables ou de gaz explosifs, car cela pourrait augmenter
les risques d’explosion.
N’insérez pas et ne laissez pas tomber d’objets métalliques
ou inammables dans l’appareil photo par les points d’accès,
comme le logement de la carte mémoire et le compartiment de
de la batterie. Cela peut présenter un risque d’incendie ou d’
électrocution.
Ne manipulez pas cet appareil avec les mains humides. Cela
pourrait présenter un risque d’incendie ou d’électrocution.
Le symbole « DANGER » signale un danger imminent qui, si vous ne
suivez pas les consignes de sécurité, peut entraîner des blessures
graves, voire mortelles.
N’utilisez pas le ash à proximité de personnes ou d’animaux.
L’utilisation du ash trop près des yeux du sujet peut provoquer
des lésions oculaires.
Pour des raisons de sécurité, conservez cet appareil et ses
accessoires hors de la portée des enfants et des animaux an
de prévenir tout accident et notamment :
- L’ingestion des piles ou des petits accessoires de l’appareil photo.
En cas d’accident, veuillez consulter un médecin immédiatement.
- Les blessures pouvant résulter de l’utilisation des pièces mobiles
de l’appareil photo.
Il se peut que la batterie et l’appareil chauffent lors d’une utilisation
prolongée. Cela peut provoquer un mauvais fonctionnement de
l’appareil. Si cela devait se produire, laissez l’appareil au repos
quelques minutes an qu’il refroidisse.
Ne laissez pas cet appareil dans des endroits très chauds, tels que
les véhicules fermés, en exposition à la lumière directe du soleil ou
exposés à des variations extrêmes de température. L’exposition à
des températures extrêmes risque d’endommager les composants
internes de l’appareil photo et provoquer un incendie.
Lorsque vous l’utilisez, ne couvrez une surchauffe Cela risque de
provoquer une surchauffe et la déformation du boîtier ou provoquer
un incendie. Utilisez toujours votre appareil photo et ses accessoires
dans un endroit bien ventilé.
AVERTISSEMENT
Le symbole « AVERTISSEMENT » indique un danger éventuel qui,
si vous ne suivez pas les consignes de sécurité, peut entraîner des
blessures graves, voire mortelles.

Français
FR-3
Découvrir votre appareil photo
MISE EN GARDE
Faites attention à ne pas toucher l’objectif ou le cache de
l’objectif an d’éviter de prendre des photos oues et de
provoquer un mauvais fonctionnement de l’appareil.
Ne déclenchez jamais le ash si celui-ci est en contact avec
votre main ou un autre objet. Ne touchez pas le ash après
l’avoir utilisé, vous risqueriez de vous brûler.
Des piles endommagées, présentant des fuites ou une surchauffe
peuvent entraîner des blessures ou un incendie.
- Assurez-vous d’utiliser uniquement des piles comportant les
caractéristiques qui conviennent à votre appareil photo.
- Ne mettez pas les piles en court-circuit, ne les chauffez pas et
ne les jetez pas au feu.
- N’insérez pas les piles en inversant les polarités.
Retirez les piles/batteries lorsque vous prévoyez de ne pas
utiliser l’appareil photo pendant une longue période. Dans le cas
contraire, il se peut qu’une fuite d’électrolyte corrosif survienne
au niveau des piles, ce qui risque endommager les composants
de l’appareil photo de manière irréversible.
Le symbole « MISE EN GARDE » signale un danger éventuel qui,
si vous ne suivez pas les consignes de sécurité, peut entraîner des
blessures légères ou graves.
Avant un événement important ou un voyage, vériez l’état de
l’appareil photo. Samsung ne saurait être tenu responsable
des conséquences en cas de mauvais fonctionnement de
l’appareil photo.
Assurez-vous de formater la carte mémoire si vous l’utilisez
pour la première fois, si elle contient des données que
l’appareil photo ne prend pas en charge ou si elle contient
des photos prises avec un appareil photo différent.
Vériez le sens d‘insertion de la carte mémoire an de
l’insérer correctement.
Les cartes de crédit risquent d’être démagnétisées
lorsqu’elles se trouvent à proximité de l’appareil photo.
Évitez donc de laisser des cartes magnétiques près de
l’appareil photo.
Utiliser un adaptateur secteur qui ne correspond pas aux
caractéristiques de l’appareil photo risque de l’endommarger.
Nous recommandons l’utilisation des piles fournies ou d’une
batterie rechargeable autorisée.
ÄAdaptateur secteur disponible :
Tension : 3,3 V, Ampérage : 2 A, Diamètre : 2,35 mm
- Avant de mettre l’appareil photo sous tension, vériez le type
de piles et assurez-vous que le réglage de l’appareil photo
[PARAMÈTRES] > [TYPE BAT.] est identique au type de piles utilisé.
