Samsung TL90 - 12.2-megapixel Digital Camera Instruction manual

This Quick Start Manual has been specially designed to guide you
through the basic functions and features of your device.
Please read the Quick Start Manual and User Manual carefully to
ensure safe and correct use.
Quick Start Manual
TL90
For more information, refer to
the User Manual included on the
supplied CD-ROM.
ENG / SPA
FOR TECHNICAL SUPPORT, PLEASE CALL 1-800-SAMSUNG (726-7864)
POR FAVOR LLAMAR 1-800-SAMSUNG (726-7864) PARA ASISTENCIA TECNICA

2
Health and safety informationContents
Warnings
Do not use your camera near flammable or explosive
gases and liquids
Do not use your camera near fuels, combustibles, or
flammable chemicals. Do not store or carry flammable
liquids, gases, or explosive materials in the same
compartment as the camera or its accessories.
Keep your camera away from small children and pets
Keep your camera and all accessories out of the reach of
small children and animals. Small parts may cause choking
or serious injury if swallowed. Moving parts and accessories
may present physical dangers as well.
Prevent damage to subjects’ eyesight
Do not use the flash in close proximity (closer than 1m/3 ft) to
people or animals. Using the flash too close to your subject’s
eyes can cause temporary or permanent damage.
Health and safety
information…………………… 2
Camera layout ……………… 4
Setting up your camera …… 5
Unpacking ……………………… 5
Inserting the battery and
memory card …………………… 6
Charging the battery …………… 7
Selecting options ……………… 7
Capturing photos or videos … 8
Playing files ………………… 9
Transferring files to a PC
(Windows) …………………… 10
Specifications ……………… 11
1
8
7
31
19
53
94
87
14
12

3
English
Exercise caution when connecting cables or adapters•
and installing batteries and memory cards. Forcing
the connectors, improperly connecting cables, or
improperly installing batteries and memory cards can
damage ports, connectors, and accessories.
Do not insert foreign objects into any of your camera’s•
compartments, slots, or access points. This type of
damage may not be covered by your warranty.
Protect batteries, chargers, and memory cards from
damage
Avoid exposing batteries or memory cards to very•
cold or very hot temperatures (below 0° C/32° F or
above 40° C/104° F). Extreme temperatures can
reduce the charging capacity of your batteries and
can cause memory cards to malfunction.
Prevent memory cards from making contact with•
liquids, dirt, or foreign substances. If dirty, wipe the
memory card clean with a soft cloth before inserting
in your camera.
Handle and dispose of batteries and chargers with
care
Use only Samsung-approved batteries and chargers.•
Incompatible batteries and chargers can cause serious
injuries or damage to your camera.
Never place batteries or cameras on or in heating•
devices, such as microwave ovens, stoves, or
radiators. Batteries may explode when overheated.
Cautions
Handle and store your camera carefully and sensibly
Do not allow your camera to get wet—liquids can•
cause serious damage. Do not handle your camera
with wet hands. Water damage to your camera can
void your manufacturer’s warranty.
Avoid using or storing your camera in dusty, dirty,•
humid, or poorly-ventilated areas to prevent damage
to moving parts and internal components.

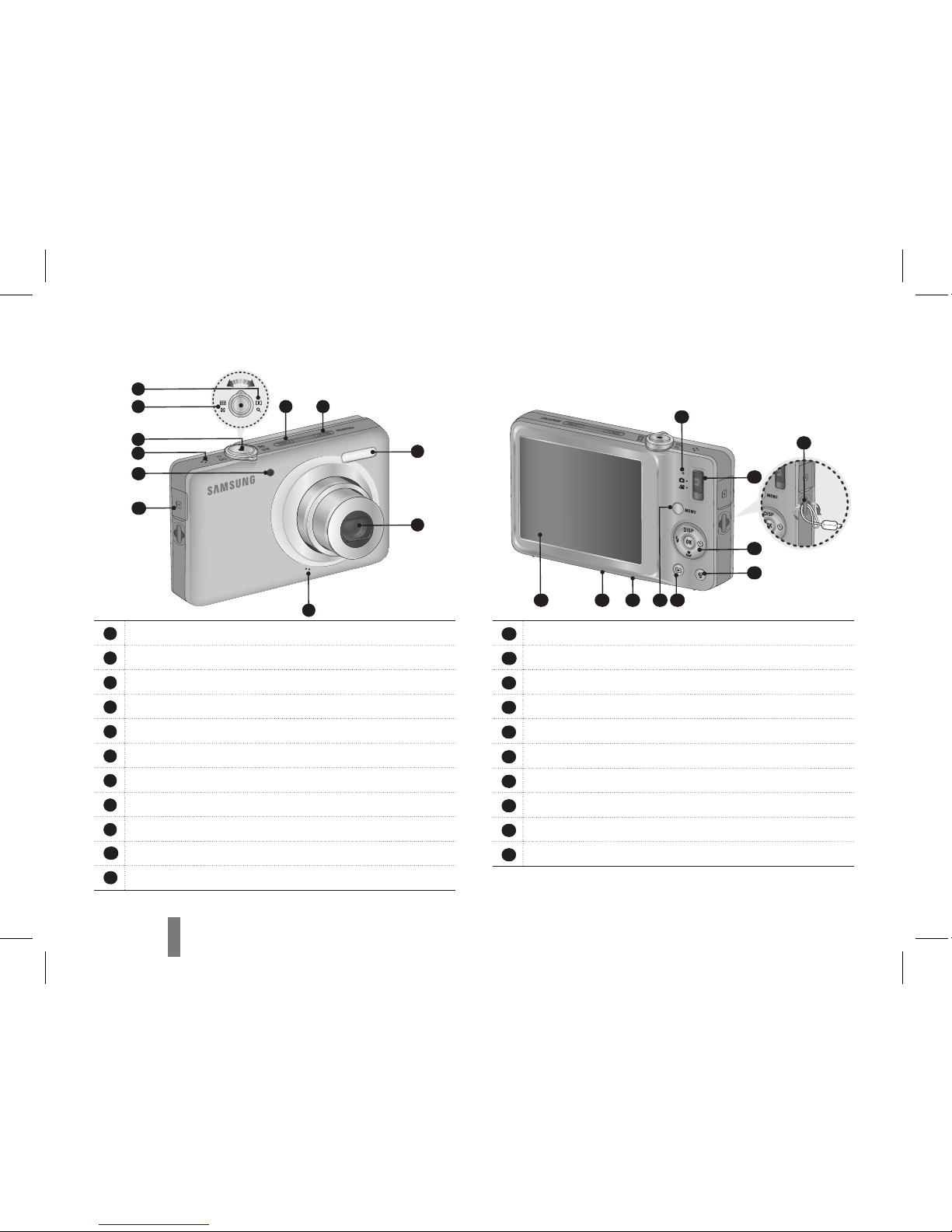

4
1
Speaker
2
Shutter button
3
Zoom W Lever (Thumbnail)
4
Zoom T Lever (Digital zoom)
5
POWER button
6
Smart button
7
Flash
8
Lens / Lens cover
9
Microphone
10
USB / AV / DC terminal
11
AF-assist light/timer lamp
Camera layout
12
Status lamp
13
Mode switch
14
Strap eyelet
15
Navigation button/OK button
16
Delete button
17
Playback button
18
MENU button
19
Battery chamber cover
20
Tripod mount
21
LCD monitor
7
5 63
4
8
9
1
2
10
11
15
13
16
12
17 20 19 21
14
18

5
English
Setting up your camera
Camera Rechargeable Battery
4302-001227
AC adapter/USB cable
AD44-00143A/AD39-00165A
Camera strap
AD63-02596A
AD63-02604A
Quick Start Manual
AD68-04417A
Software CD-ROM
(User manual included)
AD46-00288A
Please check that you have the correct contents before using this product. The contents can vary depending on the sales region.
To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre.
Unpacking
Memory cards
Camera case
A/V cable
AD39-00146A
Optional accessories

6
Setting up your camera
Inserting the battery and memory card
Push gently until the card
disengages from the camera
and then pull it out of the slot.
▼ Removing the memroy card ▼ Removing the battery
With the Samsung logo
2
facing up
1 4
With the gold-coloured
3
contacts facing down

7
English
In Shooting mode, press [
1
].
Use the navigation buttons to scroll to an
2
option or menu.
Back
EV
Move
To move left or right, press [▪] or [ ].
To move up or down, press [▪] or [ ].
Press [
3
] to confirm the highlighted option or
menu.
Press [▪] again to go back to the previous
menu.
Selecting optionsCharging the battery
Indicator light
Red▪: Charging
Green▪: Fully charged
Before using the camera for the first time, you must
charge the battery.

8
Taking a photo
Push the Mode switch to (
1
).
(Press [ ] to select ( ).)
Align your subject in the frame.
2
Press [
3
Shutter] halfway down to focus
automatically.
A green frame means the subject in focus.▪
Press [
4
Shutter] all the way down to take the
photo.
Recording a video
Push the Mode switch to (
1
).
(Press [ ] to select ( ).)
Align your subject in the frame.
2
Press [
3
Shutter].
Press [▪] to pause or resume.
Press [
4
Shutter] again to stop the recording.
Note
Number of photos by resolution (for 1 GB SD)
Resolution Super fine Fine Normal
4000 x 3000 169 240 365
3984 x 2656 196 270 411
3968 x 2232 231 308 481
3264 x 2448 246 328 519
2592 x 1944 365 493 705
2048 x 1536 548 680 759
1024 x 768 986 1,095 1,232
These figures are measured under Samsung’s standard
conditions and may vary depending on shooting conditions
and camera settings.
Capturing photos or videos

9
English
Playing files
Viewing photos
Press [
1
].
Press [
2
] or [ ] to scroll through files.
Press and hold to view files quickly.▪
Viewing videos
Press
1
[ ].
Press [
2
].
Play Capture
Use the following buttons to control playback.
3
[ ] Scan backward
[]Pause or resume playback
[]Scan forward
[Zoom] up or
down Adjust the volume level

10
Transferring files to a PC (Windows)
Insert the installation CD in a CD-ROM drive
1
and follow the onscreen instructions.
Connect the camera to the PC with the USB
2
cable.
Turn on the camera.
3
On your PC, select
4
My Computer →
Removable Disk →DCIM →100PHOTO.
Select the files you want and drag or save them
5
to the PC.
Disconnecting safely (for Windows XP)
Click
▼
Click
