This User Manual has been specially designed to guide you
through the basic functions and features of your device.
Please read this User Manual and the User Manual on the
CD-ROM carefully to ensure safe and correct use.
For more information, refer to
the User Manual included on the
supplied CD-ROM.
ENG / TUR
ST600_QSM_TUR.indb 3 2010-07-27 오전 9:40:47

2
Copyright information
Microsoft Windows and the Windows logo are registered•
trademarks of the Microsoft Corporation.
Mac is a registered trademark of the Apple Corporation.•
HDMI, the HDMI logo and the term "High Definition•
Multimedia Interface" are trademarks or registered
trademarks of HDMI Licensing LLC.
Camera specifications or contents of this manual may•
be changed without prior notice due to upgrade of
camera functions.
We recommend using your camera within a country•
where you purchase it.
For Open Source License information, refer to the•
“OpenSourceInfo.pdf” in the provided CD-ROM.
Contents
Get answers to common questions …3
Health and safety information ……… 4
Camera layout ………………………… 6
Setting up your camera ……………… 8
Unpacking …………………………………8
Inserting the battery and memory card …9
Removing the battery and memory card… 9
Charging the battery …………………… 10
Turning on your camera………………… 10
Performing the initial setup …………… 11
Using the touch screen …………… 12
Selecting a shooting mode ………… 13
Selecting a shooting mode using
motion recognition ………………… 14
Capturing photos or videos ……… 15
Transferring files to a PC (Windows) 17
Specifications ……………………… 18
ST600_QSM_TUR.indb 2 2010-07-27 오전 9:40:47

3
English

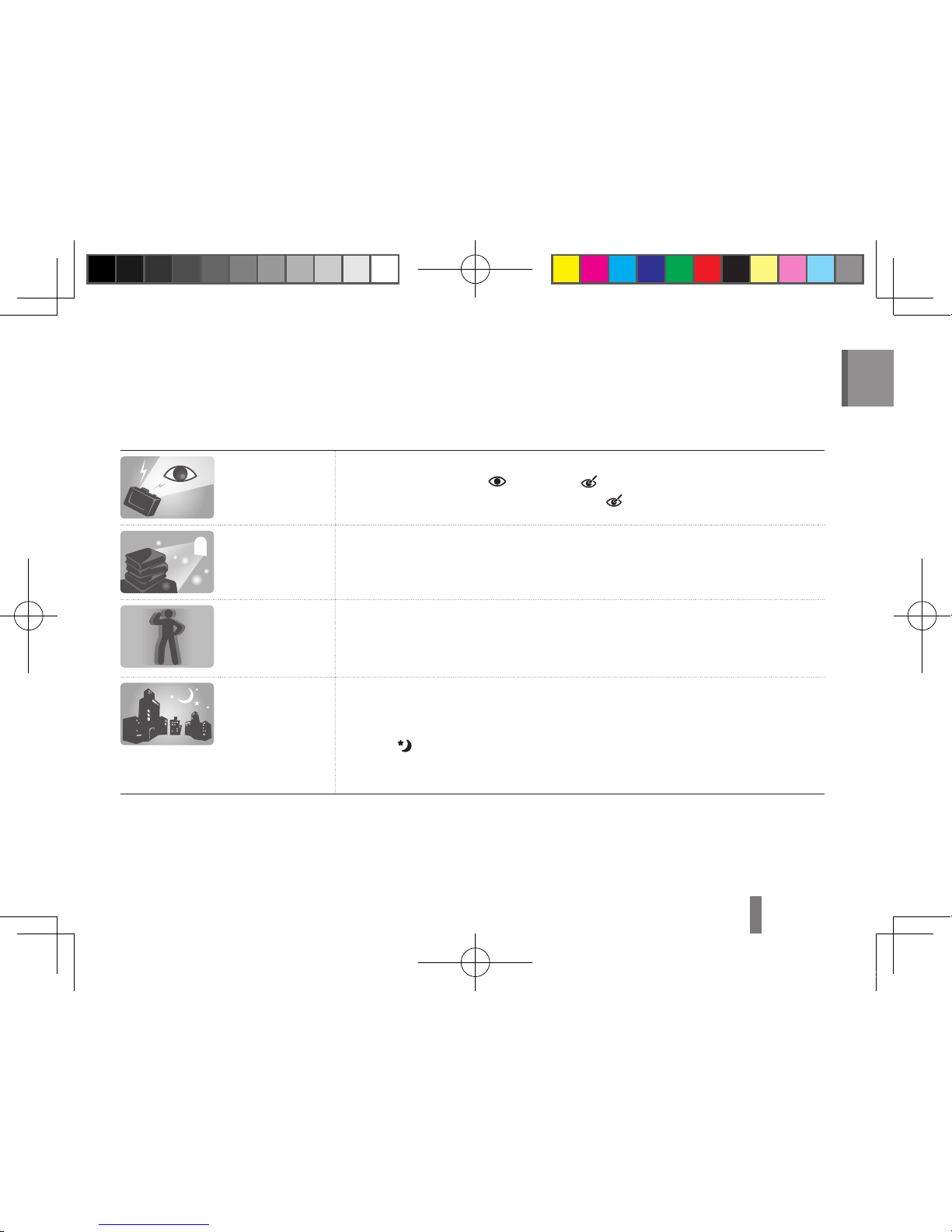

Get answers to common questions
You can easily solve most problems by setting shooting options.
There are more details about how to set shooting options in the CD version of the user manual.
The subject's
eyes appear red.
This is caused by a reflection from the camera flash.
Set the flash option to• Red-eye or Red-eye Fix.
If the photo has already been taken, select• Red-eye Fix in the edit menu.
Photos have
dust spots.
Dust particles floating in the air may be captured in photos when using the flash.
Turn off the flash or avoid taking photos in a dusty place.•
Set ISO speed options.•
Photos are
blurred.
This may be caused by taking photos in low light conditions or holding the camera
incorrectly.
Use the• dmode.
Press [• Shutter] halfway down to make sure the subject is focused.
Photos are
blurred when
shooting at night.
As the camera tries to let in more light, the shutter speed slows.
This can make it difficult to steady the camera and may result in camera shake.
Turn on the flash.•
Select• Night in the smode.
Set ISO speed options.•
Use a tripod to prevent your camera from shaking.•
ST600_QSM_TUR.indb 3 2010-07-27 오전 9:40:49

4
Health and safety information
Comply with the following precautions to avoid dangerous
or illegal situations while operating the camera and keep
this manual handy for future reference.
Warnings
Do not use your camera near flammable or explosive
gases and liquids
Do not use your camera near fuels, combustibles, or
flammable chemicals. Do not store or carry flammable
liquids, gases, or explosive materials in the same
compartment as the camera or its accessories.
Keep your camera away from small children and pets
Keep your camera and all accessories out of the reach
of small children and animals. Small parts may cause
choking or serious injury if swallowed. Moving parts and
accessories may present physical dangers as well.
Prevent damage to subjects’ eyesight
Do not use the flash in close proximity (closer than 1 m/
3 ft) to people or animals. Using the flash too close to
your subject’s eyes can cause temporary or permanent
damage.
Handle and dispose of batteries and chargers
with care
Use only Samsung-approved batteries and chargers.•
Incompatible batteries and chargers can cause serious
injuries or damage to your camera.
Never dispose of batteries in a fire. Follow all local•
regulations when disposing of used batteries.
Never place batteries or cameras on or in heating•
devices, such as microwave ovens, stoves, or
radiators. Batteries may explode when overheated.
ST600_QSM_TUR.indb 4 2010-07-27 오전 9:40:49

5
English
Protect batteries, chargers, and memory cards from
damage
Avoid exposing batteries or memory cards to very cold•
or very hot temperatures (below 0° C/32° F or above
40° C/104° F). Extreme temperatures can reduce the
charging capacity of your batteries and can cause
memory cards to malfunction.
Prevent batteries from making contact with metal•
objects, as this can create a connection between
the + and – terminals of your battery and lead to
temporary or permanent battery damage.
Prevent memory cards from making contact with•
liquids, dirt, or foreign substances. If dirty, wipe the
memory card clean with a soft cloth before inserting in
your camera.
Use only Samsung-approved accessories
Using incompatible accessories may damage your
camera, cause injury, or void your warranty.
Protect your camera’s lens
Protect your lens from fingerprints and scratches. Clean
your lens with a soft, clean, debris-free lens cloth.
Cautions
Handle and store your camera carefully and sensibly
Do not allow your camera to get wet—liquids can•
cause serious damage. Do not handle your camera
with wet hands. Water damage to your camera can
void your manufacturer’s warranty.
Avoid using or storing your camera in dusty, dirty,•
humid, or poorly-ventilated areas to prevent damage
to moving parts and internal components.
Protect your camera from impact, rough handling, and•
excessive vibration to avoid serious damage.
Exercise caution when connecting cables or adapters•
and installing batteries and memory cards. Forcing
the connectors, improperly connecting cables, or
improperly installing batteries and memory cards can
damage ports, connectors, and accessories.
Do not insert foreign objects into any of your camera’s•
compartments, slots, or access points. This type of
damage may not be covered by your warranty.
ST600_QSM_TUR.indb 5 2010-07-27 오전 9:40:49

6
Camera layout
Battery chamber cover
Tripod mount
USB and A/V port
HDMI port
Speaker
Shutter button
POWER button
Lens
Microphone
Front LCD button
AF-assist light/timer
lamp
Flash
Front display
ST600_QSM_TUR.indb 6 2010-07-27 오전 9:40:50

7
English
Zoom button
Status lamp
Main display
1
2
Playback button
ST600_QSM_TUR.indb 7 2010-07-27 오전 9:40:50

8
Setting up your camera
Unpacking
Camera AC adapter/USB cable Rechargeable battery Strap
Cleaner User Manual CD-ROM User Manual
Basic Opertaion
Optional accessories
Camera case Memory card
(microSD
TM
)
A/V cable Battery charger HDMI cable
ST600_QSM_TUR.indb 8 2010-07-27 오전 9:40:53

9
English

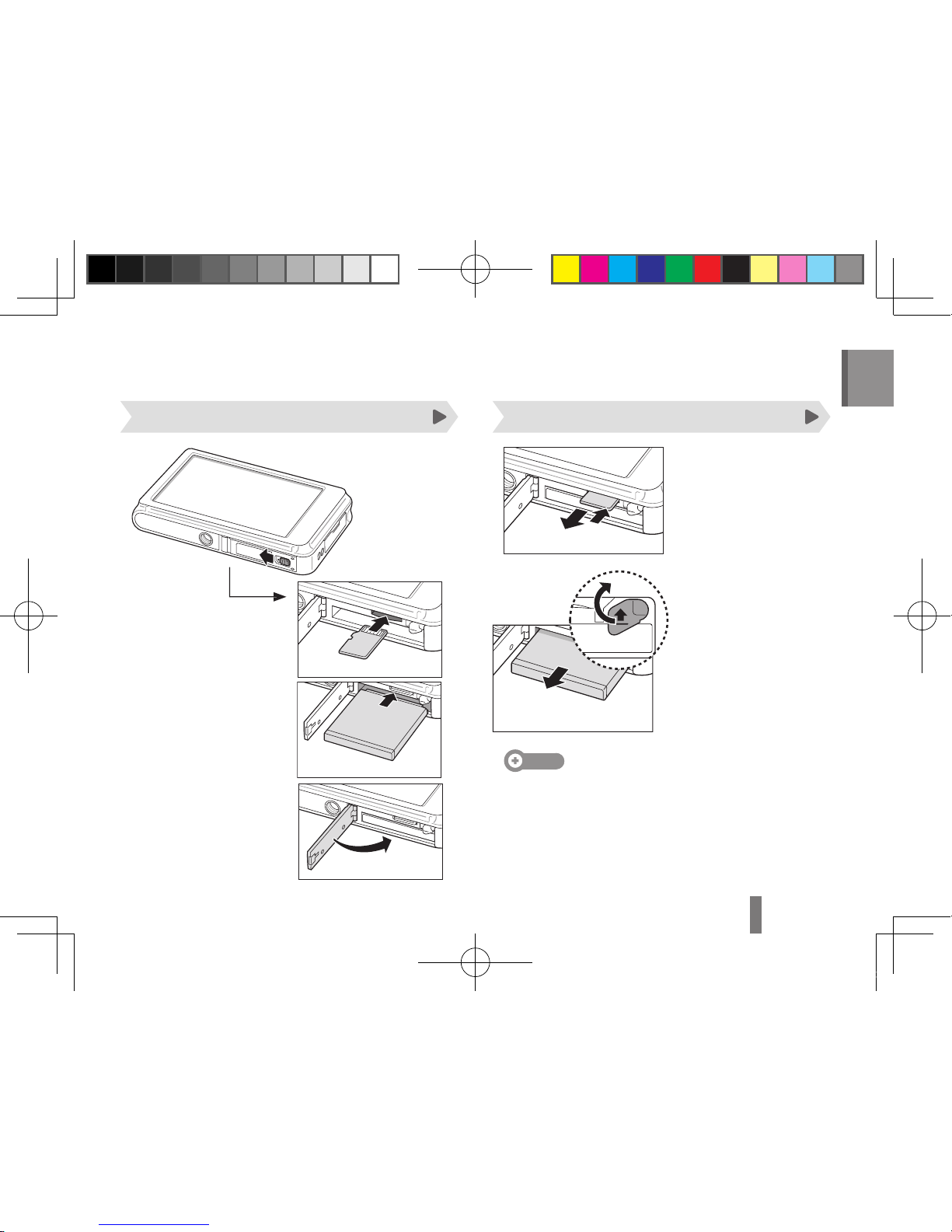

Inserting the battery and memory card Removing the battery and memory card
Note
The internal memory can be used as a temporary
storage device when the memory card is not inserted.
Insert a memory card with
the gold-colored contacts
facing up.
Insert the battery with the
Samsung logo facing up.
Push gently the card until
the card disengages from
the camera and then pull
it out of the slot.
Push the lock up to
release the battery.
Battery
Battery lock
Memory card
Memory card
Battery
ST600_QSM_TUR.indb 9 2010-07-27 오전 9:40:55

10
Press [POWER].
Setting up your camera
Charging the battery Turning on your camera
Press [Playback] to turn on
the camera in Playback mode.
Before using the camera for the first time, you must
charge the battery.
Indicator light
Red▪: Charging
Green▪: Fully charged
ST600_QSM_TUR.indb 10 2010-07-27 오전 9:40:55

11
English
Select
5
Date/Time Set.
Set the date and time, and select
6
.
Date/Time Set
Select
7
Date Type and a date format.
YYYY/MM/DD
MM/DD/YYYY
DD/MM/YYYY
Off
Language
Time Zone
Date/Time Set
Date Type
Select
8
to switch to the Shooting mode.
Select
1
Language.
Select a language.
2
Select
3
Time Zone.
Select a time zone and select
4
.
To set the daylight-saving time, select▪.
Time Zone
London
Performing the initial setup
ST600_QSM_TUR.indb 11 2010-07-27 오전 9:40:57

12
Caution
Do not use other sharp objects, such as pens or pencils, to
touch the screen. Doing so may damage the screen.
Touching
Touch an icon to select a menu or option.
Dragging
Drag left or right to scroll horizontally.
-2 -1 0+2-2 -
1
0
0
+
2+1
EV
Using the touch screen
ST600_QSM_TUR.indb 12 2010-07-27 오전 9:40:58

13
English

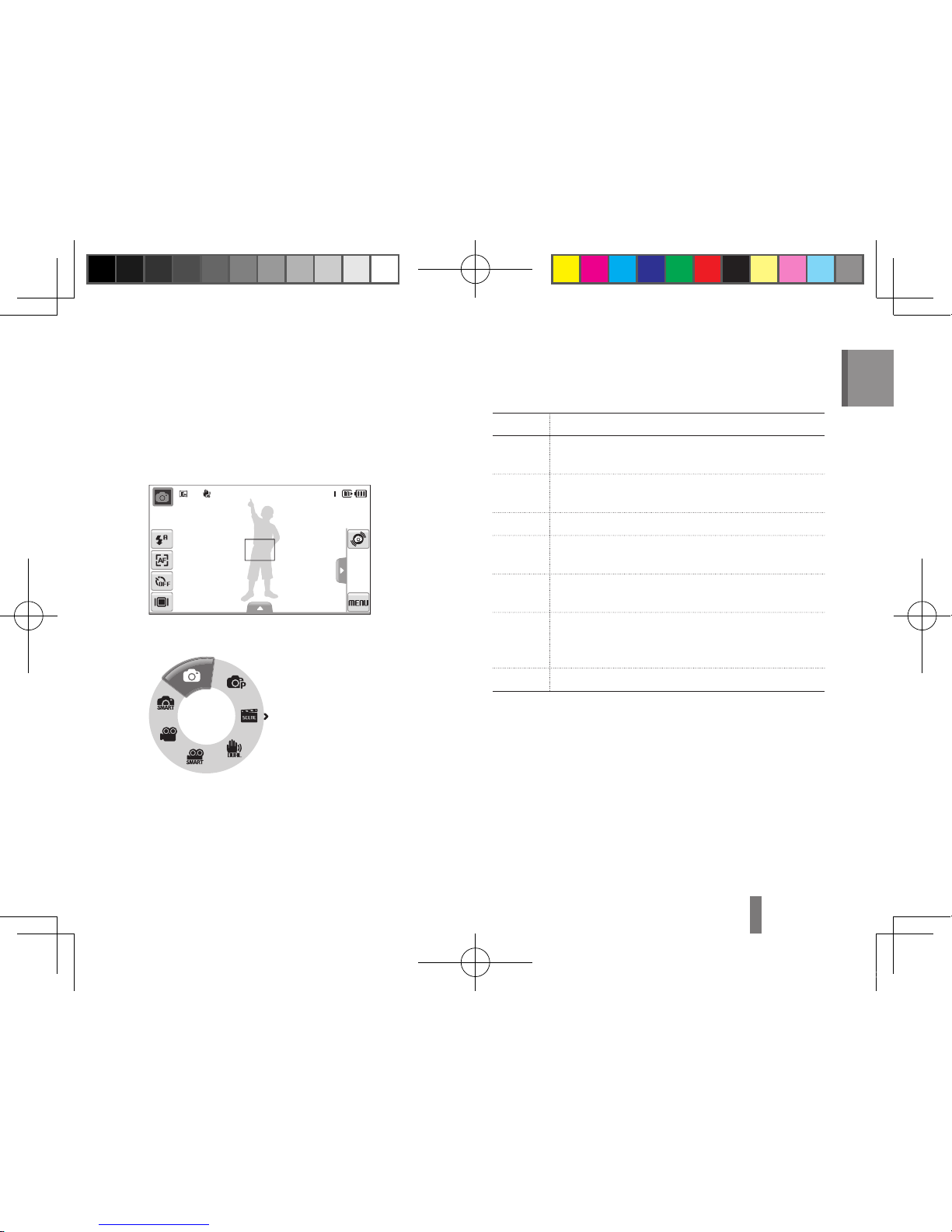

Learn how to select a shooting mode. Your camera
provides you with various modes for shooting.
Select the mode icon.
1
Select a mode.
2
Mode Description
SSmart Auto: Take a photo by letting the
camera select a scene mode as it detects.
aAuto: Take a photo quickly and easily with
minimal settings.
pProgram: Take a photo by setting options.
sScene: Take a photo with options preset for a
specific scene.
dDUAL IS: Take a photo with options suitable
for reducing camera shake.
D
Smart Scene Detection: Record a video by
letting the camera select a scene mode as it
detects.
vMovie: Record a video.
Selecting a shooting mode
ST600_QSM_TUR.indb 13 2010-07-27 오전 9:40:59

14

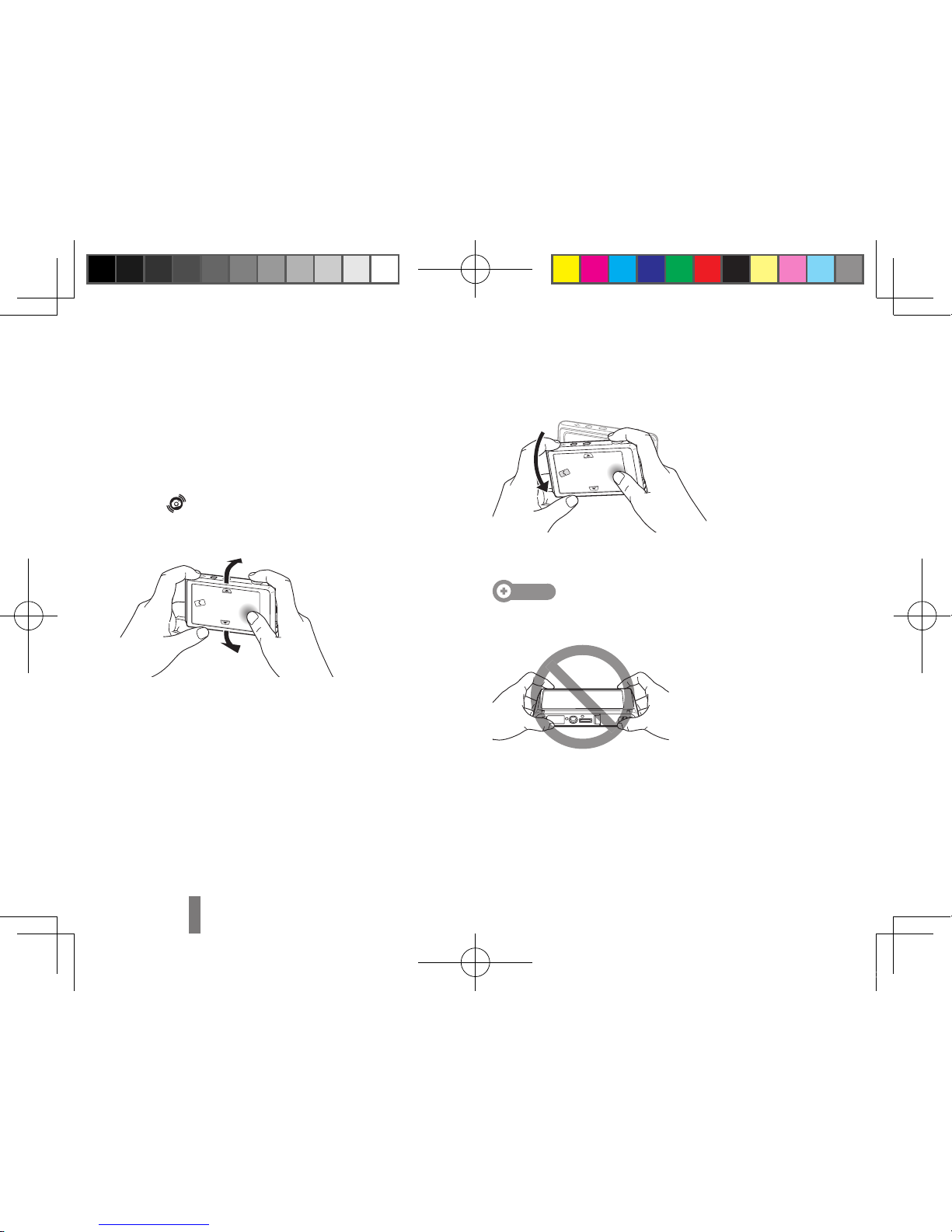

Selecting a shooting mode using motion recognition
Note
Motion recognition may not work well if you hold the
camera parallel to the ground, as shown below.
Access the Smart Auto mode
Your camera features a built-in motion sensor that allows
you to quickly switch the shooting mode by tilting the
camera.
In Shooting mode, tilt the camera while touching and
holding .
Access the Program mode
Access the Movie mode
ST600_QSM_TUR.indb 14 2010-07-27 오전 9:40:59

15
English
Capturing photos or videos
Taking a photo
Make sure that the camera is in the
1
amode
(Auto mode).
Align your subject in the frame.
2
Press [
3
Shutter] halfway down to focus
automatically.
A green frame means the subject in focus.▪
Press [
4
Shutter] all the way down to take the
photo.
Viewing photos
Press [
1
Playback].
Drag files left or right to scroll through files.
2
You can also view files by tilting your camera.▪
You can select and hold▪<or >to view photos.
Note
Number of photos by resolution (for 1 GB microSDTM)
Resolution Super fine Fine Normal
4320 X 3240 122 240 353
4320 X 2880 137 267 391
4000 X 3000 142 278 409
4320 X 2432 163 320 471
3264 X 2448 211 409 594
2560 X 1920 335 637 908
2048 X 1536 510 936 1,314
1920 X 1080 762 1,373 1,931
1024 X 768 1,626 2,575 3,090
These figures are measured under Samsung’s standard conditions and may
vary depending on shooting conditions and camera settings.
ST600_QSM_TUR.indb 15 2010-07-27 오전 9:41:00

16
Viewing videos
Press [
1
Playback] and select .
Use the following icons to control playback.
2
Scan backward. The camera scans
backward in 2X, 4X, and 8X increments
when you select and hold .
/
Pause or resume playback
Stop playback
Scan forward. The camera scans
forward in 2X, 4X, and 8X increments
when you select and hold .
Adjust volume or mute sound
Recording a video
Select
1
a→v.
Align your subject in the frame.
2
Press [
3
Shutter].
To pause, select▪.
To resume, select▪.
Press [
4
Shutter] again to stop recording.
Note
You can record video of up to 20 minutes in length.
Capturing photos or videos
ST600_QSM_TUR.indb 16 2010-07-27 오전 9:41:00

17
English
Transferring files to a PC (Windows)
Connect the camera to your computer with the
1
USB cable.
Note
Make sure that the PC Software option is set to On in the
settings menu.
Turn on the camera.
2
The computer recognizes the camera automatically.▪
For Windows Vista and Windows 7, select▪
Run iStudio.exe from the AutoPlay window.
Select a folder on your computer to save new
3
files.
If your camera has no new files, the pop-up window▪
for saving new files will not appear.
Select
4
Yes.
New files will be transferred to your computer.▪
You can now use the Intelli-studio program.
Note
About Intelli-studio
Intelli-studio is a built-in program that allows you to play
back and edit files. You can upload files to websites,
such as Flickr or YouTube. Also, you can download short
animations for use in children mode.
ST600_QSM_TUR.indb 17 2010-07-27 오전 9:41:00

18
Specifications
sensor
Type 1/2.3" (Approx. 7.76 mm) CCD
Pixels
Effective pixels: approx. 14.2 mega-
pixels, Total pixels: approx. 14.48
mega-pixels
Lens
Focal length
Schneider-KREUZNACH lens
f = 4.9 - 24.5 mm
(35 mm film equivalent: 27 - 135 mm)
F-stop range F3.5 (W) - F5.9 (T)
Display
Main Display: 3.5" (8.9 cm) Wide•
1,152 K/Full Touch Screen Panel
Front Display: 1.8" (4.6 cm) 116 K/•
TFT LCD
Focusing
Type
TTL auto focus (Multi AF, Center AF,
Smart Face Recognition AF, Face
Detection AF, Smart Touch AF, One
Touch Shooting)
Range
Wide Tele
Normal 80 cm - infinity 80 cm - infinity
Macro 5 cm - 80 cm 50 cm - 80 cm
Auto
Macro 5 cm - infinity 50 cm - infinity
Shutter speed
Auto: 1/8 - 1/2,000 sec.•
Program: 1 - 1/2,000 sec.•
Night: 8 - 1/2,000 sec.•
Firework: 2 sec.•
Shake reduction
DUAL IS [OIS (Optical Image
Stabilisation) + DIS (Digital Image
Stabilisation)]
Storage
Internal memory: approx. 30 MB•
External memory (Optional):•
microSD
TM
card (up to 2 GB
guaranteed), microSDHC
TM
card
(up to 8 GB guaranteed)
Internal memory capacity may not match
these specifications.
Interface
Digital output Connector: USB 2.0
Audio input/
output
Internal speaker (Mono),
Microphone (Mono)
Video output A/V: NTSC, PAL (selectable)•
HDMI 1.4: NTSC, PAL (selectable)•
DC power
input
connector
20 pin, 4.4 V
Rechargeable
battery
Lithium-ion battery
(SLB-07, 760mAh)
Dimensions (W x H x D) 103.5 x 59.9 x 19.9 mm
Weight 147.23 g
(without battery and memory card)
Operating temperature 0 - 40° C
Operating humidity 5 - 85 %
ST600_QSM_TUR.indb 18 2010-07-27 오전 9:41:00

19
English
PlanetFirst represents Samsung Electronics'
commitment to the sustainable development
and social responsibility through eco-driven
business and management activities.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other
European countries with separate collection
systems)
This marking on the product, accessories or literature
indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be
disposed of with other household waste at the end
of their working life. To prevent possible harm to the
environment or human health from uncontrolled waste
disposal, please separate these items from other types
of waste and recycle them responsibly to promote the
sustainable reuse of material resources. Household
users should contact either the retailer where they
purchased this product, or their local government office,
for details of where and how they can take these items
for environmentally safe recycling. Business users should
contact their supplier and check the terms and conditions
of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial
wastes for disposal.
Correct disposal of batteries in this product
(Applicable in the European Union and other
European countries with separate battery
return systems)
This marking on the battery, manual or packaging
indicates that the batteries in this product should not be
disposed of with other household waste at the end of
their working life. Where marked, the chemical symbols
Hg, Cd or Pb indicate that the battery contains mercury,
cadmium or lead above the reference levels in EC
Directive 2006/66. If batteries are not properly disposed
of, these substances can cause harm to human health or
the environment.
To protect natural resources and to promote material
reuse, please separate batteries from other types of
waste and recycle them through your local, free battery
return system.
ST600_QSM_TUR.indb 19 2010-07-27 오전 9:41:01

TR-2
Telif hakkı bilgileri
Microsoft Windows ve Windows logosu, Microsoft•
Corporation'ıntescilliticarimarkalarıdır.
Mac,AppleCorporation'ıntescilliticarimarkasıdır.•
HDMI,HDMIlogosuve"HighDenitionMultimediaInterface"•
terimiHDMILicensingLLC'ninticarimarkalarıveyatescilli
ticarimarkalarıdır.
Kameranıntekniközellikleriveyabukılavuzuniçeriği•
kameraişlevlerininyükseltilmesinedeniyleönceden
haberverilmedendeğiştirilebilir.
Kameranızısatınaldığınızülkedekullanmanızı•
öneriyoruz.
AçıkKaynakLisansbilgileriiçinbirlikteverilen•
CD-ROM’daki“OpenSourceInfo.pdf”dosyasınabakın.
İçindekiler
Genel soruların yanıtları …………… 3
Sağlık ve Güvenlik Bilgileri ………… 4
Kamera yerleşimi …………………… 6
Kameranızı ayarlama………………… 8
Paketiaçma ………………………………8
Pilivehafızakartınıtakma ………………9
Pilivehafızakartınıçıkarma ……………9
Pilişarjetme …………………………… 10
Kameranızıaçma ……………………… 10
Başlangıçkurulumunuyapma………… 11
Dokunmatik ekranı kullanma …… 12
Bir çekim modu seçme …………… 13
Hareket algılamayı kullanarak bir
çekim modu seçme ……………… 14
Fotoğraf veya video çekme ……… 15
Dosyaları bilgisayara aktarma
(Windows) ………………………… 17
Teknik Özellikler …………………… 18
ST600_QSM_TUR.indb 2 2010-07-27 오전 9:41:01
