Contents
Get answers to common questions …3
Health and safety information ……… 4
Camera layout ………………………… 6
Setting up your camera ……………… 8
Unpacking …………………………………8
Inserting the battery and memory card …9
Removing the battery and memory card… 9
Charging the battery …………………… 10
Turning on your camera………………… 10
Selecting a language …………………… 11
Setting the date and time ……………… 11
Selecting options …………………… 12
Capturing photos or videos ……… 13
Transferring files to a PC
(Windows) …………………………… 16
Specifications ……………………… 17

3
English
Get answers to common questions
You can easily solve most problems by setting shooting options.
There are more details about how to set shooting options in the CD version of the user manual.
The subject's
eyes appear red.
This is caused by a reflection from the camera flash.
Set the flash option to• Red–eye or Red–eye Fix.
If the photo has already been taken, select• Red–eye Fix in the edit menu.
Photos have
dust
spots.
Dust particles floating in the air may be captured in photos when using the flash.
Turn off the flash or avoid taking photos in a dusty place.•
Set ISO speed options.•
Photos are
blurred.
This may be caused by taking photos in low light conditions or holding the camera
incorrectly.
Use the• dmode.
Press [• Shutter] halfway down to make sure the subject is focused.
Photos are
blurred when
shooting at night.
As the camera tries to let in more light, the shutter speed slows.
This can make it difficult to steady the camera and may result in camera shake.
Turn on the flash.•
Select• Night in the smode.
Set ISO speed options.•
Use a tripod to prevent your camera from shaking.•

4
Health and safety information
Comply with the following precautions to avoid dangerous
or illegal situations while operating the camera and keep
this manual handy for future reference.
Warnings
Do not use your camera near flammable or explosive
gases and liquids
Do not use your camera near fuels, combustibles, or
flammable chemicals. Do not store or carry flammable
liquids, gases, or explosive materials in the same
compartment as the camera or its accessories.
Keep your camera away from small children and pets
Keep your camera and all accessories out of the reach
of small children and animals. Small parts may cause
choking or serious injury if swallowed. Moving parts and
accessories may present physical dangers as well.
Prevent damage to subjects’ eyesight
Do not use the flash in close proximity (closer than 1m/3
ft) to people or animals. Using the flash too close to
your subject’s eyes can cause temporary or permanent
damage.
Handle and dispose of batteries and chargers
with care
Use only Samsung-approved batteries and chargers.•
Incompatible batteries and chargers can cause serious
injuries or damage to your camera.
Never dispose of batteries in a fire. Follow all local•
regulations when disposing of used batteries.
Never place batteries or cameras on or in heating•
devices, such as microwave ovens, stoves, or
radiators. Batteries may explode when overheated.

5
English
Protect batteries, chargers, and memory cards from
damage
Avoid exposing batteries or memory cards to very cold•
or very hot temperatures (below 0° C/32° F or above
40° C/104° F). Extreme temperatures can reduce the
charging capacity of your batteries and can cause
memory cards to malfunction.
Prevent batteries from making contact with metal•
objects, as this can create a connection between the +
and – terminals of your battery and lead to temporary
or permanent battery damage.
Prevent memory cards from making contact with•
liquids, dirt, or foreign substances. If dirty, wipe the
memory card clean with a soft cloth before inserting in
your camera.
Use only Samsung-approved accessories
Using incompatible accessories may damage your
camera, cause injury, or void your warranty.
Protect your camera’s lens
Protect your lens from fingerprints and scratches. Clean
your lens with a soft, clean, debris-free lens cloth.
Cautions
Handle and store your camera carefully and sensibly
Do not allow your camera to get wet—liquids can•
cause serious damage. Do not handle your camera
with wet hands. Water damage to your camera can
void your manufacturer’s warranty.
Avoid using or storing your camera in dusty, dirty,•
humid, or poorly-ventilated areas to prevent damage
to moving parts and internal components.
Protect your camera from impact, rough handling, and•
excessive vibration to avoid serious damage.
Exercise caution when connecting cables or adapters•
and installing batteries and memory cards. Forcing
the connectors, improperly connecting cables, or
improperly installing batteries and memory cards can
damage ports, connectors, and accessories.
Do not insert foreign objects into any of your camera’s•
compartments, slots, or access points. This type of
damage may not be covered by your warranty.

6
Camera layout
Mode dial POWER button
GPS button
GPS antenna
Lens
Speaker
Tripod mount
Shutter button
Flash
AF-assist light/timer lamp
Battery chamber cover

7
English
Status lamp USB and A/V port
Video shooting button
HDMI port
Display
Microphone
Strap eyelet
Zoom button
Navigation button/
OK button
Playback button
Function / Delete button
MENU button

8
Setting up your camera
Unpacking
Sold Separately
Camera AC adapter/USB cable Rechargeable battery Strap
User Manual CD-ROM Quick Start Manual
Camera case Memory cards A/V cable Battery Charger HDMI cable

9
English

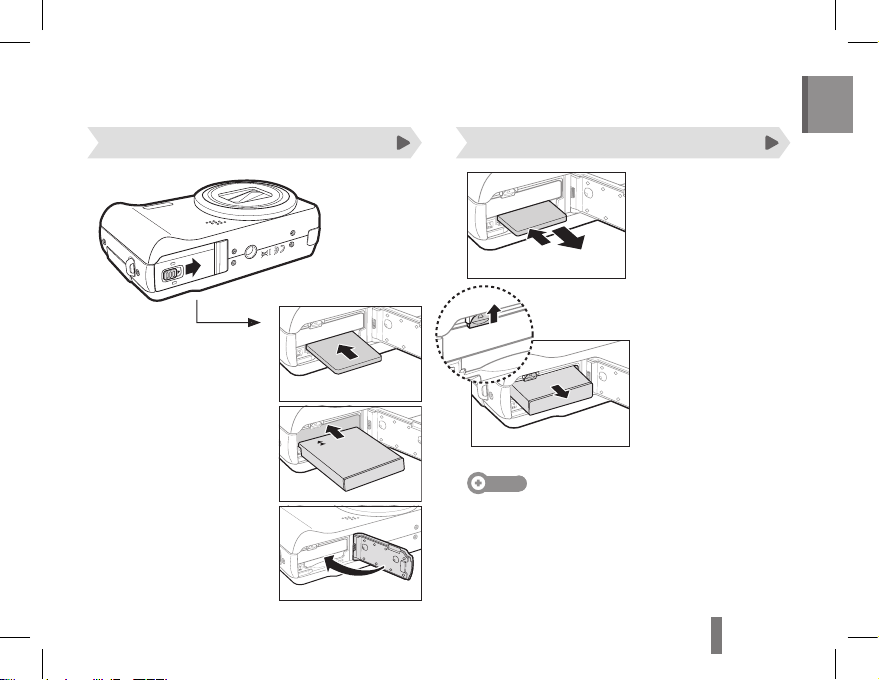

Inserting the battery and memory card Removing the battery and memory card
Note
The internal memory can be used as a temporary storage
device when the memory card is not inserted.
Insert a memory card
with the gold-coloured
contacts facing up.
Insert the battery with
the Samsung logo facing
down.
Push gently until the card
disengages from the
camera and then pull it
out of the slot.
Push the lock up to
release the battery.
Battery
Battery lock
Memory card

10
Press [POWER].
Setting up your camera
Charging the battery Turning on your camera
Indicator light
Red▪: Charging
Green▪: Fully charged
Before using the camera for the first time, you
must charge the battery.
Press [▪P] to turn on the camera
in Playback mode.
Press and hold [▪P] to mute
camera sounds.

11
English
Press [
5
F] or [t] to select a time zone and
press [o].
To set the daylight-saving time, press [▪D].
Back DST
Press [
6
D] or [M] to select Date & Time
(Date & Time) and press [t] or [o].
Press [
7
F] or [t] to select an item.
Press [
8
D] or [M] to set the date and time or
select a date format, and press [o].
Press [
1
POWER].
The initial setup screen appears when you turn on▪
the camera for the first time.
Press [
2
t] to select Language and press [t]
or [o].
English
穢剳檺
Français
Deutsch
Español
Italiano
Language
Date & Time
Time Zone
Back Set
Press [
3
D] or [M] to select a language and
press [o].
Press [
4
D] or [M] to select Time Zone (Time
Zone) and press [t] or [o].
Performing the initial setup

12
You can select options by pressing [m] and using the
navigation buttons ([D], [M], [F], [t]).
Note
You can also access shooting options by pressing [f] but
some options are not available.
In Shooting mode, press [
1
m].
Use the navigation buttons to scroll to an option
2
or menu.
Back
White Balance
Move
To move left or right, press [▪F] or [t].
To move up or down, press [▪D] or [M].
Press [
3
o] to confirm the highlighted option or
menu.
Going back to the previous menu
Press [m] again to go back to the previous menu.
Note
Press [Shutter] to return to Shooting mode.

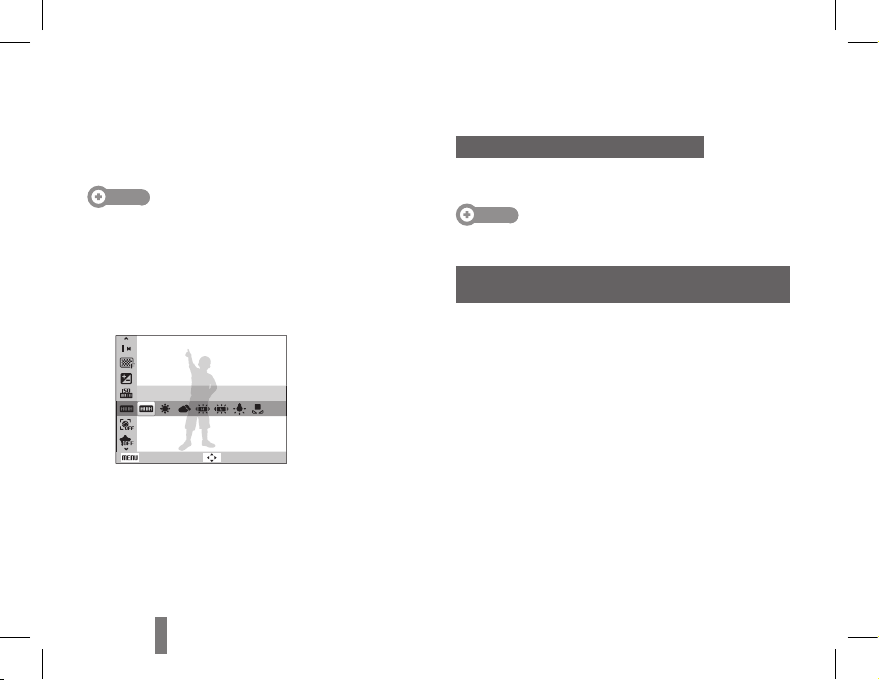

E.g. Selecting a white balance option in the
P mode

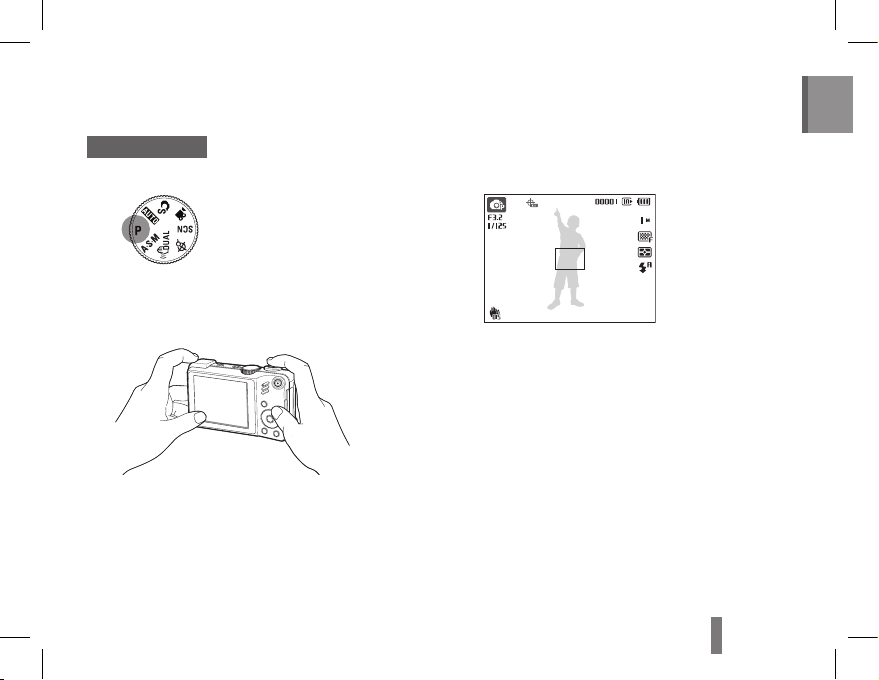

Rotate the mode dial to
1
p.
Press [
2
m].
Press [
3
D] or [M] to scroll to Shooting and
then press [t] or [o].
Press [
4
D] or [M] to scroll to White Balance
and then press [t] or [o].
Press [
5
F] or [t] to scroll to a white balance
option.
Press [
6
o].
Selecting options

13
English
Press [
3
Shutter] halfway down to focus
automatically.
A green frame means the subject in focus.▪
Press [
4
Shutter] all the way down to take the
photo.
Taking a photo
Rotate the mode dial to
1
S.
Align your subject in the frame.
2
Capturing photos or videos

14
Note
Number of photos by resolution (for 1 GB SD)
Resolution
4000 x 3000
147 284 403
3984 x 2656
167 313 441
3840 x 2160
202 367 528
3264 x 2448
211 374 537
2560 x 1920
339 566 792
2048 x 1536
532 802 1065
1920 x 1080
870 1144 1437
1024 x 768
1471 1670 1872
These figures are measured under Samsung’s standard
conditions and may vary depending on shooting conditions
and camera settings.
Viewing photos
Press [
1
P].
If the camera is off, it will turn on.▪
Press [
2
F] or [t] to scroll through files.
Press and hold to view files quickly.▪
Capturing photos or videos

15
English
Viewing videos
Press [
1
P].
Press [
2
o].
Pause
Use the following buttons to control playback.
3
[F]Scan backward
[o]Pause or resume playback
[t]Scan forward
[Zoom W/T] left or
right Adjust the volume level
Recording a video
Rotate the mode dial to
1
v.
Align your subject in the frame.
2
Press [
3
Shutter].
Press [▪o] to pause or resume.
Press [
4
Shutter] again to stop the recording.
Note
You can record video of up to 2 hours in length.

16
Transferring files to a PC (Windows)
Connect the camera to your computer with the
1
USB cable.
Note
Make sure that the PC Software option is set to On in the
settings menu.
Turn on the camera.
2
The computer recognizes the camera automatically.▪
For Windows Vista, select▪Run iStudio.exe from
the AutoPlay window.
Select a folder on your computer to save new
3
files.
If your camera has no new files, the pop-up window▪
for saving new files will not appear.
Select
4
Yes.
New files will be transferred to your computer.▪
You can now use the Intelli-studio program.
Note
About Intelli-studio
Intelli-studio is a built-in program that allows you to play
back and edit files. You can also upload files to websites,
such as Flickr or YouTube.

17
English
Specifications
sensor
Type 1/2.3" (Approx. 1.10 cm) CCD
Pixels
Effective pixels: Approx. 12.0 Mega-
pixel, Total pixels: Approx. 14.2
Mega-pixel
Lens
Focal length
Schneider-KREUZNACH lens
f = 3.9 ~ 58.5mm (35 mm film
equivalent: 24 ~ 360mm),
15X optical zoom
F-stop range F3.2(W) ~ F5.8(T)
Display AMOLED 3.0" (VGA 614,400 dots)
Focusing
Type
TTL auto focus (Multi AF, Center AF,
Selection AF, Tracking AF, Manual
Focus, Face Detection AF,
Face Recognition AF)
Range
Wide (W) Tele (T)
Normal 80 cm - infinity 2 m - infinity
Macro 3 cm - 80 cm 1 m - 2 m
Auto Macro 3 cm - infinity 1 m - infinity
Manual 3 cm - infinity 1 m - infinity
Shutter speed
Auto: 1- 1/2,000 sec.•
Manual: 16 - 1/2,000 sec.•
Night: 8 - 1/2,000 sec.•
Firework: 2 sec.•
Shake reduction
Dual IS (OIS + DIS)
OIS (Optical Image Stabilization),
DIS (Digital Image Stabilization)
Storage
Internal memory: approx. 128 MB•
External memory (Optional):•
SD card (Up to 2GB guaranteed),
SDHC card (Up to 8GB
guaranteed)
Internal memory capacity may not match
these specifications.
Interface
Digital output USB 2.0 (20 pin)
Audio output Mono (Internal speaker),
Stereo (Microphone)
Video output AV: NTSC, PAL (selectable)•
HDMI 1.4: NTSC, PAL (selectable)•
DC power
input
connector
20 pin, 4.4 V
Rechargeable battery Lithium-ion battery
(SLB-11A, 1,130 mAh)
Dimensions (W x H x D) 106.6 x 60.5 x 28 mm
(excluding protrusions)
Weight 214.6 g
(without battery and memory card)
Operating temperature 0 - 40° C
Operating humidity 5 - 85 %

18
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other
European countries with separate collection
systems)
This marking on the product, accessories or literature
indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be
disposed of with other household waste at the end
of their working life. To prevent possible harm to the
environment or human health from uncontrolled waste
disposal, please separate these items from other types
of waste and recycle them responsibly to promote the
sustainable reuse of material resources. Household
users should contact either the retailer where they
purchased this product, or their local government office,
for details of where and how they can take these items
for environmentally safe recycling. Business users should
contact their supplier and check the terms and conditions
of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial
wastes for disposal.
Correct disposal of batteries in this product
(Applicable in the European Union and other
European countries with separate battery
return systems)
This marking on the battery, manual or packaging
indicates that the batteries in this product should not be
disposed of with other household waste at the end of
their working life. Where marked, the chemical symbols
Hg, Cd or Pb indicate that the battery contains mercury,
cadmium or lead above the reference levels in EC
Directive 2006/66. If batteries are not properly disposed
of, these substances can cause harm to human health or
the environment.
To protect natural resources and to promote material
reuse, please separate batteries from other types of
waste and recycle them through your local, free battery
return system.
Samsung Eco-mark
It is Samsung’s own symbol mark is used to effectively
communicate Samsung’s environmental friendly product
activities to the consumers. The mark represents
Samsung’s continuous effort on development of
environmental conscious products.

19
English
Memo

TR-2
İçindekiler
Genel soruların yanıtları …………… 3
Sağlık ve Güvenlik Bilgileri ………… 4
Kamera yerleşimi …………………… 6
Kameranızı ayarlama ………………… 8
Paketi açma ………………………………8
Pili ve hafıza kartını takma ………………9
Pili ve hafıza kartını çıkarma ……………9
Pili şarj etme …………………………… 10
Kameranızı açma ……………………… 10
Dil seçme ……………………………… 11
Tarih ve saati ayarlama ……………… 11
Seçenekleri belirleme …………… 12
Fotoğraf veya video çekme ……… 13
Dosyaları bilgisayara aktarma
(Windows) ………………………… 16
Teknik Özellikler …………………… 17
Telif hakkı bilgileri
Microsoft Windows ve Windows logosu, Microsoft •
Corporation'ın tescilli ticari markalarıdır.
Mac, Apple Corporation'ın tescilli ticari markasıdır. •
HDMI, HDMI logosu ve "High Denition Multimedia •
Interface" terimi HDMI Licencing LLC'nin ticari
markaları veya tescilli ticari markalarıdır.•
Bu kılavuzda yer alan tüm marka ve ürün adları, ilgili •
rmalarının kayıtlı ticari markalarıdır.
Kameranın teknik özellikleri veya bu kılavuzun içeriği •
kamera işlevlerinin yükseltilmesi nedeniyle önceden
haber verilmeden değiştirilebilir.
www.samsung.com veya www.samsungimaging.com •
adresinden üretici yazılımlarını indirebilirsiniz.
Kameranızı satın aldığınız ülkede kullanmanızı •
öneriyoruz.
Açık Kaynak Lisans bilgileri için birlikte verilen •
CD-ROM’daki “OpenSourceInfo.pdf” dosyasına bakın.
