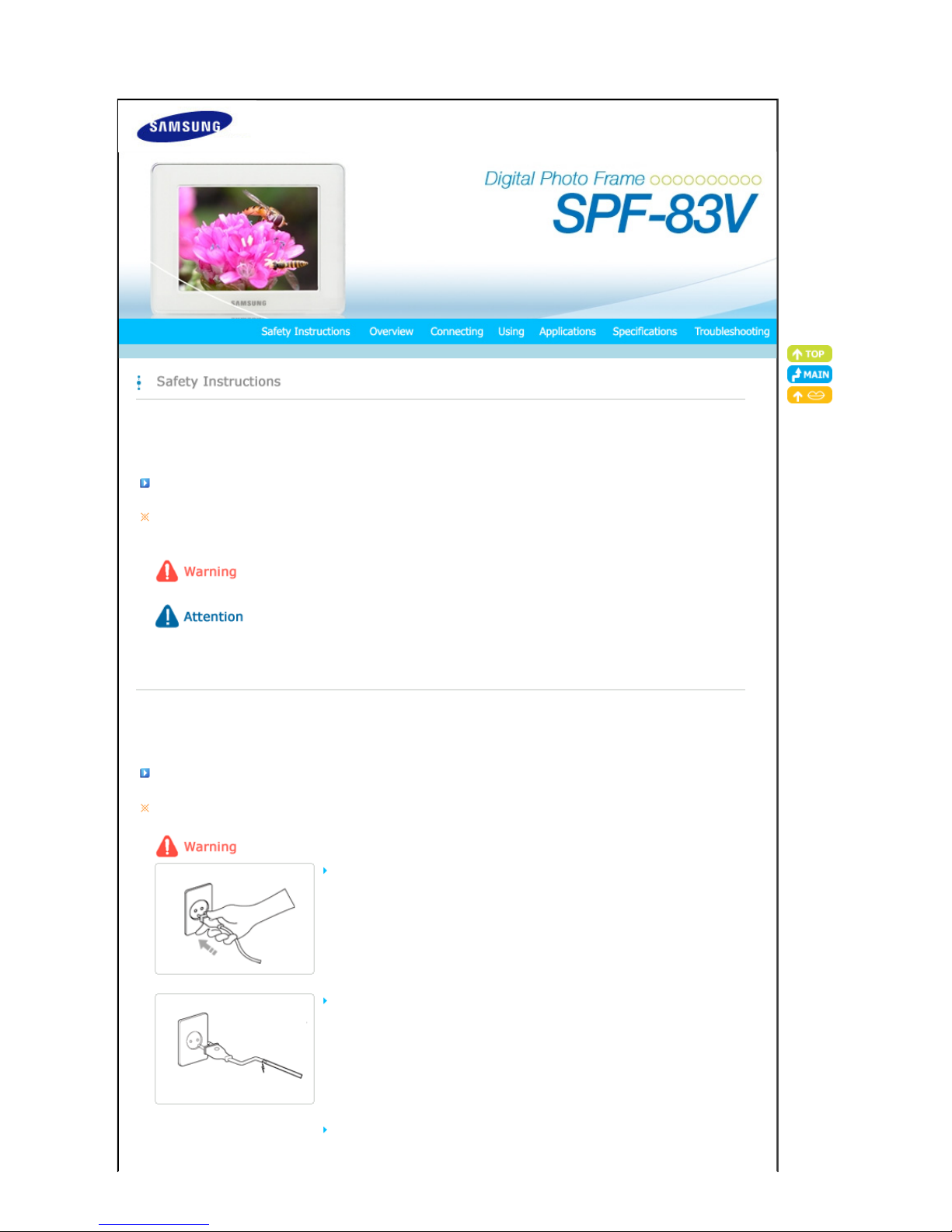

Safety Symbols
Make sure to follow the directions below to prevent accidents and damage to the product.
Failure to follow the accompanying directions may lead to serious injury or death.
Failure to follow the accompanying directions may lead to minor personal injury or property damage.
| Safety Symbols | Power | Installation | Using and
Cleaning |
Power
T
he ima
g
es here are for reference only, and are not applicable in all cases (or countries).
Insert the power plug correctly until it is firmly in place.
zFailing to do so, may cause fire.
Do not use a damaged power plug, cord or outlet, as this may cause electric shock
or fire.
Do not touch the power plug with wet hands, as this may cause electric shock.

Do not connect more than one appliance to a sin
g
le outlet, as an overheated outlet
may cause fire.
Do not use force to pull the power cord. Don't place anything heavy on the power
cord, as this may cause electric shock or fire.
Make sure to turn the power off and disconnect the power plug from the outlet
before moving the product. Make sure to disconnect the connection cables from
other devices as well.
zMoving the product without disconnecting the power cord may damage it while
moving, and may cause electric shock or fire.
Hold and pull out the plug by its body when disconnecting it from the outlet, as
pulling the plug out by the cord may cause it to be damaged.
zFailing to do so, may cause fire, or the product may not turn on normally.
Ensure that the power plug is disconnected before cleaning the product.
zFailing to do so, may cause electric shock or fire.
Keep the product away from places exposed to oil, smoke or moisture; do not
install inside a vehicle.
zThis may cause a malfunction, electric shock or fire.
zIn particular, avoid operating the monitor near water or outdoors where it could be
exposed to snow or rain.
Do not install the product near any heating appliance.
zThere is a risk of fire.

| Safety Symbols | Power | Installation | Using and
Cleaning |
Installation
When installing the product on a cabinet or shelf, do not let the front end of the
product project beyond its front edge.
zFailing to do so, may cause the product to fall, resulting in a product malfunction or
personal injury.
Do not place the power cord near a heater, as the power cord may melt, causing
electric shock or fire.
Do not install the product in a car or a location exposed to oil, smoke, moisture,
water, or rainwater.
zAny contact of these materials with the product may cause electric shock or fire.
Disconnect the power plug when there is thunder or lightning.
zFailing to do so, may cause electric shock or fire.
Place the product down gently when installing it.
zFailing to do so may cause product damage or personal injury.
Avoid dropping the product when moving, as this may cause product damage or
personal injury.
Do not install the product in a location easily reached by children.
zAs the product may fall and cause personal injury.

| Safety Symbols | Power | Installation | Using and
Cleaning |

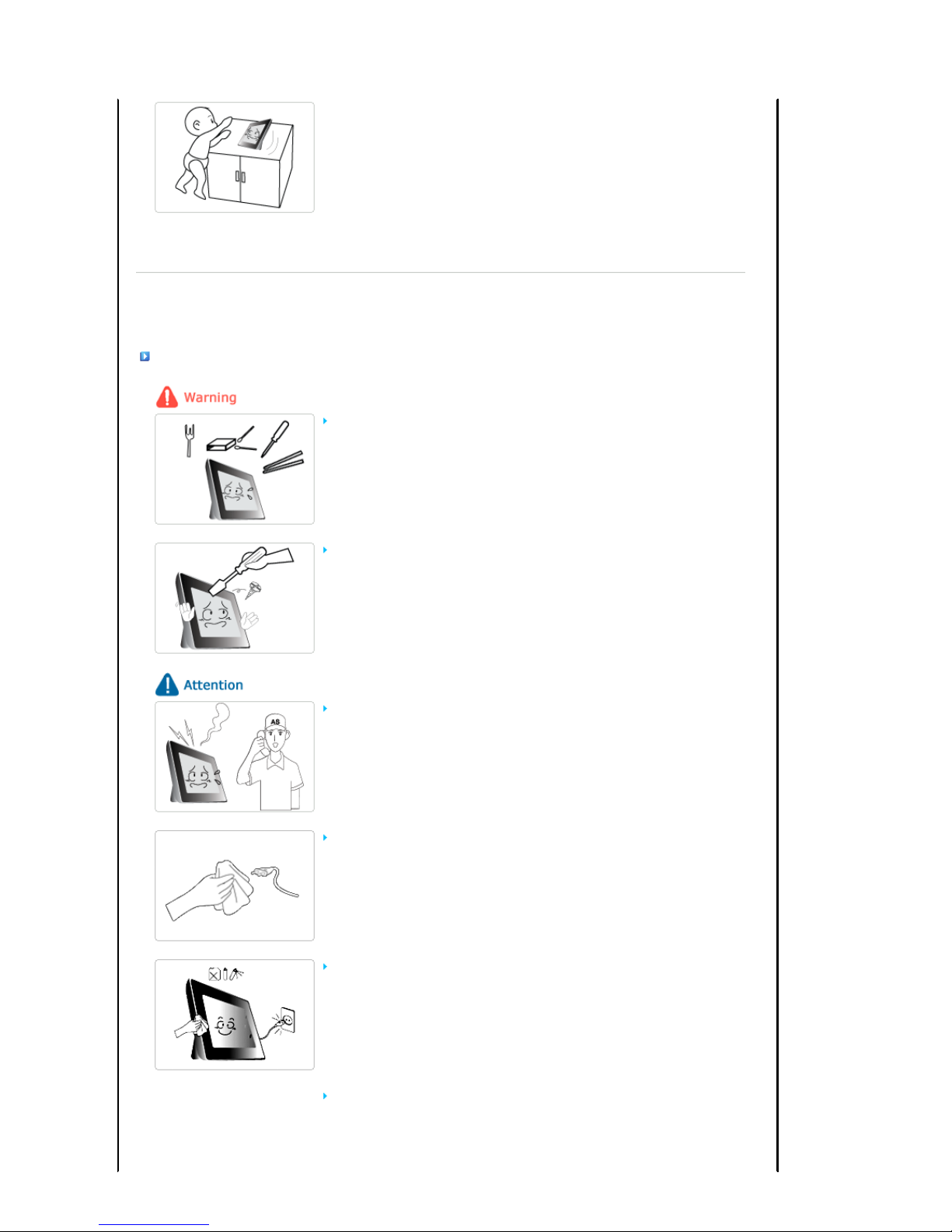

Using and Cleaning
Do not insert any metal objects such as forks, wire, or gimlets, or flammable items
such as paper or matches into the ports at the back of the product, as this may
cause electric shock or fire.
zIf water or any foreign substance enters the product, make sure to turn the product
off disconnect the power plug from the outlet, and contact a service center.
Never disassemble, repair, or modify the product yourself.
zIf you need to repair your product, contact a service center. An attempt at repairing
this product may cause electric shock or fire.
If you hear a strange sound, smell anything burning, or see smoke, disconnect the
power plug immediately and contact a service center.
zFailing to disconnect the power plug may cause electric shock or fire.
Always remove dust and water from the pins and connections of the power plug.
zFailing to do so may cause electric shock or fire.
When cleaning the product, first disconnect the power plug and clean it with a soft,
dry cloth.
zDo not use any chemicals such as benzene, alcohol, thinners, mosquito repellant,
aromatic, lubricant, detergent or wax.
When not using the product for a long time, make sure to disconnect the power plug.
zHeavy accumulated dust may cause electric shock or fire.

If the product needs to be installed in a location that doesn't satisfy general
conditions, make sure to contact one of our service engineers about the installation
as the product may encounter serious quality problems due to its environment.
zThis refers to locations exposed to conditions such as heavy fine dust, chemicals, high or
low temperature, moisture, or when the product needs to be used continually without a
break over a long time.

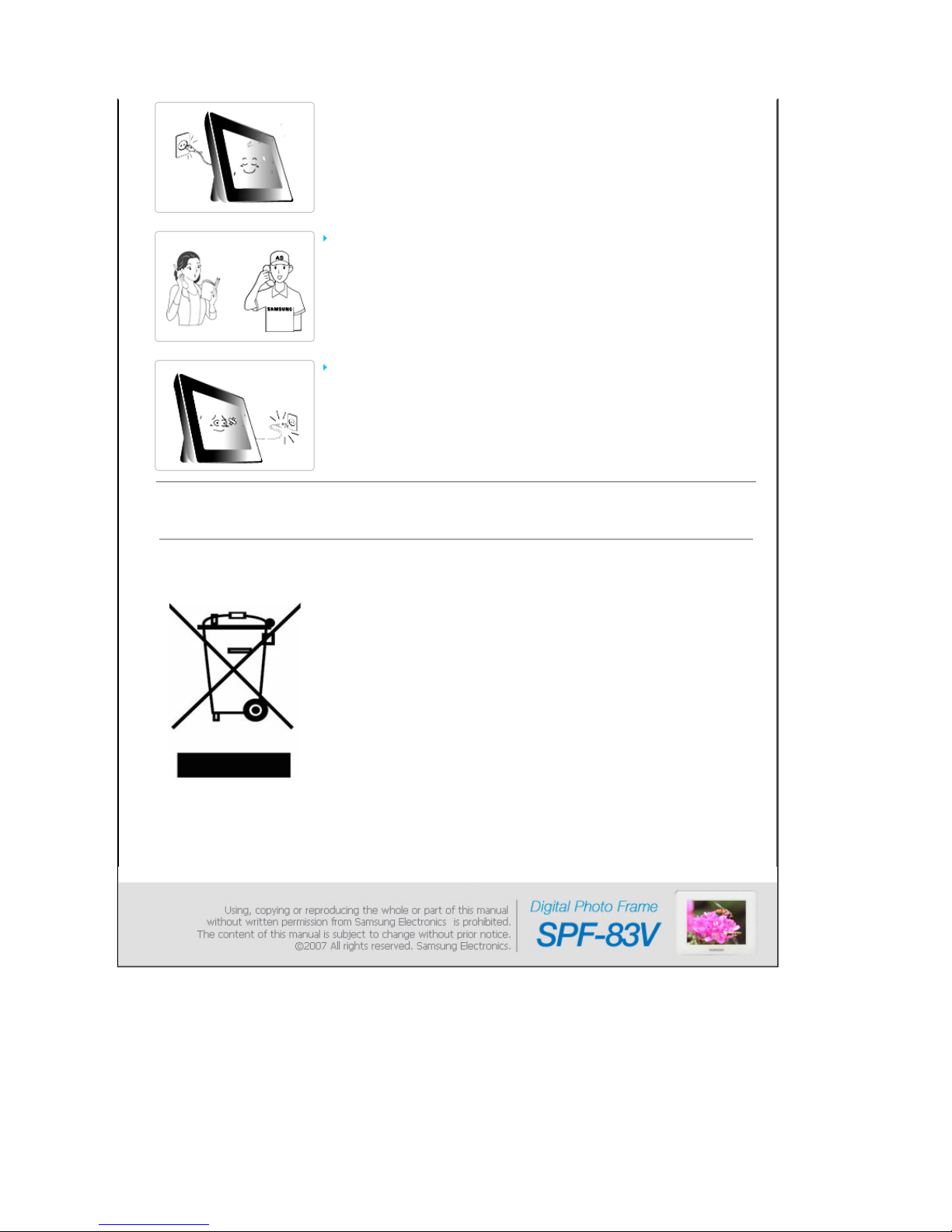

If the product has been dropped or the product casing is damaged, turn it off and
disconnect the power plug.
zUsing the product without verifying that it has not been damaged may cause electric
shock or fire. Please contact a service center.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment) - Europe only
(Applicable in the European Union and other European countries with separate
collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed
with other household waste at the end of its working life. To prevent possible harm to the
environment or damage to health from uncontrolled waste disposal, please separate this from
other types of waste and recycle it responsibly to promote the sustainable reuse of material
resources.
Household users should contact either the retailer where they purchased this product, or their
local government office, for details of where and how they can take this item for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for
disposal.

| Features | Components | Front | Back | Side |

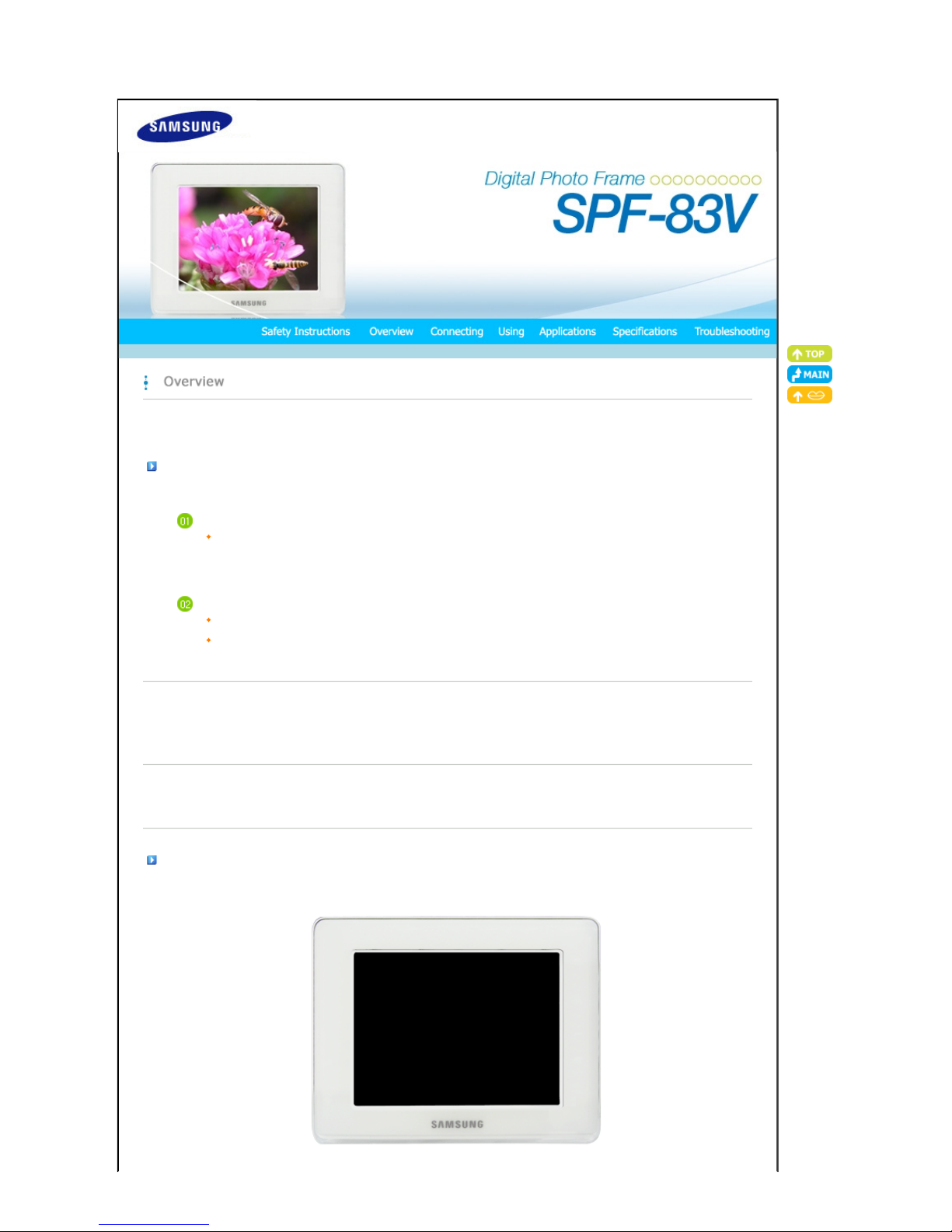

Features
Expand the memory capacity with a memory card. Enjoy stored images immediately.
By connecting a CF or SD/MMC/MS/XD memory card of your digital camera to your digital photo frame, you can enjoy
the images on your digital photo frame quickly and easily. This also provides a way to expand the memory capacity of
your digital photo frame.
Stylish design
With its sleek and clean, high class design, your digital photo frame doubles as an ornament for your desk or table.
A
360 de
g
ree rotatin
g
stand allows both horizontal and vertical installations.
| Features | Components | Front | Back | Side |
Please check that all components are contained in the delivered package.
If anything is omitted, contact the local distributor where the product was purchased. For optional items, contact a service center.
Never use a power adapter other than the adapter provided with the product.
Components

Digital Photo Frame
(Colors may differ for each product.)
Manual
Quick Start Warranty
(Not available in all locations) User Manual
Cables
Power cord USB cable
(A-mini B type) Power Adapter
| Features | Components | Front | Back | Side |
Front
| Features | Components | Front | Back | Side |
Back

Kensington lock
T
he Kensin
g
ton lock is a device used to physically secure the system when usin
g
it in a
public place. (The locking device has to be purchased separately.)
For using a locking device, contact where you purchase it.
DC –In Jack
Connect the power adapter to this jack.
Connect the power cord to the power terminal of the power adapter.
USB connection
terminal
Connect a PC or an external device using a USB cable.
Up stream
terminal
Connect your digital photo frame to a PC's USB terminal with a USB
cable. (Compatible to USB 1.1(host))
Make sure to use the USB cable (A-mini B type) provided with the product when
connecting your digital photo frame to a PC through the up stream terminal.
Stand
A
stand allows both horizontal and vertical installations.
If your digital photo frame is installed vertically, you can rotate your photos using the
rotation function to fit to the vertical installation.
Sliding Prevention
Holder
Supports the product so that it stays firmly in place on slippery surfaces.
Headphone
connection jack
Connect your headphones to the Headphone connection jack.
Speaker
Y
ou can listen to music files and movies.
| Features | Components | Front | Back | Side |
Side

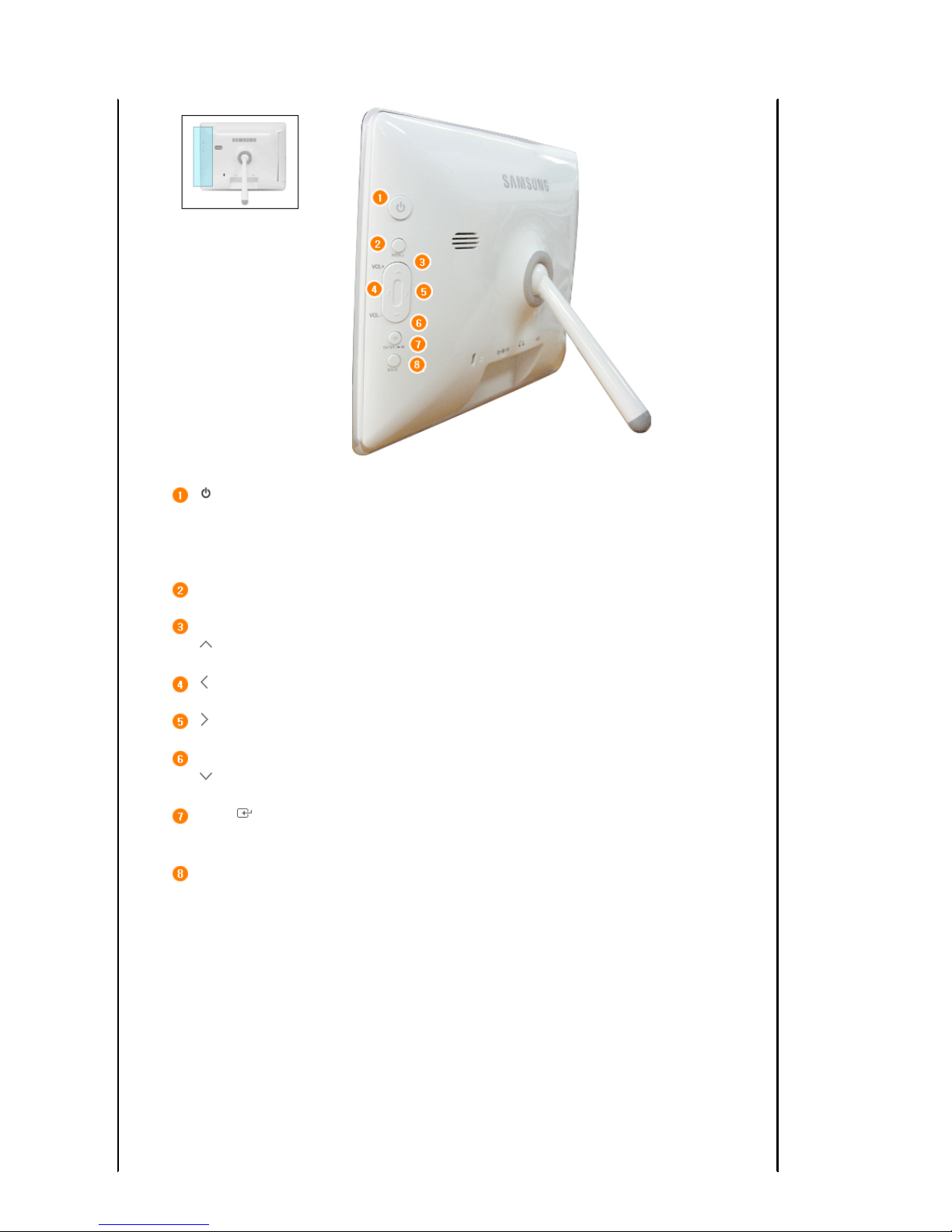

[]PowerButton
T
urns the product on or off.
Hold down the power button at the right of the product for about 2 seconds.
Power Indicator Connect the power cord to the power terminal of the power adapter.
Shows the power status. When the product is powered on, the power light turns
on.
[MENU] Menu Button Displays the menu window at the bottom left corner of the screen.
[VOL +] Volume Button
A
d
j
usts the sound volume when playin
g
music files or movies.
[]UpButton Used for moving up.
[]LeftButton Used for moving left.
[ ] Right Button Used for moving right.
[VOL -] Volume Button
A
d
j
usts the sound volume when playin
g
music files or movies.
[ ] Down Button Used for moving down.
[ENTER( )] Enter Button Used for selection.
[▶ll] Play / Pause Button Play / Pause during playback.
[BACK] Back Button Return to the previous menu.

Y
ou can insert a CF, SD/MMC, MS, XD card into this slot to view and use the contents stored on it.
Connect a PC or an external device using a USB cable.
Down stream terminal Connect your digital photo frame to a USB-supporting storage device
with a USB cable.

| Power | USB | Memory Card |
Connecting the Power
Connect the power adapter to the terminal at the back of the product.
Connect the power cord to the power adapter.
Plug the power cord for the product into a nearby outlet.
Press the button at the right of the product to turn the product on.
| Power | USB | Memory Card |

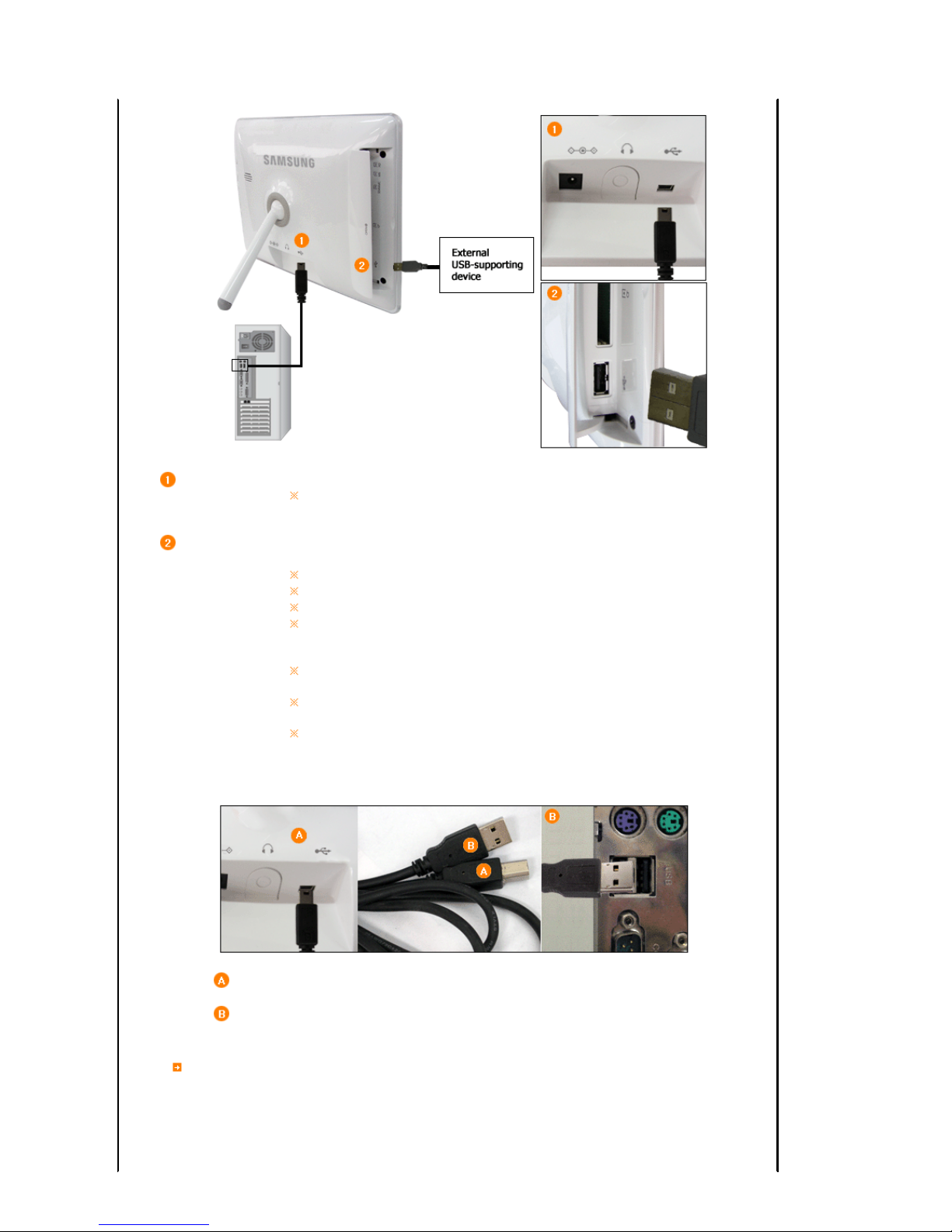

Connecting via USB

Up Stream
Terminal
Used to connect your digital photo frame to a PC.
When connecting your digital photo frame to a PC through the up stream terminal, make sure to use
the USB cable provided with the product.
Down Stream
Terminal
Used to connect an external USB-supporting device to your digital photo frame.
Some USB devices may not support Digital Photo Frame.
T
his product does not support USB card readers. Only USB stora
g
e is supported.
T
he external devices connected to your Di
g
ital Photo Frame are not reco
g
nized by your PC.
When connecting an external device to the down stream terminal, use the USB cable provided with
the external device. (For more information on external devices and their cables, contact a relevant
service center.)
Samsung carries no liability for external device malfunctions caused by using any cable except the
standard cables specified for each device.
Some external products provide a cable that does not meet USB standards. Hence, they may cause a
malfunction.
If an external storage device does not work normally when connected to your digital photo frame, try
to connect it to your PC. If it still does not work normally when connected to your PC, contact a service
center for that external device or your PC.
Connect to the upstream jack of your digital photo frame.
Connect the USB terminal of your PC.
Folder Structure
When connecting this product to your PC, it is displayed as a removable disk (E:), as shown in the figure below.
You can save and play all music and movie files in the following folders.
You can also add and delete folders as required. (However, if you delete the following default folders, they are automatically
created when your product is turned on again.)

images A default folder created by the product
(The full path displayed in the Digital Photo Frame: Photos /
frame memory / images)
Favorites Mainly stores photos.
Recent Temporarily stores the last displayed photo.
imagecashe Stores as many Web Photos (photos from the Windows Live or
RSS) to the cache as were used in the images folder.
If you copy your photos from your PC to the imagecashe, they
are invisible and cannot be viewed with your Digital Photo
Frame.
T
he capacity of this product is 64 MB.
If the capacity is exceeded, no further files can be stored.
Do not turn off the product while saving, playing, or deleting a file.
T
he volume name of the removable disk (for example, E:, F:, G:) may differ
depending on your computer environment.
| Power | USB | Memory Card |
Connecting a Memory Card
CF/SD/MMC/MS/XD CARD Slide the card in the direction marked on the top of the card.
Removing the memory card while playing MP3s, movies, or photos, may
cause the product to operate abnormally. In this case, turn the product off
and on.

| Buttons | Photos, Web Photos | Music | Video | Settings |

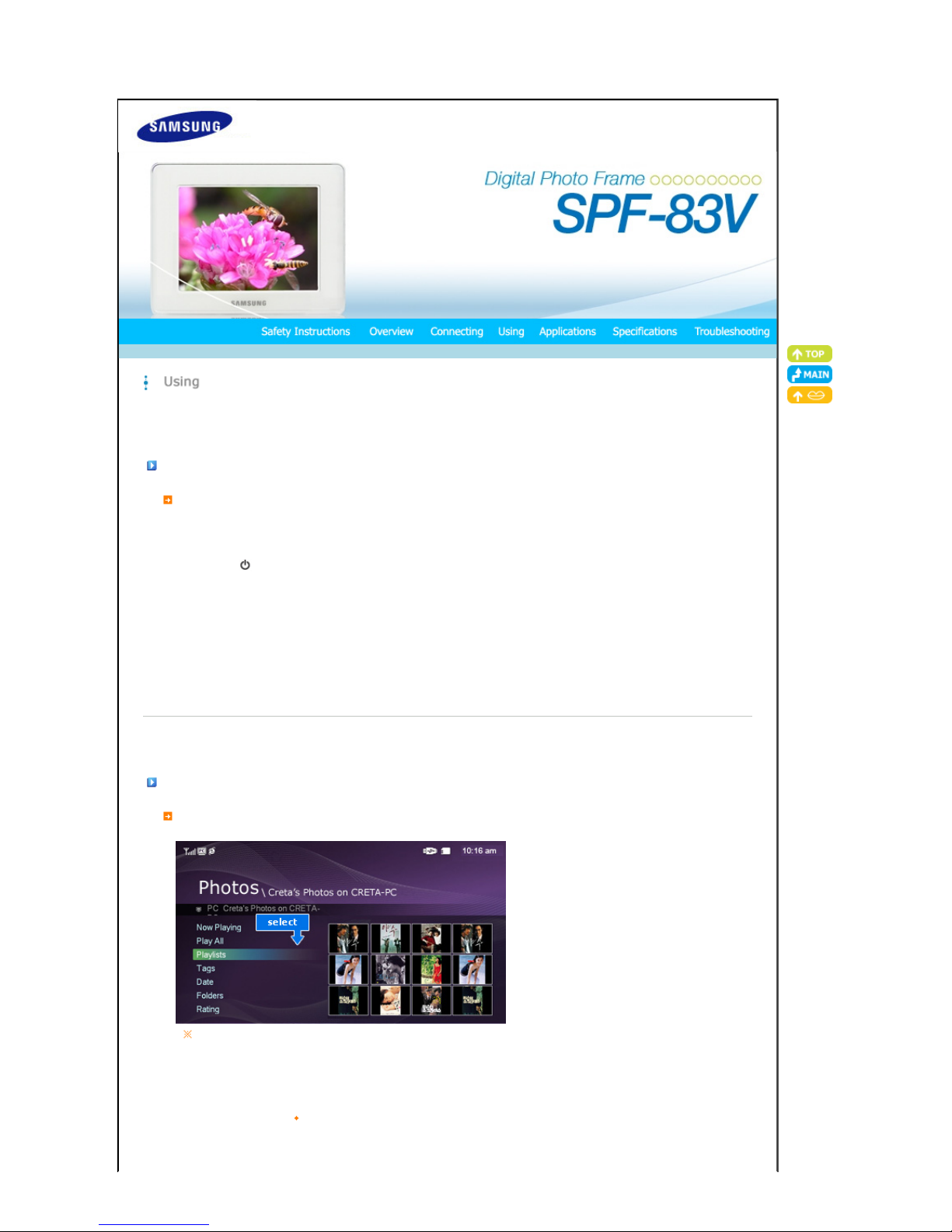

Buttons
Control Buttons
Button Description
Turns the product on or off.
Hold down the power button on the side of the product for about 2 seconds.
MENU Opens the on-screen menu and exits from the menu.
VOL +, VOL - Push the button to adjust volume.
∧,∨,＜,＞These buttons allow you to adjust items in the menu.
ENTER Activates a highlighted menu item.
BACK Use this button to step one step back in the menu.
| Buttons | Photos, Web Photos | Music | Video | Settings |
Photos / Web photos
List Menu (Only Photos)
When pressing the MENU button, the on-screen menu is displayed on the screen.
Upper OSD
Sub OSD
Description
Show Pictures From
Memory Card, CF Card, USB, Frame Memory(:default value)
Select a connected storage media.
You can only select an external device which is currently connected.

Thumbnail List Menu
When pressing the MENU button, the on-screen menu is displayed on the screen.
Upper OSD
Sub OSD
Description
Start Slide Show Start Slide Show
Copy
Copy File, Copy All Files
You can copy the selected file to other connected storage devices.
Delete
Yes, No
Delete the file. (This is enabled when Photos is selected.)
Show Related Photos
Allows you to view a list of other photos which have a relationship to the selected image, for example,
other photos with a similar date to it.
-. You can only use images shared by Windows Media Player on your PC while your digital photo frame
is connected to it.
Set as Background Sets the currently selected image as the Home Background for the main screen.
At this time, the Home Background in the Settings menu is automatically set to Custom.
Background Music
On, Off, Setting
Set the Background Music to On by pressing the Menu button. Then set the Background Music to
Setting by pressing the Menu button again and selecting the music you want from among the music
files saved on the Frame Memory or the connected external memory.
Slideshow Menu
Upper OSD
Sub OSD Detail OSD
Description
Pause Slide Show/
Resume Slide Show Pause Slide Show/Resume Slide Show
Slide Show Settings
Transition Fade, Wipe, Slide, Blind, Checker, Random, None
Select an effect for your slide show when transitioning between images.
Interval 5 Seconds, 10 Seconds, 20 Seconds
Controls the time intervals between image files for a slide show.
Repeat On, Off
Select the Repeat for displaying images.
Shuffle On, Off
Select whether to playback the files sequentially or in shuffle mode.
Show Related Photos
Allows you to view a list of other photos which have a relationship to the selected image, for example,
other photos with a similar date to it.
-. You can only use images shared by Windows Media Player on your PC while your digital photo frame is
connected to it.
Brightness 0~100

Adjust the brightness from 0 to 100.
Rotate
Original, 90°, 180°, 270°
You can rotate an image 90°, 180°, or 270°. You can also keep the image as is by selecting Original.
Rate Photos
While a slide show is in progress, stars (★) are displayed according to the grade set by Windows Media
Player.
-. You can only use images shared by Windows Media Player on your PC while your digital photo frame is
connected to it.
Photo Aspect
Original, Auto Fit, Fit To Width, Fit To Screen
Select an aspect ratio for images to display.
Set as Background Sets the image being displayed in the slide show as the Home Background for the main screen.
Background Music
On, Off, Setting
You can specify the background music for your slide shows.
Select On and move to Settings. Then select the music you want to play.
You can adjust the volume using the ∧∨ buttons to the right of your digital photo frame.
Direct Functions (Slide Show)
Button Description
>Play the next file in the list.
<Play the previous file in the list.
▶ll Pressing the ▶ll button alternately plays and pauses the file.
MENU Opens the on-screen menu and exits from the menu.
| Buttons | Photos, Web Photos | Music | Video | Settings |

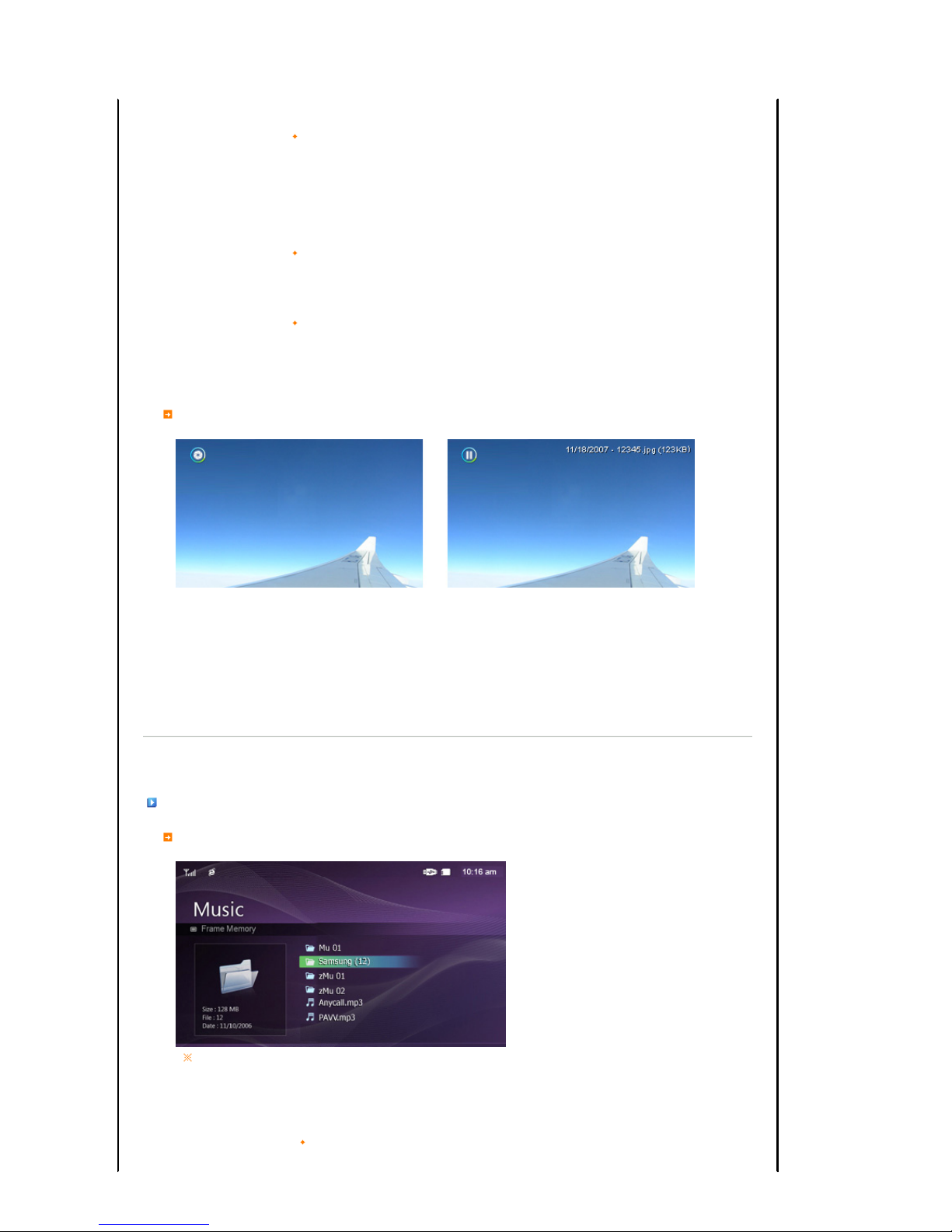

Music
List Menu
When pressing the MENU button, the on-screen menu is displayed on the screen.
Upper OSD
Sub OSD
Description
Memory Card, CF Card, USB, Frame Memory(:default value)

Music Source Select a connected media storage device.
You can only select an external device which is currently connected.
Playback Mode
Once, Repeat, Repeat Once, Shuffle
Select to playback music files either Once, repeatedly or randomly.
Copy
Copy File, Copy All Files
You can copy the selected file to other connected storage devices.
Delete Delete the file.
Play Menu
When pressing the MENU button, the on-screen menu is displayed on the screen.
Upper OSD
Sub OSD
Description
Playback Mode
Once, Repeat, Repeat Once, Shuffle
Select to playback music files either Once, repeatedly or randomly.
Brightness
0~100
Adjust the brightness from 0 to 100.
Direct Functions
＞Plays the next file.
＜Plays the previous.
∧,∨Adjusts the volume.
▶ll Plays and Pauses a file.
MENU Displays the menu.
Exits the menu.
| Buttons | Photos, Web Photos | Music | Video | Settings |
V
ideo
List Menu

When pressing the MENU button, the on-screen menu is displayed on the screen.
Upper OSD
Sub OSD
Description
Video Source
Memory Card, CF Card, USB, Frame Memory(:default value)
Select a connected media storage device. You can only select an external device which is currently
connected.
Playback Mode
Once, Continuous
You can playback movie files either Once or Continuously.
Copy
Copy File, Copy All Files
You can copy the selected file to other connected storage devices.
Delete Delete the file.
Play Menu
When pressing the MENU button, the on-screen menu is displayed on the screen.
Upper OSD
Sub OSD
Description
Playback Mode
Once, Continuous
Select a mode among Once, Continuous.
Brightness
0~100
Adjust the brightness from 0 to 100.
Direct Functions
＞Play the next file.
＜Play the previous.
∧,∨Adjust volume.
▶ll
Plays and Pauses a file.
MENU Displays the menu.
Exits the menu.
