Samsung DW-FN320T User manual

DW-FN320T
DW-FN320W
Dishwasher
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
DD81-01446B-02_EN.indd 1DD81-01446B-02_EN.indd 1 2012-10-03  3:58:202012-10-03  3:58:20

2_ safety information
READ AND FOLLOW THIS SAFETY INFORMATION
CAREFULLY SAVE THESE INSTRUCTIONS
Safety information
Please read this User Information carefully and keep it to refer to at a later date.
Pass it on to any subsequent owner of the appliance.
This manual contains sections of Safety Instructions, Part and Features,
Installation your dishwasher and Troubleshooting etc.
Carefully reading it before using the dishwasher will help you to use and maintain
the dishwasher properly.
The manufacturer, following a policy of constant development and up-dating of the product, may make
modifications without giving prior notice.
WARNING: When using your dishwasher, follow the below basic precautions including the following:
PROPER USE
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very
carefully if the dishwasher is operating. There is a risk of water squirting out.
• Do not place any heavy objects of stand on the door when it is open. The appliance could tip forward.
• When loading items to be washed:
- Locate sharp items so that they are not likely to damage the door seal;
- Load sharp knives with the handles up to reduce the risk of cut-type injuries;
• Warning : knives and other utensils with sharp points must be loaded in the basket with their points
down or placed in a horizontal position.
• Check that the detergent receptacle is empty after completion of the wash cycle.
• Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer’s recommendations.
• Use only detergent and rinse additives designed for an automatic dishwasher. Never use soap, laundry
detergent, or hand washing detergent in your dishwasher.
• Other means for disconnection from the supply must be incorporated in the fixed wiring with at least 3
mm contact separation in all poles.
• Keep children away from detergent and rinse aid, keep children away from the open door of the
dishwasher, there could still be some detergent left inside.
DD81-01446B-02_EN.indd 2DD81-01446B-02_EN.indd 2 2012-10-03  3:58:592012-10-03  3:58:59

safety information _3
READ AND FOLLOW THIS SAFETY INFORMATION
CAREFULLY SAVE THESE INSTRUCTIONS
• Young children should be supervised to ensure that they do not play with the appliance.
• The appliance is not intended for use by young children or infirm persons without supervision.
• Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid
contact with skin and eyes and keep children away from the dishwasher when the door is open.
• The door should not be left in the open position since this could present a tripping hazard.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
• Please dispose of packing materials properly.
• Use the dishwasher only for its intended function.
• During installation, the power supply must not be excessively or dangerously bent or flattened.
• Do not tamper with controls.
• The appliance is to be connected to the water mains using new hose sets and the old hose-sets should
not be reused.
DISPOSAL
Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international abbreviations:
PE for polyethylene, e.g. sheet wrapping material
PS for polystyrene, e.g. padding material
POM polyoxymethylene, e.g. plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control Panel.
WARNING: Packaging material could be dangerous for children!
For disposing of package and the appliance please go to a recycling centre. Therefore cut o the
power supply cable and make the door closing device unusable.
Cardboard packaging is manufactured from recycled paper and should be disposed in the waste
paper collection for recycling.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local city oce and
your household waste disposal service.
DD81-01446B-02_EN.indd 3DD81-01446B-02_EN.indd 3 2012-10-03  3:58:592012-10-03  3:58:59

4_ safety information
Contents
PART AND FEATURES
55 Dishwasher features
6 Control panel
7 Displays
INSTALLING YOUR DISHWASHER
89 Water supply and drain
10 Connection of drain hoses
10 Position the appliance
10 Start of dishwasher
USING THE DETERGENT AND WATER
SOFTENER
11
11 Water softener
12 Loading the salt into the softener

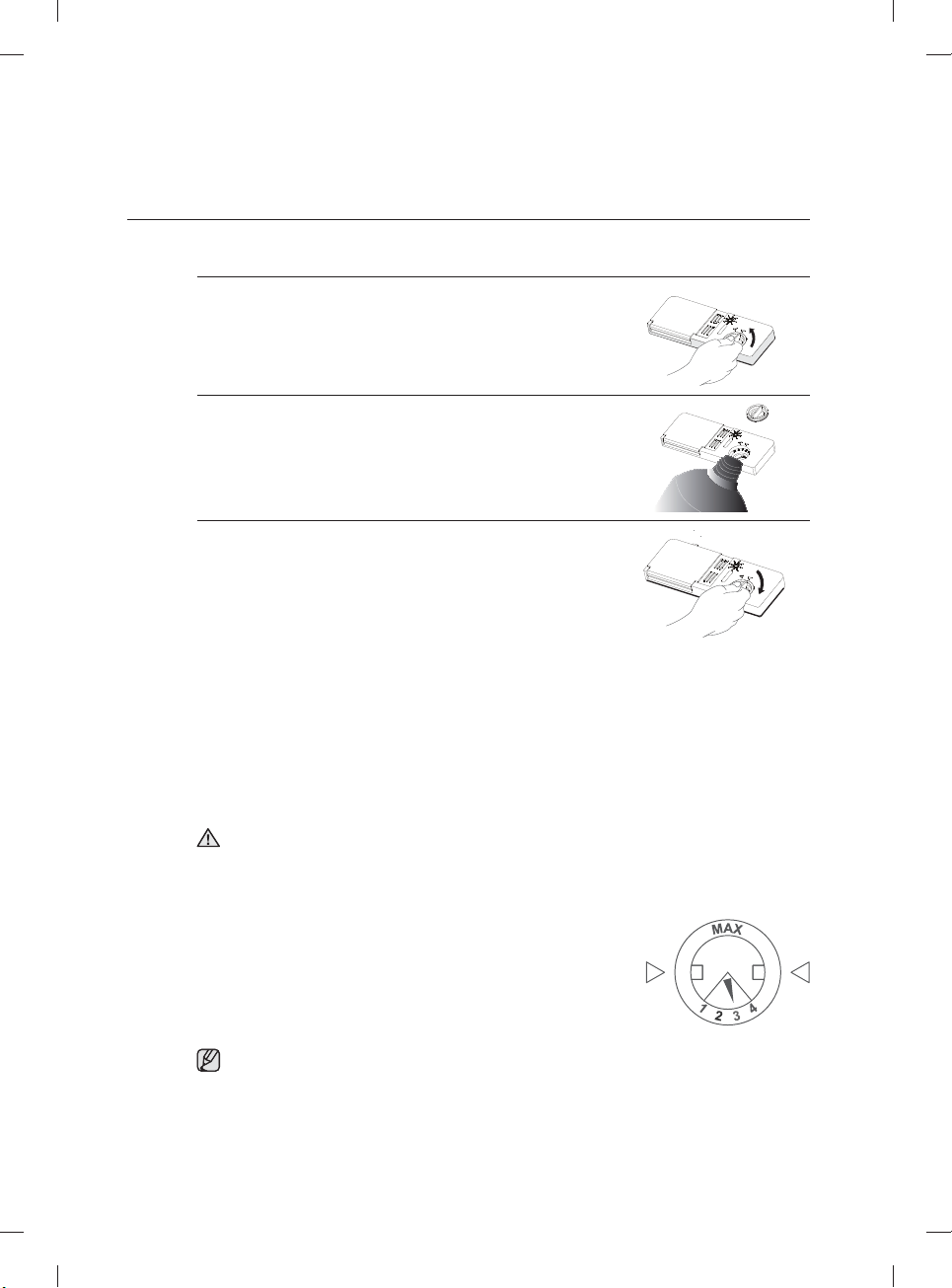

13 Fill the rinse aid dispenser
15 Function of detergent
17 How to use the 3 in 1 option
LOADING THE DISHWASHER RACKS
18 18 Loading the upper basket
19 Loading the lower basket
19 Folding spikes of lower basket
20 Cutlery(silverware) basket
21 For washing in the dishwasher the following
cutlery/dishes
WASHING PROGRAMMES
22 22 Turning on the appliance
22 Change the program...
23 At the end of the wash cycle
23 Wash cycle table
CLEANING AND CARE
24 24 Cleaning the filters
25 Cleaning the spray arms
25 Cleaning the door
25 Caring for the dishwasher
25 Protect against freezing
26 How to keep your dishwasher in shape
TROUBLESHOOTING
27 27 Before calling for service
29 Error codes
APPENDIX
30 30 Specifications
30 Product dimension
DD81-01446B-02_EN.indd 4DD81-01446B-02_EN.indd 4 2012-10-03  3:58:592012-10-03  3:58:59

part and features _5
01 PART AND FEATURES
Part and features
DISHWASHER FEATURES
Front & Rear view
1
2
3
4
5
6
7
8
910
1Upper Basket 4Salt Container 7Spray arms 10 Drain hose
2Duct nozzle 5Dispenser 8Filter assembly
3Lower Basket 6Cup Shelf 9hose
Accessory parts - User manual, Salt funnel, cutlery basket.
DD81-01446B-02_EN.indd 5DD81-01446B-02_EN.indd 5 2012-10-03  3:58:592012-10-03  3:58:59

6_ part and features
Part and features
CONTROL PANEL
1 5 6
7
4
3 2 8
1 POWER BUTTON Press this button to turn on your dishwasher: the screen lights up.
2 3 IN 1 OPTION BUTTON
To select 3 in 1 option which needs not salt and rinse aid but a 3 In1
tablet. This option can be selected on Intensive, Auto or Eco program
only.
3 DELAY START BUTTON
Press this button to set the delayed hours for washing. You can delay
the start of washing up to 24 hours. One press on this button delays
the start of washing by one hour.
4 CHILD LOCK BUTTON
This option allows you to lock the buttons on the control panel so
children cannot accidentally start the dishwasher by pressing the
buttons on the panel.
To lock and unlock the buttons on the control panel, hold down both
the 3 in 1 and Delay start buttons for three (3) seconds.
5 DISPLAY WINDOW Running indicator, delay time, error codes and etc.
6 PROGRAM BUTTON To select washing program press the button.
7 START/PAUSE BUTTON
In Power on condition, close the dishwasher door and select the cycle
and desired options. Press the Start/Pause button to begin the cycle.
When you want to pause the dishwasher while running, press the
Start/Pause button and make sure to open the door slowly and
carefully. You can reset the machine by pressing the Start/Pause
button for 3 seconds during washing. After reset, the dishwasher goes
to the initial state except salt consumption setting of water softener.
8 HALF LOAD BUTTON
To select Half load function. (With this Half load function you can only
use it when you have only about or less than 6 place setting dishware,
and you will see less water and energy consumption. It can only be
used with Intensive, Auto, Eco and Delicate.)
• When the door is open only the Power button will operate.
• You can select options (3 in 1, Delay start and/or Half load) before starting a cycle.
IMPORTANT: To get the best performance from your dishwasher, read all the operating instructions
before using it for the first time.
DD81-01446B-02_EN.indd 6DD81-01446B-02_EN.indd 6 2012-10-03  3:59:002012-10-03  3:59:00

part and features _7
01 PART AND FEATURES

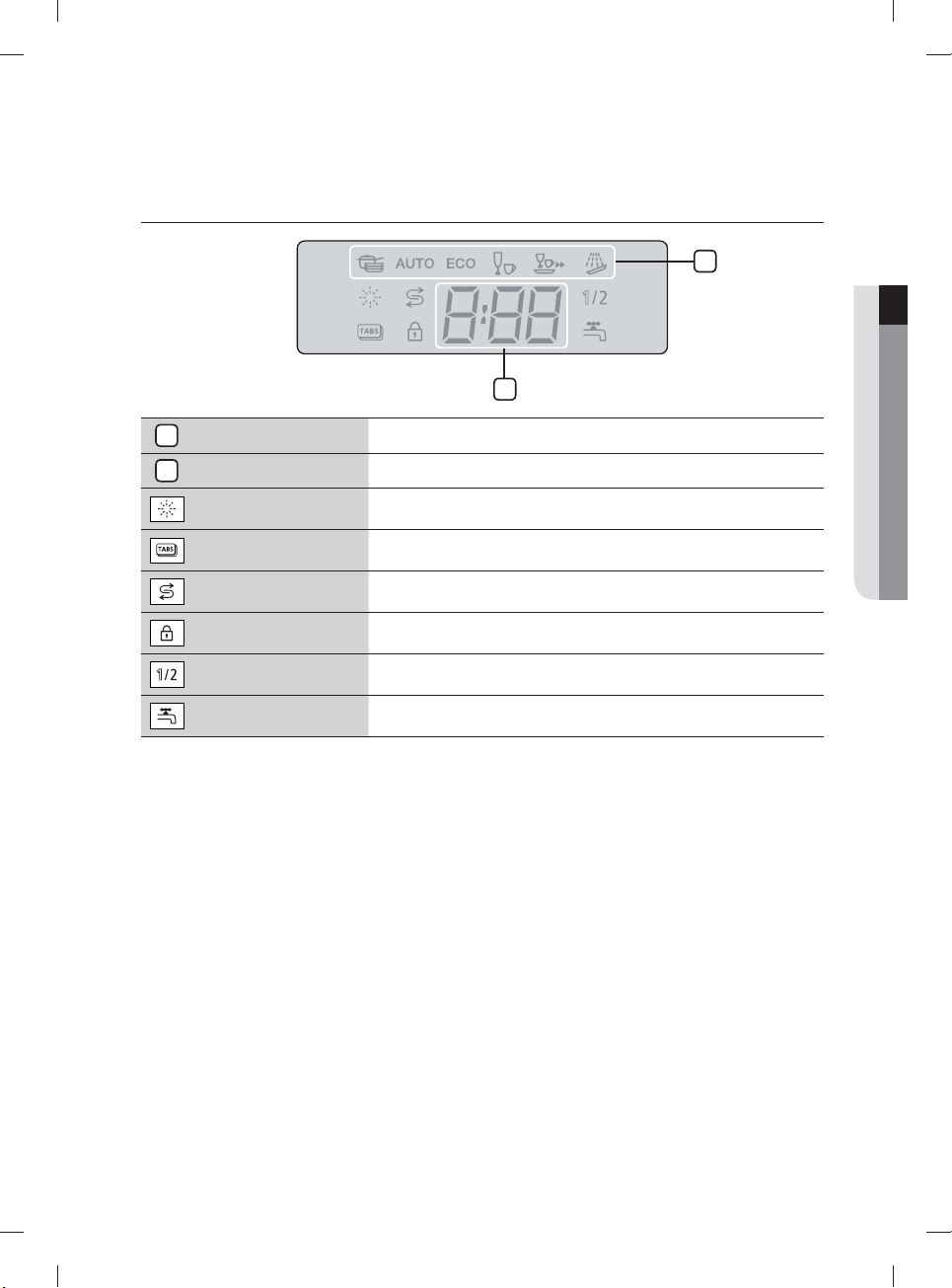

DISPLAYS
1
2
1 PROGRAM ICON When press the Program button, each program is selected.
2 3*8 SEGMENT Display the remaining time, error code, or delay time.
RINSE AID INDICATOR When rinse aid is needed refill, this indicator is on. Refill the rinse aid
to dispenser.
3 IN 1 ICON When select 3 in 1 option.
SALT INDICATOR When salt is needed refill, this indicator is on. Refill the salt to water
softener.
CHILD LOCK ICON When select Child lock function.
HALF LOAD ICON When select Half load option.
WATER INLET
INDICATOR
When occur water inlet problem. Check the water faucet or water inlet
hose.
DD81-01446B-02_EN.indd 7DD81-01446B-02_EN.indd 7 2012-10-03  3:59:002012-10-03  3:59:00

8_ installing your dishwasher
Installing your dishwasher
WARNING : Electrical shock hazard
Disconnect electrical power before installing dishwasher.
Failure to do so could result in death or electrical shock.
ATTENTION: The installation of the pipes and electrical equipments should be done by professionals.
About electricity connecting
CAUTION, for personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE THIRD GROUNDING
PRONG FROM THE POWER CORD.
Electrical requirements
• An AC 220-240 V / 50 Hz fuse or a circuit breaker.
• An individual branch circuit serving your dishwasher.
Grounding instructions
Insure proper ground exists before use
This appliance must be grounded. In the event of a malfunction or breakdown, grounding
will reduce the risk of electric shock by providing a path of least resistance of electric
current. This appliance is equipped with a cord having an equipment-grounding conductor
and a grounding plug. The plug must be plugged into an appropriate outlet that is installed
and grounded in accordance with all local codes and ordinances.
WARNING: Improper connection of the equipment grounding conductor can result in the
risk of an electric shock. Check with a qualified electrician or service representative if you
are in doubt whether the appliance is properly grounded. Do not modify the plug provided
with the appliance.
DD81-01446B-02_EN.indd 8DD81-01446B-02_EN.indd 8 2012-10-03  3:59:012012-10-03  3:59:01

installing your dishwasher _9
02 INSTALLING
WATER SUPPLY AND DRAIN
Cold water connection
Connect the cold water supply hose to a threaded 3/4 (inch) connector
and make sure that it is fastened tightly in place.
If the water pipes are new or have not been used for an extended period
of time, let the water run to make sure that the water is clear and free of
impurities. If this precaution is not taken, there is a risk that the water inlet
can get blocked and damage the appliance.
Provided water supply hose has the aqua-safe system. Ensure that
water supply hose’s aqua-safe pipe is connected to the faucet.
Hot water connection
The water supply to the appliance can also be connected to the house hot water line (centralized
system, heating system), as long as it does not exceed a temperature of 60 °C. In this case, the
wash cycle time will be shortened by about 15 minutes and the wash eciency slightly reduced.
The connection must be made to the hot water line following the same procedures as those for
the connection to the cold water line.
Positioning the appliance
Position the appliance in the desired location. The back should rest against the wall behind
it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with
water supply and drain hoses that can be positioned to the right or the left to facilitate
proper installation.
How to drain excess water from hoses
If the sink is 1000mm higher from the floor, the excess water in hoses cannot be drained directly
into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable
container that is held outside and lower than the sink.
Water outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks.
Ensure that the water inlet hose is not kinked or squashed.
Extension hose
If you need a drain hose extension, Use a similar size and quality drain hose.
It must be no longer than 4 metres; otherwise the cleaning eect of the dishwasher could be
reduced.
Syphon connection
The waste connection must be at a height of between 40 cm (minimum) and 100 cm (maximum)
from the bottom of the dishwasher. The water drain hose should be fixed by a hose clip.
Aqua-safe
The Aqua-safe System is a safety valve system, preventing water leaks. If the water inlet hose
starts to leak anytime, the safety valve cuts o the running water. If the water inlet hose or the
safety valve is damaged, remove & replace it.
Do not enlarge or shorten the inlet hose.
DD81-01446B-02_EN.indd 9DD81-01446B-02_EN.indd 9 2012-10-03  3:59:012012-10-03  3:59:01

10_ installing your dishwasher
CONNECTION OF DRAIN HOSES
Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making
sure to avoid bending or crimping it. The top of the hose must be at a height between 40 and 100 cm. The
free end of the hose must not be immersed in water to avoid the back flow of it.
POSITION THE APPLIANCE
Position the appliance in the desired location. The back should rest against the wall behind it, and the sides,
along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that
can be positioned either to the right or the left sides to facilitate proper installation.
Levelling the Appliance
Once the appliance is positioned for levelling, the height of the
dishwasher may be altered via adjustment of the screwing level of the
feet. In any case, the appliance should not be inclined more than 2°.
START OF DISHWASHER
The followings should be checked before starting the dishwasher.
1. the dishwasher is level and fixed.
2. the inlet valve is opened.
3. there leakage at the connections of the conducts.
4. the wires are tightly connected.
5. the power is switched on.
6. the inlet and drain hoses are not knotted.
7. All packing materials and printings should be taken out from the dishwasher.
ATTENTION: After installation please put this manual in a safe place. The contents of this manual can
be useful to users.
Installing your dishwasher
NOTE
The top of the hose must
be at a height between 40
and 100cm.
The free end of the hose
must not be immersed in
water.
Drain pipe
40 mm
Counter
Min. 400 mm
Max 1000 mm
DD81-01446B-02_EN.indd 10DD81-01446B-02_EN.indd 10 2012-10-03  3:59:012012-10-03  3:59:01

using the detergent and water softener _11
03 DETERGENT AND WATER SOFTENER
Using the detergent and water
softener
WATER SOFTENER
The water softener must be set manually, using the water hardness dial.
The water softener is designed to remove minerals and salts from the water, which would have a detrimental
or adverse eect on the operation of the appliance. The higher the content of these minerals and salts, the
harder your water is. The softener should be adjusted according to the hardness of the water in your area.
Your local Water Authority can advise you on the hardness of the water in your area.
Adjusting salt consumption
The dishwasher is designed to allow for adjusting the amount of salt consumed based on the
hardness of the water used. This is intended to Spelling - optimise - customise the level of salt
consumption so that the salt consumption could be set proceed as follows:
1. Switch on the appliance;
2. Press the Start/Pause button for more than 3 seconds to start the water softener set model
within 60seconds after the appliance was switched on;
3. Press the Start/Pause button to select the proper set according to your local environment,
the sets will change in the following sequence: H1->H2->H3->H4->H5->H6; It is
recommended that adjustments should be made in accordance with the following table.
* The manufactory setting: H4 (EN 50242)
4. Wait for 5 seconds to end the set up model.
WATER HARDNESS Selector Position Salt consumption
(gram/cycle)
Autonomy
(cycles/1 kgs)
º dH º fH º Clark mmol/l
0~5 0~9 0~6 0~0.94 H1 0 /
6~11 10~20 7~14 1.0~2.0 H2 20 60
12~17 21~30 15~21 2.1~3.0 H3 30 50
18~22 31~40 22~28 3.1~4.0 H4 40 40
23~34 41~60 29~42 4.1~6.0 H5 50 30
35~55 61~98 43~69 6.1~9.8 H6 60 20
1 dH (German degree) = 0.178 mmol/l
1 Clark (British degree) = 0.143 mmol/l
1 fH (French degree) = 0.1 mmol/l
Contact your local water board for information on the hardness of your water supply.
WATER SOFTENER
The hardness of the water varies from place to place. If hard water is used in the
dishwasher, deposits may form on dishes and utensils. The appliance is equipped with a
special softener that uses a salt specifically designed to eliminate lime and minerals from the
water.
DD81-01446B-02_EN.indd 11DD81-01446B-02_EN.indd 11 2012-10-03  3:59:022012-10-03  3:59:02

12_ using the detergent and water softener
Using the detergent and water
softener
LOADING THE SALT INTO THE SOFTENER
Always use salt intended for use with dishwasher.
The salt container is located beneath the lower rack and should be filled as follows:
ATTENTION
• Only use salt specifically designed for use in dishwashers! All other types of salt not specifically
designed for use in a dishwasher, especially table salt, will damage the water softener. In case of
damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is
liable for any caused damages.
• Only fill with salt just before starting one of the complete washing programs. This will prevent any
grains of salt or salty water, which may have been split, remaining of the bottom of the machine for
any period of time, which may cause corrosion.
• After the first wash cycle the control panel light expires.
1. Remove the lower basket and then unscrew and remove the cap from
the salt container.
Open
2. If you are filling the container for the first time, fill 2/3 of its volume with water (around 1 liter).
3. Place the end of the funnel (supplied) into the hole and introduce about
1,5 kg of salt. It is Normal for a small amount of water to come out of
the salt container.
4. Carefully screw the cap back on.
5. Usually, the salt warning light will be o after the salt container be filled with salt.
• The salt container must be refilled when the salt warning light in the control panel comes on.
Though the salt container is filled enough, the indicator light may not light may not switch o until
the salt fully dissolves.
If there is no salt warning light in the control panel, you can judge when to load the salt into the
softener by the cycles that the dishwasher has run.
• If a lot of salt is spilt inside the dishwasher run a pre wash program to clan the spillage.
DD81-01446B-02_EN.indd 12DD81-01446B-02_EN.indd 12 2012-10-03  3:59:022012-10-03  3:59:02

using the detergent and water softener _13
03 DETERGENT AND WATER SOFTENER
FILL THE RINSE AID DISPENSER
Function of rinse aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and
streak free drying.
ATTENTION: Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser
with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This would
damage the appliance.
When to refill the rinse aid dispenser
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by
the Colour of the optical level indicator “D” located next to the cap. When the rinse-aid container
is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot
decreases. You should never let the rinse aid get below 1/4 full.
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated
below.
Full
3/4 full
1/2 full
1/4 full : Should refill to eliminate spotting
Empty
D (Rinse-Aid indicator)
DD81-01446B-02_EN.indd 13DD81-01446B-02_EN.indd 13 2012-10-03  3:59:022012-10-03  3:59:02

14_ using the detergent and water softener
Rinse Aid dispenser
1. To open the dispenser, turn the cap to the “open” (left) arrow
and lift it out.
2. Pour the rinse aid into the dispenser, being careful not to
overfill.
3. Replace the cap by inserting it aligned with “open” arrow
and turning it to the closed (right) arrow.
The rinse aid is released during the final rinse to prevent water from forming droplets on your
dishes that can leave spots and streaks. It also improves drying by allowing water to water to run
o the dishes.
Your dishwashers is designed to use liquid rinse aids. The rinse aid dispenser is located inside
the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse
aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid
container is about 130 ml.
Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any
spills with a damp cloth. Don’t forget to replace the cap before you close dishwasher door.
ATTENTION: Clean up any rinse aid spilt during filling with an absorbent cloth to avoid
excess foaming during the next wash.
Adjusting rinse aid dispenser
The rinse aid dispenser has four settings. Always start with the
dispenser set on “3”. If spots and poor drying are problems,
increase the amount of rinse aid dispensed by removing the
dispenser lid and rotating the dial to “4”. We suggest you to set
on “3” (Factory value is “3”).
Increase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish streaks on the dishes or a bluish film on glassware or
knife blades.
Using the detergent and water
softener
DD81-01446B-02_EN.indd 14DD81-01446B-02_EN.indd 14 2012-10-03  3:59:022012-10-03  3:59:02

using the detergent and water softener _15
03 DETERGENT AND WATER SOFTENER
FUNCTION OF DETERGENT
Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the
dishwasher. Most of commercial quality detergents are suitable for this purpose.
WARNING: Dishwasher detergent is corrosive! Take care to keep it out of reach of children.
Proper Use of Detergent
Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry. Don’t
put powder detergent into the dispenser until you’re ready to wash dishes.
Concentrated detergent
Based on their chemical composition, dishwasher detergent can be split in two basic types:
• conventional, alkaline detergents with caustic components
• low alkaline concentrated detergents with natural enzymes
The use of “normal” washing programmes in conjunction with concentrated detergents reduces
pollution and is good for your dishes; these wash programmes are specially matched to the
dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason “normal”
wash programmes in which concentrated detergents are used can achieve the same results that
can otherwise only be achieved using “intensive” programmes.
Detergent tablets
Detergent tablets of dierent brands dissolve at dierent speeds. For this reason some detergent
tablets cannot dissolve and develop their full cleaning power during short programmes.
Therefore please use long programmes when using detergent tablets, to unsure the complete
removal of detergent residuals.
Detergent dispenser
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the Wash Cycle Table. Your dishwasher uses less detergent and rinse aid then
conventional dishwashers. Generally, only one tablespoon of detergent is needed for a normal
wash load. Also, more heavily soiled items need more detergent. Always add the detergent just
before starting the dishwasher, otherwise it could get damp and will not dissolve properly.
Fill the detergent in dispenser
1. If the lid is closed: press release button. The lid springs
open.
Push latch to open
Push latch to open
2. Always add the detergent just before starting each
wash cycle. Only use branded detergent aid for
dishwasher.
DD81-01446B-02_EN.indd 15DD81-01446B-02_EN.indd 15 2012-10-03  3:59:032012-10-03  3:59:03

16_ using the detergent and water softener
Using the detergent and water
softener
Amount of detergent to use
1. Fill the detergent dispenser with detergent.
The marking indicates the dosing levels, as illustrated on
right:
A. This section is for main wash detergent, approximately
25g
B. This section is for the pre wash detergent, approximately
5g
If the dishes are heavily soiled, place an additional
detergent dose in the pre-wash detergent chamber. This
detergent will take eect during the pre-wash phase.
You can find information about the amount of detergent for
the single programmes on the “Wash cycle table”. (See
page 23)
Please be aware, that according to the soiling level and the
specific hardness of water dierences are possible.
A
B
2. Close the lid and press until it locks in place.
Please observe the manufacturers dosing and storage recommendations as stated on the
detergent packaging.
Detergents
There are 3 sorts of detergents.
1. With phosphate and with chlorine.
2. With phosphate and without chlorine.
3. Without phosphate and without chloride.
Normally new pulverised detergent is without phosphate. The water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when the
hardness of water is only 6 dH. If detergents without phosphate were used in case of hard water
often white spots appear at dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will
not removed completely. In this case please choose a programme with higher temperature.
DD81-01446B-02_EN.indd 16DD81-01446B-02_EN.indd 16 2012-10-03  3:59:032012-10-03  3:59:03

using the detergent and water softener _17
03 DETERGENT AND WATER SOFTENER
HOW TO USE THE 3 IN 1 OPTION
Your dishwasher has a 3 in 1 option which does not need salt and rinse aid but a 3 In1 tablet. This option
can select on Intensive, Auto or Eco program only.
The 3 in 1 setting is only for use with 3 in 1 tablets. If using 3 in 1 tablet without this option, the
appliance will not get it’s best performance.
1. Put the 3 in 1 tablet into the container then start the 3 in 1 option.
2. Close the lid and press until it locks in place.
When using 3 in 1 compact combination detergents ensure that
the lid can be closed correctly.
ATTENTION: Keep all detergents in a safe place out of
children’s reach. Always add the detergent in the dispenser just
before starting the dishwasher.
DD81-01446B-02_EN.indd 17DD81-01446B-02_EN.indd 17 2012-10-03  3:59:032012-10-03  3:59:03

18_ loading the dishwasher racks
Loading the dishwasher racks
For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of racks and silverware baskets may vary from your
model.
Attention before or after loading the dishwasher racks
Scrape o any large amounts of leftover food. It is not necessary to rinse the dishes under running
water. Place objects in the dishwasher in the following order:
1. Items such as cups, glasses, pots/pans, etc. are stood upside down.
2. Curved items, or those with recesses, should be at a slant so that water can run o.
3. They are stacked securely and can not tip over.
4. They do not prevent the spray arms from rotating while washing takes place.
Very small items should not be washed in the dishwasher as they could easily fall out of the racks.
Removing the dishes
To prevent water dripping from the upper basket into the lower basket, we recommend that you empty
the lower basket first and then the upper basket.
LOADING THE UPPER BASKET
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coee and tea
cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty).
Position the dishes and cookware so that they will not get moved by the spray of water. Always place
glasses, cups & bowls upside down.
1
3
3
3
3
1
12
4
56
1
IN
Cups
1
2
Saucers
3
Glasses
4
Small serving bowl
5
Medium serving bowl
6
Large serving bowl
Adjusting the Upper Basket
The height of the upper basket can be adjusted in order to create more space for large utensils
both for the upper/lower basket.
1. To lower the upper rack, press the “A”
levers located at the left and right sides
of the upper basket and push the upper
basket downwards slightly at the same
time.
2. To raise the upper rack, just pull the
upper basket upwards without operating
any levers.
Caution: We recommend adjusting
the height of the upper basket before
loading dishes into the basket. If you
adjust the the basket after loading the
dishes, you may damage the dishes. To lower position To upper position
A
DD81-01446B-02_EN.indd 18DD81-01446B-02_EN.indd 18 2012-10-03  3:59:052012-10-03  3:59:05

loading the dishwasher racks _19
04 LOADING THE RACKS
LOADING THE LOWER BASKET
We recommend that you place large items which are most dicult to clean in to the lower rack: pots, pans,
lids, serving dishes and bowls, as shown in the figure to the right.
It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the
rotation of the top spray arm. Pots, serving bowls, etc. must always be placed top down.
Deep pots should be slanted to allow water to flow out.
The bottom rack feature fold down tine rows so that larger or more pots and pans can be loaded.
IN
7
Dessert dishes
8
Dinner plates IN
9
Soup plates
10
Oval platter
Long items, serving cutlery, salad servers and big knives should be placed on the shelf so that they do
not obstruct the rotation of the spray arms.
FOLDING SPIKES OF LOWER BASKET
For better stacking of pots and pans, the spikes can be folded down
as show in the picture right.
DD81-01446B-02_EN.indd 19DD81-01446B-02_EN.indd 19 2012-10-03  3:59:082012-10-03  3:59:08

20_ loading the dishwasher racks
CUTLERY(SILVERWARE) BASKET
Silverware should be placed in the cutlery basket with handles at the bottom: The spoon should be loaded
individually into the appropriate slots, especially long utensils should be placed in the horizontal position at
the front of the upper basket.
1Soup spoons 5Dessert spoons
2Forks 6Serving spoons
3Knives 7Serving forks
4Teaspoons 8Gravy ladles
WARNING
• Do not let any item extend through the bottom.
• Always load sharp utensils with the sharp point down!
Loading the dishwasher racks
DD81-01446B-02_EN.indd 20DD81-01446B-02_EN.indd 20 2012-10-03  3:59:122012-10-03  3:59:12
