Samsung DW80R9950US/AA-01 User manual

Dishwasher
User manual
DW80R9950 Series
DW9900R_DD68-00209A-03_EN.indd 1 2020-05-27 오후 6:42:20

Contents
English2
Contents
Safety information 4
What you need to know about the safety instructions 4
Important safety symbols 4
Before using your dishwasher 7
Before you start 11
Unpacking your dishwasher 11
Checking parts 12
Unsuitable items for the dishwasher 14
Water reector 14
Using your dishwasher 15
Basic use of racks 15
Detergent guidelines 26
Touchpad responsiveness 29
Operations 30
Control panel 30
Cycle overview 33
Simple steps to start your dishwasher 34
Settings 35
SmartThings 37
Special features 40
Maintenance 41
Cleaning 41
Long-term care 44
Cleaning the drain pump 45
Storing your dishwasher 45
DW9900R_DD68-00209A-03_EN.indd 2 2020-05-27 오후 6:42:20

Contents
English 3
Troubleshooting 46
Check these solutions if your dishwasher… 46
Information codes 51
Cycle chart 53
Appendix 55
Helping the environment 55
Specications 55
Warranty (U.S.A) 56
DW9900R_DD68-00209A-03_EN.indd 3 2020-05-27 오후 6:42:20

Safety information
English4
SAVE THESE INSTRUCTIONS
Safety information
Congratulations on your new Samsung dishwasher. This manual contains important
information on the installation, use, and care of your appliance. Please take time to read
this manual to take full advantage of your dishwasher’s many benets and features.
What you need to know about the safety instructions
Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution, and care when installing, maintaining, and operating your dishwasher.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
To reduce the risk of re, explosion, electric shock, or personal injury when using your
dishwasher, follow these basic safety precautions:
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property damage.
NOTE
These warning signs are here to prevent injury to you and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
DW9900R_DD68-00209A-03_EN.indd 4 2020-05-27 오후 6:42:21

Safety information
English 5
SAVE THESE INSTRUCTIONS
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING
When using your dishwasher, follow basic precautions, including the following:
1. Read all instructions before using the dishwasher.
2. Use the dishwasher only for its intended function.
3. Use only detergents or wetting agents recommended for use in a dishwasher and keep
them out of the reach of children.
4. When loading items to be washed:
- locate sharp items so that they are not likely to damage the door seal, and
- load sharp knives with the handles up to reduce the risk of cut-type injuries.
5. Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent.
For plastic items not so marked, check the manufacturer’s recommendations.
6. Do not touch the HEATING ELEMENT during or immediately after use.
7. Do not operate your dishwasher unless all ENCLOSURE panels are properly in place.
8. Do not tamper with the controls.
9. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
10. To reduce the risk of injury, do not allow children to play in or on the dishwasher.
11. Under certain conditions, hydrogen gas may be produced in a hot-water system that
has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-
water system has not been used for such a period, before using the dishwasher turn
on all hot-water faucets and let the water ow from each for several minutes. This will
release any accumulated hydrogen gas. As the gas is ammable, do not smoke or use
an open ame during this time.
12. Remove the door to the washing compartment when removing an old dishwasher from
service or discarding it.
DW9900R_DD68-00209A-03_EN.indd 5 2020-05-27 오후 6:42:21

Safety information
Safety information
English6
SAVE THESE INSTRUCTIONS
CAUTION
• After unpacking the dishwasher, keep the packaging out of the reach of children.
• The dishwasher is extremely heavy. Do not attempt to move or carry the dishwasher
by yourself. Two or more people are needed to move a dishwasher and avoid potential
injuries.
• As with any equipment using electricity, water, and moving parts, potential hazards
exist.
• Do not install the dishwasher near electrical components. Keep the dishwasher away
from open ames.
• Install and level your dishwasher on an uncarpeted oor that can support its weight.
• Your dishwasher must be properly grounded. Never connect it to an ungrounded outlet.
See page 7for more information on grounding your dishwasher.
• Connect the ground wire to the green ground connector in the terminal box.
• After the dishwasher is installed, check that the drain hose is properly connected and
that there is no leakage from the hose connectors. If the drain hose is loose, it may
cause property damage.
• The water supply line is susceptible to breakage. As time goes by, it becomes less
exible. Check the line periodically. If it is swollen, torn, cut, or there is a water leak,
replace it immediately.
• To safely operate this appliance, familiarize yourself with its operations and exercise
care when using it.
• Do not put gasoline, solvents, or other flammable materials inside the dishwasher. Do
not wash dishes exposed to these materials.
• Keep your dishwasher detergent out of the reach of children. Detergent has an adverse
effect on human organs. It contains elements for polishing and is corrosive. Avoid
letting the detergent come into contact with your skin and eyes.
• Do not push or place pressure on the door when it is open, as this may damage the
dishwasher or cause harm.
• Do not allow children to play in or on the dishwasher. They may harm themselves or
damage the dishwasher.
DW9900R_DD68-00209A-03_EN.indd 6 2020-05-27 오후 6:42:21

Safety information
English 7
SAVE THESE INSTRUCTIONS
• Disconnect the power cable (or set the circuit breaker to off) before servicing your
dishwasher.
• Do not repair, replace, or service any part of your dishwasher yourself. Disassembly,
repairs, and modications are permitted by authorized service technicians only. Work
done by an unauthorized person may void your warranty.
• Before disposing of your dishwasher, remove the door of the washing compartment or
the door latch so that children or small animals cannot get trapped inside.
• If the dishwasher is left unused for an extended period of time, turn off the water
supply.
• This dishwasher is intended for residential use only.
Before using your dishwasher
WARNING
Tip-Over Hazard
• Do not use the dishwasher until it is correctly installed.
• Do not push down on the dishwasher door when it is open.
• Do not place excessive weight on the dishwasher door when it is open.
Electric Shock Hazard
Failure to follow these instructions can result in death, re, or electric
shock:
• Electrically ground the dishwasher
• Connect the ground wire to the green ground connector in the junction
box.
• Do not use an extension cord.
DW9900R_DD68-00209A-03_EN.indd 7 2020-05-27 오후 6:42:22

Safety information
Safety information
English8
SAVE THESE INSTRUCTIONS
Regulatory notice
FCC Notice
FCC CAUTION:
Any changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of FCC Rules. Operation is Subject to following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference that cause
undesired operation.
For products sold in the US and Canadian markets, only channels 1–11 are available. You
cannot select any other channels.
FCC STATEMENT:
This equipment has been tested and found to comply within the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorienting or relocating the receiving antenna
• Increasing the separation between the equipment and receiver
• Connecting the equipment to an outlet that is on a different circuit than the radio or TV.
• Consulting the dealer or an experienced radio/TV technician for help.
DW9900R_DD68-00209A-03_EN.indd 8 2020-05-27 오후 6:42:22

Safety information
English 9
SAVE THESE INSTRUCTIONS
FCC RADIATION EXPOSURE STATEMENT:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated so there is at least 8 inches
(20 cm) between the radiator and your body. This device and its antenna(s) must not be
co-located or operated in conjunction with any other antenna or transmitter.
IC Notice
The term “IC” before the radio certication number only signies that Industry Canada
technical specications were met. Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada.
For products sold in the US and Canadian markets, only channels 1–11 are available. You
cannot select any other channels.
IC RADIATION EXPOSURE STATEMENT:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated so there is at
least 8 inches (20 cm) between the radiator and your body. This device and its antenna(s)
must not be co-located or operated in conjunction with any other antenna or transmitter.
DW9900R_DD68-00209A-03_EN.indd 9 2020-05-27 오후 6:42:22

Safety information
Safety information
English10
SAVE THESE INSTRUCTIONS
Open Source Announcement
The software included in this product contains open source software. You may obtain the
complete corresponding source code for a period of three years after the last shipment of
this product by sending an email to mailto:[email protected].
It is also possible to obtain the complete corresponding source code in a physical medium
such as a CD-ROM; a minimal charge will be required.
The following URL http://opensource.samsung.com/opensource/SMART_AT_051/seq/0
leads to the download page of the source code made available and open source license
information as related to this product. This offer is valid to anyone in receipt of this
information.
DW9900R_DD68-00209A-03_EN.indd 10 2020-05-27 오후 6:42:22

Before you start
English 11
Before you start
Be sure to have your installer follow these instructions closely so that your new
dishwasher works properly and that you’re not at risk of injury when washing dishes.
Unpacking your dishwasher
• Once your new dishwasher has been delivered to you, carefully unpack it and check for
any damage.
If the dishwasher has been damaged, make note of it on the waybill and keep a copy.
Do not install the dishwasher, and contact Samsung Customer Service at the number
listed on the next page.
• If there is no damage to the product, you can proceed with the installation. If you are
going to install it yourself, make sure to read through the installation guide and follow
the directions inside.
• After unpacking your dishwasher, keep the packaging out of the reach of children to
ensure their safety.
DW9900R_DD68-00209A-03_EN.indd 11 2020-05-27 오후 6:42:22

Before you start
Before you start
English12

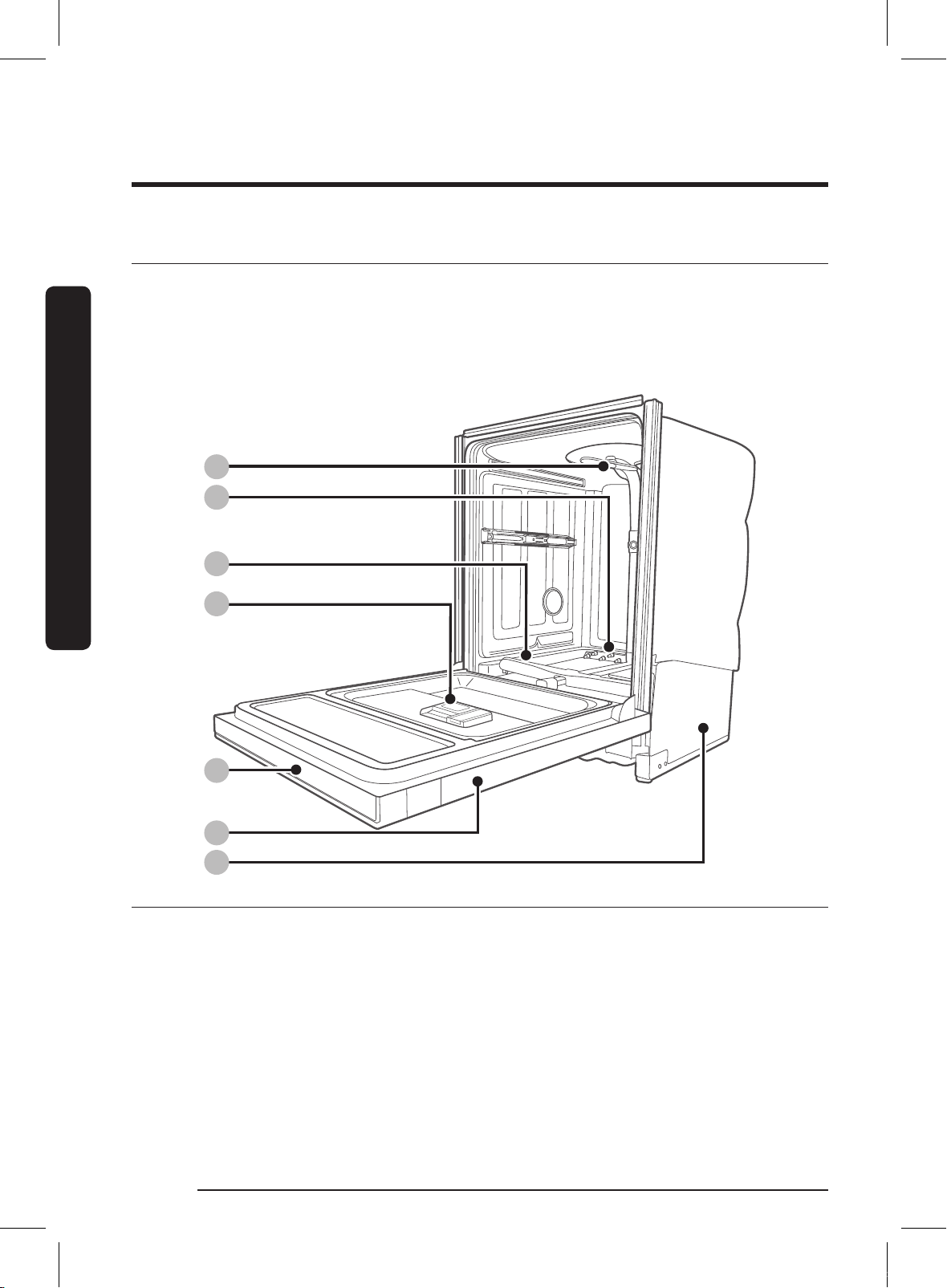

Checking parts
When your dishwasher has been unpacked, make sure you’ve received all the parts shown
below.
If your dishwasher was damaged during shipping, or if you do not have all the parts,
contact Samsung Customer Service at 1-800-SAMSUNG (726-7864).
02
05
07
06
03
04
01
01 Top nozzle 02 Lower nozzle 03 Water reector
04 Dispenser 05 Control panel 06 Door
07 Base
DW9900R_DD68-00209A-03_EN.indd 12 2020-05-27 오후 6:42:23

Before you start
English 13
Accessories

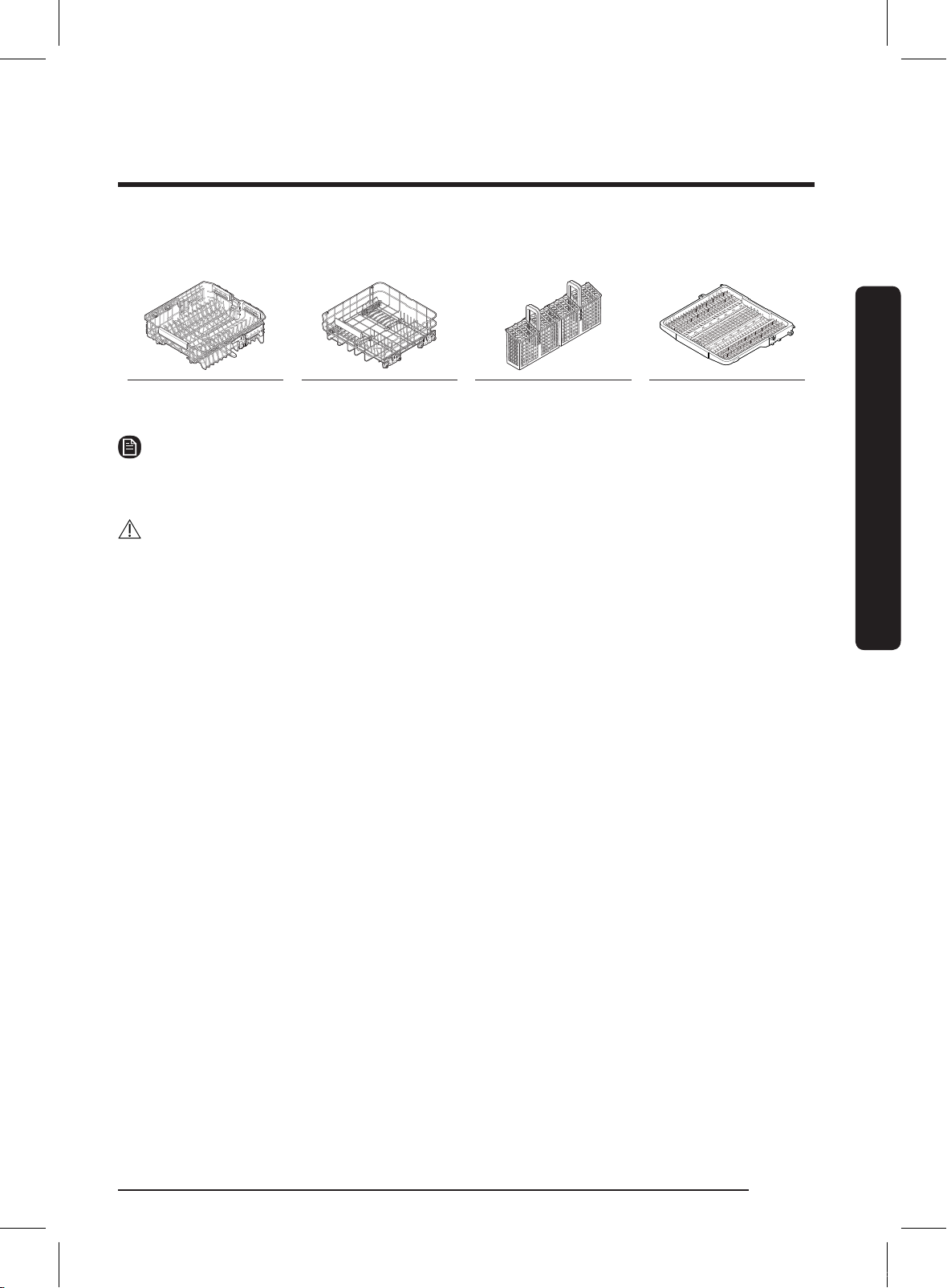

Upper rack Lower rack Cutlery rack 3rd rack
NOTE
Accessory parts - User/Installation manual, Installation Kit, Kick Plate.
CAUTION
• Do not wash items that are covered with ash, sand, wax, lubricating grease, or paint.
These materials will damage the dishwasher. Ash does not dissolve and will spread
inside the dishwasher.
• Remove food remains such as bones, fruit seeds, etc. and waste such as toothpicks,
paper napkins, etc. from your dishes. Food remains and waste can make noise, cause
the dishwasher to malfunction, and damage your dishes and dishwasher.
DW9900R_DD68-00209A-03_EN.indd 13 2020-05-27 오후 6:42:23

Before you start
Before you start
English14
Unsuitable items for the dishwasher
WARNING
Wash only items such as glass, porcelain, and cutlery which the manufacturer states is
dishwasher safe. Do not wash aluminium (e.g. grease lters). The dishwasher may damage
aluminium, or in extreme cases, cause a severe chemical reaction.
Do not wash the following items in the dishwasher.
• Copper, brass, tin, ivory, and aluminium items or items with adhesive
• Non-heat resistant plastics
• Craft items, antiques, valuable vases, and decorative glassware
• Pottery or glazed-ceramic items
• Wooden cutlery and crockery or items with wooden parts
• Delicate glassware or glassware containing lead crystal. Clouding may occur on the
glassware after frequent washing.
NOTE
Silverware that has contacted food containing sulphur may become discoloured. Food
with sulphuric content include egg yolks, onions, mayonnaise, mustard, sh, sh brine,
and marinades.
Water reector
The water reector automatically detects obstacles inside the dishwasher that can
interfere with the reector’s signal. If an obstacle is detected, the display blinks and the
dishwasher chimes for several minutes. If this happens, remove the obstacle.
DW9900R_DD68-00209A-03_EN.indd 14 2020-05-27 오후 6:42:24

Using your dishwasher
English 15
Using your dishwasher
Basic use of racks
Angle of the plate supports

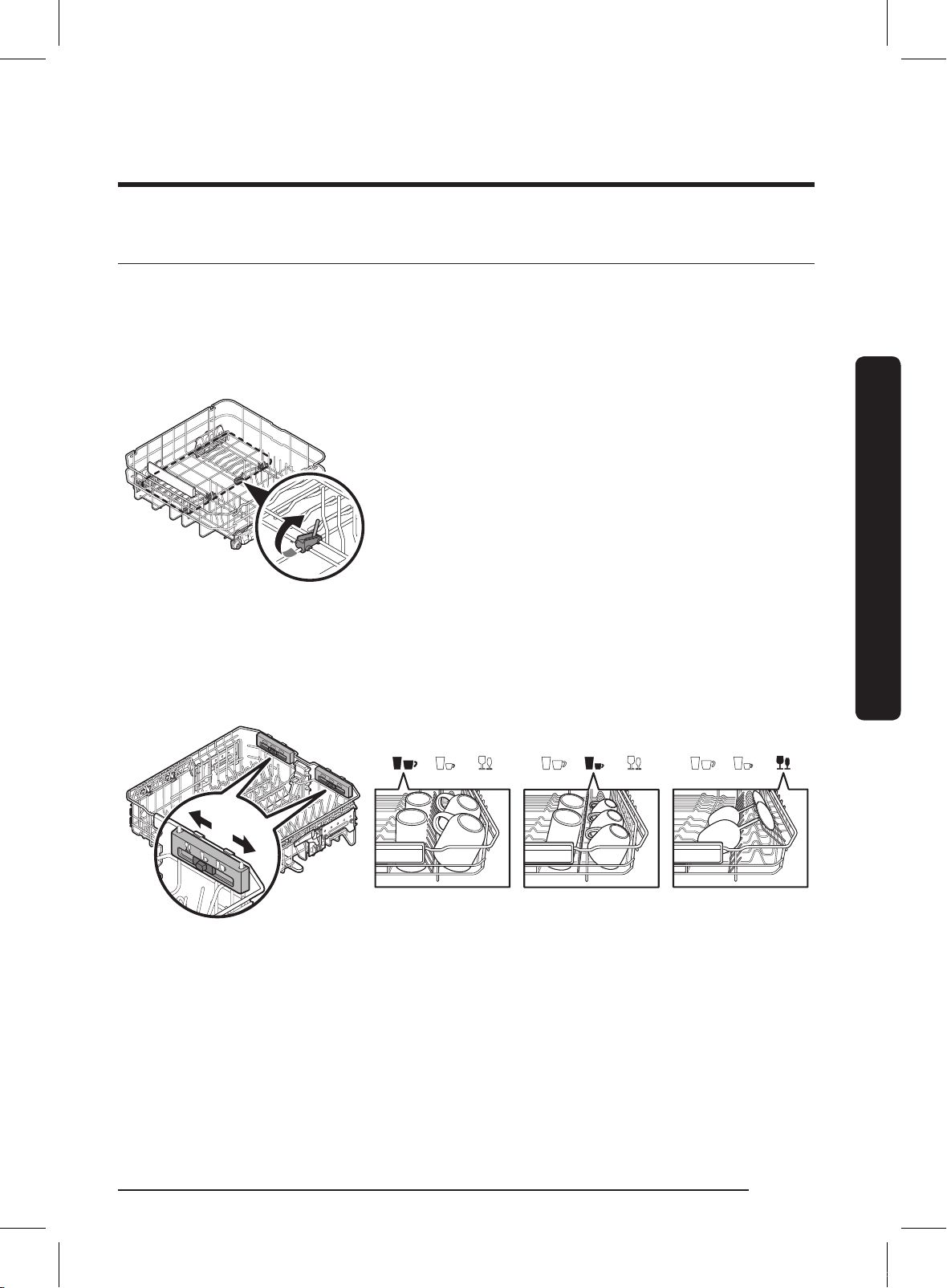

In the Lower rack, you can easily fold down the fold-down tines to make room for
large items such as pots and pans on the Zone Booster area. Remove the rack from the
dishwasher, and then fold down the tines one at a time. See the illustration below.
Lower rack
In the Upper rack, you can adjust the angle of the tines to three different positions to
match the size and shape of your dishes. To adjust the tines, grasp the handle at the front
of the rack, and then push it left or right. See the illustration below.
Upper rack
DW9900R_DD68-00209A-03_EN.indd 15 2020-05-27 오후 6:42:25

Using your dishwasher
Using your dishwasher
English16
Height adjustment
You can adjust the height of the upper rack in your Samsung dishwasher so that the lower
rack can accommodate larger sized dishes. Depending on where you set the upper rack
height, the lower rack can accommodate plates up to 12 in. (30 cm) in diameter and the
upper rack can accommodated plates up to 8 in. (20 cm) in diameter.

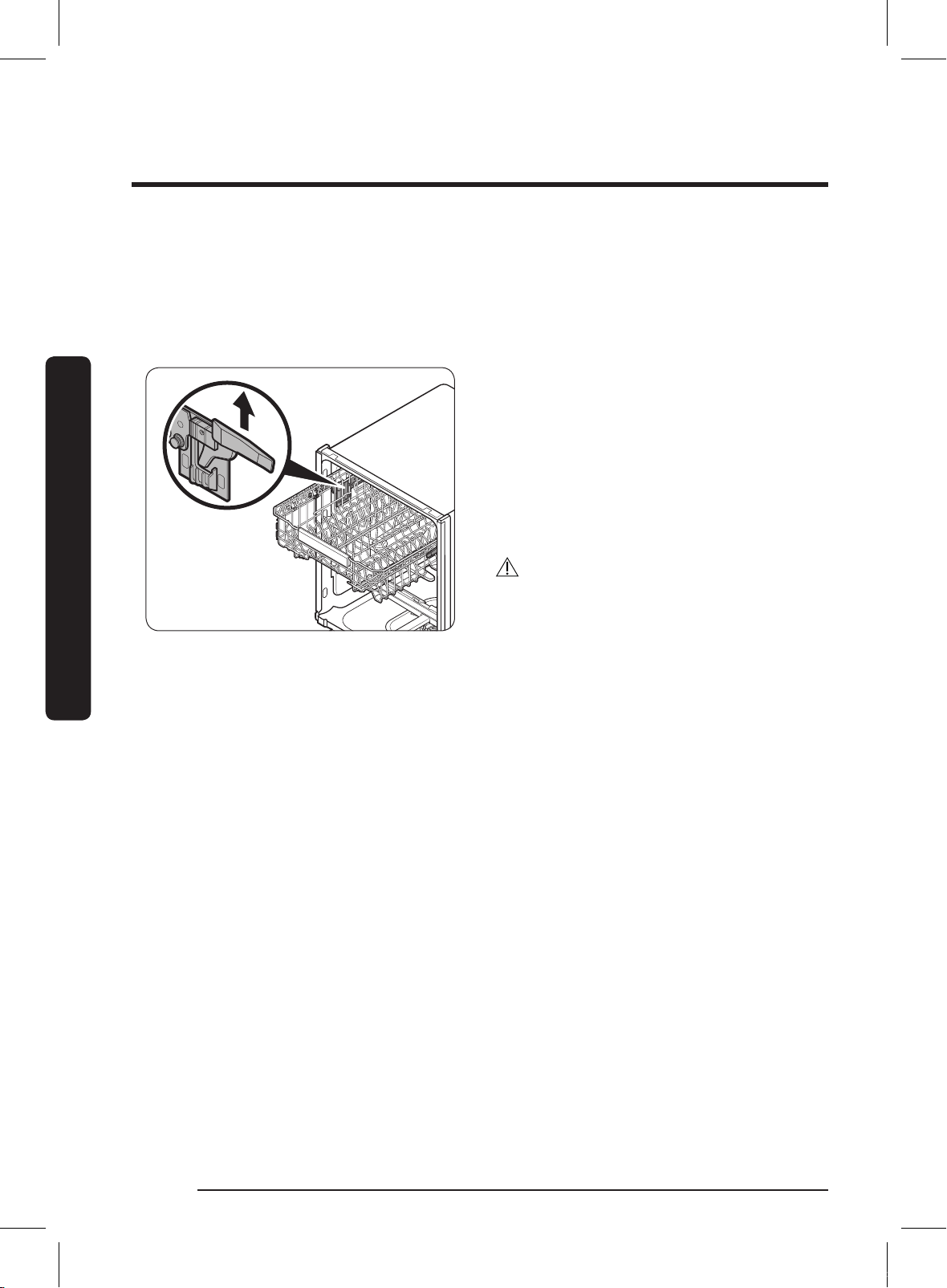

To raise the upper rack
Pull the upper rack upwards. The
adjustable handle will latch, and the upper
rack will rise.
To lower the upper rack
Hold both the adjustable handles located
at the left and right sides of the upper
rack, and then evenly press down.
CAUTION
• Adjust the height of the upper rack
before loading dishes into the rack.
Adjusting the rack after loading the
dishes may damage the dishes.
• Make sure to hold both handles when
adjusting, or the dishwasher door may
not close properly.
DW9900R_DD68-00209A-03_EN.indd 16 2020-05-27 오후 6:42:25

Using your dishwasher
English 17

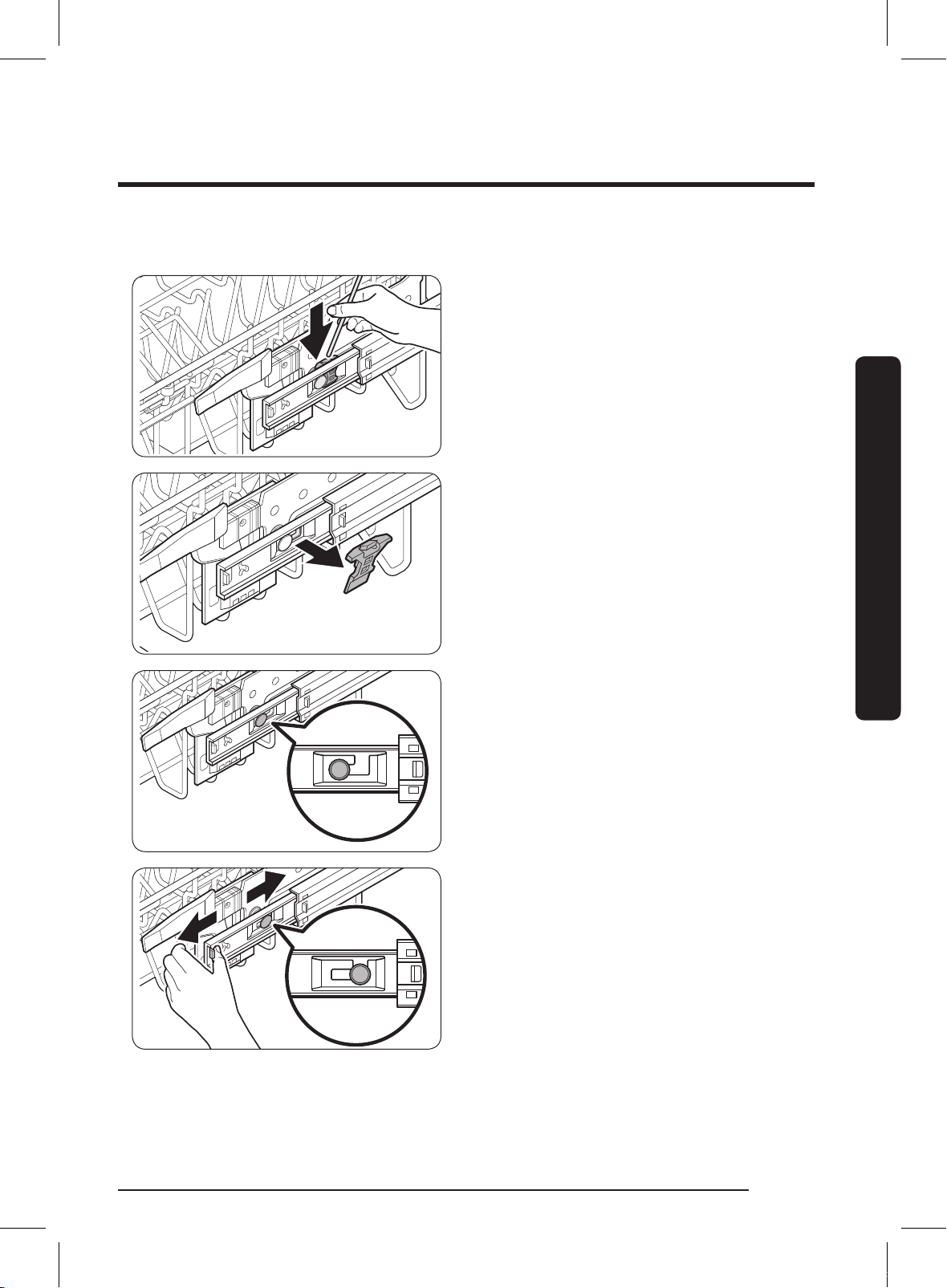

To remove the upper rack
1. Push the hook on the holder rail (on left
and right sides).
2. Remove the holder rail from the rail (on
left and right sides).
3. Check the position of the shaft on the
rail bracket.
4. Slide the upper rack so that the shaft is
positioned at end of the rail bracket.
DW9900R_DD68-00209A-03_EN.indd 17 2020-05-27 오후 6:42:26

Using your dishwasher
Using your dishwasher
English18

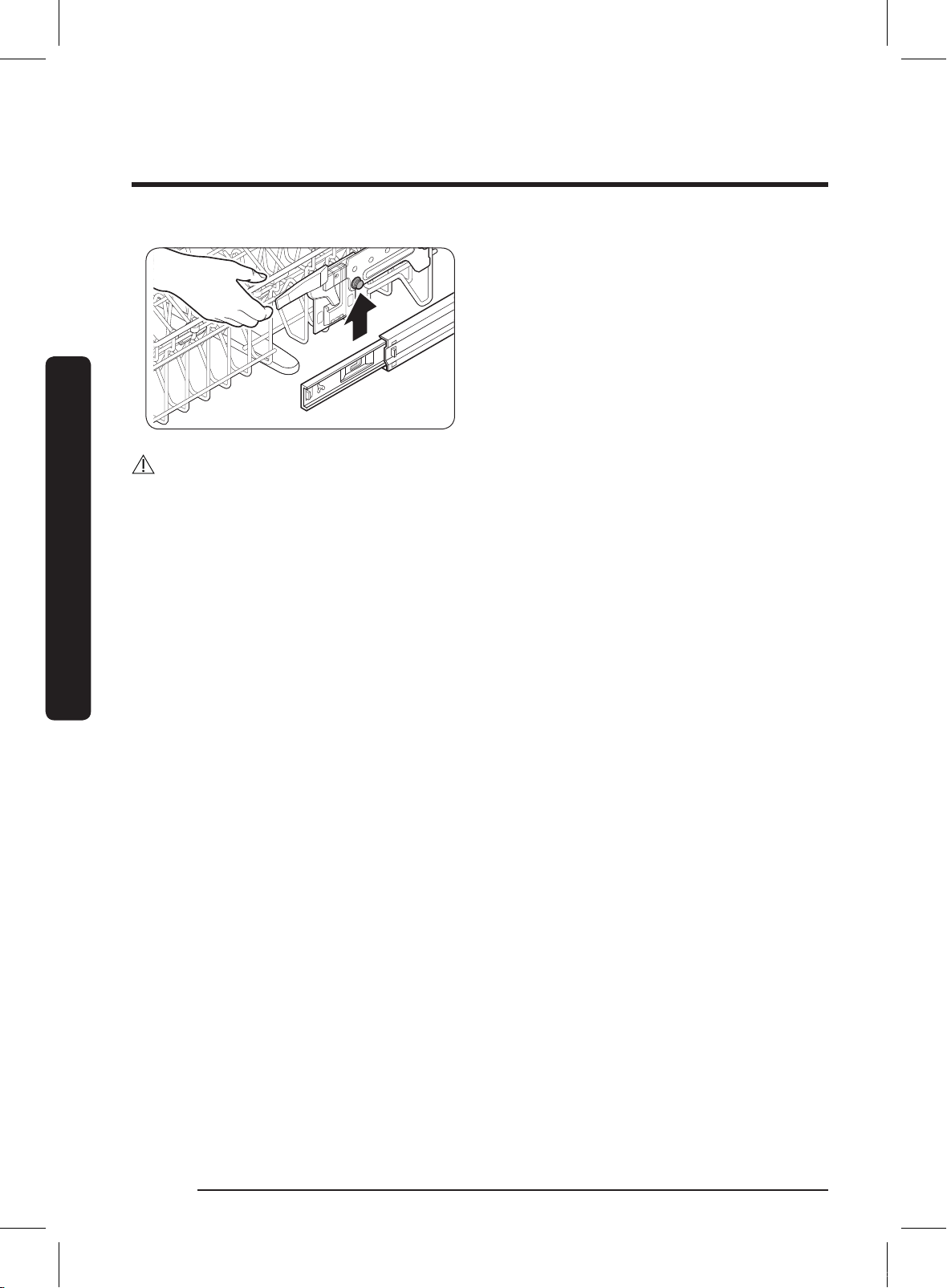

5. Lift the upper rack to remove.
CAUTION
• Do not operate the dishwasher without the upper rack. Otherwise, noises occur and the
dishwasher does not operate properly.
• Because the upper rack is removable, insert the upper rack properly to ensure the
dishwasher operates normally.
• Take care that you do not lose the holder rails during this process.
DW9900R_DD68-00209A-03_EN.indd 18 2020-05-27 오후 6:42:26

Using your dishwasher
English 19
To remove the 3rd Rack
1. Put your nger on the lower area of the
3rd holder rail as shown, and then push
the holder handle (see the arrow marks
in this picture) to draw and remove the
holder. Repeat this step on the other
side.
2. When the holder is removed, remove
the 3rd rack from the dishwasher.
3. Reverse the order of removal to
re-insert the 3rd rack.
CAUTION
Make sure the hook-shaped part (circle-
marked) of the holder faces downward
when reinserting the holder into the rail.
DW9900R_DD68-00209A-03_EN.indd 19 2020-05-27 오후 6:42:26

Using your dishwasher
Using your dishwasher
English20

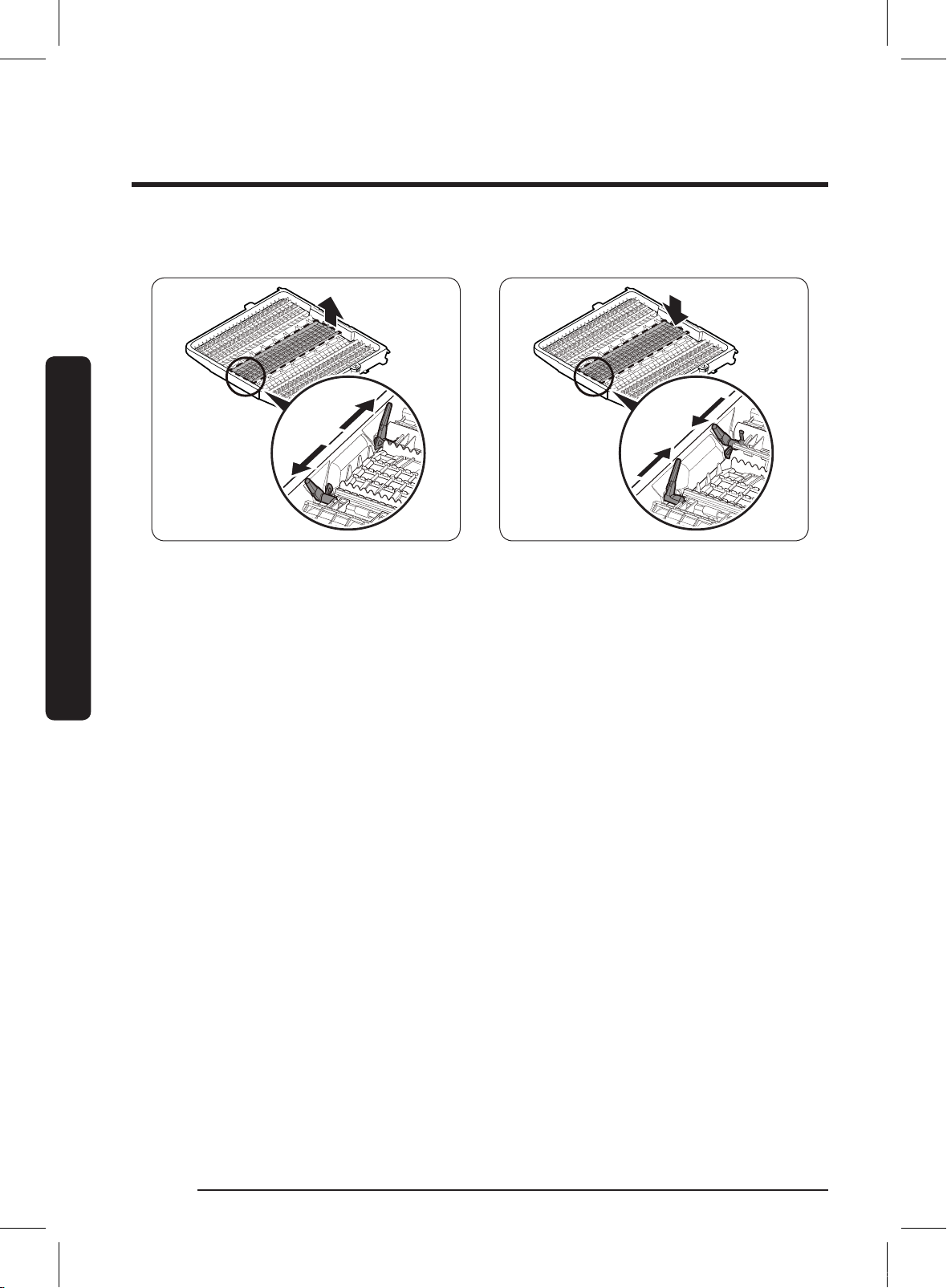

Flexible 3rd RackTM adjustment
High position of Flex Deck Low position of Flex Deck
When putting spatulas, serving spoons and similar items in the Flex Deck, pull or push the
parts highlighted in the gure above in the direction of the arrows. Once the Flex Deck is
lowered, you can put relatively bigger cookware items in it. To better use the upper rack,
remove the 3rd rack or raise it to make more room.
DW9900R_DD68-00209A-03_EN.indd 20 2020-05-27 오후 6:42:27
