Samsung DW80H99 Series User manual

imagine the possibilities
Thank you for purchasing this Samsung product.
DW80H99* Series
DW80J99* Series
DW80J75* Series
Dishwasher
installation guide
These installation instructions are intended
for use by qualified installers.
If you are having problems installing this dishwasher
Please call : 1-800-SAMSUNG (726-7864)
for assistance : www.samsung.com
STOP
DW80H9950US-00151A-06_EN_150216.indd 1
DD68-00151B-04

2_ safety instructions
safety instructions
Throughout this manual, you will see Warning and Caution notes. The warnings,
cautions, and the important safety instructions that follow do not cover all
possible conditions and situations that may occur. It is your responsibility to use
common sense, caution, and care when installing, maintaining, and operating the
dishwasher. Samsung is not liable for damages resulting from improper use.
IMPORTANT SAFETY INSTRUCTIONS
What the icons and signs in this installation guide mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury or
death.
CAUTION
Hazards or unsafe practices that may result in personal injury or property
damage.
CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury when
using the dishwasher, follow these basic safety precautions:
Follow directions explicitly.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
These warning signs are here to prevent injury to you and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
Read all instructions before using the appliance.
Install and store the dishwasher inside, away from exposure to weather.
Do not install the dishwasher near electrical components. Keep the dishwasher away from
open flames.
Do not install the dishwasher on a carpet as this is a fire hazard.
Do not install the dishwasher in a location where the water may freeze (where the
temperature falls below 32 ˚F (0 ˚C)). Frozen water in the hoses or pipes may damage the
dishwasher.
As with all equipment using electricity, water, and moving parts, potential hazards exist. To
safely operate this appliance, become familiar with its operation and exercise care when
using it.
The dishwasher must be properly grounded. Never connect it to an ungrounded outlet.
Prior to removal of original dishwasher and the installation of your new unit, make sure to
switch o your circuit breaker. Do not connect the dishwasher until you have completed the
installation. Connecting the power cable is the last step when installing the dishwasher.
All wiring and grounding must be done in accordance with the electrical code applicable to
the region.
CAUTION
DW80H9950US-00151A-06_EN_150216.indd Sec1:2DW80H9950US-00151A-06_EN_150216.indd Sec1:2 2015-02-16  9:57:052015-02-16  9:57:05

safety instructions _3
GROUNDING INSTRUCTIONS
For a permanently connected appliance:
This appliance must be connected to grounded metal, a permanent wiring system, or an
equipment-grounding conductor must be run with the circuit conductors and connected to
the equipment-grounding terminal or lead on the appliance.
The dishwasher is very heavy. Do not attempt to move or carry a dishwasher alone. Two or
more people are needed to move a dishwasher and avoid potential injuries.
If the power cable is damaged, it must be replaced by the manufacturer, a service agent or
similarly qualified person in order to avoid a hazard.
Do not touch the power cable with wet hands.
Do not connect another appliance to the same power outlet as the dishwasher.
Make sure to use a new water supply line. Old lines are susceptible to breakage because
they become hardened and may cause property damage due to a water leakage.
The dishwasher must be connected to a hot water supply with a temperature between 120
˚F (49 ˚C) ~ 149 °F (65 ˚C). This temperature range provides the best washing result and
shortest cycle time. Temperature should not exceed 149 ˚F (65 ˚C) to prevent damage to
dishes.
Ensure that the water supplied to the dishwasher does not freeze. Frozen water can
damage the hoses, valves, pump, or other components.
Certified residential dishwashers are not intended for licensed food establishments.
(NSF/ANSI Standard 184 for Residential Dishwashers)
For a full list of safety information, please refer to the User Manual.
BEFORE INSTALLING THE DISHWASHER
WARNING
Tip-Over Hazard
- Do not use the dishwasher until it is correctly installed.
- Do not push down on the door when it is open.
- Do not place excessive weight on the open door.
Electric Shock Hazard
Failure to follow these instructions can result in death, fire, or electric shock:
- Electrically ground the dishwasher
- Connect the ground wire to the green ground connector in the junction box.
- Do not use an extension cord.
To reduce the risk of electric shock, fire, or injury to persons, the installer must ensure that
the dishwasher is completely enclosed at the time of installation.
CAUTION
CAUTION
CAUTION
WARNING
DW80H9950US-00151A-06_EN_150216.indd Sec1:3DW80H9950US-00151A-06_EN_150216.indd Sec1:3 2015-02-16  9:57:052015-02-16  9:57:05

4_ contents
contents
PREPARING THE DISHWASHER
ENCLOSURE
5
5Product dimensions
5Enclosure dimensions
INSTALLING THE DISHWASHER
6
6STEP 1 Check the parts and tools
8STEP 2 Select the best location for the
dishwasher
9STEP 3 Check water supply requirements
and cautions
10 STEP 4 Check the electrical requirements
and cautions
11 STEP 5 Unpacking and inspecting the
dishwasher
12 STEP 6 Preparing the dishwasher
14 STEP 7 placing the dishwasher and
connecting the hot water supply line
15 STEP 8 Leveling the dishwasher
16 STEP 9 Securing the dishwasher
18 STEP 10 Connecting the drain hose
20 STEP 11 Wiring connections
21 STEP 12 Completing the installation
SPECIFICATIONS
22
22 Specifications
DW80H9950US-00151A-06_EN_150216.indd Sec2:4DW80H9950US-00151A-06_EN_150216.indd Sec2:4 2015-02-16  9:57:052015-02-16  9:57:05

preparing the dishwasher enclosure _5
01 PREPARING THE DISHWASHER
preparing the dishwasher
enclosure
PRODUCT DIMENSIONS
ENCLOSURE DIMENSIONS
This dishwasher is designed to be enclosed
on the top and on both sides by a standard
residential kitchen cabinet unit.
The installation enclosure must be clean and free
of any obstructions.
The enclosure must be at least 24 inches wide,
24 inches deep, and 34 1/8 inches high.
For the front door of the dishwasher to be flush
with the leading edge of the counter top, the
counter top must be at least 25 inches deep.
Side view
(DW80H995 series,
DW80H994 series)
Side view
(DW80H997 series,
DW80H993 series,
DW80J994 series,
DW80J755 series)
Rear view
70 ½ ” (670 mm)
20 ½” (520 mm)
25 ” (636mm)
23 7⁄8” (605 mm)
33 7⁄8” (860mm)
20 ½” (520 mm)
25 ” (636mm)
5 ¾ ” (140mm)
2 ½ ” (60mm)
2 ¾” (70mm)
The water supply
line, power cable
and drain hose
should go through
this space behind
the dishwasher.
Then, they run in
channels under
the dishwasher to
connections in the
front.
24” (610 mm)
minimum
24” (610 mm)
minimum
34 1⁄8” (867 mm)
minimum
DW80H9950US-00151A-06_EN_150216.indd Sec5:5DW80H9950US-00151A-06_EN_150216.indd Sec5:5 2015-02-16  9:57:062015-02-16  9:57:06

6_ installing the dishwasher
installing the dishwasher
Be sure that you or your installer follow these instructions closely so that the new
dishwasher works properly and that you are not at risk of injury when washing dishes.
STEP 1 CHECK THE PARTS AND TOOLS
Before starting on the installation, prepare all the necessary tools and parts required to install the
dishwasher. This will save installation time and simplify the installation process.
Parts required
Provided with the dishwasher. Check when you unbox the dishwasher in Step 5.
4 Installation Brackets
2 Screws
(For the installation
bracket)
Drain Hose Hose Clamp
(for Drain Hose)
Kick Plate Hose Fixer
(for Drain Hose)
7 Screws
(for the kick plate &
Hose Fixer)
sound-absorber
(in front of Base)
(ON SOME MODELS)
Not provided
Power cable Twist on wire
connector Strain relief Electrical tape & Standard duct tape
Hot water supply line 90° Elbow(
3
/
8
”) Tube fittings Teflon
®
tape or sealing
compound
Hose clamp Air gap Rubber connector
2 Screws for the side
walls
[Length : 1" (25mm)]
For the hot water supply line – We strongly recommend using
3
/
8
” minimum O.D. copper tubing with a
compression fitting or a flexible stainless steel braided hot water supply line.
[Warning: Do not use plastic tubing. Plastic tubing can deteriorate over time and cause a leak inside
the tube fitting.]
You also need a 90° elbow with
3
/
8
” N.P.T. external pipe threads on one end and a fitting sized to fit
your hot water supply line (copper tubing/compression fitting or braided hose) on the other.
For the power cable, we recommend a jacketed 12-2 cable with ground. Note that some local codes
may require the cable to have a BX style metal jacket.
DW80H9950US-00151A-06_EN_150216.indd Sec3:6

installing the dishwasher _7
02 INSTALLING THE DISHWASHER
Tools required
Electric drill Safety glasses Gloves Flashlight
Adjustable wrench Wire stripper Pliers Nipper
Tape measure Pencil Phillips screwdriver Flat screwdriver
Tubing cutter Cutting knife Hole saw Level
Torx t20 Hex L-wrench
DW80H9950US-00151A-06_EN_150216.indd Sec3:7DW80H9950US-00151A-06_EN_150216.indd Sec3:7 2015-02-16  9:57:062015-02-16  9:57:06

8_ installing the dishwasher
New installation
If the dishwasher is a new installation, most of the installation work must be done before the
dishwasher is moved into place.
Replacement
If the dishwasher is replacing an old dishwasher, you must check the exising dishwasher connections
for compatibility with the new dishwasher. Repace the existing connections as necessary.
STEP 2 SELECT THE BEST LOCATION FOR THE DISHWASHER
The following criteria are important to ensure the best location for the dishwasher:
- The location must have a solid floor that is able to support the weight of the dishwasher.
- The location must be near a sink with easy access to the water supply, drain, and electrical
outlet.
For the drain to operate properly, the dishwasher should be installed within 9.8 ft (3 m) of
the sink.
- The location must let you load your dishes into the dishwasher easily.
- The location must have sucient space for the dishwasher door to open easily and provide
enough space between the dishwasher and the cabinet sides (at least 0.1 in (2 mm)).
If the dishwasher is installed in a corner, ensure that the side of the dishwasher is more than
2 in. (50 mm) from the wall or cabinet to its right or left.
- The wall at the back must be free of obstructions.

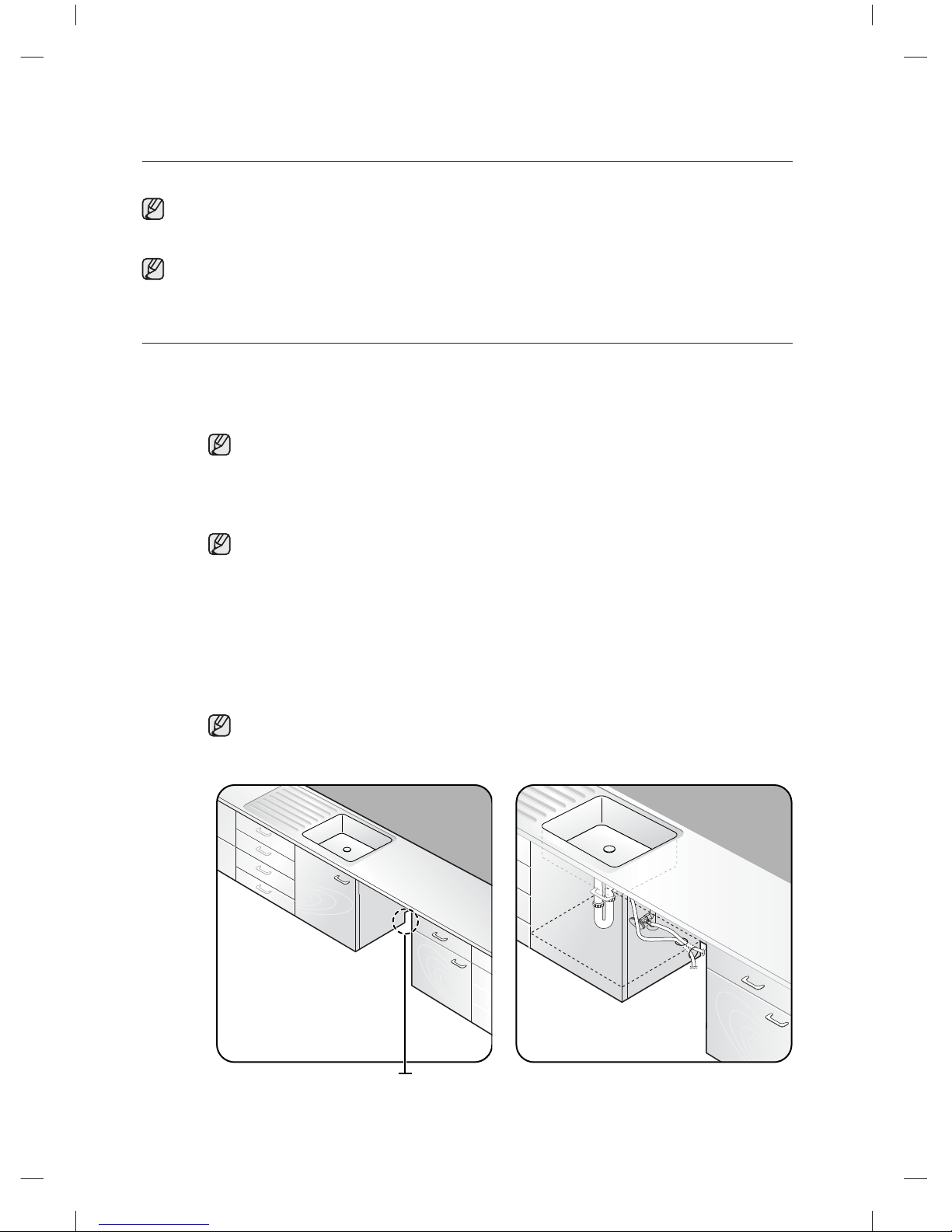

If this is a new installation, follow these steps:
1. Using a 2 ½ inch hole saw, cut a hole into the side of the cabinet that holds the sink as
shown in Figure 1 below.
2. If the base inside the sink cabinet is raised above the kitchen floor and is higher than the
connections on the dishwasher, make a hole in the base inside the cabinet and in the cabinet
side as shown in Figure 1-2.
Depending on where your electrical outlet is, you may need to cut a hole in the opposite
cabinet side.
<Figure 1-1> <Figure 1-2>
The hole for the water supply line, drain hose and
power cables.
installing the dishwasher
DW80H9950US-00151A-06_EN_150216.indd Sec3:8DW80H9950US-00151A-06_EN_150216.indd Sec3:8 2015-02-16  9:57:072015-02-16  9:57:07

installing the dishwasher _9
02 INSTALLING THE DISHWASHER
STEP 3 CHECK WATER SUPPLY REQUIREMENTS AND CAUTIONS
• The hot water supply line pressure must be between 20~120 psi (140~830 kPa).
• Adjust the water heater to deliver water between 120 ˚F (49 ˚C) ~ 149 ˚F (65 ˚C).
- The dishwasher must be connected to a hot water supply between 120 ˚F (49 ˚C) ~ 149 ˚F
(65 ˚C). This temperature range provides the best washing result and shortest cycle time.
Temperature should not exceed 149 ˚F (65 ˚C) to prevent damage to dishes.
- Ensure that the water supply valve is turned o before connecting the hot water supply line to
the dishwasher.
- Seal the hot water supply line connections using teflon tape or sealing compound to stop any
water leakage.

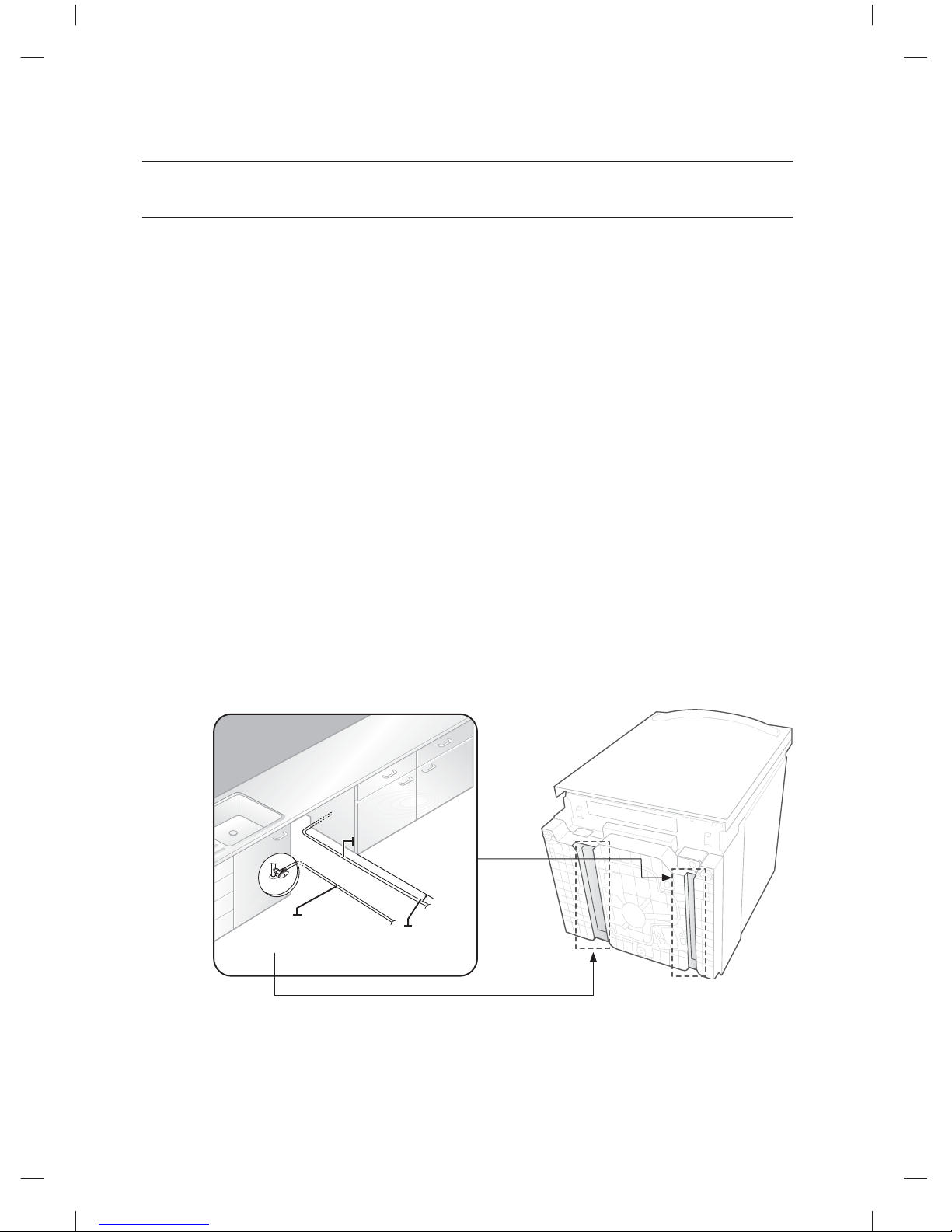

- The hot water supply line must pass through the channel on the bottom of the dishwasher as
shown in Figure 2. Do not place the dishwasher on the water supply line.
- The drain hose connected to the dishwasher must be run through the hole in the side wall so
it can be connected to the drain outlet of the sink. When you install the dishwasher, ensure
there is nothing on the drain hose and be careful not to tear it during the installation process.
<Figure 2>
Hot Water
Supply Line
Dishwasher bottom
Power cable
4 ¼~6 ¼ in.
(110 ~ 160mm)
DW80H9950US-00151A-06_EN_150216.indd Sec3:9DW80H9950US-00151A-06_EN_150216.indd Sec3:9 2015-02-16  9:57:072015-02-16  9:57:07

10_ installing the dishwasher
STEP 4 CHECK THE ELECTRICAL REQUIREMENTS AND CAUTIONS
The electrical requirements for the dishwasher are as follows:
• In the United States, install in accordance with the National Electric Code/State and Municipal codes
and/or local codes.
• In Canada, install in accordance with the Canadian Electric Code C22.1-latest edition/Provincial and
Municipal codes and/or local codes.
• For cable direct connections.
- Use flexible, armored or non-metallic sheathed, copper wire with a grounding wire that meets the
wiring requirements for your local codes and ordinances.
- Use the strain relief method provided with the wiring junction box or install a U.L.-listed/CSA-certified
clamp connector to the wiring junction box. If using conduit, use a U.L.-listed/CSA-certified conduit
connector.
• For power cord connections
- The power supply cord must plug into a mating three prong, grounded outlet, located in the cabinet
next to the dishwasher opening. The outlet must meet your local codes and ordinances. Use a U.L.-
listed/CSA-certified power cord kit.
- The dishwasher must be connected to an electrical supply that provides the voltage and
amperage marked on the rating plate of the unit: 15 amps, 120 volts, 60Hz AC.
- Ensure that the circuit breaker connected to the dishwasher is o.
- The power cable must not extend more than 4 ft (1.2 m) from the side of the dishwasher.
- Check with a qualified electrician or serviceman if you are unsure whether the dishwasher is
properly connected.
- Do not connect another appliance to the same power outlet as the dishwasher.
- Before connecting the power cable to the dishwasher, ensure that there are no electrical
hazards (which may result in fire, explosion, electric shock, or personal injury).
- The power cable must pass through the channel on the bottom of the dishwasher as shown
in Figure 3.
<Figure 3>
installing the dishwasher
Hot Water
Supply Line
Dishwasher bottom
Power cable
2 ½~3 ½ in.
(64mm ~ 89 mm)
DW80H9950US-00151A-06_EN_150216.indd Sec3:10DW80H9950US-00151A-06_EN_150216.indd Sec3:10 2015-02-16  9:57:072015-02-16  9:57:07

installing the dishwasher _11
02 INSTALLING THE DISHWASHER
STEP 5 UNPACKING AND INSPECTING THE DISHWASHER
Unpack the dishwasher in an open area free of obstruction both around the packaging and overhead. We
recommend that you retain all of the packing materials until the dishwasher is fully installed and operational
to ensure you have removed all the product’s components from the packing materials prior to disposal.
Unpacking
1. Position the carton right-side-up with top arrows pointing upwards.
2. Unbuckle or cut the straps securing the packaging.
3. Unpack the product packaging with care.
4. Put the straps and all of the packing materials from around the dishwasher inspecting them
for any signs of damage.
5. Locate and set aside the dishwasher's kick plate. The Kick plate is attached to packing
material of the dishwasher.
6. Lift the dishwasher from the packing tray, and then place it on the floor.
ALWAYS LIFT THE DISHWASHER TO MOVE IT. Sliding it over rough surfaces can damage
the dishwasher’s feet and sliding the feet over finished surfaces can, in some cases,
damage that finish or the underlying surface.
7. There is also packing inside the dishwasher that you may want to leave in place until the
dishwasher is installed.
8. DO NOT, under any circumstances, remove the sound-absorbent padding that surrounds
the exterior of the tub of the dishwasher.
Inspecting
Mechanical
1. Check the plastic base assembly to ensure that it is intact
2. Check the dishwasher’s feet to ensure they are in place and can be adjusted so you can level
and secure the dishwasher.
3. Check all the visible components on the bottom of the dishwasher to ensure they are intact
and secure.
4. Check the door latch, the operation of the hinges, and confirm the door is properly secured
to the dishwasher.
Kick plate
CAUTION
DW80H9950US-00151A-06_EN_150216.indd Sec3:11DW80H9950US-00151A-06_EN_150216.indd Sec3:11 2015-02-16  9:57:072015-02-16  9:57:07

12_ installing the dishwasher
installing the dishwasher
Plumbing
1. Check the hot water connection on the front left-side of the base of the dishwasher.
The mounting plate should be secured to the front of the base, the threads inside the
connection should be smooth and shiny, and the area should be clean and free of any
debris.
2. Make sure the dish washer and the accessories are all included in the package to ensure
these assemblies are not cracked and that all connections are secure.
3. Check the drain hose for any holes or deformities that could allow a water leak during
draining.
Electrical
1. Confirm the junction box cover is secured to the junction box on the front right-side of the
base of the dishwasher.
2. Confirm the electrical box was not damaged during shipping and that it is secured to the
base of the dishwasher.
Appearance
1. Confirm there are no dents or scratches on the front of the dishwasher.
2. Check the edges of the doors for any roughness or cracking
3. Check the control panel to ensure it is clear and unscratched, and that all the control markers
are in their proper places.
Parts
1. Confirm you have all the parts listed in Step 1 on page 6.
STEP 6 PREPARING THE DISHWASHER
1. Ensure that the circuit breaker and water supply valve are turned o before proceeding with
the following steps.
Before you move or lay down the dishwasher for installation, make sure to adjust the height
of the legs so the legs are as short as possible. This prevents the legs from breaking.
Level the dishwasher by adjusting the height of the legs after you have the dishwasher in
place.
2. Wrap Teflon tape on both sides of the 90 ˚ elbow. Then, insert the elbow into the inlet
valve (see Figure 4-B). Tighten until the elbow is tight and pointing towards the water hose
channel in the base of the dishwasher (about 4 o'clock). To prevent the inlet valve from being
blocked, make sure that the Teflon tape does not enter the valve. Do not over tighten.
3. Cut the strings securing the drain hose to the back of the dishwasher. Roll-out the hose.
Make sure there are no kinks and that the hose is not bent at any extreme angles that could
constrict the flow of water.
4. Remove the junction box cover located at the bottom front right of the dishwasher using a
screwdriver, and then Install the strain relief (Figure 4 - C). Make sure to keep the junction box
cover you removed. It is used in Step 10, Wiring Connections.
5. If the countertop is made of wood or a material that is not damaged by drilling, attach the
two (2) Installation brackets that were supplied with the dishwasher using the supplied
screws (Figure 4 - A). They will be used in Step 8, Securing the Dishwasher.
6. Use the provided clamp to connect the provided drain hose to the outlet at the back of the
product. If the product has the drain outlet in the right side, use the provided holder hose to
facilitate the connection.
CAUTION
DW80H9950US-00151A-06_EN_150216.indd Sec3:12DW80H9950US-00151A-06_EN_150216.indd Sec3:12 2015-02-16  9:57:072015-02-16  9:57:07

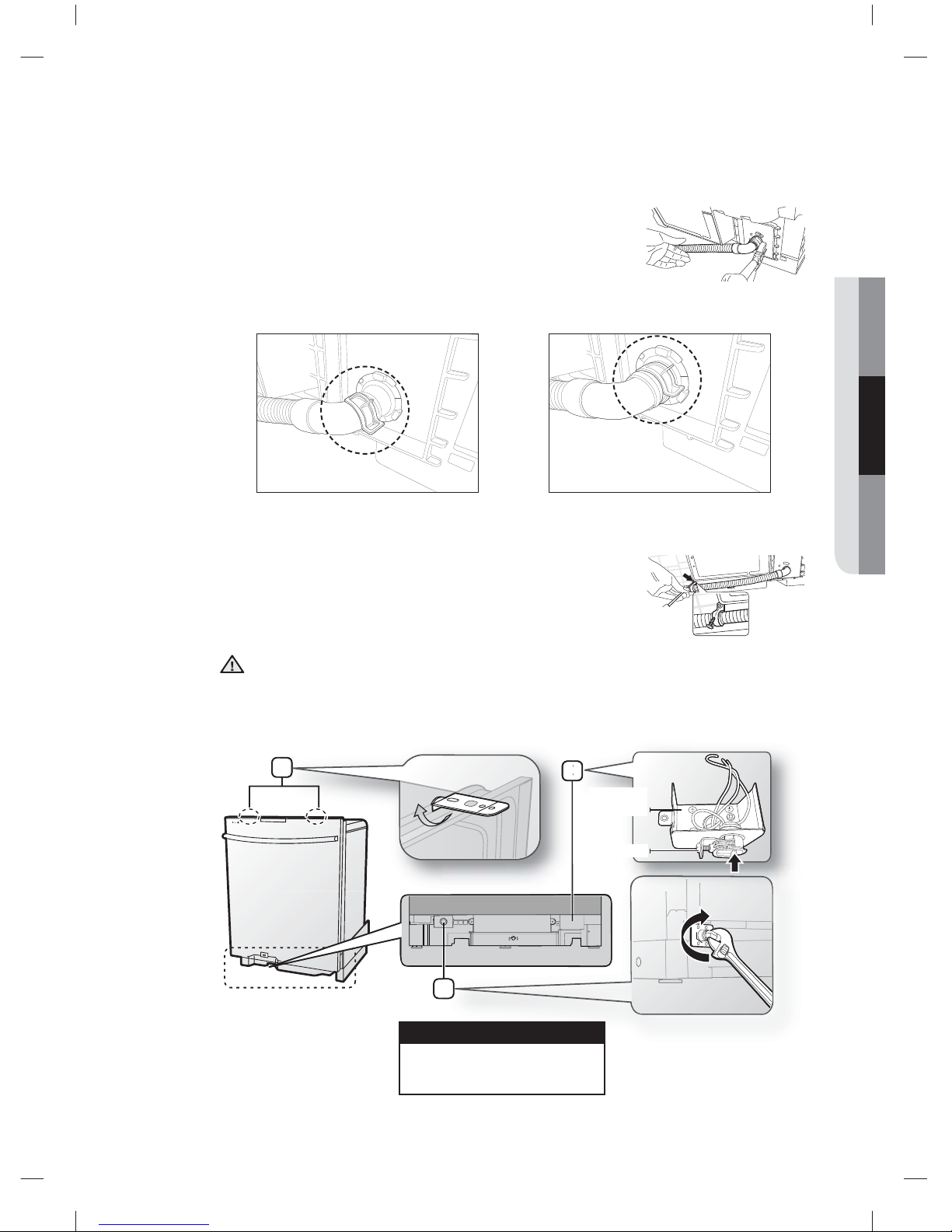

installing the dishwasher _13
02 INSTALLING THE DISHWASHER
Insert the clamped drain hose into the holder hose.
Tighten the clamp in the right position.
Bad Good
The clamp is improperly connected. Tighten the clamp in the center of the
assembly position.
To prevent damage to the drain hose that is designed to pass
the product to the right, use the provided hose fixer and screw
to secure the middle area of the drain hose to the product.
Make sure to secure on the arrow-marked area.
If drain hose is not connect completely, an information code of "OC" appears on the display.
<Figure 4>
A
B
C
B
A
C
C
Junction
box
Strain relief
CAUTION
Do not overtighten the 90˚ elbow.
Doing so may damage the water
inlet valve and cause a water leak
CAUTION
DW80H9950US-00151A-06_EN_150216.indd Sec3:13DW80H9950US-00151A-06_EN_150216.indd Sec3:13 2015-02-16  9:57:072015-02-16  9:57:07

14_ installing the dishwasher
STEP 7 PLACING THE DISHWASHER AND CONNECTING THE HOT
WATER SUPPLY LINE
1. Adjust the three leveling legs at the bottom of the dishwasher after measuring the height
of the cabinet opening from under the countertop to the floor. (See Step 8, Leveling the
Dishwasher.)
2. Locate the hot water supply line and the power cable.
3. Place the dishwasher so that the hot water supply line is in the left channel and the power
cable is in the right channel of the base of the dishwasher. Use standard duct tape or cable
ties to secure the water line and electrical cable to their adjacent channels in the base. This
can prevent the the water line and electrical cable from being squeezed when you push the
the dishwasher into place.
4. Pull the drain hose through the hole in the sink cabinet side wall. Keep it free of kinks.
5. Make sure the hot water supply line is not twisted, and then connect the hot water supply
line to the elbow joint.
6. Slide the dishwasher carefully into the installation space. If possible, gently pull any excess
lengths of water supply line, drain hose, or power cable back as you move the dishwasher.
Get a second or third person to help you do this if necessary.
Do not place the dishwasher on the water supply line, drain hose, or power cable.
Also, make sure they are not folded or twisted.
Make sure the supply line is properly connected.
Wrap Teflon tape around every connection to prevent water leaks.
<Figure 6> <Figure 7>
CAUTION
Do not overtighten the 90˚ elbow.
Doing so may damage the water
inlet valve and cause a water leak
Power cable
Power cable
Hot Water Supply Line
Hot Water Supply Line
Drain hose
Drain hose
Hot Water Supply Line
Hot Water Supply Line
Elbow( ³/8” (9.5mm))
Elbow( ³/8” (9.5mm))
Inlet valve
Inlet valve
Make sure the dishwasher is positioned to the center.
installing the dishwasher
CAUTION
CAUTION
DW80H9950US-00151A-06_EN_150216.indd Sec3:14DW80H9950US-00151A-06_EN_150216.indd Sec3:14 2015-02-16  9:57:082015-02-16  9:57:08

installing the dishwasher _15
02 INSTALLING THE DISHWASHER
STEP 8 LEVELING THE DISHWASHER
1. Open the door and place the level against the top of the
tub on the inside and check if the the dishwasher is level.
If it is not level, rotate the leveling legs at the bottom front
of the dishwasher until the dishwasher is level.
See the first note below for instructions on adusting the
height of the front legs.
2. Use the level to check if the dishwasher is level front to
back, as shown in the figure to the right.
If the dishwasher is not level front to back, adjust the
height of the rear leg until the dishwasher is level.
See the second note below for instructions on adusting
the the rear leg.
3. Open the door of the dishwasher and
check if both the tub and door clearances
are correct.
If not, rotate the leveling legs on the
bottom front of the dishwasher.
You can aslo check this by placing a level
against an inside front vertical surface of
the tub.
If the leveling legs are rotated to the right (counter
clockwise), they are loosened and the front of the
dishwasher is raised. If they are rotated to the left
(clockwise), they are tightened and the front of the
dishwasher is lowered.
To adjust the height of a rear leg, turn the Hexbolt (at
the front of the base) to the left to raise the back of the
dishwasher using the proper tool (Hex L-wrench or
similar tool).
Before you move the dishwasher for installation, make sure to adjust the height of the
legs so the legs are as short as possible. This prevents the legs from breaking. Level the
dishwasher by adjusting the height of the legs after you have the dishwasher in place.
That if the product is installed unleveled or with the leg missing, the door may not close
completely, causing a leak of steam or water.
CAUTION
DW80H9950US-00151A-06_EN_150216.indd Sec3:15DW80H9950US-00151A-06_EN_150216.indd Sec3:15 2015-02-16  9:57:082015-02-16  9:57:08

16_ installing the dishwasher
STEP 9 SECURING THE DISHWASHER
You must fix the dishwasher to the countertop or cabinet side walls for additional stability and safety.
1. If the countertop is made of wood or the material will not be damaged by drilling, follow
the instructions in 2-1 below.
If the countertop is made of granite, marble, or any other material that can be damaged
by drilling, follow the instructions in 2-2 below.
2-1. If the installation brackets on the front of the dishwasher are too long cut them down
using a pliers as shown in Figure 8.
Put a large towel into the bottom of the dishwasher (covering the sump) to prevent wood
shavings or a dropped screw from falling into the dishwasher sump.
Carefully drill two screw holes into the bottom of the counter-top from beneath, one for
each counter-top bracket, and another two screw holes into the sides of the kitchen
cabinet, one for each side bracket.
Make sure the hole you drill is smaller than the diameter of the screw.
Insert the provided screws into the brackets, and then tighten to secure the dishwasher to
the counter top.
2-2. Put a large towel into the bottom of the dishwasher (covering the sump) to prevent wood
shavings or a dropped screw from falling into the dishwasher sump. Remove the tub
spacer caps with the tip of a screwdriver. The cap is used for the top of the inlets in the
sides of the tub. (Figure 9 on the next page).
Drill one upper hole and one lower hole into both sides of the kitchen cabinet, totaling
4screw holes.
Make sure the hole you drill is smaller than the diameter of the screw.
Also make sure the drill bit does not strike the sides of the spacer cap holes. Insert the
provided screws into the holes, and then tighten to secure the dishwasher to the cabinet.
Make sure the tub is not distorted by pressure from the screws.
If the tub is distorted, loosen the screws a little.
Replace the tub spacer caps.
• The screws or tub spacer cap may fall into the dishwasher while you are working
with the door open. Cover the interior of the dishwasher with a towel to prevent
any screws from falling into the dishwasher. If any foreign items such as a screw
get into the dishwasher, it may cause noise, an abnormal operation, damage, or a
malfunction.
• Use a magnetic screwdriver to help prevent screws from falling into the dishwasher.
• If a foreign item such as a screw gets into the dishwasher and you are unable to
remove it, the dishwasher needs to be disassembled. Contact a qualified service
technician for this.
<Figure 8>
Screw to countertop
installing the dishwasher
DW80H9950US-00151A-06_EN_150216.indd Sec3:16DW80H9950US-00151A-06_EN_150216.indd Sec3:16 2015-02-16  9:57:082015-02-16  9:57:08

installing the dishwasher _17
02 INSTALLING THE DISHWASHER
<Figure 9>
SAMSUNG
Tub spacer cap
Tub spacer cap
Tub spacer cap
Tub spacer cap
Screw to side wall
Screw to side wall
Screw to side wall
Screw to side wall
After installing the dishwasher inside the cabinet, check if the door opens and closes freely
with no interruption with the cabinet.
Make sure the tub is not distorted by pressure from the screws. If the tub is distorted,
loosen the screws a little. Replace the tub spacer caps.
Use the paper ruler to measure the specified distance on A and B.
CAUTION
CAUTION
22 " (560mm)
SAMSUNG
(A) (B)
22 " (560mm)
SAMSUNG
BadGood
(A) (B)
Bad
Good
Do not to exceed 22” (560 mm)
distance between the Caps
DW80H9950US-00151A-06_EN_150216.indd Sec3:17DW80H9950US-00151A-06_EN_150216.indd Sec3:17 2015-02-16  9:57:092015-02-16  9:57:09

18_ installing the dishwasher
STEP 10 CONNECTING THE DRAIN HOSE
1. Check the parts on the sink to which the drain hose will be connected.
2. There are several ways to insert the drain hose into the drain hose connector of the sink,
as shown in the following figures. You must connect the drain hose in accordance with the
water pipe installation regulations in your region.
<Figure 10>
Case 1. Without disposal
Without disposal With an air gap/without disposal Without an air gap
Case 2. With disposal
With disposal Disposal with an air gap Without an air gap
installing the dishwasher
Air gap
Drain hose
Hose clamp
Hose clamp
Air gap
Hose clamp
Drain hose
Hose clamp
DW80H9950US-00151A-06_EN_150216.indd Sec3:18DW80H9950US-00151A-06_EN_150216.indd Sec3:18 2015-02-16  9:57:092015-02-16  9:57:09

installing the dishwasher _19
02 INSTALLING THE DISHWASHER
3. Check the size of the sink’s drain hose connector. If needed, cut the drain hose so its end
fits onto the sink connector (½ in., ¾ in. or 1 in. - as shown in Figure 11 below). If the end
of the drain hose does not fit onto the drain hose connector of the sink, use an adaptor
purchasable at a plumbing/hardware supply store.
4. Slide a hose clamp over the end of the drain hose. Attach the drain hose to the sink
connector, slide the hose clamp to the end of the hose, and then tighten the hose clamp.
Note : You must use a hose clamp. Failure to do so may cause water leakage.
5 . If there is no air gap, make sure to hang the middle of the drain hose well above the sink
cabinet base to prevent backflow (see Figure 12 below).
Be careful when cutting o the end of the drain hose as there is a risk of injury. Clean
around the sink’s drain connection so that it does not damage the hose. Check for any
foreign items in the drain hose and remove them.
CAUTION
Sink Dishwasher
Drain hose
Min. 30 in.
(762 mm)
Min. 20 in.
(508 mm)
<Figure 11>
If required, cut o the end
of the drain hose at one
of the dotted lines.
1 in.
(25 mm) ¾ in.
(19 mm)
⅝ in.
(16 mm)
<Figure 12>
DW80H9950US-00151A-06_EN_150216.indd Sec3:19DW80H9950US-00151A-06_EN_150216.indd Sec3:19 2015-02-16  9:57:092015-02-16  9:57:09

20_ installing the dishwasher
STEP 11 WIRING CONNECTIONS
1. Before connecting the power cable to the dishwasher, make sure the circuit breaker is o.
2. In the junction box located at the front bottom right of the dishwasher, find the three power
wires from the dishwasher including the grounding line.
3. Pass the power cable through the strain relief, and then into the junction box (Figure 13).
4. Connect the black wire of the dishwasher to the black wire of the power cable by insertng
both into a wire nut. and then rotating the wire connector as shown in Figure 14.
Connect the white wire to the white wire and the green to the green in the same manner.
5. Recheck each wire to ensure it is connected correctly and securely.
Each colored wire should be connected to the corresponding wire of the same color.
White should be connected to white, black to black, and green to green.
6. Replace the junction box cover on the dishwasher.
<Figure 13>
<Figure 14>
installing the dishwasher
Black to black
White to white
Green to green
(Ground to ground)
Power cable
Junction box
Strain relief
DW80H9950US-00151A-06_EN_150216.indd Sec3:20DW80H9950US-00151A-06_EN_150216.indd Sec3:20 2015-02-16  9:57:092015-02-16  9:57:09
