Samsung DW80R9950 Series User manual

Dishwasher
Installation manual
DW80R9950* Series
DW9900R_DD68-00208B-00_EN.indd 1 12/29/2018 1:57:35PM

Contents
English2
Contents
Safety instructions 3
Important safety instructions 3
Before using your dishwasher 5
Installation 6
Product dimensions 11
Cabinet dimensions 12
Specications 34
Scan the QR code* to view our
helpful installation videos.
* Requires reader to be installed on your
smartphone.
DW9900R_DD68-00208B-00_EN.indd 2 12/29/2018 1:57:35PM

Safety instructions
English 3
SAVE THESE INSTRUCTIONS
Safety instructions
Throughout this manual, you will see Warning and Caution notes. The warnings, cautions,
and the important safety instructions that follow do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution, and care
when installing, maintaining, and operating the dishwasher. Samsung is not liable for
damages resulting from improper use.
Important safety instructions
What the icons and signs in this installation guide mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in personal injury or property damage.
CAUTION
To reduce the risk of re, explosion, electric shock, or personal injury when using the
dishwasher, follow these basic safety precautions:
NOTE
Indicates that a risk of personal injury or material damage exists.
These warning signs are here to prevent injury to you and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
STOP
These installation instructions are intended for use by qualied installers.
If you are having problems installing this dishwasher
U.S.A
Please call: 1-800-SAMSUNG (726-7864)
1-844-SAM-PAYS (726-7297)
for assistance: www.samsung.com/us/support
CANADA
Please call: 1-800-SAMSUNG (726-7864)
for assistance: www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
DW9900R_DD68-00208B-00_EN.indd 3 12/29/2018 1:57:36PM

Safety instructions
Safety instructions
English4
SAVE THESE INSTRUCTIONS
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Read all instructions before using the appliance.
Install and store the dishwasher inside, away from exposure to weather.
CAUTION
• Do not install the dishwasher near electrical components. Keep the dishwasher away
from open ames.
• Do not install the dishwasher on a carpet as this is a re hazard.
• Do not install the dishwasher in a location where the water may freeze (where the
temperature falls below 32 °F (0 °C)). Frozen water in the hoses or pipes may damage
the dishwasher.
• As with all equipment using electricity, water, and moving parts, potential hazards
exist. To safely operate this appliance, become familiar with its operation and exercise
care when using it.
The dishwasher must be properly grounded. Never connect it to an ungrounded outlet.
Prior to removal of original dishwasher and the installation of your new unit, make
sure to switch off your circuit breaker. Do not connect the dishwasher until you have
completed the installation. Connecting the power cable is the last step when installing the
dishwasher.
All wiring and grounding must be done in accordance with the electrical code applicable
to the region.
GROUNDING INSTRUCTIONS
For a permanently connected appliance:
This appliance must be connected to grounded metal, a permanent wiring system, or an
equipment-grounding conductor must be run with the circuit conductors and connected to
the equipment-grounding terminal or lead on the appliance.
The dishwasher is very heavy. Do not attempt to move or carry a dishwasher alone. Two
or more people are needed to move a dishwasher and avoid potential injuries.
CAUTION
• If the power cable is damaged, it must be replaced by the manufacturer, a service
agent or similarly qualied person in order to avoid a hazard.
• Do not touch the power cable with wet hands.
• Do not connect another appliance to the same power outlet as the dishwasher.
DW9900R_DD68-00208B-00_EN.indd 4 12/29/2018 1:57:37PM

Safety instructions
English 5
SAVE THESE INSTRUCTIONS
Make sure to use a new water supply line. Old lines are susceptible to breakage because
they become hardened and may cause property damage due to a water leakage.
The dishwasher must be connected to a hot water supply with a temperature between
120 °F (49 °C)~149 °F (65 °C). This temperature range provides the best washing result
and shortest cycle time. Temperature should not exceed 149 °F (65 °C) to prevent damage
to dishes.
Ensure that the water supplied to the dishwasher does not freeze. Frozen water can
damage the hoses, valves, pump, or other components.
Certied residential dishwashers are not intended for licensed food establishments.
(NSF/ANSI Standard 184 for Residential Dishwashers)
For a full list of safety information, please refer to the User Manual.
Before using your dishwasher
WARNING
Tip-Over Hazard
• Do not use the dishwasher until it is correctly installed.
• Do not push down on the dishwasher door when it is open.
• Do not place excessive weight on the dishwasher door when it is open.
Electric Shock Hazard
Failure to follow these instructions can result in death, re, or electric
shock:
• Electrically ground the dishwasher
• Connect the ground wire to the green ground connector in the junction
box.
• Do not use an extension cord.
To reduce the risk of electric shock, re, or injury to persons, the installer
must ensure that the dishwasher is completely enclosed at the time of
installation.
DW9900R_DD68-00208B-00_EN.indd 5 12/29/2018 1:57:37PM

Installation
English6
Installation
Be sure that you or your installer follow these instructions closely so that the new
dishwasher works properly and that you are not at risk of injury when washing dishes.
STEP 1 Check the parts and tools
Before starting on the installation, prepare all the necessary tools and parts required to
install the dishwasher. This will save installation time and simplify the installation process.
Parts required

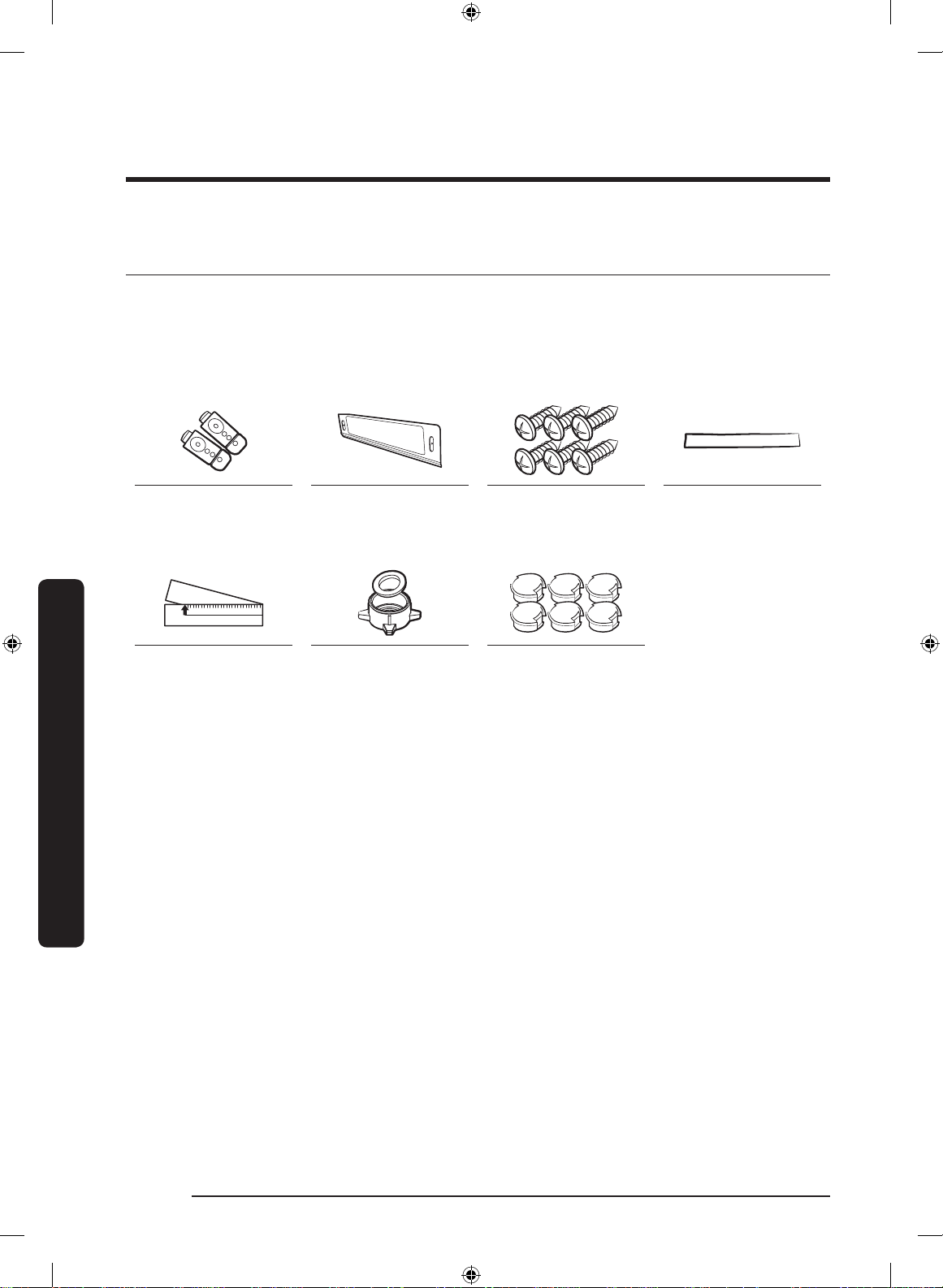

Provided with the dishwasher. Check when you unbox the dishwasher in STEP 5.
2 Installation
brackets Kick Plate 6 screws (for the Kick plate &
Bracket Installation)
Protective sticker
Paper ruler Nut connector &
seal (for 3/4" 90°
tting)
6 Plastic caps
DW9900R_DD68-00208B-00_EN.indd 6 12/29/2018 1:57:38PM

English 7
Installation
Not provided
Power cable Twist on wire
connector Strain relief Electrical tape & Standard duct tape
Hot water supply
line 90° Fitting (3/4") Tube ttings Hose clamp
Air gap Rubber connector
NOTE
For the hot water supply line – We strongly recommend using 3/8" minimum O.D. copper
tubing with a compression tting or a exible stainless steel braided hot water supply
line.
[Warning: Do not use plastic tubing. Plastic tubing can deteriorate over time and cause a
leak inside the tube tting.]
You also need a 90° Fitting with 3/4" N.P.T. external pipe threads on one end and a tting
sized to t your hot water supply line (copper tubing/compression tting or braided hose)
on the other.
For the power cable, we recommend a jacketed 12-2 cable with ground. Note that some
local codes may require the cable to have a BX style metal jacket.
DW9900R_DD68-00208B-00_EN.indd 7 12/29/2018 1:57:40PM

Installation
Installation
English8
Tools required
Electric drill Safety glasses Gloves Flashlight
Adjustable wrench Wire stripper Pliers Nipper
Tape measure Pencil Phillips screwdriver Flat screwdriver
Tubing cutter Cutting knife Hole saw Level
Torx t20 Hex L-wrench
DW9900R_DD68-00208B-00_EN.indd 8 12/29/2018 1:57:40PM

English 9
Installation
NOTE
New installation
If the dishwasher is a new installation, most of the installation work must be done before
the dishwasher is moved into place.
Replacement
If the dishwasher is replacing an old dishwasher, you must check the exising dishwasher
connections for compatibility with the new dishwasher. Repace the existing connections
as necessary.
STEP 2 Select the best location for the dishwasher
The following criteria are important to ensure the best location for the dishwasher:
• The location must have a solid oor that is able to support the weight of the
dishwasher.
• The location must be near a sink with easy access to the water supply, drain, and
electrical outlet.
NOTE
For the drain to operate properly, the dishwasher should be installed within 9.8 ft (3 m)
of the sink.
• The location must let you load your dishes into the dishwasher easily.
• The location must have sufcient space for the dishwasher door to open easily and
provide enough space between the dishwasher and the cabinet sides (at least 0.1 in
(2 mm)).
NOTE
If the dishwasher is installed in a corner, ensure that the side of the dishwasher is more
than 2 in. (50 mm) from the wall or cabinet to its right or left.
• The wall at the back must be free of obstructions.
• Make sure the cabinet for the dishwasher is secured to the oor. If the cabinet is not
secured, it may increase noise when the dishwasher is operating.
DW9900R_DD68-00208B-00_EN.indd 9 12/29/2018 1:57:40PM

Installation
Installation
English10

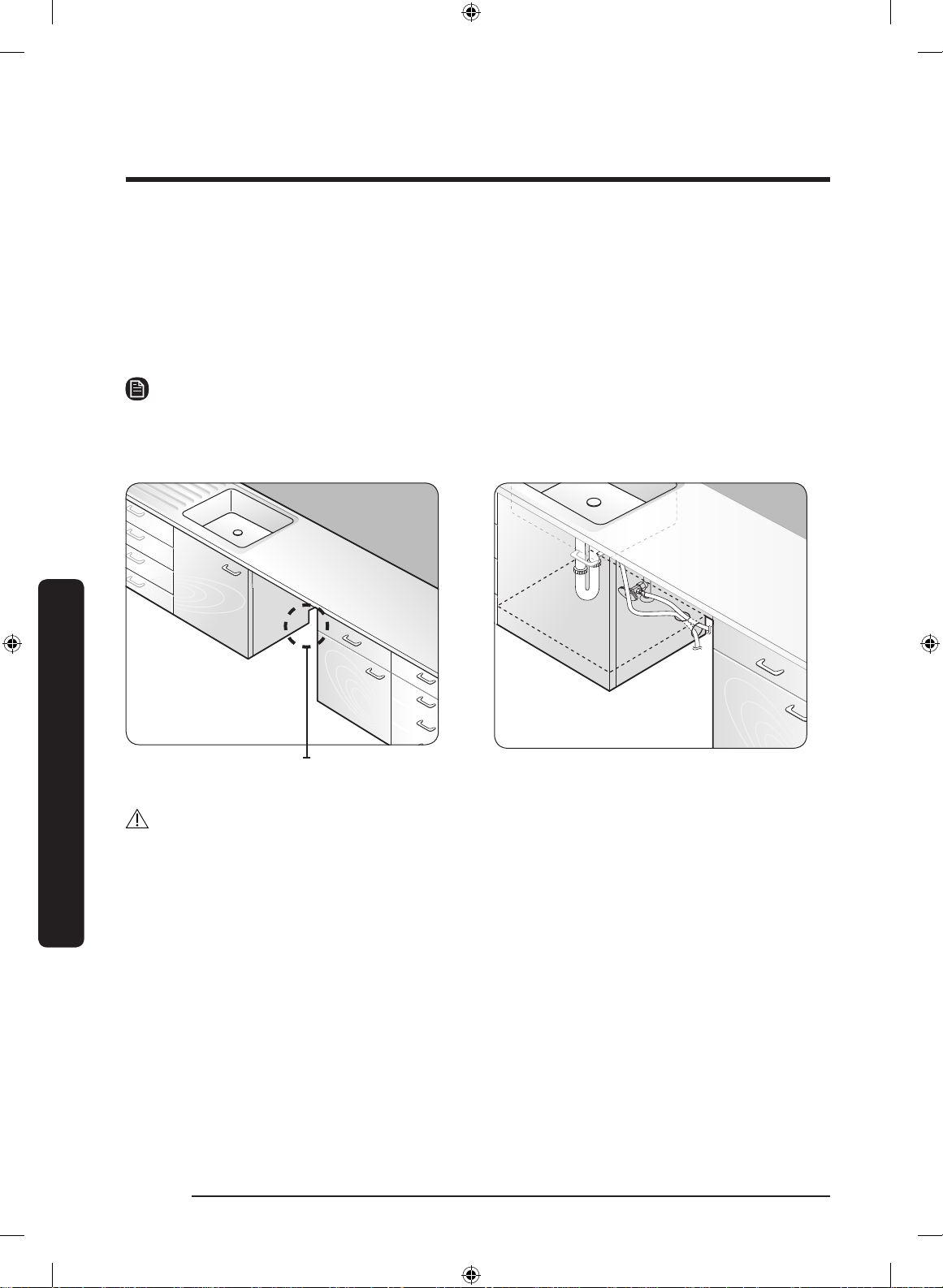

If this is a new installation, follow these steps:
1. Using a 21/2inch hole saw, cut a hole into the side of the cabinet that holds the sink as
shown in Figure 1-1 below.
2. If the base inside the sink cabinet is raised above the kitchen oor and is higher than the
connections on the dishwasher, make a hole in the base inside the cabinet and in the cabinet
side as shown in Figure 1-2.
NOTE
Depending on where your electrical outlet is, you may need to cut a hole in the opposite
cabinet side.
Figure 1-1
The hole for the water supply line, drain
hose and power cables.
Figure 1-2
CAUTION
Make sure the cabinet hole is smoothened before you insert the drain hose through the
hole. A sharp edge of the cabinet hole may cause damage to the drain hose, resulting in a
leak of the hose.
DW9900R_DD68-00208B-00_EN.indd 10 12/29/2018 1:57:41PM

English 11
Installation

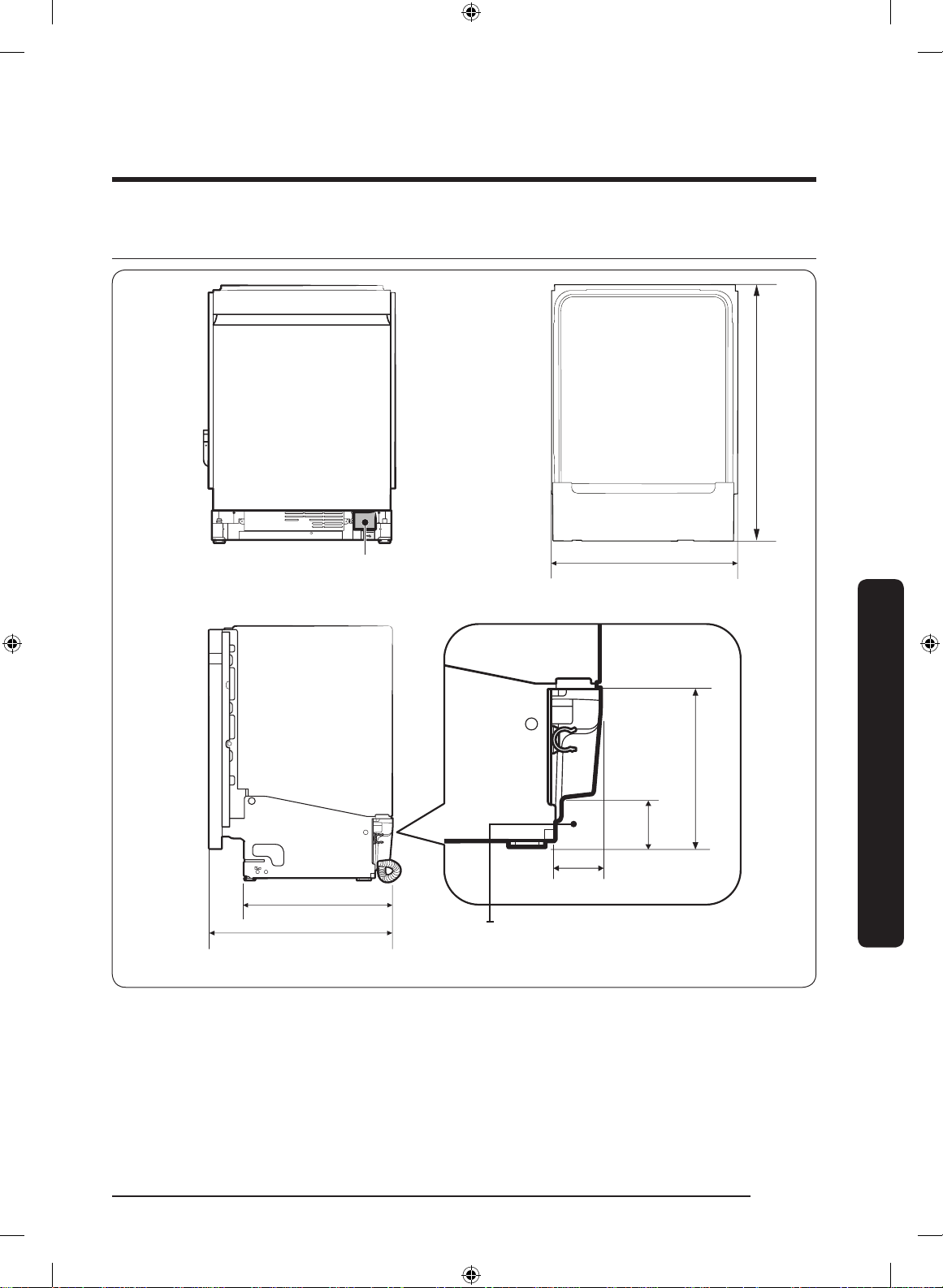

Product dimensions
Front view
Side view
Rear view
Junction box 237/8" (605 mm)
201/2" (520 mm) 21/2" (60 mm)
21/2" (60 mm)
53/4" (140 mm)
25" (636 mm) You must arrange the water supply line,
power cable and drain hose in the space
behind the dishwasher.
33⅞-35" (860-890 mm)
DW9900R_DD68-00208B-00_EN.indd 11 12/29/2018 1:57:41PM

Installation
Installation
English12

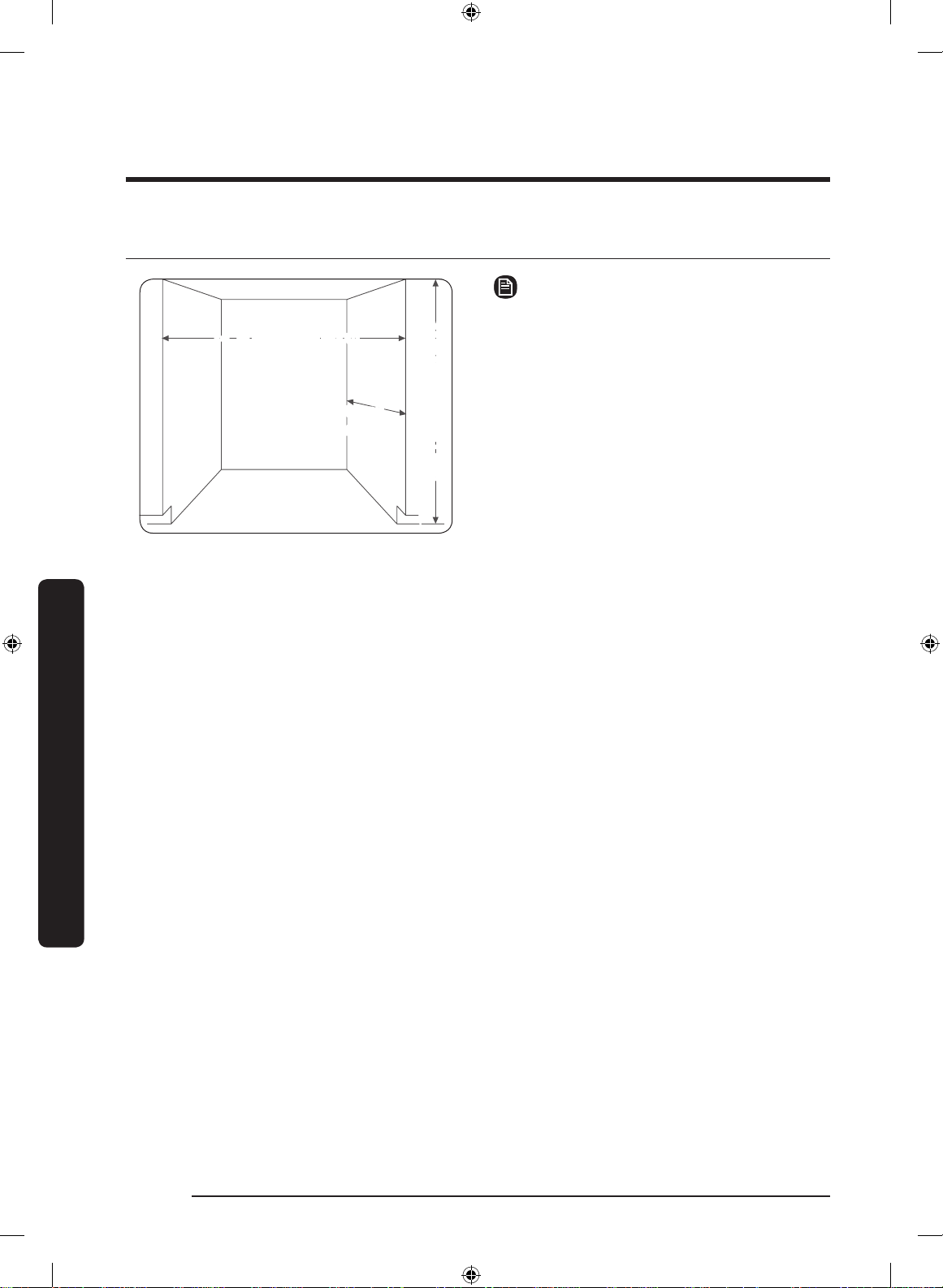

Cabinet dimensions
24" (610 mm) minimum
34⅛-35⅓" (867-897 mm)
24" (610 mm)
minimum
NOTE
This dishwasher is designed to be enclosed
on the top and on both sides by a standard
residential kitchen cabinet unit.
The installation cabinet must be clean and
free of any obstructions.
The cabinet must be at least 24 inches wide,
24 inches deep, and 341/8inches high.
For the front door of the dishwasher to be
ush with the leading edge of the counter
top, the counter top must be at least
25 inches deep.
DW9900R_DD68-00208B-00_EN.indd 12 12/29/2018 1:57:41PM

English 13
Installation
STEP 3 Check water supply requirements and cautions
• The hot water supply line pressure must be between 20~120 psi (140~830 kPa).
• Adjust the water heater to deliver water between 120 °F (49 °C)~149 °F (65 °C).
- The dishwasher must be connected to a hot water supply between 120 °F
(49 °C)~149 °F (65 °C). This temperature range provides the best washing result
and shortest cycle time. Temperature should not exceed 149 °F (65 °C) to prevent
damage to dishes.
- Ensure that the water supply valve is turned off before connecting the hot water
supply line to the dishwasher.
- Seal the hot water supply line connections using teon tape or sealing compound to
stop any water leakage.
- The drain hose connected to the dishwasher must be run through the hole in the
side wall so it can be connected to the drain outlet of the sink. When you install the
dishwasher, ensure there is nothing on the drain hose and be careful not to damage
it during the installation process.

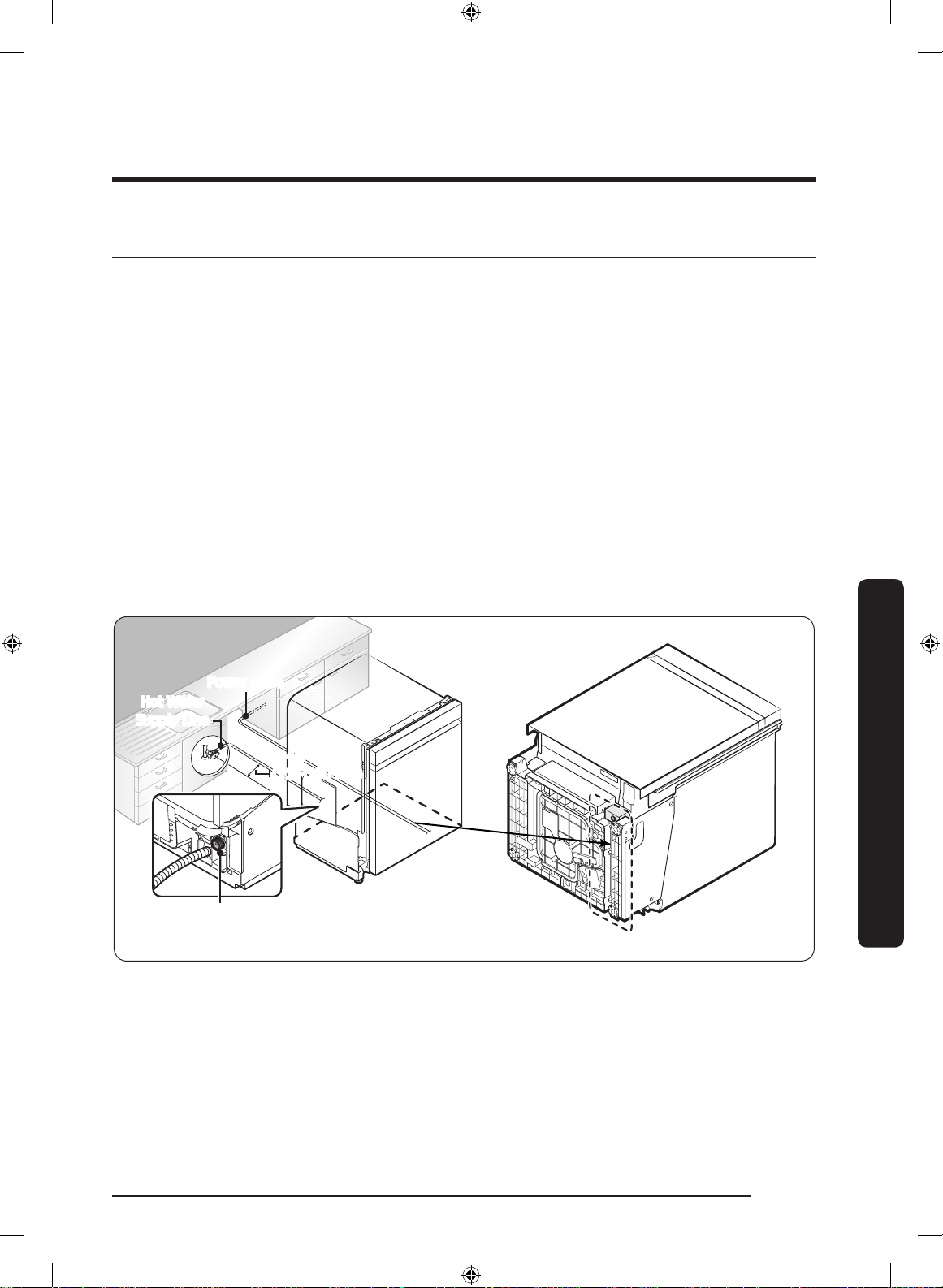

Figure 2
Dishwasher bottom
Hot Water
Supply Line
4¼-6¼ in.
(110-160 mm)
Power cable
Inlet valve
DW9900R_DD68-00208B-00_EN.indd 13 12/29/2018 1:57:41PM

Installation
Installation
English14
STEP 4 Check the electrical requirements and cautions
The electrical requirements for the dishwasher are as follows:
• In the United States, install in accordance with the National Electric Code/State and
Municipal codes and/or local codes.
• In Canada, install in accordance with the Canadian Electric Code C22.1-latest edition/
Provincial and Municipal codes and/or local codes.
• For cable direct connections.
- Use exible, armored or non-metallic sheathed, copper wire with a grounding wire
that meets the wiring requirements for your local codes and ordinances.
- Use the strain relief method provided with the wiring junction box or install a U.L.-
listed/CSA-certied clamp connector to the wiring junction box. If using conduit, use
a U.L.-listed/CSA-certied conduit connector.
Figure 3
Dishwasher bottom
Hot Water
Supply Line
Power cable
21/2-31/2in.
(64-89 mm)
Power cable channel
DW9900R_DD68-00208B-00_EN.indd 14 12/29/2018 1:57:42PM

English 15
Installation
STEP 5 Unpacking and inspecting the dishwasher
Unpack the dishwasher in an open area free of obstruction both around the packaging
and overhead. We recommend that you retain all of the packing materials until the
dishwasher is fully installed and operational to ensure you have removed all the product’s
components from the packing materials prior to disposal.
Unpacking
1. Position the carton right-side-up with
top arrows pointing upwards.
2. Unbuckle or cut the straps securing the
packaging.
3. Unpack the product packaging with
care.
4. Put the straps and all of the packing
materials from around the dishwasher
inspecting them for any signs of
damage.
5. Locate and set aside the dishwasher's
kick plate. The Kick plate is attached to
packing material of the dishwasher.
Kick plate
6. Lift the dishwasher from the packing
tray, and then place it on the oor.
CAUTION
• ALWAYS LIFT THE DISHWASHER TO
MOVE IT. Sliding it over rough surfaces
can damage the dishwasher’s feet and
sliding the feet over nished surfaces
can, in some cases, damage that nish
or the underlying surface.
• Use caution, and do not grab the upper
air duct when moving the dishwasher.
7. There is also packing inside the dishwasher that you may want to leave in place until
the dishwasher is installed.
8. DO NOT, under any circumstances, remove the sound-absorbent padding that
surrounds the exterior of the tub of the dishwasher.
DW9900R_DD68-00208B-00_EN.indd 15 12/29/2018 1:57:42PM

Installation
Installation
English16
Inspecting
Mechanical
1. Check the plastic base assembly to ensure that it is intact
2. Check the dishwasher’s feet to ensure they are in place and can be adjusted so you can
level and secure the dishwasher.
3. Check all the visible components on the bottom of the dishwasher to ensure they are
intact and secure.
4. Check the door latch, the operation of the hinges, and conrm the door is properly
secured to the dishwasher.
Plumbing
1. Check the hot water connection on the back left-side of the base of the dishwasher.
The mounting plate should be secured to the back of the base, the threads inside the
connection should be smooth and shiny, and the area should be clean and free of any
debris.
2. Make sure the dishwasher and the accessories are all included in the package to ensure
these assemblies are not cracked and that all connections are secure.
3. Check the drain hose for any holes or deformities that could allow a water leak during
draining.
Electrical
1. Conrm the junction box cover is secured to the junction box on the front right-side of
the base of the dishwasher.
2. Conrm the electrical box was not damaged during shipping and that it is secured to
the base of the dishwasher.
Appearance
1. Conrm there are no dents or scratches on the front of the dishwasher.
2. Check the edges of the doors for any roughness or cracking.
3. Check the control panel to ensure it is clear and unscratched, and that all the control
markers are in their proper places.
Parts
Conrm you have all the parts listed in STEP 1 on page 6.
DW9900R_DD68-00208B-00_EN.indd 16 12/29/2018 1:57:42PM

English 17
Installation
STEP 6 Preparing the dishwasher

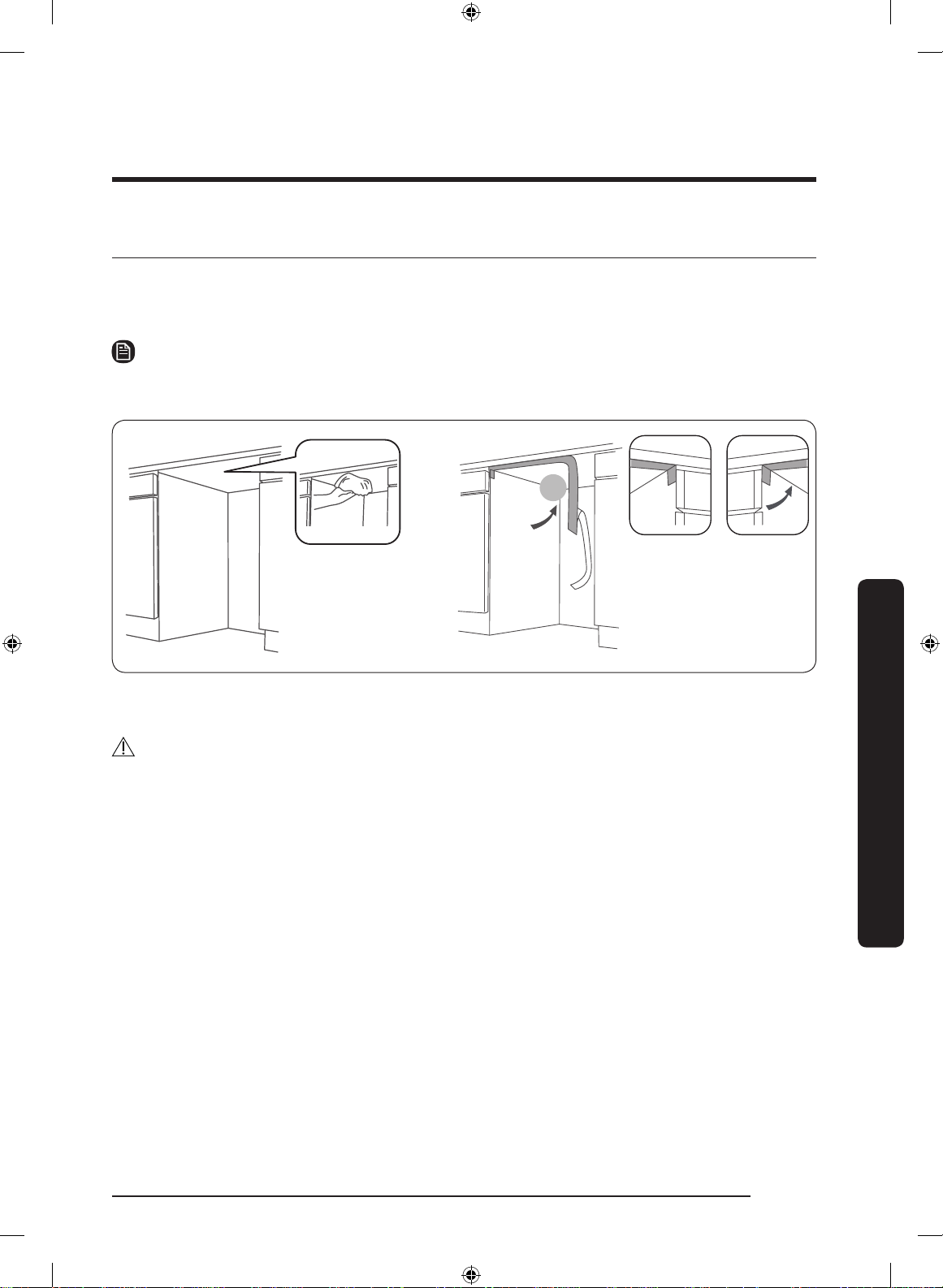

1. Attach the protective sticker (A).
- To prevent damage, put the protective sticker on the bottom of the counter top as
shown in the picture.
NOTE
• Before putting the protective sticker, clean the counter top as shown in the picture.
• For information, the length of the protective sticker is 26 inches (660 mm).
A
2. Ensure that the circuit breaker and water supply valve are turned off before
proceeding with the following steps.
CAUTION
Before you move or lay down the dishwasher for installation, make sure to adjust
the height of the legs so the legs are as short as possible. This prevents the legs from
breaking. Level the dishwasher by adjusting the height of the legs after you have the
dishwasher in place.
DW9900R_DD68-00208B-00_EN.indd 17 12/29/2018 1:57:42PM

Installation
Installation
English18
3. Use the provided nut connector to connect the water hose to the dishwasher.
Follow these steps:
01 02 03
A
BC
E
D F
01 Disconnect the 90° tting (A) from the hose (B).
02 Remove the seal (C) and the nut (D) from the 90° tting.
03 From the provided nut connector, separate the seal (E) and the nut (F), and then
assemble them to the 90° tting as shown in the gure. You must insert the smaller
side of the seal.
4. Then, insert the 3/4" 90 degree tting into the inlet valve (See Figure 4-B). Tighten until
the 3/4" tting is tight. Do not over tighten.
5. Detach the Velcro strips that secure the drain hose to the back of the dishwasher. Roll-
out the hose. Make sure there are no kinks and that the hose is not bent at any extreme
angles that could constrict the ow of water.
6. Remove the junction box cover located at the bottom front right of the dishwasher
using a screwdriver, and then Install the strain relief (Figure 4-C). Make sure to keep
the junction box cover you removed. It is used in STEP 11, Wiring Connections.
7. If the countertop is made of wood or a material that is not damaged by drilling, attach
the two (2) Installation brackets that were supplied with the dishwasher using the
supplied screws (Figure 4-A). They will be used in STEP 9, Securing the Dishwasher.
If the drain hose needs to go to the
right of the dishwasher, secure the hose
in the hose xer mounted on the base.
There are three positions the hose xer
can be installed at. To move the hose
xer, gently squeeze the xer, then
turn to the left.
Make sure to secure on the arrow-
marked area.
DW9900R_DD68-00208B-00_EN.indd 18 12/29/2018 1:57:42PM

English 19
Installation

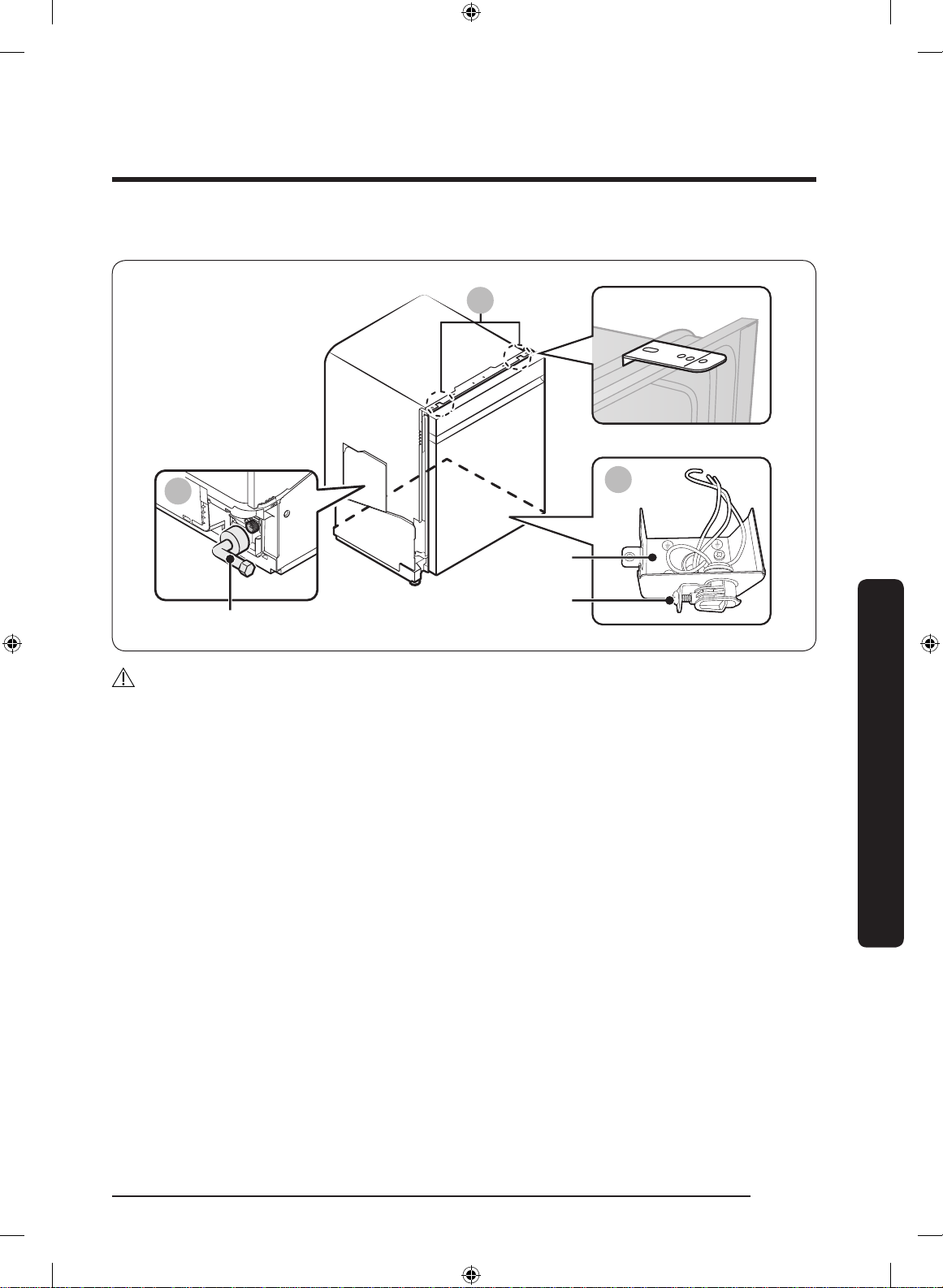

Figure 4
A
BC
90° tting
Junction box
Strain relief
CAUTION
Do not overtighten the 90° Fitting. (Below 280 lb·in (31.6 N·m))
Doing so may damage the water inlet valve and cause a water leak.
DW9900R_DD68-00208B-00_EN.indd 19 12/29/2018 1:57:43PM

Installation
Installation
English20
STEP 7 Placing the dishwasher and connecting the hot water supply line
1. Adjust the three leveling legs at the bottom of the dishwasher after measuring the
height of the cabinet opening from under the countertop to the oor. (See STEP 8,
Leveling the Dishwasher.)
2. Locate the hot water supply line and the power cable.
3. Place the dishwasher so that the hot water supply line is in the left side and the power
cable is in the right channel of the base of the dishwasher. The right-side channel for
the power cable has a built-in hook on the base so that you secure the power cable.
4. Pull the drain hose through the hole in the sink cabinet side wall. Keep it free of kinks.
5. Make sure the hot water supply line is not twisted, and then connect the hot water
supply line to the tting joint.
6. Slide the dishwasher carefully into the installation space. If possible, gently pull any
excess lengths of water supply line, drain hose, or power cable back as you move the
dishwasher. Get a second or third person to help you do this if necessary.
CAUTION
Do not place the dishwasher on the water supply line, drain hose, or power cable. Also,
make sure they are not folded or twisted.
• Make sure the supply line is properly connected.
Wrap Teon tape around every connection to prevent water leaks.
Make sure the side gaskets are inserted seamlessly. Otherwise, it may increase noise
when the dishwasher is operating.
• Make sure both side gaskets are 13/16" to 1" (20-25 mm) backward from the front
end of the kitchen cabinet. Less distance may increase noise when the dishwasher is
operating.
DW9900R_DD68-00208B-00_EN.indd 20 12/29/2018 1:57:43PM
