WA55A7700AV
5.5 cu. ft. Extra-Large Capacity Smart Top Load Washer
with Auto Dispense System

Samsung proprietary and condential
7700 Washer and Dryer Product Guide 4
Product Overview
Product Long Description (417 Characters)
Samsung’s new 5.5 cu. ft. Extra-Large Capacity Smart Top Load Washer helps
you t more in every load and cut down on laundry time. With its Auto Dispense
System, you can ll the detergent drawer with up to 12 loads of detergent and
softener and the washer will accurately dispense the right amount each time.
Also, with Super Speed Wash, you can wash a full load of laundry with full
performance in just 28 minutes.*
*Based on using Super Speed on a Normal cycle with an 8lb load.
Product Short Description (277 Characters)
Samsung’s new Top Load Washer has a 5.5 cu. ft. Extra-Large Capacity, its
Auto Dispense System will hold and accurately dispense detergent and
softener for up to 12 loads of laundry, and its Super Speed Wash will
wash a full load of laundry with full performance in 28 minutes.*
Product Title
5.5 cu. ft. Extra-Large Capacity Smart Top Load Washer with Auto Dispense System
| 7700 Washer
Available Color
Brushed Black
Model Number: WA55A7700AV
UPC: 887276552927
Washer: Overview | Messaging | Specs | Icons

Samsung proprietary and condential
7700 Washer and Dryer Product Guide 5
Carousel Image Order
Washer: Overview | Messaging | Specs | Icons
Easy Ads links
Retail.com: https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=WA55A7700AV%20Carousel%20Images%20RCOM
Samsung.com: https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=WA55A7700AV%20Carousel%20Images%20SCOM
360 Spin: https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=WA55A7700AV%20360%20Spins
| 7700 Washer
21 3
6
360
5
7 8
4
910
11 12

Samsung proprietary and condential
7700 Washer and Dryer Product Guide 6
Product
Messaging
Samsung proprietary and condential
WA55A7700AV
5.5 cu. ft. Extra-Large Capacity Smart Top Load Washer
with Auto Dispense System

Samsung proprietary and condential
7
7700 Washer and Dryer Product Guide
Washer: Overview | Messaging | Specs | Icons
| 7700 Washer
Features and Benefits:
WA55A7700AV
Headline Feature Name Long Body Copy Short Body Copy Associated Image
Lose the measuring cup Auto Dispense System
Fill your detergent drawer with up to 12 loads
of detergent and softener, and the washer will
accurately dispense the right amount of cleaning
solution for a perfect wash, every time.
Accurately dispense up
to 12 loads of detergent
and softener.
Fit more for fewer loads Extra-Large 5.5 cu. ft.
Capacity
Fewer loads, less time in the laundry room,
and more time doing the things you love.
Fewer loads, less time
in the laundry room.
Wash a full load
in 28 minutes Super Speed Wash
Wash a full load of laundry in just 28 minutes,*
without sacricing cleaning performance.
* Based on using Super Speed on a Normal cycle with an 8lb load.
Fast, thorough washing
in just 28 minutes.*
*Based on using Super Speed on a
Normal cycle with an 8lb load.
Brushed Black Washer Easy Ads link: https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=WA55A7700AV%20Below%20The%20Fold

Samsung proprietary and condential
8
7700 Washer and Dryer Product Guide
Washer: Overview | Messaging | Specs | Icons
| 7700 Washer
Features and Benefits:
WA55A7700AV (Continued)
Headline Feature Name Long Body Copy Short Body Copy Associated Image
Control in the palm
of your hand Wi-Fi Connectivity
Wi-Fi connected so you can receive end
of cycle alerts, remotely start or stop your
wash, schedule cycles on your time, and
more, right from your smartphone with
the SmartThings App.*
* Requires wireless network, Samsung account and SmartThings App.
The Samsung SmartThings App supports Android OS 4.0 (ICS) or later
which is optimized for Samsung smartphones (Galaxy S and Galaxy Note
series). This app also supports iOS 7 or later for iPhone models.
SmartThings App available in App Store and Play Store.
Receive end of cycle
alerts, remotely start,
schedule, and more, from
your smartphone with
the SmartThings App.*
* Requires wireless network, Samsung
account and SmartThings App. The Samsung
SmartThings App supports Android OS 4.0
(ICS) or later which is optimized for Samsung
smartphones (Galaxy S and Galaxy Note
series). This app also supports iOS 7 or later
for iPhone models. SmartThings App
available in App Store and Play Store.
Pretreat with a push
of a button Active WaterJet
A built-in water faucet lets you easily pretreat
soiled or heavily stained clothes with a press of
a button. Scrub items right inside your washer,
no laundry room sink needed.
Built-in water faucet lets
you easily pretreat heavily
soiled and stained
clothes.
More waterwhen you need
it most Deep Fill
Maximize the water level used during your
washing cycle by selecting the Deep Fill
option* before starting your laundry. Deep
Fill automatically adds extra water at the
right time to ensure that all your items are
thoroughly soaked.
* Not available for use in the Bedding/Waterproof and Self Clean cycles.
Choose to maximize the
water level used during
the washing cycle.*
* Not available for use in the Bedding/
Waterproof and Self Clean cycles.
Brushed Black Washer Easy Ads link: https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=WA55A7700AV%20Below%20The%20Fold

FPO
Samsung proprietary and condential
9
7700 Washer and Dryer Product Guide
Washer: Overview | Messaging | Specs | Icons
| 7700 Washer
Features and Benefits:
WA55A7700AV (Continued)
Headline Feature Name Long Body Copy Short Body Copy Associated Image
Easy to troubleshoot Smart Care
Easy troubleshooting from the convenience
of your smartphone.*Smart Care interacts
with your washer and dryer to perform an
immediate diagnosis and offer quick solutions.
* Requires Samsung Smart Washer/Dryer App. The Samsung Smart
Washer/Dryer App supports Android OS 2.3.6 or later and iOS 3 or later
for iPhone models. Samsung Smart Washer/Dryer App available in
App Store and Play Store.
Easy troubleshooting
from the convenience
of your smartphone.*
* Requires Samsung Smart Washer/Dryer
App. The Samsung Smart Washer/Dryer
App supports Android OS 2.3.6 or later
and iOS 3 or later for iPhone models.
Samsung Smart Washer/Dryer App
available in App Store and Play Store.
Quiet washing anytime,
any place
Vibration Reduction
Technology+
Do your laundry without disturbing anyone
at any time and in any place. Innovative
Vibration Reduction Technology+ reduces
noise and vibration for quiet washing.
Reduces noise and
vibration for quiet
washing.
N/A Swirl+ Tub Interior
Improved tub pattern extracts more water more
quickly during the rinsing cycle and prevents
fabrics from snagging during washing.
Improved tub pattern
extracts more water
more quickly.
Brushed Black Washer Easy Ads link: https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=WA55A7700AV%20Below%20The%20Fold

Samsung proprietary and condential
7700 Washer and Dryer Product Guide 1010
Washer: Overview | Messaging | Specs | Icons
| 7700 Washer
Features and Benefits:
WA55A7700AV (Continued)
Headline Feature Name Long Body Copy Short Body Copy Associated Image
Keep yourwasher fresh
and clean Self Clean
Keep your washer tub fresh and clean.
Self Clean will notify you every 20 wash
cycles when it is time for a cleaning.
Keep your washer tub
fresh and clean.
N/A Soft-Close Lid
The premium Soft-Close Lid keeps you
and your family protected by closing safely,
gently and quietly.
Soft-Close Lid closes
safely, gently and quietly.
N/A ENERGY STAR® Certied
ENERGY STAR® Certied,*so you can save
money by using less energy without sacricing
performance or functionality.
* Visit www.energystar.gov for more information on ENERGY STAR® guidelines.
Eco-friendly and
energy-efcient.
Brushed Black Washer Easy Ads link: https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=WA55A7700AV%20Below%20The%20Fold

Samsung proprietary and condential
7700 Washer and Dryer Product Guide 1111
Washer: Overview | Messaging | Specs | Icons
| 7700 Washer
Features and Benefits:
WA55A7700AV (Continued)
Headline Feature Name Long Body Copy Short Body Copy Associated Image
N/A Stainless Steel Pulsator Premium material and design that is more
durable and scratch resistant.
More durable and
scratch resistant.
Easier use, for everyone Accessibility (AUI, Braille)
Aiding the visually and hearing impaired,
your washer and dryer now feature audio
assistance, playing a different sound for each
option, and braille right next to key control
panel buttons.
Designed for easy use
for everyone.
N/A 12 Preset Washing Cycles More cycles to cover almost every washing
need for your active family.
More cycles to best suit
your washing needs.
Brushed Black Washer Easy Ads link: https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=WA55A7700AV%20Below%20The%20Fold

Samsung proprietary and condential
7700 Washer and Dryer Product Guide 12
Product
Specs
Samsung proprietary and condential
WA55A7700AV
5.5 cu. ft. Extra-Large Capacity Smart Top Load Washer
with Auto Dispense System

Samsung proprietary and condential
7700 Washer and Dryer Product Guide 13
Related Products
Washer: Overview | Messaging | Specs | Icons
Dryer Series
DVE55A7700V
DVG55A7700V
| 7700 Washer

Samsung proprietary and condential
7700 Washer and Dryer Product Guide 14

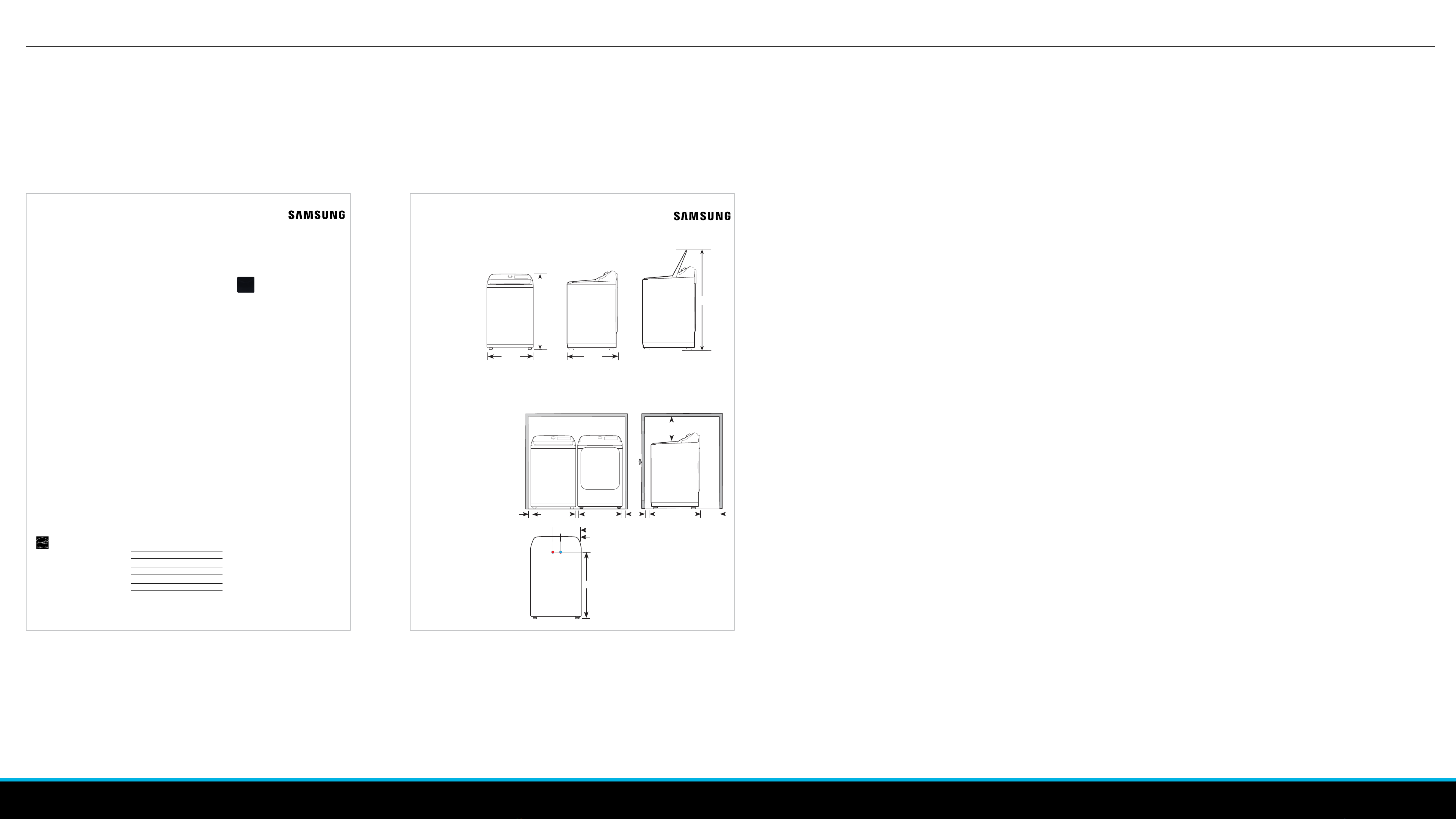

Spec Sheet
Washer Model # UPC Code
Brushed Black WA55A7700AV 887276552927
Matching Electric Dryer
Brushed Black DVE55A7700V 887276557762
Matching Gas Dryer
Brushed Black DVG55A7700V 887276557847
*
Requires wireless network, Samsung account and Samsung SmartThings App. The Samsung Smart Things App supports Android OS 4.0 (ICS) or later which is optimized for Samsung smartphones
(Galaxy S and Galaxy Note series). This app also supports iOS 7 or later for iPhone models. Samsung SmartThings App available in App Store and Play Store.
Features
• Auto Dispense System
• Extra-Large 5.5 cu. ft. Capacity
• Super Speed Wash
• Wi-Fi Connectivity*
• Active WaterJet
• Deep Fill
• Smart Care
• Vibration Reduction Technology+
• Swirl+ Tub Interior
• Self Clean
• Soft-Close Lid
• ENERGY STAR® Certied
• Stainless Steel Pulsator
• Accessibility (AUI, Braille)
• Internal Heater
• 750 RPM Maximum Spin Speed
• Direct Drive Motor
• 17 Total Washing Cycles
• 11 Additional Washing Options
Convenience
• Child Lock
• Dispenser Trays: Main Wash,
Softener, Bleach, Auto Detergent,
Auto Softener
Ratings
ENERGY STAR®Rated:
IMEF = 2.06
IWF = 4.3
120 kWh/yr
Electrical Requirements
120 V / 60 Hz
15 Amps
Samsung 5.5 cu. ft. Extra-Large Capacity
Smart Top Load Washerwith Auto Dispense System
Available Color
Brushed Black
WA55A7700AV
WA55A7700AV
5 Spin Settings:
High, Medium High, Medium, Low, No Spin
5 Soil Settings:
Heavy, Heavy Medium, Normal,
Low Medium, Light
Warranty
One (1) Year Parts and Labor
Three (3) Years Stainless Steel Tub (Part Only)
Ten (10) Years DD Motor (Part Only)
Product Dimensions & Weight (WxHxD)
Dimensions: 279/16" x 4513/16" x 297/16"
Weight: 134.5 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 301/8" x 4711/16"x 311/4"
Weight: 143.3 lbs
Specifications
12 Preset Washing Cycles:
Normal, Bedding/Waterproof,
Heavy Duty, Colors, Whites, Activewear,
Delicates, Quick Wash, Self Clean,
Rinse + Spin, Deep Wash, Downloaded
5 Downloadable Washing Cycles:
Permanent Press, Wool, Eco Cold,
Denim, Power Rinse
11 Additional Washing Options:
Delay End, Presoak, Sound On/Off,
Child Lock, Deep Fill, Super Speed,
Smart Care, Smart Control, Spin Only,
Detergent (Auto Dispense System),
Softener (Auto Dispense System)
5 Temperature Settings:
Hot, Warmer, Warm, Cool, Cold
Washer Spec Sheet - page 1 Washer Spec Sheet - page 2
Washer: Overview | Messaging | Specs | Icons
Actual color may vary. Design, specifications,
and color availability are subject to change without
notice. Non-metric weights and measurements are
approximate.
©2021 Samsung Electronics America, Inc.,
85 Challenger Road, Ridgeeld Park, NJ 07660.
Tel: 800-SAMSUNG. samsung.com. Samsung is a
registered trademark of Samsung Electronics Co., Ltd.
315/16"
8"- Cold Water
1215/16"- Hot Water
425/16"
147/8"
315/16"
147/8"
DRYER
4"
29
7
/
16
"
59
1
/
2
"
1"
1"
30
1
/
4
"
1" 1" 5
15
/
16
"
21"
30
1
/
4
"
50
1
/
8
"
27
9
/
16
"
45
13
/
16
"
4"
30
1
/
4
"
27"
45
13
/
16
"
1"1"
30
1
/
4
"
1" 1" 5
15
/
16
"
21"
413/16"
8"
7"
61/8"
115/16"
213/16"
315/16"
147/8"
7"
61/8"
Alcove or closet installation
Minimum clearance for
closet and alcove installations:
Connection Dimensions
Back view of washer
LEGEND:
•Hot Water Connection
•Cold Water Connection
Installation Specifications – Side-by-Side
If the washer and dryer are installed together or the dryer alone, the closet front must have two unobstructed air
openings for a combined minimum total area of 72-inch2. Your washer alone does not require a specific air opening.
Dimensions
Required dimensions
for installation:
315/16"
8"- Cold Water
1215/16"- Hot Water
425/16"
147/8"
315/16"
147/8"
DRYER
4"
297/16 "
591/2 "
1"1"
301/4 "
1" 1" 5
15/16
"
21"
301/4 "
501/8 "
27
9/16
"
4513/16 "
4"
301/4 "
27"
4513/16 "
1"1"
301/4 "
1" 1" 5
15/16
"
21"
413/16"
8"
7"
61/8"
115/16"
213/16"
315/16"
147/8"
7"
61/8"
Depth including dryerclearance
Recessed Area Side View Conned
Samsung 5.5 cu. ft. Extra-Large Capacity
Smart Top Load Washerwith Auto Dispense System
WA55A7700AV
315/16"
1215/16"- Cold Water
151/4"- Hot Water
411/8"
147/8"
315/16"
147/8"
413/16"
8"
7"
61/8"
115/16"
213/16"
315/16"
147/8"
7"
61/8"
103/8"- Cold Water
151/4"- Hot Water
425/16"
7300 7700
Easy Ads link
https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=WA55A7700AV%20Spec%20Sheet
| 7700 Washer

Samsung proprietary and condential
7700 Washer and Dryer Product Guide 15
Energy Guide
Energy Guide
Washer: Overview | Messaging | Specs | Icons
Easy Ads link
https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=WA55A7700AV%20Energy%20Guide
| 7700 Washer

Samsung proprietary and condential
7700 Washer and Dryer Product Guide 16
User Manual and Warranty
Washer
User manual
WA55A7700A*
Untitled-2 1Untitled-2 1 2021-06-04  2:45:452021-06-04  2:45:45
User Manual
Easy Ads link
https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=WA55A7700AV%20User%20Manual
| 7700 Washer
Washer: Overview | Messaging | Specs | Icons
Warranty (U.S.A) – SAMSUNG TOP LOAD WASHER
Models:
WA55A7700AV
LIMITED WARRANTY TO ORIGINAL PURCHASER WITH PROOF OF PURCHASE
ThisSAMSUNGbrandproduct,assuppliedanddistributedbySAMSUNGELECTRONICS
AMERICAINC.(SAMSUNG)anddeliverednew,intheoriginalcartontotheoriginal
consumerpurchaser,iswarrantedbySAMSUNGagainstmanufacturingdefectsin
materialsorworkmanshipforthelimitedwarrantyperiod,startingfromthedateof
originalpurchase,of:
One (1) Year Parts and Labor
Three (3) years stainless tub part (Part Only),
Ten (10) years washing DD motor part (Part Only)
ThislimitedwarrantyisvalidonlyonproductspurchasedandusedintheUnitedStates
thathavebeeninstalled,operated,andmaintainedaccordingtotheinstructionsattached
toorfurnishedwiththeproduct.Toreceivewarrantyservice,thepurchasermustcontact
SAMSUNGattheaddressorphonenumberprovidedbelowforproblemdeterminationand
serviceprocedures.WarrantyservicecanonlybeperformedbyaSAMSUNGauthorized
servicecenter.Theoriginaldatedbillofsalemustbepresenteduponrequestasproof
ofpurchasetoSAMSUNGorSAMSUNG’sauthorizedservicecentertoreceivewarranty
service.

SAMSUNGwillprovidein-homeservicewithinthecontiguousUnitedStatesduringthe
warrantyperiodatnocharge,subjecttoavailabilityofSAMSUNGauthorizedservicers
withinthecustomer’sgeographicarea.Ifin-homeserviceisnotavailable,SAMSUNG
mayelect,atitsoption,toprovidetransportationoftheproducttoandfromanauthorized
servicecenter.IftheproductislocatedinanareawhereservicebyaSAMSUNG
authorizedservicerisnotavailable,youmayberesponsibleforatripchargeorrequired
tobringtheproducttoaSAMSUNGauthorizedservicecenterforservice.

Toreceivein-homeservice,productmustbeunobstructedandaccessibletothe
serviceagent.

Duringtheapplicablewarrantyperiod,aproductwillberepaired,replaced,orthe
purchasepricerefunded,atthesoleoptionofSAMSUNG.SAMSUNGmayusenew
orreconditionedpartsinrepairingaproduct,orreplacetheproductwithanewor
reconditionedproduct.Replacementpartsandproductsarewarrantedfortheremaining
portionoftheoriginalproduct’swarrantyorninety(90)days,whicheverislonger.All
replacedpartsandproductsarethepropertyofSAMSUNGandyoumustreturnthem
toSAMSUNG.

Thislimitedwarrantycoversmanufacturingdefectsinmaterialsorworkmanship
encounteredinnormalhousehold,noncommercialuseofthisproductandshallnot
coverthefollowing:damagethatoccursinshipment,delivery,installation,anduses
forwhichthisproductwasnotintended;damagecausedbyunauthorizedmodification
oralterationoftheproduct;productwheretheoriginalfactoryserialnumbershave
beenremoved,defaced,changedinanyway,orcannotbereadilydetermined;cosmetic
damageincludingscratches,dents,chips,andotherdamagetotheproduct’sfinishes;
Warranty
Easy Ads link
https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=WA55A7700AV%20User%20Warranty

Samsung proprietary and condential
7700 Washer and Dryer Product Guide 17
Feature
Icons
Samsung proprietary and condential
WA55A7700AV
5.5 cu. ft. Extra-Large Capacity Smart Top Load Washer
with Auto Dispense System

Samsung proprietary and condential
7700 Washer and Dryer Product Guide 18
Feature Icons
Washer: Overview | Messaging | Specs | Icons
Easy Ads link
https://dam.gettyimages.com/p/z0c3461/external?o=AND&q=WA55A7700AV%20Icons
Super Speed Wash Active WaterJet
Wi-Fi Connectivity
Auto Dispense System Extra-Large 5.5
cu. ft. Capacity
Deep Fill
| 7700 Washer

Samsung proprietary and condential
7700 Washer and Dryer Product Guide 19
Product
Overview
Samsung proprietary and condential
DVE55A7700V / DVG55A7700V
7.4 cu. ft. Smart Electric Dryer with Steam Sanitize+
7.4 cu. ft. Smart Gas Dryer with Steam Sanitize+

Samsung proprietary and condential
7700 Washer and Dryer Product Guide 20
Product Overview
Product Long Description (335 Characters)
Samsung’s new Smart Dryer has integrated Wi-Fi that allows you to remotely
start or stop your cycle, schedule laundry on your time, and receive end of
cycle alerts and more, right from your smartphone.* Also, the Steam Sanitize+
cycle eliminates 99.9% of germs and bacteria** while relaxing and smoothing
away wrinkles from everyday wear.
*
Requires wireless network, Samsung account and SmartThings App. The Samsung SmartThings App supports
Android OS 4.0 (ICS) or later which is optimized for Samsung smartphones (Galaxy S and Galaxy Note series).
This app also supports iOS 7 or later for iPhone models. SmartThings App available in App Store and Play Store.
**Based on internal testing and independently veried by Intertek.
Product Short Description (227 Characters)
Samsung’s new Smart Dryer is Wi-Fi connected so you can receive end of cycle
alerts and schedule laundry from your smartphone,* and has a Steam Sanitize+
cycle that eliminates 99.9% of germs and bacteria** while relaxing wrinkles.
Product Titles
DVE55A7700V - 7.4 cu. ft. Smart Electric Dryer with Steam Sanitize+
DVG55A7700V - 7.4 cu. ft. Smart Gas Dryer with Steam Sanitize+
Available Color
Brushed Black
Electric Dryer Model Number: DVE55A7700V
Electric Dryer UPC: 887276557762
Gas Dryer Model Number: DVG55A7700V
Gas Dryer UPC: 887276557847
Dryer: Overview | Messaging | Specs | Icons
| 7700 Dryer
