Samsung DV431AG series User manual

Gas and Electric Dryer
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service or accessory
parts, please register your product at or
contact
www.samsung.com/register
DV431AE*
DV431AG*
This manual is made with 100% recycled paper.
DV431AEP-03021D_EN.indd 1 2012-02-01 �� 2:59:28

2_ Features
features
1. Extra Large Capacity
Ultra drying capabilities are at your fingertips! Now you can dry extra-large loads. Our ultra
large 17 kg capacity dryer circulates more air through your clothes, drying them faster for a
wrinkle-free result.
3. Sanitize course
This course allows you to sanitize garments by permeating high temperature heat deep into
the fabric during the drying cycle. Use this course to keep your bedding and curtains clean.
When selecting this cycle, 99.9 % of all bacteria is eliminated through high temperature heat.
Use this cycle for clothing, bedding, towels, or other items needing sanitization.
4. Various Drying Cycles & Fuzzy Logic Algorithm
Simply turn the Jog Dial to select one of the 13 automatic drying cycles, or let the Fuzzy
Logic Control measure the degree of dampness and automatically set the drying time.
Precision drying has never been easier than with Samsung.
5. Time Saving
Our cycles are designed with you in mind. All our dryers are designed to dry your clothes in
less time... just 42 minutes! Giving you time for more important things in life.
6. Energy Saving
Samsung dryers are super energy ecient. You can dry up to 3.01 pounds of laundry with
1kWh. Also, both the large capacity and Fuzzy Logic Control save energy by automatically
drying your clothes the most ecient way.
7. Easy Reversible Door
Our dryers will fit just about anywhere. The direction of our easy reversible door can be
changed with just four screws.
8. Pedestal with Storage Drawers
An optional 15” pedestal is available to raise the dryer for easier loading and unloading. It also
oers a built-in storage drawer that can hold a 100 oz. bottle of detergent
9. Stacking (MODEL NO: SK-5A/XAA)
Samsung’s Washers and Dryers can be stacked to maximize usable space.
The Dryer legs need to be removed to stack the Washer and Dryer. You can purchase an
optional stacking kit from your Samsung retailer.
10. 4-way Vent (electric model only : DV431AE*)
You can install the exhaust vent in the following four (4) positions: back, either side, bottom.
DV431AEP-03021D_EN.indd 2 2012-02-01 �� 2:59:28

Safety information _3
SAVE THESE INSTRUCTIONS
safety instructions
Congratulations on your new Samsung Dryer. This manual contains valuable
information on the installation, use, and care of your appliance. Please take the
time to read this manual to take full advantage of your dryer’s many benefits and
features.
WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution, and care when installing,
maintaining, or operating your dryer.
Always contact your manufacturer about problems or conditions you do not understand.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
WARNING
Hazards or unsafe practices that may result in severe personal injury or
death.
Follow the information in this manual to minimize the risk of fire or explosion or
to prevent property damage, personal injury, or death.
Do not store or use gasoline or other flammable vapors and liquids near this or
any other appliance.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or
property damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicity.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
• Clothes dryer installation must be performed by a qualified installer.
• Install the clothes dryer according to the manufacturer’s instructions and local codes.
• Do not install a clothes dryer with flexible plastic venting materials. If flexible metal
(foil type) duct is installed, it must be of a specific type identified by the appliance
manufacturer as suitable for use with clothes dryers. Flexible venting materials are
known to collapse, be easily crushed, and trap lint. These conditions will obstruct
clothes dryer airflow and increase the risk of fire.
• To reduce the risk of severe injury or death, follow all installation instructions.
WARNING - Risk of Fire
DV431AEP-03021D_EN.indd 3 2012-02-01 �� 2:59:28

4_ Safety information
SAVE THESE INSTRUCTIONS
safety instructions
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your
appliance, follow basic precautions, including the following:
1. Read all instructions before using this appliance.
2. Do not dry articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive
substances, as they give o vapors that could ignite or explode.
3. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
4. Before the appliance is removed from service or discarded, remove the door to the
drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to the weather.
7. Do not tamper with controls.
8. Do not repair or replace any part of the appliance or attempt any servicing unless
specifically recommended in the user-maintenance instructions or in published user-
repair instructions that you understand and have the skills to carry out.
9. Do not use fabric softeners or products to eliminate static unless recommended by the
manufacturer of the fabric softener or product.
10.Clean lint screen before or after each load.
11.Do not use heat to dry articles containing foam rubber or similarly textured rubber-like
materials.
12.Keep area around the exhaust opening and adjacent surrounding areas free from the
accumulation of lint, dust, and dirt.
13.The interior of the appliance and exhaust duct should be cleaned periodically by
qualified service personnel.
14.Do not place items exposed to cooking oils in your dryer. Items contaminated with
cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
WARNING
DV431AEP-03021D_EN.indd 4 2012-02-01 �� 2:59:28

Safety information _5
SAVE THESE INSTRUCTIONS
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not turn on the appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency, or the gas
supplier.
Read all instructions before using the appliance.
To reduce the risk of fire or explosion:
• Do not dry items that have been previously cleaned, washed, soaked, or spotted with
gasoline, dry cleaning solvents, or other flammable or explosive substances. They
emit vapors that could ignite or explode. Any material that has been in contact with a
cleaning solvent or flammable liquids or solids should not be placed in the dryer until all
traces of these flammable liquids or solids and their fumes have been removed.
There are many highly flammable items used in homes, such as acetone, denatured
alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,
turpentine, waxes, and wax removers
• Items containing foam rubber (may be labeled latex foam) or similarly textured rubber-
like materials must not be dried on a heat setting. Heated foam rubber materials can,
under certain circumstances, produce fire by spontaneous combustion.
Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is
necessary when the appliance is used near children and pets.
Before discarding or removing your dryer from service, remove the door to the drying
compartment to prevent children or animals from becoming trapped inside.
Do not reach into the appliance when the drum is moving.
Do not install or store this appliance where it will be exposed to the weather.
Do not tamper with controls.
Do not repair, replace, or attempt to service any part of the appliance unless specifically
recommended in the user-repair instructions and you understand and have the skills to
carry those out.
Do not use fabric softeners or products to eliminate static unless recommended for dryer
use by the manufacturer of the fabric softener or product.
Clean the lint screen before or after each load.
Keep the area around the exhaust opening and surrounding areas free from lint, dust, and
dirt.
WARNING
DV431AEP-03021D_EN.indd 5 2012-02-01 �� 2:59:28

6_ Safety information
SAVE THESE INSTRUCTIONS
safety instructions
The interior of the dryer and exhaust duct should be cleaned periodically by qualified service
personnel.
This appliance must be properly grounded. Never plug the power cord into a receptacle
that is not grounded adequately and in accordance with local and national codes. See
installation instructions for grounding this appliance.
Do not sit on top of the dryer.
Because of continuing product improvements, Samsung reserves the right to change
specifications without notice. For complete details, see the Installation Instructions
packed with your product before selecting cabinetry, making cutouts, or beginning
installation.
Ensure pockets are free from small irregularly shaped hard objects, foreign material, etc. ie.
coins, knives, pins, etc. These objects could damage your dryer.
Do not wash clothing with large buckles, buttons, or other heavy metal or solid things.
Gas leaks may occur in your system, resulting in a dangerous situation.
Gas leaks may not be detected by smell alone.
Gas suppliers recommend you purchase and install a UL-approved gas detector.
Install and use in accordance with the manufacturer’s instructions.
Do not place items in your dryer that have been spotted or soaked with vegetable oil or
cooking oil. Even after being washed, these items may contain significant amounts of these
oils.
Residual oil on clothing can ignite spontaneoulsy. The potential for spontaneous
combustion increases when items containing vegetable oil or cooking oil are exposed to
heat. Heat sources such as your dryer can warm these items, allowing an oxidation reaction
in the oil to occur. Oxidation creates heat. If this heat cannot escape, the items can become
hot enough to catch fire. Piling, stacking, or storing these kinds of items may prevent heat
from escaping and can create a fire hazard.
All washed and unwashed fabrics that contain vegetable oil or cooking oil can be
dangerous. Washing these items in hot water with extra detergent will reduce, but not
eliminate, the hazard. Always use the Cool Down cycle for these items to reduce their
temperature. Never remove these items from the dryer hot or interrupt the drying cycle until
the items have run through the Cool Down cycle. Never pile or stack these items when they
are hot.
The product you have purchased is designed for domestic use only.
The use for business purposes qualifies as product misuse.
In this case, the product will not be covered by the standard warranty provided by
Samsung and no responsibility can be attributed to Samsung for malfunctions or damages
resulting from such misuse.
WARNING
WARNING
DV431AEP-03021D_EN.indd 6 2012-02-01 �� 2:59:28

contents _7
contents
INSTALLING YOUR DRYER
8
8 Tools needed for installation
8 See Dryer Exterior
9 Ducting requirements
10 Important to installer
10 Location considerations
11 Alcove or closet installation
13 Mobile home installation
13 Exhausting
14 Gas requirements
14 Electrical requirements
15 Grounding
16 Electrical connections
16 Replacement parts and accessories
17 Installation
19 Final installation checklist
20 Dryer Exhaust Tips
21 Door Reversal
OPERATING INSTRUCTIONS, TIPS
22
22 Overview of the control panel
25 Child lock
25 Drum Light
25 My cycle
26 Rack Dry
27 Clean the lint filter
27 Load the dryer properly
27 Getting started
CARE AND CLEANING
28
28 Control Panel
28 Tumbler
28 Stainless Steel Tumbler
28 Dryer Exterior
28 Dryer Exhaust System
SPECIAL LAUNDRY TIPS
29
29 Special laundry tips
TROUBLESHOOTING
30
30 Check these points if your dryer…
32 Information codes
APPENDIX
33
33 Fabric care chart
34 Protecting the environment
34 Declaration of conformity
34 Specifications
35 Cycle chart
DV431AEP-03021D_EN.indd 7 2012-02-01 �� 2:59:29

8_ installing your dryer
installing your dryer
TOOLS NEEDED FOR INSTALLATION
Hire a professional to install this dryer properly. If there is a service call performed as a result of poor setup,
adjustment, and connection, it is considered the responsibility of the installer. If you install the dryer, you are
responsible.
Make sure you have everything necessary for proper installation.
1. A GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements.
2. A POWER CORD for electric dryers (except Canada).
3. GAS LINES (if a gas dryer) must meet national and local codes.
4. EXHAUST SYSTEM – must be rigid metal or flexible sti-walled metal exhaust ducting.
See the exhaust requirements on pages 8-10.
SEE DRYER EXTERIOR
Adjustable legs
Control panel
Door
DV431AEP-03021D_EN.indd 8 2012-02-01 �� 2:59:29

installing your dryer _9
DUCTING REQUIREMENTS
• Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.
• Do not use a smaller duct.
• Ducts larger than 4 inches (10.2 cm) in diameter can result in increased lint accumulation.
Lint accumulation should be cleaned regularly.
• If a flexible metal duct must be used, use the type with a sti sheet metal wall. Do not use a flexible duct
with a thin foil wall. Serious blockage can result if the flexible metal duct is bent too sharply.
• Never install any type of flexible duct in walls, ceilings, or other concealed spaces.
• Only a rigid or flexible metal duct should be used for exhausting.
• Keep the exhaust duct as straight and short as possible.
• Secure joints with duct tape. Do not use screws.
• DO NOT EXHAUST DRYER INTO ANY WALL, CEILING, CRAWL SPACE, OR CONCEALED SPACE OF
A BUILDING, GAS VENT, OR ANY OTHER COMMON DUCT OR CHIMNEY.
THIS COULD CREATE A FIRE HAZARD FROM LINT EXPELLED BY THE DRYER.
• A plastic flexible duct can kink, sag, be punctured, reduce airflow, extend drying times, and aect dryer
operation.
• Exhaust systems longer than recommended can extend drying times, aect machine operation, and
may collect lint.
• The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back drafts and
entry of wildlife. Never use an exhaust hood with a magnetic damper.
• The hood should have at least 12 inches (30.5 cm) of clearance between the bottom of the hood and
the ground or other obstruction. The hood opening should point down.
• Never install a screen over the exhaust outlet.
• To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house
or porch.
• If exhaust ductwork must run through an unheated area, the duct should be insulated and slope slightly
down towards the exhaust hood to reduce condensation and lint buildup.
• Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord before
cleaning.
• Check frequently to be sure the exhaust hood damper opens and closes freely.
• Check once per month, and clean at least one time per year. Note: If clothes are not getting dry, then
check ducting for obstructions.
ELECTRIC AND GAS DRYER
Weather Hood Type
Recommended Use only for short-run installation
4” (10.16 cm) 2.5” (6.35 cm)
No. of 90° elbows Rigid Metallic Flexible* Rigid Metallic Flexible*
0 24.4 m (80 ft.) 12.4 m (41 ft.) 22.6 m (74 ft.) 10.1 m (33 ft.)
1 20.7 m (68 ft.) 11.2 m (37 ft.) 18.9 m (62 ft.) 8.8 m (29 ft.)
2 17.4 m (57 ft.) 10.1 m (33 ft.) 15.5 m (51 ft.) 7.6 m (25 ft.)
3 14.3m (47 ft.) 9.0 m (29 ft.) 12.5 m (41 ft.) 6.5 m (21 ft.)
* Do not use non-metallic flexible duct.
01 installing your dryer
DV431AEP-03021D_EN.indd 9 2012-02-01 �� 2:59:29

10_ installing your dryer
installing your dryer
If the new dryer is installed into an existing exhaust system you must make
sure:
• The exhaust system meets all local, state, and national codes.
• That a flexible plastic duct is not used.
• To Inspect and clean all lint buildup from inside the existing duct.
• The duct is not kinked or crushed.
• The exhaust hood damper opens and closes freely.
The static pressure in any exhaust system must not exceed 0.83 inches of water column, or be
less than 0.
This can be measured with the dryer running with a manometer at the point where the exhaust
duct connects to the dryer. A no-heat setting should be used. The dryer tumbler should be
empty and the lint filter clean.
IMPORTANT TO INSTALLER
Please read the following instructions carefully before installing the dryer. These instructions should be kept
for future reference.
REMOVE THE DOOR FROM ALL DISCARDED APPLIANCES TO AVOID THE DANGER OF A CHILD
SUFFOCATING.
LOCATION CONSIDERATIONS
The dryer should be located where there is enough space at the front for loading the dryer, and enough
space behind for the exhaust system. This dryer is factory-ready for rear exhaust. To exhaust out the
bottom or the right or the left, use the accessory exhaust kit. Instructions are included with the kit. It’s
important to make sure the room has enough fresh air. The dryer must be located where there is no air-flow
obstruction.
On gas dryers, adequate clearance as noted on the data plate must be maintained to ensure adequate air
for combustion and proper dryer operation.
THE DRYER MUST NOT BE INSTALLED OR STORED IN AN AREA WHERE IT WILL BE EXPOSED TO
WATER AND/OR WEATHER. THE DRYER AREA IS TO BE KEPT CLEAR OF COMBUSTIBLE MATERIALS,
GASOLINE, AND OTHER FLAMMABLE VAPORS AND LIQUIDS. A DRYER PRODUCES COMBUSTIBLE
LINT. THE AREA AROUND THE DRYER SHOULD BE KEPT LINT-FREE.
WARNING
DV431AEP-03021D_EN.indd 10 2012-02-01 �� 2:59:29

installing your dryer _11
ALCOVE OR CLOSET INSTALLATION
MINIMUM CLEARANCES FOR CLOSET AND ALCOVE INSTALLATIONS:
Sides – 1 in / 25 mm
Rear – 5 in / 127 mm
Top – 17 in / 432 mm
Closet Front – 2 in / 51 mm
If the washer and dryer are installed together, the closet front must have at least a 72 in² (465
cm²) unobstructed air opening.
A. Recessed area
B. Side view - closet or confined area
01 installing your dryer
B
2 in.
(5 cm) 31.9 in. (81.1 cm) 5 in. (12.7cm)
17 in.
(43.2 cm)
A
1 in.
(2.5 cm) 27 in. (68.6 cm)
1 in.
(2.5 cm)
1 in.
(2.5 cm)
27 in.
(68.6 cm)
DV431AEP-03021D_EN.indd 11 2012-02-01 �� 2:59:29

12_ installing your dryer
installing your dryer

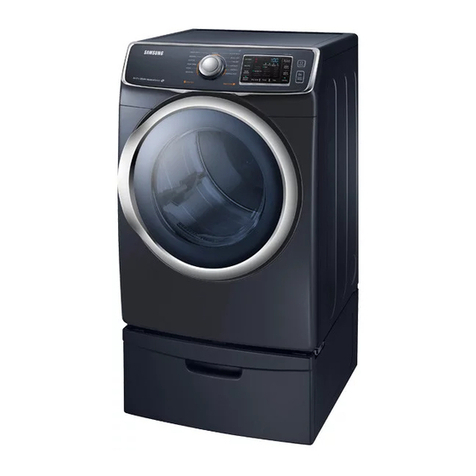

With optional pedestal base or stacking kit
Required Dimensions for Installation With Pedestal
Required Dimensions for Installation With Stacking Kit
341.1 in.
(86.5 cm)
5 in.
(12.7 cm)
51.7 in. (131.4 cm) to clear open door
27 in.
(68.6 cm)
39 in.
(99.1 cm)
53.6 in.
(136.2 cm)
31.9 in.
(81.1 cm)
3 in.
(7.6 cm)
Closet or Door
48 in.² *
(310 cm²)
3 in.
(7.6 cm)
24 in.² *
(155 cm²)
1 in.
(2.5 cm) 5.5 in.** (14 cm)
2.5 in.
(6.3 cm)
6 in. *
(15.2 cm)
1 in.
(2.5 cm)
78 in.
(198.1 cm)
27 in.
(68.6 cm)
* Required spacing
** External exhaust elbow requires
additional space.
DV431AEP-03021D_EN.indd 12 2012-02-01 �� 2:59:30

installing your dryer _13
MOBILE HOME INSTALLATION
The installation of the dryer in mobile homes must conform to the Manufactured Home Construction and
Safety Standard Title 24 CFR, Part 3280 {formerly the Federal Standard for Mobile Home Construction and
Safety, Title 24, HUD (Part 280), 1975} for the United States) or CSA Standards Z240 (for Canada).
When installing a dryer in a mobile home, provisions for anchoring the dryer to the floor must be made.
Locate an area that has adequate fresh air.
A minimum of 72 in² (465 cm²) of unobstructed space is required.
Call 1-800-SAMSUNG(726-7864) for information on purchasing the Floor Anchoring Kit as an accessory.
All mobile home installations must be exhausted to the outside with the exhaust duct termination securely
fastened to the mobile home structure, using materials that will not support combustion.
The exhaust duct may not terminate underneath the mobile home.
See Exhausting section for more information.
EXHAUSTING
Exhausting the dryer to the outside will prevent large amounts of lint and moisture from being blown into the
room.
In the United States:
• All dryers must be exhausted to the outside.
• The required exhaust duct is 4 inch (102mm) in diameter.
• Only those foil-type flexible ducts, if any, specifically identified for use with the appliance by
the manufacturer and that comply with the Outline for Clothes Dryer Transition Duct, Subject
2158A, shall be used.
• The duct shall not be assembled with screws or other fastening means that extend into the
duct and catch lint.
In Canada:
• Only those foil-type flexible ducts, if any, specifically identified for use with the appliance by
the manufacturer shall be used.
• All dryers must be exhausted to the outside.
• The exhaust duct should be 4inch (102mm) in diameter.
Outside the U.S. and Canada:
• Refer to the local codes.
The dryer must be exhausted to the outside to reduce the risk of fire when installed in an
alcove or closet.
NEVER USE A PLASTIC OR NON-METAL FLEXIBLE DUCT.
If your existing ductwork is plastic, non-metal, or combustible, replace it with metal.
Use only a metal exhaust duct that is non-flammable to ensure containment of exhaust air,
heat, and lint.
01 installing your dryer
WARNING
DV431AEP-03021D_EN.indd 13 2012-02-01 �� 2:59:30

14_ installing your dryer
installing your dryer
GAS REQUIREMENTS
Use only natural or LP (liquid propane) gases.
THE INSTALLATION MUST CONFORM WITH LOCAL CODES, OR IN THE ABSENCE OF LOCAL
CODES, WITH THE NATIONAL FUEL GAS CODE ANSI/Z223.1, LATEST REVISION (FOR THE UNITED
STATES), OR WITH THE CAN/CGA-B149 INSTALLATION CODES (FOR CANADA).
Gas dryers are equipped with a burner vent for use with natural gas. If you plan to use your dryer with LP
(liquid propane) gas, it must be converted for safe and proper performance by a qualified service technician.
A 1/2” (1.27 cm) gas supply line is recommended and must be reduced to connect to the 3/8” (1 cm) gas
line on your dryer. The National Fuel Gas Code requires that an accessible, approved manual gas shut-o
valve be installed within 6” of your dryer.
Gas dryers installed in residential garages must be raised 18 inches (46 cm) above the floor.
Additionally, a 1/8” (0.3 cm) N.P.T. (National Pipe Thread) plugged tapping, accessible for test gauge
connection, must be installed immediately upstream of your dryer’s gas supply connection.
Your dryer must be disconnected from the gas supply pipe system during any pressure testing of the
system.
DO NOT reuse old flexible metal gas lines. Flexible gas lines must be design certified by the American Gas
Association (CGA in Canada).
• Any pipe joint compound used must be resistant to the action of any liquefied petroleum gas.
• As a courtesy, most local gas utilities will inspect a gas appliance installation.
GAS IGNITION – Your dryer uses an automatic ignition system to ignite the burner.
There is no constant burning pilot.
ELECTRICAL REQUIREMENTS
Wiring diagram is located on the back of the dryer.
• Improper connection of the equipment grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether your dryer is
properly grounded. Do not modify the plug provided with your dryer – if it doesn’t fit the outlet,
have a proper outlet installed by a qualified electrician.
• To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding
must be done in accordance with local codes, or in the absence of local codes, with the National
Electrical Code, ANSI/NFPA No. 70-Latest Revision (for the U.S.) or the Canadian Electrical Code
CSA C22.1 – Latest Revisions and local codes and ordinances. It is your responsibility to provide
adequate electrical services for your dryer.
• All gas installations must be done in accordance with the national Fuel Code ANSI/Z2231 – Latest
Revision (for the U.S.) or CAN/CGA – B149 Installation Codes – Latest Revision (for Canada) and
local codes and ordinances.
WARNING
DV431AEP-03021D_EN.indd 14 2012-02-01 �� 2:59:30

installing your dryer _15
GROUNDING
This dryer must be grounded. In the event of malfunction or breakdown, the ground will reduce the risk of
electrical shock by providing a path of least resistance for the electrical current.
Gas models
Your dryer has a cord with an equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Do not modify the plug provided with your dryer – if it doesn’t fit the outlet, have a proper outlet
installed by a qualified electrician.
NEVER CONNECT GROUND WIRE TO PLASTIC PLUMBING LINES, GAS LINES, OR HOT
WATER PIPES.
Electric models
Your dryer has a cord with an equipment-grounding conductor and a grounding plug, sold
separately.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Do not modify the plug provided with your dryer – if it doesn’t fit the outlet, have a proper outlet
installed by a qualified electrician.
If a power cord is not used and the electric dryer is to be permanently wired, the dryer must
be connected to a permanently grounded metal wiring system, or an equipment grounding
conductor must be run with the circuit conductors and connected to the equipment grounding
terminal.
01 installing your dryer
WARNING
WARNING
DV431AEP-03021D_EN.indd 15 2012-02-01 �� 2:59:30

16_ installing your dryer
installing your dryer
ELECTRICAL CONNECTIONS
Before operating or testing, follow all grounding instructions in the Grounding section.
An individual branch (or separate) circuit serving only your dryer is recommended. DO NOT USE AN
EXTENSION CORD.
Gas models
A 120 volt, 60 Hz AC approved electrical service, with a 15-ampere fuse or circuit breaker is
required.
Electric models
Dryers require a 120/240 volt, 60 Hz AC approved electrical service. The electric service
requirements can be found on the data label located behind the door. A 30-ampere fuse or
circuit breaker on both sides of the line is required.
• If a power cord is used, the cord should be plugged into a 30-ampere receptacle.
• The power cord is NOT provided with electric model dryers.
IMPORTANT:
When local codes allow, the dryer electrical supply may be connected by means of a new power
supply cord kit, marked for use with a dryer, that is U.L. listed and rated at a minimum of120/240
volts, 30-ampere with three No. 10 copper wire conductors terminated with closed loop
terminals, open-end spade lugs with turned up ends, or with tinned leads.
• Do not reuse a power supply cord from an old dryer. The power cord electric supply wiring
must be retained at the dryer cabinet with a suitable UL-listed strain relief.
• Grounding through the neutral conductor is prohibited for (1) new branch-circuit installations,
(2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit
grounding through the neutral conductor. (Use 4-prong plug for 4 wire receptacle, NEMA
type 14-30 R.)
REPLACEMENT PARTS AND ACCESSORIES
If your dryer requires replacement parts or accessories, contact the dealer from whom you purchased your
dryer or the SAMSUNG customer care center at 01-800-SAMSUNG(726-7864).
DV431AEP-03021D_EN.indd 16 2012-02-01 �� 2:59:30

installing your dryer _17
INSTALLATION
Gather the required tools and parts before starting the installation.
Read and follow the instructions provided with any tools listed here.
Tools and Parts
Pliers Cutting knife Pipe wrench (gas only) Nut drivers
Level Phillips Screwdriver Duct tape Wrench
For proper installation, we recommend that you hire a professional. To install:
1. Move your dryer to an appropriate location for installation. Consider installing the dryer and washer side-
by-side, to allow access to gas, electrical, and exhaust connections.
Lay two of the carton cushion-tops on the floor. Tip your dryer on its side so it will lay across both
cushion-tops.
2. Set your dryer back in an upright position.
3. To ensure that the dryer provides optimal drying performance, it must
be level. To minimize vibration, noise, and unwanted movement,the
floor must be a perfectly level, solid surface.
To set the dryer to the same height as the washer, fully retract the
leveling feet by turning them counterclockwise, then loosen the legs
by turning them clockwise
Adjust the leveling feet only as much as necessary to level the dryer.
Extending the leveling feet more than necessary can cause the dryer
to vibrate.
01 installing your dryer
Retract fully Then loosen
Level
Leveling feet
DV431AEP-03021D_EN.indd 17 2012-02-01 �� 2:59:31

18_ installing your dryer
installing your dryer
4. Review the Exhausting section before installing the exhaust system. Install the ductwork from your dryer
to the exhaust hood. The crimped end of the duct sections must point away from your dryer.
DO NOT use sheet metal screws when assembling ducting. These joints should be taped.
Never use plastic flexible exhaust material.
Tip for tight installations: install a section of exhaust system to your dryer before putting it in place.
Use duct tape to secure this section to your dryer, but do not cover ventilation slots at the back of the
unit in the dryer cabinet.
5. Review Electrical Requirements section.
BEFORE OPERATING OR TESTING, follow the grounding instructions in the Grounding section.
Remove the terminal block cover plate.
Insert the power cord with a UL-listed strain relief through the hole provided in the cabinet near the
terminal block.
A strain relief must be used.
Do not loosen the nuts already installed on the terminal block. Be sure they are tight.
Use a 3/8” (1cm) deep well socket.
6. Review Gas Requirements section.
Remove the pipe thread protective cap.
Apply pipe joint compound or about 1 1/2 wraps of Teflon tape over all threaded connections.
Pipe joint compound must be resistant to the action of any liquefied petroleum gas.
Connect the gas supply to your dryer.
An additional fitting is required to connect the 3/4” (1.9 cm) female thread end of a flexible connector to
the 3/8” (1 cm) male threaded end on the dryer.
Securely tighten the gas line fitting over threads.
Turn on the gas supply. Check all gas connections for leaks using a soap solution.
If bubbles appear, tighten the connections and recheck.
DO NOT use an open flame to check for gas leaks.
3-WIRE system connections
1. Loosen or remove the center terminal block screw.
2. Connect the neutral wire (white or center wire) of the power
cord to the center, silver-colored terminal screw of the
terminal block. Tighten screw.
3. Connect the other wires to outer terminal block screws.
Tighten screws.
4. Tighten the strain relief screws.
5. Insert the tab of the terminal block cover into your dryer’s
rear panel slot.
Secure the cover with a hold-down screw.
1. External ground connector
2. Neutral grounding wire (green/yellow)
3. Center silver-colored terminal block screw
4. Neutral wire (white or center wire)
5. 3/4” (1.9 cm) UL-listed strain relief
If converting from a 4-wire electrical system to a 3-wire, the ground strap must be
reconnected to the terminal block support to ground the dryer frame to the neutral
conductor.
WARNING
DV431AEP-03021D_EN.indd 18 2012-02-01 �� 2:59:31

installing your dryer _19
4-WIRE system connections
1. Remove the center terminal block screw.
2. Connect the ground wire (green or unwrapped) of the
power cord to the external ground conductor screw.
3. Connect the neutral wire (white or center wire) of the power
cord and the appliance ground wire (green with yellow
stripes) under the central screw of the terminal block.
4. Connect the other wires to the outer terminal block screws.
Tighten screws.
5. Tighten the strain relief screws.
6. Insert the tab of the terminal block cover into your dryer’s rear panel slot.
Secure the cover with a hold-down screw.
1. External ground connector
2. Green or bare copper wire of power cord
3. 3/4 in. (1.9 cm) UL-listed strain relief
4. Center silver-colored terminal block screw
5. Grounding wire (green/yellow)
6. Neutral wire (white or center wire)
7. With a level, check your dryer and make necessary adjustments to the leveling legs.
8. At this time, make sure all gas connections (on gas models), exhaust and electrical connections are
complete. Plug in your dryer, and check operation by using the checklist below.
9. (GAS MODELS ONLY)
The burner may not ignite initially due to air in the gas line. Allowing your dryer to operate on a heat
setting will purge the line. If the gas does not ignite within 5 minutes, turn your dryer o and wait 5
minutes. Be sure the gas supply to your dryer has been turned on. In order to confirm gas ignition,
check the exhaust for heat.
FINAL INSTALLATION CHECKLIST
 Dryer is plugged into an electrical outlet and is properly grounded.
 Exhaust ductwork is hooked up and joints are taped.
 Plastic flexible duct is NOT used.
 Used rigid or sti-walled flexible metal vent material.
 Dryer is leveled and is sitting firmly on the floor.
 Gas models – gas is turned on with no gas leaks.
 Start your dryer to confirm that it runs, heats, and shuts o.
01 installing your dryer
DV431AEP-03021D_EN.indd 19 2012-02-01 �� 2:59:31

20_ installing your dryer
installing your dryer
DRYER EXHAUST TIPS
Plastic or non-metal flexible duct presents a potential fire hazard.
1. Make sure your dryer is installed properly so it exhausts air
easily.
2. Use a 4” diameter rigid metal duct. Tape all joints, including
at the dryer.
Never use lint-trapping screws.
3. Keep ducts as straight as possible.
4. Clean all old ducts before installing your new dryer.
Be sure the vent flap opens and closes freely.
Inspect and clean the exhaust system annually.
Don’t let a poor exhaust system slow drying by:
1. Restricting your dryer with a poor exhaust system.
2. Using a plastic, thin foil, or non-metal flexible duct.
3. Unnecessarily using long ducts that have many
elbows.
4. Having crushed or clogged ducts and vent.
WARNING
1 2
3 4
DV431AEP-03021D_EN.indd 20 2012-02-01 �� 2:59:32
