M9900/M9600 PJT(DRYER)
Training Manual
BASIC MODEL MODEL CODE MODEL NAME
DM9900M
DVE60M9900V/A3 DVE60M9900V
DVE60M9900W/A3 DVE60M9900W
DVG60M9900V/A3 DVG60M9900V
DVG60M9900W/A3 DVG60M9900W
DVE60M9900V/AC DVE60M9900V
DM9600M
DVE55M9600V/A3 DVE55M9600V
DVE55M9600W/A3 DVE55M9600W
DVG55M9600V/A3 DVG55M9600V
DVG55M9600W/A3 DVG55M9600W
DVE55M9600V/AC DVE55M9600V
DV*60M9900*
DV*55M9600*
1
“This document can not be used without Samsung's authorization”

Contents
Product Introduction: 8-14
Changed Part list: 15-17
Instruction Of Function: 18-26
Test Mode & Error Check: 27-34
2
3
4
5
Reference Information: 35-54
6
7Disassembly & Reassembly: 56-72
1Safety Warning 3-7
2
“This document can not be used without Samsung's authorization”

1.Safety Warnings
WARNING - RISK OF FIRE
•Clothes dryer installation must be performed by a qualified installer.
•Install the clothes dryer according to the manufacturer’s instructions and local codes.
•Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is
installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with
clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and trap lint. These
conditions will obstruct clothes dryer airflow and increase the risk of fire.
•To reduce the risk of severe injury or death, follow all installation instructions.
“This document can not be used without Samsung's authorization”
3

TO REDUCE THE RISK OF FIRE OR EXPLOSION:
• Do not dry items that have been previously cleaned, washed, soaked, or spotted with gasoline, dry
cleaning solvents, or other flammable or explosive substances. They emit vapors that could ignite
or explode. Any material that has been in contact with a cleaning solvent or flammable liquids or
solids should not be placed in the dryer until all traces of these flammable liquids or solids and
their fumes have been removed. There are many highly flammable items used in homes, such as
acetone, denatured alcohol, gasoline, kerosene, some liquid household cleaners, some spot
removers, turpentine, waxes, and wax removers.
• Do not dry items containing foam rubber (may be labeled latex foam) or similarly textured rubber-
like materials on a heat setting. Heated foam rubber materials can, under certain circumstances,
produce fire by spontaneous combustion.
1.Safety Warnings
“This document can not be used without Samsung's authorization”
4

1.Safety Warnings
WHAT TO DO IF YOU SMELL GAS:
•Do not try to light any appliance.
• Do not turn on the appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer, service agency, or
the gas supplier.
“This document can not be used without Samsung's authorization”
5

1.Safety Warnings
Important safety instructions
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic
precautions, including the following:
1. Read all instructions before using this appliance.
2. Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline,
dry-cleaning solvents, or other flammable or explosive substances, because they give off vapors that could
ignite or explode.
3. Do not use the dryer to dry clothes which have traces of any flammable substance, such as vegetable oil,
cooking oil, machine oil, flammable chemicals, thinner, etc., or anything containing wax or chemicals, such as
mops and cleaning cloths. Flammable substances may cause the fabric to catch fire by itself.
4. Do not store or use gasoline or other flammable vapors and liquids near this or any other appliance.
5. Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is necessary
when the appliance is used near children and pets.
6. Before the appliance is removed from service or discarded, remove the door to the drying compartment
to prevent children or animals from becoming trapped inside.
7. Do not reach into the appliance when the drum is moving.
8. Do not install or store this appliance where it will be exposed to the weather.
9. Do not tamper with the controls.
10. Do not repair or replace any part of the appliance or attempt any servicing unless specifically
recommended in the user-maintenance instructions or published in the user-repair instructions that you
understand and have the skills to carry out.
“This document can not be used without Samsung's authorization”
6

1.Safety Warnings
11. Do not use fabric softeners or products to eliminate static unless recommended by the
manufacturer of the fabric softener or product.
12. Clean the lint screen before or after each load.
13. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
14. Keep the area around the exhaust opening and surrounding areas free from lint, dust, and dirt.
15. The interior of the dryer and exhaust duct should be cleaned periodically by qualified service
personnel.
16. Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils
may contribute to a chemical reaction that could cause a load to catch fire.
17. This appliance must be grounded. See “Electrical requirements” and “Grounding” in the “Installing
your dryer” section.
18. This appliance must be properly grounded. Never plug the power cord into a receptacle that is not
grounded adequately and in accordance with local and national codes. Refer to installation
instructions for grounding this appliance.
19. Ensure pockets are free from small irregularly shaped hard objects and foreign material, i.e. coins,
knives, pins, etc. These objects could damage your dryer.
20. Gas leaks may occur in your system, resulting in a dangerous situation.
21. Gas leaks may not be detected by smell alone.
22. Gas suppliers recommend you purchase and install a UL-approved gas detector.
“This document can not be used without Samsung's authorization”
7

Concept
Main
Feature
2. Product introduction
Delicate Dry (Low Temperature dry)
The Largest Capacity
Smart Care
Vent Sensor
Steam Cycle
Sanitize Cycle
Energy Saving
Time Saving
Easy Reversible Door
4-way Vent(Elec.)
Wi-fi Embedded
New design and one of the best
dryer options and care all clothes
material.
“This document can not be used without Samsung's authorization”
8

2. Product introduction
Extra Large Capacity
Ultra drying capabilities are at your fingertips! Now you can dry extra-large loads.
Our ultra large 7.5 cu.ft. capacity dryer circulates more air through your clothes getting
them dry faster, for a wrinkle-free result.
Time Saving Our cycles are designed with you in mind. All our dryers are designed to dry your
clothes in less time... just 42 minutes! Giving you time for more important things in life.
Energy Saving
Samsung dryers are super energy efficient, that you can dry up to 3.31 pounds of
laundry with 1kWh. Also, both the large capacity and Fuzzy Logic Control save energy
by automatically drying your clothes the most efficient way.
Easy Reversible Door Our dryers will fit just about anywhere and without a door conflict. The direction of our
easy reversible door can be changed with just four screws.
Pedestal With Storage
Drawers
An option 15’’ pedestal is available to raise the dryer for easier loading and unloading. It also offers
a built-in storage drawer that can hold a 100 oz., bottle of detergent.
Various Drying Cycles &
Fuzzy Logic Algorithm
Simply turn the job dial to select one of the 13 automatic drying cycles, including normal, heavy
duty and bedding, or let the fuzzy logic control measure the degree of dampness and automatically
set the drying time. Precision drying has never been easier tan with Samsung.
Smart Care
Samsung’s Smart Care, an automatic error-monitoring system, detects and diagnoses problems at
an early stage and provides a quick and easy solutions, with the innovative Smart Remote Control
technology, you can also be alerted when the problems occurs via your Smart phones.
4-way Vent(Elec.) You can install the exhaust vent in the following four (4) positions: back, either side,
bottom.
Delicate Dry You can use “Delicate dry” with tumble dry. Samsung dryer can save your clothes damage by high
temperature heat.
“This document can not be used without Samsung's authorization”
9

Specification
Model DM9900M/D9600M DV7500K
Product
Specification
Capacity (kg) 7.5 CU.FT 7.5 CU.FT
Power source ELECTRIC/GAS ELECTRIC/GAS
Drying Cycle 12 13
Heater 5300W (ELEC)
22000 BTU/hr (GAS)
5300W (ELEC)
22000 BTU/hr (GAS)
Drying Level 5 5
Temp Select 4 4
Steam Cycle YES YES
Display residue time YES YES
Drum light YES YES
Child lock YES YES
Reversible Door YES YES
Drum material STS STS
Window Size 20 inch 20 inch
SET Size (WxDxH : Inch) 27 X 32.5 X 46.9 27 X 32.4 X 38.7
Performance Cycle time
(AHAM 8lbs) 75 min 75 min
Appearance
Door Crystal Blue (TOC) Chrome Trim
Control Panel LED LED
Display Color Black Caviar Black Caviar
2. Product introduction
“This document can not be used without Samsung's authorization”
10

Specification
2. Product introduction
Lower Tumble Dry
PJT DM9900M DM9900M
Model Code
DVE60M9900V/A3
DVE60M9900V/AC
DVG60M9900V/A3
DVE60M9900W/A3
DVG60M9900W/A3
DVE55M9600V/A3
DVE55M9600V/AC
DVG55M9600V/A3
DVE55M9600W/A3
DVG55M9600W/A3
Available Body Colors Black Stainless / White Black Stainless / White
Capacity (cu.ft / DOE) 7.5 7.5
Power Resource (Electric / Gas) Electric /Gas Electric /Gas
Vent Sensor Y Y
Vent Blockage Test Y Y
Wi-Fi Embedded Embedded
Smart Control (Monitor for gas) Y Y
Smart Care Y Y
Steam Y Y
Drum Material STS STS
Internal Drum Light Y Y
Reversible Door Y Y
Drying Rack - -
Door Safety Y Y
Filter Check Indicator Y Y
Vent Exhaust (Electric / Gas) 4 ways / 3 ways 4 ways / 3 ways
Heater (Elec dryer only) Dual Dual
Panel Deco Chrome -
Door Crystal Blue(Blue TOC) White TOC
“This document can not be used without Samsung's authorization”
11

Specification
2. Product introduction
Steam
Cycles
Refresh Y Y
Wrinkle Away Y Y
Steam Sanitize Y Y
Sensor
Dry
eco Normal - -
Normal Y Y
Heavy Duty Y Y
Towels Y -
Perm Press Y Y
Active wear Y -
Bedding Y -
Delicates Y Y
Manual
Dry
Time Dry Y Y
Air Fluff Y Y
Eco Dry Y Y
Adjust Time (Up) Y Y
Adjust Time (Down) Y Y
Anti Static Y Y
Mixed Load Bell Y Y
Smart Control/Monitor Y Y
Smart Care Y Y
Drum Light Y Y
Child Lock Y Y
Sound Y Y
Wrinkle Prevent Y Y
“This document can not be used without Samsung's authorization”
12

Product Dimension
2. Product introduction
Note: “A. Height” Spec can vary from 46.9 to 47.4 inches (119.2-
120.4 cm) depending on the leveling feet adjustments.
Type Front Loading Dryer
DV'60M9900**/ DV'55M9600**
Dimentions
A. Height-
top
door opened
Product
-inches(cm) 61 (155.0)
Required for Installation
-inches 63.5
B. Height-top
door closed
Product
-inches(cm) 46.9 (119.2)
Required for Installation
-inches -
C. Widht
Product
-inches(cm) 27 (68.6)
Required for Installation
-inches 29
D. Depth
Product
-inches(cm) 32.4 (82.5)
Required for Installation
-inches 34.5
E. Depth with
door open 90°
Product
-inches(cm) 53.5 (136.5)
Required for Installation
-inches 55.7
F. Width with
door open 120°
Product
-inches(cm) 36.4 (92.4)
Required for Installation
-inches 38.4
Water pressure-psl (kPa) 20-116 (137-800)
Weight
lb (kg)
165 (75)
Heater Rating
Electric (W)
Upper: 600W / Lower: 5300 W
Gas (BTU/
hr)22000
“This document can not be used without Samsung's authorization”
13

Options Specifications
Item Code QTY Remarks
Manual-Users DC68-03381F 1
DM9900M
Manual-Users
(TECH) DC68-03382C 1
-
“Y”-connector
DC97-15103
Short inlet hose
DC97-15249A * Wi-fi Embedded
2. Product introduction
“This document can not be used without Samsung's authorization”
14

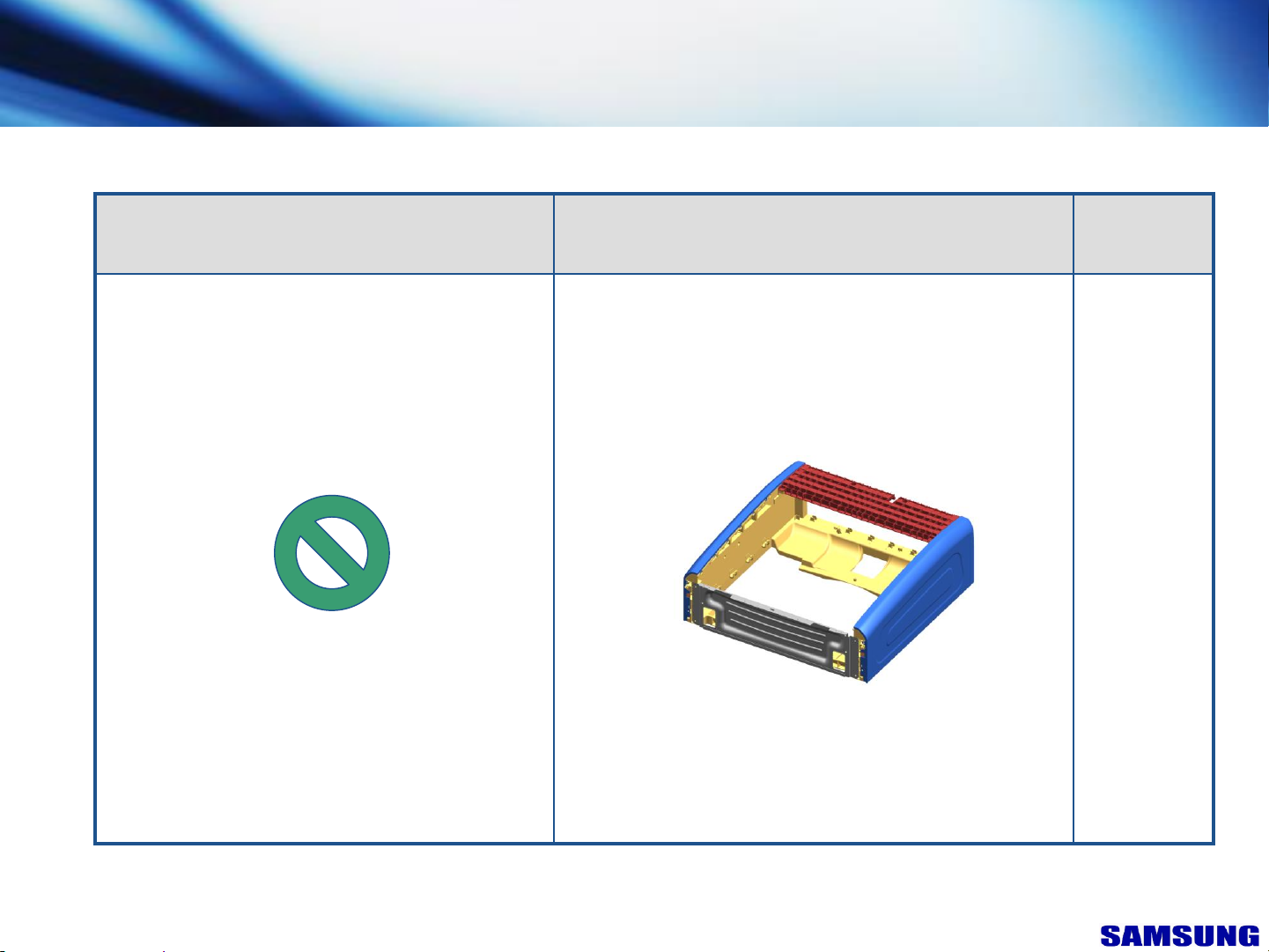

DV6500K DM9900M Remark
Assy
Panel
Control
Control Panel
3. Changed Parts List
“This document can not be used without Samsung's authorization”
15

DV6500K DM9900M Remark
-
Assy Frame Case
3. Changed Parts List
“This document can not be used without Samsung's authorization”
16

DV6500K DM9900M Remark

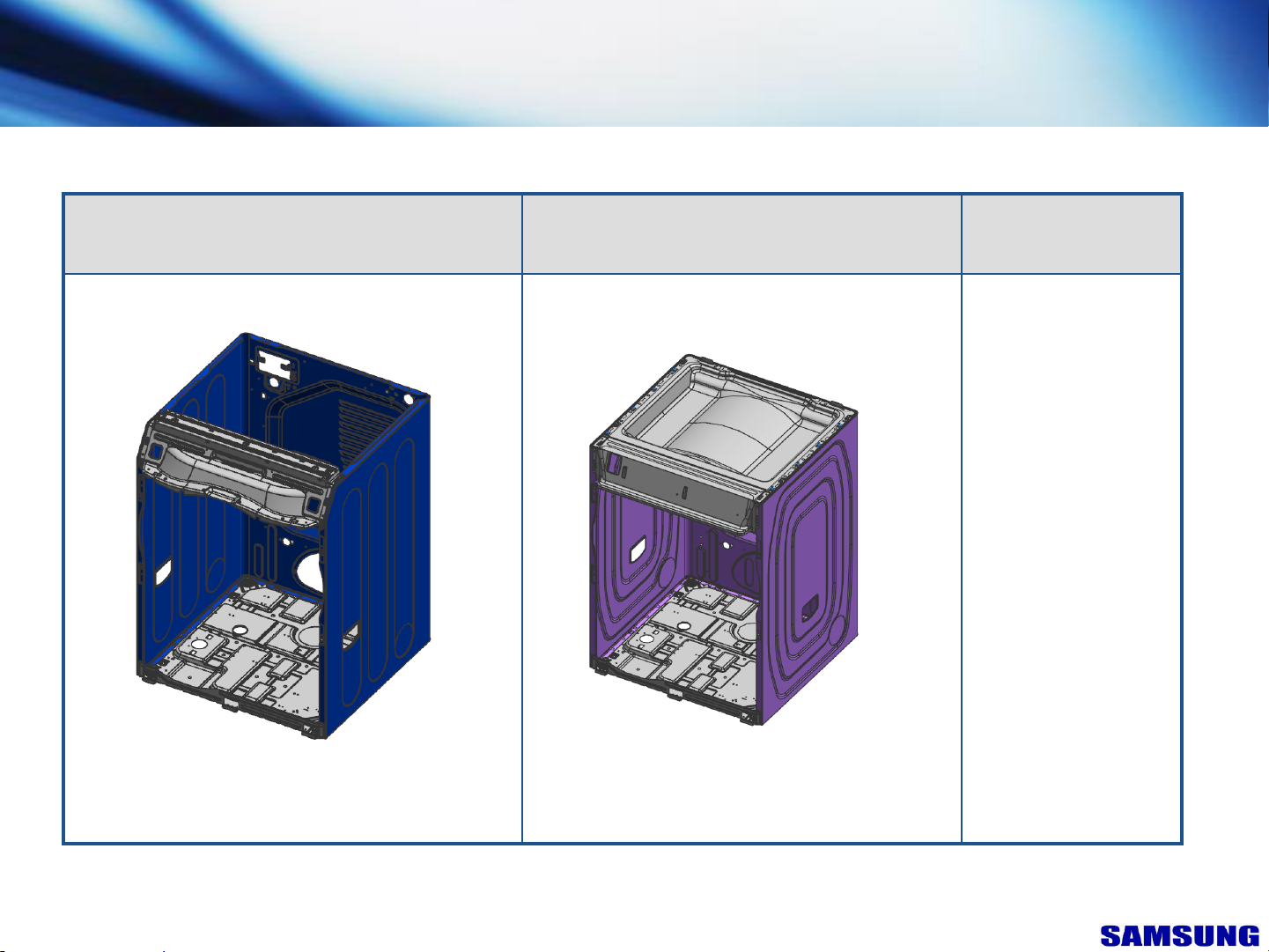

Assy Frame
Assy Frame
3. Changed Parts List
“This document can not be used without Samsung's authorization”
17

DV6500K DM9900M Remark
-
Assy Frame Front
3. Changed Parts List
“This document can not be used without Samsung's authorization”
18

DV6500K DM9900M Remark
-
Assy Basket
3. Changed Parts List
“This document can not be used without Samsung's authorization”
19

DV6500K DM9900M Remark
-
Assy Die Rack Dry
3. Changed Parts List
“This document can not be used without Samsung's authorization”
20
