Samsung SH-S223C User manual

Samsung's OMS (Optical Media Solution) Customer Support Website
(http://www.samsung-ODD.com) offers the latest versions of firmware for
ODD products, user instructions and product information.
Select Model
SH-S223C(TS-H663C)
페이지 1 / 1SAMSUNG DVD Writer User Manual
2009-07-24file://C:₩Documents and Settings₩Owner₩바탕 화면₩SH-S223C(TS...

Select Model
SH-S223C(TS-H663C) Select Languages English
Main Pa
g
e
Safet
y
Precautions
Safety Precautions
During Installing
During Operating
Others
RoHS & WEEE
Features
Exterior
System Requirements
Features
Installing DVD Writer and Connecting
Cables
Installing Drive
Connecting Cables
Installing Device Driver and Confirming
The Installation
Firmware Update
Confirming the Installation of Device Driver
How To Use The DVD Writer

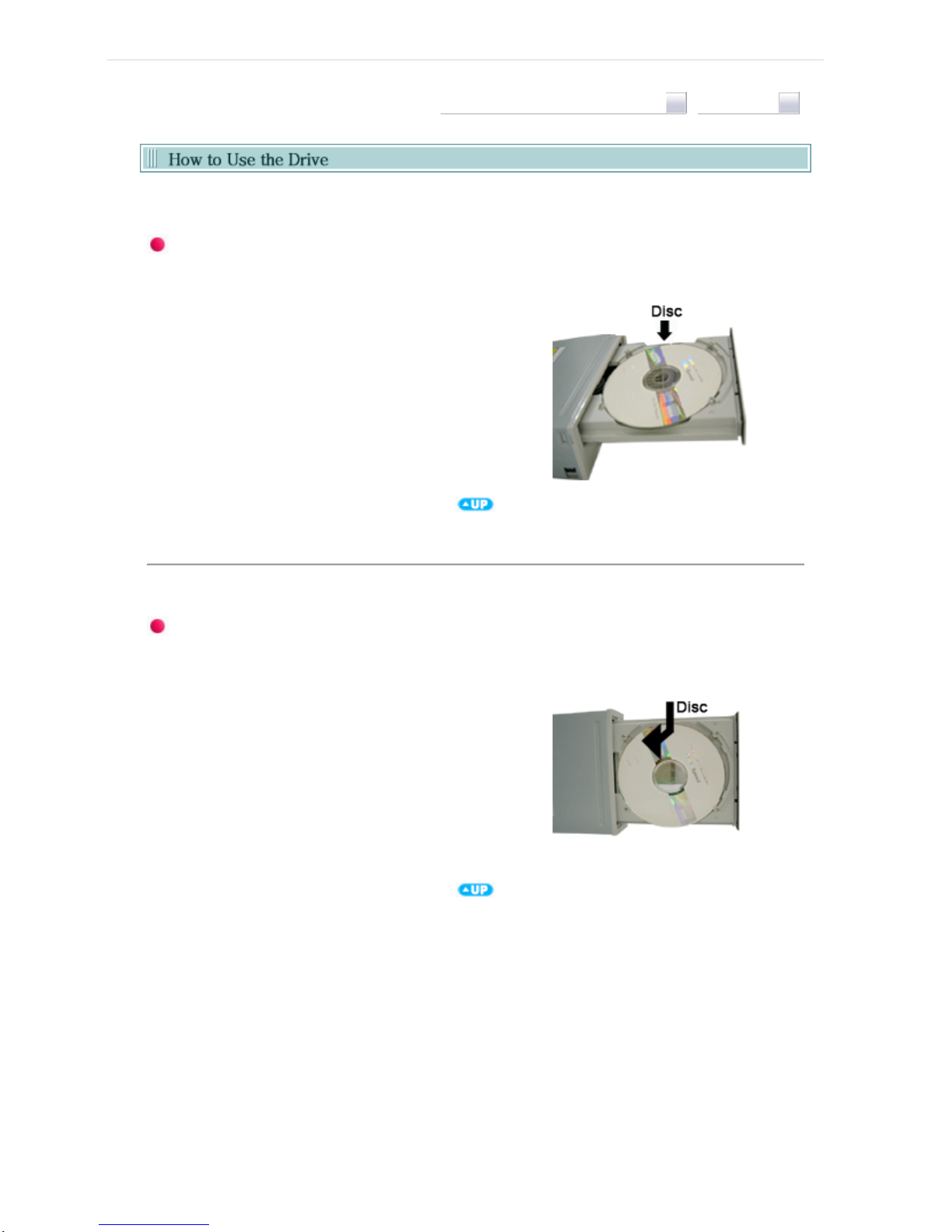

How to Use the Drive
How to Use DVD±R/RW and Other Discs
MAGIC SPEED(Option)
How to use the TruDirect
Deletin
g
Utilities
Storin
g
/Cleanin
g
Drive and Disc
Cleaning the Drive
Storing the Disc
Cleaning the Disc
When the LED Blinks
Troubleshootin
g
Troubleshooting
Caution: Possible Errors
Product Specifications
페이지 1 / 1SAMSUNG DVD Writer User Manual
2009-07-24file://C:₩Documents and Settings₩Owner₩바탕 화면₩SH-S223C(TS...

Select Model
SH-S223C(TS-H663C) Select Languages English
This symbol indicates explanations about extremely dangerous matters. If users ignore this
symbol and handle the device the wrong way, serious injury or death could result.
This symbol indicates explanations about dangerous matters. If users ignore this symbol and
handle the device the wrong way, damage to home or property could result.
Important to read and understand at all times.
Do not disassemble.
Always make sure that the disc does not have a crack before use. If the disc has a crack (especially
around the center hole), it is recommended to make a copy immediately and use the copy instead.
When a cracked disc is used continuously, the size of the crack is likely to grow and this will
eventually result in irreparable damage to the disc.
페이지 1 / 1SAMSUNG DVD Writer User Manual
2009-07-24file://C:₩Documents and Settings₩Owner₩바탕 화면₩SH-S223C(TS...

Select Model
SH-S223C(TS-H663C) Select Languages English
Do not drop the drive, and protect it from severe shocks.
- It can damage the drive or cause it to malfunction.
Do not place the drive in direct sunlight.
A
void low-or high-temperature environments.
A
void high-humidity environments.
페이지 1 / 1SAMSUNG DVD Writer User Manual
2009-07-24file://C:₩Documents and Settings₩Owner₩바탕 화면₩SH-S223C(TS...

Select Model
SH-S223C(TS-H663C) Select Languages English
Handle with caution to prevent damage from an external shock.
Do not drop the drive, and protect it from severe shocks.
- It can damage the drive or cause it to malfunction.
Do not move the drive while in operation and do not attempt to open
the disc tray by force.
Make sure to close all working programs before attempting to open the
tray and always use the open/close button.
Do not insert a pin into the emergency opening while in operation.
Do not insert hands in the tray while in operation.
This may cause damage to the product or human body.
Do not use cracked, distorted or damaged discs.
In particular, a disc with a crack on the inner tracks may break
while in use.
Always check to be sure the disc is not cracked before use. If you find a crack on the disc
(especially around the center hole), make a copy of the disc immediately and use the copy instead.
Continued use of a cracked disc will cause the crack to become bigger, resulting in irreparable damage
to the disc.
Do not use low-quality discs (illegal, scratched, damaged, etc.).
Samsung is not responsible for any loss resulting from the use of such discs.
페이지 1 / 1SAMSUNG DVD Writer User Manual
2009-07-24file://C:₩Documents and Settings₩Owner₩바탕 화면₩SH-S223C(TS...

Select Model
SH-S223C(TS-H663C) Select Languages English

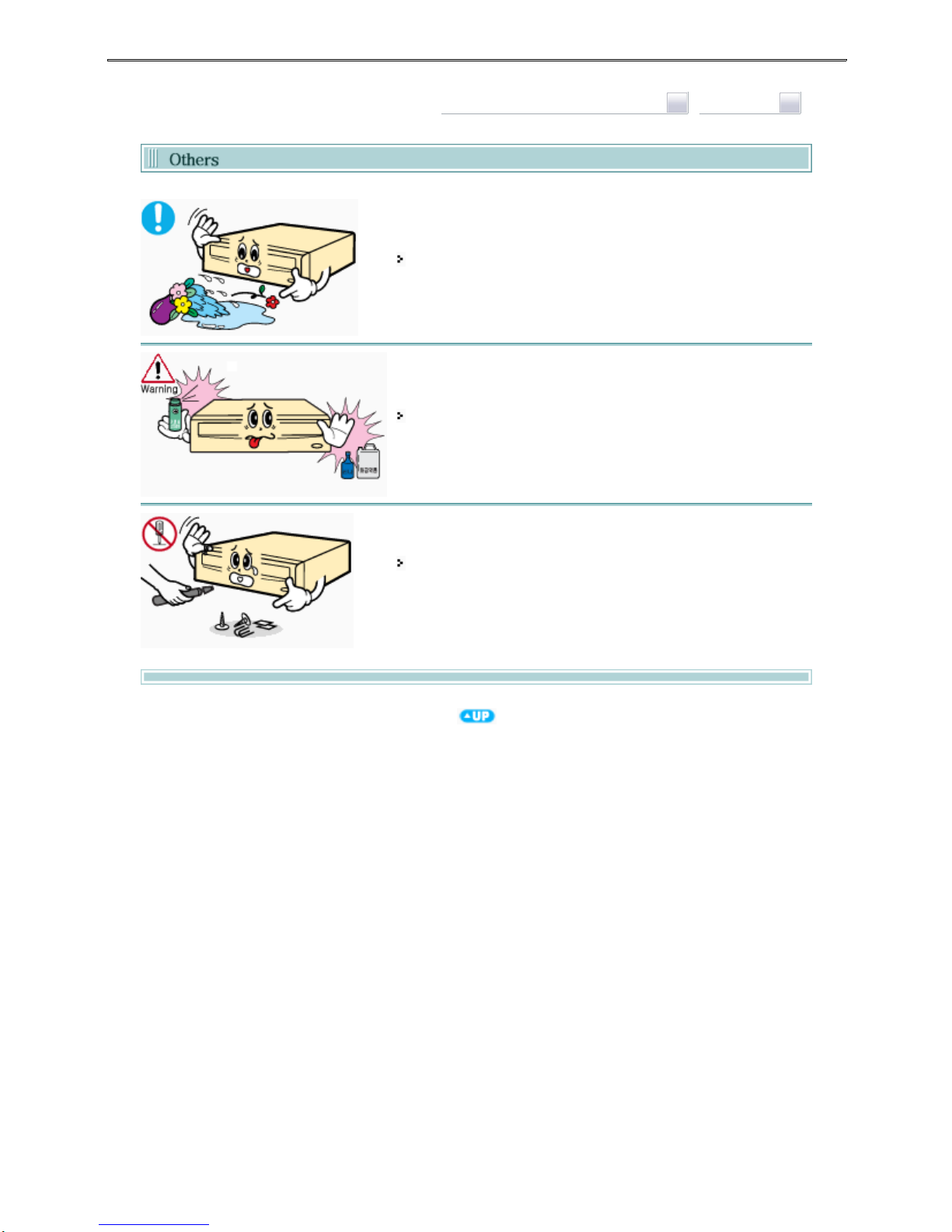

Never allow food particles or foreign substances to enter the drive
casing.
To protect against the risk of fire, do not spill such liquids as
alcohol and benzene on the drive.
Do not disassemble, attempt to repair or modify the device
without an express approval as directed in the manual.
- To reduce the risk of damage, electric shock and fire.
페이지 1 / 1SAMSUNG DVD Writer User Manual
2009-07-24file://C:₩Documents and Settings₩Owner₩바탕 화면₩SH-S223C(TS...

Select Model
SH-S223C(TS-H663C) Select Languages English
Samsung Eco-mark
The Samsung’s own Eco mark helps
consumers to easily understand that
Samsung develops eco-friendly
products. This mark represents
Samsung’s continuous effort to develop
eco-friendly products.
RoHS (Restriction of the use of certain hazardous substances in electrical and electronic equipment)The
RoHS, the environmental regulation announced by European Union, restricts the use of lead, mercury,
cadmium, hexavalent chromium, PBB, and PBDE in products put on the market in The European Union
after July 1, 2006.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its
electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with
other household waste at the end of their working life. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, please separate these
items from other types of waste and recycle them responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take this item for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for
disposal.
페이지 1 / 1SAMSUNG DVD Writer User Manual
2009-07-24file://C:₩Documents and Settings₩Owner₩바탕 화면₩SH-S223C(TS...

Select Model
SH-S223C(TS-H663C) Select Languages English
1. Emergency Hole 2. LED
3. Eject Button 4. Door Tray
• Design and specifications are subject to change without prior notice.
1. S-ATA Power Port 2. S-ATA Data Port
DVD Writer
S-ATA Data Cable
Mounting Screws
Quick Installation Guide
A
pplication software & User manual CD
• In case you need to return the purchased product, be sure to include all the accessories provided
with the product to receive a refund.
•The type of accessories varies depending on a product model.
페이지 1 / 2SAMSUNG DVD Writer User Manual
2009-07-24file://C:₩Documents and Settings₩Owner₩바탕 화면₩SH-S223C(TS...

and some accessories described herein are subject to change without notice.
페이지 2 / 2SAMSUNG DVD Writer User Manual
2009-07-24file://C:₩Documents and Settings₩Owner₩바탕 화면₩SH-S223C(TS...

Select Model
SH-S223C(TS-H663C) Select Languages English
Item Description
OS Microsoft Windows 2000/XP/Vista/7
CPU S-ATA supported PC
(The compatible mainboard list can be found from the website)
Pentium4 2.0GHz or above
RAM 512 MB or more (Windows 2000/XP), 1 GB or more (Windows Vista/7)
페이지 1 / 1SAMSUNG DVD Writer User Manual
2009-07-24file://C:₩Documents and Settings₩Owner₩바탕 화면₩SH-S223C(TS...

Select Model
SH-S223C(TS-H663C) Select Languages English
Versatile Multimedia Features
Disc Type Writable Rewritable Read
DVD
DVD-ROM × × O
DVD-ROM DL × × O
DVD±R O × O
DVD-RW O O O
DVD+R DL O × O
DVD-R DL O × O
DVD+RW O O O
DVD-RAM O O O
CD
CD-ROM × × O
CD-R O × O
CD-RW O O O
Writable : Write once and read a lot of times.
Rewritable : Read and Write data once or more times.
DVD Recommended Disc Types
DVD-R Media
Taiyo-Yuden, TDK, MKM, Hitachi, Maxell, FujiFilm, RiTEK, CMC
DVD-RW Media
TDK, MKM, JVC, RiTEK, CMC
DVD+R Media
RICOH, Taiyo-Yuden, MKM, RiTEK, CMC, Prodisc, Optdisc
DVD+RW Media
RICOH, MKM, RiTEK, CMC
DVD±R DL
MKM, RICOH
DVD-RAM
Maxell
CD Recommended Disc Types
CD-R Media
Taiyo-Yuden, RICOH, MKM, Hitachi, Maxell, FujiFilm, RiTEK(Phtharo), CMC, Pioneer, Princo, TDK
CD-RW Media
RICOH, MKM, RiTEK, CMC
페이지 1 / 2SAMSUNG DVD Writer User Manual
2009-07-24file://C:₩Documents and Settings₩Owner₩바탕 화면₩SH-S223C(TS...

HS CD-RW Media
RICOH, MKM, CMC
US CD-RW Media
MKM
Buffer underrun prevention technology included
What is " buffer underrun prevention technology "?
A technology to prevent "buffer underrun" errors in which the data transmission speed is not as
fast as the data writing speed when data is being recorded on a disc.
Reading / Writing Speed
Reading Speed(MAX)
DVD-ROM(16X), DVD-ROM DL(12X), DVD-R(16X), DVD-RW(12X), DVD+R(16X), DVD+RW(12X),
CD-ROM(48X), CD-R(40X), CD-RW(40X), DVD+R DL(12X), DVD-R DL(12X), DVD-RAM(12X)
Writing Speed(MAX)
DVD+R DL(16X), DVD+RW(8X), DVD-R(22X), DVD+R(22X), DVD-RW(6X), CD-R(48X), CD-RW(32X), DVD-R DL(12X), DVD-RAM(12X)
( The maximum speed depends on the writing media condition or some of user PC environment. )
페이지 2 / 2SAMSUNG DVD Writer User Manual
2009-07-24file://C:₩Documents and Settings₩Owner₩바탕 화면₩SH-S223C(TS...

Select Model
SH-S223C(TS-H663C) Select Languages English
1. Turn the PC off.
2. Open the cover as shown in the picture.
3. If necessary, attach the support devices on both sides of
the drive
- The support devices are PC accessories. Purchase a
pair if necessary.
(SCREW : M3 X 6 X 4 )
4. Insert the DVD Writer after removing the plate as below.
Be sure to use the screws (M3x6) provided with the product.
- Using screws other than M3x6 may cause malfunction.
Be sure that the screws are tightened securely in place.
Loosely tightened screws may result in an increased level of noise.
페이지 1 / 1SAMSUNG DVD Writer User Manual
2009-07-24file://C:₩Documents and Settings₩Owner₩바탕 화면₩SH-S223C(TS...

Select Model
SH-S223C(TS-H663C) Select Languages English
Connecting S-ATA Cable
When you use one S-ATA cable
a : Drive
b:Mainboard
페이지 1 / 2SAMSUNG DVD Writer User Manual
2009-07-24file://C:₩Documents and Settings₩Owner₩바탕 화면₩SH-S223C(TS...

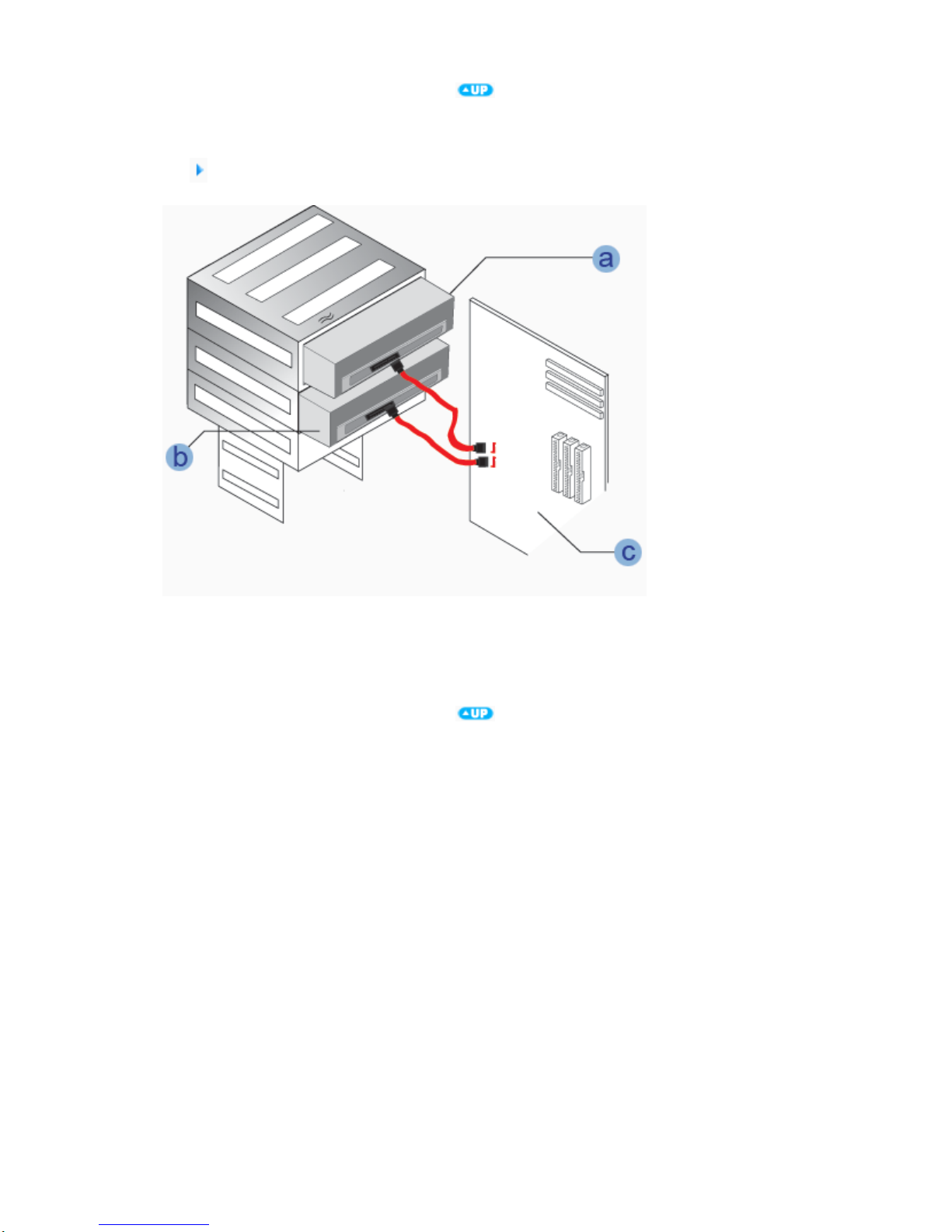

When you have one DVD Writer and the other ODD products.
a : Drive (S-ATA 1)
b : Drive (S-ATA 2)
c:Mainboard
페이지 2 / 2SAMSUNG DVD Writer User Manual
2009-07-24file://C:₩Documents and Settings₩Owner₩바탕 화면₩SH-S223C(TS...

Select Model
SH-S223C(TS-H663C) Select Languages English
1. Go to www.samsung-ODD.com
2. Click Firmware on the menu bar (in the upper right-hand corner).
3. Click Firmware Downloads. Check for your drive model and start downloading.
페이지 1 / 1SAMSUNG DVD Writer User Manual
2009-07-24file://C:₩Documents and Settings₩Owner₩바탕 화면₩SH-S223C(TS...

Select Model
SH-S223C(TS-H663C) Select Languages English
Confirming Using [Device Manager]
Windows 2000
1. Click [Start] - [Settings] - [Control Panel] -
[System]
2. Click on the [Hardware] tab in the System
Properties window and then click on the
[Device Manager] tab.
3. Click DVD-W drive in the Device Manager
window.
in the left picture appears if the driver
is installed properly.
Windows XP
1. Go to [Start] - [Settings] - [Control Panel] -
[Performance and Maintenance]
2. Click [Administrative Tools] icon in the
Performance and Maintenance window.
3. Click [Computer Management] icon in the
Administrative Tools window.
4. Click [Device Manager] icon in the
Administrative Tools window and then
click DVD-W drive.
in the left picture appears if the driver
is installed properly.
Windows Vista
1. Click [Start] - [Control Panel] - [System]
-[Device Manager]
2. Click DVD-W drive in the Device
Manager window.
in the left picture appears if the driver
is installed properly.
페이지 1 / 2SAMSUNG DVD Writer User Manual
2009-07-24file://C:₩Documents and Settings₩Owner₩바탕 화면₩SH-S223C(TS...

Windows 7
1. Click [Start] - [Control Panel] - [System
and Security] - [System Device Manger]
2. Click DVD-W drive in the Device Manager
window.
in the left picture appears if the driver
is installed properly.
페이지 2 / 2SAMSUNG DVD Writer User Manual
2009-07-24file://C:₩Documents and Settings₩Owner₩바탕 화면₩SH-S223C(TS...

Select Model
SH-S223C(TS-H663C) Select Languages English
While the LED indicator is blinking green, do not turn the PC off, nor disconnect the DVD Writer.
Otherwise it may cause damage to the drive.
How to Use a Horizontally Installed Drive
You can use 3.15 Inch or 4.72 Inch (8cm or 12cm)
disc.
The drive cannot read the disc properly if any part of the
disc is placed outside the tray guiding line.
How to Use a Vertically Installed Drive
This drive can be installed vertically.
You can use only the 4.72 Inch (12cm) disc.
(You cannot use the 3.15 Inch (8cm) disc)
The drive cannot read the disc properly if any part of the
disc is placed outside the tray guiding line.
페이지 1 / 1SAMSUNG DVD Writer User Manual
2009-07-24file://C:₩Documents and Settings₩Owner₩바탕 화면₩SH-S223C(TS...

Select Model
SH-S223C(TS-H663C) Select Languages English
The DVD Writer allows writing DVD±RW discs using Nero Express and enables
"packet writing" (high-speed recording) using InCD.
The drive also allows writing DVD±R discs using Nero Express.
Unauthorized copying of DVD or software titles is illegal and the individuals that make
illegal copies will be held responsible for any copyright infringement.
Using low-quality discs may lengthen the recording time or not supporting due to
reduction in double speed.
You can use the DVD Writer to playback Music CD, CD-ROM, CD-R/RW, or DVD-ROM disc like a CD-
ROM drive or a DVD-ROM drive. If your computer recognizes the [CD-ROM] icon designated to the DVD
Writer as the 'E:' drive, insert a CD-ROM or a DVD-ROM disc and access the 'E:' drive.
(The actual drive letter of the DVD Writer may vary depending on the user's system environment.)
If you want to use this product to play a commercial DVD-Video title('DVD title')
Most of DVD titles in the market adopt the Dolby sound system.
You are required to install software that supports Dolby decoding on your PC before you can play
a DVD title using the DVD writer purchased.
How to obtain commercial software supporting Dolby decoding.
Visit the website of Nero: http://www.nero.com
(You can use other compliant software if you want to.)
DVD Re
g
ion Protection Codin
g
(
RPC
)
:
The RPC feature is supported on DVD players and is used with DVD-video discs (such as movies).
Currently, the motion picture industry has divided the world into different regions or zones that
correspond to the regional markets into which the motion picture industry releases movies. Simply put,
RPC codes are placed on movies marketed throughout the world, based on the region of the world in
which they are being sold. These RPC codes help control and prevent pirating of new movies into
other motion picture regions prior to their true release dates within those markets.
The DVD Writer supports RPC phase II. In the RPC-2 mode, the local code can be changed by users.
RPC-2 is selected by default for the DVD Writer.
You can change the region code up to five times via an MPEG application.
Please contact your dealer or local SAMSUNG representative if you wish to change the local code
more than five times.
페이지 1 / 1SAMSUNG DVD Writer User Manual
2009-07-24file://C:₩Documents and Settings₩Owner₩바탕 화면₩SH-S223C(TS...
