Samsung SF-340 User manual

SERVICE
SAMSUNG FACSIMILE
SF-340 Series
SF-340/SF-341P
SF-345TP
Manual
FACSIMILE CONTENTS
1. Precautions
2. Reference Information
3. Specifications
4. Summary of product
5. Disassembly and Reassembly
6. Alignment and Adjustments
7. Troubleshooting
8. Exploded Views and Parts List
9. Block Diagram
10. Connection Diagram

Exploded View & Parts List
Service Manual
8-1
Samsung Electronics
8. Exploded Views and Parts List
8.1 Main Assembly Exploded view ........................................................ page(8-2)
8.2 OPE Unit Assembly Exploded view ................................................ page(8-5)
8.3 Handset Unit Assembly Exploded view .......................................... page(8-7)
8.4 ASF Unit Assembly Exploded view ................................................. page(8-8)
8.5 Engine Unit Assembly Exploded view ............................................ page(8-10)
8.6 Base Unit Assembly Exploded view ............................................... page(8-12)
Up-date On July. 28. 2004

Service Manual
Exploded View & Parts List
8-2
Samsung Electronics
8.1 Main Assembly
0
1
2
3
4
5
6
7
8
9
10
11
12
13
13-1
13-2
14
15
16
17-1
17
17-2
18
1-1
1-2
1-3
1-4
1-2-1
1-2-2 1-2-3
1-2-4
19
19-1
19-2
19-3
15-1

Exploded View & Parts List
Service Manual
8-3
Samsung Electronics
Main Assembly Parts List
SA : Service Available
O : Service available X: Service not available
No. Description SEC.Code Q’ty SA Remark
0 SET SF-340/341P/345TP
1 MEA HOU-COVER TOP JB97-01840A 1 O SF-340
MEA HOU-COVER TOP (T) JB97-01840B 1 O SF-345TP
MEA HOU-COVER TOP (P) JB97-01840C 1 O SF-341P
1-1 COVER-M-TOP JB63-00220A 1 O
1-2 MEA-HOU DOOR JB97-01835A 1 O SF-340
MEA-HOU DOOR (T) JB97-01835B 1 O SF-345TP
MEA-HOU DOOR (P) JB97-01835C 1 O SF-341P
1-2-1 COVER-M_DOOR JB63-00221A 1 O SF-340
COVER-M_DOOR (T) JB63-00221C 1 O SF-345TP
COVER-M_DOOR (P) JB63-00221D 1 O SF-341P
1-2-2 GUIDE-M_DOC L JB61-00357A 1 O SF-340
GUIDE-M_DOC L (T) JB61-00357B 1 O SF-345TP
GUIDE-M_DOC L (P) JB61-00357C 1 O SF-341P
1-2-3 GUIDE-M_DOC R JB61-00356A 1 O SF-340
GUIDE-M_DOC R (T) JB61-00356B 1 O SF-345TP
GUIDE-M_DOC R (P) JB61-00356C 1 O SF-341P
1-3 BUTTON-M_HOOK SWICH JB64-00065A 1 O
1-4 SPRING ETC-LEVER JB61-70908A 1 O
2 ELA UNIT-HANDSET JB96-01535A 1 O SF-340
ELA UNIT-HANDSET (TP) JB96-01535B 1 O SF-341P/345TP
3 CBF HARNESS-CR MOTOR-MAIN JB39-00179A 1 O
4 SHEET-INSULATION LIU JB63-00059A 1 O
5 LIU PBA JB92-01248A 1 O SF-340, UK
LIU PBA JB92-01248B 1 O SF-345TP, UK
LIU PBA JB92-01248C 1 O SF-341P, CHINA
LIU PBA JB92-01248D 1 O SF-340, CHINA
LIU PBA JB92-01248E 1 O SF-345TP, RUSSIA
LIU PBA JB92-01248H 1 O SF-340, USA
LIU PBA JB92-01248I 1 O SF-349TP, RUSSIA
LIU PBA JB92-01248J 1 O SF-345TP, USA
LIU PBA JB92-01248K 1 O
SF-345TP, GERMANY
6 CBF HARNESS-MAIN LIU FFC JB39-00181A 1 O
7 ELA UNIT-ENGINE JB96-01540A 1 O
8 PBA MAIN JB92-01247A 1 O SF-340
PBA MAIN JB92-01247B 1 O SF-345TP
PBA MAIN JB92-01247C 1 O SF-341P
* Appendix : see appendix table

Service Manual
Exploded View & Parts List
8-4
Samsung Electronics
Main Assembly Parts List
SA : Service Available
O : Service available X: Service not available
No. Description SEC.Code Q’ty SA Remark
9 SMPS-RHINE_2 (V1) JB44-00035A 1 O 110V
SMPS-RHINE_2 (V2) JB44-00036A 1 O 230V
SMPS-RHINE_2 (V2) China JB44-00037A 1 O 230V
10 CBF HARNESS-SMPS-MAIN JB39-00177A 1 O
11 MEA UNIT-ASF JB97-01621E 1 O
12 ELA UNIT-BASE (BASIC) JB96-01539A 1 O SF-340
ELA UNIT-BASE (TAD) JB96-01542A 1 O SF-345TP
ELA UNIT-BASE (P) JB96-01558A 1 O SF-341P
13 MEA HOU-STACKER TX JB97-01624B 1 O
13-1 TRAY-M_STACKER TX1 JB63-00065D 1 O
13-2 TRAY-M_STACKER TX2 JB63-00047D 1 O
14 COVER-M_FLIP JB63-00222A 1 O
15 ELA UNIT-OPE (BASIC) *Appendix 1 O
15-1 ELA HOU-OPE *Appendix 1 O
16 CHUTE-M_DOC JB61-00358A 1 O
17 ELA HOU-SIDE L JB96-01549A 1 O SF-340
ELA HOU-SIDE L (TP) JB96-01549B 1 O SF-345TP
ELA HOU-SIDE L (P) JB96-01549C 1 O SF-341P
17-1 COVER-M_SIDE L JB63-00215A 1 O SF-340
COVER-M_SIDE L JB63-00215B 1 O SF-345TP
17-2 SPEAKER 3001-001293 1 O
18 COVER-M_SIDE R JB63-00214A 1 O SF-340
COVER-M_SIDE R (TP) JB63-00214B 1 O SF-341P/345TP
19 MEA ETC-ROLLER WHITE JB97-01207A 1 O
19-1 MEA-ROLLER WHITE JB75-00053A 1 O
19-2 PMO-BUSHING WHITE JB72-00137A 1 O
19-3 GEAR-DRIVE JB66-00004A 1 O
* Appendix : see appendix table

Exploded View & Parts List
Service Manual
8-5
Samsung Electronics
8.2 OPE Unit Assembly
0
0
1
2
1-1
1-2
1-3
1-3 1-3 1-4
1-5
1-6
1-7
1-8
1-9
1-10
1-11
2-2 2-6
2-5 2-4
2-7
2-72-3
S1
S1
2-1
2-9
2-10
2-8
2-11
2-11
SF-345TP
SF-340

Service Manual
Exploded View & Parts List
8-6
Samsung Electronics
OPE Unit Assembly Parts List
SA : Service Available
O : Service available X: Service not available
No. Description SEC.Code Q’ty SA Remark
0 ELA UNIT-OPE
*Appendix 1 O SF-340
ELA UNIT-OPE(TAD) *Appendix 1 O SF-345TP
1 ELA HOU-OPE *Appendix 1 X SF-340/341P
ELA HOU-COVER OPE_TAD *Appendix 1 X SF-345TP
1-1 COVER-M_OPE *Appendix 1 O SF-340/341P
COVER-M_OPE(TAD) *Appendix 1 O SF-345PT
1-2 COVER-M-OVERLAY OPE *Appendix 1 O only SF-345TP
1-3 KEY-M_LIGHT JB64-00064A 3 O
1-4 KEY-M_STOP JB64-00026A 1 O
1-5 KEY-M_COPY JB64-00021A 1 O
1-6 KEY-M_START JB64-00022A 1 O
1-7 RUBBER-CONTACT TAM JB73-00123A 1 O
1-8 RUBBER-CONTACT MAIN JB73-00122A 1 O
1-9 PBA SUB-UK(CONTRACT) JB92-01249A 1 O SF-340/341P
PBA SUB-UK(CONTRACT) JB92-01249B 1 O SF-345TP
1-10 RUBBER-MIC ADAPTER JB73-00124A 1 O only SF-345TP
1-11 COVER-M_LCD JB63-00217A 1 O
2 MEA UNIT-SCAN UPPER JB97-01690A 1 O
2-1 FRAME-M_UPPER JB61-00141A 1 O
2-2 CBF HARNESS-OPE-ENGINE JB39-00180A 1 O
2-3 LEVER-M_SENSOR DOC JB66-00168A 1 O
2-4 LEVER-M_SENSOR SCAN JB66-00169A 1 O
2-5 SUPPORT-M_ADF JB61-00142A 1 O
2-6 ICT-SPRING COIL JG70-40514A 1 O
2-7 SPRING ETC-LEVER SENSOR JB61-00107A 2 O
2-8 MEC-ANTISTATIC BRUSH JB75-00051A 1 O
2-9 RUBBER-ADF JB73-00100A 1 O
2-10 HOLDER-M_RUBBER JB61-00143A 1 O
2-11 MEC-ANTISTATIC BRUSH ATT JB75-00382A 1 O
* Appendix : see appendix table

Exploded View & Parts List
Service Manual
8-7
Samsung Electronics
8.3 Handset Unit Assembly
0
1
2
3
4
5
6
7
Handset Unit Assembly Parts List
SA : Service Available
O : Service available X: Service not available
No. Description SEC.Code Q’ty SA Remark
0 ELA-UNIT-HANDSET JB96-01535A 1 O SF-340
ELA-UNIT-HANDSET(TP) JB96-01535B 1 O
SF-341P/SF-345TP
1 COVER-M_HANDSET LOWER JB63-00145C 1 X SF-340
COVER-M_HANDSET LOWER(TP) JB63-00145D 1 X SF-341P/SF-345TP
2 RMO-RUBBER MIC JF73-40501A 1 X
3 CBF HARNESS-HANDSET MODULAR JB39-00026A 1 X
4 PBA SUB-ETC MIC JF92-00625A 1 X
5 AUDIO-RECEIVER 3009-001028 1 X
6 IPR-WEIGHT BALANCE JB70-00007A 1 X
7 COVER-M-HANDSET UPPER JB63-00189A 1 X

Service Manual
Exploded View & Parts List
8-8
Samsung Electronics
8.4 ASF Unit Assembly
0
13 3
2
3
11
11
1
4
56
7
8910
12
12
14
15
17
18
16

Exploded View & Parts List
Service Manual
8-9
Samsung Electronics
ASF Unit Assembly Parts List
SA : Service Available
O : Service available X: Service not available
No. Description SEC.Code Q’ty SA Remark
0 MEA UNIT-ASF JB97-01621E 1 O
1 FRAME-M_ASF JB61-00145F 1 O
2 SHAFT-M_PICK UP JB66-00176A 1 O
3 RMO-PICK UP RUBBER JB73-00009A 2 O
4 LEVER-M_FINGER ASF JB66-00174A 1 X
5 GEAR-M_DUST IDLE 21 JB66-00170A 1 X
6 LEVER-M_FINGER ASSI ASF JB66-00175A 1 X
7 SPRING-ES 6107-000011 1 O
8 GEAR-M_PICK UP ROLLER 35 JB66-00172A 1 X
9 LATCH-M DUST JB66-00171A 1 X
10 GEAR-M_PICK UP ROLLER 30 JB66-00173A 1 X
11 SHEET-FILM ASF JB63-00058A 2 X
12 SPRING CS 6107-001136 2 X
13 COVER-M_DUST JB63-00040F 1 O
14 PLATE-M_PRESSURE ASF JB61-00146F 1 O
15 GUIDE-M_PAPER SIDE JB61-00144D 1 O
16 MPR-PAD JF74-10234A 2 O
17 SPRING-ES 6107-001147 1 O
18 LEVER-M_FINGER LH ASF JB66-00191A 1 X

Service Manual
Exploded View & Parts List
8-10
Samsung Electronics

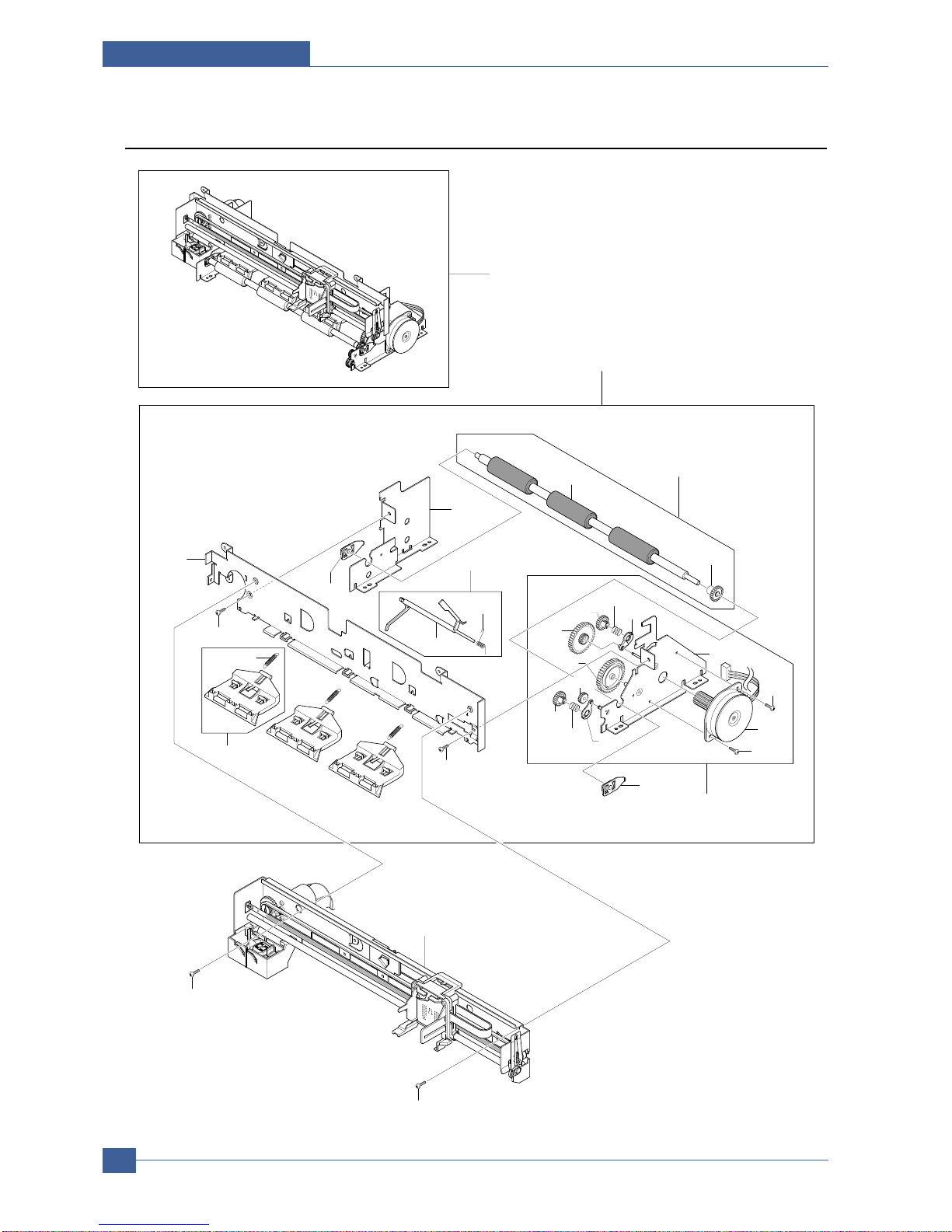

8.5 Engine Unit Assembly
1-3-8
1-3-5
0
2
1
1-4
S3
1-1
1-1-1
1-6
1-6-1
1-6-2
1-7
1-2
1-5
1-5-1
1-5-2
1-7 1-3
1-3-3 1-3-4
1-3-6
1-3-7
1-3-3
1-3-4 1-3-1 S3
1-3-9
S3
1-3-2
S3
S3
S3

Exploded View & Parts List
Service Manual
8-11
Samsung Electronics
Engine Unit Assembly Parts List
SA : Service Available
O : Service available X: Service not available
No. Description SEC.Code Q’ty SA Remark
0 ELA UNIT-ENGINE JB96-01540A 1 O
1 MEA UNIT-FRAME MAIN JB97-01671A 1 O
1-1 MEA UNIT-FRICTION ROLLER JB97-01630A 3 O
1-1-1 SPRING-ES 6107-001138 1 O
1-2 BRACKET-P_LEFT JB61-00154A 1 O
1-3 MEA UNIT-BRACKET LF JB97-01678A 1 O
1-3-1 CLUTCH-M_ARM EXIT 25 JB66-00182A 1 X
1-3-2 BRACKET-P_LF RIGHT JB61-00153A 1 X
1-3-3 GEAR-M_SWING IDLE 25 JB66-00185A 2 X
1-3-4 SPRING-CS 6107-001137 2 X
1-3-5 CLUTCH-M_ARM PICK UP 25 JB66-00183A 1 X
1-3-6 GEAR-M_LF IDLE 18/65 JB66-00186A 1 X
1-3-7 GEAR-M_LF IDLE 47 JB66-00187A 1 X
1-3-8 GEAR-M_EXIT IDLE 18 JB66-00184A 1 X
1-3-9 MOTOR-STEP LF JB31-00026A 1 X
1-4 BRACKET-P_FRAME MAIN JB61-00150A 1 X
1-5 MEA UNIT-FEED ROLLER JB97-01631A 1 O
1-5-1 MEC-ROLLER FEED JB75-00380A 1 X
1-5-2 GEAR-M_FEED ROLLER 29 JB66-00181A 1 X
1-6 MEA ETC-LEVER ACTUATOR JB97-01672A 1 O
1-6-1 SPRING ETC-CS ACTUATOR JB61-70919A 1 X
1-6-2 LEVER-M_FEED SENSOR JB66-00180A 1 X
1-7 BUSH-M_FEED ROLLER JB61-00151A 2 X
2 ELA UNIT-ENGINE HP JB96-01545A 1 O
S3 SCREW-TAPTITE 6003-000269 4 O

Service Manual
Exploded View & Parts List
8-12
Samsung Electronics
8.6 Base Unit Assembly
0
5-1
3
3-1
3-2
3-3
3-4
3-5
3-3
5-2
5-2-1
5-2-2
5-5
5-6
4
5-3
1
2
5-4
4-1
4-2
4-3 4-4
4-5
4-6
4-7
4-7
4-8
4-7
5
5-3
5-7
S1
S3

Exploded View & Parts List
Service Manual
8-13
Samsung Electronics
Base Unit Assembly Parts List
SA : Service Available
O : Service available X: Service not available
No. Description SEC.Code Q’ty SA Remark
0 ELA UNIT-BASE JB96-01539A 1 O SF-340/341P
ELA UNIT-BASE(TAD) JB96-01542A 1 O SF-345TP
1 SHAFT-M_DRIVER ADF JB66-00166A 1 O
2 MEA UNIT-ROLLER ADF JB97-01620A 1 O
3 ELA UNIT-CIS JB96-01552A 1 O
3-1 CONTACT IMAGE SENSOR 0609-001218 1 X
3-2 GUIDE-M_CIS L JB61-00138A 1 X
3-3 SPRING ETC-CIS JB61-70938A 2 X
3-4 GUIDE-M_CIS R JB61-00137A 1 X
3-5 CBF HARNESS_CIS LIU JB39-00176A 1 X
4 ELA UNIT-SCAN MOTOR JB96-01544A 1 O
4-1 BRACKET-M_TX JB61-00139A 1 X
4-2 MOTOR STEP-TX JB31-00035A 1 X
4-3 PMO-GEAR DEACC(1) JF72-41300A 1 X
4-4 PMO-GEAR CLUTCH JF72-41293A 2 X
4-5 SPING ETC-CLUTCH JB61-70922A 2 X
4-6 GUIDE-M_SWING JB61-00140A 1 X
4-7 GEAR-IDLE JB66-00006A 3 X
4-8 GEAR-TRANS JB66-00005A 1 X
5 MEA HOU-BASE JB97-01838A 1 O
MEA HOU-BASE(TAD) JB97-01839A 1 O SF-345TP
5-1 COVER-M_BASE JB63-00216A 1 O
5-2 MEA UNIT-ROLLER EXIT JB97-01629A 1 O
5-2-1 SHAFT-M_RX EXIT JB66-00178A 1 X
5-2-2 RUBBER-EXIT ROLLER JB73-00095A 3 X
5-3 FOOT JG61-40001A 2 O
5-4 GEAR-M_EXIT IDLE 35 JB66-00179A 1 O
5-5 MEA UNIT-LEVER EXIT JB97-01628A 3 O
5-6 SPRING ETC-CS(EXIT) JB61-70907A 3 X
5-7 FELT-INK JB63-00053A 1 O

Appendix (Parts code)
Update: 1/13/05
NO. Buyer-Model Code ELA UNIT-OPE ELA HOU-OPE or
ELA HOU-COVER OPE_TAD
COVER-M_OPE or
COVER-M_OPE(TAD)
COVER-M_OVERLAY
OPE
1 SF-340/XEC JB96-01546F JB96-01541F JB63-00218G -
2 SF-345TP/XEC JB96-01547F JB96-01543F JB63-00223F JB63-00219F
3 SF-340/XEF JB96-01546C JB96-01541C JB63-00218D -
4 SF-345TP/XEF JB96-01547C JB96-01543C JB63-00223C JB63-00219C
5 SF-340/XEG JB96-01546B JB96-01541B JB63-00218C -
6 SF-345TP/XEG JB96-01547B JB96-01543B JB63-00223B JB63-00219B
7 SF-340/XEP JB96-01546E JB96-01541E JB63-00218F -
8 SF-345TP/XEP JB96-01547E JB96-01543E JB63-00223E JB63-00219E
9 SF-340/XET JB96-01546D JB96-01541D JB63-00218E -
10 SF-345TP/XET JB96-01547D JB96-01543D JB63-00223D JB63-00219D
11 SF-340/XEU JB96-01546A JB96-01541A JB63-00218A -
12 SF-345TP/XEU JB96-01547A JB96-01543A JB63-00223A JB63-00219A
13 SF-340/XEV JB96-01546G JB96-01541G JB63-00218H -
14 SF-345TP/XEV JB96-01547G JB96-01543G JB63-00223G JB63-00219G
15 SF-340/XIL JB96-01546J JB96-01541J JB63-00218K -
16 SF-341P/XIL JB96-01550A JB96-01553A JB63-00218B -
17 SF-341P/XIP JB96-01594A JB96-01593A JB63-00218N -
18 SF-341P/XFA JB96-01594A JB96-01593A JB63-00218N -
19 SF-345TP/XFA JB96-01547A JB96-01543A JB63-00223A JB63-00219A
20 SF-340/EUE JB96-01546A JB96-01541A JB63-00218A -
21 SF-345TP/EUE JB96-01547A JB96-01543A JB63-00223A JB63-00219A
22 SF-340/XEN JB96-01546A JB96-01541A JB63-00218A -
23 SF-340/TEG JB96-01546B JB96-01541B JB63-00218C -
24 SF-345TP/TEG JB96-01547B JB96-01543B JB63-00223B JB63-00219B
25 SF-341P/XSA JB96-01594A JB96-01593A JB63-00218N -
26 SF-345TP/XEN JB96-01547A JB96-01543A JB63-00223A JB63-00219A
