Samsung HT-BD7200 User manual

2.1CH Blu-ray
Home Cinema System
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
HT-BD7200
HT-BD7200_ELS_0317-1.indd 1 2009-03-20 �� 7:27:13

2
Key features of your new
Blu-ray Home Cinema
PLAYER FEATURES
Playback of many disc types, plus an FM Tuner
The HT-BD7200 allows you to play various discs, including BD-ROM, DVD-VIDEO, DVD-RW/-R(V mode), CD,
MP3-CD, DivX and CD-R/RW, with a sophisticated FM tuner, all in a single player.
Full HD Audio Decoding Support (DD,DD+,DOLBY TRUE-HD,DTS,DTS-HD HRA, DTS-HD MA Essential)
Please refer to www.DOLBY.COM and DTS.COM for more detail.
TV Screen Saver Function
If the main unit remains in stop mode for 10 minutes, the logo appears on TV screen. The HT-BD7200 automatically
switches itself into the power saving mode after 30 minutes in the Screen Saver mode.
Power Saving Function
The HT-BD7200 automatically shuts itself off after 40 minutes in Stop mode.
USB Host support
You can connect and play files from external USB storage devices such as MP3 players, USB flash memory, etc.
using the Home Cinema's USB HOST function.
HDMI
HDMI transmits Blu-Ray/DVD video and audio signals simultaneously, and provides a clearer picture.
The 1080p(Full HD) resolution provides even clearer pictures.
AV SYNC Function
Video may lag behind the audio if the unit is connected to a digital TV.
To compensate for this, you can adjust the audio delay time to sync up with the video.
Anynet+(HDMI-CEC) Function
Anynet+ is a function that can be used to operate the main unit of this system using a Samsung TV remote control,
by connecting the Blu-ray Home Cinema to a SAMSUNG TV using an HDMI Cable. (This is only available with
SAMSUNG TVs that support Anynet+.)
Bluetooth Function
You can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires!
iPod & iPhone support
You can enjoy music files by connecting your iPod to the home cinema with the supplied
iPod dock.
BD Wise
BD Wise automatically adjusts BD Wise-compliant Samsung products to the optimal settings between them. This
feature is enabled only if BD Wise-compliant Samsung products are connected to each other using an HDMI cable.
HT-BD7200_ELS_0317-1.indd 2 2009-03-20 �� 7:27:13

3
ENG
BLU-RAY DISC FEATURES
Blu-ray Discs support the highest quality HD video available in the industry - Large capacity means no compromise
on video quality. Furthermore, a Blu-ray Disc has the same familiar size and look as a DVD.
* The following Blu-ray Disc features are disc dependant and will vary. Appearance and navigation of features will
also vary from disc to disc. Not all discs will have the features described below.
Video highlights
The BD-ROM format for movie distribution
supports three highly advanced video codecs,
including AVC, VC-1, and MPEG-2.
HD video resolutions are also available:
1920 x 1080 HD
1280 x 720 HD
For High-Definition Playback
To view high-definition contents on a Blu-ray disc,
an HDTV (High Definition Television) is required.
Some discs may require using the player's HDMI
OUT to view high-definition content. The ability to
view high-definition content on Blu-ray disc may be limited
depending on the resolution of your TV.
Subtitles
You may be able to select different font styles, sizes and colours for the
subtitles, Subtitles may also be animated, scrolled or faded in and out,
depending on what is contained on the Blu-ray Disc.
BD-LIVE
You can use a Blu-ray Disc supporting BD-LIVE through network
connection to enjoy various contents provided by the disc
manufacturer.
~
~
3 4 5 6 7 8 9 10 11 12 13 14 15
%
PLAY MOVIE LANGUAGES SCENE SELECTIONS PREVIEWS
3 4 5 6 7 8 9 10 11 12 13 14 15
%
PLAY MOVIE LANGUAGES SCENE SELECTIONS PREVIEWS

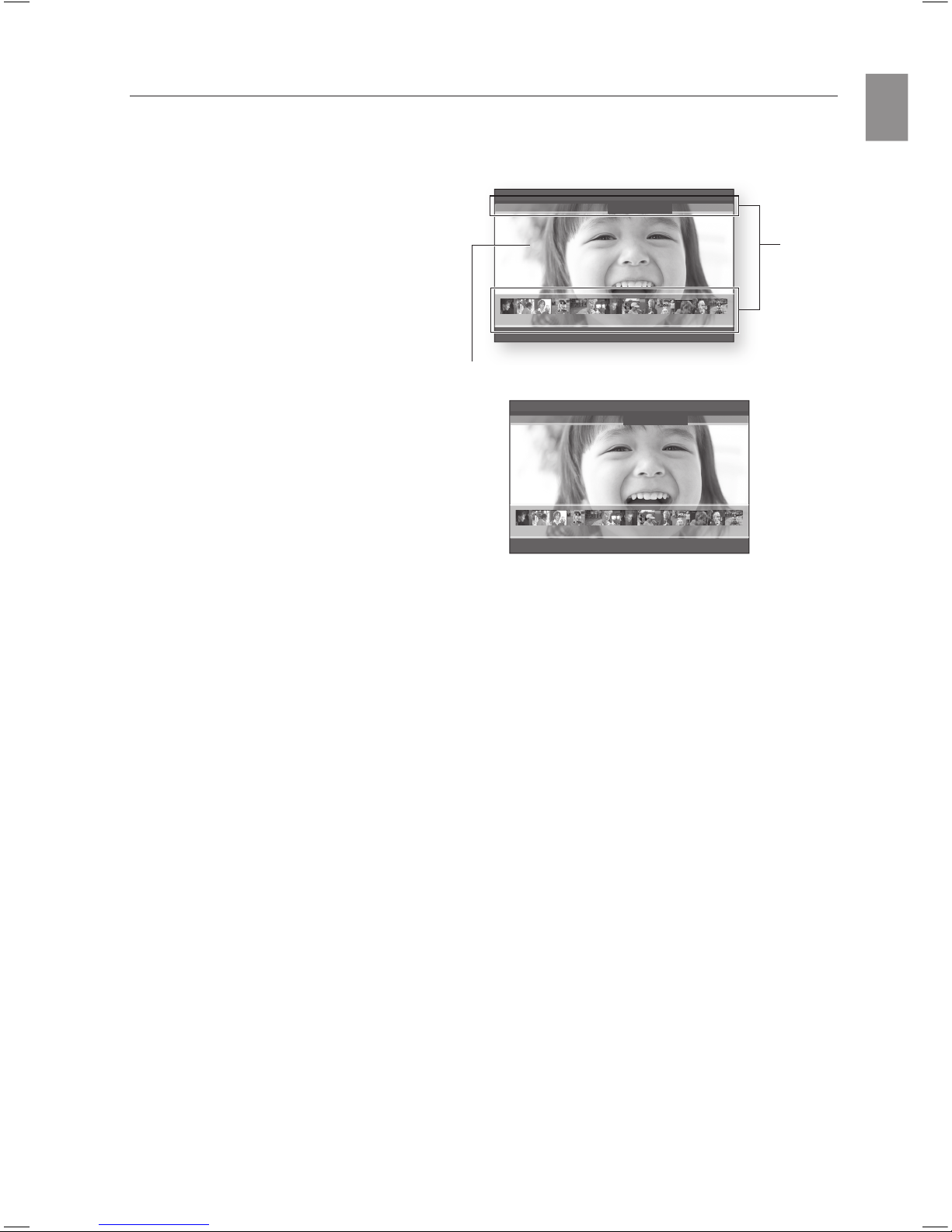

HD Video
Graphic
Planes
HT-BD7200_ELS_0317-1.indd 3 2009-03-20 �� 7:27:16

4
Key features of your new
Blu-ray Home Cinema
WHAT’S INCLUDED
Check for the supplied accessories below.
Video Cable FM Antenna Speaker Wire (3 EA) Toroidal Ferrite Core
iPod Dock User's Manual
Remote Control
/ Batteries (AAA size)
HT-BD7200_ELS_0317-1.indd 4 2009-03-20 �� 7:27:17

5
ENG
Safety information
SAFETY WARNINGS
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important instructions
accompanying the product.
CLASS 1 LASER PRODUCT
This Compact Disc player is classified as a CLASS 1
LASER product.
Use of controls, adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION : INVISIBLE LASER RADIATION WHEN
OPEN AND INTERLOCKS DEFEATED,
AVOID EXPOSURE TO BEAM.
WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
This apparatus shall always be connected to a AC outlet with a protective grounding connection.
To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the
mains plug shall be readily operable.
CAUTION
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be
placed on the apparatus.
The Mains plug is used as a disconnect device and shall stay readily operable at any time.
Wiring the Main Power Supply Plug (UK Only)
IMPORTANT NOTICE
The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on
the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used.
Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the
same colour as the fuse fitted in the plug. Replacement covers are available from your dealer.
If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you
should obtain a suitable safety approved extension lead or consult your dealer for assistance.
However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect
the plug to a mains socket as there is a risk of shock hazard from the bared flexible cord.
Never attempt to insert bare wires directly into a mains socket. A plug and fuse must be used at all times.
IMPORTANT
The wires in the mains lead are coloured in accordance with the following code:– BLUE = NEUTRAL BROWN = LIVE
As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:–
The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK.
The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.
WARNING : DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE
LETTER E OR BY THE EARTH SYMBOL , OR COLOURED GREEN OR GREEN AND YELLOW.
~
~
~
~
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
HT-BD7200_ELS_0317-1.indd 5 2009-03-20 �� 7:27:17

6
PRECAUTIONS
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your
player horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5~10cm). Make sure the ventilation slots
are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may
become hot. Before moving the player, ensure the Disc Insert slot is empty. This player is designed for continuous use. Switching off
the Blu-ray Home Cinema to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player
completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.
During thunderstorms, disconnect the AC main plug from the
wall outlet. Voltage peaks due to lightning could damage the unit.
Protect the player from moisture (i.e. vases) , and excess heat
(e.g.fireplace) or equipment creating strong magnetic or electric fields
(i.e.speakers...). Disconnect the power cable from the AC supply if the
player malfunctions. Your player is not intended for industrial use. Use of
this product is for personal use only.
Condensation may occur if your player or disc has been stored in
cold temperatures. If transporting the player during the winter,
wait approxi mately 2 hours until the unit has reached room temperature
before using.
Do not expose the unit to direct sunlight or other heat sources.
This could lead to overheating and malfunction of the unit.
The batteries used with this product contain chemicals that are harmful to
the environment.
Do not dispose of batteries in the general household trash.
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your
Do not expose the unit to direct sunlight or other heat sources.
During thunderstorms, disconnect the AC main plug from the
HT-BD7200_ELS_0317-1.indd 6 2009-03-20 �� 7:27:19

7
ENG
Contents
KEY FEATURES OF YOUR NEW
BLU-RAY HOME CINEMA
2
2 Player Features
3 Blu-ray Disc Features
4 What’s Included
SAFETY INFORMATION
5
5 Safety Warnings
6 Precautions
GETTING STARTED
10
10 Before Reading the User’s Manual
11 Disc Type and Characteristics
DESCRIPTION
14

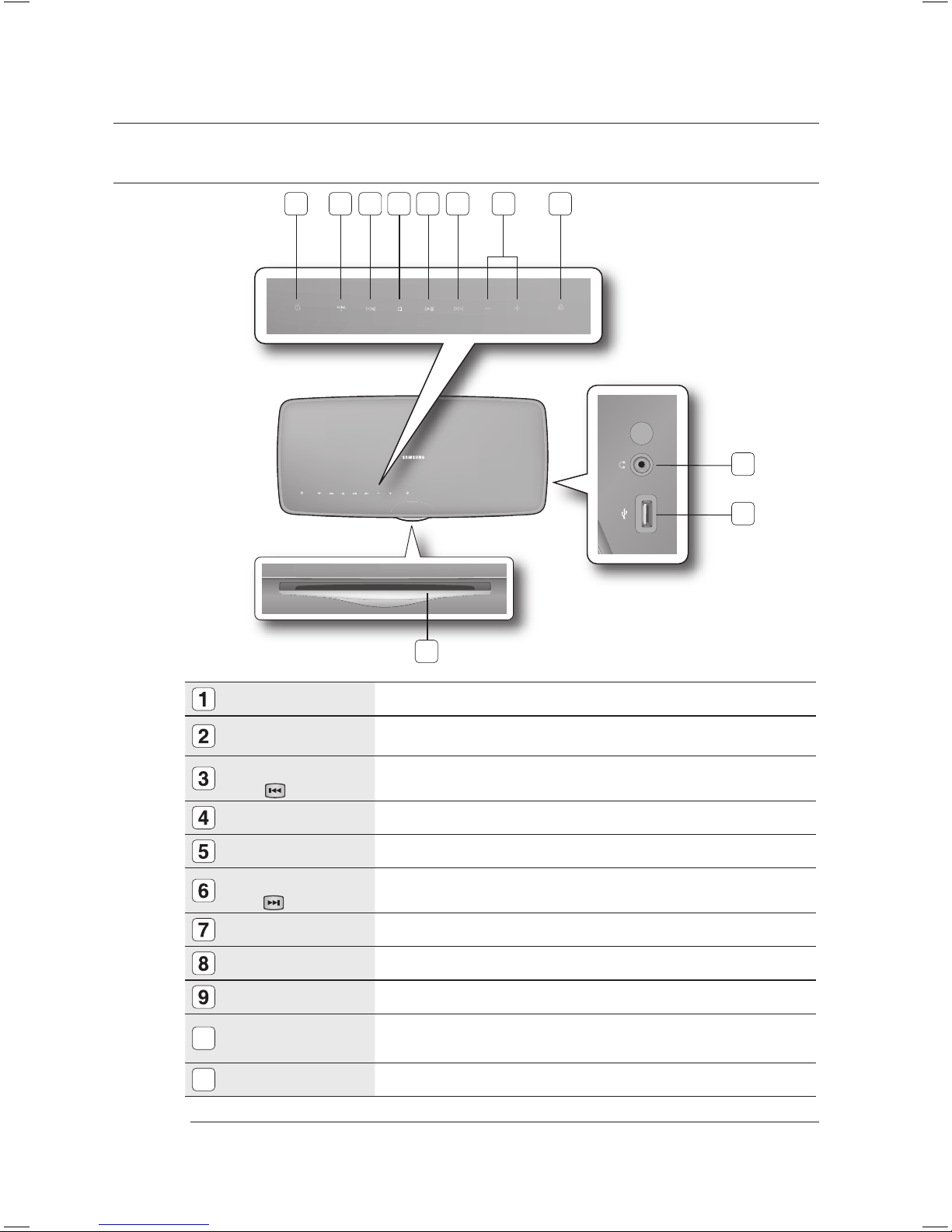

14 Front Panel
15 Rear Panel
REMOTE CONTROL
16

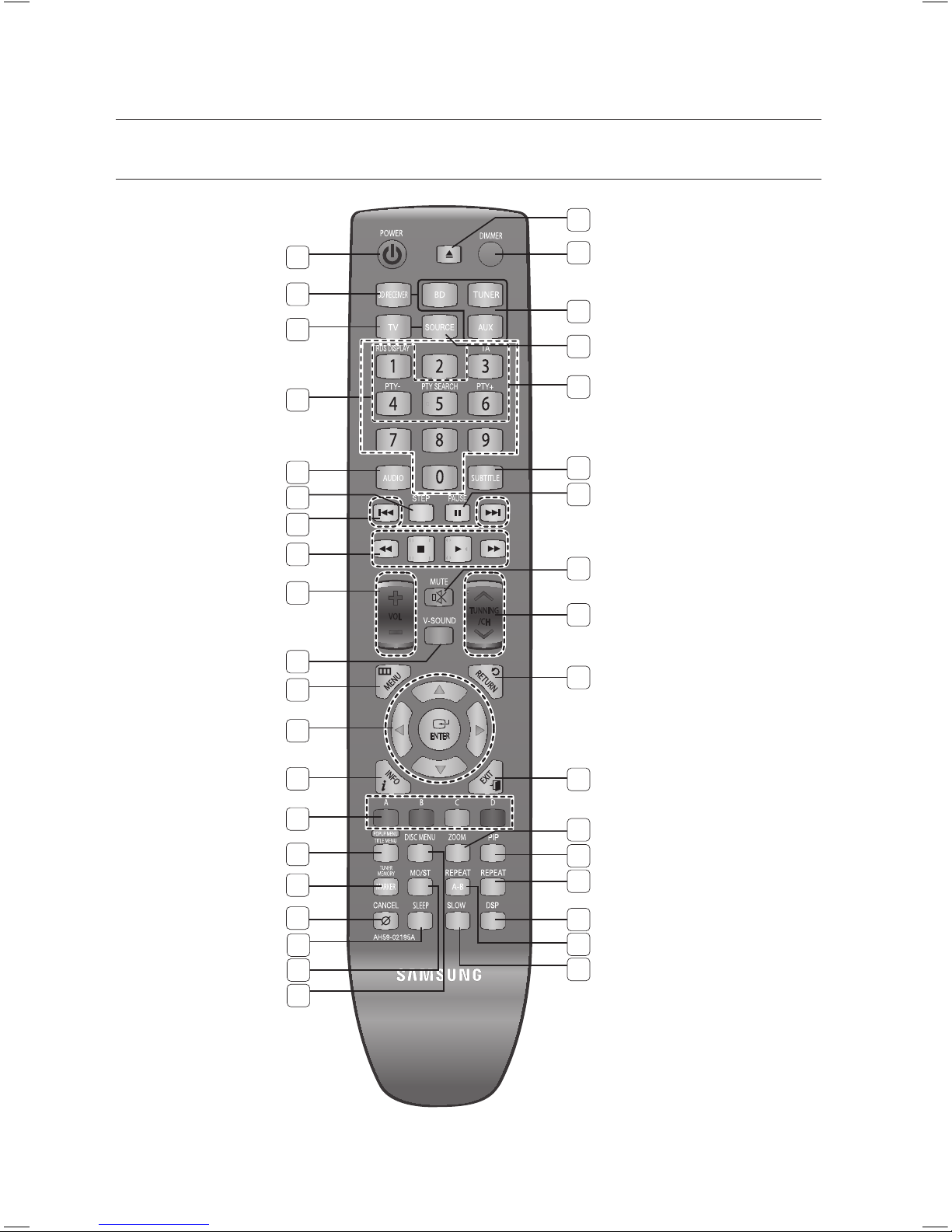

16 Tour of the Remote Control

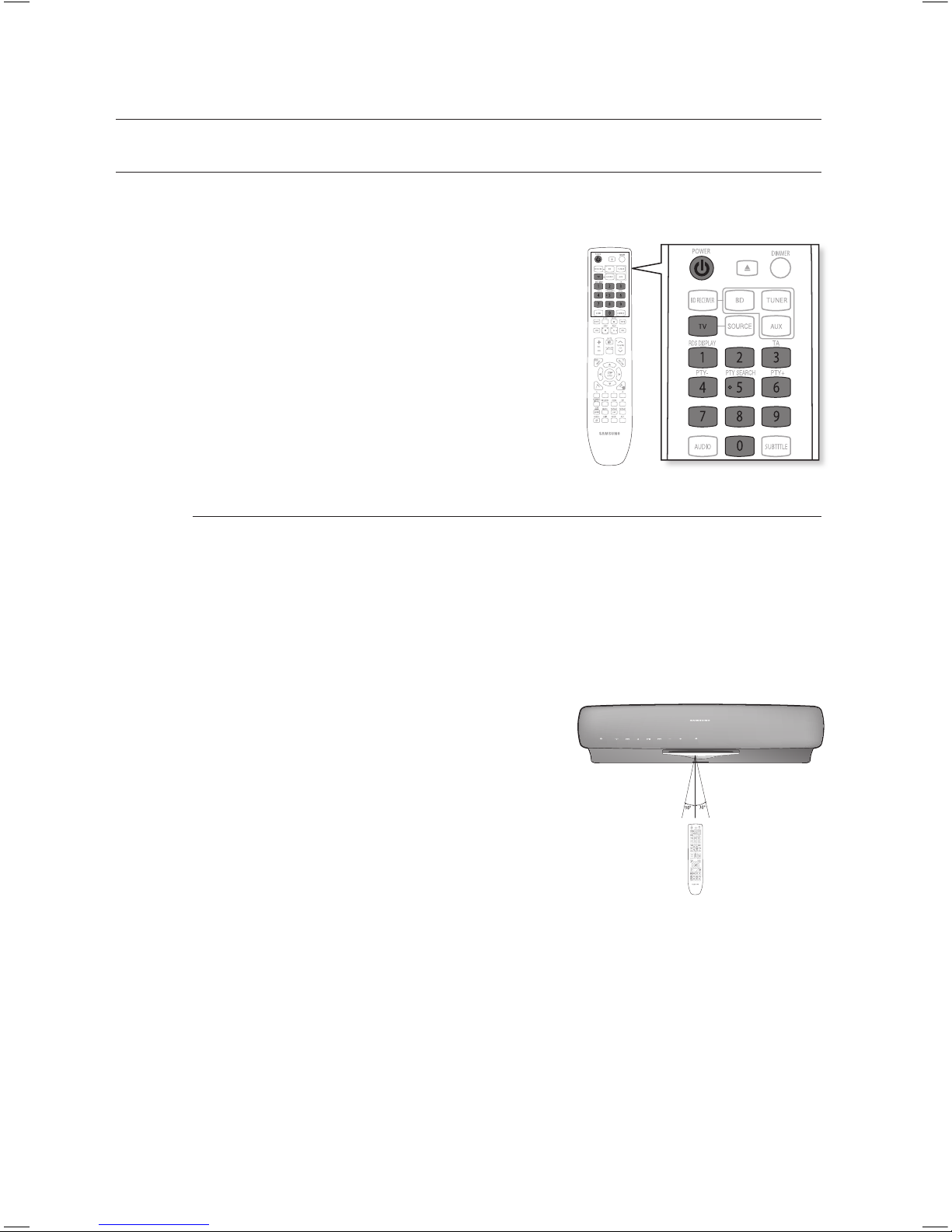

18 Setting the Remote Control
CONNECTIONS
20

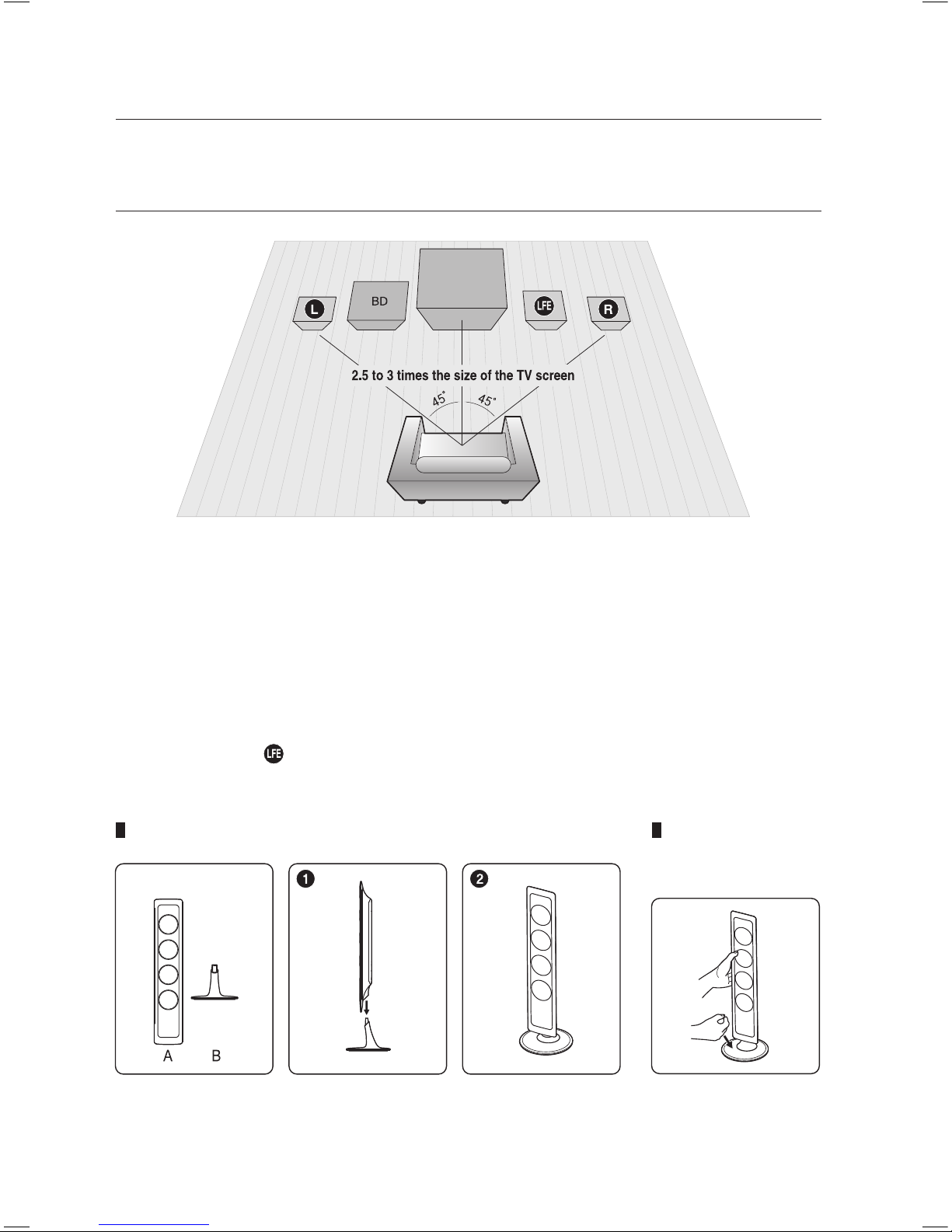

20 Connecting the Speakers
22 Connecting the Video Out to Your TV
24 Connecting an iPod
26 Connecting Audio from External
Components
28 Connecting to the Network
30 Connecting the FM Antenna
30 Cooling Fan
30 Attaching the Toroidal Ferrite Core to the
Power Cord of the Main Unit
BASIC FUNCTIONS OF YOUR
BLU-RAY HOME CINEMA
31
31 Before Playing
32 On-Screen Menu Navigation
32 Playing a Disc
33 Setting the Sound
33 Using the Search and Skip Functions
34 Slow Motion Play/Step Motion Play
SYSTEM SETUP
35
35 Setting the Clock
LANGUAGE SETUP
36
36 Setting up the Language Options
HT-BD7200_ELS_0317-1.indd 7 2009-03-20 �� 7:27:20

8
DISPLAY SETUP
40
40 Setting up the Display Options
42 Setting up the Video Display/Output Options
HDMI SETUP
44
44 Setting up the HDMI Setup Options
AUDIO SETUP
37
37 Setting up the Speaker Options
PARENTAL SETUP
47
47 Setting up the Parental Lock
NETWORK SETUP
49
49 Setting up the Network Setup Options
BD DATA MANAGEMENT
54
54 System Device Management
SYSTEM UPGRADE
55
55 Firmware Upgrade
57 System Information
57 Firmware Upgrade Notification
57 DivX (R) Registration
WATCHING A MOVIE
58
58 Using the Display Function
59 Using the Disc Menu & Popup/Title Menu
60 Repeat Play
61 Selecting the Audio Language
61 Selecting the Subtitle Language
62 Changing the Camera Angle
63 PIP (Picture In Picture) Settings
63 BD-LIVE™
64 DivX Playback
Contents
HT-BD7200_ELS_0317-1.indd 8 2009-03-20 �� 7:27:20

9
ENG
USING THE USB FUNCTION
71
71 Playing Media Files Using the USB Host
Feature
RADIO
73
73 Listening to Radio
73 Presetting Stations
74 About RDS Broadcasting
CONVENIENT FUNCTION
83
83 Sleep Timer Function
83 Adjusting Display Brightness
83 Mute Function
TROUBLESHOOTING
84
APPENDIX
86
86 Cautions on Handling and Storing Discs
87 Specifications
LISTENING TO MUSIC
66
66 Buttons on the Remote Control Used for
Audio CD(CD-DA)/ MP3 Disc Playback
66 Repeat Audio CD(CD-DA) & MP3
67 Playing an Audio CD(CD-DA)/MP3
VIEWING A PICTURE
69
69 Viewing a Picture
69 Slide Show/Speed
69 Rotate
70 Zoom
70 Go To Photo List
USING AN iPod
78
78 Listening to Music
80 Watching a Movie
USING BLUETOOTH
76
76 What is Bluetooth?
76 To connect the Blu-ray Home Cinema to a
Bluetooth device
PC STREAMING FUNCTION
81
81 Connecting to a Pc and Playing Mp3, Jpeg
or Divx Content
HT-BD7200_ELS_0323-1.indd 9 2009-04-02 �� 5:55:22

Getting started
10
BEFORE READING THE USER’S MANUAL
Make sure to check the following terms before reading the user manual.
Icons that will be used in manual
Icon Term Denition
hBD-ROM This involves a function available on a BD-ROM.
gBD-RE This involves a function available on the BD-RE.
fBD-R This involves a function available on the BD-R.
ZDVD-VIDEO This involves a function available on DVD-Video or DVD-RW/-R discs that have been recorded
and nalized in Video Mode.
CDVD-RW This involves a function available on DVD-RW. (V mode and nalized only)
VDVD-R This involves a function available on DVD-R. (V mode and nalized only)
Audio CD This involves a function available on an audio CD-RW/CD-R (CD-DA format).
AMP3
This involves a function available on DVD-RW/-R, CD-RW/CD-R discs and USB storage devices.
GJPEG
This involves a function available on DVD-RW/-R, CD-RW/CD-R discs and USB storage devices.
D
DivX This involves a function available with MPEG4 discs.
(DVD-R/RW, CD-R/RW)
FUSB storage
device This involves a function available on USB storage device.
Caution This involves a case where a function does not operate or settings may be
cancelled.
MNote This involves tips or instructions on the page that help each function operate.
About the use of this user’s manual
Be sure to be familiar with Safety Information before using this product. (See pages 5~6)
If a problem occurs, check the Troubleshooting. (See pages 84 ~85)
Copyright
©2009 Samsung Electronics Co.,Ltd.
All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the
prior written permission of Samsung Electronics Co.,Ltd.
1)
2)
HT-BD7200_ELS_0323-1.indd 10 2009-04-02 �� 5:55:23

11
ENG ●GETTING STARTED
DISC TYPE AND CHARACTERISTICS
Disc types that can be played
Disc Types Disc Logo Recorded content Disc Shape Max. Playing minute
BD-ROM
BD-RE/BD-R AUDIO + VIDEO Single sided Playing time depends on the Title
DVD-VIDEO AUDIO + VIDEO
Single sided(12 cm) 240
Double sided(12 cm) 480
Single sided(8 cm) 80
Double sided(8 cm) 160
AUDIO-CD AUDIO Single sided(12 cm) 74
Single sided(8 cm) 20
DivX AUDIO + VIDEO 12 cm
-
8 cm -
DVD-RW
(V mode and finalized only)
AUDIO + VIDEO 12 cm (4.7GB) 480
(EX : Extended Play)
DVD-R
(V mode and finalized only)
AUDIO + VIDEO 12 cm (4.7GB) 480
(EX : Extended Play)
This player is compatible with the PAL colour system only.
NTSC discs will not play.
Logos of Discs that can be played
Blu-ray Disc Dolby Digital Plus DTS-HD High Resolution Audio
PAL broadcast system in
U.K, France, Germany, etc. Dolby TrueHD DTS-HD Master Audio | Essential
Digital Audio MP3 Stereo Java BD-LIVE
~
~
Manufactured under licence from Dolby Laboratories. “Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
M`
HT-BD7200_ELS_0317-1.indd 11 2009-03-20 �� 7:27:23

Getting started
12
Some commercial discs and DVD discs purchased outside your region may not be playable with this
product. When these discs are played, either “No disc.” or “Please check the regional code of the disc.”
will be displayed.
If a DVD-R/-RW disc has not been recorded properly in DVD video format, it will not be playable.
Region code
Both the Blu-ray Home Cinema and the discs are coded by region. These regional codes must match in
order to play the disc. If the codes do not match, the disc will not play. The Region Number for this Blu-
ray Home Cinema is described on the rear panel of the Blu-ray Home Cinema.
BD Region Code Area
A North America, Central America, South America, Korea, Japan, Taiwan, Hong Kong and South East Asia.
B Europe, Greenland, French territories, Middle East, Africa, Australia and New Zealand.
C India, China, Russia, Central and South Asia.
DVD-Video
Region Code Area DVD-Video Region Code Area
1 USA, Canada 6 China
2Japan, Europe, South Africa, Middle East,
Greenland 7 Unspecified Special Use
3Korea, Taiwan, Hong Kong, parts of South
East Asia 8 Airlines/Cruise Ships (including Mexico)
4Australia, New Zealand, Latin America
(including Mexico) 9 Region free
5 Eastern Europe, Russia, India, Africa
Blu-ray Disc Compatibility
Blu-ray Disc is a new and evolving format. Accordingly, disc compatibility issues are possible. Not all discs are
compatible and not every disc will play back. For additional information, refer to the Compliance and Compatibility
Notice section of this Manual. If you encounter compatibility problems, please contact the SAMSUNG customer care
centre at 1-800 SAMSUNG.
Playback may not work for some types of discs, or when specific operations, such as angle change and aspect
ratio adjustment, are being performed. Information about the discs is written in detail on the box. Please refer to
this if necessary.
Do not allow the disc to become dirty or scratched. Fingerprints, dirt, dust, scratches or deposits of cigarette
smoke on the recording surface may make it impossible to use the disc for playback.
Discs with NTSC programs recorded on them cannot be played using this product.
When a BD-Java title is played, loading may take longer than a normal title, or some functions may perform slowly.
M`
`
M`
`
`
`
HD DVD Disc
DVD-RAM
3.9 GB DVD-R Disc for Authoring.
DVD-RW(VR mode)
~
~
~
~
DVD-ROM/PD/MV-Disc, etc
CVD/CD-ROM/CDV/CD-G/CD-I/LD
8cm MD (mini disc)
~
~
~
Discs that cannot be played
HT-BD7200_ELS_0317-1.indd 12 2009-03-20 �� 7:27:23

13
ENG ●GETTING STARTED
Disc Types

Blu-ray Disc Rewritable/Blu-ray Disc Recordable. BD-RE/BD-R is the ideal format for making backups,
or recording personal video.
BD-ROM
Blu-ray Disc Read Only Memory. A BD-ROM disc contains pre-recorded data. Although a BD-ROM
may contain any form of data, most BD-ROM discs will contain movies in High Definition format, for
playback on Blu-ray Home Cinemas. This unit can play back pre-recorded commercial BD-ROM discs.
DVD-Video
A digital versatile disc (DVD) can contain up to 135-minutes of images, 8 audio languages and 32
subtitle languages. It is equipped with MPEG-2 picture compression and Dolby Digital surround,
allowing you to enjoy vivid and clear theatre quality images.
When switching from the first layer to the second layer of a dual-layered DVD Video disc, there may be
momentary distortion in the image and sound. This is not a malfunction of the unit.
Once a DVD-RW/-R recorded in Video Mode is finalized, it becomes DVD-Video. Pre-recorded (pre-
stamped) commercial DVDs with movies are also referred to as DVD-Videos. This unit can play back
pre-recorded commercial DVD discs (DVD-Video discs) with movies.
Audio CD
An audio disc on which 44.1kHz PCM Audio is recorded.
This unit can play back CD-DA format audio CD-R and CD-RW discs.
The unit may not be able to play some CD-R or CD-RW discs due to the condition of the recording.
CD-R/-RW
Use a 700MB(80 minutes) CD-R/-RW disc. If possible, do not use a 800MB(90 minutes) or above
disc, as the disc may not play back.
If the CD-R/-RW disc was not recorded as a closed session, you may experience delays when playing
back the beginning of the disc or all recorded files may not play.
Some CD-R/-RW discs may not be playable with this unit, depending on the device which was used
to burn them. For contents recorded on CD-R/-RW media from CDs for your personal use, playability
may vary depending on contents and discs.
DVD-R Disc Playback
Once a DVD-R recorded in Video Mode is finalized, it becomes DVD-Video.
This unit can play back DVD-R discs recorded and finalized with a Samsung DVD video recorder. It
may not be able to play some DVD-R discs depending on the disc and the condition of the recording.
DVD-RW Disc Playback
Playback can be performed with DVD-RW discs in the Video Mode and finalized only.
Once a DVD-RW recorded in Video Mode is finalized, it becomes DVD-Video. Ability to play back may
depend on recording conditions.
Disc Format
Using MP3 disc
CD-R/-RW, DVD-RW/-R recorded with UDF, ISO9660 or JOLIET format can be played back.
Only MP3 files with the “.mp3” or “.MP3” extension can be played.
Playable bit-rate range is from 56 Kbps to 320 Kbps.
Playable sample-rate is 32KHz to 48KHz.
The unit can handle a maximum of 1500 files and folders under a parent folder. For MP3 files recorded
with a VBR(Variable Bit Rates), the sound may cut in and out.
Using JPEG disc
CD-R/-RW, DVD-RW/-R recorded with UDF, ISO9660 or JOLIET format can be played back.
Only JPEG files with the ".jpg", ".JPG", ".jpeg" or "JPEG" extension can be displayed.
Progressive JPEG is supported.
DVD-RW/-R (V)
This is a format that is used for recording data on a DVD-RW or DVD-R disc. The disc can be played
by this Blu-ray Home Cinema once it has been finalized.
If a disc that has been recorded in Video Mode by a different maker’s recorder but has not been
finalized, it cannot be played by this Blu-ray Home Cinema.
❖
❖
❖
~
~
~
❖
~
~
~
❖
~
~
~
❖
~
~
❖
~
~
❖
~
~
~
~
~
❖
~
~
~
❖
~
~
HT-BD7200_ELS_0317-1.indd 13 2009-03-20 �� 7:27:23

14
Description
FRONT PANEL
POWER BUTTON Turns the Blu-ray Home Cinema on and off.
FUNCTION BUTTON The mode switches as follows :
BD/DVD ➞D.IN ➞AUX ➞BT AUDIO ➞ FM.
TUNING DOWN &
SKIP ( ) BUTTON
Goes back to the previous title/chapter/track.
Tunes down the FM frequency band.
STOP BUTTON Stops disc playback.
PLAY/PAUSE BUTTON Plays a disc or pauses playback.
TUNING UP &
SKIP( ) BUTTON
Goes to the next title/chapter/track.
Tunes up the FM frequency band.
Volume Control BUTTON Volume adjustment.
EJECT BUTTON Eject a disc.
HEADPHONE JACK
Connect a headphone.
10
USB HOST A USB storage device can be connected here and used as storage when connected to
BD-LIVE. It can also be used for firmware upgrades and MP3/JPEG playback.
11
DISC SLOT Accept a disc.
You must use the USB HOST on the rear panel of the Blu-ray Home Cinema to connect a wireless LAN Adapter.
M`
11
1 2 3 4 5 6 87
9
10
HT-BD7200_ELS_0317-1.indd 14 2009-03-20 �� 7:27:27

15
ENG ●DESCRIPTION
REAR PANEL
2.1 CHANNEL SPEAKER OUTPUT
CONNECTORS Connect the front, subwoofer speakers.
FM 75 Ω COAXIAL JACK Connect the FM antenna.
iPod JACK Connect the iPod dock connector here.
EXTERNAL DIGITAL OPTICAL INPUT JACK
Use this to connect external equipment capable of digital output.
HDMI OUT JACK Use the HDMI cable, connect this HDMI output terminal to the HDMI input
terminal on your TV for the best quality picture.
COMPONENT VIDEO OUTPUT JACKS Connect a TV with Component video inputs to these jacks.
VIDEO OUTPUT JACK Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT Jack on
this unit.
AUX IN JACKS
Connect to the 2CH analogue output of an external device (such as a VCR)
LAN TERMINAL Can be used for connection to BD-LIVE.
It can be also used for firmware upgrades.
10
WIRELESS LAN JACK
A USB storage device can be connected here and used as storage when
connected to BD-LIVE. It can also be used for firmware upgrades and
MP3/JPEG playback, as well as for connecting to BD-Live with a wireless
LAN adapter.
11
COOLING FAN The fan always revolves when the power is on. Ensure a minimum of
10cm of clear space on all sides of the fan when installing the product.
Oversized USB drives may not be able to be inserted when a LAN or HDMI cable is connected.
M`
21 3 8
9
5 6
11
7
10
4
HT-BD7200_ELS_0317-1.indd 15 2009-03-20 �� 7:27:32

16
Remote control
TOUR OF THE REMOTE CONTROL
2
1
37
36
35
34
33
32
31
30
29
26
23
22
21
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
27
19
18
20
24
28
25
HT-BD7200_ELS_0317-1.indd 16 2009-03-20 �� 7:27:33

17
ENG ●REMOTE CONTROL

 


 
Make sure to match the “+” and “–” ends of the
batteries with the diagram inside the compartment.
 
Assuming typical TV usage,
the batteries last for about one
year.
19
MO/ST button
20
DISC MENU button
21
EJECT button
22
DIMMER button
23
BD button
TUNER button
AUX button
24
SOURCE button
25
RDS Selection buttons
26
SUBTITLE button
27
PAUSE button
28
MUTE button
29
TUNING/CH button
30
RETURN button
31
EXIT button
32
ZOOM button
33
PIP button
34
REPEAT button
35
DSP button
36
REPEAT A-B button
37
SLOW button
POWER button
BD RECEIVER button
TV button
Number (0~9) buttons
AUDIO button
STEP button
Tuning Preset/CD Skip buttons
8
PLAY button
STOP button
SEARCH buttons
9
VOLUME button
10
V-SOUND button
11
MENU button
12
Cursor/ENTER button
13
INFO button
14
COLOUR Buttons : RED(A),
GREEN (B), YELLOW(C), BLUE(D)
15
POPUP MENU, TITLE MENU button
16
TUNER MEMORY, MARKER button
17
CANCEL button
18
SLEEP button
7
6
5
4
3
2
1
HT-BD7200_ELS_0317-1.indd 17 2009-03-20 �� 7:27:36

18
Remote control
SETTING THE REMOTE CONTROL
You can control certain functions of your TV with this remote control.
When operating a TV with the remote control
1. Press the TV button to set the remote to TV mode.
2. Press the POWER button to turn on the TV.
3. While holding down the POWER button, enter the code
corresponding to your brand of TV.
If there is more than one code listed for your TV in the able,
enter one at a time to determine which code works.
Example : For a Samsung TV
While holding down the POWER button, use the number
buttons to enter 00, 15, 16, 17 and 40.
4. If the TV turns off, the setting is complete.
You can use the TV POWER, VOLUME, CHANNEL, and
Numeric buttons (0~9).
The remote control may not work on some brands of TVs. Also, some operations may not
be possible depending on your brand of TV.
If you do not set the remote control with the code for your brand of TV, the remote control
will work on a Samsung TV by default.
~
~
M`
`
Operation Range of the Remote Control
The remote control can be used up to approximately 7 meters
in a straight line. It can also be operated at a
horizontal angle of up to 30° from the remote control sensor.
HT-BD7200_ELS_0317-1.indd 18 2009-03-20 �� 7:27:37

19
ENG ●REMOTE CONTROL
TV Brand Code List
Admiral (M.Wards)
A Mark
Anam
AOC
Bell & Howell (M.Wards)
Brocsonic
Candle
Cetronic
Citizen
Cinema
Classic
Concerto
Contec
Coronado
Craig
Croslex
Crown
Curtis Mates
CXC
Daewoo
Daytron
Dynasty
Emerson
Fisher
Funai
Futuretech
General Electric (GE)
Hall Mark
Hitachi
Inkel
JC Penny
JVC
KTV
KEC
KMC
LG (Goldstar)
Luxman
LXI (Sears)
Magnavox
Marantz
Matsui
MGA
Mitsubishi/MGA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
56, 57, 58
01, 15
01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11,
12, 13, 14
01, 18, 40, 48
57, 58, 81
59, 60
18
03
03, 18, 25
97
03
18
46
15
03, 05, 61, 82, 83, 84
62
03
59, 61, 63
03
02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24,
25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90
40
03
03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85
19, 65
03
03
06, 40, 56, 59, 66, 67, 68
40
15, 18, 50, 59, 69
45
56, 59, 67, 86
70
59, 61, 87, 88
03, 15, 40
15
01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44
18
19, 54, 56, 59, 60, 62, 63, 65, 71
15, 17, 18, 48, 54, 59, 60, 62, 72, 89
40, 54
54
18, 40
18, 40, 59, 60, 75
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
MTC
NEC
Nikei
Onking
Onwa
Panasonic
Penney
Philco
Philips
Pioneer
Portland
Proton
Quasar
Radio Shack
RCA/Proscan
Realistic
Sampo
Samsung
Sanyo
Scott
Sears
Sharp
Signature 2000 (M.Wards)
Sony
Soundesign
Spectricon
SSS
Sylvania
Symphonic
Tatung
Techwood
Teknika
TMK
Toshiba
Vidtech
Videch
Wards
Yamaha
York
Yupiteru
Zenith
Zonda
Dongyang
18
18, 19, 20, 40, 59, 60
03
03
03
06, 07, 08, 09, 54, 66, 67, 73, 74
18
03, 15, 17, 18, 48, 54, 59, 62, 69, 90
15, 17, 18, 40, 48, 54, 62, 72
63, 66, 80, 91
15, 18, 59
40
06, 66, 67
17, 48, 56, 60, 61, 75
18, 59, 67, 76, 77, 78, 92, 93, 94
03, 19
40
00, 15, 16, 17, 40, 43, 46, 47, 48, 49,
59, 60, 98
19, 61, 65
03, 40, 60, 61
15, 18, 19
15, 57, 64
57, 58
50, 51, 52, 53, 55
03, 40
01
18
18, 40, 48, 54, 59, 60, 62
61, 95, 96
06
18
03, 15, 18, 25
18, 40
19, 57, 63, 71
18
59, 60, 69
15, 17, 18, 40, 48, 54, 60, 64
18
40
03
58, 79
01
03, 54
No.
Brand Code No. Brand Code
HT-BD7200_ELS_0317-1.indd 19 2009-03-20 �� 7:27:38

20
Connections
This section involves various methods of connecting the Blu-ray Home Cinema to other external components.
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
CONNECTING THE SPEAKERS
Position of the Blu-ray Home Cinema
Place it on a stand or cabinet shelf, or under the TV stand.
Selecting the Listening Position
The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV.
Example : For 32" TVs 6~8feet (2~2.4m)
For 55" TVs 11~13feet (3.5~4m))
Front Speakers ei
Place these speakers in front of your listening position, facing inwards (about 45°) toward you.
Place the speakers so that their tweeters will be at the same height as your ear.
Subwoofer
The position of the subwoofer is not so critical. Place it anywhere you like.
How to assemble the speaker and the stand How to detach
the stand from
the speaker
Connect the stand to
the SPEAKER(A).
~ This is the successfully
assembled speaker.
~ Strike down the front of
stand by first.
~ A : SPEAKER
B : STAND
Components
HT-BD7200_ELS_0317-1.indd 20 2009-03-20 �� 7:27:39
