Samsung HT-DL100 User manual

DIGITAL HOME
THEATER SYSTEM
HT-DL100
Phones
Standby
Volume
Function
Open/close
V I D E O
V I D E O
D I G I T A L
DOLBY
COMPACT
DIGITAL AUDIO
COMPACT
DIGITAL VIDEO
Instruction Manual
HT-DL100(-Cover(GB) 11/6/02 14:35 Page 2

Safety Warnings
1
CLASS 1 LASER PRODUCT
This Compact Disc player is classified as a CLASS 1
LASER product.
Use of controls, adjustments or performance of
procedures other than those specified herein may result
in hazardous radiation exposure.
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATED, AVOID
EXPOSURE TO BEAM.
This symbol indicates that dangerous voltage which can cause electric shock is present inside
this unit.
This symbol alerts you to important operating and maintenance instructions accompanying
the unit.
WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE REAR COVER.
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
HT-DL100(GB) 11/6/02 14:33 Page 1

2
Precautions
Setting up
Ensure that the mains supply in your house complies whit that indicated on the identification sticker located at the back of your play. Install
your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (7~10cm). Make sure the ventilation slots
are not covered. Do not stack other, or heavy devices on top over the player. Do not place the player on amplifiers or other equipmentwhich
may become hot. Before moving the player ensure the disc tray empty. This player is designed for continuous use. Switching off the DVD
player to the stand-by mode dose not disconnect the electricity supply In order to separate the player completely from the mains,it has to be
disconnected by unplugging the main plug, especially when left unused for a long period of time.
Caution
Do not expose the unit to direct sun radiation or other heat
sources.
This could lead to overheating and malfunction of the unit.
Phones
Standby
Volume
Function
OPEN/CLOSE
VIDE O
Phones
Standby
Volume
MIC Vol .
MIC
MaxMin
Function
OPEN/CLOSE
VI D E O
Phones
Standby
Volume
Function
OPEN/CLOSE
VI D E O
Disc
Be careful handle your discs with care. Hold a disc whit finger on the border or
hole. Always place disc with the label facing upward (in case of a single side
disc ). Always use a soft cloth to clean disc if necessary, wipe from the centre to
the border. Always put disc back into their cases after playing and store in
vertical position. Always place the disc properly into the tray using the proper
guide area. Never use record cleaning sprays, benzine, static electricity liquids
or any other solvent, if the disc surface is dirty. Wipe gently with a soft
damp(water only) cloth, never wipe the disc in a circular motion, since circular
scratches are likely to occur and could case noise during playback.
Battery
The battery used in this product contains the chemicals that
are harmful to the environment.
Do not dispose of batteries in the general household waster. It
is recommended that the replacement of the battery should be
done by technician.
HT-DL100(GB) 11/6/02 14:33 Page 2

DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby
Digital surround sound and MPEG-2 video compression technology. Now you can
enjoy these realistic effects in the home, as if you were in a movie theater or concert
hall.
V I D E O
DVD players and the discs are coded by region. These regional codes must match in
order for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.
(Your DVD player with the same regional code will only play DVDs that are labled with identical region
codes.)
1 6
~
3
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby
Laboratories.
1992-1997 Dolby Laboratories Inc. All rights reserved.
Manufactured under license from Digital Theater System, Inc,
US Pat. 5,451,942 and other world-wide patents issued and
pending, “DTS” and “DTS Digital Surround” anre trademarks
of Digital Theater Systems, Inc. Copyright 1996 Digital
Theater Systems, Inc. All Rights Reserved.
C
HT-DL100(GB) 11/6/02 14:33 Page 3

4
Safety Warnings
Precautions
Description
Remote Control Unit
Connections
Before using the DVD Player
DVD Playback

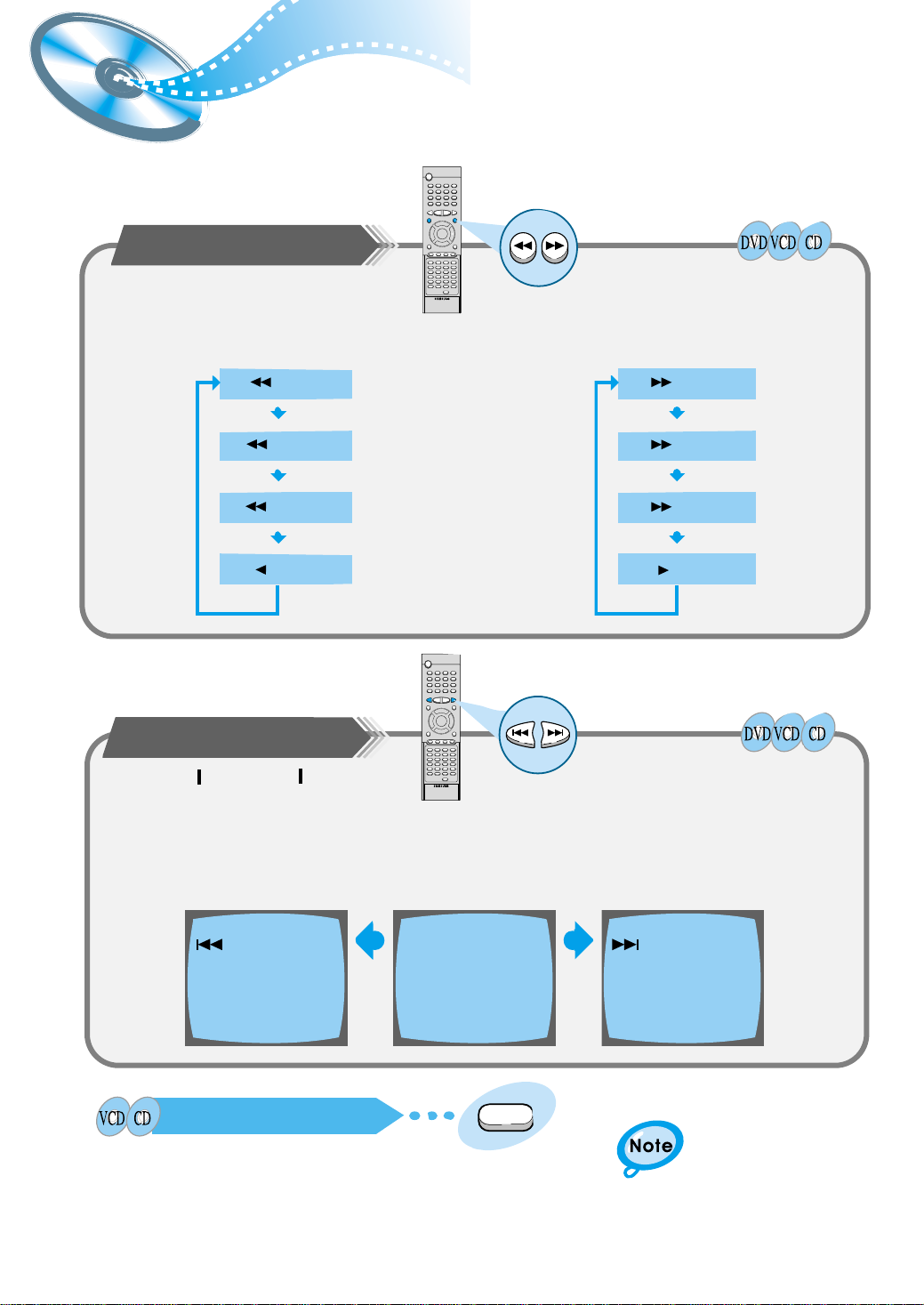

Forward/Reverse Searching

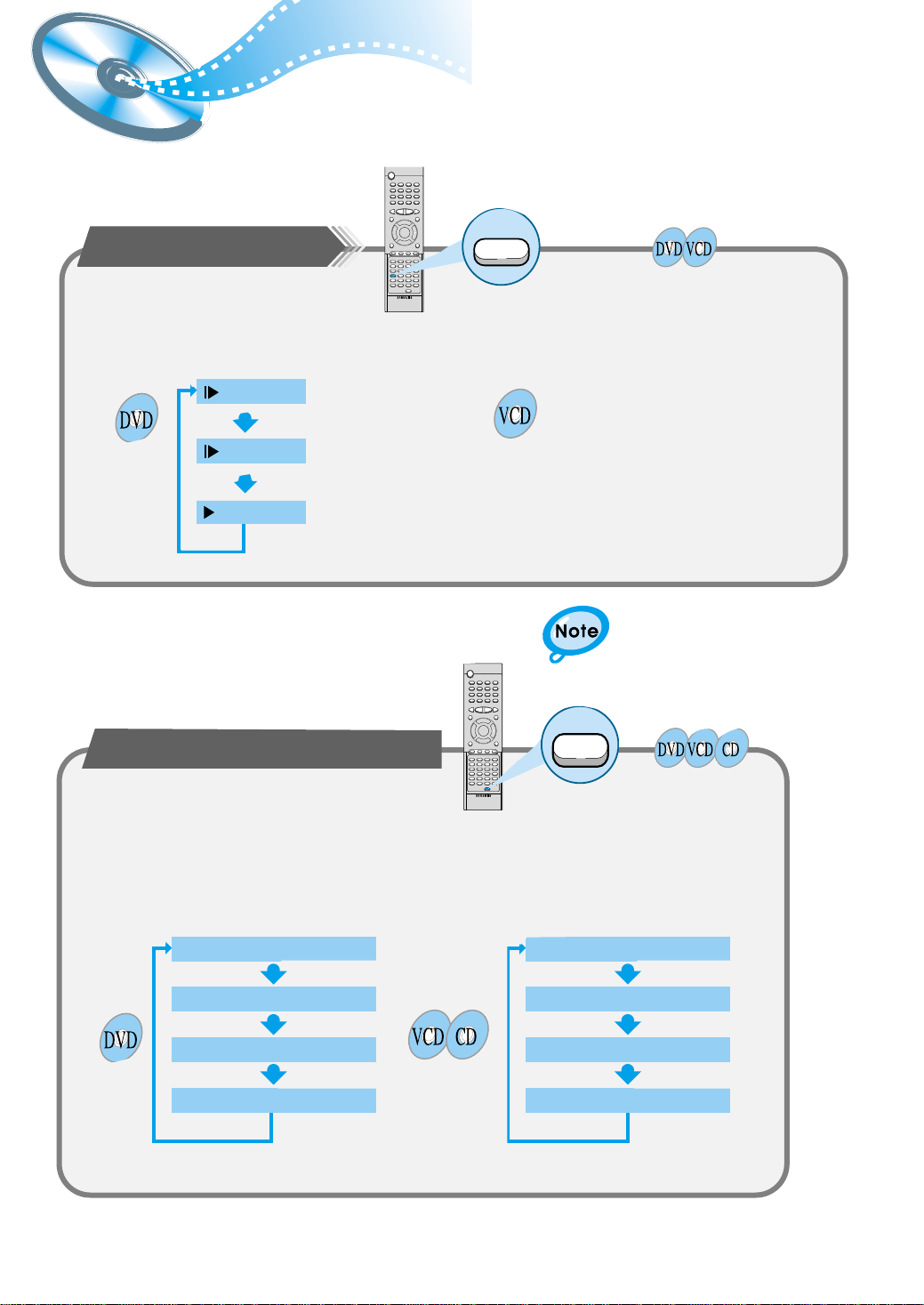

Slow Playback/checking the Remaining Time
Repeat Playback
Using Disc Menu/Title

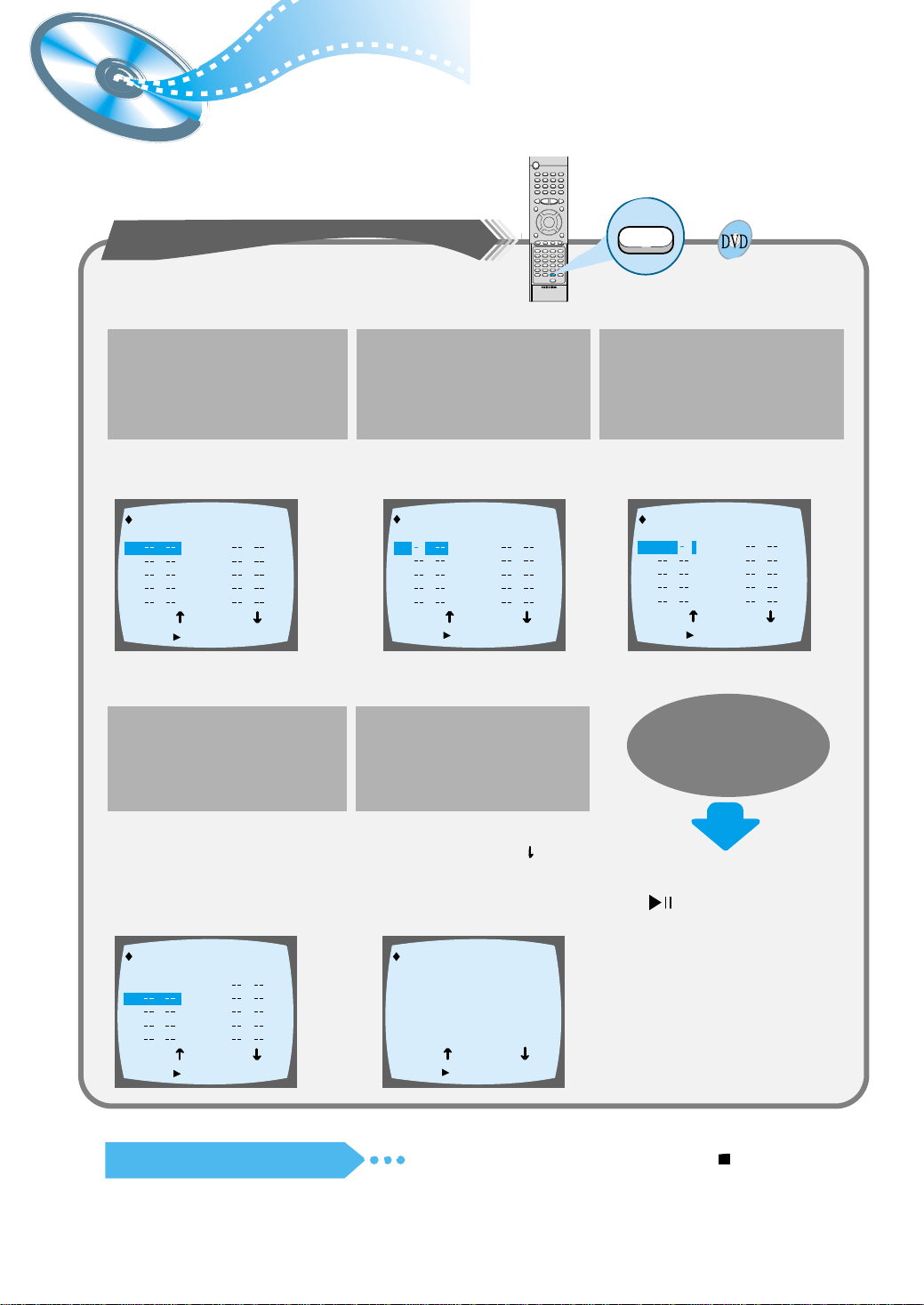

Program Playback
Selecting the Audio Language/ Subtitle Language
Various DVD Functions
¥
To erlarge an image
¥
Selecting the desired Screen Angle
¥
To move directly to a title, chapter, or time
System Setup
Setting up the Language Features
Controlling a TV with the Remote
Speaker Setup
Listening to the Radio
Presetting stations
DSP/Sleep Functions
Using the Microphone
Troubleshooting
Cautions on Hadling and Stroing Discs
Disc Type and Protection
Specification
Reference
1
2
5
7
9
12
13
15
16
17
18
19
21
22
22
22
22
23
25
26
27
31
32
33
34
35
37
38
39
41
Contents
HT-DL100(GB) 11/6/02 14:33 Page 4

5
Description
Phones
Standby
Volume
Function
Open/Close
V I D E O

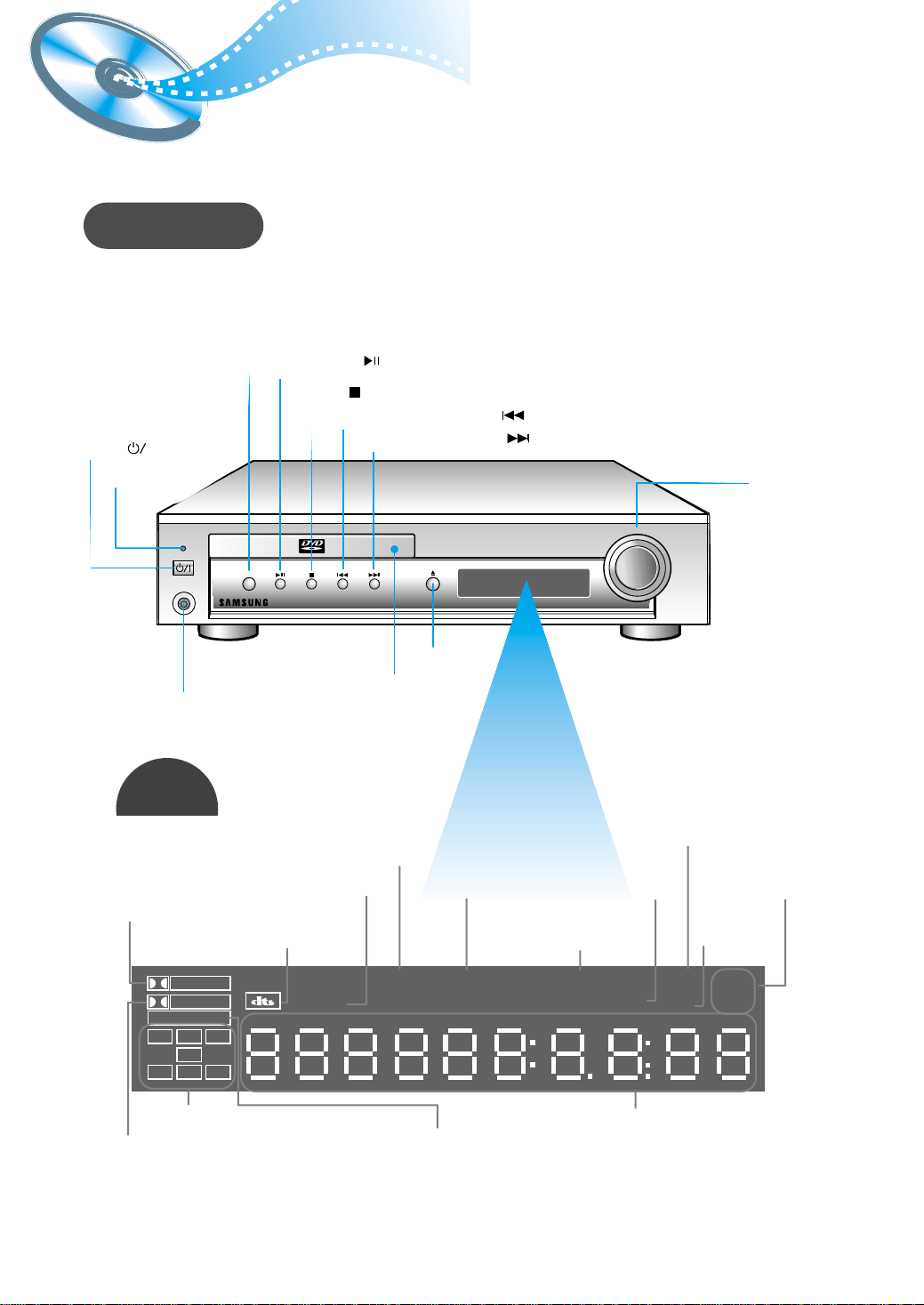

Front Panel
Volume control
Function button
Play/Pause ( ) button
Stop ( ) button
Tuning Down & Skip ( ) buttons
Tuning up & Skip ( ) buttons
Power ( ) button
Headphone Jack
TITLE indicator
DTS Disc indicator
PRO LOGIC indicator
Standby indicator
Display
PRO LOGIC
LINEAR PCM TITLE
TUNED PROGRAM PBC MHZ
KHZ
DSP
ST
LCR
LS LFE SRS
D I G I TA L
STEREO indicator SURROUND
indicator
DSP
indicator
RADIO
FREQUENCY
indicator
PROGRAM
indicator
PBC
indicator
System Statis Display
LINEAR PCM indicator
SPEAKER indicator
DOLBY DIGITAL
indicator
TUNER indicator
Open/Close button
Disc Tray
HT-DL100(GB) 11/6/02 14:33 Page 5

6

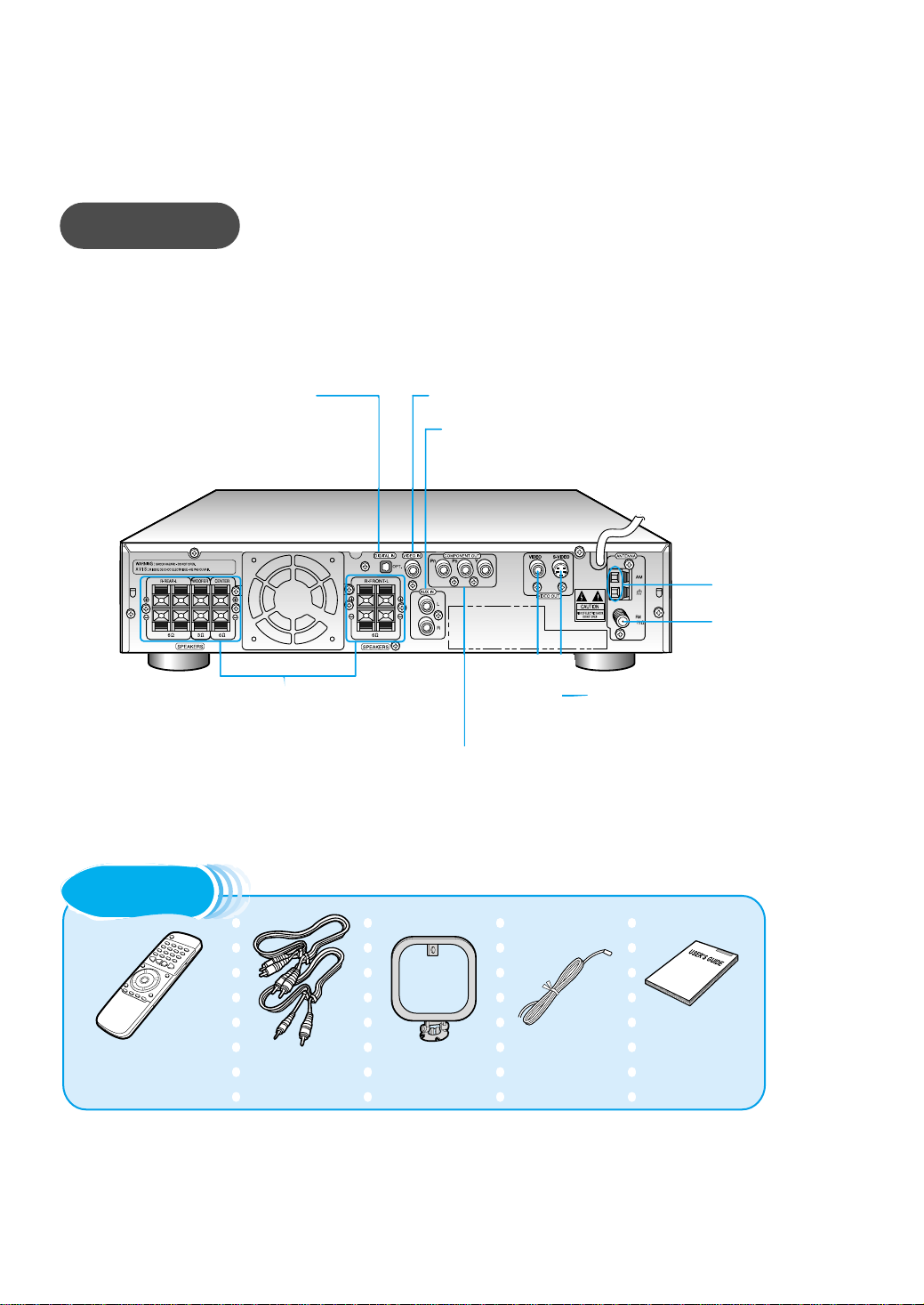

Rear Panel
External Digital Component
Input Connectors
Use these for connections to external
equipment capable of digital output.
5.1 Channel Speaker
Output Terminals
COMPONENT VIDEO
OUTPUT jacks
Connect a TV with the
component video input
jacks to these jacks.
Video Output Connector
Connect the TV's video input jacks
(VIDEO IN) to the VIDEO OUT
connector.
S-Video Output Connector
If the TV is equipped with an S-Video
input connector (S-VIDEO IN), connect it
to the player's S-Video output jack.
AM Antenna
Connector
FM Antenna
Connector
Remote Control Video/Audio Cable User's ManualFM AntennaAM Antenna
Accessories
External Video Component Input Connector
External Audio Component Input Connector
HT-DL100(GB) 11/6/02 14:33 Page 6

DVD TUNER
Band AUX TV
Display Return
DVD/CD/TUNER
Volume
DSP Mode
123
456
78
0
Zoom
A B
9
Sound Edit
SPK Mode
Pro Logic
Slow
Angle
Repeat
Test ToneSetup
D.R.C
TV/System
Repeat Program
Remain
Clear
Step
Echo
Effect Mute Sleep
Go To TV/VIDEO
Title Menu Channel
SubtitleAudio
MO/ST Volume
Enter
+
Tuning
Down Up
Remote Control Unit
7
DVD POWER button
DSP button
Effect button
Slow button
Angle button
Repeat button
Repeat A↔B button
TV System/Zoom button
Setup button
D.R.C button
Number(0~9)
buttons
TV Power button
TV Channel Selection button
TV Volume Control button
TV/VIDEO button
Title
Menu
Subtitle
Audio
MO/ST
Display
Return
Go To
Channel
V/VIDEO
TV
DVD button
TUNER button
AUX button
Title button
Menu button
Subtitle button
Audio
MO/ST(mono/stereo) button
Display button
Return button
Go To button
DVD
TUNER
Band
AUX
Mute button
Clear button
Step button
Echo button (OPTION)
Program button
Remain button
Volume Control buttons
Speaker output volume control
Play/Pause button
Stop button
Skip buttons
Tuning Up/Down button
Sleep button
Direction/Enter button
Sound Edit
SPK Mode
Pro Logic
Test Tone
Sound Edit button
SPK Mode button
Pro Logic button
Test Tone button
HT-DL100(GB) 11/6/02 14:33 Page 7

Phones
Standby
Volume
DVD HOMETHEATER SYSTEM HT-D100
VI D E O
Funetion
30
30
7~10m
Remove the battery cover on
the back of the remote by
pressing down and sliding the
cover in the direction of the
arrow.
Composite Video (Good Quality)
Connect the supplied video cable from the VIDEO
OUT jack on the back panel of the system to the
VIDEO IN jack on your television.
S-Video (Better Quality)
If you television is equipped with an S-Video
input, connect an S-Video cable (not supplied)
from the S-VIDEO OUT jack on the back panel of
the system to the S-VIDEO IN jack on your
television.
Conponent Video (Best Quality)
If your television is equipped with Component
Video inputs, connect a component video cable
(not supplied) fron the Pr, Pb and Y jacks on the
back panel of the system to the corresponding
jacks on your television.
Insert Remote Batteries
Connect Video to TV
Range of Operation of the Remote Control
1
Insert two 1.5V AAA batteries,
paying attention to the correct
polarities (+ and –).
2
Replace the battery cover.
3
The remote control can be used up to
approximately 23 feet/7 meters in a straight line.
It can also be operated at a horizontal angle of
up to 30°from the remote control sensor.
8
IN COMPONENT OUT
R
L
AUX IN
VIDEO
VIDEO OUT
S-VIDEO
Component
Video S-Video
PRPBY
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ANTENNA ANTENNA
FM
75
AM
Composite
Video
HT-DL100(GB) 11/6/02 14:33 Page 8

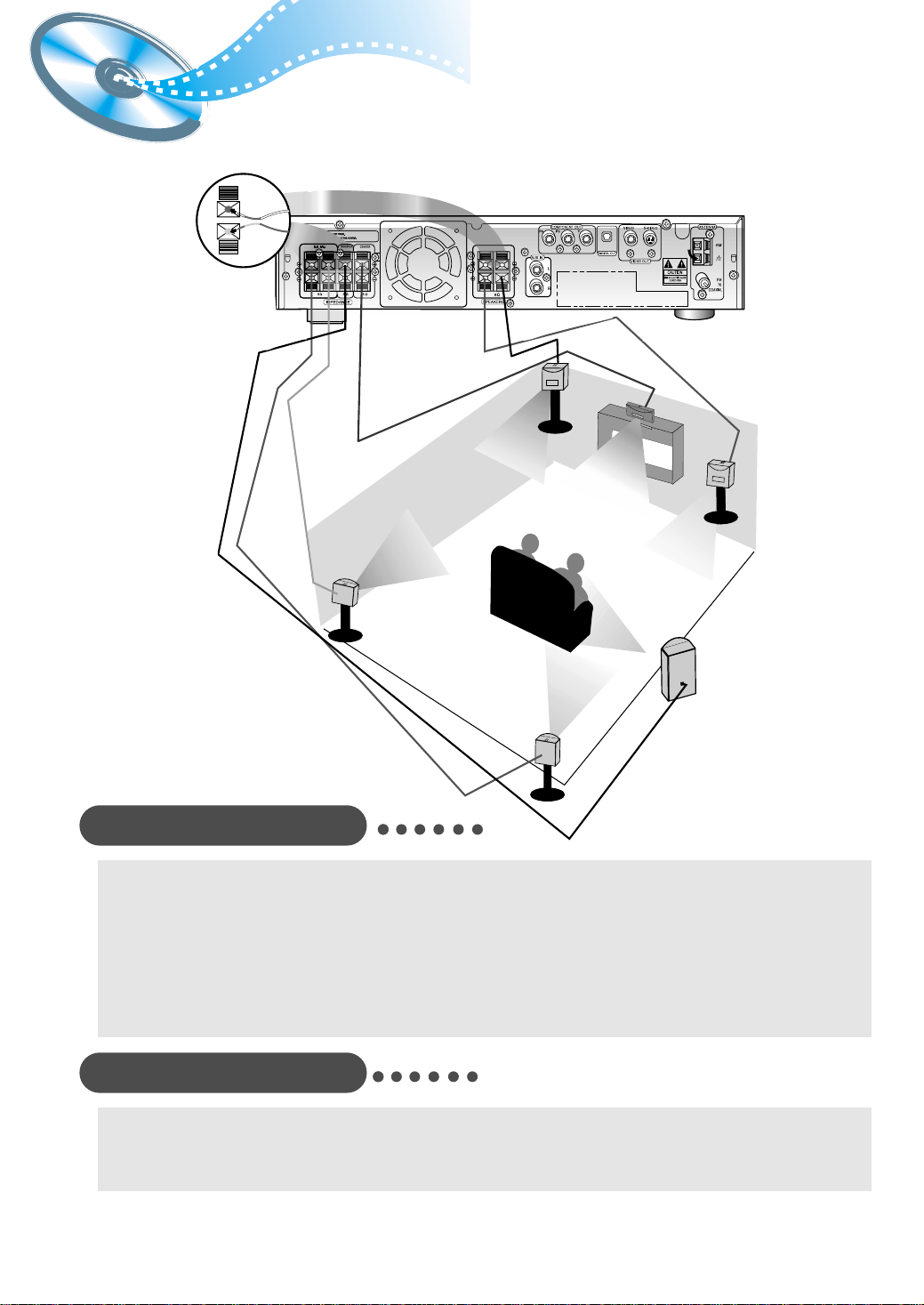

Place and Connect Speakers
9
Speaker Place ment
Arrange the 6 speakers as shown in your listening area.
● Front Speakers : Set the front speakers so that they are aligned at ear level and at a horizontal angle of 45 degrees to the primary
listening area.
● Rear Speakers : Set the surround speakers further back, parallel to the walls, at 2 to 3 feet above the ear level of the primary
listening area. If the space behind the listening area is limited (i.e., close to the wall), place the rear speakers facing each other on
either side.
● Center Speaker : The center speaker should be positioned with its top surface flush with the front speakers. However, you may
place the speaker either on top of or next to your TV set.
● Subwoofer : Place the subwoofer at any convenient location within the vicinity of the listening area.
Speaker Connections
1. Make sure the power is turned off before connecting the speakers to prevent possible damage to the speakers.
2. Connect each red and black speaker wire to the system’s back panel as shown, being careful to connect each speaker to its
correctly labeled output.
3. To insert each color-coded wire, press down on the red and black thumb levers and then release them to lock the wires in place.
HT-DL100(GB) 11/6/02 14:33 Page 9

10

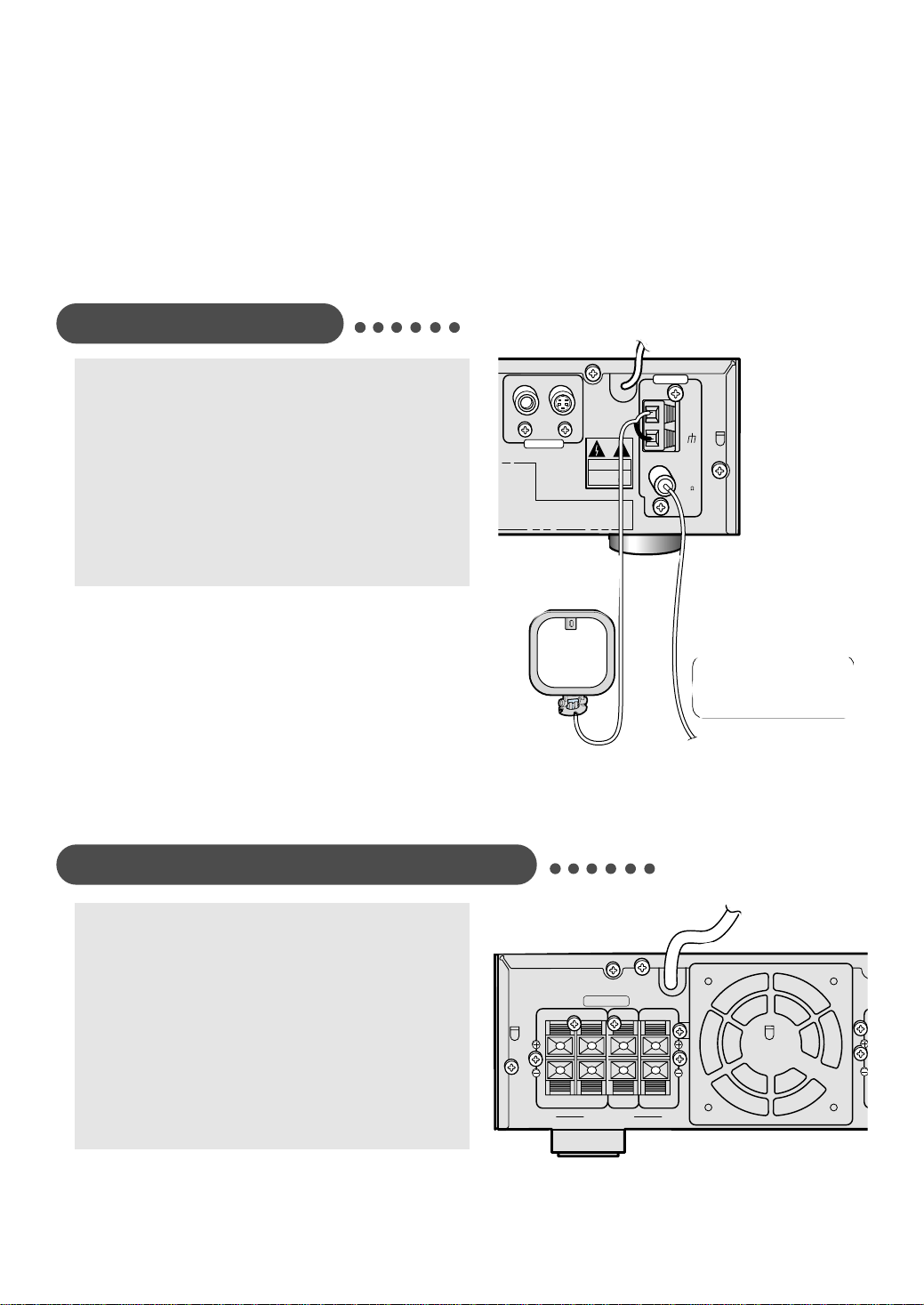

Connect Antenna
AM Loop Antenna
1. Complete assembly of the supplied AM loop antenna by
rotating the base and snapping it into place.
2. Connect the two wires from the AM loop antenna to the AM
ANTENNA connector on the back panel. Press down on the
thumb lever to insert each wire, and then release to lock the
wires in place.
FM Antenna
Connect the supplied FM antenna to the “FM 75ΩCOAXIAL”
connector on the back panel. If noise or interference occurs, use
an external antenna with a 75Ωcoaxial cable (not supplied).
Connect the supplied
AM and FM antennas
Connecting your System to the Power Supply
The main lead must be plugged into an appropriate socket.
Before plugging your system into a main socket, you must check
the voltage setting (OPTIONAL). If the voltage of the socket does
not correspond to the setting on the rear of the unit, you may
seriously damage your system.
1. Check the position of the voltage selector on the rear of the
system (OPTIONAL).
2. Plug the main lead (marked AC Cord on the rear of the
system) into an appropriate socket.
3. Press the On/Standby button to switch your DVD Player
system on.
VIDEO
VIDEO OUT
S-VIDEO
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ANTENNA ANTENNA
FM
75
AM
SPEAKERS
IMPEDANCE
HT-DL100(GB) 11/6/02 14:33 Page 10

Connections
11
DIGITAL IN
R-FRONT-L
6
VIDEO IN COMPONENT OUT
OPC.
R
L
PB Y
AUX IN
VIDEO
VIDEO OUT
ANTENN
AM
FM
75
A
S-VIDEO
PR
LR VIDEO OUT
SPEAKERS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
VIDEO IN
External Digital
Components TV
External Analog
Components
Optical Cable
Audio Cable (Red/White)

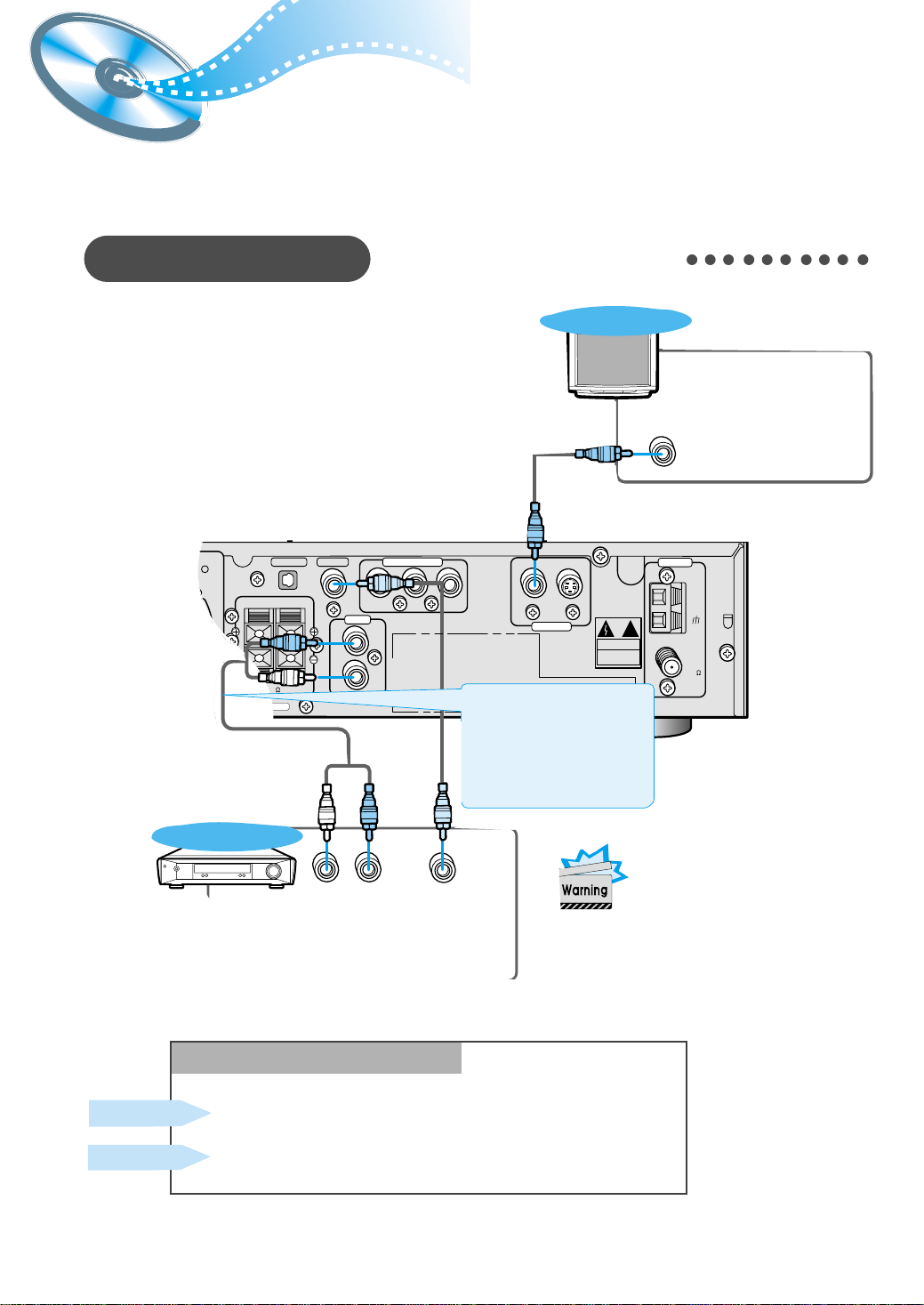

AUX Connections
For connection to external
equipment with digital
output.
Example: CD recorders, MD
(Mini Disc) D/A converters or
other components equipped with
digital output jacks
Picture can be shown
only when the TV’s video
output connector (VIDEO
OUT) is connected to the
AUX IN connector.
Connect to external equipment with
analog output.
Example: Video, TV, LDP, etc.
¥ Always connect the video and
audio connection cables to the
equivalent colored jack.
¥Even if DIGITAL IN is selected, if
the video input jack of an external
analog component is connected to
the player’s VIDEO IN connector,
the player will still output a video
signal from the analog component.
Press the AUX button and select either DIGITAL IN or ANALOG IN.
Making Digital/Analog Input Selection
Press the Function button and select either DIGITAL IN or ANALOG IN.
Remote Control
Main Unit
Use these connections if necessary.
Video Cable
If the external analog
component has only one
output jack, you may
connect either L or R.
HT-DL100(GB) 11/6/02 14:33 Page 11

¥ The word INVALID appears on screen!
If this message appears on the TV screen while buttons are being
operate, the operation is not possible with that particalar disc.
¥ If your TV model is not SAMSUNG, refer to “Remote Control Unit
Setup”on page 26.
Before Using the DVD Player
12
¥Your DVD player can also play CD-R and CD-RW discs recorded in digital
audio format. When recording your own CD-R or CD-RW discs, make sure that
the recording session is properly terminated, or they will not be playable.
(Depending on disc properties and recording quality, some CD-R/RW may not
be playable.)
¥CD-RW has a lower reflection rate than CD-R media and consequently it will
take a longer to read CD-R discs.
¥CD-RW discs recorded at high speed tend to be difficult for the DVD player to
read. If the recording speed for the CD-RW disc is not predetermined, write it
at low speed.
CD-R/RW playback compatibility

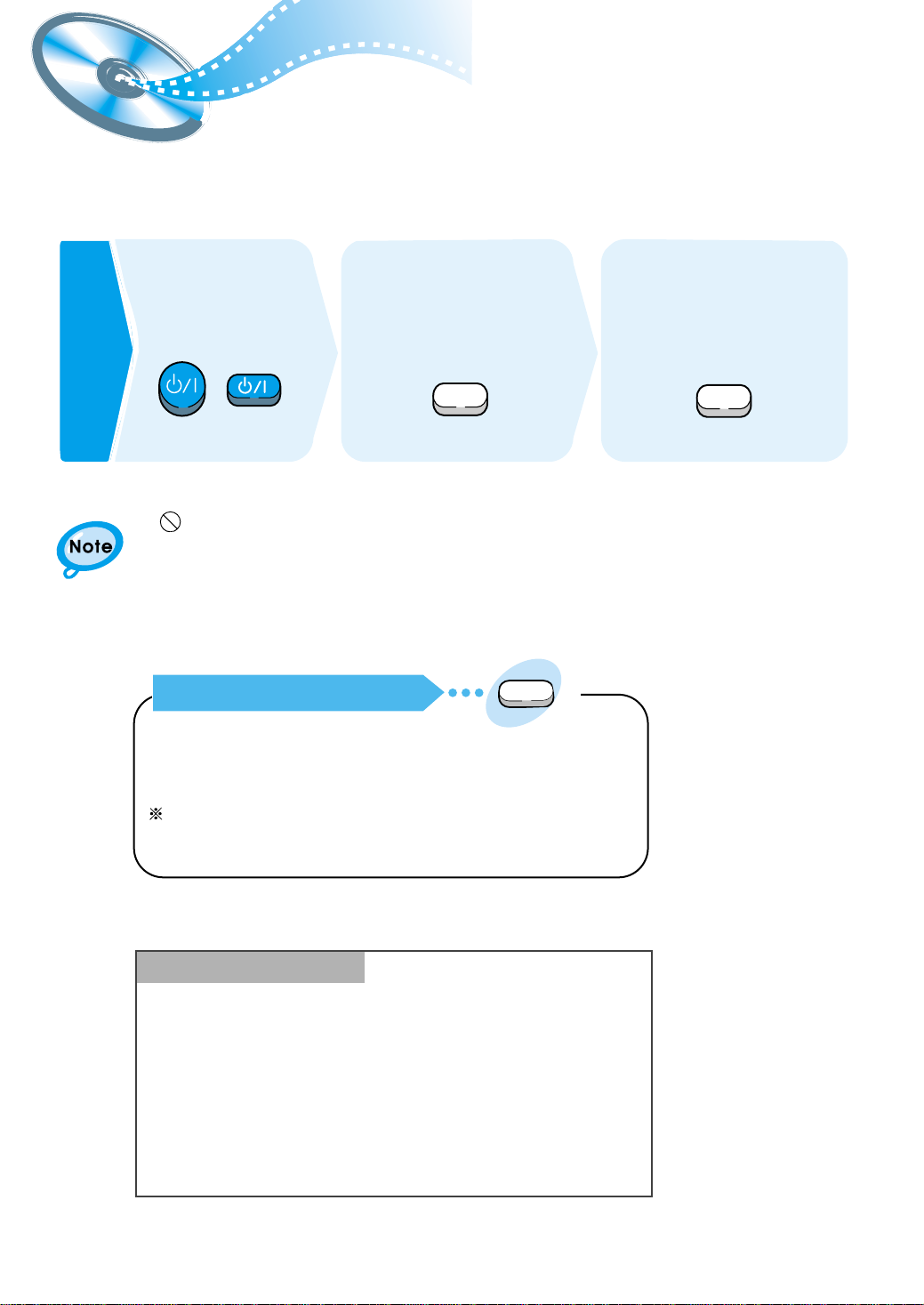

Your DVD player is capable of playing DVD, VCD, and CD discs.
User instructions may vary depending on the type of disc. Read the instructions
carefully before use.
TV TV/VIDEO DVD
Prepe-
rations
before
use
Turn on the power
to your DVD player
and TV.
1Select a video mode by
pressing the TV/VIDEO
button.
2Press the DVD button
to select the DVD input
function.
3
Zoom
TV System
TV System Selection
Press the TV System button while in stop mode.
¥ Each time the TV System button is pressed, “NTSC, PAL,
SECAM(Option)”are selected in this order.
Different countries use different types of TV broadcast systems, video,
audio and channel systems.
Example : The player cannot playback PAL-encoded DVD with NTSC-TV.
HT-DL100(GB) 11/6/02 14:33 Page 12

DVD Playback
13
¥ Press the Open/Close button again to
close the disc tray.
¥ The button is located only on the Front
Panel of the player (not on the remote).
Depending on the disc, the initial disc
information screen may look disc to disc.
V I D E O
OPEN/CLOSE
OPEN/CLOSE
Press the Open/Close button
to open the disc tray.
Insert a DVD disc.
Press the Open/Close button
again to close the disc tray.
Pausing Playback
Press the Play/Pause ( ) button during
playback.
¥ To resume, press the Play/Pause ( )
button again.
Stopping Playback
Press the Stop ( ) button during playback.
¥During playback, when the Stop ( )button is pressed,
the position is stored in the memory, and
PRESTOP is shown on the display.
When the Play/Pause ( ) button or Return button is
pressed subsequently , playback resumes from the
position at which it was stopped.
¥If the Stop ( ) button is pressed a second time, the
resume play' memory function is canceled, and
STOP is shown on the display. When the Play/Pause
( )button is pressed, playback starts from the
beginning.
Playback starts
automatically.
HT-DL100(GB) 11/6/02 14:33 Page 13

14

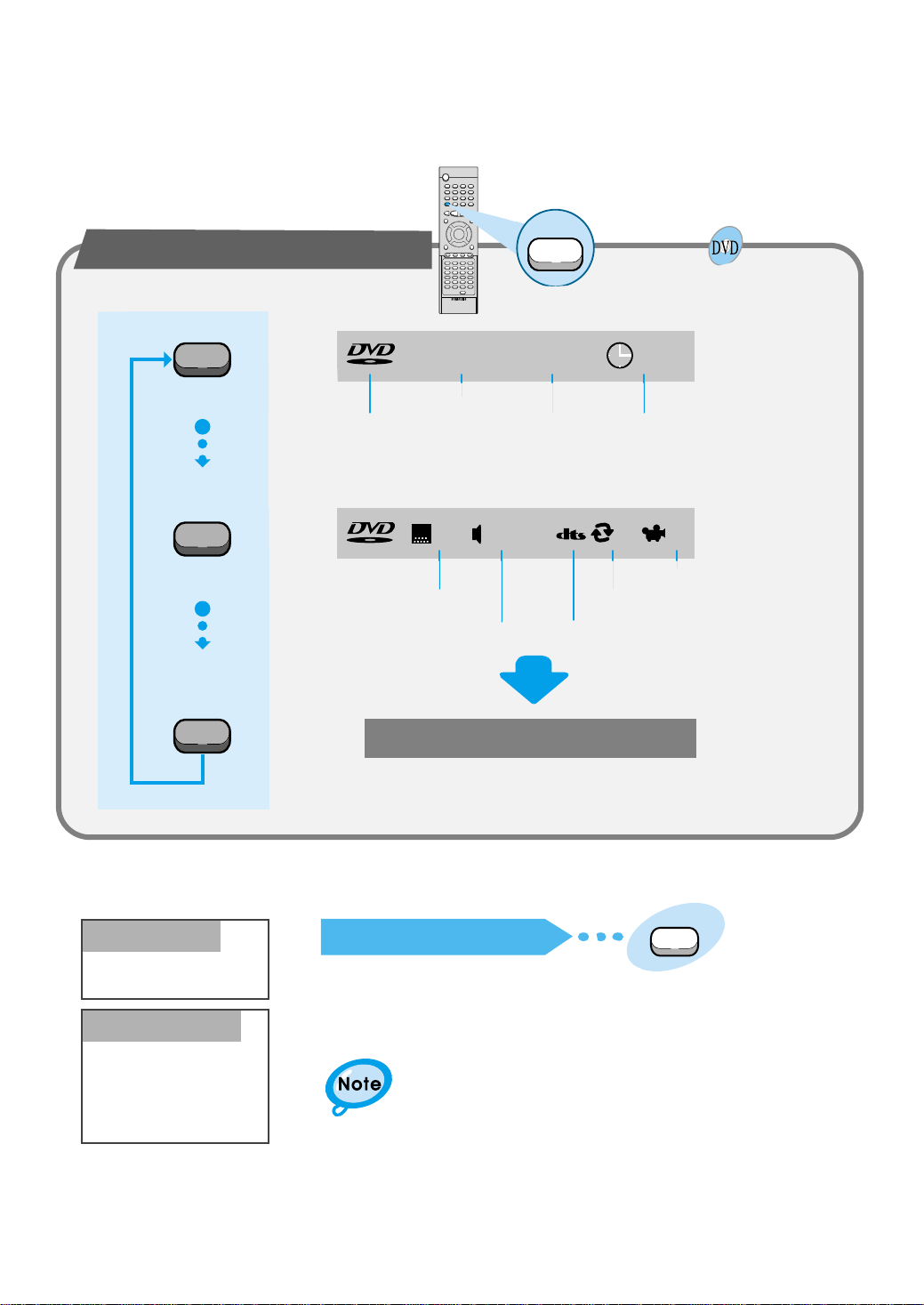

Press the Display button on the remote.
If the player is left for more than 5 minutes
in pause mode, it will stop.
The On-Screen Display disappears.
Using the On-Screen Display
Display
Display
Display
Display
V I D E O 1/2 1/8 00:00:00
TC
V I D E O KOR KOR OFF1/3 1/1
DVD indicator TITLE indicator TITLE ELAPSED
indicator
CHAPTER indicator
ANGLE indicator
REPEAT indicator
DISC TYPE indicator
AUDIO LANGUAGE
indicator
SUBTITLE LANGUAGE
indicator
Turning the sound off temporarily?
What is a Title?
What is a Chapter?
Press the Mute button during playback.
¥This operation may be useful when you need
to greet the guests or answer the telephone.
A movie contained in a
DVD disc.
Each Title on a DVD
disc is divided into
several smaller sections
called "chapters".
Mute
HT-DL100(GB) 11/6/02 14:33 Page 14

Forward/Reverse Searching
15
High-Speed Playback
X 2
X 4
X 8
PLAY
X 2
X 4
X 8
PLAY
Each time the button is pressed Each time the button is pressed
Skipping through a Chapter
SEARCH SEARCH
¥ Each time the button is pressed during playback, it moves to the next
or previous chapter and plays it.
¥ However, you cannot skip forward or backward through consecutive
the chapters.
Playing Frame by Frame
¥ The picture moves forward one frame each time the button is pressed.
Step
Press the and button.
Press the and button.
Press the Step button.
During playback, you can search quickly through a chapter or track for a specific scene
or tune.
No sound is heard during
high-speed playback, slow
playback, and step motion.
▲
▲
▲
▲
▲
▲▲
▲
▲
▲
▲
▲
HT-DL100(GB) 11/6/02 14:33 Page 15

Slow Playback/Checking the
Remaining Time
16
Playing Slowly
SLOW 1/2
SLOW 1/4
PLAY
Each time the Slow button is pressed
¥ For checking check the total time and the
remaining time of a title or chapter being played.
The slow playback speed changes
and the selections (1/2X, 1/4X, 1/8X,
1/16X and normal play) are repeated.
Checking the Remaining Time
REMAIN TIME : CHAPTER
REMAIN TIME : TITLE
CHAPTER TIME
TITLE TIME
REMAIN TIME : DISC
REMAIN TIME : TRACK
DISC TIME
TRACK TIME
Each time the Remain button is pressed
Slow
Remain
Press the Slow button.
Press the Remain button.
When playing a VCD or CD,
the reverse slow playback will
not work.
HT-DL100(GB) 11/6/02 14:33 Page 16

Repeat Playback
17
Playing Repeatedly
REPEAT : CHAPTER
REPEAT : TITLE
REPEAT OFF
REPEAT : ONE
REPEAT : DISC
REPEAT OFF
Each time the Repeat button is pressed
Repeat playback allows you to repeat a chapter, title, or track.
A↔B Repeat Playback
Press the Repeat A<–>B button again.
REPEAT : A-
REPEAT : A - B
REPEAT OFF
1
2
Repeat
A B
Repeat
Press the Repeat button.
Repeat playback operation is not possible with
version 2.0 VCD discs if PBC is turned on.
To operate this feature, press the MENU
button, and then select "PBC OFF".
Press the Repeat A↔B button at the
beginning (A) of the segment you want to
review.
Press the Repeat A↔B button again at
the end (B) of the segment you want to
review.
¥ The segment will begin repeating.
To return to normal playback
HT-DL100(GB) 11/6/02 14:33 Page 17

Using Disc Menu/Title
18
Title
To Select the Disc Menu
Press the Menu button during
playback.
1Use the Up/Down (▲ / ▼ ) or
Left/Right( / ) button to
access the different features.
Press the Enter button.
2
¥ The selected item will play. ¥ The Menu Screen appears.
3
Menu
You can use the menus for the audio language,
subtitle language, profile, etc. DVD menu contents
differ from disc to disc.
For DVDs containing multiple titles, you can
view the title of each movie.
Depending on the disc, this function may either
not work at all, or may work differently.
Using the Title Menu
▲
▲
HT-DL100(GB) 11/6/02 14:33 Page 18

Program Playback
19
To Program Tracks in a particualr order
To Cancel the Programming
PROGRAM MENU SELECT : ENTER
TITLE CHAPT
PREVIOUS NEXT
TITLE CHAPT
2
3
4
5
6
7
8
9
10
1
PLAY : FINISH : PROGRAM
TITLE CHAPT
PREVIOUS NEXT
TITLE CHAPT
2 1
3
4
5
6
7
8
9
10
1
PROGRAM MENU SELECT : ENTER
FINISH : PROGRAM
PLAY :
TITLE CHAPT
PREVIOUS NEXT
TITLE CHAPT
2
3
4
5
6
7
8
9
10
1 2
1
PROGRAM MENU SELECT : ENTER
FINISH : PROGRAM
PLAY :
TITLE CHAPT
PREVIOUS NEXT
TITLE CHAPT
3
4
5
6
7
8
9
10
1 1 2
2
PROGRAM MENU SELECT : ENTER
FINISH : PROGRAM
PLAY :
TITLE CHAPT
PREVIOUS NEXT
TITLE CHAPT
2
3
4
5
6
7
8
9
10
1 2
1 2
1 7
1 3
2 4
2
1
4 2
6 4
3 5
5 2
1
PROGRAM MENU SELECT : ENTER
FINISH : PROGRAM
PLAY :
Press the Program button.
1Press the Enter button then
use the Number buttons to
select the desired title.
23
¥ You can use also just the
Left/Right ( / / ▲ / ▼ ) button.
Press the Enter button, then
use the Number buttons to
select the desired chapter.
Press the Enter button.
4At this time, you can continue
programming if you want to.
5
¥
When programming more than
10 tracks, select and
then press the Enter button.
The program selection screen
where you can program up to
10 additional tracks appears.
¥ The selected track number is
programming and the cursor
moves to the next number.
To Playback the
Tracks in the
Programmed Order
Press the Play/Pause
( ) button.
Press either the Program button or Stop ( ) button.
¥ You can use also just the
Left/Right ( / / ▲ / ▼ ) button.
EXT
Program
Use this function with video and music CDs to play the tracks in a particular order.
▲
▲
▲
▲
HT-DL100(GB) 11/6/02 14:33 Page 19
