3
Getting started
About this manual
•
This user manual is specially designed to detail the computer’s
functions and features.
•
The user manual supplied with the computer may vary
depending on the model.
•
Please read this manual before using the computer to ensure
safe and proper use.
•
Optional accessories, some devices, and software referred to
in this manual may not be provided or may not be subject to
upgrades. Note that the computer environment referred in
the user manual may not be the same as your environment.
•
Descriptions are based on the computer’s default settings
and the Windows 10 operating system. Available features and
additional services may vary depending on the computer or
operating system.
•
This user manual describes procedures for using the
touchpad, mouse and touch screen. Instructions for using the
touch screen are for models with the touch screen feature.
•
Images and screenshots are those of the representative model
of the series and may differ in appearance from the actual
product.
•
Content may differ from the final product and is subject to
change without prior notice. For the latest version of the
manual, refer to the Samsung website, www.samsung.com.

Getting started
4
Copyright
Copyright © 2016 Samsung Electronics
This manual is protected under international copyright laws.
No part of this manual may be reproduced, distributed, translated,
or transmitted in any form or by any means, electronic or
mechanical, including photocopying, recording, or storing in any
information storage and retrieval system, without the prior written
permission of Samsung Electronics.
Computer specifications or the contents of this manual may
be changed without prior notice due to an upgrade of the
computer’s functions.
Instructional icons and expressions
Warning : situations that could cause injury to yourself or
others
Caution : situations that could cause damage to the
computer or other equipment
Note : notes, usage tips, or additional information
The path you should follow to carry out an instruction. For
example,“select
Settings
→
Devices ”indicates that you
should select
Settings and then Devices .
Select Click the mouse or tap the touchpad or touch screen.

Getting started
5
•
HDMI, the HDMI logo, and
the term High Definition
Multimedia Interface are
trademarks or registered
trademarks of HDMI Licensing
LLC.
•
All other trademarks and copyrights are the property of their
respective owners.
As an ENERGY STAR®Partner,
Samsung has determined that this
product meets the ENERGY STAR®
guidelines for energy efficiency.
•
The ENERGY STAR Program has reduced greenhouse gas
emissions and saved energy through voluntary labeling.
•
Power management setting of this product has been enabled
by default, and has various timing settings from 1 minute to
5 hours.
•
The product can wake with a button press on the chassis from
sleep mode.
Trademarks
•
Samsung and the Samsung logo are trademarks or registered
trademarks of Samsung Electronics.
•
Intel and Core are trademarks or registered trademarks of the
Intel Corporation.
•
Microsoft, MS-DOS, and Windows are trademarks or registered
trademarks of the Microsoft Corporation.
•
Bluetooth®is a registered trademark of Bluetooth SIG, Inc.
worldwide.
•
Wi-Fi®, Wi-Fi Protected Setup™, Wi-Fi Direct™, Wi-Fi
CERTIFIED™, and the Wi-Fi logo are registered trademarks of
the Wi-Fi Alliance.

Getting started
6
Product capacity representation
Storage capacity representation
The capacity of the storage device (HDD, SSD) of the manufacturer
is calculated assuming that 1 KB = 1,000 Bytes.
However, the operating system (Windows) calculates the storage
device capacity assuming that 1 KB = 1,024 Bytes. Therefore, the
available capacity of the HDD in Windows is smaller than the
actual capacity due to the difference in capacity calculation. For
example, for an 80 GB HDD, Windows calculates the capacity as
74.5 GB, (80x1,000x1,000x1,000) Bytes/(1,024x1,024x1,024) Bytes
= 74.505 GB.
In addition, the capacity representation in Windows may be even
smaller because some programs, such as Samsung Recovery, may
reside in a hidden area of the HDD.
Memory capacity representation
The available memory capacity in Windows is less than the actual
capacity of memory. This is because some memory is required for
regular system operations.
For example, for 1 GB (= 1,024 MB) memory installed, Windows
may report the capacity as 1,022 MB or less.
Data precautions
Samsung Electronics shall not be liable for any data loss. Please
take care to avoid losing any important data and back up your
data to prevent any such data loss.
Operating system and software support
If you change the product’s factory OS (Operating System) to
another OS or if you install software which is not supported by the
product’s original factory OS, you will not receive any technical
support, product exchange or refund, and a fee will be charged
when requesting a service.
Please use your computer with the original factory OS. If you
install an OS other than the factory OS, data may be deleted or the
computer may not start.

Getting started
7
Number/Name Description
Camera indicator
light
•
This indicates the camera
operating status.
Camera
•
Using this camera, you can take
still pictures and record video.
LCD/Touch screen
(optional)
•
The screen’s images are displayed
here.
•
Recognizes touch interactions
(Only for touch screen models).
Power button
•
Turns the computer on and off.
Touchpad/
Touchpad
buttons
•
Moves the cursor and selects
options.
•
Functions as a mouse.
Keyboard
•
Enter text or control computer
functions.
Power LED
•
When the computer is on, the
power LED is lit.
Layout
•
Features or options may differ depending on the model.
•
The items marked as optional may not be provided or
may be provided in different locations.
•
Since some space on the HDD/SSD is reserved for
system recovery and operations, the available space on
the HDD/SSD may be less than the actual capacity.
Front view

Getting started
8
Left view
1 2 3 5 64
Number/Name Description
DC jack
•
This jack connects to the AC
adapter to supply power to the
computer.
Wired LAN port
•
Connect the Ethernet cable to this
port.
HDMI port
•
Used to connect an HDMI cable to
an external device.
USB 3.0 port
•
Connect various peripheral
devices, such as a mouse, camera,
or keyboard.
USB 2.0 port
•
Connect various peripheral
devices, such as a mouse, camera,
or keyboard.
Earpiece/Headset
jack
•
Connect an earpiece or a headset
to the computer to listen to audio.
Right view
1
Number/Name Description
Security slot
•
Secure the computer by
connecting an optional lock and
cable to it.

Getting started
9
Number/Name Description
Fan vents
•
The internal heat of the computer is
emitted through these holes.
•
If the vents are blocked the
computer may overheat. Avoid
blocking the vents as this may be
dangerous.
Memory cover
•
The memory is under the cover.
Storage cover
•
The storage is under the cover.

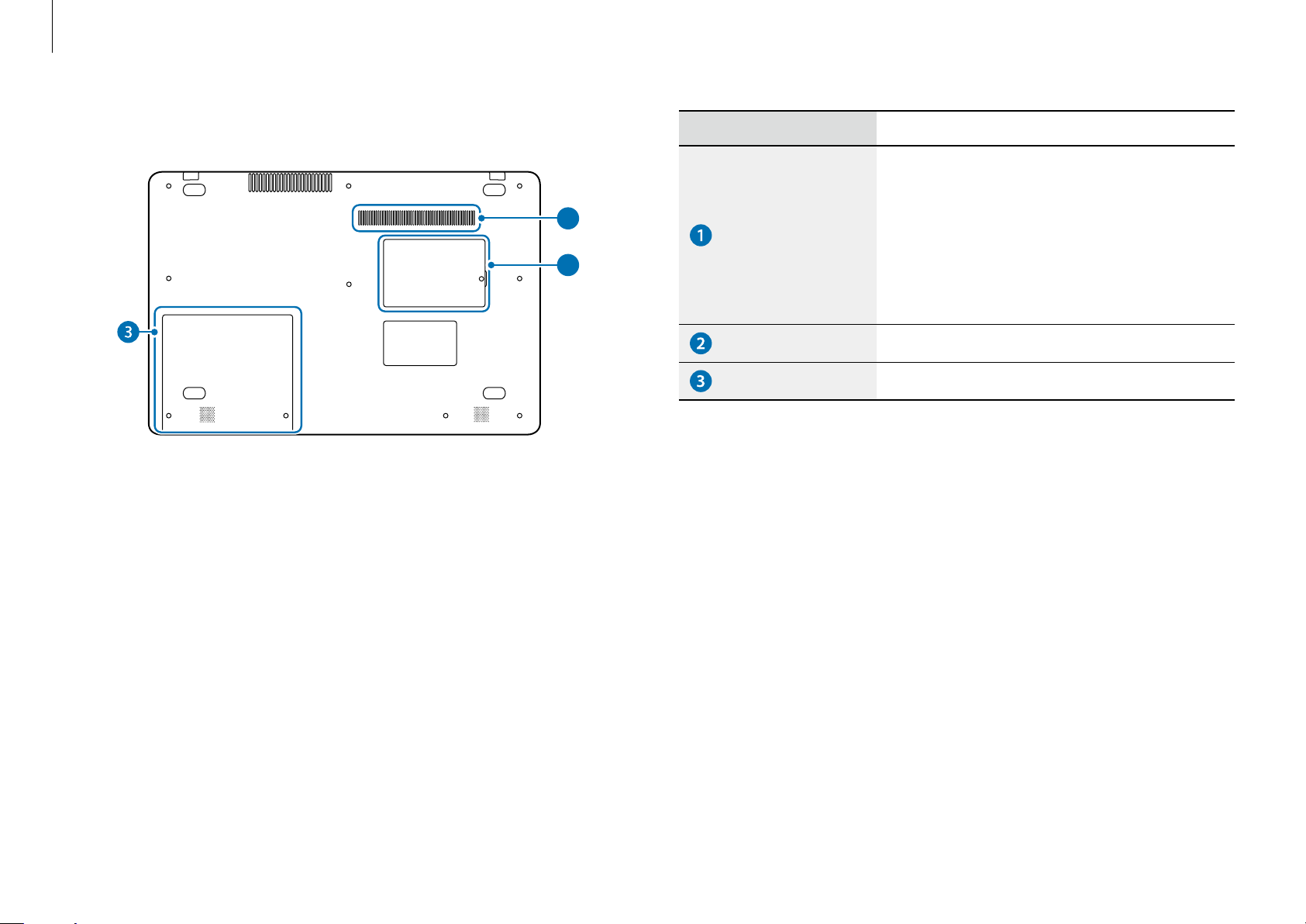

Bottom view
1
2

Getting started
10
3 The computer turns on automatically when the LCD panel is
opened.
If the computer does not turn on automatically, press the
Power button.
Set the device not to automatically turn on the computer
when the LCD panel is opened.
1. Select the Start button ( )
→
Samsung
→
Samsung
Settings
.
2. Select
Convenience
→
Auto Booting
→
Off .
Turning the computer on and off
Fully charge the battery using the AC adapter before using
the computer
for the first time .
Turning the computer on
1 Before turning on the computer, check that the battery is
charged and charge it if necessary.
2 Open the LCD panel.

Getting started
11
Turning the computer off
1 Select the Start button ( ).
2 Select
→
Shut down .
•
Save all data before turning off the computer.
•
Since the procedures to turn the computer off may
differ depending on the installed operating system,
turn the computer off according to the procedures for
the purchased operating system.
About Windows Activation
When you turn the computer on for the first time, the Windows
activation screen appears.
Follow the activation procedures according to the instructions on
the screen to use the computer.
The computer’s date and time may be incorrect when you turn it
on for the first time. They may also be incorrect if the battery has
been fully discharged or removed. To set the date and time, go
to the desktop taskbar and right-click the clock area. Then, select
Adjust date/time and set the current date and time.

Getting started
12
Windows
Microsoft Windows is an operating system that is used to control a
computer.
•
Images and available features may differ depending on
the model and operating system.
•
This manual is designed for Windows 10 and content
may differ depending on the OS version.
•
The image displayed on the desktop screen may differ
between models and OS versions.
Configuring the Windows Settings
You can configure the basic system settings, such as installing
or uninstalling apps and managing accounts, on the Windows
Settings screen.
Select the Start button ( )
→
.
Then, select an option you want to change after the Windows
Settings screen appears.
You can also configure the settings from the Control Panel
like previous OS versions. Select the Start button ( )
→
Windows System
→
Control Panel .
Unlocking the screen
To unlock the lock screen, do one of the following:
•
Touch screen : Swipe upwards from the bottom of the screen.
•
Mouse : Click the lock screen.
•
Keyboard : Press any key.
•
Touchpad : Tap the touchpad.
If the account has a password, enter the password to log in after
unlocking the screen.

Getting started
13
Deleting a desktop
1 Select on the taskbar.
2 Move the cursor over the desktop icon you want to delete.
Then, select in the upper-right corner of the icon.
Moving a program to another desktop
1 Select on the taskbar.
2 Select a program or window you want to move.
Using a multi desktop
Multi desktop allows you to work on various tasks at the same
time via multiple desktops. You can use different desktops for
various purposes.
Creating a new desktop
1 Select on the taskbar.
2 Select
New desktop .
A new desktop will be added. You can select a desktop from
the list displayed at the bottom of the screen.
Multi desktop list

Getting started
14
•
You can enable or disable push notifications for
applications. You can also set personalized hot keys
to appear in the action center by selecting the Start
button ( )
→ →
System
→
Notifications &
actions
.
•
Select Expand or Collapse to expand or minimize the
action center menu and select the feature you want to
use.
Action Center
The Windows 10 action center allows you to receive system
notifications, such as updates, and push notifications, such as
emails and SNS updates. You can also adjust settings conveniently.
For example, you can select wireless network options or adjust the
volume and screen brightness via hot keys in the action center.
Checking notifications
1 Select on the taskbar.
2 When the action center panel appears, select a message to
check it.

15
Double-tapping
To open files or items, double-tap the touch screen.
Tapping and holding (right-clicking)
To use additional options of an item, tap and hold it on the touch
screen.
Basics
Touch screen (optional)
Use your fingers on the touch screen to perform actions.
Touch screen gestures
Tapping
To select menus, options, or applications, tap the touch screen.

Basics
16
Spreading and pinching
To zoom in, spread two fingers apart on an image or text. Pinch to
zoom out.
Dragging
To move an item to another location, tap and hold it, and then
drag it on the touch screen to the desired location.
Scrolling
To scroll up, down, left, or right, swipe on the touch screen.
or

Basics
17
•
Do not subject the touch screen to severe impacts or
press it with sharp objects. Doing so may damage the
touch screen.
•
Do not allow the touch screen to come into contact
with other electrical devices. Electrostatic discharges
can cause the touch screen to malfunction.
•
Do not expose the touch screen to water. The touch
screen may malfunction in humid conditions or when
exposed to water.
•
Do not spray liquid cleansing solutions directly onto
the touch screen. The solution may enter the touch
screen or cause undesired operation. To clean the
screen, dampen a cloth with solution and gently wipe
the screen. Do not use solutions or cloths that contain
abrasive materials, as they may damage the touch
screen.
•
Do not damage the edges of the touch screen. Doing so
may damage the touch screen.
•
Leaving the touch screen idle for extended periods
may result in afterimages (screen burn-in) or ghosting.
Turn off the touch screen when you are not using the
computer.
•
Make sure your hands are clean and dry before using
the touch screen. Remove any moisture from your
hands before using the touch screen.
•
Do not expose the computer to foreign substances.
Doing so may cause the touch screen to malfunction.
•
Very light touches on the touch screen may not be
recognized.
•
Precisely tap items on the touch screen for the best
results.
•
The touch screen sensors are located on the edges of
the touch screen. Therefore, do not cover the edges of
the touch screen with protective covers or accessories.
•
Touch screen gestures are available for touch screen
models running Windows and work only with some
applications.

Basics
18
•
: Standard Qwerty keyboard
Number Description
•
Delete a preceding character.
•
Move to the next line.
•
Create an uppercase character. For all caps, tap
it twice.
•
Change the keyboard layout.
•
Move the cursor.
•
Enter a space.
•
Enter emoticons.
•
Enter numerals and punctuation marks.
Entering text
Use the virtual keyboard to enter text.
To open the virtual keyboard, select on the taskbar.
•
Some languages are not support by the virtual
keyboard. To enter text, change the input language to
one of the supported languages.
•
When using the computer for extended periods, it is
recommended to enter text with the physical keyboard.
Changing the keyboard layout
To change the keyboard layout, select and select one of the
following:
•
: Simplified Qwerty keyboard
•
: Split Qwerty keyboard for entering text with two hands
•
: Handwriting keyboard used to enter text from written
words.

Basics
19
Copying and pasting
1 Tap and drag your finger across text to select it.
2 Tap and hold the text to display the options.
3 Select
Copy or Cut .
4 Tap and hold a text input field and then select
Paste .
Entering uppercase
Select before entering a character. For all caps, tap it twice.
Changing language keyboards
Add keyboards to enter text in other languages. Select
→
Language preferences
→
Region & language
→
Add a
language
→
a language. Then, select and select a language.
Handwriting
Select
→
, and then write a word in the on-screen text
input field.
Handwriting is not supported for some languages.

Basics
20
Keyboard
Enter text or access computer functions with the keyboard.
•
Images and available features may differ depending on the model and operating system.
•
The keyboard layout may differ depending on the country.
•
Press the Fn Lock key and then press a hot key.
→
When the Fn Lock key is on, hot keys are activated without
pressing the
Fn key.
Using hot keys
To use keyboard hot keys, do one of the following:
•
Press and hold the Fn key and press a hot key.
+
