Samsung R410 User manual

VHQV
책자에 수록되지 않은 내용은 K-zone 서비스 매뉴얼을 참조 하십시오.
SAMSUNG R410 제품특징
SERVICEManual
U743
[LDQ
QW0U743{{2{{
1. 간단하고 편리한 Note PC
-. 새로운 ATI 기술.
-. Internal 1.3M 카메라
-. 14.1'' WXGA+ 200nit Glare 액정화면
-. Windows Vista Home/Premium
Supportable.
2. 고성능 제품
-. Intel Core™2 Duo processor
-. 강한 통신 능력.
-. 편리한 Multi-media.

-목차-
1. 주의사항
1) 서비스시 일반적인 주의 사항 ------------------------------------------- 1-1
2) 안전 주의 사항 -------------------------------------------------------- 1-2
3) 접지 사항 ------------------------------------------------------------- 1-3
4) 정전기 주의 사항 ------------------------------------------------------ 1-3
2. 제품 특징 및 사양
1) 제품특징 -------------------------------------------------------------- 2-1
2) 제품 사양 ------------------------------------------------------------- 2-2
3) 제품 사양 비교 -------------------------------------------------------- 2-7
4) 경쟁사 사양 비교 ------------------------------------------------------ 2-8
5) 옵션 자재 리스트 ------------------------------------------------------ 2-8
6) 제품기능 -------------------------------------------------------------- 2-10
7) 새로 추가된 기능 ------------------------------------------------------ 2-16
8) Software list --------------------------------------------------------- 2-19
9) 시스템 Setup (BIOS Setup) --------------------------------------------- 2-20
10) 메인보드 부분설명 ---------------------------------------------------- 2-26
3. 분해와 조립
1) R700 분해와 조립 ------------------------------------------------------ 3-1
4. 고장 진단
1) 일반적인 사항 --------------------------------------------------------- 4-1
2) Debugging Flow Chart -------------------------------------------------- 4-2
3) 시스템 진단 ----------------------------------------------------------- 4-4
4) 진단 프로그램의 사용 -------------------------------------------------- 4-8
5) H/W의 고장 진단 ------------------------------------------------------- 4-13
6) 드라이버 및 어플리케이션 SW 리스트------------------------------------- 4-22
7) CPU Fan 컨트롤 -------------------------------------------------------- 4-29
8) Battery 사용시간 ------------------------------------------------------ 4-30
9) 기타 ------------------------------------------------------------------ 4-35
5. 기구 전개도
1) R700 기구전개도 ------------------------------------------------------- 5-1
6. 회로물 자재리스트
1) 회로물 자재리스트------------------------------------------------------ 6-1
7. 결선도
1) 결선도 ---------------------------------------------------------------- 7-1
8. 블록도 및 회로도
1) 블록도 ---------------------------------------------------------------- 8-2
2) 회로도 ---------------------------------------------------------------- 8-3
- 이 문서는 삼성전자의 기술 자산으로 승인자만이 사용할 수 있습니다 -
- This Document can not be used without Samsung's authorization -

2 - 1

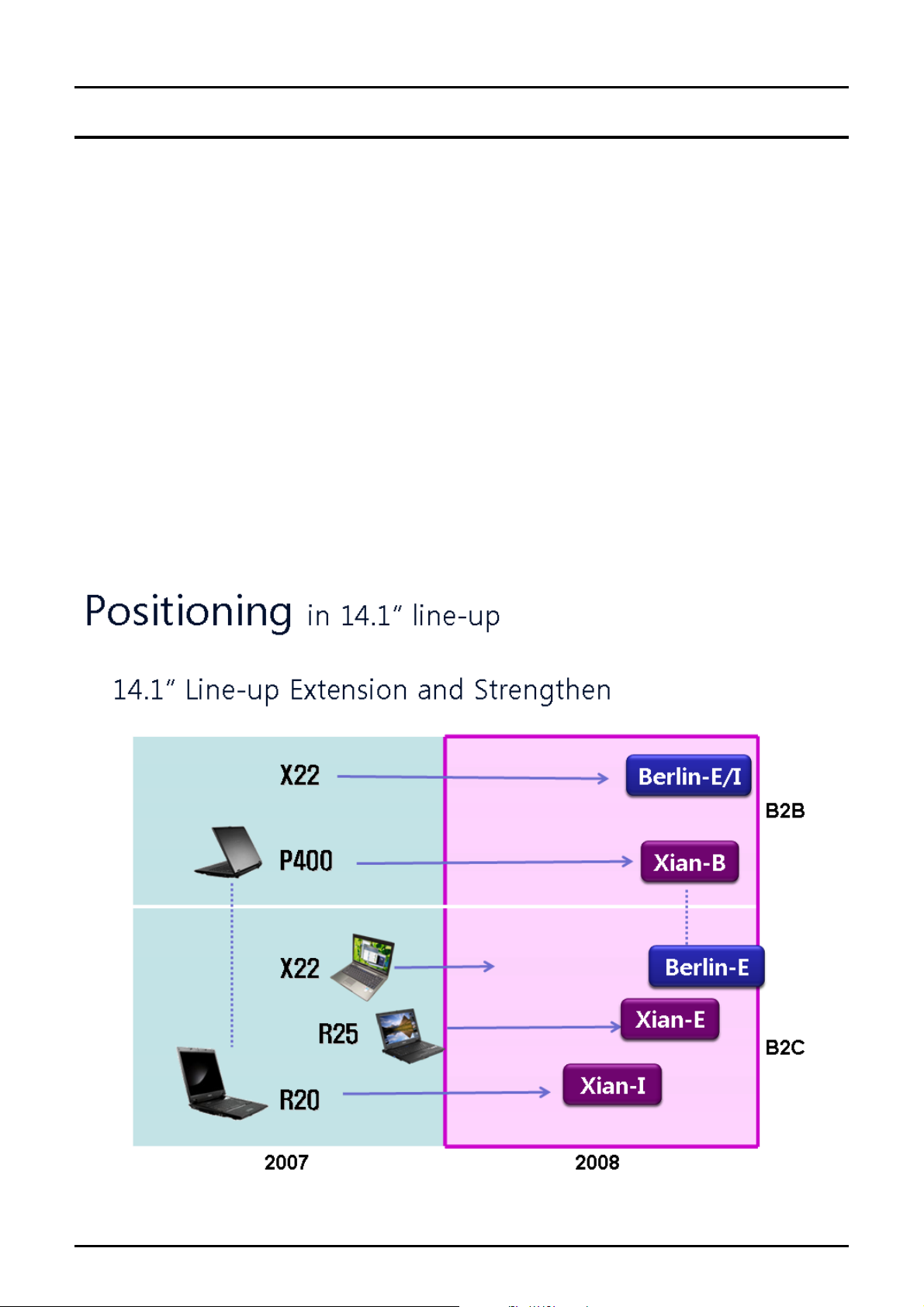

1) Introduction
(1) High Performance PC
- Intel®Core™ 2 Duo Processor and DDR II Memory
- AMD RS600ME + SB600 Platform
- Wireless LAN (option), Bluetooth (option)
(2)Convenientfeature
- Internal Camera (Option) for easily video and photo capture
(3) Prudent Design for easy use.
- Price competitive power preservation
- Variant Multi-media card support
- Express Card Type I/II support
- Good feeling with free type touchpad, advanced design appearance.
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 2
2) Specification
Processor and Motherboard Description
CPU Intel® Core 2 Duo T7100 (1.8GHz) ~ T7700 (2.4G) and All CPU
at Q4'07.35W (64bit)
Speed
T7100 : 1.8GHz
T7300 : 2.0GHz
T7500 : 2.2GHz
T7700 : 2.4GHz
Cache 6MB/3MB (Penyn), 4MB/2MB/1MB (Merom), 1MB (Celeron) L2
Cache
Chipset AMD RS600ME + SB600
BIOS 8 Mbit, Flash upgradable, SPI type
Thermal Design Performance MAX. 35W
Memory
Memory/Max.Memory 512MB ~ 4GB
Memory type PC2-5300(667MHz)/PC2-6400(800MHz)DDR2 SODIMM
Memory Modules 512MB, 1GB, 2GB SODIMM
Sockets 2-slot SODIMM's
Display and Graphics
LCD 14.1" WXGA (200nits, Glare only)
LCD Vendor CPT(CLAA141WB05A ) / Samsung AMLCD（Glare）
Samsung AMLCD（Non-Glare）/AUO(B141EW01_V1)
14.1" WXGA
LCD Viewable Area 303.36 x 189.6mm (HxV)
LCD Resolution 1280 x 800 x 262,144 color ( 18 bit )
Dot Pitch 0.237 x 0.237mm (HxV)
Viewing angle Hor. +40/-40, Ver. +20/-40
Contrast Ratio typ.350:1
Brightness typ. 200(cd/m2)
Response time Typ. 25msec
Graphics Controller Integrated ATI Radeon Xpress 1250
Video Memory 128MB / 256MB with UMA
Feature Full support DirectX 9.0, H.264 playback support
Max.Resolution for LFP LVDS 1920 x 1200 x 32bits color (WUXGA)
Max.Resolution for External
Monitor 1920 x 1440 x 32 bits@60HZ (CRT)
Audio
Sound High Definition Audio
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 3
Controller HD Audio Codec, ALC262
Conversion Built-in high performance 20-bit ADC & 24-bit DAC
Internal Interfaces Embedded 2 stereo speakers, Internal microphone
Speaker Power Rating 2 Speakers x 2 Watt with enclosure each
External Interfaces Microphone, Headphone, MIC
Controls Keyboard volume control
Microphone Mono Microphone
Microphone Mono
Sensitivity -44dB
Output Impedance 2.2KΩ
Storage
Hard Disk Drive 9.5mmH 2.5" HDD, Removable
Supports SMART Ultra DMA 33/66/100, DMA Mode 2/4 ; SATA
Average Access Time 13m sec.
Speed 5400 / 7200 RPM , Hybrid HDD, TMR/PMR Type
Capacity
80GB / 100GB / 120GB / 160GB / 200GB / 250GB /320GB: HGST,
Hitachi, Samsung
- 80 ~ 250 GB SATA 5400rpm
- 80 ~ 200 GB SATA 7200rpm
- 80 ~ 160GB SATA 5400rpm, Hybride + 256MB
- 120 ~ 250GB SATA 5400rpm, Hybride + 5126MB
Optical Disk Drive DVD / Combo / Super Multi DL & w/LightScribe (12.7mm/PATA)
Blueray / HD-DVD
Type Fixed type (Factory Option)
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
Optical Driver Modules
Combo Drive 1 Factory Option
Module type Fixed 12.7mm Slim
Speed 8x DVD-ROM, 24x RW, 24x CD-R : TSST, TS-L332A
Average Access Time DVD 130ms Typ, CD 130ms Typ
Weight 176g or less
S/W Supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
Combo Drive 2 Factory Option
Module type Fixed 12.7mm Slim
Speed 8x DVD-ROM, 24x RW, 24x CD-R, 24x CD : TSST, TS-L462D
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 4
Average Access Time DVD 130ms Typ, CD 130ms Typ,.
Weight 176g or less
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
SuperMultiDualLayer1 Factory Option
Module type Fixed 12.7mm Slim
Speed 5x DVD-RAM, 8x DVD±R 2.4x DVD+R DL, 4x DVD±RW, 24x CD-R,
16x CD-RW, 8x DVD, 24x CD : Panasonic UJ-850
Average Access Time DVD 130ms Typ., CD 130ms Typ.
Weight 190g or less
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
SuperMultiDualLayer2 Factory Option
Module type Fixed 12.7mm Slim
Speed 5x DVD-RAM, 8x DVD±R, 6x DVD±R DL, 8x DVD+RW, 6x DVD-
RW, 24x CD-R/RW, 8x DVD, 24x CD : TSSTTS-L632D
Average Access Time DVD 130ms Typ., CD 130ms Typ.
Weight 180g or less
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
Super MultiDual Layer 3 Factory Option
Module type Fixed 12.7mm Slim
Speed 5x DVD-RAM, 8x DVD±R, 6x DVD±R DL, 8x DVD+RW, 6x DVD-
RW, 24x CD-R/RW, 8x DVD, 24x CD : TeacDV-W28EC
Average Access Time DVD 130ms Typ., CD 130ms Typ.
Weight 180g or less
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
Super MultiDual Layer
Lightscribe Factory Option
Module type Fixed 12.7mm Slim
Speed 5x DVD-RAM, 8x DVD±R, 6x DVD±R DL, 8x DVD+RW, 6x DVD-
RW, 24x CD-R/RW, 8x DVD, 24x CD : TSST TS-L632M
Average Access Time DVD 130ms Typ., CD 130ms Typ.
Weight 180g or less
S/W supplied Cyberlink DVD Solution
Security RPC-II Regional Encoding
Communications
Fax/Modem 56Kbps / V.92 Azalia Modem, DELPHI (D40) (Factory Option)
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 5
Chipset CSP1040 AGR A3 & A3 5V1
Features RJ11 Output
LAN 10/100/1000 Ethernet
Chipset Marvell 88E8055
Features RJ45 Output
Wireless LAN ASKEY WLL3141-D99: 802.11b/g
Type Mini card (Factory Option)
Chipset Atheros AR2425
Antenna Integrated 2 Antenna
Bluetooth BCM92045NMD : Factory Option
Type USB daughter card with integrated PIFA antenna
Chipset Broadcom BCM2045
Standard version 2.0
I/O Interface
I/O Ports
USB Port 3(USB2.0)
Video (CRT) Port 1
Video (S-Video) Port 1
Audio Jacks Headphone , MIC-in
Modem / LAN RJ11, RJ45
PC CardBus Slots 1 Express Card Type I/II slot
Power 1(5pie)
Security Kensington Lock
Input Devices
Camera 1.3M Pixels Digital Camera (Factory Option)
Key board 88KEY(KR/US), 89KEY(UK/FR/GM/SP)
Travel length 2.6mm/ Key Pitch 19.05mm
Touchpad Synaptics Touchpad (Plat type with Scroll area)
Easy Button Vista : Hot start, XP : AVS
Multi Memory Card Slot
Controller Alcor AU6371
Type Memory stick / Memory stick pro / SD / xD / MMC
Power and Power
Management
Battery SSB-Q30LS6 (6cells, Smart Li-Ion Battery)
Dimension 204 x 52.2 x 21mm
Weight 320g (max)
Recharge Time 2 hours to 100% with Windows on & off
Battery Life over 4hours ( Battery mark 4.01)
Details of Cell 6cells (2Parallel 3Serial)
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 6
Voltage 11.1Vdc
Battery Capacity 2400mAh/cell
Battery Rating 11.1V / 4000mAh (53.28Wh)
AC Adapter AD-6019S
Output Power 90Watts
Dimension 160 X 70 X 29mm
Weight (AC Adapter) 300g ± 50g
Worldwide Compatibility Auto-sensing 100 - 240VAC
Line Frequency 50 / 60Hz
Adapter Rating - Input 100V - 240V, 1.8A
Adapter Rating - Output 19.0VDC / 3.16A
Power Management Features ACPI 3.0 support, Standby(S3), Hibernate(S4)
System Dimensions
Dimensions (W X D X H) 335 x 247 x 34~38 mm
Weight (Full system w/ 6cell
Battery) Under 2.4kg
Status : No options, 6cell battery, 14.1" LCD
Materials LCD back / Front : PC/ABS
Bottom / Top : PC/ABS
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 7

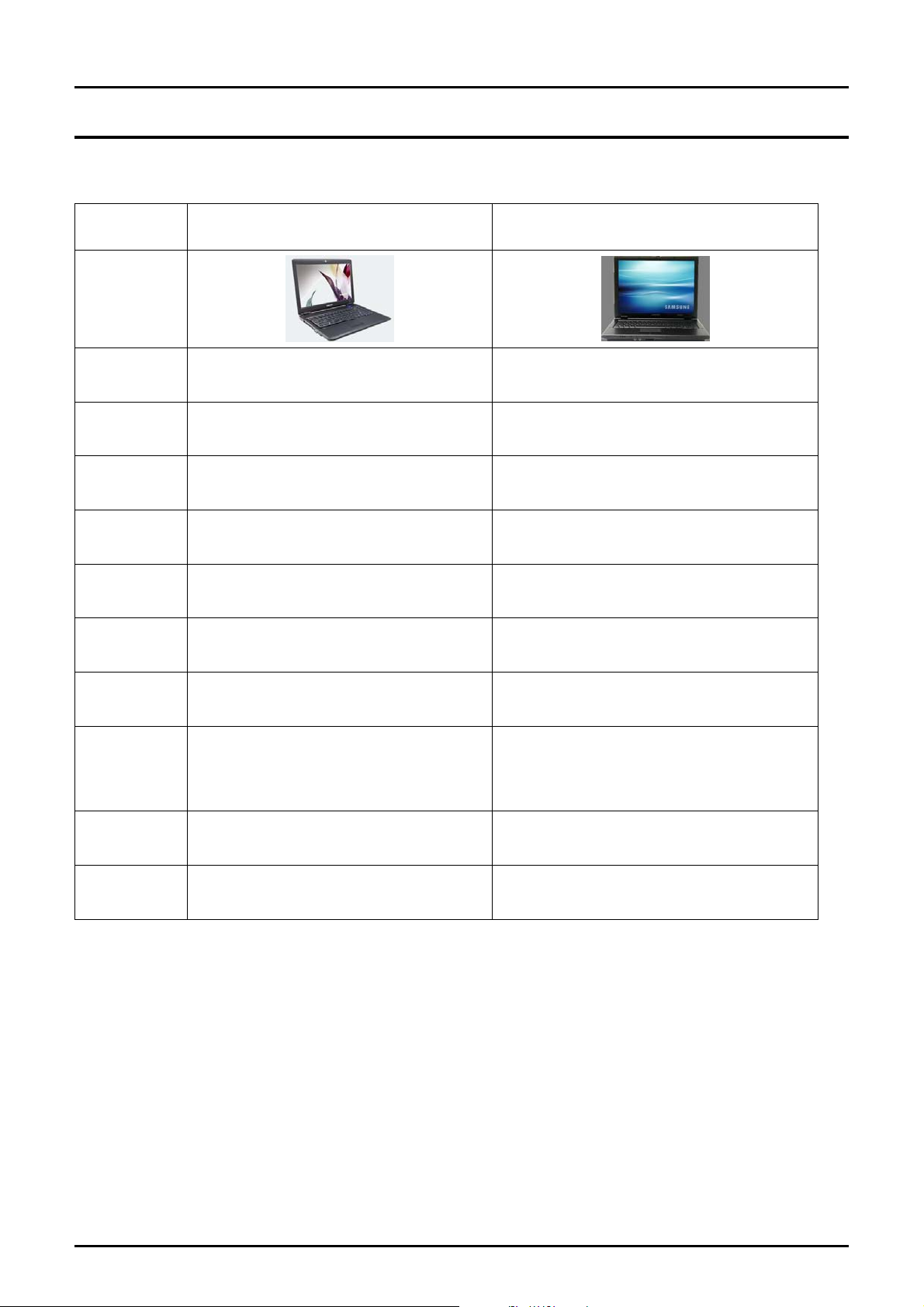

3) Key Feature
R410 R20-Plus
CPU 667/800MHz Intel Core 2 Duo Processor
(Penryn/Merom)
667/800MHz Intel Core 2 Duo Processor
(Penryn/Merom)
Chipset AMD RS600ME + SB600 AMD RS600ME + SB600
Memory DDR2 667/ 800MHz DDR2 533 / 667MHz
Graphic Internal (ATI Radeon X1250) Internal (ATI Radeon X1250)
LCD 14.1" WXGA Glare 14.1” WXGA Glare
HDD SATA SATA
ODD 12.7mm 12.7mm
Port
3USB, VGA,S-Video, Headphone, MIC,
RJ45, RJ11, Express Card, 3-in-
1(SD,SDHC,MMC), AC-IN,, Kensington
Lock
3 USB2.0 port, 5in1 Media Card (MS,
MSPro, SD, xD,MMC), Mic-in, HP-
out(w\S/PDIF), Express card, RJ45, RJ11
Battery 6cell 4cell
Design 2nd Proto type 2nd Proto type
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 8
4) Compare with competitor
Model Samsung R20-
K004 HP V3414TX HP 520 ASUS A8H73SR
CPU Intel Core Duo
T2250
Intel Core
Duo(Yonah)T2130
1.86GHz
Intel Core Duo(Yonah)
T2050(1.6G)
Intel Core2 Duo(Merom)
T7300(2.0G)
LCD 14.1' WXGA
1280x800
14.1” WXGA
1280x800
14.1” WXGA
1280x800
14.1” WXGA
1280x800
Gfx ATI Radeon
X1250
nVidia Geforce 7200M
GS Intel 950GMA ATI Radeon HD2400
Others 512MB DDR2
667MHz
80GB SATA
1GB DDR2 667MHz
120GB SATA 5400rpm
512M DDR2533MHz
80GB SATA
1G DDR2 667MHz
160G SATA
Mechanic
s
340.4䦵259.6䦵2
7.7-38.7 mm
about 2.4Kg
334䦵237䦵26-39 mm
about 2.4Kg
䦗334䦵247䦵30mm
about 2.3Kg
335䦵245䦵34.8-
37.3mm
about 2.4Kg
5) Option Partlist
HDD
BA59-01999A HTS541660J9SA00 5400rpm, 60G, SATA, 8M
BA59-01946A MHV2060BH-PL 5400rpm, 60G, SATA, 8M
BA59-02084A MHW2060BH 5400rpm, 60G, SATA, 8M
BA59-02038A HM060HI 5400rpm, 60G, SATA, 8M
BA59-02001A HTS541680J9SA00 5400rpm, 80G, SATA, 8M
BA59-01947A MHV2080BH-PL 5400rpm, 80G, SATA, 8M
BA59-02085A MHW2080BH 5400rpm, 80G, SATA, 8M
BA59-02009A ST980815AS 5400rpm, 80G, SATA, 8M
BA59-01742A HTS541010G9SA00 5400rpm, 100G, SATA, 8M
BA59-01948A MHV2100BH-PL 5400rpm, 100G, SATA, 8M
BA59-02086A MHW2100BH 5400rpm, 100G, SATA, 8M
BA59-02014A HM101JI 5400rpm, 100G, SATA, FFS
BA59-02010A ST9100828AS 5400rpm, 100G, SATA, 8M
BA59-02002A HTS541612J9SA00 5400rpm, 120G, SATA, 8M
BA59-01957A MHV2120BH-PL 5400rpm, 120G, SATA, 8M
BA59-02087A MHW2120BH 5400rpm, 120G, SATA, 8M
BA59-02013A HM121JI 5400rpm, 120G, SATA, FFS
BA59-02039A HM120JI 5400rpm, 120G, SATA, 8M
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 9
BA59-02011A ST9120822AS 5400rpm, 120G, SATA, 8M
BA59-02003A HTS541616J9SA00 5400rpm, 160G, SATA, 8M
BA59-02012A ST9160821AS 5400rpm, 160G, SATA, 8M
BA59-02110A MHW2160BH-PL 5400rpm, 160G, SATA, 8M
LCD
BA59-02148A AMLCD LTN141W1-L04-E
BA59-01787A AUO LCD B141EW01_V1
MEMORY
1105-001683 DDR2 667Mhz 512MB M470T6554CZ3-CE6
1105-001684 DDR2 667Mhz 1GB M470T2953CZ3-CE6
DDR2 800Mhz 512MB
DDR2 800Mhz 512MB
CPU
0902-002196 T_T7100(Merom Dual Core ) 1.8Ghz(FSB800) 2MB
0902-002197 T_T7300(Merom Dual Core ) 2.0Ghz(FSB800) 4MB
0902-002198 T_T7500(Merom Dual Core ) 2.2Ghz(FSB800) 4MB
0902-002199 T_T7700(Merom Dual Core ) 2.4Ghz(FSB800) 4MB
BLUETOOTH
BA59-01691A BT MODULE(FOX) Bluetooth V2.0, T60H928.01, Bluetooth Module
BA59-01916A SEMCO BCM92045NMD
ODD
BA96-03223A S_MULTI(DV228EC) TEAC
BA96-03241A S_MULTI(UJ-850) MATSUHITA
BA96-03242A S_MULTI(TS-L632D) TSST
BA96-03243A S_MULT ScriveI(TS-L632M) TSST
BA96-03222A COMBO(DW-224E-R) TEAC
BA96-03239A COMBO(TS-L462D) TSST
BA96-03245A DVD(TS-L332A) TS-L332A
W/LAN
BA59-02154A 802.11g ASKEY
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 10
6) Product Feature

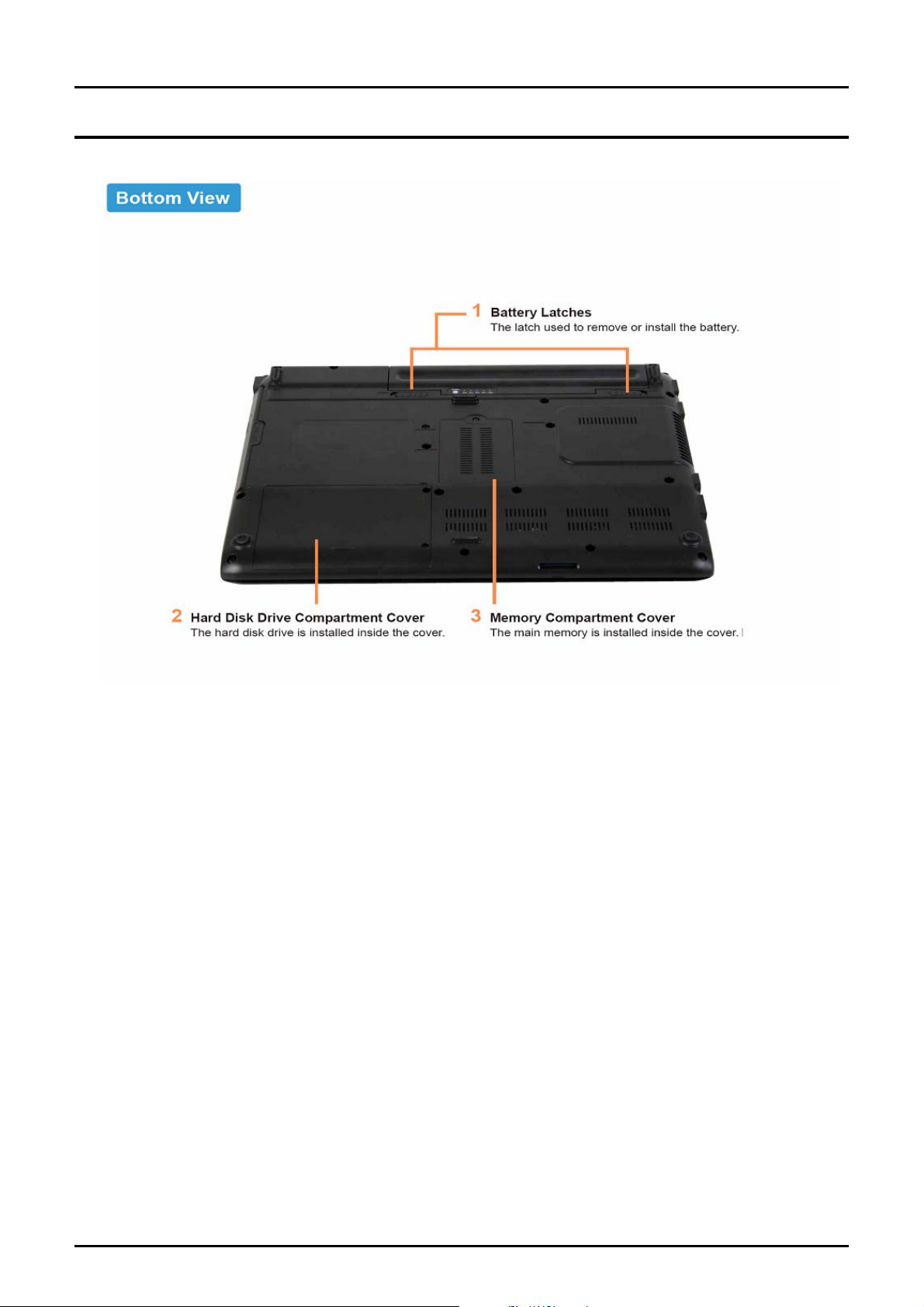

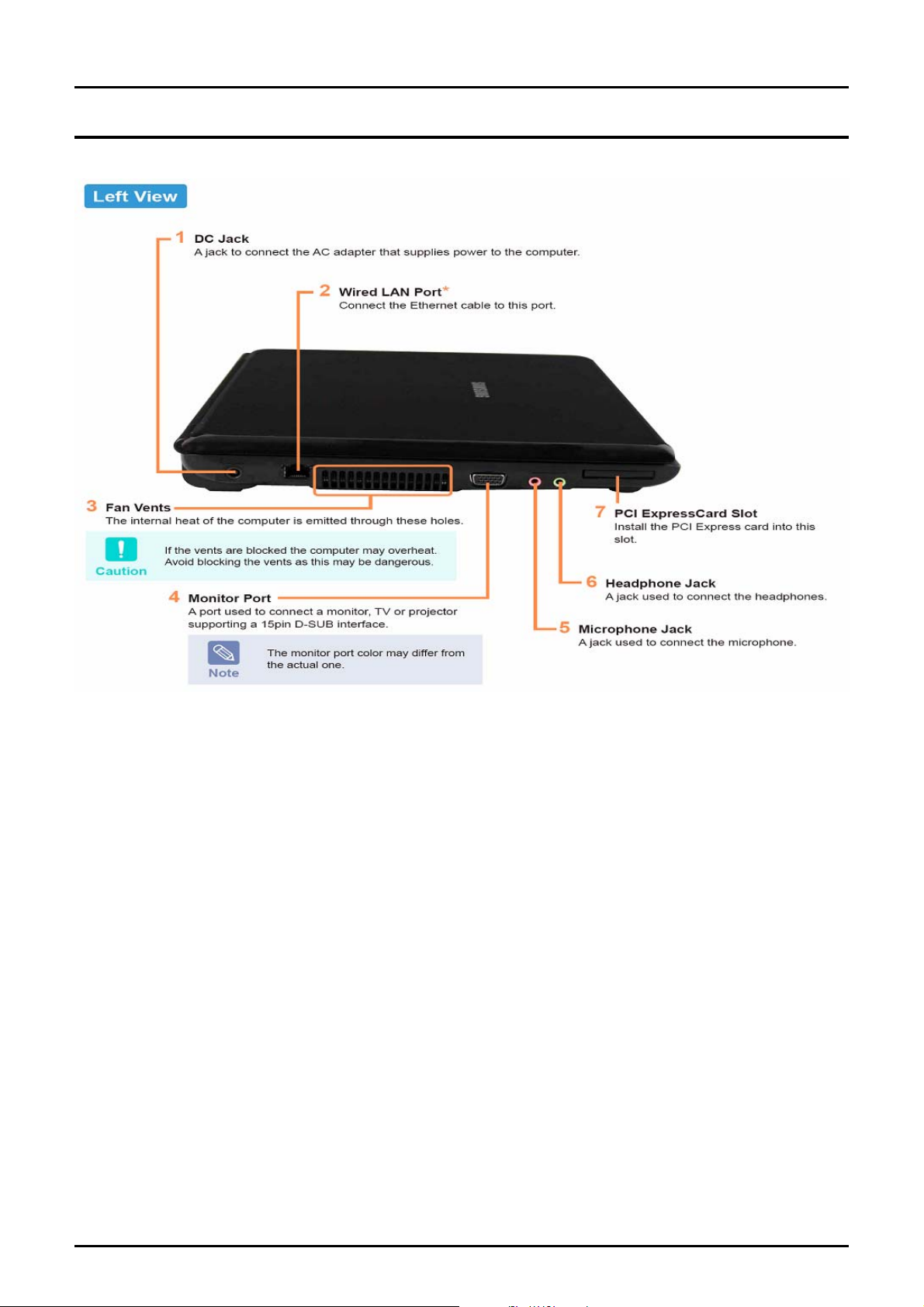

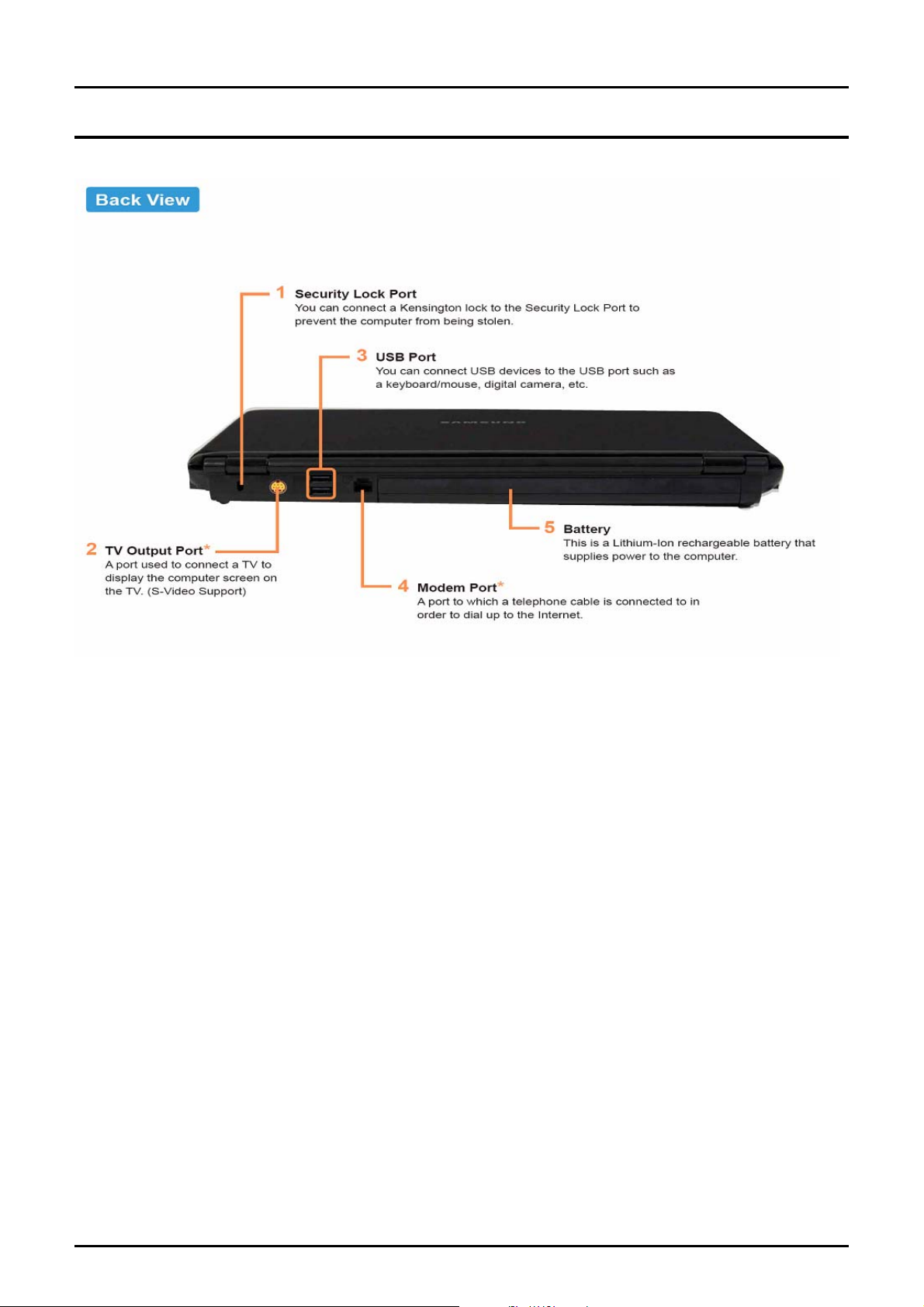

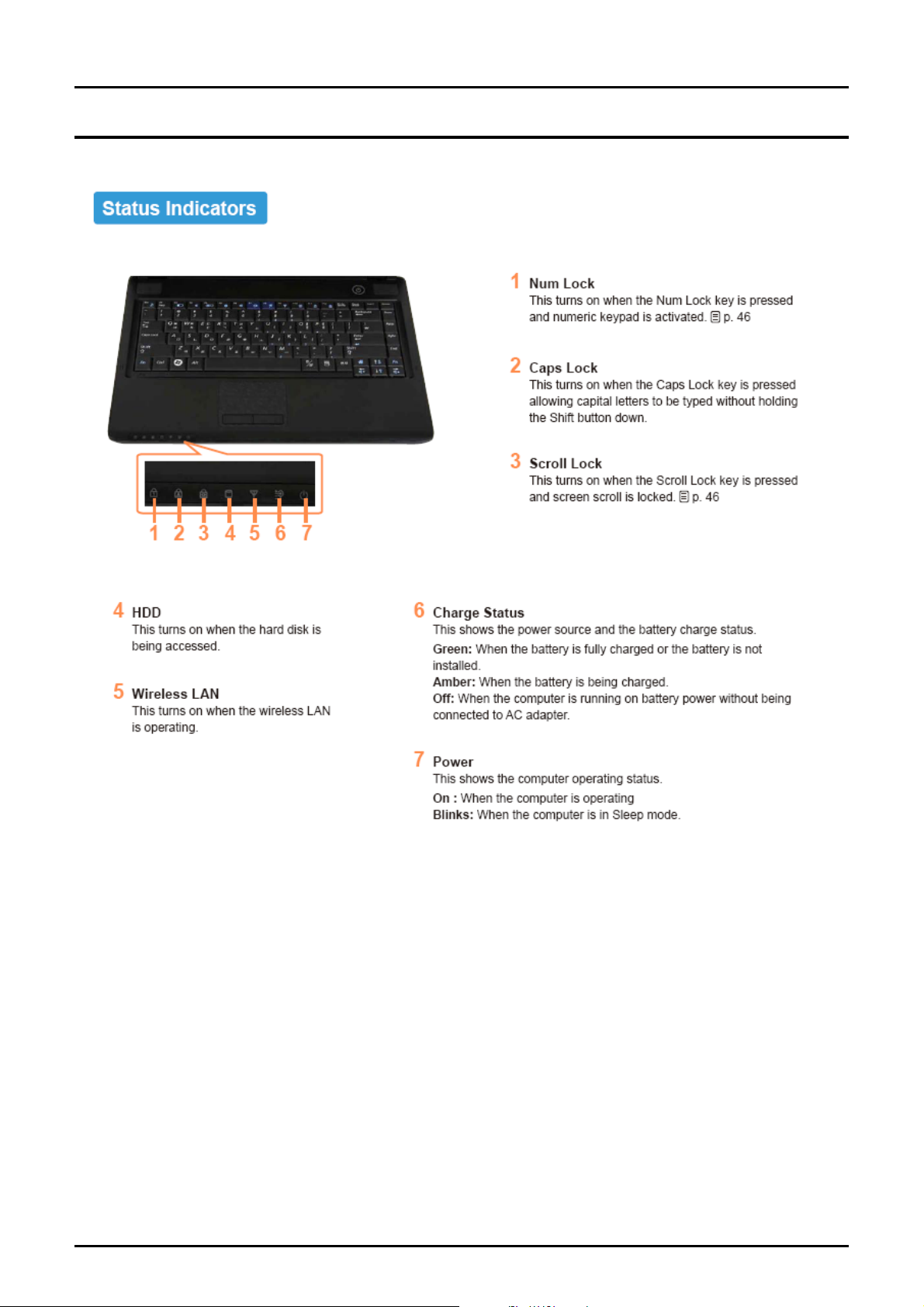

6)-1 System View
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 11
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 12
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 13
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 14
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 15
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 16
7) New Function
7)-1. Camera (Option)
Internal Camera (Option) for easily video and photo capture
7)-2. Express Card Slot
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 17
7)-3. New Keyboard
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification

2 - 18
- This Document can not be used without Samsung's authorization -
2. Introduction and Specification
