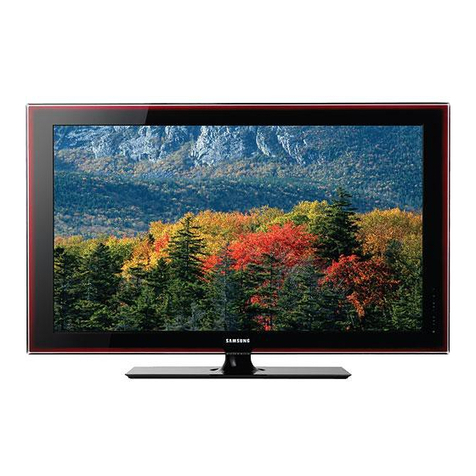

Samsung LN32B640R3F User manual

2009 Samsung TV
F/W Upgrade Guide
Samsung Electronics

¾Model List
LCD TV
. LB610 series : LN40B610A5F, LN46B610A5F, LN52B610A5F
. LB630 series : LN40B630N1F, LN46B630N1F, LN52B630NF
. LB640 series : LN32B640R3F, LN40B640R3F, LN46B640R3F
LN55B640R3F
. LB650 series : LN32B650T1F, LN37B650T1F
. UB6000 series : UN32B6000VF, UN40B6000VF, UN46B6000VF,
UN55B6000VF

Step1. How to prepare the USB Memory Drive
2. Connect the USB Memory Drive
to the USB port of your PC.
Copy the file into the USB Memory Drive.
3. Go to the USB Memory Drive and then double click the file.
1. Save the firmware file into your computer.
File Name : 2009 DTV 128M firmware.exe
4. Click on the “Unzip” button. 5. Unzipping is in progress.
6. After completing, click on the
“OK” and “Close” buttons.
7. A folder containing the firmware files
has been added to the USB memory drive.
Folder name : T-CHE6AUSC
8. Safely disconnect the USB memory drive
by right clicking the green check mark
on the taskbar and then left click
“Safely Remove”.
OK

9. Turn your TV on, and then insert
the USB Memory Drive containing
the firmware into the USB port
on the rear of the TV
※Important
If the firmware version you downloaded from the Samsung website
or received from Samsung is older than or has a lower version
number than the version on your TV, do not install it.
10. Press the MENU button to display
the menu. Press the ▲or ▼button
to select “Support”, then press the
ENTER button
11. Press the ▲or ▼button to select
“Software Upgrade”, then press the
ENTER button.
12. The message “Scanning for USB.
It may take up to 30 seconds”
is displayed.
13. Then, the message “Upgrade
Version XXXX to version XXXX?
The system will be reset after
upgrade.” is displayed.
Select “Yes”, then press the ENTER
button.

14. When the software upgrade is
complete; the TV will turn off and
then back on by itself.
Proceed with the ‘Plug & Play’
setup.
15. Once ‘Plug & Play’ is complete;
“Enjoy your watching.” is displayed.
Press the ‘Enter’ key and you are
done.
※Do not pull the USB drive out or
unplug the power cable until
complete
※Important
If the firmware version you downloaded from the Samsung website
or received from Samsung is older than or has a lower version
number than the version on your TV, do not install it.
