Samsung LN40C550 User manual

imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
Model Serial No. ~

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
Product
design and specifications may be changed without notice.
Important Warranty Information Regarding Television Format Viewing
See the warranty card for more information on warranty terms.
Wide screen format LCD Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide screen format full-
motion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model
offers this feature and the images are constantly moving. Displaying stationary graphics and images on screen, such as the dark sidebars on
nonexpanded standard format television video and programming, should be limited to no more than 5% of the total television viewing per week.
Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos, web sites or computer
graphics and patterns, should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines
can cause uneven aging of LCD Displays that leave subtle, but permanent burned-in ghost images in the LCD picture. To avoid this, vary the
programming and images, and primarily display full screen moving images, not stationary patterns or dark bars. On LCD models that offer picture
sizing features, use these controls to view different formats as a full screen picture.
Be careful in the selection and duration of television formats used for viewing. Uneven LCD aging as a result of format selection and use, as well as
burned-in images, are not covered by your Samsung limited warranty.
SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT
Subject to the requirements, conditions, exclusions and limitations of the original Umited Warranty supplied with Samsung Electronics
(SAMSUNG) products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide
Warranty Repair Service in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products
purchased in the United States, for the warranty period originally specified, and to the Original Purchaser only.
The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the Original
Umited Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportation to and
from the Service Center is the responsibility of the purchaser. Conditions covered are limited only to manufacturing defects in material or
workmanship, and only those encountered in normal use of the product.
Excluded, but not limited to, are any originally specified provisions for, in-home or on-site services, minimum or maximum repair times,
exchanges or replacements, accessories, options, upgrades, or consumables.
For the location of a SAMSUNG Authorized Service Center, please call toll-free:
- In the United States: 1-800-SAMSUNG (1-800-726-7864)
-
In Canada: 1-800-SAMSUNG
Still image warning
Avoid displaying still images (such as jpeg picture files) or still image elements (such as lY channel logos, panorama or 4:3 image format, stock
or news bars at screen bottom etc.) on the screen. Constant displaying of still pictures can cause uneven wear of the screen phosphor, which will
affect image quality. To reduce risk of this effect, please follow below recommendations:
Avoid displaying the same lY channel for long periods.
Always try to display any image on full screen, use 1V set picture format menu for best possible match.
Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout
process.
Frequently use all1V features designed to reduce image retention and screen burnout, refer to proper user manual section for details.
Contains mercury, Dispose according to Local, State or Federal Laws.
Securing the Installation Space
Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.
~ When using a stand or wall-mount, use parts provided by Samsung Electronics only.
• If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.
~ The appearance may differ depending on the product.
Installation with a stand.
~-----------l~~;~--------~
I I
I I
I I
4inches : : 4inches
~ ~
L-- ~
I I
© 2010 Samsung Electronics Co., Ltd. All rights reserved.
2 English
Installation with aall-moun.
.. ----------- -r ---------- --I
I 4inches I
I I
I I
I I
I I
4inches I I 4inches
~ ~
,...-- I
I I
I I
I I
1 I
I I
I I
I!4inches I
1 oJ

Contents
Getting Started
• Ust of Features 4
•
Accessories 4
•
Installing the LCD TV Stand 4
•
Viewing the Control Panel 5
•
Viewing the Remote Control 6
•
Connecting to an Antenna 7
•
Plug & Play (Initial Setup) 7
onnec Ions
• Connecting to an AV Device 8
•
Connecting to an Audio Device 9
•
Connecting to a PC 9
•
Changing the Input source 11
Basic Features
• How to Navigate Menus , 11
• Channel Menu 12
Seeing Channels 12
Using Favorite Channels 12
Memorizing channels 12
Editing channels 13
Other Features 13
• Picture Menu 14
Changing the Preset Picture Mode 14
Adjusting picture settings 14
Economical Solutions 14
Setting up the TV with your PC 14
Changing the Picture Options 15
• Sound Menu 16
Changing the Preset Sound Mode 16
Adjusting sound settings 16
Sound Settings 16
• Setup Menu 17
Setting the Time 17

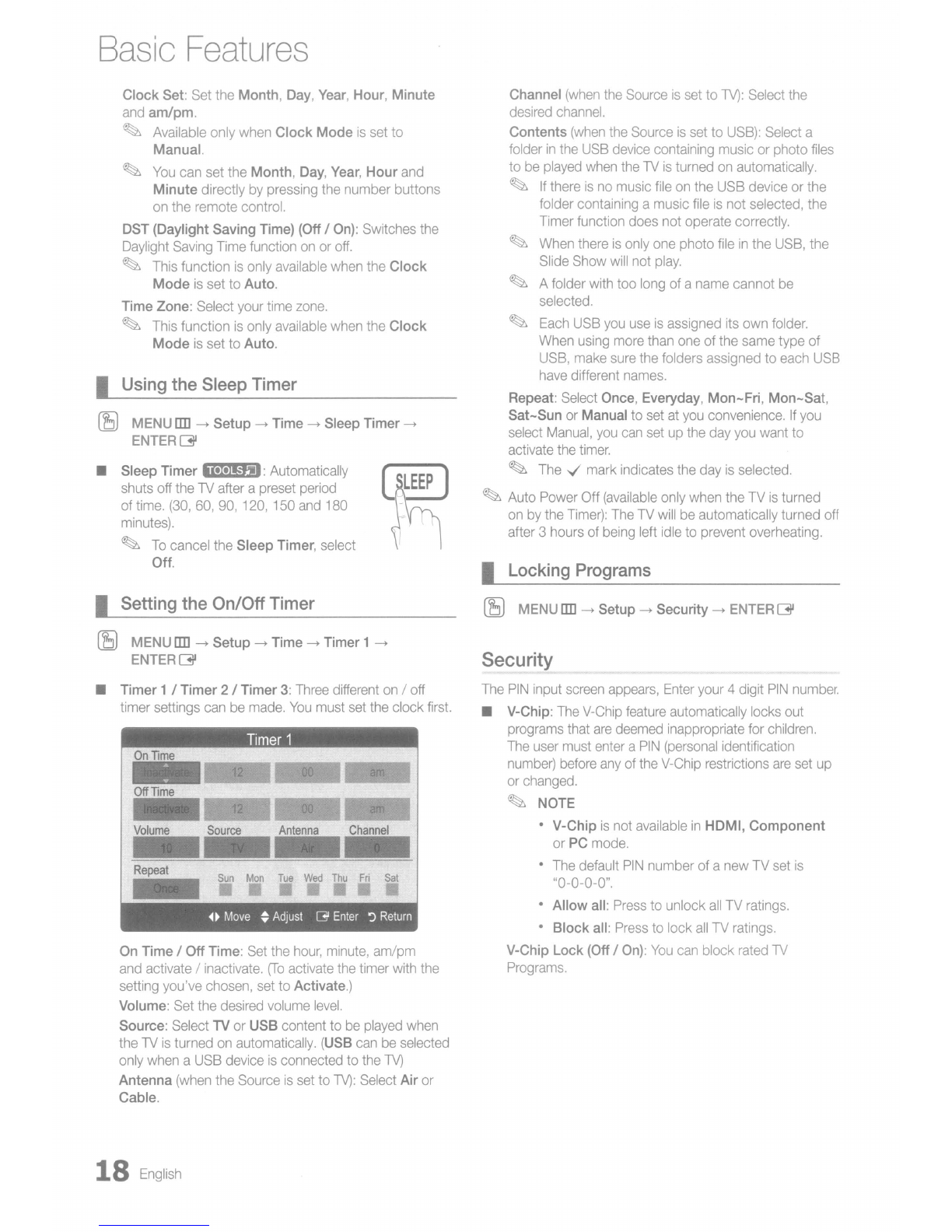

Using the Sleep Timer 18
Setting the On/Off Timer 18
Locking Programs 18
Other Features 20
Picture In Picture (PIP) 21
• Support Menu 21
Advanced Features
• Network Connection 23
Connecting to a Wired Network 23
Connecting Wireless Network 25
• Media Play 28
Connecting a USB Device 28
Connecting to the PC through network 28
Screen Display 30
Playing Multiple Files 33
Media Play - Additional Functions 33
• Anynet + 35
Setting Up Anynet + 36
Switching between Anynet+ Devices 36
Recording 36
Listening through a Receiver 37
Troubleshooting for Anynet + 37
• AIIShare , 38
About AIlShare 38
Setting Up AIIShare 38
Other Information
• Installing the Wall Mount , 40
• Securing the TV to the Wall 41
• Assembling the Cables 42
• Anti-theft Kensington Lock 42
• Troubleshooting 43
• Specifications, , , 46
License 46
• Dimensions , 47
• Index 48
Check the Symbol!
ii'I"£fiI
This function can be used by pressing the
TOOLS button on the remote control.
Note:
Important information
Step by step guide:
Informs you how to access
the menu.
English 3

Getting Started
List of Features
•Excellent Digital Interface &Networking: With abuilt-in HD digital tuner, nonsubscription HD broadcasts can be viewed
without a cable box / STB (Set -Top-Box) satellite receiver.
• Media Play: Allows you to play music files, pictures, and movies saved on a USB device. (P. 28)
• AIIShare™: Allows you to configure a mobile message server media render. (P. 38)
•Self Diagnosis:You can check picture and sound operation. (P. 21)
Accessories
~ Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.
~ The items' colors and shapes may vary depending on the models.
• Remote Control (BN59-01041A) & Batteries (AAA x 2)
• Owner's Instructions
• Warranty Card / Safety Guide /Quick Setup Guide
• Cleaning Cloth (BN63-01798B)
•PowerCord
F.d) (M8 XL 19: 46inch TV)
(M6 XL 16: 32 - 40inch TVs)
• Blanking Bracket (BN63-06339A)
(LN32C550: BN63-06389A)
• Cable Tie
(BN61-05596A)
Installing the LCD TV Stand
Components
When installing the stand, use the provided components and parts.
~or
1EA~
@
9EA (M4 XL 12)
Stand
Guide Stand Screws
o
Top View
i~
,: ~ ..
@--_ ....
4EA
@-_.\
1EA .
4 English

o
.....
© .. '\,
4EA
o
~
~7 .
1.!'~ ~ :\ 1j
'--~---','!_------------ ,---~\\_---------_._-------.
• s~. IB V· ·
; ~s 1 1 ottom lew (- --~
: ~ . : ,0:
I s~. ,---' 0•
· , ...------.....---,0 ---,
.. ~.
: I · :: ( 0' :
:. . :: .:
: ::~ C>:
'i~1
' .. .. __ .. _.~ .. ~ ....... __ .. _f
~ Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.
~ Make sure that at least two persons lift and move the LCD TV.
~ Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to one
side.
Viewing the Control Panel
~ The product color and shape may vary depending on the model.
Power Indicator
I
-VOL +v CH A • <9
• SOURCE(3J MENU
Remote control sensor
I
--
Speakers
" (Power)
Remote control sensor
SOURCE(3JI
MENU
-VOL+
VCHA
Power Indicator
Turns the TV on or off.
Aim the remote control towards this spot on the TV.
Toggles between all the available input sources. In the on-screen menu, use this
button
as you would use the ENTER [31 button on the remote control.
Displays an on-screen menu, the OSD (on screen display), of your TV's features.
Adjusts the volume. In the OSD, use the - VOL +buttons as you would use the ...
and ~ buttons on the remote control.
Changes the channels. In the OSD, use the V CH Abuttons as you would use the
T and Abuttons on the remote control.
Blinks and turns off when the power is on and lights up in standby mode.
Standby mode
Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount
of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.
English 5

Getti ng Started
Viewing the Remote Control
This is aspecial remote control for the visually impaired persons and has Braille points on the Power, Channel, Volume
buttons.
Cut off the sound temporarily.
Changes channels.
Turns the remote control light on and off.
When on, the buttons become illuminated for a
moment
when pressed.
(Using the remote control with this button set to
off will reduce the battery usage time.)
Returns to the previous channel.
S.MODE: Selects the sound mode. (P. 16)
SLEEP: Automatically shuts off the TV at a
preset time. (P. 18)
MTS: Press to choose stereo, mono or Separate
Audio Program (SAP broadcast). (P. 17)
RMODE: Selects picture mode. (P. 14)
RSIZE: Choose the picture size. (P. 15)
CC: Controls the caption decoder. (P. 20)
Buttons used in the Channel list, Media Play
menu, etc.
Press to display information on the TV screen.
(P.17)
Exit the menu.
Displays Favorite Channel Usts on the screen.
(P.12)
Displays the main on-screen menu.
SUNG
SA
(c POWER 0 IOFF ~
--II-I· SOURCE ~
---C£)
CD0CD
__ ---I
0ITJCD
[D[D[IJ
118(TI~
+(ill. II
H· ~ ~ ~I('-II
I " MENU /,------
~[§J~-JL
I ~ T~LS INfO JL
-----.I. ~
Turns the TV on and off.
Returns to the previous menu.
Use these buttons in Media Play and
Anynet+ modes.
(00: controls recording on Samsung
recorders with the Anynet + feature)
Selects the on-screen menu items and
changes the values seen on the menu.
Press to directly access to channels.
Adjusts the volume.
Displays and selects the available video
sources. (P. 11)
Displays the channel list on the screen.
(P. 12)
Views Media Play.
(P.28)
Quickly select frequently used functions.
Press to select additional channels (digital)
being broadcast by the same station. For
example, to select channel 154-3' press
154', then press 1-' and 13'.
Installing batteries (Battery size: AAA)
.............
.. ..
~... . ...
..
..
..
f ~
,.
.:
.
.
~ .
~~ ~
.. ..
............ ....
~ NOTE
• Use the remote control within 23 feet from the TV.
•Bright light may affect the performance of the remote
control. Avoid use when nearby fluorescent lights or neon
signs.
•
The color and shape may vary depending on the model.
6 English

Connecting to an Antenna
When the TV is initially powered on, basic settings proceed automatically.
~ Connecting the power cord and antenna.
Cable
VHF/UHF Antenna
~
~ Power Input
Plug &Play (Initial Setup)
When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the
POWERC) button. Plug &Play is available only when the Input source is set to TV.
~ To return to the previous step, press the red button.
Press the ENTER 13' button.
POWER
~
1
2
3
4
5
Selecting a language
Selecting Store Demo
or Home Use
Selecting an antenna
Selecting a channel
Setting the Clock
Mode
Viewing the HD
Connection Guide.
Enjoy your
lV.
Press the ENTER 13' button.
Press the A or T button, then select the desired OSD (On Screen
Display) language.
Press the ~ or ~ button, then press the ENTER [3J button.
• Select the Home Use mode. Store Demo Mode is for retail
environments.
• To return the unit's settings from Store Demo to Home Use
(standard): Press the volume button on the TV. When you see the
volume in the OSD, press and hold MENU for 5 sec.
Press the A or T button, then press the ENTER [3J button. Select Air, Cable or Auto.
~ In Cable mode, you can select the correct signal source among STD, HRC, and IRC
by pressing the A, T, ~ or ~ button, then press the ENTER 13' button.
The channel search will start automatically.
For more information, refer to Channel -+ Auto Program. (P. 12)
~ Press the ENTER 13' button at any time to interrupt the memorization process.
Set the Clock Mode automatically or manually.
~ If you select the Auto, set the daylight saving time.
Select the time zone where you live.
The connection method for the best HD screen quality is displayed.
If You Want to Reset This Feature ...
(SJ MENU []]] -+ Setup -+ Plug &Play -+ ENTER 13'
Menu Language
Caption
Security
Network
: English
: On
: Off
English 7

Connections
Connecting to an AV Device
Using an HDMI I DVI Cable: HD connection (up to 1 D8Dp)
We recommend using the HOMI connection for the best quality HO picture. Available devices: Available devices: OVO, Blu-ray
player, HO cable box, HO satellite receiver (STB).
~ HDMIIN 1(DVI), 2, 3, 4IPC/DVI AUDIO IN
When using an HOMI/OVI cable connection, you must use the HDMIIN 1 (DVI) jack for video. A OVO, Blu-ray
player, HO cable box, HO STB satellite receiver, cable box, or STB satellite receiver may require a OVI-HOMI (OVI
to HOM!) cable or OVI-HOMI (OVI to HOMI) adapter. The PC/DVI AUDIO IN jack is required for audio.
If an external device such as a OVO I Blu-ray player / cable box I satellite receiver (Set-Top Box) supporting
HOMI versions older than 1.3 is connected, the TV may operate abnormally (e.g. no screen display I no sound I
annoying flicker abnormal Color).
If there is no sound after connecting an HOMI cable, check the HOMI version of the external device. If you
suspect the version is older than 1.3, contact the provider of the device to confirm the HOMI version and request
an upgrade.
It is recommended you purchase an HOMI-certified cable. Otherwise, the screen may appear blank or a
connection error
may occur.
=====o::lIl_=-===~--===------'_-= """" """-
Using a Component (up to 1 D8Dp), Using an AudioNideo Cable (48Di only) Cable
Available devices: OVO, Blu-ray player, cable box, STB satellite receiver, VCR
~ COMPONENT IN I AV IN 1:
When connecting to AV IN 1, the
color of the AV IN 1[Y/VIDEO] jack
(Green) does not match the color of
the video cable (Yellow).
~ For better picture quality,
the Component connection
is recommended over the A/V
connection.
Yellow Red White Red Blue Green
8 English

Connecting to an Audio Device
"
o
::s
::s
CD
o
r+
S·
::s
en
--_':~ .-==II.-~r:
~ DIGITAL AUDIO OUT (OPTICAL)
• When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume
of both the TV and the system.
• 5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.
• When the receiver (Home Theater) is set to on, you can hear sound output from the TV's optical jack. When
the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the Home Theater receiver. When the
source is adigital component such as a DVD /Blu-ray player /cable box / STB (Set-Top-Box) satellite receiver
and is connected to the TV via HDMI, only 2 CH audio will be heard from the Home Theater receiver. If you
want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player /cable box / STB
satellite receiver directly to an amplifier or Home Theater.
~ AUDIO OUT: Connects to the audio input jacks on your amplifier/Home Theater.
• When connecting, use the appropriate connector (sold separately).
• When an audio amplifier is connected to the AUDIO OUT jacks: Decrease the volume of the TV and adjust the
volume level with the amplifier's volume control.
Red White
Using an Optical (Digital) or Audio (Analog) Cable Connection
Available devices: Digital Audio System, Amplifier, Home Theater
Connecting to a PC
Using an HDMI/DVI Cable Ia D-sub Cable
English 9

Connections
Display Modes (D-Sub and HDMI/DVI Input)
Optimal resolution is 1920X1 080@60Hz.
I
Mode
Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz)
Pixel Clock Frequency (MHz)
Sync Polarity (H I V)
IBM
640 x 350 31.469 70.086 25.175
+/-
720 x 400
31.469
70.087 28.322
-/+
640 x 480 35.000 66.667 30.240
-/-
MAC 832 x 624 49.726
74.551 57.284
-/-
1152 x 870
68.681
75.062 100.000
-/-
720 x 576 35.910 59.950 32.750
-/+
VESACvr
1152 x 864 53.783 59.959 81.750
-/+
1280 x 720 56.456
74.777
95.750
-/+
1280 x 960 75.231 74.857 130.000
-/+
640 x 480 31.469
59.940
25.175
-/-
640 x 480
37.861 72.809
31.500
-/-
640 x 480 37.500 75.000
31.500
-/-
800 x 600
37.879 60.317
40.000
+/+
800 x 600
48.077 72.188
50.000
+/+
800 x 600
46.875 75.000 49.500
+/+
1024 x 768 48.363
60.004
65.000
-/-
1024 x 768
56.476 70.069 75.000
-/-
1024 x 768 60.023 75.029 78.750
+/+
VESADMT
1152 x 864
67.500 75.000 108.000
+/+
1280 x 1024
63.981 60.020
108.000
+/+
1280 x 1024 79.976 75.025 135.000
+/+
1280 x 800 49.702
59.810
83.500
-/+
1280 x 800
62.795
74.934 106.500
-/+
1280 x 960 60.000
60.000
108.000
+/+
1280 x 720
45.000 60.000 74.250
+/+
1360 x 768 47.712 60.015
85.500
+/+
1440 x 900
55.935
59.887
106.500
-/+
1440 x 900 70.635 74.984 136.750
-/+
1680 x 1050 65.290
59.954
146.250
-/+
VESAGTF
1280 x 720
52.500
70.000 89.040
-/+
1280 x 1024 74.620 70.000 128.943
-/-
VESA DMT / DTV CEA
1920 x 10800 67.500
60.000 148.500
+/+
~ NOTE
• For HOMI/OVI cable connection, you must use the HDMIIN 1 (DVI) jack.
•
The interlace mode is not supported.
•
The set might operate abnormally if anon-standard video format is selected.
•Separate
and Composite modes are supported. SOG (Sync On Green) is not supported,
EX-LINK
(
c_o_n_n_e_c_to_r_f_o_r s_e_rv_i_c_e_O_n_IY_, J
Input Cables (Sold Separately)
VGA
Coaxial (RF) Composite (AV)
Component
HOMI-DVI HOMI
10 English
