Samsung UN40EH6030 Guide

mA UAL
imagine the possibilities
I hank yo_J lOt _,_Jrchasll_g llis Sams_Jng
_r¢_dUC[ I0 rec__ve rno[e complete service
please register you[ prod_ Jc! a[
www.samsung.com/register
Mode, I SerhJ No

%
%
%
%
%
%
If there is no music file on the USB device or you don't select a folder
containing a music file, the Timer function does not operate correctly.
If there is only one photo file in the USB, the Slide Show will not play.
A folder with a name that is too long cannot be selected.
Each USB device you use is assigned its own folder. When using more
than one of the same type of USB device, make sure the folders assigned
to each USB device have different names.
It is recommended that you use a USB memory stick and a multi card
reader when using On Timer.
The On Timer function may not work with USB devices with a built-in
battery, MP3 players, or PMPs made by some manufacturers because
these devices take a long time to be recognized.

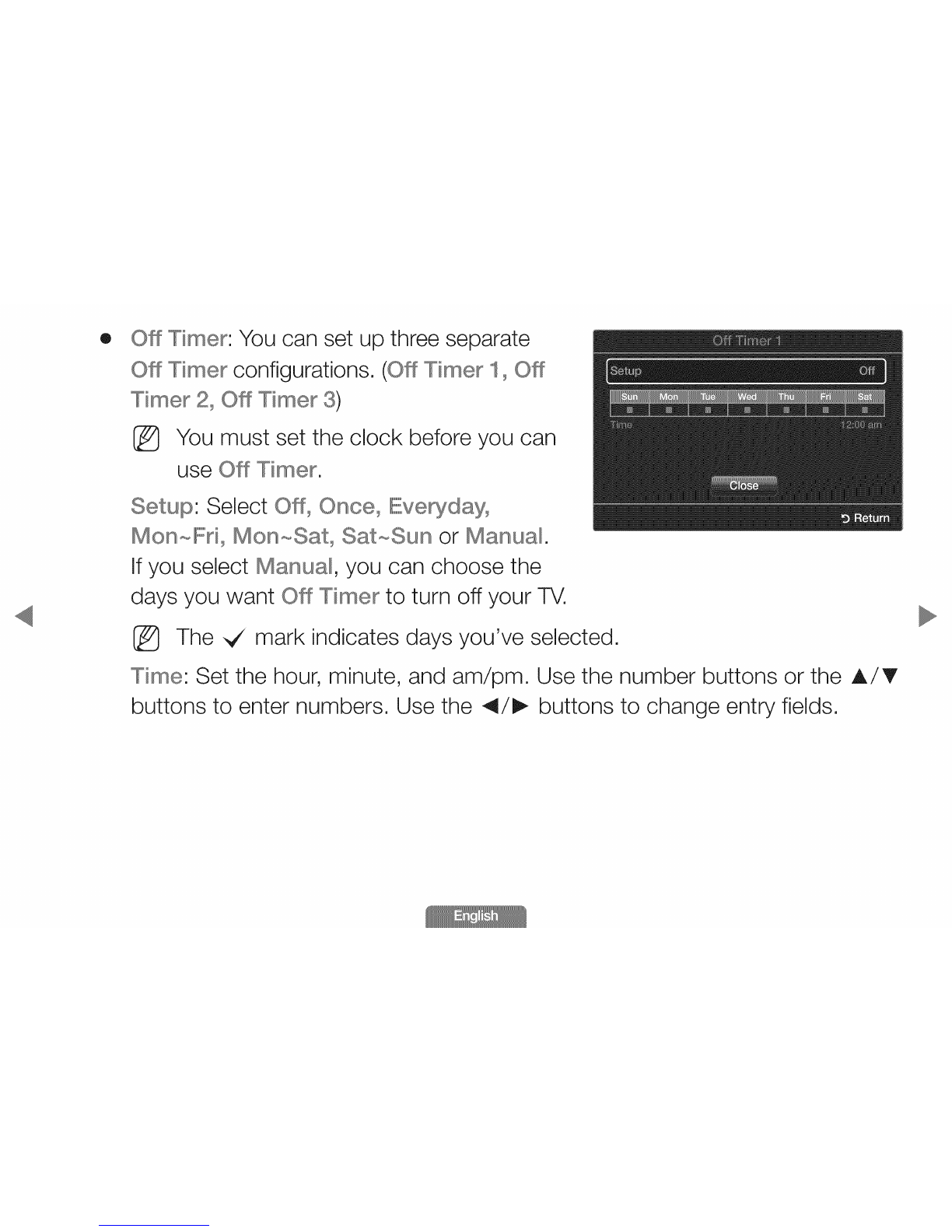

®Off Timer: You can set up three separate
Off Timer configurations, (Off Timer 10Off
Timer 20Off Timer 3)
I_ You must set the clock before you can
use Off Timer.
Setup: Select Off° Once°
MonoolFH0MonooSat0 Sat_Sun or Manual.
If you select Manual, you can choose the
days you want Off Timer to turn off your TV.
I_ The ,,/ mark indicates days you've selected.
Time: Set the hour, minute, and am/pm. Use the number buttons or the A/T
buttons to enter numbers. Use the 4/1_ buttons to change entry fields.

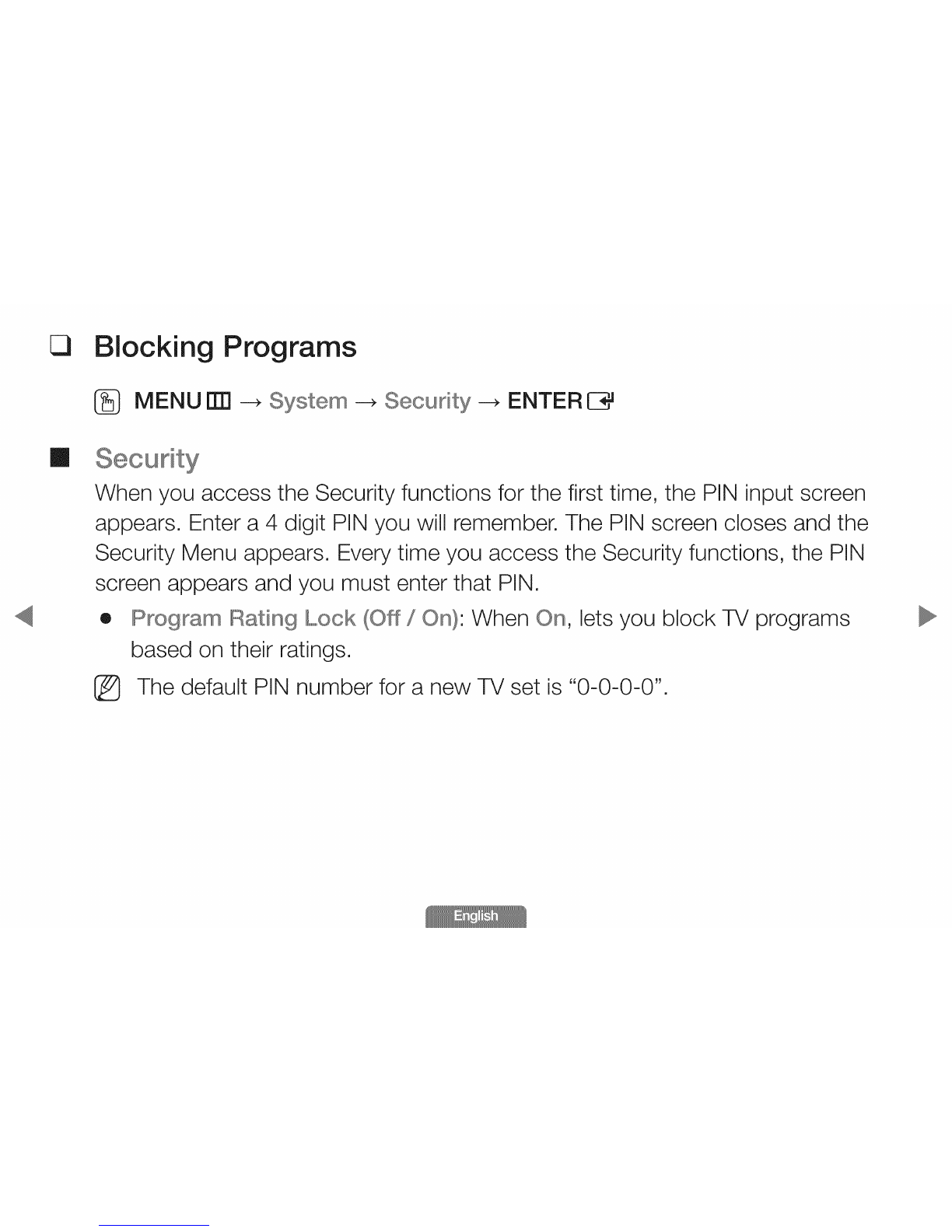

Cl ockin Programs
MENU lZi _ Syste_ --+ Security --+ ENTER E3_
m
When you access the Security functions for the first time, the PIN input screen
appears, Enter a 4 digit PiN you will remember, The PiN screen closes and the
Security Menu appears, Every time you access the Security functions, the PiN
screen appears and you must enter that PIN,
• Rating IL,,,,,ock(Of[ /On): When On, lets you block TV programs
based on their ratings,
_} The default PiN number for a new TV set is "0-0-0-0",

TV Rating: Lets you block TV programs based on their ratings, This function
allows you to control which TV programs your children can watch, _ Rating
displays a grid with locks, The following categories are on the left side:
TVoy: Young children/_oy7: Children 7 and over/_oG: General
audience /TVolPG:Parental guidance /TVo14: Viewers 14 and over /_o
MA: Mature audience
The following categories are on top:
- AII..............III............../IFV: Fantasy violence /V: Violence /S: Sexual situation /II..............:Adult
Language /ID: Sexually Suggestive Dialog
To block certain content, you select a lock, and press ENTER E3_(That
is, you "click it".). For example, click the lock at the intersection of V and
TV-MA, and you block all programs that are rated violent and for mature
adults. The locks are also assigned to related groups. For example, if you
click _oY under AILIIL,then _oy7 will also automatically be blocked.

Similarly, if you click _oG under AIILIIL, then all the categories in the young
adult group will be blocked (_oG0 TVolPG0 _o14 and _oMA), The sub-
ratings (D0 IL0 S0 V) work similarly, So, if you block the L sub-rating in _olPG,
then the L sub-ratings in _o14 and _oMA will automatically be blocked,
%To unblock a category, click the lock, To unblock all the categories in
a row, click the lock under AII,,,,,,,,,,,,,,III...............
%To watch a blocked program, you must enter the Security code when
requested,

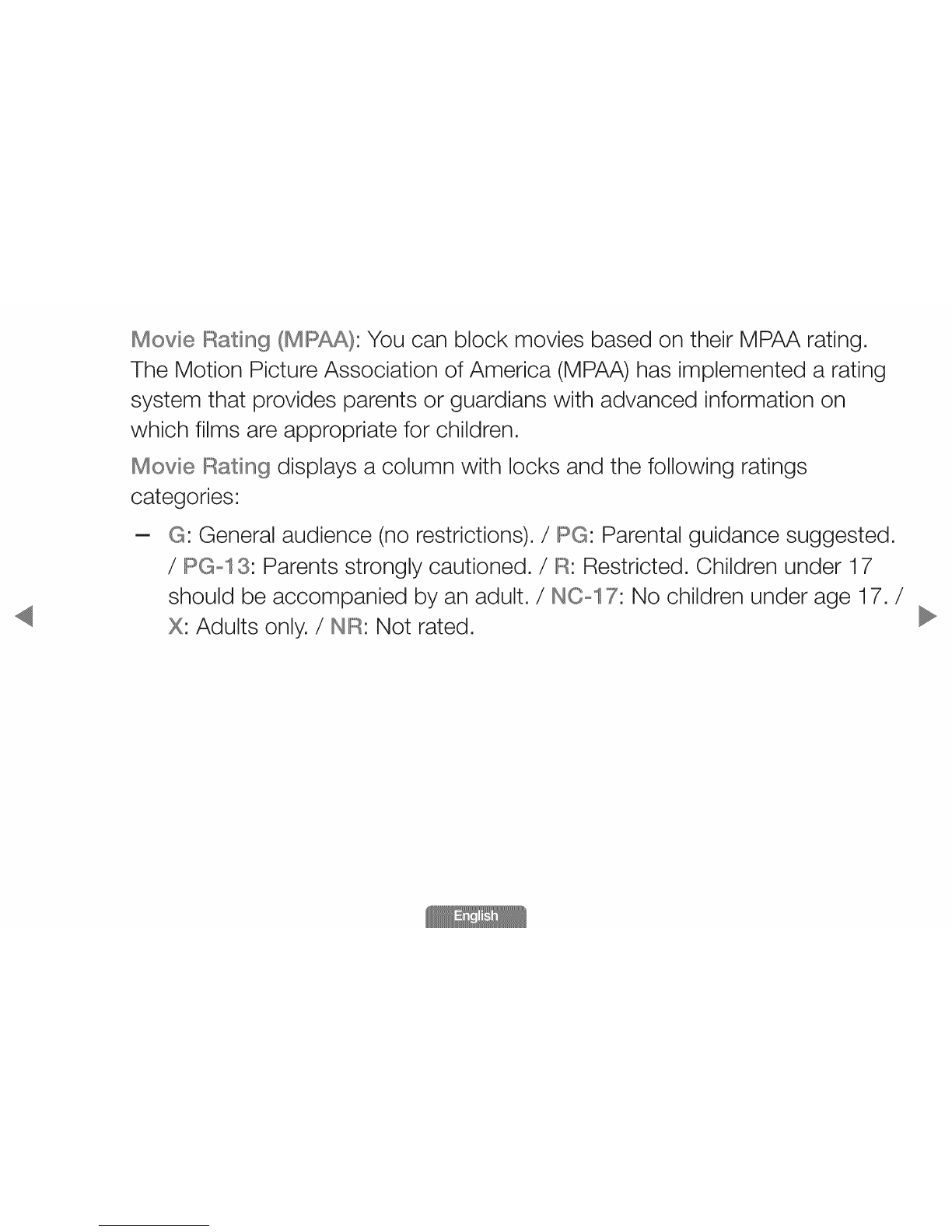

Rating (MP_): You can block movies based on their MPAA rating,
The Motion Picture Association of America (MPAA) has implemented a rating
system that provides parents or guardians with advanced information on
which films are appropriate for children,
Rating displays a column with locks and the following ratings
categories:
G: General audience (no restrictions),/IPG: Parental guidance suggested,
/IPGo13: Parents strongly cautioned,/R: Restricted, Children under 17
should be accompanied by an adult,/N0o17: No children under age 17,/
X: Adults only, /NIR: Not rated,

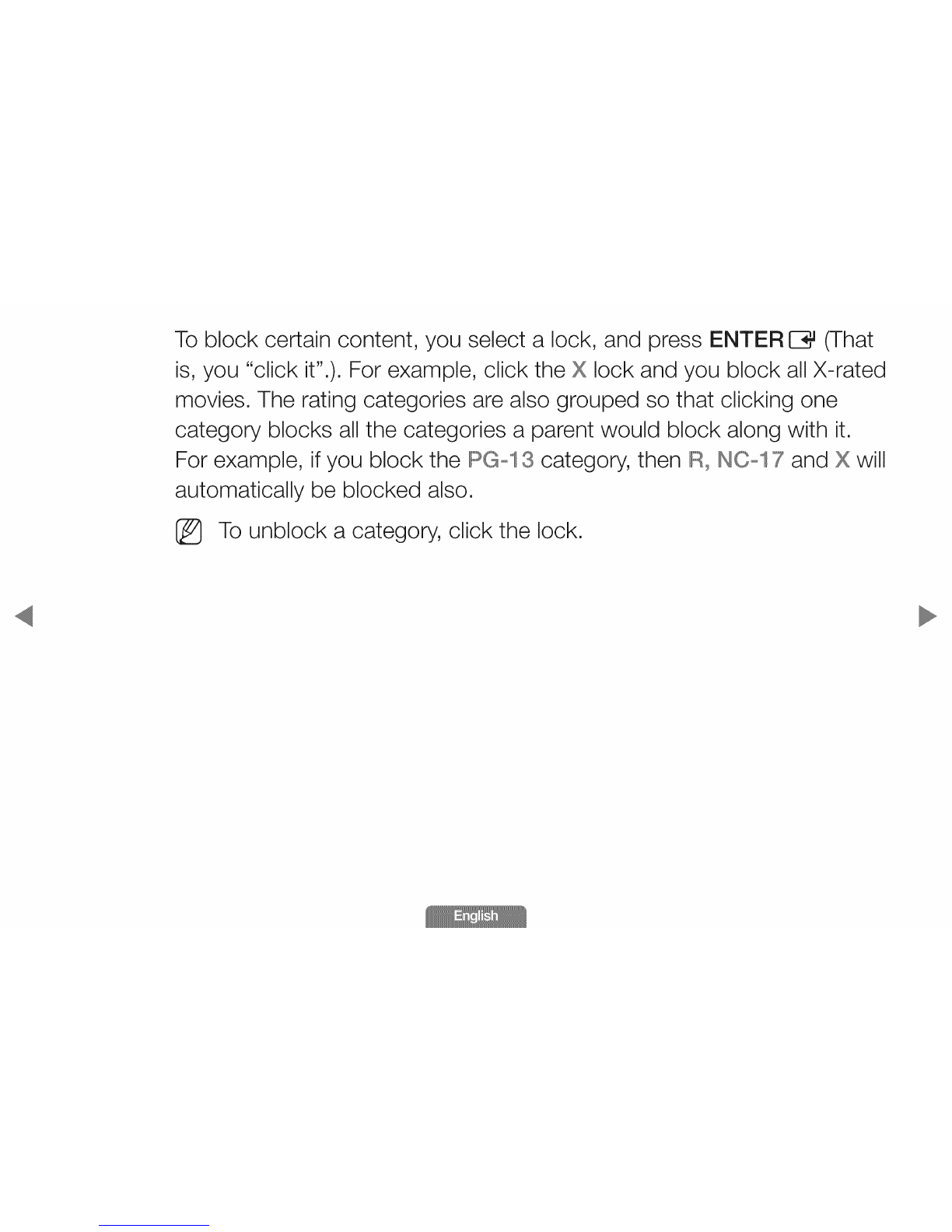

To block certain content, you select a lock, and press ENTER IB_ (That
is, you "click it".). For example, click the X lock and you block all X-rated
movies. The rating categories are also grouped so that clicking one
category blocks all the categories a parent would block along with it.
For example, if you block the IRGo13 category, then IR0 HOo17 and X will
automatically be blocked also.
I_ To unblock a category, click the lock.

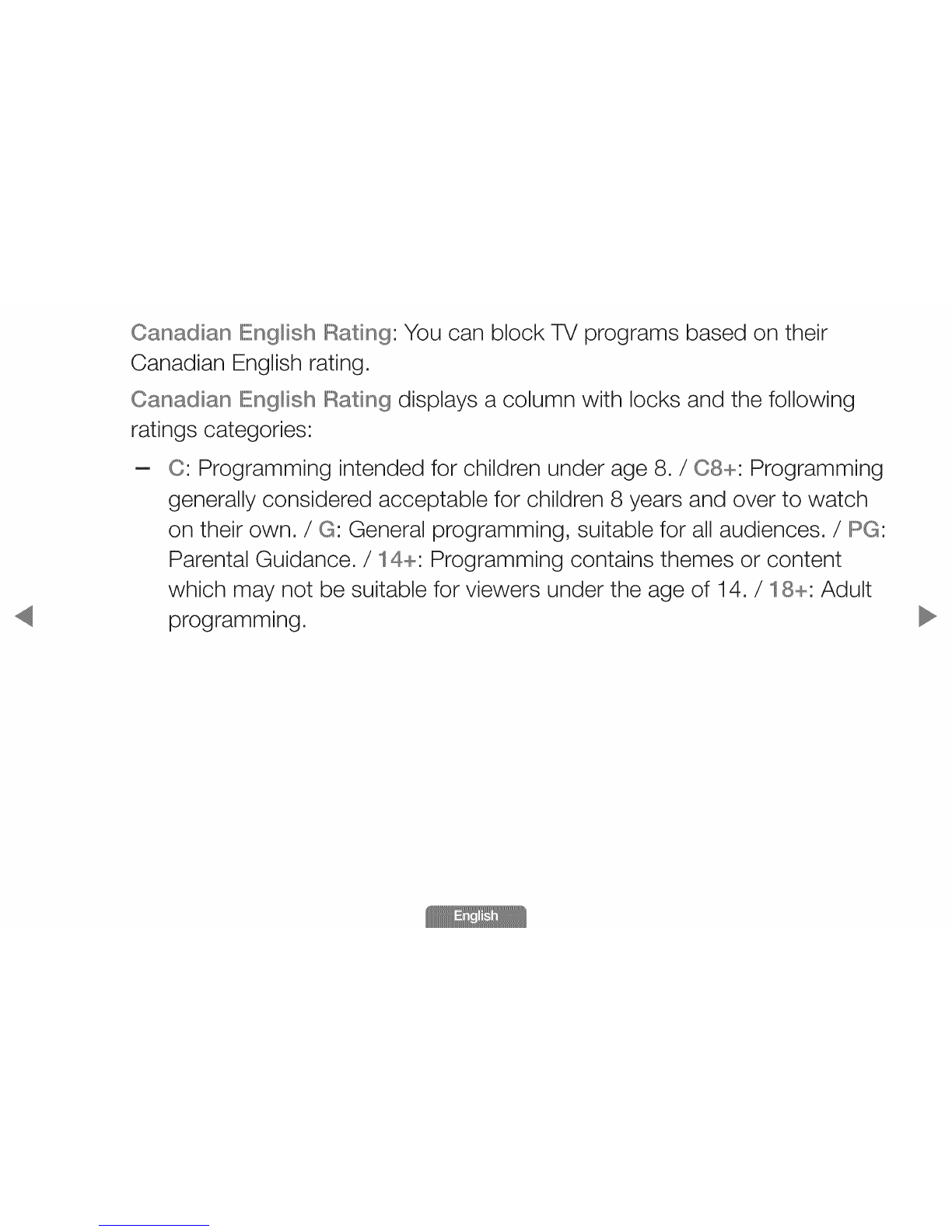

Canadian IEng_ish Rating: You can block TV programs based on their
Canadian English rating.
Canadian IEng_ish Rating displays a column with locks and the following
ratings categories:
Programming intended for children under age 8./C8÷: Programming
generally considered acceptable for children 8 years and over to watch
on their own./G: General programming, suitable for all audiences./IPG:
Parental Guidance./14÷: Programming contains themes or content
which may not be suitable for viewers under the age of 14. /18÷: Adult
programming.

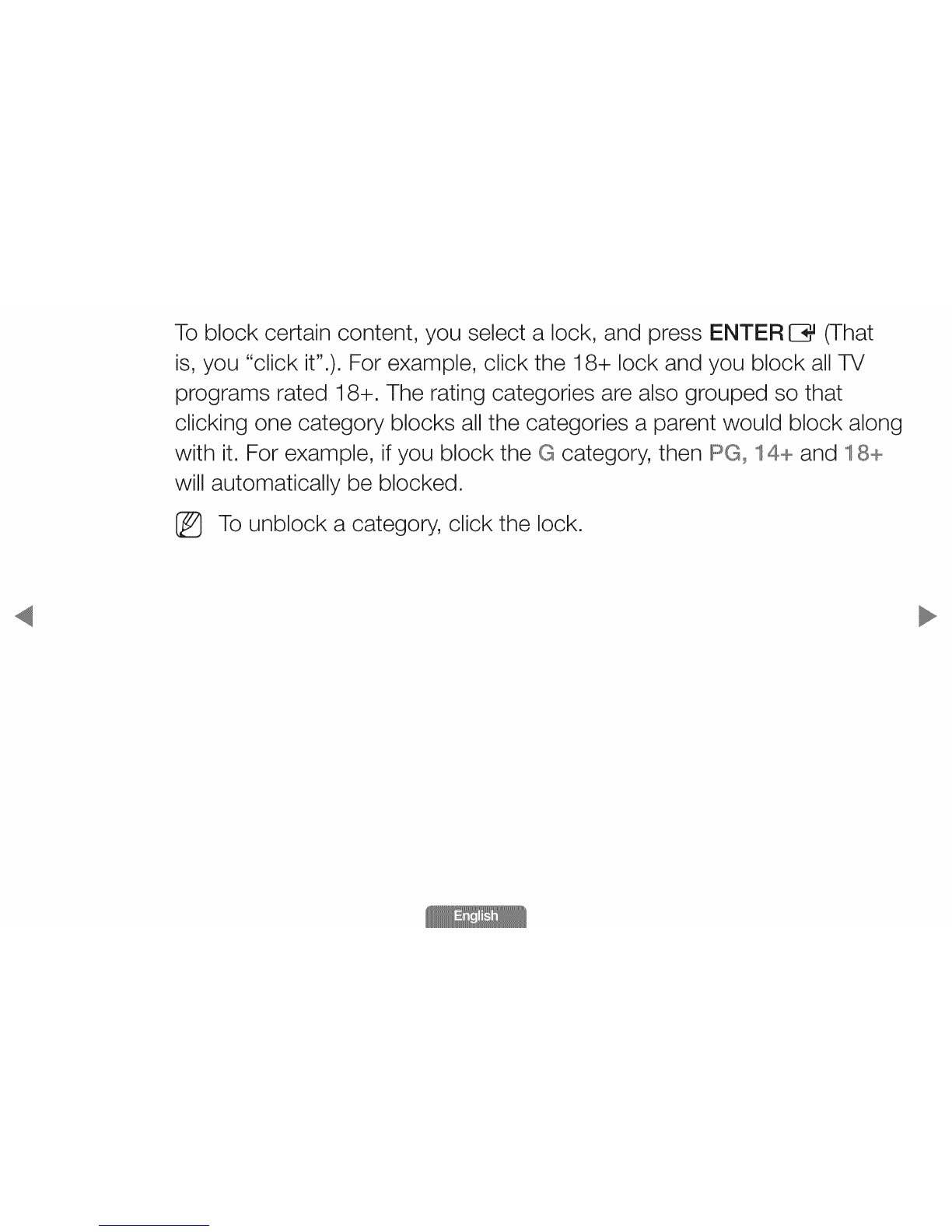

To block certain content, you select a lock, and press ENTER IB_ (That
is, you "click it".). For example, click the 18+ lock and you block all TV
programs rated 18+. The rating categories are also grouped so that
clicking one category blocks all the categories a parent would block along
with it. For example, if you block the G category, then IRG014+ and 18+
will automatically be blocked.
I_ To unblock a category, click the lock.

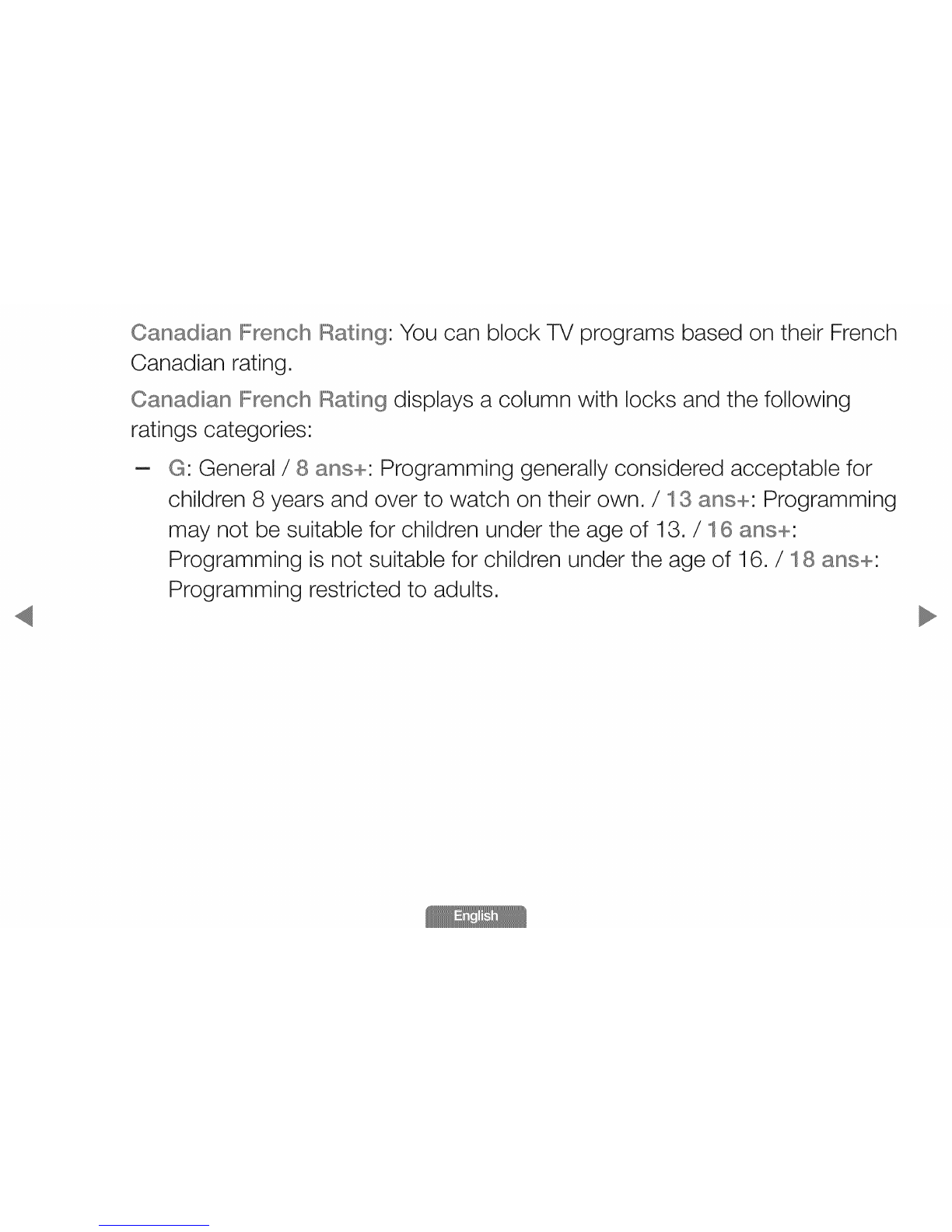

Canadian French Rating: You can block TV programs based on their French
Canadian rating.
Canadian French Rating displays a column with locks and the following
ratings categories:
G: General/8 arts+: Programming generally considered acceptable for
children 8 years and over to watch on their own,/1 3 arts+: Programming
may not be suitable for children under the age of 13, /16 arts+:
Programming is not suitable for children under the age of 16,/1 8 arts+:
Programming restricted to adults,

To block certain content, you select a lock, and press ENTER IB_ (That is,
you "click it".). For example, click the 18 ans+ lock and you block all TV
programs rated 18 ans+. The rating categories are also grouped so that
clicking one category blocks all the categories a parent would block along
with it. For example, if you block the 8 s+ category, then 13 s+, 16
s+ and 18 s+ will automatically be blocked also.
I_ To unblock a category, click the lock.

IDown_oadab_e UoSo Rating: Parental restriction information you can use
while watching DTV channels.
I_ NOTE
® If information is not downloaded from the broadcasting station,
Down_oadab_e UoSoRating menu is deactivated.
® Parental restriction information is automatically downloaded while you
watch DTV channels. It may take several seconds.
® The Down_oadab_e UoSoRating menu is available for use after
information is downloaded from the broadcasting station. However,
depending on the information from the broadcasting station, it may
not be available for use.

® Parental restriction levels differ depending on the broadcasting
station, The default menu name and IDown_oadab_e UoSoRating
change depending on the downloaded information,
® Even if you set the on-screen display to another language, the
IDown_oadab_e UoSoRating menu will appear in English only,
® Blocking one rating level will automatically block other categories that
deal with more sensitive material,
®The rating titles (For example: Humor Level,,etc) and TV ratings (For
example: DH, MH, H,,etc) may differ depending on the broadcasting
station,

®IPIIM:The Change IRIIHscreen wiii appear, Choose any 4 digits
for your PiN and enter it in Enter Hew IPIIH.Re-enter the same 4 digits in
Confirm Hew IPIIH,When the Confirm screen appears, press the C_ose
button, The TV has memorized your new PIN.
How to watch a restricted program or movie
If the TV is tuned to a restricted program or movie, the Rating Look
wiii block it. The screen wiii go blank and the following message wiii appear:
This channe_ is b_ocked by Program Rating IP_ease enter the IPIINto
unb_ock. Enter the PiN to unblock the program or movie,
%If you forget the PIN code, press the remote control buttons in the
following sequence in Standby mode, which resets the PiN to "0-0-0-0" :
MUTE _ 8 _ 2 _ 4 _ POWER (on)

C3 Economical Solutions
MENU | _ 8yste$ _ Eoo Solution _ ENTER _
mEoo Solution
® Energy Saving (Off /Low / Medium /High /Picture Of 0: Lets you adjust
the brightness of the TV in order to reduce power consumption. If you select
IPioture Off, the screen is turned off, but the sound remains on. Press any
button to turn on the screen again.
® IEco Sensor (Off /On): To enhance your power savings, the picture settings
will automatically adapt to the light in the room.
_} Ifyou adjust IBack_ig in the Picture menu, IEco Sensor is set to Off.

Mino IBack_ight: When I o Sensor is On, lets you manually adjust the
minimum screen brightness.
%If I o Sensor is On, the display brightness may change (become slightly
darker in most cases) depending on the surrounding light intensity. You
can control the screen's minimum brightness with the Mino IBack_ig
function.
®
®
Ho Signa_ Power Off (Off /15 mino/30 mino/60 mino}: Sets how quickly
the TV switches to standby mode if it is receiving no signal.
Disabled when an attached PC is in power saving mode.
Auto Power Off (Off /On}: The TV will automatically turn off if you don't press
a button on the remote control or touch a button on TV's front panel within 4
hours,
%If the Auto Power Off option is set to Off, the TV will stay on even if no
operations are performed on the TV,

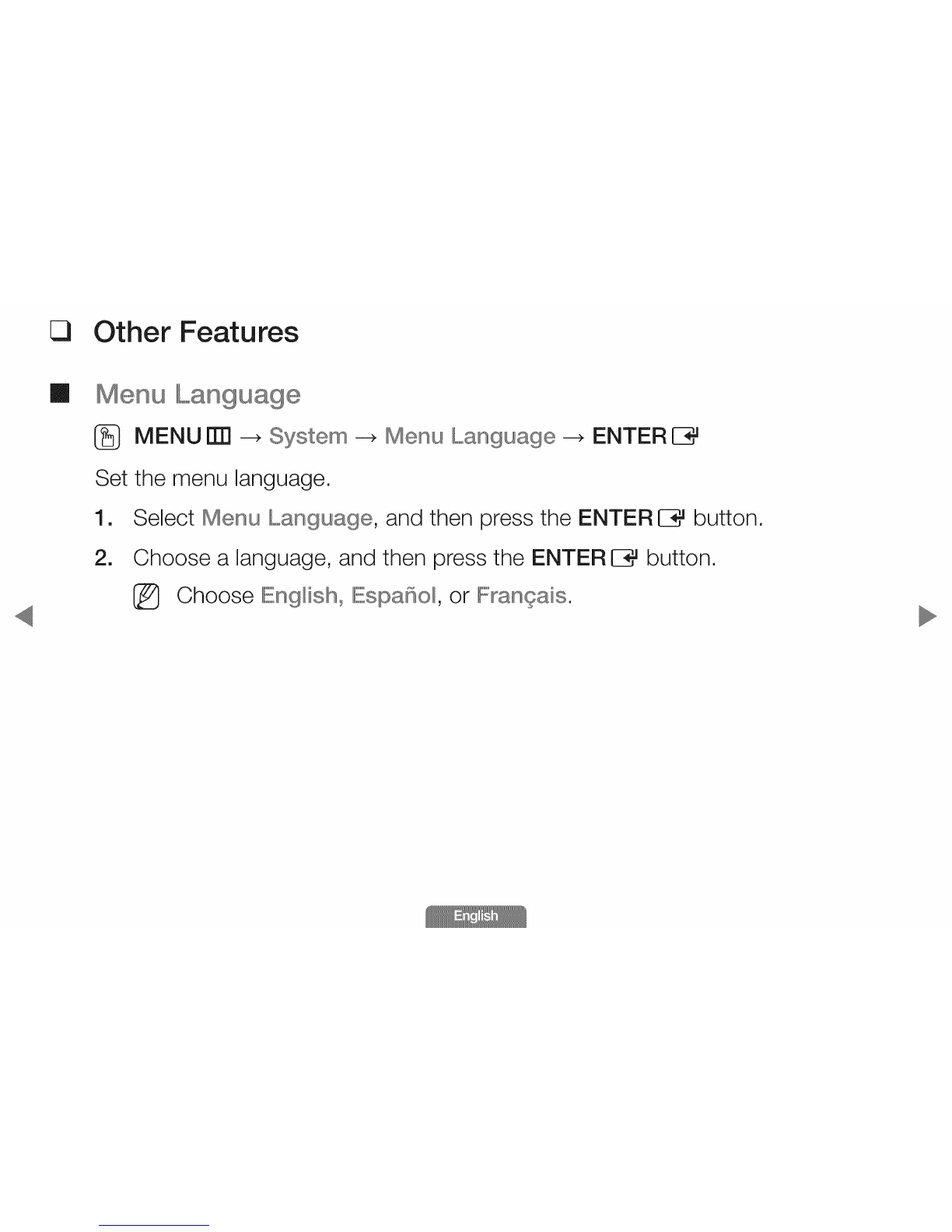

Cl Other Features
mMenu L,,anguage
MENU | --_ Syste_ --_ Menu Language --_ ENTER 83_
Set the menu language.
1. Select Menu Language, and then press the ENTER IZ3_button,
2. Choose a language, and then press the ENTER IZ3_button,
Choose IEng_ish0IEspa_o_,or IFrangais.

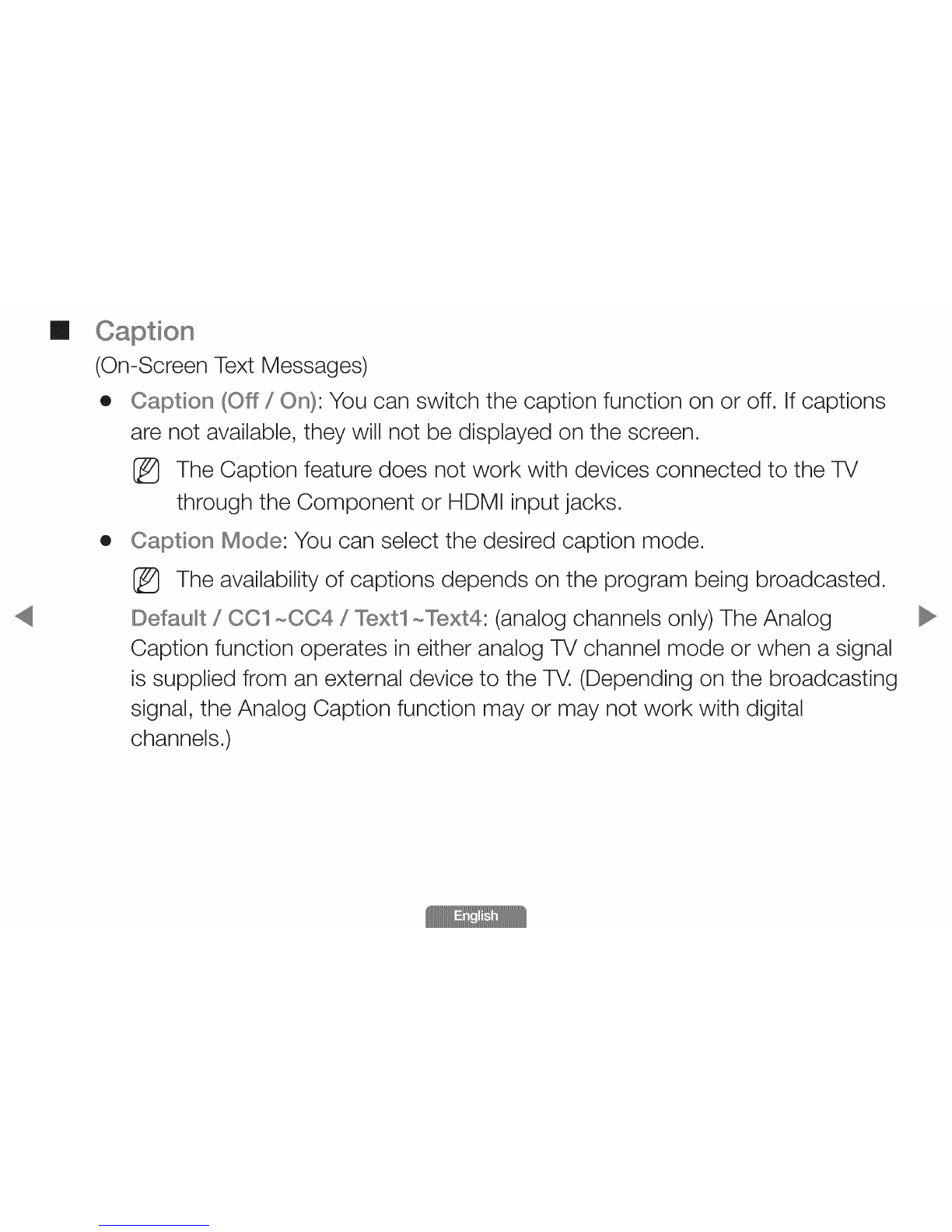

mCaption
(On-Screen Text Messages)
® Caption (Off /On}: You can switch the caption function on or off, If captions
are not available, they will not be displayed on the screen,
I_ The Caption feature does not work with devices connected to the TV
through the Component or HDMI input jacks,
®Caption Mode: You can select the desired caption mode,
I_ The availability of captions depends on the program being broadcasted,
IDefau_t/CC1 ooCC4/Text1 ooText4:(analog channels only) The Analog
Caption function operates in either analog TV channel mode or when a signal
is supplied from an external device to the TV, (Depending on the broadcasting
signal, the Analog Caption function may or may not work with digital
channels,)

®
IDefau_t/Sewicel ooService6 /CC1 ooCC4/Text1 ooText4:(digital channels
only) The Digital Captions function works with digital channels.
%Se_icel °°6may not be available in digital caption mode depending on
the broadcast.
IDigita_Caption Options: (digital channels only)
Size: Options include Default, Small, Standard and Large. The default is
Standard.
IFo Style: Options include Default and Styles 0 to 7. The default is Style 0.
Font Co,or: You can change the color of the letters. Options include Default
White, Black, Red, Green, Blue, Yellow, Magenta and Cyan. The default is
White.
