Samsung UE19D4003BW Guide

E-MANUAL
imagine the possibilities
Thank you for purchasing this Samsung
product. To receive more complete service,
please register your product at
www.samsung.com/register
Model __________ Serial No.____________

Contents
Channel
• UsingtheINFObutton
(Now&Nextguide)
• UsingChannelmenu
• RetuningChannels
1
2
17
Basic Features
• ChangingthePresetPictureMode
• AdjustingPictureSettings
• ChangingthePictureOptions
• ChangingthePresetSoundMode
• AdjustingSoundSettings
• SelectingtheSoundMode
27
28
34
41
42
50
Preference Features
• SettingtheTime
• UsingtheSleepTimer
• SettingtheOn/OffTimer
• LockingProgramme
• PictureInPicture(PIP)
• EconomicalSolutions
• OtherFeatures
• SupportMenu
51
53
54
58
60
62
65
76
Advanced Features
• UsingtheMyDownloads
• ConnectingaUSBDevice
• ScreenDisplay
• Music
• Photos
• MyDownloads-AdditionalFunctions
84
85
91
92
94
95
Other Information
• AnalogueChannelTeletextFeature
• Anti-theftKensingtonLock
• ConnectionsCommonInterfaceSlot
• Troubleshooting
• Licence
98
102
104
106
123

▶
❑Using the INFO button (Now & Next guide)
The display identifies the current channel and the status of certain audio-video
settings.
The Now & Next guide shows daily TV programme information for each channel
according to the broadcasting time.
●Scroll ◄, ►to view information for a desired programme while watching the
current channel.
●Scroll ▲, ▼to view information for other channels. If you want to move to the
currently selected channel, press the ENTEREbutton.
●The displayed image may differ depending on the model.
All
Information
English

◀ ▶
❑Using Channel menu
OMENUm→Support → Contents Home → ENTERE
Press the CONTENT button to select Watch TV, then select the desired menu.
Each screen will be displayed.
■Guide
The EPG (Electronic Programme
Guide) information is provided by
broadcasters. Using programme
schedules provided by broadcasters,
you can specify programmes you want
to watch in advance so that the channel
automatically changes to the selected
programme channel at the specified
time. Programme entries may appear
blank or out of date depending on a
channel status.
Guide
Schedule Manager
Channel List
Channel Manager
My Downloads
Watch TV
Source
●The displayed image may differ depending on the model.
English

◀ ▶
Using Guide
AC B D
Sche.Mgr
AC B D
-24 Hours
AC B D
+24 Hours
AC B D
Ch. Mode ;Information kPage ESchedule
DTV Air 3 five
Home and Away
19:00 - 19:30
Drama
Dani is devastated when scott makes clear his views on marriage...
Today 19:00 19:30 20:00 20:30
Tsunami Pri... The Curious...
No Information
No Information
No Information
1 Discovery
2 DiscoveryH&L
3 five
4 price-drop.tv
5 QVC
6 R4DTT
▼
Tine Team
Fiv...
No Information
Dark Angel
American Chopper
3 five
Guide 19:10 Tue 1 Jun
Channel View - All
1 2 3 4 5 6 7
Home and...
●The displayed image may differ depending on the model.
English

◀ ▶
1A
C B D
Red (Sche.Mgr): Moves to the reserved programmes in Sche.Mgr.
2
AC
B
D
Green (-24 Hours): Viewing the list of programmes to be broadcasted before 24
hours.
3
A
C
B D
Yellow (+24 Hours): Viewing the list of programmes to be broadcasted after 24
hours.
4
AC B
DBlue (Ch. Mode): Select the type of channels you want to display on the Channel
List window. (All, TV, Radio, Data/Other, Favourites 1-5)
5j(Information): Displays details of the selected programme.
6k(Page): Move to previous or next page.
7E(Watch / Schedule)
●When selecting the current programme, you can watch the selected
programme.
●When selecting the future programme, you can reserve to watch the selected
programme. To cancel the schedule, press the ENTEREbutton again and
select Cancel Schedules.
English

◀ ▶
■Schedule Manager
Cancel or set the Timer Viewing to display the channel you want at the intended
time.
Using Timer Viewing
You can set a desired channel to be displayed automatically at the intended time.
Set the current time first to use this function.
1. Press the ENTEREbutton to add programme to schedule manually.
2. Press the ◄/►/▲/▼ button to set the Antenna, Channel, Repeat, Date,
Start Time.
●Antenna: Select the desired broadcasting signal.
●Channel: Select the desired channel.
English

◀ ▶
●Repeat: Select Once, Manual, Sat~Sun,Mon~Fri or Everyday to set at
your convenience. If you select Manual, you can set the day you want.
NThe (c) mark indicates the day you’ve selected.
●Date: You can set the desired date.
NIt is available when you select Once in Repeat.
●Start Time: You can set the start time you want.
NIf you want to edit or cancel the schedule, select the reserved schedule on
the Schedule List, and select the Edit or Cancel Schedules.
English

◀ ▶
■Channel List
You can view channel information, All,
TV, Radio, Data/Other,Analogue or
Favourites 1-5.
NWhen you press the CH LIST
button on the remote control,
Channel List screen will be
displayed at once.
●All: Shows all currently available
channels.
●TV: Shows all currently available TV
channels.
●Radio: Shows all currently radio channels.
●Data/Other: Shows all currently available MHP or other channels.
●Analogue: Shows all currently available analogue channels.
●Favourites 1-5: Shows all favourite channels.
Air
AC B D
Antenna
AC B D
Programme View LCh.Mode EWatch kPage
Channel List
All
1
TV#1
2
The Spo...
BBC ONE glogal News
3
Pardon...
4
Real Sp...
6
The Daily
7
Pros vs.
8
Today
9
Pardon...
●The displayed image may differ depending on the model.
English

◀ ▶
NFavourites 1-5will be displayed when you set Add to Favourites.
NIf you want to view favourite channels you added, press the CH LIST button
and use L(Ch.Mode) button to move Favourites 1-5.
NUsing the remote control buttons with the Channel List.
●
AC B D
Red (Antenna): Switches to Air or Cable.
●
A
C
B D
Yellow (Programme View / Channel View): Displays the programme
when digital channel is selected. Returns to the channel view.
●L(Ch.Mode / Channel): Move to the All,TV,Radio,Data/Other,
Analogue, Favourites 1-5./ Change channels.
NWhen you press the
A
C
B D
(Programme View) button, you can move to
other channels using L(Channel) button.
English

◀ ▶
●E(Watch / Information): Watches the channel you select. / Displays
details of the selected programme.
●k (Page): Move to next or previous page.
Channel Status Display Icons
Icon Operations
aAn analogue channel.
)A reserved programme.
\A locked channel.
English

◀ ▶
How to use Timer Viewing in Channel List (digital channels only)
When you set the Timer Viewing in Channel List, you can only set the programme in
Programme View.
1. Press the CH LIST button, then select a desired digital channel.
2. Press the
A
C
B D
(Programme View) button.
3. Press the ▲/ ▼buttons to select the desired programme, then press the
ENTERE(Information) or INFO button.
4. Select Timer Viewing, then press the ENTEREbutton when done.
NIf you want to cancel Timer Viewing, follow steps 1 through 3. Select Cancel
Schedules.
English

◀ ▶

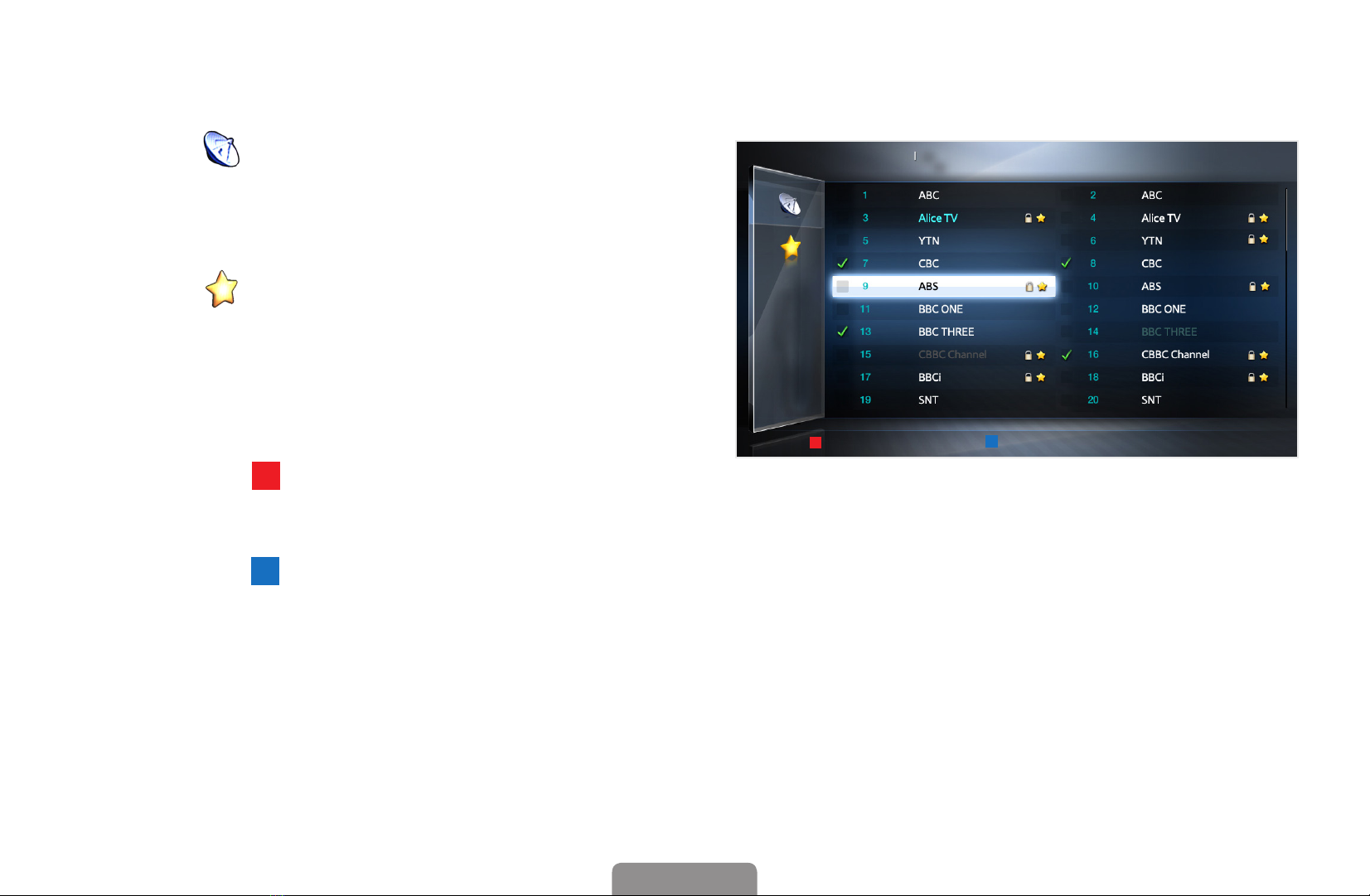

■Channel Manager
You can edit the channel to your preference.
●( ) Channels: Shows the
channel list according to the
channel type.
●( ) Favourites 1-5: Shows
favourite channels.
NUsing the colour buttons with the
Channel Manager.
●A
C B D
Red (Antenna): Switches to
Air or Cable.
●
AC B
DBlue (Sorting): Changes the
list ordered by channel number or channel name.
Air
AC B D
Antenna
AC B D
Sorting k Page ESelect TTools RReturn
Channel Manager
All
Selected item: 4 Channel number
●The displayed image may differ depending on the model.
1/2 page
English

◀ ▶
Channel Status Display Icons
Icon Operations
aAn analogue channel.
cA channel selected.
FA channel set as a favourite.
\A locked channel.
TDisplays the Channel Manager option menu.
English

◀ ▶
Channel Manager Option Menu t
Set each channel using the Channel Manager menu options (Watch, Add to
Favourites/Edit Favourites, Lock/Unlock, Edit Channel Name, Edit Channel
Number, Delete, Select All/Deselect All).
Option menu items may differ depending on the channel status.
1. Select a channel and press the TOOLS button.
2. Select a function and change its settings.
English

◀ ▶
●Watch: Watch the selected channel.
●Add to Favourites / Edit Favourites: Set channels you watch frequently as
favourites. / Add or Delete the selected channel in Favourites 1-5.
1. Select the Add to Favourites/Edit Favourites, then press the ENTERE
button.
NIf the channel is already added to favourite channel, Edit Favourites will
be shown.
2. Press the ENTEREbutton to select Favourites 1-5, then press the OK
button.
NOne favourite channel can be added in several of Favourites among
Favourites 1-5.
English

◀ ▶
●Lock/Unlock: Lock a channel so that the channel cannot be selected and viewed.
NNOTE
●This function is available only when the Channel Lock is set to On.
●The PIN input screen appears. Enter your 4-digit PIN. Change the PIN
using the Change PIN option.
●Edit Channel Name (analogue channels only): Assign your own channel name.
●Edit Channel Number: Edit the number by pressing the number buttons desired.
NSome area may not be able to support Edit Channel Name and Edit
Channel Number function.
English

◀ ▶
●Delete: You can delete a channel to display the channels you want.
●Deselect All: Deselect all the selected channels.
NYou can only select Deselect All when one or more channels are selected.
●Select All: Select all the channels in the channel list.
English

◀ ▶
❑Retuning Channels
OMENUm→Channel →ENTERE
■Antenna (Air / Cable) t
Before your television can begin memorising the available channels, you must
specify the type of signal source that is connected to the TV (i.e. an Air or Cable
system).
English

◀ ▶
■Country
(depending on the country)
The PIN input screen appears. Enter your 4 digit PIN number.
●Digital Channel: Change the country for digital channels.
●Analogue Channel: Change the country for analogue channels.
English
