Samsung BF62CCST User manual

imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/global/register
Built-In Oven
user manual
BF62CCBST
BF62CCST
BF62CCBST_GEN.indb 1 2008-09-09  7:20:13

2_ using this manual
using this manual
Thank you for choosing a SAMSUNG Built - In Oven.
This Owner’s Manual contains important information on safety and
instructions intended to assist you in the operation and maintenance of
your appliance.
Please take the time to read this Owner’s Manual before using your oven
and keep this book for future reference.
The following symbols are used in the text of this Owner’s Manual.
WARNING or CAUTION Important Note
safety instructions
Installation of this oven must be performed only by a licensed electrician.
The installer is responsible for connecting the appliance to the mains
power supply in observance of the relevant safety recommendations.
ELECTRICAL SAFETY
If the oven has been damaged in transport, do not connect it.
• This appliance must be connected to the mains power supply only by a specially
licensed electrician.
• In the event of a fault or damage to the appliance, do not attempt to operate it.
• Repairs should be performed by a licensed technician only. Improper repair may
result in considerable danger to you and others. If your oven needs repair, contact a
SAMSUNG Service Centre or your dealer.
• If the supply cord is defective, it must be replaced by a special cord or assembly
available from the manufacturer or an authorised service agent.
• Electrical leads and cables should not be allowed to touch the oven.
• The oven should be connected to the mains power supply by means of an approved
circuit breaker or fuse. Never use multiple plug adapters or extension leads.
• The rating plate is located on the right side of the door.
• The power supply of the appliance should be turned off when it is being repaired or
cleaned.
• Take care when connecting electrical appliances to sockets near the oven.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
BF62CCBST_GEN.indb 2 2008-09-09  7:20:13

safety instructions _3
WARNING: Accessible parts may become hot during use. To avoid burns young
children should be kept away.
WARNING: The appliance should be powered down before replacing the lamp to
avoid the possibility of electric shock. During oven operation, the interior surfaces
become very hot.
SAFETY DURING OPERATION
• This oven has been designed only for the cooking of household foods.
• During use, the oven interior surfaces become hot enough to cause burns. Do not
touch heating elements or interior surfaces of the oven until they have had time to
cool.
• Never store flammable materials in the oven.
• The oven surfaces become hot when the appliance is operated at a high temperature
for an extended period of time.
• When cooking, take care when opening the oven door as hot air and steam can
escape rapidly.
• When cooking dishes that contain alcohol, the alcohol may evaporate due to the
high temperatures and the vapour can catch fire if it comes into contact with a hot
part of the oven.
• For your safety, do not use high-pressure water cleaners or steam jet cleaners.
• Children should be kept at a safe distance when the oven is in use.
• Frozen foods such as pizzas should be cooked on the wire grill. If the baking tray is
used, it may become deformed due to the great variation in temperatures.
• Do not pour water into the oven bottom when it is hot. This could cause damage to
the enamel surface.
• The oven door must be closed during cooking.
• Do not line the oven bottom with aluminium foil and do not place any baking trays
or tins on it. The aluminium foil blocks the heat, which may result in damage to the
enamel surfaces and cause poor cooking results.
• Fruit juices will leave stains, which can become indelible on the enamel surfaces of
the oven. When cooking very moist cakes, use the deep pan.
• Do not rest bakeware on the open oven door.
• This appliance is not intended for use by young children or infirm persons without
the adequate supervision of a responsible person ensuring that they are using the
appliance safely.
• Young children should be supervised to ensure that they do not play with the
appliance.
• Small amounts of food require shorter cooking or heating time.
If normal times are allowed they may overheat and burn.
BF62CCBST_GEN.indb 3 2008-09-09  7:20:13

4_ disposal instructions
disposal instructions
DISPOSING OF THE PACKAGING MATERIAL
• The material used to package this appliance is recyclable.
• Dispose of the packaging materials in the appropriate container at your local waste
disposal facility.
DISPOSING OF OLD APPLIANCES
WARNING: Before disposing of old appliances, make them inoperable so that
they cannot be a source of danger. To do this, disconnect the appliance from
the mains supply and remove the mains lead. To protect the environment, it is
important that old appliances are disposed of in the correct manner.
• The appliance must not be disposed of with household rubbish.
• You can obtain information about collection dates and public refuse disposal sites
from your local refuse department or council.
BF62CCBST_GEN.indb 4 2008-09-09  7:20:13

contents _5
contents
INSTALLING THE OVEN
6
6 Safety instructions for the installer
6 Installing into a cabinet
7 Connecting to the mains power
supply
PARTS AND FEATURES
8
8 Oven
9 Oven controls
9 Accessories
10 Using the accessories
11 Safety shutoff
11 Cooling fan
BEFORE YOU BEGIN
12
12 Setting the clock
13 Initial cleaning
OVEN USE
14
14 Setting the Cooking Function mode
15 Setting the oven temperature
15 Switching the oven off
16 End time
16 Cook time
17 Delayed start
18 Kitchen timer
19 Auto Cook
20 Oven lamp on / off
20 Child safety function
20 Switching the beeper off
21 Oven functions
29 Test dishes
CLEANING AND CARE
30
31 Catalytic enamel surface
32 Cleaning the oven door
34 Side Runners
34 Cleaning the top heater
35 Changing the lamp
WARRANTY & SERVICE
36
36 FAQs and Troubleshooting
TECHNICAL DATA
38
38 Technical data
BF62CCBST_GEN.indb 5 2008-09-09  7:20:14

6_ installing the oven
installing the oven
Electrical installation of this appliance must be performed only by a licensed
electrician.
The oven must be installed according to the instructions supplied.
Remove the protective vinyl from the door after installation.
SAFETY INSTRUCTIONS FOR THE INSTALLER
• Installation must guarantee protection against exposure to electrically live parts.
• The unit in which the appliance is fitted must satisfy the requirements of DIN 68930
in respect of stability.
INSTALLING INTO A CABINET
• Observe minimum clearance requirements.
• Secure oven into place with screws on either side of the oven.
• The oven should be slid into place at the proper angle of alignment.
min. 20
min. 50
50
460
595
595
560
572
545
21
90°
min. 550
min. 560
min. 600
High Cabinet
min. 550
min. 560
min. 590 ~ max. 600
50
Low Cabinet
BF62CCBST_GEN.indb 6 2008-09-09  7:20:14

installing the oven _7
01 INSTALLING THE OVEN
CONNECTING TO THE MAINS POWER SUPPLY
Electrical connections must be made
as per the connection plate fixed
to the back of the appliance by an
electrical fitter who must ensure that the
appliance has been connected up in
accordance with fitting instructions and
local regulations.
Where the appliance is not connected
to the mains electricity supply by a plug, an omni polar cutout device (with a contacts
gap of at least 3 mm) must be fitted on the supply side of the connection to meet safety
requirements.
When power is connected, the electronics of the oven are initialised; this neutralizes
the lighting for a few seconds. The electric cable (H05 RR-F or H05 VV-F, Min.
1.5m, 1.5~2.5mm²) must be long enough for it to be connected to the built-in oven
standing on the floor in front of its unit.
Open the back cover of the oven at the bottom (using a flat-bladed screwdriver) and
completely unscrew the connection screw and the cable clamp before fitting conducting wires
into the appropriate terminals.
The earth wire must be connected to the ( ) terminal of the oven.
If the oven is connected to the power supply by a plug, this must remain accessible
once the oven has been fitted.
We cannot accept any liability in the event of an accident resulting from non-existent or
faulty earthing.
Live
Neutral
Earth
min. 5
BF62CCBST_GEN.indb 7 2008-09-09  7:20:14

8_ parts and features
parts and features

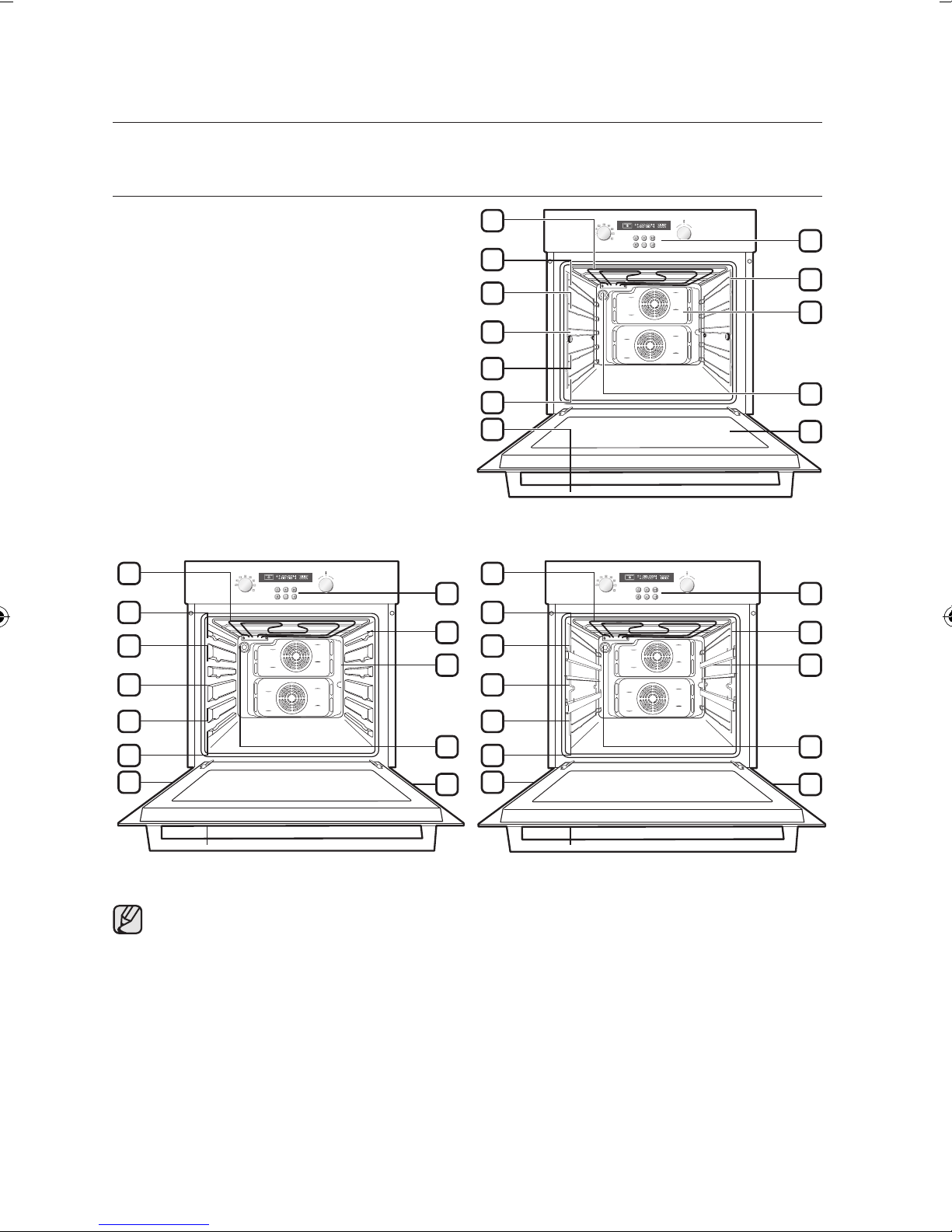

OVEN
1. Control panel
2. Side Runner
3. Catalytic enameled cover casing
4. Oven lights
5. Glass door
6. Top heating elements
7. Level 5
8. Level 4
9. Level 3
10. Level 2
11. Level 1
12. Door handle
Shelf levels are numbered from the bottom up.
Levels 4 and 5 are used mainly for the grill function.
Please refer to the cooking guides provided throughout this manual to determine
appropriate shelf levels for your dishes.
1
2
3
4
5
6
7
8
9
10
11
12
BF62C
BF62F
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
BF62T
BF62CCBST_GEN.indb 8 2008-09-09  7:20:15

parts and features _9
02 PARTS AND FEATURES
OVEN CONTROLS
1. Cooking Function Select Knob
2. Window Display
3. Time / Temp Control Knob
4. Lamp Button
5. Child Lock Button
6. Clock Button
7. Kitchen Timer Button
8. End Time Button
9. Cook Time Button
The Cooking Function Select Knob and the Time / Temp Control Knob are
pop - up knobs. Simply push to turn.
ACCESSORIES
The following accessories are provided with your oven.
Wire grill, for dishes, cake tins, roasting and grilling trays.
Baking tray, for cakes and biscuits.
Deep pan, for roasting or collecting meat juices or fat
drippings.
Rotisserie spit (Optional), comprises a spit, 2 prongs, a
removable handle and a cradle, which fits into the 3rd shelf
from the bottom. To use the rotisserie, fit the spit into the
hole in the rear wall of the oven’s interior. Place the deep
pan on level 1 when using the spit.
4 5 6 7 8 9
1 2 3
Front
Front
BF62CCBST_GEN.indb 9 2008-09-09  7:20:15

10_ parts and features
Rotisserie spit and Shasilik (Optional), to use it:
• Place the deep pan (no trivet) at level1 to collect the cooking juices or on the bottom
of the oven if the piece of meat to be roasted is too big.
• Slide one of the forks onto the spit; put the piece of meat to be roasted onto the spit;
• Parboiled potatoes and vegetables can be placed arount the edge of the deep pan
to roast at the same time.
• Place the cradle on the middle shelf and position with the “v” shape at the front.
• To help insert the spit, the handle can be screwed onto the blunt end.
• Rest the spit onto the cradle with the pointed end towards the back and gently push
until the tip of the spit entres the turning mechanism at the back of the oven. The
blunt end of the spit must rest on the “v” shape. (The spit has two lugs which should
be nearest to the oven door so to stop the spit going forward, the lugs also act as a
grip for the handle.)
• Before cooking unscrew the handle. After cooking screw the handle back on to help
remove the spit from the cradle.

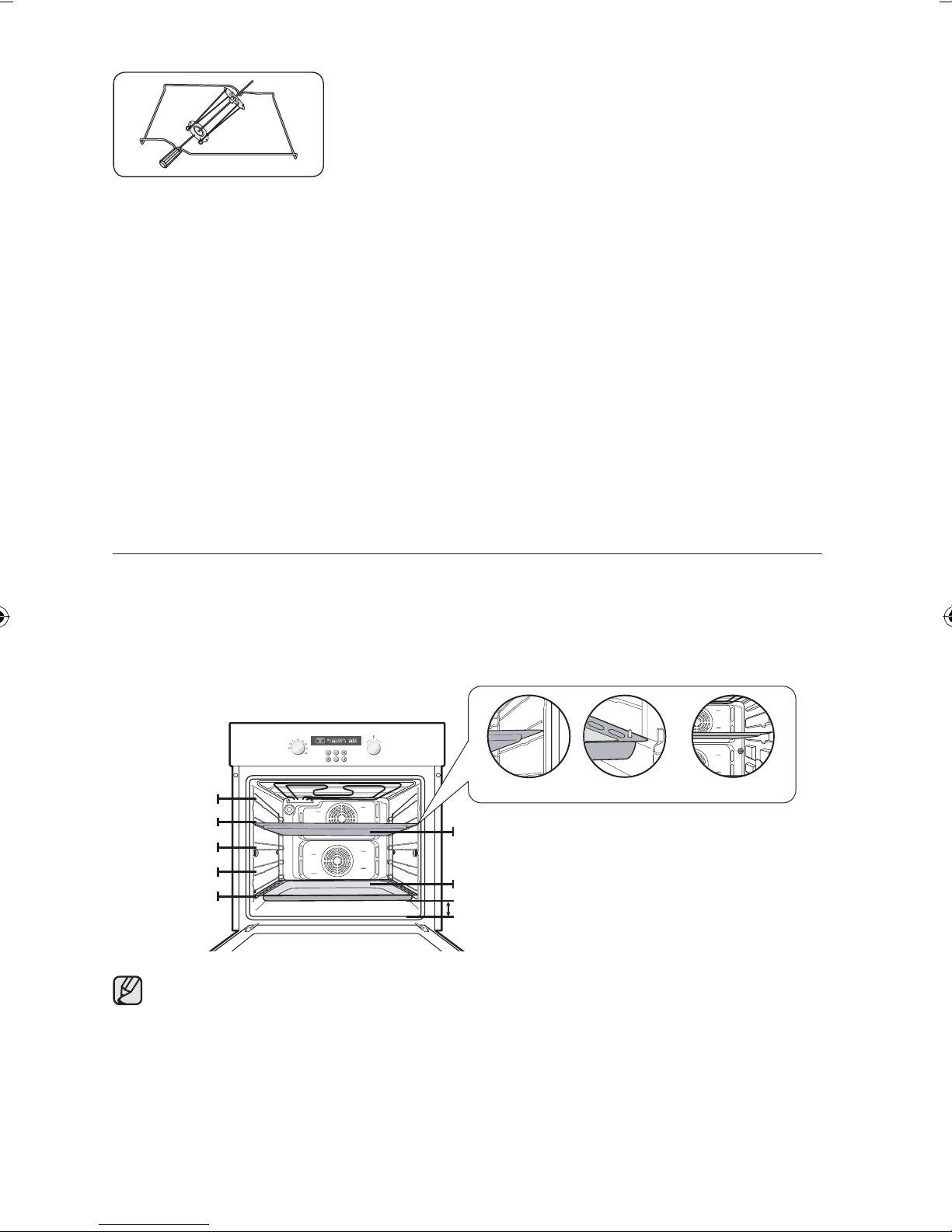

USING THE ACCESSORIES
The baking tray, deep pan and wire grill should be inserted correctly into the side
runners. When taking out the cooked foods from the oven, be careful of hot utensils and
surfaces.
Example : Level 1: Deep pan
Level 4: Baking tray
When using the deep pan or the baking tray to collect drippings from cooking
foods, ensure that the pan or tray is properly placed in the side runners. Allowing
these accessories to contact the bottom surface of the oven can damage the
enamel of the surface. Trays and pans placed on level 1 should clear the bottom
surface of the oven by at least 2 cm.
Baking tray
Deep pan
gap 2cm
Level 1
Level 2
Level 3
Level 4
Level 5 BF62C BF62T BF62F
BF62CCBST_GEN.indb 10 2008-09-09  7:20:16

parts and features _11
02 PARTS AND FEATURES
Wire grill, baking tray and deep pan
Positioning the wire grill
Insert the wire grill at any desired level.
Positioning the baking tray or deep pan
Insert the baking tray and/or the deep pan at any
desired level.
SAFETY SHUTOFF
• If a cooking time is not entered, the oven will shut itself off after the lengths of time
indicated below.
Shutoff times for various temperature settings
Under 105 °C 16 hours
From 105 °C to 240 °C 8 hours
From 245 °C to 300 °C 4 hours
• This oven’s electrical circuitry features a thermal shutoff system. If the oven
heats to abnormally high temperatures, the system will shut off the power
supply to the heating elements for a period of time.
COOLING FAN
During cooking, it is normal for the vent to release hot air from the front of the oven.
• The cooling fan will also continue to operate after the oven has been in use. It will
turn off when the internal cabinet temperature has dropped to 60 °C or after 25
minutes.
BF62CCBST_GEN.indb 11 2008-09-09  7:20:16

12_ before you begin
before you begin
SETTING THE CLOCK
When power is first supplied to the oven, the display on the control panel will light briefly.
After 3 seconds, an icon of a clock and 12:00 will begin blinking in the display. The oven
cannot be operated until the clock is set.
1 The oven is inoperable until the clock
has been set. “ ” and “12:00” will
blink in the display when power is first
supplied to the appliance. Press the
Clock button. The “ ” and “12: ”
will blink.
2 Turn the Time / Temp Control Knob
to set the hour of the day.
Example: To set 1:30
3 Press the Clock button.
The “ ” and “ :00” will blink.
4 Turn the Time / Temp Control Knob
to set the minute of the time. “ ” will
blink.
5 Press the Clock button to finish
setting the clock or wait for about 10
seconds. “ ” will disappear and
“30” will stop blinking. The display
shows the time of day. The appliance
is now ready to use.
BF62CCBST_GEN.indb 12 2008-09-09  7:20:16

before you begin _13
03 BEFORE YOU BEGIN
INITIAL CLEANING
Clean the oven thoroughly before using for the first time.
Do not use sharp or abrasive cleaning materials. These could damage the oven
surface. For ovens with enamel fronts, use commercially available cleaning agents.
To clean the oven
1. Open the door. The oven light comes on.
2. Clean all oven trays, accessories and side runners with warm water or
washing - up liquid and polish dry with a soft clean cloth.
3. Wash the oven interior in the same way.
4. Wipe the front of the appliance with a damp cloth.
Check that the clock is set correctly. Remove accessories and operate the
oven at the convection setting at 200 °C for 1 hour before using. There will be a
distinctive odor; this is normal, but ensure your kitchen is well ventilated during
this conditioning period.
BF62CCBST_GEN.indb 13 2008-09-09  7:20:17

14_ oven use
oven use
SETTING THE COOKING FUNCTION MODE
Turn the Cooking Function Select Knob to
select the desired oven function.
Oven Modes
The following table represents the various oven modes and settings of your
oven. Use the cooking guide tables for these modes in the following pages as
guidelines for cooking.
Mode Description
Conventional
Food is heated by top and bottom heating elements. This
setting is suitable for baking and roasting.
Top Heat + Convection
We recommend this mode when roasting meat. The top heating
element is in operation and the fans operate to circulate the hot
air coming from top and back wall heating element.
Convection
Food is heated by the hot air from the heating element in the
back and circulated by two fans. This setting provides uniform
heating and is ideal for frozen convenience food as well as cake
and croissants.
This mode can be used for baking on two levels.
Large Grill
Food is heated by the top heating elements. We recommend
this mode for grilling steaks and sausages as well as cheese
toasts.
Small Grill
This mode is ideal for grilling small amounts of foods, such as
baguettes, cheese or fish fillets.
Place the food in the middle of the wire grill, as only the smaller
heating element in the centre is operating.
BF62CCBST_GEN.indb 14 2008-09-09  7:20:17

oven use _15
04 OVEN USE

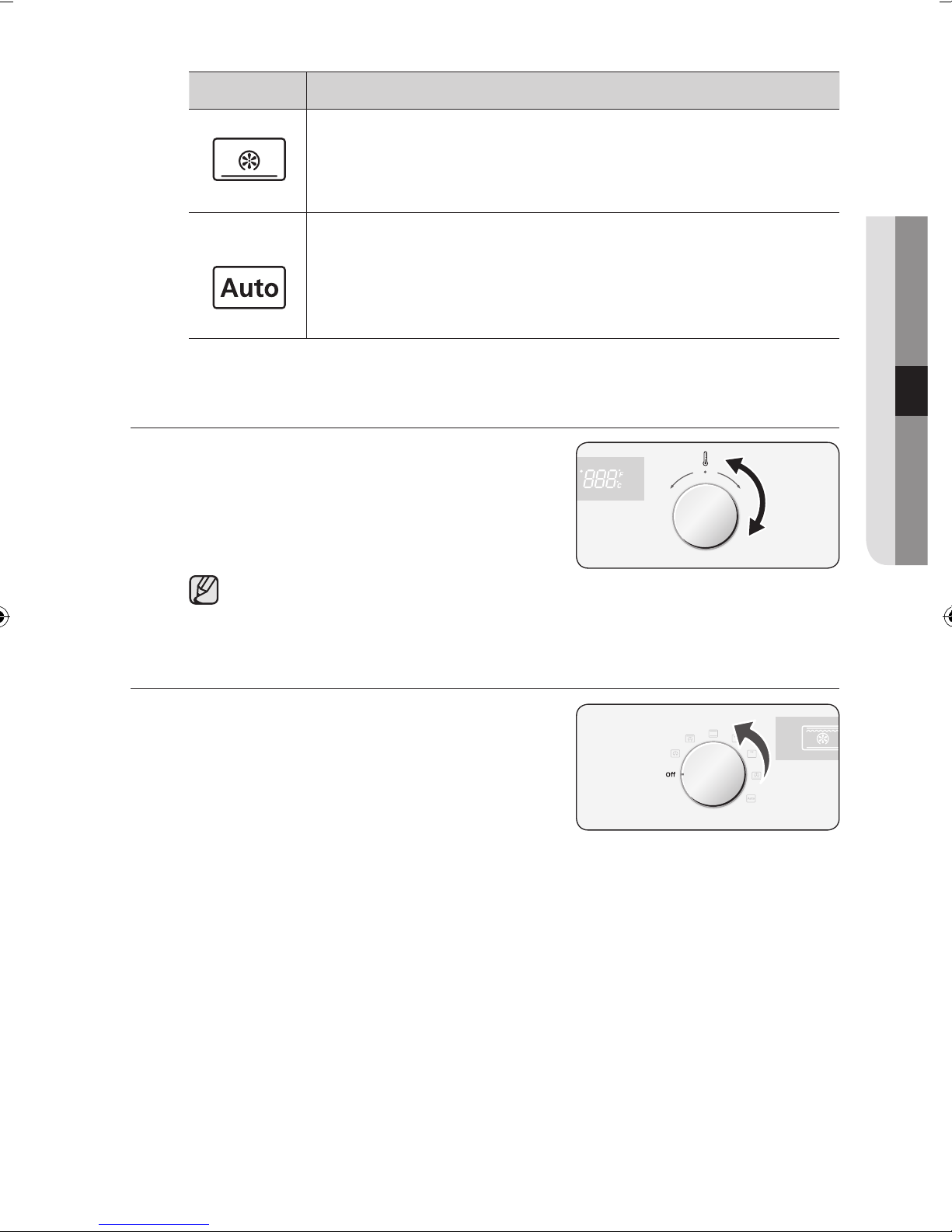

Mode Description
Bottom Heat + Convection
The bottom heating element and back wall heating element
provide hot air which is circulated by the fans. This mode is ideal
for baking food such as quiches, pizza, bread and cheesecakes.
Auto Menu Programmes
You can select 15 auto menu programmes for baking, roasting
and cooking. The mode, cooking time and temperatures are
pre- programmed for your convenience. You simply select the
item and appropriate serving option.
SETTING THE OVEN TEMPERATURE
1 Turn the Time / Temp Control Knob to
adjust the temperature in increments of 5
°C.
40 °C – 250 °C
40 °C – 300 °C (Large & Small Grill)
The temperature may be adjusted during cooking.
SWITCHING THE OVEN OFF
To switch the oven off, turn the Cooking
Function Select Knob to the “Off” position.
BF62CCBST_GEN.indb 15 2008-09-09  7:20:18

16_ oven use
END TIME
You can set the end time during cooking.
1 Press the End Time button.
Example: Current time is 12:00
2 Turn the Time / Temp Control Knob to
set the desired end time.
3 Press the End Time button.
The oven operates with the selected end
time automatically unless the End Time
button is pressed within 5 seconds.
During cooking, you can adjust the previously set end time with the Time /
Temp Control Knob for better results.
COOK TIME
You can set the cook time during cooking.
1 Press the Cook Time button.
2 Turn the Time / Temp Control Knob to
set the desired cook time.
3 Press the Cook Time button.
The oven operates with the selected cook
time unless the Cook Time button is
pressed within 5 seconds.
During cooking, you can adjust the previously set cook time with the Time /
Temp Control Knob for better results.
BF62CCBST_GEN.indb 16 2008-09-09  7:20:20

oven use _17
04 OVEN USE
DELAYED START
Case 1 - Cook time is entered first
If the end time is entered after the cook time has already been set, the cook time
and the end time are calculated and if necessary the oven sets a delayed start
point.
1 Press the End Time button.
Example: Current time is 15:00 and the
desired cook time is 5 hours.
2 Turn the Time/Temp Control Knob to set
the end time.
Example: You want to cook for 5 hours
and finish at 20:30.
3 Press the End Time button.
A “ ” symbol appears until the
delayed start point.
Case 2 - End time is entered first
If the cook time is entered after the end time has already been set, the cook time
and the end time are calculated and if necessary the oven sets a delayed start
point.
1 Press the Cook Time button.
Example: Current time is 15:00 and the
desired end time is 17:00.
2 Turn the Time / Temp Control Knob to
set the cook time.
Example: You want to cook for 1 hour and
30 minutes and end by 17:00.
3 Press the Cook Time button.
A “ ” symbol appears until the
delayed start point.
BF62CCBST_GEN.indb 17 2008-09-09  7:20:22

18_ oven use
KITCHEN TIMER
1 Press the Kitchen Timer button once. “
” flashes.
2 Turn the Time / Temp Control Knob to
set the desired time.
Example: 5 minutes
3 Press the Kitchen Timer button to start
the kitchen timer. When the set time has
elapsed, an audible signal sounds.
Press and hold the Kitchen Timer button for 2 seconds each to cancel the
timer.
BF62CCBST_GEN.indb 18 2008-09-09  7:20:24

oven use _19
04 OVEN USE

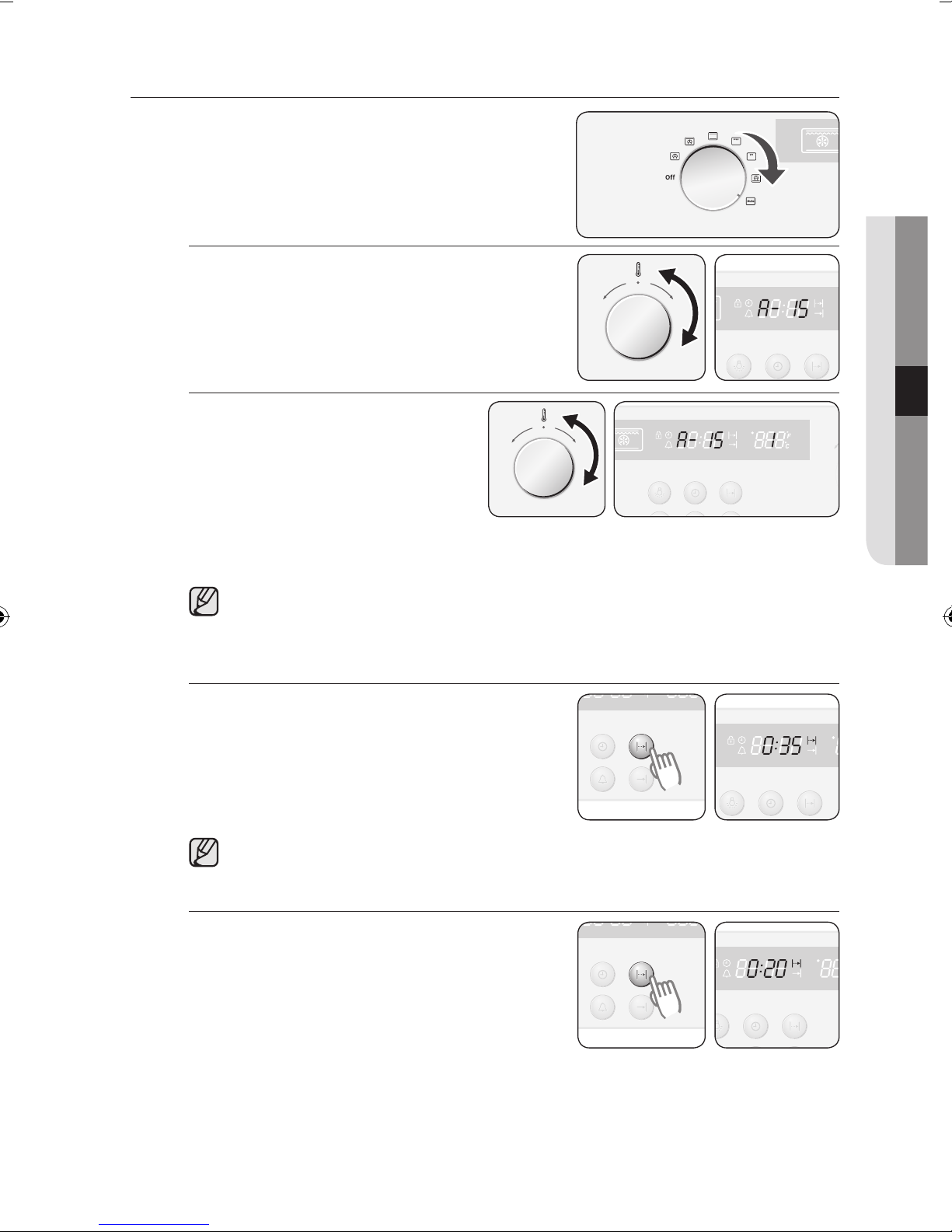

AUTO COOK
1 Turn the Cooking Function Knob to Auto
Cook.
2 Select the desired recipe by turning the
Time/Temp control knob to the right and
left. Wait to select weight 5 seconds after
selecting a recipe. For a recipe with weight
fixed, start cooking immediately.
3 Select the desired weight
by turning the Time/Temp
control knob to the right and
left. Preheating time(min:sec)
is displayed, and countdown
starts 5 seconds after the
weight is selected. For a recipe without preheating, remaining cooking
time(hr:min) is displayed.
Preheat countdown completed
Upon completion of preheating, the oven beeps and the remaining cooking
time(hr:min) is displayed. Keep “Preheat condition” until food is inserted into
the oven, and Cook Time button is pressed.
4 Press Cook Time button. Cook time
countdown is displayed. Stage-1 of
cooking starts.
When it reaches the time for “Turn Over/Around”
It beeps to inform the time for “Turn Over/Turn Around”. After “Turn Over/
Turn Around”, stop cooking and wait until Cook Time button is pressed.
5 Press Cook Time button. It stops beeping,
and the cooking restarts.
BF62CCBST_GEN.indb 19 2008-09-09  7:20:25

20_ oven use
OVEN LAMP ON / OFF
1 Press the Lamp button.
1st Off
2nd On
The lamp automatically turns off after 5 minutes.
CHILD SAFETY FUNCTION
You can use child lock function in stand-by status.
1 Turn Cook Function Select Knob to “Off”
position. Press the Child Lock button
hold for 3 seconds. ( ) will appear in the
display field.
2 Turn Cook Function Select Knob to “Off”
position. Press the Child Lock button hold
for 3 seconds again to unlock.
If locked, buttons and dials except unlock function button fail to operate.
SWITCHING THE BEEPER OFF
1 To turn the beeper off, press the Clock
and End Time buttons at the same time
and hold for 3 seconds.
2 To turn the beeper back on, press the
Clock and End Time buttons again at the
same time and hold for 3 seconds.
BF62CCBST_GEN.indb 20 2008-09-09  7:20:27
