Samsung NV51 5512 Series User manual

Built-In Electric Wall Oven
Installation manual
NV51*5512**
Install_NV51T5512SS_AC_DG68-00862B-00_EN+MES+CFR.indb 1 2020-04-29 �� 8:10:19

2 English
Contents
ContentsContents
Safety informations 2
Related equipment safety 2
Transport 2
Preparation 4
Checklist 4
Prepare to install the oven 4
Location requirements 5
Product dimensions 5
Cabinet dimensions 6
Installation instructions 9
Prepare built-in oven 9
Remove and replace oven door(s) 10
Electrical connection 12
Install oven 14
Self-diagnosis 15
Temp sensor & Heater check 15
Safety informations
Related equipment safety
Remove all tape and packaging before using the appliance. Dispose of the
packaging after unpacking the appliance. Never allow children to play with
packaging material.
Never modify or alter the construction of the appliance. For example, do not
remove panels, wire covers or screws.
Transport

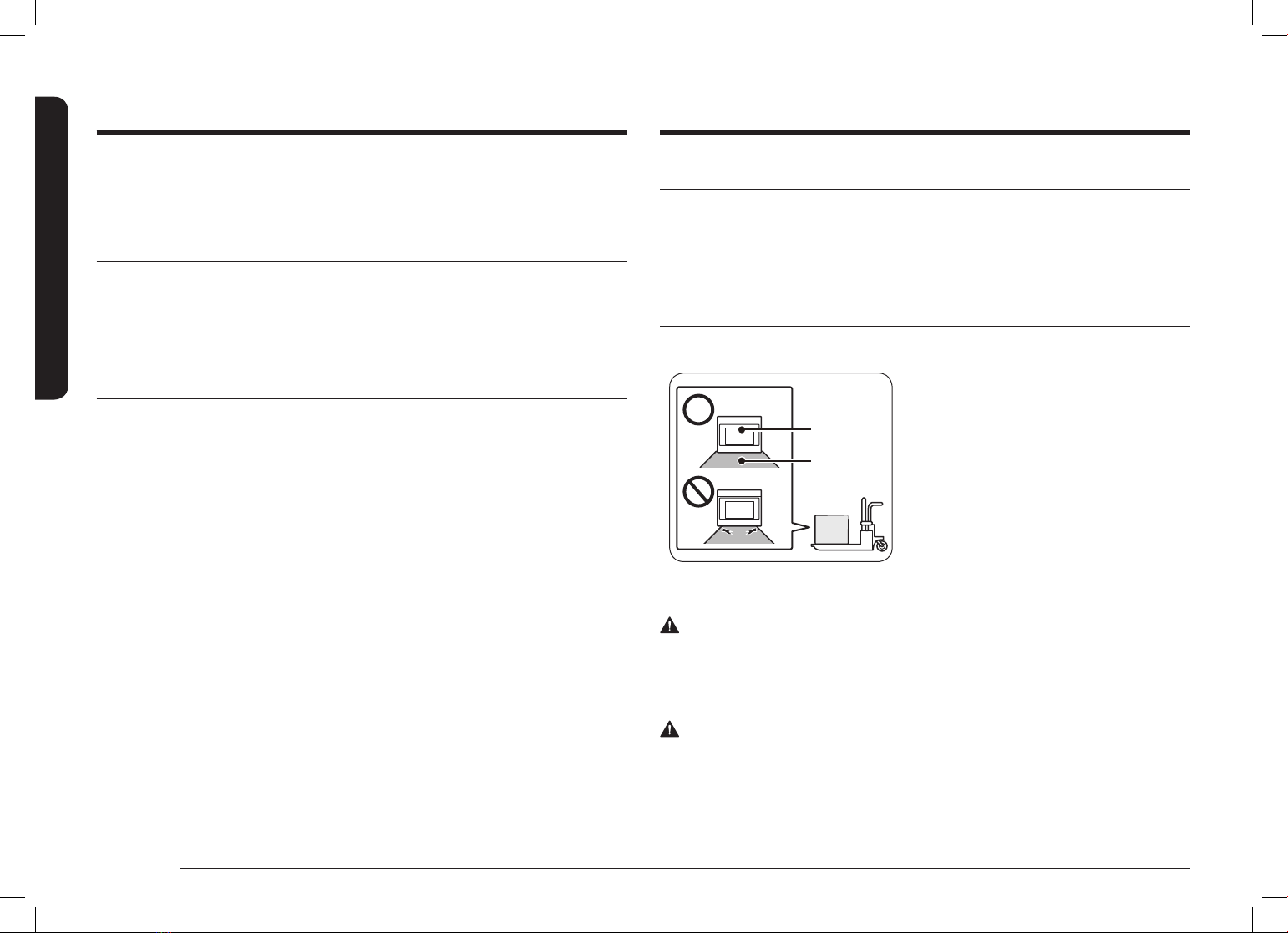

To avoid damage to the oven vent, use the transport method shown in the picture
below.
A
B
A. Front
B. Pallet
Support the bottom of the oven from either
side when moving it into the installation
location. Leave the unit attached to the
shipping pallet until it is in front of the
cabinet opening and is ready to be lifted
into place.
DANGER
ELECTRICAL SHOCK HAZARD
To avoid risk of electrical shock, personal injury or death; verify your appliance
has been properly grounded in accordance with local codes or in absence of codes,
with the National Electrical Code (NEC). ANSI/NFPA 70-latest edition.
WARNING
MOVING HAZARD
To avoid risk of severe personal injury; this appliance requires two or more people
while handling and moving. Use of appliance moving devices is recommended.
Install_NV51T5512SS_AC_DG68-00862B-00_EN+MES+CFR.indb 2 2020-04-29 �� 8:10:19

English 3
Safety informations
WARNING
• The information in this manual should be followed exactly.
• A re or electrical shock may result causing property damage, personal
injury or death.
• Important - Save this installation manual for local electrical inspector's use.
• Proper Installation - Be sure your appliance is properly installed and grounded
by a qualied technician.
• New branch-circuit installations (1996 NEC), mobile homes, recreational
vehicles, or installations where local codes prohibit grounding through the
neutral conductor require 4-wire branch-circuit connection.
• Improper connection of aluminum house wiring to copper leads can result in
an electrical hazard or re. Use only connectors designed for joining copper to
aluminum and follow the manufacturer’s recommended procedure closely.
• Mounting screws must be used.
• Failure to do so can result in the oven falling out of the cabinet causing
serious injury.
CAUTION
• Make sure the cabinets and wall coverings around the oven can withstand the
temperature (up to 194 °F [90 °C]) generated by the oven.
• Discoloration, delamination or melting may occur.
• DO NOT remove spacers on the side walls of the built-in oven.
• These spacers center the oven in the space provided. The oven must be
centered to prevent excess heat buildup that may result in heat damage
or re.
WARNING
• The information in this manual should be followed exactly.
• A re or electrical shock may result causing property damage, personal
injury or death.
IMPORTANT NOTE
Proper installation is the responsibility of the installer and product failure due to
improper installation is NOT covered under warranty.
WARNING
• DO NOT put any weight on the oven door. Never allow anyone to climb, sit,
stand or hang on the oven door.
• The oven could tip and injury might result from food or the oven itself.
WARNING
• The electrical power must be shut off while the electrical connections are
being made.
• Failure to do so can result in severe personal injury, death or electrical
shock.
IMPORTANT NOTE
• Observe all governing codes and ordinances. This appliance must be properly
grounded.
• Keep oven vent ducts unobstructed. The oven vent is located bottom of the
oven. This area could become hot during oven use. Never block this vent or
place plastic or heat-sensitive items in front of it.
Install_NV51T5512SS_AC_DG68-00862B-00_EN+MES+CFR.indb 3 2020-04-29 �� 8:10:19

4 English
Preparation
Preparation
Checklist
Use this checklist to verify that you have completed each step of the installation
process. This can help you avoid mistakes.
1. Before installing the oven, be sure to verify the cabinet dimensions are correct
for your unit and the required electrical connections are present.
2. Refer to the installation manual for content regarding Safety, Cabinet
Dimensions, Removing Packaging, Electrical Installation, Testing the
Installation and Customer Service.
3. To lift up the oven, hang the install handle onto the side hook of the unit.
4. Move the oven unit into place in front of the cabinet opening, leaving the
bottom packaging on the unit to avoid damaging ooring.
5. Team lift the unit directly into the cabinet cutout taking care not to pinch
ngers or scratch hands or arms. Make sure the electrical conduit reaches to
the connection point properly.
6. Slide the unit all the way into place, making sure to route the electrical conduit
correctly.
7. Fasten the oven unit to the cabinetry opening with screws supplied (using
Phillips screwdriver).
8. Consult the complete installation instructions and follow the remainder of the
procedures listed, including performing an operation test.
9. All product literature and accessories are supplied (may be wrapped or boxed)
with the oven.
10. INSTALLER - Leave the literature pack and the accessories with the customer.
11. Hang the install handle onto the side hook of the oven.
Prepare to install the oven
Phillips Screwdriver Drill
Prepare to install the oven
6 screws (M4 L16)
6 Wood Screws For Mounting (4 needed
for installation and 2 extra’s)
Install Handle
(only for double oven)
Materials needed
Junction Box Wire Nuts 3/4” Conduit Connector
Install_NV51T5512SS_AC_DG68-00862B-00_EN+MES+CFR.indb 4 2020-04-29 �� 8:10:20

English 5
Preparation
Location requirements
IMPORTANT: Observe all governing codes and ordinances.
• Cabinet opening dimensions that are shown must be used.
Given dimensions provide minimum clearance with oven.
• Recessed installation area must provide complete enclosure around the
recessed portion of the oven.
• Grounded electrical supply is required. See “Electrical Requirements”
section.
• Electrical supply junction box should be located 3” (7.6 cm) maximum below
the support surface when the oven is installed in a wall cabinet. A 1” (2.5 cm)
minimum diameter hole should have been drilled in the right rear or left
rear corner of the support surface to pass the appliance cable through to the
junction box.
NOTE
For under counter installation, it is recommended that the junction box be located
in the adjacent right or left cabinet. If you are installing the junction box on rear
wall behind oven, it is recommended that the junction box be recessed and located
in the upper Right of the cabinet.
• Oven support surface must be solid, level and ush with bottom of cabinet
cutout.
• Floor must be able to support a single oven weight of 199 lb (90 Kg).
• Floor must be able to support a double oven weight of 331 lb (150 Kg).
IMPORTANT: To avoid damage to your cabinets, check with your builder or
cabinet supplier to make sure that the materials used will not discolor, delaminate
or sustain other damage. This oven has been designed in accordance with the
requirements of UL and CSA International and complies with the maximum
allowable wood cabinet temperatures of 194 °F (90 °C).
Product dimensions
A
G
E
B
F
C
D
H
D-2
D-1
DIMENSION
A2813/16” (73.1 cm) Overall height
B281/2” (72.4 cm) Recessed width
C273/16” (69.1 cm) Recessed height
D265/8” (67.6 cm) Overall depth (with Handle)
D-1 231/8” (58.7 cm) Recessed depth
D-2 243/8” (62.0 cm) Overall depth
E293/4” (75.6 cm) Overall width (Door width)
F471/4” (120 cm) Conduit length
G289/16” (72.5 cm) Handle width
H21/4” (5.7 cm) Handle depth
Install_NV51T5512SS_AC_DG68-00862B-00_EN+MES+CFR.indb 5 2020-04-29 �� 8:10:20

6 English
Preparation
Preparation

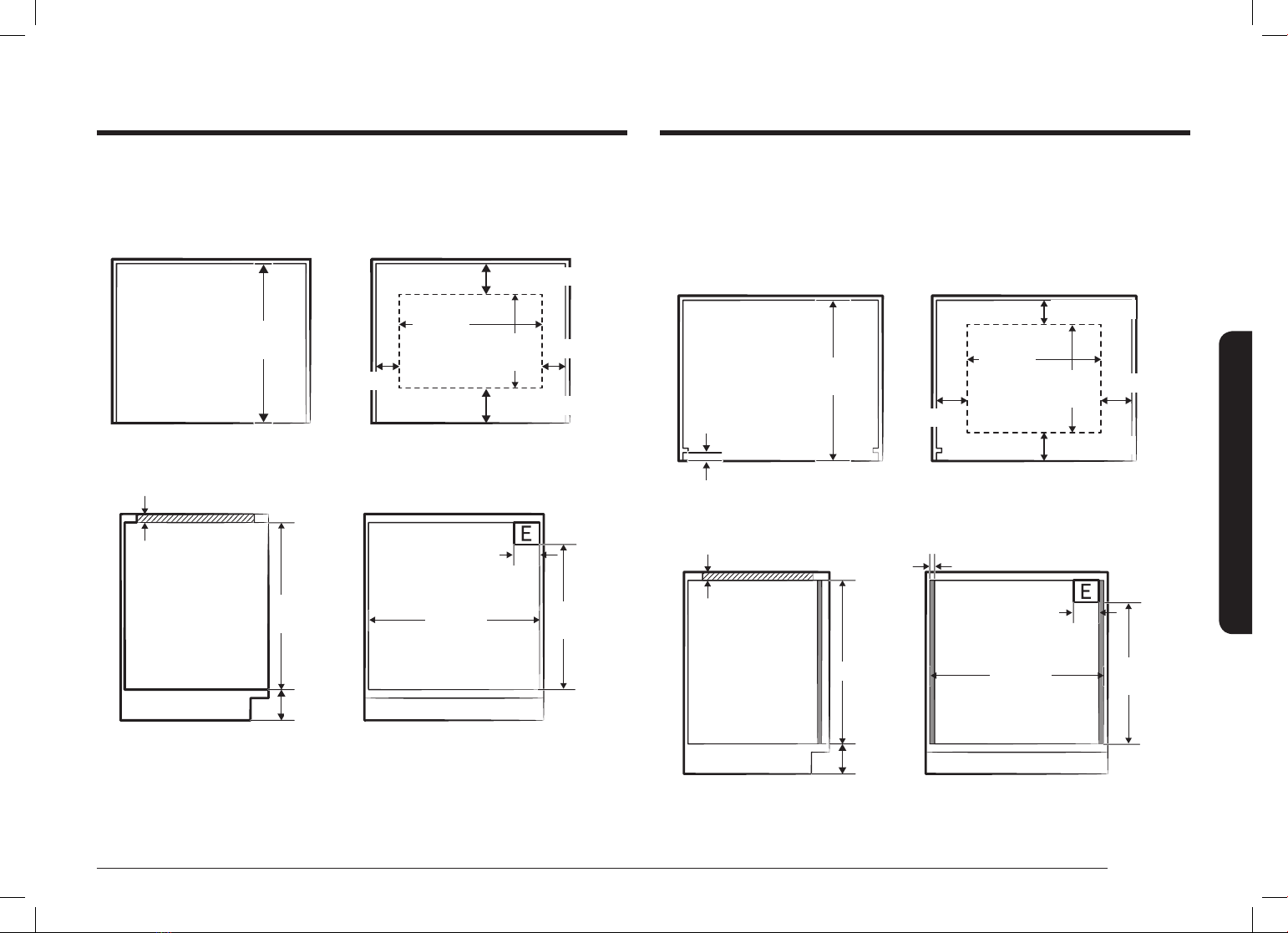

Cabinet dimensions
Under counter
01 Gas or Electric cooktops may be installed over this oven. See cooktop
installation instructions for cutout size. See label on top of approved
cooktop models.
02 Gas and Electrical Connections for Gas Cooktop Must be Located in an
Adjacent Accessible Location to the Right.
A
A
F
BI
J
K
H
EG
C
D
01 02
DIMENSION
AMin. 11/16” (1.75 cm) – Overlap of Over Side Edges of Cutout
BMin. 41/8” (10.5 cm)
C35/8” (9.1 cm)
DMin. 281/2”/ Max. 285/8” (Min. 72.4 cm / Max. 72.7 cm)
EMin. 1”/ Max. 11/4” (Min. 2.5 cm / Max. 3.2 cm)
FMin. 271/4”/ Max. 273/8” (Min. 69.2 cm / Max. 69.5 cm)
GMin. 231/2” (Min. 59.7 cm)
HMin 22” (Min 55.9 cm)
IMax. 91/2” (Max. 24.1 cm) – Junction Box
J363/8” (92.3 cm) - Counter top Height
K25” (63.5 cm)
Wall Mount
01 Junction Box
02 Allow a minimum of 22” for clearance to adjacent corners, drawers, walls,
etc. when door is open
A
E
B
G
F
C
H
D
I
22”
01
02
J
DIMENSION
A30” (76.2 cm)
BMin. 13/8” (3.5 cm)
CMin. 31” (Min 78.7 cm)
DMin. 281/2”/ Max. 285/8” (Min. 72.4 cm / Max. 72.7 cm)
EMin. 1”/ Max. 11/4” (Min. 2.5 cm / Max. 3.2 cm)
FMin. 271/4”/ Max. 273/8” (Min. 69.2 / Max. 69.5 cm)
GMin. 231/2” (Min. 59.7 cm)
HMin. 22” (Min. 55.9 cm)
IMax. 91/2” (Max. 24.1 cm) – Junction Box
JMin. 11/16" (1.75 cm) - Wooden cabinet thickness
Install_NV51T5512SS_AC_DG68-00862B-00_EN+MES+CFR.indb 6 2020-04-29 �� 8:10:20

English 7
Preparation
Standard cabinet dimensions
01 Dimensions provide minimum reveals. (except electrical supply location ‘E’)
02 Allow a minimum of 22”
(559 mm) for clearance to adjacent corners, drawers,
walls, etc. when door is open.
231/2”
(597 mm)
281/2”
(724 mm)
1” (26 mm)
195/8”
(498 mm)
1” (26 mm)
11/8” (28 mm)
11/2” (38 mm)
Top view Top view
(Cooktop installation)
Side view Front view
271/4”
(692 mm) 281/2”
(724 mm)
Min. 22”
(559 mm)
Max. 91/2” (241 mm)
5” (127 mm)
4” (101 mm)
For cooktop
installation
Flush cabinet dimensions
01 Dimensions provide minimum reveals. (except electrical supply location ‘E’)
02 Allow a minimum of 22”
(559 mm) for clearance to adjacent corners, drawers,
walls, etc. when door is open.
03 Flush installation requires recessed strips (not included) attached to the side of
the cabinet opening for mounting the oven.
247/8”
(630 mm)
281/2”
(724 mm)
1” (26 mm)
195/8”
(498 mm)
1” (26 mm)
1/” (33 mm)
11/8” (28 mm)
11/2” (38 mm)
Top view Top view
(Cooktop installation)
Side view Front view
29” (737 mm)
7/8” (20 mm) Cleat width
301/4”
(767 mm)
Min. 22”
(559 mm)
Max. 91/2” (241 mm)
5” (127 mm)
21/4” (57 mm)
For cooktop
installation
Install_NV51T5512SS_AC_DG68-00862B-00_EN+MES+CFR.indb 7 2020-04-29 �� 8:10:20

8 English
Preparation
Preparation
If codes permit and a separate ground wire is used, it is recommended that a
qualied electrical installer determine that the ground path and the wire gauge are
in accordance with local codes.
Check with a qualied electrical installer if you are not sure the oven is properly
grounded.
This oven must be connected to a grounded-metal permanent wiring system.
Be sure that the electrical connection and wire size are adequate and in
conformance with the National Electrical Code, ANSI/NFPA 70-latest edition or CSA
Standards C22.
1-94, Canadian Electrical Code, Part 1 and C22.2 No. O-M91-latest edition, and all
local codes and ordinances.
A copy of the above code standards can be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02169-7471
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
Electrical Connection
To properly install your oven, you must determine the type of electrical connection
you will be using and follow the instructions provided in this manual.
• Oven must be connected to the proper electrical voltage and frequency as
specied on the model/serial/rating plate. The model/serial/rating plate is
located on the bottom left side of the trim. See the following illustrations.
A
A
Single Oven
A. Model/serial/rating plate
Double Oven
A. Model/serial/rating plate
• A circuit breaker is recommended.
• Use the chart below to determine the minimum recommended dedicated
circuit protection.
KW Rating (240 V) KW Rating (208 V) Recommended Circuit
Size (Dedicated)
≤4.8 KW ≤4.1 KW 20 Amp
4.9 KW - 7.5 KW 4.3 KW - 6.2 KW 30 Amp
7.3 KW - 9.6 KW 6.3 KW - 8.3 KW 40 Amp
9.7 KW - 12.0 KW 8.4 KW - 10.4 KW 50 Amp
• Connect directly to the circuit breaker box (or fused disconnect) through
exible, armored or nonmetallic sheathed, copper cable (with grounding wire).
See “Electrical Connection” section.
Install_NV51T5512SS_AC_DG68-00862B-00_EN+MES+CFR.indb 8 2020-04-29 �� 8:10:20

English 9
Installation instructions
Installation instructions
Prepare built-in oven
WARNING
Excessive Weight Hazard
Use two or more people to move and install an oven.
Failure to do so can result in back or other injury.
1. Decide on the nal location for the oven. Avoid drilling or cutting into house
wiring during installation.
2. To avoid oor damage, set the oven on a cardboard prior to installation. Do
not use handle or any portion of the front frame for lifting.
3. Remove the shipping materials and tape from the oven.
Remember to keep the packing materials that may be needed for installation.
4. Remove the hardware package from inside of the bag containing literature.
5. Remove racks and other parts from inside the oven.
6. Move oven and cardboard close to the oven’s nal location.
• Flexible conduit from the oven should be connected directly to the junction
box.
• Fuse both sides of the line.
• Do not cut the conduit. The length of conduit provided is for serviceability of
the oven.
• A UL listed or CSA approved conduit connector must be provided.
• If the house has aluminum wiring, follow the procedure below:
1. Connect a section of solid copper wire to the ends of the exible conduit
leads.
2. Connect the aluminum wiring to the added section of copper wire using
special connectors and/or tools designed and UL listed for joining copper
to aluminum.
Follow the electrical connector manufacturer's recommended procedure.
Aluminum/copper connection must conform with local codes and industry
accepted wiring practices.
For power requirements for models NV51K6650D, NV51K6650S, NV51K7770D,
NV51K7770S, NV51*5***D, and NV51*5***S, refer to the following table.
Model 240 VAC 208 VAC
kW kW
NV51K6650D 9.3 7.0
NV51K6650S 4.9 3.7
NV51K7770D 10.6 8.0
NV51K7770S 6.2 4.7
NV51*5***D 8.9 6.7
NV51*5***S 4.9 3.7
Install_NV51T5512SS_AC_DG68-00862B-00_EN+MES+CFR.indb 9 2020-04-29 �� 8:10:20

10 English
Installation instructions
Installation instructions

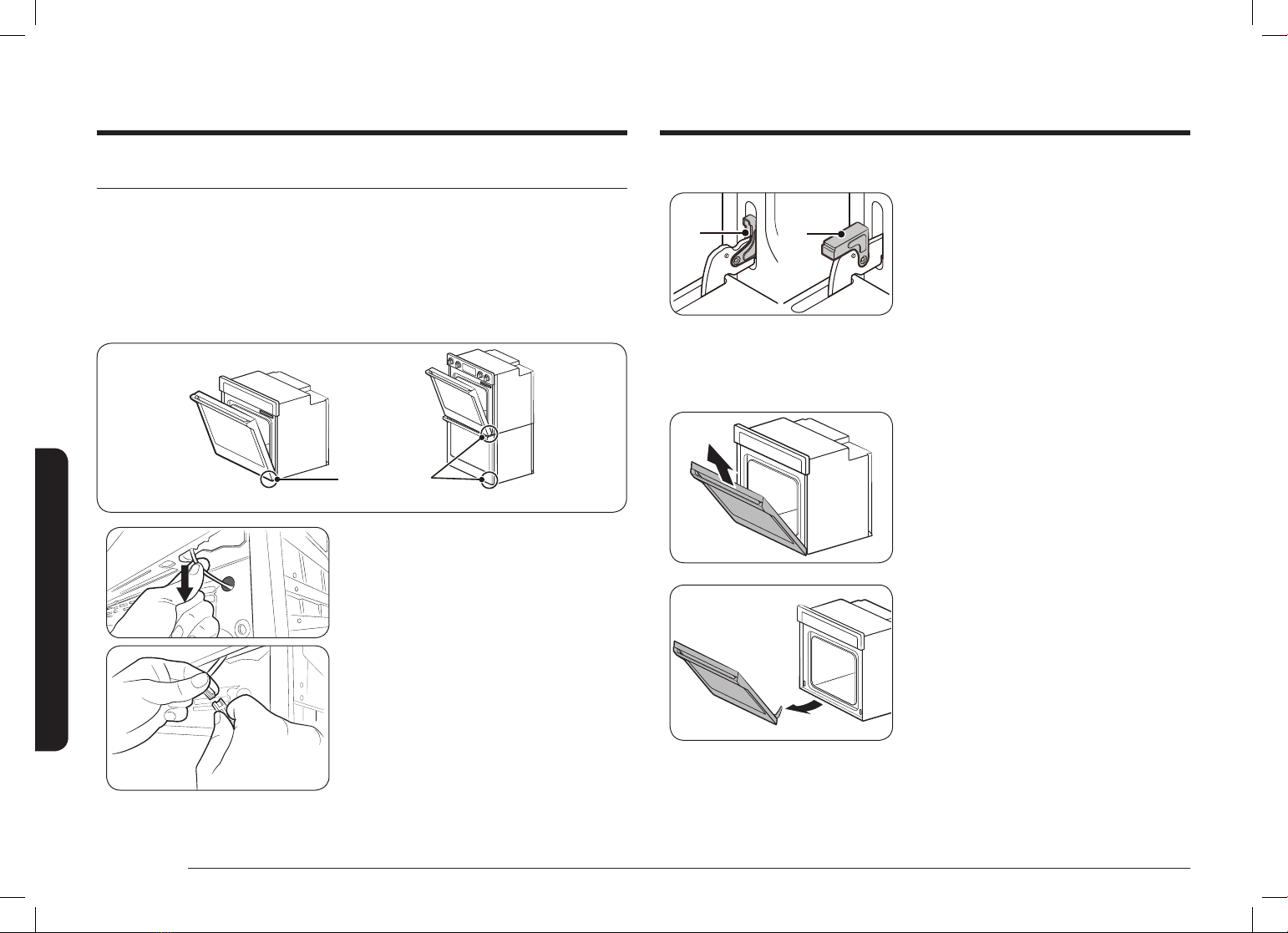

Remove oven door(s)
AB
A. Oven door hinge lock in
locked position
B. Oven door hinge lock in
unlocked position
1. Open the oven door.
2. Locate the oven door hinge locks in
both corners of the oven door, and
then rotate the hinge locks toward the
oven door to the unlocked position (see
illustration B). If the door hinge lock
is not rotated fully, the door will not
remove properly.
3. Partially close the door to engage the
door latch locks.
The door will stop at this point.
4. Using two hands, grasp the edges of
the oven door. Lift and pull the oven
door toward you and remove. You may
need to gently shift door from side to
side as you pull.
5. Set the oven door(s) aside on the
prepared covered work surface with the
oven door resting on its handle.
6. To continue with the oven installation,
go to the “Positioning Oven Feet
for Multiple Cabinet Cutout Heights”
section.
Remove and replace oven door(s)
IMPORTANT: Use two hands to remove oven door. For double ovens, repeat the
process for each door.
Prior to removing the oven door, prepare a surface where you will place it. This
surface should be at and covered with a soft blanket, or use the corner posts
from your packaging material.
Disconnect LED light wire harness (Only NV51K7770** / NV51K6650**)
Locate the LED light wire harness and disconnect it before removing the door.
Wire Harness
Single Oven Double Oven
1. Carefully pull the wire to reveal the
connector.
2. Disconnect the connector.
Install_NV51T5512SS_AC_DG68-00862B-00_EN+MES+CFR.indb 10 2020-04-29 �� 8:10:20

English 11
Installation instructions

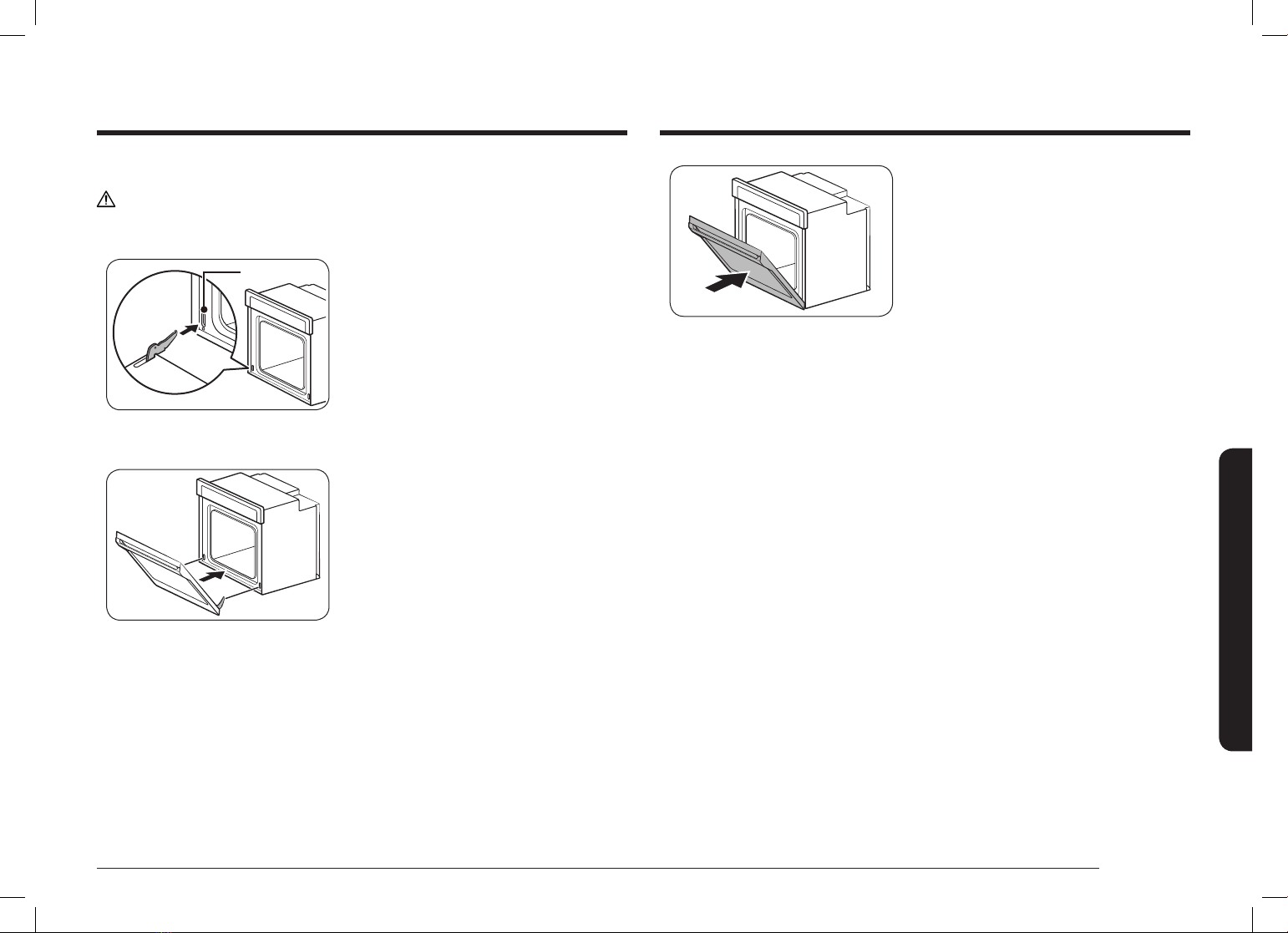

Replace oven door(s)
CAUTION
The door is very heavy. You may need help lifting the door high enough to slide it
into the hinge slots. Do not lift the door by the handle.
A
A. Slot in the oven cavity for
door hinge lock
1. Using two hands, grasp side edges of
door at the midpoint.
Face the oven cavity.
2. Locate the slots on each side of the
oven cavity for the door hinge locks.
3. At a 45° angle, align door hinges with
slots in the lower front of the oven
cavity. Slowly insert door, making sure
you maintain the 45° angle. You will
know the door is engaged in the slot
when you feel a slight drop.
4. Lower the oven door to the fully open
position. If the oven door does not open
to a full 90°, repeat steps 1 through 3.
5. Locate the oven door hinge locks in the
corners of the oven door, and rotate the
hinge locks toward the oven cavity to
the locked position.
See Step 1 (illustration A) in the
“Remove Oven Door(s)” section for
proper locked position.
6. Close the oven door.
7. When the hinges are properly installed
and the door closed, there should be
an even gap between the door and the
control panel. If one side of the oven
door is hanging lower than the other,
the hinge on that side is not properly
installed.
8. Connect Wire Harness.
Install_NV51T5512SS_AC_DG68-00862B-00_EN+MES+CFR.indb 11 2020-04-29 �� 8:10:21

12 English
Installation instructions
Installation instructions

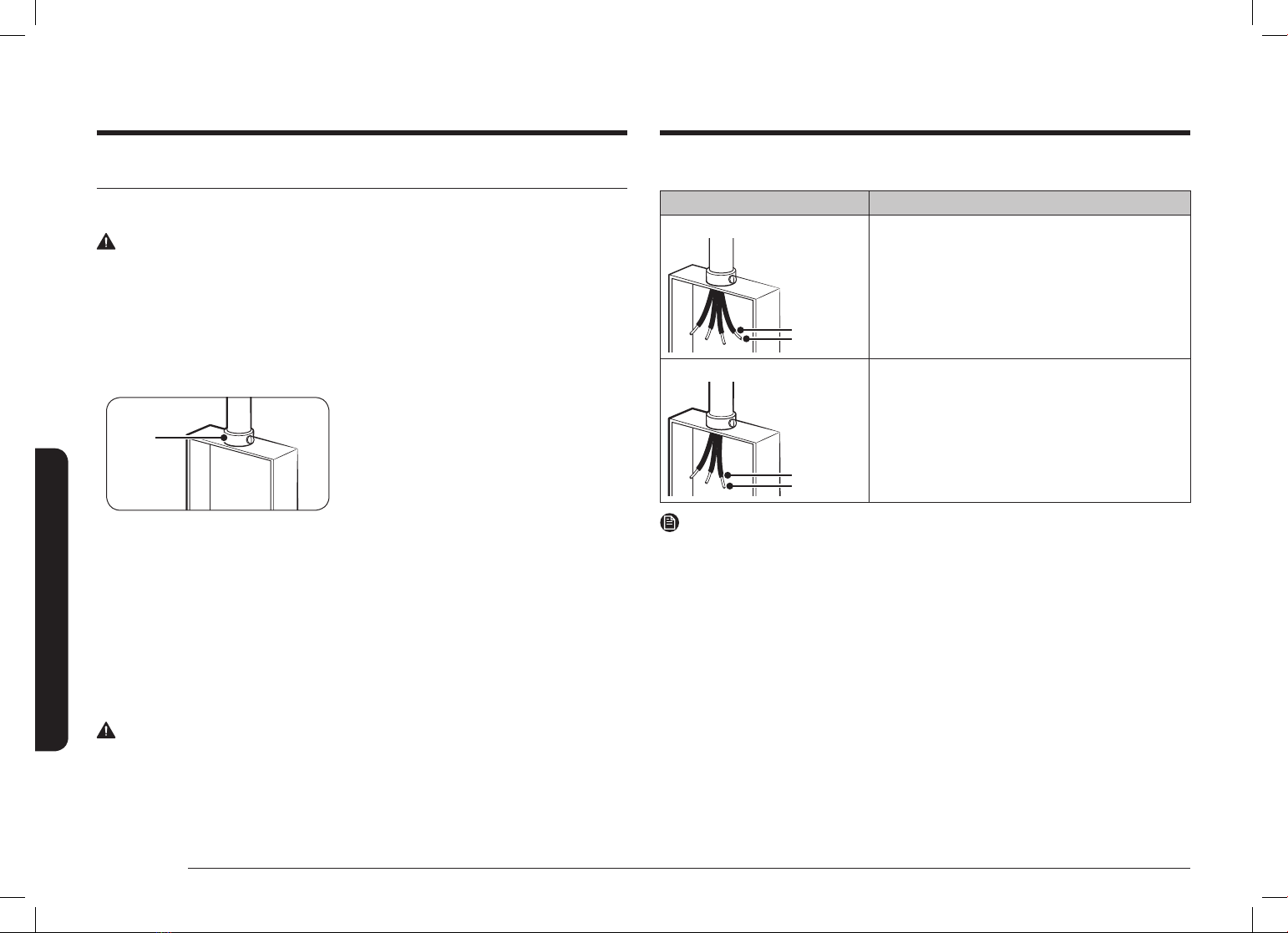

Electrical Connection Options Chart
If your home has: Go to section:
4-wire
(1.3 cm)
½”
4-Wire Cable from Home Power Supply
3-wire
(1.3 cm)
½”
3-Wire Cable from Home Power Supply
NOTE
If the power connection is plugged in improperly, "bAd LinE" appears on the
display.
Reconnect the power connection properly, and the message disappears.
Electrical connection
For Double Ovens
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge solid copper wire.
Make sure to ground the oven.
Failure to follow these instructions can result in death, re, or electrical shock.
This oven is manufactured with a neutral (white) power supply wire and a cabinet-
connected ground (green or bare) wire twisted together.
A
A. UL listed or CSA approved
conduit connector
1. Disconnect power.
2. Feed the exible conduit from the oven
through the opening in the cabinet.
3. Remove junction box cover if it is
present.
4. Install a UL listed or CSA approved
conduit connector to the junction box.
5. Route the exible conduit from the
oven to the junction box through a
UL listed or CSA approved conduit
connector.
6. Tighten screws on conduit connector.
7. See “Electrical Connection Options
Chart” to complete installation for your
type of electrical connection.
For Single Ovens
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Use 8 gauge solid copper wire.
Electrically ground oven.
Failure to follow these instructions can result in death, re, or electrical shock.
Install_NV51T5512SS_AC_DG68-00862B-00_EN+MES+CFR.indb 12 2020-04-29 �� 8:10:21

English 13
Installation instructions
4-Wire Cable from Home Power Supply
IMPORTANT: Use the 4-wire cable from home power supply in the U.S. where local
codes do not allow grounding through neutral, New Branch circuit installations
(1996 NEC), mobile homes and recreational vehicles, new construction and in
Canada.
A
E
B
G
H
I
C
D
F
A. Cable from home power
supply
B. Black wires (normally L1)
C. Red wires (normally L2)
D. 4-wire exible conduit from
oven
E. Junction box
F. White wires (normally
N-neutral)
G. UL listed wire connectors
H. green wires (normally
G-ground)
I. UL listed or CSA approved
conduit connector
1. Connect the 2 black wires (B) together
using a UL listed wire connector.
2. Connect the 2 red wires (C) together
using a UL listed wire connector.
3. Untwist white wire from green (or bare)
ground wire coming from the oven.
4. Connect the 2 white wires (F) together
using a UL listed wire connector.
5. Connect the green (or bare) ground
wire (H) from the oven cable to the
green (or bare) ground wire (in the
junction box) using a UL listed wire
connector.
6. Install junction box cover.
3-Wire Cable from Home Power Supply - U.S. Only
IMPORTANT: Use the 3-wire cable from home power supply where local codes
permit a 3-wire connection.
A
E
B
G
H
I
C
D
F
A. Cable from home power
supply
B. Junction box
C. Black wires (normally L1)
D. White wires (normally
N-neutral)
E. green wires (normally
G-ground)
F. 4-wire exible conduit from
oven
G. Red wires (normally L2)
H. UL listed wire connectors
I. UL listed or CSA approved
conduit connector
1. Connect the 2 black wires (C) together
using a UL listed wire connector.
2. Connect the 2 white wires (D) and
the green (or bare) ground wire (of
the oven cable) using a UL listed wire
connector.
3. Connect the 2 red wires (G) together
using a UL listed wire connector.
4. Install junction box cover.
Install_NV51T5512SS_AC_DG68-00862B-00_EN+MES+CFR.indb 13 2020-04-29 �� 8:10:21

14 English
Installation instructions
Installation instructions
3. Push oven completely into the cabinet
and center the oven into the cabinet
cutout.
4. Remove the tape from front trims.
• Securely fasten the oven to the
cabinet using the screws provided.
• Insert the screws through hole in
trim aligning with hole in oven
frame. Do not overtighten screws.
Barrier
WARNING
When inserting the oven, use caution not to
deform or damage the barrier underneath.
Install oven
Install
Handle
1. Using 2 or more people, lift the oven
partially into the cabinet cutout. Hang
the install handle onto the side hook of
the oven as shown below.
NOTE
Carefully push against front oven frame.
2. Push against the seal area of the front
frame to push the oven into the cabinet
until the back surface of the front frame
touches the front wall of the cabinet.
Install_NV51T5512SS_AC_DG68-00862B-00_EN+MES+CFR.indb 14 2020-04-29 �� 8:10:21

English 15
Self-diagnosis
Self-diagnosis
Temp sensor & Heater check
1. After connecting the power, check if the display works properly.
2. Remove all accessories (Flat-Rack...etc.) from inside of the oven cavity.

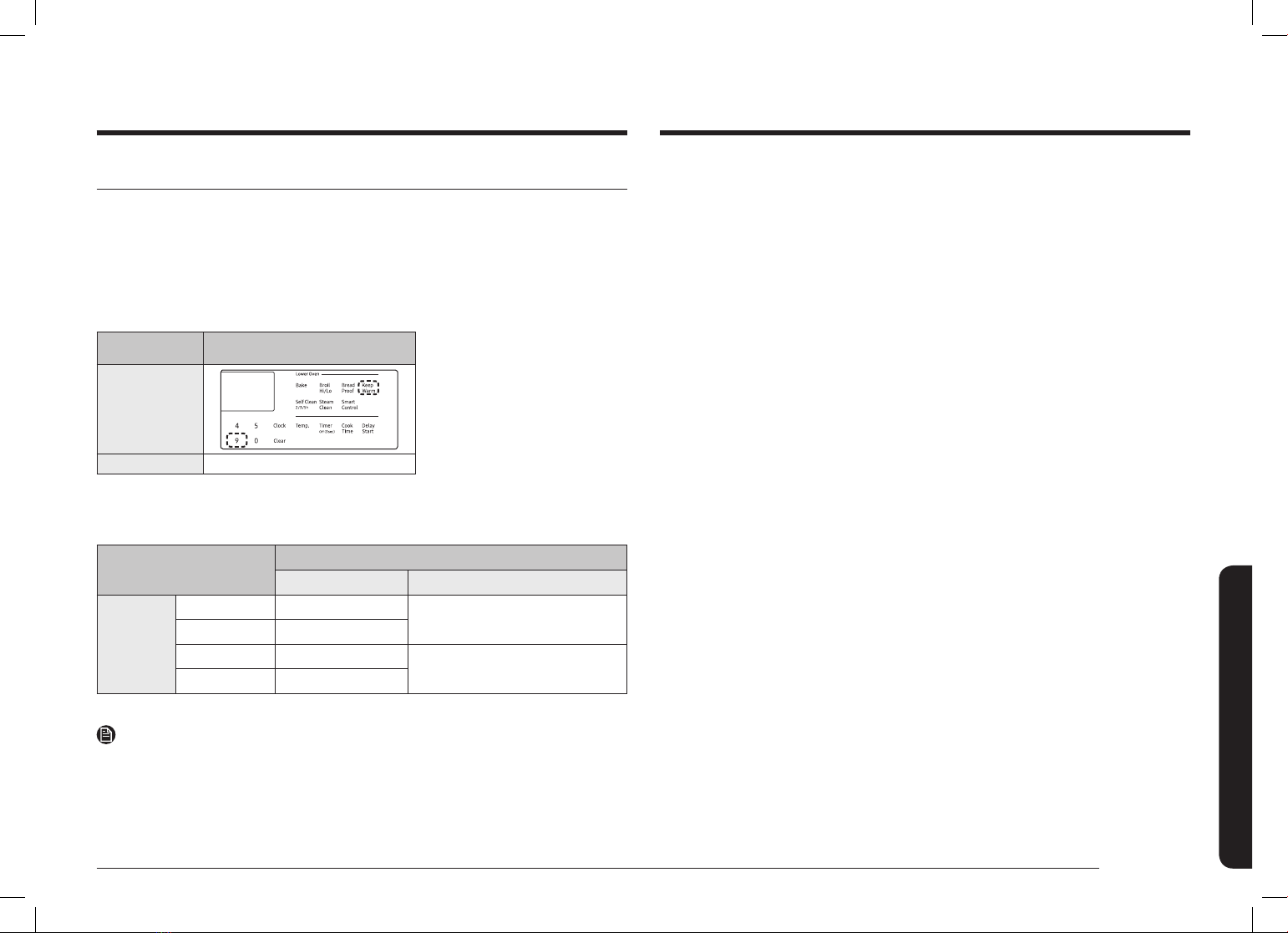

3. You cannot proceed with self-diagnosis if the oven cavity is hot or the door is
open.
• In this case, “Hot or door” message appears on the display.
4. To start self-diagnosis, press both Hidden Keys simultaneously for 5 seconds.
• Refer to the table below for the hidden keys for each model.
Model NV51*5*****
Control panel
Hidden Key Keep Warm + “9”
5. If there is no error, 'PASS' appears on the display with an alert sound.
6. If there is an error, following message appears on the display with an alert
sound.
Model All models
Error code Remark
Feature
Upper Broil H-2 Double/Single Oven
Upper Bake H-1
Lower Broil H-4 Double Oven Only
Lower Bake H-3
7. If an error occurs, contact a Samsung service center for further service.
NOTE
If you see any other error messages that are not listed above, please contact a
Samsung service center. call e.g. 1-800-SAMSUNG (726-7864)
Memo
Install_NV51T5512SS_AC_DG68-00862B-00_EN+MES+CFR.indb 15 2020-04-29 �� 8:10:21

DG68-00862B-00
Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or
maintenance.
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT
U.S.A
Consumer Electronics 1-800-SAMSUNG (726-7864) www.samsung.com/us/support
CANADA 1-800-SAMSUNG (726-7864) www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
Install_NV51T5512SS_AC_DG68-00862B-00_EN+MES+CFR.indb 16 2020-04-29 �� 8:10:21

Horno eléctrico empotrado en pared
Manual de instalación
NV51*5512**
Install_NV51T5512SS_AC_DG68-00862B-00_EN+MES+CFR.indb 1 2020-04-29 �� 8:10:22

2 Español
Contenido
ContenidoContenido
Información sobre seguridad 2
Seguridad de los equipos relacionados 2
Transporte 2
Preparación 4
Lista de vericación 4
Preparación para instalar el horno 4
Requisitos de ubicación 5
Dimensiones del producto 5
Dimensiones del gabinete 6
Instrucciones de instalación 9
Preparar el horno empotrado 9
Cómo retirar y reemplazar la(s) puerta(s) del horno 10
Conexión eléctrica 12
Cómo instalar el horno 14
Autodiagnóstico 15
Sensor de temperatura y control del calentador 15
Información sobre seguridad
Seguridad de los equipos relacionados
Retire toda la cinta y el empaque antes de usar el artefacto. Deseche el empaque luego de
quitar el artefacto. Nunca deje que los niños jueguen con el material de empaque.
Nunca modique o altere la construcción del artefacto. Por ejemplo, no quite paneles,
portacables o tornillos.
Transporte
Utilice el método de transporte que se ilustra a continuación a n de evitar que se dañe la
ventilación del horno.
A
B
A. Parte delantera
B. Palé
Sostenga la parte inferior del horno de ambos
lados al desplazarlo hacia su ubicación de
instalación. Deje la unidad en el palé de envío
hasta que esté frente a la abertura del gabinete y
esté listo para colocarlo en su lugar.
PELIGRO
PELIGRO DE ELECTROCUCIÓN
Para evitar el riesgo de electrocución, lesiones físicas o la muerte, verique que el artefacto
esté conectado a tierra correctamente de conformidad con los códigos locales o, en su
ausencia, con el Código eléctrico nacional (NEC). Versión más reciente de ANSI/NFPA 70.
ADVERTENCIA
PELIGRO DURANTE EL TRASLADO
Este artefacto requiere de dos o más personas para manipularlo o trasladarlo a n de evitar
el riesgo de sufrir lesiones personales graves. Se recomienda el uso de dispositivos para el
transporte del artefacto.
Install_NV51T5512SS_AC_DG68-00862B-00_EN+MES+CFR.indb 2 2020-04-29 �� 8:10:23

Español 3
Información sobre seguridad
ADVERTENCIA
• La información de este manual debe seguirse rigurosamente.
• De lo contrario, podrían producirse incendios o descargas eléctricas causantes de
daños a la propiedad, lesiones personales, o la muerte.
• Importante: Conserve este manual de instalación para que pueda ser consultado por el
inspector del servicio eléctrico de su localidad.
• Instalación adecuada: Asegúrese de que el artefacto se encuentre correctamente instalado
y conectado a tierra por un técnico calicado.
• Las nuevas construcciones de circuitos ramales (1996 NEC), casas rodantes, vehículos
recreativos e instalaciones donde los códigos locales prohíben la conexión a
tierra mediante el conductor neutro, requieren conexiones de circuitos ramales de
4 conductores.
• Si el cableado de aluminio de la casa no se conecta adecuadamente a los cables de cobre
podría existir riesgo de electrocución o incendio. Solo utilice conectores diseñados para
unir cobre con aluminio y siga el procedimiento recomendado por el fabricante del
conector.
• Se deben utilizar tornillos de montaje.
• De lo contrario, el horno podría caerse del gabinete y ocasionar lesiones graves.
PRECAUCIÓN
• Asegúrese de que los gabinetes y los revestimientos de las paredes alrededor del horno
puedan soportar las temperaturas (hasta 194 °F [90 °C]) que este genera.
• Se podrían producir alteraciones de color, deslaminación o derretimiento.
• NO quite los separadores de las paredes laterales del horno empotrado.
• Estos centran el horno en el espacio provisto. El horno debe estar centrado para
evitar la acumulación excesiva de calor que puede provocar daños o incendios.
ADVERTENCIA
• La información de este manual debe seguirse rigurosamente.
• De lo contrario, podrían producirse incendios o descargas eléctricas causantes de
daños a la propiedad, lesiones personales, o la muerte.
NOTA IMPORTANTE
La instalación adecuada es responsabilidad del instalador y la falla del producto debido a una
instalación inadecuada no está cubierta por la Garantía.
ADVERTENCIA
• NO coloque ningún peso sobre la puerta del horno. Nunca nadie se debe trepar, sentar,
parar o colgar de la puerta del horno.
• El horno podría inclinarse y producir lesiones ya sea por los alimentos calientes o el
mismo horno.
ADVERTENCIA
• Cuando se realizan las conexiones eléctricas, la alimentación eléctrica debe estar cortada.
• De lo contario, se podrían producir lesiones personales graves, descargas eléctricas
o la muerte.
NOTA IMPORTANTE
• Cumpla todos los códigos y ordenanzas exigidos por las autoridades pertinentes. Este
electrodoméstico debe conectarse a tierra correctamente.
• Mantenga los conductos de ventilación del horno libres de obstrucciones. La abertura
de ventilación del horno está ubicada en la parte inferior del horno. Esta área podría
calentarse durante el uso del horno. Nunca tapone esta abertura de ventilación ni coloque
elementos de plástico o sensibles al calor frente a dicha abertura.
Install_NV51T5512SS_AC_DG68-00862B-00_EN+MES+CFR.indb 3 2020-04-29 �� 8:10:23

4 Español
Preparación
Preparación
Lista de vericación
Use esta lista de vericación para comprobar que ha completado todos los pasos del proceso
de instalación. Esto puede ayudarlo a evitar errores.
1. Antes de instalar el horno, asegúrese de vericar que las dimensiones del gabinete sean
las adecuadas para la unidad y que las conexiones eléctricas necesarias estén presentes.
2. Consulte el manual de instalación para ver contenido sobre Seguridad, Dimensiones del
gabinete, Desempaque, Instalación eléctrica, Prueba de la instalación y Servicio al Cliente.
3. Para levantar el horno, cuelgue la manija de instalación en el gancho lateral de la unidad.
4. Coloque el horno frente a la abertura del gabinete, dejando el empaque inferior en la
unidad para evitar dañar el piso.
5. Levante la unidad con ayuda de otras personas y colóquela directamente en el recorte
del gabinete cuidando de no agarrarse los dedos o rasparse las manos o los brazos.
Asegúrese de que el conducto eléctrico alcance bien el punto de conexión.
6. Deslice la unidad hasta el lugar deseado asegurándose de ir llevando el conducto
eléctrico correctamente.
7. Ajuste el horno a la abertura del gabinete con los tornillos provistos (usando un
destornillador Philips).
8. Consulte las instrucciones de instalación completas y siga el resto de los procedimientos
indicados, incluida la prueba de funcionamiento.
9. Junto con el horno, se suministran las instrucciones del producto y los accesorios
(envueltos o en caja).
10. INSTALADOR: Las instrucciones y los accesorios deben quedar en manos del cliente.
11. Cuelgue la manija de instalación en el gancho lateral del horno.
Preparación para instalar el horno
Destornillador Phillips Taladro
Preparación para instalar el horno
6 tornillos (M4 L16)
6 tornillos de montaje para madera (4
necesarios para la instalación y 2 adicionales)
Manija de instalación
(solo para horno doble)
Materiales necesarios
Caja de empalmes Conectores de torsión Conector de conducto de 3/4”
Install_NV51T5512SS_AC_DG68-00862B-00_EN+MES+CFR.indb 4 2020-04-29 �� 8:10:23
