Samsung 650 Series User manual

imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please
register your product at
www.samsung.com/register
Model Serial No. -- _

I Important Warranty Information Regarding Television Format Viewing
Wide screen format PDP Displays (16:9, the aspect ratio of the screen width to height) are primarily designed to view wide
screen format full-motion video. The images displayed on them should primarily be in the wide screen 16:9 ratio format,
or expanded to fill the screen if your model offers this feature and the images are constantly moving. Displaying stationary
graphics and images on screen, such as the dark side-bars on nonexpanded standard format television video and
programming, should be limited to no more than 5% of the total television viewing per week.
Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos,
web sites or computer graphics and patterns, should be limited as described above for all televisions. Displaying stationary
images that exceed the above guidelines can cause uneven aging
of PDP Displays that leave subtle, but permanent
burned-in ghost images in the
PDP picture. To avoid this, vary the programming and images, and primarily display
full screen moving images. not stationary patterns or dark bars.
On PDP models that offer picture sizing features, use these controls to view different formats as a full screen picture.
Be careful in the selection and duration of television formats used for viewing. Uneven PDP aging as a result of format
selection and use, as well as burned-in images, are not covered by your Samsung limited warranty.
U.S.A Only
The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties.
In particular, this product is licensed under the following US patents: 5,991,715,5,740,317,4,972,484,5,214,678,5,323,396,
5,539,829,5,606,618,5,530,655,5,777,992,
6,289,308, 5,610,985, 5,481,643,5,544,247,5,960,037,6,023,490,5,878,080, and
under US Published Patent Application No. 2001-44713-A 1.
This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for
commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any
unlicensed product unit or process conforming to ISOIIEG 11172-3 or ISO/lEG 13818-3 used or sold in combination with this product
unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISOIIEG 11172-3
or ISOIIEG 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISOIIEG
11172-3 or ISO/lEG 13818-3.
Other countries
The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This
license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial
use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed
product unit or process conforming to ISOIIEG 11172-3 or ISOIIEG 13818-3 used or sold in combination with this product unit. The
license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/lEG 11172-3 or ISO/lEG
13818-3. No rights are granted under this license for product features or functions that do not conform to the ISOIIEG 11172-3 or
ISOIIEG 13818-3.
© 2009 Samsung Electronics Go., Ltd. All rights reserved.

I User Instructions
oScreen Image retention
Do not display a still image (such as on a video game) on the plasma display panel for more than several minutes as it can cause
screen image retention. This image retention is also known as "screen burn". To avoid such image retention, refer to page 26 of this
manual to reduce the degree of brightness and contrast of the screen when displaying a still image.
oAltitude
The PDP can only operate normally at heights under 6500ft.
oHeat on the top of the Plasma TV
The top side of the product may be hot after long periods of use as heat dissipates from the panel through the vent hole in the upper
part of the product.
This is normal and does not indicate any defect or operation failure of the product.
However, children should be prevented from touching the upper part of the product.
oThe product is making a'cracking' noise.
A 'cracking' noise may occur when the product contracts or expands due to a change in the surrounding environment such as
temperature or humidity. This is normal and not a defect of the unit.
oCell Defects
The PDP uses a panel consisting of 2,360,OOO(HD-level) to 6,221 ,OOO(FHD-level) pixels which require sophisticated technology to
produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the
product.
oAvoid operating the TV at temperatures below 41°F WC)
oAstill image displayed too long may cause permanent damage to the PDP Panel.
Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders displayed on
the left, right and center of the screen caused by the difference of light emission on the screen.
Playing a DVD or a game console may cause similar effects to the screen.
Damages caused by the above effect are not covered by the Warranty.
oAfter-images on the Screen.
Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.
To prevent this effect, reduce the 'brightness' and 'contrast' when displaying still images for a long time.
oWarranty
Warranty does not cover any damage caused by image retention.
Burn-in is not covered by the warranty.

I Contents
Connecting and Preparing Your TV
• List of Features 5
•
Checking Parts 5
•
Assembling the Cables 5
•
Viewing the Control Panel 6
•
Viewing the Connection Panel 7
•
Remote Control 8
Connections
• Connecting VHF and UHF Antennas 9
•
Connecting Cable TV 9
•
Connecting a DVD I Blu-ray Player or Cable Box I Satellite
receiver (Set-Top Box) via HDM!. 11
• Connecting a DVD IBlu-ray Player or Cable Box I Satellite
receiver (Set-Top Box) via DVI 11
• Connecting a DVD I Blu-ray Player or Cable Box I Satellite
receiver (Set-Top Box) via Component cables 12
• Connecting a Camcorder 12
• Connecting a VCR 13
• Connecting a Digital Audio System 14
• Connecting an Amplifier I DVD Home Theater 14
• Connecting a PC 15
Operation
• Turning the TV On and Off 16
• Changing Channels 16
• Adjusting the Volume 16
• Using the TOOLS Button 17
• Using the Remote Control Backlight Buttons 17
• Viewing the Display 17
• Viewing the Menus 18

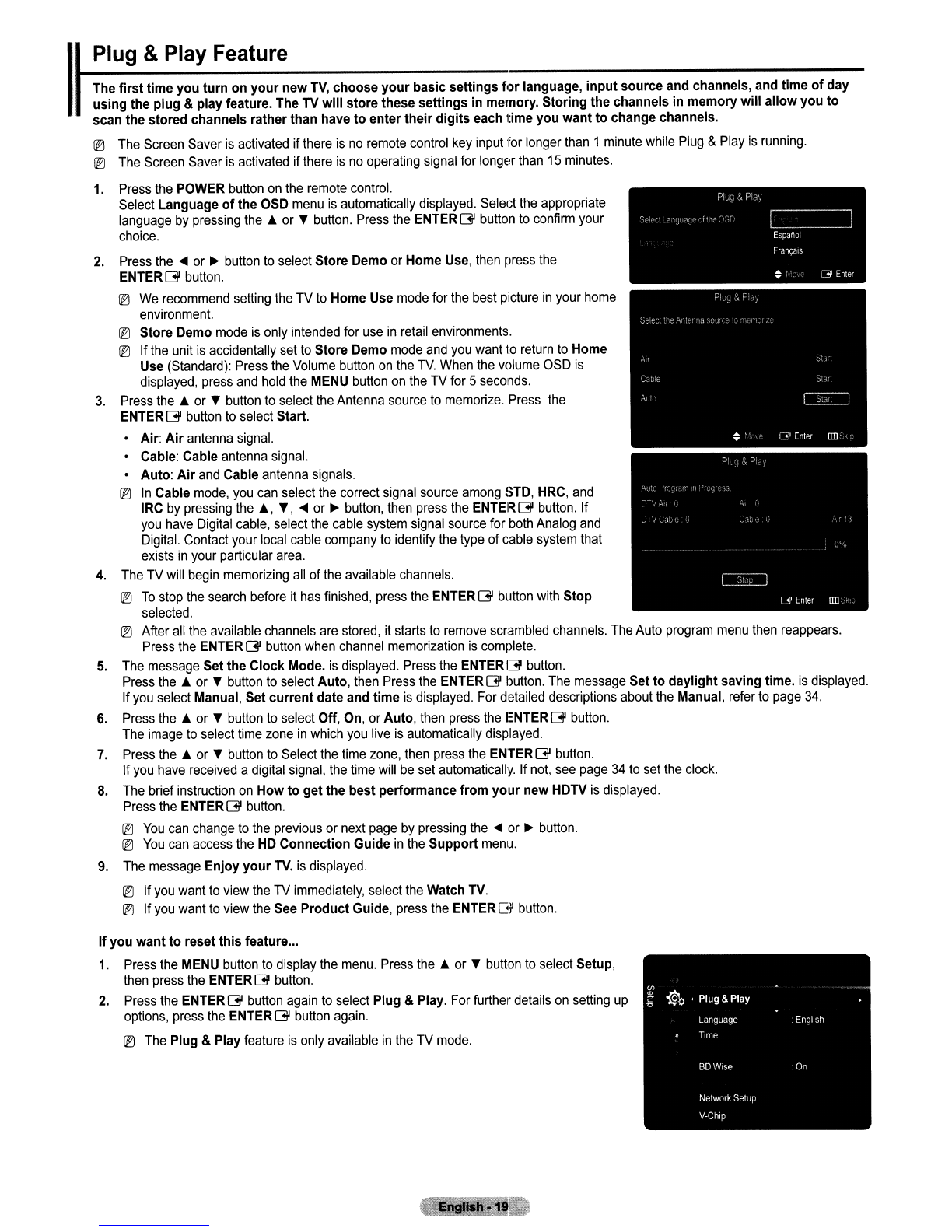

• Plug & Play Feature 19
Channel Control
• Storing Channels 20
• Managing Channels 21
Picture Control
• Changing the Picture Settings 23
PC Display
• Using Your TV as a Computer (PC) Display 27
• Display Modes 27
• Setting up the TV with your PC 28
Sound Control
• Changing the Sound Settings 29
Function Description
• Configuring the Setup Menu 30
• Viewing the Picture in Picture (PiP) 33
• Setting the Time 34
• Source List I Edit Name 35
• Support 36
Media Play
• Connecting a USB Device 38
• Using the Media Play Function 39
• Using and Sorting Photo List... .40
•
Viewing a Photo or Slide Show 41
• Using and Sorting the Music List.. .43
•
Playing a Music 44
• Using and Sorting the Movie List... .45
•
Playing a Movie File .46
•
Picture I Music Settings Using Media Play .48
•
Using the Setup Menu 49
Media Play-DLNA
• Setting the DLNA Network 50
• Installing the DLNAApplication 50
• Using the DLNAApplication 52
• Using the DLNA Function 55
Anynet+
• Connecting Anynet+ Devices 56
• Setting Up Anynet+ 57
• Switching between Anynet+ Devices 57
• Recording 58
• Listening through a Receiver 59
• Troubleshooting for Anynet+ 59
Content Library
• Activating the Content Library 60
• Using the Content Library 61
Network
• Network Connection 62
• Network Setup 65
Internet@TV
• Getting Started with Internet@TV 69
• Editing Snippets in the Dock 71
• Using the Profile Widget... 71
• Using the Yahoo!® Widget Gallery 73
• Using the Yahoo!® Weather Widget.. 74
• Using the Yahoo!® News Widget 74
• Using the Yahoo!® Flickr Widget.. 75
• Using the Yahoo!® Finance Widget.. 76
• Troubleshooting for internet@TV 76
• Help Website 77
Home Network Center
• Home Network Center 78
• Setting Up the Home Network Center 79
• Using the Message Function 80
• Using the Media Function 81
Appendix
• Troubleshooting 82
• Preparation before installing the Wall-Mount... 83
• How to attach the Stand-Base 83
• Securing the TV to the Wall 84
• Wall Mount Kit Specifications (VESA) 85
• Specifications 86
• Dimensions (PN50B650S 1 F) 87
• Dimensions (PN58B650S1 F) 88
Symbol
-
Press
Note One-Touch Button TOOLS

I Connecting and Preparing Your TV
I
I
List of Features
•Adjustable picture settings that can be stored in the TV's memory.
•Automatic timer to turn the TV on and off.
• Aspecial sleep timer.
• V-Chip function.
•Excellent Digital Interface &Networking:
With abuilt-in HD digital tuner, non-subscription HD broadcasts can be viewed with no Cable Box/Satellite receiver (Set-Top Box)
needed.
• HDMIIDVI connection of your PC to this TV.
•Excellent Picture Quality
•
SRS TruSurround HD provides avirtual surround system.
•Media Play: Allows you to play music files, pictures, and movies saved on a USB or DLNA device.
• Internet@TV: You can use various internet services and view useful information and entertaining content.
•Home Network Center: Allows you to configure amobile message server or a DLNA media render.
Checking Parts
Please make sure the following items are included with your TV. If any items are missing, contact your dealer.
lEI The items' color and shape may vary depending on the model.
Remote Control
(BN59-00854A) /
AAA Batteries
(4301-000103)
Power Cord
[[]
....•...... d ...
S
' •.•..•..•..
1
..
Owner's Instructions /
Quick Setup Guide
(BN68-02270A)
warranty Card /
Safety Guide Manual
(Not available in all
locations)
o
Cleaning Cloth
(BN63-01798B)
Holder-Wire
Cable
(~
TV-Holder / Screw
(BN96-10788A)
(Refer to page 84)
171.'.;·11./
U
1J
···.·.·'····.··l .
~.'! ,.
<~ 2
i J.
(
Program CD Ferrite Core for
Power Cord
(3301-001305)
Ferrite Core for
Side-AV
(3301-001201)
(PN58B650S1F only)
Cover-Bottom
(Refer to page 83)
(PN50B650S1F only)
Cover-Bottom / Screw (2ea) Holder-Ring (4ea) Screw (4ea)
(Refer to page 83) (Refer to page 83) (PN50B650S1 F only)
(PN58B650S 1F only)
lEI Ferrite Core
The ferrite cores are used to shield the cables from interference.
When connecting a cable, open the ferrite core and clip it around the cable near the
plug.
.--------~- .. ----l~---'····---····--------·------I-----·
: ~. _ l~. :
, ,
, • 0 ,
, ,
. .j . ._ ... _.1
I
Assembling the Cables
Enclose the cables in the Holder-Wire Cable so that the cables are not visible through the
transparent stand.
I"

I
Viewing the Control Panel
The buttons on the lower-right panel control your TV's basic features, including the on-screen menu.
To use the more advanced features, you must use the remote control.
® The product color and shape may vary depending on the model.
® The front panel buttons can be activated by touching them with your finger.
I
SAMSUN6
I I I
oSOURCEGI
Toggles between all the available input sources
(TV, AV1, AV2, Component1, Component2, PC, HDMI1, HDMI2/DVI, HDMI3, HDMI4, USB).
® In the on-screen menu, use this button as you use the ENTERGI button on the remote control.
e MENU
Press to see an on-screen menu of your TV's features.
e +VOL-
Press to increase or decrease the volume. In the on-screen menu, use the + VOL - buttons as you would use the
.... and ~ buttons on the remote control.
e /\ CH V
Press to change channels. In the on-screen menu, use the /\ CH V buttons as you would use the A and ~ buttons on the
remote control.
o POWER INDICATOR
Blinks and turns off when the power is on and lights up in stand-by mode.
Cit C) (POWER)
Press to turn the TV on and off.
8 REMOTE CONTROL SENSOR
Aim the remote control towards this spot on the TV.
(\) SPEAKERS

I
Viewing the Connection Panel
Use the connection panel jacks to connect AN components that will be connected continuously, such as Blu-ray/DVD players
ora VCR.
@\) The product color and shape may vary depending on the model.
TV Rear Panel TV Side Panel
II •
rnl 0
m~
:- :
: :
::
,
------------------------------------------------------------------------------------------------------------
oPOWERIN
Connects the supplied power cord.
f) LAN
Connect a LAN cable to this port to connect to the
Network(lnternet@TV).
eAUDIO OUT (RlL)
Audio outputs to external devices.
e PC IN [PC] /[AUDIO]
Connects to the video and audio output jacks on your PC.
@\) If your PC supports an HDMI connection, you can
connect this to the HDMI IN 1, 2, 3, or 4 terminal.
®If your PC supports a DVI connection, you can connect
this to the HDMI IN 2I DVI AUDIO IN [R-AUDIO-L]
terminal.
«1) DVI AUDIO IN (AUDIO-RlL)
Connect to the DVI audio output jack of an external device.
eHDMIIN 1, 2(DVI), 3,4
Connect to the HDMI jack of a device with an HDMI output.
@\) Use an HDMI cable which is smaller than 14.4mm.
@\) What is HDMI?
HDMI(High-Definition Multimedia Interface), is an
interface that enables the transmission of digital audio
and video signals using a single cable.
The difference between HDMI and DVI is that the
HDMI device is smaller in size and has the HDCP
(High Bandwidth Digital Copy Protection) coding
feature installed.
We recommend that 14.4mm is proper for cable size.
This is smaller than standard.
8 ANTIN
Uses a750 Coaxial connector for an Air/Cable Network.
Cl) DIGITAL AUDIO OUT (OPTICAL)
Connects to a Digital Audio component.
oCOMPONENT IN 1, 2/ AV IN 1
Connects Component video / audio. The COMPONENT IN 1
jack
is also used as the AV IN 1jack.
® Connect the video cable to the COMPONENT IN 1
[YNIDEO] jack
and the audio cable to the COMPONENT
IN 1 [R-AUDIO-L] jacks.
Q) EX-LINK
Used for service only.
mUSB 1(HDD) /USB 2
Connect a USB mass storage device to view photo files and
play audio files.
@\) The USB 1 port is also used as the HOD. HOD (Hard disk
drive) is device which stores digitally encoded data.
o AVIN2
Video and audio inputs for external devices.

I
Remote Control
You can use the remote control up to adistance of about 23 feet from the TV.
lEI The product color and shape may vary depending on the model.
lEI The performance of the remote control may be affected by bright light.
................................................................
SI\MSUNG
o POWER
Turns the TV on and off.
eTV
Selects the TV mode directly.
NUMERIC BUTTONS
Press to change the channel.
00
Press to select additional channels (digital)
being broadcast by the same station. For
example, to select channel
"54-3", press "54", then press "0" and "3".
4MUTE
Press to temporarily cut off the sound.
UPA/DOWNT / LEFT .... /
RIGHT~ /ENTERG'
Use to select on-screen menu items and
change menu values.
INTERNET@
This function enables you to view
Internet@TV.
@ COLOR BUTTONS
Use these buttons in the Channel list,
Media Play, and Internet@TV, etc.
Q) MEDIA.P (Media play)
This function enables you to view and play
photo and music files from an external
device. (Refer to pages 40 (Photo), 43
(Music) and 45 (Movie))
~ INFO
Press to display information on the TV
screen.
@ Use these buttons in the DMA, Media Play
and Anynet+ modes.
(~: This remote can be used to control
recording on Samsung recorders with the
Anynet+ feature)
~ \JON/OFF
Press to backlight the buttons on the remote.
This function is convenient for using at night
or when the room is dark. (Using the remote
control with the ON/OFF(V) light button set
to On will reduce the battery usage time.)
'9 PRE-CH
Tunes to the previous channel.
«1) GCHB
Press to change channels.
~ EXIT
Press to exit the menu.
~ P.SIZE
Picture size selection.
€J) CONTENT
This function enables you to view Content
Library.
@) CC
Controls the caption decoder.
€!) MTS
Press to choose stereo, mono or Separate
Audio Program (SAP broadcast).
oInstalling Batteries in the Remote Control
1. Lift the cover at the back of the remote control upward as shown in the figure.
2. Install two AM size batteries.
lEI Make sure to match the "+" and "-" ends of the batteries with the diagram inside the
compartment.
3. Close the cover as shown in the figure.
lEI Remove the batteries and store them in a cool, dry place if you won't be using the
remote control for a long time. (Assuming typical TV usage, the batteries should last
for about
one year.)
lEI Using the remote control with the ON/OFF(V) light button set to On will reduce the battery usage time.
lEI If the remote control doesn't work, check the following
1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Is there a power outage or is the power cord unplugged?
5. Is there aspecial fluorescent light or neon sign nearby?

If your antenna has one lead that looks like this, see "Antennas with 75 0Round Leads".
If you have two antennas, see "Separate VHF and UHF Antennas".
IConnections
IConnecting
VHF and UHF Antennas
i;lf~y;OU~r~a~n~te;'n~n~a~h~a~s~a~s~e;t~of~l~e;ad;s~t;h~at~l~o~O;k~li;ke~t~h~is~,~s~ee~"A~n;t;e~nn~a~s~w:i~th~3;0~0~O;-;F~la;t~Tw~in:--rr=~)~~~~~(~: ;;;;~~
Leads" below. _~_ ===~, ~~~
j--rra
I
oAntennas with 300 nFlat Twin Leads
If you are using an off-air antenna (such as aroof antenna or rabbit ears) that has 3000
twin flat leads, follow the directions below.
1. Place the wires from the twin leads under the screws on a 300-75 0adapter (not supplied),
Use ascrewdriver to tighten the screws.
2. Plug the adaptor into the ANT IN terminal on the back of the TV.
oAntennas with 75 nRound Leads
Plug the antenna lead into the ANT IN terminal on the back of the TV.
oSeparate VHF and UHF Antennas
If you have two separate antennas for your TV (one VHF and one UHF), you must
combine the two antenna signals before connecting the antennas to the
TV. This
procedure requires
an optional combiner-adaptor (available at most electronics shops).
1. Connect both antenna leads to the combiner.
2. Plug the combiner into the ANT IN terminal on the bottom of the back panel.
Connecting Cable TV
To connect to acable TV system, follow the instructions below.
oCable without aCable Box
Plug the incoming cable into the ANT IN terminal on the back of the TV.
rl0 Because this TV is cable-ready, you do not need acable box to view unscrambled cable
channels.
oConnecting to aCable Box that Descrambles All Channels
1. Find the cable that is connected to the ANT OUT terminal on your cable box.
rl0 This terminal might be labeled "ANT OUT", "VHF OUT" or simply, "OUT".
2. Connect the other end of this cable to the ANT IN terminal on the back of the TV.
I
0
F==FIQ
_0_
[3(" I
ANT IN ANT OUT
[3;(. I
Continued ...

oConnecting to aCable Box that Descrambles Some Channels
If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You
will need atwo-way splitter, an RF (AlB) switch, and four lengths of Antenna cable. (These items are available at most
electronics stores.)
1. Find and disconnect the cable that is
connected to the ANT IN terminal on your
cable box.
® This terminal might be labeled "ANT IN",
"VHF IN" or simply, "IN".
2. Connect this cable to a two-way splitter.
-----~-a
cable Splitter
~
-
6. Connect the last Antenna cable between the
OUT terminal on the RF (AlB) switch and the
ANT IN terminal on the rear of the TV.
Incoming
cable
L......J---,O(~ "."M l~~~
Cable Box Switch
Cable Box
~
__ TVRear
AI a:::JIj KD D\
'--_~_, m IN CABLE OUT 1IDD' B0 A~N
Splitter l=J RF (AlB)
Cable
Box Switch
After you have made this connection, set the AlB switch to the "A" position for normal viewing. Set the AlB switch to the "B" position
to view scrambled channels. (When you set the AlB switch to "B", you will need to tune your TV to the cable box's output channel,
which is usually channel 3 or 4.)
11~~"t~~~~~
l!Il1>£ '" 1!i, ,.,." ,~~~ w:,'I""

I·Connecting a
DVD ,Blu-ray Player or Cable Box' Satellite receiver
.• 1- ..:,.(S_e_t-_l_op_B_ox_)_v_ia_H_D_M_I _
This connection can only be made if there is an HOMI Outputjack on the external device. This connection will provide the
highest quality picture.
1. Connect an HDMI Cable between the HDMI IN (1, 2(DVI), 3, or 4) jack on the TV and the HDMI jack on the DVD I Blu-ray Player or
Cable Box ISatellite receiver (Set-Top Box).
DVD/Blu-ray Player or Cable
Box ISatellite receiver
_1° •
I .• '®
... ".
CD HOMI Cable (Not supplied)
TV Rear Panel TV Side Panel
lEI What is HDMI?
• HDMI, or high-definition multimedia interface, is an interface that enables the transmission of digital audio and video signals
using a single cable.
• The difference between HDMI and DVI is that the HDMI device is smaller in size and has the HDCP (High Bandwidth Digital
Copy Protection) coding feature installed.
lEI Each DVD Player or Cable Box ISatellite receiver (Set-Top Box) has adifferent back panel configuration.
lEI The TV may not output sound and pictures may be displayed with abnormal color when DVD I Blu-ray Player or Cable Box I
Satellite receiver supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and there is no
sound, connect the HDMI cable to the HDMI IN 2(DVI) jack and the audio cables to the DVI AUDIO IN [R-AUDIO-L] jacks on the
back of the TV. If this happens, contact the company that provided the DVD I Blu-ray Player or Cable Box ISatellite receiver to
confirm the HDMI version, then request an upgrade.
lEI HDMI cables that are not 1.3 may cause annoying flicker or no screen display.
I
.. · ... _c_o_n_n_e_ct_in_g_a_D_V_D_'B_I_U-_r_ay_p_la_y_e_r _o_r _C_a_bl_e_B_o_x_,_s_a_t_el_li_te_r_e_c_e_iv_e_r _
•(Set-lop Box) via
DVI
This connection can only be made if there is a OVI Outputjack on the external device.
1. Connect a HDMI/DVI Cable or DVI-HDMI Adapter between the HDMIIN 2(DVI) jack on the TV and the DVI jack on the DVD I
Blu-ray Player or Cable Box/Satellite receiver (Set-Top Box).
2. Connect Audio Cables between the DVI AUDIO IN [R-AUDIO-L] jack on the TV and the DVD/Blu-ray Player or Cable Box ISatellite
receiver.
DVD/Blu-ray Player or Cable Box I
Satellite receiver TV Rear Panel
[I] Audio Cable (Not supplied)
CD HOMUOVI Cable (Not supplied)
® Each DVD I Blu-ray Player or Cable Box ISatellite receiver (Set-Top Box) has adifferent back panel configuration.
® When connecting a DVD Player or Cable Box ISatellite receiver (Set-Top Box), match the color of the connection terminal to the
cable.
lEI When using an HDMII DVI cable connection, you must use the HDMIIN 2(DVI) jack.

The rear panel jacks on your TV make it easy to connect aDVD/Blu-ray Player or Cable Box ISatellite receiver (Set-Top Box) to
your
TV.
1. Connect Component Cable between the COMPONENT IN (1 or 2) [Y, PB, PRJ jacks on the TV and the COMPONENT [Y, PB, PRJ
jacks on the DVD I Blu-ray Player or Cable Box I Satellite receiver(Set-Top Box).
2. Connect Audio Cables between the COMPONENT IN (1 or 2) [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the DVD /
Blu-ray Player or Cable Box / Satellite receiver (Set-Top Box).
I
'.. Connecting a DVD I Blu-ray Player or Cable Box I Satellite receiver
(Set-Top Box) via Component cables
TV Rear Panel
DVD I
Blu-ray Player or Cable Box
ISatellite receiver
WAudio Cable (Not supplied)
IT] Component Cable (Not supplied)
I
[lqJ Component video separates the video into Y (Luminance (brightness)), PB (Blue) and PR (Red) for enhanced video quality. Be sure
to match the component video and audio connections. For example, if connecting the video cable to COMPONENT IN 1, connect
the audio cable to COMPONENT IN 1 also.
[lqJ Each DVD / Blu-ray Player or Cable Box I Satellite receiver (Set-Top Box) has a different back panel configuration.
[lqJ When connecting a DVD I Blu-ray Player or Cable Box ISatellite receiver (Set-Top Box), match the color of the connection terminal
to the cable.
Connecting a Camcorder
The side and rear panel jacks on your TV make it easy to connect acamcorder to your TV.
oUsing an Video IAudio Cable
1. Connect a Video Cable between the AV IN 2 [VIDEO] jack on the TV and the VIDEO OUT jack on the camcorder.
2. Connect Audio Cables between the AV IN 2 [L-AUDIO-R] jacks on the TV and the AUDIO OUT jacks on the Camcorder.
IEJ Each Camcorder has a different back panel configuration.
TV Side Panel
Camcorder
f
''\J''~
• 0>
1 . ,.
\ I [
IT] Video Cable (Not supplied)
={[BIEJ ..... --:;;;;~-----01EIJ=
=j~ WAUdiO Cable (Not supplied) ~
[lqJ When connecting a Camcorder, match the color of the connection terminal to the cable.

o Using an HOMI Cable
1. Connect an HDMI Cable between the HDMIIN (1, 2(DVI), 3, or 4) jack on the TV and the HDMI jack on the camcorder.
TV Rear Panel TV Side Panel
III HOMI Cable (Not supplied)
~ Each Camcorder has adifferent back panel configuration.
II.
:onnecting a VCR
Video Connection
These instructions assume that you have already connected your TV to an antenna or a cable TV system (according to the
instructions on pages 9-10). Skip step 1if you have not yet connected to an antenna or a cable system.
1. Unplug the cable or antenna from the back of the TV.
2. Connect the cable or antenna to the ANT IN terminal on the back of the VCR.
3. Connect an Antenna Cable between the ANT OUT terminal on the VCR and the ANT IN terminal on the TV.
4. Connect a Video Cable between the AV IN 1[YNiDEO] or AV IN 2 [VIDEO] jack on the TV and the VIDEO OUT jack on the
VCR.
5. Connect Audio Cables between the AV IN 1(or AV IN 2) [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the VCR
VCR Rear Panel
[!] Video Cable(Not supplied)
TV Rear Panel TV Side Panel
o •
I :
·
·
·
·
·
·
·
..............
... _------------_.......... . . .
IT] Antenna cable(Not supplied)
~ If you have a "mono" (non-stereo) VCR, use aY-connector (not supplied) to connect to the right and left audio input jacks of the
TV. Alternatively, connect the cable to the "R" jack.
If your VCR is stereo, you must connect two cables.
~ Each VCR has adifferent back panel configuration.
~ When connecting a VCR, match the color of the connection terminal to the cable.
~ When connecting to AV IN 1, the color of the AV IN 1[YNiDEO] jack (Green) does not match the color of the video cable (Yellow).

I
t-c_o_n_n_ec_t_in_g_a_D_i9_it_a_1 A_ud_i_o_S_y_s_te_m _
The rear panel jacks on your TV make it easy to connect aDigital Audio System(Home theater/Receiver) to your TV.
1. Connect an Optical Cable between the DIGITAL AUDIO OUT (OPTICAL) jacks on the TV and the Digital Audio Input (OPTICAL)
jacks on the Digital Audio System.
When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack: Decrease the volume of the TV. and
adjust the volume level with the system's volume control.
TV Rear Panel
Digital
Audio System
fOl~fOl
lQJ~lQJ
I
[!] Optical Cable (Not supplied)
® 5.1 CH audio is possible when the TV is connected to an external device supporting 5.1 CH.
® Each Digital Audio System has adifferent back panel configuration.
® When the receiver (home theater) is set to On, you can hear sound output from the TV's Optical jack. When the TV is displaying a
DTV(air) signal, the TV will send out 5.1 channel sound to the Home theater receiver. When the source is adigital component such
as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver.
If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD / Blu-ray player or Cable/
Satellite Box directly to an Amplifier or Home Theater, not the TV.
Connecting an Amplifier I DVD Home Theater
1. Connect Audio Cables between the AUDIO OUT [R-AUDIO-L) jacks on the TV and AUDIO IN [L-AUDIO-R) jacks on the Amplifier/
DVD Home Theater.
When an audio amplifier is connected to the AUDIO OUT [R-AUDIO-L) jacks terminals: Decrease the volume of the TV, and adjust
the volume level with the Amplifier's volume control.
TV Rear Panel
K,"
AIJOJO I'(
Amplifier IDVD Home Theater
[!] Audio Cable (Not supplied)
® Each Amplifier / DVD Home Theater has adifferent back panel configuration.
® When connecting an Amplifier / DVD Home Theater, match the color of the connection terminal to the cable.

I
Connecting a PC
o Using a D-Sub Cable
1. Connect a D-Sub Cable between PC IN [PC] jack on the TV and the PC output jack on your computer.
2. Connect a PC Audio Cable between the PC IN [AUDIO] jack on the TV and the Audio Out jack of the sound card on your
computer.
TV Rear Panel
pc
[I] PC Audio Cable (Not supplied)
CD O-Sub Cable (Not supplied)
o Using an HDMIJDVI Cable
1. Connect an HDMIIDVI cable between the HDMIIN 2(DVI) jack on the TV and the PC output jack on your computer.
2. Connect a 3.5 mm Stereo plug to 2RCA cable between the DVI AUDIO IN [R-AUDIO-L] jack on the TV and the Audio Out jack of
the sound card on your computer.
TV Rear Panel
[I] 3.5 mm Stereo plug to 2RCA Cable (Not supplied)
PC
CD HOMI/OVI Cable (Not supplied)
~ Each PC has adifferent back panel configuration.
~ When connecting a PC, match the color of the connection terminal to the cable.
~ When using an HDMIIDVI cable connection, you must use the HDMI IN 2(DVI) terminal.

IOperation
® It may take a while for your TV to power on.
ONIOFF
@]
POWER
@
1V~'
@]
Press the POWER button on the remote control. You can also use the POWER button
on the TV.
ITurning the TV On and Off
I
Changing Channels
oUsing the Channel Buttons
Press the CH G or CH G button to change channels.
® When you press the CH G or CH G button, the TV changes channels in
sequence. You will see all the channels that the TV has memorized. (The TV must
have memorized at least three channels). You will not see channels that were either
erased or not memorized. See page 20 to memorize channels.
oUsing the Number Buttons
Press the number buttons to go directly to a channel. For example, to select channel "27",
press "2", then "7".
® For quick channel change, press the number buttons, then press the ENTER [31
button.
oUsing the "l:J" Button
The "0" button is used to select stations that broadcast a digital signal.
For example, for Channel "7-1", press "7", then "0", then "1".
® For quick channel change, press the number buttons, then press the ENTER [31
button.
:-------~---~-"l.:.:.::::J-~---
: ~MlIll:G
i+@A
i VOL SOURCE CH ~
i - @ '" ,
~_______ _ Jl _
.----------------------------
ITJ00
CDmw
0W0~,
DITJEJ[
uL+_JL~uT~U __ ~_L_ Uh ___
------.------------------------
EJITJEJ
~.#olUTE
[;j
'@G
VOL SOURCE CH
- @ '"
oUsing the PRE-CH Button to select the Previous Channel
Use the number buttons to quickly tune to any channel. Press the PRE·CH button. The
TV will switch to the last channel viewed.
® To quickly switch between two channels that are far apart, tune to one channel, then
use the number button to select the second channel. Then use the PRE-CH button
to quickly alternate between them.
__ unn h_=L JJ Ju_ _0000 __
!----------=-=-=---jl------
i D~8~
i ~@G
1 VOL SOURCE CH
: - @ '"
._--------------.------------
I
Adjusting the Volume
oUsing the Volume Buttons
Press the VOL GJor VOL l:J button to increase or decrease the volume.
oUsing the Mute Button
At any time, you can cut off the sound using the !ltMUTE button.
1. Press 4MUTE button and the sound cuts off.
•
will displayed on the screen.
2. To turn mute off, press the 4MUTE button again, or simply press the VOL GJ or
VOL l:J button.
._------~------------------------------
: [jWTEG
: + @A
i VOL ~c:olJRCE CH
: -,7J '"
~ ------- -------------- _. -------------- --

You can use the TOOLS button to select your frequently used functions quickly and easily. The Tools menu changes
Using the TOOLS Button
Idepending
on which external input mode you are viewing.
1. Press the TOOLS button. The Tools menu will appear.
2. Press the A/~ button to select a menu, then press the ENTER [3l' button.
3. Press the A/~ 1 .... /~/ENTER[3l' buttons to display, change, or use the selected items.
For a more detailed description of each function, refer to the corresponding page.
• Anynet+ (HDMI-CEC), see page 57
• Picture Mode, see page 23
• Sound Mode, see page 29
Sleep Timer, see page 34
• SRS TS HD, see page 29
• Add to Favorite (or Delete from Favorite), see page 21
• Switch to Cable (or Air), see page 20
• PIP, see page 33
• Auto Adjustment, see page 28
.------ •• n ••• \ •• cwnr'- _. .
~ Ci31
i lf~?~
~ _ .. [L~(\ _
Tools
~
Picture Mode Standard
Sound Mode Custom
Sleep Timer Off
SRSTS HD Off
Add 10 Favonle
SWitch to Cable
..,; Entu ~. Exit
I
I
Using the Remote Control Backlight Buttons
Use this feature in dark surroundings and when you are unable to see the remote control buttons clearly.
1. Press the ON/OFF(O) light button
® When ON, the button backlight is turned on for a moment.
® Pressing a remote control button when the remote control is on turns the button backlight on for a moment.
If you touch or move the remote control and the motion is detected by the sensor of the remote control, the button backlight will
be turned on for a moment.
® The button backlight will not be turned on when the remote control is turned off.
Viewing the Display
The display identifies the current channel and the status ofcertain audio-video settings.
1. Press the INFO button on the remote control. The TV will display the channel, the type of
sound, and the status of certain picture and sound settings.
[E Press the INFO button once more or wait approximately 10 seconds and it disappears
automatically.
...... ] ==r=.=.= [ .
B~0
~
.......... EJ.m.G .. _ .

Before using the TV, follow the steps below to learn how to navigate the menu in order to select and adjust different functions.
1. Press the MENU button.
The main menu is displayed on the screen. Its left side has the following icons: Picture, Sound, Channel, Setup, Input,
Application, Support.
2. Press the 10 or ~ button to select one of the icons.
Press the .... or ~ button to access the icon's sub-menu.
3. Press the 10 or ~ button to move to items in the menu.
Press the ENTERG button to enter items in the menu.
4. Press the I./~ / .... /~ button to change the selected items.
Press the RETURN button to return to the previous menu.
5. Press the EXIT button to exit from the menu.
IViewing the Menus
Using the remote control buttons
---_.- ------_ ..
Operations
I./~ / .... /~ IMove the cursor and select an item.
- ---, -_.+--_ .. _----- -- .. __ .-- .-
IChoose the currently selected item.
ENTERGIConfirm the setting.
Return to the previous menu.
EXIT iExit the on-screen menu.
RETURN
Button IOperations Button
. . -1 ---------- 11-------+--
MENU Display the main on-screen menu.
oExample: Setting the TV's Brightness in the Picture Menu
• Adjusting the Brightness to 80
1. Press the MENU button to display the menu.
2. Press the ENTERG button to select Picture.
3. Press the 10 or ~ button to select Brightness.
4. Press the ENTERGbutton.
5. Press the .... or ~ button until the Brightness changes to 80.
6. Press the ENTERG button.
IB Press the EXIT button to exit from the menu.
..
-1"""-
..
: ~JnvL ... ~ AUJusl I? Enter :) ReturP
-1-
:fl..love ..... ..... oJUS! (3J Enter ") Ret\;{ 'I

(j)
~.
~
Plug & Play
Language English
Time
BDWlSe On
Network Setup
V-Chip
I
Plug & Play Feature
The first time you turn on your new TV, choose your basic settings for language, input source and channels, and time of day
using the plug &play feature. The TV will store these settings in memory. Storing the channels in memory will allow you to
scan the stored channels rather than have to enter their digits each time you want to change channels.
®The Screen Saver is activated if there is no remote control key input for longer than 1minute while Plug &Play is running.
®The Screen Saver is activated if there is no operating signal for longer than 15 minutes.
1. Press the POWER button on the remote control.
Select Language of the OSD menu is automatically displayed. Select the appropriate
language by pressing the. or 'Y button. Press the ENTER (]I button to confirm your
choice.
2. Press the .... or ~ button to select Store Demo or Home Use, then press the
ENTER(]I button.
®We recommend setting the TV to Home Use mode for the best picture in your home
environment.
®Store Demo mode is only intended for use in retail environments.
®Ifthe unit is accidentally set to Store Demo mode and you want to return to Home
Use (Standard): Press the Volume button on the TV. When the volume OSD is
displayed, press and hold the MENU button on the TV for 5seconds.
3. Press the. or 'Y button to select the Antenna source to memorize. Press the
ENTER (]I button to select Start.
•Air: Air antenna signal.
•Cable: Cable antenna signal.
• Auto: Air and Cable antenna signals.
®In Cable mode, you can select the correct signal source among STD, HRC, and
IRC by pressing the ., 'Y, .... or ~ button, then press the ENTER (]I button. If
you have Digital cable, select the cable system signal source for both Analog and
Digital. Contact your local cable company to identify the type of cable system that
exists in your particular area.
4. The TV will begin memorizing all of the available channels.
® To stop the search before it has finished, press the ENTER (]I button with Stop
selected.
®After all the available channels are stored, it starts to remove scrambled channels. The Auto program menu then reappears.
Press the ENTER (]I button when channel memorization is complete.
5. The message Set the Clock Mode. is displayed. Press the ENTER (]I button.
Press the Aor 'Y button to select Auto, then Press the ENTERGbutton. The message Set to daylight saving time. is displayed.
If you select Manual, Set current date and time is displayed. For detailed descriptions about the Manual, refer to page 34.
6. Press the Aor 'Y button to select Off, On, or Auto, then press the ENTER (]I button.
The image to select time zone in which you live is automatically displayed.
7. Press the. or 'Y button to Select the time zone, then press the ENTER (]I button.
If you have received adigital signal, the time will be set automatically. Ifnot, see page 34 to set the clock.
8. The brief instruction on How to get the best performance from your new HDTV is displayed.
Press the ENTER (]I button.
® You can change to the previous or next page by pressing the .... or ~ button.
® You can access the HD Connection Guide in the Support menu.
9. The message Enjoy your TV. is displayed.
®Ifyou want to view the TV immediately, select the Watch TV.
®If you want to view the See Product Guide, press the ENTER (]I button.
If you want to reset this feature ...
1. Press the MENU button to display the menu. Press the. or 'Y button to select Setup,
then press the ENTER (]I button.
2. Press the ENTER (]I button again to select Plug &Play. For further details on setting up
options, press the ENTER (]I button again.
®The Plug & Play feature is only available in the TV mode.

I Channel Control
Before your television can begin memorizing the available channels, you must specify
the type of signal source that is connected to the TV (i.e. an Air or a Cable system).
Jj Press the TOOLS button to display Tools menu.
You can also switch the airI cable by selecting Tools -+ Switch to Cable (or Air)
oAuto Program
•Air: Air antenna signal.
• Cable: Cable antenna signal.
•Auto: Air and Cable antenna signals
l0 When selecting the Cable TV system: Selects the cable system. STD, HRC and IRC identify various types of cable TV systems.
Contact your local cable company to identify the type of cable system that exists in your particular area. At this point the signal
source has been selected.
l0 After all the available channels are stored, it starts to remove scrambled channels.
The Auto program menu then reappears.
l0 If you want to stop Auto Programming, press the ENTER []I button.
The Stop Auto Program? message will be displayed. Select Yes by pressing the'" or ~ button, then press the ENTER []I
button.
oClearing Scrambled Channel (Digital channels only)
The Clear Scrambled Channel function is used to filter out scrambled channels after Auto Program is completed.
This process may take up to 20-30 minutes.
l0 To stop searching scrambled channels: Press the ENTER []I button to select Stop.
Press the'" button to select Yes, then press the ENTER[]I button.
l0 This function is only available in Cable mode.
Fine Tune
Air?'
c:-- - -:-~~~.- =-~ - __ -:..:-~ . .:- -=-~. _...J
Rf:<:;et
:1'0.' n;'C:l\-.1 GJSav(; '"JRe1L,fl
oFine Tune (Analog channels only)
If the reception is clear, you do not have to fine tune the channel, as this is done
automatically during the search and store operation. If the signal is weak or distorted,
you may have to fine tune the channel manually.
l0 Fine tuned channels that have been saved are marked with an asterisk' on the
right-hand side of the channel number in the channel banner.
l0 If you do not store the fine-tuned channel in memory, adjustments are not saved.
l0 To reset the fine tuning setting, press the ~ button to select Reset, then press the ENTER []I button.
