Samsung RS265BBWP User manual

REFRIGERATOR
REFRIGERATOR PRODUCT FEATURE
For the latest information, Please access to our service web site (http://itself.sec.samsung.co.kr)
●●NEW DIGITAL DISPLAY(LED)
●●TOWER LIGHTING
●●
CONTOUR DOOR/HIDDEN HINGE
●●CLEAN LOOK DRAWER
●●TWIN COOLING
●●HUMAN TOUCH HANDLE
SIDE BY SIDE
BASIC : RS265BBWP, RS267LBBP
MODEL NAME : RS263BBWP RS265LBBP
RS263BBBB RS265LBWP
RS263BBSH RS267LBSH
RS264ABBP RS264ABRS
RS264ABSH RS264ABWP
RS267BBBB RS269LBRS
RS267BBSH RS267BBRS
MODEL CODE : RS263/264/265/267/269**/XAA
06년 A-TOP(LOWE'S)-080115 2008.1.15 11:48 AM 페이지1
RS26**

IMPORTANT SAFETY NOTICE
The service guide is for service men with adequate backgrounds of
electrical, electronic, and mechanical experience. Any attempt to repair
a major appliance may result in personal injury and property damage.
The manufacturer or dealer cannot be responsible for the interpretation
of this information.
SAMSUNG ELECTRONICS AMERICA, INC.
Technical Service Guide
Copyright ⓒ2006
All rights reserved. This service guide may not be reproduced in whole or in
part in any form without written permission from the SAMSUNG ELECTRONICS
Company.
WARNING

3
Contents
1. PRECAUTIONS (SAFETY WARNINGS) ······················· 4
2. PRODUCT SPECIFICATIONS ····························· 8
3. OPERATING INSTRUCTIONS & INSTALLATION ·················· 20
4. ALIGNMENT AND ADJUSTMENTS ··························28
5. DISASSEMBLY AND REASSEMBLY ························· 36
6. TROUBLESHOOTING ································· 49
7. EXPLODED VIEW & PARTS LIST ··························· 62
8. BLOCK DIAGRAM ···································· 79
9. WIRING DIAGRAM ··································· 80
10. PCB DIAGRAM ····································· 82
11. CIRCUIT DIAGRAM ·································· 84
12. CIRCUIT DESCRIPTIONS ······························ 85
13. SAFETY INSTRUCTIONS ON SERVICE ······················ 94
14. REFERENCE INFORMATION ···························· 100

4
1. PRECAUTIONS(SAFETY WARNINGS)
● Pull the power plug out before for the change or repair of electric parts.
→ Be careful the electric shock.
● When exchanging the parts, use the correct parts.
→ Check the model name, rating voltage, rating current, running
temperature symbols.
● When troubleshooting, connect firmly the types of harness.
→ Make not to be separated when some power is imposed.
● Check the traces of water infiltration at the electric parts.
→ If there is a trace of water infiltration, exchange or tape the parts.
● Check the assemble status of parts after troubleshooting.
→ It should be done indiscriminately as before the repair.
● Check the use circumstance of refrigerator.
→ If the refrigerator is installed at the place that is damp or wet, or
status of installation is unstable, change the installation place.
● Do earth in case of need.
→ Particularly, Be sure to earth when there is a risk of an electric
leakage by humidity or wetness.
● Do not use multi plugs in a plug socket at the same time.
Check if the power cord and socket is damaged, pressed, squeezed,
or fired.
→ If the plug or plug socket is damaged, repair or exchange that
immediately.
● Do not repair the refrigerator by user himself.
● Do not store other materials except the foods.
→ Drugs or scientific materials : difficult to keep precise temperature.
→ The inflammables(alcohol, benzene, ether, LP gas, butane gas etc.):
have risk of explosion.

5
1. PRECAUTIONS(SAFETY WARNINGS)
Read all instructions before repairing the product and follow the instructions
in order to prevent danger or property damage.
CAUTION/WARNING SYMBOLS DISPLAYED
SYMBOLS
Indicates that a
danger of death
or serious injury
exists.
Indicates that a risk
of personal injury
or material damage
exists.
means “Prohibition”.
means “Do not disassemble”.
means “No contact”.
means ”The things to
be followed”.
means “Earth to prevent Electric
shock”.
means “Power cord should be
unplugged from the consent”
Pull the power plug out to
exchange the interior lamp
of the refrigerator.
● It may cause electric shock.
Warning
Warning & Caution
Caution
Unplug
Use the rated components
on the replacement.
● Check the correct model, rated
voltage, rated current, operating
temperature and so on.
On repair, make sure that the
wires such as harness are
bundled tightly.
● Bundle tightly wires in order not to be
detached by the external force and then not
to be wetted.
Check if there is any trace
indicating the permeation
of water.
● If there is that kind of trace, change
the related components or do the
necessary treatment
such as taping
using the
insulating tape.
After repair, check the
assembled state of components.
● It must be in the same assembled state
when compared with the state before
disassembly.
On repair, remove completely dust
or other things of housing parts,
harness parts, and check parts.
● Cleaning may prevent the possible fire by
tracking or short.
Rated
components

6
1. PRECAUTIONS(SAFETY WARNINGS)

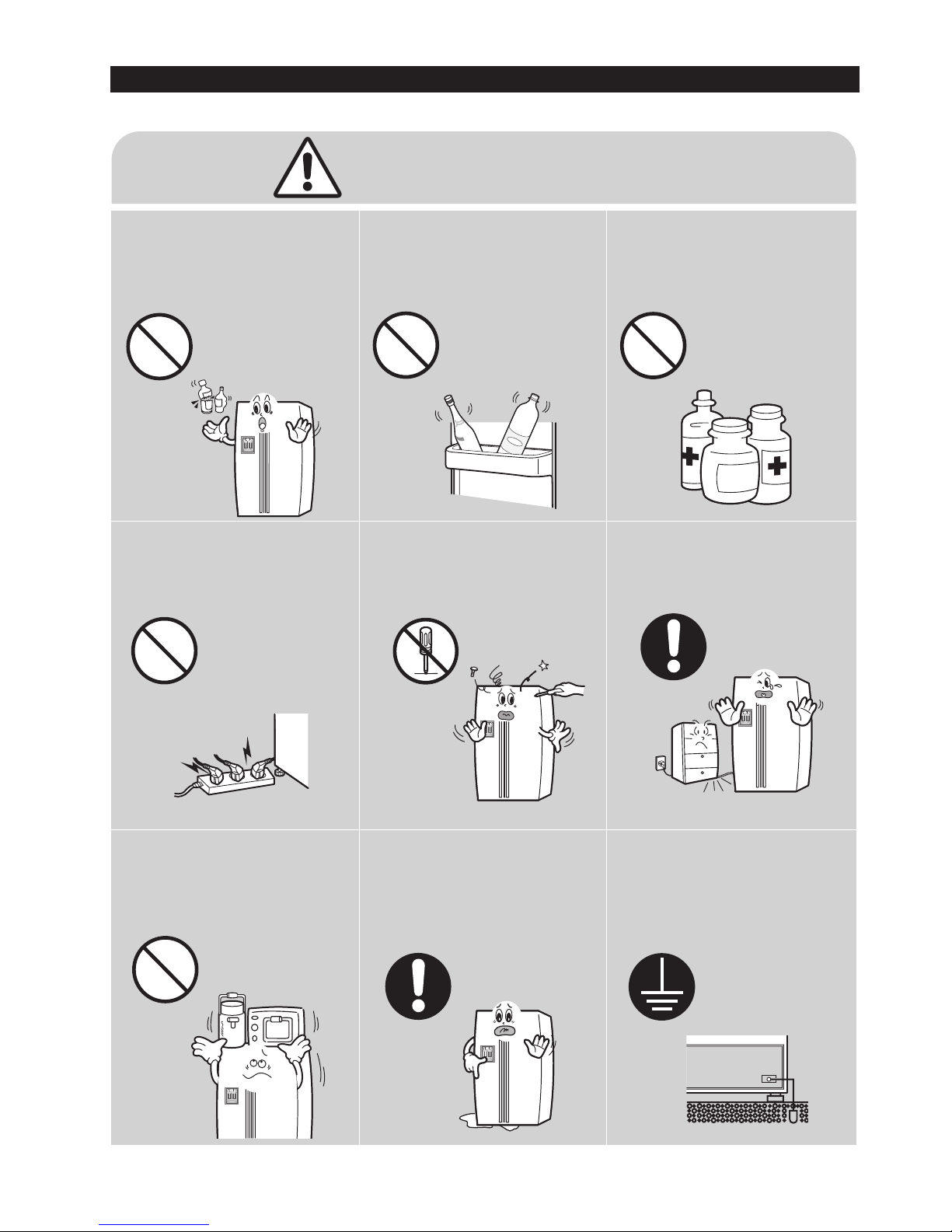

❈ Please let users know following warnings & cautions in detail.
Do not allow users to put bottles or
kinds of glass in the freezer.
● Freezing of the contents may inflict a wound.
Do not allow users to store narrow
and lengthy bottles or foods in a
small multi-purpose room.
● It may hurt you when refrigerator door is
opened and closed resulting in falling stuff
down.
Do not allow users to store
pharmaceutical products, scientific
materials, etc., in the refrigerator.
● The products which temperature control
should not be stored in the refrigerator.
Do not allow users to store
articles on the product.
● Opening or closing the door may cause
things to fall down, with may inflict a
wound.
Prohibition Prohibition Prohibition
Prohibition
Warning & Caution
Do not allow users to
disassemble, repair or alter.
● It may cause fire or abnormal
operation which leads to injury.
Do not
disassemble
Do not allow users to insert the
power plugs for many products
at the same time.
● May cause abnormal generation of
heat or fire.
Prohibition
Do not allow users to bend the
power cord with excessive force
or do not have the power cord
pressed by heavy article.
● May cause fire.
Do not allow users to install the
refrigerator in the wet place or
the place where water splashes.
● Deterioration of insulation of electric
parts may cause electric shock or fire.
Make sure of the earth.
● If earthing is not done, it will cause
breakdown and electric shock.
Earth

7
2. PRODUCT SPECIFICATIONS
2-1) Introduction of main function ·····························8
2-2)
Specifications ·······································9
2-3)
Interior Views ······································ 10
2-4)
Model Specification &Comparison Chart ······················· 11
2-5)
Model Specification &Comparison Chart ······················· 12
2-6)
Dimensions of Refrigerator (Inches) ·························· 15
2-7)
Optional Material Specification ····························· 16
2-8)

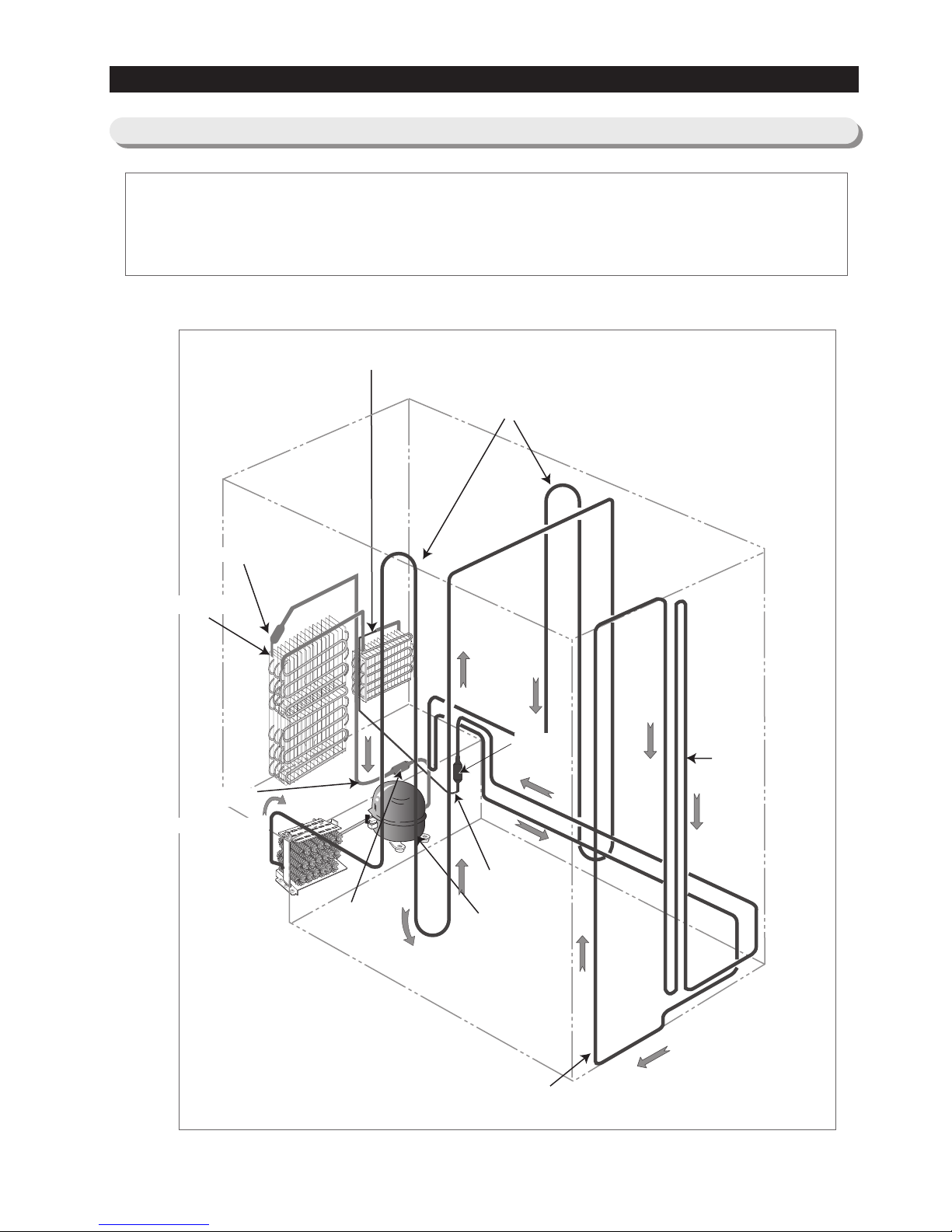

Refrigerant Route in Refrigeration cycle ························· 17
2-9)
Cooling Air Circulation ·································· 18

8
2. PRODUCT SPECIFICATIONS
●●A newly developed SAMSUNG side by side refrigerator in 2006 has the following
characteristics.
Twin Cooling System
●●The refrigerator and the freezer have two evaporators. Given this
independent system, the freezer and the refrigerator are cooled
individually as required and are, therefore, more efficient. Food
odor from the refrigerator does not affect food in the freezer due
to separate air flow circulation.
Multi-Flow System
●●Cool air circulates through multiple vents on every shelf level.
This provides even distribution of cooling inside cabinets to keep
your food fresh longer.
Xtra SpaceTM
●●Vertical room next to the ice maker in the freezer provides space
for pizza etc.
Door Alarm
●●Beep sound reminds you the door is open.
Xtra FreshTM
●●Optimized humidity control keeps vegetables & fruits fresh.
(RS263B/RS265L)
Deodorizer
●●Reusable twin deodorizers keep the refrigerator air fresh and odor
free.
CoolSelect ZoneTM Drawer
(RS265B,RS267B,RS267L,RS269L)
●●User can select Quick Cool, Thaw, for quickly chill items, thaw
items. Select Soft freeze, Chill or Cool to control the temperature
of the drawer.
2-1) Introduction of main function

9
2-2) Specifications
2. PRODUCT SPECIFICATIONS
Defrost Control From 24 to 32 hrs
Defrost Thermistor(502AT) 50℉(off)
Electrical Rating AC115V 60Hz 11.6 Amps
Maximum Current Leakage 0.25 mA
Maximum Ground Path Resistance 0.1 Ohm
Energy Consumption KWH/mo.
Ambient Temperature 70℉90℉
Refrigerator,℉34∼46 34∼46
Freezer,℉-14∼8 -14∼8
Run Time,% 󳠞40 󳠞60

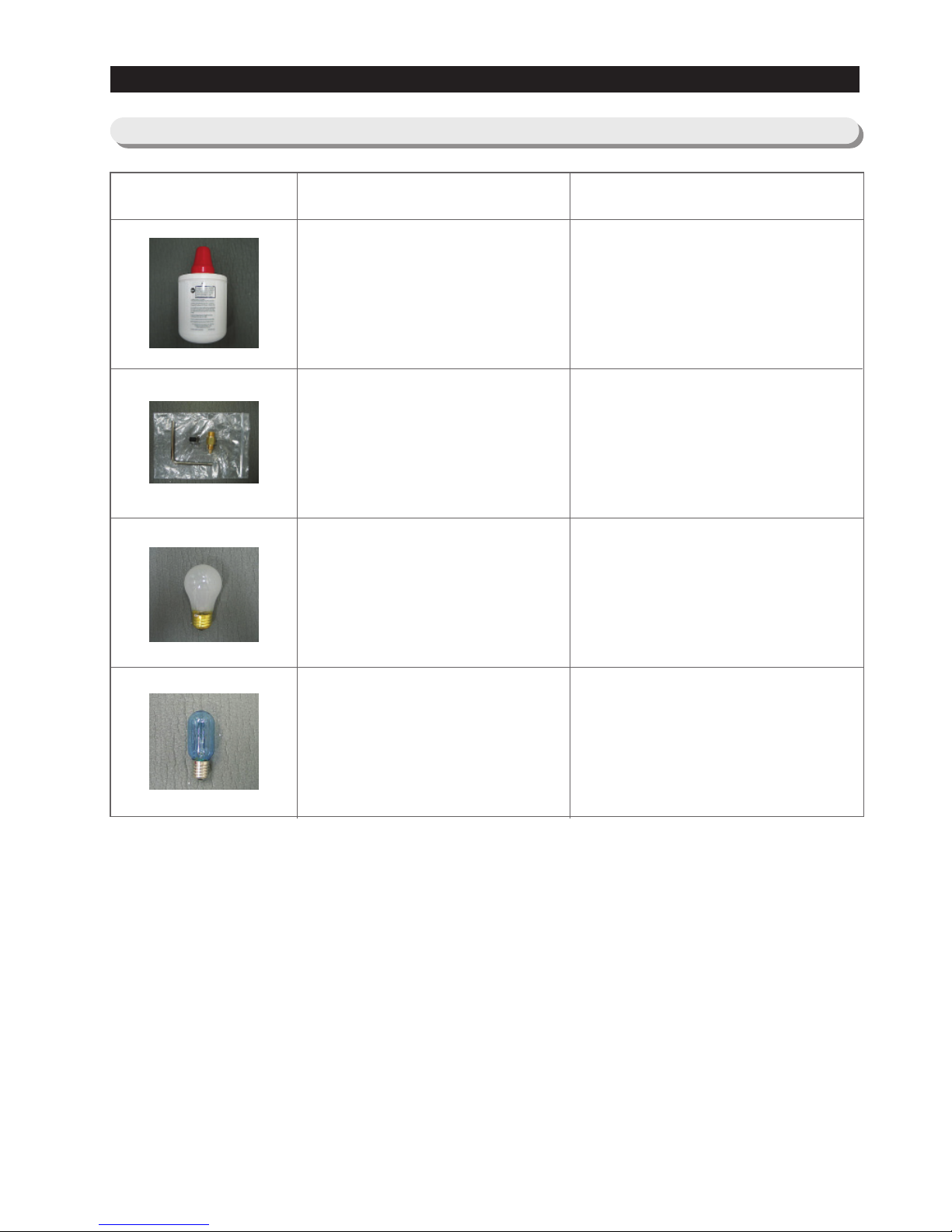

Refrigerant Charge (R134a) 7.76 oz
Compressor(MK183C-L2U) 532.3 Btu/hr
Compressor oil Freol α-10
Capillary tube(Dia, Length)
0.033＂＂,130＂＂
Dryer Molecular Sieve XH-9
Clearance must be provided for air circulation
AT TOP 2＂＂
AT SIDES 0.1＂＂
AT REAR 2＂＂
RS265(Good), RS267(Better), RS269(Best)
Main PCB ASS’Y(Dispenser with CoolSlelect ZoneTM) DA41-00104Z
Main PCB ASS’Y ( (Dispenser ) DA41-00396A
Thermistor(Freezer) DA32-10109W
Thermistor(Freezer Evaporator) DA32-00006A
Thermistor(Refrigerator) DA32-10105U
Thermistor(Refrigerator Evaporator) DA32-00006B
Thermistor(Ambient) DA32-10109V
Thermistor(CoolSelect ZoneTM) DA32-10109X
Thermistor(Ice-Maker) DA32-10108B
Relay DA35-10013Q
Overload Relay DA34-10003D
Run Capacitor (12㎌) 2501-001045
Fan-Motor(FRE) DA31-00020E
Fan-Motor(REF) DA31-00002S(RS2534)
Fan-Motor(REF) DA31-00020E(RS2556/2578)
Fan-Motor(Condenser) DA31-00020H
Thermal Fuse DA47-00095C
Senser-Flow DA32-10110B
Fan
Fan
Fan Fan
Fan
Fan
(Air inlet)
(Air inlet)
(Air inlet)
(Air inlet)
(Air inlet)
(Air inlet)
Heat exchanger
Heat exchanger
Heat exchangerHeat exchanger
Compressor
C-FanDryer Electric box
Sub-condenser
ELECTRICAL SPECIFICATIONS Freezer Refrigerator
NO LOAD PERFORMANCE
REFRIGERATION SYSTEM
INSTALLATION
MODELS
REPLACEMENT PARTS

10
2. PRODUCT SPECIFICATIONS
2-3) Interior Views
Door Bin
Xtra SpaceTM
Ice Maker
Light
Ice Chute
Glass Shelf
Wire Shelf
Light Switch
Light Switch
Deodorizer
Plastic Drawers
Wire Drawers
Front Leg Cover
Tilt Pockets
RS263B/RS265L Model
Egg Container
Foldable Shelf (RS265B/RS267B/RS267L/RS269L)
Light (upper)
Water Filter
Spill-proof glass Shelf
Dairy Compartment
Wine Shelf
Gallon Door Bin
Lights (lower)
Gallon Door Bins
Door Bin Top Lips
CoolSelect Zone
TM
Drawer for
RS265B/RS267B/RS267L/RS269L
(Chilled Bin for RS263B/RS265L)
Vegetable & Fruit Drawers
RS265B/RS267B/RS267L/RS269L Model
Freezer
Refrigerator

11
2-4) Model Specification &Comparison Chart
PRODUCT SPECIFICATIONS
Spec WHIRLPOOL
GS6SHAXLS
GE
GSS25JFP
ITEM
Appearance
Product Zone
Performance
Noise
SAMSUNG
Twin Cooling
Flat Contour
Cool select Zone
167.2 159.3 111.6 199.0
108.5 104.2 386.4 202.0
-29.9 -30.0 -29.8 -27.2
0.1 -1.0 -4.6 -1.1
-24.0 -23.7 -24.7 -20.4
1.3 -0.3 3.4 1.1
1.3 0.9 1.7 1.0
1.5 1.2 2.1 3.3
53.2 55.5 48.8 55.3
44.4 43.3 45.0 46.7
41.3 41.1 40.0 45.0
Cooling Tech
Door Shape
Special Room
Mono Cooling Mono Cooling
Contour Contour
Convertible Bin Convertible Bin
A-TOP05 A-TOP06
200↓
150↓
-26↓
0±1.5
-18↓
5↓
2.0↓
2.0↓
65%↓
45dB↓
43dB↓
F-Room
Cooling
Speed(Min)
32℃
43℃
Temperature
Distribution
(Fridge)
Operation rate
R-Room
F-Room
R-Room
F-Room
R-Room
F-Room
R-Room
N-N
Sound power level
Sound pressure level

12
2-5) Model Specification &Specification Chart
PRODUCT SPECIFICATIONS
Indirect Cooling Method Refrigerator
R134a
7.76oz
309 Pounds
35.7inch x 36.5inch x 70inch
AC 115V/60Hz
Net Dimension(W×D×H)
Rated Frequency and Frequency
Motor Rated Consumption Power
Electric Heater Rated Consumption Power
Kind of Refrigerator
Refrigerant
Refrigerant Input Amount
Product Weight
Item Specification
NNeett
CCaappaacciittyy
TToottaall
RReeffrriiggeerraattoorr
FFrreeeezzeerr
Models
26.1 cu.ft
10.0 cu.ft
16.1 cu.ft
414W 415W
160W
Dispenser
Dispenser with
Coolselect Zone™
RS263BB RS265LB RS265BB RS267LB RS267BB RS269LB

Items
13
PRODUCT SPECIFICATIONS
THERMISTOR
(R-SENSOR)
502AT
Models
Condenser
Dryer
Capillary tube(Dia
× Length)
Refrigerant
FREOL α-10
SPLIT FIN TYPE
SPLIT FIN TYPE
Forced and natural convection type
Molecular sieve XH-9
0.033 ”×130 ”
R134a
ON(℉) OFF(℉)
-11℉-17℉
-1℉-7℉
11℉5℉
ON(℉) OFF(℉)
36℉32℉
40℉36℉
46℉42℉
4 hr ±10 min
12~24hr(vary according to the conditions used)
6~12hr(vary according to the conditions used)
10 ±2 min
THERMISTOR (502AT)
5.0㏀at 50℉
THERMISTOR (502AT)
5.0㏀at 50℉
AC 125V 10A
Off:140 ℉/On:104℉
AC 250V 10A
170.6 ℉(+0 ℉/-10 ℉)
Components for Freezer
Room Temperature Sensor Components
Freezer
Model
Temperature Selection
-14℉
-4℉
8℉
THERMISTOR
(F-SENSOR)
502AT
Model
Temperature Selection
34℉
38℉
44℉
Refrigerator
Defrost Cycle
Defrost SensorThermal-Fuse
F Defrost-
Sensor
F Bimetal-
thermo
R Thermal
Fuse
R Defrost-
Sensor
First Defrost Cycle (Concurrent defrost of F and R)
Defrost Cycle(FRE)
Defrost Cycle(REF)
Pause time
Model
SPEC
Model
SPEC
Rated
Operating temperature
Rated
Operating temperature
Defrost Related Components
Compressor
Model
Starting type
Oil Charge
Evaporator Freezer
Refrigerator
MK183C-L2U
R.S.C.R
RS263 RS265 RS267 RS269
Specification

14
PRODUCT SPECIFICATIONS
Electric Components
AC 115V,215W
AC 115V,140W
AC 115V,45W
Single Body with Defrost Heater(REF)
AC 125V 10A Off:-76 ℉/On:104 ℉
AC 250V 10A 170.6 ℉(+0 ℉/-10 ℉)
Specification
Items
Model
Conducting at F Defrosting
Conducting at R Defrosting
Conducting at F Defrosting
Conducting at R Defrosting
Interlock with F-FAN
-
-
Defrost Heater(FRE)
Defrost Heater(REF)
Drain Heater(FRE)
Drain Heater(REF)
DISPENSER Heater
WATER PIPE Heater
WATER TANK- Heater
Condenser for
COMP
(Package type)
Running
Starting
Model
Operation
Model
Temp. ON
Temp. OFF
Starting-Relay
Over load Relay
MOTOR-BLDC(FRE)
MOTOR-BLDC(REF)
MOTOR-BLDC (Circuit)
Lamp(FRE)
Door Switch
Power cord
Earth Screw
Bimetal-thermo for preventing
Overheating of Freezer Defrost-Heater
12μF,250 V
-
J531Q32E4R7M180-2
4.7Ω±20%
4TM265RFBZZ53
257 ℉ ±10 ℉
156.2 ℉ ±18 ℉
AC 115V/60Hz
DC12V/DREP3030 LA
DC12V/DREP3020 LA
DC12V/DRCP3030 LA
AC115V/40W(1EA)
AC120V/40W(3EA)
AC 250V 0.5A×2
AC125V 15A
BSBN (BRASS SCREW)
Thermal Fuse for preventing
Overheating of Refrigerator Defrost-Heater
Rated Voltage
AC 115V,5W
AC 115V,5W
AC 115V,4W
RS263BB
RS265LB
RS265BB
RS267LB
RS267BB
RS269LB
Lamp(REF) UPPER
LOWER
AC130V/30W(1EA)-

15
2. PRODUCT SPECIFICATIONS
35.9
46.8
16.3
21.2
51.7
20.3
30.5
36.5
34
3
15.3
1.2
4.3
70
2-6)Dimensions of Refrigerator (Inches)

16
2. PRODUCT SPECIFICATIONS
2-7) Optional Material Specification
Photographe Part Name
FILTER
WATER-ASSY DA29-00003B
ASSY-PACKING
SUB DA99-00240A
LAMP INCANDENT 4713-001206
LAMP INCANDENT 4713-001197
Part Code

17
Compressor →Sub-condenser →Side Cluster Pipe(FRE) →Side Cluster Pipe(REF) →Hot Pipe
→Dryer →Capillary Tube →Refrigerator Evaporator →Freezer Evaporator→Suction Pipe →Compressor
Refrigerator Evaporator
Capillary Tube
ACCUMULATOR
Freezer Evaporator
SUCTION PIPE
Dryer
Muffler
SUB-CONDENSER
Hot Pipe
Hot Pipe
Compressor
SIDE CLUSTER PIPE
2. PRODUCT SPECIFICATIONS
2-8) Refrigerant Route in Refrigeration cycle

18
Refrigerator
2. PRODUCT SPECIFICATIONS
2-9) Cooling Air Circulation
Freezer

19
3. OPERATING INSTRUCTIONS & INSTALLATION
3-1) Digital Panel ······································20
3-2) Temperature Control Function ····························20
3-3) Power Freeze and Power Cool Functions······················21
3-4) Child Lock Function ··································21
3-5) Ice & Water Dispenser Function ···························22
3-6) C-Fan Motor Delay Function of the Machine Compartment ···········22
3-7) CoolSelect ZoneTM Function (RS267LA,RS269LA) ···············22
3-8) Water Filter Indicator Function ····························23
3-9) Ice-Maker Function ··································23
3-10) Defrost Function ···································25
3-11) Installation·······································26

20
3. OPERATING INSTRUCTIONS & INSTALLATION
3-1) Digital Panel
When the system power is initally engaged, the default set temperature are -4℉for the freezer and 38℉for the set
refrigerator, respectively. The numbers shown on the digital display panel stand for the actual compartments
temperatures. When the compartment temperatures go down, so do the numbers on the display panel, and finally they
reach the set temperatures. Once the system is stabilized, the display temperatures are the set temperature.
1) Freezer Temperature Control.
To select a set temperature, press the Freezer Temp. button. The display shows the set temperature from -14℉to
8 ℉in sequence.
2) Quick Ice Freezer Temperature Control
Interior Temperature of the freezer will be controlled with -14 degrees Fahrenheit until the ice bucket is filled up with
ice cubes. When the ice bucket is filled up with ice cubes, the freezer will run with original set temperature. Also,
whenever the ice bucket is released from being filled with ice cube, the freezer will repeat
to be controlled with -14 degrees Fahrenheit. But if you select "Ice Off, the freezer always will be controlled with
original set temperature.
3) Refrigerator Temperature Control.
To select a set temperature, press the Fridge Temp. button. The display shown the set temperature from 34℉to
46℉in sequence.
note) Because of the temperature sensor sensivity, the refrigerator can be under and/or over cooled when
the air flow is blocked by stored foods. (Temperature range of the sensor : 15℉∼80℉)
In the event of a power failure, if the freezer temperature is maintained lower than 41℉, the last
selected set temperature and functions memorized in EEPROM will be restored when the power is on.
for RS263BB
RS265LB
for RS265BB
RS267BB
RS267LB
RS269LB
3-2) Temperature Control Function
