Samsung RT38 User manual

REFRIGERATOR
REFRIGERATOR CONTENTS
1. PRECAUTIONS
2. PRODUCT SPECIFICATIONS
3. DISASSEMBLY AND REASSEMBLY
4. TROUBLESHOOTING
5. PCB DIAGRAM
6. WIRING DIAGRAM
7. BLOCK DIAGRAM
8. SCHEMATIC DIAGRAM
9. REFERENCE INFORMATION
Basic Model : RT38(RT42) / RT35(RT39) / RT32(RT36) /
RT29(RT33) / RT25(RT28) / RT22(RT26)
Model Code :
RT38(RT42)FA* / RT35(RT39)FA* / RT32(RT36)FA* / RT29(RT33)
FA* / RT25(RT28)FA* / RT22(RT26)FA* (Basic)
RT35(RT39)FB* / RT32(RT36)FB* / RT29(RT33)FB* (Dispenser)
RT38(RT42)FD* / RT35(RT39)FD* / RT32(RT36)FD* (Display)
RT38(RT42)FE* / RT35(RT39)FE* (Display+Dispenser)
RT38(RT42)FF* (Display+Dispenser+Stand Table)
RT38(RT42)FG* / RT35(RT39)FG* / RT32(RT36)FG* / RT29(RT33)
FG* / RT25(RT28)FG* / RT22(RT26)FG* (Stand Table)
RT35(RT39)FJ* (Display+Stand Table)
RT**FB RT**FA
RT**FG
RT**FD
RT**FJ
RT**FF
RT**FE
[HANDLE Type] : Recessed & BAR

7
2. PRODUCT SPECIFICATIONS

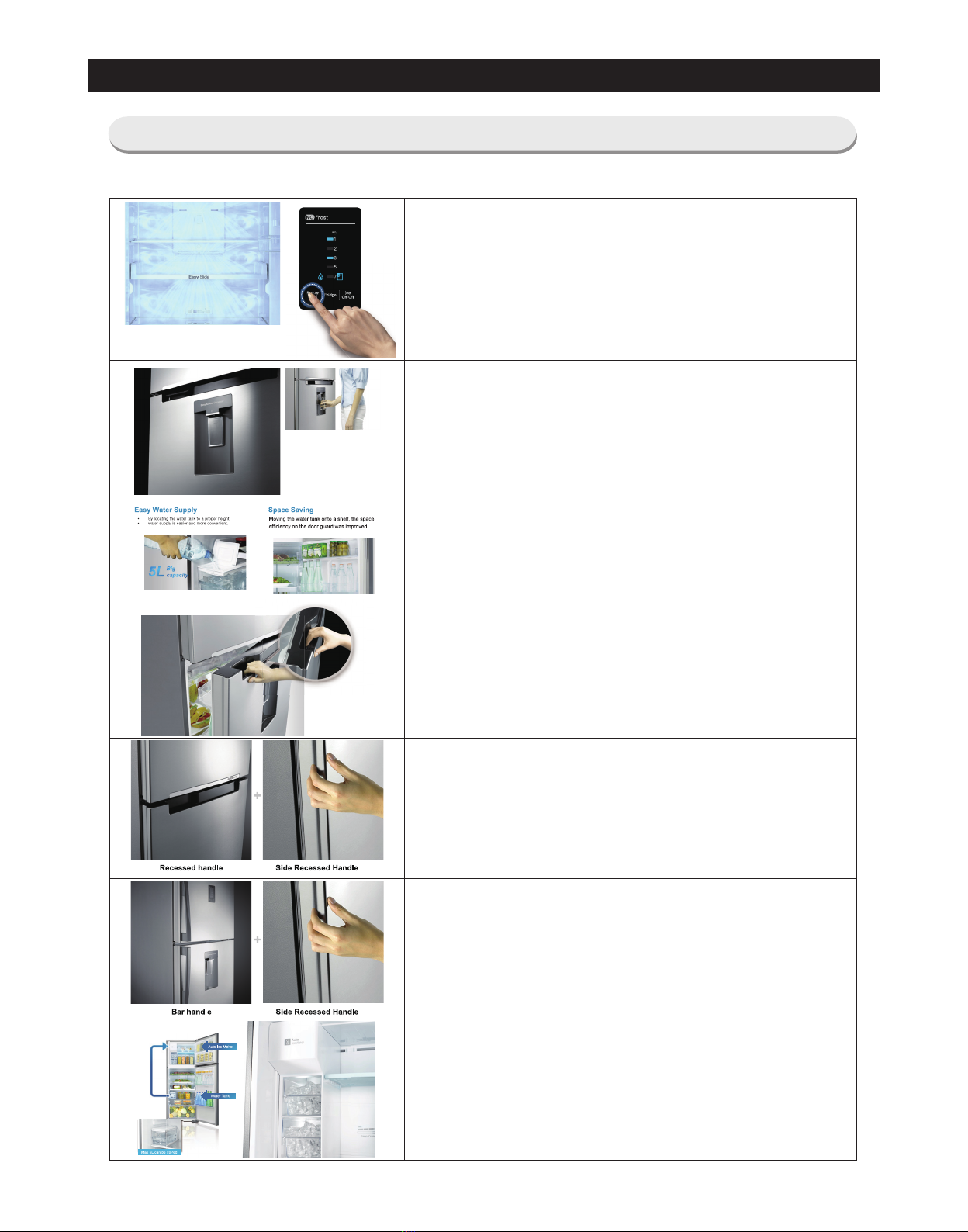

2-1. Introduction of Main Function
• A newly developed SAMSUNG Top mount freezer has the following characteristics.

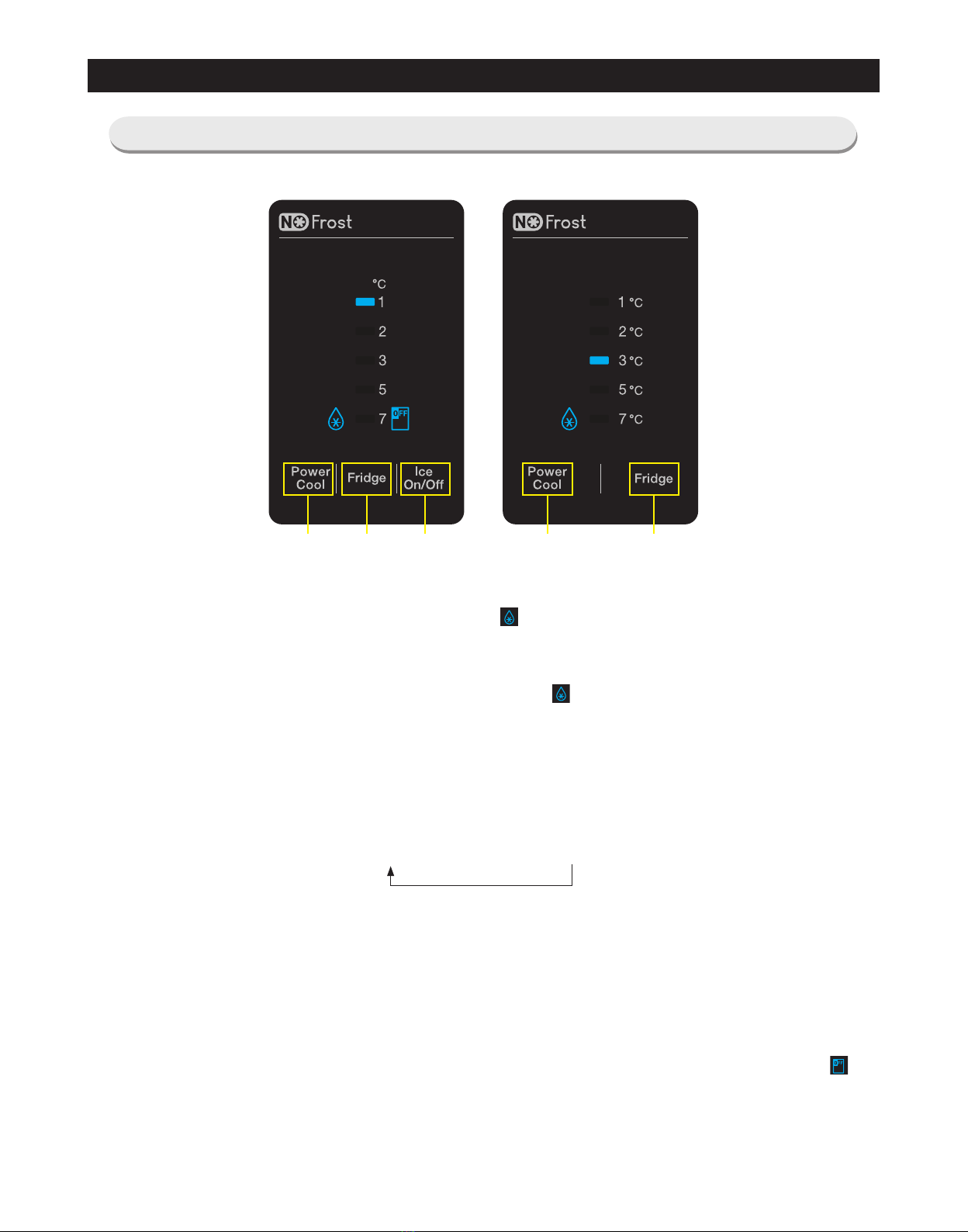

QUICK COOLING MODE
Pushing "Power Cool" button on the display, fridge starts cooling
inside powerfully and helps reach to the target temperature in a short
time. This convenient mode can reduce waiting time for cooling when
needed.
6TH Option(Exterior) : D,J,E,F
EASY ACCESS DISPENSER
Locating the dispenser at the waist level, the access to water gets
easier without the need to bend over your waist.
6th Option(Exterior) : B,E,F
EASY HANDLE
A modern style Easy Handle features advanced method in door
opening. Simply click on the button in the handle and it pushes the
body, enabling an easy and effortless opening.
7th Option(Handle) : A
RECESSED HANDLE & SIDE RECESSED HANDLE
With it's ergonomic design of the front and side recessed handle, the
door can be opened easily.
7th Option(Handle) : R
BAR HANDLE & SIDE RECESSED HANDLE
With comfortable grip of bar handle, the door can be opened more
easily. And the front of the side recess handle sticks out more than
the back, enabling to open the door easily with elbow while both
hands are full of groceries.
7th Option(Handle) : J
AUTO ICE MAKER
- All the process of ice making is done automatically only by filling the
water tank.
- 5L big capacity ice maker gets ice cubes always ready.
8th Option(Interior) : K

8
PRODUCT SPECIFICATIONS

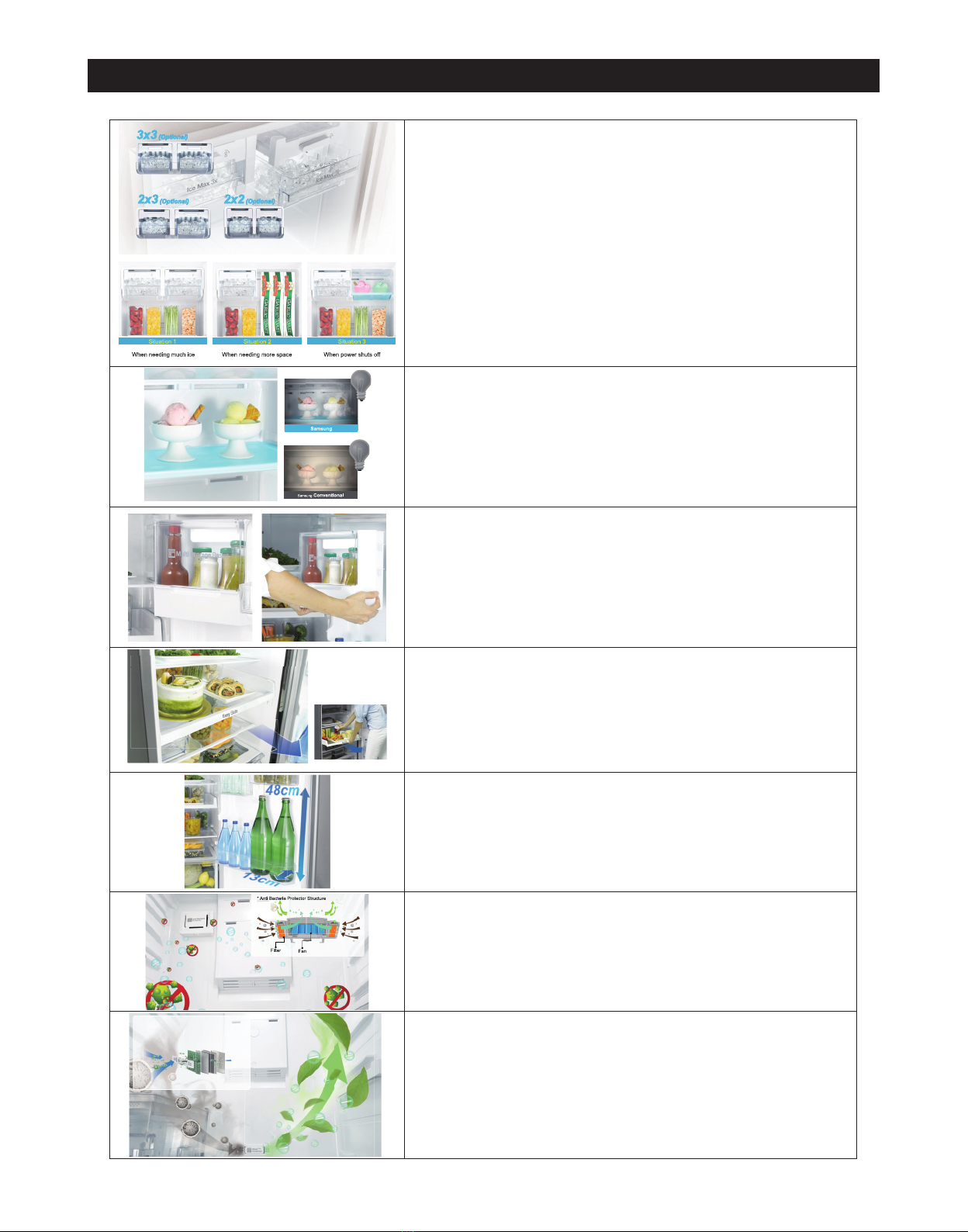

ICE MAX
Ice Max provides two times bigger space than conventional model
by adding one more ice box. The two ice boxes can contain enough
amount of ice to serve many visitors ice beverage without the need to
purchase more ice.
The right ice box can be removed for more space to store other items.
With the removable ice box, the space can be adjusted more flexibly
depending on your need.
8th Option(Interior) : C,D,F,G,J,Q,S
COOL PACK
Even in case of power shut-off, cool pack keeps cooling for 8 hours,
which keeps foods from defrosting or ending up in the rubbish bin.
8th Option(Interior) : B,C,E,F,G,K,Q,R,S,Z
MULTI STORAGE BASKET
- Multi Storage Basket was designed to store various items such as
cosmetics, medinines, and sauces separately from others.
- It also can be detached and moved conveniently to a desired place.
8th Option(Interior) : C,D,E,F,G,S
EASY SLIDE
This specially designed shelf that can slide out enables a more
efficient organization where one can easily store and take out food,
while reducing unused space inside.
8th Option(Interior) : ALL
BIG GUARD
A wider and deeper Big Guard can store big and tall bottles easily,
enabling to enjoy a big bottle of beverage for a long period of time or
to store more and various beverages.
Available : 290L, 320L, 350L, 380L
ANTI BACTERIA PROTECTOR
The inside fan creates air movement passing through a sterilizing /
deodorizing filter and ensures more effective and powerful sterilization
and deodorization.
8th Option(Interior) : D only
Deodorizing Filter
Has a natural fiber filter and deodorizing filter to
eliminate food smell and bacteria that changes the
original smell of groceries. SILVER+ DEODORIZER
Deodorizing Filter
Has a natural fiber filter and deodorizing filter to eliminate food smell
and bacteria that changes the original smell of groceries.
8th Option(Interior) : All option excluded D

9
PRODUCT SPECIFICATIONS
2-2. Model Specification
MODEL RT38(RT42) RT35(RT39) RT32(RT36)
CAPACITY 380L 350L 320L
DIMENSION
(W X D X H) 675 X 668 X 1785 675 X 668 X 1715 600 X 672 X 1715
FEATURE
DISPLAY
DISPENSER
EZ-HANDLE / BAR / RECESS
STAND-TABLE
AUTO-ICE MAKER/ ICE MAX /
TWIST ICE MAKER / TRAY
COOL PACK
BEAUTY BASKET
EZ SLIDE SHELF
ANTI VIRUS PROTECTOR
DEODORIZER
DISPLAY
DISPENSER
EZ-HANDLE / BAR / RECESS
STAND-TABLE
ICE MAX / TWIST / TRAY
COOL PACK
BEAUTY BASKET
EZ SLIDE SHELF
ANTI VIRUS PROTECTOR
DEODORIZER
DISPLAY
DISPENSER
EZ-HANDLE / BAR / RECESS
STAND-TABLE
ICE MAX / TWIST / TRAY
COOL PACK
BEAUTY BASKET
EZ SLIDE SHELF
DEODORIZER
MODEL RT29(RT33) RT25(RT28) RT22(RT26)
CAPACITY 290L 250L 220L
DIMENSION
(W X D X H) 600 X 672 X 1635 555 X 637 X 1635 555 X 637 X 1545
FEATURE
DISPLAY
DISPENSER
EZ-HANDLE / BAR / RECESS
STAND-TABLE
ICE MAX / TWIST / TRAY
COOL PACK
BEAUTY BASKET
EZ SLIDE SHELF
DEODORIZER
DISPLAY
DISPENSER
EZ-HANDLE / BAR / RECESS
STAND-TABLE
ICE MAX / TWIST
COOL PACK
BEAUTY BASKET
EZ SLIDE SHELF
DEODORIZER
DISPLAY
DISPENSER
EZ-HANDLE / BAR / RECESS
STAND-TABLE
ICE MAX / TWIST
COOL PACK
BEAUTY BASKET
EZ SLIDE SHELF
DEODORIZER

10
PRODUCT SPECIFICATIONS
2-3. View of your FRIDGE / FREEZER
Ice Max Type : RT38(RT42), RT35(RT39), RT32(RT36), RT29(RT33), RT25(RT28), RT22(RT26)
Ice Maker (Option) Freezer Guard
Guard-Egg
Movable Guard (Option)
Guard-Bottle
Ice Bucket (Option)
Cool-Pack (Option)
Chilled-Room (Option)
Slide Shelf
Deodorizer
Water Tank (Option)
2nd Drawer (Option)
Refrigerator Shelf
Vegetable Drawer

11
PRODUCT SPECIFICATIONS
Twist Type : RT38(RT42), RT35(RT39), RT32(RT36), RT29(RT33), RT25(RT28), RT22(RT26)
Tray Type : RT38, RT35, RT32, RT29F**L
Cool Pack(Option)
Cool Pack(Option)
or Shelf-Half
or Shelf-Half
Shelf-Full
Shelf-Full
Tray Ice
Tray Ice
(Option)
(Option)

12
PRODUCT SPECIFICATIONS
Auto Ice Maker Type : RT38F**K
Cool Pack(Option)
Cool Pack(Option)
or Shelf
or Shelf
Tray Ice (Option)
Tray Ice (Option)
Tray Ice (Option)
Tray Ice (Option)
Auto Ice Maker
Auto Ice Maker
(Option)
(Option)

13
PRODUCT SPECIFICATIONS
2-4. Model Specification
Model RT38(RT42) RT35(RT39) RT32(RT36)
Type TMF 2 Door
Temperature control Electronic
Option
Chilled &
Movable
Box
Dispenser Auto Ice
Maker
Chilled & Movable
Box Dispenser Chilled & Movable Box
Chilled &
Dispenser
Net
Capacity
(ISO)
Total 385 380 372 363 359 322 320
Freezer 87 87 79 87 87 72 72
Refrigerator 298 293 293 276 272 250 248
Dimension
(WXDXH)
Net 675 X 668 X 1785 675 X 668 X 1715 600 X 672 X 1715
Package
Recess 716 X 702 X 1850 716 X 702 X 1780 641 X 709 X 1780
Bar 716 X 749 X 1850 716 X 749 X 1780 641 X 756 X 1780
Foam
insulation
Cabinet CYCLO-PENTANE CYCLO-PENTANE CYCLO-PENTANE
Door CYCLO-PENTANE CYCLO-PENTANE CYCLO-PENTANE
Liner
Cabinet ABS ABS ABS, HIPS(SIEL-C)
Door ABS ABS ABS, HIPS(SIEL-C)
Net weight (Kg) 66.5 59.5 57.7
Model RT29(RT33) RT25(RT28) RT22(RT26)
Type TMF 2 Door
Temperature control Electronic
Option
Chilled & Movable
Box
Chilled &
Dispenser Chilled Chilled
Net
Capacity
Total 302 299 255 234
Freezer 72 72 53 53
Refrigerator 230 227 202 181
Dimension
(WXDXH)
Net 600 X 672 X 1635 555 X 637 X 1635 555 X 637 X 1545
Package
Recess 641 X 709 X 1698 582 X 663 X 1698 582 X 663 X 1610
Bar 641 X 756 X 1698 582 X 710 X 1698 582 X 710 X 1610
Foam
insulation
Cabinet CYCLO-PENTANE CYCLO-PENTANE CYCLO-PENTANE
Door CYCLO-PENTANE CYCLO-PENTANE CYCLO-PENTANE
Liner
Cabinet ABS, HIPS(SIEL-C) ABS, HIPS(SIEL-C) ABS, HIPS(SIEL-C)
Door ABS, HIPS(SIEL-C) ABS, HIPS(SIEL-C) ABS, HIPS(SIEL-C)
Net weight (Kg) 53.7 50.7 48.3

14
PRODUCT SPECIFICATIONS
2-5. Electrical Part Specifications & Standard
Model RT38(RT42)F***A**
RT38(RT42)F***D** RT38(RT42)F***C** RT35(RT39)F***A** RT35(RT39)F***D** RT35(RT39)F***C** RT32(RT36)F***A** RT32(RT36)F***D** RT32(RT36)F***C**
Type TMF 2 Door
Rated Input
110~127V/60Hz
220~240V/50~60Hz
110~127V/60Hz
220~240V/50~60Hz
110~127V/60Hz
220~240V/50~60Hz
110~127V/60Hz
220~240V/50~60Hz
110~127V/60Hz
220~240V/50~60Hz
110~127V/60Hz
220~240V/50~60Hz
Compressor
Model MSV488AL1R MSV488AL1P MSV488AL1R MSV488AL1P MSV488AL1R MSV488AL1P
Type BLDC(INVERTER) BLDC(INVERTER) BLDC(INVERTER) BLDC(INVERTER) BLDC(INVERTER) BLDC(INVERTER)
Refrigerant R-600a, 57g R-600a, 65g R-600a, 57g R-600a, 65g R-600a, 53g R-600a, 65g
Oil Charge 200cc 200cc 200cc 200cc 200cc 200cc
Evaporator Freezer Split Fin & Tube Type Split Fin & Tube Type Split Fin & Tube Type Split Fin & Tube Type Split Fin & Tube Type Split Fin & Tube Type
Sub-Condenser
Natural Convection
Type
Natural Convection
Type
Natural Convection
Type
Natural Convection
Type
Natural Convection
Type
Natural Convection
Type
Dryer Molecular Sieve XH-9 Molecular Sieve XH-9 Molecular Sieve XH-9 Molecular Sieve XH-9 Molecular Sieve XH-9 Molecular Sieve XH-9
Capillary Tube ID0.75 X L3000 ID0.75 X L4000 ID0.75 X L3000 ID0.75 X L4000 ID0.75 X L3000 ID0.75 X L4000
Ground Screw BSBN BSBN BSBN BSBN BSBN BSBN
Model RT29(RT33)F***A**
RT29(RT33)F***D** RT29(RT33)F***C** RT25(RT28)F***A** RT25(RT28)F***D** RT25(RT28)F***C** RT22(RT26)F***A** RT22(RT26)F***D** RT22(RT26)F***C**
Type TMF 2 Door
Rated Input
110~127V/60Hz
220~240V/50~60Hz
110~127V/60Hz
220~240V/50~60Hz
110~127V/60Hz
220~240V/50~60Hz
110~127V/60Hz
220~240V/50~60Hz
110~127V/60Hz
220~240V/50~60Hz
110~127V/60Hz
220~240V/50~60Hz
Compressor
Model
MSV488AL1R MSV488AL1P MSV488AL1R MSV488AL1P MSV488AL1R MSV488AL1P
Type BLDC(INVERTER) BLDC(INVERTER) BLDC(INVERTER) BLDC(INVERTER) BLDC(INVERTER) BLDC(INVERTER)
Refrigerant R-600a, 53g R-600a, 65g R-600a, 46g R-600a, 65g R-600a, 46g R-600a, 65g
Oil Charge 200cc 200cc 200cc 200cc 200cc 200cc
Evaporator Freezer Split Fin & Tube Type Split Fin & Tube Type Split Fin & Tube Type Split Fin & Tube Type Split Fin & Tube Type Split Fin & Tube Type
Sub-Condenser
Natural Convection
Type
Natural Convection
Type
Natural Convection
Type
Natural Convection
Type
Natural Convection
Type
Natural Convection
Type
Dryer Molecular Sieve XH-9 Molecular Sieve XH-9 Molecular Sieve XH-9 Molecular Sieve XH-9 Molecular Sieve XH-9 Molecular Sieve XH-9
Capillary Tube ID0.75 X L3000 ID0.75 X L4000 ID0.75 X L3000 ID0.75 X L4000 ID0.75 X L3000 ID0.75 X L4000
Ground Screw BSBN BSBN BSBN BSBN BSBN BSBN

15
PRODUCT SPECIFICATIONS
MODEL RT38(RT42), RT35(RT39), RT32(RT36), RT29(RT33), RT25(RT28), RT22(RT26)
Temperature
Freezer Type Temperature Selection ON (℃)
OFF (℃)
F-Sensor Not applied - -
Refrigerator
R-Sensor
Dispaly bar
type(5steps)
Actual set
temperature
Rotary type(6steps) Actual set
temperature
7℃
6.5±2℃
1 step 6.5±2℃
5℃
5.0±2℃
2 step 5.0±2℃
3℃ 3.0±2℃ 3 step 3.0±2℃
2℃ 2.0±2℃ 4 step 2.0±2℃
5 step 1.0±2℃
1℃
0.5±2℃
6 step 0.5±2℃
Electrical parts
Defrosting
First Defrost Cycle Not applied
Defrost Cycle Min(6HR), Max(53HR)
Pause Time 10 Min
Sensor
Refrigerator-Sensor
THERMISTOR(PX-41C, 502AT-2)
SPEC (5.0KΩ/25℃)
Freezer Evap-Sensor
Ambient TEMP-Sensor
MODEL RT38(RT42), RT35(RT39) RT32(RT36), RT29(RT33) RT25(RT28), RT22(RT26)
Temperature
RATED INPUT 110~127V/60Hz
220V~240V/50~60Hz 󱈔󱈔
COMPRESSOR MODEL
MSV488AL1R / MSV488AL1P 󱈔󱈔
[ ISO Energy ] A+(RT**F**A**, RT**F**D**): MSV488AL1R / A++(RT**F**C**): MSV488AL1P
Overload Protector 4TM308RFBYY-82 󱈔 󱈔
Motor Fan
3612JL-04W 󱈔 󱈔
3350 ±7% 󱈔 󱈔
1.92W 󱈔 󱈔
92mm/3wing 󱈔 󱈔
Electrical parts
Lamp LED Type FR4, 65*10, 1.6T, 3PKG 󱈔 󱈔
Heater-Defrost
120V, 160W, 90ohm,
230V, 160W, 330ohm
120V, 130W, 110ohm,
230V, 130W, 407ohm
120V, 120W, 120ohm,
230V,120W, 440ohm
Metal Sheath Heater 󱈔 󱈔
Door-Switch
125VAC/1.5A
250VAC/0.75A
1-BUTTON
󱈔󱈔
pump Motor DC12V, 400mA(Optional) 󱈔 Not applied
Switch for water AC 250VAC 16A(Optional) 󱈔 Not applied
MOTOR – ANTI VIRUS PROTECTOR DC12V, 70mA(Optional) Not applied Not applied
Water valve DC12V,300mA(Optional) 󱈔 Not applied

16
PRODUCT SPECIFICATIONS

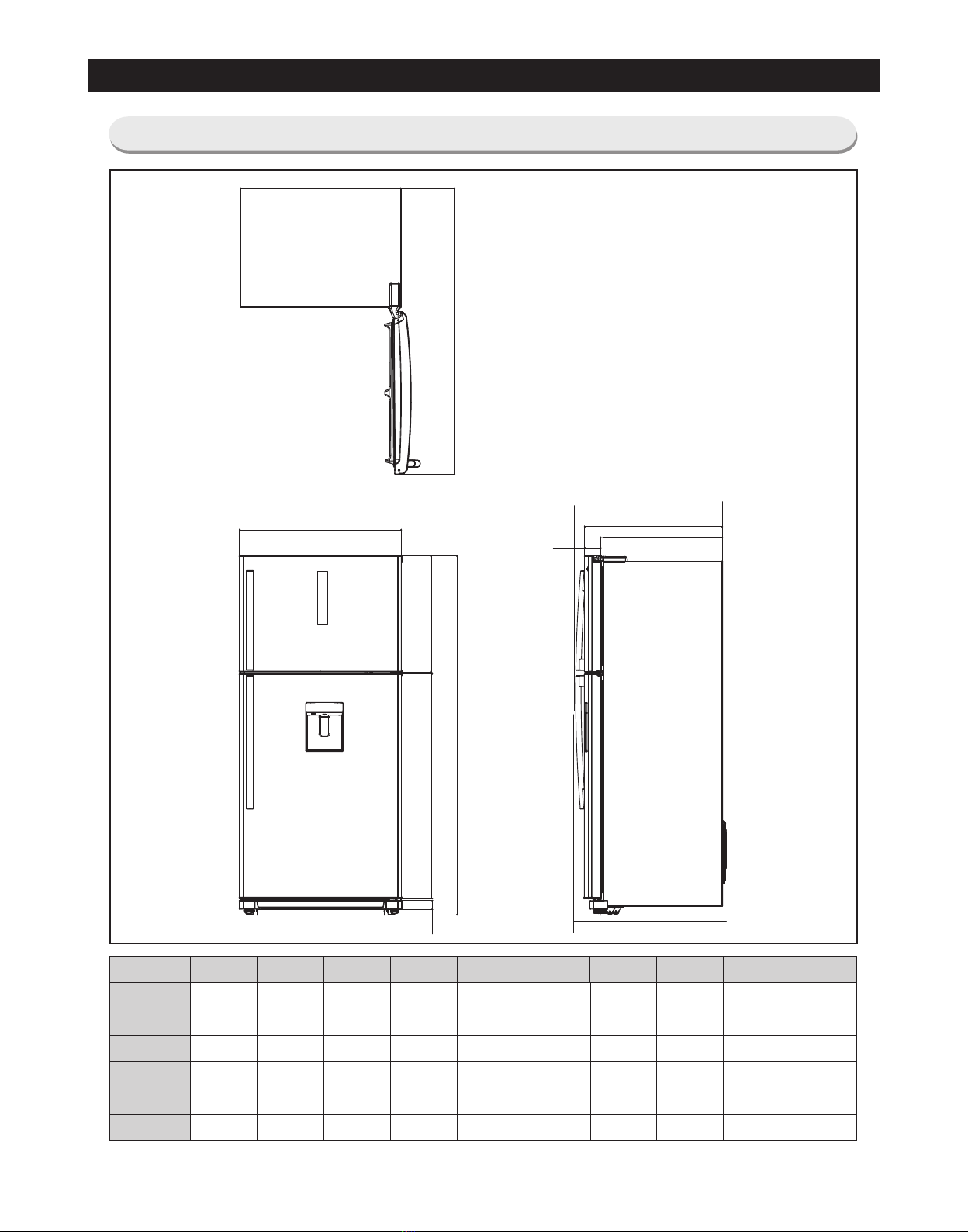

2-6. Dimension (MM)
MODEL A B C D E F G H I J
RT38(RT42) 1251 675 572 1145 1785 556 643.5 703.5 75 726.5
RT35(RT39) 1251 675 572 1075 1715 556 643.5 703.5 75 726.5
RT32(RT36) 1200 600 552 1096 1715 580 647.5 707.5 55 730.5
RT29(RT33) 1200 600 552 1016 1635 580 647.5 707.5 55 730.5
RT25(RT28) 1120 555 513 1055 1635 545 612.5 672.5 55 695.5
RT22(RT26) 1120 555 513 965 1545 545 612.5 672.5 55 695.5
A
B
C
D
E
F
G
H
J
39
I
12.5

17
PRODUCT SPECIFICATIONS
2-7. Display Design
① ② ③ ① ②
① POWER COOL
When pressing the Power Cool button, its LED lamp ( ) will be on. And, it will accelerate the cooling
speed to get the temperature of the stored food down to the set temperature. This function let the unit
operate for two and a half hours continuously.
At this time, there will be no changes on the Fridge Temperature Display and the Power Cool LED lamp
turns on. When this function comes to an end, its LED lamp ( ) will be off automatically. When using the
Power Cool function, the power consumption will increase.
And, to deactivate the function, press the Power Cool button.
② Fridge
Press the Fridge button to set the fridge to desired temperature from the range 1℃ to between 1℃ and
7℃. Default set temperature is set on 2℃ and each time to you press the Fridge button, temperature will
changing following order and temperature indicator will display the desired temperature.
2℃ → 1℃ → 7℃ →5℃ → 3℃
③ Ice On/Off
If you don’t want to make more ice, touch the Ice On/Off button.
The icon will light up and the Ice-Maker stops making ice.
We recommend you to stop ice making if the following occur:
- There is enough ice in the ice bucket.
- You want to save water and energy.
- Water is not being supplied to the refrigerator.
If the ice maker function is ON, and water is not being supplied to the refrigerator, there will be a water
pump noise from the back of the unit, press the Ice On/Off button and then check the Ice Off indicator ( )
illuminates.

18

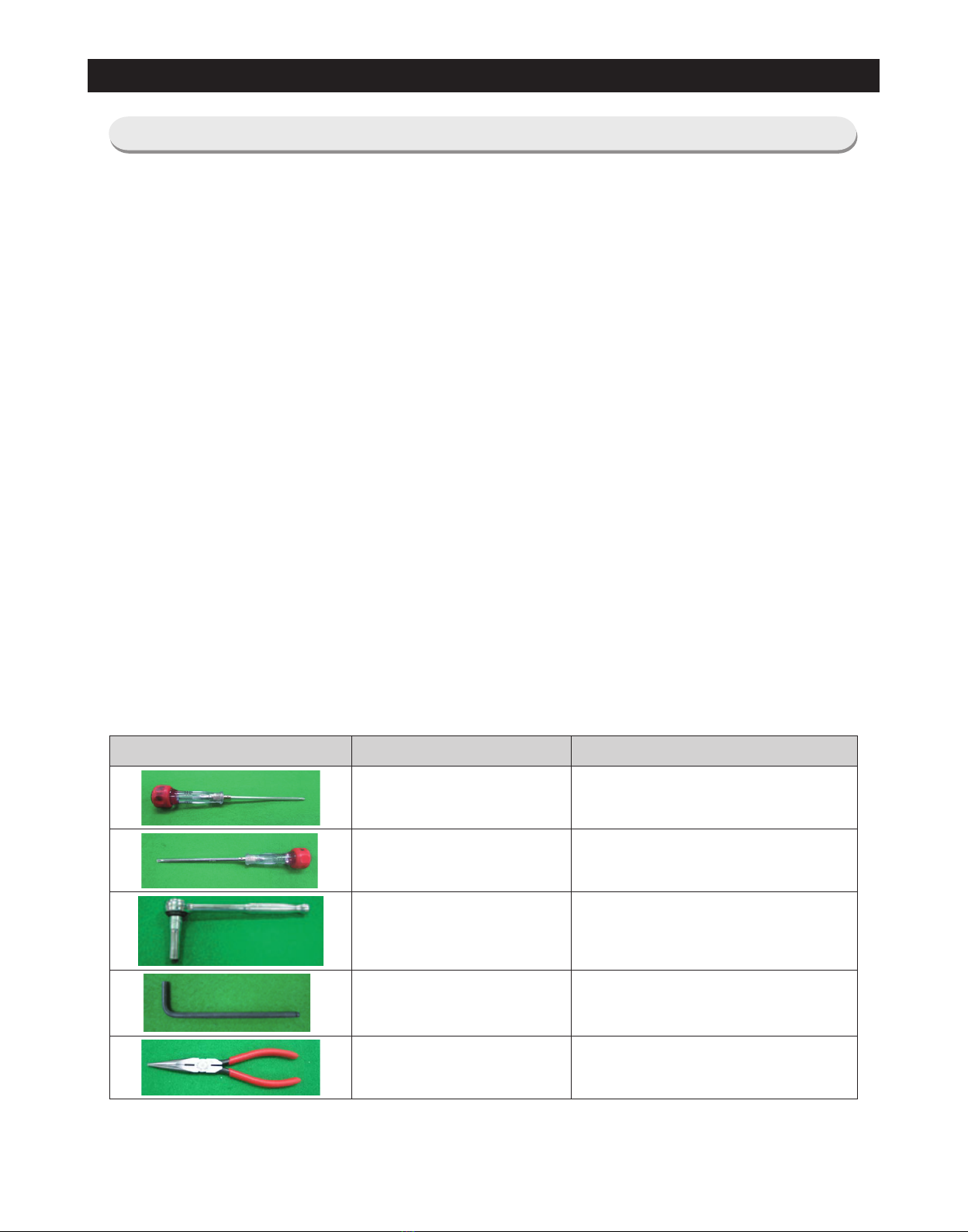

3. DISASSEMBLY & REASSEMBLY
3-1. Precautions
• Unplug the refrigerator before cleaning and making repairs.
• Do not dissemble or repair the refrigerator by yourself.
- You run risk of causing a fire, malfunction and/or personal injury.
• Remove any foreign matter or dust from the power plug pins.
- Otherwise there is a risk of fire.
• Do not use a cord that shows cracks or abrasion damage along its length or at either end.
• Do not plug several appliances into the same multiple power board. The refrigerator should always be
plugged into its own individual electrical which has a voltage rating that matched the rating plate.
- This provides the best performance and also prevents overloading house wiring circuits, which could cause
a fire hazard from overheated wires.
• Do not install the refrigerator in a damp place or place where it may come in contact with water.
- Deteriorated insulation of electrical parts may cause an electric shock or fire.
• The refrigerator must be grounded.
- You must ground the refrigerator to prevent any power leakages or electric shocks caused by current
leakage from the refrigerator.
• Do not put bottles or glass containers in the freezer.
- When the contents freeze, the glass may break and cause personal injury.
• Do not store volatile or flammable substances in the refrigerator.
- The storage of benzene, thinner, alcohol, ether, LP gas and other such products may cause explosions.
- NEED TOOL
IMAGE ITEM
USE
Phillips Head Driver Use for assembling and
disassembling of screw
Flat Head Driver Use for assembling and disassembling of
Dispenser, Main PBA etc...
Socket Wrench 12 mm
Use for assembling and
disassembling of Comp Bolt
L Wrench 5 mm Use for assembling and disassemble of Door
Hinge.
Long nose pliers
Use for assembling and disassemble of Cover-
Evap

19
DISASSEMBLY & REASSEMBLY

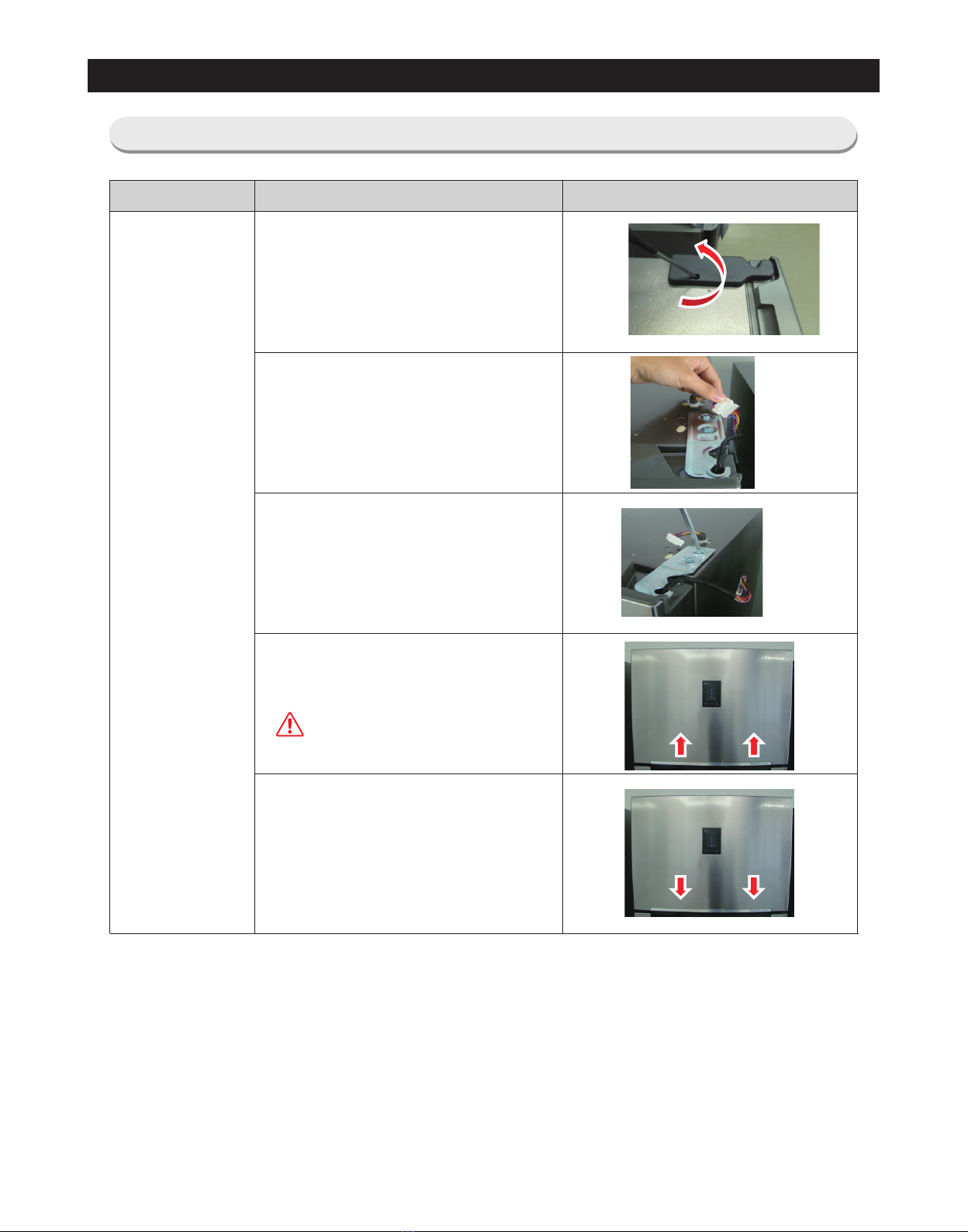

3-2. Disassembling the Freezer
PART NAME DESCRIPTION FIGURE
Removing
the Freezer Door
nehtdna,ppUegniH-paCehtevomeR.1
unscrew the 1 screw of Cover-Hinge.
2. Disconnect the connector of wires.
otgninrutybswercsegnihevomeR.3
counterclockwise, and then take o the
Hinge-Upp.
Take care when removing the door to ensure
that it does not fall on you.
(If It don't have Display, not exist Cover-
hinge)
ybegnihelddimehtmorfroodehtevomeR.4
carefully lifting the door.
5. To re-assembly the freezer doors follow the
reverse steps 4 through 1
[Caution] Be careful not to scratch.
CAUTION
When disassembling, make sure the
unit turned o If you want to assembly,
follow the reverse order

20

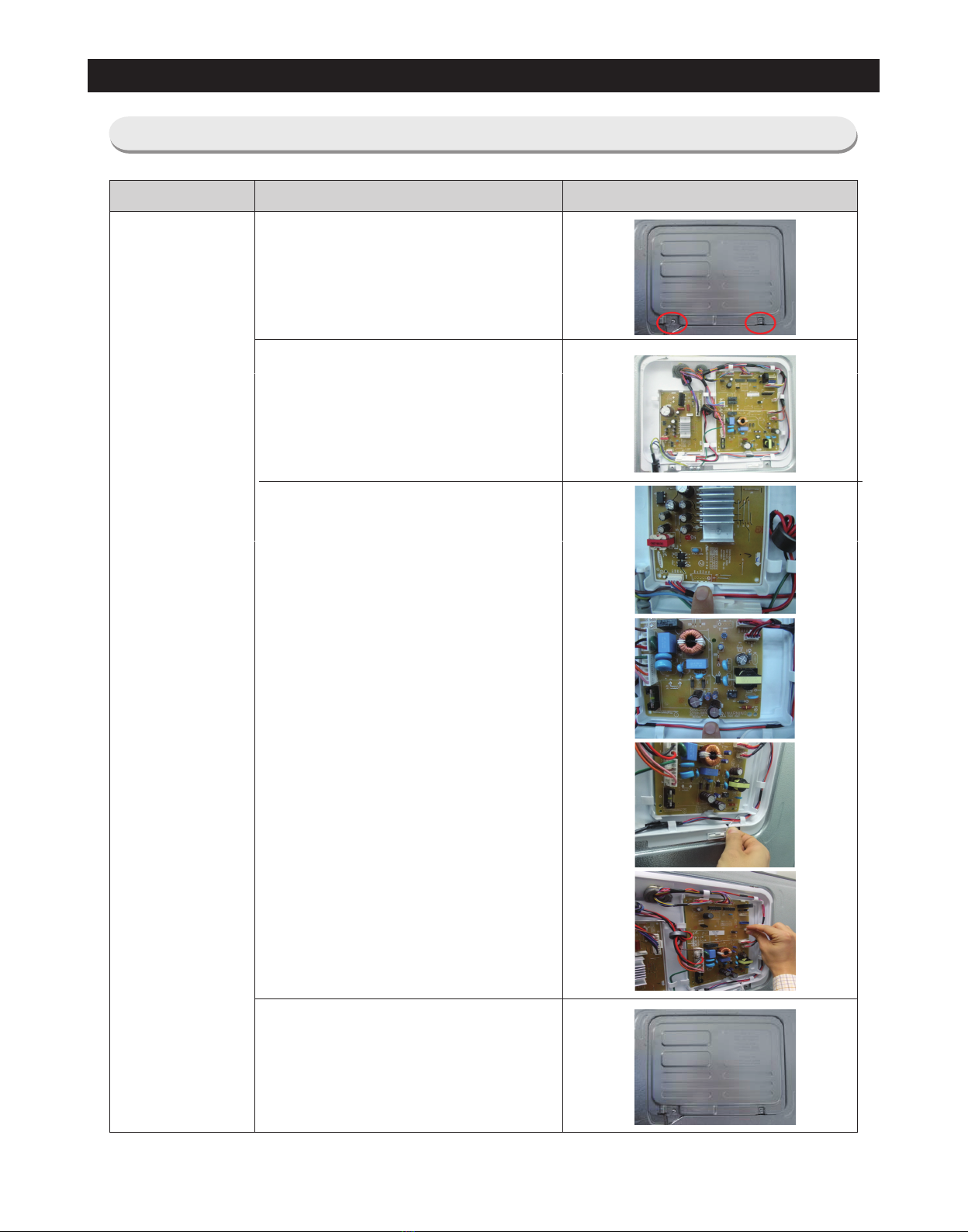

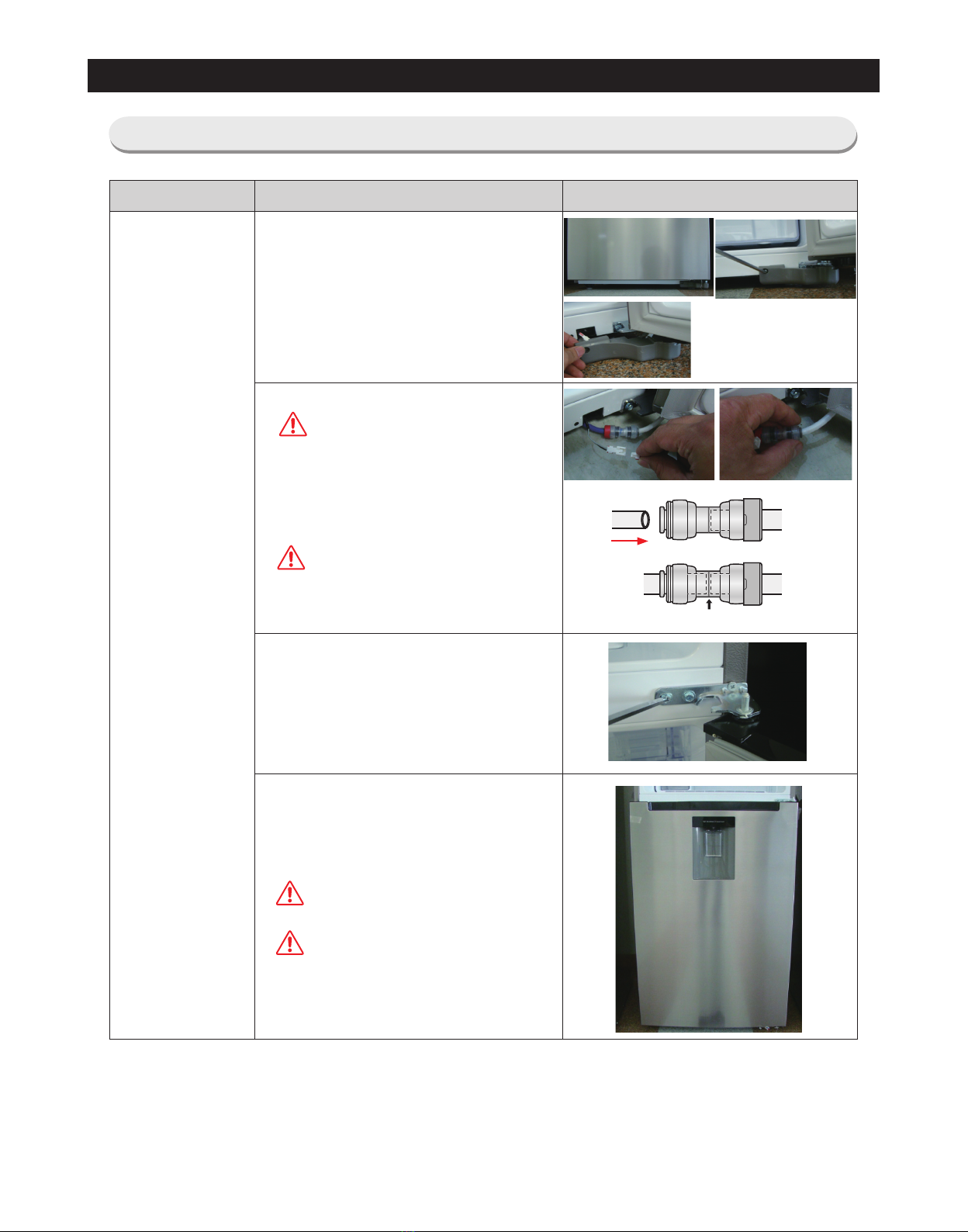

DISASSEMBLY & REASSEMBLY
PART NAME DESCRIPTION FIGURE
Removing
the Refrigerator
Door
1. First of all disassembly the Freezer Door.
Remove screw and takeothecover.
ylbmessasiDdnarotcennoceriwehttcennocsiD.2
Hose.
CAUTION
CAUTION
When assembling the Water Line
Before disconnect the wires be sure
the water tank is empty.
and the Fitting Tube, the Water Hose
needs to be pushed all the way to the
center of the transparent Fitting Tube
to prevent water leak.
Water Line (Hose)
Center of transparent coupler (Fitting)
.rotaregirfeRehtnepO.3
Remove hinge screws by turning to
counterclockwise, and then take o the
Hinge-Mid.
ybegnihwolehtmorfroodehtevomeR.4
carefully lifting the door.
CAUTION
Take care when removing the door to
ensure that it does not fall on you.
CAUTION
When disassembling, make sure the
unit turned o If you want to assembly,
follow the reverse order
3-3. Disassembling the Refrigerator Door

21
DISASSEMBLY & REASSEMBLY
3-4. Disassembling the Fridge Door
PART NAME DESCRIPTION FIGURE
Removing
the Switch Door
mottobehtnorevirdwercsdaeH-talFatresnI.1
as shown, unlock the switch.
2. Disconnect the wire connector

22
DISASSEMBLY & REASSEMBLY

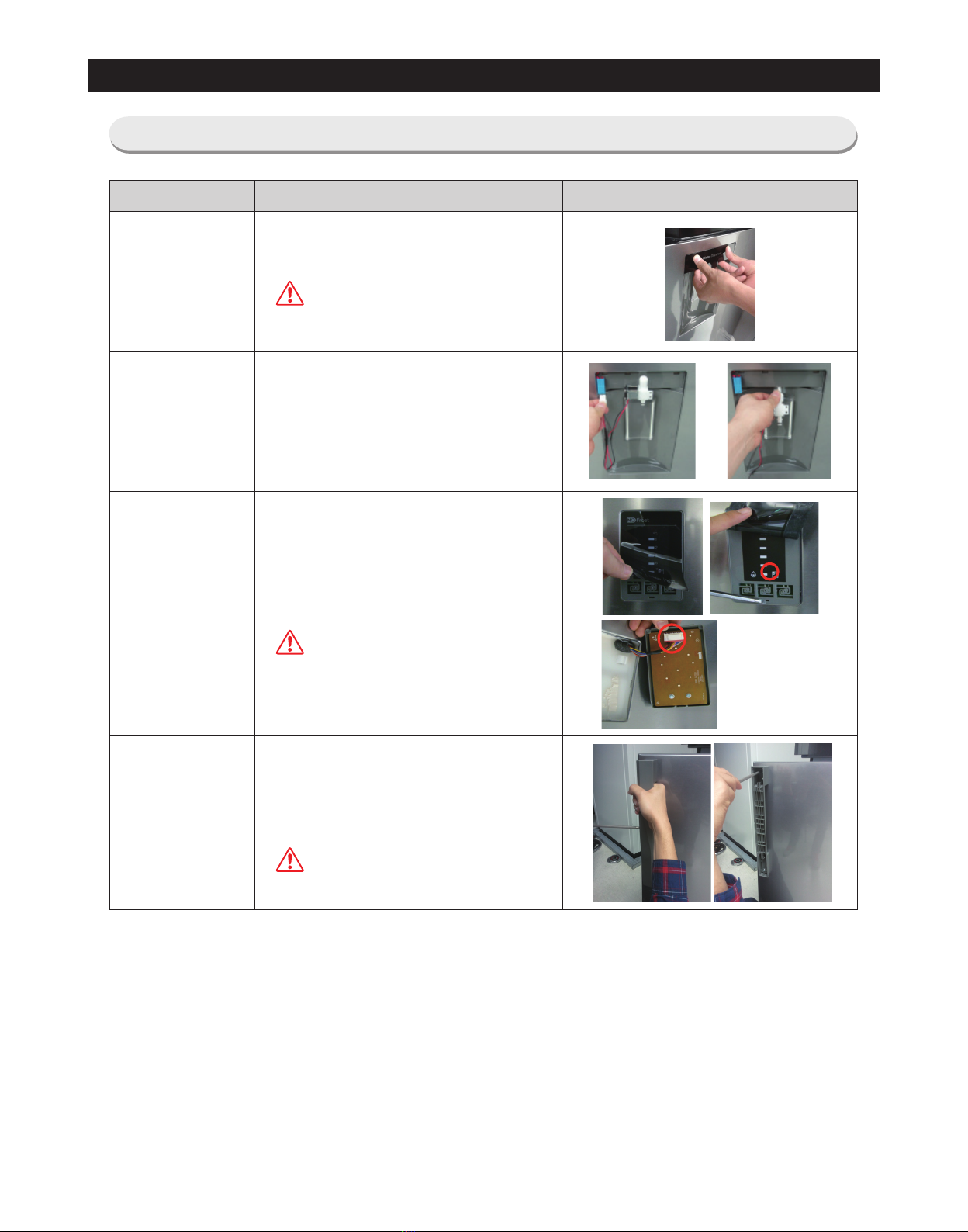

PART NAME DESCRIPTION FIGURE
Disassembly of
Dispenser
pull them both sides and upward.
1. Pick Assy Cover-Dispenser like the picture,
3-5. Disassembling the Refrigerator Door
Control Panel
shown,and unlock the tabs.
2.Insert a at-head screwdriver on the slot as
1. Remove inlay lm as shown, take from the
corner out without damage the inlay.
3. Disconnect the wire connector.
CAUTION
Be careful not to scratch.
Disassembly of
water valve
1. Disconnect the wire connector.
2. Disassembly Hose.
CAUTION
When disassembling, make sure the
unit turned o.
Door
Handle
tolsehtnorevirdwercsdaeh-talfatresnI.1
by twisting the handle and disassemble the
cover-handle.
2. Remove 4 screws.
CAUTION
When disassembling, make sure the
unit turned o If you want to assembly,
follow the reverse order.

23
DISASSEMBLY & REASSEMBLY
PART NAME DESCRIPTION FIGURE
Main PBA and
Inverter PBA
.revocABPehtfoswercs2ehtevomeR.1
detcennocsrotcennocgnisuohllaegagnesiD.2
with Inverter PBA and Main PBA.
pulling the hook out. (Refer to the picture)
3.Remove the Inverter PBA and Main PBA by
Disconnect the Sensor and the Housing.
4. To re-assembly the Main PBA and Inverter PBA
follow the reverse steps 3 to 1.
3-6. Disassembling the Main PBA and Inverter PBA

24
DISASSEMBLY & REASSEMBLY
3-7. Disassembling the Refrigerator Compartments
PART NAME DESCRIPTION FIGURE
Glass Shelf
These shelves allow the storage of larger items
and pull out for easy access.
1. Lift it up and pull the shelf out to the front.
Drawer
Drawers are designed for storage of fruits,
vegetables, and deli items. The drawers are
located in the lower portion of the refrigerator.
1. Pull out the drawer as far as it goes.
2. Tilt the drawer up and pull it out until it is
removed.
Guard
1. Take out the guard by lifting it up from door.
Water tank
1. Take out the water tank by pulling it
CAUTION
When disassembling, make sure the
unit turned off If you want to assembly,
follow the reverse order
2. Disassembly 2 screws.
3. Hose and Fitting the bottom of the fridge door is
separated.
4. Disconnect the wire connector and Pull out the
Hose.

25
DISASSEMBLY & REASSEMBLY
3-7. Disassembling the Refrigerator Compartments
PART NAME DESCRIPTION FIGURE
Coolselect Zone
Drawer
1. Take out the Chilled drawer by pulling it
2. Take out the Cover by Pulling it one side
CAUTION
When disassembling, make sure the
unit turned off If you want to assembly,
follow the reverse order.
