Samsung HW-H750 User manual

Wireless Audio - Soundbar
Imagine the possibilities
Thank you for purchasing this Samsung product.
To receive a more complete service, please register your product at
www.samsung.com/register
User manual
HW-H750
HW-H751

3
2
FEATURES
FEATURES
TV SoundConnect
TV SoundConnect lets you listen to audio from your TV on your Soundbar via a Bluetooth
connection and lets you control the sound.
HDMI
HDMI transmits video and audio signals simultaneously, and provides a clearer picture.
The unit is also equipped with the ARC function which lets you listen to sound from your TV
through the Soundbar via an HDMI cable. This function is only available if you connect the
unit to an ARC compliant TV.
Surround Sound Expansion
The Surround Sound Expansion feature adds depth and spaciousness to your listening
experience. Surround Sound Expansion is powered by Sonic Emotion.
Wireless Subwoofer
Samsung’s wireless module does away with cables running between the main unit and the
subwoofer. Instead, the subwoofer connects to a compact wireless module that
communicates with the main unit.
Special Sound Effects
You can select different Sound Effects - CINEMA / SPORTS / VOICE / MUSIC /
STANDARD (Original Sound) - depending on the type of content you want to enjoy.
Multi-function Remote Control
You can use the supplied remote control to control various operations with the simple press
of a button.
USB Host Support
You can connect and play music files from external USB storage devices such as MP3
players, USB flash memory, etc. using the Soundbar's USB HOST function.
Bluetooth Function
You can connect a Bluetooth device to the Soundbar and enjoy music with high quality
stereo sound, all without wires!
NFC
Connect your NFC compatible device via Bluetooth to the Soundbar using this simple
set-up procedure and play music on the device through the Soundbar. It is supported in
some countries models only.
Multiroom Link
Once the Soundbar is connected to a smart device with Multiroom Link App, you can
connect multiple Samsung Multiroom devices together wirelessly.

3
2
ENG
FEATURES
LICENSES
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS
Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered
trademarks, and DTS 2.0 Channel is a trademark of DTS, Inc. © DTS, Inc. All Rights
Reserved.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI Licensing LLC in the United States and other
countries.
Open Source License Notice
-For further information on Open Sources used in this product, please visit the website:
http://opensource.samsung.com
-To send inquiries and requests regarding open sources, contact Samsung via Email
([email protected]).
+Copyright
©2014 Samsung Electronics Co.,Ltd.
All rights reserved; no part of this user’s manual may be reproduced or copied without the
prior written permission of Samsung Electronics Co.,Ltd.

5
4
SAFETY INFORMATION
SAFETY INFORMATION
During thunderstorms, disconnect the AC
plug from the wall outlet. Voltage peaks due
to lightning could damage the unit.
Do not expose the unit to direct sunlight or
other heat sources. This could lead to
overheating and cause the unit to
malfunction.
PRECAUTIONS

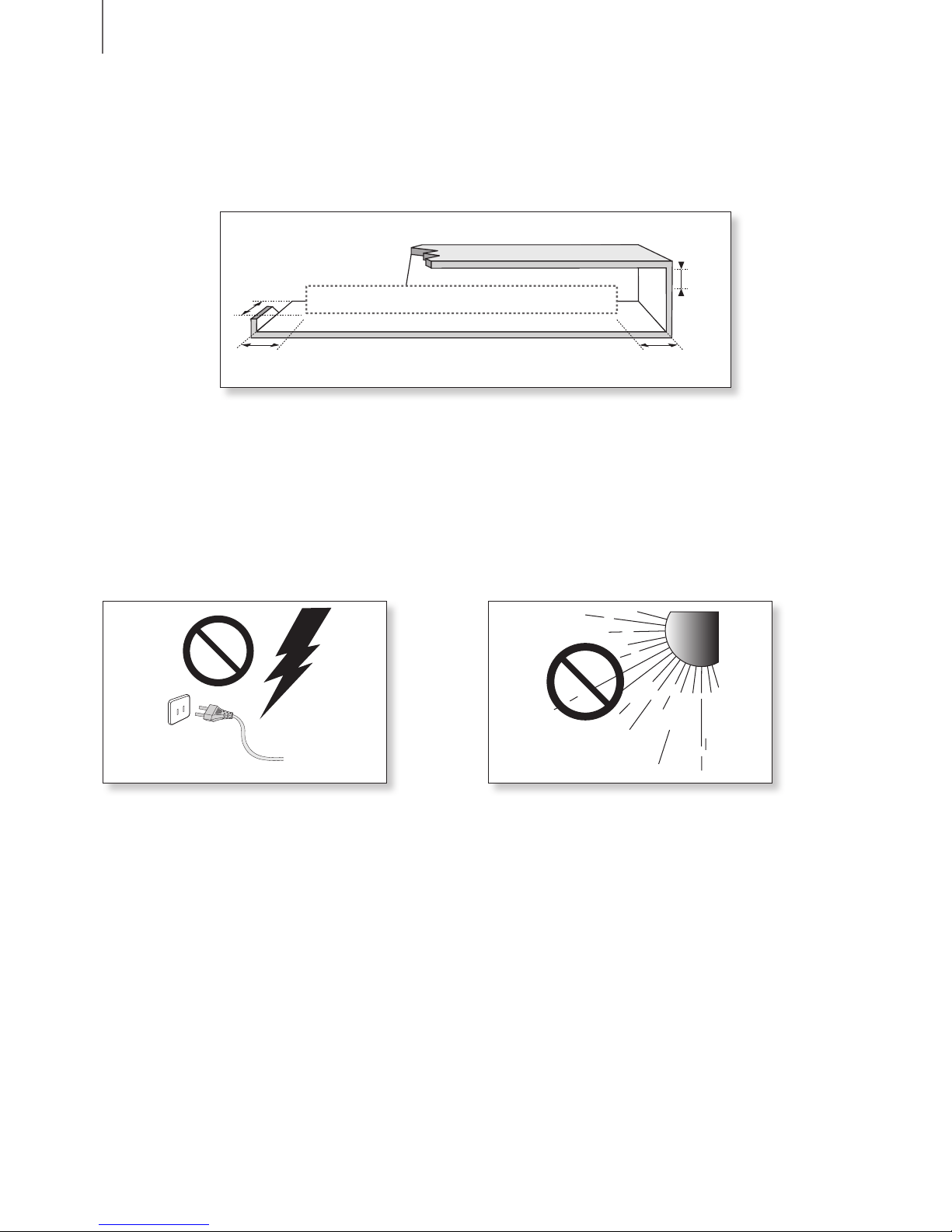

Ensure that the AC power supply in your house complies with the power requirements
listed on the identification sticker located on the back of your product. Install your product
horizontally, on a suitable base (furniture), with enough space around it for ventilation
7~10 cm. Make sure the ventilation slots are not covered. Do not place the unit on
amplifiers or other equipment which may become hot. This unit is designed for continuous
use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if
you intend to leave it unused for a long period of time.
99.1mm 99.1mm
68.6
mm
99.1mm

5
4
ENG
SAFETY INFORMATION
Protect the product from moisture (i.e.
vases), and excess heat (e.g. a fireplace) or
equipment creating strong magnetic or
electric fields. Disconnect the power cable
from the AC supply if the unit malfunctions.
Your product is not intended for industrial
use. It is for personal use only.
Condensation may occur if your product
has been stored in cold temperatures. If
transporting the unit during the winter, wait
approximately 2 hours until the unit has
reached room temperature before using.
The batteries used with this product contain
chemicals that are harmful to the
environment.
Do not dispose of batteries in the general
household trash. Do not dispose of batteries
in a fire. Do not short circuit, disassemble,
or overheat the batteries. Danger of
explosion if battery is incorrectly replaced.
Replace only with the same or equivalent
type.

7
6
CONTENTS
CONTENTS
2 FEATURES
3 Licenses
4 SAFETY
INFORMATION
4 Precautions
7 GETTING STARTED
7 Before reading the user’s manual
8 DESCRIPTIONS
8 Front/Bottom panel
9 Rear Panel
10 REMOTE CONTROL
10 Remote Control Buttons and
Functions
13 CONNECTIONS
13 Connecting the Wireless
Subwoofer
14 Attaching the Toroidal Ferrite Core
to the Soundbar Power Cord
15 Connecting an External Device
using an HDMI cable
16 Connecting an External Device
using Optical (digital) cable or
Audio (analogue) cable
17 Connecting to the AUX IN
17 Assembling the cable clip
18 FUNCTIONS
18 Input mode
19 ARC (HDMI OUT)
20 Connecting with Bluetooth
Function
23 Connecting with NFC Function
25 Connecting with TV SoundConnect
function
27 USB
28 Using the Network Standby On
function
28 Using the AUTO POWER LINK
Function
29 Software update
31 MULTIROOM LINK
31 Installing the Samsung Multiroom
App
32 Disconnect the Function
Connection from the App
33 Connecting Without a Wireless
Router (Not Included)
36 Adding an Soundbar
37 Connecting with a HUB
(Not Included)
40 Adding a HUB
40 Relocating the Soundbar
41 Using the Samsung Multiroom App
54 Playing Media Content Saved in a
PC
57 Using the Multiroom Settings
Menu
64 TROUBLESHOOTING

7
6
ENG
GETTING STARTED
GETTING STARTED
BEFORE READING THE USER’S MANUAL
Note the following terms before reading the user manual.
+Icons used in this manual
Icon Term Definition
Caution
Indicates a situation where a function does not operate or settings
may be canceled.
Note
Indicates tips or instructions on the page that help you operate a
function.
+Safety Instructions and Troubleshooting
1) Be sure to familiarize yourself with the Safety Instructions before using this product.
2) If a problem occurs, check Troubleshooting. (See page 64)
●Figures and illustrations in this User Manual are provided for reference only and may
differ from actual product appearance.
●An administration fee may be charged if either
(a)an engineer is called out at your request and there is no defect with the product
(i.e. where the user manual has not been read).
(b)you bring the unit to a repair centre and there is no defect with the product
(i.e. where the user manual has not been read).
●You will be informed of the administration fee amount before a technician visits.

9
8
DESCRIPTIONS
DESCRIPTIONS
FRONT/BOTTOM PANEL
VACUUM
TUBE AMP
5V
0.5A
AUX IN
AUX IN
AUX
AUX
Display
Displays the current mode.
●If there is no input from the
product or remote control for
15 seconds, the display will
turn off automatically.
●The display will not turn off
automatically in BT READY,
TV READY, and USB Playing
modes.
(Function) Button
Selects the D.IN, AUX, HDMI, BT, TV, USB input.
●While the unit is powered on, pressing the ( )
button for more than 3 seconds sets the button
to act as MUTE button. To cancel MUTE button
setup, press the ( ) button for more than 3
seconds again.
(USB Port)
Connect USB devices such
as MP3 players here to play
files on the devices.
AUX IN
Connect to the Analog output
of an external device.
(Power) Button
Turns the Soundbar on and off.
Volume +/-
Controls the volume level.
The numeric value of the
volume level appears in the
front panel display.
●When you turn on this unit, there will be a 10 to 12 second delay before it
produces sound.
●Do not bring cellular phones or mobile devices near the vacuum tube amp, or put
other electronic devices on the top of the product. Signals from these devices can
cause noise or distortion in the audio.
●Do not let children touch the product's surface when the set is on. It will be hot.
●Open the USB COVER to use USB or AUX port.

9
8
ENG
DESCRIPTIONS
REAR PANEL
LAN
Lets you connect to a network
using a LAN cable.
HDMI IN
Inputs digital video and audio
signals simultaneously using an
HDMI cable. Use when
connecting a supported external
device.
HDMI OUT (TV)
Outputs digital video and audio signals
simultaneously using an HDMI cable.
DC 24V (Power Supply In)
Connect the DC power adaptor to the
power supply jack, and then connect
the AC power adaptor plug to a wall
outlet.
OPTICAL IN
Connect to the digital (optical)
output of an external device.
WPS/Wi-Fi SETUP Button
Press this button to connect your
Soundbar to your network using
WPS or Wi-Fi setup.
SPK ADD Button
Press the button to
connect Soundbar to the
HUB. (not supplied)
●When disconnecting the power cable of the AC power adaptor from the wall
outlet, pull the plug. Do not pull the cable.
●Do not connect this unit or other components to an AC outlet until all connections
between components are complete.

11
10
REMOTE CONTROL
REMOTE CONTROL

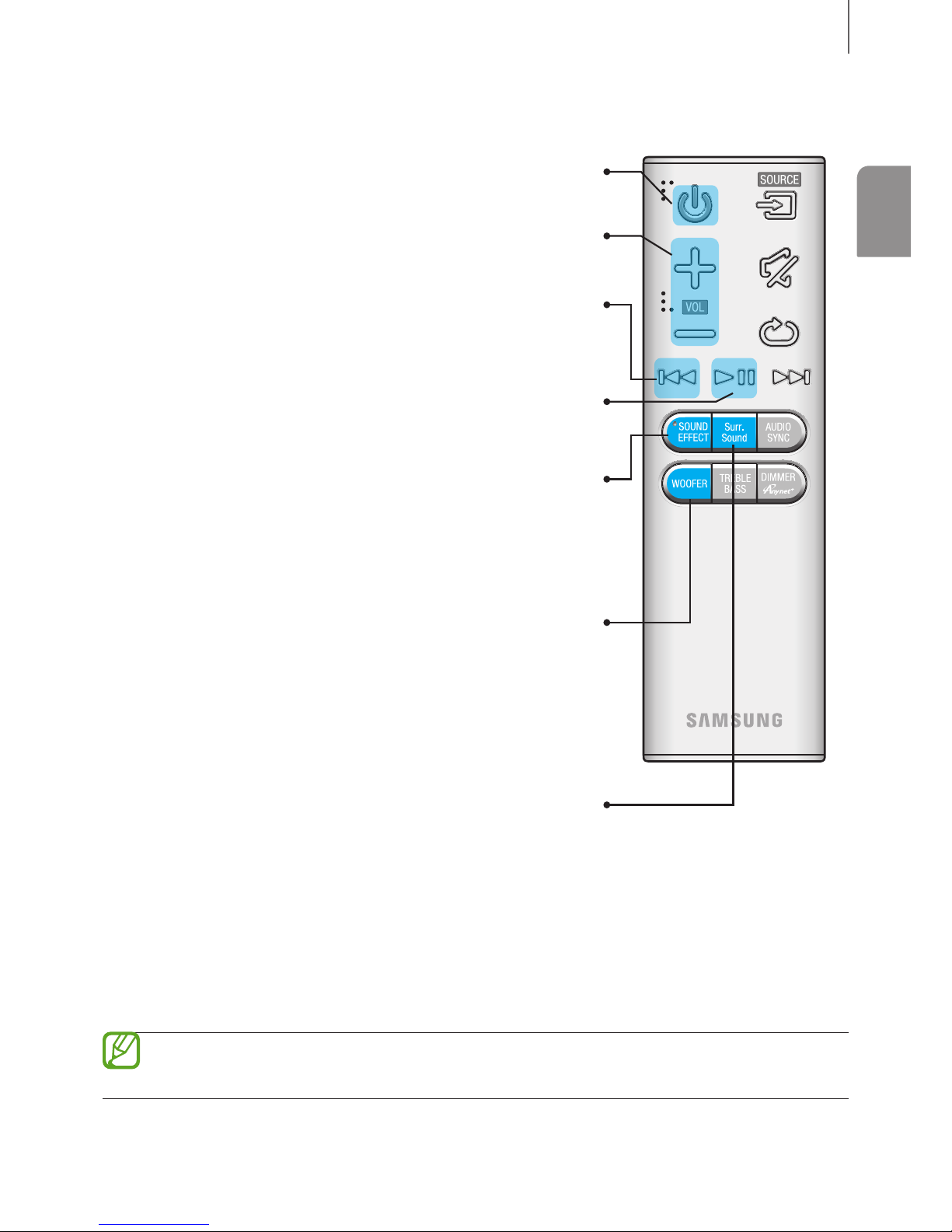

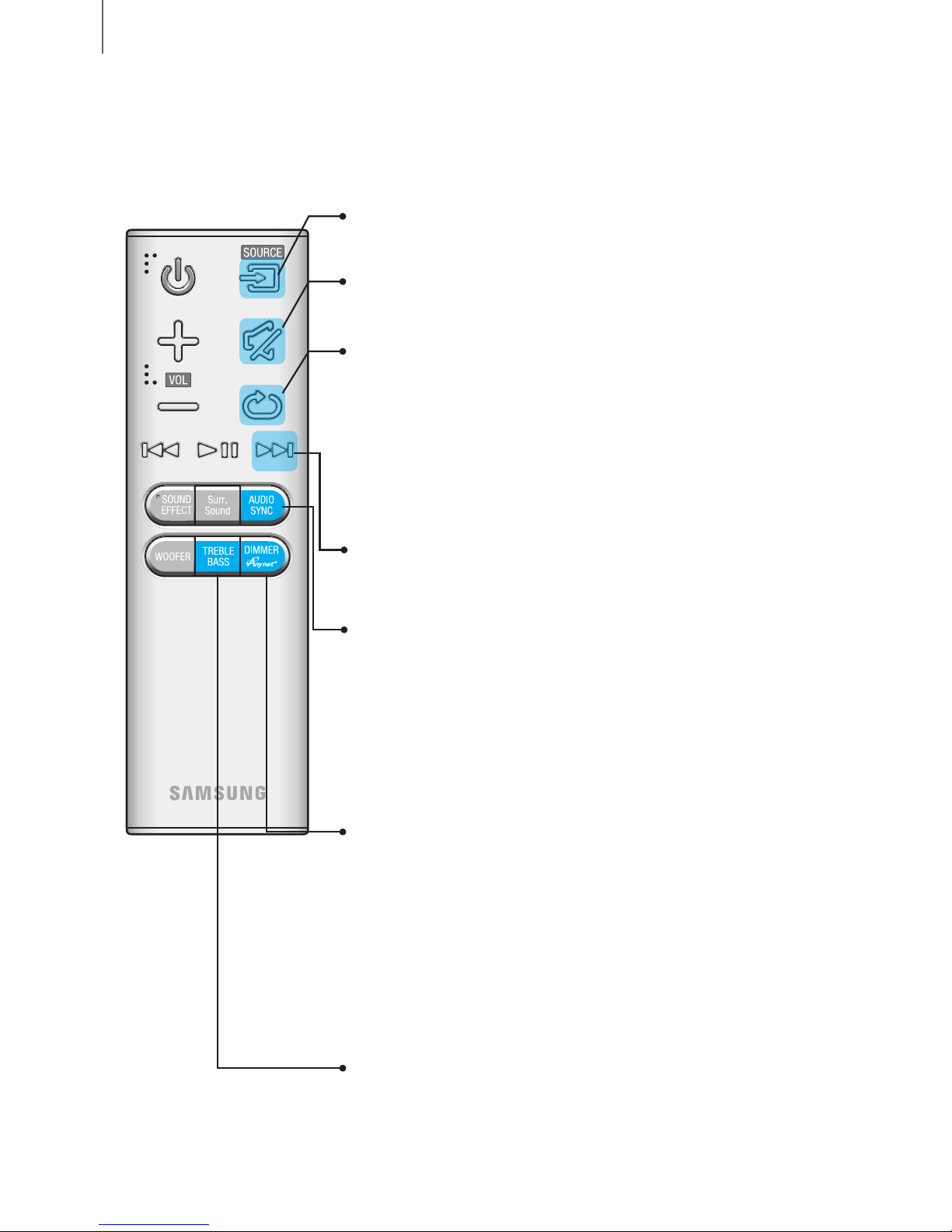

REMOTE CONTROL BUTTONS AND FUNCTIONS
TREBLE BASS
Press to select Treble or Bass. Then, use the
[ , ] button to
adjust the Treble or Bass volume from -3 to +3.
DIMMER/Anynet+
DIMMER : Press the DIMMER/Anynet+ button to control the
brightness of the VACUUM TUBE AMP. DIMMER does not function
for 30 seconds after you turn on the product for the very first time.
Anynet+ : Press and hold the DIMMER/Anynet+ button for more
than 5 seconds to turn the Anynet+ function and AUTO POWER
LINK function on or off. The Anynet+ function lets you control the
Soundbar with the remote from an Anynet+ compatible Samsung
TV. The Soundbar must be connected to the TV via an HDMI cable.
See page 28 for details about AUTO POWER LINK.
REPEAT
Press to set the REPEAT function during music playback from a
USB device.
REPEAT OFF : Cancels Repeat Playback.
REPEAT FILE : Repeatedly play a track.
REPEAT ALL : Repeatedly play all tracks.
REPEAT RANDOM : Plays tracks in random order.
(A track that has already been played may be played again.)
MUTE
You can turn the volume down to 0 with the push of a button.
Press again to restore the sound to the previous volume level.
SOURCE
Press to select a source connected to the Soundbar.
Skip Forward
If there is more than one file on the device you are playing, and you
press the
] button, the next file is selected.
AUDIO SYNC
If the Soundbar is connected to a digital TV and the video appears
out of sync with the audio, press the AUDIO SYNC buttons to
sync the audio with the video. Use the
[ , ] buttons to set the
audio delay between 0 ms and 300 ms. In USB mode, TV mode,
and BT mode, the Audio Sync function may not work.
You can also activate Wi-Fi SETUP function by pressing and
holding AUDIO SYNC button on the remote for over 7 seconds.

11
10
ENG
REMOTE CONTROL
WOOFER
You can control the woofer volume.
Press the
[ , ] button to increase or decrease the subwoofer
volume. You can set it from SW -6 to SW +6.
You can also activate SPK ADD function of the soundbar by
pressing and holding WOOFER button of the remote for over
5 seconds.
Surr.Sound (Surround Sound Expansion)
Press the Surr.Sound button on the remote to add depth and
spaciousness to the sound.
When you select SURROUND SOUND AUTO: If the sound
source has more than 2 channels, SURROUND SOUND ON turns
on automatically. If the sound source has 2 channels (stereo) or
less, SURROUND SOUND OFF is selected automatically.
You can also activate WPS function by pressing and holding
Surr.Sound button on the remote for over 5 seconds.
VOLUME
Adjusts the volume level of the unit.
POWER
Turns the Soundbar on and off.
SOUND EFFECT
Press to select a sound effect mode.
Select the STANDARD mode if you want to enjoy the original
sound. When you choose a Sound Effect mode (except
STANDARD), Surround Sound Expansion will automatically be
turned OFF.
Play/Pause
Press the
+# button to pause playing the file temporarily.
Press the
+# button again to play the selected file.
Skip Back
If there is more than one file on the device you are playing, and you
press the
[ button, the previous file is selected.
●Soundbar is a Samsung proprietary name.
●Operate the TV using the TV's remote control.

13
12
REMOTE CONTROL
+Installing the Batteries in the Remote Control

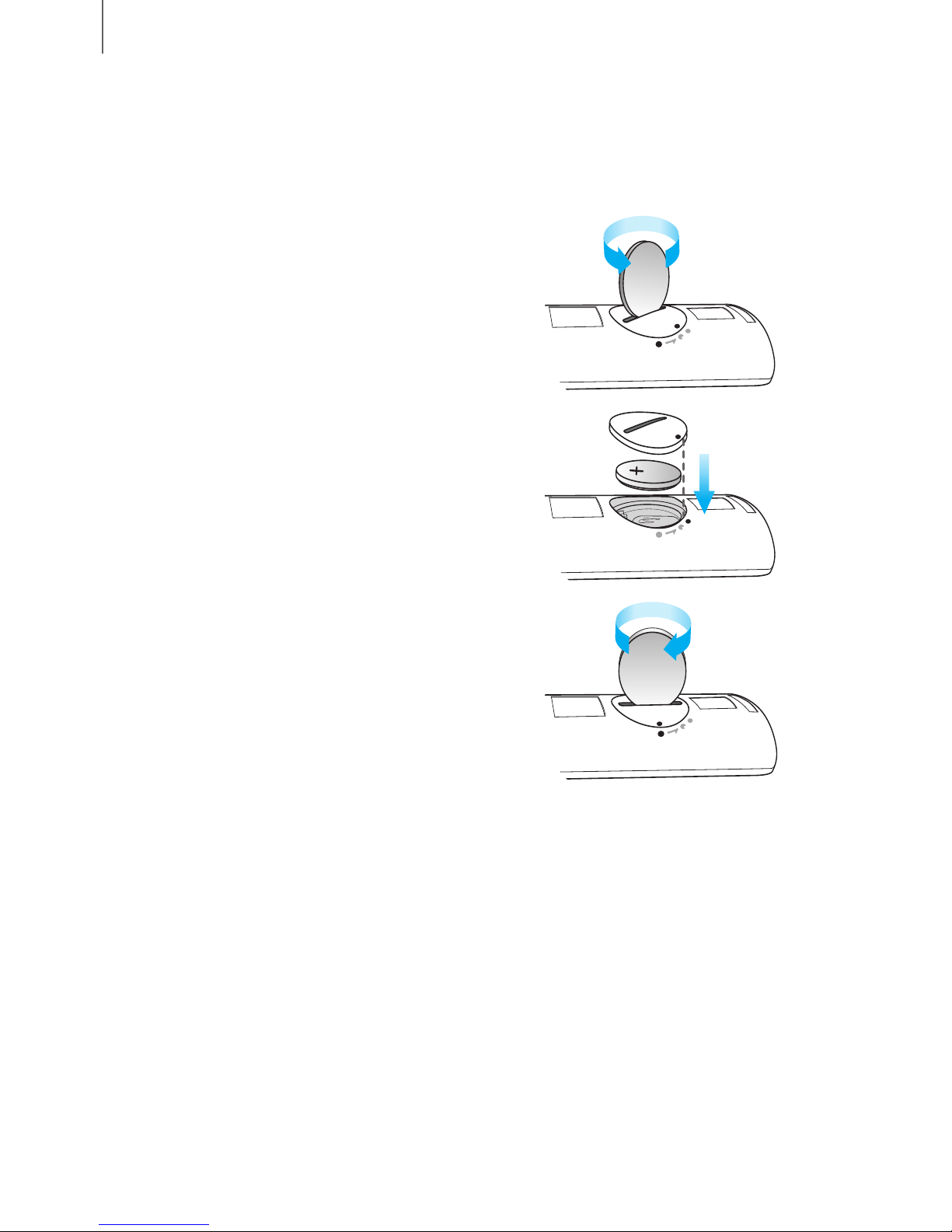

1. Use a suitable coin to turn the remote
control's battery cover counterclockwise
to remove it as shown in the figure
above.
2. Insert a 3V lithium battery. Keep the
positive (+) pole facing up when inserting
the battery. Put the battery cover on and
align the '' marks side by side as
shown in the figure above.
3. Use a suitable coin to turn the remote
control battery cover clockwise as far as
it will go to fix it in place.

13
12
ENG
CONNECTIONS
CONNECTIONS
CONNECTING THE WIRELESS SUBWOOFER
The Subwoofer's linking ID is preset at the factory and the main unit and subwoofer should
link (connect wirelessly) automatically when the main unit and subwoofer are turned on.
If the LINK indicator does not light when the main unit and subwoofer are turned on,
please set the ID by following the procedure below. Complete this process within 30
seconds after the Link Indicator on the subwoofer starts blinking.
1. Plug the power cords of the main unit and subwoofer into an AC wall outlet.
2. Confirm that the main unit is off (in STANDBY Mode).

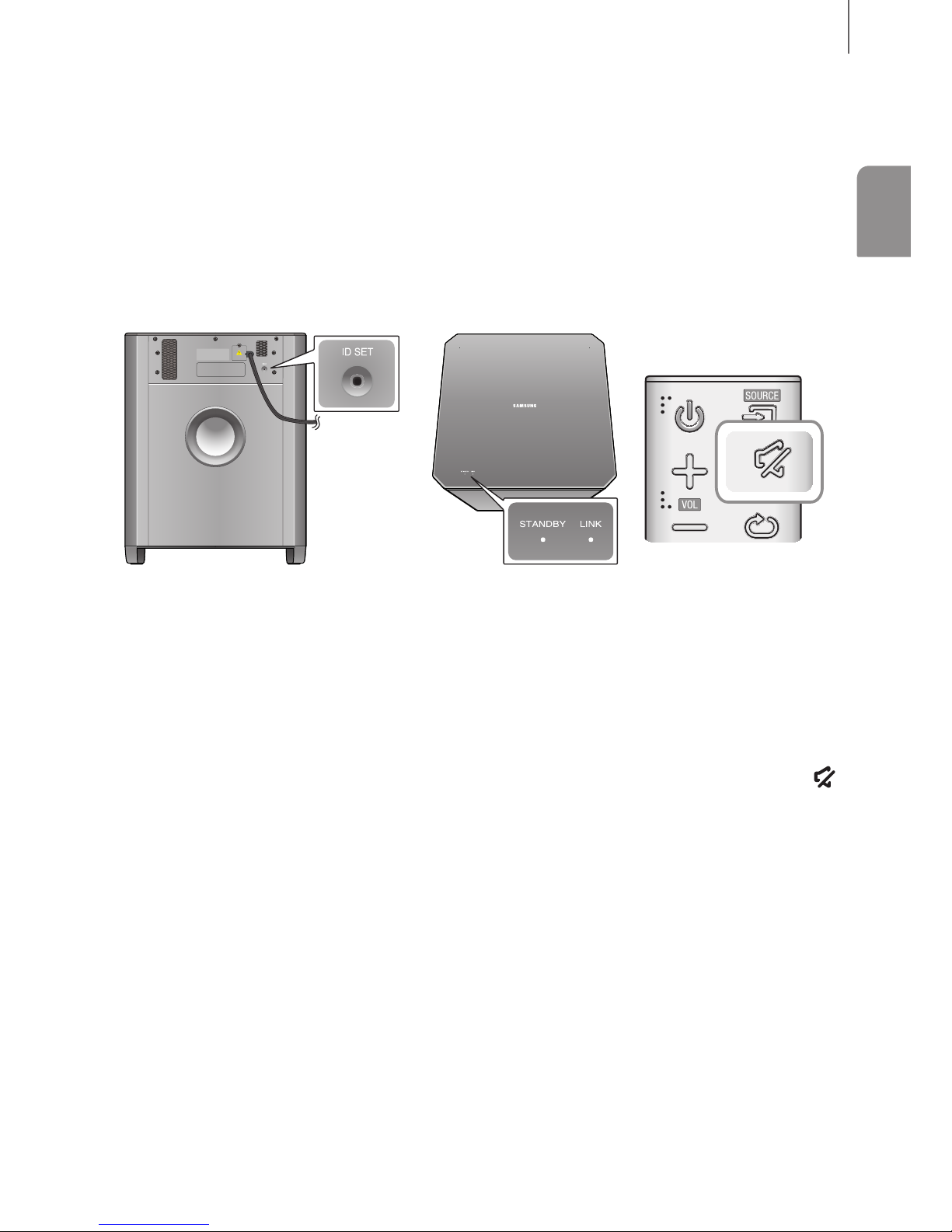

3. Press the ID SET button on the back of the subwoofer with a small, pointed object for 5
seconds.
●The LINK indicator (Blue LED) on the subwoofer blinks quickly.
4. While the main unit is powered off (in STANDBY mode), press and hold the MUTE
( )
on the remote control for 5 seconds.
5. The ID SET message appears on the Soundbar's display.
6. To finalize the link, turn the main unit’s power on while the subwoofer’s LINK LED blinks.
●The main unit and the subwoofer should now be linked (connected).
●The LINK indicator (blue LED) on the subwoofer should be on and solid blue.
●If the LINK indicator is not solid blue, the linking process has failed. Turn off the main
unit and start again from Step 2.
●You can enjoy better sound from the wireless subwoofer by selecting a Sound Effect.
(See page 11)

15
14
CONNECTIONS
●Before moving or installing the product, be sure to turn off the power and
disconnect the power cord.
●If the main unit is powered off, the wireless subwoofer will be in standby mode
and the STANDBY LED on the upper side will come on after the LINK indicator
(Blue LED) blinks for 30 seconds.
●If you use a device that uses the same frequency (2.4GHz) as the Soundbar near
the Soundbar, interference may cause some sound interruption.
●The transmission distance of the wireless signal between the main unit and
subwoofer is about 10 m, but may vary depending on your operating
environment. If a steel-concrete or metallic wall is between the main unit and the
wireless subwoofer, the system may not operate at all, because the wireless signal
cannot penetrate metal.
●If the main unit doesn't make a wireless connection, follow steps 1-6 to re-set the
connection between the main unit and wireless subwoofer.
●The wireless receiving antenna is built into the wireless subwoofer. Keep the unit
away from water and moisture.
●For optimal listening performance, make sure that the area around the wireless
subwoofer location is clear of any obstructions.
ATTACHING THE TOROIDAL FERRITE CORE TO THE
SOUNDBAR POWER CORD
You can reduce noise caused by electromagnetic radiation by fitting the ferrite core to the
your Soundbar power cord.
1. Unlock and open the ferrite core.
2. Wind the Soundbar power cable around
the ferrite core twice. (Start winding 5 to
10 cm away from the core).
3. Close the ferrite core by pressing it until it
clicks.
<Soundbar Power Cable>

15
14
ENG
CONNECTIONS
CONNECTING AN EXTERNAL DEVICE USING AN
HDMI CABLE
HDMI is the standard digital interface for connecting to such TVs, projectors, DVD players,
Blu-ray players, set top boxes, and more.
Because HDMI transmits the highest quality digital signal, you can enjoy superior video and
audio - as it was originally created at the digital source.
HDMI IN
HDMI OUT (TV)
HDMI OUT
HDMI IN
HDMI Cable
(not supplied)
HDMI Cable
(not supplied)
Digital Devices
HDMI IN
Connect an HDMI cable (not supplied) from
the HDMI IN jack on the back of the
product to the HDMI OUT jack on your
digital device.
and,
HDMI OUT (TV)
Connect an HDMI cable (not supplied) from
the HDMI OUT (TV) jack on the back of the
product to the HDMI IN jack on your TV.
●HDMI is an interface that enables
the digital transmission of video
and audio data with just a single
connector.
ARC (HDMI OUT)
The ARC function allows digital audio to
output via the HDMI OUT (ARC) port.
It can be enabled only when the Soundbar
is connected to a TV that supports the ARC
function.
●Anynet+ must be turned on.
●This function is not available if the
HDMI cable does not support
ARC.

17
16
CONNECTIONS
CONNECTING AN EXTERNAL DEVICE USING OPTICAL
(DIGITAL) CABLE OR AUDIO (ANALOGUE) CABLE
This unit comes equipped with one optical in digital jack and one audio analogue in jack,
giving you two ways to connect it to a TV.
AUX IN
AUDIO
OUT
OPTICAL IN
OPTICAL
OUT
Audio Cable
Optical Cable
(not supplied)
BD/ DVD player/
Set-top box/ Game
console
OPTICAL IN

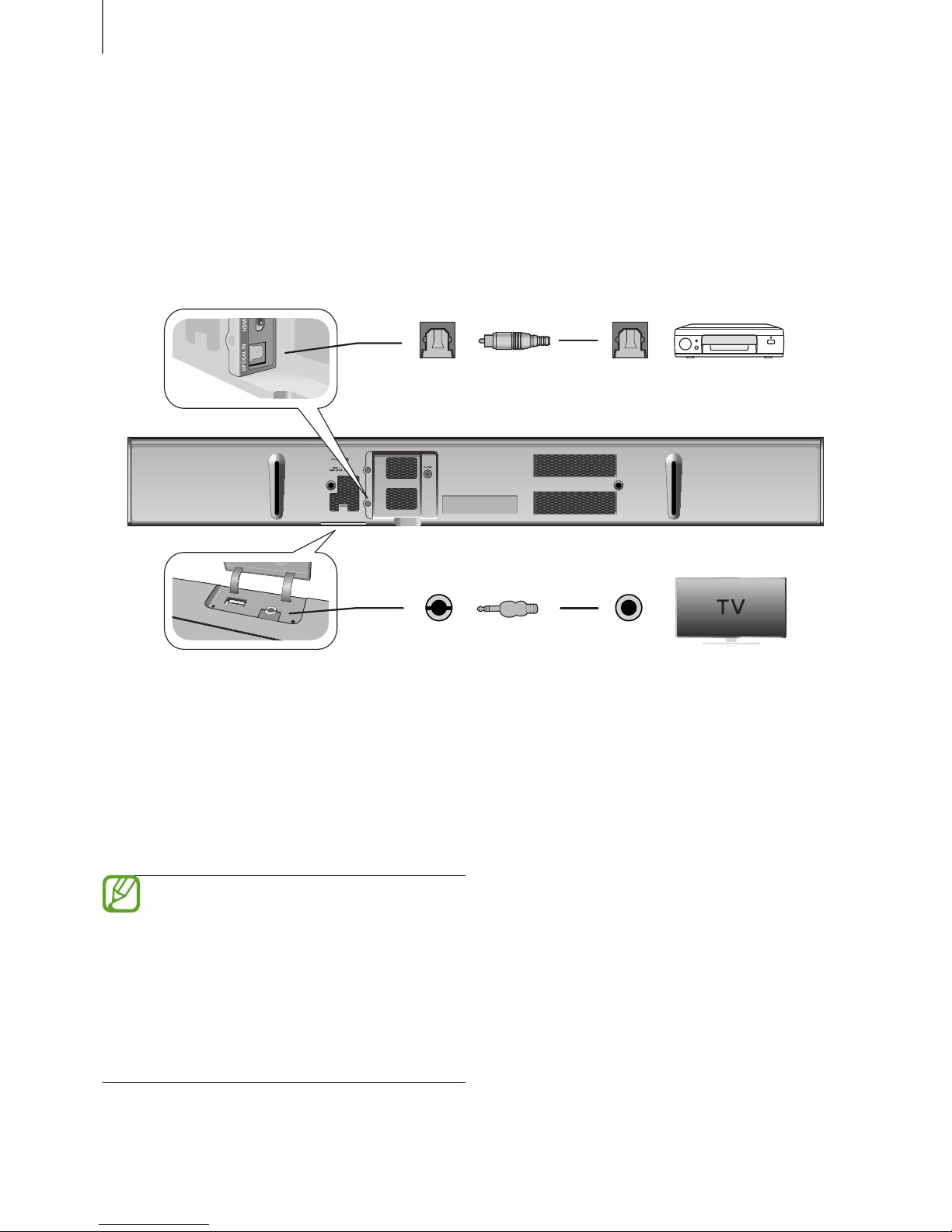

Connect the OPTICAL IN (Audio) on the
main unit to the OPTICAL OUT jack of the
TV or Source Device.
Change the function to D.IN.
●Do not connect the power cord of
this product or your TV to the wall
outlet until all connections between
components are complete.
●Before moving or installing this
product, be sure to turn off the
power and disconnect the power
cord.
or,
AUX IN
Connect AUX IN (Audio) on the main unit to
the AUDIO OUT jack of the TV or Source
Device.
Change the function to AUX.

17
16
ENG
CONNECTIONS
CONNECTING TO THE AUX IN
This section explains how to connect the Soundbar to an audio device using the AUX IN
terminal.
AUX IN
Earphones
jack
Audio Cable Smart device

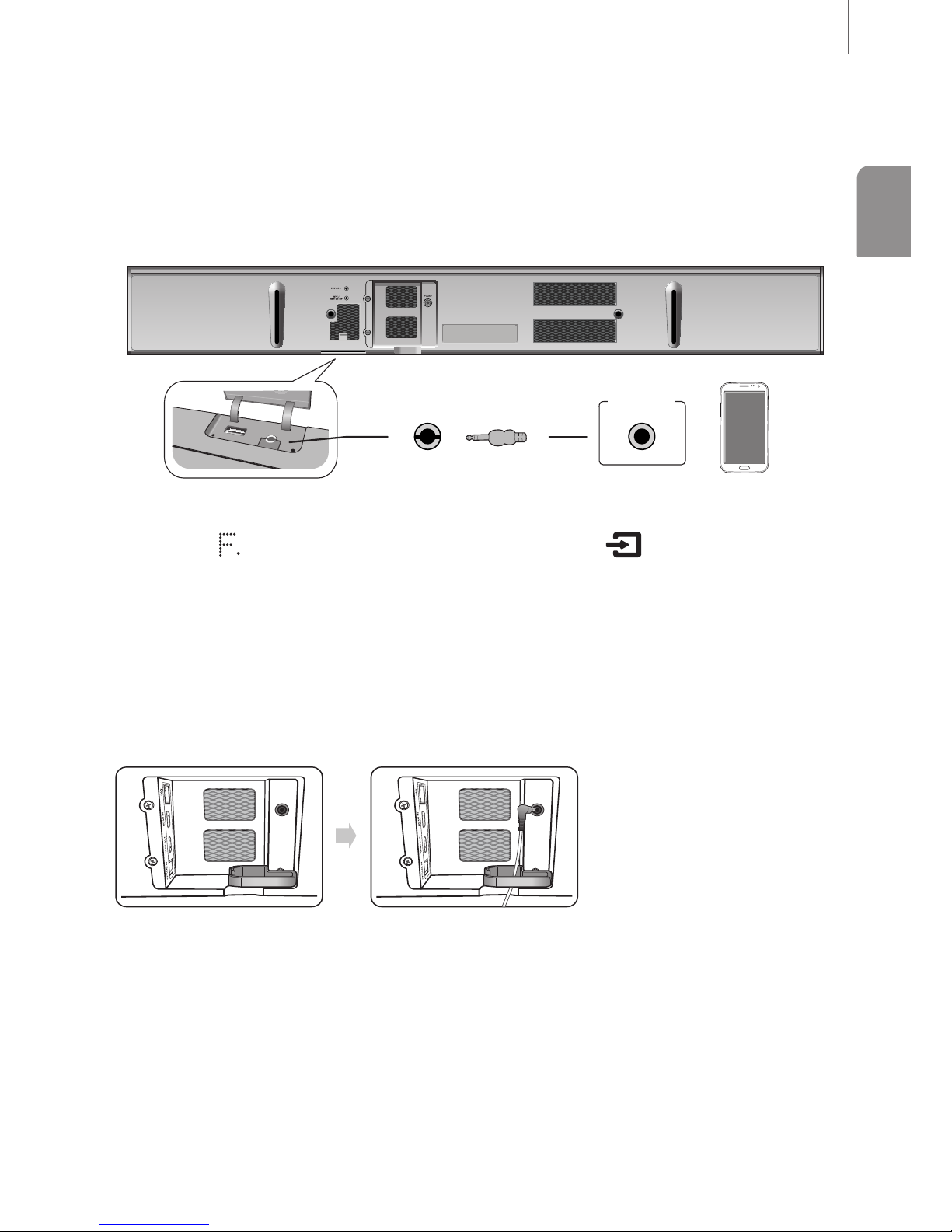

1. Press the ( ) button on the main unit’s front panel or the (SOURCE) button on
the remote control to select the AUX mode.
2. Connect the audio cable to the Soundbar’s AUX IN and the smart device’s AUX OUT.
3. Select the desired track to play from your smart device’s music list.
4. The Soundbar plays the track you selected.
ASSEMBLING THE CABLE CLIP
DC 24V DC 24V
Attach the cable clip to the
unit as shown, and then run
the cables through the clip to
keep them neat.

19
18
FUNCTIONS
FUNCTIONS
Input mode Display
Optical Digital input D.IN
AUX input AUX
HDMI input HDMI
BLUETOOTH mode BT
TV SoundConnect TV
USB mode USB
The unit turns off automatically in the
following situations:
●D.IN/HDMI/BT/TV/USB/ARC Mode
-If there is no audio signal for 15
minutes.
●AUX Mode
-If there is no KEY input for 8 hours
when the AUX cable is connected.
-If the AUX cable is disconnected for
15 minutes.
●Use the provided USB cable if you
cannot connect a USB flash
memory device directly to the unit.
●To disable Auto Power down Off,
press the
p button for over 5
seconds in AUX mode.
INPUT MODE
Press the ( ) button on the main unit’s front panel or the (SOURCE) button on the
remote control to select the mode you want.

19
18
ENG
FUNCTIONS
ARC (HDMI OUT)
ARC (Audio Return Channel) transfers digital audio signal to the HDMI OUT (ARC) port.
HDMI Cable
1. Connect the TV supporting ARC to the Soundbar with an HDMI cable.
2. Turn on the TV, and turn on the Soundbar’s Anynet+.
3. Press the ( ) button on the main unit’s front panel or the (SOURCE) button on
the remote control to select the D.IN mode.
●If the HDMI cable does not support ARC feature, ARC may not work properly.
●To turn off the ARC function, turn Anynet+ off.

21
20
FUNCTIONS
CONNECTING WITH BLUETOOTH FUNCTION
You can connect a Bluetooth device to the Soundbar and enjoy music with high quality
stereo sound, all without wires!
+To connect the Soundbar to a Bluetooth device
Check if the Bluetooth device supports the Bluetooth compliant stereo headset function.
Bluetooth device
Connect

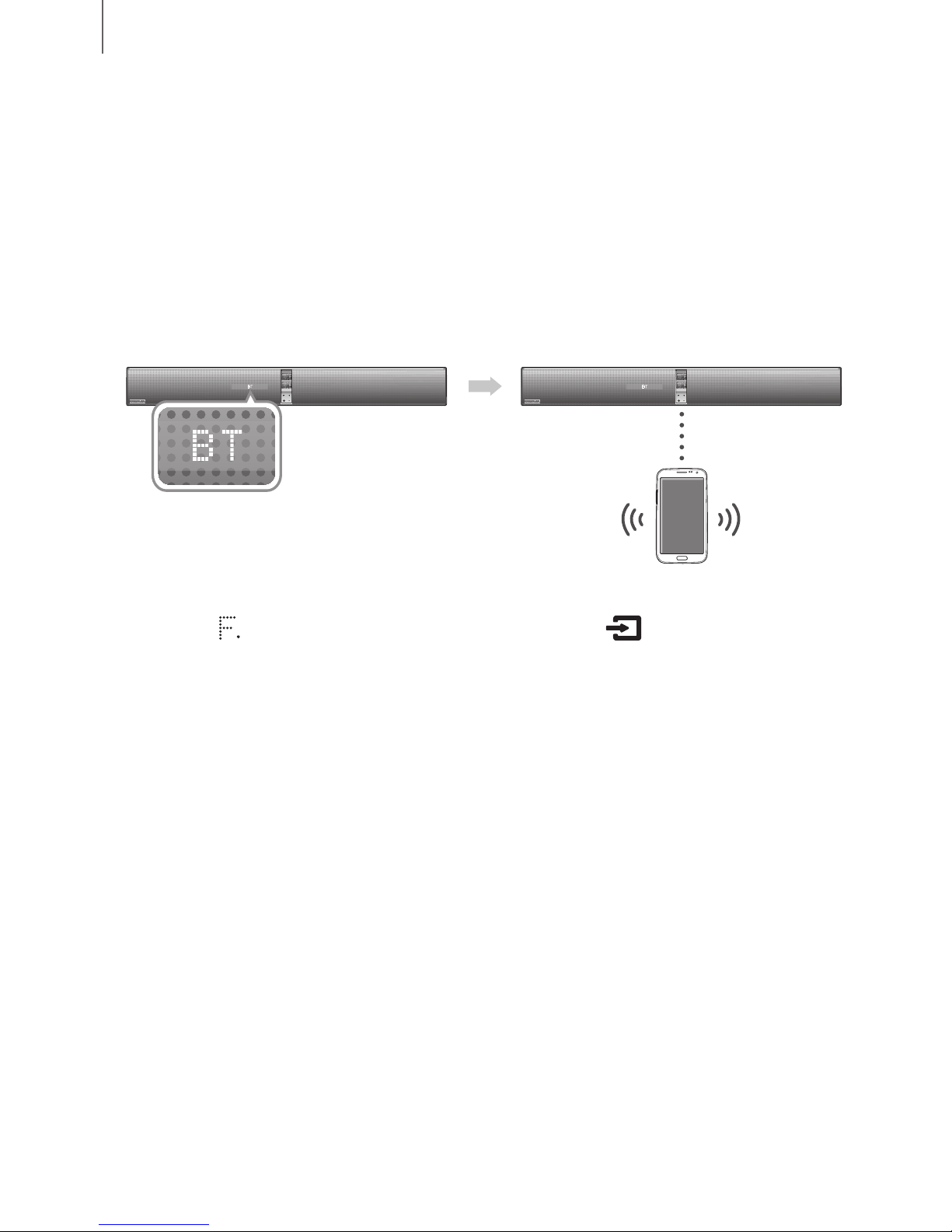

1. Press the ( ) button on the main unit’s front panel or the (SOURCE) button on
the remote control to select the BT mode.
2. Select the Bluetooth menu on the Bluetooth device you want to connect.
(Refer to the Bluetooth device's user manual.)
3. Select the Stereo headset menu on the Bluetooth device.
●You will see a list of scanned devices.
4. Select "[Samsung] Soundbar" from the list.
●When the Soundbar is connected to the Bluetooth device, it will display BT READY
 [Bluetooth Device Name]  BT on the front display.
●The device name can only be displayed in English. An underline " _ " will be displayed
if the name is not in English.
●If the Bluetooth device has failed to pair with the Soundbar, delete the previous
"[Samsung] Soundbar" found by the Bluetooth device and have it search for the
Soundbar again.
5. Play music on the connected device.
●You can listen to the music playing on the connected Bluetooth device over the
Soundbar.
●In BT mode, the Play/Pause/Next/Prev functions are not available. However, these
functions are available in Bluetooth devices supporting AVRCP.
