Samsung KTT5025AWE/YY User manual

Owner’s Instructions
BEFORE USING THE WASHER 1
CAUTIONS 1
PRECAUTIONS WHEN OPERATING 1
DESCRIPTION OF PARTS 2
CONTROL PANEL 2
WASHING PROCEDURE 3
To wash 3
Spin dry 3
Rinsing 4
Over flow rinse 4
Additional rinse 4
INSTALLATION 5
Environment 5
Changing the position of the drain hose 5
How to clean the filter 5
CLEANING THE MACHINE 5
LAUNDRY GUIDE 6
MAINTENANCE 6
TROUBLESHOOTING 6
SPECIFICATIONS
Before operating the unit, please read this manual
throughly, and retain for future reference.
SWT70B1-00685A 3/9/00 9:35 AM Page 8

1
BEFORE USING THE WASHER
CAUTIONS
PRECAUTIONS WHEN OPERATING
●Be sure that the washer is grounded.
To avoid electrical shock,use
a metal pipe for the ground
connection. But, don't ground
the washer with gas pipes or
telephone lines to avoid to
dangers of explosion or lightning strike.
●Do not put your hands into the spin
dryer basket when it is spinning.
Your fingers can be caught
by spinning laundry and
damaged.
●Ventilation opnning must not be obstructed
by carpeting when the washing machine is
installed on a carpeted floor.
●If the supply cord of this appliance is damaged,
it must only be replaced by a repair shop
appointed by the manufacturer,because
special purpose tools are required.
●Warning to avoid overfilling and damages
this appliance must be filled with the
operator present using a moderate water
supply pressure only.
● Be sure to cover with the inner
cover on laundry before spinning.
This prevents laundry from
being tossed out and damaged.
● Before washing,check all pockets.
If nails or pins remain in pockets,they may
damage the washer or clothes.
● Close the water tap a little if the
water pressure is too high.
● To avoid water splashes,
close the wash tub lid.
● Never splash water on the control panel.
●Disconnect the power cord from the
power supply when not in use.
● Don't use excessively hot water.
(50˚C or more)
Plastic parts may be deformed or damaged.
Also, clothing may be deformed or decolored.
●Never allow children to operate
or play with the washer.
Children playing with the washer
may accidentally fall into the
washing tub.

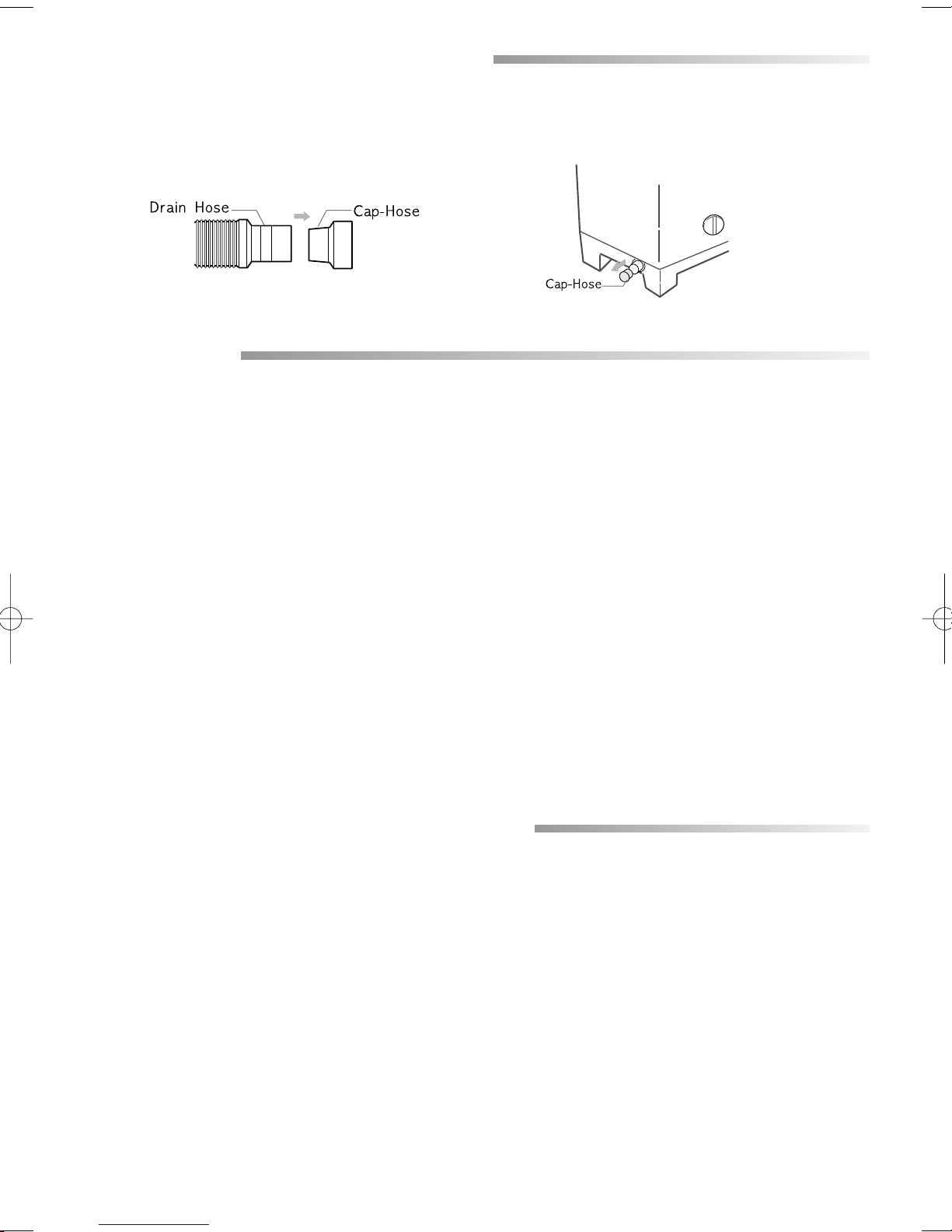

● Remove the cap-hose from the drain
hose. ● In case of pump drained washer,
remove the cap-hose from
the drain hole.
● Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this
or any other appliance.
SWT70B1-00685A 3/9/00 9:35 AM Page 2

4.SPIN DRY TIMER
This is used to set the spin time, 1-5 minutes.
5.WATER INTAKE
Connect water inlet to a tap with a suitable hose.
1.WASH TIMMER
This is used to set the wash time, 1-15 minutes.
2.WASH SELECTOR
Refer to the washing time and washing selection.
3.CYCLE SELECTOR
This is used to set the Washing/Rinsing or draining.
2
DESCRIPTION OF PARTS
INNER LID
When you open this lid while
the spin basket is spinning,
the spinning will be stopped
by breake system.
POWER CORD
EARTH WIRE
WATER DRAIN HOSE
(WITHOUT PUMP)
SPIN DRYER BASKET
SPIN DRYER HATCH
WASH TUB LID
Be sure to keep the lid
closed during washing
and spinning.
STRAINER (FILTER)
WASH TUB
PULSATOR
The plug’s shape may not
correspond with this drawing.
CONTROL PANEL
SPIN DRYER LID
SWT70B1-00685A 3/9/00 9:35 AM Page 3

WASHING PROCEDURE
3
SPIN DRY
1. Before starting washing, check following;
Connect the water supply hose.
- Lay the drain hose down toward a sinkhole.
(In case no drain pump)
- Place the drain hose in sink or bath.
(In case drain pump)
-Connect the power cord to the power supply outlet .
3. Set the CYCLE SELECTOR KNOB to
‘WASH.URINSE’.
(in case drain pump ‘WASH’)
4. Fill water in the wash tub
to the ‘L’ lower water
level by carefully and
add the detergent.
5. Load laundry in the
wash tub and fill
water to proper
water level.
6. Set the WASH TIMER
1-15minutes.
7. After washing,set the
CYCLE SELECTOR KNOB
to ‘DRAIN’ for drain.
1. Transfer the clothes into the spin basket
and arrange the clothes evenly. 3. Close the spin dryer lid.
4. Set the SPIN DRY TIMER 1-5minutes.2. Be sure to attach the safety cover and
close the inner lid.
inner lid
safty cover
2. Set the WASH SELECTOR KNOB
to the desired mode.
TO WASH
SOFT HEAVY
WASH . RINSE
RINSEDRAIN
CYCLE SELECTOR
WASH
DRAIN
CYCLE SELECTOR
DRAIN
CYCLE SELECTOR
SPIN DRY TIMER
WASH TIMER
SWT70B1-00685A 3/9/00 9:35 AM Page 4

4
RINSING
OVER FLOW RINSE
1. Set the CYCLE SELECTOR KNOB to
‘WASH.RINSE’
2. Supply the proper amount of water
as not to overflow the top of the
washing tub.
3. Set the WASH TIMER
2~3minutes.
3.As soon as the WASH TIMER
shuts off, turn off the water tap.
1.Keep suppling water(adjust water pressure
to ensure that the amount of water supplied
does not exceed that water drained.)
4. Drain the water.
Set the CYCLE
SELECTOR KNOB to
‘DRAIN’.
5.Repeat this cycle until drain water
is clean. (2~3 cycle)
2.Set the WASH
TIMER 6~8minutes. 4. Set the CYCLE SELECTOR KNOB
to ‘DRAIN’.
(in case drain pump “WASH)
WASH . RINSE
RINSEDRAIN
CYCLE SELECTOR
WASH
DRAIN
CYCLE SELECTOR
(in case drain pump “WASH)
WASH . RINSE
RINSEDRAIN
CYCLE SELECTOR
WASH
DRAIN
CYCLE SELECTOR
DRAIN
CYCLE SELECTOR
DRAIN
CYCLE SELECTOR
WASH TIMER
WASH TIMER
WASH TIMER
SWT70B1-00685A 3/9/00 9:35 AM Page 5

INSTALLATION
Leave some space
Space at least 15cm between the washer
and the wall.
Place the washer on a sturdy flat surface.
If the washer is placed on an uneven or weak
surface, noise or vibration may be occured.
(Allowable is 2˚)
Never install the washer near water.
Do not place the washer in steamy rooms or
where the washer is directly exposed to rain.
Moisture may destroy the electrical insulation
and cause an electrical shock hazard.
Avoid direct sunlight or heating devices.
As plastic and electrical components are
affected by direct heat, never place the
washer near heaters, boilers,etc.
Do not place under direct sunlight.
CHANGING THE POSITION OF THE DRAIN HOSE
Before attempting to change the position of the drain hose,
disconnect the plug from the outlet.
1. Route the drain hose inside the machine.
2.Take out the drain hose from the opposite hole and
insert the drain hose into the hose holder.
CLEANING THE MACHINE
5
ENVIRONMENT
CLENING THE LINT FILTER
-If the dregs are piled up in the lint filter after finishing
the wash, push down and pull it out as shown in figure.
-Wash the filter net in water.
CLEANING THE WASH TUB
Wipe off strains on the cabinet and operation panel
with soft cloth.
Do not use benzene, thinners, cleanser, or wax,
nor scrub the washer with a brush.
Painted surfaces or plastic parts will be damaged.
2
1
70~80cm
1. Place a rag under the washer filter
not to wet the floor.
2. Rotate the filter counterclockwise
and pull out the filter.
3. Remove dirts and rotate
the filter clockwise until it
locks in position.
HOW TO CLEAN THE FILTER (In case drain pump)
Install the drain hose about
70~80cm above the ground
for pump model.
Hose holder
AFTER OPERATION
1. Remove the power cord from the outlet.
2. Take out the laundry.
3. Close the water tap and disconnect the water supply hose.
4. Clean the washing machine.
-Periodical cleaning will extend the life of your washing machine.
-Do not spray the unit water or use tinner, benzene, alcohol etc, for cleaning it.
SWT70B1-00685A 3/9/00 9:35 AM Page 6

WASHING TIME
10 to15minutes
8 to10minutes
7minutes
2 to 5minutes
2 to 5minutes
KINDS OF CLOTHING
Extremely solid heavy fabric
Linen,cotton,etc.
Ordinary clothes
(underwear,etc)
Slightly solied synthetic
fiber
100%wool,mixed wool knitting,
thin synthetic fiber with tags
indicating hand washing
TROUBLE
The washer
does not work.
Clothes will
not move freely.
Incomplete
spinning
TROUBLE
Incomplete
draining
The spin dryer
basket will not
run.
CHECK POINT
Check that the power cord is
connected to a power outlet well.
Power stoppage?
Is the laundry overloaded?
Are the laundry arranged evenly?
WASHING TIME
LAUNDRY GUIDE
MAINTENANCE
TROUBLE SHOOTING
6
WHEN YOU LOAD THE LAUNDRY INTO
THE SPIN BASKET.
Press the laundry evenly and put the safety
cover into the spin basket drum as shown in
the figure.
TO PICK OUT THE CLOTHING WHICH HAS
FALLEN BETWEEN THE BASKET AND TUB.
For safty,pull the power supply plug out of the socket.
TYPE OF LAUNDRY
Thin(synthetic fiber)
wool
cotton
thick(cotton)
SPIN DRY TIME
DETERGENT
TIME
1min.
1~2min.
3~5min.
5min.
AMOUNT OF
DETERGENT
32 g
40 g
50 g
WATER
LEVEL
Low (32l)
Mid (40l)
High (50l)
The amount of detergent is average.
Follow the instruction detergent printed
on the package for amount of detergent.
Choose the amount of detergent
depending on the fabric type.
CHECK POINT
Is the filter clogged
with lint?
●See “Cleaning the
machine”on page 5.
Is the spin dryer lid closed
completely?
Are laundry(socks,etc.) falling
out of the spin dryer basket and
clinging to the axle?
●See “To pick out...”on page 6.
1.Disassemble two screws from the spin dryer hatch.
2.The spin dryer hatch is fixed to the brim by the concave and
convex parts at two places. Expand the concave and
convex parts, and pull up the spin dryer hatch to remove it.
3. Remove the clothing
4. Close the spin dryer hatch.
Push in hatch firmly until
the catch at the front is
engaged securely.
SWT70B1-00685A 3/9/00 9:35 AM Page 7

DIMENSIONS (W x D x H)mm
WATER PRESSURE
WEIGHT
EXTRACTION EFFICIENCY
STANDARD QUANTITY OF WATER
RATING TIME
812 x 448 x 957
0.05~0.78 MPa
0.5 ~ 8.0 kg.f/cm
2
50 %
50 l
Washing 1Hour / Spinning 15minutes
With out pump
With pump
IF YOU NEED HELP.
Do not hesitate to call your local service center.
They will be willing to help you.
Be sure to give them your name,address,telephone number and the purpose of the call.
SPECIFICATION
DC68 - 00685A
29 kg
31 kg
SWT70B1-00685A 3/9/00 9:35 AM Page 9
