Samsung Q1244AS User manual

Washing Machine
Owner’s Instructions
Q1244A(V/S)
Q1044A(V/S)
Q844A(V/S)

Safety Precautions
● SAVE THESE INSTRUCTIONS
Congratulations on your purchase of this Samsung washing machine. These Owner's
Instructions contain valuable information on the installation, use, and care of this appliance.
Please take the time to read these instructions so that you can take full advantage of the
washing machine's features and enjoy this appliance for many years to come.
Before using the appliance
•Packing materials can be dangerous to children; keep all packing material (plastic bags,
polystyrene, etc.) well out of the reach of children.
•The appliance is designed for home use only.
•Make sure that water and electrical connections are made by qualified technicians,
observing the manufacturer's instructions (see "Installing the Washing Machine" on
page 2) and local safety regulations.
•All packaging and shipping bolts must be removed before the appliance is used. Serious
damage may occur if they are not removed. See "Removing the shipping bolts" on page 3.
•Before washing clothes for the first time, you must run a complete cycle without clothes.
See "Washing for the first time" on page 7.
Safety instructions
•Before cleaning or carrying out maintenance, unplug the appliance from the electrical
outlet or set the (On/Off) button to Off.
•Make sure that the pockets of all clothing to be washed are empty.
Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause
extensive damage to the appliance.
•Always unplug the appliance and turn off the water after use.
•Before you open the door of the appliance, check that the water has drained. Do not
open the door if you can still see water.
•Pets and small children may climb into the appliance. Check the appliance before each
use.
•The glass door becomes very hot during the washing cycle. Keep children away from
the appliance while it is in use.
•Do not attempt to repair the appliance yourself. Repairs made by inexperienced or
unqualified persons may cause injury and/or make more serious repairs to the
appliance necessary.
•If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person in order to avoid a hazard.
•This appliance should only be serviced by an authorized service center, and only
genuine spare parts should be used.
•This appliance is not intended for use by young children or infirm persons unless they
have been adequately supervised by a responsible person to ensure that they can use the
appliance safely.
•If this appliance is supplied from a cord extension set or an electrical portable outlet
device, the cord extension set or electrical portable outlet device must be positioned so
that it is not subject to splashing or ingress of moisture.

SAMSUNG Washing Machine Owner’s Instructions 1
Safety Precautions------------------------------------------- inside cover
lnstalling the Washing Machine ------------------------------------------2
Unpacking the washing machine ----------------------------------------------------2
Overview of the washing machine --------------------------------------------------2
Selecting a location -------------------------------------------------------------------- 3
Adjusting the leveling feet ------------------------------------------------------------3
Removing the shipping bolts --------------------------------------------------------3
Connecting the water supply hose ------------------------------------------------- 4
Connecting the water supply hose(option) -------------------------------------- 5
Positioning the drain hose ----------------------------------------------------------- 5
Plugging in the machine -------------------------------------------------------------6
Washing a Load of Laundry ------------------------------------------------ 7
Washing for the first time ------------------------------------------------------------- 7
Putting detergent in the washing machine --------------------------------------- 7
Overview of the control panel ------------------------------------------------------ 8
Washing clothes using Fuzzy Logic --------------------------------------------- 10
Washing clothes manually --------------------------------------------------------- 11
Using delay start --------------------------------------------------------------------- 11
Washing tips and hints ------------------------------------------------------------- 12
Maintaining the Washing Machine --------------------------------- 13
Draining the washing machine in an emergency ----------------------------- 13
Repairing a frozen washing machine -------------------------------------------- 13
Cleaning the exterior ---------------------------------------------------------------- 13
Cleaning the detergent drawer and recess ----------------------------------- 14
Cleaning the debris filter ------------------------------------------------------------ 14
Cleaning the water hose mesh filter --------------------------------------------- 15
Troubleshooting ----------------------------------------------------------------- 16
Problems and solutions ------------------------------------------------------------ 16
Understanding error messages --------------------------------------------------- 16
Cautions of Duvet course ---------------------------------------------------------- 17
Programme chart ------------------------------------------------------------- 18
Appendix ------------------------------------------------------------------------------ 20
Fabric care chart --------------------------------------------------------------------- 20
Electrical warnings ------------------------------------------------------------------ 20
Protecting the environment -------------------------------------------------------- 21
Declaration of conformity ---------------------------------------------------------- 21
Specification --------------------------------------------------------------------------- 21
Table of Contents

Installing the Washing Machine
2 SAMSUNG Washing Machine Owner’s Instructions
Unpacking the Washing Machine
Unpack your washing machine and inspect it for shipping damage. Also make sure that
you have received all of the items shown below. If the washing machine was damaged
during shipping or you do not have all of the items, contact your Samsung dealer
immediately.
Overview of the washing machine
Hose guide
Plug
Cold Water
supply hose
Bolt hole
covers
Drain Hose
Drain Hose
Detergent
drawer
Door
Worktop
Debris filter
Emergency drain
tube
Filter-cover
Base cover
Adjustable feet
Control panel
Wrench

SAMSUNG Washing Machine Owner’s Instructions 3
Selecting a location
Before you install the washing machine, select a location with the following characteristics:
•A hard, level surface (if the surface is uneven, see "Adjusting the leveling feet," below)
•Away from direct sunlight.
•Adequate ventilation
•Room temperature that will not fall below 0 ˚C
•Away from sources of heat such as coal or gas
Make sure that the washing machine does not stand on its power cord.
Ventilation openings must not be obstructed by carpeting when the washing machine is
installed on a carpeted floor.
Adjusting the leveling feet
If the floor is uneven, adjust the feet
(do not insert pieces of wood or any other
objects under the feet):
1. Loosen the leg bolt by turning it with
your hand until it is at the desired height.
2. Tighten the locking nut by turning it
with the supplied wrench.
If the washer is placed on an uneven or weak
surface, noise or vibration occurs.
(Only l degree angle is allowed.)
Removing the shipping bolts
Before using the washing machine, you
must remove the five shipping bolts from the
back of the unit. To remove the bolts:
1. Loosen all bolts with the supplied
wrench before removing them.
2. Take each bolt head and pull it through
the wide part of the hole.
Repeat for each bolt.
3. Fill the holes with the supplied plastic
covers.
4. Keep the shipping bolts for future use.
Installing the Washing Machine
loosen

4 SAMSUNG Washing Machine Owner’s Instructions
Connecting the water supply hose
The water supply hose must be connected to the washing machine at one end and to the water
faucet at the other. Do not stretch the water supply hose. If the hose is too short replace the
hose with a longer, high pressure hose.
To connect the water supply hose:
1. Take the L-shaped arm fitting for the cold water supply hose and connect to the cold water
supply intake on the back of the machine. Tighten by hand.
2. Connect the other end of the cold water supply hose to your sink's cold water faucet and
tighten it by hand. If necessary, you can reposition the water supply hose at the washing
machine end by loosening the fitting,rotating the hose, and retightening the fitting.
NOTICE The appliance is to be connected to the water mains using new hose-sets and that old hose-
sets should not be used.
Option:
1. Take the red L-shaped arm fitting for the hot water supply hose and connect to the red
hot water supply intake on the back of the machine. Tighten by hand.
2. Connect the other end of the hot water supply hose to your sink's hot water faucet and
tighten it by hand.
3. Use a Y-piece if you only want to use cold water.
Installing the Washing Machine
Hot water
supply value

SAMSUNG Washing Machine Owner’s Instructions 5
Installing the Washing Machine
Connecting the water supply hose(Option)
NOTICE After completing connection, if water leaks from the hose, then repeat the same steps. Use
the most conventional type of faucet for water supply. In case the faucet is square or too big,
remove the spacing ring before inserting the faucet into the adaptor.
Positioning the drain hose
The end of the drain hose may be positioned in three ways:
Over the edge of a wash basin.
The drain hose must be placed at a height
of between 60 and 90 cm. To keep the
drain hose spout bent, use the supplied
plastic hose guide. Secure the guide to the
wall with a hook or to the faucet with a
piece of string to prevent the drain hose
from moving.
ln a sink drain pipe branch
The drain pipe branch must be above the sink siphon so that the end of the hose is at least
60 cm above the ground.
ln a drain pipe
Samsung recommends that you use a 65 cm high vertical pipe; it must be no shorter than
60 cm and no longer than 90 cm.
c
2. First, using a “+” type screw driver,
loosen the four screws on the
adaptor. Next, take the adaptor
and turn part(b) following the
arrow until there is a 5mm gap.
4. Connect the water supply hose to
the adaptor. Pull down part (c) of the
water supply hose. When you
release part (c) the hose automa-
tically connects to the adaptor
making a ’click’ sound.
5. Connect the other end of the water
supply hose to the inlet water valve
at the rear of the washer. Screw the
hose clockwise all the way in.
3.Connect adaptor to the water tap by
tightening the screws firmly.
Then, turn part (b) following the
arrow and put(a) and (b) together.
1. Remove the adaptor from the water
supply hose.
a
b

Installing the Washing Machine
6 SAMSUNG Washing Machine Owner’s Instructions
Plugging in the machine
For European Users. You will NOTneed to ground the plug of the washing machine.
For U.S. Users. You MUSTground the plug of the washing machine.
Check with a licensed electrician before using the machine to make sure it is properly
grounded.
For U.K. Users.
Wiring lnstructions
WARNING THIS APPLIANCE MUST BE EARTHED.
This appliance must be earthed. In the event of an
electrical short circuit, earthing reduces the risk of electric
shock providing an escape wire for the electric current.
The appliance is equipped with a mains lead which
includes an earth wire for connecting to the earth
terminal of your mains plug.
The plug must be plugged into a socket that is properly
installed and earthed.
*The wires in this mains lead are coloured in accordance
with the following code:
• Green and yellow : Earth
• Blue : Neutral
• Brown : Live
•AS the colours of the wires in the mains lead of this
appliance may not correspond with the coloured
markings indentifying the terminals in your plug,
proceed as follows.
•Connect the green and yellow wire to the terminal
in the plug marked with the letter E or the earth
symbol ( ) or coloured green or green-and-
yellow.
•Connect the blue wire to the terminal marked
with the letter N or coloured black.
•Connect the brown wire to the terminal marked
with the letter L or coloured red.
* Consult a qualified electrician or service
technician if in doubt about any of these
instructions.
The manufacturer of this washing machine will
not accept any liability for damage to persons or
material for non observance of these
requirements. There are no user serviceable
parts inside the washing machine and if the
mains lead of this appliance is damaged, it must
only be replaced by qualified service personnel
approved by the
manufacturer because special tools are required.
GREEN AND
YELLOW 13 AMP
FUSE
BROWN
BLUE
WARNING
Ensure that the plug and power
cord are not damaged before use. If
you have any reason to remove the
moulded plug from this appliance,
immediately remove the fuse and
dispose of the plug.
Do not connect the plug to a mains
socket under any circumstances as
there is a danger of electric shock.
CIRCUITS
Your washing machine should be
operated on a separate circuit
from other appliances. Failure to
do this may cause the circuit
breaker to trip or the fuse to blow.

Washing a Load of Laundry
SAMSUNG Washing Machine Owner’s Instructions 7
Washing for the first time
Before washing clothes for the first time, you must run a complete cycle without clothes. To do
this:
1. Press the (On/Off) button.
2. Pour a little detergent into compartment in the
detergent drawer.
3. Turn on the water supply to the washing machine.
4. Press the Temperature button repeatedly until
40 ˚C is displayed.
5. Press the Start/Pause button.
•
This will remove any water from the manufacturer’s
test run remaining in the machine.
Dispender :Detergent for prewash or starch.
Dispenser : Detergent for main wash, water softener,pre-soaking agent, bleach and stain removal product.
Dispenser : Additives,e.g.fabric softener or former (fill no higher than lower edge of insert “ A”)
Putting detergent in the washing machine
1. Pull out the detergent drawer.
2. Add laundry detergent into compartment .
3. Add softener into compartment (if you desire).
4. Add prewash detergent into compartment (if you desire).
Caution :
Concentrated or thick fabric softener and
conditioner must be diluted with a little water
before being poured into the dispenser (prevents
the overflow from becoming blocked.)

Washing a Load of Laundry
8 SAMSUNG Washing Machine Owner’s Instructions
Overview of the control panel
1. Digital graphic display
Displays the remaining wash cycle time,all of washing information and error messages.
2.Prewash selection button
Press the button to select pre-wash. Pre-wash is available only with Duvet, Bedding,
Towel, Curtain, Cotton, Coloureds, Synthetics and Delicates programs.
3. Temperature selection button
Press the button repeatedly to cycle through the available water temperature options
(cold water( ), 30 ˚C, 40 ˚C , 60 ˚C and 95 ˚C).
4. Rinse selection button
Press the rinse button to add rinse cycles. Maximum number of rinse cycles is five.
5. Spin selection button
Press the button repeatedly to cycle through the available spin speed options.
No spin
The laundry remains in the drum without being spun after the final drain
Rinse Hold
The laundry remains soaking in the final rinse water.
Before the laundry can be unloaded, either “Drain” or the “Spin” program must be run.
Q1244A ,, 400, 800, 1000, 1200 rpm
Q1044A ,, 400, 600, 800, 1000 rpm
Q844A ,, 400, 600, 800 rpm
: no spin,
: rinse hold

Washing a Load of Laundry
SAMSUNG Washing Machine Owner’s Instructions 9
6. Delay Start selection button
Press the button repeatedly to cycle through the available delayed start options (from 3
hour to 24 hours in one hour increments).
Displayed hours means the time of finished washing-cycle.
7. Silver Wash selection button
Silver Nano water is supplied in washing as well as the last rinse, featuring sterilization
and antibacterial coating.
8. Half Load selection button
Press the button in case of half load(about 1~4kg) washing. This function saves washing
time and energy.
9. Child Lock selection button
Press the button [Rinse] and [Spin] at the same time, for 2~3 seconds to prevent mis-
operation of child. When child lock is on, other buttons are not selected. To cancel the
child lock, press the two button at the same time, for 2~3 seconds once more.

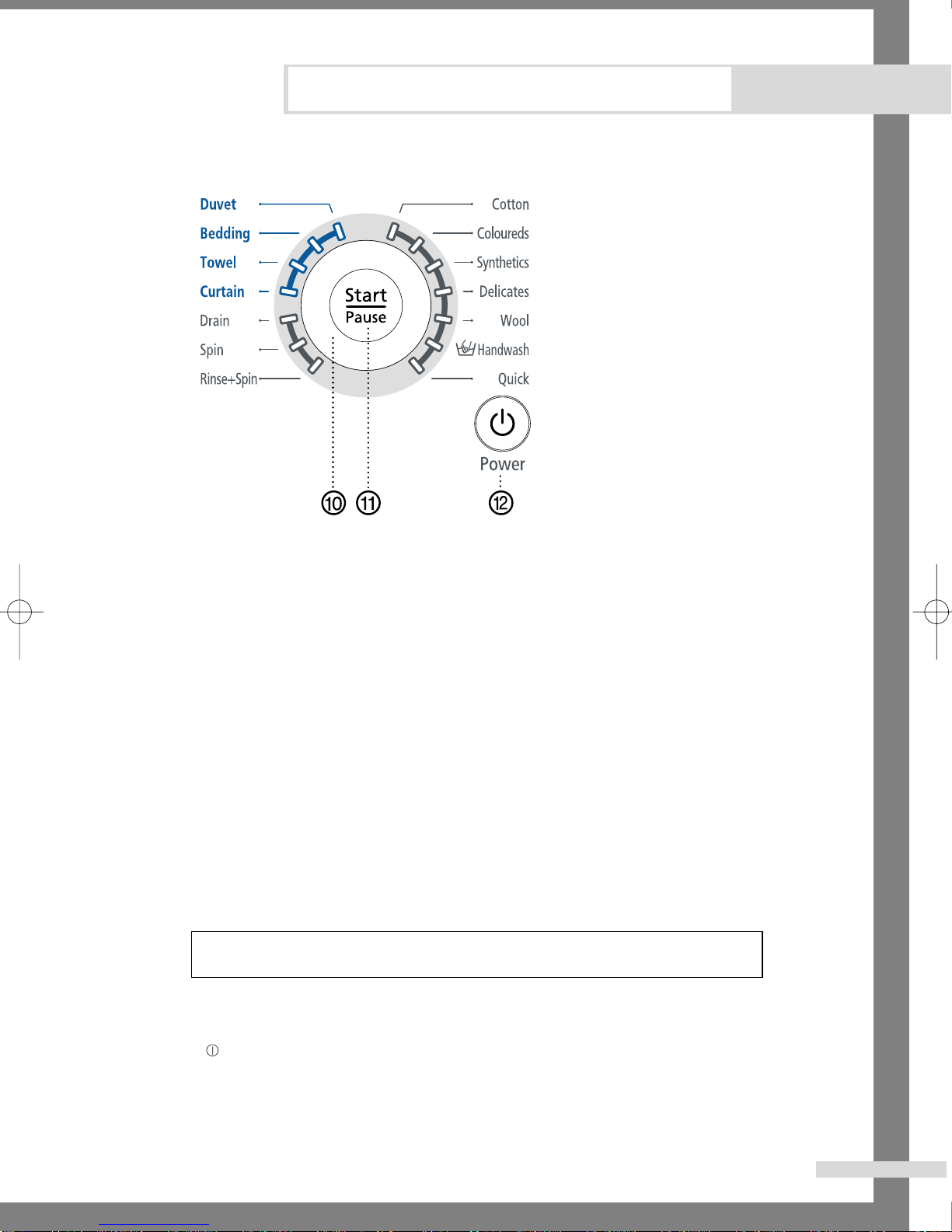

10. Fuzzy Control dial
Turn the dial to select one of the 14 available wash programs.
11. Start/Pause selection button
Press to pause and restart programs.
12. (On/Off) selection button
Press once to turn the washing machine on, press again to turn the washing machine off.
If the washing machine power is left on for longer than 10 minutes without any buttons
being touched, the power automatically turns off.
Cotton, Coloureds, Synthetics, Delicates, Wool, Hand wash, Quick,
Rinse+Spin, Spin, Drain, Curtain, Towel, Bedding, Duvet

Washing a Load of Laundry
10 SAMSUNG Washing Machine Owner’s Instructions
Washing clothes using Fuzzy Logic
Your new washing machine makes washing clothes easy, using Samsung's "Fuzzy Logic"
automatic control system. When you select a wash program, the machine will set the correct
temperature, washing time, and washing speed.
To wash clothes using the Fuzzy Logic programs:
1. Turn on your sink's water faucet.
2. Press the (On/Off) button.
3. Open the door.
4. Load the articles one at a time loosely into the drum, without overfilling.
5. Close the door.
6. Add the detergent, softener, and pre-wash detergent (if necessary) into the appropriate
compartment.
Note: Pre-wash is only available when washing Duvet, Bedding, Towel, Curtain,
Cotton, Coloureds, Synthetics and Delicates programs.
It is only necessary if your clothing is heavily soiled.
7. Turn the Fuzzy Control dial to select the
appropriate program for the type of
clothes Cotton, Coloureds, Synthetics,
Delicates, Wool, Handwash, Quick,
Duvet, Bedding, Towel, Curtain.
You will see the indicators light up on
the control panel.
8. At this time, you can control the wash temperature, rinsing times, spin speed, delay time
by pressing the appropriate option button.
9. Press the Start/Pause button on the Fuzzy Control dial and the wash cycle will begin.
The process indicator will light up and the remaining time for the cycle will appear in the
display.
When the cycle is finished:
After the total cycle has finished, the power will turn off automatically.
1. Open the door.
Note: The door will not open until 3 minutes after the machine stops or
the power turns off.
2. Remove laundry.

SAMSUNG Washing Machine Owner’s Instructions 11
Washing a Load of Laundry
Washing clothes manually
You can wash clothes manually without using the Fuzzy Logic feature. To do so:
1. Turn the water supply on.
2. Press the (On/Off) button on the washing machine.
3. Open the door.
4. Load the articles one at a time loosely into the drum, without overfilling.
5. Close the door.
6. Put the detergent and, if necessary, softener or prewash detergent, in the appropriate
compartments.
7. Press the Temperature button to select the temperature
(cold water, 30˚C, 40˚C, 60˚C, 95˚C)
8. Press to rinse button to select the required number of rinse cycles.
Maximum number of rinse cycles is five.
The washing duration will be prolonged accordingly.
9. Press the Spin button to select the spin speed.
Note: The rinse hold program allows you to take clothes that are dripping wet
out of the washing machine.
: No Spin, : Rinse Hold.
10. Press the button repeatedly to cycle through the available delayed start options
(from 3 hour to 24 hours in one hour increments). Displayed hours means the time
of finished washing-cycle.
11. Press the Start/Pause button and the machine will begin the cycle.
Using Delay Start
You can set the washing machine to finish your wash automatically at a later time, choosing
from 3 to 24 hour delay (in 1 hour increments). Displayed hours means the time of finished
washing-cycle.
To do this:
1. Manually or automatically set your washing machine for the type of clothes you are
washing.
2. Press the Delay Start button repeatedly until the delay time is set.
3. Press the Start/Pause button. The Delay Start indicator will light, and the clock will
begin counting down until it reaches your finish time.
4. To cancel Delay Start, press the (On/Off) button, then turn the washing machine
on again.

Washing tips and hints
Sorting your laundry : Sort your laundry according to the following characteristics:
•Type of fabric care label symbol : Sort laundry into cottons, mixed fibers, synthetics,
silks, wools and rayon.
•Colour : Divide whites and colours. Wash new, coloured items separately.
•Size: Placing items of different sizes in the same load will improve the washing action.
•Sensitivity: Wash delicate items separately, using the Delicate wash program for pure
new wool, curtains and silk articles. Check the labels on the items you are washing or
refer to the fabric care chart in the appendix.
Emptying pockets : Coins, safety pins and similar items can damage linen, the
washing machine drum, and the water tank.
Securing fasteners : Close zippers and fasten buttons or hooks; loose belts or ribbons
should be tied together.
Prewashing cotton : Your new washing machine, combined with modern detergents,
will give perfect washing results, thus saving energy, time, water and detergent. However,
if your cotton is particularly dirty, use a prewash with a protein-based detergent.
Determining load capacity: Do not overload the washing machine or your laundry
may not wash properly. Use the chart below to determine the load capacity for the type of
laundry you are washing.
Fabric Type Load Capacity
Cotton /Coloured 8.5 kg
Synthetics /Towel 4.3 kg
Quick 3.4 kg
Delicates 2.8 kg
Wools /Handwash 2.3 kg
Curtain /Bedding 5.7 kg
Duvet 1 king size (9 Tog)
Detergent tips: The type of detergent you should use is based on the type of fabric
(cotton, synthetic, delicate items, wool), colour, wash temperature, degree and type of
soiling. Always use "low suds" laundry soap, which is designed for automatic washing
machines.
Follow the detergent manufacturer's recommendations based upon the weight of the
laundry, the degree of soiling, and the hardness of the water in your area. If you do not
know how hard your water is, ask your water authority.
Note:
Keep detergents and additives in a safe, dry place out of the reach of children.
12 SAMSUNG Washing Machine Owner’s Instructions
Washing a Load of Laundry

SAMSUNG Washing Machine Owner’s Instructions 13
Maintaining the Washing Machine
Draining the washing machine in an emergency
1. Unplug the washing machine
from the power supply.
2. Open the filter-cover by using
a coin or a key.
3. Unscrew the emergency drain cap
by turning left. Grip the cap on the
end of the emergency drain tube
and slowly pull it out about 15 cm.
4. Allow all the water to flow into a bowl.
5. Reinsert the drain tube and screw the cap back on.
6. Replace the filter-cover.
Repairing a frozen washing machine
If the temperature drops below freezing and your washing machine is frozen:
1. Unplug the washing machine.
2. Pour warm water on the source faucet to loosen the water supply hose.
3. Remove the water supply hose and soak it in warm water.
4. Pour warm water into the washing machine drum and let it sit for 10 minutes.
5. Reconnect the water supply hose to the water faucet and check if the water supply
and drain operations are normal.
Cleaning the exterior
1. Wipe the washing machine surfaces, including the control panel, with a soft cloth
and non-abrasive household detergents.
2. Use a soft cloth to dry the surfaces.
3. Do not pour water on the washing machine.

Maintaining the Washing Machine
14 SAMSUNG Washing Machine Owner’s Instructions
Cleaning the detergent drawer and recess
1. Press the release lever on the inside
of the detergent drawer and pull it out.
2. Remove the cap from compartment .
3. Wash all of the parts under running water.
4. Clean the drawer recess with an old toothbrush.
5. Reinsert the cap (Pushing it firmly into place)
and replace the liquid detergent divider into the drawer.
6. Push the drawer back into place.
7. Run a rinse program without any laundry in the drum.
Cleaning the debris filter
Clean the debris filter 5 or 6 times a year, or when you see the following error message on
the display:
1. Open the filter-cover,
See “Draining the washing machine in an emergency" on page 13.
2. Unscrew emergency drain cap by turning left and drain off all the water.
See "Draining the washing machine in an emergency" on page 13.
3. Unscrew the filter cap and take it out.
4. Wash any dirt or other material from the filter. Make sure the drain pump propeller
behind the filter is not blocked. Replace the filter cap.
5. Replace the filter-cover.

SAMSUNG Washing Machine Owner’s Instructions 15
Cleaning the water hose mesh filter
You should clean the water hose mesh filter at least one time per year, or when you see the
following error message on the display:
To do this:
1. Turn off the water source to the washing machine.
2. Unscrew the hose from the back of the washing machine.
3. With a pair of pliers, gently pull out the mesh filter from the end of the hose and rinse
it under water until clean. Also clean the inside and outside of the threaded
connector.
4. Push the filter back into place.
5. Screw the hose back onto the washing machine.
6. Turn on the faucet and make sure the connections are watertight.
Maintaining the Washing Machine

Troubleshooting
16 SAMSUNG Washing Machine Owner’s Instructions
Problems and solutions
The washing machine will not start
•Make sure the door is firmly closed.
•Make sure the washing machine is plugged in.
•Make sure the water source faucet is turned on.
•Make sure to press the Start/Pause button.
No water or insufficient water supply
•Make sure the water source faucet is turned on.
•Make sure the water source hose is not frozen.
•Make sure the water intake hose is not bent.
•Make sure the filter on the water intake hose is not clogged.
Detergent remains in the detergent drawer after the wash
program is complete
•Make sure the washing machine is running with sufficient water pressure.
•Put the detergents in the inner parts of the detergent drawer(away from the
outside edges).
Washing machine vibrates or is too noisy
•Make sure the washing machine is set on a level surface. If the surface is not level,
adjust the washing machine feet to level the appliance (see page 3).
•Make sure that the shipping bolts are removed (see page 3).
•Make sure the washing machine is not touching any other object.
•Make sure the laundry load is balanced.
The washing machine does not drain and/or spin
•Make sure the drain hose is not squashed or bent.
•Make sure the debris filter is not clogged
(see page 14).
The Door does not open
•The door will not open until 3 minutes after the machine stops or the power turns off.
Understanding error messages
Error displayed Solution
Before contacting After-Sales service:
1. Try to remedy the problem (See "Troubleshooting" on this page).
2. Restart the programme to see if the fault is repeated.
3. If the malfunction persists, call after-sales service and describe the problem.
Close the door.
• Make sure the source water faucet is turned on.
• Check the water pressure.
• Clean the debris filter.
• Make sure the drainage hose is installed correctly.
• Call after-sales service.
Laundry load is unbalanced; loosen any tangled laundry.
If only one item of clothing needs washing, such as a bathrobe
or jeans, the final spin result might be unsatisfactory and an
"UE" error message will be shown in the display window.

SAMSUNG Washing Machine Owner’s Instructions 17
Troubleshooting
Cautions of Duvet course
Use of Detergents in Duvet Course
When washing larger volume laundry items, including duvet, do not put the following
detergents directly into the drum:
. Tablet and capsule type detergents
. Detergents using ball and net.
Detergents not fully dissolved may bring about imperfect washing.
For dffective washing, add detergent into the detergent drawer.
Do not wash a duvet by spreading detergent directly on it.
Cautions in Putting Duvet in the Drum
1. Do not use unnecessary force or too large Duvet.
2. Make sure that a corner or folded part of the duvet directs inwards.
Picture of Being Put Properly

18 SAMSUNG Washing Machine Owner’s Instructions
Programme Chart
Cotton 8.5 ✽yes ✽60 95 1200 1000 800 ✽✽70
Coloureds 8.5 ✽yes ✽40 60 1200 1000 800 ✽✽70
Synthetics 4.3 ✽yes ✽40 60 800 800 800 ✽✽65
Delicates 2.8 ✽yes ✽40 40 800 600 600 ✽✽65
Wool 2.3 - yes ✽30 40 400 400 400 ✽✽65
Handwash 2.3 - yes ✽30 40 400 400 400 ✽✽65
Quick 3.4 - yes ✽30 60 1200 1000 800 ✽-45
PROGRAM Type of WASH
Cotton Average or lightly soiled cottons, bed linen, table linen, underwear, towels,
shirts, etc.
Coloureds Average or lightly soiled cottons, bed linen, table linen, underwear, towels,
shirts, etc.
Synthetics Average or lightly soiled blouses, shirts, etc., which are made of polyester
(diolen, trevira), polyamide (perlon, nylon) or other similar blends.
Delicates Delicate curtains, dresses, skirts, shirts and blouses.
Wool Only machine washable woolens with pure new wool label.
Handwash Very light wash course like hand wash.
Quick Lightly soiled cottons or linen blouses, shirts, dark coloured terry cloth,
coloured linen articles, jeans, etc.
1. Programme with prewash lasts approx. 15 minutes longer.
2. The programme duration data has been measured under the conditions specified in
Standard IEC 456.
3. Consumption in individual homes may differ from the values given in the table
due to variations in the pressure and temperature of the water supply, the load and
the type of laundry.
PRO-
GRAM
DETERGENT
AND ADDITIVES Spin Speed(MAX)rpm
Half
Load
Water
( l)
Tem
(˚C)
Max
load
(kg) Pre-
wash Sof- tener Max
de-
fault
wash Q1244 Q1044 Q844
Delay
start
( ✽ user option)
