Samsung Washing machine User manual

Owner’s Instructions
Before operating the unit, please read this manual throughly, and
retain for future reference.
Register your product at
www.samsung.com/global/register
BEFORE USING THE WASHER . . . . . . . . . . . . . . . . . . . . 1
CAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
PRECAUTIONS WHEN OPERATING. . . . . . . . . . . . . . . . . 1
DESCRIPTION OF PARTS . . . . . . . . . . . . . . . . . . . . . . . 2
CONTROL PANEL. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
ENVIRONMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
HOW TO CLEAN THE FILTER . . . . . . . . . . . . . . . . . . . . . . . . . . 3
CONNECTING THE DRAIN HOSE . . . . . . . . . . . . . . . . . . . . . . 3
CLEANING THE MACHINE . . . . . . . . . . . . . . . . . . . . . . 3
WASHING PROCEDURE. . . . . . . . . . . . . . . . . . . . . . . . 4
TO WASH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SPIN DRY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
RINSING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
OVER FLOW RINSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ADDITIONAL RINSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
LAUNDRY GUIDE. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
TROUBLE SHOOTING
SPECIFICATION
WT80J7-02206A_EN.indd 1 2006-02-17 ¿ÀÈÄ 2:43:14
C DE N . : DC68-02206A-01

1

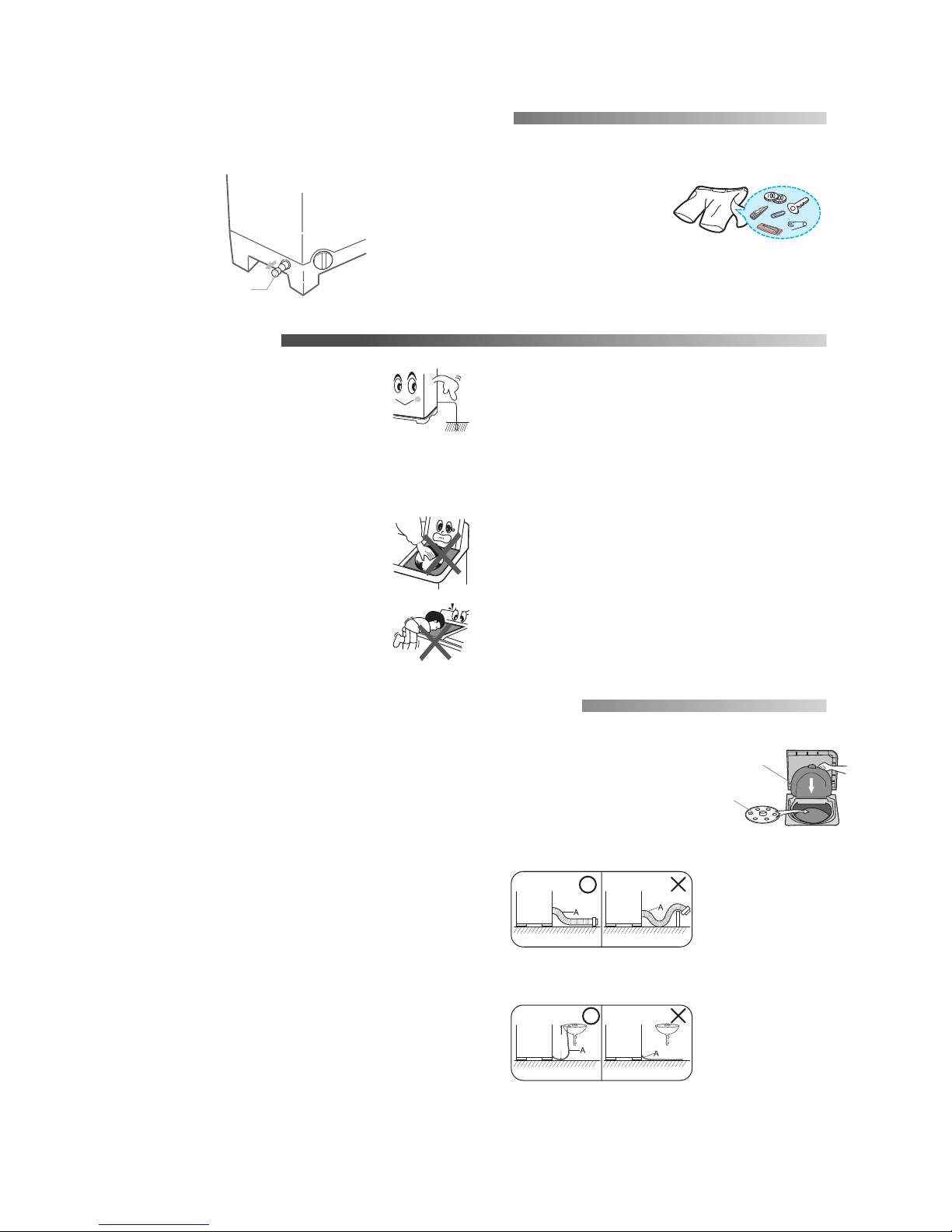

BEFORE USING THE WASHER
• In case of pump drained washer, remove the
cap-hose from the drain hole.
• Take out personal belongings from pockets.
Caution
Check the pockets! Hairpins and
coins cause damages to clothes
and wasing machine. They
make noise and problems to the
machine. Must check the pocket.
CAUTIONS
• Be sure that the washer is
grounded.
To avoid electrical shock, use a metal
pipe for the ground connection. But,
don’t ground the washer with gas
pipes or telephone lines to avoid to
dangers of explosion or lightning
strike.
• Do not put your hands into the spin
dryer basket when it is spinning.
Your fingers can be caught by
spinning laundry and damaged.
• Never allow children to operate or
play with the washer.
Children playing with the washer may
accidentally fall into the washing tub.
• Disconnect the power cord from the power
supply when not in use.
• Ventilation opening must not be obstructed by
carpeting when the washing machine is installed
on a carpeted floor.
• If the supply cord of this appliance is damaged,
it must only be replaced by a repair shop
appointed by the manufacturer, because special
purpose tools are required.
• To avoid overfilling and damages this appliance
must be filled with the operator present using a
moderate water supply pressure only.
• For washing machines with ventilation openings
in the base, that a carpet must not obstruct the
openings.
PRECAUTIONS WHEN OPERATING
• Don’t use excessively hot water. (50°C or more)
Plastic parts may be deformed or damaged.
Also, clothing may be deformed or decolored.
• Before washing, check all pockets.
If nails or pins remain in pockets, they may damage
the washer or clothes.
• Close the water tap a little if the water pressure is
too high.
• To avoid water splashes, close the wash tub lid.
• Never splash water on the control panel.
• Be sure to cover with the
inner cover on laundry before
spinning.
This prevents laundry from being
tossed out and damaged.
• Be sure lay the drain hose(A) down.
• Be sure place the drain hose(A) in sink or bath
about 70~80cm above the ground.
Cap-Hose
inner lid
safety cover
(WITHOUT PUMP)
(WITH PUMP)
70~80cm
WT80J7-02206A_EN.indd 1 2006-02-17 ¿ÀÈÄ 2:43:16

2

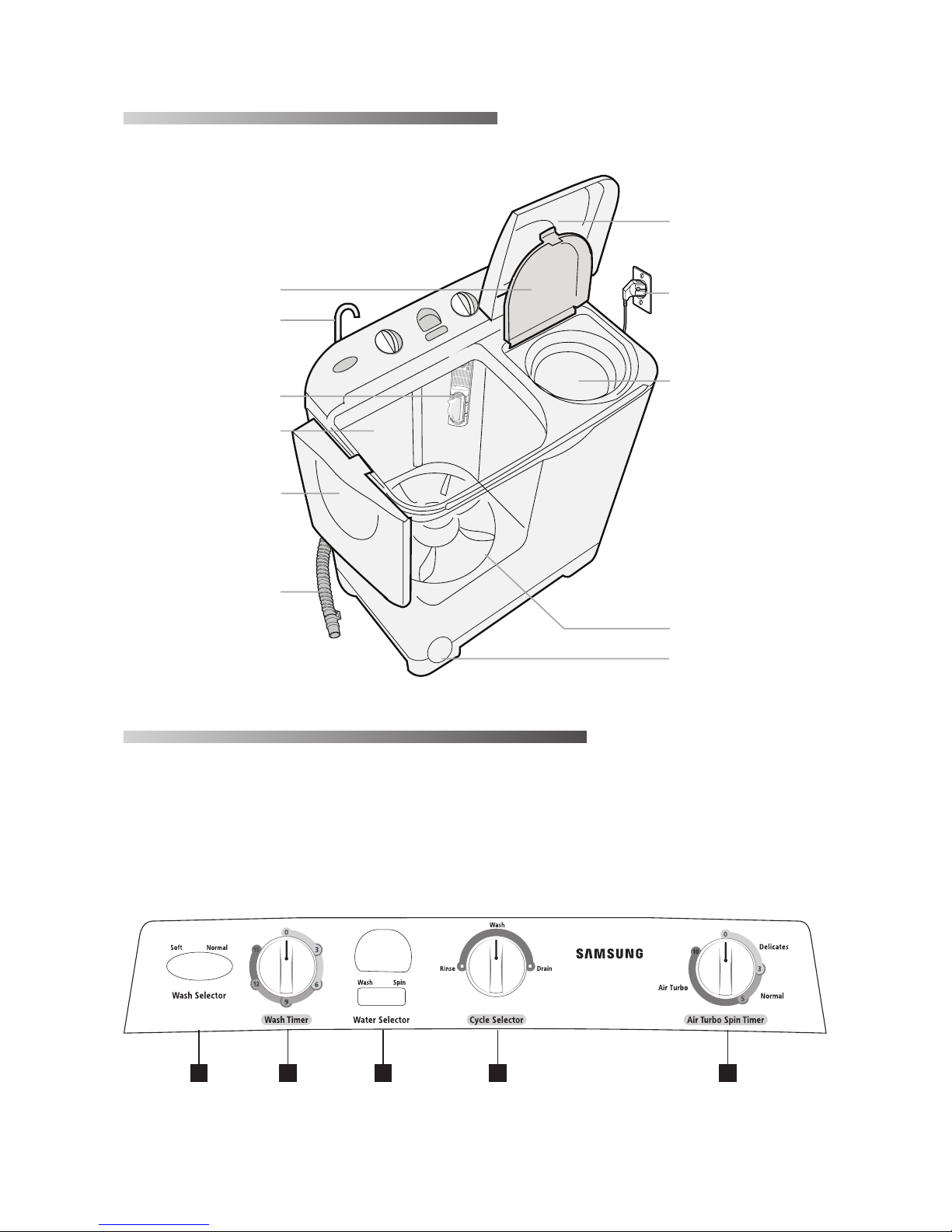

DESCRIPTION OF PARTS
CONTROL PANEL
1. WASH SELECTOR
This is used to select wash action.
2. WASH TIMER
This is used to set the wash time, 1-15 minutes.
3. CYCLE SELECTOR
This is used to select the Washing / Rinsing or
draining.
4. AIR TURBO SPIN TIMER
This is used to set the spin time, 1-10 minutes.
5. WATER SELECTOR
During washing, WATER SELECTOR KNOB should
be selected to wash. During spin rinsing, WATER
SELECTOR KNOB should be selected to spin.
SPIN DRYER LID
When you open this
lid while the spin
basket is spinning,
the spinning will be
stopped by brake
system.
INNER LID
DRAIN HOSE
(WITH PUMP)
LINT FILTER
WASH TUB
WASH TUB LID
Be sure to keep the
lid closed during
washing and
spinning.
WATER DRAIN HOSE
(WITHOUT PUMP)
POWER CORD
The plug’s shape may
not correspond with
this drawing.
SPIN DRYER BASKET
PULSATOR
DRAIN FILTER
(WITH PUMP)
1 2 5 3 4
WT80J7-02206A_EN.indd 2 2006-02-17 ¿ÀÈÄ 2:43:17

3

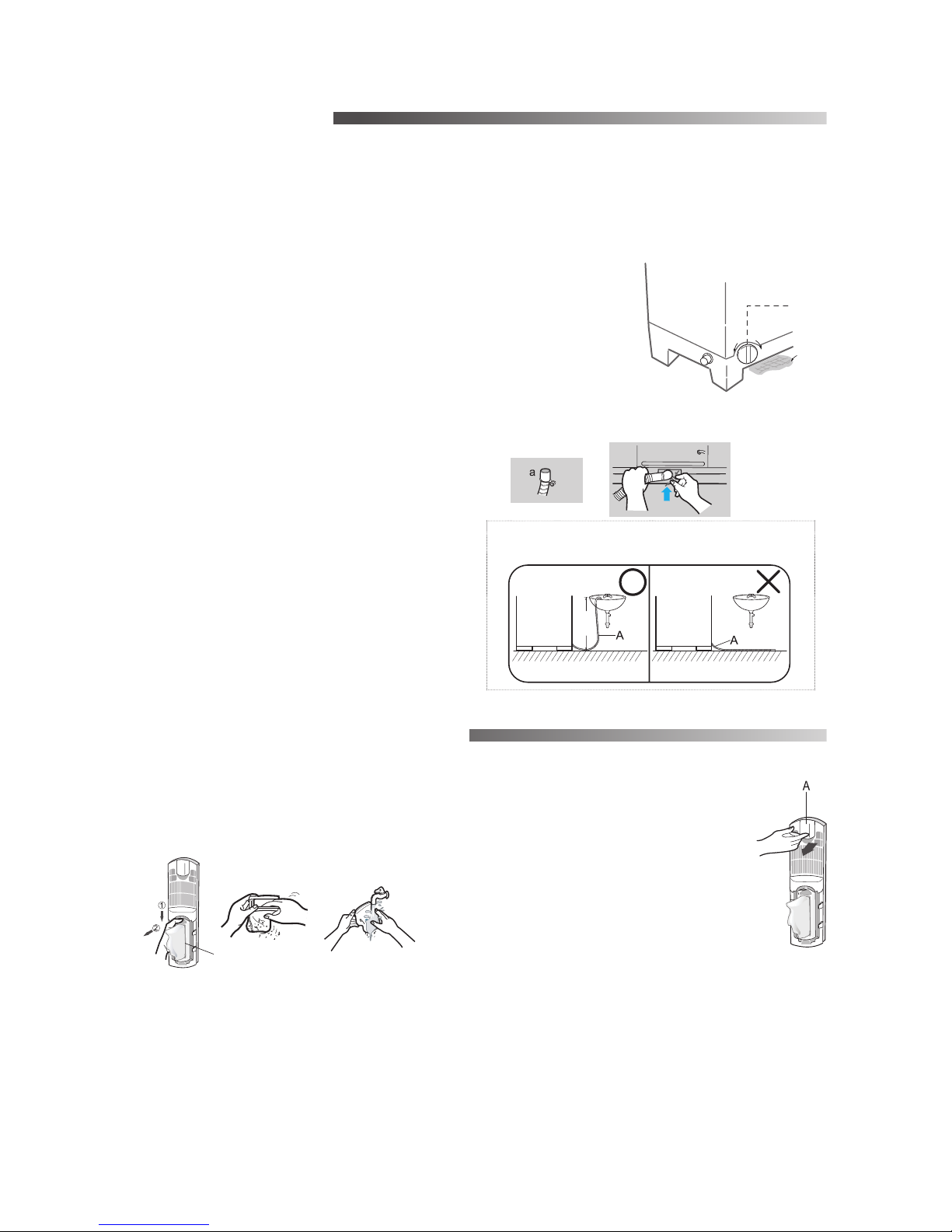

INSTALLATION
ENVIRONMENT
Leave some space
Space at last 15cm between the washer and the wall.
Place the washer on a sturdy flat surface.
If the washer is placed on an uneven or weak
surface, noise or vibration may be occured.
(Allowable is 2°)
Never install the washer near water.
Do not place the washer in steamy rooms or where
the washer is directly exposed to rain.
Moisture may destroy the electrical insulation and
cause an electrical shock hazard.
Avoid direct sunlight or heating devices.
As plastic and electrical components are affected
by direct heat, never place the washer near heaters,
boilers,etc.
Do not place under direct sunlight.
HOW TO CLEAN THE FILTER (In case drain pump)
1. Place a rag under the washer filter not to wet the
floor.
2. Rotate the filter counterclockwise and pull out
the filter.
3. Remove dirts and rotate the filter clockwise until
it locks in position.
Remark : Should be
cleaned Filter at least
1 time a week.
CONNECTING THE DRAIN HOSE
Insert the drain hose(a) and push it tighly to be
connected as arrow direction.
Install the drain hose about 70~80cm above the
ground for pump model.
CLEANING THE MACHINE
CLENING THE LINT FILTER
If the dregs are filled up in the lint filter after finishing
the wash, push down(1) and pull it out(2) as shown in
figure.
Remove the collected lint and rinse the filter net.
OVERFLOW FILTER
Pull the upper side of the overflow filter
with two fingers into the hole ‘A’ in the
direction of arrow as shown in the figure.
CLEANING THE WASH TUB
Wipe off strains on the cabinet and operation panel with soft cloth.
Do not use benzene, thinners, cleanser, or wax, nor scrub the washer with a brush.
Painted surfaces or plastic parts will be damaged.
Filter
Close Rag Open
(WITHOUT PUMP)
70~80cm
Lint Filter
WT80J7-02206A_EN.indd 3 2006-02-17 ¿ÀÈÄ 2:43:19

4

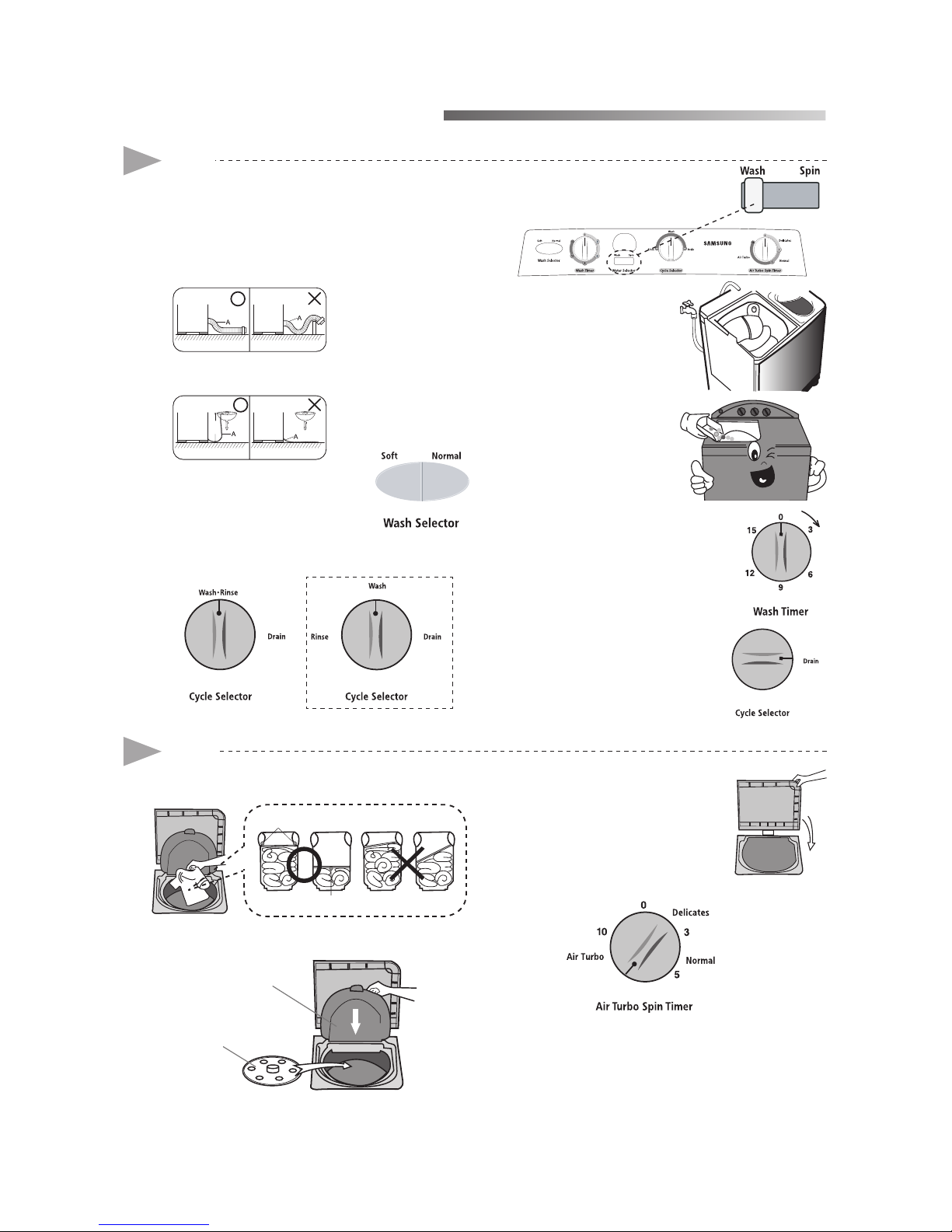

WASHING PROCEDURE
TO WASH
1. Before starting washing, check the following;
- Connect the water supply hose and open the
water tap.
- Connect the power cord to the power supply
outlet.
- Lay the drain hose(A) down toward a sinkhole.
- Place the drain hose(A) in sink or bath about
70~80cm above the ground.
2. Set the WASH SELECTOR
KNOB to the desired
mode.
3. Set the CYCLE SELECTOR KNOB to ‘WASH·RINSE’.
(In case no drain pump) (‘WASH’ in case drain pump)
4. Set the WATER SELECTOR
KNOB to WASH .
5. Load laundry in the wash
tub.
6. Fill water in the wash tub
and add the detergent.
7. Set the WASH TIMER 1-15
minutes.
8. After washing,set the
CYCLE SELECTOR KNOB to
‘DRAIN’ for drain.
SPIN DRY
1. Transfer the clothes into the spin basket and
arrange the clothes evenly.
2. Be sure to attach the safety cover and close the
inner lid.
3. Close the spin dryer lid.
4. Set the AIR TURBO SPIN TIMER 1-10 minutes.
5. Incomplete spining. (Severe vibration or
unbalance) See “When you load ...”on page 6.
inner lid
safety cover
(Without pump) (With pump)
(WITHOUT PUMP)
(WITH PUMP)
70~80cm
Bottom of balancer
Safety cover
WT80J7-02206A_EN.indd 4 2006-02-17 ¿ÀÈÄ 2:43:22

5

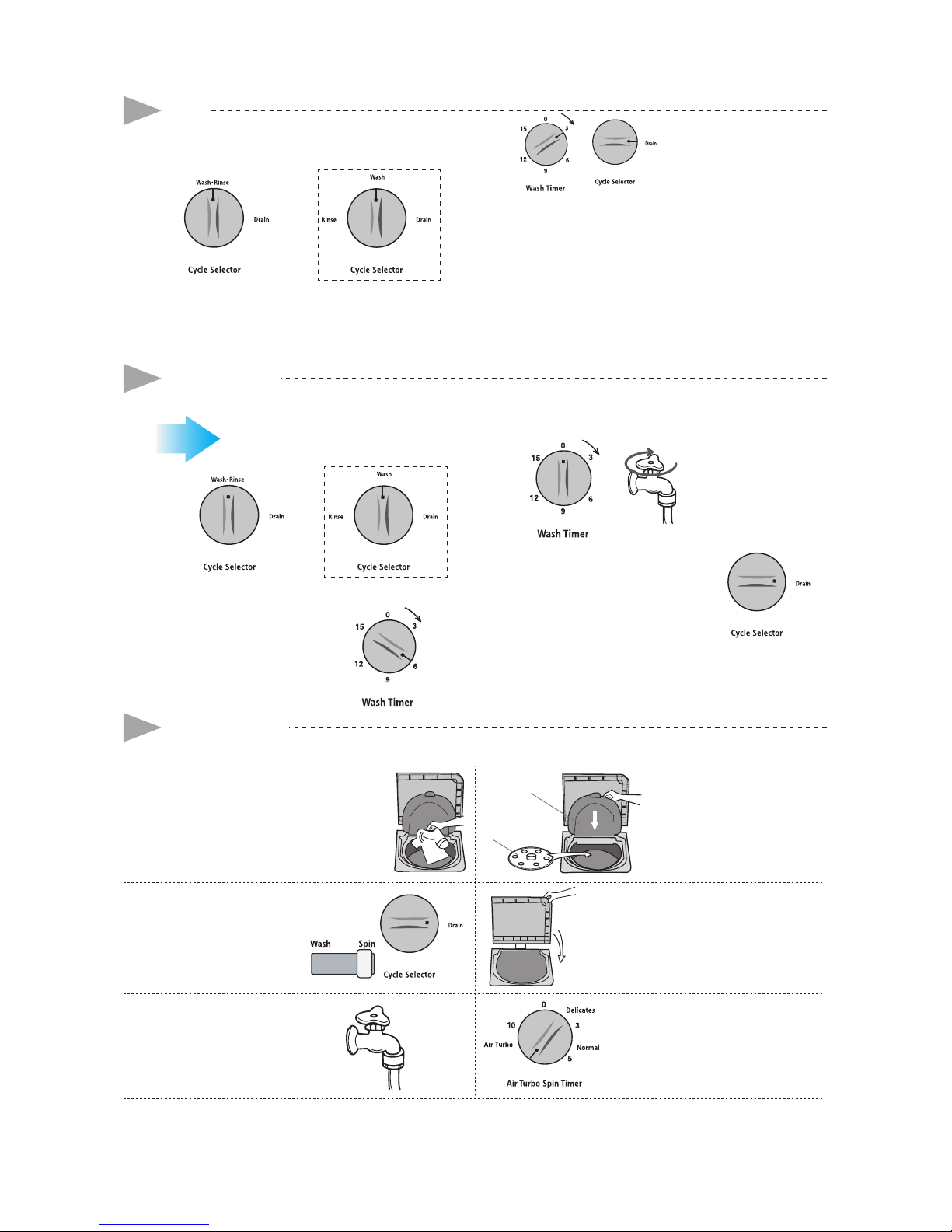

RINSING
1. Set the CYCLE SELECTOR KNOB to ‘WASH RINSE’.
(In case no drain pump) (‘WASH’ in case drain pump)
2. Supply the proper amount of water as not to
overflow the top of the washing tub.
3. Set the WASH TIMER 2~3minutes.
4. Drain the water. Set the CYCLE SELECTOR KNOB
to ‘DRAIN’
5. Repeat this cycle until drain water is clean. (2~3
cycles)
6. In case no drain pump.
- Be sure lay the drain hose down.
In case drain pump.
- Be sure place the drain hose in sink or bath.
OVER FLOW RINSE
1. Keep suppling water
Adjust water pressure to ensure that the
amount of water supplied does not exceed
that water drained.
2. Set the WASH TIMER 6~8
minutes.
3. As soon as the WASH TIMER shuts off, turn off the
water tap.
4. Set the CYCLE SELECTOR
KNOB to ‘DRAIN’.
ADDITIONAL RINSE
After rinsing you can select this course for more effective rinse (Don’t select only this course for rinse.)
1 Load the laundry evenly into the
spin basket.4 After stopping water supply, cover the
laundry with safety
cover and close the
inner lid.
2 Set the WATER SELECTOR
KNOB to SPIN (a) and
CYCLE SELECTOR KNOB
to ‘DRAIN’(b).
5 Close the spin dryer lid.
3 Supply water for about 1
minute. Adjust the water
flow to prevent overflow
from the wash tub.
6 Set the AIR TURBO SPIN
TIMER 2~3 minutes.
(Without pump) (With pump)
inner lid
safety cover
1min.
(Without pump) (With pump)
(b)
(a)
WT80J7-02206A_EN.indd 5 2006-02-17 ¿ÀÈÄ 2:43:24

6

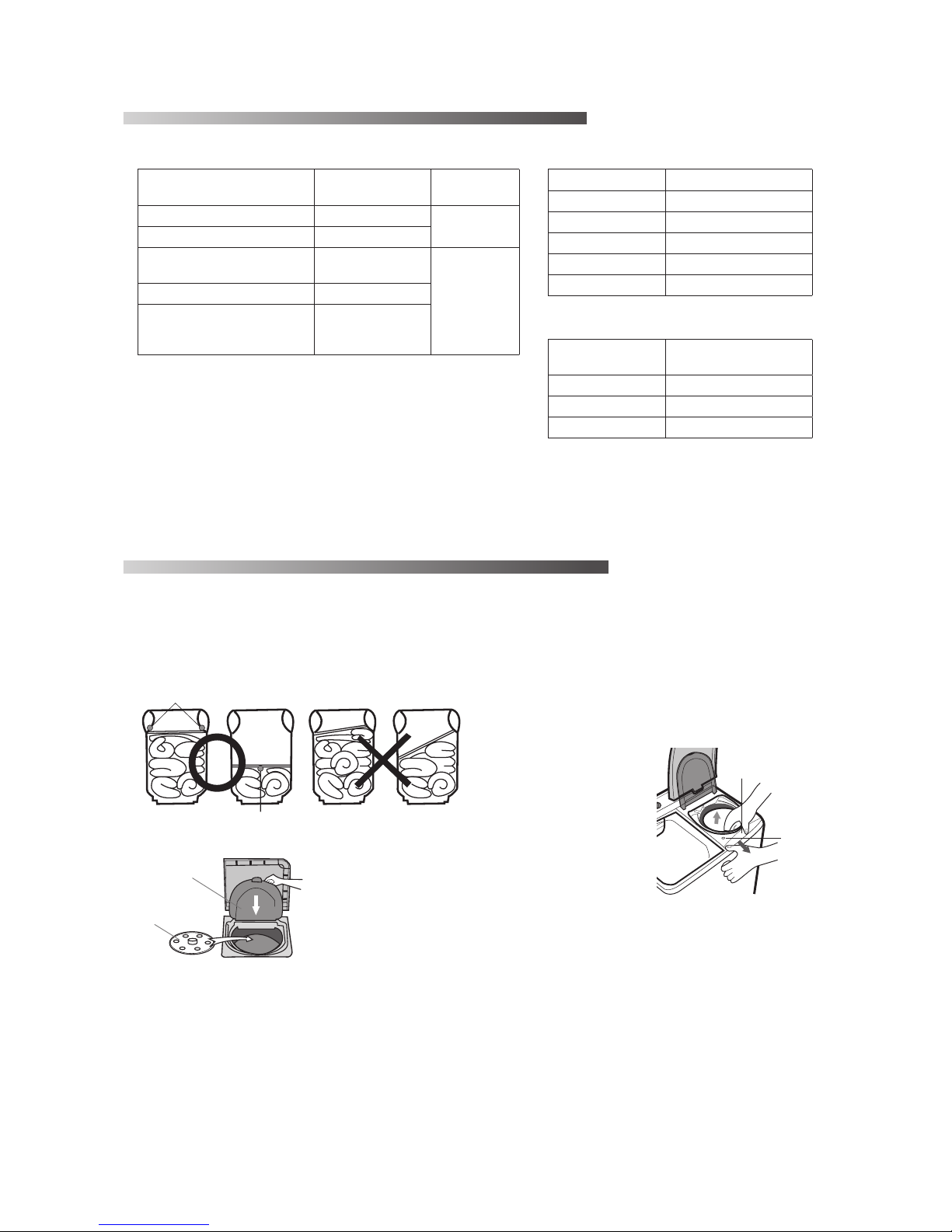

LAUNDRY GUIDE
WASHING TIME
KINDS OF CLOTHING WASHING TIME WASHING
SELECTION
Extremely solid heavy fabric 10 to15minutes NORMAL
Linen,cotton,etc. 8 to10minutes
Ordinary clothes
(underwear,etc) 7minutes
SOFT
Slightly solied synthetic fiber 2 to 5minutes
100%wool,mixed wool knitting,
thin synthetic fiber with tags
indicating hand washing
2 to 5minutes
SPIN DRY TIME
TIME TYPE OF LAUNDRY
1 min. Thin(synthetic fiber)
1~2 min. wool
3~5 min. cotton
5 min. thick(cotton)
10 min. (Air Turbo) thick(cotton)
DETERGENT
AMOUNT OF
DETERGENT WATER LEVEL
37 g Low ( 37 l )
45 g Mid ( 45 l )
54 g High ( 54 l )
The amount of detergent is average.
Follow the instruction detergent printed on
the package for amount of detergent.
Choose the amount of detergent depending
on the fabric type.
MAINTENANCE
WHEN YOU LOAD THE LAUNDRY INTO THE
SPIN BASKET.
Press the laundry evenly and put the safety cover into
the spin basket drum as shown in the figure.
TO PICK OUT THE CLOTHING WHICH HAS
FALLEN BETWEEN THE BASKET AND TUB.
For safety, pull the power supply plug out of the socket.
1. Disassemble a screws from the spin dryer hatch.
2. The spin dryer hatch is fixed to the brim by the
concave and convex parts at two places. Expand
the concave and convex parts, and pull up the spin
dryer hatch to remove it.
3. Remove the clothing
4. Close the spin dryer
hatch.
Push in hatch firmly
until the catch at
the front is engaged
securely.
Bottom of balancer
Safety cover
Spin dryer hatch
Screw
inner lid
safety cover
WT80J7-02206A_EN.indd 6 2006-02-17 ¿ÀÈÄ 2:43:25

TROUBLE SHOOTING
TROUBLE CHECK POINT TROUBLE CHECK POINT
1. The washer
does not
work.
Check that the power cord is
connected to a power outlet well.
Power stoppage?
4. Water dose
not drain.
In case no drain pump.
- Be sure lay the drain hose down.
In case drain pump.
- Be sure remove the cap-hose from
the drain hole.
 See “Before using...” on page 1.
2. Clothes will
not move
freely.
Is the laundry overloaded? 5. The spin
dryer basket
will not run.
Is the spin dryer lid closed
completely?
Are laundry (socks,etc.) falling out of
the spin dryer basket and clinging to
the axle?
 See “To pick out...” on page 6.
3. Incomplete
spinning.
(Severe
vibration or
unbalance.)
Are the laundry arranged evenly?
 See “When you load...” on page 6.
6. The water
drains out
immediately.
In case no drain pump.
- Is the Cycle Selector set to drain?
- Is the drain hose clogged with
scrap?
 Hang up drain hose over the drain
hose hook. Half fill the wash tub
with the water and try for drain
again.(Scrab will be removed by
water drain pressure.)
In case drain pump.
- Is the drain hose hung about 70~80
cm above the ground?
 See “Connecting the drain...” on
page 3.
SPECIFICATION
DIMENSIONS (W x D x H)mm 792 x 465 x 951
WATER PRESSURE 0.05~0.78 MPa
0.5 ~ 8.0 kg·f/cm²
WEIGHT With out pump 29 kg
With pump 31 kg
EXTRACTION EFFICIENCY 50 %
STANDARD QUANTITY OF WATER 54 l
MOTOR INPUT Washing 330 W / Spinning 160 W
MOTOR MAX INPUT 480 W
RATING TIME Washing 1 Hour / Spinning 15 minutes
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care centre.
Country Customer Care Center Web Site
AUSTRALIA 1300 362 603 www.samsung.com/au
INDIA 3030 8282, 1600 1100 11 www.samsung.com/in
MALAYSIA 1800-88-9999 www.samsung.com/my
PHILIPPINES 1800-10-SAMSUNG (7267864) www.samsung.com/ph
RUSSIA 8-800-200-0400 www.samsung.ru
SINGAPORE 1800-SAMSUNG (7267864) www.samsung.com/sg
SOUTH AFRICA 0860 7267864 (SAMSUNG) www.samsung.com/za
VIETNAM 1 800 588 889 www.samsung.com/vn
WT80J7-02206A_EN.indd 7 2006-02-17 ¿ÀÈÄ 2:43:25
