Samsung SW80W1P User manual

WASHING MACHINE
SW80W1(P)
SW80W2(P)
WASHING MACHINE CONTENTS
F
U
L
L
Y
A
UT
O
MA
TI
C
WA
SH
IN
G
MA
CH
IN
E
WASH
RINSE
SPIN
FUZZY
SOAK
WOOL
SPEEDY
HIGH
HOT
COLD
WATER SUPPLY
WATER LEVEL
COURSE
FUNCTION
MEDIUM
LOW
EXTRA LOW
START/HOLD
POWER
1. Precautions
2. Specifications
3. Features
4. Operating Instructions

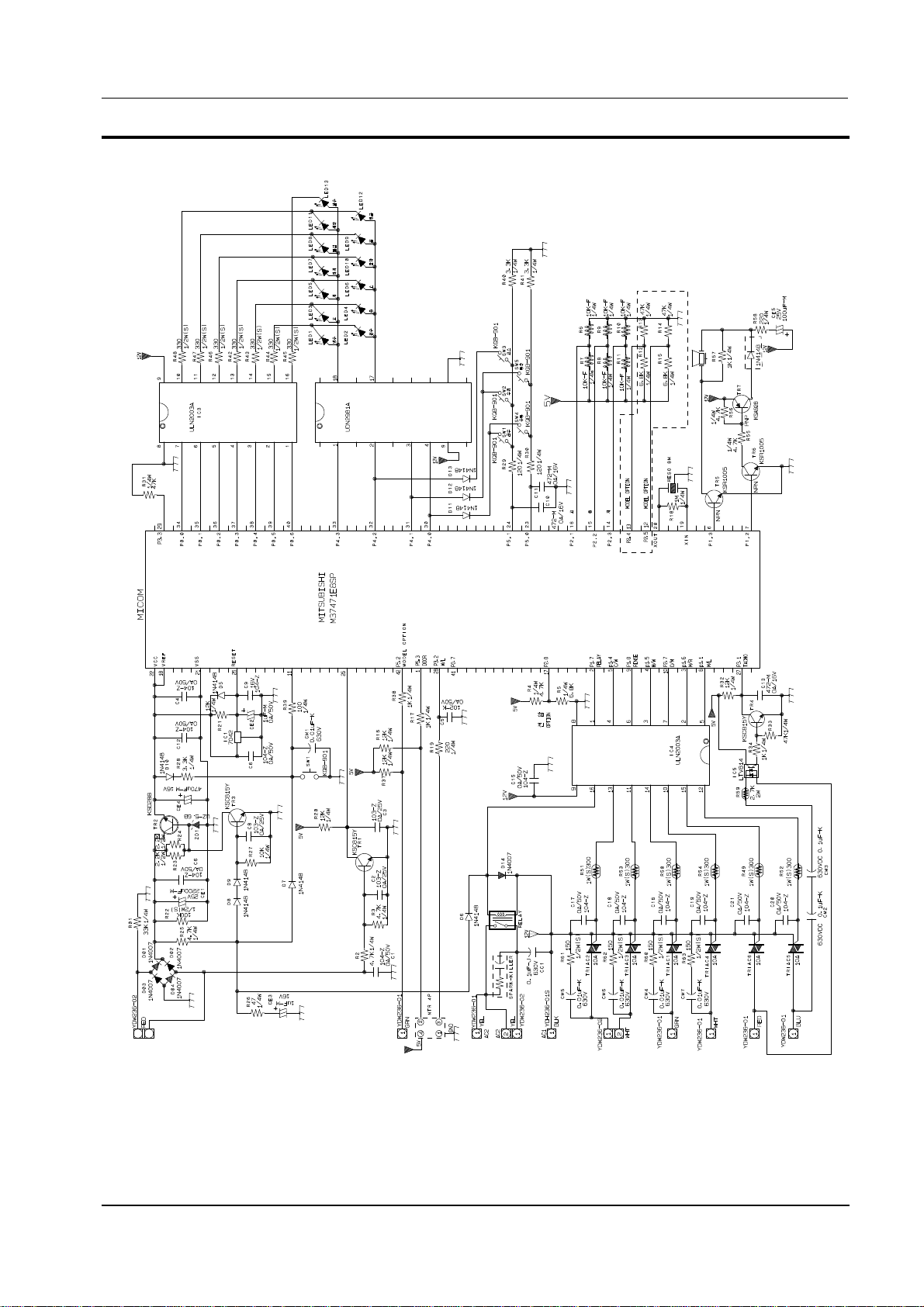

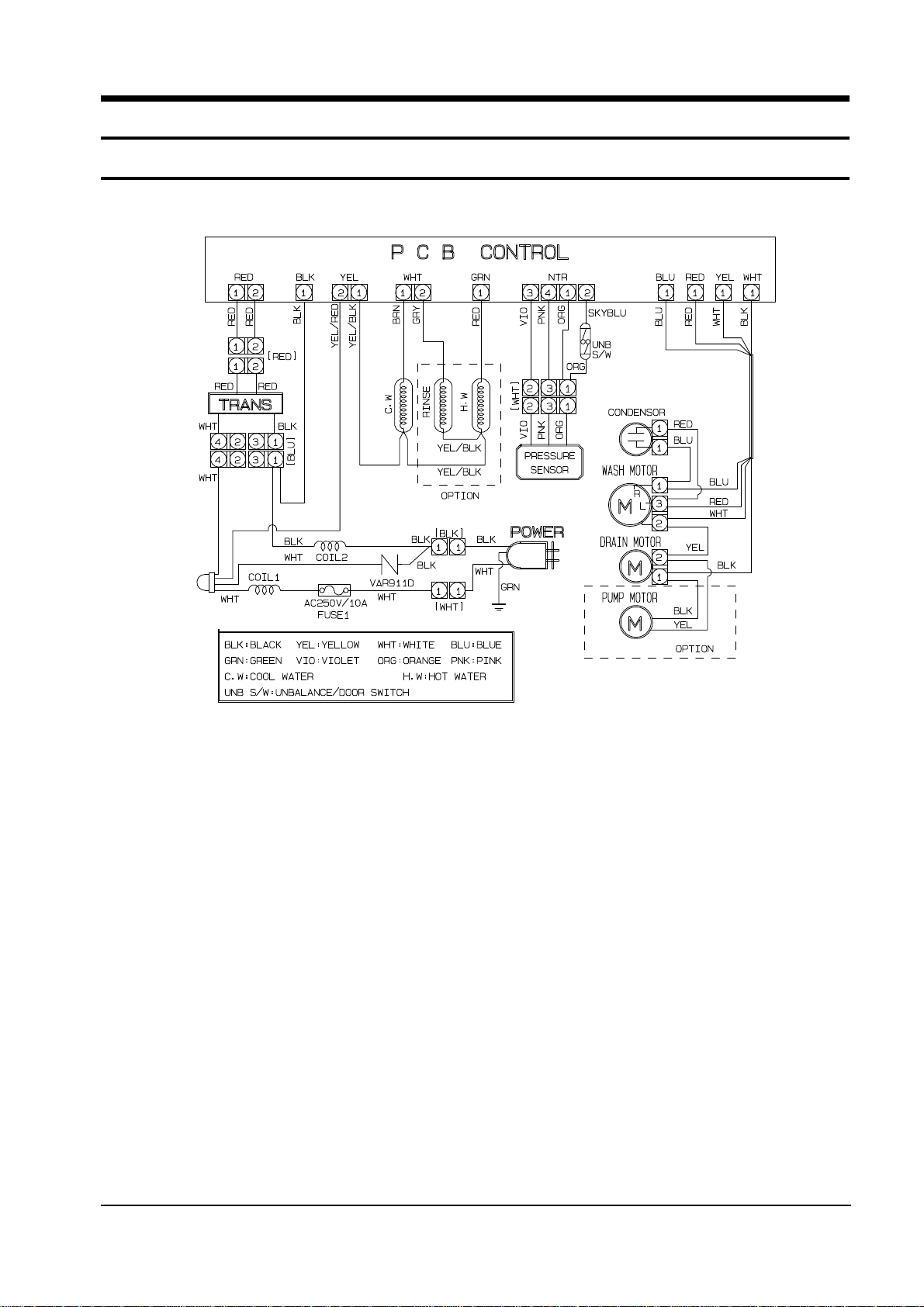

5. Schematic and Wiring Diagrams

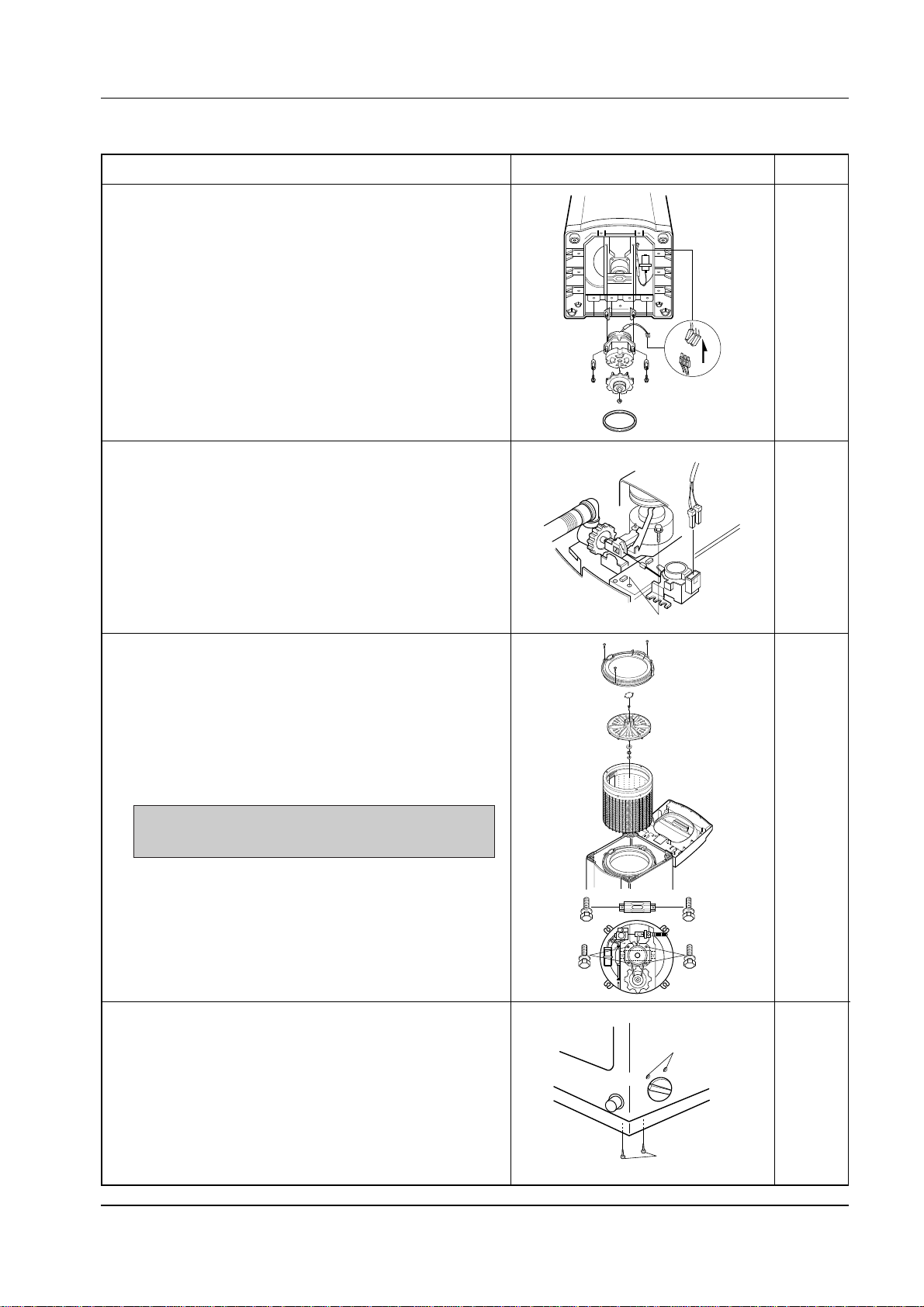

6. Disassembly and Reassembly
7. Troubleshooting
8. Exploded Views

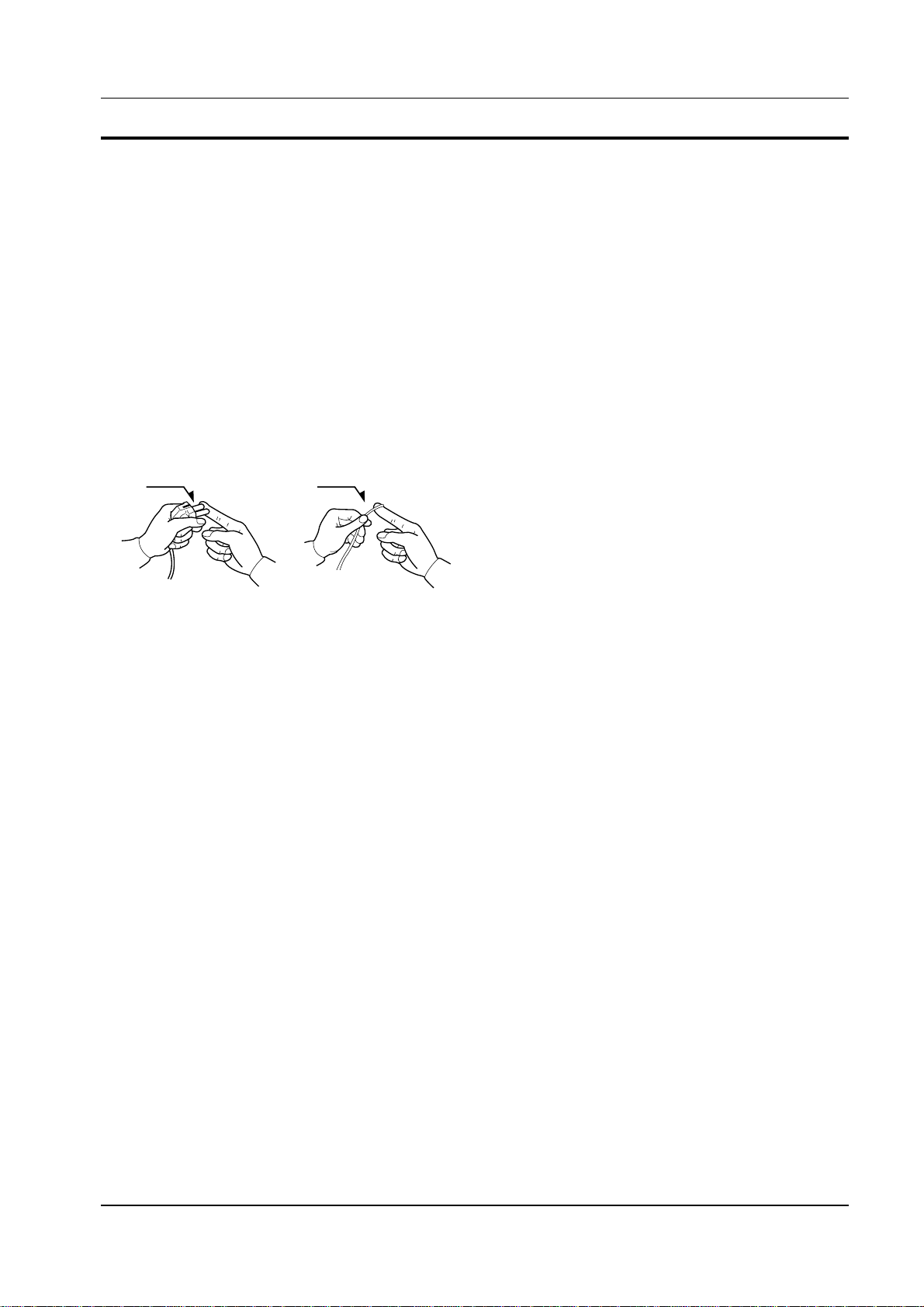

9. Power Cord

1. Precautions
When performing trouble - shooting and part replacement during servicing note the following safety precautions.
1-1 Safety Precautions
1-1-1 Use Genuine Parts
The components of the washing machine have safety -
features such as non - combustibility and voltage
withstanding. Therefore, always use the same part as
used when replacing parts. In particular, be sure to use
only designated parts in case of major safety parts
identified by the making.
1-1-2 Grounding
Connect the grounding wire to the shell plate, and bury
it under at least 25cm of earth ; alternatively, connect
the ground wire to the appropriate pin on a properly
grounded power receptacle.
✵ Never ground it to the telephone line, lightning rod,
or gas pipe.
1-2 Servicing Precautions
1-2-1 Observe warnings
Be sure to follow special warnings and precautions that
are described on part labels and in the owner's manual.
1-2-2 Special Precautions for Parts Assembly
and wiring
When assembling parts that use safety - insulation
material (such as tube and tape), or when installing
internal wiring, be sure to restore all parts and wiring to
their original positions.
Take special care to avoid contact with sharp edges.
1-2-3 Safety Checks after Servicing
After servicing, check to see that the screws, parts, and
wiring are restored to their original positions, and
check the insulation between the external metals and
the socket plug. In addition, place the washing machine
in a level position (less than 1û of grade) to prevent
vibration and noise during operations.
1-2-4 Insulation Check
Pull out the plug from the power receptacle, pour water
into the spin tub, and then set the timer. Check to see
that the insulation resistance between the terminals of
the plug and the exposed metal is greater, than 1 M½ .
Note : When it is impossible to perform the insulation
check with a 500V insulation resistance tester,
use other testers for inspection.
SAMSUNG ELECTRONICS CO., LTD 1-1
©Samsung Electronics Co., LTD.
All right reserved.
The information in this manual is subject to change without notice.
Copyright

2. Specifications
Classifications Specifications
Washing and Dehydrating Capacity 6.0 kg
Washing Method Heavy duty rotation type (centripetal current)
Standard Volume of Water High Level 57 l
Medium Level 46 l
Low Level 38 l
Extra low level 32 l
Applicable Volume of Water 160 l(high level of water)
Rotation of the Pulsator 128rpm
Rotation of the Spin Tub 770rpm
Power Consumption Washing 330 W
Spinning 270 W
Dehydration Method Centrifugal dehydration type
Drain Control Motor driven
Applicable Water Pressure 0.5 kg f / cm2 ~ 8.0 kg f / cm2
Weight Gross 38kg
Net 35kg
Dimension Gross W 580mm X D 620mm X H 890mm
Net W 560mm X D 580mm X H 915mm
Accessories Water supply hose, drain hose, owner's manual
2-1 WASHING MACHINE

560
350
915
30
1260
1085 915
3. Features

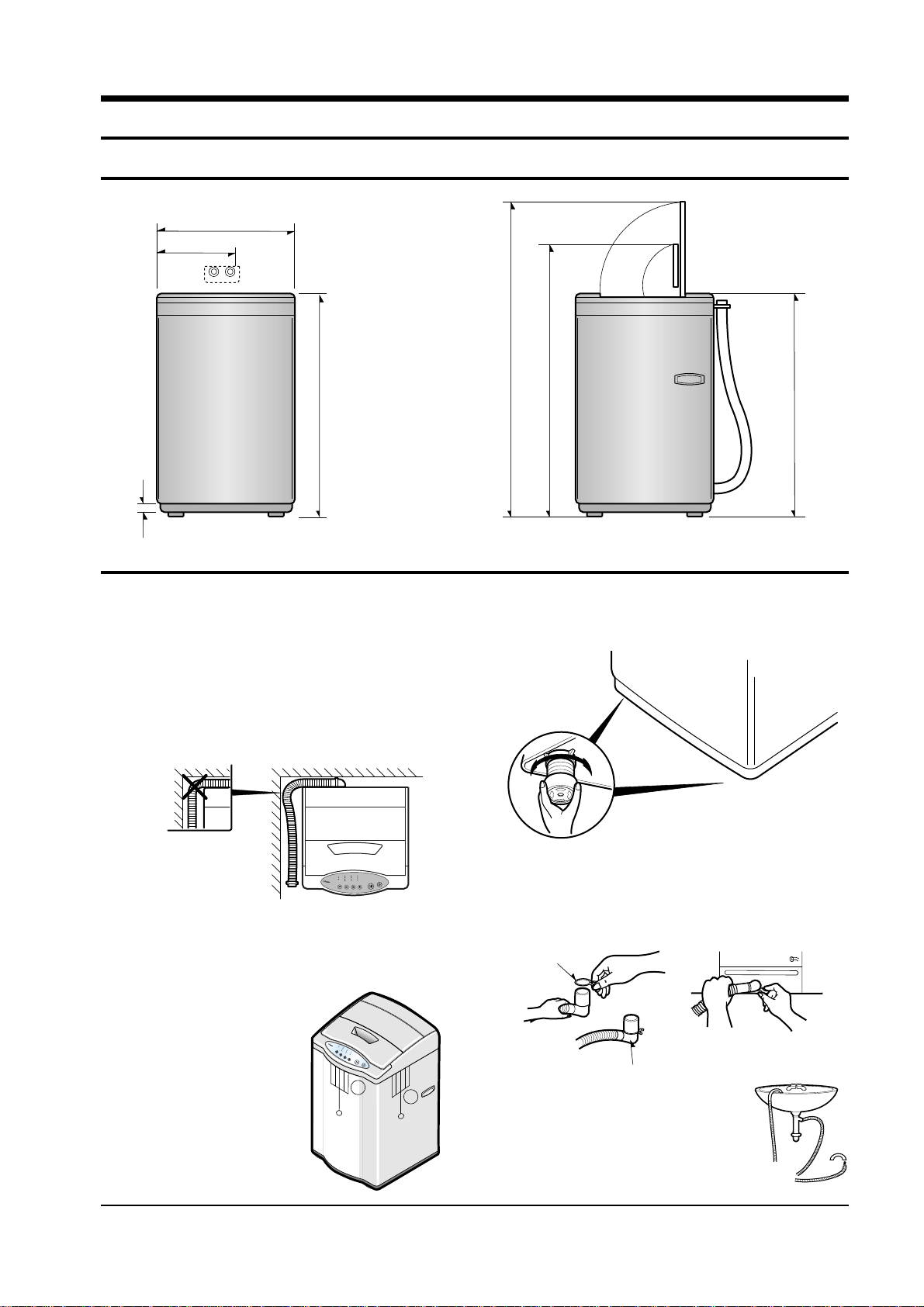

3-1 Dimensions
3-2 Installation
3-2-1 Level Specifications and Wall - Clearance
Distances
1. Install the washing machine on a solid and level
floor.
2. Place the machine at least 40cm away from the wall.
3. Placement on an inclined, weak or rough floor may
cause abnormal trembling.
3-2-2 Balance
1. Adjust horizontally : First ①, Then ②.
2. If the thread is not within
the limit, adjust the height
of the legs.
3-2-3 Controlling the Front Adjustable Leg
To control the height, turn the adjustable leg.
3-2-4 Connecting the Drain Hose
1. After pressing the joint ring(a), insert the drain hose
(b) in the drain direction. (Same as pump model.)
2. Install the drain hose about 70~80cm
above the ground (for pump model).
SAMSUNG ELECTRONICS CO., LTD 3-1
F
U
LL
Y
AU
TO
MA
TIC
WA
SHI
NG
MA
CHI
NE
WASH
RINSE
SPIN
FUZZY
SOAK
WOOL
SPEEDY
HIGH
HOT
COLD
WATERSUPPLY
WATERLEVEL
COURSE
FUNCTION
MEDIUM
LOW
EXTRALOW
START/HOLD
POWER
(a)
(b)
F
UL
LY
AUT
OMA
TIC
WAS
HING
MAC
HINE
WASH
RINSE
SPIN
FUZZY
SOAK
WOOL
SPEEDY
HIGH
HOT
COLD
WATERSUPPLY
WATERLEVEL
COURSE
FUNCTION
MEDIUM
LOW
EXTRALOW
START/HOLD
POWER
21

3-2-6 Positioning the Drain Hose
1. When there is no threshold, the length of
the drain hose should not exceed 3m.
2. When it is necessary to connect the drain
hose with the drain outlet located far
away, connect the extension hose and
applicable parts (available from dealers
or service centers).
3. Do not install the drain hose where it
must extend over a threshold of 5cm or
more ; do not install where there is a
threshold and the hose must extend for
more than 2m.
3-2-5 Connecting the water supply hose
4. Other precautions
3-2 WASHING MACHINE
3. Features
1. Romove the adaptor from the
water supply hose. 2. First, using a "+" type screwdriver, loosen the three screws on the
adaptor.
Next, take the adaptor and hold
parts (a) and (b) with a gap about
5mm between them.
a
b
3. Connect adaptor to the water tap
by firmly tightening the screws.
Then turn part (b), following the
arrow, and put (a) and (b) toge-
ther.
a
b
4. Connect the water supply hose
to the adaptor. Pull down part (c)
of the water supply hose. When
part (c) is released, the hose is
automatically connected to the
adaptor, and makes a 'click'
sound.
c
5. Connect the other end of the
water supply hose to the inlet
water valve at the back of the
washer.
Screw the hose clockwise, all the
way in.
If the water tap is a screw type,
connect a water supply hose that
fits to the tap as shown.
Do not put the end of the drain
hose into the water. Do not place the hose below the floor level of the drain outlet.
Do not make the mid part of the
hose than the ends positioned
higher.
If the drain hose must be
positioned at a high angle, install
the washing machine so that it is
in an even higher position.
3m
2m
5cm

DRAIN HOSE
(Pump)
WATER SUPPLY HOSE
(COLD)
LID
DETERGENT BOX
GROUND LEAD
WATER DRAIN HOSE
WIDE FALL
GUIDE
POWER CORD
SOUND ABSORPTION
PANEL
WATER SUPPLY HOSE
(HOT )
FRONT
CONTROL PANEL
BLEACH INLET
SPIN BASKET
ADJUSTABLE LEGS
MAGIC HAND
PULSATOR
F
U
L
L
Y
A
U
T
O
M
AT
IC
W
AS
HI
NG
M
AC
HI
NE
WASH
RINSE
SPIN
FUZZY
SOAK
WOOL
SPEEDY
HIGH
HOT
COLD
WATER SUPPLY
WATER LEVEL
COURSE
FUNCTION
MEDIUM
LOW
EXTRA LOW
START/HOLD
POWER
4. Operating Instructions

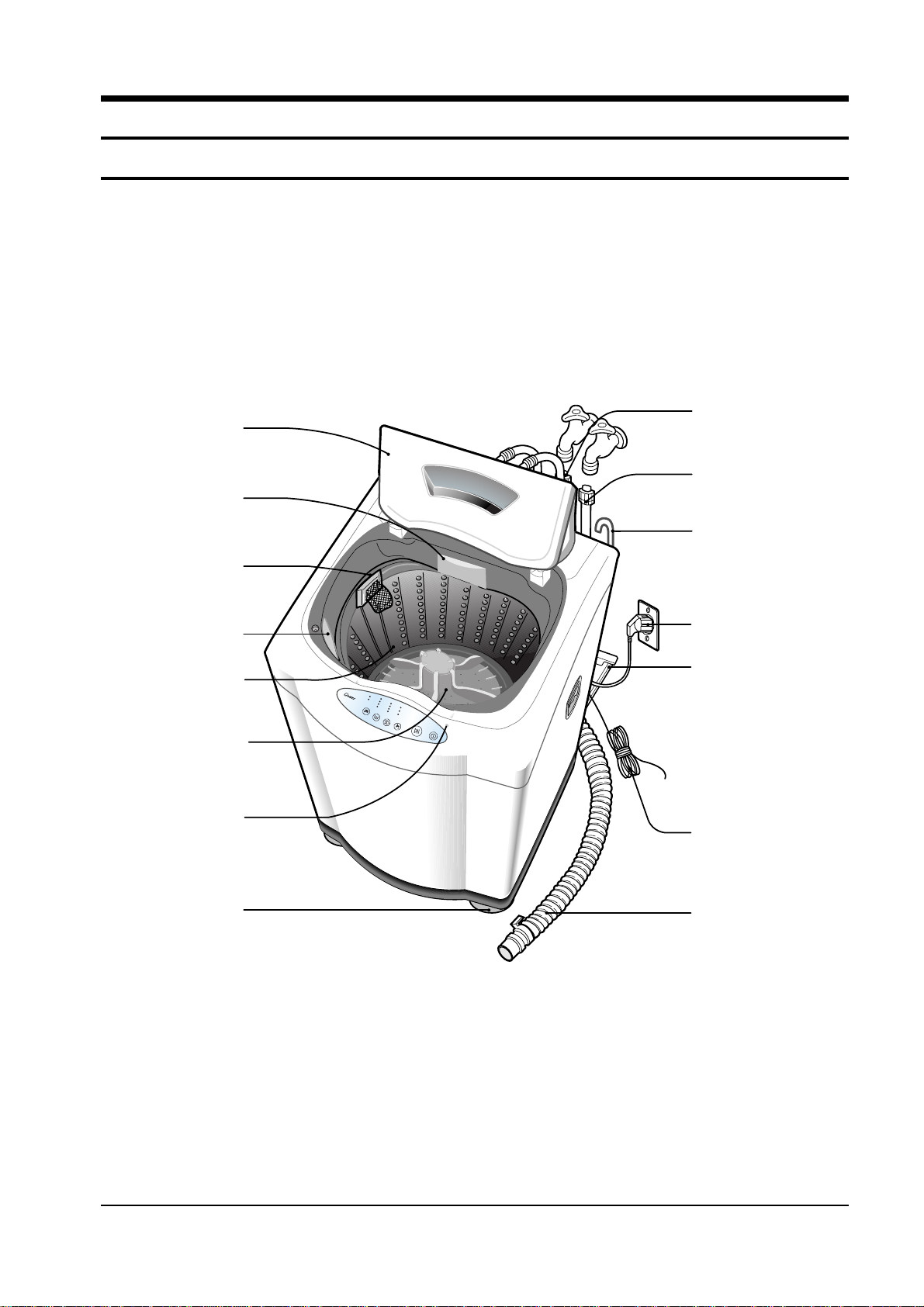

4-1 Component Identification
SAMSUNG ELECTRONICS CO., LTD 4-1

4-2 Control Panel
4-2-1 Function Indicator Light
1. In use indicated by a flashing symbol.
2. The light goes out at the end of the function.
4-2-2 Start/Hold
1. Press this button to alternately 'start' or 'hold'.
2. This button is a convenient way to change washing
courses or a commands.
4-2-3 Power
1. Press this button for power ON/OFF.
2. When the washing operation is completed, the
power automatically turns off and the buzzer
sounds off 5 times.
3. Allow at least a 3-second interval before turning the
washing machine again .
4-2-4 Water Supply (option)
1. Press this button to select water temperature.
2. The selection order is :
Cold →Cold+Hot → Hot →Cold
3. Selecting the Wool Course automatically selects
cold water (to protect the wool fabric)
4-2-5 Water Level
1. Press this button to select the water height.
2. The selection order is :
High →Medium →Low →Extra low
3. Selecting the Wool Course limits the water levels to
high or medium.
4-2-6 Course
1. Press this button to select the type of washing cycle.
4-2-7 Function
1. The selection order is :
Fuzzy →Soak →Wool →Speedy
4-2 WASHING MACHINE
4. Operating Instructions
WASH
RINSE
SPIN
FUZZY
SOAK
WOOL
SPEEDY
HIGH
HOT
COLD
MEDIUM
LOW
EXTRA LOW
F
U
L
L
Y
A
U
T
O
M
A
T
I
C
W
A
S
H
I
N
G
M
A
C
H
I
N
E
WATER SUPPLY
WATER LEVEL
COURSE
FUNCTION
START/HOLD
POWER

4-3-1 Water Supply
1. In all the cases of prior to the first press of START/HOLD
key, during operating or hold state, they follow the below
sequences.
2. When wool course is selected, water supply is selected
automatically to cold water without key input.
3. Once water supply is changed by key input, this water
supply keeps on the changed course.
In case of wool course, cold water is selected automatically,
but if the user'd like to change it to other course, the course
will return to the previous course.
4. While water supplying, the lamp selected is flashing(one
second ON/OFF)
4-3-2 Water Level
1. In all the cases of prior to the first press of START/HOLD
key, during operating or hold state, they follow the below
sequences.
2. When WOOL is selected, only HIGH & MEDIUM water
level is possible.
3. If you change the course to WOOL, in case previous water
level is low or medium, the water level is automatically
selected High level and in case previous water level is over
Low, the water level is not changed.
4. While water is supplying, if the water level is changed, the
remaining time is changed.
4-3-3 Course
1. If this key is pressed before the first press of START/HOLD
key or during HOLD state, the selection order is as follow.
Even if manual washing is selected already, the selected
course is cancelled, and the course is selected as follow.
2. During operating, all keys except for COURSE SELECTION
key are valid.
But, only START/HOLD is vaild during spin operation.
3. During operating, If anykey is pressed after pressing the
START/HOLD key, new Selection course is performed, not
related to previous course.
4. This key is invalid during operation.
4-3-4 Function Button
1. This key is valid except for weight sensing operation.
2. After START/HOLD during operation or under reset
condition, as pressing this key display is changing as
follows.
3. The beginning conditions are as follows when function key
is selected.
4. This key is used as adjusting function.
①Rinsing times are added by one time when function
key is pressed under general course operation
(FUZZY, SOAK, WOOL and SPEEDY) and
function operation (RINSE, WASH+RINSE,
RINSE+SPIN, WASH+RINSE+SPIN) as pressing
this key.
Display is changing as follows.
➁Washing time is adjusted by press of function
key during washing only operation.
③Spinning time is adjusted by press of function key
during spinning only operation.
4-3-6 Start/Hold
1. Available only after selecting a course.
2. Sequence :
3. The display shows the remaining time, including the current
function, when in 'start' status.
The time decreases 1-min at a time.
When in 'Hold' status, the time stays as it is.
4-3-7 Power
1) This key is always available when the power cord is
connected.
2) sequence :
3) After finishing operation, this key is automatically turned
off.
4-3 Function Descriptions
SAMSUNG ELECTRONICS CO., LTD 4-3
4. Operating Instructions
→ FUZZY → SOAK → WOOL → SPEEDY
→ COLD →COLD +HOT → HOT
→ HIGH → MEDIUM → LOW → EXTRA LOW
FUNCTION
WASH
RINSE
SPIN
WASH+RINSE
RINSE+SPIN
WASH+RINSE+SPIN
TIME
23 min
15 min
9 min
43 min
24 min
52 min
→ 2 (times) →3 →4 →5 →1
→ START →HOLD →START
→ ON →OFF →ON
→ WASH →RINSE →SPIN →WASH+RINSE →
RINSE+SPIN →WASH+RINSE+SPIN
→ 20 (min) → 21 → 23 → 25 → 3 → 5 → 7 → 9 ••• → 17 → 19
→ 7 (min) → 1 → 2 → ••• → 6

4-4 Description of Technical Points
4-4-1 Weight Recognizing Function
1. Weight recognizing function works first washing
operating before water is supplied, not in WOOL
course and Manual function operation (Wash,
Rinse, Spin, ..... )
2. Weight recognizing function is cancelled when
water level key is pressed prior to the completion of
weight recognizing function.
3. If the current water level is above lowest at the
beginning of weight sensing, it is automatically
decided as a high level.
4. If you change courses after sensing weight, the high
water level is automatically selected irrespective of
the water level decided by the sensing of weight.
4-4-2 Water Supplying Function
1. Relations between water level, frequency & water
supply capacity.
2. Relations between Hot/Cold selection & cycle.
3. If the water level does not reach to the water level
selected for 60minutes after starting water
supplying, the water supplying Error is displaying
on the display.
4. Supplementary water supplying is performed
every Washing or Rinsing operating. The steps are
as follows.
●supply water to the water level selected,
●perform the washing or Rinsing operation for 1.5
minutes.
●sense the present water level after stopping
Motor.
●compare the present water level to the water
level selected.
●if present water level < the water level selected,
supply water to the water level selected.
if present water level ≥the water level selected,
continue the washing or Rinsing operation.
●But total time of supplementary water
supplying is not over 30 seconds.
4-4-3 Soak Function
1. This course works only when Soak washing is
selected by course select key.
2. It works repeatedly during set time by every 5
minutes(operation for 1 minute and pause for 4
minutes) for 30 minutes after water is filled to
selected water level.
3. If water level is set higher during the Soak
procedure, Soak procedure stops and water is
refilled, and then, keeps on going the Soak
procedure.
4. Washing cycle of 20 minutes begins after Soak
function completion.
Rinsing times can be adjusted according to Soak
washing procedure.
4-4-4 Fuzzy Function
This function recognizes the quantity of laundry
load and selects the water level by itself and keep
on going washing operation automatically.
4-4 WASHING MACHINE
4. Operating Instructions
unit :lfre : KHz
RESET
MIN
LOW
MEDIUM
HIGH
0 24.8
32 l23.8
38 l23.4
46 l23.0
57 l22.6
amount of water fre
supplied
Hot/Cold Wash Rinse Supplementary Pre
Remarks
selection Water supply spinning
Cold Cold Cold Cold Cold
Hot / Cold Hot / Cold Hot / Cold Hot / Cold Hot / Cold
Hot Hot Hot / Cold Hot / Cold Hot / Cold

50Hz FUZZY HIGH
/MEDIUM
60Hz
LOW
EXTRA LOW
SOAK HIGH
MEDIUM
LOW
EXTRA LOW
WOOL HIGH
MEDIUM
SPEEDY HIGH
MEDIUM
LOW
EXTRA LOW
3' 20' 1'30" 1' 1'30" 1' 3' 2' 1'30" 1' 1'30" 1' 3' 2' 1'30" 1' 5' 1' 51'30"
2'30" 20' 1'15" 1' 1'30" 1' 2'30" 2' 1'15" 1' 1'30" 1' 2'30" 2' 1'15" 1' 5' 1' 49'15"
2' 20' 1' 1' 1'30" 1' 2' 2' 1' 1' 1'30" 1' 2' 2' 1' 1' 4' 1' 46'
1'30" 20' 45" 1' 1'30" 1' 1'30" 2' 45" 1' 1'30" 1' 1'30" 2' 45" 1' 4' 1' 43'45"
3' 30' 20' 1'30" 1' 1'30" 1' 3' 2' 1'30" 1' 1'30" 1' 3' 2' 1'30" 1' 5' 1' 81'30"
2'30" 30' 20' 1'15" 1' 1'30" 1' 2'30" 2' 1'15" 1' 1'30" 1' 2'30" 2' 1'15" 1' 5' 1' 79'15"
2' 30' 20' 1' 1' 1'30" 1' 2' 2' 1' 1' 1'30" 1' 2' 2' 1' 1' 4' 1' 76'
1'30" 30' 20' 45" 1' 1'30" 1' 1'30" 2' 45" 1' 1'30" 1' 1'30" 2' 45" 1' 4' 1' 73'45"
3' 10' 1'30" 1' 1' 1' 3' 2' 1'30" 1' 1' 1' 3' 2' 1'30" 1' 1' 1' 36'30"
2'30" 10'30'' 1'15" 1' 1' 1' 2'30" 2' 1'15" 1' 1' 1' 2'30" 2' 1'15" 1' 1' 1' 34'15"
3' 8' 1'30" 1' 1' 1' 3' 2' 1'30" 1' 1' 1' 3' 2' 1'30" 1' 5' 1' 38'30"
2'30" 8' 1'15" 1' 1' 1' 2'30" 2' 1'15" 1' 1' 1' 2'30" 2' 1'15" 1' 5' 1' 36'15"
2' 8' 1' 1' 1' 1' 2' 2' 1' 1' 1' 1' 2' 2' 1' 1' 4' 1' 33'00"
1'30" 8' 45" 1' 1' 1' 1'30" 2' 45" 1' 1' 1' 1'30" 2' 45" 1' 4' 1' 30'45"
4-5 Program Chart SAMSUNG ELECTRONICS CO., LTD 4-5
4. Operating Instructions
WASH RINSE 2 RINSE 1 SPIN
TOTAL
WATER
SOAK WASH DRAIN
INTER-
SPIN STOP
WATER
RINSE DRAIN
INTER-
SPIN STOP
WATER
RINSE DRAIN
INTER-
SPIN STOP MIN
SUPPLY MITTENT SUPPLY MITTENT SUPPLY MITTENT
FREQUENCY COURSE
WATER
LEVEL
TIME

4-6 WASHING MACHINE
4. Operating Instructions
50Hz WASH HIGH
/MEDIUM
60Hz LOW
EXTRA LOW
RINSE HIGH
MEDIUM
LOW
EXTRA LOW
SPIN HIGH
MEDIUM
LOW
EXTRA LOW
WASH HIGH
RINSE MEDIUM
LOW
EXTRA LOW
RINSE HIGH
SPIN MEDIUM
LOW
EXTRA LOW
WASH HIGH
RINSE MEDIUM
SPIN LOW
EXTRA LOW
3' 20' 23'00"
2'30" 20' 22'30"
2' 20' 22'
1'30" 20' 21'30"
3' 2' 1'30" 1' 1'30" 1' 3' 2' 15'
2'30" 2' 1'15" 1' 1'30" 1' 2'30" 2' 13'45"
2' 2' 1' 1' 1'30" 1' 2' 2' 12' 30"
1'30" 2' 45" 1' 1'30" 1' 1'30" 2' 11'15"
1'30" 1' 5' 1' 8'30"
1'15" 1' 5' 1' 8'15"
1' 1' 4' 1' 7'
45" 1' 4' 1' 6'45"
3' 20' 1'30" 1' 1'30" 1' 3' 2' 1'30" 1' 1'30" 1' 3' 2' 43'
2'30" 20' 1'15" 1' 1'30" 1' 2'30" 2' 1'15" 1' 1'30" 1' 2'30" 2' 41'
2'00" 20' 1" 1' 1'30" 1' 2' 2' 1' 1' 1'30" 1' 2' 2' 39'
1'30" 20' 45" 1' 1'30" 1' 1'30" 2' 45" 1' 1'30" 1' 1'30" 2' 37'
3' 2' 1'30" 1' 1'30" 1' 3' 2' 1'30" 1' 5' 1' 23'30"
2'30" 2' 1'15" 1' 1'30" 1' 2'30" 2' 1'15" 1' 5' 1' 22'
2' 2' 1' 1' 1'30" 1' 2' 2' 1' 1' 4' 1' 19'30"
1'30" 2' 45" 1' 1'30" 1' 1'30" 2' 45" 1' 4' 1' 18'
3'00" 20' 1'30" 1' 1'30" 1' 3' 2' 1'30" 1' 1'30" 1' 3' 2' 1'30" 1' 5' 1' 51'30"
2'30" 20' 1'15" 1' 1'30" 1' 2'30" 2' 1'15" 1' 1'30" 1' 2'30" 2' 1'15" 1' 5' 1' 49'15"
2' 20' 1' 1' 1'30" 1' 2' 2' 1' 1' 1'30" 1' 2' 2' 1' 1' 4' 1' 46'
1'30" 20' 45" 1' 1'30" 1' 1'30" 2' 45" 1' 1'30" 1' 1'30" 2' 45" 1' 4' 1' 43'45"
WASH RINSE 2 RINSE 1 SPIN
TOTAL
WATER
WASH DRAIN
INTER-
SPIN STOP
WATER
RINSE DRAIN
INTER-
SPIN STOP
WATER
RINSE DRAIN
INTER-
SPIN STOP MIN
SUPPLY MITTENT SUPPLY MITTENT SUPPLY MITTENT
FREQUENCY COURSE
WATER
LEVEL
TIME

5. Schematic and Wiring Diagrams
SAMSUNG ELECTRONICS CO., LTD 5-1
5-1 Wiring Diagram

5-2 PCB and Pattern Diagram
5-2 WASHING MACHINE
5. Schematic and Wiring Diagrams

6. Disassembly and Reassembly

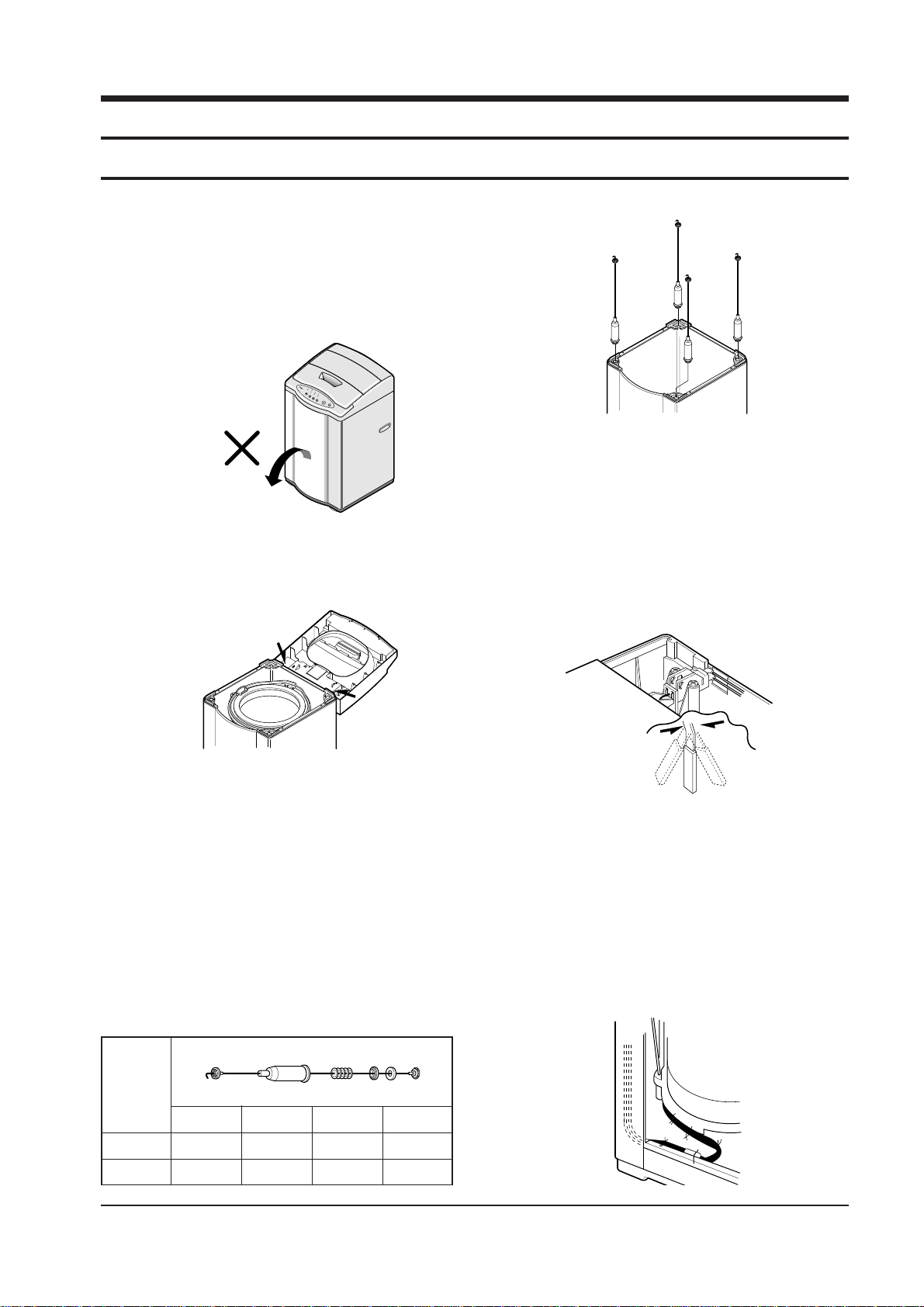

6-1 Cautions for Disassembly and Reassembly
6-1-1 Before Servicing
1. When laying down the washing machine for repair,
do not place the front side downwards. This may
cause the following :
¥ The round front face may be deformed.
¥ The top-cover and the outer-case (round area) may
not match.
2. When removing the top-cover from the outer-case,
do not let the wire bundle fall downwards and
touch the sharp edge of the outer-case. Also, do not
allow tension to stress the wires.
3. When moving the washing machine to a place with
a rough floor, do not drag it. If it is dragged, the
rubber may get loose, thereby causing severe
vibration and noise during washing.
6-1-2 During Servicing
1. When replacing the suspension-bar, be sure to
check both the front and rear suspension-bar
assemblies. This prevents installation of the front
and rear sides in the reverse order.
2. Reversal may cause a severe vibration that might
rock the washing machine.
3. When replacing the suspension-bar, only use parts
for this model.
4. Since the length of the bar varies among on models,
installing the wrong size may cause severe
vibration.
5. Do not deform the check-S/W rod of the top-cover.
6. The installation of a deformed check-S/W rod will
result in malfunction of the safety switch during
severe vibration, thus causing an unbalanced error.
6-1-3 After Servicing
1. Check the level of the washing machine.
2. When setting the wire bundle in the lower section,
make sure that the wire bundle is not stressed by
any tension due to tilting of the tub assembly.
3. When setting the wires, do not let the wires touch
any sharp edges.
4. Remove any moisture on the wire bundle, and on
areas surrounding the wire connector.
SAMSUNG ELECTRONICS CO., LTD 6-1
F
UL
LY
AUT
OMA
TICW
ASHI
NGM
ACHI
NE
WASH
RINSE
SPIN
FUZZY
SOAK
WOOL
SPEEDY
HIGH
HOT
COLD
WATERSUPPLY
WATERLEVEL
COURSE
FUNCTION
MEDIUM
LOW
EXTRALOW
START/HOLD
POWER
Shape
CASE-D BAR-S SPRING COLLOR-S
Front White White Yellow White
Rear White Yellow Yellow White

❍Removing the PCB Assembly
1) Open the Lid.
2) Remove the Screw.
3) Lift up the Control Panel while pushing it from right to left.
4) Turn the Control Panel "up"
5) Remove the six Screws connecting the Control Panel and the
PCB Assembly.
6) Disconnect the Wire Harness of the PCB Assembly.
7) Pull away the PCB Assembly.
8) Do the reassembly in reverse order.
❍ Removing the Pressure-Sensor, Water-Valve, Checker
Assembly, and Transformer
1) Remove two Screws fixing the Top-Cover and the Cover T.C.
2) Lift up the Cover TC while pushing it in the direction of the arrow.
◗ Pressure Sensor
1) Pull out the Lead Wire Terminal of the Pressure Sensor.
2) Remove the Pressure Sensor.
3) Pull out the Air Hose.
◗ PreWater Valve
1) Pull out the Lead Wire Terminals.
2) Remove the Screws which fix the detergent box to the top-cover.
◗ PreChecker
1) Pull out the Lead Wire Terminals.
2) Remove the two Screws.
3) Lift out the Checker.
◗ PreWire Harness
1) Pull out the Lead Wire Terminals from the PCB.
2) Pull out the Lead Wire Terminals from the parts in back of the
Top Cover.
3) Remove the Wire Harness.
◗ PreTransformer
1) Pull out the Lead Wire Terminals.
2) Remove the Screw.
3) Remove the Transformer.
6-2 Disassembly
Disassembly Procedure Illustration Remarks
6-2 WASHING MACHINE
6. Disassembly and Reassembly
F
U
LL
Y
AU
TO
MA
TIC
WA
SH
IN
GM
AC
HIN
E
WASH
RINSE
SPIN
FUZZY
SOAK
WOOL
SPEEDY
HIGH
HOT
COLD
WATERSUPPLY
WATERLEVEL
COURSE
FUNCTION
MEDIUM
LOW
EXTRALOW
START/HOLD
POWER
PUSHING

SAMSUNG ELECTRONICS CO., LTD 6-3
6. Disassembly and Reassembly
❍ Removing the Motor
1) Remove the Back Cover.
2) Lay down the Washing Machine with the rear side facing the
floor.
3) Pull out the Sound Absorption Panel.
4) Remove the Wire Housing.
5) Remove the V Belt.
6) Remove the two Bolts fastening the Motor.
7) Remove the Motor Pulley.
8) Pull out the Motor
❍ Removing the Drain Motor
1) Lay down the Washing Machine with the rear side facing the
floor.
2) Pull out the Lead Wire Terminal.
3) Remove the Bolt.
4) Remove the Drain Motor Wire from the Link.
5) Lift out the Drain Motor
❍ Removing the Shaft Assembly
1) Remove the four Screws fixing the Top Cover, and lift up the Top
Cover gently tilt the Top Cover back to expose the Tub Cover.
2) Remove the four Screws fixing the Tub Cover.
3) Remove the Bolt fixing the Pulsator.
4) Remove the Spin Nut fixing the flange Shaft and the Shaft and
pull out the Spin Basket.
5) Lay down the Washing Machine with the rear side facing the
floor.
6) Remove the two Bolts fixing the Saddle.
7) Remove the four Bolts fixing the Shaft using the Box and take
out the Shaft Assembly.
❍ Removing the Pump Assy
1) Remove the Back Cover.
2) Remove the Lead Wire Terminal and the Earth Wire.
3) Remove the Two Hoses.
4) Remove the 2screws which fix the filter.
5) Lay down the Washer with the right side facing the Floor.
6) Remove the 2 Screws which fix the pump.
7) Lift out the Pump.
Disassembly Procedure Illustration Remarks
SCREWS
SCREWS
Caution
¥Disassemble the Spin Nut in a counterclockwise direction.

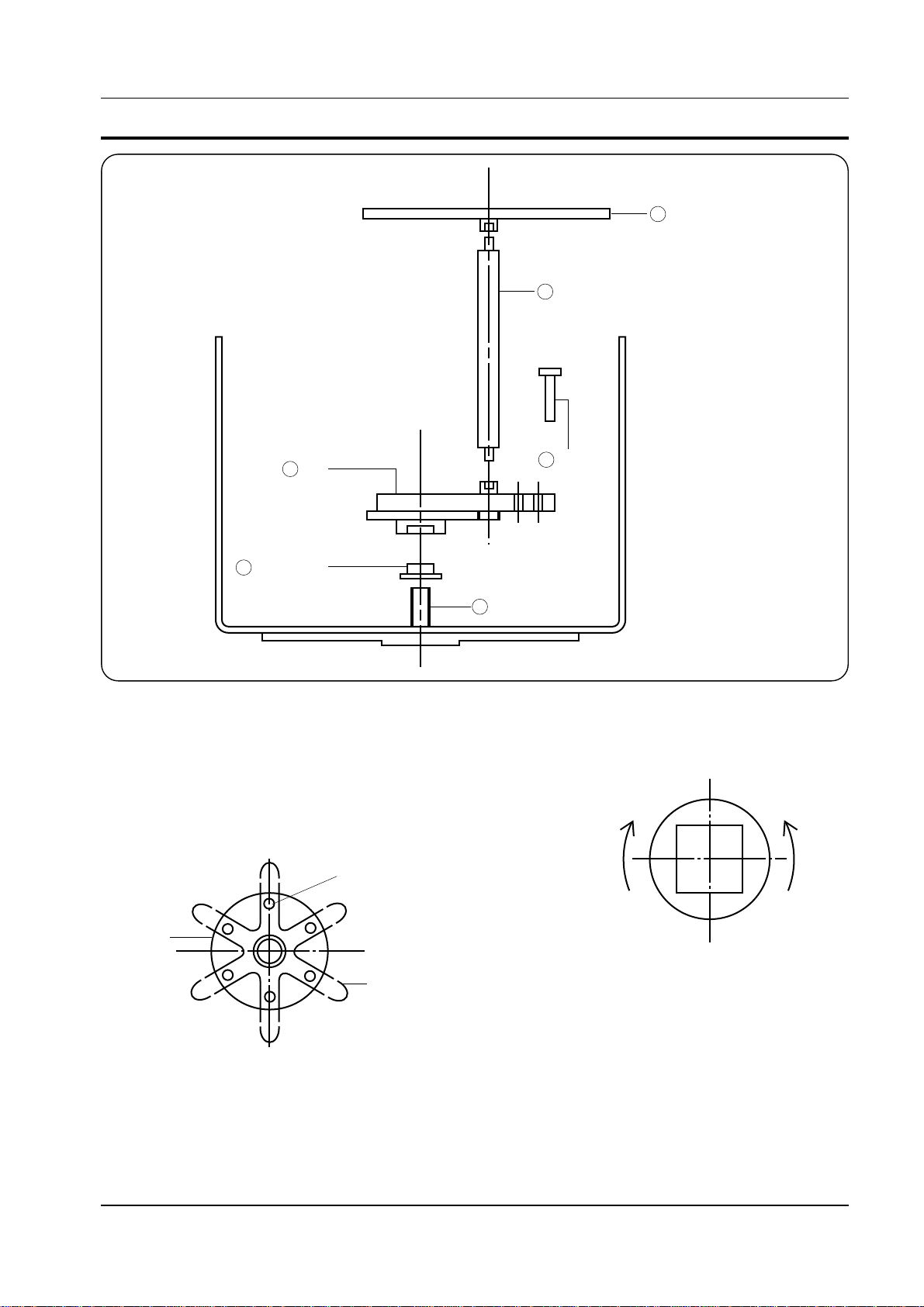

6-3 Spin - Nut Repairing Box
6-3-1 Procedure
1. Insert the jig ➂into the spin-nut ②.
2. Insert the guide pin ➃into the groove of the flange -
shaft by rotating it to the right and left.
3. Insert the connecting rod ⑤ and handle ➅into the
square box. Then turn the handle clockwise on the
axis of the small box to disassemble (Right-hand
thread).*
*To disassemble the box, give three to four times of
instantaneous shocks to the handle in the
loosening direction, then disassemble it by turning
the handle when the nut is loosened.
4. To disassemble the box, strike the handle three or
four times-quick shocks to loosen it-then complete
the disassembly by turning the handle as the nut is
loosened.
5. Reassemble in reverse order.
6-4 WASHING MACHINE
6. Disassembly and Reassembly
1 SHAFT
2 SPIN NUT
3 JIG
5 CONNECTING ROD
4 GUIDE
PIN
6 HANDLE
Guide Pin
(Six Point)
FLANGE
SHAFT
SPIN
BASKET
LOCKLOOSEN

7. Troubleshooting
7-1 Self - diagnostic Functions (Buzzer Alarm)
If there is a problem during operation, the following error conditions are shown on the LED display, and the
washing machine stops its operation.
SAMSUNG ELECTRONICS CO., LTD 7-1
Error Condition Buzzer Solution
Water level sensor error Water level sensor fails to send The buzzer sounds five times Press the "Power"
signal for longer than 15 seconds. with a 0.5sec. ON/0.5sec. OFF button. No other
cycle. buttons work.
Auto - off error Power does not turn off despite 3 the buzzer sounds five times Press the "Power"
power-off trials by program with a 0.5sec. ON/0.5sec. OFF button.
cycle. Another buttons do
not work.
Water supply error No frequency change for 60 The buzzer sounds five times Press the "Power"
minutes from water supply. with a 0.5sec. ON/0.5sec. OFF button.
cycle. No other buttons
work.
Drain error Water level does not decrease to The buzzer sounds five times Press the "Power"
the reset point within 6 minutes with a 0.5sec. ON/0.5sec. OFF button.
from draining water. cycle. No other buttons work.
Door open error Door is open during The buzzer sounds five times Close the door.
dehydration cycle. with a 0.5sec. ON/0.5sec. OFF
cycle.
Unbalance error An unbalanced load is sensed three The buzzer sounds five times Open the door.
times during dehydration cycle. with a 0.5sec. ON/0.5sec. OFF Balance the laundry.
cycle. Close the door.
WASH
RINSE
WOOL
SPEEDY
SPIN
FUZZY

7-2 Test Mode
7-2-1 Test Mode : WATER LEVEL+POWER
1. Entering : Press the power key while pressing down the WATER LEVEL button.
2. Each mode description
7-2 WASHING MACHINE
7. Troubleshooting
MODE NO TEST METHOD TEST DESCRIPTION REMARKS
1
2
3
⋅ PRESS the START/HOLD key Aging test in driving part and then, driving part and
display are turned ON/OFF for 1 second.
⋅ PRESS the COURCE key once Repeating 5 min. dehydration and 3 min. stop without draining.
⋅ PRESS the START/HOLD key It read Lid open and unbalance and shows them.
It shows this on the indicator.
⋅ PRESS the COURCE key once Operate the washing cycle after suppling water
⋅ PRESS the START/HOLD key to high level.
→01 →02 →03 →04 →05 →06

7-3 Servicing Precautions
When trouble shooting or parts, be sure to observe
the following.
1. Be sure to let the resistance of 1 M½ contact the
human body before grounding. When it is
impossible to ground, let the human body contact
the power plug and the grounding wire once to
eliminate the potential damaging shock hazard.
¥After replacing the controller, the defective parts
should be returned to the suppliers of these parts
for root-cause analysis and incorporation into for
future product planning. At the time of return, be
sure to pack them together with repair parts.
Otherwise, it is impossible to perform root cause
analysis due to the static electricity.
<Notice on disassembly and repair>
2. The wiring should be properly connected in
accordance with the wiring diagram. Erroneous
wiring may cause faulty operation, smoke, or fire.
3. Be sure to pull out the power plug during repair.
4. Special attention should be paid to connection,
insulation treatment, and wiring work for the lead
wire.
¥ The lead wire should be soldered, and insulation-
treated with vinyl tape, or connected to the
pressure connection terminal for drain treatment.
¥ When connecting the lead wire, take care not to let
it touch hight components of metal sugared. This is
a "wloow"
5.Be sure to use only authorized replacement parts.
6. AC 110V-220V is applied between T1 and T2 of the
triac on the P.C.B Therefore, touching the radiating
plate accidentally may cause electric shock. Also,
the P.C.B. Both high and low voltages exist on the
P.C.B.
7. Do not replace any parts on the board, except the
tact switch on the P.C.B. assembly is in trouble. The
P.C.B assembly is treated with an insulation
coating, the enhanced moisture-proofing.
8. When you suspect that the operation of the micom
is faulty, take actions in accordance with the
specified troubleshooting procedures. Do not
attempt to replace the entire P.C.B. assembly
without first doing a root-cause analysis.
9. Because the parts installed in the P.C.B. are treated
with a urethane coating, they cannot be inspected
by the test bar. Therefore, first check the lower parts
for any abnormality using the lead wire of the
housing (LP-09-1). Going down connected with the
P.C.B.
SAMSUNG ELECTRONICS CO., LTD 7-3
7. Troubleshooting
