Samsung WA4837700A Series User manual

User manual
WA4837700A*/WA4837770A*
_"]"_J SEC
....................................................n

Contents
Safety information
What you need to know about the safety instructions
Important safety symbols
Important safety precautions
Installation
Unpacking your washer

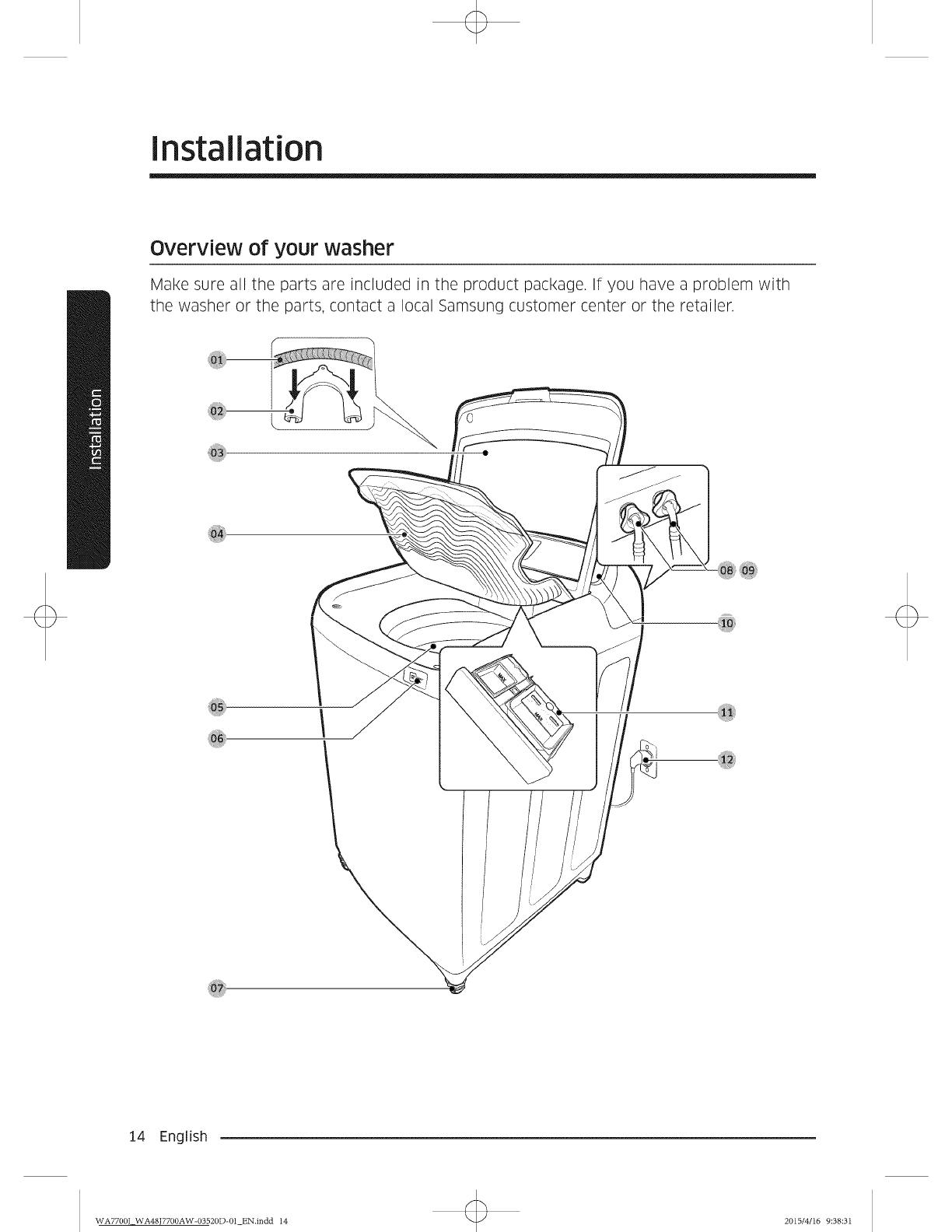

Overview of your washer
Basic location requirements
Important note to installer
Step-bpstep installation
Operating instructions
Loading your washer
Getting started
Washing a load of laundry
Control panel
Cycle overview
Options
Washing clothes using the cycle selector
ATC (Auto Temperature Control)
The basics
Detergent use
Features
Maintaining your washer
Cleaning the exterior
Cleaning the interior
Storing your washer
Preserving the top cover and the front frame
Cleaning the dispensers
Self Clean
Troubleshooting
Checkpoints
Information codes
4
4
4
5
13
!3
!4
!6
20
20
28
28
29
3O
30
32
33
36
38
39
4!
42
46
46
46
46
47
47
49
5O
SO
54
2 English
WA7700] WA48J7700AW 03520D 01 ENindd 2 2015/4/16 9:38:29

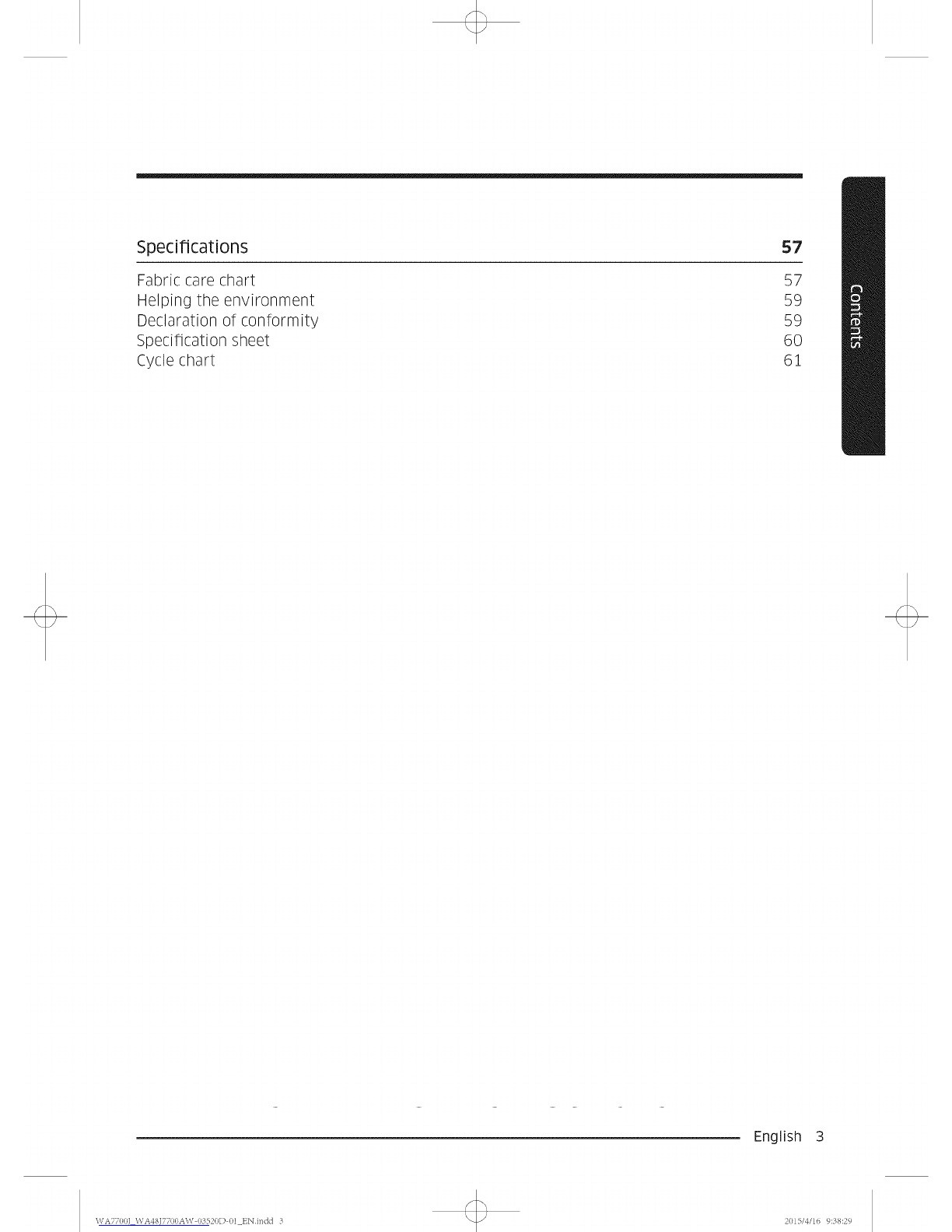

Specifications 57
Fabric care chart
Helping the environment
Declaration of conformity
Specification sheet
Cycle chart
57
59
59
6O
6!
English 3
WA7700] WA48J7700AW 03520D 01 ENindd 3 2015/4/16 9:38:29

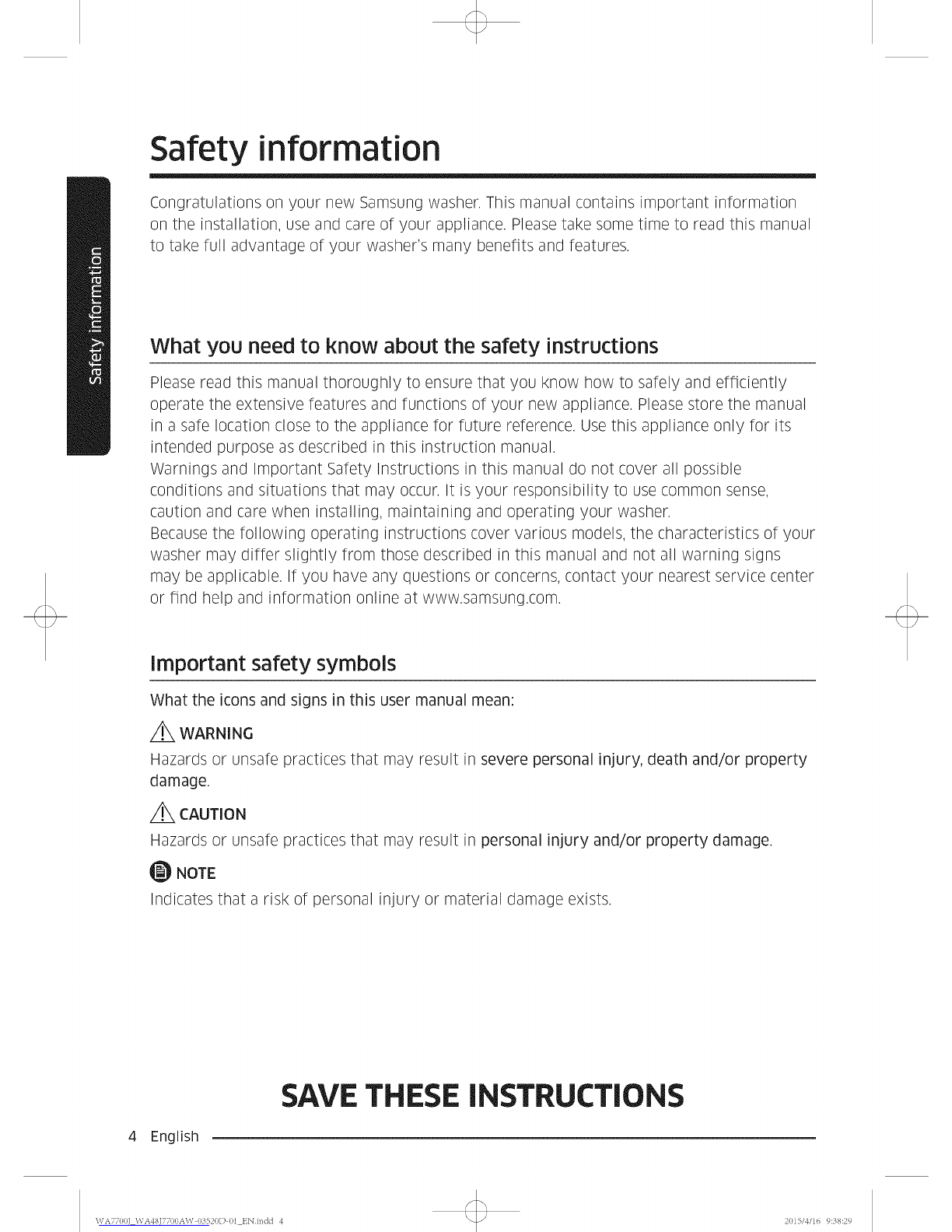

Safety information
Congratulations on your new Samsung washer. This manual contains important information
on the installation, use and care of your appliance. Please take some time to read this manual
to take full advantage of your washer's many benefits and features.
What you need to know about the safety instructions
Please read this manual thoroughly to ensure that you Know how to safely and efficiently
operate the extensive features and functions of your new appliance. Please store the manual
in a safe location close to the appliance for future reference. Use this appliance only for its
intended purpose as described in this instruction manual.
Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution and care when installing, maintaining and operating your washer.
Because the following operating instructions cover various models, the characteristics of your
washer may differ slightly from those described in this manual and not all warning signs
may be applicable. If you have any questions or concerns, contact your nearest service center
or find help and information online at www.samsung.com.
Important safety symbols
What the icons and signs in this user manual mean:
/_ WARNING
Hazards or unsafe practices that may result
damage.
/_ CAUTION
Hazards or unsafe practices that may result
NOTE
Indicates that a risk of personal injury or material damage exists.
n severe personal injury, death and/or property
n personal injury and/or property damage.
4 English
SAVE THESE INSTRUCTIONS
\VA771)0] WA481771)0A_' 03520D 01 ENindd 4 2(115/4/16 9:38:29

These warning signs are here to prevent injury to yourself and others.
Please follow them explicitly.
After reading this manual, store it in a safe place for future reference.
Read all instructions before using the appliance.
As with any equipment that uses electricity and moving parts, potential hazards exist. To
safely operate this appliance, familiarize yourself with its operation and exercise care when
using it.
Important safety precautions
/!'x, WARNING
To reduce the risk of fire, electric shock, or injury to persons when using your appliance,
follow basic precautions, including the following:
1. Read all instructions before using this appliance.
2. Do not wash or dry articles that have been previously cleaned in, washed in, soaked in, or
spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances as
they give off vapors that could ignite or explode.
3, Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
4, Before the appliance is removed from service or discarded, remove the lid of the washing
or drying compartment.
5, Do not reach into the appliance if the drum is moving.
6, Do not install or store this appliance where it will be exposed to the weather.
7, Do not tamper with the controls.
8, Do not repair or replace any part of the appliance or attempt any servicing unless it is
specifically recommended in the user-maintenance instructions or in published user-
repair instructions that you understand and have the skills to carry out.
9, Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to
the wash water. These substances give off vapors that could ignite or explode.
SAVE THESE iNSTRUCTiONS
English
\\rA771)()] \\rA481771)(/A_ _ ()3520D 01 ENindd 5 2(115/4/16 9:38:29

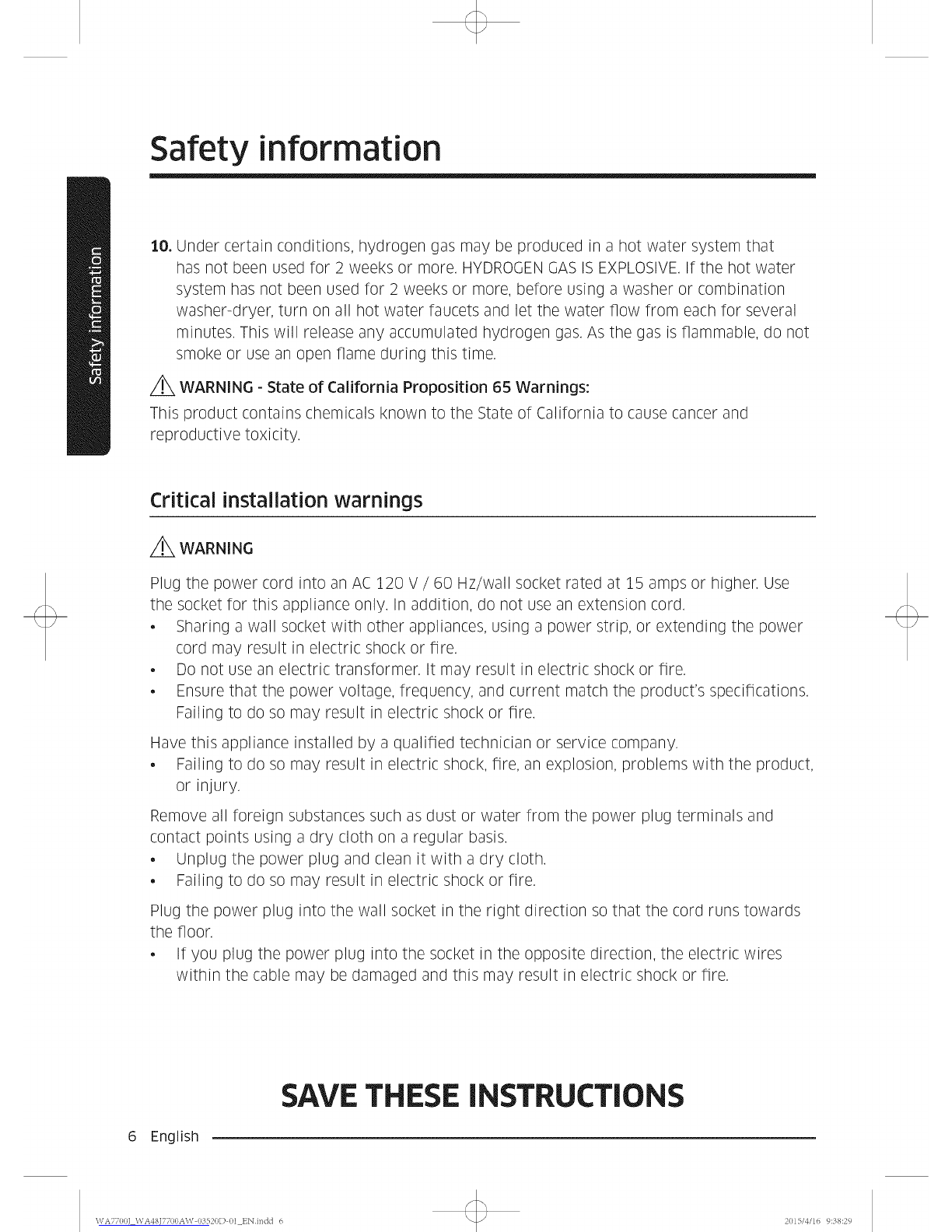

Safety information
10, Under certain conditions, hydrogen gas may be produced in ahot water system that
has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water
system has not been used for 2 weeks or more, before using a washer or combination
washer-dryer, turn on all hot water faucets and let the water flow from each for several
minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not
smoke or use an open flame during this time.
,/iX WARNING - State of California Proposition 65 Warnings:
This product contains chemicals known to the State of California to cause cancer and
reproductive toxicity.
Critical installation warnings
/_ WARNING
Plug the power cord into an AC !20 V/60 Hz/wall socket rated at 15 amps or higher. Use
the socket for this appliance only. In addition, do not use an extension cord.
• Sharing a wall socket with other appliances, using a power strip, or extending the power
cord may result in electric shock or fire.
• Do not use an electric transformer. It may result in electric shock or fire.
• Ensure that the power voltage, frequency, and current match the product's specifications.
Failing to do so may result in electric shock or fire.
Have this appliance installed by a qualified technician or service company.
• Failing to do so may result in electric shock, fire, an explosion, problems with the product,
or injury.
Remove all foreign substances such as dust or water from the power plug terminals and
contact points using a dry cloth on a regular basis.
• Unplug the power plug and clean it with a dry cloth.
• Failing to do so may result in electric shock or fire.
Plug the power plug into the wall socket in the right direction so that the cord runs towards
the floor.
• If you plug the power plug into the socket in the opposite direction, the electric wires
within the cable may be damaged and this may result in electric shock or fire.
6 English
SAVE THESE INSTRUCTIONS
WA771)0] WA481771)0A_ _ 03520D 01 ENindd 6 2(115/4/16 9:38:29

This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
• Improper grounding may result in electric shock, fire, an explosion, or problems with the
product.
• Never plug the power cord into a socket that is not grounded correctly. Make sure the
socket you use is grounded in accordance with local and national codes.
Do not install this appliance near a heater or flammable material.
Do not install this appliance in a humid, oily, or dusty location, or in a location exposed to
direct sunlight or water (rain drops).
Do not install this appliance in a location where gas may leak.
• This may result in electric shock or fire.
Plug the power plug into the wall socket firmly. Do not use a damaged power plug, damaged
power cord, or loose wall socket.
• This may result in electric shock or fire.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the power cord,
insert the power cord between objects, or push the power cord into the space behind the
appliance.
• This may result in electric shock or fire.
Do not pull the power cord when unplugging the power plug.
• Unplug the power plug by holding the plug.
• Failing to do so may result in electric shock or fire.
If the power plug or power cord are damaged, contact your nearest service center.
Installation cautions
/'_ CAUTION
Position the appliance so that the power plug is easily accessible.
• Failing to do so may result in electric shock or fire due to electric leakage.
Install your appliance on a level and hard floor that can support its weight.
• Failing to do so may result in abnormal vibrations, noise, or problems with the product.
SAVE THESE iNSTRUCTiONS
English
WA7700J WA48J7700AW 03520D 01 ENindd 7 2015/4/16 9:38:30

Safety information
Unplug the power plug when the appliance is not being used for long periods of time or
during a thunder/lightning storm.
• Failing to do so may result in electric shock or fire.
Critical usage warnings
/_ WARNING
If the appliance is flooded, cut the Dower immediately and contact your nearest service
center.
If the appliance emits a strange noise, a burning smell, or smoke, unplug the power plug
immediately and contact your nearest service center.
• Failing to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate the area immediately.
Do not turn any appliance or light on or off.
• Do not use a ventilating fan.
• A spark may result in an explosion or fire.
Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or
other flammable or explosive substances.
• This may result in electric shock, fire, or an explosion.
Do not force the washer lid open while the washer is operating (high-temperature washing/
drying/spinning).
• Water flowing out of the washer may cause burns or cause the floor to be slippery.
This may result in injury.
• Forcing the lid open can damage the product or cause injury.
Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the
washer before using it.
Do not insert your hand under the washer.
• This may result in injury.
Do not touch the power plug with wet hands.
• This may result in electric shock.
Do not turn the appliance off by unplugging the power plug while the washer is in operation.
8 English
SAVE THESE INSTRUCTIONS
\\TA7700] \\TA4817700A_S ' 03520D 01 ENindd 8 2015/4/16 9:38:30

• Plugging the power plug into the wall socket again may cause a spark and result in
electric shock or fire.
Keep all packaging materials well out of the reach of children, as packaging materials can be
dangerous to children.
If a child places a bag over their head, the child may suffocate.
o
Do
o
Do
o
Do
o
o
o
not let children or infirm persons use this washer unsupervised.
Failing to do so may result in electric shock, burns or injury.
not insert your hand or a metal object under the washer while it is operating.
This may result in injury.
not attempt to repair, disassemble, or modify the appliance yourself.
Do not use any fuse (such as copper, steel wire, etc.) other than the standard fuse.
If you need to repair or reinstall the appliance, contact your nearest service center.
Failing to do so may result in electric shock, fire, problems with the product, or injury.
If any foreign substance such as water enters the appliance in any area other than the tub,
unplug the power plug and contact your nearest service center.
• Failing to do so may result in electric shock or fire,
If the water supply hose comes loose from the faucet and floods the appliance, unplug the
power plug.
• Failing to do so may result in electric shock or fire.
Usage cautions
/_ CAUTION
If the washer is contaminated by a foreign substance such as detergent, dirt, food waste, etc.,
unplug the power plug and clean the washer using a damp, soft cloth.
• Failing to do so may result in discoloration, deformation, damage or rust.
The clear portion of the lid can be broken by a strong impact. Take care when using the
washer.
• If the clear portion is cracked or broken, it may result in injury.
After a water supply failure or when reconnecting the water supply hose, open the faucet
slowly.
SAVE THESE INSTRUCTIONS
English
\\TA771)0] \\TA48177I)0A_S ' 03520D 01 ENindd 9 2015/4/16 9:38:30

Safety information
Open the faucet slowly after a long period of non-use.
• The air pressure in the water supply hose or the water pipe may result in damage to a
part or in water leakage.
If a drain information occurs during an operation, check if there is a draining problem.
• If the washer is used when it is flooded because of a draining problem, it may result in
electric shock or fire due to electric leakage.
Do not insert your hand under the washer.
• This may result in injury.
Insert the laundry into the washer completely so that laundry does not get caught in the lid.
• If laundry gets caught in the lid, it may result in damage to the laundry or the washer, or
result in water leakage.
Ensure that the faucet is turned off when the washer is not being used.
• Ensure that the water supply hose connectors are properly tightened.
• Failing to do so may result in property damage or injury.
Open the faucet and check if the water supply hose connector is firmly tightened and that
there is no water leaking before using the product.
• If the water supply hose connectors are loose, it may result in water leakage.
Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
• This may result in electric shock, fire, problems with the product, or injury.
Do not operate the appliance with wet hands.
• This may result in electric shocK.
Do not spray volatile material such as insecticide onto the surface of the appliance.
• As well as being harmful to humans, it may also result in electric shock, fire, or problems
with the product.
Do not place an object that generates a electromagnetic field near the washer.
• This may result in injury due to a malfunction.
Since the water drained during a high-temperature wash or drying cycle is hot, do not touch
the water.
• This may result in burns or injury.
For waterproof fabrics, only use the WATERPROOF cycle.
10 English
SAVE THESE INSTRUCTIONS
WA7700] WA48J7700AW 03520D 01 ENindd 10 2015/4/16 9:38:30

o
Do
o
Do
o
Do
o
Do not use other cycles for waterproof fabrics.
This may result in injury or damage to the washer, walls, floor, or clothing due to
abnormal vibrations.
Set the temperature and spin according to the attached care label.
not operate the washer when the detergent dispenser is removed.
This may result in electric shock or injury due to water leakage.
not insert your hand into the detergent dispenser after opening it.
This may result in injury as your hand may be caught.
not place any non-laundry objects, such as shoes, food waste, or animals into the washer.
This can cause abnormal vibrations that can damage the washer, and, in the case of pets,
cause severe injury or death.
Do not press the buttons using sharp objects such as pins, IKnifes, fingernails, etc.
• This may result in electric shock or injury.
Do not wash laundry contaminated by oils, creams, or lotions usually found in slKincare shops
or massage clinics.
• This may result in the rubber seal becoming deformed and water leakage,
Do not leave metal objects (safety pins, hair pins, etc.) or bleach in the tub for long periods of
time.
• This may cause the tub to rust.
• If rust appears on the surface of the tub, apply a neutral cleansing agent to the surface
and use a sponge to clean it. Never use a metal brush.
Do not use dry cleaning detergent directly in the tub and do not wash, rinse, or spin laundry
contaminated by dry cleaning detergent.
• This may result in spontaneous combustion or ignition due to heat from the oxidation of
the oil.
Do
o
Do
o
not use hot water from water cooling/heating devices.
This may result in problems with the washer.
not use natural hand-washing soap in the washer.
If it hardens and accumulates inside the washer, it may cause problems with the product,
discoloration, rust, or bad odors.
Do not wash large laundry items such as bedding in the washing net.
• Failing to do so may result in injury due to abnormal vibrations.
SAVE THESE iNSTRUCTiONS
English 11
\\TA771)0] \\TA481771)0A_S ' 03520D 01 ENindd 11 2015/4/16 9:38:30

Safety information
• Place smaller items, such as lace socks and lingerie in the washing net.
Do not use hardened detergent.
• If it accumulates inside the washer, it may result in water leakage.
Do not wash throw rugs or doormats.
• If you wash throw rugs or doormats, the sand will accumulate inside the washer. It may
result in information such as no draining.
CrRical cleaning warnings
/_ WARNING
Do not clean the appliance by spraying water directly onto it.
Do not use the strong acid cleaning agent.
Do not use benzene, paint thinner, or alcohol to clean the appliance.
• This may result in discoloration, deformation, damage, electric shock, or fire.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
• Failing to do so may result in electric shock or fire.
12 English
SAVE THESE INSTRUCTIONS
\\TA7700] \\TA4817700A_S ' 03520D 01 ENindd 12 2015/4/16 9:38:30

Installation
Follow these instructions carefully to ensure proper installation of the washer and to prevent
accidents when using it.
Unpacking your washer
Unpack your washer and inspect it for shipping damage. Make sure you have received all the
items shown below. If your washer was damaged during shipping, or you do not have all of
the items, contact !-800-SAMSUNG (!-800-726-7864).
To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the
unit.
//_ WARNING
Packing materials can be dangerous to children; Keep all packing material (plastic bags,
polystyrene, etc.) well out of children's reach.
X
/'iX, CAUTION
When unpacking the washer, 2 person
collaboration is needed. To remove the
cushion bottom of the packing materials,
forward dumping is strictly prohibited.
English 13
\\TA7700] \\TA4817700A_S ' 03520D 01 ENindd 13 2015/4/16 9:38:30

Installation
Overview of your washer
Make sure all the parts are included in the product package. If you have a problem with
the washer or the parts, contact a local Samsung customer center or the retailer.
o_
14 English
WA7700J_WA48J7700AW-03520D-01_EN.indd 14 2015/4/16 9:38:31

01 Drain hose
04 Built-in sink
07 Leveling feet
10 Control panel
Parts supplied
02 Hose guide
05 Tub
08 Water hose (Cold)
11 Detergent drawer
03 Lid
06 Water Jet
09 Water hose (Hot)
12 Power cord
Hose guide User manual Plastic zip hose tie Water intake cap
Parts not supplied
Water supply hoses
Tools needed for installation
Wrench Flat screwdriver Leveller
NOTE
•If you lose an accessory and want to purchase a replacement, contact the Samsung
service center (!-800-SAMSUNG (!-800-726-7864)).
•The design of the parts and accessories may differ from the pictures above.
Their design is subject to change without notice for product improvement.
•Do not reuse old hoses. Only use new water supply hoses when you install the washer.
Old water supply hoses can leak or burst causing flooding and property damage.
•Confirm that there are rubber washers inside each coupling of the water supply hoses.
English 15
WA7700J WA48J7700AW 03520D 0] ENindd 15 2(}15/4/16 9:38:32

Installation
Basic location requirements
Electrical
• !20 Volt 60 Hz !5 AMP fuse or circuit
breaker.
• Individual branch circuit serving only
your Washer is recommended.
• Your washer is equipped with a power
cord.
/!X, CAUTION
Never use an extension cord.
Grounding
Electrical grounding is required for this
appliance.
This appliance must be grounded. In
the event of malfunction or breakdown,
grounding will reduce the risk of electric
shock by providing a path of least resistance
for electric current.
This appliance is equipped with a power
cord having a three-prong grounding plug
for use in a properly installed and grounded
outlet.
The plug must be plugged into an
appropriate outlet that is properly installed
and grounded in accordance with all local
codes and ordinances.
z_ WARNING
An improperly connected equipment-
grounding conductor can increase the risk
of electrical shock. Check with a qualified
electrician or serviceman if you are not sure
whether the appliance is properly grounded.
Do not modify the plug provided with the
appliance- if it does not fit the outlet, have
a proper outlet installed by a qualified
electrician.
Important safety precautions
To prevent unnecessary risk of fire,
electrical shock or personal injury, all wiring
and grounding must be done in accordance
with the National Electrical Code ANSI/
FNPA, No.70 Latest Revision and local
codes and ordinances. It is the personal
responsibility of the appliance owner to
provide adequate electrical service for this
appliance.
//iX CAUTION
Never connect the ground wire to plastic
plumbing lines, gas lines, or hot water pipes.
Water
To correctly fill your Washer in the proper
amount of time, water pressure of 20 to
!16psi (!37 to 800kPa) is required.
Water pressure less than 20 psi may cause
water valve failure, or may not allow the
water valve to shut off completely, or may
extend the fill time beyond what your
Washer controls allow, causing your Washer
to turn off. A time limit is built into the
controls to prevent flooding in your home if
a hose becomes loose.
16 English
WA7700J WA48J7700AW 03520D 0] ENindd 16 2(}15/4/16 9:38:32

The water faucets must be within 4 feet
(!22 cm) to the back of your Washer to
match the inlet hoses provided with your
Washer.
NOTE
Accessory inlet hoses are available in
various lengths up to !0 feet (275 cm) for
faucets that are further away from the back
of your washer.
To avoid the possibility of water damage:
• Have water faucets easily accessible.
• Turn off faucets when the washer is not
in use.
• Periodically check that there is no
leakage from the water inlet hose
fittings.
WARNING
Check all connections at the water valve and
faucet for leaks
Drain facility
The recommended height of the standpipe
is 39 in (99 cm). The drain hose must be
routed through the drain hose clip to the
standpipe. The standpipe must be large
enough to accept the outside diameter of
the drain hose. The drain hose is attached to
the washer at the factory.
Flooring
For best performance, you must install
your washer on a solidly constructed floor.
Wood floors may need to be reinforced to
minimize vibration and/or unbalanced load
situations. Carpeting and soft tile surfaces
are contributing factors to vibration which
can cause your washer to move slightly
during the spin cycle.
Never install your washer on a platform or
weakly supported structure.
Location considerations
Do not install your washer in areas where
water may freeze, since your washer will
always retain some water in its water valve,
pump, and hose areas. Frozen water can
damage the belts, the pump, hoses, and
other components.
Alcove or closet installation
Minimum clearances for closet and alcove
installations:
1 in /CloSet 2 in /
Sides
.... 25mm front 5! mm
,,.,_,.., 6 in /21_in /
1_52mm 533 mm
If the washer and dryer are installed
together, the closet front must have at least
a 72 in2(465 cm2)unobstructed air opening.
Your washer alone does not require a
specific air opening.
English 17
\\TA771)0] \\TA481771)0A_S' 03520D 01 ENindd 17 2015/4/16 9:38:32

Installation
Recessed area Side view - closet or confined area
_7¸¸¸ :::::::::::: <::::::::::::::::: :=:5:5:5:5:5:5:5:5:5:5:5:5 :F¸
7
A ! in (2.5 cm)
B 27.0 in (68.6 cm) 2! in (53.3 cm)
B 2 in (5.! cm)
C 29.3 in (74.4 cm)
D 6 in (!5.2 cm)
i _I i i
ii i i i
i i iii i_i
i i i
Gap between end of water
valve and the wall
• Case !. Assemble supply
hose after installing : Over
3.9 in (!0 cm).
• Case 2. Assemble supply
hose before installing :
Over 2.8 in (7 cm).
18 English
\\TA771)0] \\TA481771)0A_V 03520D 01 ENindd 18 2015/4/16 9:38:32

Required dimensions for Installation
r
...................... l
_ J
27.0 in (68.6 cm)
39.2 in (99.5 cm)
44.2 in (!!2.3 cm)
29.3 in (74.4 cm)
44.2 in (!!2.3 cm)
58.! in (!47.6 cm)
48.0 in2 (3!0.0 cm2)
24.0 in2 (!55.0 cm2)
3.0 in (7.6 cm)
NOTE
" Required spacing
English 19
\VA7700] \VA4817700A_' 03520D 01 ENindd 19 2015/4/16 9:38:33

Installation
Important note to installer
Please read the following instructions carefully before installing your washer.
These instructions should be retained for future reference.
We recommend you hire a professional to install this washer.
Installation flow chart
Selecting a
location
Removing the
shipping bolts
(Front loading
washers only)
Connecting the
water anddrain Adjusting the
p, leveling feet Powering your
washing machine
Running atest cycle
RunRinse±SpinWi_h
Smallamount Of -_ Running
laundry (aboUt 85 Calibration Mode
towels) as a test Cycle
YES y
Check again before steps.
Finishing the
installation
Step-by-step installation
STEP 1 Selecting a location
NOTE
Before you install the washer, make sure the location:
• Has a hard, level surface without carpeting or flooring that may obstruct ventilation.
• Is away from direct sunlight.
• Has adequate ventilation.
• Is not exposed to freezing temperatures (temperatures under 32 °F or 0 oC).
• Is away from heat sources such as oil or gas.
• Has enough space so that the washer doesn't rest on its power cord.
20 English
\\TA771)0] \\TA481771)0A_S' 03520D 01 ENindd 20 2015/4/16 9:38:33
