Samsung WA50M7450A series User manual

Washing Machine
user manual
WA50M7450A*
WA45M7050A*
WA50N7350A*
WA45N7150A*
imagine the possibilities
Thank you for purchasing this Samsung product.
WA7000M_DC68-03774A-05_EN.indd 1WA7000M_DC68-03774A-05_EN.indd 1 2018-09-04  2:58:472018-09-04  2:58:47

English - 2
contents
INSTALLING YOUR WASHER
10 10 Unpacking your washer
10 Overview of your washer
11 Basic location requirements
11 Electrical
11 Grounding
11 Water
12 Drain facility
12 Flooring
12 Location considerations
12 Alcove or closet installation
13 Required dimensions for Installation
14 Important note to installer
14 Installation flow chart
OPERATING INSTRUCTIONS
18 18 Loading your washer
18 Getting started
WASHING A LOAD OF LAUNDRY
19 19 Overview of the control panel
21 Child Lock [ ]
22 Sound
22 Garment
22 Delay End
22 Pre Soak
23 Mist Shower
23 Smart Care (WA50M7450A*, WA50N7350A*)
24 Washing clothes using the cycle selector
24 ATC (Auto Temperature Control)
25 Prewash (Water Jet)
26 Detergent use
26 Features
MAINTAINING YOUR WASHER
29 29 Cleaning the exterior
29 Cleaning the interior
29 Storing your washer
29 Preserving the top cover and the front frame
29 Cleaning mesh filter
30 Cleaning the dispensers (WA45N7150A*,
WA45M7050A*)
31 Cleaning the dispensers (WA50M7450A*,
WA50N7350A*)
32 Self Clean
TROUBLESHOOTING
33 33 Check these solutions if your washer…
35 Information codes
APPENDIX
37 37 Fabric care chart
38 Cycle chart
40 Helping the environment
40 Declaration of conformity
40 Specification
WA7000M_DC68-03774A-05_EN.indd Sec6:2WA7000M_DC68-03774A-05_EN.indd Sec6:2 2018-09-04  2:58:512018-09-04  2:58:51

English - 3
safety information
Congratulations on your new Samsung Washer. This manual contains important
information on the installation, use, and care of your appliance. Please take time
to read this manual to take full advantage of your washer’s many benefits and
features.
WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution, and care when installing,
maintaining, and operating your washer.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury
or death.
To reduce the risk of fire, explosion, electric shock, or personal injury
when using your washer, follow these basic safety precautions:
CAUTION
Hazards or unsafe practices that may result in minor personal injury or
property damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
Note
These warning icons are here to prevent injury to you and others.
Please heed them explicitly.
After reading this section, keep it in a safe place for future reference.
Read all instructions before using the appliance.
SAVE THESE INSTRUCTIONS
WA7000M_DC68-03774A-05_EN.indd Sec1:3WA7000M_DC68-03774A-05_EN.indd Sec1:3 2018-09-04  2:58:512018-09-04  2:58:51

English - 4
SAVE THESE INSTRUCTIONS
CALIFORNIA PROPOSITION 65 WARNING
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
IMPORTANT SAFETY PRECAUTIONS
To reduce the risk of fire, electric shock, or injury to persons when using your
appliance, follow basic precautions, including the following:
1. Read all instructions before using the appliance.
2. Do not wash or dry articles that have been previously cleaned in, washed in, soaked
in, or spotted with gasoline, dry-cleaning solvents, other flammable or explosive
substances as they give o vapors that could ignite or explode.
3. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
4. Before the appliance is removed from service or discarded, remove the lid of the
washing or drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to the weather.
7. Do not tamper with the controls.
8. Do not repair or replace any part of the appliance or attempt any servicing unless it is
specifically recommended in the user-maintenance instructions or in published user-
repair instructions that you understand and have the skills to carry out.
9. Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances
to the wash water. These substances give o vapors that could ignite or explode.
10. Under certain conditions, hydrogen gas may be produced in a hot water system that
has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the
hot water system has not been used for 2 weeks or more, before using a washer or
combination washer-dryer, turn on all hot water faucets and let the water flow from
each for several minutes. This will release any accumulated hydrogen gas. As the gas is
flammable, do not smoke or use an open flame during this time.
safety information
WARNING
WARNING
WA7000M_DC68-03774A-05_EN.indd Sec1:4WA7000M_DC68-03774A-05_EN.indd Sec1:4 2018-09-04  2:58:512018-09-04  2:58:51

English - 5
CRITICAL INSTALLATION WARNINGS
Plug the power cord into an AC 120 V / 60 Hz/wall socket rated at 15 amps or higher. Use
the socket for this appliance only. In addition, do not use an extension cord.
- Sharing a wall socket with other appliances, using a power strip, or extending the power
cord may result in electric shock or fire.
- Do not use an electric transformer. It may result in electric shock or fire.
- Ensure that the power voltage, frequency, and current match the product’s
specifications. Failing to do so may result in electric shock or fire.
Have this appliance installed by a qualified technician or service company.
- Failing to do so may result in electric shock, fire, an explosion, problems with the
product, or injury.
Remove all foreign substances such as dust or water from the power plug terminals and
contact points using a dry cloth on a regular basis.
- Unplug the power plug and clean it with a dry cloth.
- Failing to do so may result in electric shock or fire.
Plug the power plug into the wall socket in the right direction so that the cord runs towards
the floor.
- If you plug the power plug into the socket in the opposite direction, the electric wires
within the cable may be damaged and this may result in electric shock or fire.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
- Improper grounding may result in electric shock, fire, an explosion, or problems with the
product.
- Never plug the power cord into a socket that is not grounded correctly. Make sure the
socket you use is grounded in accordance with local and national codes.
Do not install this appliance near a heater or flammable material.
Do not install this appliance in a humid, oily, or dusty location, or in a location exposed to
direct sunlight or water (rain drops).
Do not install this appliance in a location where gas may leak.
- This may result in electric shock or fire.
Plug the power plug into the wall socket firmly. Do not use a damaged power plug,
damaged power cord, or loose wall socket.
- This may result in electric shock or fire.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the power cord,
insert the power cord between objects, or push the power cord into the space behind the
appliance.
- This may result in electric shock or fire.
Do not pull the power cord when unplugging the power plug.
- Unplug the power plug by holding the plug.
- Failing to do so may result in electric shock or fire.
If the power plug or power cord are damaged, contact your nearest service center.
SAVE THESE INSTRUCTIONS
WARNING
WA7000M_DC68-03774A-05_EN.indd Sec1:5WA7000M_DC68-03774A-05_EN.indd Sec1:5 2018-09-04  2:58:512018-09-04  2:58:51

English - 6
INSTALLATION CAUTIONS
Position the appliance so that the power plug is easily accessible.
- Failing to do so may result in electric shock or fire due to electric leakage.
Install your appliance on a level and hard floor that can support its weight.
- Failing to do so may result in abnormal vibrations, noise, or problems with the product.
Unplug the power plug when the appliance is not being used for long periods of time or
during a thunder/lightning storm.
- Failing to do so may result in electric shock or fire.
CRITICAL USAGE WARNINGS
If the appliance is flooded, cut the power immediately and contact your nearest service
center.
If the appliance emits a strange noise, a burning smell, or smoke, unplug the power plug
immediately and contact your nearest service center.
- Failing to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate the area
immediately. Do not turn any appliance or light on or o.
- Do not use a ventilating fan.
- A spark may result in an explosion or fire.
Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or
other flammable or explosive substances.
- This may result in electric shock, fire, or an explosion.
Do not force the washer lid open while the washer is operating (high-temperature washing/
drying/spinning).
- Water flowing out of the washer may cause burns or cause the floor to be slippery.
This may result in injury.
- Forcing the lid open can damage the product or cause injury.
Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the
washer before using it.
Do not insert your hand under the washer.
- This may result in injury.
safety information
SAVE THESE INSTRUCTIONS
WARNING
CAUTION
WA7000M_DC68-03774A-05_EN.indd Sec1:6WA7000M_DC68-03774A-05_EN.indd Sec1:6 2018-09-04  2:58:512018-09-04  2:58:51

English - 7
Do not touch the power plug with wet hands.
- This may result in electric shock.
Do not turn the appliance o by unplugging the power plug while the washer is in operation.
- Plugging the power plug into the wall socket again may cause a spark and result in
electric shock or fire.
Keep all packaging materials well out of the reach of children, as packaging materials can
be dangerous to children.
- If a child places a bag over their head, the child may suocate.
Do not let children or infirm persons use this washer unsupervised.
- Failing to do so may result in electric shock, burns or injury.
Do not insert your hand or a metal object under the washer while it is operating.
- This may result in injury.
Do not attempt to repair, disassemble, or modify the appliance yourself.
- Do not use any fuse (such as copper, steel wire, etc.) other than the standard fuse.
- If you need to repair or reinstall the appliance, contact your nearest service center.
- Failing to do so may result in electric shock, fire, problems with the product, or injury.
If any foreign substance such as water enters the appliance in any area other than the tub,
unplug the power plug and contact your nearest service center.
- Failing to do so may result in electric shock or fire.
If the water supply hose comes loose from the faucet and floods the appliance, unplug the
power plug.
- Failing to do so may result in electric shock or fire.
USAGE CAUTIONS
If the washer is contaminated by a foreign substance such as detergent, dirt, food waste,
etc., unplug the power plug and clean the washer using a damp, soft cloth.
- Failing to do so may result in discoloration, deformation, damage or rust.
The clear portion of the lid can be broken by a strong impact. Take care when using the
washer.
- If the clear portion is cracked or broken, it may result in injury.
After a water supply failure or when reconnecting the water supply hose, open the faucet
slowly.
Open the faucet slowly after a long period of non-use.
- The air pressure in the water supply hose or the water pipe may result in damage to a
part or in water leakage.
If a drain error occurs during an operation, check if there is a draining problem.
- If the washer is used when it is flooded because of a draining problem, it may result in
electric shock or fire due to electric leakage.
Do not insert your hand under the washer.
- This may result in injury.
SAVE THESE INSTRUCTIONS
CAUTION
WA7000M_DC68-03774A-05_EN.indd Sec1:7WA7000M_DC68-03774A-05_EN.indd Sec1:7 2018-09-04  2:58:512018-09-04  2:58:51

English - 8
Insert the laundry into the washer completely so that laundry does not get caught in the lid.
- If laundry gets caught in the lid, it may result in damage to the laundry or the washer, or
result in water leakage.
Ensure that the faucet is turned o when the washer is not being used.
- Ensure that the water supply hose connectors are properly tightened.
- Failing to do so may result in property damage or injury.
Open the faucet and check if the water supply hose connector is firmly tightened and that
there is no water leaking before using the product.
- If the water supply hose connectors are loose, it may result in water leakage.
Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
- This may result in electric shock, fire, problems with the product, or injury.
Do not operate the appliance with wet hands.
- This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the appliance.
- As well as being harmful to humans, it may also result in electric shock, fire, or problems
with the product.
Do not place an object that generates a electromagnetic field near the washer.
- This may result in injury due to a malfunction.
Since the water drained during a high-temperature wash or drying cycle is hot, do not touch
the water.
- This may result in burns or injury.
For waterproof fabrics, only use the WATERPROOF cycle.
- Do not use other cycles for waterproof fabrics.
* This may result in injury or damage to the washer, walls, floor, or clothing due to
abnormal vibrations.
- Set the temperature and spin according to the attached care label.
Do not operate the washer when detergent dispenser is removed.
- This may result in electric shock or injury due to water leakage.
Do not insert your hand into the detergent dispenser after opening it.
- This may result in injury as your hand may be caught.
safety information
SAVE THESE INSTRUCTIONS
WA7000M_DC68-03774A-05_EN.indd Sec1:8WA7000M_DC68-03774A-05_EN.indd Sec1:8 2018-09-04  2:58:512018-09-04  2:58:51

English - 9
Do not place any non-laundry objects, such as shoes, food waste, or animals into the
washer.
- This can cause abnormal vibrations that can damage the washer, and, in the case of
pets, cause severe injury or death.
Do not press the buttons using sharp objects such as pins, knifes, fingernails, etc.
- This may result in electric shock or injury.
Do not wash laundry contaminated by oils, creams, or lotions usually found in skincare
shops or massage clinics.
- This may result in the rubber seal becoming deformed and water leakage.
Do not leave metal objects (safety pins, hair pins, etc.) or bleach in the tub for long periods
of time.
- This may cause the tub to rust.
- If rust appears on the surface of the tub, apply a neutral cleansing agent to the surface
and use a sponge to clean it. Never use a metal brush.
Do not use dry cleaning detergent directly and do not wash, rinse, or spin laundry
contaminated by dry cleaning detergent.
- This may result in spontaneous combustion or ignition due to heat from the oxidation of
the oil.
Do not use hot water from water cooling/heating devices.
- This may result in problems with the washer.
Do not use natural hand-washing soap in the washer.
- If it hardens and accumulates inside the washer, it may cause problems with the
product, discoloration, rust, or bad odors.
Do not wash large laundry items such as bedding in the washing net.
- Failing to do so may result in injury due to abnormal vibrations.
- Place smaller items, such as lace socks and lingerie in the washing net.
Do not use hardened detergent.
- If it accumulates inside the washer, it may result in water leakage.
Do not wash throw rugs or doormats.
- If you wash throw rugs or doormats, the sand will accumulate inside the washer. It may
result in error such as no draining.
CRITICAL CLEANING INSTRUCTIONS
Do not clean the appliance by spraying water directly onto it.
Do not use the strong acid cleaning agent.
Do not use benzene, thinner, or alcohol to clean the appliance.
- This may result in discoloration, deformation, damage, electric shock, or fire.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
- Failing to do so may result in electric shock or fire.
SAVE THESE INSTRUCTIONS
WARNING
WA7000M_DC68-03774A-05_EN.indd Sec1:9WA7000M_DC68-03774A-05_EN.indd Sec1:9 2018-09-04  2:58:512018-09-04  2:58:51

English - 10
installing your washer
Certain internal parts are intentionally not grounded and may present a risk electric shock only during
servicing. Service personnel – Do not contact the following parts while the appliance is energized:
Control board, heat sink, motor, inlet valve, heater and pump.
UNPACKING YOUR WASHER
Unpack your washer and inspect it for shipping damage. Make sure you have received all the items
shown below. If your washer was damaged during shipping, or you do not have all of the items, contact
1-800-SAMSUNG (1-800-726-7864).
To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the washer.
Packing materials can be dangerous to children. Keep all packing material (plastic bags, polystyrene,
etc.) well out of children’s reach.
When unpacking the washer, 2 person collaboration is
needed. To remove the cushion bottom of the packing
materials, forward dumping is strictly prohibited.
When you lay the washer down to remove carton base, should
protect the side of washer and lay it carefully. Never lay your
washer on its back or front.
OVERVIEW OF YOUR WASHER
Parts supplied
Hose guide User manual book Plastic zip hose tie Water intake cap
Tools needed
Wrench Flat screwdriver Level Adjustable plier Measuring tape
Parts not supplied
• If you lose an accessory and want to purchase a replacement, contact the Samsung
service center (1-800-SAMSUNG (1-800-726-7864)).
• The design of the parts and accessories may dier from the pictures above. Their design is
subject to change without notice for product improvement.
• Do not reuse old hoses. Only use new water supply hoses when you install the washing
machine. Old water supply hoses can leak or burst causing flooding and property damage.
• Confirm that there are rubber washers inside the couplings of each water supply hoses.
Water supply hoses
Adjustable legs
Drain Hose Control panel
Lid
Power Cord
WARNING
CAUTION
WARNING
WA7000M_DC68-03774A-05_EN.indd Sec3:10WA7000M_DC68-03774A-05_EN.indd Sec3:10 2018-09-04  2:58:512018-09-04  2:58:51

English - 11
BASIC LOCATION REQUIREMENTS
Electrical
• 120 Volt 60 Hz 15 AMP fuse or circuit breaker.
• Individual branch circuit serving only your Washer is recommended.
• Your Washer is equipped with a power cord.
NEVER USE AN EXTENSION CORD.
Grounding
ELECTRICAL GROUNDING IS REQUIRED FOR THIS APPLIANCE.
This appliance must be grounded. In the event of malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a path of least resistance for electric current.
This appliance is equipped with a power cord having a three-prong grounding plug for use in a
properly installed and grounded outlet.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
An improperly connected equipment-grounding conductor can increase the risk of electrical
shock. Check with a qualified electrician or serviceman if you are not sure whether the
appliance is properly grounded. Do not modify the plug provided with the appliance – if it
does not fit the outlet, have a proper outlet installed by a qualified electrician.
IMPORTANT SAFETY PRECAUTIONS
• To prevent unnecessary risk of fire, electrical shock or personal injury, all wiring and
grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No.
70 Latest Revision and local codes and ordinances. It is the personal responsibility of the
appliance owner to provide adequate electrical service for this appliance.
NEVER CONNECT THE GROUND WIRE TO PLASTIC PLUMBING LINES, GAS LINES, OR
HOT WATER PIPES.
Water
To correctly fill your Washer in the proper amount of time, water pressure of 20 to 116psi (137 to
800kPa) is required.
Water pressure less than 20 psi may cause water valve failure, or may not allow the water valve
to shut o completely, or may extend the fill time beyond what your Washer controls allow,
causing your Washer to turn o. A time limit is built into the controls to prevent flooding in your
home if a hose becomes loose.
The water faucets must be within 4 feet / 122 cm of the back of your Washer to match the inlet
hoses provided with your Washer.
Accessory inlet hoses are available in various lengths up to 10 feet / 275 cm for faucets that
are further away from the back of your Washer.
To avoid the possibility of water damage:
• Have water faucets easily accessible.
• Turn o faucets when the washer is not in use.
• Periodically check that there is no leakage from the water inlet hose fittings.
CHECK ALL CONNECTIONS AT THE WATER VALVE AND FAUCET FOR LEAKS.
01 installing your washer
CAUTION
WARNING
CAUTION
WARNING
WA7000M_DC68-03774A-05_EN.indd Sec3:11WA7000M_DC68-03774A-05_EN.indd Sec3:11 2018-09-04  2:58:522018-09-04  2:58:52

English - 12
Drain facility
The recommended height of the standpipe is 39 in / 99 cm. The drain hose must be routed
through the drain hose clip to the standpipe. The standpipe must be large enough to accept the
outside diameter of the drain hose. The drain hose is attached to the washer at the factory.
Flooring
For best performance, you must install your washer on a solidly constructed floor. Wood floors
may need to be reinforced to minimize vibration and/or unbalanced load situations. Carpeting
and soft tile surfaces are contributing factors to vibration which can cause your washer to move
slightly during the spin cycle.
Never install your washer on a platform or weakly supported structure.
Location considerations
Do not install your washer in areas where water may freeze, since your washer will always retain
some water in its water valve, pump, and hose areas. Frozen water can damage the belts, the
pump, hoses, and other components.
Alcove or closet installation
MINIMUM CLEARANCES FOR CLOSET AND ALCOVE INSTALLATIONS:
Sides – 1 in / 25 mm
Rear – 6 in / 152 mm
Closet Front – 2 in / 51 mm
TOP - 21 in / 533 mm
Gap between end of water valve and the wall
- Case 1. Assemble supply hose after installing : Over 3.9 in (10 cm).
- Case 2. Assemble supply hose before installing : Over 2.8 in (7cm).
If the washer and dryer are installed together, the closet front must have at least a 72 in² (465 cm²)
unobstructed air opening. Your washer alone does not require a specific air opening.
A. Recessed area
B. Side view - closet or confined area
installing your washer
2 in.
(5.1 cm) 6 in.
(15.2 cm)
29.3 in.
(74.4 cm)
B
21 in.
(53.3 cm)
Case 1. 3.9 in. (10 cm)
Case 2. 2.8 in. (7 cm)
A
1 in.
(2.5 cm) 1 in. (2.5 cm)
27.0 in.
(68.6 cm) 27.0 in. (68.6 cm)
1 in.
(2.5 cm)
WA7000M_DC68-03774A-05_EN.indd Sec3:12WA7000M_DC68-03774A-05_EN.indd Sec3:12 2018-09-04  2:58:522018-09-04  2:58:52

English - 13
Required dimensions for Installation
WA45M7050A*, WA45N7150A*
27.0 in.
(68.6 cm)
43.9 in.
(111.5 cm)
39.3 in.
(99.8 cm)
29.3 in.
(74.4 cm)
29.3 in.
(74.4 cm)
43.9 in.
(111.5 cm)
58.1 in.
(147.6 cm)
Closet or Door
48 in.² *
(310 cm²)
24 in.² *
(155 cm²) 3 in.
(7.6 cm)
3 in.
(7.6 cm)
*Required spacing
WA50M7450A*, WA50N7350A*
27.0 in.
(68.6 cm)
45.0 in.
(114.4 cm)
40.2 in.
(102.2 cm)
29.3 in.
(74.4 cm)
29.3 in.
(74.4 cm)
45.0 in.
(114.4 cm)
59.0 in.
(150.0 cm)
Closet or Door
48 in.² *
(310 cm²)
24 in.² *
(155 cm²) 3 in.
(7.6 cm)
3 in.
(7.6 cm)
*Required spacing
01 installing your washer
WA7000M_DC68-03774A-05_EN.indd Sec3:13WA7000M_DC68-03774A-05_EN.indd Sec3:13 2018-09-04  2:58:522018-09-04  2:58:52

English - 14
installing your washer
IMPORTANT NOTE TO INSTALLER
Please read the following instructions carefully before installing your washer.
These instructions should be retained for future reference.
We recommend you hire a professional to install this washer.
Installation flow chart
STEP 1 Selecting a Location
Before you install the washer, make sure the location:
• Has a hard, level surface without carpeting or flooring that may obstruct ventilation.
• Is away from direct sunlight.
• Has adequate ventilation.
• Is not exposed to freezing temperatures (temperatures under 32 °F or 0 °C).
• Is away from heat sources such as oil or gas.
• Has enough space so that the washer doesn’t rest on its power cord.STEP 2
Connecting the water and the drain
Connecting the water supply hose
Before installing the water supply hoses, make sure there are
rubber gaskets inside the fittings at both ends of each new
water hose. Installing the water supply hoses without rubber
gaskets can cause water leakage.
When you initially install the washer, be sure to use new hoses.
Failing to do so may result in a water leakage or overflow and
may damage your property.
Do not connect multiple water supply hoses together to
increase the length of the supply hose. Hoses connected this
way can leak and the leakage can cause electrical shock. If a
hose is too short, replace the hose with a longer, high pressure
hose.
Selecting
a location
Removing the
shipping bolts
(*Drum only)
Adjusting the
levelling feet
Connecting the water
and the drain
[Running a test cycle]
Run a test cycle(Rinse+Spin)
with small amount of laundary
(about 4~5 Towels)
Running
a Calibration
mode
Powering your
washing machine
Finish the
installation
Does a
Laundary machine
Vibrate?
No
Yes
Please check again before steps.
Rubber Washer
Coupling
CAUTION
CAUTION
CAUTION
WA7000M_DC68-03774A-05_EN.indd Sec3:14WA7000M_DC68-03774A-05_EN.indd Sec3:14 2018-09-04  2:58:532018-09-04  2:58:53

English - 15
1. Connect the ends of the water supply hoses to the HOT and COLD
faucets.
2. Tighten the fittings by hand until they are snug, and then tighten them an
additional two-thirds of a turn with a plier.
When you fasten the fittings, do not fasten them too tightly or apply
tape or sealant to the faucets or water supply intakes. This can
damage the fittings.
After you have connected the water supply hoses to the faucets,
ensure that they are connected correctly by pulling the water supply
hoses downwards
3. Place the unconnected ends of the hoses into a bucket and open the
faucets connected to the two water supply hoses for 10 or 15 seconds to
remove any foreign substances from the hoses. Close the faucets before
continuing.
4. Connect the ends of the water supply hoses to the water supply intake
connections at the back of the washer.
The water supply hose connected to the HOT faucet must be
connected to the hot water supply intake and the water hose
connected to the COLD faucet must be connected to the COLD
water supply intake.
5. Tighten the fittings by hand until they are snug, and then tighten them
an additional two-thirds of a turn with a plier.
To ensure the correct water usage, connect both the HOT and
COLD water faucets. If either or both are not connected, an “4E”
(no fill) error can occur.
If you do not want to use the HOT water supply hose, insert
the water intake cap into the HOT water supply intake hole. In
this case, you must select the Tap Cold option for the water
temperature. If you select the Tap Cold option, all the lamps for
the water temperature options are turned o.
Confirm that the water supply hoses are not twisted or bent. If the
hoses are twisted or bent, the hoses can leak and cause electric
shock due to the water leakage.
6. Turn on the HOT and COLD water supplies and check all the water
supply intake connections and the faucets for water leaks.
01 installing your washer
CAUTION
CAUTION
CAUTION
WA7000M_DC68-03774A-05_EN.indd Sec3:15WA7000M_DC68-03774A-05_EN.indd Sec3:15 2018-09-04  2:58:532018-09-04  2:58:53

English - 16
installing your washer
Connecting the drain hose
The end of the drain hose can be positioned in three ways:
In a Wall standpipe or Floor standpipe
The height of end of standpipe must be no lower than 39 in (99 cm) and no
higher than 96 in (245 cm).
If drain pipe are built into the wall with water valves (A), fasten the drain hose
to the water hose.
Make sure that the connection between the drain hose and the
standpipe is not airtight.
In a laundry tub
The height of the tub must be no lower than 39 in (99 cm) and no higher than
96 in (245 cm).
Assemble the supplied Hose guide at the end of the drain hose, and put the
hanger on laundry tub.
And fasten the drain hose to the leg of laundry tub.
Connect the hose guide (A) within 3~5 in (7.6~12.7 cm)* from the end of
the drain hose. If the drain hose is extended beyond the end of the hose
guide, mold or microorganisms could spread inside the washer.
Drain Hose can be installed until 96 in (245cm) maximum. But drain
capability can be reduced at this height. It causes the washer to have
odor, because of remained water in the drain system.
If the drain hose is installed below 39 in (99 cm), water can be drained in cycles due to a
siphon phenomenon. It causes the washer to display a “4E” error code.
STEP 3
Leveling your washer
See if the washer is level by checking the position of the tub:
1. Slide the washer into position.
2. Open the lid of the washer, and pour the water into the tub to
just below the pulsator level.
3. If the washer is level, the pulsator is positioned at the center of the
water as shown in the figure. If not, level your washer by turning the
front leveling feet clockwise or counterclockwise as necessary.
Turn the front leveling feet clockwise to raise the washer, and
counterclockwise to lower the washer.
The number of leveling feet diers with the model.
A
*
A
Loosen Lock
Pulsator
Adjustable legs
(three)
WA7000M_DC68-03774A-05_EN.indd Sec3:16WA7000M_DC68-03774A-05_EN.indd Sec3:16 2018-09-04  2:58:532018-09-04  2:58:53

English - 17
STEP 4
Powering your washer
Plug the power cord into a 3-prong, well grounded 120 volt 60
Hz approved electrical outlet protected by a 15-amp fuse or
comparable circuit breaker.
Your washer is grounded through the third prong of the power
cord when plugged into a three-prong grounded electrical
outlet.
Test run
Make sure that you install your washing machine correctly by running the Rinse+Spin cycle
after the installation is complete.
STEP 5
Running a test cycle
Run a test cycle as follows to check if your washer is properly installed.
1. Load about 6 pounds of laundry into the tub.
2. Press the Power button to turn on your washer.
3. Select the Rinse+Spin cycle by turning the Cycle Selector.
4. Press the Start/Pause button to start the test cycle.
5. The washer should not rock or vibrate excessively when water is supplied or when washing
or spinning, and should drain well during the spin cycle.
If water leaks while water is being supplied or drained, check the water connections. Refer
to the “Connecting the water and the drain” section on pages 14~15 for instructions.
If the washer rocks and vibrates excessively, level your washer again. Refer to the “Leveling
your washer” section on page 15 for instructions.
STEP 6
Calibration mode
Your Samsung washing machine detects the laundry weight automatically.
For more accurate weight detection, please run Calibration Mode after the installation.
To run Calibration Mode, follow these steps:
1. Remove laundry or any contents in the machine.
2. Press the Temp. and Delay End buttons simultaneously, and then press the Power button.
The machine turns on.
3. Press the Start/Pause button to activate “Calibration Mode”.
4. The pulsator rotates clockwise and counterclockwise for approximately 1 minute.
5. When “Calibration Mode” is finished, “End” (WA50M7450A*, WA50N7350A*) / “0”
(WA45M7050A*, WA45N7150A*) appears on the display, and the machine automatically
turns o.
The washing machine is now ready for use.
01 installing your washer
WA7000M_DC68-03774A-05_EN.indd Sec3:17WA7000M_DC68-03774A-05_EN.indd Sec3:17 2018-09-04  2:58:542018-09-04  2:58:54

English - 18
operating instructions
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your appliance,
follow basic precautions, including the following:
LOADING YOUR WASHER
• Fill the tub with dry, unfolded clothes evenly around in order to enhance washing eciency and prevent
excess wear, or wrinkling of the load.
- For optimal washing performance, make sure the laundry is piled up evenly.
• Wash delicate items such as bras, hosiery, and other lingerie in the Delicates cycle
with similar lightweight items.
• When washing big bulky items or a few smaller items that don’t fill the tub
completely – a rug, a pillow, stued toys, or one or two sweaters, for example –
add a few towels to improve spin performance.
• Do not insert bulky items except for Bedding in this cycle.
During the spin cycle, the washer may add additional water to redistribute the clothes and correct an
imbalance inside the drum.
• When washing heavily soiled loads, do not overload your washer to ensure good cleaning results.
• Inflatable items may cause damage to the laundry or the machine during the wash or drying
process.
• Regardless of the size, blankets or quilts are safer and cleaner to wash one item at a time.
Two dierent-sized blankets in the same load may compromise the drying performance due to
unbalanced loads.

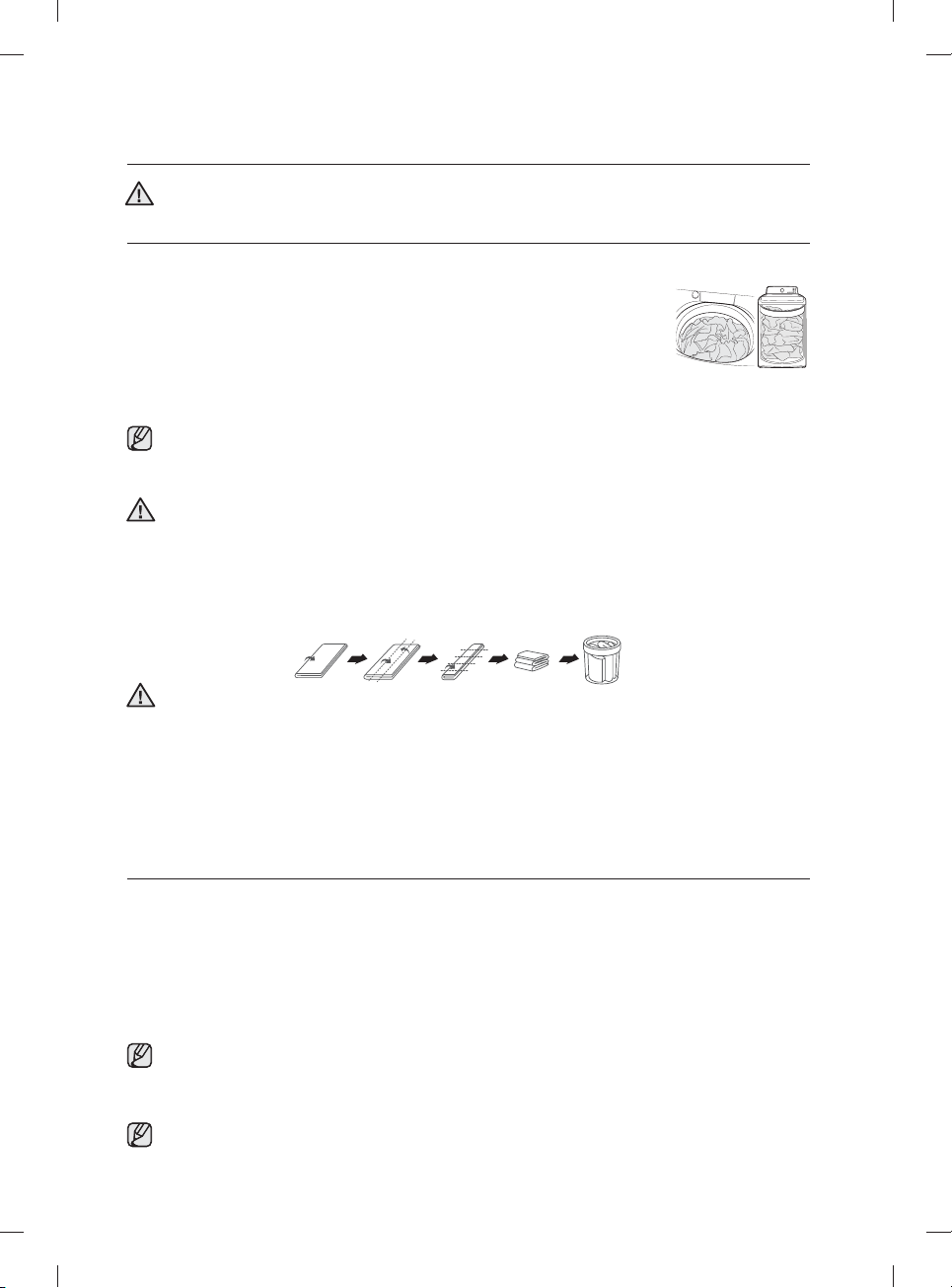

To input a blanket
Fold the blanket into the blanket-specific net as shown, and then insert in the tub below the plastic
area of the tub.
Make sure the laundry is inserted completely.
• Any exposed part of the laundry may cause damage to the machine or the laundry itself, or a water
leak.
• Do not overload the tub. Make sure no part of the laundry is exposed outside of the tub.
To add a forgotten item:
1. Press the Start/Pause button to pause the washer.
2. Wait for the door to unlock automatically, and then open the door.
3. Add the item, close the door, and then press the Start/Pause button. The cycle will resume.
GETTING STARTED
1. Load your washer.
2. Add liquid (or powder) detergent and additives to the dispenser (see pages 24~26).
3. Select the appropriate cycle and options for the load (see pages 18~23).
4. Close the lid.
5. Press the Start/Pause button.
6. The Wash Indicator light illuminates.
7. The estimated cycle time will appear in the display.
The time may fluctuate to indicate the time remaining in the cycle better.
The actual time required for a cycle may dier from the estimated time in the display depending on the
water pressure, water temperature, detergent, and laundry.
8. Before your washer starts to fill, it will make a series of clicking noises to check the door lock and do a
quick drain.
• When the cycle is complete, the Door Lock light will go out and “End” (WA50M7450A*,
WA50N7350A*) / “0” (WA45M7050A*, WA45N7150A*) will appear in the display.
• Pressing the Power button cancels the cycle and stops your washer.
•
The Wash, Rinse , and Spin indicator lights will illuminate during those portions of the cycle.
WARNING
WARNING
WARNING
WA7000M_DC68-03774A-05_EN.indd 18WA7000M_DC68-03774A-05_EN.indd 18 2018-09-04  2:58:542018-09-04  2:58:54

English - 19
washing a load of laundry
OVERVIEW OF THE CONTROL PANEL
Cycle Selector
Select the appropriate cycle for the type of load.
The cycle you select determines the tumble pattern and spin speed for the
cycle.
To minimize wrinkling of laundry, select the PERM PRESS cycle.
NORMAL - For most fabrics including cottons, linens, and normally soiled
garments.
HEAVY DUTY - For sturdy, colorfast fabrics and heavily soiled garments.
BRILLIANT WHITES (WA50M7450A*, WA50N7350A*)
- For white
fabrics with or without bleach.
BEDDING/WATERPROOF - For bulky and large items, such as
comforters, blankets and sheets. When washing comforters, use liquid
detergent, waterproof or water-resistant items.
Do not wash waterproof items and non-waterproof items together.
Check the specification label on the fabric item and see if the item is
waterproof.

Use the bedding/waterproof cycle for waterproof or water-resistant items
such as plastic mats, ski pants, raincoat and comforters which hardly
absorb water.
DEEP WASH - Use more water in washing and rinsing.
DELICATES -For sheer fabrics, bras, lingerie, silks, and other handwash-
only fabrics. For best results, use liquid detergent.
03 washing a load of laundry
WA45M7050A*, WA45N7150A*
WA50M7450A*, WA50N7350A*
4
3 5
1 6 78
2
1
WA7000M_DC68-03774A-05_EN.indd 19WA7000M_DC68-03774A-05_EN.indd 19 2018-09-04  2:58:542018-09-04  2:58:54

English - 20
PERM PRESS -For wash-and-wear, synthetic fabrics, and lightly to normally
soiled garments.
ACTIVE WEAR (WA50M7450A*, WA50N7350A*) - Use this cycle to wash exercise
wear such as sports jerseys, training pants, shirts/tops and other performance
clothing. This cycle provides eective soil removal with gentle action for special
fabric care.
QUICK WASH - For lightly soiled garments needed quickly.
SPIN - Drains the water and spins at a high speed.
RINSE + SPIN - Use for loads that need rinsing only or to add rinse-added
fabric softener to a load.
Display Provides instructions and diagnostics while keeping you updated on the cycle
status and time remaining.
Temp. selection
button
Press the button repeatedly to cycle through the dierent water temperature options.
Hot - Whites and heavily soiled, colorfast items.
Warm - Colorfast items.
Eco Warm - Moderately soiled, colorfast items; most wrinkle-free items.
Cool - Brightly colored, very lightly soiled items.
Cold - Cold water with no warm water added.
If you select the Cold option, all the lamps for the water temperature options
are turned o.
Spin selection
button
Press the button repeatedly to cycle through the dierent spin speed options.
High - Use for underwear, t-shirts, jeans, and sturdy cottons.
Medium - Use for jeans, wrinkle-free or wash-and-wear items, and synthetics.
Low - Use for delicate items needing a slow spin speed.
No Spin - Drains your washer without spinning. Use for extremely delicate items
that cannot tolerate any spin.
Soil Level
selection button
Press the button to select the soil level/washing time.
Heavy - For heavily soiled loads.
Normal - For moderately soiled loads. This setting is best for most loads.
Light - For lightly soiled loads.
Select Cycle
Option
Press these buttons to select dierent cycle options.
Extra Rinse - Change from spray rinse mode to deep rinse mode, and rinse once
again.
Delay End - Delay the end of any cycle for up to 19 hours in one-hour increments.
Displayed hour indicates the time the wash will be ended.
Self Clean - Use to clean dirt and bacteria from the drum. Regular use (after every
40 washes) is recommended. No detergent or bleach is needed.
Pre Soak - It adds 15 minutes soaking time at the start of the wash cycle for
better stain removal.
Start/Pause
selection button
Press to pause and restart cycles.
Power button
Press once to turn your washer on. Press again to turn your washer o. If the
washer is left on for more than 10 minutes without any buttons being pressed, the
power automatically turns o.
2
3
4
5
6
8
7
washing a load of laundry
WA7000M_DC68-03774A-05_EN.indd 20WA7000M_DC68-03774A-05_EN.indd 20 2018-09-04  2:58:542018-09-04  2:58:54
