Samsung WA54R7600AW/US User manual

Washer
User manual
WA54R7600A*
Untitled-3 1 2019-06-24 PM 12:07:53

English2
Contents
Contents
Safety information 4
What you need to know about the safety instructions 4
Important safety symbols 4
Important safety precautions 5
CALIFORNIA PROPOSITION 65 WARNING 6
Critical installation warnings 6
Installation cautions 7
Critical usage warnings 8
Usage cautions 9
Critical cleaning warnings 12
Installation 13
Unpacking your washer 13
What’s included 14
Installation requirements 16
Step-by-step installation 19
Before you start 28
Initial settings 28
Laundry guidelines 28
Detergent drawer guidelines 32
Operations 35
Control panel 35
Simple steps to start 38
Cycle overview 39
Cycle chart 41
Special features 43
Smart Care 46
Untitled-3 2 2019-06-24 PM 12:07:53

English 3
Contents
Maintenance 47
Self Clean 47
Cleaning the exterior 48
Cleaning the interior 49
Care for an extended period of non-use 49
Cleaning the mesh lter 50
Cleaning the detergent drawer 51
Troubleshooting 53
Checkpoints 53
Information codes 58
Specications 62
Fabric care chart 62
Helping the environment 63
Declaration of conformity 64
Specication sheet 64
Untitled-3 3 2019-06-24 PM 12:07:53

SAVE THESE INSTRUCTIONS
English4
Safety information
Congratulations on your new Samsung washer. This manual contains important
information on the installation, use, and care of your appliance. Please take some time to
read this manual to take full advantage of your washer’s many benets and features.
What you need to know about the safety instructions
Please read this manual thoroughly to ensure that you know how to safely and efciently
operate the extensive features and functions of your new appliance. Please store the
manual in a safe location close to the appliance for future reference. Use this appliance
only for its intended purpose as described in this instruction manual.
Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution, and care when installing, maintaining, and operating your washer.
Because the following operating instructions cover various models, the characteristics of
your washer may differ slightly from those described in this manual and not all warning
signs may be applicable. If you have any questions or concerns, contact your nearest
service center or nd help and information online at www.samsung.com.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death, and/or
property damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
NOTE
Indicates that a risk of personal injury or material damage exists.
These warning signs are here to prevent injury to yourself and others. Please follow them
explicitly. After reading this manual, store it in a safe place for future reference.
Read all instructions before using the appliance.
As with any equipment that uses electricity and moving parts, potential hazards exist.
To safely operate this appliance, familiarize yourself with its operation and exercise care
when using it.
Safety information
Untitled-3 4 2019-06-24 PM 12:07:54

SAVE THESE INSTRUCTIONS
English 5
Safety information
Important safety precautions
WARNING
To reduce the risk of re, electric shock, or injury to persons when using your appliance,
follow basic precautions, including the following:
1. Read all instructions before using this appliance.
2. Do not wash or dry articles that have been previously cleaned in, washed in, soaked
in, or spotted with gasoline, dry-cleaning solvents, other ammable or explosive
substances as they give off vapors that could ignite or explode.
3. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
4. Before the appliance is removed from service or discarded, remove the lid of the
washing or drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to the weather.
7. Do not tamper with the controls.
8. Do not repair or replace any part of the appliance or attempt any servicing unless it is
specically recommended in the user-maintenance instructions or in published user-
repair instructions that you understand and have the skills to carry out.
9. Do not add gasoline, dry-cleaning solvents, or other ammable or explosive substances
to the wash water. These substances give off vapors that could ignite or explode.
10.Under certain conditions, hydrogen gas may be produced in a hot water system
that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the
hot water system has not been used for 2 weeks or more, before using a washer or
combination washer-dryer, turn on all hot water faucets and let the water ow from
each for several minutes. This will release any accumulated hydrogen gas. As the gas is
ammable, do not smoke or use an open ame during this time.
Untitled-3 5 2019-06-24 PM 12:07:54

SAVE THESE INSTRUCTIONS
Safety information
English6
Safety information
CALIFORNIA PROPOSITION 65 WARNING
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Critical installation warnings
WARNING
Plug the power cord into an AC 120 V / 60 Hz/wall socket rated at 15 amps or higher. Use
the socket for this appliance only. In addition, do not use an extension cord.
• Sharing a wall socket with other appliances, using a power strip, or extending the
power cord may result in electric shock or re.
• Do not use an electric transformer. It may result in electric shock or re.
• Ensure that the power voltage, frequency, and current match the product’s
specications. Failing to do so may result in electric shock or re.
Have this appliance installed by a qualied technician or service company.
• Failing to do so may result in electric shock, re, an explosion, problems with the
product, or injury.
Remove all foreign substances such as dust or water from the power plug terminals and
contact points using a dry cloth on a regular basis.
• Unplug the power plug and clean it with a dry cloth.
• Failing to do so may result in electric shock or re.
Plug the power plug into the wall socket in the right direction so that the cord runs
towards the oor.
• If you plug the power plug into the socket in the opposite direction, the electric wires
within the cable may be damaged and this may result in electric shock or re.
This appliance must be properly grounded. Do not ground the appliance to a gas pipe,
plastic water pipe, or telephone line.
• Improper grounding may result in electric shock, re, an explosion, or problems with
the product.
• Never plug the power cord into a socket that is not grounded correctly. Make sure the
socket you use is grounded in accordance with local and national codes.
Do not install this appliance near a heater or ammable material.
Untitled-3 6 2019-06-24 PM 12:07:54

SAVE THESE INSTRUCTIONS
English 7
Safety information
Do not install this appliance in a humid, oily, or dusty location, or in a location exposed to
direct sunlight or water (rain drops).
Do not install this appliance in a location where gas may leak.
• This may result in electric shock or re.
Plug the power plug into the wall socket rmly. Do not use a damaged power plug,
damaged power cord, or loose wall socket.
• This may result in electric shock or re.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the power cord,
insert the power cord between objects, or push the power cord into the space behind the
appliance.
• This may result in electric shock or re.
Do not pull the power cord when unplugging the power plug.
• Unplug the power plug by pulling the plug.
• Failing to do so may result in electric shock or re.
If the power plug or power cord are damaged, contact your nearest Samsung service
center.
Installation cautions
CAUTION
Position the appliance so that the power plug is easily accessible.
• Failing to do so may result in electric shock or re due to electric leakage.
Install your appliance on a level and hard oor that can support its weight.
• Failing to do so may result in abnormal vibrations, noise, or problems with the product.
Unplug the power plug when the appliance is not being used for long periods of time or
during a thunder/lightning storm.
• Failing to do so may result in electric shock or re.
Untitled-3 7 2019-06-24 PM 12:07:54

SAVE THESE INSTRUCTIONS
Safety information
English8
Safety information
Critical usage warnings
WARNING
If the appliance is ooded, cut the power immediately and contact your nearest Samsung
service center.
If the appliance emits a strange noise, a burning smell, or smoke, unplug the power plug
immediately and contact your nearest Samsung service center.
• Failing to do so may result in electric shock or re.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate the area
immediately. Do not turn any appliance or light on or off.
• Do not use a ventilating fan.
• A spark may result in an explosion or re.
Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol,
or other ammable or explosive substances.
• This may result in electric shock, re, or an explosion.
Do not force the washer lid open while the washer is operating (high-temperature
washing/drying/spinning).
• Water owing out of the washer may cause burns or cause the oor to be slippery.
This may result in injury.
• Forcing the lid open can damage the product or cause injury.
Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the
washer before using it.
Do not insert your hand under the washer.
• This may result in injury.
Do not touch the power plug with wet hands.
• This may result in electric shock.
Do not turn the appliance off by unplugging the power plug while the washer is in
operation.
• Plugging the power plug into the wall socket again may cause a spark and result in
electric shock or re.
Keep all packaging materials well out of the reach of children, as packaging materials can
be dangerous to children.
• If a child places a plastic bag over his or her head, the child may suffocate.
Untitled-3 8 2019-06-24 PM 12:07:54

SAVE THESE INSTRUCTIONS
English 9
Safety information
Do not let children or inrm persons use this washer unsupervised.
• Failing to do so may result in electric shock, burns, or injury.
Do not insert your hand or a metal object under the washer while it is operating.
• This may result in injury.
Do not attempt to repair, disassemble, or modify the appliance yourself.
• Do not use any fuse (such as copper, steel wire, etc.) other than a standard fuse.
• If you need to repair or reinstall the appliance, contact your nearest Samsung service
center.
• Failing to do so may result in electric shock, re, problems with the product, or injury.
If any foreign substance such as water enters the appliance in any area other than the tub,
unplug the power plug and contact your nearest Samsung service center.
• Failing to do so may result in electric shock or re.
If the water supply hose comes loose from the faucet and oods the appliance, unplug the
power plug.
• Failing to do so may result in electric shock or re.
For waterproof fabrics, only use the WATERPROOF cycle.
• Do not use other cycles for waterproof fabrics. This may result in injury or damage to
the washer, walls, oor, or clothing due to abnormal vibrations.
• Set the temperature and spin according to the attached care label.
• WARNING : Failure to closely follow these instructions may result in an abnormal
vibrating and out-of-balance condition that could result in physical injury, property
damage, and/or appliance damage.
Usage cautions
CAUTION
If the washer is contaminated by a foreign substance such as detergent, dirt, food waste,
etc., unplug the power plug and clean the washer using a damp, soft cloth.
• Failing to do so may result in discoloration, deformation, damage, or rust.
The clear portion of the lid can be broken by a strong impact. Take care when using the
washer.
• If the clear portion is cracked or broken, it may result in injury.
Untitled-3 9 2019-06-24 PM 12:07:54

SAVE THESE INSTRUCTIONS
Safety information
English10
Safety information
After a water supply failure or when reconnecting the water supply hose, open the faucet
slowly.
Open the faucet slowly after a long period of non-use.
• The air pressure in the water supply hose or the water pipe may result in damage to a
part or in water leakage.
If a drain error occurs during an operation, check if there is a draining problem.
• If the washer is used when it is ooded because of a draining problem, it may result in
electric shock or re due to electric leakage.
Do not insert your hand under the washer.
• This may result in injury.
Insert the laundry into the washer completely so that laundry does not get caught in the
lid.
• If laundry gets caught in the lid, it may result in damage to the laundry or the washer,
or result in water leakage.
Ensure that the faucet is turned off when the washer is not being used.
• Ensure that the water supply hose connectors are properly tightened.
• Failing to do so may result in property damage or injury.
Open the faucet and check if the water supply hose connector is rmly tightened and that
there is no water leaking before using the product.
• If the water supply hose connectors are loose, it may result in water leakage.
Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
• This may result in electric shock, re, problems with the product, or injury.
Do not operate the appliance with wet hands.
• This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the appliance.
• As well as being harmful to humans, it may also result in electric shock, re, or
problems with the product.
Do not place an object that generates an electromagnetic eld near the washer.
• This may result in injury due to a malfunction.
Since the water drained during a high-temperature wash or drying cycle is hot, do not
touch the water.
Untitled-3 10 2019-06-24 PM 12:07:54

SAVE THESE INSTRUCTIONS
English 11
Safety information
• This may result in burns or injury.
Do not operate the washer if the detergent dispenser is removed.
• This may result in electric shock or injury due to water leakage.
Do not insert your hand into the detergent dispenser after opening it.
• This may result in injury as your hand may be caught.
Do not place any non-laundry objects, such as shoes, food waste, or animals into the
washer.
• This can cause abnormal vibrations that can damage the washer, and, in the case of
pets, cause severe injury or death.
Do not press the buttons using sharp objects such as pins, knifes, ngernails, etc.
• This may result in electric shock or injury.
Do not wash laundry contaminated by oils, creams, or lotions usually found in skincare
shops or massage clinics.
• This may result in the rubber seal becoming deformed and water leakage.
Do not leave metal objects (safety pins, hair pins, etc.) or bleach in the tub for long periods
of time.
• This may cause the tub to rust.
• If rust appears on the surface of the tub, apply a neutral cleansing agent to the surface
and use a sponge to clean it. Never use a metal brush.
Do not use dry cleaning detergent in the tub and do not wash, rinse, or spin laundry
contaminated by dry cleaning detergent.
• This may result in spontaneous combustion or ignition due to heat from the oxidation
of the oil.
Do not use hot water from water cooling/heating devices.
• This may result in problems with the washer.
Do not use natural hand-washing soap in the washer.
• If it hardens and accumulates inside the washer, it may cause problems with the
product, discoloration, rust, or bad odors.
Do not wash large laundry items such as bedding in the washing net.
• Failing to do so may result in injury due to abnormal vibrations.
• Place smaller items, such as lace socks and lingerie in the washing net.
Do not use hardened detergent.
Untitled-3 11 2019-06-24 PM 12:07:54

SAVE THESE INSTRUCTIONS
Safety information
English12
Safety information
• If it accumulates inside the washer, it may result in water leakage.
Do not wash throw rugs or doormats in the washer.
• If you wash throw rugs or doormats, the sand will accumulate inside the washer. It may
result in error such as no draining.
Critical cleaning warnings
WARNING
Do not clean the appliance by spraying water directly onto it.
Do not use a strong acid cleaning agent.
Do not use benzene, paint thinner, or alcohol to clean the appliance.
• This may result in discoloration, deformation, damage, electric shock, or re.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
• Failing to do so may result in electric shock or re.
Untitled-3 12 2019-06-24 PM 12:07:54

English 13
Installation
Follow these instructions carefully to ensure proper installation of your washer and to
prevent accidents when using it.
WARNING
Certain internal parts are intentionally not grounded and may present a risk of electric
shock only during servicing. Service personnel – Do not contact the following parts while
the appliance is energized: Control board, heat sink, motor, inlet valve, heater and pump.
Unpacking your washer
Unpack your washer and inspect it for shipping damage. Make sure you have received all
the items shown on the next page. If your washer was damaged during shipping, or you
do not have all of the items, call 1-800-726-7864 (1-800-SAMSUNG).
To prevent personal injury or strain, wear protective gloves whenever lifting or carrying
the unit.
WARNING
Packing materials can be dangerous to children; Keep all packing material (plastic bags,
polystyrene, etc.) well out of children’s reach.
CAUTION
You must have at least 2 people unpack
the washer. To remove the cushion bottom
of the packing materials, do not tip the
washer over on its front side.
When you lay the washer down to remove
the carton base, protect the side of the
washer and lay it down carefully. Never
lay your washer on its back or front.
Installation
Untitled-3 13 2019-06-24 PM 12:07:54

Installation
English14
Installation
What’s included
Make sure all the parts are included in the product package. If you have a problem with
the washer or the parts, contact the Samsung customer care center at 1-800-SAMSUNG
(1-800-726-7864) or your retailer.
01
02
03
04
06
05
07
13
10
11
12
09
08
01 Drain hose 02 Hose guide 03 Lid
04 Active Waterjet nozzle 05 Bleach compartment 06 Tub
07 Leveling feet 08 Water hose (Hot) 09 Water hose (Cold)
10 Control panel 11 Active Waterjet button 12 Detergent drawer
13 Power cord
Untitled-3 14 2019-06-24 PM 12:07:55

English 15
Installation
Parts supplied
Hose guide User manual Water intake cap
Cable tie Leg ring
Parts not supplied
Water hoses
Tools needed for installation
Wrench Phillips
screwdriver
Level Adjustable
pliers
Measuring tape
NOTE
• If you lose an accessory and want to purchase a replacement, contact the Samsung
customer care center at 1-800-SAMSUNG (1-800-726-7864).
• The design of the parts and accessories may differ from the pictures above. Their
design is subject to change without notice for product improvement.
CAUTION
• Do not reuse old water hoses, which may leak or burst, causing ooding and/or
property damage.
• Make sure rubber washers are inserted in each coupling of both water hoses.
Untitled-3 15 2019-06-24 PM 12:07:57

Installation
English16
Installation
Installation requirements
Electrical supply and grounding
• AC 120 V / 60 Hz / 15 AMP fuse or circuit breaker is required.
• Use an individual branch circuit. Connect only the washer to the circuit.
To ensure proper grounding, the washer comes with a power cord featuring a three-prong
grounding plug for use in a properly installed and grounded outlet.
Check with a qualied electrician or service person if you are not sure about the
grounding.
Do not modify the provided plug. If it does not t the outlet, call a qualied electrician to
install a proper outlet.
WARNING
• Do NOT use an extension cord.
• Use only the power cord that comes with the washer.
• Do NOT connect the ground wire to plastic plumbing, gas lines, or hot water pipes.
• Improperly connected grounding conductors may cause electric shock.
• To prevent unnecessary risk of re, electrical shock, or personal injury, all wiring
and grounding must be done in accordance with local codes, or in the absence of
local codes, in accordance with the National Electrical Code, ANSI/NFPA No. 70-Latest
Revision (for the U.S.) or the Canadian Electrical Code CSA C22.1 – Latest Revisions
and local codes and ordinances. It is your responsibility to provide adequate electrical
service for your washer.
Water supply
Proper water pressure for this washer is between 20-116 psi (137-800 kPa). Water
pressure less than 20 psi (137 kPa) may cause the water valve not to close completely.
or it may take longer to ll the drum, causing the washer to turn off. Water taps must be
within 4 ft. (122 cm) from the rear of the washer so that the provided inlet hoses reach
the washer.
To reduce the risk of leaks:
• Make sure water taps are easily accessible.
• Turn off the taps when the washer is not in use.
• Check for any leaks at the water inlet hose ttings on a regular basis.
CAUTION
Before using the washer for the rst time, check all connections at the water valve and
taps for any leaks.
Untitled-3 16 2019-06-24 PM 12:07:57

English 17
Installation
Drain
Samsung recommends a standpipe 39 in. (990 mm) high. The drain hose must be
connected through the hose clip to the standpipe, and the standpipe must fully cover the
drain hose.
Flooring
For best performance, the washer must be installed on a solid oor. Wood oors may
need to be reinforced to minimize vibration and/or unbalanced loads. Carpeting and soft
tile surfaces do not provide good resistance to vibrations and may cause the washer to
move slightly during the spin cycle.
CAUTION
Do NOT install the washer on a platform or a poorly supported structure.
Water temperature
Do not install the washer in areas where water may freeze as the washer always retains
some water in its water valves, pumps, and/or hoses. Frozen water can cause damage to
belts, the pump, and other components of the washer.

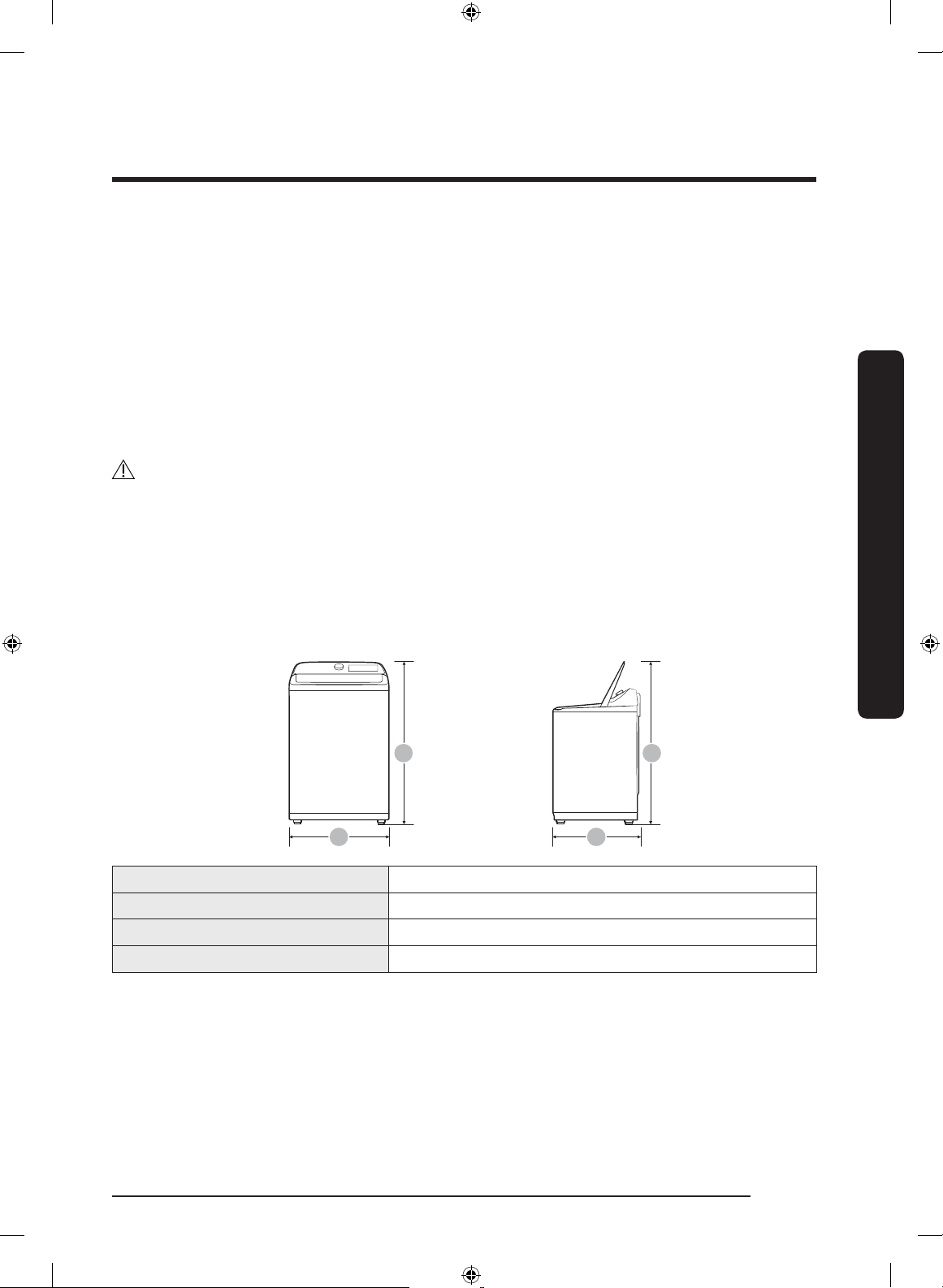

Dimensions
A C
B D
A. Height 44.6 in. (1132 mm)
B. Width 27.5 in. (699 mm)
C. Height with lid open 58.3 in. (1480 mm)
D. Depth 29.4 in. (747 mm)
Untitled-3 17 2019-06-24 PM 12:07:57

Installation
English18
Installation
Clearance requirement
This clearance requirement is applicable for washers only.
NOTE
• For the dryer's clearance requirement, see the dryer’s user manual.
• If the washer and dryer have different clearance requirements, use the one with the
larger value.
Alcove or closet installations
Minimum clearance for stable operation:
Sides Top Rear Front
1 in. / 25 mm 21 in. / 533 mm 5.9 in. / 150 mm 1 in. / 25 mm
If both the washer and a dryer are installed in the same location, the front of the alcove
or closet must have two unobstructed air openings for a combined minimum total area of
72 in.² (465 cm²).
This clearance requirement is applicable for washer and dryer pair installation.
Side by side installation
A A C D
B
A1 in. (25 mm)
B21 in. (533 mm)
C1 in. (25 mm)
D5.9 in. (150 mm)
Untitled-3 18 2019-06-24 PM 12:07:57

English 19
Installation
Step-by-step installation
STEP 1 Select a location
Location requirements:
• A solid, level surface without carpeting or ooring that may obstruct ventilation
• No direct sunlight
• Adequate room for ventilation and wiring
• Ambient temperature always higher than the freezing point (32 °F / 0 °C)
• Away from heat sources
STEP 2 Connect the water hose
B
A
CAUTION
• Make sure to use new water hoses and
that rubber gaskets (B) are inside the
couplings (A) at both ends of the hoses.
Water hoses without the gaskets may
leak.
• Allow 6 in. (150 mm) of space between
the back of the washer and the wall to
prevent water hoses from being kinked.
Kinked hoses may cause water leaks.
• If there is a water leak, stop using the
washer and contact a local Samsung
service center. A water leak may cause
electric shock.
• Do not stretch the water hoses by force.
If a hose is too short, replace the hose
with a longer hose.
Untitled-3 19 2019-06-24 PM 12:07:57

Installation
English20
Installation
1. Attach the water hoses to the hot and
cold water taps, and then hand tighten
the water hose ttings until they are
tight. Then, use pliers to tighten the
ttings by an additional two-thirds of a
turn. To avoid damaging the ttings, do
not overtighten them.
2. Pull the water hoses to check if they
are rmly connected.
3. Put the other ends of the hoses into
a bucket, and then open the water
taps for 10 - 15 seconds to remove
impurities. When done, close the taps.
Untitled-3 20 2019-06-24 PM 12:07:58
