Samsung WF337AAG/XAA User manual

o the possibilities
Thank you for purchasing a Samsung product,
To receive a more comolete service.
o_ease register your uroduct at
www.samsung.com/globaliregister

features of
TM r
1
1
1
1
1
1
1
SiiverCare TM Sanitization
The winning combination! Samsung's silver nano technology combines the sanitizing effect
of silver with state-of-the-art science for the ultimate in clean. Two plates of 99.9% pure silver
are converted into silver ions through electrolysis. Even in cold, bleach-less water, the silver
particles remove 99.9% of odor causing bacteria for a "su )er clean" wash. So washing in
cold water is energy efficient and better for your clothes.
Extra Large Capacity
Even bulky garments and blankets get super clean. The large 3.79 cu.ff, capacity leaves
enough room for a more thorough, cleaner wash.
High Efficiency Energy & Water Saving
Washing with Samsung's SilverCare TM, even in cold water, sanitizes the laundry thereby
saving 92% of the energy normally used with hot water sanitization.
Direct Drive inverter Motor
The power to handle anything! Our direct-drive inverter motor delivers power right to the
washer tub from a variable speed, reversible motor. A beltless direct-drive motor generates
a higher spin speed of 1,300rpms for more effective, quiet operation. The washer also has
fewer moving parts, meaning fewer repairs.
Wooimark Certified
The machine wash wool cycle on the Samsung SilverCare TM machines has been tested and
passed the required Woolmark Company specification for machine washable wool products.
Fabrics should be washed according to the instructions on the garment label as specified by
Woolmark and Samsung.
Pedestal with Storage Drawers (Model No : WE357A7W/S/R/L/G)
An optional 15" pedestal is available to raise the washer for easier loading and unloading.
Italso offers a built-in storage drawer that can hold a 100 oz. bottle of detergent
Stacking (Model No : SK-3A1/XAA)
Samsung washers and dryers can be stacked to maximize usable space. An optional
stacking kit is available for purchase from your Samsung retailer.
<Pedestal with Storage Drawers>
2 Features of your new sillvercare washer
<Stacking>

,s f tv nform t on
J
Congratulations on your new Samsung SilverCare TM Washer. This manual
contains important information on the installation, use and care of your
appliance. Please take time to read this manual to take full advantage of your
Washer's many benefits and features.
WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution, and care when installing,
maintaining, and operating your Washer.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
//_ Hazards or unsafe practices that may result in severe personal injury or
death.
WARNING
Hazards or unsafe practices that may result in minor personal injury or
property damage.
CAUTION
Z_ To reduce the risk of fire, explosion, electric shock, or personal injury when
using your washer, follow these basic safety precautions:
CAUTION
Do NOT attempt.
Do NOT disassemble.
[_ Do NOT touch.
Follow directions explicity.
Unplug the pwer plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
_Read all instructions before using the appliance.
As with any equipment using electricity and moving parts, potential hazards exist.
To safely operate this appliance, become familiar with its operation and exercise care when
using it.
Install and store your washer inside, away from exposure to weather.
Install and level your washer on afloor that can support its weight.
_Your washer must be properly grounded. Never plug it into an ungrounded outlet. See page
7 for more information on grounding your washer.

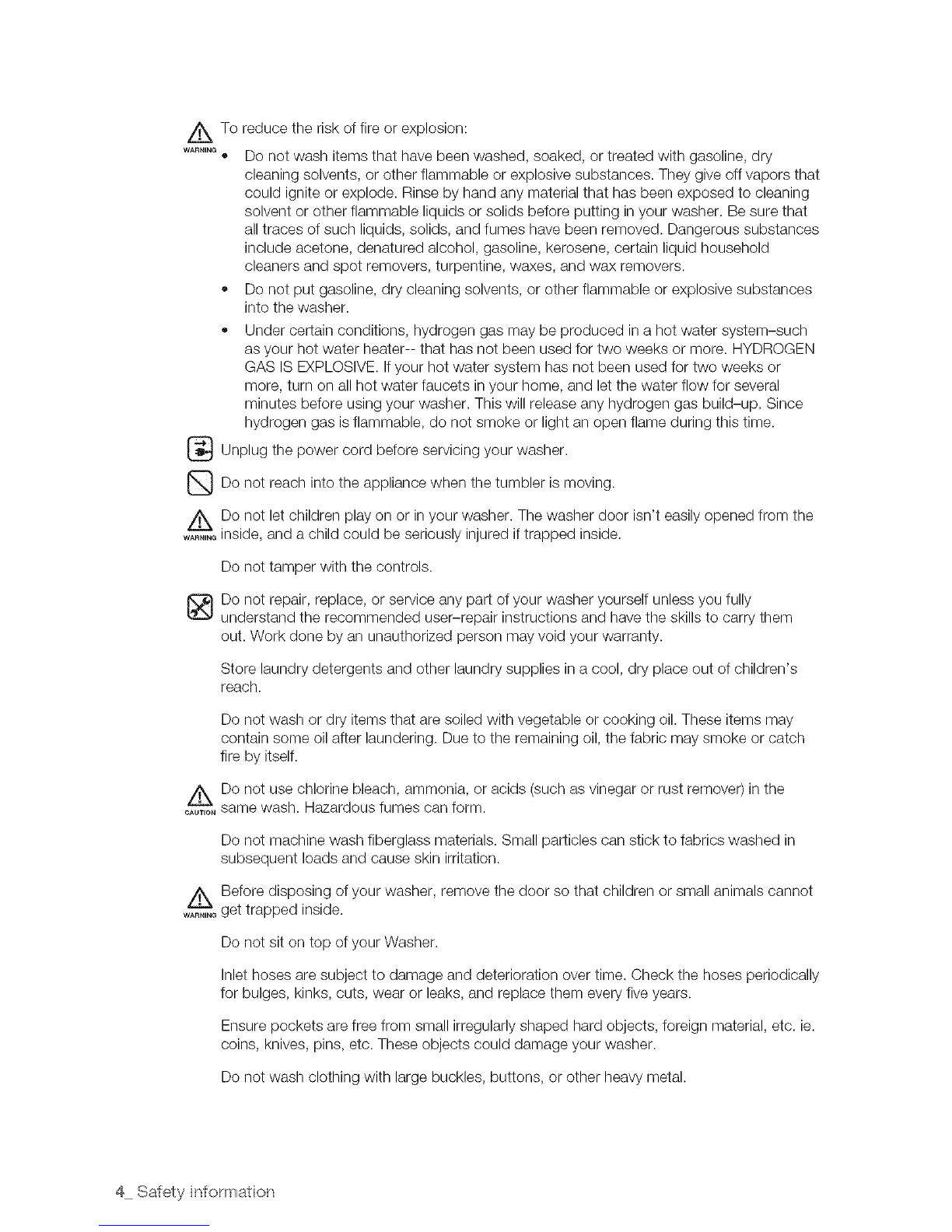

Z_ Toreducetheriskoffireorexplosion:
.......• Donotwashitemsthathavebeenwashed,soaked,ortreatedwithgasoline,dry
cleaningsolvents,orotherflammableorexplosivesubstances.Theygiveoffvaporsthat
couldigniteorexplode.Rinsebyhandanymaterialthathasbeenexposedtocleaning
solventorotherflammableliquidsorsolidsbeforeputtinginyourwasher.Besurethat
alltracesofsuchliquids,solids,andfumeshavebeenremoved.Dangeroussubstances
includeacetone,denaturedalcohol,gasoline,kerosene,certainliquidhousehold
cleanersandspotremovers,turpentine,waxes,andwaxremovers.
Donotputgasoline,drycleaningsolvents,orotherflammableorexplosivesubstances
intothewasher.
Undercertainconditions,hydrogengasmaybeproducedinahotwatersystem-such
asyourhotwaterheater--thathasnotbeenusedfortwoweeksormore.HYDROGEN
GASISEXPLOSIVE.Ifyourhotwatersystemhasnotbeenusedfortwoweeksor
more,turnonallhotwaterfaucetsinyourhome,andletthewaterflowforseveral
minutesbeforeusingyourwasher.Thiswillreleaseanyhydrogengasbuild-up.Since
hydrogengasisflammable,donotsmokeorlightanopenflameduringthistime.
_ Unplugthepowercordbeforeservicingyourwasher.
_Do notreachintothe whenthetumbleris
appliance moving.
w,_,.Donotletchildrenplayonorinyourwasher.Thewasherdoorisn'teasilyopenedfromthe
inside,andachildcouldbeseriouslyinjurediftrappedinside.
Donottamperwiththecontrols.
Donotrepair,replace,orserviceanypartofyourwasheryourselfunlessyoufully
understandtherecommendeduser-repairinstructionsandhavetheskillstocarrythem
out.Workdonebyanunauthorizedpersonmayvoidyourwarranty.
Storelaundrydetergentsandotherlaundrysuppliesinacool,dryplaceoutofchildren's
reach.
Donotwashordryitemsthataresoiledwithvegetableorcookingoil.Theseitemsmay
containsomeoilalterlaundering.Duetotheremainingoil,thefabricmaysmokeorcatch
firebyitself.
/_ Do not use chlorine bleach, ammonia, or acids (such as vinegar or rust remover) in the
OAU_T,Osame wash. Hazardous fumes can form.
Do not machine wash fiberglass materials. Small particles can stick to fabrics washed in
subsequent loads and cause skin irritation.
w,_,, Before disposing of your washer, remove the door so that children or small animals cannot
get trapped inside.
Do not sit on top of your Washer.
Inlet hoses are subject to damage and deterioration over time. Check the hoses periodically
for bulges, kinks, cuts, wear or leaks, and replace them every five years.
Ensure pockets are free from small irregularly shaped hard objects, foreign material, etc. ie.
coins, knives, pins, etc. These objects could damage your washer.
Do not wash clothing with large buckles, buttons, or other heavy metal.
4 Safety rfforrmation

contents
iNSTALLiNG YOUR WASHER
OPERATING iNSTRUCTiONS
i i
6 Unpacking your washer
6 Overview of your washer
6 Electrical
7 Grounding
7 Water
7 Drain facility
8 Flooring
8 Location considerations
8 Alcove or closet installation
9 Important note to installer

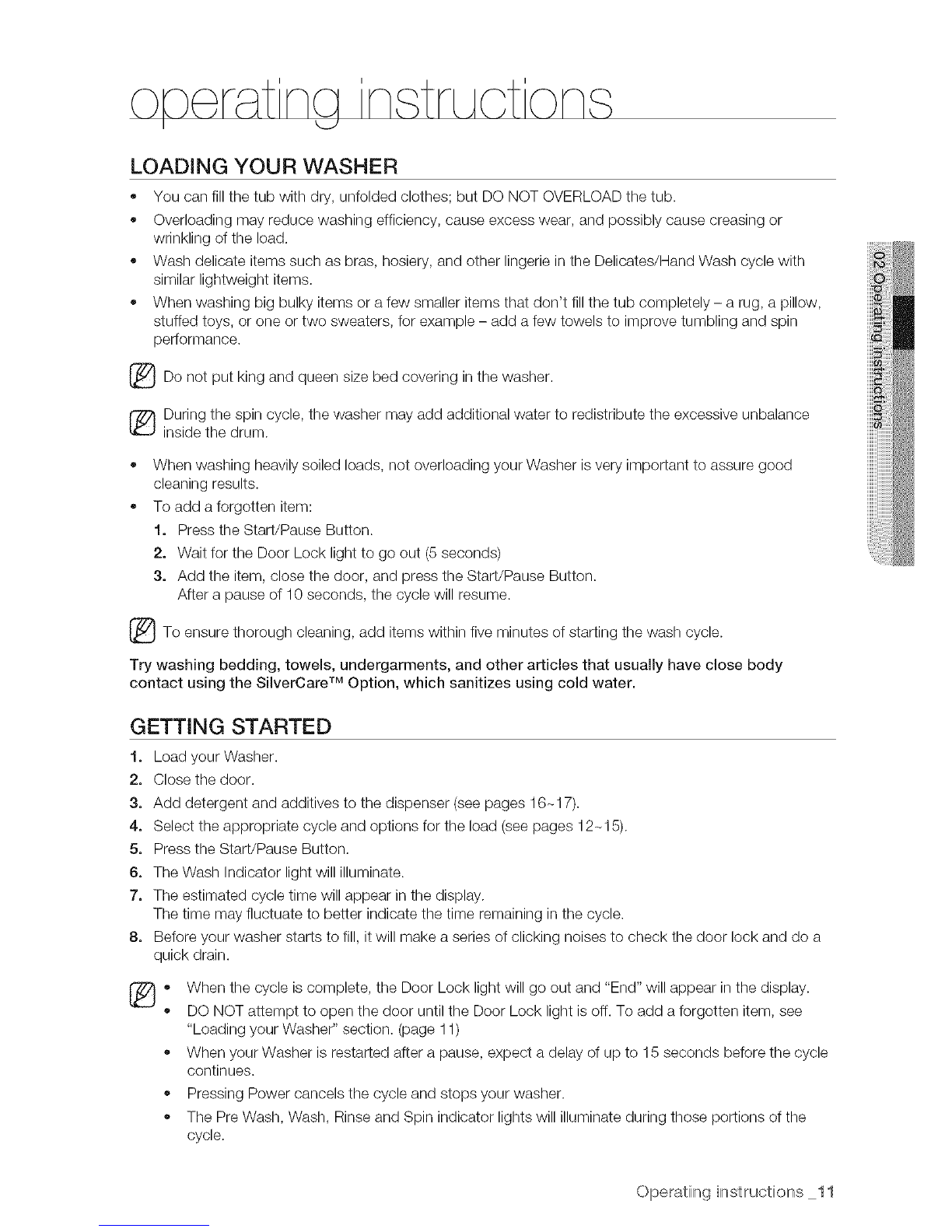

11 Loading your washer
11 Getting started
WASHING A LOAD OF LAUNDRY
x
MAINTAINING YOUR WASHER
12
14
14
14
15
16
16
18
18
18
18

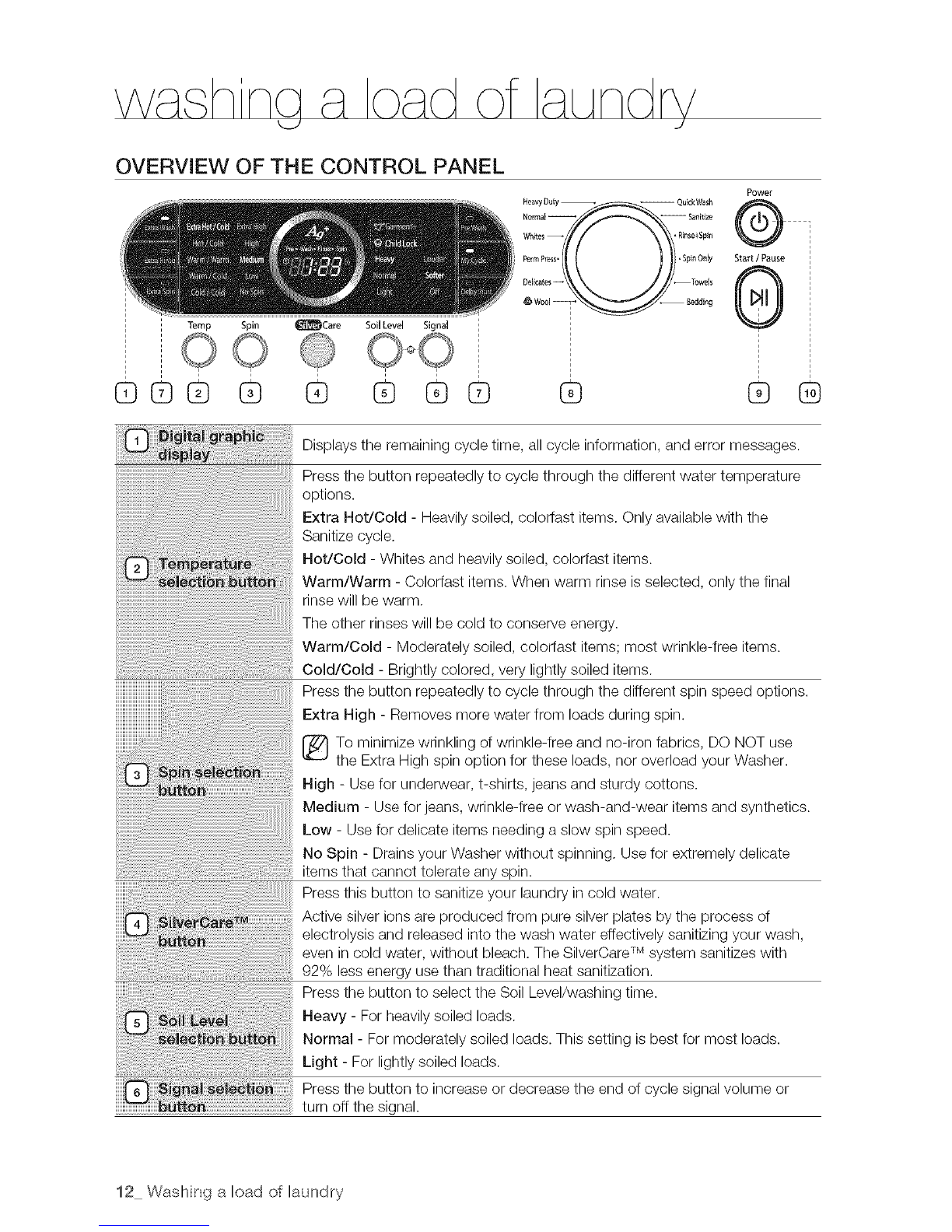

Overview of the control panel
Child lock
Garment+
My cycle
For SilverCare TM washing
Detergent use
Features
Cleaning the exterior
Cleaning the interior
Cleaning the dispensers
Storing your washer

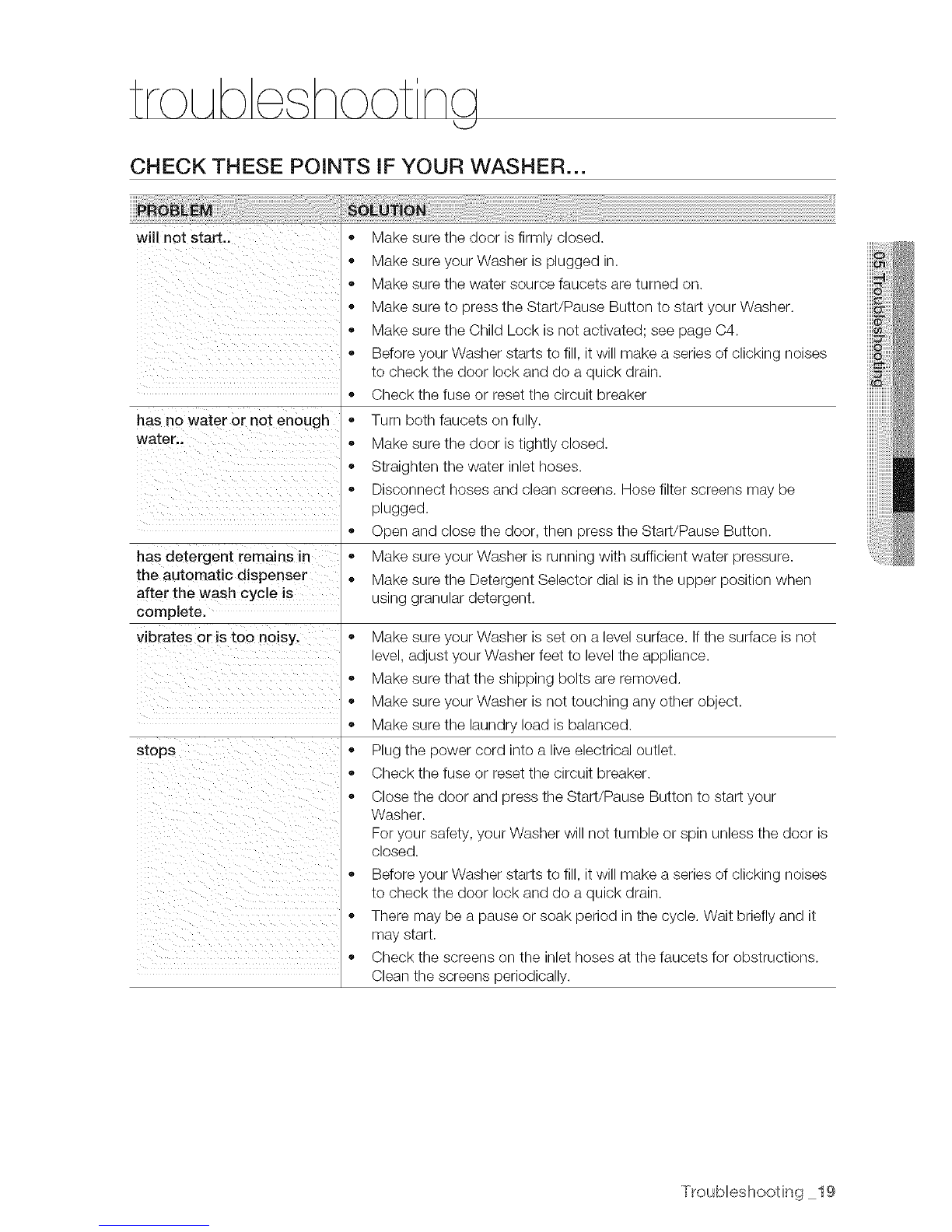

TROUBLESHOOTING t 9 Check these points if your washer...
21 Information codes
APPENDIX 23 Fabric care chart
24 Helping the environment
24 Declaration of conformity
24 Specification
25 Cycle chart
Contents 5

UNPACKING YOUR WASHER
Unpack your Washer and inspect it for shipping damage. Make sure you have received all of the items
shown below. If your Washer was damaged during shipping, or you do not have all of the items, contact
1-800-SAMSUNG(7267864).
OVERVIEW OF YOUR WASHER
Hot water supply water supply hose
Detergent drawer __ I .....
Control panel
Door
i
Drain Hose
Adjustable leg
( use for the Upper Bolt Hole )
Spanner Bolt hole covers Water Supply Hose Hose guide
BASIC LOCATION REQUIREMENTS
Electrical
• 120 Volt 60 Hz 15 AMP fuse or circuit breaker
Individual branch circuit serving only your Washer is recommended.
Your Washer is equipped with a power cord.
Z_ NEVER USE AN EXTENSION CORD.
CAUTION
€_ Installing your waslh,er

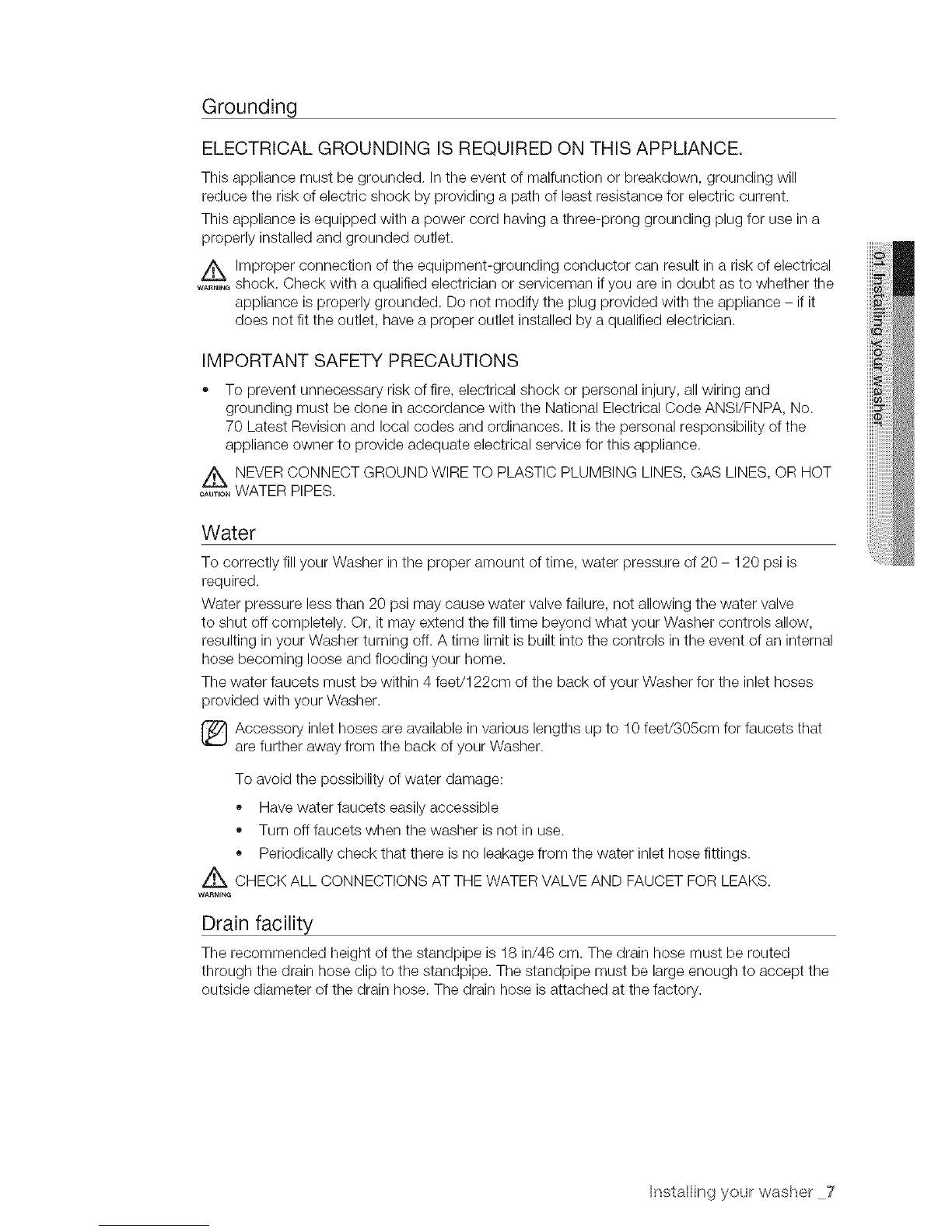

Grounding
ELECTRICAL GROUNDING IS REQUIRED ON THIS APPLIANCE.
This appliance must be grounded. Inthe event of malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a path of least resistance for electric current.
This appliance is equipped with a power cord having a three-prong grounding plug for use in a
properly installed and grounded outlet.
/_ Improper connection of the equipment-grounding conductor can result in a risk of electrical
....... shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the
appliance is properly grounded. Do not modify the plug provided with the appliance - if it
does not fit the outlet, have a proper outlet installed by a qualified electrician.
IMPORTANT SAFETY PRECAUTIONS
• To prevent unnecessary risk of fire, electrical shock or personal injury, all wiring and
grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No.
70 Latest Revision and local codes and ordinances. Itis the personal responsibility of the
appliance owner to provide adequate electrical service for this appliance.
/_ NEVER CONNECT GROUND WIRE TO PLASTIC PLUMBING LINES, GAS LINES, OR HOT
....... WATER PIPES.
Water
To correctly fill your Washer in the proper amount of time, water pressure of 20 - 120 psi is
required.
Water pressure less than 20 psi may cause water valve failure, not allowing the water valve
to shut off completely. Or, it may extend the fill time beyond what your Washer controls allow,
resulting in your Washer turning off. A time limit is built into the controls in the event of an internal
hose becoming loose and flooding your home.
The water faucets must be within 4 feet/122cm of the back of your Washer for the inlet hoses
provided with your Washer.
_!!} Accessory inlet hoses are available in various lengths up to 10 feet/305cm for faucets that
are further away from the back of your Washer.
To avoid the possibility of water damage:
Have water faucets easily accessible
Turn off faucets when the washer is not in use.
o Periodically check that there is no leakage from the water inlet hose fittings.
CHECK ALL CONNECTIONS AT THE WATER VALVE AND FAUCET FOR LEAKS.
WARNING
Drain facility
The recommended height of the standpipe is 18 in/46 cm. The drain hose must be routed
through the drain hose clip to the standpipe. The standpipe must be large enough to accept the
outside diameter of the drain hose. The drain hose is attached at the factory.

Flooring
For best performance, your Washer must be installed on a solidly constructed floor. Wood floors
may need to be reinforced to minimize vibration and/or unbalanced load situations. Carpeting
and soft tile surfaces are contributing factors in vibration and/or tendency for your washer to
move slightly during the spin cycle.
Never install your washer on a platform or weakly supported structure.
Location considerations
Do not install your washer in areas where water may freeze, since your washer will always
maintain some water in its water valve, pump, and hose areas. This can cause damage to belts,
the pump, hoses and other components. Operating temperature should be above 60°F/16°C.
Alcove or closet installation
MINIMUM CLEARANCES FOR CLOSET AND ALCOVE INSTALLATIONS:
Sides - 1 in /25 mm Top - 17 in /432 mm
Rear- 2.375 in /60 mm Closet Front - 2 in /51 mm
Ifthe washer and dryer are installed together, the closet front must have at least 72 in2or 465
cm2of an unobstructed air opening. Your washer alone does not require a specific air opening.
8 Installing yourrwaslherr

IMPORTANT NOTE TO INSTALLER
Please read the following instructions carefully before installing your Washer.
These instructions should be retained for future reference.
We recommend you hire a professional for installation of this washer.
STEP 1
Removing the Shipping Bolts
Before using your Washer, you must remove the four
shipping bolts from the back of the unit.
t. Loosen all bolts with the supplied spanner.
2. Slide the bolt and spacer up and remove the bolt with
the spacer through the hole in the rear wall of your
washer. Repeat for each bolt.
3. Fill the holes with the supplied plastic covers.
4. Keep the shipping bolts and spacers for future use.
STEP 2
Selecting a Location
(_ Before you install your washer, make sure the location:
• Has a hard, level surface
Is away from direct sunlight
Has adequate ventilation
Will not be freezing (below 32°F or 0°C)
Is away from heat sources such as oil or gas
Has enough space so that your Washer need not stand on its power cord
Doesn't have any carpeting that will obstruct ventilation openings.
STEP 3
Installing your Washer
t. Place the drain hose in the drain facility. Be
sure an airtight connection is NOT made
between the drain hose and the standpipe.
The standpipe must be at least 18 in or 46
cm high.
(_ Caution must always be exercised to
avoid collapsing or damaging the drain
hose. For best results, the drain hose
should not be restricted in any way - by
elbows, couplings, or excessive lengths.
For situations where the drain hose
cannot be conveniently elevated to at
least 18 in or 46 cm, the drain hose must
be supported.
Laundry tub
retainer
Stand pipe
]

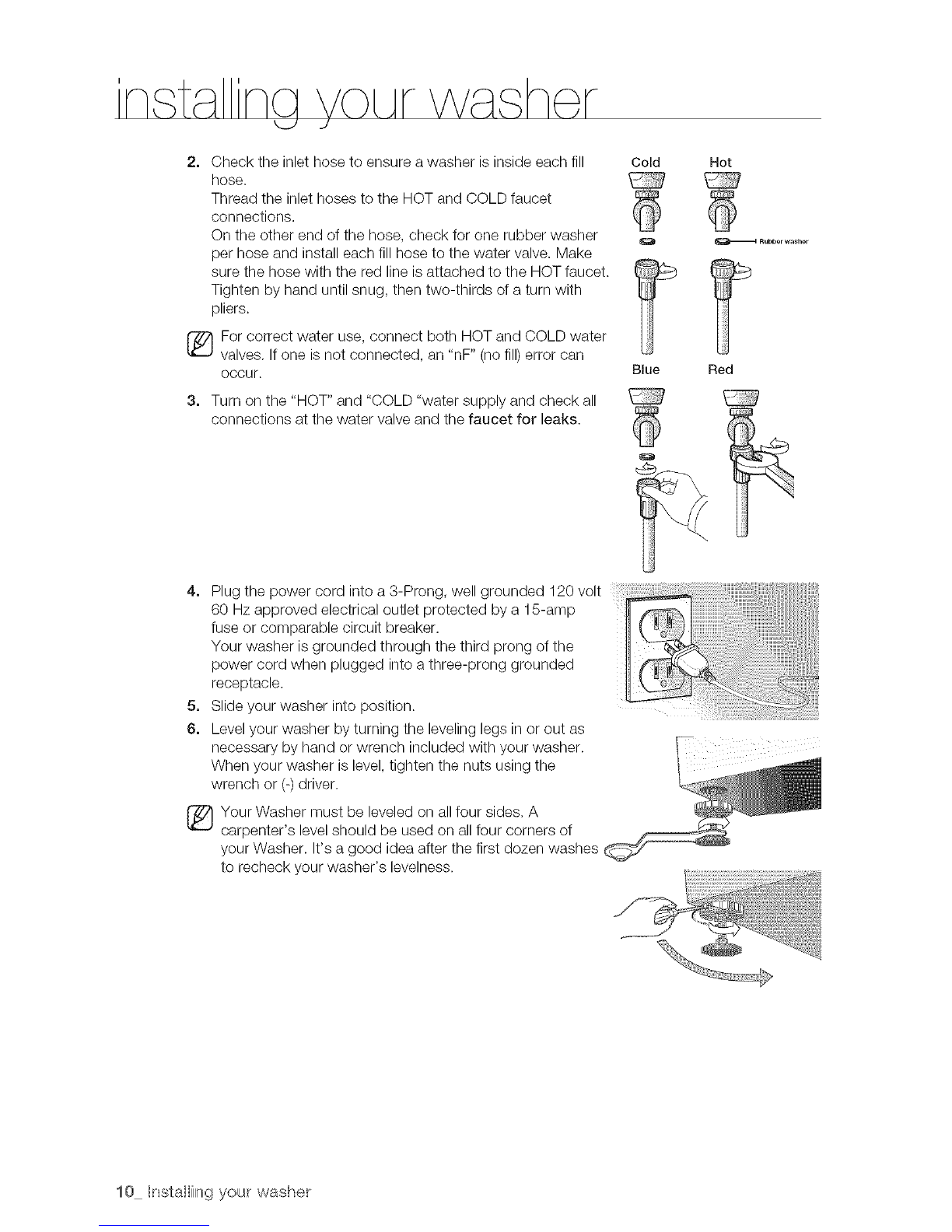

2. Check the inlet hose to ensure a washer is inside each fill Cold
hose.
Thread the inlet hoses to the HOT and COLD faucet
connections.
On the other end of the hose, check for one rubber washer Q
per hose and install each fill hose to the water valve. Make
sure the hose with the red line is attached to the HOT faucet.
Tighten by hand until snug, then two-thirds of a turn with
pliers.
[_For correct water use, connect both HOT and COLD water
valves. If one is not connected, an "nF" (no fill) error can
occur. Blue
3. Turn on the "HOT" and "COLD "water supply and check all
connections at the water valve and the faucet for leaks.
Hot
_Rubberwa_her
Red
4. Plug the power cord into a 3-Prong, well grounded 120 volt
60 Hz approved electrical outlet protected by a 15-amp
fuse or comparable circuit breaker.
Your washer is grounded through the third prong of the
power cord when plugged into a three-prong grounded
receptacle.
5. Slide your washer into position.
6. Level your washer by turning the leveling legs in or out as
necessary by hand or wrench included with your washer.
When your washer is level, tighten the nuts using the
wrench or (-) driver.
[_ Your Washer must be leveled on all four sides. A
carpenter's level should be used on all four corners of
your Washer. It's a good idea alter the first dozen washes
to recheck your washer's levelness.
10 tnstatIing your washer

LOADING YOUR WASHER
• You can fill the tub with dry, unfolded clothes; but DO NOT OVERLOAD the tub.
Overloading may reduce washing efficiency, cause excess wear, and possibly cause creasing or
wrinkling of the load.
Wash delicate items such as bras, hosiery, and other lingerie in the Delicates/Hand Wash cycle with
similar lightweight items.
When washing big bulky items or a few smaller items that don't fill the tub completely - a rug, a pillow,
stuffed toys, or one or two sweaters, for example - add a few towels to improve tumbling and spin
performance.
[_)Do not put king and queen size bed covering in the washer.
[_ During the spin cycle, the washer may add additional water to redistribute the excessive unbalance
inside the drum.
When washing heavily soiled loads, not overloading your Washer is very important to assure good
cleaning results.
To add a forgotten item:
1. Press the Start/Pause Button.
2. Wait for the Door Lock light to go out (5 seconds)
3. Add the item, close the door, and press the Start/Pause Button.
After a pause of 10 seconds, the cycle will resume.
[_To ensure thorough cleaning, add items within five minutes of starting the wash cycle.
Try washing bedding, towels, undergarments, and other articles that usually have close body
contact using the SilverCare TM Option, which sanitizes using cold water.
GETTING STARTED
1. Load your Washer.
2. Close the door.
3. Add detergent and additives to the dispenser (see pages 16-17).
4. Select the appropriate cycle and options for the load (see pages 12-15).
5. Press the Start/Pause Button.
6. The Wash Indicator light will illuminate.
7. The estimated cycle time will appear in the display.
The time may fluctuate to better indicate the time remaining inthe cycle.
8. Before your washer starts to fill, it will make a series of clicking noises to check the door lock and do a
quick drain.
(_o When the cycle is complete, the Door Lock light will go out and "End" will appear in the display.
DO NOT attempt to open the door until the Door Lock light is off. To add a forgotten item, see
"Loading your Washer" section. (page 11)
When your Washer is restarted after a pause, expect a delay of up to 15 seconds before the cycle
continues.
Pressing Power cancels the cycle and stops your washer.
The Pre Wash, Wash, Rinse and Spin indicator lights will illuminate during those portions of the
cycle.
Olperating ir_structnons11

OVERVIEW OF THE CONTROL PANEL
Temp Spin
oo
@@@ @
Power
Heavy Duty _ -- Quick Wash
Normal --_ Sanitize
Whites -- • Rinse+Spin
Perm Press, , Spin Only Start /Pause
Deiicates -- --_wels _
U
6 WoOl Bedding
_Care SoilLevel Signal
@ @ @© @ @ ®
iil Displays the remaining cycle time, all cycle information, and error messages.
Press the button repeatedly to cycle through the different water temperature
options.
Extra Hot/Cold - Heavily soiled, colorfast items. Only available with the
Sanitize cycle.
Hot/Cold - Whites and heavily soiled, colorfast items.
Warm/Warm - Colorfast items. When warm rinse is selected, only the final
rinse will be warm.
The other rinses will be cold to conserve energy.
Warm/Cold - Moderately soiled, colorfast items; most wrinkle-free items.
Cold/Cold - Brightly colored, very lightly soiled items.
Press the button repeatedly to cycle through the different spin speed options.
Extra High - Removes more water from loads during spin.
To minimize wrinkling of wrinkle-free and no-iron fabrics, DO NOT use
the Extra High spin option for these loads, nor overload your Washer.
High - Use for underwear, t-shirts, jeans and sturdy cottons.
Medium - Use for jeans, wrinkle-free or wash-and-wear items and synthetics.
Low - Use for delicate items needing a slow spin speed.
No Spin - Drains your Washer without spinning. Use for extremely delicate
items that cannot tolerate any spin.
Press this button to sanitize your laundry in cold water.
Active silver ions are produced from pure silver plates by the process of
[_J electrolysis and released into the wash water effectively sanitizing your wash,
even in cold water, without bleach. The SilverCare TM system sanitizes with
92% less energy use than traditional heat sanitization.
Press the button to select the Soil Level/washing time.
Heavy - For heavily soiled loads.
NormaJ - For moderately soiled loads. This setting is best for most loads.
Light - For lightly soiled loads.
Press the button to increase or decrease the end of cycle signal volume or
turn off the signal.
12 Washing a Iload of Ilaundry

Press these buttons to select different cycle options.
Delay Start - Any cycle can be delayed for up to 24 hours in one-hour
increments. Displayed hour indicates the time at which the wash will be
started.
Extra Wash - Add additional time to the wash for better stain removal.
Extra Rinse - Add an additional rinse at the end of the cycle to more
thoroughly remove laundry additives and perfumes.
Extra Spin - Add additional time to remove more water from loads.
My Cycle - Choose your favorite cycle including temperature, spin, soil level,
option, etc.
Pre Wash - To use this feature add detergent to the Pre Wash selection of
the detergent compartment. When turned on, the washer fills with cold water
and detergent, tumbles, then drains and advances to the selected wash
cycle. Some cycles cannot be selected with this option.
* You cannot select the PreWash option in the Delicate, Wool and Quick
Wash cycles.
Select the appropriate cycle for the type of load.
This will determine the tumble pattern and spin speed for the cycle.
_To minimize wrinkling of laundry, select the Perm Press cycle.
Heavy Duty - For sturdy, colorfast fabrics and heavily soiled garments.
Normal - For most fabrics including cottons, linens, and normally soiled
garments.
Whites - For white fabrics with or without bleach.
Perm Press - For wash-and-wear, synthetic fabrics, and lightly to normally
soiled garments.
Delicates - For sheer fabrics, bras, lingerie silk, and other handwash-only
fabrics. For best results, use liquid detergent.
Wool - For machine-washable wool. Loads should be under 8 pounds.
WOOLMARK
The wool wash cycle of this machine has been approved by
Woolmark for the washing of machine washable Woolmark
products provided that the products are washed according
to the instructions on the garment label and those issued by
the manufacturer of this washing machine, M0509.
Quick Wash - For lightly soiled garments needed quickly.
Sanitize - For heavily soiled, colorfast garments. This cycle heats the water to
150°F to eliminate bacteria.
[_ If Pause is selected during the heating portion of the Sanitize Cycle, your
Washer door will remain locked for your safety.
Rinse + Spin - Use for loads that need rinsing only or to add rinse-added
fabric softener to a load.
Spin Only - Provides a spin to remove more water.
Towels - For bath towels, washcloths and mats. Due to their high absorbency,
wash no more than a half load (6 pounds) of towels at a time for best results
Bedding - For bulky items such as blankets and sheets.
Press to pause and restart programs.
Press once to turn your washer on, press again to turn your washer off. If
the washer is left on for more than 10 minutes without any buttons being
touched, the power automatically turns off.
Washilng a load of Iaund_}_ 13

Child lock
A function that prevents children from playing with your washer.
ACTIVATI NG/DEACTIVATI NG
Ifyou want to activate/deactivate the Child Lock function, press the Soil Level and Signal
buttons at the same time for 3 seconds.
How ItWorks:
1. "Child Lock" can be activated while your Washer is running.
2. Once you activate "Child Lock", all controls (except for the Power button) will be locked
until you deactivate "Child Lock".
3. The Child Lock button will be lit while it is in effect.
[_ When buttons, other than the Power button, do not respond, please check if the "Child
Lock" function is on.
Garment+
You can add or take out laundry items even after the wash has started, as long as the
"Garment+" light is on. Pushing the Start/Pause button unlocks the door, unless the water is
too hot or if there is too much water in your Washer. If you are able to unlock the door and wish
to continue the wash cycle, close the door and press the Start/Pause button.
My cycle
Allows you to activate your custom wash (temperature, spin, soil level, etc.) with one-button
convenience.
By pushing the My Cycle button, you activate the settings used during the My Cycle mode.
The "My Cycle" light will indicate activation.
You can select all options as follows in "My Cycle" mode.
1. Select cycle using the Cycle Selector dial.
2. After cycle selection, set each option.
[_} See 25 for available with each
page option settings cycle.
3. Then, you can start "My Cycle" by pushing the Start/Pause button in "My Cycle" mode.
The cycle and options you select will be displayed the next time you choose "My Cycle".
[_You can change the "My Cycle" settings by repeating the same process above.
The last used setting will be displayed the next time you choose "My Cycle".
14 Waslhing a Iload of Ilaundry

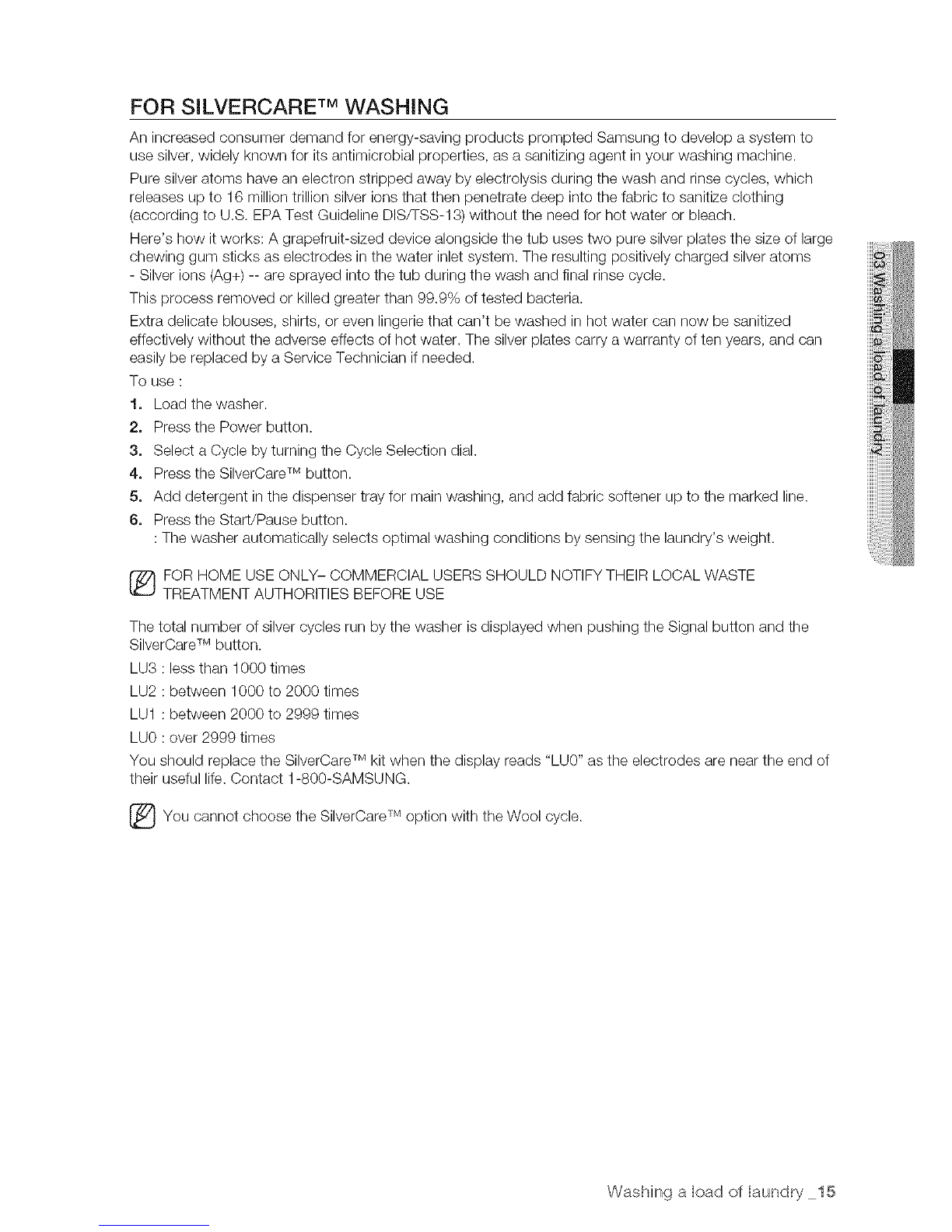

FOR SILVERCARE TM WASHING
An increased consumer demand for energy-saving products prompted Samsung to develop a system to
use silver, widely known for its antimicrobial properties, as a sanitizing agent in your washing machine.
Pure silver atoms have an electron stripped away by electrolysis during the wash and rinse cycles, which
releases up to 16 million trillion silver ions that then penetrate deep into the fabric to sanitize clothing
(according to U.S. EPA Test Guideline DIS/TSS-13) without the need for hot water or bleach.
Here's how it works: A grapefruit-sized device alongside the tub uses two pure silver plates the size of large
chewing gum sticks as electrodes in the water inlet system. The resulting positively charged silver atoms
- Silver ions (Ag+) -- are sprayed into the tub during the wash and final rinse cycle.
This process removed or killed greater than 99.9% of tested bacteria.
Extra delicate blouses, shirts, or even lingerie that can't be washed in hot water can now be sanitized
effectively without the adverse effects of hot water. The silver plates carry a warranty of ten years, and can
easily be replaced by a Service Technician if needed.
To use :
1. Load the washer.
2. Press the Power button.
3. Select a Cycle by turning the Cycle Selection dial.
4. Press the SilverCare TM button.
5. Add detergent in the dispenser tray for main washing, and add fabric softener up to the marked line.
6. Press the Start/Pause button.
: The washer automatically selects optimal washing conditions by sensing the laundry's weight.
(_FOR HOME USE ONLY- COMMERCIAL USERS SHOULD NOTIFY THEIR LOCAL WASTE
TREATMENT AUTHORITIES BEFORE USE
The total number of silver cycles run by the washer is displayed when pushing the Signal button and the
SilverCare TM button.
LU3 : less than 1000 times
LU2 : between 1000 to 2000 times
LU1 : between 2000 to 2999 times
LU0 : over 2999 times
You should replace the SilverCare TM kit when the display reads "LU0" as the electrodes are near the end of
their useful life. Contact 1-8O0-SAMSUNG.
[_You cannot choose the SilverCareTM option with the Wool cycle.
Washilng a Ioad of Iaundr}_15

DETERGENT USE
Your Washer is designed to use high efficiency (HE)detergents.
• For best cleaning results, use a high efficiency detergent such as Tide
HE, Wisk HE, Cheer HE or Gain HE*. High efficiency detergents contain
suds suppressors that reduce or eliminate suds. When fewer suds are
produced, the load tumbles more efficiently and cleaning is maximized.
Regular detergent is Not recommended. Please use only HE
....... detergent.
[_ Reducing the amount of detergent may reduce cleaning. It is important to pre-treat stains, sort
carefully by color and soil level, and avoid overloading.
* Brand names are trademarks of their respective manufacturers.
FEATURES
Automatic dispenser -I Detergent
compartment
Your Washer has separate compartments for dispensing
detergent and color-safe bleach, chlorine bleach, and fabric Pre wash
softener. All laundry additives are added to their respective compartment
compartments before starting your Washer. ent
The automatic dispenser MUST ALWAYS be in place before selector
starting your Washer.
DO NOT open the automatic dispenser when your Washer is _L I
running. )
To use:
1. panel.PUllout the dispenser drawer on the left side of the control _
2. Add recommended quantity of additive to the appropriate
compartments with laundry additives, being careful not to
overfill or spill.
3. Slide the dispenser drawer carefully and completely back
into the compartment.
Detergent compartment
1,
2.
Pour the recommended amount of laundry detergent directly into the detergent compartment
before starting your Washer.
Ifcolor-safe bleach is to be used, it should be added with detergent to the detergent
compartment.
When adding color-safe bleach with detergent, it is best if both laundry products are in
the same form - granular or liquid.
_lf using liquid detergent, lower the detergent selector and add the detergent to the
detergent compartment.
16 Washing a Iload of Ilaundry

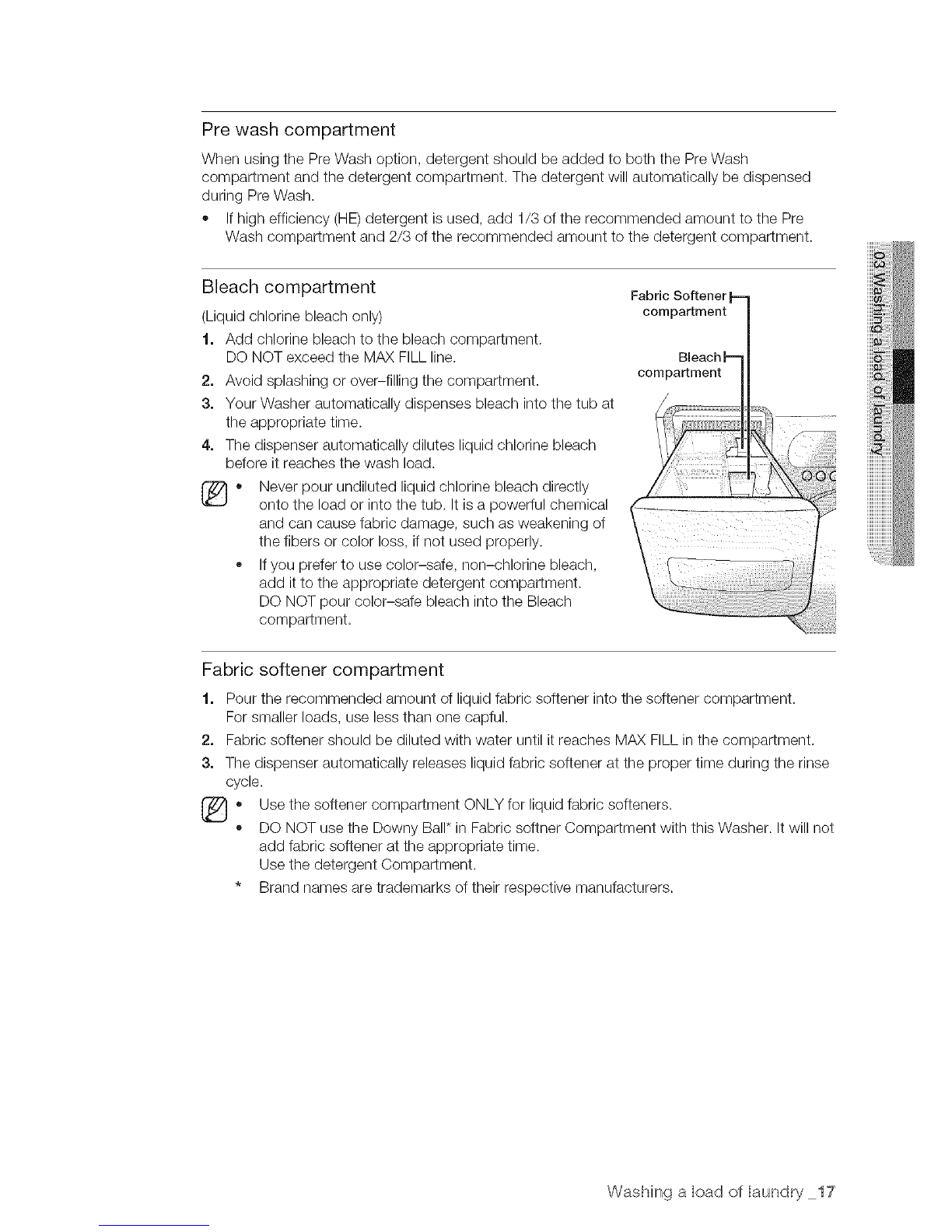

Pre wash compartment
When using the Pre Wash option, detergent should be added to both the Pre Wash
compartment and the detergent compartment. The detergent will automatically be dispensed
during Pre Wash.
• If high efficiency (HE)detergent is used, add 1/3 of the recommended amount to the Pre
Wash compartment and 2/3 of the recommended amount to the detergent compartment.
Bleach compartment
(Liquid chlorine bleach only)
t. Add chlorine bleach to the bleach compartment.
DO NOT exceed the MAX FILL line.
2. Avoid splashing or over-filling the compartment.
3. Your Washer automatically dispenses bleach into the tub at
the appropriate time.
4. The dispenser automatically dilutes liquid chlorine bleach
before it reaches the wash load.
_o Never pour undiluted liquid chlorine bleach directly
onto the load or into the tub. It is a powerful chemical
and can cause fabric damage, such as weakening of
the fibers or color loss, if not used properly.
Ifyou prefer to use color-safe, non-chlorine bleach,
add it to the appropriate detergent compartment.
DO NOT pour color-safe bleach into the Bleach
compartment.
Fabric Softener
compartment
Bleach _---
compartment
Fabric softener compartment
t. Pour the recommended amount of liquid fabric soRener into the softener compartment.
For smaller loads, use less than one capful.
2. Fabric softener should be diluted with water until it reaches MAX FILL in the compartment.
3. The dispenser automatically releases liquid fabric softener at the proper time during the rinse
cycle.
[_o Use the softener compartment ONLY for liquid fabric softeners.
DO NOT use the Downy Ball* in Fabric softner Compartment with this Washer. Itwill not
add fabric softener at the appropriate time.
Use the detergent Compartment.
* Brand names are trademarks of their respective manufacturers.
Washing a Ioad of Iaundr}_17

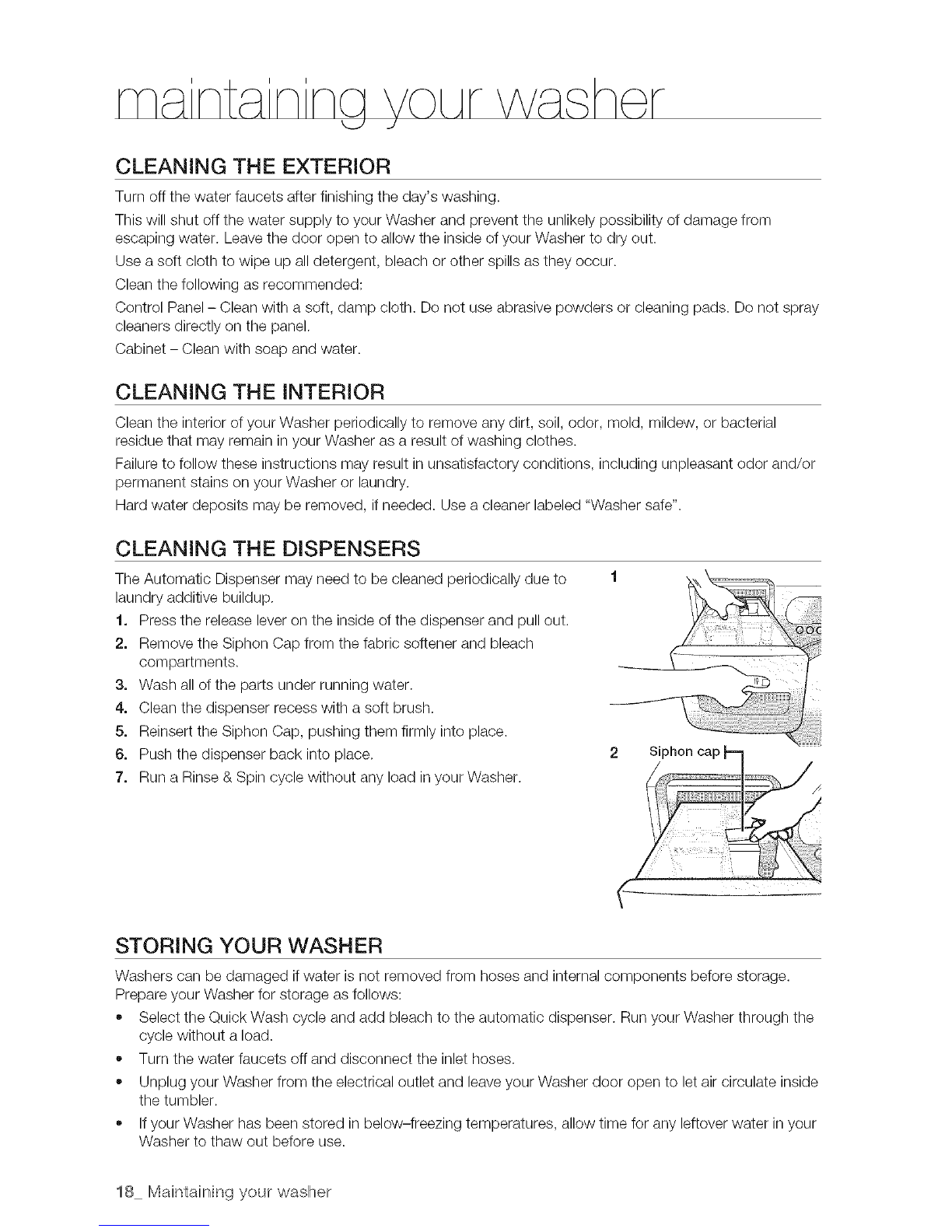

CLEANING THE EXTERIOR
Turn off the water faucets after finishing the day's washing.
This will shut off the water supply to your Washer and prevent the unlikely possibility of damage from
escaping water. Leave the door open to allow the inside of your Washer to dry out.
Use a soft cloth to wipe up all detergent, bleach or other spills as they occur.
Clean the following as recommended:
Control Panel - Clean with a soff, damp cloth. Do not use abrasive powders or cleaning pads. Do not spray
cleaners directly on the panel.
Cabinet - Clean with soap and water.
CLEANING THE INTERIOR
Clean the interior of your Washer periodically to remove any dirt, soil, odor, mold, mildew, or bacterial
residue that may remain in your Washer as a result of washing clothes.
Failure to follow these instructions may result in unsatisfactory conditions, including unpleasant odor and/or
permanent stains on your Washer or laundry.
Hard water deposits may be removed, if needed. Use a cleaner labeled "Washer safe".
CLEANING THE DISPENSERS
The Automatic Dispenser may need to be cleaned periodically due to
laundry additive buildup.
t. Press the release lever on the inside of the dispenser and pull out.
2. Remove the Siphon Cap from the fabric softener and bleach
compartments.
3. Wash all of the parts under running water.
4. Clean the dispenser recess with a soff brush.
5. Reinsert the Siphon Cap, pushing them firmly into place.
6. Push the dispenser back into place.
7. Run a Rinse & Spin cycle without any load in your Washer.
2
STORING YOUR WASHER
Washers can be damaged if water is not removed from hoses and internal components before storage.
Prepare your Washer for storage as follows:
• Select the Quick Wash cycle and add bleach to the automatic dispenser. Run your Washer through the
cycle without a load.
Turn the water faucets off and disconnect the inlet hoses.
Unplug your Washer from the electrical outlet and leave your Washer door open to let air circulate inside
the tumbler.
Ifyour Washer has been stored in below-freezing temperatures, allow time for any leftover water in your
Washer to thaw out before use.
18 Maintaining your waslher

CHECK THESE POINTS iF YOUR WASHER...
will not start..
has no water or not enough
water..
o
has detergent remains i£ •
the automatic dispenser
after the wash cycle is
complete.
vibrates or is too noisy.
stops
Make sure the door isfirmly closed.
Make sure your Washer is plugged in.
Make sure the water source faucets are turned on.
Make sure to press the Start/Pause Button to start your Washer.
Make sure the Child Lock is not activated; see page C4.
Before your Washer starts to fill, it will make a series of clicking noises
to check the door lock and do a quick drain.
Check the fuse or reset the circuit breaker
Turn both faucets on fully.
Make sure the door is tightly closed.
Straighten the water inlet hoses.
Disconnect hoses and clean screens. Hose filter screens may be
plugged.
Open and close the door, then press the Start/Pause Button.
Make sure your Washer is running with sufficient water pressure.
Make sure the Detergent Selector dial is in the upper position when
using granular detergent.
Make sure your Washer is set on a level surface. If the surface is not
level, adjust your Washer feet to level the appliance.
Make sure that the shipping bolts are removed.
Make sure your Washer is not touching any other object.
Make sure the laundry load is balanced.
Plug the power cord into a live electrical outlet.
Check the fuse or reset the circuit breaker.
Close the door and press the Start/Pause Button to start your
Washer.
For your safety, your Washer will not tumble or spin unless the door is
closed.
Before your Washer starts to fill, it will make a series of clicking noises
to check the door lock and do a quick drain.
There may be a pause or soak period in the cycle. Wait briefly and it
may start.
Check the screens on the inlet hoses at the faucets for obstructions.
Clean the screens periodically.
Troublleslhooting 19

troLAbesho©tnG
fills with the wrong
temperature water,
door locked or will not
open.
does not drain and/or spin.
load is too wet at the end of
the cycle,
leaks water.
has excessive suds.
• Turn both faucets on fully.
Make sure the temperature selection is correct.
Make sure the hoses are connected to the correct faucets.
Flush water lines.
Check the water heater. It should be set to deliver a minimum 120 °
F (49° C) hot water at the tap. Also check the water heater capacity
and recovery rate.
Disconnect the hoses and clean the screens. The hose filter screens
may be plugged.
As your Washer is filling, the water temperature may change as
the automatic temperature control feature checks incoming water
temperature. This is normal.
While your Washer is filling, you may notice just hot and/or just
cold water going through the dispenser when cold or warm wash
temperatures are selected. This is a normal function of the automatic
temperature control feature as your Washer determines the
temperature of the water.
Press the Start/Pause Button to stop your Washer.
Your Washer door will remain locked during the heating portion of the
Sanitize Cycle
It may take a few moments for the door lock mechanism to
disengage.
Check the fuse or reset the circuit breaker.
Straighten the drain hoses. Eliminate kinked hoses. Ifthere is a drain
restriction, call for service.
Close the door and press the Start/Pause Button. For your safety,
your Washer will not tumble or spin unless the door is closed.
Use the High or Extra High spin speed.
Use high efficiency detergent to reduce over-sudsing.
Load is too small. Very small loads (one or two items) may become
unbalanced and not spin out completely.
Make sure the door is firmly closed.
Make sure all hose connections are tight.
Make sure the end of the drain hose is correctly inserted and secured
to the drainage system.
Avoid overloading.
Use high efficiency detergent to prevent over-sudsing.
Use high efficiency detergent to prevent over-sudsing.
Reduce the detergent amount for soft water, small or lightly soiled
loads.
Non-HE detergent is NOT recommended.
