Samsung WF393BTPA series User manual

Washing Machine
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service or accessory
parts, please register your product at or
contact
www.samsung.com/register
1-800-SAMSUNG (726-7864)
WF395BTPA**
WF393BTPA**
This manual is made with 100% recycled paper.
WF395BTPA-03145B-02_EN_20120829.indd 1WF395BTPA-03145B-02_EN_20120829.indd 1 2012-08-31  12:36:142012-08-31  12:36:14

2_ key features of your new PowerFoam™ washer
key features of your new
PowerFoam™ washer
1. Extra Large Capacity
Samsung’s extra-large capacity laundry machine can wash a full set of your bedding, a king-
size comforter, or up to 28 bath towels in a single load. Since you don’t have to do as many
loads, you save time, money, water, and energy.
2. VRT™ (Vibration Reduction Technology)
This Samsung washer performs smoothly at top spin speeds, minimizing noise and vibration.
3. Pure Cycle™ (Tub Cleaning cycle)
Clean your drum with one button! Pure Cycle is specially designed to remove detergent
residue and dirt buildup in the tub, diaphragm, and on the door glass without the need for
special chemical detergents.
4. Deep steam
The Deep Steam feature boosts cleaning performance and loosens grime and dirt, providing
superior cleaning results.
5. Diamond drum™
Takes gentle care of your fabrics. With inside holes 36 % smaller than those of conventional
drums,the diamond drum prevents fabrics from sticking out through the holes and
consequently being damaged.
6. Digital display & Center jog dial
The jog dial enables you to select cycles in both directions with ease, and the display is easy
to use and understand.
7. DD Motor
The power to handle anything! Our direct-drive inverter motor delivers power right to the
washer tub from a variable speed, reversible motor. A beltless direct-drive motor generates
a higher spin speed of 1,200 rpm for more eective, quiet operation. The washer also has
fewer moving parts, meaning fewer repairs.
WF395BTPA-03145B-02_EN_20120829.indd Sec9:2WF395BTPA-03145B-02_EN_20120829.indd Sec9:2 2012-08-31  12:36:182012-08-31  12:36:18

key features of your new PowerFoam™ washer _3
8. Sanitize
When you select the NSF certified Sanitize cycle, the water heats to an extra high
temperature and removes 99.9 % of certain bacteria typically found on clothing, bedding, or
towels. This certification is awarded by NSF International, an independent third-party testing
and certification organization.
Please check the garment care label to avoid garment damage. Only sanitizing cycles have
been designed to meet the requirements of this protocol for sanitization ecacy.

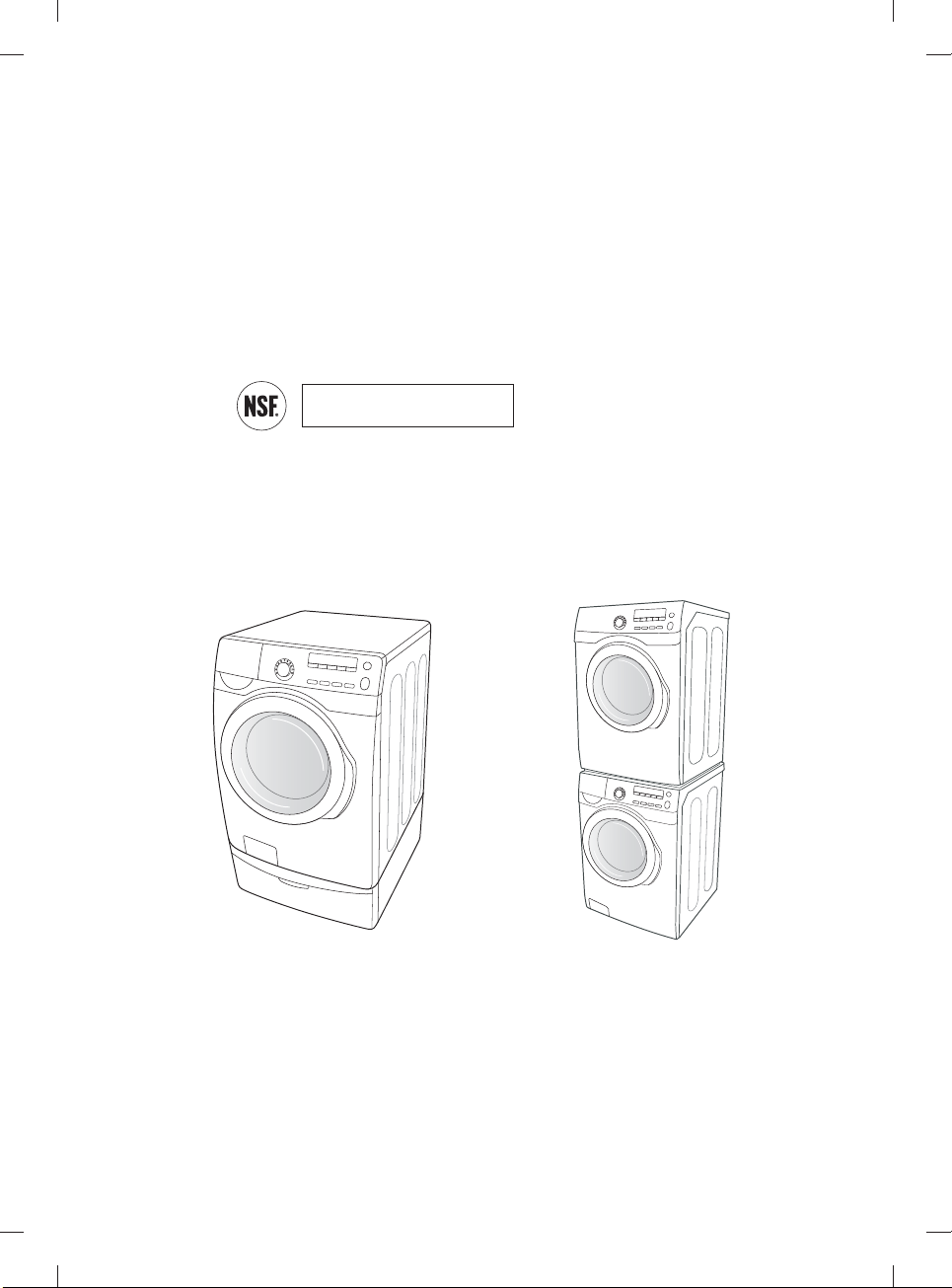

9. Pedestal with Storage Drawers (Model No : WE357*)
An optional 15” pedestal is available to raise the washer for easier loading and unloading.
It also oers a built-in storage drawer that can hold a 100 oz. bottle of detergent
10. Stacking (Model No : SK-3A1/XAA, SK-4A/XAA, SK-5A/XAA)
Samsung washers and dryers can be stacked to maximize usable space. An optional
stacking kit is available for purchase from your Samsung retailer.
<Pedestal with Storage Drawers> <Stacking>
NSF Protocol P172
Sanitization Performance of Residential and
Commercial, Family-Sized Clothes Washers
WF395BTPA-03145B-02_EN_20120829.indd Sec9:3WF395BTPA-03145B-02_EN_20120829.indd Sec9:3 2012-08-31  12:36:182012-08-31  12:36:18

4_ Safety information
safety information
Congratulations on your new Samsung washer. This manual contains important
information on the installation, use, and care of your appliance. Please take time
to read this manual to take full advantage of your washer’s many benefits and
features.
WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution, and care when installing,
maintaining, and operating your washer.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury
or death.
To reduce the risk of fire, explosion, electric shock, or personal injury
when using your washer, follow these basic safety precautions:
CAUTION
Hazards or unsafe practices that may result in minor personal injury or
property damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
Note
These warning signs are here to prevent injury to you and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
Read all instructions before using the appliance.
SAVE THESE INSTRUCTIONS
WF395BTPA-03145B-02_EN_20120829.indd Sec1:4WF395BTPA-03145B-02_EN_20120829.indd Sec1:4 2012-08-31  12:36:182012-08-31  12:36:18

Safety information _5
SAVE THESE INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your
appliance, follow basic precautions, including the following:
1. Read all instructions before using the appliance.
2. Do not wash or dry articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances
as they give o vapors that could ignite or explode.
3. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
4. Before the appliance is removed from service or discarded, remove the door to the
washing or drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to the weather.
7. Do not tamper with controls.
8. Do not repair or replace any part of the appliance or attempt any servicing unless
specifically recommended in the user-maintenance instructions or in published user-
repair instructions that you understand and have the skills to carry out.
9. Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances
to the wash water. These substances give o vapors that could ignite or explode.
10.Under certain conditions, hydrogen gas may be produced in a hot water system
that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If
the hot water system has not been used for such a period, before using a washer or
combination washer-dryer, turn on all hot water faucets and let the water flow from
each for several minutes. This will release any accumulated hydrogen gas. As the gas is
flammable, do not smoke or use an open flame during this time.
State of California Proposition 65 Warnings:
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of
California to publish a list of substances known to the State of California to cause cancer,
birth defects, or other reproductive harm, and requires businesses to warn of potential
exposure to such substances.
This product contains a chemical known to the State of California to cause cancer, birth
defects, or other reproductive harm. This appliance can cause low-level exposure to some
of the substances listed, including benzene, formaldehyde, and carbon monoxide.
WARNING
WARNING
WF395BTPA-03145B-02_EN_20120829.indd Sec1:5WF395BTPA-03145B-02_EN_20120829.indd Sec1:5 2012-08-31  12:36:182012-08-31  12:36:18

6_ Safety information
safety information
SAVE THESE INSTRUCTIONS
SEVERE WARNING SIGNS FOR INSTALLATION
Plug the power cord into an AC 120 V / 60 Hz / 15 A wall socket or higher and use the
socket for this appliance only. In addition, do not use an extension cord.
- Sharing a wall socket with other appliances using a power strip or extending the power
cord may result in electric shock or fire.
- Do not use an electric transformer. It may result in electric shock or fire.
- Ensure that the power voltage, frequency and current are the same as those of the
product specifications. Failing to do so may result in electric shock or fire.
The installation of this appliance must be performed by a qualified technician or service
company.
- Failing to do so may result in electric shock, fire, an explosion, problems with the
product, or injury.
Remove all foreign substances such as dust or water from the power plug terminals and
contact points using a dry cloth on a regular basis.
- Unplug the power plug and clean it with a dry cloth.
- Failing to do so may result in electric shock or fire.
Plug the power plug into the wall socket in the right direction so that the cord runs towards
the floor.
- If you plug the power plug into the socket in the opposite direction, the electric wires
within the cable may be damaged and this may result in electric shock or fire.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
- This may result in electric shock, fire, an explosion, or problems with the product
- Never plug the power cord into a socket that is not grounded correctly and make sure
that it is in accordance with local and national codes.
Do not install this appliance near a heater or inflammable material.
Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct
sunlight and water (rain drops).
Do not install this appliance in a location where gas may leak.
- This may result in electric shock or fire.
Plug the power plug into the wall socket firmly. Do not use a damaged power plug,
damaged power cord or loose wall socket.
- This may result in electric shock or fire.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the power cord,
insert the power cord between objects, or push the power cord into the space behind the
appliance.
- This may result in electric shock or fire.
Do not pull the power cord when unplugging the power plug.
- Unplug the power plug by holding the plug.
- Failing to do so may result in electric shock or fire.
WARNING
WF395BTPA-03145B-02_EN_20120829.indd Sec1:6WF395BTPA-03145B-02_EN_20120829.indd Sec1:6 2012-08-31  12:36:182012-08-31  12:36:18

Safety information _7
SAVE THESE INSTRUCTIONS
When the power plug or power cord is damaged, contact your nearest service center.
CAUTION SIGNS FOR INSTALLATION
This appliance should be positioned in such a way that it is accessible to the power plug.
- Failing to do so may result in electric shock or fire due to electric leakage.
Install your appliance on a level and hard floor that can support its weight.
- Failing to do so may result in abnormal vibrations, noise, or problems with the product.
Unplug the power plug when the appliance is not being used for long periods of time or
during a thunder/lightning storm.
- Failing to do so may result in electric shock or fire.
SEVERE WARNING SIGNS FOR USING
If the appliance is flooded, cut the power immediately and contact your nearest service
center.
If the appliance generates a strange noise, a burning smell or smoke, unplug the power
plug immediately and contact your nearest service center.
- Failing to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without
touching the power plug. Do not touch the appliance or power cord.
- Do not use a ventilating fan.
- A spark may result in an explosion or fire.
Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or
other flammable or explosive substances.
- This may result in electric shock, fire or an explosion.
Do not open the washer door by force while it is operating (high-temperature washing/
drying/spinning).
- Water flowing out of the washer may result in burns or cause the floor to be slippery.
This may result in injury.
- Opening the door by force may result in damage to the product or injury.
Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the
washer before using it.
Do not insert your hand under the washer.
- This may result in injury.
CAUTION
WARNING
WF395BTPA-03145B-02_EN_20120829.indd Sec1:7WF395BTPA-03145B-02_EN_20120829.indd Sec1:7 2012-08-31  12:36:182012-08-31  12:36:18

8_ Safety information
safety information
SAVE THESE INSTRUCTIONS
Do not touch the power plug with wet hands.
- This may result in electric shock.
Do not turn the appliance o by unplugging the power plug while an operation is in
progress.
- Plugging the power plug into the wall socket again may cause a spark and result in
electric shock or fire.
Keep all packaging materials well out of the reach of children, as packaging materials can
be dangerous to children.
- If a child places a bag over its head, it may result in suocation.
Do not let children or infirm persons use this washer unsupervised.
- Failing to do so may result in electric shock, burns or injury.
Do not insert your hand or a metal object under the washer while it is operating.
- This may result in injury.
Make sure the detergent drawer is closed before you put laundry into the washer or remove
laundry from the washer.
- If the detergent drawer is open, you could strike the drawer with your head and injure
yourself.
Do not attempt to repair, disassemble, or modify the appliance yourself.
- Do not use any fuse(such as cooper, steel wire, etc.) other than the standard fuse.
- When repairing or reinstalling the appliance is required, contact your nearest service
center.
- Failing to do so may result in electric shock, fire, problems with the product, or injury.
If any foreign substance such as water has entered the appliance, unplug the power plug
and contact your nearest service center.
- Failing to do so may result in electric shock or fire.
When the water supply hose comes loose from the faucet and floods the appliance, unplug
the power plug.
- Failing to do so may result in electric shock or fire.
If any foreign substance enters the appliance, unplug the power plug and contact you
nearest service center.
- Failing to do so my result in electric shock or fire.
WF395BTPA-03145B-02_EN_20120829.indd Sec1:8WF395BTPA-03145B-02_EN_20120829.indd Sec1:8 2012-08-31  12:36:182012-08-31  12:36:18

Safety information _9
SAVE THESE INSTRUCTIONS
CAUTION CAUTION SIGNS FOR USING
When the washer is contaminated by a foreign substance such as detergent, dirt, food
waste, etc., unplug the power plug and clean the washer using a damp and soft cloth.
- Failing to do so may result in discoloration, deformation, damage or rust.
The front glass may be broken by a strong impact. Take care when using the washer.
- When the glass is broken, it may result in injury.
After a water supply failure or when reconnecting the water supply hose, open the faucet
slowly.
Open the faucet slowly after a long period of non-use.
- The air pressure in the water supply hose or the water pipe may result in damage to a
part or in water leakage.
If a drain error occurs during an operation, check if there is a draining problem.
- If the washer is used when it is flooded because of a draining problem, it may result in
electric shock or fire due to electric leakage.
Insert the laundry into the washer completely so that laundry does not get caught in the
door.
- If laundry gets caught in the door, it may result in damage to the laundry or the washer,
or result in water leakage.
Ensure that the faucet is turned o when the washer is not being used.
- Ensure that the screw on the water supply hose connector is properly tightened.
- Failing to do so may result in property damage or injury.
Take care that the Rubber Seal and the Front Door Glass are not contaminated by a foreign
substance (e.g. waste, thread, hair, etc.)
- If a foreign substance is caught in the door or the door is not completely closed, it may
cause a water leakage.
Open the faucet and check if the water supply hose connector is firmly tightened and that
there is no water leaking before using the product.
- If the screws or the water supply hose connector are loose, it may result in water
leakage.
The product you have purchased is designed for domestic use only.
The use for business purposes qualifi es as product misuse. In this case, the product will
not be covered by the standard warranty provided by Samsung and no responsibility can
be attributed to Samsung for malfunctions or damages resulting from such misuse.
If the wash is not started and the laundry is left for a period of time after you have added
detergent or applied stain remover or pre-treatment onto the laundry, the laundry may be
discolored.
Select the recommended cycle and temperature on the basis of the laundry items, sort the
laundry by color on the basis of its colorfastness and select the appropriate cycle.
Make sure that foreign objects such as pins, buttons and coins are removed from clothing
items when adding laundry to the washer. Wash dirty laundry separately from relatively
clean items and wash fragile items separately from tougher textiles.
If an item is stained, wash it as soon as possible. Use stain remover or detergent only after
testing the colorfastness of the item by applying a small quantity to an inside seam.
WF395BTPA-03145B-02_EN_20120829.indd Sec1:9WF395BTPA-03145B-02_EN_20120829.indd Sec1:9 2012-08-31  12:36:182012-08-31  12:36:18

10_ Safety information
safety information
SAVE THESE INSTRUCTIONS
Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
- This may result in electric shock, fire, problems with the product, or injury.
Do not operate the appliance with wet hands.
- This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the appliance.
- As well as being harmful to humans, it may also result in electric shock, fire or problems
with the product.
Do not place an object that generates a electromagnetic field near the washer.
- This may result in injury due to a malfunction.
Since the water drained during a high-temperature wash or drying cycle is hot, do not touch
the water.
- This may result in burns or injury.
Do not wash, spin or dry water-proof seats, mats or clothing (*).
- Do not wash thick, hard mats even if the washer mark is on the care label.
- This may result in injury or damage to the washer, walls, floor or clothing due to
abnormal vibrations.
* Woolen Bedding, rain covers, fishing vests, ski pants, sleeping bags, diaper covers,
sweat suits, and bicycle, motor cycle, car covers, etc.
Do not operate the washer when the detergent box is removed.
- This may result in electric shock or injury due to water leakage.
Do not touch the inside of the tub during or just after drying as it is hot.
- This may result in burns.
Do not insert your hand into the detergent dispenser after opening it.
- This may result in injury as your hand may be caught.
Do not place any objects (such as shoes, food waste, animals) other than laundry into the
washer.
- This may result in damage to the washer, or injury and death in the case of pets due to
the abnormal vibrations.
Do not press the buttons using sharp objects such as pins, knifes, fingernails, etc.
- This may result in electric shock or injury.
Do not wash laundry contaminated by oils, creams or lotions usually found in skincare
shops or massage clinics.
- This may result in the rubber seal becoming deformed and water leakage.
Do not leave metal objects such as a safety pin or hair pin, or bleach in the tub for long
periods of time.
- This may cause the tub to rust.
- If rust starts appearing on the surface of the tub, apply a cleansing agent (neutral) to the
surface and use a sponge to clean it. Never use a metal brush.
WF395BTPA-03145B-02_EN_20120829.indd Sec1:10WF395BTPA-03145B-02_EN_20120829.indd Sec1:10 2012-08-31  12:36:182012-08-31  12:36:18

Safety information _11
SAVE THESE INSTRUCTIONS
WARNING
Do not use dry cleaning detergent directly and do not wash, rinse, or spin laundry
contaminated by dry cleaning detergent.
- This may result in spontaneous combustion or ignition due to the heat of the oxidation of
the oil.
Do not use hot water from water cooling/heating devices.
- This may result in problems with the washer.
Do not use natural hand-washing soap for the washer.
- If it hardens and accumulates inside the washer, it may result in problems with the
product, discoloration, rust or bad odors.
Do not wash large laundry items such as Bedding in the washing net.
- Failing to do so may result in injury due to abnormal vibrations.
- Place smaller items, such as lace socks and lingerie in the washing net.
Do not use hardened detergent.
- If it accumulates inside the washer, it may result in water leakage.
Do not wash throw rugs or doormats.
- If you wash throw rugs or doormats, the sand will accumulate inside the washer. It may
result in error such as no draining.
Take care that children’s fingers are not caught in the door when closing it. This may result
in injury.
SEVERE WARNING SIGNS FOR CLEANING
Do not clean the appliance by spraying water directly onto it.
Do not use benzene, thinner or alcohol to clean the appliance.
- This may result in discoloration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
- Failing to do so may result in electric shock or fire.
WF395BTPA-03145B-02_EN_20120829.indd Sec1:11WF395BTPA-03145B-02_EN_20120829.indd Sec1:11 2012-08-31  12:36:182012-08-31  12:36:18

12_ Contents
contents
INSTALLING YOUR WASHER
13
13 Unpacking your washer
13 Overview of your washer
14 Electrical
14 Grounding
14 Water
15 Drain facility
15 Flooring
15 Location considerations
15 Alcove or closet installation
15 Undercounter installation (washer only)
16 With optional pedestal base or stacking kit
17 Important note to installer
17 Installation flow chart
OPERATING INSTRUCTIONS
20
20 Loading your washer
20 Washing clothes: Basic Instructions
WASHING A LOAD OF LAUNDRY
21
21 Overview of the control panel
23 Child Lock
24 Garment+
24 Delay Start
25 My Cycle
26 Washing clothes using the cycle selector
26 Using steam wash
27 Detergent use
27 Features
MAINTAINING YOUR WASHER
29
29 Cleaning the exterior
29 Cleaning the interior
29 Cleaning the dispensers
29 Storing your washer
30 Cleaning the debris filter
31 Cleaning the door seal/bellow
31 Preserving the top cover and the front frame
32 Pure Cycle™
TROUBLESHOOTING
33
33 Check these solutions if your washer…
35 Information codes
APPENDIX
37
37 Fabric care chart
38 Cycle chart
39 Helping the environment
39 Declaration of conformity
39 Specification
WF395BTPA-03145B-02_EN_20120829.indd Sec3:12WF395BTPA-03145B-02_EN_20120829.indd Sec3:12 2012-08-31  12:36:192012-08-31  12:36:19

Installing your washer _13
installing your washer
UNPACKING YOUR WASHER
Unpack your washer and inspect it for shipping damage. Make sure you have received all the items
shown below. If your washer was damaged during shipping, or you do not have all of the items, contact
1-800-SAMSUNG (726-7864).
To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the unit.
Packing materials can be dangerous to children. Keep all packing material (plastic bags, polystyrene,
etc.) well out of the reach of children.

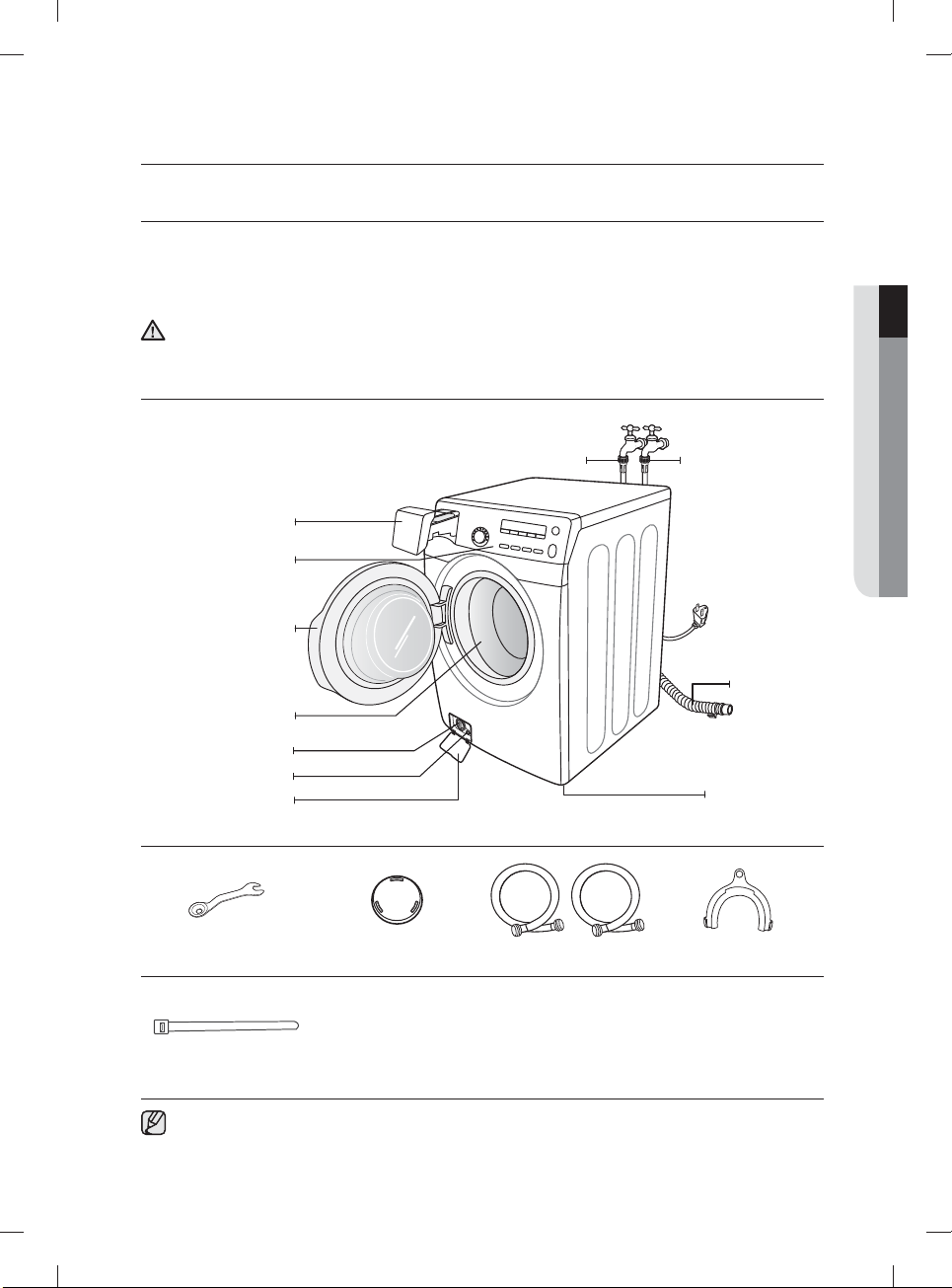

OVERVIEW OF YOUR WASHER
Wrench Bolt Hole Covers Water Supply Hoses Hose Guide
Plastic Zip Hose Tie
* Bolt hole covers : The number of bolt hole covers depends on the model (3~6 covers).
01 Installing your washer
Adjustable legs
Cold water supply
hose
Hot water supply
hose
Drain Hose
Detergent drawer
Control panel
Door
Tub
Debris filter
Drain tube
Filter cover
WARNING
WF395BTPA-03145B-02_EN_20120829.indd Sec2:13WF395BTPA-03145B-02_EN_20120829.indd Sec2:13 2012-08-31  12:36:192012-08-31  12:36:19

14_ Installing your washer
BASIC LOCATION REQUIREMENTS
Electrical
• 120 Volt 60 Hz 15 AMP fuse or circuit breaker
• Individual branch circuit serving only your washer is recommended.
• Your washer is equipped with a power cord.
NEVER USE AN EXTENSION CORD.
Grounding
ELECTRICAL GROUNDING IS REQUIRED FOR THIS APPLIANCE.
This appliance must be grounded. In the event of malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a path of least resistance for electric current.
This appliance is equipped with a power cord having a three-prong grounding plug for use in a
properly installed and grounded three-prong outlet.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Improper connection of the equipment-grounding conductor can result in a risk of electrical
shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the
appliance is properly grounded. Do not modify the plug provided with the appliance – if it
does not fit the outlet, have a proper outlet installed by a qualified electrician.
IMPORTANT SAFETY PRECAUTIONS
• To prevent unnecessary risk of fire, electrical shock or personal injury, all wiring and
grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No.
70 Latest Revision and local codes and ordinances. It is the personal responsibility of the
appliance owner to provide adequate electrical service for this appliance.
NEVER CONNECT THE GROUND WIRE TO PLASTIC PLUMBING LINES, GAS LINES, OR
HOT WATER PIPES.
Water
Using bad quality water may cause the water supply valve to operate abnormally.
To correctly fill your washer in the proper amount of time, water pressure of 20-116 psi (137-
800kPa) is required.
Water pressure less than 20 psi may cause water valve failure, may not allow the water valve to
shut o completely, or may extend the fill time beyond what your washer controls allow, causing
your washer to turn o. A time limit is built into the controls to prevent extensive flooding in your
home if an internal hose becomes loose.
The water faucets must be within 4 feet / 122 cm of the back of your washer to match the inlet
hoses provided with your washer.
Accessory inlet hoses are available in various lengths up to 10 feet/305 cm for faucets that
are further away from the back of your washer.
To avoid the possibility of water damage:
• Have water faucets easily accessible
• Turn o faucets when the washer is not in use.
• Periodically check that there is no leakage from the water inlet hose fittings.
CHECK ALL CONNECTIONS AT THE WATER VALVE AND FAUCET FOR LEAKS.
installing your washer
CAUTION
WARNING
WARNING
CAUTION
WF395BTPA-03145B-02_EN_20120829.indd Sec2:14WF395BTPA-03145B-02_EN_20120829.indd Sec2:14 2012-08-31  12:36:192012-08-31  12:36:19

Installing your washer _15
Drain facility
The recommended height of the standpipe is 18 in/46 cm. The drain hose must be routed
through the drain hose clip to the standpipe. The standpipe must be large enough to accept the
outside diameter of the drain hose. The drain hose is attached at the factory.
Flooring
For best performance, you must install your washer on a solidly constructed floor. Wood floors
may need to be reinforced to minimize vibration and/or unbalanced load situations. Carpeting
and soft tile surfaces are contributing factors to vibration which can cause your washer to move
slightly during the spin cycle.
Never install your washer on a platform or weakly supported structure.
Location considerations
Do not install your washer in areas where water may freeze, since your washer will always retain
some water in its water valve, pump, and hose areas. Freezing water can damage the belts,the
pump, hoses and other components.
Alcove or closet installation
MINIMUM CLEARANCES FOR CLOSET AND ALCOVE INSTALLATIONS:
Sides – 1 in / 25 mm
Rear – 5.9 in / 150 mm
Top – 17 in / 432 mm
Closet Front – 2 in / 51 mm
If the washer and dryer are installed together, the closet front must have at least a 72 in² (465
cm²) unobstructed air opening. Your washer alone does not require a specific air opening.
A. Recessed area
B. Side view - closet or confined area
Undercounter installation (washer only)
01 Installing your washer
1 in.
(2.5 cm) 27 in. (68.6 cm) 1 in. (2.5 cm)
40 in.
(101.6 cm)
B
2 in.
(5 cm) 32.3 in. (82 cm) 5.9 in. (15 cm)
17 in.
(43.2 cm)
A
1 in.
(2.5 cm) 27 in. (68.6 cm)
1 in.
(2.5 cm)
1 in.
(2.5 cm)
27 in.
(68.6 cm)
WF395BTPA-03145B-02_EN_20120829.indd Sec2:15WF395BTPA-03145B-02_EN_20120829.indd Sec2:15 2012-08-31  12:36:192012-08-31  12:36:19

16_ Installing your washer
installing your washer
With optional pedestal base or stacking kit
Required Dimensions for Installation With Pedestal
Required Dimensions for Installation With Stacking Kit
341.1 in.
(86.5 cm) 5.9 in.
(15 cm)
51.7 in. (131.4 cm) to clear open door
27 in.
(68.6 cm)
38.7in.
(98.4cm)
53.3 in.
(135.5 cm)
32.3 in.
(82 cm)
3 in.
(7.6 cm)
Closet or Door
48 in.² *
(310 cm²)
3 in.
(7.6 cm)
24 in.² *
(155 cm²)
1 in.
(2.5 cm) 5.9 in.** (15 cm)
5 in.
(12.7 cm)
6 in. *
(15.2 cm)
1 in.
(2.5 cm)
77.5 in.
(196.8 cm)
27 in.
(68.6 cm)
* Required spacing
** External exhaust elbow requires
additional space.
WF395BTPA-03145B-02_EN_20120829.indd Sec2:16WF395BTPA-03145B-02_EN_20120829.indd Sec2:16 2012-08-31  12:36:192012-08-31  12:36:19

Installing your washer _17
IMPORTANT NOTE TO INSTALLER
Please read the following instructions carefully before installing the washer.
These instructions should be retained for future reference.
We recommend you hire a professional to install this washer.
Installation flow chart
STEP 1
Removing the Shipping Bolts
Before using your washer, you must remove all shipping bolts from the
back of the unit.
1. Loosen all the bolts with the supplied wrench.
2. Slide the bolt and spacer up and remove the bolt with the spacer
through the hole in the rear wall of your washer. Repeat for each
bolt.
3. Cover the holes with the supplied Bolt Hole Covers (See page 13).
4. Keep the shipping bolts and spacers for future use.
STEP 2
Selecting a Location
Before you install your washer, make sure the location:
• Has a hard, level surface
• Is away from direct sunlight
• Has adequate ventilation
• Will not freeze (tempuratures are never below 32 °F or 0 °C).
• Is away from heat sources such as oil or gas
• Has enough room for the power cord.
• Doesn’t have any carpeting that will obstruct ventilation openings.
01 Installing your washer
Selecting a
location
Running a Calibration mode
(Refer to the following
description)
Finish the
installation
Removing the shipping
bolts (*Drum only)
Connecting the water
and the drain
Adjusting the
levelling feet
Powering your washing
machine
[Running a test cycle]
Run a test cycle (Rinse+Spin) with
small amount of laundary
(about 4~5 Towels)
Yes
Please
check again
before
steps.
No
Does
your washer
have excess vibration
or noise?
WF395BTPA-03145B-02_EN_20120829.indd Sec2:17WF395BTPA-03145B-02_EN_20120829.indd Sec2:17 2012-08-31  12:36:202012-08-31  12:36:20

18_ Installing your washer
installing your washer
STEP 3
Installing your Washer
1. If you use a stand pipe, make sure the connection
between the drain hose and the standpipe is NOT
airtight. The standpipe must be at least 18 in or 46
cm high.
You must always exercise caution to avoid
collapsing or damaging the drain hose. For best
results, the drain hose should not be restricted
in any way – by elbows, couplings, or excessive
length. For situations where the drain hose cannot
be conveniently elevated to at least 18 in or 46 cm,
the drain hose must be supported.
Do not insert the drain hose too far into the stand
pipe: 6 - 8 inches, and no more.
2. Check the inlet hose to ensure a washer is inside each fill hose.
Thread the inlet hoses to the HOT and COLD faucet connections.
On the other end of the hose, check for one rubber washer per hose
and attach each fill hose to the water valve. Make sure the hose with
Hot printed on it is attached to the HOT faucet. Tighten by hand until
snug, then two-thirds of a turn with pliers.
For correct water use, connect both HOT and COLD water valves. If
either or both are not connected, an “nF” (no fill) error can occur.
96” Max
18” Min 96” Max
18” Min
Hose
retainer
Tie strap
Laundry tub Stand pipe
Cold Hot
Rubber
Washer
WF395BTPA-03145B-02_EN_20120829.indd Sec2:18WF395BTPA-03145B-02_EN_20120829.indd Sec2:18 2012-08-31  12:36:202012-08-31  12:36:20

Installing your washer _19
3. Turn on the “HOT” and “COLD “water supply and check the water
valve and the water supply connections for leaks.
4. Slide your washer into position.
5. Level your washer by turning the leveling legs in or out as
necessary by hand or by using the wrench included with your
washer.
When your washer is level, tighten the locking nuts using the
wrench or (-) flathead screwdriver.
6. Plug the power cord into a 3-Prong, well grounded 120 volt
60Hz approved electrical outlet protected by a 15-amp fuse
or comparable circuit breaker.
Your washer is grounded through the third prong of the
power cord when plugged into a three-prong grounded
receptacle.
Your washer must be leveled on all four sides. A carpenter’s
level should be used on all four corners of your washer. We
recommend you recheck your washer after a dozen or so
washes to make sure it’s sitll level.
Avoid damage to the legs. Do not move
the washer unless the Locking-nuts are
fastened to the bottom of the washer.
STEP 4
Calibration mode
Your Samsung washing machine automatically detects the weight of the laundry.
For more accurate weight detection, please run Calibration Mode after the installation.
To run Calibration Mode, follow these steps:
1. Turn on the washer.
2. Press the Temp button and Delay Start button simultaneously for at least 3 seconds.
3. Remove any contents in the tub and close the door.
4. Press the Start/Pause button.
5. The drum rotates clockwise and counterclockwise for approximately 3 minutes.
6. When Calibration Mode is finished, the “En/End” appears on the display and the washing
machine turns o automatically. The washing machine is now ready for use.
01 Installing your washer
Levelling Leg
Locking Nut
Cold printed Hot printed
WF395BTPA-03145B-02_EN_20120829.indd Sec2:19WF395BTPA-03145B-02_EN_20120829.indd Sec2:19 2012-08-31  12:36:202012-08-31  12:36:20

20_ Operating instructions
operating instructions
To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY
INSTRUCTIONS before operating this appliance.
LOADING YOUR WASHER
• You can fill the tub with dry, unfolded clothes, but DO NOT OVERLOAD the tub. No more than 3/4 full.
• Overloading may reduce washing eciency, cause excess wear, and possibly cause creasing or
wrinkling of the load.
• Wash delicate items such as bras, hosiery, and other lingerie in the Delicates cycle with similar
lightweight items.
• When washing big bulky items or a few smaller items that don’t fill the tub completely – a rug, a pillow,
stued toys, or one or two sweaters, for example – add a few towels to improve tumbling and spin
performance.
During the spin cycle, the washer may add additional water to redistribute the clothes and correct an
inbalance inside the drum.
• To ensure good cleaning result when washing heavily soiled loads, do not overload your washer.
• When the “Garment+ ” light is ON (see page 24), you can add or remove laundry items during a wash.
1. Press the Start/Pause Button.
2. Wait for the Door Lock light to go out (5 seconds).
3. Add the item, close the door, and press the Start/Pause Button.
After a 10-second pause, the cycle will resume.
To ensure thorough cleaning, add items within five minutes of starting the wash cycle.
WASHING CLOTHES: BASIC INSTRUCTIONS
1. Press the Power button, open the door, and then load the washer.
2. Close the door.
Push the laundry into the drum completely to prevent the laundry from being caught in the door or
from falling out of the drum.
3. Add detergent and additives to the dispenser (see pages 27~28).
4. Select the appropriate cycle and options for the load (see pages 21~23 and 26).
5. Press the Start/Pause Button.
The drum automatically rotates and measures the weight of the laundry without supplying water in
order to adjust the wash time. (The rotating display on the display panel indicates that the weight of the
laundry is being measured.)
6. The Wash Indicator light will illuminate.
7. The estimated cycle time will appear in the display.
The time may fluctuate to indicate the time remaining in the cycle better.
The actual time required for a cycle may dier from the estimated time in the display depending on the
water pressure, water temperature, detergent, and laundry.
8. Before your washer starts to fill, it will make a series of clicking noises to check the door lock and do a
quick drain.
• When the cycle is complete, the Door Lock light will go out and “End” will appear in the display.
• DO NOT attempt to open the door until the Door Lock light is o. To add a forgotten item, see the
“Loading your Washer” section above.
• When your washer is restarted after a pause, expect a delay of up to 15 seconds before the cycle
continues.
• Pressing the Power button cancels the cycle and stops your washer.
•
The Pre Wash, Wash, Rinse, and Spin indicator lights will illuminate during those portions of the
cycle.
Do not place anything on top of your washer while it is running.
CAUTION
WARNING
WARNING
WF395BTPA-03145B-02_EN_20120829.indd Sec5:20WF395BTPA-03145B-02_EN_20120829.indd Sec5:20 2012-08-31  12:36:212012-08-31  12:36:21
