Samsung P1001 User manual

Washing Machine
Owner’s Instructions
P1401
P1201
P1001
P801
P1401-00636A-GB-DW 2/27/03 2:38 PM Page 1

Safety Precautions
● SAVE THESE INSTRUCTIONS
Congratulations on your purchase of this Samsung washing machine. These Owner's
Instructions contain valuable information on the installation, use, and care of this appliance.
Please take the time to read these instructions so that you can take full advantage of the
washing machine's features and enjoy this appliance for many years to come.
Before using the appliance
•Packing materials can be dangerous to children; keep all packing material (plastic bags,
polystyrene, etc.) well out of the reach of children.
•The appliance is designed for home use only.
•Make sure that water and electrical connections are made by qualified technicians,
observing the manufacturer's instructions (see "Installing the Washing Machine" on
page 2) and local safety regulations.
•All packaging and shipping bolts must be removed before the appliance is used. Serious
damage may occur if they are not removed. See "Removing the shipping bolts" on page 3.
•Before washing clothes for the first time, you must run a complete cycle without clothes.
See "Washing for the first time" on page 9.
Safety instructions
•Before cleaning or carrying out maintenance, unplug the appliance from the electrical
outlet or set the (On/Off) button to Off.
•Make sure that the pockets of all clothing to be washed are empty.
Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause
extensive damage to the appliance.
•Always unplug the appliance and turn off the water after use.
•Before you open the door of the appliance, check that the water has drained. Do not
open the door if you can still see water.
•Pets and small children may climb into the appliance. Check the appliance before each
use.
•The glass door becomes very hot during the washing cycle. Keep children away from
the appliance while it is in use.
•Do not attempt to repair the appliance yourself. Repairs made by inexperienced or
unqualified persons may cause injury and/or make more serious repairs to the
appliance necessary.
•If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or
its service agent or a similar qualified person in order to avoid a hazard.
•This appliance should only be serviced by an authorized service center, and only
genuine spare parts should be used.
P1401-00636A-GB-DW 2/27/03 2:38 PM Page 2

SAMSUNG Washing Machine
Safety Precautions------------------------------------------- inside cover
lnstalling the Washing Machine ------------------------------------------2
Unpacking the washing machine ----------------------------------------------------2
Overview of the washing machine --------------------------------------------------2
Selecting a location -------------------------------------------------------------------- 3
Adjusting the leveling feet ------------------------------------------------------------3
Removing the shipping bolts --------------------------------------------------------3
Connecting the water supply hose ------------------------------------------------- 3
Positioning the drain hose ----------------------------------------------------------- 4
Plugging in the machine -------------------------------------------------------------5
Washing a Load of Laundry -------------------------------------------------6
Overview of the control panel ------------------------------------------------------ 6
Washing for the first time -------------------------------------------------------------9
Putting detergent in the washing machine ----------------------------------------9
Washing clothes using Fuzzy Logic ----------------------------------------------10
Setting prewash -----------------------------------------------------------------------11
Selecting options ----------------------------------------------------------------------11
Washing clothes manually ----------------------------------------------------------12
Using delay start --------------------------------------------------------------------- 12
Washing tips and hints --------------------------------------------------------------13
Maintaining the Washing Machine ----------------------------------14
Draining the washing machine in an emergency ------------------------------14
Repairing a frozen washing machine --------------------------------------------14
Cleaning the exterior ----------------------------------------------------------------14
Cleaning the detergent drawer and recess ----------------------------------- 14
Cleaning the debris filter ------------------------------------------------------------ 15
Cleaning the water hose mesh filter ----------------------------------------------15
Troubleshooting -----------------------------------------------------------------16
Problems and solutions -------------------------------------------------------------16
Understanding error messages ----------------------------------------------------16
Programme chart ---------------------------------------------------------------17
Appendix -------------------------------------------------------------------------------18
Fabric care chart --------------------------------------------------------------------- 18
Electrical warnings ------------------------------------------------------------------ 18
Protecting the environment -------------------------------------------------------- 19
Declaration of conformity ---------------------------------------------------------- 19
Specification --------------------------------------------------------------------------- 19
Table of Contents
P1401-00636A-GB-DW 2/27/03 2:38 PM Page 1

Installing the Washing Machine
2 SAMSUNG Washing Machine
Unpacking the Washing Machine
Unpack your washing machine and inspect it for shipping damage. Also make sure that
you have received all of the items shown below. If the washing machine was damaged
during shipping or you do not have all of the items, contact your Samsung dealer
immediately.

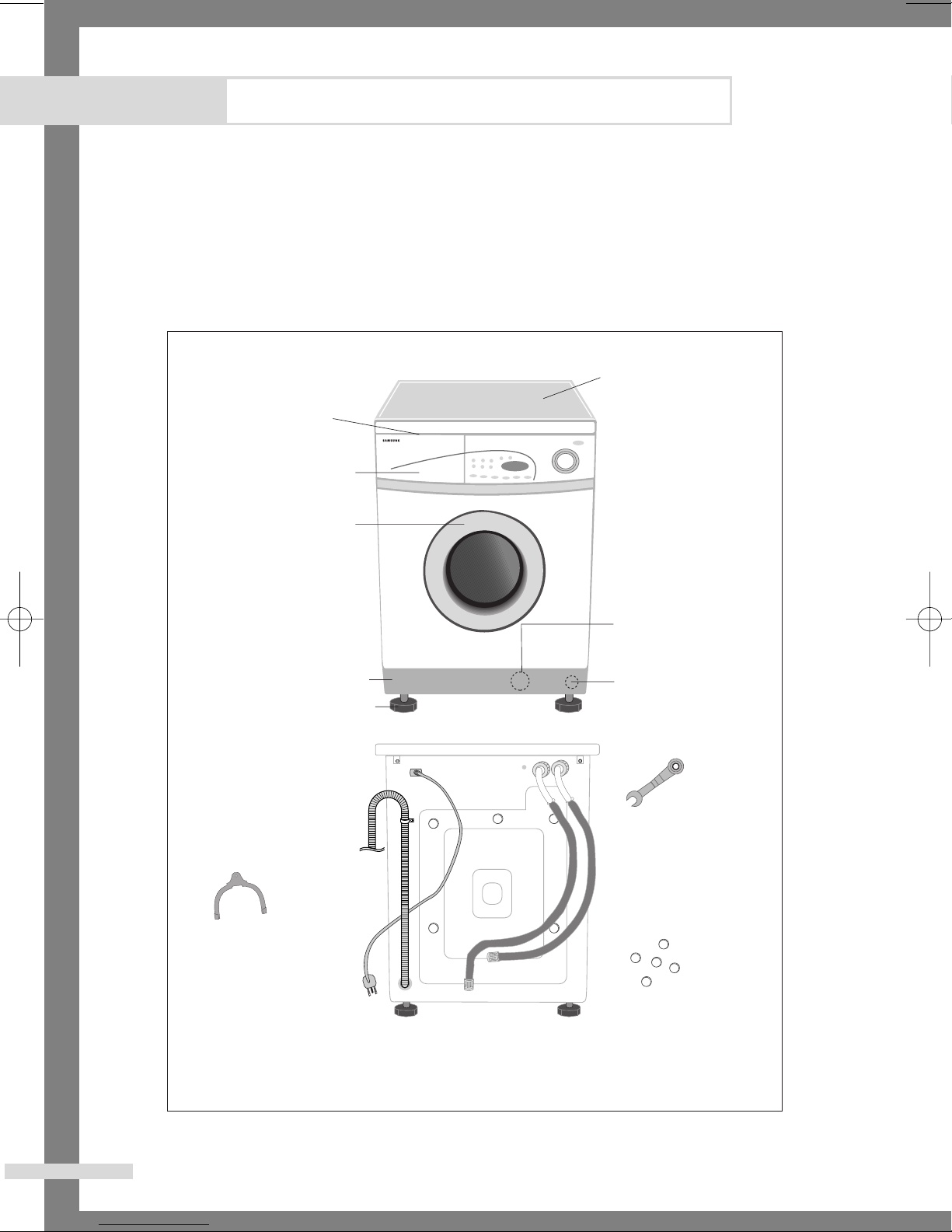

Overview of the washing machine
Hose guide
Plug
* (Option)
Hot
Water
supply
hose
Cold
Water
supply
hose
Bolt hole
covers
Wrench
Emergency drain
tube
Debris filter
Worktop
Control panel
Detergent
drawer
Door
Base cover
Adjustable feet
Drain Hose
P1401-00636A-GB-DW 2/27/03 2:38 PM Page 2

SAMSUNG Washing Machine
Selecting a location
Before you install the washing machine, select a location with the following characteristics:
•A hard, level surface (if the surface is uneven, see "Adjusting the leveling feet," below)
•Away from direct sunlight.
•Adequate ventilation
•Room temperature that will not fall below 0 ˚C
•Away from sources of heat such as coal or gas
Make sure that the washing machine does not stand on its power cord.
Ventilation openings must not be obstructed by carpeting when the washing machine is
installed on a carpeted floor.
Adjusting the leveling feet
If the floor is uneven, adjust the feet (do not insert pieces of wood or any other objects under
the feet):
1. Loosen the leg bolt by turning it with your hand until it is at the desired height.
2. Tighten the locking nut by turning it with the supplied wrench.
•Place the washer on a sturdy, flat surface.
If the washer is placed on an uneven or weak surface, noise or vibration occurs.
(Only a l degrees angle is allowed.)
Removing the shipping bolts
Before using the washing machine, you must remove the five shipping bolts from the back
of the unit. To remove the bolts:
1. Loosen all bolts with the supplied wrench before removing them.
2. Take each bolt head and pull it through the wide part of the hole.
Repeat for each bolt.
3. Fill the holes with the supplied plastic covers.
4. Keep the shipping bolts for future use.
Connecting the water supply hose(Option)
NOTICE After completing connection, if water leaks from the hose, then repeat the same steps. Use
the most conventional type of faucet for water supply. In case the faucet is square or too
big, remove the spacing ring before inserting the faucet into the adaptor.
Installing the Washing Machine
a
b
a
b
c
1. Remove the adaptor from the
water supply hose.
2. First, using a “+” type screw driver, loosen the
four screws on the adaptor. Next, take the
adaptor and turn part(b) following the arrow until
there is a 5mm gap.
4. Connect the water supply hose to the adaptor.
Pull down part (c) of the water supply hose.
When you release part (c) the hose automatically
connects to the adaptor making a ’click’ sound.
5. Connect the other end of the water supply hose
to the inlet water valve at the top of the washer.
Screw the hose clockwise all the way in.
• If the water tap has a screw type faucet, connect
the water supply hose to the tap as shown.
3. Connect adaptor to the water tap by tightening
the screws firmly.
Then, turn part (b) following the arrow and put(a)
and (b) together.
P1401-00636A-GB-DW 2/27/03 2:38 PM Page 3

Installing the Washing Machine
4 SAMSUNG Washing Machine
Connecting the water supply hose
The water supply hose must be connected to the washing machine at one end and to the
water faucet at the other. Do not stretch the water supply hose. If the hose is too short and
you do not wish to move the water faucet, replace the hose with a longer, high pressure
hose.
To connect the water supply hose:
1. Take the L-shaped arm fitting for the cold
water supply hose and connect to the cold
water supply intake on the back of the
machine. Tighten by hand.
2. Connect the other end of the cold water supply hose to your sink's cold water faucet and
tighten it by hand. If necessary, you can reposition the water supply hose at the washing
machine end by loosening the fitting, rotating the hose, and retightening the fitting.
Option: 1. Take the red L-shaped arm fitting for the hot water supply hose and
connect to the red hot water supply intake on the back of the machine.
Tighten by hand.
2. Connect the other end of the hot water supply hose to your sink's hot
water faucet and tighten it by hand.
3. Use a Y-piece if you only want to use cold water.
Positioning the drain hose
The end of the drain hose may be positioned in three ways:
Over the edge of a sink
The drain hose must be placed at a height of
between 60 and 90 cm. To keep the drain hose
spout bent, use the supplied plastic hose
guide. Secure the guide to the wall with a
hook or to the faucet with a piece of string to
prevent the drain hose from moving.
ln a sink drain pipe branch
The drain pipe branch must be above the sink siphon so that the end of the hose is at least
60 cm above the ground.
ln a drain pipe
Samsung recommends that you use a 65 cm high vertical pipe; it must be no shorter than 60
cm and no longer than 90 cm.
P1401-00636A-GB-DW 2/27/03 2:38 PM Page 4

Installing the Washing Machine
Plugging in the machine
For European Users. You will NOT need to ground the plug of the washing machine.
For U.S. Users. You MUST ground the plug of the washing machine.
Check with a licensed electrician before using the machine to make sure it is properly
grounded.
For U.K. Users.

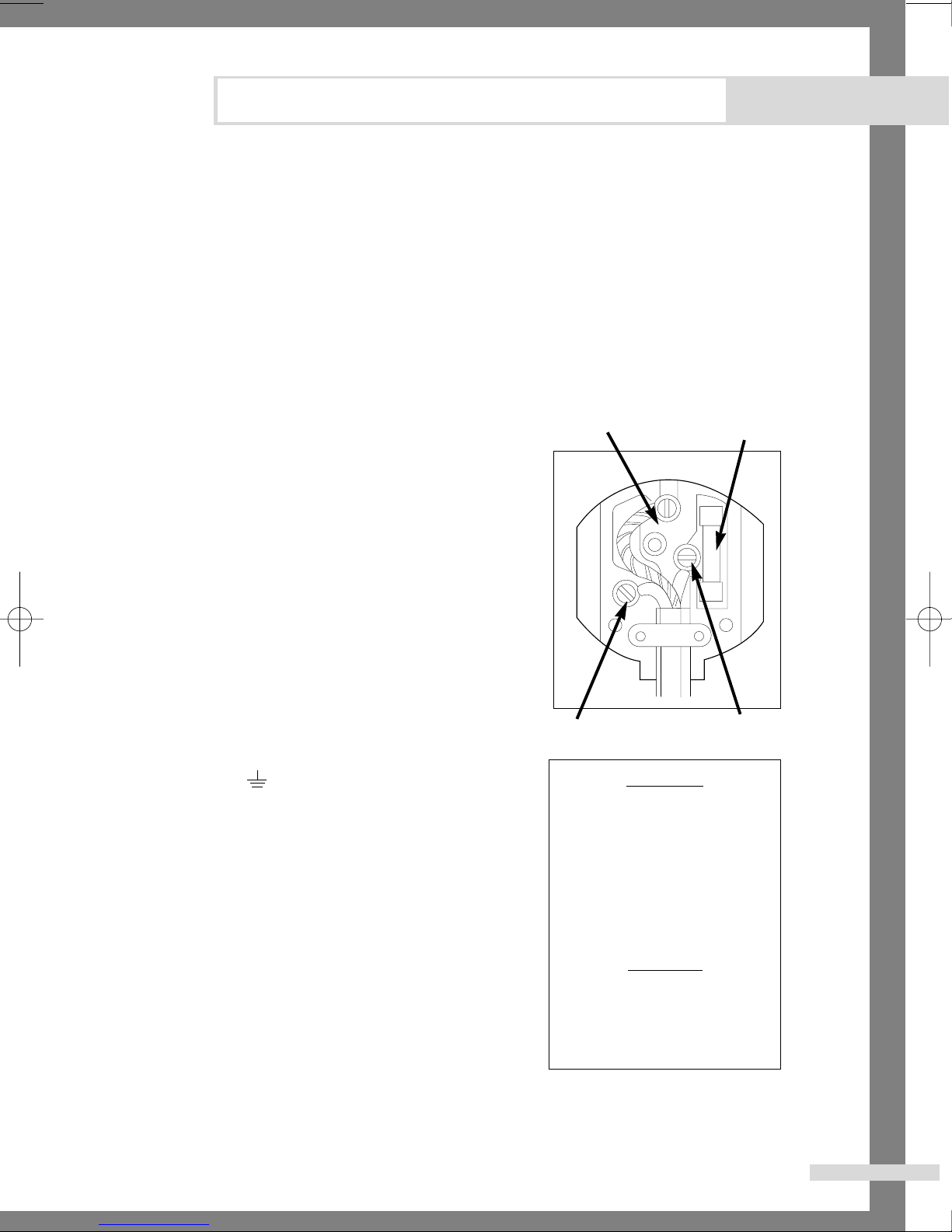

Wiring lnstructions
WARNING THIS APPLIANCE MUST BE EARTHED.
This appliance must be earthed. In the event of an
electrical short circuit, earthing reduces the risk of electric
shock providing an escape wire for the electric current.
The appliance is equipped with a mains lead which
includes an earth wire for connecting to the earth terminal
of your mains plug.
The plug must be plugged into a socket that is properly
installed and earthed.
*The wires in this mains lead are coloured in accordance
with the following code:
• Green and yellow : Earth
• Blue : Neutral
• Brown : Live
•AS the colours of the wires in the mains lead of this
appliance may not correspond with the coloured
markings indentifying the terminals in your plug,
proceed as follows.
•Connect the green and yellow wire to the terminal
in the plug marked with the letter E or the earth
symbol ( ) or coloured green or green-and-
yellow.
•Connect the blue wire to the terminal marked
with the letter N or coloured black.
•Connect the brown wire to the terminal marked
with the letter L or coloured red.
* Consult a qualified electrician or service technician
if in doubt about any of these instructions.
The manufacturer of this washing machine will
not accept any liability for damage to persons or
material for non observance of these requirements.
There are no user serviceable parts inside the
washing machine and if the mains lead of this
appliance is damaged, it must only be replaced by
qualified service personnel approved by the
manufacturer because special tools are required.
SAMSUNG Washing Machine
GREEN AND
YELLOW
13 AMP
FUSE
BROWN
BLUE
WARNING
Ensure that the plug and power
cord are not damaged before use. If
you have any reason to remove the
moulded plug from this appliance,
immediately remove the fuse and
dispose of the plug.
Do not connect the plug to a mains
socket under any circumstances as
there is a danger of electric shock.
CIRCUITS
Your washing machine should be
operated on a separate circuit
from other appliances. Failure to
do this may cause the circuit
breaker to trip or the fuse to blow.
P1401-00636A-GB-DW 2/27/03 2:38 PM Page 5

1. Detergent dispenser
2. Display panel
Displays the remaining wash cycle time and error messages.
3. Program button
Press the button to select one of the eight available wash programs.
4. Option Button
Press the button repeatedly to cycle through the available partial wash options
Eco+➔ Rinse+➔ Prewash ➔ (Eco++Rinse+)➔ (Rinse++Prewash)➔ Cancel➔ Eco+
Note : Prewash/Eco+is available only with Cotton, Colour, Synthetic or Delicate programs.
5. Spin selection button
Press the button repeatedly to cycle through the available spin speed options.
When pressing this button during operation, you can see the selected spin
speed in the display panel.
6. Temperature selection button
Press the button repeatedly to cycle through the available water temperature options
(cold water, 30 ˚C, 40 ˚C , 60 ˚C and 95 ˚C).
When pressing this button during washing, you can see the selected temperature in the
display panel.
7. Delay Start button
Press the button repeatedly to cycle through the available delayed start options
(from 1 hour to 24 hours in one hour increments).
8. Start/Pause button
Press to pause and restart programs.
9. (On/Off) button
Press once to turn the washing machine on, press again to turn the washing machine
off. If the washing machine power is left on for longer than 10 minutes without any
buttons being touched, the power automatically turns off.
Washing a Load of Laundry
6 SAMSUNG Washing Machine
Overview of the control panel
P1401 no, rh, 400, 600, 800, 1000, 1200, 1400 rpm
P1201 no, rh, 400, 600, 800, 1000, 1200 rpm
Cotton
Synthetics Delicates
Wool
Rinse+Spin
Spin
Temp
Delay Start
Prewash
Rinse
Program Option
No Spin
Rinse Hold
Spin
Pre Spin Wash Rinse
C
rpm
min.
Colour
+
Eco
+
P1401
1 2 345 6 789
P1401/P1201
no:no spin,
rh:rinse hold
Cotton, Colour, Synthetic, Delicate, Wool, Quick, Rinse+Spin, Spin
P1401-00636A-GB-DW 2/27/03 2:38 PM Page 6

SAMSUNG Washing Machine
Washing a Load of Laundry
1. Detergent dispenser
2. Display panel
Displays the remaining wash cycle time and error messages.
3. Program Button
Press the button to select one of the eight available wash programs.
4. Option Button
Press the button repeatedly to cycle through the available partial wash options
{Rinse+➔ Prewash➔ (Rinse++ Prewash)➔Cancel➔ Rinse+}.
Note : Prewash is available only with Cotton, Colour, Synthetic or Delicate programs.
5. Spin selection button
Press the button repeatedly to cycle through the available spin speed options.
When pressing this button during operation, you can see the selected spin
speed in the display panel.
6. Temperature selection button
Press the button repeatedly to cycle through the available water temperature options
(cold water, 30 ˚C, 40 ˚C , 60 ˚C and 95 ˚C).
When pressing this button during washing, you can see the selected temperature in the
display panel.
7. Delay Start button
Press the button repeatedly to cycle through the available delayed start options
(from 1 hour to 24 hours in one hour increments).
8. Start/Pause button
Press to pause and restart programs.
9. (On/Off) button
Press once to turn the washing machine on, press again to turn the washing machine
off. If the washing machine power is left on for longer than 10 minutes without any
buttons being touched, the power automatically turns off.
Overview of the control panel
no, rh, 400, 600, 800, 1000 rpm
Cotton, Colour, Synthetic, Delicate, Wool, Quick, Rinse+Spin, Spin
Cotton
Synthetics Delicates
Wool
Rinse+Spin
Spin
Temp
Delay Start
Program Option
Spin
Pre Spin Wash Rinse
Colour
Wool
P1001
Prewash
Rinse
No Spin
Rinse Hold
+
1 2 345 6 789
P1001
no:no spin,
rh:rinse hold
P1401-00636A-GB-DW 2/27/03 2:38 PM Page 7

8 SAMSUNG Washing Machine Owner’s Instructions
1. Detergent dispenser
2. Display panel
Displays the remaining wash cycle time and error messages.
3. Program Button
Press the button to select one of the eight available wash programs.
4. Option Button
Press the button repeatedly to cycle through the available partial wash options
{Rinse+➔ Prewash➔ (Rinse++ Prewash)➔Cancel➔ Rinse+}.
Note : Prewash is available only with Cotton, Colour, Synthetic or Delicate programs.
5. Spin selection button
Press the button repeatedly to cycle through the available spin speed options.
When pressing this button during operation, you can see the selected spin
speed in the display panel.
6. Temperature selection button
Press the button repeatedly to cycle through the available water temperature options
(cold water, 30 ˚C, 40 ˚C , 60 ˚C and 95 ˚C).
When pressing this button during washing, you can see the selected temperature in the
display panel.
7. Start/Pause button
Press to pause and restart programs.
8. (On/Off) button
Press once to turn the washing machine on, press again to turn the washing machine
off. If the washing machine power is left on for longer than 10 minutes without any
buttons being touched, the power automatically turns off.
Overview of the control panel
no, rh, 400, 600, 800 rpm
Cotton, Colour, Synthetic, Delicate, Wool, Quick, Rinse+Spin, Spin
Cotton
Synthetics Delicates
Wool
Rinse+Spin
Spin
Temp
Program Option
Spin
Pre Spin Wash Rinse
Colour
Wool
P801
Prewash
Rinse
No Spin
Rinse Hold
+
1 2 345678
P801
no:no spin, rh:rinse hold
Washing a Load of Laundry
P1401-00636A-GB-DW 2/27/03 2:38 PM Page 8

Washing a Load of Laundry
Washing for the first time
Before washing clothes for the first time, you must run a complete cycle without clothes. To do this:
1. Press the (On/Off) button.

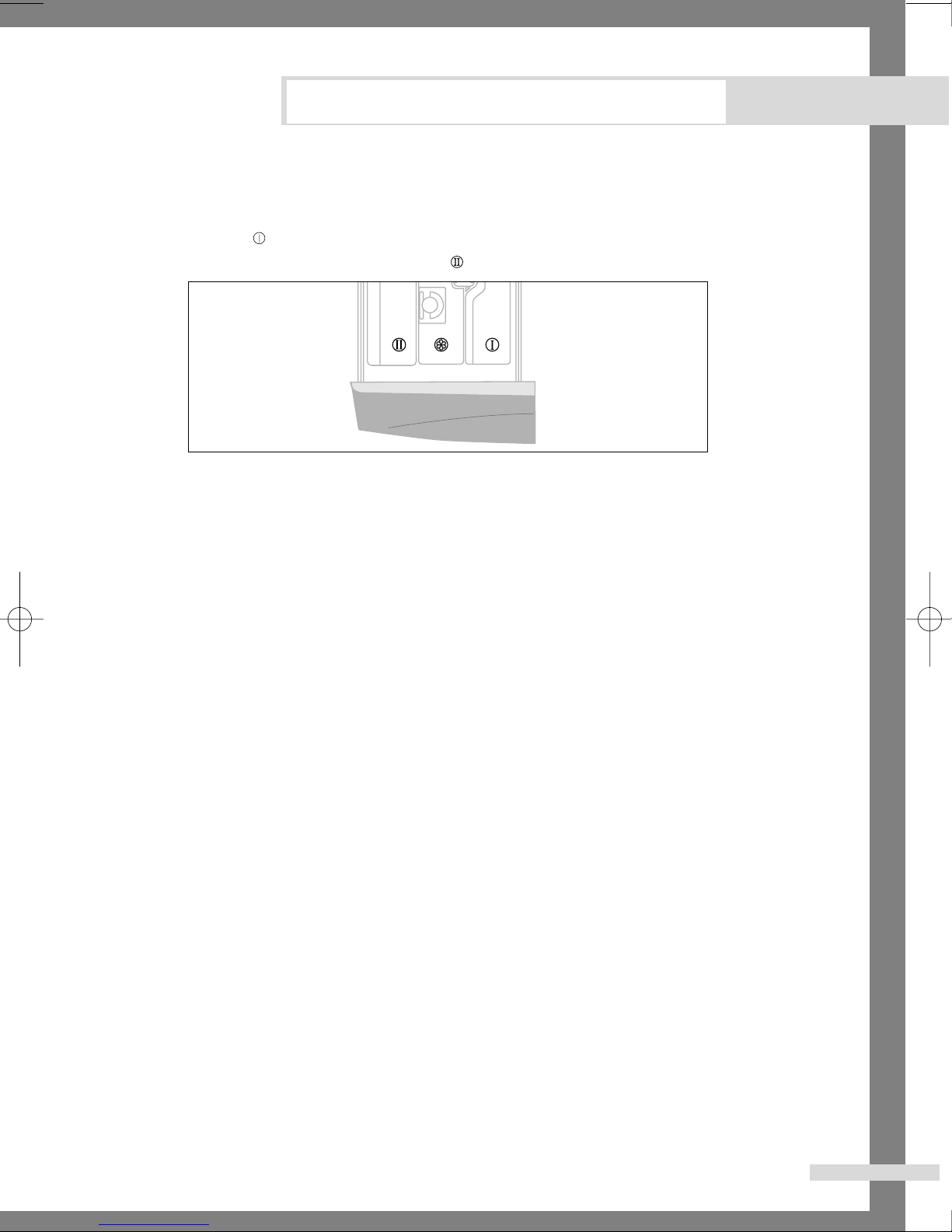

2. Pour a little detergent into compartment in the detergent drawer.
3. Turn on the water supply to the washing machine.
4. Press the Temperature button repeatedly until 40 ˚C is displayed.
5. Press the Start/Pause button.
•This will remove any water from the manufacturer’s test run remaining in the machine.
P1401-00636A-GB-DW 2/27/03 2:38 PM Page 9

Washing a Load of Laundry
10 SAMSUNG Washing Machine Owner’s Instructions
Washing clothes using Fuzzy Logic
Your new washing machine makes washing clothes easy, using Samsung's "Fuzzy Logic"
automatic control system. When you select a wash program, the machine will set the correct
temperature, washing time, and washing speed.
To wash clothes using the Fuzzy Logic programs:
1. Turn on your sink's water faucet.
2. Open the door.
3. Load the articles one at a time loosely into the drum, without overfilling.
4. Press the (On/Off) button.
5. Close the door.
6. Add the detergent, softener, and prewash detergent (if necessary) into the appropriate
compartment.
Note: Prewash is only available when washing cotton, colour, synthetic and delicate
garments. It is only necessary if your clothing is heavily soiled. If you wish to use
prewash, please see "Setting prewash" on page 11.
7. Press the program button to select the appropriate program
for the type of clothes you are washing: Cotton, Colour, Synthetic,
Delicate, Wool, Quick (for a fast cycle), Rinse+Spin, Spin.
You will see the indicators light up on the control panel.
8. At this time, you can control the wash temperature, spin speed and delay time by
pressing the appropriate option button.
9. Press the Start/Pause button and the wash cycle will begin.
The time delay indicator will light up and the remaining time for the cycle will appear
in the display.
When the cycle is finished:
Ten minutes after the total cycle has finished, the power will turn off automatically.
1. Open the door.
Note: The door will not open until 3 minutes after the machine stops or
the power turns off.
2. Remove laundry.
P1401-00636A-GB-DW 2/27/03 2:38 PM Page 10

SAMSUNG Washing Machine Owner’s Instructions 11
Setting prewash
Prewash is only available when washing cotton, synthetic or delicate clothes.
To use prewash:
1. Load the prewash detergent into compartment of the detergent drawer.
2. Select the wash program (Cotton, Colour, Synthetic or Delicate).
3. Press the Option button until the "Prewash" indicator lights up
on the control panel.
4. Press Start/Pause to begin the cycle.
Selecting options
Eco+ ( P1401, P1201 only)
Eco+ is available only with Cotton, Colour, Synthetic or Delicate programs.
Selecting this option reduces heating time and temperature.
Use this option to save energy when washing lightly soiled laundry.
Rinse+
Your machine will run through an additional rinsing cycle.
The washing duration will be prolonged accordingly.
No spin
The laundry remains in the drum without being spun after the final drain.
Rinse Hold
The laundry remains soaking in the final rinse water.
Before the laundry can be unloaded, the "Spin" program must be run.
Washing a Load of Laundry
P1401-00636A-GB-DW 2/27/03 2:38 PM Page 11

Washing a Load of Laundry
12 SAMSUNG Washing Machine Owner’s Instructions
Washing clothes manually
You can wash clothes manually without using the Fuzzy Logic feature. To do so:
1. Turn on the water at the water source sink.
2. Open the door.
3. Load the articles one at a time loosely into the drum, without overfilling.
4. Press the (On/Off) button on the washing machine.
5. Close the door.
6. Put the detergent and, if necessary, softener or prewash detergent, in the appropriate
compartments.
7. Press the Temperature button to select the temperature
(cold water, 30˚C, 40˚C, 60˚C, 95˚C).
8. Press the Spin button to select the spin speed, [no, rh, 400, 600, 800, …, no, …
revolutions per minute(rpm)].
Note: The rinse hold program allows you to take clothes that are dripping wet out of
the washing machine.
no : No Spin, rh : Rinse Hold.
9. Repeatedly press the Option button to select the cycle you prefer:
Prewash (for Cotton, Colour, Synthetic, Delicate only), Rinse+, Eco+
10. Press the Start/Pause button and the machine will begin the cycle.
When the cycle is finished:
1. Open the door.
Note: The door will not open until 3 minutes after the machine stops or
the power turns off.
2. Remove laundry.
Using Delay Start (P1401, P1201, P1001)
You can set the washing machine to start your wash automatically at a later time, choosing
from a 1 to a 24 hour delay (in 1 hour increments).
To do this:
1. Manually or automatically set your washing machine for the type of clothes you are
washing.
2. Press the Delay Start button repeatedly until the delay time is set.
3. Press the Start/Pause button. The Delay Start indicator will light, and the clock will
begin counting down until it reaches your start time.
4. To cancel Delay Start, press the (On/Off) button, then turn the washing machine on
again.
P1401/P1201 Eco+, Prewash, Rinse+
P1001/P801 Prewash, Rinse+
P1401-00636A-GB-DW 2/27/03 2:38 PM Page 12

SAMSUNG Washing Machine Owner’s Instructions 13
Washing tips and hints
Sorting your laundry : Sort your laundry according to the following characteristics:
•Type of fabric care label symbol : Sort laundry into cottons, mixed fibers, synthetics,
silks, wools and rayon.
•Colour :Divide whites and colours. Wash new, coloured items separately.
•Size: Placing items of different sizes in the same load will improve the washing action.
•Sensitivity: Wash delicate items separately, using the Delicate wash program for pure
new wool, curtains and silk articles. Check the labels on the items you are washing or
refer to the fabric care chart in the appendix.
Emptying pockets : Coins, safety pins and similar items can damage linen, the
washing machine drum, and the water tank.
Securing fasteners : Close zippers and fasten buttons or hooks; loose belts or ribbons
should be tied together.
Prewashing cotton : Your new washing machine, combined with modern detergents,
will give perfect washing results, thus saving energy, time, water and detergent. However,
if your cotton is particularly dirty, use a prewash with a protein-based detergent.
Determining load capacity: Do not overload the washing machine or your laundry
may not wash properly. Use the chart below to determine the load capacity for the type of
laundry you are washing.
Fabric Type Load Capacity
Coloured/cotton
-average/lightly soiled 5.5 kg
-heavily soiled 5.5 kg
Synthetics 2.5 kg
Delicates 2.0 kg
Wools 1.5 kg
Detergent tips: The type of detergent you should use is based on the type of fabric
(cotton, synthetic, delicate items, wool), colour, wash temperature, degree and type of
soiling. Always use "low suds" laundry soap, which is designed for automatic washing
machines.
Follow the detergent manufacturer's recommendations based upon the weight of the
laundry, the degree of soiling, and the hardness of the water in your area. If you do not
know how hard your water is, ask your water authority.
Note:
Keep detergents and additives in a safe, dry place out of the reach of children.
Washing a Load of Laundry
P1401-00636A-GB-DW 2/27/03 2:38 PM Page 13

Maintaining the Washing Machine
14 SAMSUNG Washing Machine Owner’s Instructions
Draining the washing machine in an emergency
1. Unplug the washing machine
from the power supply.
2. Remove the base cover by using
a screw driver to pry it off.
3. Unscrew the emergency drain cap
by turning left. Grip the cap on
the end of the emergency drain
tube and slowly pull it out about
20 cm.
4. Allow all the water to flow into a bowl.
5. Reinsert the drain tube and screw the cap back on.
6. Replace the base cover.
Repairing a frozen washing machine
If the temperature drops below freezing and your washing machine is frozen:
1. Unplug the washing machine.
2. Pour warm water on the source faucet to loosen the water supply hose.
3. Remove the water supply hose and soak it in warm water.
4. Pour warm water into the washing machine drum and let it sit for 10 minutes.
5. Reconnect the water supply hose to the water faucet and check if the water supply
and drain operations are normal.
Cleaning the exterior
1. Wipe the washing machine surfaces, including the control panel, with a soft cloth
and non-abrasive household detergents.
2. Use a soft cloth to dry the surfaces.
3. Do not pour water on the washing machine.
Cleaning the detergent drawer and recess
1. Press the release lever on the inside
of the detergent drawer and pull it out.
2. Remove the cap from compartment .
3. Wash all of the parts under running water.
4. Clean the drawer recess with an old toothbrush.
5. Reinsert the cap (pushing it firmly into place)
and replace the liquid detergent
divider into the drawer.
6. Push the drawer back into place.
7. Run a rinse program without any laundry in the drum.
P1401-00636A-GB-DW 2/27/03 2:38 PM Page 14

SAMSUNG Washing Machine Owner’s Instructions 15
Maintaining the Washing Machine

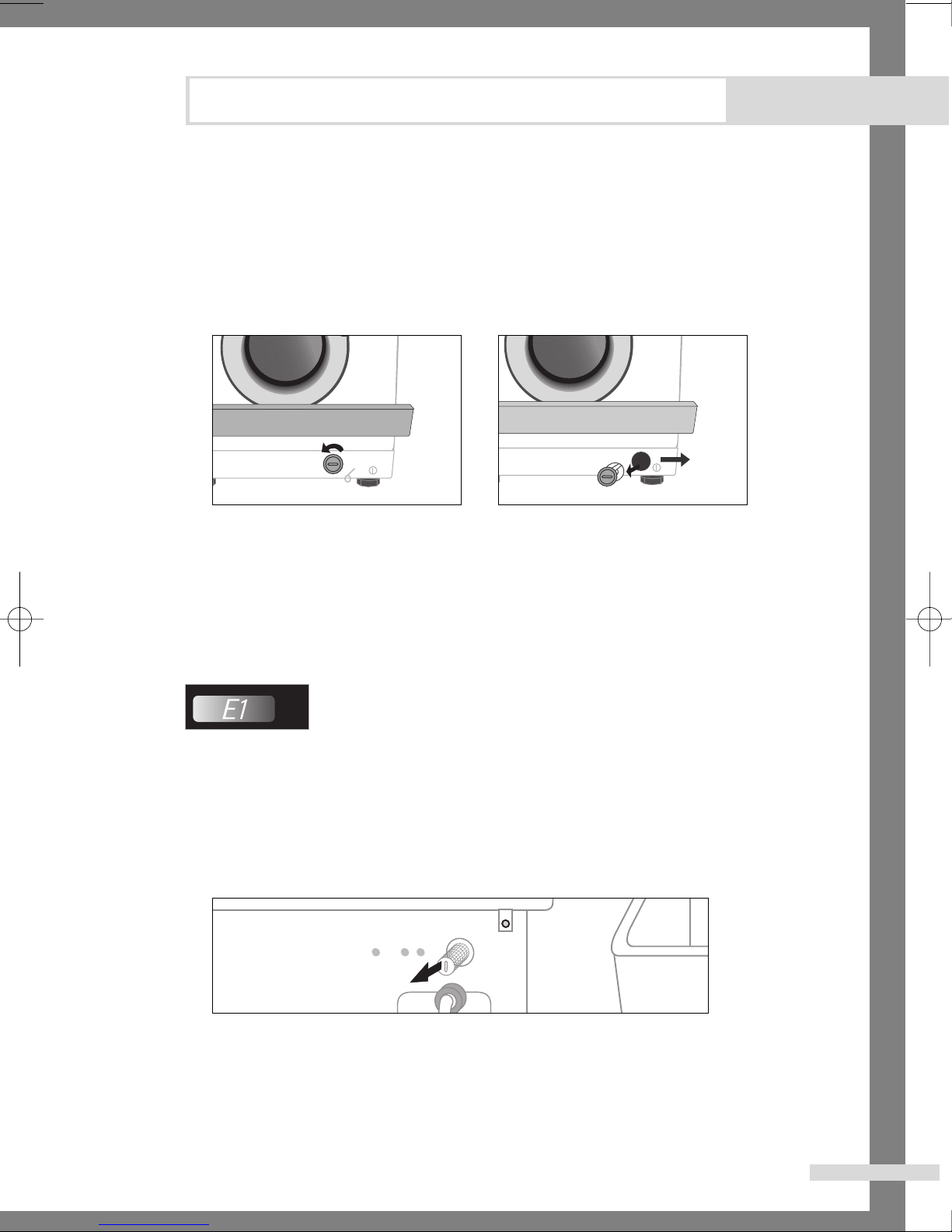

Cleaning the debris filter
Clean the debris filter 2 or 3 times a year.
1. Remove the base cover from the front of the washing machine.
2. Unscrew emergency drain cap by turning left and drain off all the water.
See "Draining the washing machine in an emergency" on page 14.
3. Unscrew the filter cap and take it out.
4. Wash any dirt or other material from the filter. Make sure the drain pump propeller
behind the filter is not blocked. Replace the filter cap.
5. Replace the base cover.
Cleaning the water hose mesh filter
You should clean the water hose mesh filter at least one time per year, or when you see the
following error message on the display:
To do this:
1. Turn off the water source to the washing machine.
2. Unscrew the hose from the back of the washing machine.
3. With a pair of pliers, gently pull out the mesh filter from the end of the hose and rinse
it under water until clean. Also clean the inside and outside of the threaded
connector.
4. Push the filter back into place.
5. Screw the hose back onto the washing machine.
6. Turn on the faucet and make sure the connections are watertight.
P1401-00636A-GB-DW 2/27/03 2:38 PM Page 15

Troubleshooting
16 SAMSUNG Washing Machine Owner’s Instructions
Problems and solutions
The washing machine will not start
•Make sure the door is firmly closed.
•Make sure the washing machine is plugged in.
•Make sure the water source faucet is turned on.
•Make sure to press the Start/Pause button.
No water or insufficient water supply
•Make sure the water source faucet is turned on.
•Make sure the water source hose is not frozen.
•Make sure the water intake hose is not bent.
•Make sure the filter on the water intake hose is not clogged.
Detergent remains in the detergent drawer after the wash
program is complete
•Make sure the washing machine is running with sufficient water pressure.
•Put the detergents in the inner parts of the detergent drawer(away from the
outside edges).
Washing machine vibrates or is too noisy
•Make sure the washing machine is set on a level surface. If the surface is not level,
adjust the washing machine feet to level the appliance (see page 3).
•Make sure that the shipping bolts are removed (see page 3).
•Make sure the washing machine is not touching any other object.
•Make sure the laundry load is balanced.
The washing machine does not drain and/or spin
•Make sure the drain hose is not squashed or bent.
•Make sure the water hose mesh filter is not clogged (see page 15).

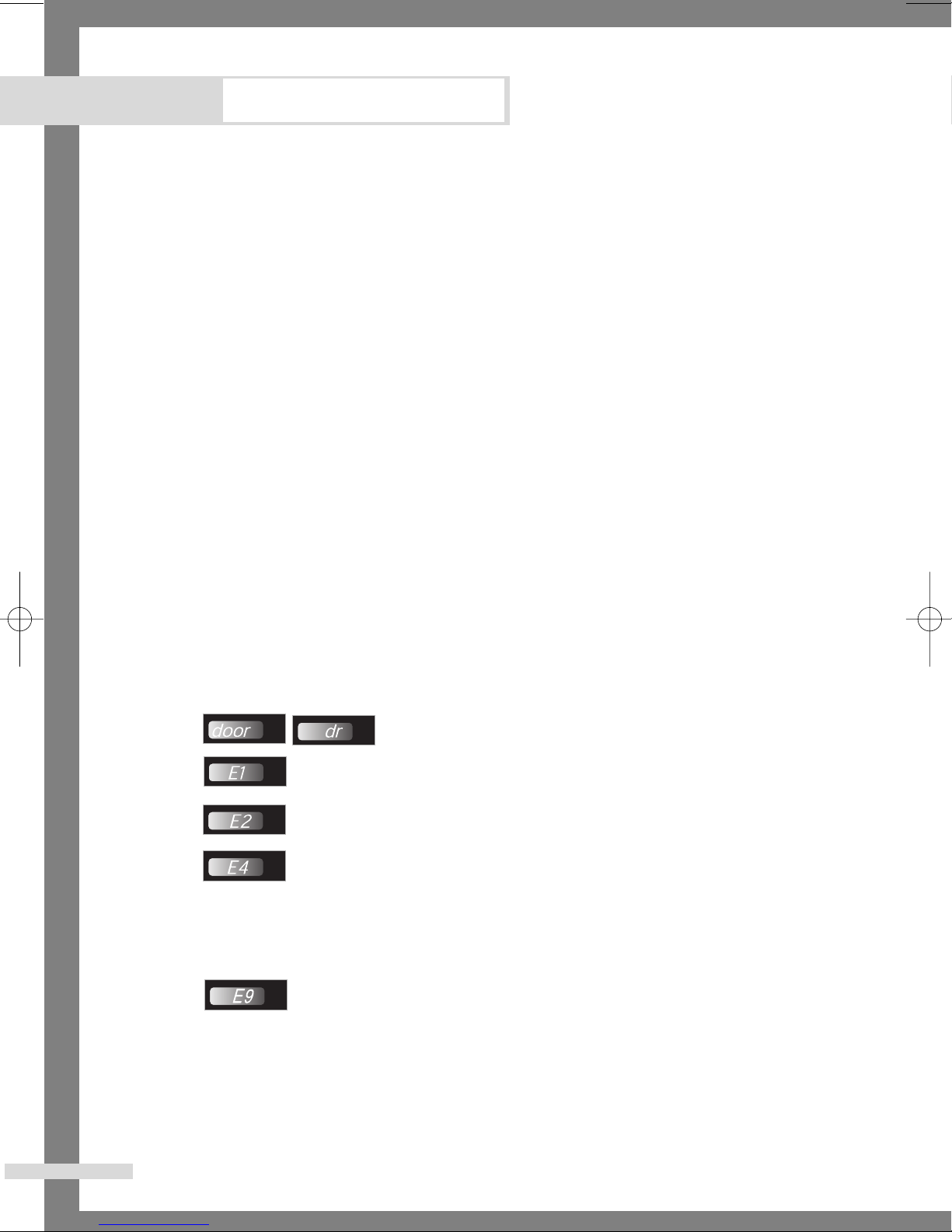

Understanding error messages
Error displayed Solution
Close the door.
• Make sure the source water faucet is turned on.
• Check the water pressure.
• Clean the debris filter.
• Make sure the drainage hose is installed correctly.
Laundry load is unbalanced; loosen any tangled laundry.
If only one item of clothing needs washing, such as
a bathrobe or jeans, the final spin result might
be unsatisfactory and an "E4" error message will be shown
in the display window.
• Check the end of the drain hose is too low.
(Make sure the holder of drain hose in the back is intact)
• Check the end of the drain hose is submerged in water.
Before contacting After-Sales service:
1. Try to remedy the problem (See "Troubleshooting" on this page).
2. Restart the programme to see if the fault is repeated.
3. If the malfunction persists, call after-sales service and describe the problem.
P1401-00636A-GB-DW 2/27/03 2:38 PM Page 16

SAMSUNG Washing Machine Owner’s Instructions 17
Programme Chart
Cotton 5.5 ✽yes ✽95 1400 1200 1000 800 ✽✽49 1.82
Colour 5.5 ✽yes ✽60 1400 1200 1000 800 ✽✽49 0.95
Synthetic 2.5 ✽yes ✽60 800 800 800 800 ✽✽50 0.72
Delicate 2.0 ✽yes ✽40 600 600 600 600 ✽✽53 0.49
Wool 1.5 - yes ✽40 400 400 400 400 ✽- 59 0.52
Quick 2.0 - yes ✽40 1000 1000 1000 800 ✽- 38 0.57
PROGRAM Type of WASH
Cotton Average or lightly soiled cottons, bed linen, table linen, underwear, towels, shirts,
etc.
Colour Average or lightly soiled cottons, bed linen, table linen, underwear, towels,
shirts, etc.
Synthetic Average or lightly soiled blouses, shirts, ect which are made of polyester (diolen,
trevira), polyamide (perlon, nylon) or other similar blends.
Delicate Delicate curtains, dresses, skirts, shirts and blouses.
Wool Only machine washable woolens with pure new wool label.
Quick Lightly soiled cottons or linen blouses, shirts, dark coloured terry cloth, coloured
linen articles, jeans, etc.
1. Programme with prewash lasts approx. 15 minutes longer.
2. The programme duration data has been measured under the conditions specified in
Standard IEC 456.
3. Consumption in individual homes may differ from the values given in the table due to
variations in the pressure and temperature of the water supply, the load and the type of
laundry.
PRO-
GRAM
DETERGENT
AND ADDITIVES Spin Speed(MAX)rpm
Function Water
(l)
Pre wash
Temperature
(MAX)
˚C
Max
load
(kg) Pre
wash
Sof
tener
wash P1401 P1201 P1001 P801
Delay
start
Electri-
city
(kWh)
P1401-00636A-GB-DW 2/27/03 2:38 PM Page 17

Appendix
18 SAMSUNG Washing Machine Owner’s Instructions

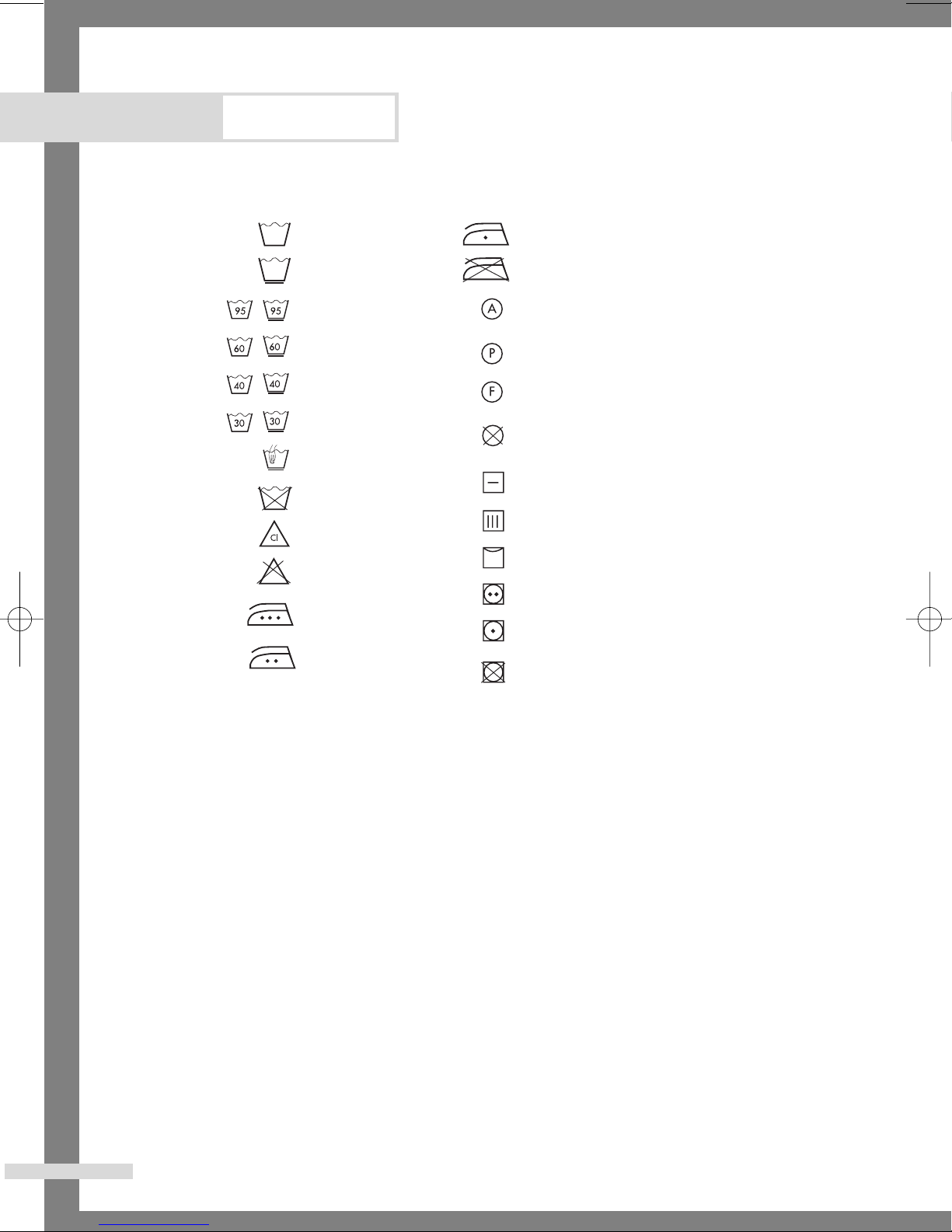

Fabric care chart
Electrical warnings
To reduce the risk of fire, electrical shock, and other injuries, keep these safety precautions in
mind:
•Operate the appliance only from the type of power source
indicated on the marking label. If you are not sure of the
type of power supplied to your home, consult your
appliance dealer or local power company.
•Use only a grounded or polarized outlet. For your safety,
this appliance is equipped with a polarized alternating
current line plug having one blade wider than the other.
This plug will fit into the power outlet only one way. If you
are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug still doesn't fit, contact your
electrician to replace your outlet.
•Protect the power cord. Power supply cords should be
routed so that they are unlikely to be walked on or pinched
by items placed on or against them. Pay particular attention
to cords at plugs, convenience receptacles, and the point
Resistant material
Delicate fabric
Item may be washed at 95 ˚C
Item may be washed at 60 ˚C
Item may be washed at 40 ˚C
Item may be washed at 30 ˚C
Item may be hand washed
Dry clean only
Can be bleached in cold water
Do not bleach
Can be ironed at 200 ˚Cmax
Can be ironed at 150 ˚Cmax
Can be ironed at 100 ˚Cmax
Do not iron
Can be dry cleaned using any solvent
Dry clean with perchloride, lighter fuel,
pure alcohol or R113 only
Dry clean with aviation fuel,
pure alcohol or R113 only
Do not dry clean
Dry flat
Can be hung to dry
Dry on clothes hanger
Tumble dry, reduced heat
Do not tumble dry
Tumble dry, normal heat
P1401-00636A-GB-DW 2/27/03 2:38 PM Page 18
