features
• Child Lock
The Child Lock function keeps curious little hands out of the washer. This safety feature
ensures, that children do not toy with the operation of the washer. It also alerts you when it is
activated.
• Delay Start
This function enables uses to delay the washing machine’s starting time for up to 24 hours.
• Calm Wash
We have a wash cycle that is so quiet you can do laundry while you sleep. The spin cycle is
whisper quiet as it drains away water.
• Less Iron (Option)
Less ironing is needed as Samsung’s Carefreewash safely cleans your soft, delicate
cloths and easy-care fabrics. Developed by Samsung’s globally recognized digital process
technology, the Less Iron function is a specialized laundry program that will help to reduce
wrinkles on your delicate garments, freeing up the time you would have spent on ironing.
• Quick
No time to loose! Less than 30minutes wash will give you time to run out before it’s too late.
Our 28minute Quick Wash program can be the solution to your busy life. Now you can wash
your favorite clothes in only 28minutes, guaranteed!
• Delicates & SILK Program
Special care can be determined by the appropriate temperature, the gentle wash action and
the appropriate amount of water.
• Silver Wash - Silver Nano Health System
Samsung’s silver Nano feature uses silver nano particles to sanitize and disinfect your laundry
and your machine’s drum. Delicates as well as smelly socks will get odor-free from human
sweat at temperature as low as 30˚C. That saves energy and protects color and shape of
your clothes
• Handwash
Clothes susceptible to damage, such as those made of linen or silk, can be washed just as if
they were being washed by hand.
WF7522S8-02410E_EN.indd 2 2007-03-08 ｿﾀﾈﾄ 12:00:39

Safety information _3
safety information
Throughout this manual, you’ll see Warning and Caution notes.
These warnings, cautions, and the important safety instructions that follow do
not cover all possible conditions and situations that may occur.
It’s your resposibility to use common sense, caution, and care when installing,
maintaining, and operation your washer. Samsung is not liable for damages
resulting from improper use.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
What the icons and signs in this user manual means:
WARNING
Hazards or unsafe practices that may result in severe personal injury or
death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or
property damage.
CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury when
using your washer, follow these basic safety precautions:
BEFORE USING THE APPLIANCE
Packing materials can be dangerous to children; keep all packing material (plastic bags,
polystyrene, etc.) well out of the reach of children.
The appliance is designed for home use only.
Make sure that water and electrical connections are made by qualified technicians,
observing the manufacturer’s instructions (see “Installing the Washing Machine”) and local
safety regulations.
All packaging and shipping bolts must be removed before the appliance is used. Serious
damage may occur if they are not removed. See “Removing the shipping bolts”.
Before washing clothes for the first time, you must run a complete cycle without clothes.
See “Washing for the first time”.
SAFETY INSTRUCTIONS
Before cleaning or carrying out maintenance, unplug the appliance from the electrical outlet
or set the (On/Off ) button to Off.
Make sure that the pockets of all clothing to be washed are empty.
Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause
extensive damage to the appliance.
Always unplug the appliance and turn off the water after use.
Before you open the door of the appliance, check that the water has drained. Do not open
the door if you can still see water.
Pets and small children may climb into the appliance. Check the appliance before each use.
CAUTION
WARNING
WF7522S8-02410E_EN.indd 3 2007-03-08 ｿﾀﾈﾄ 12:00:39

4_ Safety information
The glass door becomes very hot during the washing cycle. Keep children away from the
appliance while it is in use.
Do not attempt to repair the appliance yourself. Repairs made by inexperienced or
unqualified persons may cause injury and/or make more serious repairs to the appliance
necessary.
If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its
service agent or a similar qualified person in order to avoid a hazard.
This appliance should only be serviced by an authorized service center, and only genuine
spare parts should be used.
This appliance is not intended for use by young children or infirm persons unless they
have been adequately supervised by a responsible person to ensure that they can use the
appliance safely. Young children should be supervised to ensure that they do not play with
the appliance.
This appliance has to be connected to the plug endurable to proper power consumption.
This appliance has to be positioned so that the plug is accessible after installation.
Do not use processed water containing oil, cream or lotion, which is usually found in skin-
care shops or massage clinics.
• Otherwise this will cause the packing to be deformed, which causes a malfunction or
water leak.
A stainless washing tube does not usually rust. However if some metal such as a hair pin is
left in the tube for an extended time, the tube could rust.
• Do not leave water or bleach containing chlorine in the tube for an extended period of
time.
• Do not regularly use or leave water containing iron in the tube for an extended period of
time.
• If rust starts appearing on the surface of the tube, apply a cleansing agent (neutral) to
the surface and use a sponge or soft cloth to clean it. (Under no circumstances use a
metal brush)
For washing machines with ventilation openings in the base, that a carpet must not
obstruct the openings.
Use the new hose-sets and old hose-sets should not be reused.
safety information
WF7522S8-02410E_EN.indd 4 2007-03-08 ｿﾀﾈﾄ 12:00:39

Contents _5
contents
INSTALLING THE WASHING
MACHINE
6
6 Unpacking the Washing Machine
6 Overview of the washing machine
7 Selecting a location
7 Adjusting the leveling feet
7 Removing the shipping bolts
8 Connecting the water supply hose
9 Connecting the water supply hose (Option)
9 Positioning the drain hose
WASHING A LOAD OF LAUNDRY
10
10 Washing for the first time
10 Putting detergent in the washing machine
12 Washing clothes using Fuzzy Logic
13 Washing clothes manually
14 Using delay start
14 Washing tips and hints
MAINTAINING THE WASHING
MACHINE
15
15 Draining the washing machine in an
emergency
15 Repairing a frozen washing machine
15 Cleaning the exterior
16 Cleaning the detergent drawer and recess
16 Cleaning the debris filter
17 Cleaning the water hose mesh filter
TROUBLESHOOTING
18
18 Problems and solutions
18 Understanding error messages
PROGRAMME CHART
19
19 Programme chart
APPENDIX
21
21 Fabric care chart
21 Electrical warnings
21 Protecting the environment
22 Declaration of conformity
22 Specification
WF7522S8-02410E_EN.indd 5 2007-03-08 ｿﾀﾈﾄ 12:00:39

6_ Installing the washing machine
installing the washing machine
UNPACKING THE WASHING MACHINE
Unpack your washing machine and inspect it for shipping damage. Also make sure that you have received
all of the items shown below. If the washing machine was damaged during shipping or you do not have all
of the items, contact your Samsung dealer immediately.
OVERVIEW OF THE WASHING MACHINE
Wrench Water supply hose Hose guide Bolt hole covers
Cover top
Drain Hose
Plug
Debris filter
Emergency drain tube
Control panel
Base cover
Adjustable feet Door release
Filter Cover
WF7522S8-02410E_EN.indd 6 2007-03-08 ｿﾀﾈﾄ 12:00:40

Installing the washing machine _7
SELECTING A LOCATION
Before you install the washing machine, select a location with the following characteristics:
• A hard, level surface (if the surface is uneven, see “Adjusting the leveling feet,” below)
• Away from direct sunlight.
• Adequate ventilation
• Room temperature that will not fall below 0 ˚C
• Away from sources of heat such as coal or gas
Make sure that the washing machine does not stand on its power cord.
Ventilation openings must not be obstructed by carpeting when the washing machine is installed
on a carpeted floor.
ADJUSTING THE LEVELING FEET
If the floor is uneven, adjust the feet (do not insert pieces of
wood or any other objects under the feet):
1. Loosen the leg bolt by turning it with your hand until it is at
the desired height.
2. Tighten the locking nut by turning it with the wrench.
If the washer is placed on an uneven or weak surface, noise or
vibration occurs. (Only a 1 degrees angle is allowed.)
REMOVING THE SHIPPING BOLTS
Before using the washing machine, you must remove all of the
shipping bolts from the back of the unit. To remove the bolts:
1. Loosen all bolts with the wrench before removing them.
2. Take each bolt head and pull it through the wide part of the
hole.
Repeat for each bolt.
3. Fill the holes with the supplied plastic covers.
4. Keep the shipping bolts for future use.
01 Installing the washing machine
loose
WF7522S8-02410E_EN.indd 7 2007-03-08 ｿﾀﾈﾄ 12:00:40

8_ Installing the washing machine

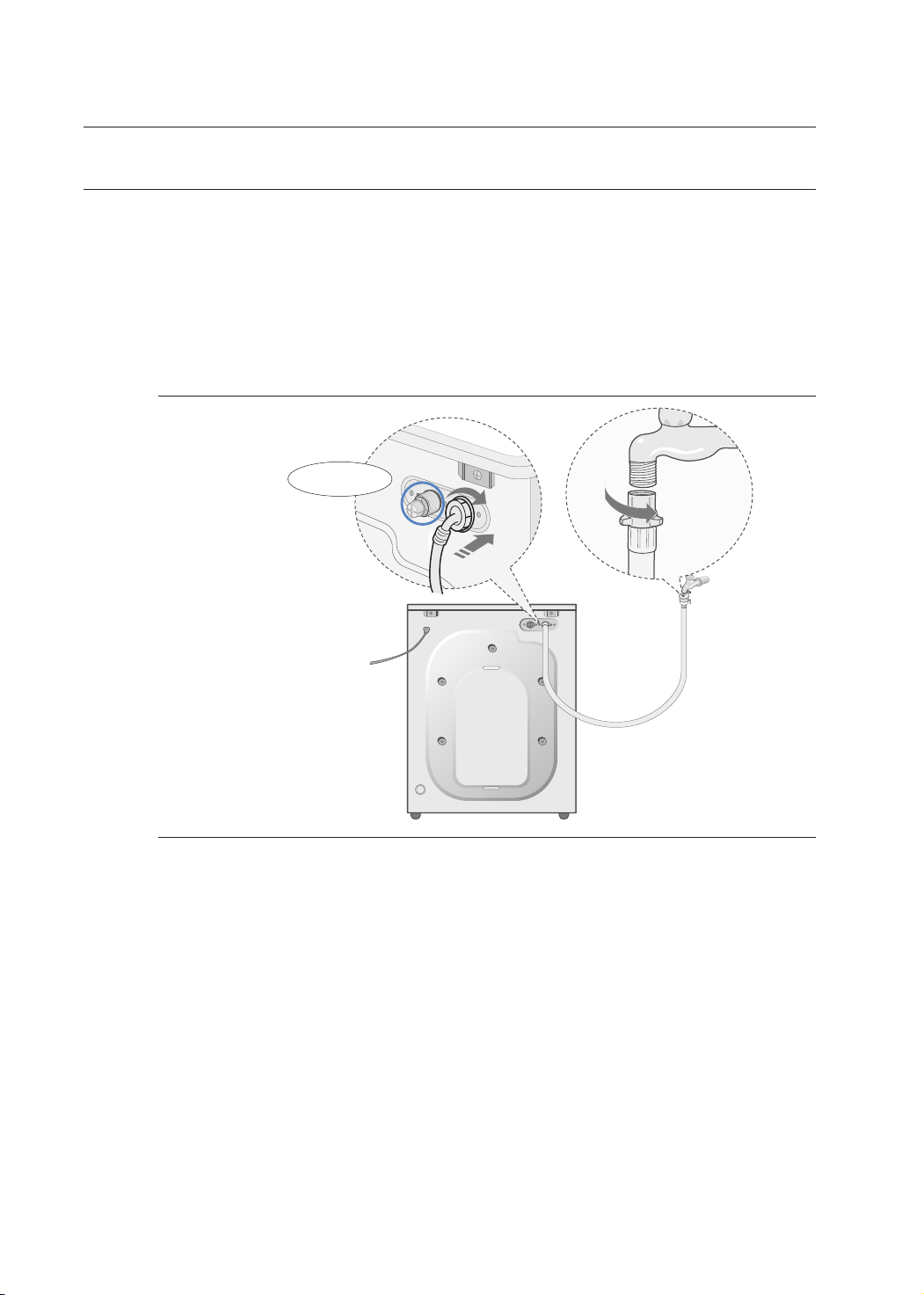

CONNECTING THE WATER SUPPLY HOSE
The water supply hose must be connected to the washing machine at one end and to the water faucet at
the other. Do not stretch the water supply hose. If the hose is too short replace the hose with a longer, high
pressure hose.
To connect the water supply hose:
1. Take the L-shaped arm fitting for the cold water supply hose and connect to the cold water
supply intake on the back of the machine. Tighten by hand.
2. Connect the other end of the cold water supply hose to your sink’s cold water faucet and
tighten it by hand. If necessary, you can reposition the water supply hose at the washing
machine end by loosening the fitting, rotating the hose, and retightening the fitting.
Option:
1. Take the red L-shaped arm fitting for the hot water supply hose and connect to the red hot
water supply intake on the back of the machine. Tighten by hand.
2. Connect the other end of the hot water supply hose to your sink’s hot water faucet and
tighten it by hand.
3. Use a Y-piece if you only want to use cold water.
installing the washing machine
Hot water supply valve
Option
WF7522S8-02410E_EN.indd 8 2007-03-08 ｿﾀﾈﾄ 12:00:40

Installing the washing machine _9
CONNECTING THE WATER SUPPLY HOSE (OPTION)
1. Remove the adaptor from the water supply hose.
2. First, using a ‘+’ type screw driver, loosen the four screws on
the adaptor. Next, take the adaptor and turn part(b) following
the arrow until there is a 5mm gap.
3. Connect adaptor to the water tap by tightening the screws
firmly.
Then, turn part (b) following the arrow and put(a) and (b)
together.
4. Connect the water supply hose to the adaptor. Pull down
part (c) of the water supply hose.
When you release part (c) the hose automatically connects
to the adaptor making a ‘click’ sound.
5. Connect the other end of the water supply hose to the
inlet water valve at the rear of the washer. Screw the hose
clockwise all the way in.
After completing connection, if water leaks from the hose, then repeat the same steps. Use
the most conventional type of faucet for water supply. In case the faucet is square or too
big, remove the spacing ring before inserting the faucet into the adaptor.
POSITIONING THE DRAIN HOSE
The end of the drain hose may be positioned in three ways:
Over the edge of a sink
The drain hose must be placed at a height of between
60 and 90 cm. To keep the drain hose spout bent, use
the supplied plastic hose guide. Secure the guide to the
wall with a hook or to the faucet with a piece of string to
prevent the drain hose from moving.
ln a sink drain pipe branch
The drain pipe branch must be above the sink siphon so that the end of the hose is at least 60
cm above the ground.
ln a drain pipe
Samsung recommends that you use a 65 cm high vertical pipe; it must be no shorter than 60
cm and no longer than 90 cm.
01 Installing the washing machine
a
b
c
WF7522S8-02410E_EN.indd 9 2007-03-08 ｿﾀﾈﾄ 12:00:41

10_ Installing the washing machine
washing a load of laundry
WASHING FOR THE FIRST TIME
Before washing clothes for the first time, you must run a complete cycle without clothes.
To do this:
1. Press the (On/Off) button.
2. Pour a little detergent into compartment ( ) in the
detergent drawer.
3. Turn on the water supply to the washing machine.
4. Press the Temperature button repeatedly until 40 ˚C is
displayed.
5. Press the Start/Pause button.
• This will remove any water from the manufacturer’s test run
remaining in the machine.
Dispenser : Detergent for prewash or starch.
Dispenser : Detergent for main wash, water softener, pre-soaking agent, bleach and stain
removal product.
Dispenser : Additives,e.g.fabric softener or former (fill no higher than lower edge of insert “ A”)

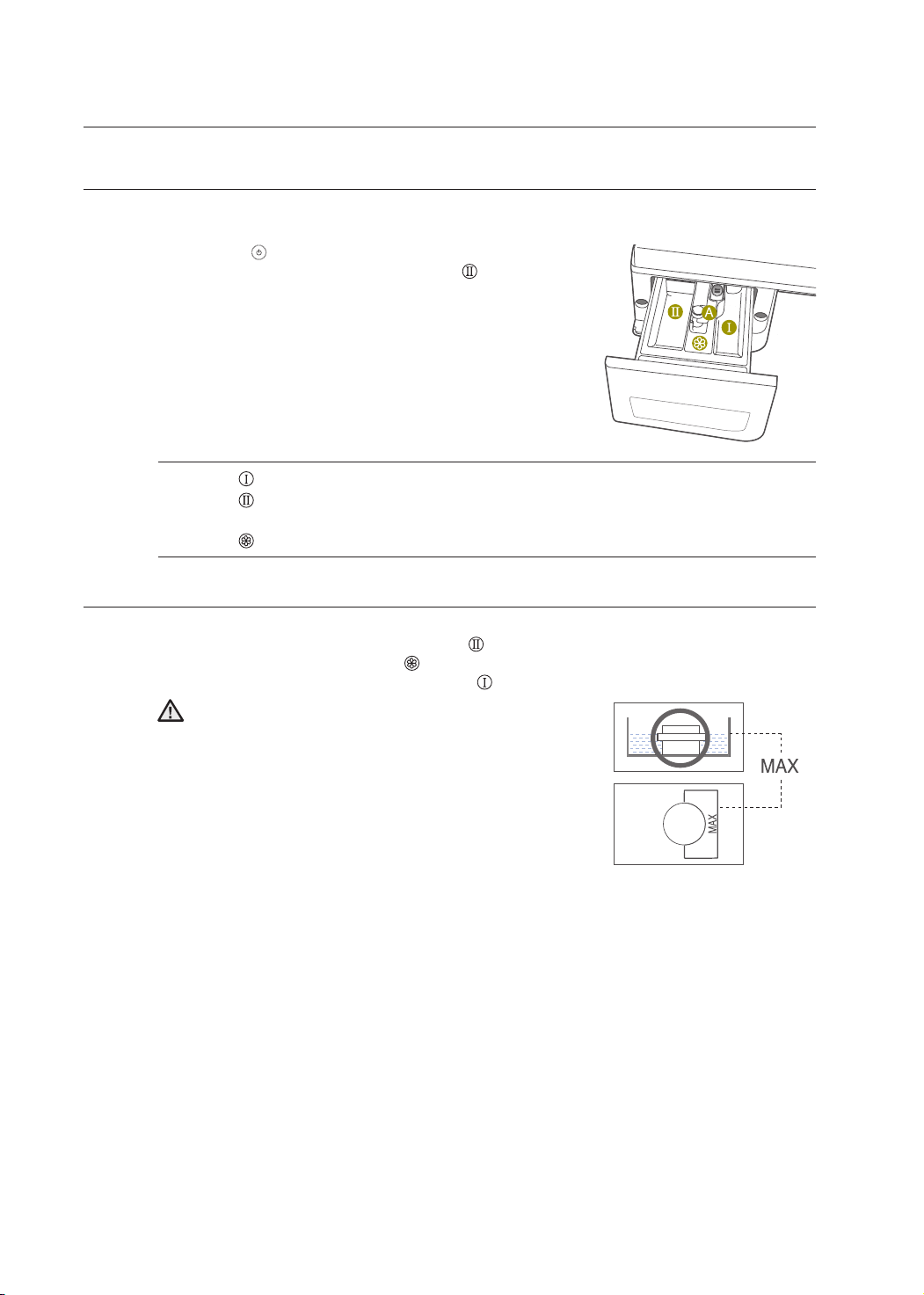

PUTTING DETERGENT IN THE WASHING MACHINE
1. Pull out the detergent drawer.
2. Add laundry detergent into compartment ( ).
3. Add softener into compartment ( ) (if you desire).
4. Add prewash detergent into compartment ( ) (if you desire).
Concentrated or thick fabric softener and conditioner must
be diluted with a little water before being poured into the
dispenser (prevents the overflow from becoming blocked.
CAUTION
WF7522S8-02410E_EN.indd 10 2007-03-08 ｿﾀﾈﾄ 12:00:41

Washing a load of laundry _11
Digital graphic
display
Displays the remaining wash cycle time, all of washing information and error
messages.
Silver Wash
selection button
Silver Nano water is supplied in washing as well as the last rinse, featuring
sterilization and antibacterial coating. (You can select ‘Sterilization’ or
‘Protection’, ‘Sterilization’ + ‘Protection’.)
Less Ironing
selection button
Less Ironing will reduce wrinkles and ironing time.
(available course: Cotton, Coloureds, Quick, Heavy Soil, Mixed Load, Rinse +
Spin, Spin)
Pre-Wash
selection button
Press the button to select pre-wash. Pre-wash is available only with Cotton,
Coloureds, Synthetics, Jean, Heavy Soil, Mixed Load.
Intensive
selection button
You can enter the laundry amount and select the wash time accordingly.
(Select L1  L2  L3 according to the amount of laundry)
Child Lock
selection button
This is a button for preventing children from manipulating the washing
machine.
On/Off - To set the program on: Press the Start/Pause button to turn on the
washing machine.
Press and hold down the “Intensive” + “Temp” button for 2-3 seconds.
It can only be activated when the machine is turned on. Once you set the
Child Lock on while in washing, no button is activated until you set if off. Only
the POWER button can activate. The Child Lock lamp lights on. To set the
program off: Press and hold down the “Intensive” + “Temp” button again for
2-3 seconds, then the lamp lights off and is set off.
Check out the Child Lock button first when no button is activated while
the washing machine is working.
Temperature
selection button
Press the button repeatedly to cycle through the available water temperature
options. (cold(0˚C), 30˚C, 40˚C, 60˚C and 95˚C)
Rinse Times
selection button
Press the rinse button to add rinse cycles. Maximum number of rinse cycles
is five.
Spin selection
button
Press the button repeatedly to cycle through the available spin speed options.
WF7522 0, 400, 800, 1200 rpm
WF7520 0, 400, 800, 1000 rpm
0 : no spin Non display : Rinse hold
02 Washing a load of laundry
6
5
4
3
2
1
7
8
9
WF7522S8-02410E_EN.indd 11 2007-03-08 ｿﾀﾈﾄ 12:00:43

12_ Washing a load of laundry
Delay Start
selection button
Press the button repeatedly to cycle through the available delayed start
options (from 3 hour to 24 hours in one hour increments).
Displayed hours means the time of finished washing-cycle.
Fuzzy Control
dial
Turn the dial to select one of the 14 available wash programs:
Cotton, Coloureds, Synthetics, Delicate Fabrics, Hand Wash For Wool,
Jeans, Quick, Rinse+Spin, Spin, Drain, Silk, Heavy Soil, Mixed Load, Calm
Wash.
Start/Pause
selection button Press to pause and restart programs.
(On/Off)
selection button
Press once to turn the washing machine on, press again to turn the washing
machine off. If the washing machine power is left on for longer than 10
minutes without any buttons being touched, the power automatically turns
off.
WASHING CLOTHES USING FUZZY LOGIC
Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Logic” automatic control
system. When you select a wash programme, the machine will set the correct temperature, washing time,
and washing speed.
To wash clothes using the Fuzzy Logic programs:
1. Turn on your sink’s water faucet.
2. Press the (On/Off) button.
3. Open the door.
4. Load the articles one at a time loosely into the drum, without overfilling.
5. Close the door.
6. Add the detergent, softener, and prewash detergent (if necessary) into the appropriate
compartment.
7. Turn the Fuzzy Control dial to select
the appropriate program for the type of
clothes Cotton, Coloureds, Synthetics,
Delicate Fabrics, Hand Wash For Wool,
Jeans, Quick, Rinse+Spin, Spin, Drain,
Silk, Heavy Soil, Mixed Load, Calm
Wash.
You will see the indicators light up on the
control panel.
8. At this time, you can control the wash temperature, rinsing times, spin speed, delay time by
pressing the appropriate option button.
9. Press the Start/Pause button on the Fuzzy Control dial and the wash cycle will begin. The
process indicator will light up and the remaining time for the cycle will appear in the display.
washing a load of laundry
12
13
10
11
WF7522S8-02410E_EN.indd 12 2007-03-08 ｿﾀﾈﾄ 12:00:45

Washing a load of laundry _13
Pause Option (Stop & Adding laundry Function)
If push Start/Pause button, the door is unlocked immediately.
In case of too hot or too much water in washer, the door can not be opened.
After closed the door, one more push Start/Pause button to make washing process going on
continuously.
When the cycle is finished:
After the total cycle has finished, the power will turn off automatically.
1. Open the door.
2. Remove laundry.
WASHING CLOTHES MANUALLY
You can wash clothes manually without using the Fuzzy Logic feature.
To do so:
1. Turn the water supply on.
2. Press the (On/Off) button on the washing machine.
3. Open the door.
4. Load the articles one at a time loosely into the drum, without overfilling.
5. Close the door.
6. Put the detergent and, if necessary, softener or prewash detergent, in the appropriate
compartments.
7. Press the Temperature button to select the temperature. (cold(0˚C), 30˚C, 40˚C, 60˚C, 95˚C)
8. Press to Rinse button to select the required number of rinse cycles.
Maximum number of rinse cycles is five.
The washing duration will be prolonged accordingly.
9. Press the Spin button to select the spin speed. [ 0, 400, 800, 1000 or 1200 revolutions per
minute(rpm)]
The rinse hold program allows you to take clothes that are dripping wet out of the washing
machine.
0 : No spin , Non display : Rinse hold
10. Press the button repeatedly to cycle through the available delayed start options (from 3 hour
to 24 hours in one hour increments). Displayed hours means the time of finished washing-
cycle.
11. Press the Start/Pause button and the machine will begin the cycle.
02 Washing a load of laundry
WF7522S8-02410E_EN.indd 13 2007-03-08 ｿﾀﾈﾄ 12:00:46

14_ Washing a load of laundry
USING DELAY START
You can set the washing machine to finish your wash automatically at a later time, choosing from 3 to 24
hour delay (in 1 hour increments). Displayed hours means the time of finished washing-cycle.
To do this:
1. Manually or automatically set your washing machine for the type of clothes you are washing.
2. Press the Delay Start button repeatedly until the delay time is set.
3. Press the Start/Pause button. The Delay Start indicator will light, and the clock will begin
counting down until it reaches your finish time.
4. To cancel “Delay Start”, press the (On/Off) button, then turn the washing machine on
again.
WASHING TIPS AND HINTS
Sorting your laundry: Sort your laundry according to the following characteristics:
• Type of fabric care label symbol: Sort laundry into cottons, mixed fibres, synthetics, silks,
wools and rayon.
• Colour: Divide whites and colours. Wash new, coloured items separately.
• Size: Placing items of different sizes in the same load will improve the washing action.
• Sensitivity: Wash delicate items separately, using the Delicate wash programme for pure
new wool, curtains and silk articles. Check the labels on the items you are washing or refer to
the fabric care chart in the appendix.
Emptying pockets: Coins, safety pins and similar items can damage linen, the washing
machine drum, and the water tank.
Securing fasteners: Close zippers and fasten buttons or hooks; loose belts or ribbons should
be tied together.
Prewashing cotton: Your new washing machine, combined with modern detergents, will give
perfect washing results, thus saving energy, time, water and detergent. However, if your cotton is
particularly dirty, use a prewash with a protein-based detergent.
Determining load capacity: Do not overload the washing machine or your laundry may not
wash properly. Use the chart below to determine the load capacity for the type of laundry you are
washing.
Fabric Type Load Capacity
WF7522, WF7520
Cotton/Coloureds/Synthetics/
Jeans/Heavy Soil/Mixed Load 5.2 kg
Quick 3.0 kg
Delicate Fabrics 2.0 kg
Silk 1.5 kg
Detergent tips: The type of detergent you should use is based on the type of fabric (cotton,
synthetic, delicate items, wool), colour, wash temperature, degree and type of soiling.
Always use “low suds” laundry soap, which is designed for automatic washing machines.
Follow the detergent manufacturer’s recommendations based upon the weight of the laundry, the
degree of soiling, and the hardness of the water in your area. If you do not know how hard your
water is, ask your water authority.
Keep detergents and additives in a safe, dry place out of the reach of children.
washing a load of laundry
WF7522S8-02410E_EN.indd 14 2007-03-08 ｿﾀﾈﾄ 12:00:46

Maintaining the washing machine _15
maintaining the washing
machine
DRAINING THE WASHING MACHINE IN AN EMERGENCY
1. Unplug the washing machine from the power supply.
2. Open the filter-cover by using a coin or a key.
3. Unscrew the emergency drain cap by turning left. Grip the
cap on the end of the emergency drain tube and slowly pull
it out about 15 cm.
4. Allow all the water to flow into a bowl.
5. Reinsert the drain tube and screw the cap back on.
6. Replace the filter-cover.
REPAIRING A FROZEN WASHING MACHINE
If the temperature drops below freezing and your washing machine is frozen:
1. Unplug the washing machine.
2. Pour warm water on the source faucet to loosen the water supply hose.
3. Remove the water supply hose and soak it in warm water.
4. Pour warm water into the washing machine drum and let it sit for 10 minutes.
5. Reconnect the water supply hose to the water faucet and check if the water supply and drain
operations are normal.
CLEANING THE EXTERIOR
1. Wipe the washing machine surfaces, including the control panel, with a soft cloth and nonabrasive
household detergents.
2. Use a soft cloth to dry the surfaces.
3. Do not pour water on the washing machine.
03 Maintaining the washing machine
WF7522S8-02410E_EN.indd 15 2007-03-08 ｿﾀﾈﾄ 12:00:46

16_ Maintaining the washing machine
CLEANING THE DETERGENT DRAWER AND RECESS
1. Press the release lever on the inside of the detergent drawer and pull it out.
2. Remove the cap from compartment ( ).
3. Wash all of the parts under running water.
4. Clean the drawer recess with an old toothbrush.
5. Reinsert the cap (Pushing it firmly into place) and replace the liquid detergent divider into the
drawer.
6. Push the drawer back into place.
7. Run a rinse programme without any laundry in the drum.
CLEANING THE DEBRIS FILTER
Clean the debris filter 5 or 6 times a year, or when you see the following
error message on the display:
1. Open the filter-cover, See “Draining the washing machine in
an emergency” on page 15.
2. Unscrew emergency drain cap by turning left and drain off
all the water.
See “Draining the washing machine in an emergency” on
page 15.
3. Unscrew the filter cap and take it out.
4. Wash any dirt or other material from the filter. Make sure
the drain pump propeller behind the filter is not blocked.
Replace the filter cap.
5. Replace the filter-cover.
maintaining the washing
machine
WF7522S8-02410E_EN.indd 16 2007-03-08 ｿﾀﾈﾄ 12:00:47

Maintaining the washing machine _17
CLEANING THE WATER HOSE MESH FILTER
You should clean the water hose mesh filter at least one time per year, or
when you see the following error message on the display:
To do this:
1. Turn off the water source to the washing machine.
2. Unscrew the hose from the back of the washing machine.
3. With a pair of pliers, gently pull out the mesh filter from the
end of the hose and rinse it under water until clean. Also
clean the inside and outside of the threaded connector.
4. Push the filter back into place.
5. Screw the hose back onto the washing machine.
6. Turn on the faucet and make sure the connections are
watertight.
03 Maintaining the washing machine
Option
Option
WF7522S8-02410E_EN.indd 17 2007-03-08 ｿﾀﾈﾄ 12:00:48

18_ Troubleshooting
troubleshooting
PROBLEMS AND SOLUTIONS
PROBLEM SOLUTION
The washing machine
will not start
• Make sure the door is firmly closed.
• Make sure the washing machine is plugged in.
• Make sure the water source faucet is turned on.
• Make sure to press the Start/Pause button.
No water or insufficient
water supply
• Make sure the water source faucet is turned on.
• Make sure the water source hose is not frozen.
• Make sure the water intake hose is not bent.
• Make sure the filter on the water intake hose is not clogged.
Detergent remains in the
detergent drawer after
the wash program is
complete
• Make sure the washing machine is running with sufficient water
pressure.
• Put the detergents in the inner parts of the detergent drawer(away from
the outside edges).
Washing machine
vibrates or is too noisy
• Make sure the washing machine is set on a level surface. If the surface is
not level, adjust the washing machine feet to level the appliance.
• Make sure that the shipping bolts are removed.
• Make sure the washing machine is not touching any other object.
• Make sure the laundry load is balanced.
The washing machine
does not drain and/or
spin
• Make sure the drain hose is not squashed or bent.
• Make sure the water hose mesh filter is not clogged.
The Door does not open • Disconnect the power plug from the power supply.
• Remove the water from the washing machine.
• Open the filter cover using a coin.
• Locate the orange plastic tab and pull forward to
open the door.
UNDERSTANDING ERROR MESSAGES
ERROR CODE SOLUTION
door • Close the door.
4E • Make sure the source water faucet is turned on.
• Check the water pressure.
5E • Clean the debris filter.
• Make sure the drainage hose is installed correctly.
UE
• Laundry load is unbalanced; loosen any tangled laundry.
If only one item of clothing needs washing, such as a bathrobe or jeans,
the final spin result might be unsatisfactory and an “UE” error message
will be shown in the display window.
cE/3E • Call after-sales service.
Before contacting After-Sales service:
1. Try to remedy the problem (See “Troubleshooting” on this page).
2. Restart the programme to see if the fault is repeated.
3. If the malfunction persists, call after-sales service and describe the problem.
WF7522S8-02410E_EN.indd 18 2007-03-08 ｿﾀﾈﾄ 12:00:48

Programme chart _19
programme chart
PROGRAMME CHART
( user option)
Programme
Temperature
(˚C) Options Rinse Spin Speed rpm
stan-
dard max
Less
lron-
ing
pre-
wash
Inten-
sive Ag stan-
dard max
1200 1000
standard max standard max
Cotton 60 95     3 5 1200 1200 1000 1000
Coloureds 40 60     3 5 1200 1200 1000 1000
Synthetics 40 60 -    3 5 1200 1200 1000 1000
Delicate Fabrics 40 40 - - - 3 3 800 800 800 800
Handwash for
Wool 30 40 - - - 2 2 800 800 800 800
Jeans 30 40 -    3 5 800 800 800 800
Quick 30 60 - - 2 5 1200 1200 1000 1000
Program Type of wash
Cotton Averagely or lightly soiled cottons, bed linen, table linen, underwear, towels,
shirts,etc.
Coloureds Averagely or lightly soiled cottons, bed linen, table linen, underwear, towels, shirts,
etc.
Synthetics Averagely or lightly soiled blouses, shirts, etc. Made of polyester (Diolen, Trevira),
polyamide (perlon, Nylon) or other similar blends.
Delicate Fabrics Delicate curtains, dresses, skirts, shirts and blouses.
Handwash for
Wool
Only machine washable woolens with pure new wool label.
Quick Lightly soiled cottons or linen blouses, shirts, dark coloured terry cloth, coloured
linen articles, jeans, etc.
1. The programme duration data has been measured under the conditions specified in Standard IEC 456.
2. Consumption in individual homes may differ from the values given in the table due to variations in the
pressure and temperature of the water supply, the load and the type of laundry.
05 Programme chart
WF7522S8-02410E_EN.indd 19 2007-03-08 ｿﾀﾈﾄ 12:00:48

20_ Programme chart
( user option)
Programme
Temperature
(˚C) Options Rinse Spin Speed rpm
stan-
dard max
Less
lron-
ing
pre-
wash
Inten-
sive Ag stan-
dard max
1200 1000
standard max standard max
Silk 30 30 - - - 2 3 400 400 400 400
Heavy Soil 60 60     3 5 1200 1200 1000 1000
Mixed Load 40 60     3 5 800 800 800 800
Calm Wash 40 40 -    4 5 R/H N/S R/H N/S
Program Type of wash
Silk Silk shirts, blouses, dresses etc.
Heavy Soil Stained or heavily soiled cottons, bed linen, table linen, underwear, towels, shirts,
jeans, etc.
Mixed Load A mix of lightly soiled cottons and synthetic fabrics.
Calm Wash Extremely low noise level during the entire cycle and finish rinse hold. Cottons, bed
linen, table linen, underwear, towels, shirts.
programme chart
WF7522S8-02410E_EN.indd 20 2007-03-08 ｿﾀﾈﾄ 12:00:48
