Samsung WT80J8 User manual

Owner’s Instructions
Before operating the unit, please read this manual throughly,
and retain for future reference.
BEFORE USING THE WASHER .................................................... 1
CAUTIONS ..................................................................................... 1
PRECAUTIONS WHEN OPERATING ........................................... 1
DESCRIPTION OF PARTS ............................................................ 2
CONTROL PANEL ......................................................................... 2
INSTALLATION .............................................................................. 3
ENVIRONMENT .......................................................................... 3
HOW TO CLEAN THE FILTER .................................................... 3
CONNECTING THE DRAIN HOSE ............................................. 3
CLEANING THE MACHINE ........................................................... 3
WASHING PROCEDURE .............................................................. 4
TO WASH .................................................................................... 4
SPIN DRY .................................................................................... 5
RINSING ...................................................................................... 5
OVER FLOW RINSE ................................................................... 5
ADDITIONAL RINSE ...................................................................
LAUNDRY GUIDE .......................................................................... 6
MAINTENANCE ............................................................................. 6
TROUBLESHOOTING
SPECIFICATIONS
Register your product at
www.samsung.com/global/register
CODE NO. : DC68-02750C
5

BEFORE USING THE WASHER
In case of pump drained washer, Take out personal belongings from pockets.
remove the cap-hose from Caution, Check the pockets!
the drain hole. Hairpins and coins cause
damages to clothes and
washing machine.
They make noise and
problems to the machine.
Must check the pocket.
CAUTIONS
Be sure that the washer is grounded.
To avoid electrical shock,use
a metal pipe for the ground
connection. But, don’t ground
the washer with gas pipes or
telephone lines to avoid to
dangers of explosion or lightning strike.
Do not put your hands into the spin
dryer basket when it is spinning.
 <RXU¿QJHUVFDQEHFDXJKW 
by spinning laundry and
damaged.
Never allow children to operate
or play with the washer.
Children playing with the washer
may accidentally fall into the
washing tub.
PRECAUTIONS WHEN OPERATING
Don’t use excessively hot water. Be sure to cover with the safety
(50°C or more) cover on laundry before spinning.
Plastic parts may be deformed or damaged. This prevents laundry from
Also, clothing may be deformed or decolored. being tossed out and damaged.
Before washing,check all pockets. Be sure lay the drain hose(A) down.
If nails or pins remain in pockets,they may
damage the washer or clothes.
(WITHOUT PUMP)
Close the water tap a little if the
water pressure is too high.
To avoid water splashes, Be sure place the drain hose(A) in sink or bath
close the wash tub lid. about 70~80cm above the ground.
Never splash water on the control panel.
(WITH PUMP)
1
Disconnect the power cord from the power
supply when not in use.
Ventilation opening must not be obstructed
by carpeting when the washing machine is
LQVWDOOHGRQDFDUSHWHGÀRRU
If the supply cord of this appliance is damaged,
it must only be replaced by a repair shop
appointed by the manufacturer,because special
purpose tools are required.
7RDYRLGRYHU¿OOLQJDQGGDPDJHVWKLVDSSOLDQFH
PXVWEH¿OOHGZLWKWKHRSHUDWRUSUHVHQWXVLQJD
moderate water supply pressure only.
For washing machines with ventilation openings
in the base, that a carpet must not obstruct the
openings.

SPIN DRYER LID
When you open this
lid while the spin
basket is spinning,
the spinning will be
stopped by brake
system.
POWER CORD
The plug’s shape may
not correspond with
this drawing.
DESCRIPTION OF PARTS
SPIN DRYER BASKET
PULSATOR
DRAIN FILTER
(WITH PUMP)
INNER LID
WATER DRAIN HOSE
(WITHOUT PUMP)
WASH TUB LID
Be sure to keep the
lid closed during
washing and
spinning.
WASH TUB
LINT FILTER
DRAIN HOSE
(WITH PUMP)
CONTROL PANEL
1. WATER SELECTOR 4. AIR TURBO SPIN TIMER
This is used to select wash action. This is used to set the spin time,1-10 minutes.
2. WASH TIMER 5. WATER SELECTOR
This is used to set the wash time, 1-15 minutes. During washing,WATER SELECTOR KNOB
should be selected to wash.During spin rinsing,
WATER SELECTOR KNOB should be selected
to spin.
3. CYCLE SELECTOR
This is used to select the Washing/Rinsing
or Draining.
2
1234
5

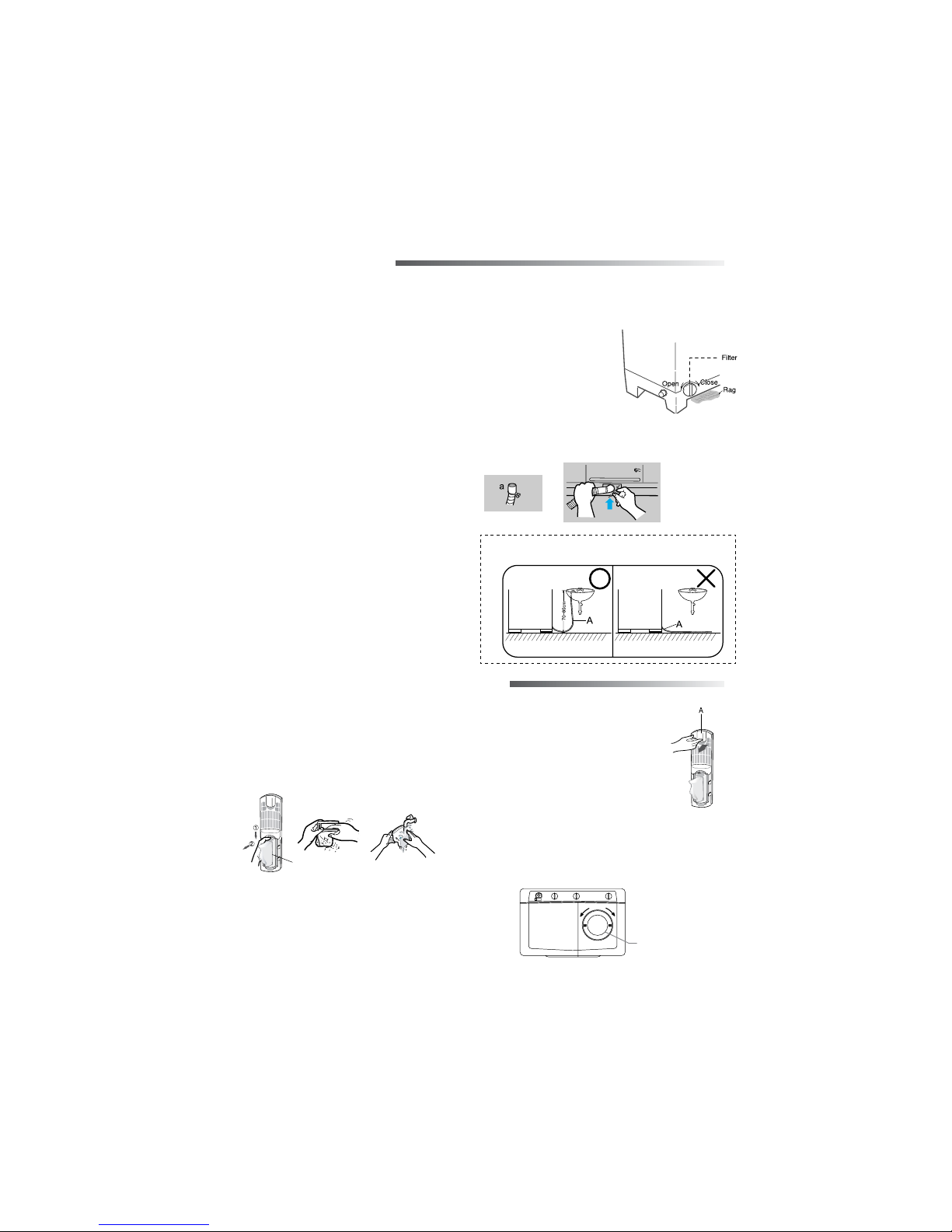

INSTALLATION
ENVIRONMENT HOW TO CLEAN THE FILTER (In case drain pump)
3ODFHDUDJXQGHUWKHZDVKHU¿OWHU
Leave some space QRWWRZHWWKHÀRRU
  6SDFHDWODVWFPEHWZHHQWKHZDVKHU 5RWDWHWKH¿OWHUFRXQWHUFORFNZLVH
  DQGWKHZDOO  DQGSXOORXWWKH¿OWHU
3. Remove dirts and rotate
 3ODFHWKHZDVKHURQDVWXUG\ÀDWVXUIDFH  WKH¿OWHUFORFNZLVHXQWLOLW
If the washer is placed on an uneven or weak locks in position.
surface, noise or vibration may be occured. Remark : Should be cleaned
(Allowable is 2°) Filter at least 1 time a week.
Never install the washer near water. CONNECTING THE DRAIN HOSE
Do not place the washer in steamy rooms or Insert the drain hose(a) and push it tighly to be
where the washer is directly exposed to rain. connected as arrow direction.
Moisture may destroy the electrical insulation
and cause an electrical shock hazard.
Avoid direct sunlight or heating devices. (WITHOUT PUMP)
As plastic and electrical components are
affected by direct heat, never place the
washer near heaters, boilers,etc.
Do not place under direct sunlight. Install the drain hose(A) about 70~80cm above the
ground for pump model.
CLEANING THE MACHINE
CLEANING THE LINT FILTER
,IWKHGUHJVDUH¿OOHGXSLQWKHOLQW¿OWHUDIWHU
¿QLVKLQJWKHZDVKSXVKGRZQDQGSXOOLW
RXWDVVKRZQLQ¿JXUH
5HPRYHWKHFROOHFWHGOLQWDQGULQVHWKH¿OWHUQHW 
OVERFLOW FILTER
3XOOWKHXSSHUVLGHRIWKHRYHUÀRZ¿OWHUZLWK
WZR¿QJHUVLQWRWKHKROH¶$¶LQWKHGLUHFWLRQRI
DUURZDVVKRZQLQWKH¿JXUH
3
Lint Filter
CLEANING THE WASH TUB
Wipe off strains on the cabinet and operation panel
with soft cloth.
Do not use benzene, thinners, cleanser, or wax, nor
scrub the washer with a brush.
Painted surfaces or plastic parts will be damaged.
CLEANING THE COVER WINDOW SPIN
1. Rotate the cover window spin clockwise
and pull out.
2. Cleaning the cover window spin.
3. Insert the cover window spin back and
rotate it counterclockwise until locks in
positon.
Remark : Should be cleaned the cover window spin
at least 1 time a month.
Close Open
Cover Window Spin

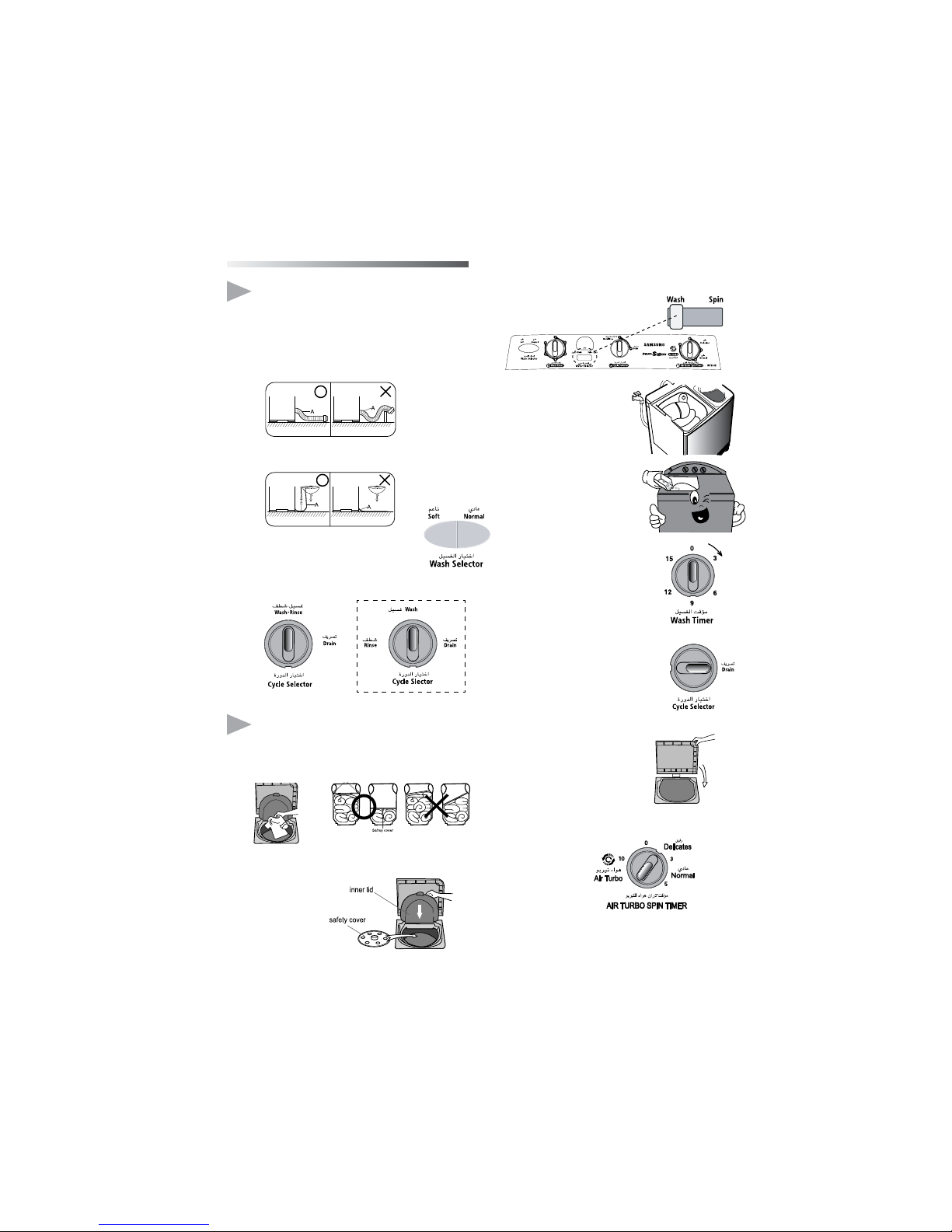

WASHING PROCEDURE
TO WASH ...................................................................................................................................
1. Before starting washing, check the following;
- Connect the water supply hose and open the
water tap.
- Connect the power cord to the power supply
outlet.
- Lay the drain hose(A) down toward a sinkhole.
(WITHOUT PUMP)
- Place the drain hose(A) in sink or bath about
70~80cm above the ground.
(WITH PUMP)
2. Set the WASH SELECTOR
KNOB to the desired mode.
3. Set the CYCLE SELECTOR KNOB to ‘WASH.RINSE’.
(In case no drain pump.) (‘WASH’ In case drain pump.)
4. Set the WATER SELECTOR
KNOB to WASH .
5. Load laundry in the wash
tub.
6. Fill water in the wash tub
and add the detergent.
7. Set the WASH TIME 1-15
minutes.
8. After washing,set the
CYCLE SELECTOR KNOB to
‘DRAIN’ for drain.
SPIN DRY ...................................................................................................................................
1. Transfer the clothes into the spin basket 3. Close the spin dryer lid.
and arrange the clothes evenly.
2. Be sure to attach the safety cover and close the
inner lid.
4. Set the AIR TURBO SPIN TIMER 1-10
minutes.
5. Incomplete spining.(Severe vibration or
unbalance) See “When you load ...”on
page 6.
(WITHOUT PUMP) (WITH PUMP)
4

1. Set the CYCLE SELECTOR KNOB to
‘WASH RINSE’.(In case no drain pump.)
(‘WASH’ In case drain pump.)
3. Set the WASH TIMER 2~3 minutes.
4. Drain the water.Set the CYCLE SELECTOR KNOB
to ‘DRAIN’.
5. Repeat this cycle until drain water is clean. (2~3
cycles)
6. In case no drain pump.
- Be sure lay the drain hose down.
In case drain pump.
- Be sure place the drain hose in sink or bath.
RINSING .....................................................................................................................................
2. Supply the proper amount of water as not to
RYHUÀRZWKHWRSRIWKHZDVKLQJWXE.
OVER FLOW RINSE ..................................................................................................................
1.Keep suppling water
Adjust water pressure to ensure that
the amount of water supplied does not
exceed that water drained.
3. As soon as the WASH TIMER shuts off, turn off
the water tap.
2. Set the WASH TIMER
6~8 minutes.
4. Set the CYCLE SELECTOR
KNOB to ‘DRAIN’.
ADDITIONAL RINSE .................................................................................................................
1
2
36
5
4
5
(WITHOUT PUMP) (WITH PUMP)
(WITHOUT PUMP) (WITH PUMP)
After rinsing you can select this course for more effective rinse (Don’t select only this course for rinse.)
Load the laundry evenly After stopping water
into the spin basket. supply, cover the
laundry with safety cover
and close the inner lid.
Set the WATER SELECTOR KNOB to (b) Close the spin dryer lid.
SPIN(a) and CYCLE
SELECTOR KNOB to (a)
‘DRAIN’.(b)
Supply water for about 1minute. Set the AIR TURBO
$GMXVWWKHZDWHUÀRZWRSUHYHQW SPIN TIMER 2~3 minutes.
RYHUÀRZIURPWKHZDVKWXE

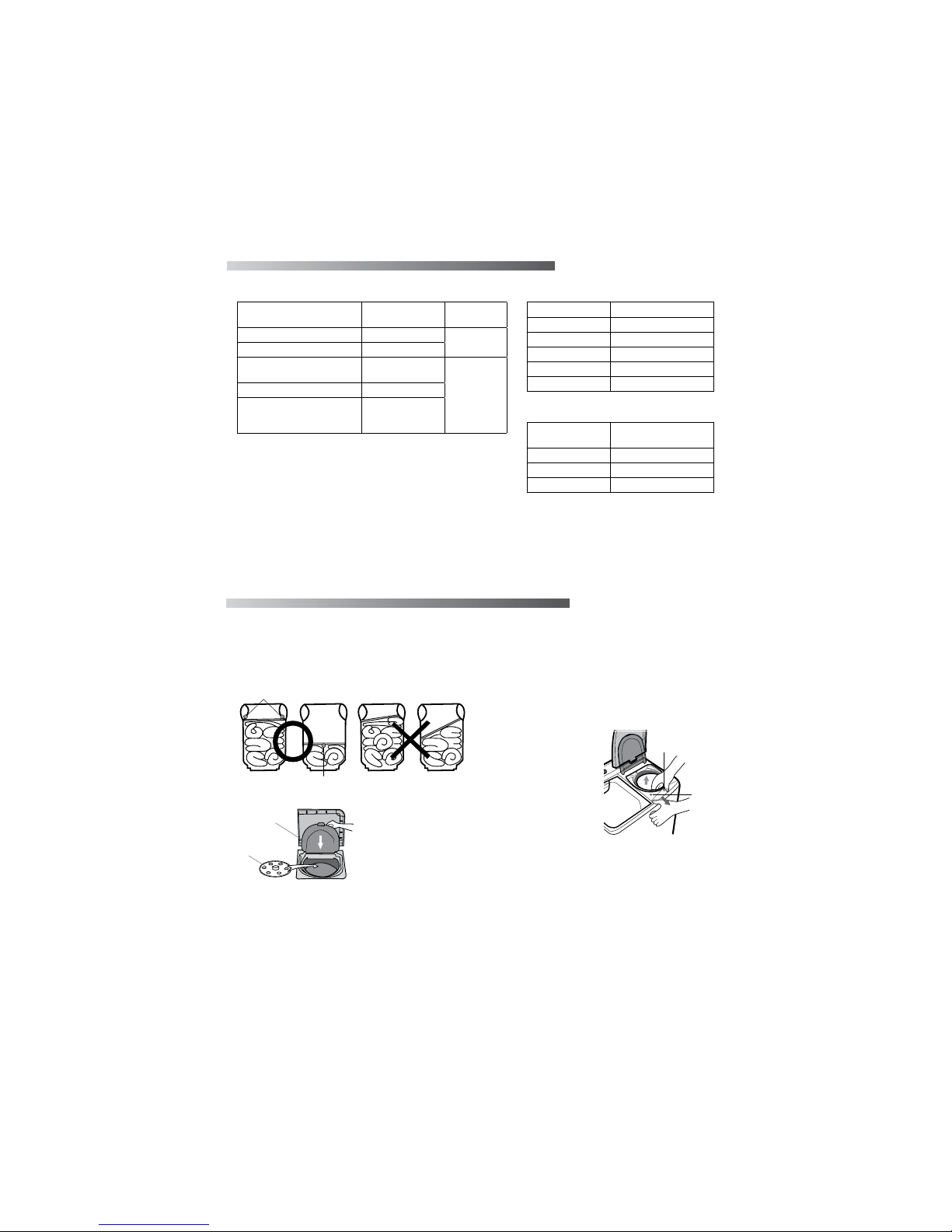

MAINTENANCE
WHEN YOU LOAD THE LAUNDRY INTO THE
SPIN BASKET.


TO PICK OUT THE CLOTHING WHICH HAS
FALLEN BETWEEN THE BASKET AND TUB.
$
 "
 '(
(#(
(

 %
 !






&
&
&


6
LAUNDRY GUIDE
WASHING TIME
KINDS OF CLOTHING WASHING TIME WASHING
SELECTION
Extremely solid heavy fabric 10 to15minutes NORMAL
Linen,cotton,etc. 8 to10minutes
Ordinary clothes
(underwear,etc) 7minutes
SOFT
Slightly solied synthetic ber 2 to 5minutes
100%wool,mixed wool knitting,
thin synthetic ber with tags
indicating hand washing
2 to 5minutes
SPIN DRY TIME
TIME TYPE OF LAUNDRY
1 min. Thin(synthetic ber)
1~2 min. wool
3~5 min. cotton
5 min. thick(cotton)
10 min. (Air Turbo) thick(cotton)
DETERGENT
AMOUNT OF
DETERGENT WATER LEVEL
37 g Low ( 37 l)
45 g Mid ( 45 l)
54 g High ( 54 l)
The amount of detergent is average.
Follow the instruction detergent printed on
the package for amount of detergent.
Choose the amount of detergent depending
on the fabric type.

TROUBLE SHOOTING
TROUBLE CHECK POINT TROUBLE CHECK POINT
1. The washer
does not
work.
!)))&%,'%' (
%$$))%&%,'%*)"),""
%,'()%&&
4. Water dose
not drain.
$($%' $&*#&
(*'".)' $%(%,$
$(' $&*#&
(*''#%+)&%('%#
)' $%"
0%'*( $1%$&
2. Clothes will
not move
freely.
()"*$'.%+'"% 5. The spin
dryer basket
will not run.
()(& $'.'" "%(
%#&")".
'"*$'.(%!()"" $%*)%
)(& $'.'(!)$" $ $)%
)-"
0%& !%*)1%$&
3. Incomplete
spinning.
(Severe
vibration or
unbalance.)
')"*$'.''$+$".
0$.%*"%1%$&
6. The water
drains out
immediately.
$($%' $&*#&
()."")%'())%' $
()' $%("%, )
('&
$*&' $%(%+')' $
%(%%!"""),()*
, )),)'$)'.%'' $
 $', ""'#%+.
,)'' $&'((*'
$(' $&*#&
()' $%(*$%*)/
#%+)'%*$
0%$$) $)' $1%$
&
SPECIFICATION
DIMENSIONS (W x D x H)mm 88
WATER PRESSURE :#
:+(;'$-
WEIGHT "*4)/5405-0 +(
"*4)05-0 +(
EXTRACTION EFFICIENCY 
STANDARD QUANTITY OF WATER l
MOTOR INPUT "#3)*.(" 0*..*.("
MOTOR MAX INPUT "
RATING TIME "#3)*.(/52 0*..*.(-*.54&3
/.4#$4  !""
'9/5)#6&#.915&34*/.3/2$/--&.432&,#4*.(4/ #-35.(02/%5$43
0,&#3&$/.4#$44)&  !$534/-&2$#2&$&.4&2
!
  !
7773#-35.($/--&#
