Samtron SV-D91 User manual

VIDEO CASSETTE RECORDER
SV-D91
SV-D41
SV-D21
SERVICE
1. Precautions
2. Alignment and Adjustment

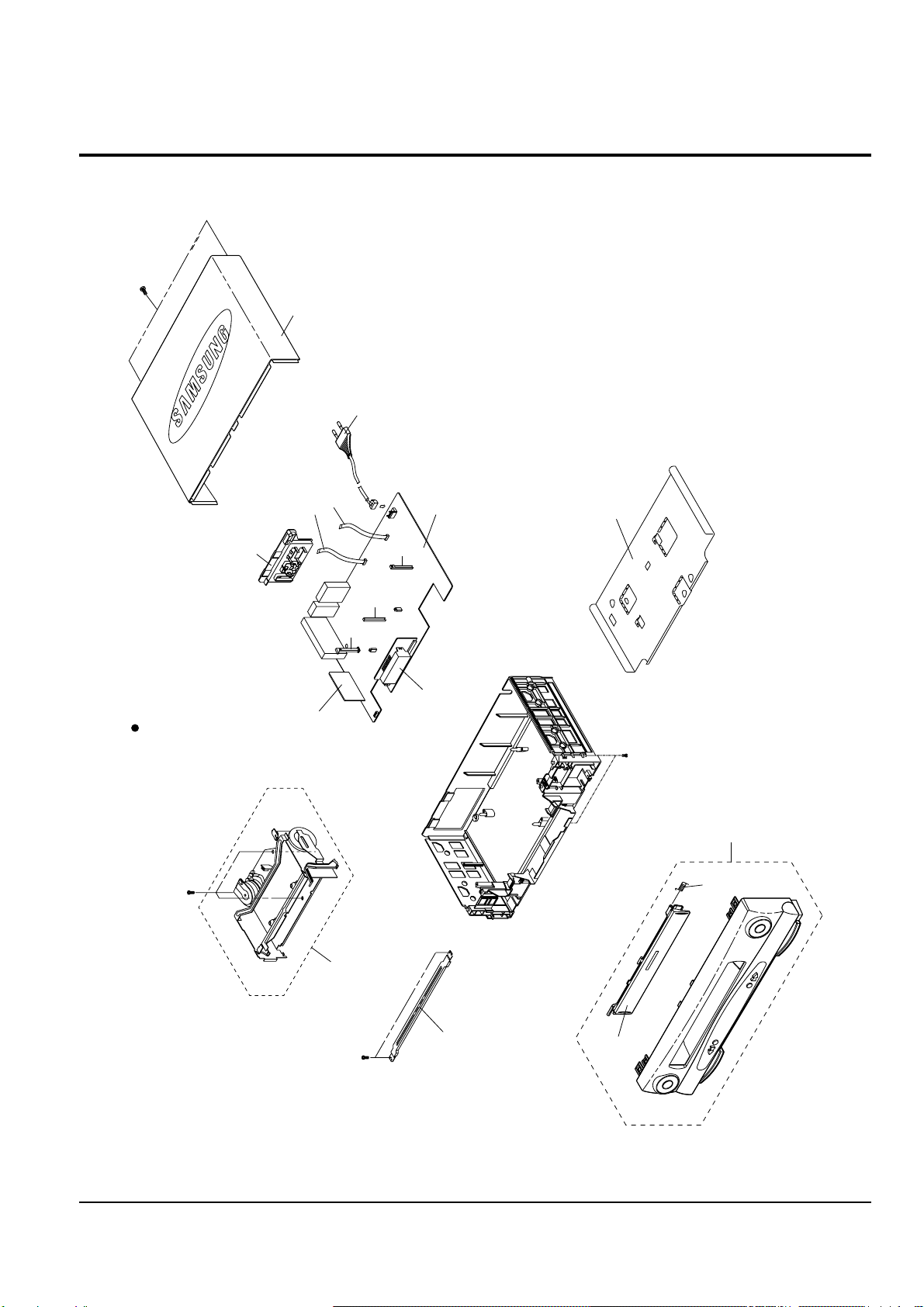

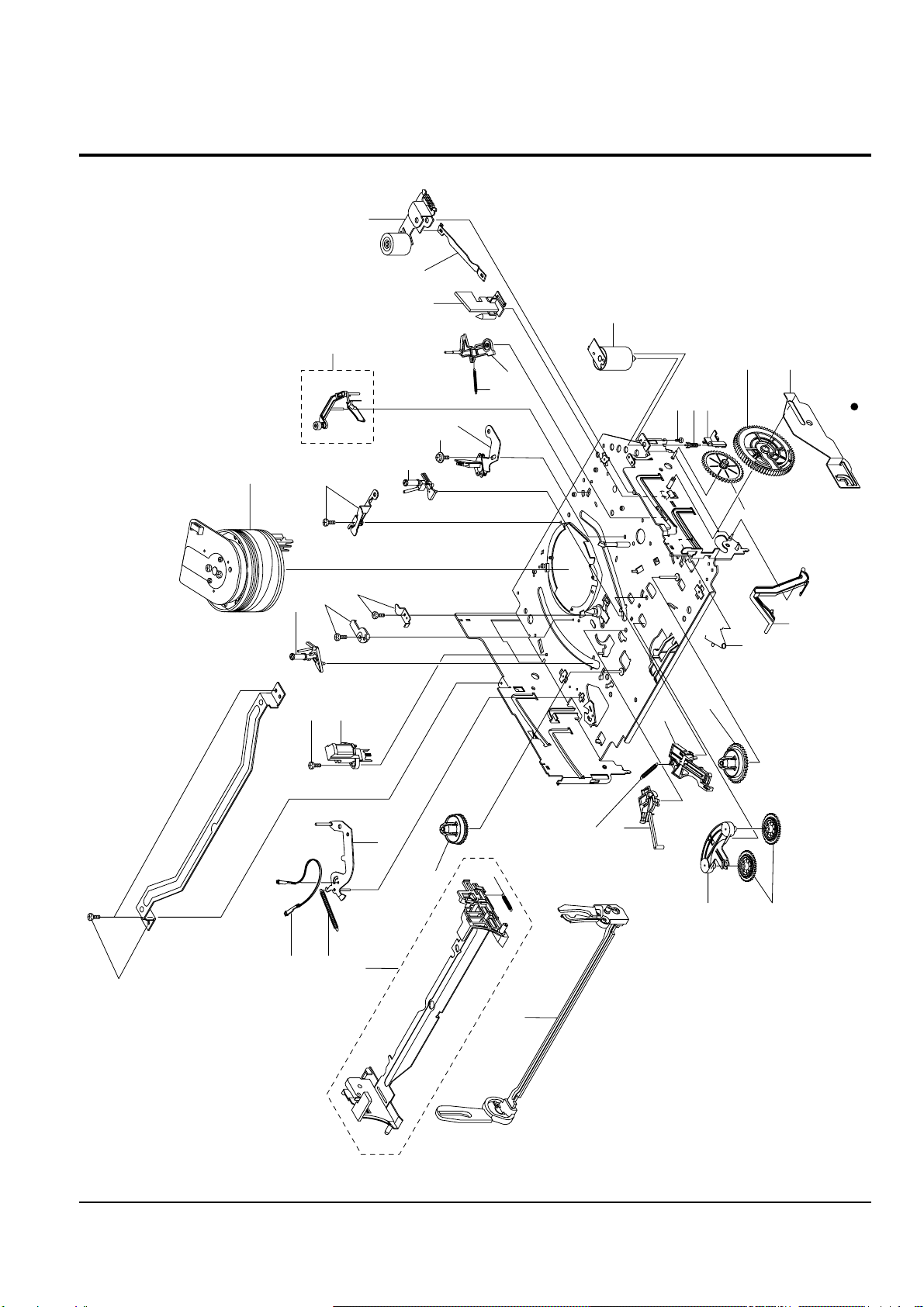

3. Exploded View and Parts List
4. Electrical Parts List
5. Schematic Diagrams
Manual
VIDEO CASSETTE RECORDER CONTENTS
For mechanical disassembly and adjustment, refer to the “Mechanical Manual” (DX-9R AC68-00001A).
SAMTRON
POWER EJECT
POWER REC
REW F.F STOP
PLAY
SERVICE MANUAL SV-D91/D41/D21
© Samsung Electronics Co., Ltd. JAN. 2000
Printed in Korea
AC68-00821A

IMPORTANT SERVICE GUIDE
MODE SWITCH (PROGRAM SWITCH) ASSEMBLY POINT
1) When installing the ass’y full deck on the Main PCB, be sure to align the assembly point of mode switch.
ASSEMBLY POINT
Fig. 1
HOW TO EJECT THE CASSETTE TAPE
(If the unit does not operate on condition that tape is inserted into housing ass’y)
1) Remove the Holder Worm Œand the gear worm ´. (See Fig. 2)
2) Turn the Gear Worm Wheel ˇcounterclockwise in the direction of arrow with screw driver. (See Fig. 2)
3) When Slider S, T are approached in the position of unloading, rotate holder Clutch counterclockwise after inserting screw driver in the
hole of frame’s bottom in order to wind the unwounded tape. (Refer to Fig. 3)
(If you rotate Gear Worm Wheel continuously when tape is in state of unwinding, you may cause a tape contamination by grease and
tape damage. Be sure to wind the unwounded tape in the state of set horizontally.)
4) Rotate Gear Worm Wheel ˇcounterclockwise using screw driver again up to the state of eject mode and then pick out the tape.
(Refer to Fig. 2)
Fig. 2 Fig. 3
ΠHOLDER WORM
´ GEAR WORM
SCREW DRIVER
ˇ GEAR WORM WHEEL
FRAME

Samsung Electronics 1-1
1. Precautions
1. Be sure that all of the built-in protective devices are
replaced. Restore any missing protective shields.
2. When reinstalling the chassis and its assemblies, be
sure to restore all pretective devices, including :
control knobs and compartment covers.
3. Make sure that there are no cabinet openings
through which people--particularly children
--might insert fingers and contact dangerous
voltages. Such openings include the spacing
between the picture tube and the cabinet mask,
excessively wide cabinet ventilation slots, and
improperly fitted back covers.
If the measured resistance is less than 1.0 megohm
or greater than 5.2 megohms, an abnormality exists
that must be corrected before the unit is returned
to the customer.
4. Leakage Current Hot Check (See Fig. 1-1) :
Warning : Do not use an isolation transformer
during this test. Use a leakage current tester or a
metering system that complies with American
National Standards Institute (ANSI C101.1,
Leakage Current for Appliances), and Underwriters
Laboratories (UL Publication UL1410, 59.7).
Fig. 1-1 AC Leakage Test
5. With the unit completely reassembled, plug the AC
line cord directly the power outlet. With the unit’s
AC switch first in the ON position and then OFF,
measure the current between a known erath
ground (metal water pipe, conduit, etc.) and all
exposed metal parts, including : antennas, handle
brackets, metal cabinets, screwheads and control
shafts. The current measured should not exceed
0.5 milliamp. Reverse the power-plug prongs in the
AC outlet and repeat the test.
6. Antenna Cold Check :
With the unit’s AC plug disconnected from the
AC source, connect an electrical jumper across the
two AC prongs. Connect one lead of the ohmmeter
to an AC prong.
Connect the other lead to the coaxial connector.
7. Some semiconductor (“solid state”) devices are
easily damaged by static electricity.
Such components are called Electrostatically
Sensitive Devices (ESDs); examples include
integrated circuits and some field-effect transistors.
The following techniques will reduce the
occurrence of component damage caused by static
electricity.
8. Immediately before handling any semiconductor
components or assemblies, drain the electrostatic
charge from your body by touching a known
earth ground. Alternatively, wear a discharging
Wrist-strap device. (Be sure to remove it prior to
applying power--this is an electric shock
precaution.)
9. Design Alteration Warning :
Never alter or add to the mechanical or electrical
design of this unit. Example : Do not add
auxiliary audio or video connectors.
Such alterations might create a safety hazard.
Also, any design changes or additions will void
the manufacturer’s warranty.
10. Never defeat any of the B+ voltage interlocks.
Do not apply AC power to the unit (or any of its
assemblies) unless all solid-state heat sinks are
correctly installed.
DEVICE
UNDER
TEST
(READING SHOULD
NOT BE ABOVE
0.5mA)
LEAKAGE
CURRENT
TESTER
EARTH
GROUND
TEST ALL
EXPOSED METER
SURFACES
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
2-WIRE CORD

Precautions
1-2 Samsung Electronics
11. Always connect a test instrument’s ground lead to
the instrument chassis ground before connecting
the positive lead; always remove the instrument’s
ground lead last.
12. Observe the original lead dress, especially near
the following areas : Antenna wiring, sharp
edges, and especially the AC and high voltage
power supplies. Always inspect for pinched, out-
of-place, or frayed wiring. Do not change the
spacing between components and the printed
circuit board. Check the AC power cord for
damage. Make sure that leads and components
do not touch thermally hot parts.
13. Product Safety Notice :
Some electrical and mechanical parts have special
safety-related characteristics which might not be
obvious from visual inspection. These safety
features and the protection they give might be
lost if the replacement component differs from the
original--even if the replacement is rated for
higher voltage, wattage, etc.
Components that are critical for safety are
indicated in the circuit diagram by shading,
( or ).
Use replacement components that have the same
ratings, especially for flame resistance and
dielectric strength specifications. A replacement
part that does not have the same safety
characteristics as the original might create shock,
fire or other hazards.

Samsung Electronics 2-1
2. Alignment and Adjustment
2-1 Reference
1) X-Point (Tracking center) adjustment, “Head switching adjustment” and “NVRAM option setting” can be adjusted with remote control.
2) When replacing the Micom (IC601) and NVRAM (IC605 ; EEPROM) be sure to adjust the “Head switching adjustment” and
“NVRAM option setting”.
3) When replacing the cylinder ass’y, be sure to adjust the “X-Point” and “Head switching adjustment”.
4) Among Samsung VCR remote control used for adjustment as a accessory, only the remote control that has figures buttons (0 ~ 9) is
available for all adjustment regardless of chassis.
5) How to adjustment.
- Press the “SW718 (TEST)” button on Main PCB to set the adjustment mode.
- If the corresponding adjustment button is pressed, the adjustment is performed automatically.
- If the adjustment is completed, be sure to turn the power off.
2-1-1 Location of adjustment button of remote control
Fig. 2-1
Q-PRO
IPC
DISPLAY
SHUTTLE
V-LOCK
CLR/RST F.ADV
INPUT INDEX TRK PROG
R
E
C
M
E
N
U
A
U
D
I
O
S
P
E
E
D
T
V
/
V
C
R
REPEAT
OK
<This type of remote control can adjust.> <This type of remote control can not adjust.>
Remote Control for adjustment is not supplied as a Service Jig.
R
E
P
E
A
T
POWER DISPLAY
CNT.RESET SPEED
IIP/S IPC TRK
REC MENU
Head Switching Adjustment
("SPEED" Button)
NVRAM Option Setting
("MENU" Button)
X-Point (Tracking Center) Adjustment
("5" Button)
STANDBY/ON EJECT

2-2 Samsung Electronics
Alignment and Adjustment
2-1-2 SW718 (TEST) location for adjustment mode setting
Fig. 2-2 Main PCB (Top View)
PRESS

Alignment and Adjustment
Samsung Electronics 2-3
2-2 Mechanical Adjustment
Note : Refer to the Mechanical Manual “DX-9R (AC68-00001A)” for the adjustment and confirmation of
ass’y full deck.
2-2-1 The number and position of test point
Test point : TP601 (H’D S/W -Trigger)
TP602 (Control pulse)
TP301 (Video output)
TP302 (Audio output)
TP303 (Envelope)
Fig. 2-3 Location of Test point (Main PCB-Top View)
AUDIO OUTPUT
HEAD SWITCHING
ENVELOPE
2-2-2 ACE Head Position (X-Point) Adjustment
(See the 2-2-1(d) ACE Head Position (X-Point) Adjustment
on page 2-2 of the Mechanical Manual)
1) Playback the alignment tape (Color bar).
2) Press the “SW718 (TEST)” button on Main PCB to
set the adjustment mode. (See Fig. 2-2)
3) Press the “5” button of remote control then
adjustment is operated automatically. (See Fig. 2-1)
4) Connect the CH-1 probe to TP303 (Envelope) the
CH-2 probe to TP601 (H’D switching pulse) and
then trigger to CH-1.
5) Insert the (-) driver into the X-Point adjustment
hole and adjust it so that envelope waveform is
maximum.
6) Turn the Power off.

2-4 Samsung Electronics
Alignment and Adjustment
2-3 Head Switching Point Adjustment
1) Playback the alignment tape.
2) Press the “SW718 (TEST)” button on Main PCB to set the adjustment mode. (See Fig. 2-2)
3) Press the “SPEED” button of remote control then adjustment is operated automatically. (See Fig. 2-1)
4) Turn the Power off.
2-4 NVRAM Option Setting
1) Press the “SW718 (TEST)” button on Main PCB to set the adjustment mode. (See Fig. 2-2)
2) Press the “MENU” button on the remote control about 5 seconds then option setting display is appeared.
(See Fig. 2-4 and 2-5)
3) Select the option number (See Table 2-1 ; Page 2-5) of corresponding model with “FF” and “REW” button on
the remote control.
4) If selecting the option number is completed, press the “PLAY” button of remote control.
(If “PLAY” button is pressed, the selected number is changes reversed color. ; See Fig. 2-4 and 2-5)
5) Press the “OK (VCR)”, “MENU (VCP)” button of remote control again to store the option number.
(“PLEASE WAIT” is displayed for a second as shown Fig. 2-6, 2-7 and this setting is completed.)
6) Turn the Power off.
1) NVRAM Option is adjusted at production line basically.
2) In case Micom (IC601) and NVRAM (IC605 ; EEPROM) is replaced, be sure to set the corresponding option number of the repaired
model. (If the option is not set, the unit is not operated.)
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40
41 42 43 44 45 46 47 48
49 50 51 52 53 54 55 56
**OPTION DIODE **
CNG : SAVE : OK
Fig. 2-4 (VCR)
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40
41 42 43 44 45 46 47 48
49 50 51 52 53 54 55 56
**OPTION DIODE **
CNG : SAVE : MENU
Fig. 2-5 (VCP)
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40
41 42 43 44 45 46 47 48
49 50 51 52 53 54 55 56
**OPTION DIODE **
CNG : SAVE : OK
PLEASE WAIT
Fig. 2-6 (VCR)
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40
41 42 43 44 45 46 47 48
49 50 51 52 53 54 55 56
**OPTION DIODE **
CNG : SAVE : MENU
PLEASE WAIT
Fig. 2-7 (VCP)

Alignment and Adjustment
Samsung Electronics 2-5
COUNTRY MODELS OPTION NUMBER
FRANCE SV-632FT/632FG 5, 8, 12, 13, 14, 15, 16, 18, 19, 22, 23, 26, 29, 35, 38, 50, 53, 54
SV-432FT/432FS/432FG/432FB 5, 8, 12, 16, 18, 19, 22, 23, 26, 29, 35, 38, 50, 53, 54
SV-232FT/232FS/232FG/232FB 5, 16, 18, 19, 22, 23, 26, 29, 35, 38, 50, 53, 54
U.K. SV-632B 6, 8, 10, 12, 13, 15, 16, 22, 23, 27, 35, 38, 50, 54
SV-234B 3, 8, 10, 16, 22, 27, 35, 38, 50, 54
SV-232B 8, 10, 16, 22, 27, 35, 38, 50, 54
GERMANY SV-632X 2, 5, 7, 8, 9, 10, 12, 13, 14, 16, 18, 22, 23, 24, 29, 32, 35, 38, 50, 53, 54
SV-232XB/232XS/232XG/232XM 2, 5, 7, 16, 18, 22, 23, 24, 29, 32, 35, 38, 50, 53, 54,
AUSTRIA SV-232X 2, 5, 7, 16, 18, 22, 23, 24, 32, 35, 38, 50, 53, 54
SWITZERLAND SV-232X 2, 5, 7, 16, 18, 22, 23, 24, 31, 32, 35, 38, 50, 53, 54
SPAIN SV-632X 5, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 31, 35, 38, 50, 53, 54
SV-234X 5, 7, 16, 18, 22, 23, 24, 31, 35, 38, 50, 53, 54
SV-232X 5, 16, 18, 22, 23, 31, 35, 38, 50, 53, 54
ITALY SV-232XS/232XB 5, 16, 18, 22, 23, 29, 31, 35, 38, 50, 53, 54
PORTUGAL SV-232X 5, 16, 18, 22, 23, 35, 38, 48, 50, 53, 54
NETHERLAND SV-632X 5, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 29, 30, 32, 35, 38, 50, 53, 54
SV-232X 16, 18, 22, 29, 30, 32, 35, 38, 50, 54
DENMARK SV-632X 5, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 29, 30, 35, 38, 50, 53, 54
SV-232X 16, 18, 22, 29, 30, 35, 38, 50, 54
SWEDEN SV-232X 16, 18, 22, 29, 30, 31, 35, 38, 50, 54
NORWAY SV-232X 16, 18, 22, 30, 31, 35, 38, 50, 54
GREECE SV-232X 16, 18, 22, 29, 31, 32, 35, 38, 50, 54
U.A.E. SV-232G
8, 11, 16, 17, 18, 20, 22, 25, 26, 30, 31, 32, 35, 38, 42, 48, 50, 54
SAUDI ARABIA SV-250G
8, 11, 16, 17, 18, 20, 22, 25, 26, 30, 31, 32, 35, 38, 42, 48, 50, 54
IRAN SV-250G 8, 11, 16, 17, 18, 20, 22, 25, 26, 29, 35, 38, 41, 42, 48, 50, 54
MALAYSIA SV-232G 8, 9, 10, 16, 17, 18, 20, 22, 25, 26, 29, 31, 32, 35, 38, 42, 50, 54
THAILAND SV-D200B/D200M/D200G 8, 9, 10, 16, 17, 18, 22, 25, 26, 29, 31, 32, 35, 38, 42, 50, 54
SOUTH AFRICA SV-222I8, 9, 11, 16, 17, 18, 22, 25, 26, 29, 31, 32, 35, 38, 42, 50, 54
AFRICA SV-D22K 9, 10, 11, 17, 18, 19, 22, 29, 31, 32, 34, 37, 39, 40, 42, 55
<Table 2-1>

2-6 Samsung Electronics
Alignment and Adjustment
MEMO

Samsung Electronics 3-1
3. Exploded View and Parts List
3-1 Cabinet Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
3-2 Mechanical Parts (Top Side) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
3-3 Mechanical Parts (Bottom Side) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Page
3-2
3-4
3-6

Exploded View and Parts List
3-2 Samsung Electronics
3-1 Cabinet Assembly
S.N.A. : Service Not Available
157
153
FULL DECK (S.N.A.)
TM401B
200
MAIN PCB (S.N.A.)
BRACKET-FRAME
(S.N.A.)
CN602A
CN3A1S
101
155
S601S
LD601S
S602S
LED PCB (S.N.A.)
102
157
1
1
21
22
A2/NICAM PCB-OPTION
(S.N.A.)

Exploded View and Parts List
Samsung Electronics 3-3
Loc. No Parts No. Description ; Specification Remark
1 Refer to table below ASSY-PANEL FRONT;HIPS 94HB
21 Refer to table below DOOR-CASSETTE
22 AC61-62032A SPRING-MASK;X-9,-,SUS,-,4.4,-,SV-C130
101 Refer to table below CABINET-TOP;-,PCM(SECC),-0.525,320
102 AC63-00004A COVER-BOTTOM;-,SECC,-,PCM0.525,TM6524,-,
153 AC60-12126A SCREW-BH;-,BH,-,4*12,FE,FZY,-,-,-
155 AC60-12134A SCREW-TAP BH;-,BH,-,2-4X16,-,FE
157 AC60-10063A SCREW-TAPTITE;BH,+,-,M3,L12,ZPC3,SWRCH18
200 AC39-10019A POWER CORD COMMON
AC39-10022K POWER CORD U.K. ONLY
CN3A1S 3809-001111 CABLE-FLAT;30V,80C,130mm,7P,1.25mm,UL289
CN602A 3809-001049 CABLE-FLAT;30V,80C,100mm,5P,1.25mm,UL289
LD601S AC61-21009A HOLDER-LED;-,POM(M90-44),-,BLK,-,X-9
S601S AC61-21008A HOLDER-SENSOR;-,POM(M90-44),-,BLK,-,X-9
S602S AC61-21008A HOLDER-SENSOR;-,POM(M90-44),-,BLK,-,X-9
TM401B Refer to table below CONNECTOR BOARD-ASSY;HIPS94
COUNTRY MODELS 1 21 101 TM401B
FRANCE SV-632FT AC97-00960A AC64-00375A AC64-00076E AC61-00021H
SV-632FG AC97-00862A AC64-00353A AC64-00076C AC61-00021H
SV-432FT AC97-00961A AC64-00375B AC64-00076E AC61-00021E
SV-432FS AC97-00881A AC64-00353E AC64-00076A AC61-00021E
SV-432FG AC97-00975A AC64-00375L AC64-00076C AC61-00021E
SV-432FB AC97-00880A AC64-00353D AC64-00076B AC61-00021E
SV-232FT AC97-00962A AC64-00375C AC64-00076E AC61-00021E
SV-232FS AC97-00978A AC64-00375P AC64-00076A AC61-00021E
SV-232FG AC97-00883A AC64-00353G AC64-00076C AC61-00021E
SV-232FB AC97-00882A AC64-00353F AC64-00076B AC61-00021E
U.K. SV-632B AC97-00970A AC64-00353X AC64-00076C AC61-00021J
SV-234B AC97-00971A AC64-00353Y AC64-00076A AC61-00021G
SV-232B AC97-00863A AC64-00353T AC64-00076B AC61-00021G
GERMANY SV-632X AC97-00972A AC64-00353Z AC64-00076A AC61-00021J
SV-232XB AC97-00973A AC64-00375D AC64-00076B AC61-00021F
SV-232XS AC97-00884A AC64-00353H AC64-00076A AC61-00021F
SV-232XG AC97-00885A AC64-00353J AC64-00076C AC61-00021F
SV-232XM AC97-00886A AC64-00353K AC64-00076A AC61-00021F
AUSTRIA SV-232X AC97-00887A AC64-00353L AC64-00076A AC61-00021F
SWITZERLAND SV-232X AC97-00887A AC64-00353L AC64-00076A AC61-00021F
SPAIN SV-632X AC97-00974A AC64-00375E AC64-00076C AC61-00021J
SV-234X AC97-00889A AC64-00353M AC64-00076C AC61-00021F
SV-232X AC97-00888A AC64-00353U AC64-00076A AC61-00021F
PORTUGAL SV-232X AC97-00890A AC64-00353N AC64-00076A AC61-00021F
ITALY SV-232XS AC97-00891A AC64-00353P AC64-00076A AC61-00021F
SV-232XB AC97-00864A AC64-00353Q AC64-00076B AC61-00021F
NETHERLAND SV-632X AC97-00866A AC64-00353B AC64-00076C AC61-00021J
SV-232X AC97-00892A AC64-00353R AC64-00076C AC61-00021G
DENMARK SV-632X AC97-00866A AC64-00353B AC64-00076C AC61-00021J
SV-232X AC97-00892A AC64-00353S AC64-00076C AC61-00021G
SWEDEN SV-232X AC97-00892A AC64-00353S AC64-00076C AC61-00021G
NORWAY SV-232X AC97-00892A AC64-00353R AC64-00076C AC61-00021G
GREECE SV-232X AC97-00892A AC64-00353R AC64-00076C AC61-00021G
U.A.E. SV-232G AC97-00957A AC64-00375G AC64-00076A AC61-00021D
SAUDI ARABIA SV-250G AC97-00977A AC64-00375N AC64-00076A AC61-00021D
IRAN SV-250G AC97-00976A AC64-00121A AC64-00076A AC61-00021D
MALAYSIA SV-232G AC97-00957A AC64-00375G AC64-00076A AC61-00021D
THAILAND SV-D200B AC97-00867A AC64-00353C AC64-00076B AC61-00021D
SV-D200M AC97-00894A AC64-00353V AC64-00076A AC61-00021D
SV-D200G AC97-00895A AC64-00353W AC64-00076C AC61-00021D
SOUTH AFRICA SV-222IAC97-00958A AC64-00375H AC64-00076A AC61-00021D
AFRICA SV-D22K AC97-00959A AC64-00375J AC64-00076A AC61-00021D

Exploded View and Parts List
3-4 Samsung Electronics
3-2 Mechanical Parts (Top Side)
G001
K250 K248
K110
K502
K350 K330
K182 K140
K490
K530
K240
G532 G420
G450 K546
G510
B410
B440 B444 B446
B448 B452
G527
G520
G480
G680
S.N.A. S.N.A.
S.N.A.
S.N.A.
S.N.A.
G530
K340
B473
K188
G555
G546
S.N.A. : Service Not Available
S.N.A.

Exploded View and Parts List
Samsung Electronics 3-5
Loc. No Parts No. Description ; Specification Remark
B410 AC31-12016D MOTOR-LOADING ASSY;-,SNHNE,-,-
B440 AC60-10515A SCREW-MACHINE;-,PH,+,-,M3,L3,ZPC,-,YEL
B444 AC66-20571A GEAR-WORM;-,POM SW-01,0.5,2,-,4.5,X-9
B446 AC61-21005A HOLDER-WORM;-,POM M90-44,-,-,-,X-9
B448 AC66-20573A GEAR-WORM WHEEL;-,POM SW-01,0.6,11,-,6.6
B452 AC66-20575A GEAR-FL CAM;-,POM SW-01,M0.6,Z88,-,PCD58
B473 AC61-60559A SPRING-PINCH DRIVE;-,TS,SUS304,PI0.5,OD4
G001 AC97-00566A ASSY-CYLINDER;CX-9T,SECAM 6HD SV-632F ONLY
AC97-00564A ASSY-CYLINDER;CX-9T,SECAM 4HD SV-432F ONLY
AC97-00555A ASSY-CYLINDER;CX-9T, PAL 2HD(LP) SV-234B/232B ONLY
AC97-00551A ASSY-CYLINDER;CX-9T, PAL 6HD (6HD NON-DIAMOND HEAD)
AC97-00549A ASSY-CYLINDER;CX-9T, PAL 4HD (4HD NON-DIAMOND HEAD)
AC97-00547A ASSY-CYLINDER;CX-9T, PAL 2HD (2HD NON-DIAMOND HEAD)
AC97-00553A ASSY-CYLINDER;CX-9T, PAL 2HD(SP)/DLC (2HD DIAMOND HEAD)
AC97-00554A ASSY-CYLINDER;CX-9T, PAL 2HD(LP)/DLC (2HD DIAMOND HEAD)
G420 AC66-80142A SLIDER-SUPPLY ASSY;-,X-9(TS),-,-,-,X-9
G450 AC66-80141A SLIDER-TAKE UP ASSY;-,X-9(TS),-,-,-,X-9
G480 AC33-00003A HEAD-ACE ASSY;SHINHEUNG;-,-,-,-,X-9
G510 6006-001075 SCREW-ASSY TAPT;WSP,PH,+,M2.6,L5.0,ZPC
G520 AC66-30539A LEVER-#9 GUIDE ASSY;-,X-9(TS),-,-,-,X-9
G527 AC61-60553A SPRING-#9 GUIDE;-,ES,SUS304-WPB,OD3.1,0.
G530 AC33-00002A HEAD-FE;-,HVFHP0038A,-,-,-,X-9
G532 AC60-10519A SCREW-TAP TITE;-,PH,+,-,M2.6,L8,ZPC
G546 AC66-30535A LEVER-FL DOOR;-,POM M90-44,-,-,BLK,X-9
G555 AC59-90403A UNIT-PINCH ASSY;X-9,-
G680 AC66-30557A LEVER-H/CLEANER ASSY;-,POM+URETHANE,-,- (OPTIONAL)
K110 AC66-10267A REEL-DISK S;-,POM M90-44,-,-,X-9
K140 AC66-10268A REEL-DISK T;-,POM M90-44,-,-,X-9
K182 AC66-30524A LEVER-IDLER;-,POM9044,-,-,-,-
K188 AC66-20577A GEAR-IDLER;-,PEBAX 7033,-,-,-,-,X-9
K240 AC66-30538A LEVER-TENSION ASSY;-,X-9(TS),-,-,-,X-9
K248 AC61-60554A SPRING-TENSION LEVER;-,ES,SUS304-WPB,OD3
K250 AC63-12029A BAND-BRAKE ASSY;-,X-9(TS),-,-,-,X-9
K330 AC66-30550A LEVER-S.BRAKE ASSY;-,POM+SUS,-,-,-,X-9
K340 AC66-30549A LEVER-T.BRAKE ASSY;-,POM+SUS,-,-,-,X-9
K350 AC61-60564A SPRING-BRAKE;-,TENSION,SWP-A,0.25,3,-,X-
K490 AC61-21010B HOLDER-CASS ASSY;-,SECC+POM+SUS,-,-,-,X-
K502 AC61-60561A SPRING-FL.LEVER-LR;-,ES,SUS304 WPB,PI2.7
K530 AC66-30546A LEVER-FL.ARM ASS’Y;-,SECC+POM+SUS,-,-,-,
K546 AC61-50658A GUIDE-CASS. DOOR;-,POM M90-44,-,-,NTR,-,

Exploded View and Parts List
3-6 Samsung Electronics
3-3 Mechanical Parts (Bottom Side)
G542 B560
B484
B458
B500
B488
B462
(OPTIONAL)
S.N.A.
S.N.A.
S.N.A.
S.N.A.
B456
K222 K200 K225 K221
B570
B238
S.N.A. : Service Not Available

Exploded View and Parts List
Samsung Electronics 3-7
Loc. No Parts No. Description ; Specification Remark
B238 AC61-50660A SLEEVE-TENSION;-,POM M90-44,-,-,ID3,-,-,
B456 AC66-20576A GEAR-JOINT 1;-,POM SW-01,M1.0,Z22,-,PCD2
B458 AC66-20574A GEAR-JOINT 2;-,POM SW-01,M1.0,Z14,-,PCD1
B462 AC60-10517A SCREW-TAP TITE;-,PH,+,-,M2.6,L5,ZPC,-,YE
B484 AC66-20580A GEAR-LOADING DRIVE;-,POM SW-01,M1.0,Z32,
B488 AC66-30543A LEVER-S LOAD ASSY;-,-,-,-,-,X-9
B500 AC66-30542A LEVER-T LOAD ASSY;-,-,-,-,-,X-9
B560 AC31-00005A MOTOR-CAPSTAN;-,F2QSB02,-,-
B570 AC60-10514A SCREW-CAPSTAN;-,PH,+,M2.6,L6,-
G542 AC66-60051A BELT-PULLEY;-,5CM-70,2 * 2,-,71.3,-,X-9
K200 AC61-21012A HOLDER-CLUTCH ASSY;-,-,-,-,-,X-9
K221 AC66-20581A GEAR-CENTER ASSY;-,POM,M=O.5,-,HIGHT T.,
K222 AC60-30306A WASHER-SLIT;-,-,ID2.1,OD5.0,T0.5,-,POLYS
K225 AC66-30547A LEVER-UP DOWN ASSY;-,POM+SUS,-,-,-,X-9

Exploded View and Parts List
3-8 Samsung Electronics
MEMO

Loc.No Part No Description ; Specification Remark Loc.No Part No Description ; Specification Remark
Samsung Electronics 4-1
- - ASSY-PCB-MAIN S.N.A.
S.M.P.S. PARTS (230 VOLTAGE)
BD1SD1 AC27-92001M INDUCTOR;70UH-M RT BFS3565R2F,-,-,-,-
BD1SR1 3301-000297 CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
BD1SS3 AC27-92001M INDUCTOR;70UH-M RT BFS3565R2F,-,-,-,-
C1SD03 2201-000812 C-CERAMIC,DISC;2.2nF,20%,400V,Y5U,BK,12.
C1SD04 2201-000812 C-CERAMIC,DISC;2.2nF,20%,400V,Y5U,BK,12.
C1SD11 2401-003302 C-AL;47uF,20%,400V,GP,TP,18X31.5,7.
C1SD12 2201-000445 C-CERAMIC,DISC;3.3nF,20%,400V,Y5P,TP,-,1
C1SD13 2301-000361 C-FILM,PEF;1.2NF,10%,50V,TP,-,5MM
C1SR12 2401-000905 C-AL;22UF,20%,16V,BP,-,6X11,2.5MM
C1SR14 2301-000445 C-FILM,PEF;4.7nF,5%,50V,TP,5.5x7x3mm,5mm
C1SS01 2305-001021 C-FILM,MPEF;100nF,20%,275V,TP,17.5x7x13.
C1SS02 2305-001021 C-FILM,MPEF;100nF,20%,275V,TP,17.5x7x13.
C1SS12 2201-000129 C-CERAMIC,DISC;0.1nF,10%,1kV,Y5P,TP,7x4,
C1SS31 2401-000385 C-AL;10uF,20%,100V,GP,TP,6.3x11,5
C1SS33 2401-003477 C-AL;330UF,20%,25V,LZ,TP,10X12.5MM,
C1SS34 2401-001126 C-AL;330uF,20%,25V,WT,TP,10x12.5,5
C1SS35 2401-003480 C-AL;1000UF,20%,10V,LZ,TP,10X16MM,5
C1SS36 2401-001479 C-AL;470uF,20%,10V,GP,-,-,TP
C1SS39 2301-000129 C-FILM,PEF;100nF,5%,50V,TP,10X9X4.3X5,5m
CN1SS1 3711-000178 CONNECTOR-HEADER;1WALL,2P,1R,3.96mm,STRA
D1SD11 0402-001195 DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
D1SD31 0402-001195 DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
D1SR11 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D1SS01 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS02 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS03 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS04 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS11 0402-000276 DIODE-RECTIFIER;UF4007,1KV,1A,DO-41,TP
D1SS32 0402-001194 DIODE-RECTIFIER;UG2D,200V,2A,DO-204AC,TP
D1SS33 0404-000128 DIODE-SCHOTTKY;FMB-G14L,45V,5A,TO-220F,T HI-FI ONLY
D1SS33 0402-000431 DIODE-RECTIFIER;FML-M02S,200V,2.5A,TO-22 MONO ONLY
F1SS01 3601-001208 FUSE-CARTRIDGE;250V,1.6A,TIME-LAG,GLASS
IC1SS1 0604-001028 PHOTO-COUPLER;TR,50-600%,250mW,DIP-4,ST
IC1SS2 AC14-12006D IC;KA431Z,TO-92,TAPING
L1SS01 AC29-30050B FILTER-LINE NOISE;-,400uH,-,AC250V,TR12.
L1SS02 AC29-30050C FILTER-LINE NOISE;-,25MH,0.35A,AC250V,BS
L1SS31 AC27-12001N COIL-CHOKE;10UH-15%,RA,K-30,Q80,150KHZ,-
L1SS32 AC27-12001N COIL-CHOKE;10UH-15%,RA,K-30,Q80,150KHZ,-
PT1SS1 AC26-00002A TRANS SWITCHING;-,-,-,-,DEMKO,-,1.3mH,-,
Q1SR01 0502-001050 TR-POWER;2SC4517A,NPN,30W,TO-220,ST,10-
Q1SR02 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN,400MW,T0-9
R1SD11 2001-000305 R-CARBON;110KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SD12 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R1SD13 2001-000305 R-CARBON;110KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SD14 2001-000305 R-CARBON;110KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SD15 2001-000305 R-CARBON;110KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SD16 2006-000273 R-CEMENT;27Kohm,5%,2W,CA,BK,6.4x27x6.4m
R1SD31 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SD32 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R1SR11 2003-000119 R-METAL OXIDE;0.68ohm,5%,2W,AE,TP,6x16mm
R1SR12 2003-000264 R-METAL OXIDE;300ohm,5%,1W,AD,TP,4.3x12m
R1SR14 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R1SS10 2006-000262 R-CEMENT;2.7ohm,10%,2W,CB,TP,7.5x11x20.
R1SS13 2003-000148 R-METAL OXIDE;100OHM,5%,2W,AE,TP,6X16MM
R1SS32 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SS33 2004-000869 R-METAL;3Kohm,1%,1/8W,AA,TP,1.8x3.2mm
R1SS34 2004-000459 R-METAL;2.2Kohm,1%,1/8W,AA,TP,1.8x3.2m
VA1SS1 1405-001026 VARISTOR;470V,600A,9x7mm,TP
ZD1SS1 0403-000571 DIODE-ZENER;UZP43B,43V,40-46V,1W,DO-41,T
S.M.P.S. (FREE VOLTAGE)
BD1SD1 AC27-92001M INDUCTOR;70UH-M RT BFS3565R2F,-,-,-,-
BD1SF1 3301-000297 CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
BD1SF3 AC27-92001M INDUCTOR;70UH-M RT BFS3565R2F,-,-,-,-
BD1SS3 AC27-92001M INDUCTOR;70UH-M RT BFS3565R2F,-,-,-,-
C1SD03 2201-000812 C-CERAMIC,DISC;2.2nF,20%,400V,Y5U,BK,12.
C1SD04 2201-000812 C-CERAMIC,DISC;2.2nF,20%,400V,Y5U,BK,12.
C1SD11 2401-003303 C-AL;82uF,20%,400V,GP,BK,22X30,10
C1SD12 2305-001029 C-FILM,MPEF;10nF,10%,630V,TP,12x9x12.5,5
C1SD13 2201-000376 C-CERAMIC,DISC;0.22nF,5%,50V,SL,TP,6.3x3
C1SF12 2401-001200 C-AL;33uF,20%,50V,WT,TP,6.3x11,5
C1SS01 2305-001021 C-FILM,MPEF;100nF,20%,275V,TP,17.5x7x13.
C1SS02 2305-001021 C-FILM,MPEF;100nF,20%,275V,TP,17.5x7x13.
C1SS12 2201-000129 C-CERAMIC,DISC;0.1nF,10%,1kV,Y5P,TP,7x4,
C1SS31 2401-000385 C-AL;10uF,20%,100V,GP,TP,6.3x11,5
C1SS33 2401-003477 C-AL;330UF,20%,25V,LZ,TP,10X12.5MM,
C1SS34 2401-001126 C-AL;330uF,20%,25V,WT,TP,10x12.5,5
C1SS35 2401-003480 C-AL;1000UF,20%,10V,LZ,TP,10X16MM,5
C1SS36 2401-001479 C-AL;470uF,20%,10V,GP,-,-,TP
C1SS39 2301-000129 C-FILM,PEF;100nF,5%,50V,TP,10X9X4.3X5,5m
CN1SS1 3711-000178 CONNECTOR-HEADER;1WALL,2P,1R,3.96mm,STRA
D1SD11 0402-001195 DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
D1SD31 0402-001195 DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
D1SF05 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SF12 0402-001195 DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
D1SS01 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS02 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS03 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS04 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS11 0402-000276 DIODE-RECTIFIER;UF4007,1KV,1A,DO-41,TP
D1SS32 0402-001194 DIODE-RECTIFIER;UG2D,200V,2A,DO-204AC,TP
D1SS33 0402-000431 DIODE-RECTIFIER;FML-M02S,200V,2.5A,TO-22
F1SS01 3601-001208 FUSE-CARTRIDGE;250V,1.6A,TIME-LAG,GLASS
IC1SF1 1203-001802 IC-PWM CONTROLLER;STR-G6551,TO-220F,5P,-
IC1SS1 0604-001028 PHOTO-COUPLER;TR,50-600%,250mW,DIP-4,ST
IC1SS2 AC14-12006D IC;KA431Z,TO-92,TAPING
L1SS02 AC29-30050C FILTER-LINE NOISE;-,25MH,0.35A,AC250V,BS
L1SS31 AC27-12001N COIL-CHOKE;10UH-15%,RA,K-30,Q80,150KHZ,-
L1SS32 AC27-12001N COIL-CHOKE;10UH-15%,RA,K-30,Q80,150KHZ,-
PT1SS1 AC26-00004A TRANS SWITCHING;-,-,-,-,DEMKO,-,0.65mH,-
R1SD12 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SD13 2001-000076 R-CARBON;47KOHM,5%,1/4W,AA,TP,2.4X6.4MM
R1SD14 2001-000076 R-CARBON;47KOHM,5%,1/4W,AA,TP,2.4X6.4MM
R1SD15 2001-000076 R-CARBON;47KOHM,5%,1/4W,AA,TP,2.4X6.4MM
R1SD16 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
R1SD31 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SD32 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SF11 2001-000076 R-CARBON;47KOHM,5%,1/4W,AA,TP,2.4X6.4MM
R1SF15 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R1SF19 2001-000904 R-CARBON;620OHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SF20 2003-002197 R-METAL OXIDE;0.47ohm,5%,2W,AF,TP,3.9x10
R1SF21 2001-000096 R-CARBON(S);1MOHM,5%,1/2W,AA,TP,2.4X6.4M
R1SS10 2006-000262 R-CEMENT;2.7ohm,10%,2W,CB,TP,7.5x11x20.
R1SS11 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
R1SS13 2003-000148 R-METAL OXIDE;100OHM,5%,2W,AE,TP,6X16MM
R1SS32 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SS33 2004-000869 R-METAL;3Kohm,1%,1/8W,AA,TP,1.8x3.2mm
R1SS34 2004-000459 R-METAL;2.2Kohm,1%,1/8W,AA,TP,1.8x3.2m
VA1SS1 1405-001026 VARISTOR;470V,600A,9x7mm,TP
4. Electrical Parts List

Loc.No Part No Description ; Specification RemarkLoc.No Part No Description ; Specification Remark
4-2 Samsung Electronics
Electrical Parts List
POWER PARTS
C1P102 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5
C1P103 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
C1P104 2401-002299 C-AL;4.7uF,20%,50V,GP,TP,5x7,5
C1P105 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5
C1P106 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5
C1P108 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5
C1P115 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
C1P116 2401-001915 C-AL;1uF,20%,50V,GP,TP,3x5,5
C1P117 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
D1P101 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D1P103 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D1P104 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D1P108 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D1P109 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D1P113 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D1P114 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D1P116 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D1P117 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D1P120 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D1P121 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
Q1P101 0501-000616 TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
Q1P102 0501-000616 TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
Q1P103 0501-000616 TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
Q1P108 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN,400MW,T0-9
Q1P114 0501-000616 TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
Q1P115 0504-000142 TR-DIGITAL;KSR2001,PNP,300MW,4.7K/4.7K,T
Q1P116 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
Q1P117 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN,400MW,T0-9
R1P103 2001-000034 R-CARBON;220OHM,5%,1/4W,AA,TP,2.4X6.4MM
R1P108 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R1P112 2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM
R1P117 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R1P118 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R1P128 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
ZD1P01 0403-001211 DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
ZD1P02 0403-000717 DIODE-ZENER;MTZJ5.1B,5.1V,4.94-5.2V,500m
ZD1P03 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
ZD1P06 0403-001211 DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
SYSTEM CONTROL/SERVO PARTS
C601 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C602 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C603 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5
C604 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C605 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C607 2401-001775 C-AL;470nF,20%,50V,GP,TP,4x7,5
C608 2401-002259 C-AL;0.1F,+80-20%,5.5V,-,TP,12.5x11 B/UP(1HR)
C608 2401-000118 C-AL;1000uF,20%,10V,GP,TP,10x12.5,5 B/UP(30SEC)
C609 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C610 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5
C611 2301-000392 C-FILM,PEF;15nF,5%,50V,TP,6.5x8.5x3.2mm,
C612 2401-000118 C-AL;1000uF,20%,10V,GP,TP,10x12.5,5
C614 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C618 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5mm
C619 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C621 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5mm
C622 2301-000471 C-FILM,PEF;68nF,5%,50V,TP,9x12x4.5mm,5mm
C623 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C624 2202-000205 C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1. CLOCK Option
C625 2202-000205 C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1. CLOCK Option
C626 2202-000205 C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C627 2202-000205 C-CERAMIC,MLC-AXIAL;22pF,5%,50V,SL,TP,1.
C628 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C633 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C635 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
C636 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
C637 2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012
C638 2401-000918 C-AL;22uF,20%,16V,GP,-,6.3x7,5
C639 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C641 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C642 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5mm
C643 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5mm
C645 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5
C646 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C690 2301-000471 C-FILM,PEF;68nF,5%,50V,TP,9x12x4.5mm,5mm
C691 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
CN601 AC39-20817S LEAD CONNECTOR-ASSY;DP,SMH200-02,YBH200-
CN602 3708-001163 CONNECTOR-FPC/FC/PIC;5P,1.25mm,STRAIGHT,
CN604 3711-003749 CONNECTOR-HEADER;BOX,8P,2R,2mm,STRAIGHT,
D603 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D604 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D605 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D611 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D613 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D620 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
IC601 AC09-00108A IC-MICOM;uPD784927GF-154-3BA,784927GF-1 COMMON
IC601 AC09-00089A IC-MICOM;uPD784927GF-159 MIDDLE ASIA
IC601 AC09-00090A IC-MICOM;uPD784927GF-150 VCP ONLY
IC602 1003-001162 IC-MOTOR DRIVER;KA3082,SIP,10PIN,25MIL,D
IC604 AC14-12006C IC;KA7533,DIP,-
IC605 1103-001150 IC-EEPROM;24C081,8KBIT,DIP,8P,300MIL,10M EUROPE
IC605 1103-001148 IC-EEPROM;24C021,2KBIT,DIP,8P,300MIL,10M ASIA
IC608 1203-000515 IC-VOL. DETECTOR;7042,TO-92,3P,177MIL,PL
L601 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
L603 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
L604 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
LD601 0601-000517 LED-IR;RECTANGULA,4x6.0mm,75mW,6V,950
PT601 0604-001122 PHOTO-INTERRUPTER;TR,0.065%,150mW,DIP-4,
PT602 0604-001122 PHOTO-INTERRUPTER;TR,0.065%,150mW,DIP-4,
Q602 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
R602 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R603 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R604 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R605 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R608 2001-000864 R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R609 2001-000864 R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R613 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM CLOCK Option
R614 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R641 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R642 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R644 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R647 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R650 2003-000259 R-METAL OXIDE;3.9OHM,5%,2W,AE,TP,6X16MM
R651 2007-000001 R-CHIP;68KOHM,5%,1/10W,DA,TP,2012
R652 2007-000658 R-CHIP;27OHM,5%,1/10W,DA,TP,2012
R654 2007-000981 R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R655 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R656 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R657 2007-000001 R-CHIP;68KOHM,5%,1/10W,DA,TP,2012
R660 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R666 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R667 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R668 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R669 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R670 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R671 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R672 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R673 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R674 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R675 2001-000032 R-CARBON;180OHM,5%,1/4W,AA,TP,2.4X6.4MM
R676 2001-000633 R-CARBON;30KOHM,5%,1/8W,AA,TP,1.8X3.2MM
