Samyung N560 User manual

Installation and Operation Manual
2

Installation and Operation Manual
3
Industry Canada
Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
FCC Statement
ote: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a normal installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
1- Reorient or relocate the receiving antenna
2- Increase the separation between the equipment and receiver
3- Connect the equipment into an output on a circuit different from that to which the
receiver is connected
4- Consult the dealer or an experienced technician for help
5- A shielded cable must be used when connecting a peripheral to the serial ports
Important
It is the owner’s sole responsibility to install and use the unit in a manner that will not cause
accidents, personal injury or property damage. The user of this product is solely responsible for
observing safe boating practices.
Global Positioning System: The Global Positioning System (GPS) is operated by the US
government which is solely responsible for its operation, accuracy and maintenance. The GPS
system is subject to changes which could affect the accuracy and performance of all GPS
equipment anywhere in the world.
Installation: If installation is not correct, the unit can not perform at its designed potential. If in
doubt, consult your Samyung E C dealer. Ensure that any holes made are in a safe position and
will not weaken the boat’s structure. If in doubt, consult a qualified boat builder.
SAMYU G E C DISCLAIMS ALL LIABILITY FOR A Y USE OF THIS PRODUCT I A WAY THAT MAY
CAUSE ACCIDE TS, DAMAGE OR THAT MAY VIOLATE THE LAW.
Governing language: This statement, any instruction manuals, user guides and other
information relating to the product (documentation) may be translated to, or has been translated
from, another language (translation). In the event of any conflict between any translations of the
documentation, the English language version of the documentation will be the official version of
the documentation. This manual represents the installation procedures as at the time of printing.
Samyung E C reserves the right to make changes to specifications without notice.
Copyright © 2009 Samyung E C, Republic of Korea, all rights reserved.
Presentation
Thank you for having purchased a Samyung E C product. This handbook contains an explanation
of how to install, operate and maintain your unit.

Installation and Operation Manual
4
SAFETY INSTR CTIONS
Electronic charts displayed by the chart plotter are believed to be
accurate and reliable, but they are not intended to replace official
charts which should remain your main reference for all the matters
related to the execution of a safe navigation. For this reason we would like to
remind you that you are required to carry on board and use the officially published
and approved nautical chart.
Please read through this manual before the first operation. If you have any
questions, please contact the customer service or your local dealer or distributor
Extensive exposure to heat may result in damage to the chart plotter.
Connection to the power source with reversed polarity will damage the chart
plotter severely. This damage is not covered by the warranty.
Do not disassemble. The chart plotter contains dangerous high voltage circuits
which only experienced technicians must handle
Exposure of the display to UV rays may shorten the life of the liquid crystals used
in you plotter. This limitation is due to the current technology of the LCD display.
Avoid overheating which may cause loss of contrast and, in extreme case, a
darkening of the screen. Problems which occur from over heating are reversible
when temperature decreases.
Screen Cleaning Precautions
Cleaning your chart plotter screen is a very important operation and must be done
carefully. The following is the cleaning procedure.
You use a tissue or lens tissue and a cleaning spray containing Isopropanol (a
normal spray cleaner sold for PC screens. Fold the tissue or lens tissue into a
triangular shape, moisten the tip and use the index finger behind a corner to
move the tissue across the surface, in overlapping side to side strokes. If the
tissue is too wet, a noticeable wet film will be left in its path and you will need to
repeat the process. If too dry, the tissue won’t glide easily, and may damage the
surface.
If you require technical advice or assistance, contact your nearest Samyung E C
office or visit our website, www.samyungenc.com.

Installation and Operation Manual
5
1 Introduction
1-1 General Information................................................................9
1-2 Specification...........................................................................9
1-3 Packing List.......................................................................... 11
1-4 Optional Accessories ............................................................. 11
2 Getting Started
2-1 Mounting the Unit................................................................. 12
2-1-1 Bracket Mounting................................................................................... 12
2-1-2 Flush Mounting ...................................................................................... 12
2-2 Keys .................................................................................... 13

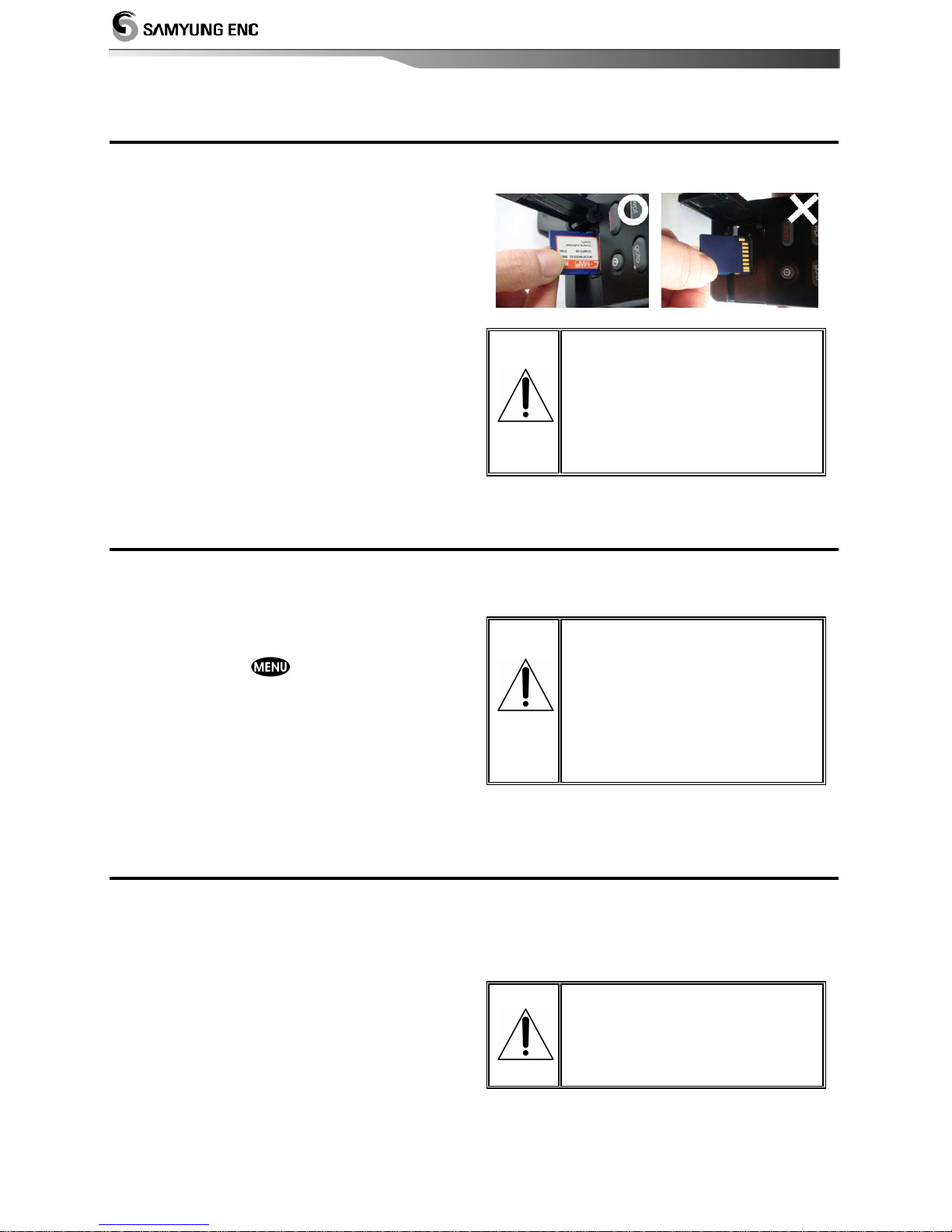

2-3 C-MAP MAX Secure Digital (SD) Card...................................... 14
2-4 Chart Selection ..................................................................... 14
2-5 Simulate Mode...................................................................... 14

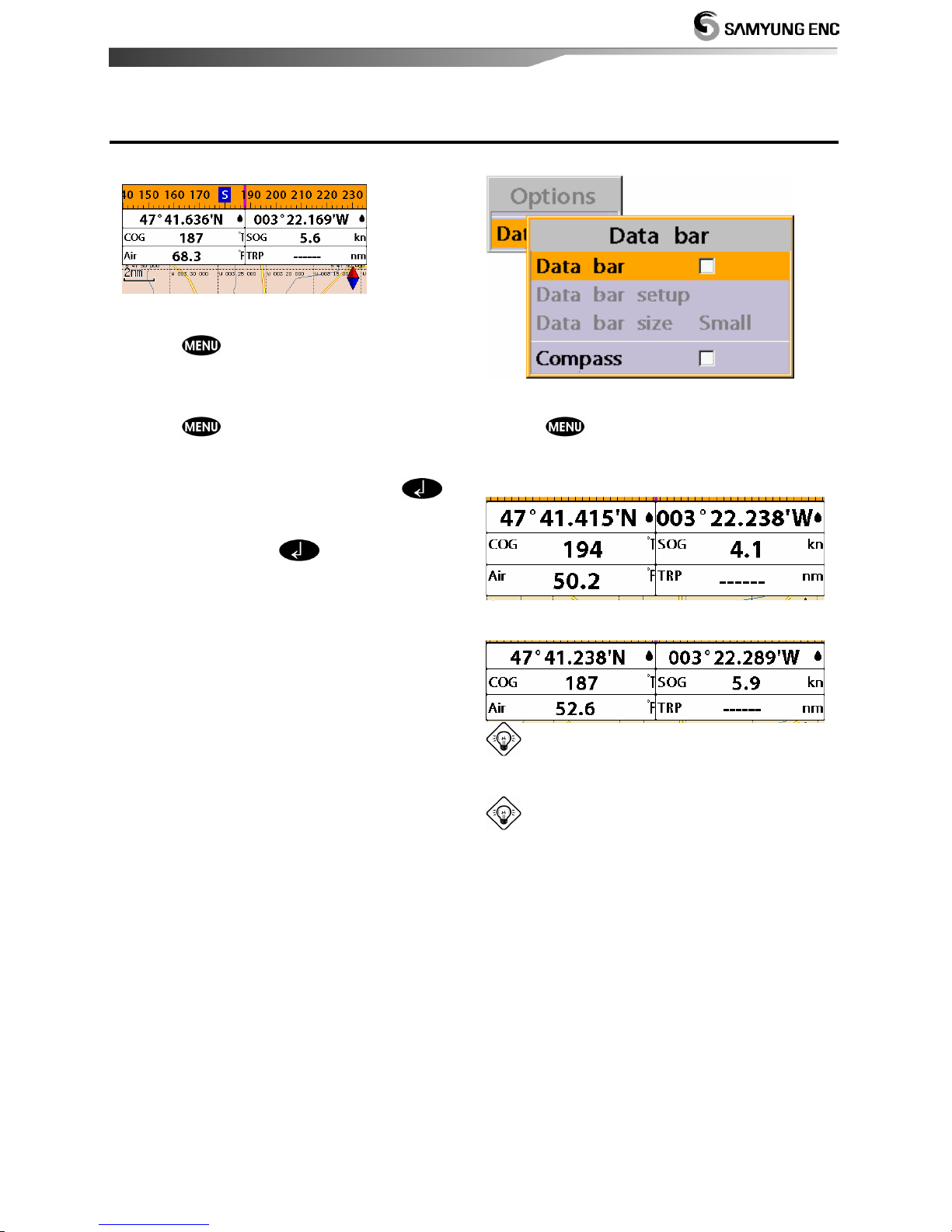

2-6 Data Bar .............................................................................. 15

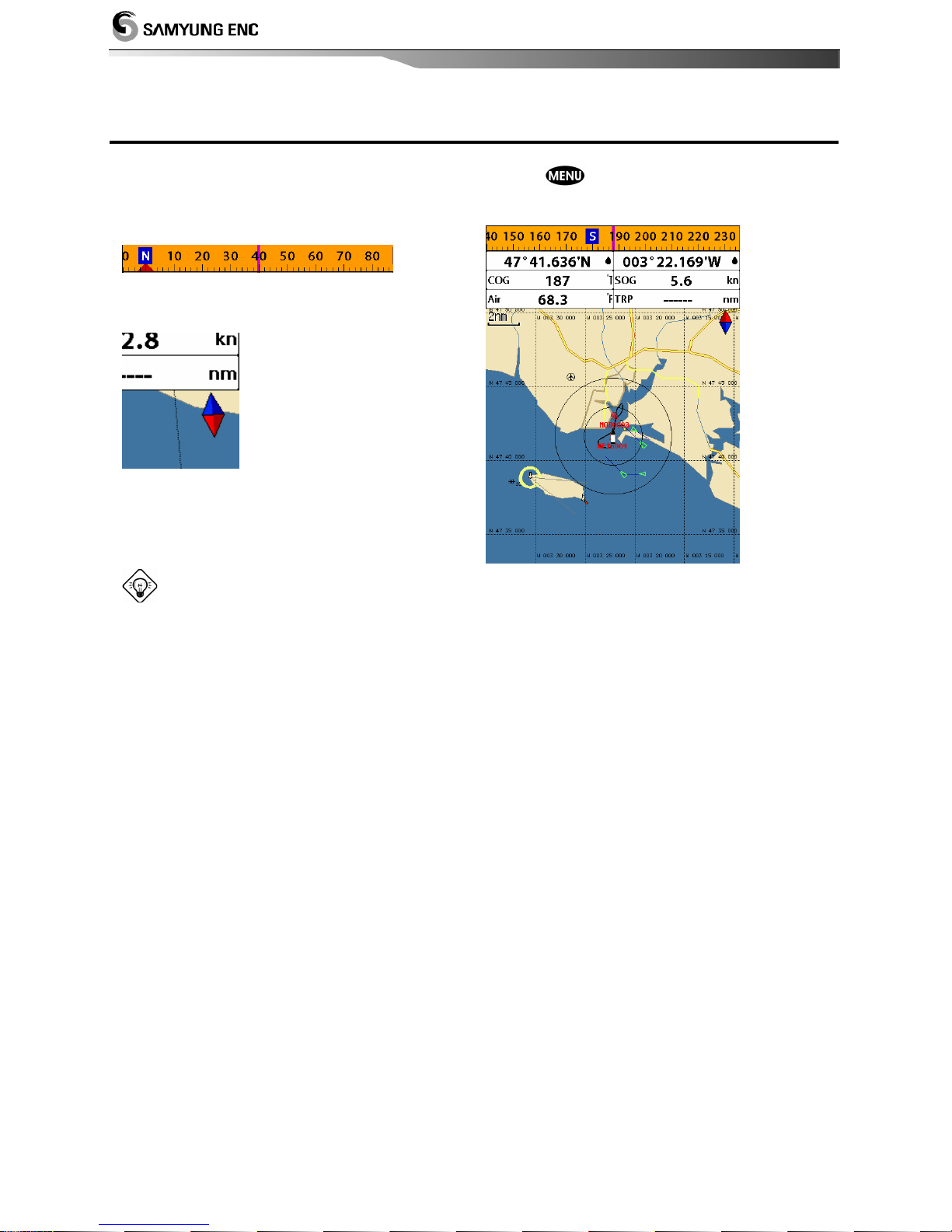

2-7 Compass.............................................................................. 16

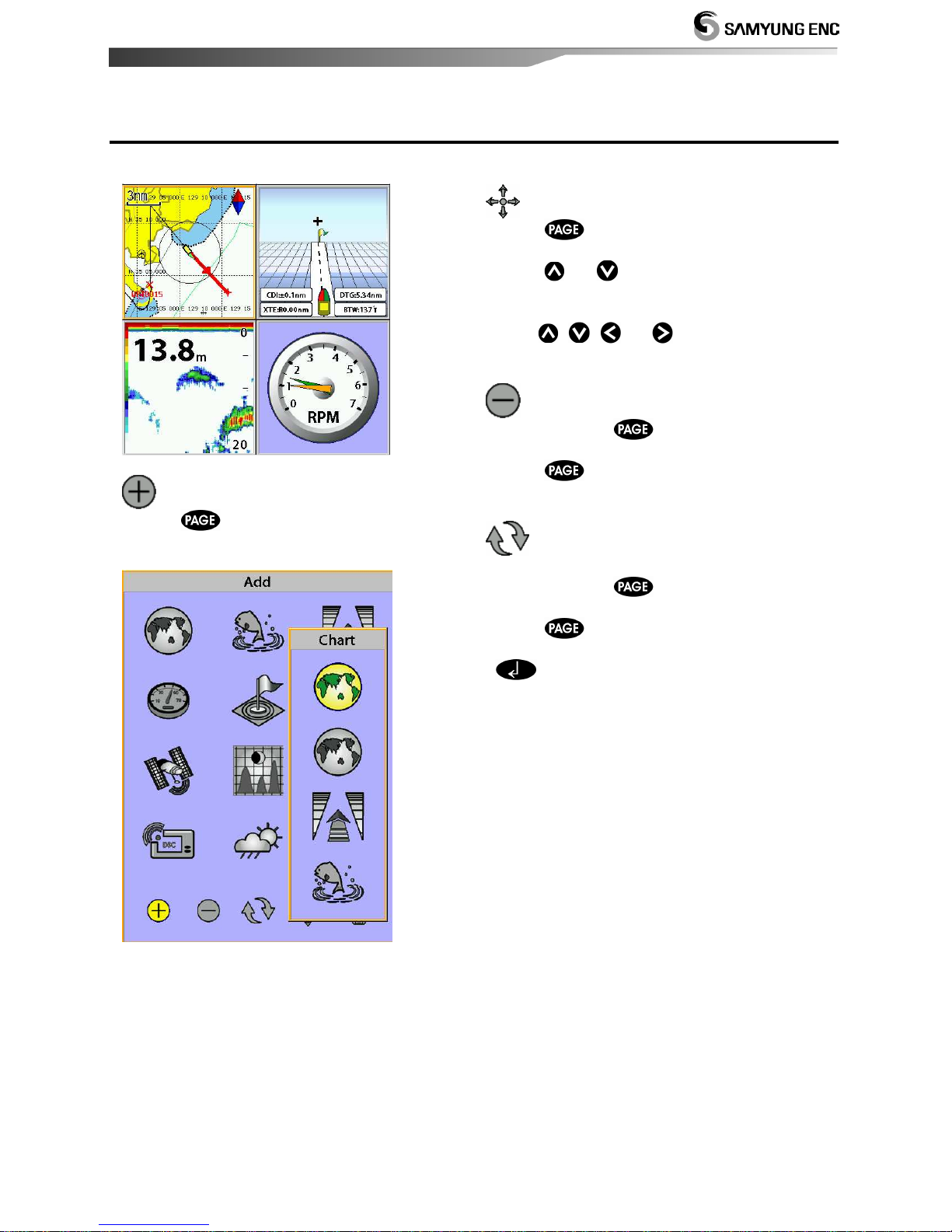

2-8 Multi window displays ........................................................... 17
2-9 Man overboard (MOB)........................................................... 19
3 General Operation
3-1 Manual / Auto Power on and off............................................. 20
3-2 Brightness, night mode and Background ................................. 20

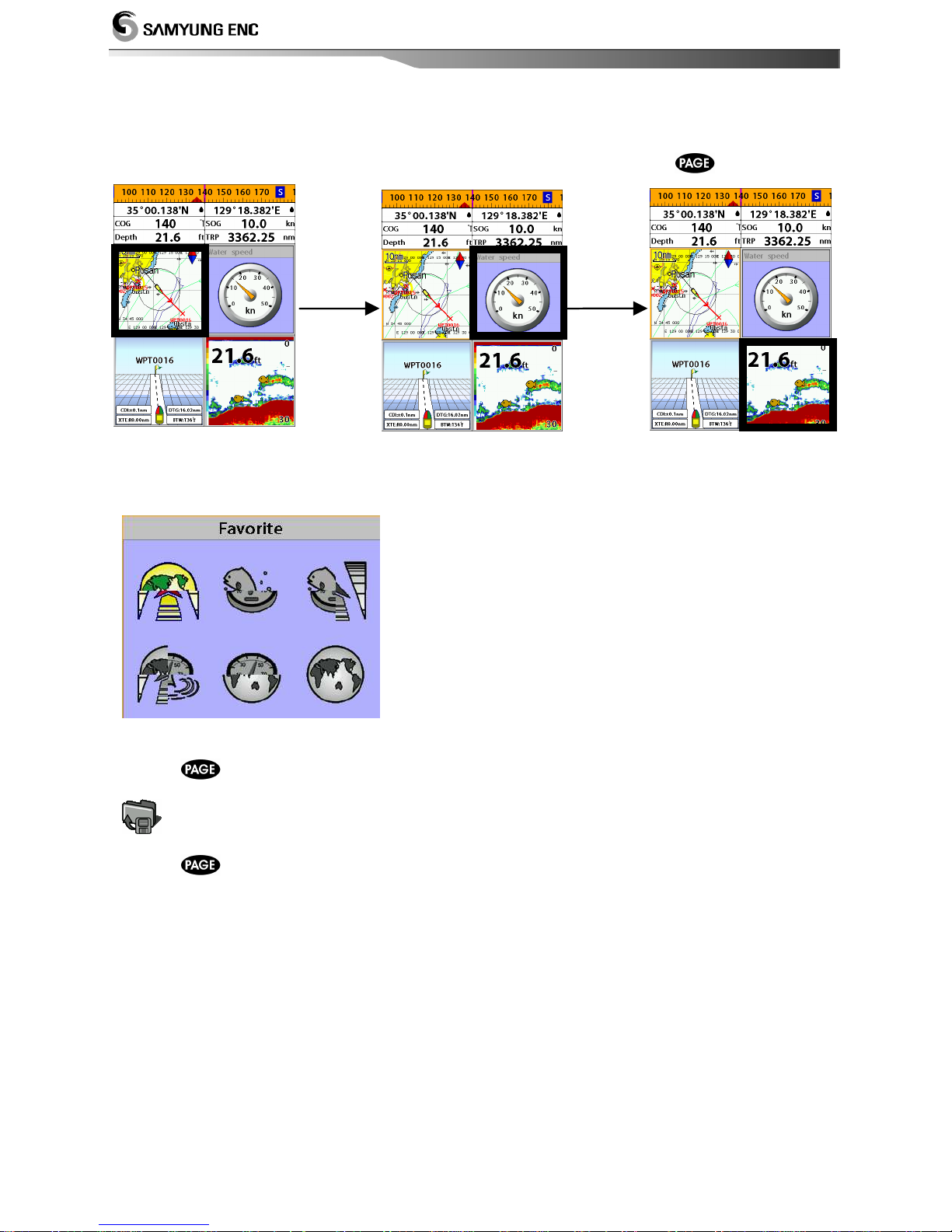

3-3 The page window ................................................................. 21
3-4 Chart ............................................................................ 23
3-4-1 Chart window ........................................................................................ 23
3-4-2 Perspective view .................................................................................... 23
3-4-3 Latitude and longitude ........................................................................... 24
3-4-4 Chart scale ............................................................................................ 24
3-4-5 Finding a chart symbol........................................................................... 24
3-4-6 S-Map search......................................................................................... 25
3-4-7 Chart symbols and information............................................................... 25
3-4-8 Introduction to navigating...................................................................... 25
3-4-9 Going to a waypoint or to a point on the chart ....................................... 26
3-4-10 Following a route ................................................................................. 26
3-4-11 Goto Key ............................................................................................. 26
3-4-12 Distance and bearing calculator............................................................ 27
3-4-13 Projected course .................................................................................. 27
3-5 Sonar ........................................................................... 28
3-5-1 Interpreting the display.......................................................................... 28
3-5-2 Mode..................................................................................................... 28
3-5-3 Single and Dual frequency fish finding ................................................... 29
3-5-4 Range ................................................................................................... 29
3-5-5 Gain ...................................................................................................... 30
3-5-6 Sonar window display ............................................................................ 31

Installation and Operation Manual
6
3-5-7 o split.................................................................................................. 31
3-5-8 Split zoom and Full Screen zoom............................................................ 32
3-5-9 Split bottom........................................................................................... 32
3-5-10 Split 50/200......................................................................................... 33
3-5-11 Split A-Scope ....................................................................................... 33
3-6 Highway ....................................................................... 34
3-7 Gauges ........................................................................ 34
3-8 Waypoints..................................................................... 35
3-8-1 Creating a new waypoint ....................................................................... 35
3-8-2 Moving a waypoint................................................................................. 35
3-8-3 Editing an existing waypoint................................................................... 35
3-8-4 Deleting a waypoint ............................................................................... 36
3-8-5 Find a waypoint ..................................................................................... 36
3-8-6 Sort Waypoints ...................................................................................... 36
3-8-7 Deleting all waypoints............................................................................ 36
3-9 Routes.......................................................................... 37
3-9-1 Managing a route from the chart window ............................................... 37
3-9-2 Managing a route from the route window............................................... 38
3-10 Satellites ..................................................................... 39
3-10-1 Satellite information............................................................................. 39
3-11 Tides........................................................................... 40
3-12 AIS ............................................................................. 41
3-12-1 Viewing AIS Vessels ............................................................................. 41
3-12-2 AIS Windows ....................................................................................... 41
3-13 DSC .......................................................................... 43
3-13-1 distress................................................................................................ 43
3-13-2 Poll...................................................................................................... 44
3-14 AVTEX..................................................................... 45
3-15 Engine Faults.............................................................. 45
4 Advance Settings
4-1 System Configuration Settings ........................................ 46
4-1-1 Language .............................................................................................. 46
4-1-2 Chart Selection ...................................................................................... 46
4-1-3 Beep volume ......................................................................................... 46
4-1-4 Auto power............................................................................................ 46
4-1-5 Features ................................................................................................ 46
4-1-6 Factory reset ......................................................................................... 46
4-1-7 About .................................................................................................... 46
4-2 Chart Settings................................................................ 47
4-2-1 Rotation ................................................................................................ 47
4-2-2 Palette................................................................................................... 47
4-2-3-1 General(C-MAP).................................................................................. 47
4-2-3-2 General(S-MAP) .................................................................................. 48
4-2-4-1 Land & Sea (C-MAP) ........................................................................... 48

Installation and Operation Manual
7
4-2-4-2 Land & Sea (S-MAP) ........................................................................... 48
4-2-5 Map datum ............................................................................................ 48
4-2-6 MEA datum offset................................................................................ 49
4-2-7 Map shift ............................................................................................... 49
4-2-8 Restore default ...................................................................................... 49
4-3 Sonar Settings.............................................................. 50
4-3-1 Frequency ............................................................................................. 50
4-3-2 Palette................................................................................................... 50
4-3-3 Scroll speed........................................................................................... 50
4-3-4 Digit size ............................................................................................... 50
4-3-5 Fish ....................................................................................................... 50
4-3-6 Advance Settings ................................................................................... 50
4-3-7 Restore default ...................................................................................... 50
4-4 GPS Settings ................................................................. 51
4-4-1 GPS Source............................................................................................ 51
4-4-2 DGPS Source ......................................................................................... 51
4-4-3 Static avigation.................................................................................... 51
4-4-4 Speed Filter and Course Filter ................................................................ 51
4-4-5 Lat/Lon d.p’s ......................................................................................... 51
4-4-6 Ship speed ............................................................................................ 51
4-4-7 Magnetic Variation ................................................................................. 51
4-5 Track & Log Settings...................................................... 52
4-5-1 Track ..................................................................................................... 52
4-5-2 Logs ...................................................................................................... 52
4-6 Memory Settings ........................................................... 53
4-6-1 Save...................................................................................................... 53
4-6-2 Load...................................................................................................... 53
4-6-3 Delete ................................................................................................... 53
4-6-4 Format .................................................................................................. 54
4-6-5 Screen snap shot ................................................................................... 54
4-7 AIS Settings .................................................................. 54
4-7-1 Display filter .......................................................................................... 54
4-7-2 Alarm option.......................................................................................... 55
4-7-3 Display options ...................................................................................... 55
4-7-4 Restore default ...................................................................................... 55
4-8 Alarms......................................................................... 56
4-8-1 Fish ....................................................................................................... 56
4-8-2 Deep ..................................................................................................... 56
4-8-3 Shallow ................................................................................................. 56
4-8-4 Temperature.......................................................................................... 56
4-8-5 Temperature rate................................................................................... 56
4-8-6 Low battery ........................................................................................... 56
4-8-7 avigation alarms .................................................................................. 56
4-8-8 AIS........................................................................................................ 56
4-8-9 DGPS..................................................................................................... 56
4-8-10 Restore default .................................................................................... 56
4-9 Others.......................................................................... 57
4-9-1 Simulate ................................................................................................ 57
4-9-2 Waypoint ............................................................................................... 57
4-9-3 GPS ....................................................................................................... 57

Installation and Operation Manual
8
4-9-4 Units ..................................................................................................... 57
4-9-5 Comms.................................................................................................. 57
4-9-6 Calibrate................................................................................................ 57
4-9-7 Time...................................................................................................... 57
4-9-8 Restore default ...................................................................................... 57
4-9-9 Calendar................................................................................................ 57
5 INSTALLATION
5-1 Options and Accessories ........................................................ 58
5-2 Connections ......................................................................... 59
5-3 Power/data cable.................................................................. 59
5-4 Alarm .................................................................................. 60
5-5 GPS antenna ........................................................................ 61
5-5-1 Internal antenna.................................................................................... 61
5-5-2 External antenna ................................................................................... 61
5-5-3 The antenna using MEA....................................................................... 61
5-6 MEA 0183 .......................................................................... 62
5-7 MEA 2000 .......................................................................... 63
5-8 Sonar Transducers ................................................................ 64
5-9 Setup and test...................................................................... 65

Installation and Operation Manual
9
1-1 General Information
The chart plotter is a precision-crafted GPS
chart Plotter with high-performance receiver
for the Global Positioning System
constellation of satellites, providing precise
location data with a host of navigation
features. Some functions require optional
units and sensors installed on your boat.
The chart plotter can be connected to
external devices with MEA0183 and
MEA2000 interface and display information.
Following are the examples.
• AVTEX
• AIS receiver
• DSC VHF radio
• Transducer & sensors
• Autopilot
1-2 Specification
[N560]
GENERAL
Category Detail
Size 164 mm(H) x 183 mm(W) x 74 mm(D)
Display 5.6” diagonal, TFT color, 480 x 640 pixels.
Supply voltage 10 to 34 V DC
Supply current 13.8 V
350 mA min - no backlighting.
480 mA max - full backlighting.
External beeper or light
output
Switched to ground to sound alarm, 30V DC, 200 mA maxmum
Operating temperature -10° to 50°C
ALARMS
User set: Arrival radius, anchor, XTE, danger, low battery, loss of DGPS fix, dangerous AIS vessels.
GPS NAVIGATION
Chart card C-MAP™ SD Card ( T-MAX, T+ or T)
ser card SD Card
Waypoints Up to 10,000, with default or user defined alphanumeric names up to
eight characters.
Routes 100 Routes, with up to 100 points each
Tracks By time or distance, 10 track of 15,000 points
Chart datums 216 Chart datums, One user-defined map shift.
Chart scale 0.2 to 500 nm for chart (chart dependent) down to 0.005 nm in plotter
mode.
COMM NICATIONS
NMEA MEA 0183 4800, 9600, 38400 baud, MEA 2000
NMEA 0183 Inputs from
compatible instruments
DBK, DBS, DBT, DPT, GGA, GLL, G S, GGA, GSV, HDG, HDT, MDA,
MTA, MTW, MWD, MWV, RMC, RPM, VHW, VTG, VWT, ZDA
NMEA 2000 Inputs from
compatible instruments
System date and time(PG 126992),Vessel
Heading(PG 127250),Engine parameters/Rapid Update(PG 127488),
Engine parameters/Dynamic(PG 127489),Trip
parameters/Engine(PG 127497),Engine
parameters/Static(PG 127498),Fluid level(PG 127505),Water
Speed(PG 128259),Water depth(PG 128267),Position/Rapid
Update(PG 129025),COG & SOG/Rapid Update(PG 129026),G SS
Position Data(PG 129029),G SS DOPs(PG 129539),G SS Sats in
View(PG 129540),Wind Data(PG 130306),Environmental Parameter-
Water temp(PG 130310),Environmental Parameter(PG 130311)
NMEA 0183 Outputs, for APA, APB, BWR, GGA, GLL, GSA, GSV, RMB, RMC, VTG, XTE, DBT,
1 Introduction

Installation and Operation Manual
10
compatible instruments DPT, MTW, VHW, XDR
NMEA 2000 Outputs, for
compatible instruments
Water Speed(128259), Water depth(128267), XTE(129283), AV.
data(129284), AV. data(129285), COG & SOG(129026), G SS
position(129029), Water temp.(130310)
[NF560]
GENERAL
Category Detail
Size 164 mm(H) x 183 mm(W) x 74 mm(D)
Display 5.6” diagonal, TFT color, 480 x 640 pixels.
Supply voltage 10 to 34 V DC
Supply current 13.8 V
800mA min - no backlighting.
1000mA max - full backlighting.
External beeper or light
output
Switched to ground to sound alarm, 30V DC, 200 mA maxmum
Operating temperature -10° to 50°C
ALARMS
User set: Arrival radius, anchor, XTE, danger, too shallow, too deep, fish, temperature, temperature rate,
low battery, loss of DGPS fix, dangerous AIS vessels.
GPS NAVIGATION
Chart card C-MAP™ SD Card ( T-MAX, T+ or T)
ser card SD Card
Waypoints Up to 10,000, with default or user defined alphanumeric names up to
eight characters.
Routes 100 Routes, with up to 100 points each
Tracks By time or distance, 10 track of 15,000 points
Chart datums 216 Chart datums, One user-defined map shift.
Chart scale 0.2 to 500 nm for chart (chart dependent) down to 0.005 nm in plotter
mode.
COMM NICATIONS
NMEA MEA 0183 4800, 9600, 38400 baud, MEA 2000
NMEA 0183 Inputs from
compatible instruments
DBK, DBS, DBT, DPT, GGA, GLL, G S, GGA, GSV, HDG, HDT, MDA,
MTA, MTW, MWD, MWV, RMC, RPM, VHW, VTG, VWT, ZDA
NMEA 2000 Inputs from
compatible instruments
System date and time(PG 126992),Vessel
Heading(PG 127250),Engine parameters/Rapid Update(PG 127488),
Engine parameters/Dynamic(PG 127489),Trip
parameters/Engine(PG 127497),Engine
parameters/Static(PG 127498),Fluid level(PG 127505),Water
Speed(PG 128259),Water depth(PG 128267),Position/Rapid
Update(PG 129025),COG & SOG/Rapid Update(PG 129026),G SS
Position Data(PG 129029),G SS DOPs(PG 129539),G SS Sats in
View(PG 129540),Wind Data(PG 130306),Environmental Parameter-
Water temp(PG 130310),Environmental Parameter(PG 130311)
NMEA 0183 Outputs, for
compatible instruments
APA, APB, BWR, GGA, GLL, GSA, GSV, RMB, RMC, VTG, XTE, DBT,
DPT, MTW, VHW, XDR
NMEA 2000 Outputs, for
compatible instruments
Water Speed(128259), Water depth(128267), XTE(129283), AV.
data(129284), AV. data(129285), COG & SOG(129026), G SS
position(129029), Water temp.(130310)
SONAR FISHFINDING
Depth range 0 m to 600 m
Sonar output Power: Variable, up to 600 W RMS
Dual frequency: 50 khz and 200 kHz
Temperature Range 0° to 37.7°C (32°F to 99.9°F)
Resolution of 0.1° unit.
Speed (from paddlewheel
transducer)
1 to 96.6 kph (57.5 mph, 50 kn).
