Sandstrom S32LDIB10 User manual

@ejkilZk`feDXelXc
*)É?;I\X[p('/'g
C<;9XZbc`kC:;KM
J*)C;@9('

Contents
Preparation............................................................................................................................................................................... 3
Unpacking the TV ...................................................................................................................................................................................................3
Installing / Removing the Base Stand .............................................................................................................................................................4
Front View and Controls.......................................................................................................................................................................................5
Rear View and Sockets..........................................................................................................................................................................................6
Installing Batteries in the Remote Control ....................................................................................................................................................7
Remote Control Operation Range....................................................................................................................................................................7

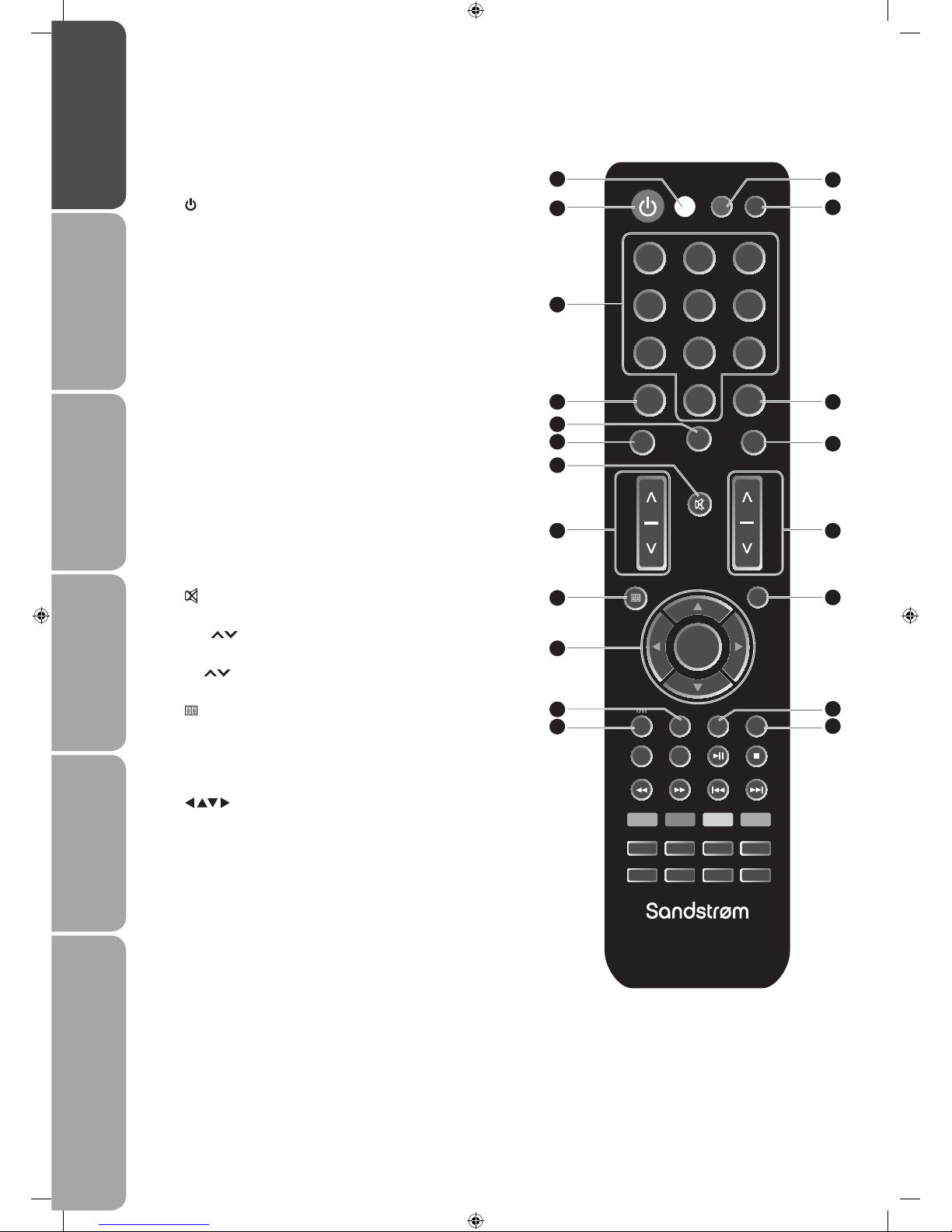

Remote Control .......................................................................................................................................................................................................8
Connections............................................................................................................................................................................ 10
Making Video and Audio Connections........................................................................................................................................................ 10
Connecting an AV Device with HDMI Cable .............................................................................................................................................. 10

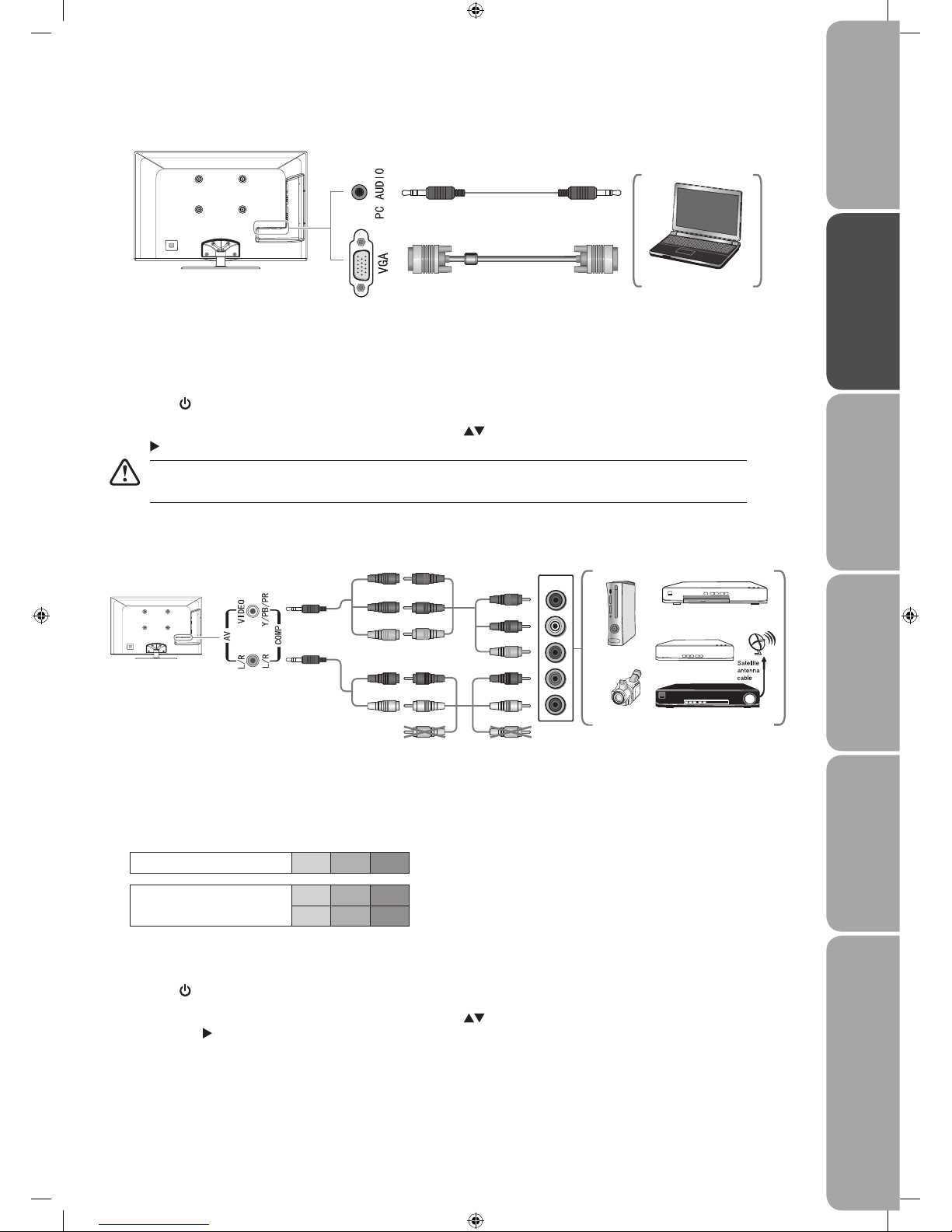

Connecting a Computer with VGA Cable ....................................................................................................................................................11
Connecting an AV Device with Component (YPbPr) Cable ..................................................................................................................11

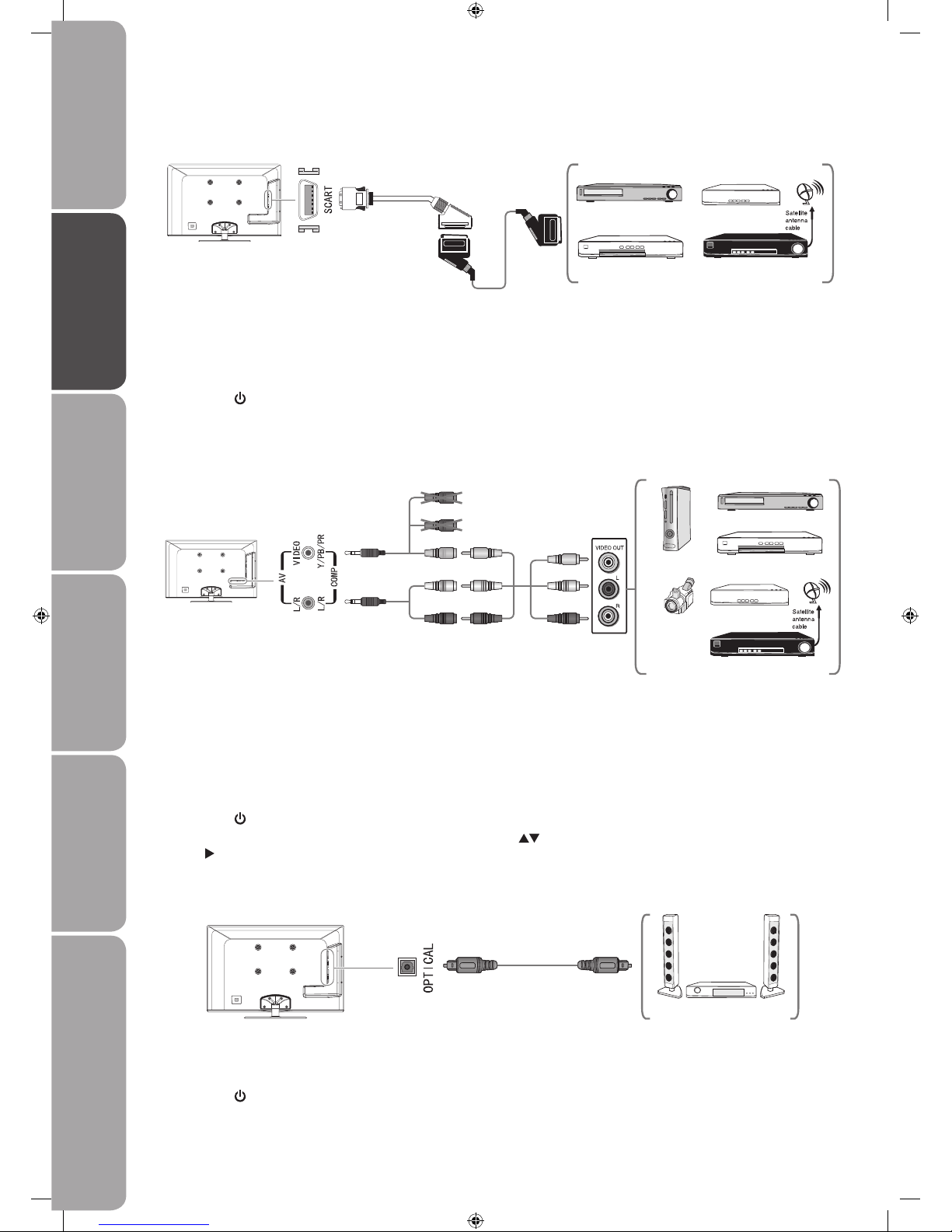

Connecting an AV Device with SCART Adapter Cable........................................................................................................................... 12
Connecting an AV Device with Composite Cable.................................................................................................................................... 12
Connecting an Audio Receiver with Optical Cable................................................................................................................................. 12
Connecting Earphones...................................................................................................................................................................................... 13
Connecting a USB Storage Device................................................................................................................................................................. 13
Connecting the Aerial ........................................................................................................................................................................................ 13
Initial Setup ............................................................................................................................................................................ 14
Turning the TV On for the First Time ............................................................................................................................................................ 14
Selecting the Input Source− ................................................................................................................................................................... 16
Channel Selection− ................................................................................................................................................................................... 17
Presetting Favourite Channel List 1 / 2 / 3 / 4− ................................................................................................................................ 17
Favourite Channel Selection− ............................................................................................................................................................... 17
Display Channel Information− .............................................................................................................................................................. 17
Volume Adjustment− ................................................................................................................................................................................ 17
Using the Features ................................................................................................................................................................. 18
Customising the Picture Setting .................................................................................................................................................................... 18
Video Size (Aspect Ratio)− ...................................................................................................................................................................... 19
Customising the Sound Setting ..................................................................................................................................................................... 20
Customising the Screen Settings (VGA Mode) ......................................................................................................................................... 20
Customising the Function Setting ................................................................................................................................................................ 21
OSD Language− .......................................................................................................................................................................................... 21
Blue Screen− ................................................................................................................................................................................................ 21
Startup Menu− ............................................................................................................................................................................................ 22
OSD Setting− ............................................................................................................................................................................................... 22
Subtitle Language (DTV Mode)− .......................................................................................................................................................... 22
Timer− ............................................................................................................................................................................................................ 23
Version Info− ................................................................................................................................................................................................ 25
Factory Reset− ............................................................................................................................................................................................. 25
Customising the Parental Setting..................................................................................................................................................................25
Change Password− .............................................................................................................................................. 25
Parental Rating− ........................................................................................................................................................................................ 26
Channel Block− ........................................................................................................................................................................................... 27
Customising the Channel Setting (TV or Radio Mode).......................................................................................................................... 28
Manual Install− ............................................................................................................................................................................................ 28
Auto Install− ................................................................................................................................................................................................. 29
Channel Edit− .............................................................................................................................................................................................. 30
CI (Common Interface) (DTV Mode)− .................................................................................................................................................. 31
Teletext (TV Mode).............................................................................................................................................................................................. 32
To Turn on Teletext Function− ............................................................................................................................................................... 32

Digital Teletext (DTV Mode)............................................................................................................................................................................. 33
Teletext within Digital Service− ............................................................................................................................................................ 33
EPG (Electronic Programme Guide) (DTV Mode) ..................................................................................................................................... 33
Switch On/O EPG− ................................................................................................................................................................................... 33
View a Programme− ..................................................................................................................................................................................34
Using the Features via USB Port ...........................................................................................................................................35
Picture ...................................................................................................................................................................................................................... 35
Music......................................................................................................................................................................................................................... 35
Video......................................................................................................................................................................................................................... 36
Maintenance...........................................................................................................................................................................38
Hints and Tips .........................................................................................................................................................................38
Display Modes ........................................................................................................................................................................40
YPbPr Mode ........................................................................................................................................................................................................... 40
VGA Mode............................................................................................................................................................................................................... 40
HDMI Mode............................................................................................................................................................................................................ 40
Specification........................................................................................................................................................................... 41
Safety Warnings ..................................................................................................................................................................... 42

GB-3
PreparationConnectionsInitial SetupUsing the FeaturesUsing the Features
via USB port
Hints and Tips, Specification
and Safety Warnings
Quick Start Guide
part number 1067330
Digital TV Switchover Addendum
part number 1066531
Congratulations on the purchase of your new Sandstrøm TV.
Your new TV has many features and incorporates the latest technology to enhance your viewing
experience. We recommend that you spend some time reading this instruction manual in order that you
fully understand these features. You will also find some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this instruction manual for future reference.
Unpacking the TV
Remove all packaging from the TV. Retain the packaging. If you dispose of it please do so according to local regulations.
The following items are included:
TV
SCART Adapter Cable
part number: 1064813
TV Base
part number 1063101
Audio Adapter Cable
part number: 1064814
Screws x 4
part number 1031741
Remote Control / AAA Batteries x 2
part number 1068126 and
1028333
Component Adapter Cable
part number: 1065884
Instruction Manual
part number: 1067329
If items are missing, or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.
123
456
789
0
OK
CH List
Preparation

GB-4
Preparation Connections Initial Setup Using the Features Using the Features
via USB port
Hints and Tips, Specification
and Safety Warnings
To remove the base stand, untighten the 4 screws that4.
hold the base stand to the rear of the TV. Slide the
base stand out.
Keep all the screws should you want to use the
base stand option.
If items are missing, or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.
Installing / Removing the Base Stand
The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure
that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO
NOT exert pressure on the front of the TV at any time because the screen could crack.
Disconnect all cables connected to the TV.1.
Lay the TV down on a flat surface with the back side2.
facing up. Please make sure to place a soft cushioned
material (such as a pillow or thick piece of foam)
beneath the screen.
To install the base stand, slide in the base stand until3.
the screw holes are aligned. Secure the base stand
with the 4 screws.
Remove the base stand before mounting the TV
onto the wall.
This TV is designed to be wall-mounted with a5.
standard 100 mm x 100 mm mounting kit designed
for flat-panel TVs (sold separately). Mount this TV
according to the instructions included in the mounting
kit. Due to the space restriction, we recommend you to
make all connections (refer to pages 10-13 for details)
before mounting onto the wall.
100 mm
100 mm
Four mounting holes
(size M9 screw)
Screws x 4
(P.N.1031741)
Slide in
Screws x 4
(P.N.1031741)
Slide out

GB-5
PreparationConnectionsInitial SetupUsing the FeaturesUsing the Features
via USB port
Hints and Tips, Specification
and Safety Warnings
Front View and Controls
Item Description
1IR (Infrared Receiver) Receives IR signals from the remote control.
Do not put anything near the sensor, as this will affect its performance.
2POWER LED Illuminates red when the TV is in standby mode and flashes for a few seconds when
you turn on the TV. The LED will remain red whilst the TV is switched on.
3 I/O POWER ON/OFF Switch on the I/O POWER ON/OFF switch to turn the TV to standby / off mode.
4 Touch Control Panel
Touch the touch control panel once to activate it (indicators on the touch control
panel will illuminate), and then press the touch sensitive controls to execute. The touch
control panel will automatically deactivate if untouched for several seconds.
a MENU Displays the OSD (on screen display) setup menu.
b SOURCE Select from the different input signal sources:
TV / AV / Component / SCART / VGA / HDMI1 / HDMI2 / HDMI3 / DMP
cVOL Adjust the volume.
Select and adjust a setting in the OSD setup menus.
dCH Select a channel.
Select a sub-menu of the OSD setup menu.
e Switch the TV on from standby.
Switch the TV back to standby.
1 2 3
a
c
d
e
b
I/O
4

GB-6
Preparation Connections Initial Setup Using the Features Using the Features
via USB port
Hints and Tips, Specification
and Safety Warnings
Rear View and Sockets
Item Description
1 MAINS CABLE Connect the mains cable to the mains socket.
2 VGA / PC AUDIO Connect to a computer or other devices with a VGA out / PC audio out interface.
3 USB port Allows the insertion of a USB storage device to play video, audio, photo (DMP Mode).
4 VIDEO / AUDIO (L/R) Connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices by using the audio adapter cable provided.
5 Y, PB, PR Connect to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets by using the component adapter cable provided.
6 HDMI1 / 2 / 3 Connect to a High-Definition (HD) signal output device, such as a set-top box, blu-ray disc
player, or AV receiver.
7 OPTICAL Provide digital audio out to an external digital audio amplifier device.
8 ANT 75 Ω Connect to the aerial socket on the wall with the RF coaxial cable.
9 SCART Connect to a VCR, DVD Player, or other AV device with a SCART output socket by using
the SCART adapter cable provided.
10 HEADPHONE Connect earphones for private listening.
11 COMMON INTERFACE Allows the insertion of a Common Access Module. (Refer to page 31 for details.)
1
2 3 5 64
11109876

GB-7
PreparationConnectionsInitial SetupUsing the FeaturesUsing the Features
via USB port
Hints and Tips, Specification
and Safety Warnings
Remote Control Operation Range
Point the remote control at the TV no more than 6 metres from the
remote control sensor on the TV and within 60° in front of the TV.
The operating distance may vary depending on the brightness of the
room.
Installing Batteries in the Remote Control
Slide the back cover to open the battery compartment of the remote1.
control.
Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends2.
of the batteries with the (+) and ( - ) ends indicated in the battery
compartment.
Handling the Batteries
Improper or incorrect use of batteries may cause•
corrosion or battery leakage, which could cause
fire, personal injury or damage to property.
Only use the battery type indicated in this manual.•
When the batteries are exhausted, the remote will•
not function. Replace both batteries at the same
time with new ones.
Do not install new batteries with used ones and•
do not mix different types of batteries.
Do not dispose of used batteries as domestic•
waste. Dispose of them in accordance with local
regulations.
Handling the Remote Control
Take care of your fingernails when you press and•
hold the battery release tab.
Do not drop or cause impact to the remote•
control.
Do not spill water or any liquid on the remote•
control.
Do not place the remote control on a wet object.•
Do not place the remote control under direct•
sunlight or near sources of excessive heat.
Remove the battery from the remote control•
when not in use for a long period of time, as it
could cause corrosion or battery leakage and may
result in physical injury and/or property damage
including fire.
Close the battery compartment cover.3.
123
456
789
0
OK
CH List
30° 30°
6M

GB-8
Preparation Connections Initial Setup Using the Features Using the Features
via USB port
Hints and Tips, Specification
and Safety Warnings
1 Transmission Indicator
Illuminates red when you press a button.
2
Switch the TV between on and standby mode.
3TV
A short-cut to switch the input source to TV mode directly.
4 Source
Select from the different input signal sources:
TV / AV / Component / SCART / VGA / HDMI1 / HDMI2 / HDMI3 /
DMP.
5 0-9 Number Button
Select a programme.
6 Recall
Return to previous viewing channel.
7 Info
Display the present screen information such as the current channel
and the input source.
8 Picture
Select a picture mode: User / Bright / Standard / Soft.
9 FAV
Display the Favourite Channel List.
10 Sound
Select a sound mode: User / Music / Standard / Speech.
11
Mute and restore your TV sound.
12 VOL
Adjust the volume.
13 CH
Select a channel.
14 Menu
Display the OSD (On Screen Display) setup menu.
15 EPG
Display the EPG (Electronic Programme Guide). (For digital TV
programmes in TV mode)
16
Allows you to navigate the OSD setup menu and adjust the system
settings to your preference.
OK / CH List
Confirm the selection in the OSD setup menu.
Display a list of channels saved in the TV tuner memory.
17 I/II
Switch between different audio languages:
MONO-NICAM STEREO / MONO-NICAM DUAL1 / NICAM DUAL2.
Only applicable when the TV programme has this feature. (For
analogue TV programmes in TV mode)
18 Still
To freeze a picture on screen.
19 Zoom
Allows you to watch the screens in various formats: Auto / 16:9 / 4:3
/ Zoom / Expand / Smart Zoom. (Dot to Dot for VGA,Component &
HDMI modes only)).
20 Exit
Exit the OSD (On Screen Display) setup menu.
Remote Control
Still
DMP Stop
Play/Pause Lang.
Zoom Exit
TV Source
123
456
789
0
Recall Info
CHVOL
FAV
Sound
Recall
Menu EPG
OK
CH List
Text Size Reveal Cancel
Hold
Sleep Subtitle Comp
Index
Sub.Code Mix
1
2
5
6
8
9
11
12
14
18
17
16
3
4
7
10
13
15
19
20
