Sandstrom S814WMB12 User manual

Instruction Manual
8KG Washing Machine
S814WMB12
S814WM12_IB_120419_Zell.indd 1 19/04/2012 6:33 PM

S814WM12_IB_120419_Zell.indd 2 19/04/2012 6:33 PM

Contents
Unpacking..................................................................................................................................... 4
Installing Your Washing Machine ................................................................................................ 5
Choosing the Right Location for Your Washing Machine ..........................................................................5
Moving and Installing .................................................................................................................. 6
Removing the Transit Bolts ...................................................................................................................................6
Moving the Washing Machine from One Location to Another................................................................6
Hose and Cable Lengths........................................................................................................................................7
Levelling the Washing Machine ..........................................................................................................................7
Water Supply Hose...................................................................................................................................................7
Water Drain Hose......................................................................................................................................................8
Connecting to the Mains Supply ........................................................................................................................8
Product Overview......................................................................................................................... 9
The unit........................................................................................................................................................................9
Control Panel ..........................................................................................................................................................10
Preparation ................................................................................................................................. 11
Organising Laundry..............................................................................................................................................11
Preparing Laundry ................................................................................................................................................11
Adding Detergent and Softener ......................................................................................................................11

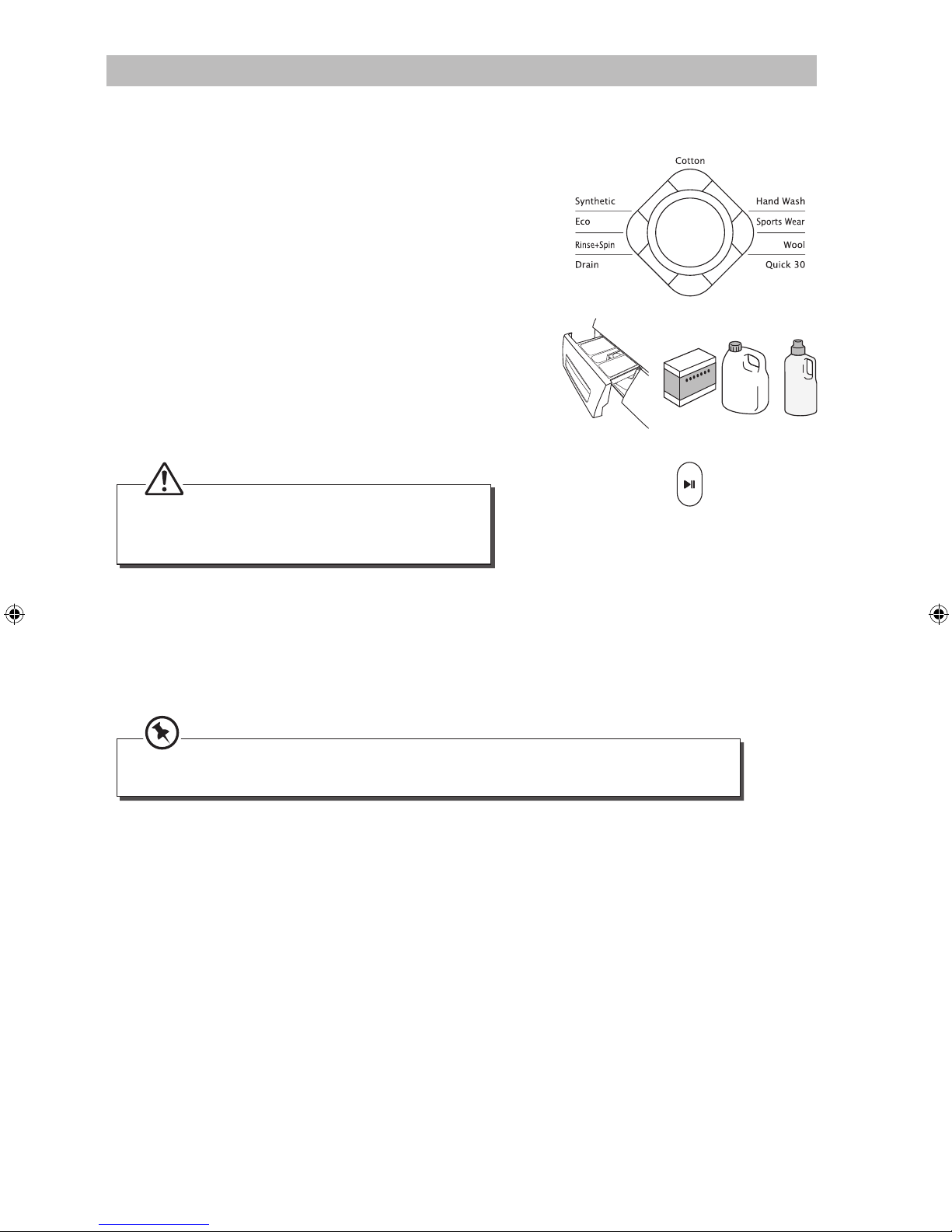

Selecting the Programme...................................................................................................................................12
Wash Setting ............................................................................................................................... 13
Standard Washing .................................................................................................................................................13
Manual Soaking .....................................................................................................................................................13
Cotton is Automatically Selected Upon Power On....................................................................................13
Optional Functions ...............................................................................................................................................14
Removing Laundry................................................................................................................................................14
Important Information............................................................................................................... 15
Washing Delicates (Wool and Delicate Programmes)..............................................................................15
Adding Delicate Laundry Items to the Drum..............................................................................................15
Which Detergent to Use......................................................................................................................................15
Tips for Hanging Delicate Items to Dry..........................................................................................................15
If Clothing Shrinks in the Wash.........................................................................................................................15
How to Use Laundry Starch ...............................................................................................................................16
How to Set the Key Lock ....................................................................................................................................16
Maintenance - Cleaning the Washing Machine ........................................................................ 17
Cleaning the Drum................................................................................................................................................17
Cleaning the Exterior of your Washing Machine........................................................................................17
Cleaning the Detergent Drawer.......................................................................................................................17
Cleaning the Door Seal and Window .............................................................................................................17
Cleaning the Drain Filter.....................................................................................................................................18
Preventing a Frozen Water Supply Hose.......................................................................................................18
Cleaning the water inlet lter ...........................................................................................................................18
Cleaning the Filter Net of the Water Supply Hose.....................................................................................18
Hints and Tips ............................................................................................................................. 19
Troubleshooting ......................................................................................................................... 21
Specications.............................................................................................................................. 23
Product Fiche .............................................................................................................................. 24
Safety Warnings.......................................................................................................................... 25
S814WM12_IB_120419_Zell.indd 3 19/04/2012 6:33 PM

Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to
local regulations.
The following items are included:
The Main Unit
Thank you for purchasing your new Sandstrøm Washing Machine.
We recommend that you spend some time to read this installation/instruction manual in
order to fully understand how to install and operate it.
Read all the safety instructions carefully before use and keep this installation/instruction
manual for future reference.
If items are missing, or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
Cover Cap x 3
P.N.: 36109-16400
Water Supply Hose x 1
P.N.: 36132-23140
Instruction Manual x 1
P.N.: S814WMB12-001
U-Shape Holder
P.N.: 3612502300
4
S814WM12_IB_120419_Zell.indd 4 19/04/2012 6:33 PM

Installing Your Washing Machine
Please read and follow the instructions carefully.
• In addition to the instructions mentioned here, special regulations of the relevant water and power
supply companies may apply. If in doubt, have the washing machine connected by a qualified
technician.
• The washing machine is heavy - caution when lifting it. Do not lift by projecting components (e.g.
washing machine door).
• Warning: Frozen hoses may tear/burst. Do not install washing machine in outdoor areas or where
there is a risk of frost.
• Lay hoses and cables in such a way that there is no risk of trapping or kinking.
Choosing the Right Location for Your Washing Machine
• Make sure there’s enough space for your washing machine.
• Install your washing machine on a flat, stable surface to avoid excessive vibration and noise.
• Don’t install your washing machine in direct sunlight or in a place where temperatures reach
freezing.
Additional space (240mm) is required for the rear side of the washing machine. This is to
allow enough space for the water hose and drain hose.
Two or more people are required to carry
the washing machine.

Sloping
surface
Unstable Bumpy
surface
• Start by tilting the washing machine backwards.
• One person should stand behind it, holding the rear of the top panel. The other person should grip
the bottom feet at the front.
• Don’t touch the door opening button while holding.
• Check that you have all the required accessories for installation.
• Entrust the installation of the washing machine to a qualified technician.
5
INSTALLATION
S814WM12_IB_120419_Zell.indd 5 19/04/2012 6:33 PM

Moving and Installing
Removing the Transit Bolts
Four transit bolts keep the interior of the washing machine in place while it’s being moved.
They need to be removed before installation. Use a spanner (not supplied) and follow the instructions
detailed below.
Moving the Washing Machine from One Location to Another
Before you move the washing machine:
• Shut off the tap and run the washing machine to drain the water. Drain any remaining water from
the pump hose.
• Disconnect the mains cable.
• Attach the transit bolts.
To remove the transit bolts:
1. Use a spanner to loosen the four bolts. They are located at the rear side of the washing machine.
2. Pull the bolts out horizontally. Make sure the entire bolt is removed.
3. Push the four cover caps (included with your accessories) into the respective bolt holes.
1 2 3
Don’t run the washing machine without removing the transit bolts, as this can
cause excessive vibrations.
You’ll need the anchor bolts again if you move the washing machine, so make
sure you keep them in a safe place.
Make sure the anchor bolts are fixed prior to moving the washing machine.
6
INSTALLATION
S814WM12_IB_120419_Zell.indd 6 19/04/2012 6:33 PM

Levelling the Washing Machine
There are 4 levelling feet on the underside. They must be adjusted to make sure the washing machine
is level.
1. On each stand, loosen the lock nut by turning it clockwise with a spanner.
2. Adjust all four feet by rotating upwards or downwards.
3. Use a spirit level to ensure the washing machine is level.
4. Tighten each lock nut by turning them anti-clockwise (towards the
washing machine body), again using a spanner.
Ensure all four lock nuts are tightened securely. Check the feet are still bolted to
the washing machine - if they’re unbolted, the washing machine will move around.
Water Supply Hose
Points to remember
• Follow the instructions in this section to avoid water leaks.
• Don’t connect the hose to a combination tap.
• Don’t twist, squash, modify or cut the hose.
• Optimum water pressure in the water mains pipe is 0.03 MPa - 0.8 MPa. If the water pressure is set
higher than this, you will need to install a depressurising valve. Water-flow from the tap should be
more than 5 litres per minute. If you’re unsure, ask a qualified technician to connect the hose.
• This unit must only be connected to cold water mains using the new water inlet hose provided.
Connecting the Water Supply Hose
1. Attach the hose to a tap, and tighten the
plastic joint by hand.
2. Open the tap slowly and check that there are
no leaks around the joint.
Hose and Cable Lengths
How to connect from the left side
~80cm
~90cm
~85cm ~135cm
min. 60cm
max. 100cm
~40cm
~130cm
How to connect from the right side
Lock nut
3/4”
min. 10 mm
3/4”
min. 10 mm
Plastic joint
The joint is subject to water pressure.
7
INSTALLATION
S814WM12_IB_120419_Zell.indd 7 19/04/2012 6:33 PM

Water Drain Hose
Points to remember:
• Don’t twist, pull out or bend the drain hose.
• Your washing machine should be no more than 85cm from the drain outlet.
Draining to a sink or wash-basin
• Secure the drain hose in position, so it can’t drop out of the basin.
• Don’t block the basin’s drain outlet, and make sure that the drainage through it is sufficient.
• Don’t let the tip of the drain hose dip into the drained water, as this can cause the water to flow
back into the washing machine.
U-Shape Holder
Draining to a wash-basin Draining to a drain hose
Connecting to the Mains Supply
For your safety:
• Do not use a mains plug adapter or extension cable.
• If the mains cable or mains plug are damaged, stop using them and call a qualified technician for
assistance.
Installation Check List
By now, you should have installed the washing machine.
Let’s go through the checklist to ensure that the installation has been done correctly!
Questions Checkbox
Transit bolts - Have you removed them and attached the cover caps properly?
4 levelling feet Are they bolted securely to the washing machine?
Are they standing flat?
Power supply - Is the household dedicated mains socket, fully rated at AC220V to
240V independently?
Location - Is your washing machine on a flat, stable surface? Does it run without
vibrating?
Water Supply Hose - Is it free from leaks and is the water supply normal?
Water Drain Hose - Is it free from leaks and is it draining normally?
8
INSTALLATION
S814WM12_IB_120419_Zell.indd 8 19/04/2012 6:33 PM

Product Overview
The unit
Detergent
Compartment
Window
Door
Control Panel
Door Handle
Filter Service Flap
Drainage Hose
9
S814WM12_IB_120419_Zell.indd 9 19/04/2012 6:33 PM

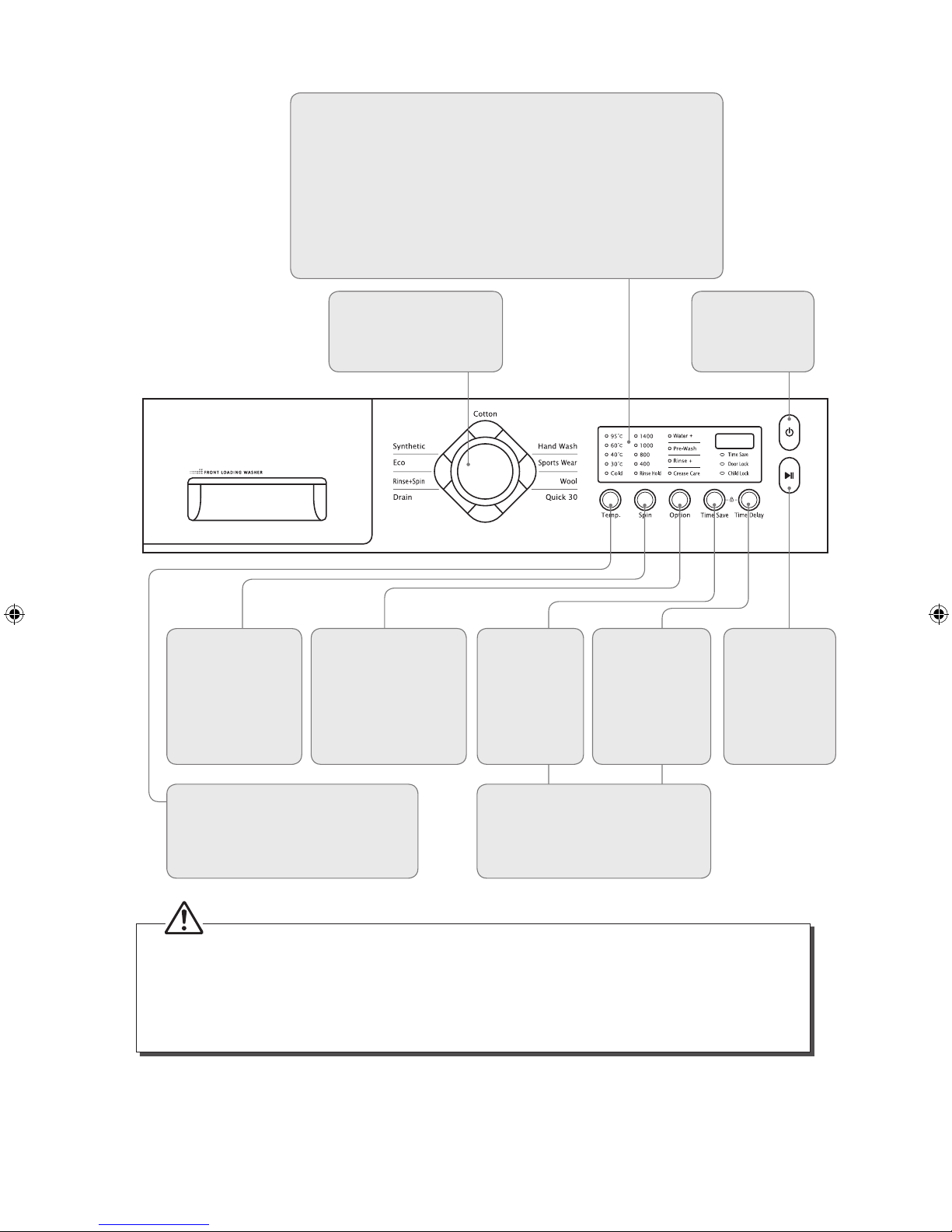

Control Panel
Programme Dial
Dierent wash programmes
can be selected according to
your wash requirements.
Power
Press to turn on/o
the machine.
LED Display
• Only the relevant phase currently in operation (pre-wash, wash, rinse, spin)
will be displayed during the washing process.
• The delay light will be on to indicate the delay time. It will start the
programme after the selected hours.
• After the wash procedure begins, REMAIN will be illuminated, to display the
remaining time, that is , the wash nishing time.
• When the child lock function is selected CHILD LOCKED will be illuminated.
• When the door is at the lock state, DOOR LOCKED will be illuminated. The
door can be opened only after the light turns o.
Child Lock
This machine incorporates a special child
safety lock, which can prevent children
from pressing the keys and changing the
setting .
Time Delay
This button is used
to delay the wash.
Press continuously
to select the time
you want to start
the wash.
Time Save
This button is
used to choose
ECO Wash
function.
Option
You can select from
4 functions. Reduced
Creases, Rinse+, Pre-Wash
or Water+ to get a better
wash for your clothes.
Start / Pause
Press to start your
wash. Press while
in operation to
pause your wash.
Spin
This button is used to
adjust the spin speed
during the drying
stage. You can change
the spin speed by
pressing this button
repeatedly.
Water Temperature Selection
This button is used to adjust the water
temperature. You can select dierent water
temperatures or no heating by pressing the
button repeatedly.
• If you need to change a setting after the wash has started, turn the dial to OFF. Re-select the
programme, spin speed and optional functions, and then press the Start / Pause button.
• Water is poured into the washing machine to perform an inspection at the time of shipment
from the factory, so there may be drops of water or condensation in the washing machine. This
is not an indication of a malfunction.
10
S814WM12_IB_120419_Zell.indd 10 19/04/2012 6:33 PM
