OPERATING AND SERVICE MANUAL
S-CON®MINI GOOD LUCK

2
Thank you very much for purchasing our S-CONⓇMINI GOOD LUCK Series. To
use the machine properly, please read this operating and service manual carefully
before use. Keep the manual where the machine is installed, so that it may be
referred to when needed.
TABLE OF CONTENTS
1．Caution When Handling
2．Component Names
3．Assembly
4．Running the Conveyor
5．Taking up the Belt
6．Belt Alignment Adjustment
7．Pulley Removal
8．Loosening/Removing the Belt
9．Drive Unit Relocation
10．Geared Motor Replacement
11．Inspection and Maintenance
………………………………………… 4
………………………………………………… 8
……………………………………………………………… 9
…………………………………………… 15
………………………………………………… 17
……………………………………… 18
……………………………………………………… 21
………………………………… 21
……………………………………………… 24
……………………………………… 25
…………………………………… 26

3
Upon delivery of this product, please check the package contents to ensure the
product matches your order. If the delivered items do not match your order, please
contact our local agent directly before use.

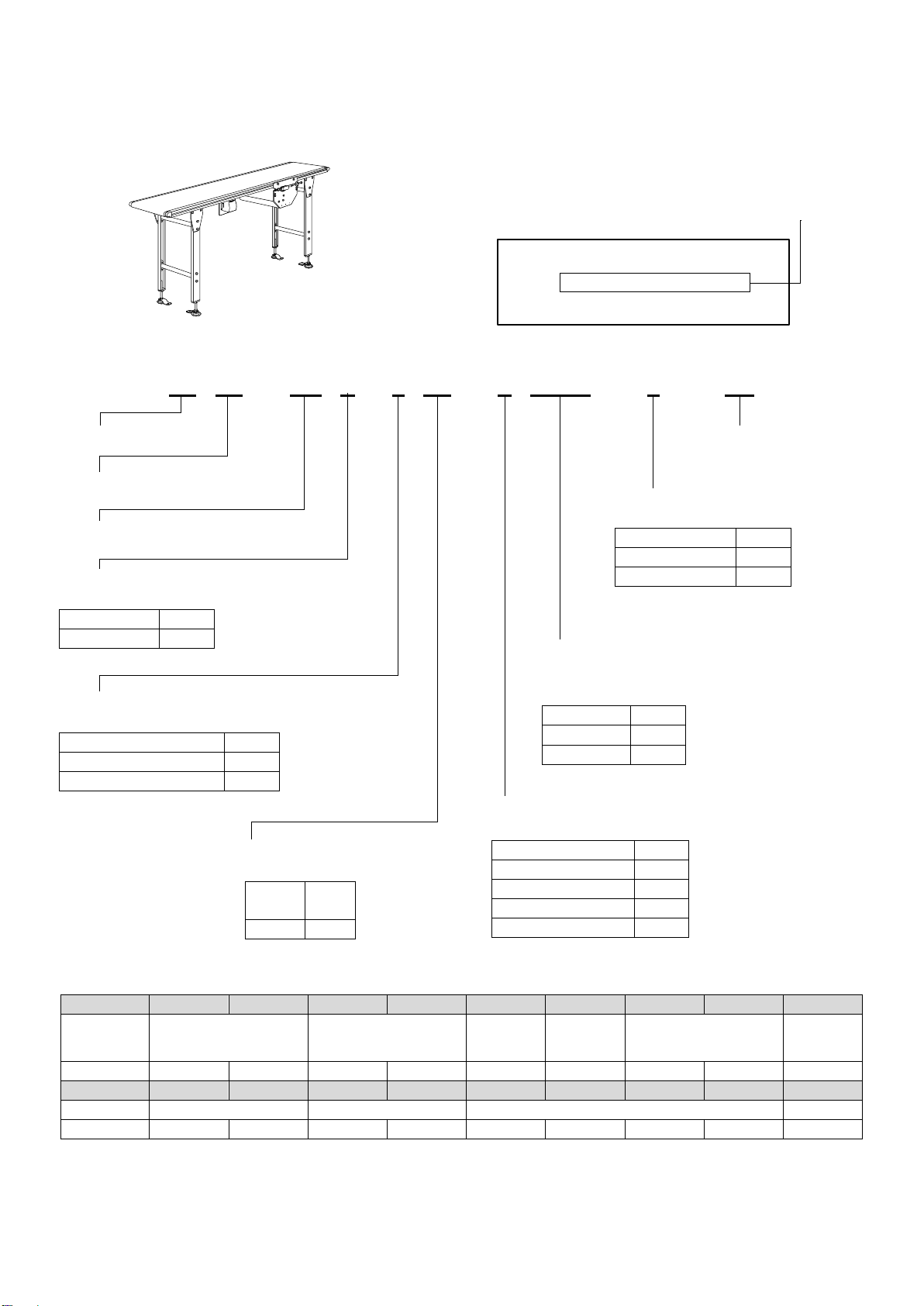

GL 30 –1.5 C （F 90 –1A18.3 ）L–BG
Motor position
Code
Right
R
Left
L
Drive type
Code
Center drive
C
Frequency
Code
50Hz
A
60Hz
B
Motor type
Code
Constant speed
C
Inverter variable speed
F
Power source type
Code
100V single-phase
1
200V single-phase
2
200V three-phase
3
other
0
Motor
output
Code
90W
90
Code
BG
BW
IG
IW
RG
EK
SG
SW
HW
Specification
Standard
Incline
Special
rubber for
inclines
Ultra
anti-static
Sliding
Heat-
resistant
Color
Green
White
Green
White
Green
Black
Green
White
White
Code
OG
OW
KW
KB
XG
XW
XB
XX
NO
Specification
Oil resistant
Antibacterial
Other
None
Color
Green
White
White
Blue
Green
White
Blue
Other
－
Belt specification
Power source frequency and Belt speed
(eg 50Hz 18.3m/min)
NOTE: For variable speed,
maximum speed is shown.
Nominal belt width in cm (eg 30cm)
Power source type
(eg 100V single-phase)
Motor output
(eg 90W)
Motor type
(eg Inverter variable speed)
Date of production 20□□.□□
JOB №□□－□□□□□－□□□－□□
GL30-1.5C（F90-1A18.3）L-BG
Motor position
(eg Left side of direction of belt
travel)
Machine length in m (eg 1.5m)
Serial number and model label
(affixed to side of drive unit)
Manufacturer’s serial number
(refer to this number when contacting us)
［Example ］
Conveyor model code
Belt specification
(eg Standard, Green)
NOTE: see table below
Drive type
(eg Center drive)
NOTE: Belt can be removed
on opposite side of motor.

4
□When using in a high or inclined position:
FOR YOUR SAFE USAGE
CAUTION : Improper handling of the conveyor may result in physical injury or damage!
■Transport and assembly
When transporting and assembling the conveyor, pay special attention not to drop it in order to
avoid physical injury or damage. When lifting by crane, pay attention to the balance of the conveyor.
■Earth and leakage breaker
Ensure the conveyor is connected to earth at all times to prevent electric shock. Also ensure that
an earth leakage breaker is connected to the power supply.
A. Prior To Use
■Emergency stop
Install an emergency stop device to immediately stop the conveyor in emergency.
■Start alarm
If it is not possible to supervise the operation of the full length of the conveyor from the operating
position, install a start alarm for increased safety.
■Keep the conveyor dry at all times
Do NOT use the conveyor in wet or humid areas. Do NOT splash liquids onto the conveyor. Do
NOT use or leave the conveyor outdoors. The machine is not waterproof. Do NOT touch electrical
parts with wet hands.
■Do NOT use in an explosive atmosphere
(Avoid explosive gas, explosive dust, etc.)
■Lower cover and guard
Install the optional lower cover or guard in order to prevent entry under the conveyor.
■Guide rail, top and side covers
To prevent objects from falling off the conveyor, install the optional guide rail, top and/or side
covers.
■Braking system
When using the conveyor on an incline, it is recommended that an optional braking system be
installed, in order to prevent reverse or other incorrect running of the conveyor.
■Environmental conditions
Ambient temperature
Ambient humidity
Atmosphere
Elevation
NOTE：
●Using the conveyor in a strong electric field (eg near broadcasting devices or high- frequency welding
machinery/equipment) could cause the conveyor to malfunction. In this case, install the conveyor at a
sufficient distance. Alternatively shield completely to avoid any interference with the conveyor.
●Using an inverter to this machine could cause other machines to get effects of high-frequency. In this
case, install the conveyor at a sufficient distance or shield completely.
1
CAUTION WHEN HANDLING
：0℃ to +40℃
：RH 90% max(Avoid condensation)
：Indoor(Avoid corrosive gases, dust, etc.)
：1,000m or less


5
B. During Operation
C. After Use
WARNING：Improper handling of the conveyor could result in serious physical injury or damage!
■Do NOT touch the conveyor when it is running
There is considerable risk of being caught and injured by the conveyor.
■Do NOT ride on or climb on the conveyor／Do NOT go under the conveyor
There is considerable risk of falling or being caught and injured by the conveyor.
■Beware of entanglement
When working close to the conveyor, take care not to get caught in the conveyor. There is
considerable risk of being injured by the conveyor.
■Do NOT remove safety covers
There is a risk of getting caught in the rotating parts such as pulleys. Only remove in case of
maintenance or inspection.
CAUTION：Improper handling of the conveyor may result in physical injury or damage!
■Do NOT apply force to ends of conveyor
Do NOT press down on, or hang off the sides of the conveyor. Injury may result from a toppling
conveyor.
■Secure the conveyor to the floor/ground
When using the conveyor, be sure to secure it to the floor/ground with anchor bolts etc. to
prevent it from toppling irrespective of indoor use or outdoor use.
■Switch off the power after use
Ensure that the power is switched off when carrying out relocation, inspection, cleaning, etc. of
the conveyor, otherwise there is a risk that the conveyor could start unexpectedly. When leaving
the conveyor unused for a long period, take plug out of the outlet /connector to prevent electric
shock or leakage.
NOTE：1. Always use in accordance with the Occupational Safety and Health Act.
2. If the owner modifies the conveyor, any ill effects will fall outside the conditions of the guarantee.
■Do NOT start the conveyor while it is loaded
The motor may become damaged due to overload. Additionally, the motors of variable-speed type
machines may burn out as a result of running at excessively low speeds for
long periods. Use the conveyor within the specifications, indicated in the instructions for use, and
in the catalogue.
CAUTION：Improper handling of the conveyor may result in physical injury or damage!

6
■WARNING LABELS etc. AND ATTACHMENT POSITIONS
For standard machines, warning labels etc. and their attachment positions are as follows:
1. WARNING LABELS
Label classification
Label
Instruction
■ALWAYS CONNECT TO EARTH
Ensure the conveyor is connected to earth at all
times to prevent electric shock.
■DISCONNECT POWER BEFORE SERVICING
Ensure that the power is switched off when carrying out
relocation, inspection, cleaning, etc. of the conveyor,
otherwise there is a risk that conveyor may start
unexpectedly.
CF-2
■DO NOT GET CAUGHT IN MACHINE
When working close to the conveyor, take care not to get
caught in it. There is a risk of being injured by the conveyor.
CG-2
CAUTION
or
WARNING
CE-2
CA-2
■HOT SURFACE, DO NOT TOUCH
When the conveyor is running or immediately after it stops,
do NOT touch the motor, control unit, etc. There is a risk of
getting burned or injured by the heat.
■DO NOT GET CAUGHT IN MACHINE
When working close to the conveyor, take care not to get
caught in it. There is a risk of being injured by the
conveyor.
■DO NOT OPERATE WITHOUT GUARDS IN PLACE
Do NOT remove safety covers etc. There is a risk of getting
caught in the rotating parts such as pulleys. Only remove in
case of maintenance, inspection, etc. unexpectedly.

7

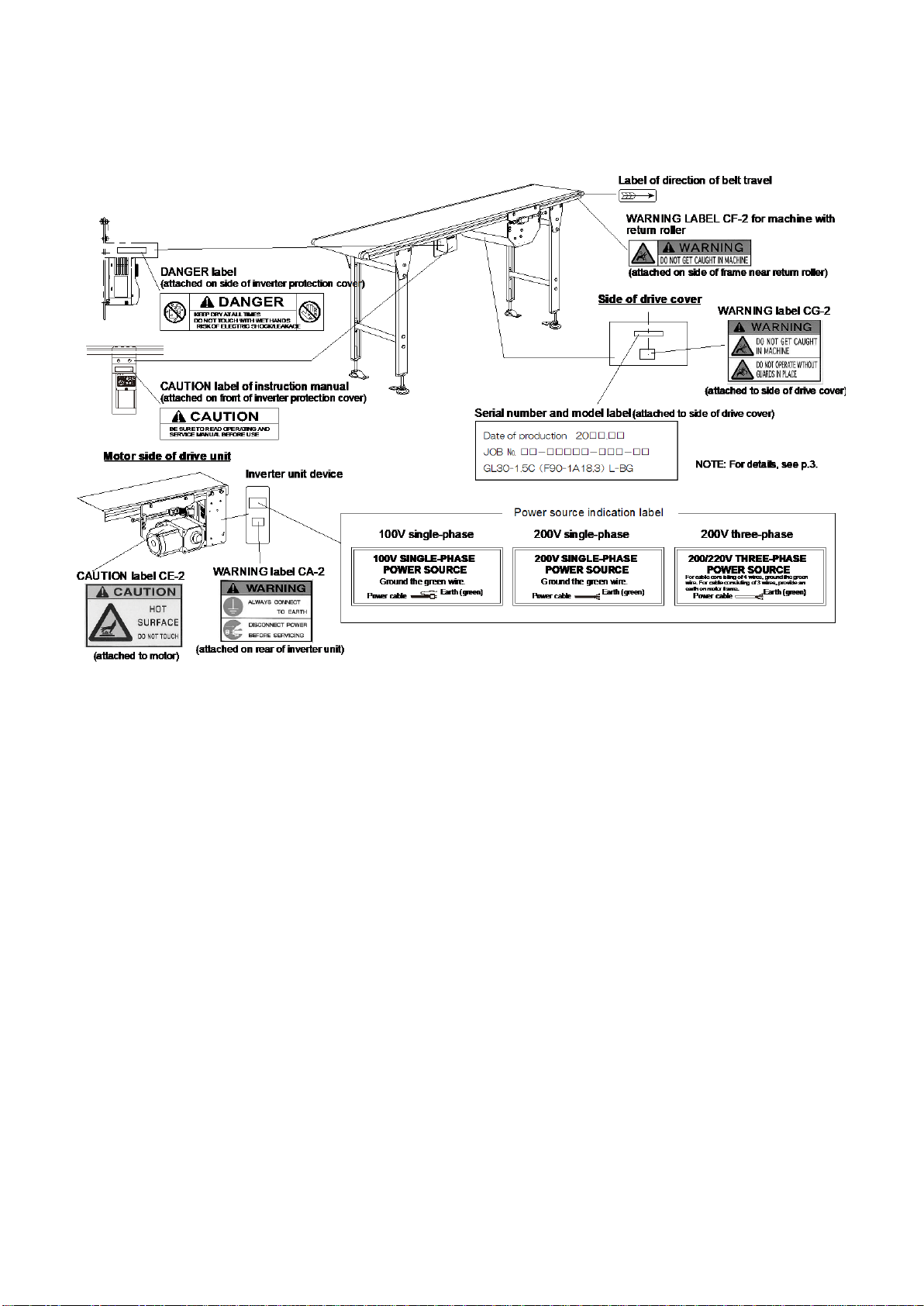

2. ATTACHMENT POSITIONS OF WARNING LABELS etc.
(eg eg S-CON®MINI GOOD LUCK GL model of variable
speed type)

8
Frame depth
Model code
30
GL，GLV
60
GLH，GLHV
2

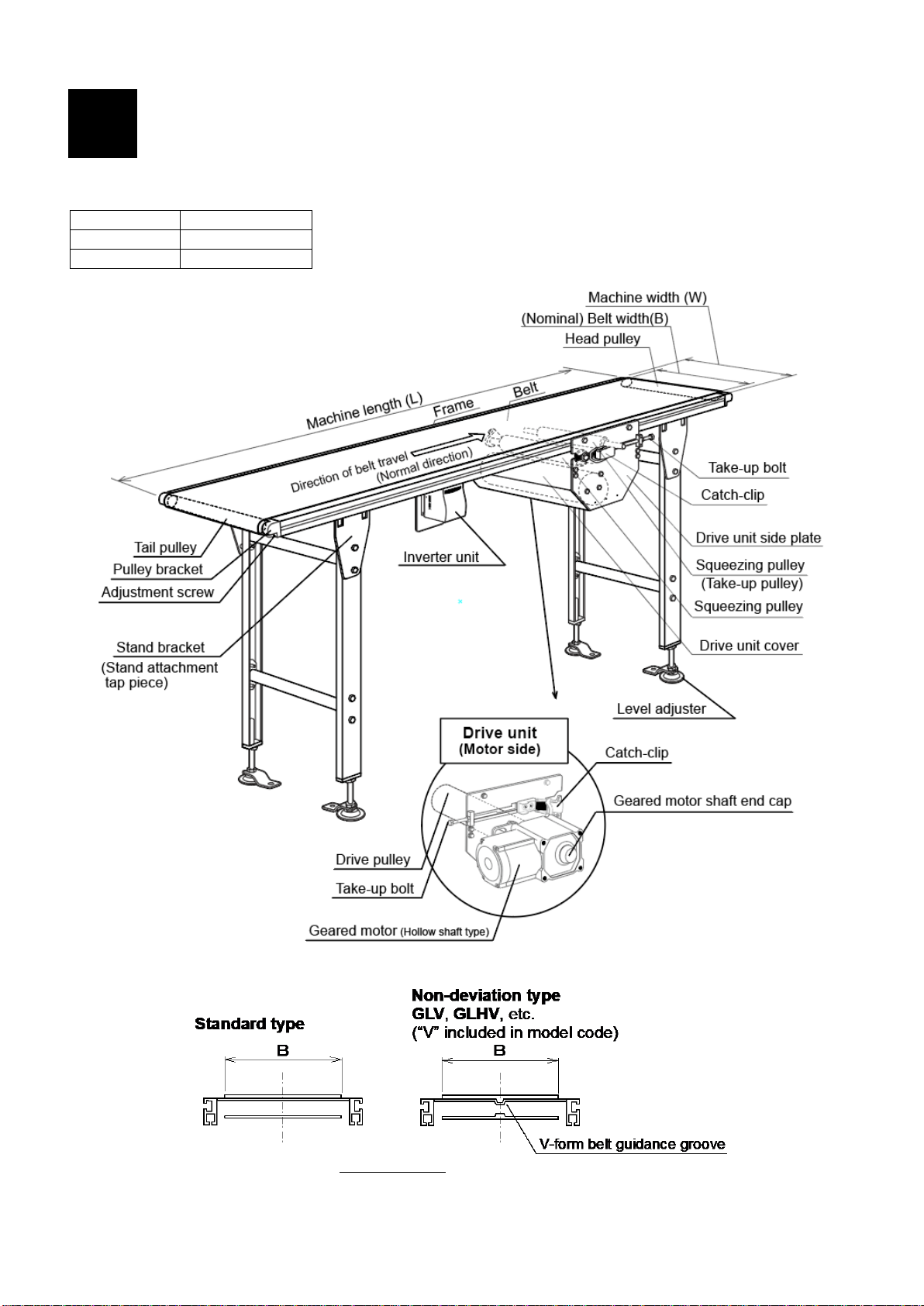

COMPONENT NAMES
Applied models:
Cross section

9
3
ASSEMBLY

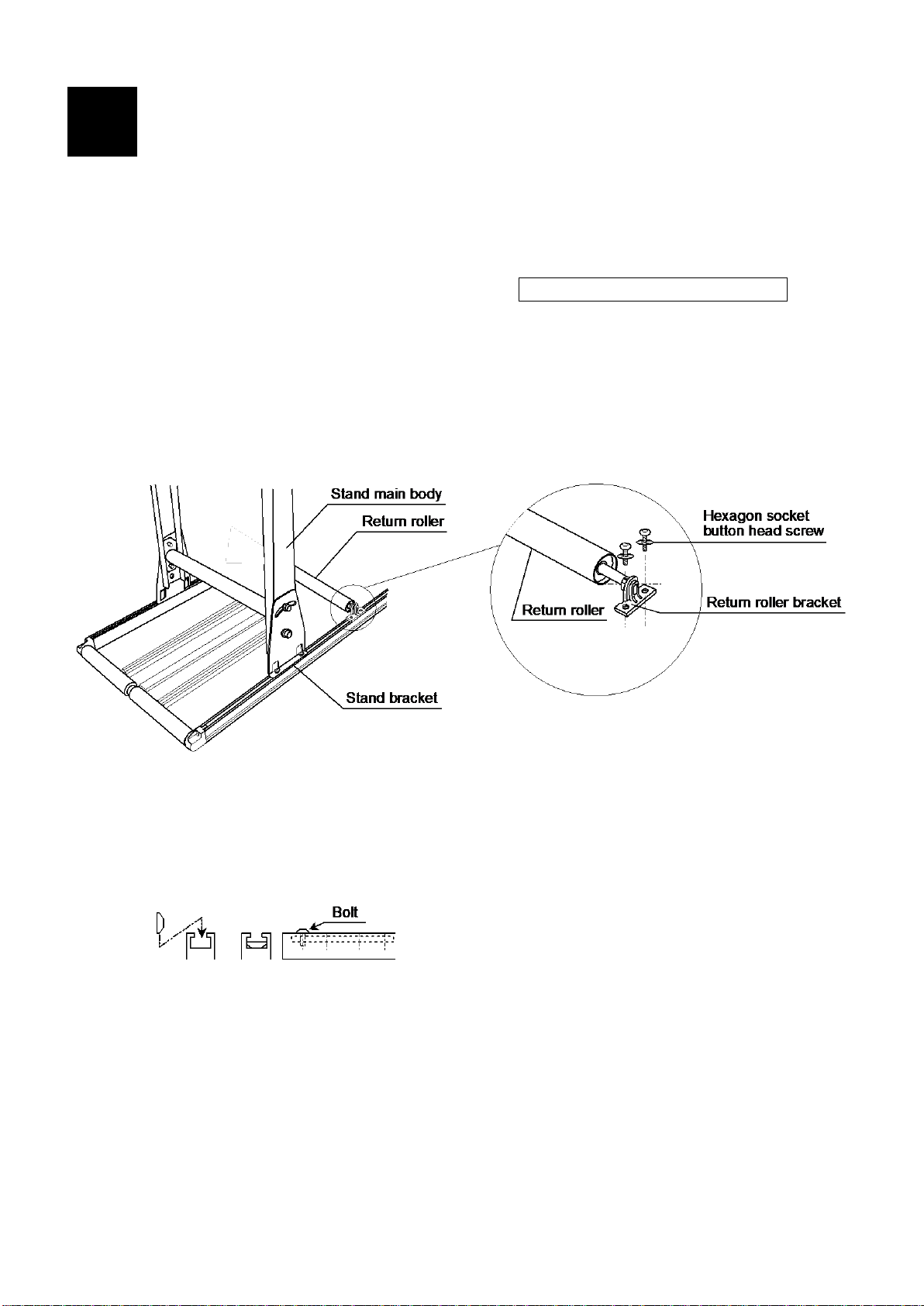

3-1. INSTALLING STANDS AND RETURN ROLLERS
1. Place conveyor frame upside down on table. (Assembly is easier this way.)
2. Install inverter unit delivered in separate packaging. → See p.13. (For constant-speed type using 200V
three-phase power source, controller is optional.)
3. If return rollers are delivered in separate packaging, stickers RETURN ROLLER FIXING POSITION are
affixed on side of frame. Return roller attachment tap pieces are temporarily bolted into frame
underside slots, just under the stickers. Install return rollers using the tap pieces as shown in figures
below. (Return rollers are individually packed and temporarily attached beside drive unit.)
NOTE: 1. For center drive type of 2m or less in length, machine has no return roller.
2. In the following cases, return rollers are delivered already installed as shown in figure below left, i.e.
installation is unnecessary.
-3m or less in machine length and 60mm in frame depth
-3m or less in machine length, 30mm in frame depth and 300mm or less in belt width
4. Stands(optional) are delivered in separate packaging. Install them using the attached stand tap pieces.
NOTE: 1. Install each stand in appropriate position referring to “Standard Installation Positions of Stands”,
p.10.
2. For machine length of 1.2m or less, stand tap pieces are delivered inserted into conveyor frame.
Installation will become easier by inserting
and tightening bolt into end of tap piece.
5. When assembly is complete, turn over the entire conveyor and place on the floor.

10
6. Adjust conveyor height following “Stand Height Adjustment” below. Confirm full length of frame is
straight and level on top, and firmly tighten stand bolts and nuts.
■Standard Installation Positions of Stands
Considering frame depth and strength, installation positions of stands are determined as follows.
■Stand Height Adjustment
Before starting adjustment, ensure tapered grooves(*1, *2) and fixing bolts(*3, *4) are positioned correctly
as shown in figure, below.
To lower stand upper post(*5), loosen fixing bolt(*3). If tapered groove(*1) entirely goes down into stand
lower post(*6) while lowering upper post(*5), tighten fixing bolt(*4) into tapered groove(*2). For more
adjustment, loosen fixing bolt(*4) again. Once adjustment is complete, tighten fixing bolts(*3, *4).
To finely adjust conveyor level, use level adjusters beneath stand.
CAUTION
When adjusting stand heights, take care not to pinch fingers. To prevent conveyor
main body from rapidly going down, loosen fixing bolts little by little while supporting
conveyor with the other hand etc.
Frame depth
(mm)
30 or 60
Standard installation interval (mm)
P1
400 (125 min.)
P2
1200 or less
P3
2000 or less
P4
2000 or less

11

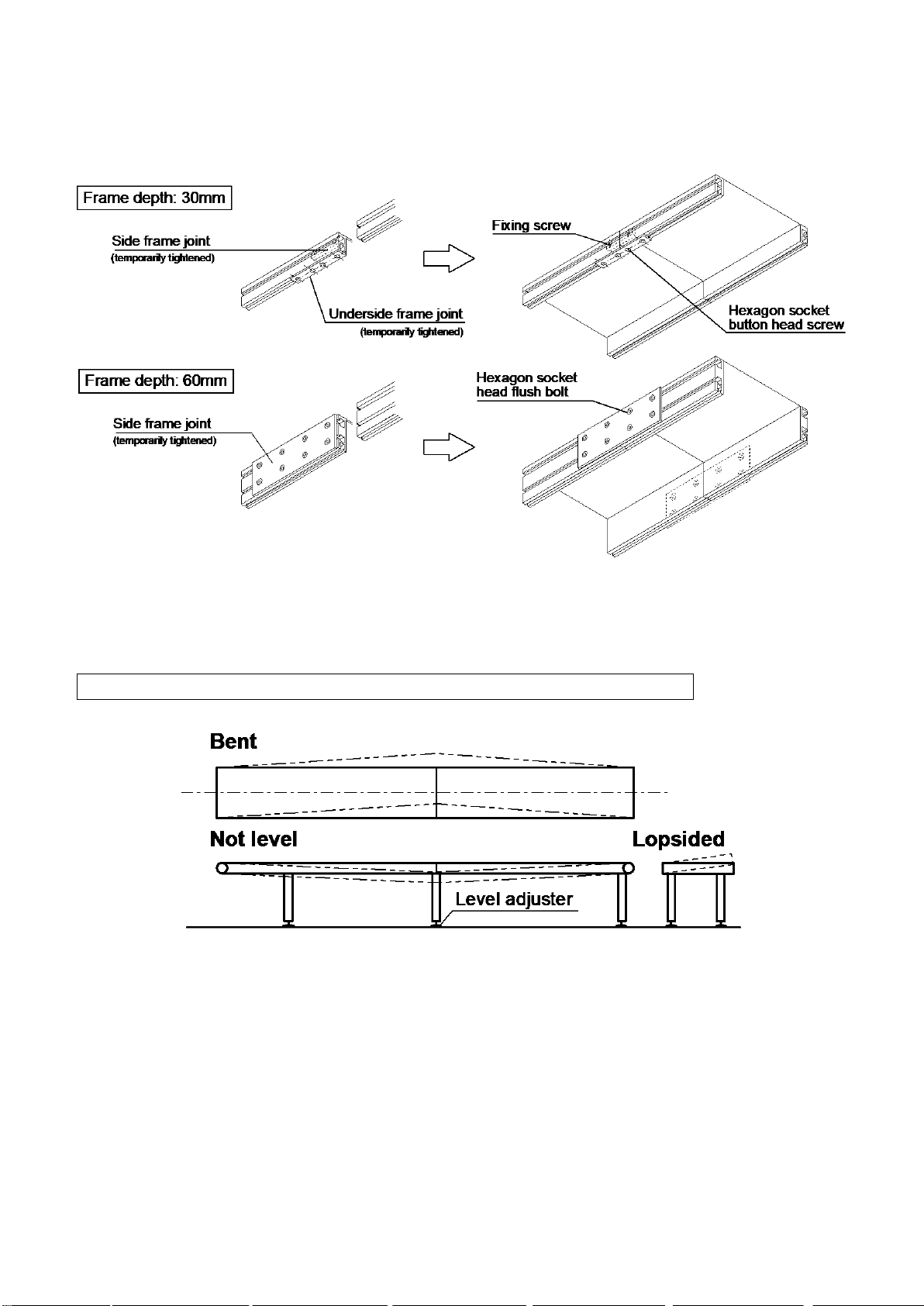

■Joining Frames
Frame joints are temporarily tightened to one side of frame. Correctly attach them using a hexagonal
wrench as shown below:

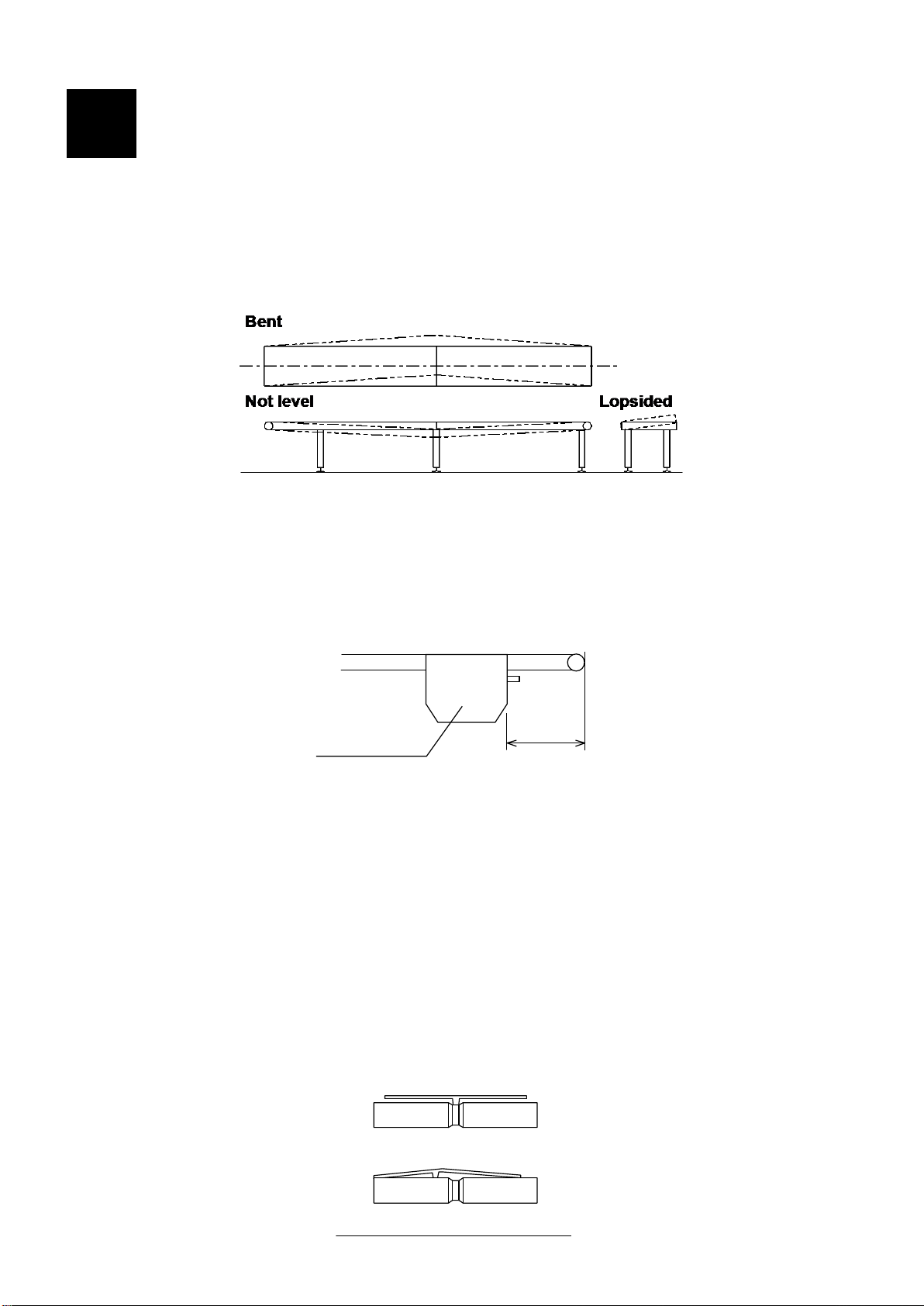

■Caution When Joining Frames and Setting up Conveyor
1. Install full length of frame straight, not bent in any place.
2. Finely adjust conveyor level. (Use level adjusters beneath stands.)
NOTE: If conveyor is bent or not level on top, belt may stray to one side or the other.

12
MACHINE LENGTH (m)
～3.5
～4.0
～4.5
～5.0
～5.5
～6.0
LENGTHS OF DIVIDED
FRAMES (m)
(1.5)＋2.0
(2.0)＋2.0
(1.5)＋2.5
(2.5)＋2.5
(2.5)＋3.0
(3.0)＋3.0
PACKAGING
Belt width of 300mm or less: 1 package
Belt width of 350mm or more: 2 packages
ASSEMBLY
METHOD
1. Loosen belt.
2. Assemble
main body.
3. Install
stands and
return rollers.
3-2. ASSEMBLING LONGER MACHINES
When conveyor exceeds 3m in length, it is delivered packed as shown below. Assemble conveyor
following the procedures in the tables. (*Return rollers are individually packed and temporarily attached
beside drive unit.)
Loosen belt by unfastening catch-
clips.
(1) Unfold belt. Check installation positions of frames.
(2) Join frames. → See “Joining Frames”, p.11.
(3) Move tap pieces to installation positions of stands and return rollers. Fix them
temporarily and install stands and return rollers. → See p.9.
(4) When assembly is complete, take up belt slack (ref. p.17) and adjust belt alignment
(ref. p.18-21).
NOTE: If, as a result of machine length, it is difficult to turn over the entire assembly,
first assemble and turn over in sections, and then join frames.
Frame joint
Belt *Return roller Drive unit
(temporarily attached)
Frame joint
Belt *Return roller
Head frame
Tail frame
(temporarily attached)

13
3-3. INSTALLING INVERTER UNIT
If inverter unit is delivered in separate packaging, install it as follows:
NOTE: For constant-speed type using 200V three-phase power source, standard machine has only lead
wire terminal of motor, ON/OFF switch is optional.
Unpack inverter unit. Install it near drive unit by tightening inverter unit attachment bolts (insertable bolts)
into side slot of frame, as shown in figure below.
NOTE: If it is necessary to install inverter unit separately from drive unit, connect them using extension cable
(optional) as shown in figure above.
Inverter unit
Power supply cable
Extension cable
(optional)
Terminal
base
Drive unit
Motor cable
Motor

14
3-4. INSTALLING GUIDE RAILS AND SKIRTS (OPTIONAL)
1. Installing Guide Rails
When installing, slightly raise guide rails, giving clearance to prevent belt from touching them. If there is no
clearance, it may cause friction damage to belt and guide rails when belt deviates.
2. Installing Skirts
When installing, ensure skirts are properly touching belt.
If belt deviates, to prevent friction damage of belt and skirt fitting pieces, reinstall skirt fitting pieces raised as
required.
■Insertion of Nuts
When installing additional attachments to frame, insert M6 hexagonal thin nuts into frame slots, as shown in
figures, below.
NOTE: These nuts are delivered as spare parts in tool bag.
M6 hexagonal thin nut
(1) Insert nut into slot diagonally from
above.
(2) Insert something cylindrical and
pointed (eg tip of mechanical
pencil) into nut hole, and lightly
push nut upward.
14
35
Skirt
S-A1 model, fixed type
14
35
Skirt
S-A1 model, fixed type
(3) Continue pushing nut this way until
in position.

15
4
RUNNING THE CONVEYOR
4-1. BE SURE TO GROUND MACHINE BEFORE OPERATION
1. Variable-speed Type (For standard machines, speed is changed by inverter.)
100V single-phase power source
Connectors (male & female) with earth are attached to power cable. Be sure to ground machine by
connecting earth terminal of connector on power source side (female connector).
200V single-phase/three-phase power source
Power cable has ring terminals. When wiring, be sure to make proper earth wiring from earth terminal
of power cable.
2. Constant-speed Type
For standard machines, power source is 200V three-phase only and motor cable (0.3m, with ring
terminals) is provided. When wiring, be sure to make proper earth wiring from earth wire of power
cable. Control unit (switch etc.) is optional.
NOTE: For 100/200V single-phase power source, standard machines are not constant-speed type.
●Power cable and terminals (for inverter variable-speed type)
AC 100V single-phase AC 200V single-phase AC 200V three-phase
4-2. RUNNING THE CONVEYOR (for MITSUBISHI-inverter variable-speed type)
For standard machines of variable-speed type, speed is
changed by inverter. Operate inverter as follows:
1. Turn on power supply and ensure that EXT
indicator(*1) is illuminated. Then press PU/EXT
key(*2) and ensure PU indicator(*3) is illuminated. (PU
operation mode)
2. To start conveyor, press RUN key(*4); to stop
conveyor, press STOP/RESET key(*5).
3. To set speed, turn M-dial(*6) until the monitor(*8)
shows intended frequency. Then press SET key(*7).
(Only turning M-dial does not change speed. To
complete speed setting, be sure to press SET key.)
4. It is possible to change direction of belt travel or make
external control by setting parameter. For details, refer
to inverter instruction manual, appendix.
fig. Inverter operating panel
RUN key (*4)
PU indicator (*3)
EXT indicator (*1)
STOP/RESET key (*5)
PU/EXT key (*2)
SET key (*7)
M-dial (*6)
MODE key

16
MITSUBISHI inverter FREQROL D700 standard specifications
Applied motor
90W
Rated output voltage
AC 200V three-phase
Power source voltage
Type 710W: AC 100V single-phase
720S : AC 200V single-phase
720 : AC 200V three-phase
Permissible voltage variation
100V: 90-132V
200V: 170-264V
Power source frequency
50/60Hz ±5％
Environmental
conditions
Temperature
-10℃ to +40℃ (Avoid freezing)
Humidity
RH 90% or less (Avoid condensation)
Atmosphere
Indoor, no corrosive/flammable gases,
no oil mist or dust
Elevation
1,000 m or less above sea level
Vibration
5.9 m/s2or less
■Caution When Using Inverter
CAUTION
1. Be sure to confirm that the power source voltage is within the rated voltage
range, before switching ON the power source. (Voltage exceeding the rated
voltage could cause fuming, abnormal noise, etc.)
2. Be sure to start and stop the conveyor with RUN/STOP switch. When starting
and stopping the conveyor frequently in a short period (tact operation etc.), it is
impossible to start/stop the machine by turning on/off the power supply. In this
case be sure to start and stop the machine by external signals. (Inverter
variable-speed type is different from speed controller’s, and the power supply
will trip.) Do not start and stop the conveyor excessively frequently. It may cause
machine failure or shorten its service life.
3. The RUN/STOP switch of inverter unit is not for turning the power on and off.
When leaving the conveyor unused for a long period, make sure that the mains
is off.
4. Do not run the conveyor at excessively low speed for a long period, or start and
stop the conveyor excessively frequently. These may cause machine failure or
shorten its service life.
5. Do not touch the inverter radiator of side of inverter unit, and do not allow any
material to touch it, because of its high temperature.
6. Use the inverter unit within the permissible range of ambient temperature (from
–10℃ to ＋40℃). Avoid freezing.
7. Pay special attention not to allow any foreign matter (dust, iron powder, etc.) to
get into the inverter unit.
8. Operating the motor using the inverter could cause noises from the inverter I/O
cables, motor, etc. Keep in mind that these could interfere with the correct
operation of other electronic devices. (In this case, noises and their effects can
be suppressed to some extent by providing the inverter I/O with a filter or
otherwise shielding the power cable.)

17
■Belt Tension
Do not take up belt too much, but only to extent that belt does not slip on drive pulley, i.e. enough to drive
belt.
NOTE: 1. Belt occasionally shrinks depending on carried materials or type of belt. In this case make
adjustment by turning take-up bolts counterclockwise.
2. Excessive belt take-up may overload motor or shorten service lives of belt, pulley, etc.
Standard belt expansion percentage
5
TAKING UP THE BELT
When belt is slackened off, take up belt as follows:

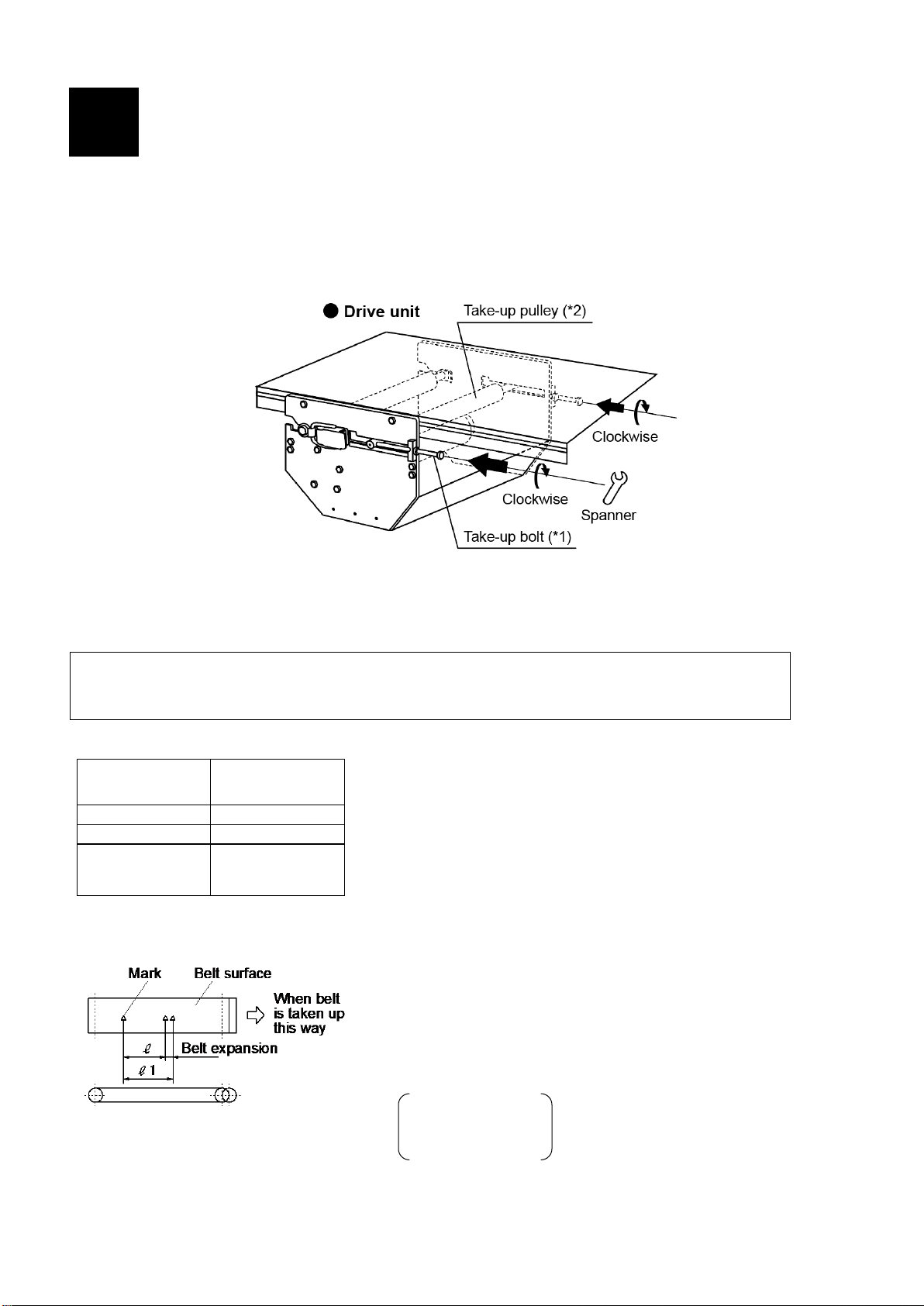

To take up belt, turn right and left take-up bolts(*1) of drive unit clockwise with a spanner. Take-up
pulley(*2) will then be moved and belt will be taken up. When turning take-up bolts(*1), adjust them
alternately, little by little, to keep their movement lengths the same.
If belt is taken up too much, properly adjust the tension by turning take-up bolts(*1) counterclockwise.
Nominal belt
width (mm)
～200
250～600
600～1,000 or
Motor power of
0.2kW or more
Expansion
percentage (%)
0.2
0.15～0.1
0.1
1) Slacken belt.
2) Mark any two points on belt surface and measure
length between them (ℓ).
3) Take up belt.
4) Measure length between two marks (ℓ1) again.
eg
ℓ＝1000mm
0.2％＝2mm
ℓ1＝1002mm
How to calculate belt expansion percentage

18
2. Positions of Drive Side Plates
Confirm that right and left drive side plates are symmetrically
positioned. → See p. 24.
NOTE: If drive side plates are not positioned equally on right and left sides, it may cause belt deviation. Be
sure to check their positions before using conveyor because side plates may have shifted out of
position in transit.
6
BELT ALIGNMENT ADJUSTMENT
When belt is not correctly aligned, make adjustments as follows:
6-1. PRIOR CHECKING
1. Frame Condition
Confirm full length of frame is level on top, straight and not bent in any place. →See p. 11.
Drive side plate Measure this length on
both sides to check
installation condition of
right and left drive side
plates.
Correct condition
Dislodgment
Pulley of non-deviation model
3. Dirt on Pulleys
Check drive pulley, head and tail pulleys, etc. for dirt. Remove any dirt and clean. (Remove drive bottom
cover to check.)
4. Loading Condition
Improper loading, i.e. not-centered, may cause belt deviation.
5. Dislodgment of V-form Strip
For non-deviation models(GLV, GLHV model, etc.), check if V-form strip on belt undersurface has
dislodged from V-form belt guidance grooves on pulleys and rollers. (Remove drive bottom cover to
check.)

19
6. Belt Deviation
Check how belt is deviating before adjustment. Correct positions of the following parts while running
conveyor slowly, and then continue running it for a while to check any further belt deviation.
-Take-up devices: Position and adjust them equally on right and left sides.
-Head and tail pulleys: Set at right angle to frame.
6-2. BELT ALIGNMENT ADJUSTMENT
After checking belt deviation, adjust each part following the procedures on p.19-20 while
running conveyor slowly.
NOTE: It is necessary to wait until belt running stabilizes after each adjustment step and to adjust belt
alignment little by little. Belt running will not change immediately.
1. Adjustment Using Take-up Pulley
On side to which belt is deviating, slightly turn take-up bolt(*1) of drive unit counterclockwise with a
spanner. Take-up pulley(*2) will then move outward on this side and belt will center itself.
Alternatively adjust on opposite side. In this case turn take-up bolt(*1) clockwise. Take-up pulley(*2)
will then move inward on this side and belt will center itself.

20

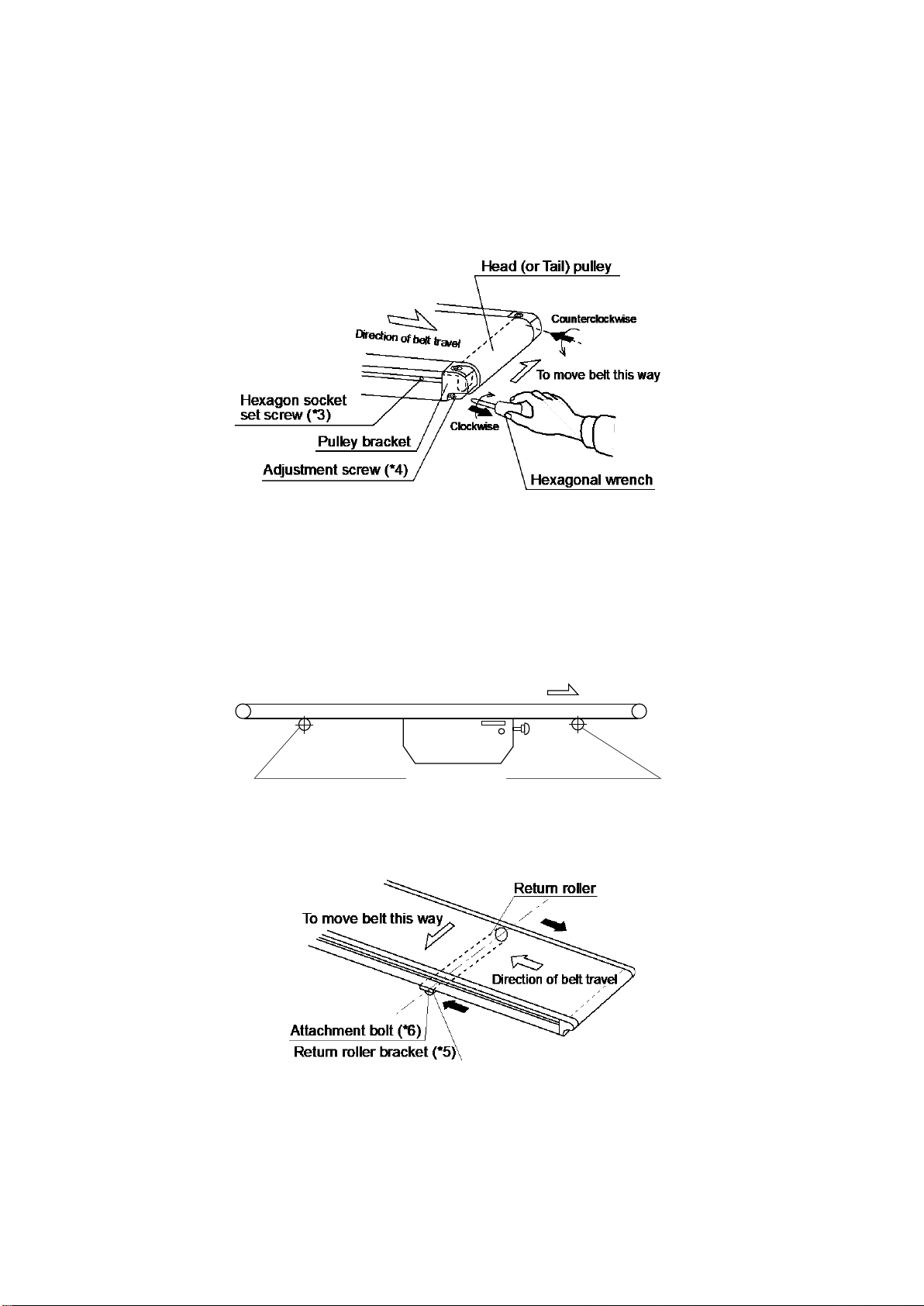

2. Adjustment Using Head or Tail Pulley
On side to which belt is deviating, loosen hexagon socket set screw(*3) and slightly turn adjustment
screw(*4) clockwise. Head (or tail) pulley will then move outward on this side and belt will center itself.
Alternatively, on opposite side, if there is a space between frame end and pulley bracket, make
adjustment on this side. In this case slightly turn adjustment screw(*4) counterclockwise. Head (or tail)
pulley will then move inward on this side and belt will center itself.
Once adjustment is complete, be sure to retighten hexagon socket set screw(*3).
3. Adjustment Using Return Roller (if any return rollers are attached)
On one side, loosen return roller bracket(*5) attachment bolt(*6), and set return roller slightly
diagonally. Belt will then move to form right angle to return roller rotation axis.
NOTE: It is effective to adjust the closest return roller to tail pulley. (The closest return roller to tail
pulley alternates depending on direction of belt travel as shown in figure below.)
Normal direction of belt travel
Return roller B
(the closest return roller
to tail pulley when running
belt in normal direction)
(the closest return roller to
tail pulley when running belt
in reverse direction)
Return roller A
