Sansui SMX4019SM User manual

1
User Manual
SMX4019SM
THE OPERATION OF THIS EQUIPMENT IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
1) IT IS POSSIBLE THAT THIS DEVICE OR DEVICE WILL NOT CAUSE HARMFUL INTERFERENCE AND
2) THIS EQUIPMENT MUST ACCEPT ANY INTERFERENCE INCLUDING THE ONE THAT CAN CAUSE
YOUR OPERATION NOT DESIRED.
BEFORE USING THIS PRODUCT READ THE INSTRUCTION AND CONSERVE FOR FUTURE REFERENCE,
IF THE POWER CORD BECOMES A TOTAL OR PARTIAL DAMAGE, DO NOT TRY TO REPAIR IT
GO TO THE SERVICE CENTER MARKED IN YOUR GUARANTEE; WITH A SPECIALIST TECHNICIAN,
OR, WITH YOUR MANUFACTURER.
IMPORTED BY:
CTM DIGITAL S.A. de C.V.
Av. Lago Zurich No. 219, 12th floor, Plaza Carso Building, Col. Amplicon Granada, 11529
Mexico, Mexico City. Tel. [phone]
ELECTRICAL SPECIFICATIONS: 100-240 See 50/60 Hz 70W
THE REMOTE CONTROL USES 2 "AAA" TYPE BATTERIES OF 1.5 V DC each (3 Vcc)
40” LED SMART FHD TV
101.60cm

2
The exclamation symbol within the
equilateral triangle is used to prevent the
user from the presence of important points
that must be observed in the operation and
maintenance of this product.
Caution
The lightning symbol enclosed in an
equilateral triangle is used to warn the user
about the presence of non-isolated "high
voltage" parts, sufficient to be considered a
danger factor by electric shock or
electrocution.
Safety information
High voltages are used in the
operation of this product, to
avoid the risk of electric shock,
do not remove the back cover
of the TV. Please go to the
qualified personnel for service.
The use of controls, adjustments or carrying out procedures
other than those specified here, may cause dangerous
radiation levels.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION

3
.
Important security
1. Read these instructions.
2. Keep this instruction manual.
3. Follow all warnings.
4. Follow all instructions.
5. Do not use this equipment near water.
6. Clean only with soft and dry cloth.
7. Do not block the ventilation slots. Install according to the manufacturer's
instructions.
8. Do not install the equipment near sources that emit heat, such as radiators, stoves,
stoves, or other appliances (including amplifiers) that emit heat.
9. Do not try to avoid the purpose of the polarized plug. This TV is equipped with a
polarized plug (one blade wider than the other). This plug must fit correctly in the
outlet. This is a safety feature.
If it is not possible to fully insert the plug, try inverting it. If this is still not possible,
consult an electrician to replace the plug with an appropriate one.
10. Protect the power cord from being stepped on or being bent, particularly at the
plug and at the part where it joins the equipment.
11. Use only the accessories specified by the manufacturer. 12. Use only furniture or
shelves recommended by the manufacturer or sold together with the equipment.
When an unstable piece of furniture or shelf is used, be very careful, the equipment
may fall and cause personal injury.
13. Disconnect the equipment during lightning storms or when it is not used for a long
time.
14. Refer all service to qualified personnel only. Service is required when the
appliance has been damaged in some way, if the power cord or plug is damaged,
liquid has been spilled or objects have fallen into the appliance, been exposed to rain
or moisture, does not operate normally, or has fallen.
15. The equipment must be disconnected from the main socket and place the On /
Standby switch in the Standby position and disconnect the power cord of the
appliance from the AC receiver.
16. The contact must be installed near the equipment and must have easy access.
17. This equipment should be placed in an environment where ventilation is not good,
such as a bookshelf or enclosed space, unless good ventilation is provided.
18. Do not expose the device to dripping or splashing liquids.
19. Do not place any source of danger on the device (e.g. objects filled with liquids,
candles).
20. Wall or ceiling mounting - The appliance must be installed on the wall or sky only
as recommended by the manufacturer.
21. Never place the TV, remote control or batteries near flames or other sources of
heat, including direct sunlight. To prevent the spread of fire, keep candles or other
flames removed from the TV, remote control and batteries all the time.
22. The USB terminal must be charged with 0.5 A under normal operation.

4
Installing the TV on the wall
1. First, put the TV on a flat table, on which you must put something soft to prevent the panel
from being scratched or damaged.
2. Use the screwdriver to remove the 4 screws that hold the base of the TV (the direction of
the arrows, reference image 1) and, remove the base (guard the screws and the base carefully).
3. Make or buy support with which the TV can be mounted on the wall, according to the size
of the part marked with the arrows in image 2 and 3.
4. Make 4 holes in the wall in the right place (the size is only for reference) and put the part of
the bracket that goes on the wall with the 4 screws (optional parts).
5. According to step 4, use a screwdriver to put the screws to the part of the bracket that goes
on the TV, for wall mounting.
Wall installation
A
Product family
Centimeters
VESA
Specification
(A*B)
Standard Screw
<co>
Q
uantity
LED Television
101.60
20cm x 20cm
M6T.10
4
NOTE: "D" is the effective length of the thyme in the mounting hole.
The figures and illustrations in this manual are provided for reference only
and may different from your actual appearance. Product design and
specifications may change without prior notice.
Note:
1. Wall mounting bracket is an optional part.
2. When installing the TV, there should be no other items around or in front, please keep a
distance from other items.
3. When installing the TV, please ask qualified personnel about safety to avoid risks.
4. Installation images are for reference only.
5. Please follow the instructions in the manual about the installation of the TV.
6. The VESA wall mount kit is compatible with this TV.
Important security instructions
B
C
D

5
TV buttons
Note: The following is a functional diagram only, the arrangement and
position of the buttons between the different models, may vary.
: To turn on / off the TV.
SOURCE: To select the external input signal.
MENU: To show the main MENU and confirm the selected menu option.
CH+/-: For the selection of channels.
VOL+/-: To perform the volume adjustment.
Connection terminals
Note: The following drawings show various connection terminals, the position,
the accommodation and the number between the different models may vary.
AV Audio Inputs External AV
signal inputs and related sound
Right / Left,
Headphone output(Earephone)
When the headphones are
connected, the speakers are
deactivated
Video Inputs Y / VIDEO Pb Pr
Connections for video input from
your DVD / VCP
*Video input AV Y/VIDEO
* Composite video Y/VIDEO Pb
Pr
U
SB input
Connection for usb
HDMI input
Digitel line input from an HDMI
video corrector.
Digital audio output(COAXIAL)
digital audio output connection
to connect to the audio input of
an amplifier
Connection for antenna ANT 75
Input connection of TV antenna
or cache (75WHF / UHF).
O
ptical
Digital audio output
Entrada VGA
Entrada de sensl analoga ds PC.
P
C audio input
Audio input when you have the
VGA connection
TV buttons and connection

6
Installation and Connection of the TV
TV installation
Put the TV in a firm place, which must support the
weight of the TV.
To avoid risks, please do not expose the TV to hot or
humid places (as well as near lights, candles
heaters), and do not block the ventilation on the
back of the TV.
Connection of antenna and power cord
1. Connect the antenna cable to the antenna input
terminal of the TV.
2. Connect the TV power cord
(100-240V ~ 50/60Hz)
Ignition of the TV
3. Press the power button of the TV and the
indicator light will turn green. If the indicator light is
in standby mode (the light is red), press the power
button on the remote control or TV panel.
Note:
Reference image only.
Installation instructions of the base
1. Open the box and remove the TV, accessories and base (some models do not contain a
base).
2. To avoid damaging the TV, place the unit upside down on a table covered with some soft
material, the base of the neck is assembled on the TV with screws.
3. Assemble the base to the TV.
4.
The installation is complete
.

7

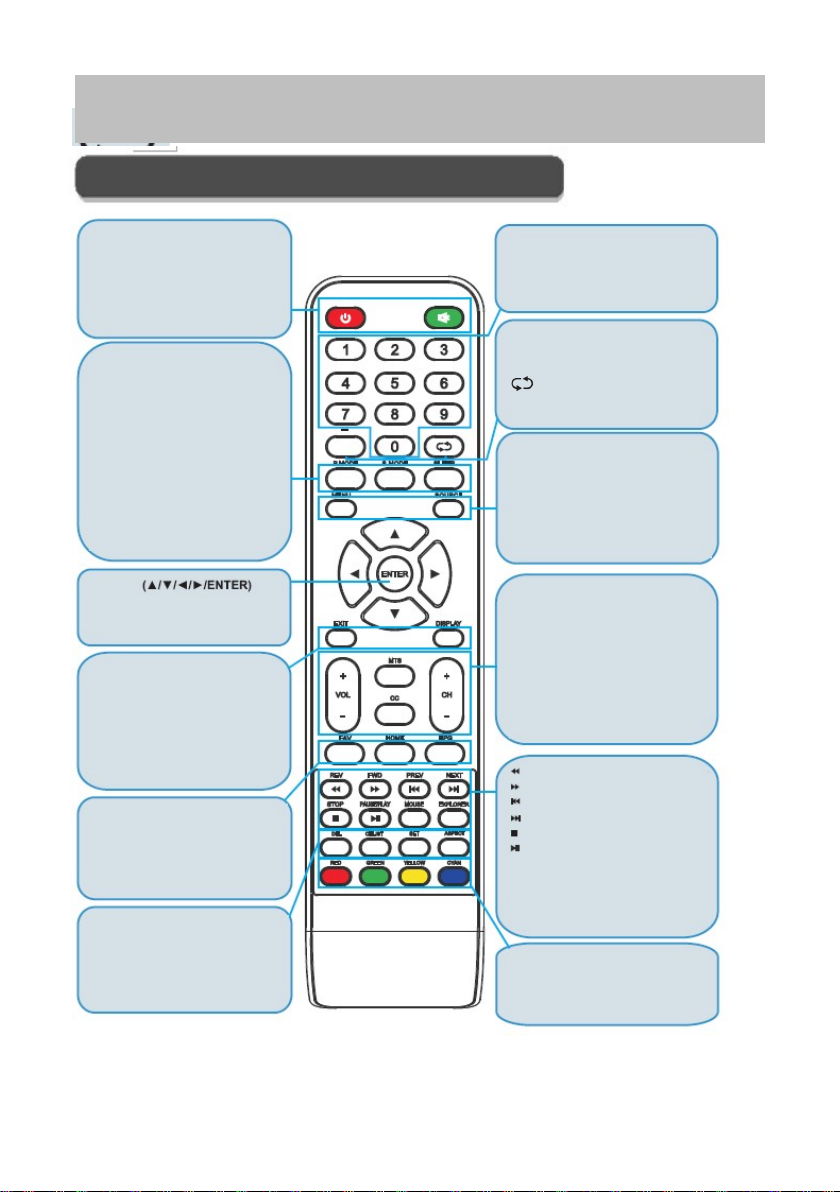

Remote Control
Operation of the remote control
POWER
Turn on or off (standby) the TV
Mute
Press to suspend the sound,
press again or press VOL + to
reset the sound
SLEEP
Select the time in which the TV
will automatically turn off
.
S.SMODE
Press repeatedly to cycle
through the available sound
modes.
P.MODE
Press repeatedly to go through
the modalities available image.
Buttons
Allows you to navigate through the
menus on screen and adjust the
system according to your preference.
EXIT
Press to exit the menu or sub-
menu and cancel the function in
progress (if applicable).
DISPLAY
Press to see the source and
channel information.
FAV
: Select or cancel the
current channel as favorite.
HOME: A buttons to return to
the home page of android
E P G:
Electronic program guides.
DEL
: Delete.
CHLIST: Press in TV mode, to
display the channel list.
SET: Open the Configuration
menu of network.
ASPECT: Aspect function.
NUMERIC BUTTONS
Press 0-9 to select a channel
directly when it is watching TV.
The channel changes after 2
seconds.
Press “-“to enter a multiple
channel number, as well as 2-
1.etc.
Return to the channel previously
Tuned.
MENU
Allow you to navigate in the
system of menus.
SOURCE
Press to change cyclically the
signal source of entry as follows:
TV->AV->YPBPR->HDMI->PC
->MEDIA
CH+/
-
:
Press to change channel.
VOL+/-: Press to increase or
reduce the volume level.
MTS
Press to select the audio mode,
you can select Stereo. Mono or
SAP.
CC
Activate or deactivate the subtitle
menu.
Fast rewind in USB mode)
Fast forward (in USB mode)
Previous (in USB mode)
Next (in USB mode)
Stop (in USB mode)
Play / Pause (in USB mode)
MOUSE
: Start the Mouse of the
remote control.
EXPLORER: To open the browser.
RED / GREEN / YELLOW / CYAN:
Without function.

8
I
nstallation of the batteries in the remote control
1. Open the back cover.
2. Use AAA batteries. When inserting the batteries, make sure that the polarity is correct,
that is, that the "+" marks are oriented as indicated in the compartment.
3. Position the back cover.
To prevent battery leakage that may cause damage to the remote control.
1. Install the batteries correctly according to what is indicated on the remote control.
2. Do not mix the batteries, (old and new, carbon and alkaline, etc.) Remove the batteries
from the control
remote when it is not going to be used for a long pe
riod
.

9
Remote Control
Use the "source" button to display the input
source, select the source of Input signal
using the buttons up / down, press the
confirm button to enter the chosen signal
source.
Remote Control
Press the "menu" button to display the menu, press the keys up and down
to select the desired configuration, press the right button to enter the
relevant settings.

10
Image Mode
Choose the image menu with the left and right keys, and press the ENTER
button for the next operation. Then, the arrows towards up and down can
be used to select this element. Image mode can be changed to standard /
soft / light / user.
Brightness, contrast, hue, saturation, sharpness
When the pattern of the image in user mode, through the arrow keys, you
can change the contrast ratio, brightness, sharpness, saturation, numerical
backlight.
Background lighting
Select backlight through the upper and lower keys, then use the arrow keys
to change the backlight.
Aspect ratio
You can select ZOOM1, ZOOM2, 16: 9 or 4: 3 with the keys left and right
when the option Relationship of
aspect ... The aspect ratio will change
automatically.
Color temperature
Select the color temperature option as before mentioned, then change your
settings with the left and right. The color temperature can be of cod, nature,
warm, user mode.

11
Noise reduction
Press the up / down key to select the option "Reduction of noise ". Press
the left / right key to select "Off", "Weak", "Medium", "Strong" and
"Automatic" to improve
the sharpness of the
image.
SOUND
Sound mode
Select the sound menu with the up and down keys down, press the right
button on the "sound mode" option and press the left and right buttons to
change the mode of sound to music / movie / movement / user.
Equalizer
With up and down keys select, the "equalizer" option, and then press the
ENTER keys to show the updater.
Balance
If the volumes of the left speaker and the right speaker are not themselves,
you can adjust the "Balance" to fit your personal preferences.

12
AUTO SEARCH
Automatic volume
, Surround
Select the automatic volume control options, and choose with
the arrows, this
method is also suitable for adjusting the sound envelope.
SPDIF mode
This is used to select "SPDIF Mode". This option is only used in HDMI / DTV
mode.

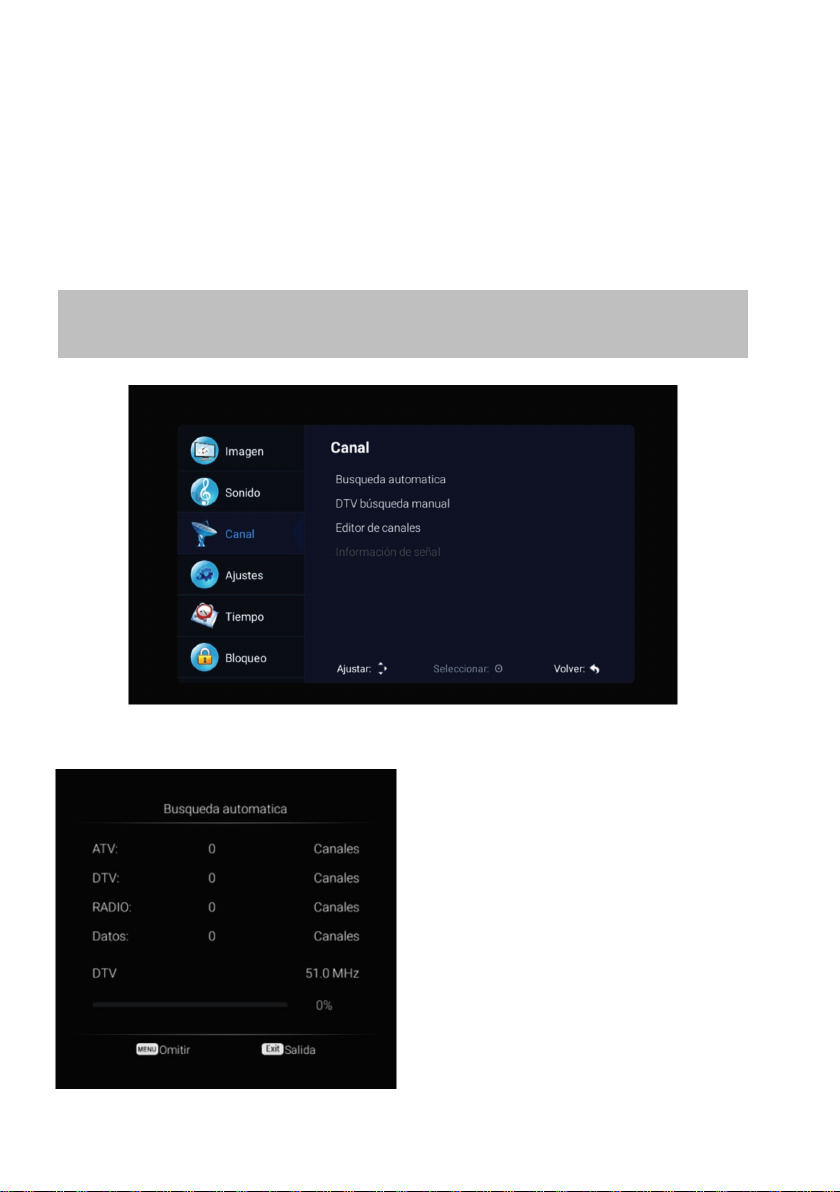

CHANNEL
Select the option
Automatic tuning with the keys up /
down. Then press the ENTER button
and start the self-adjustment

13

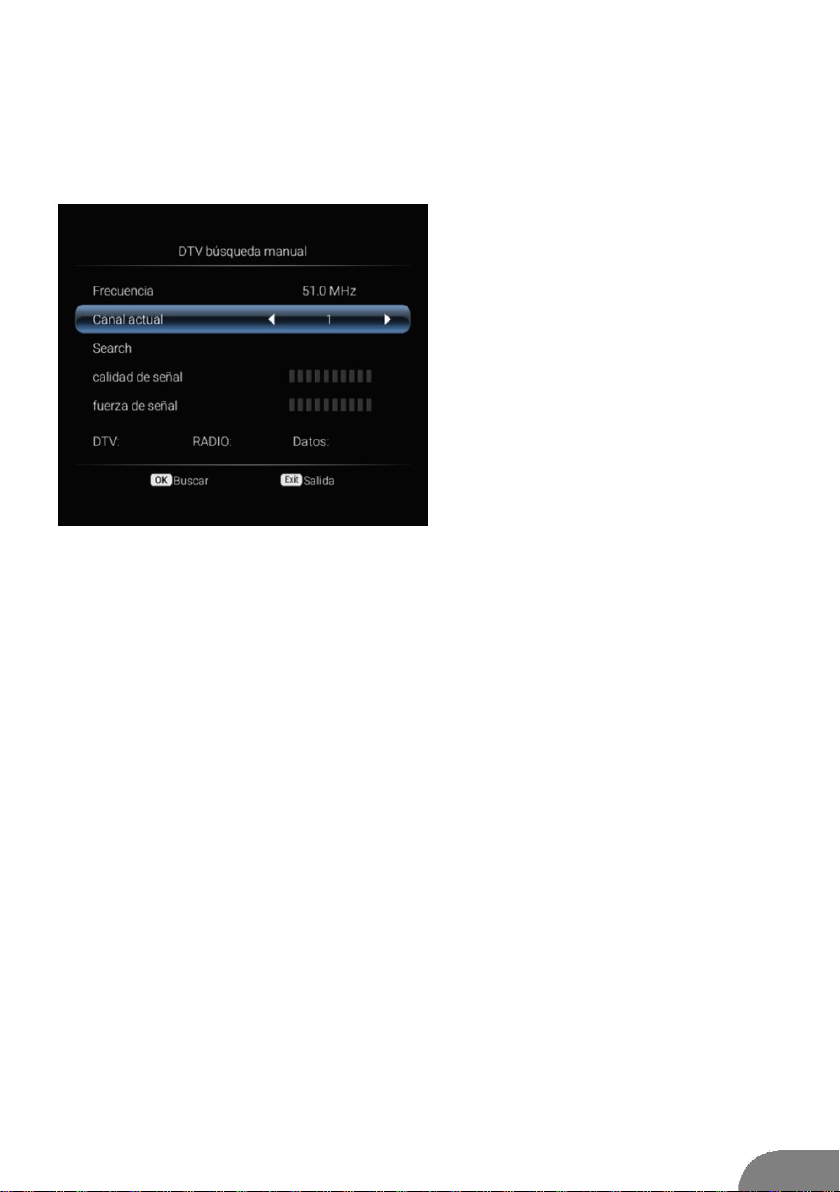

MANUAL SEARCH FOR DTV
CHANNEL EDITING
To perform the manual search, choose
the desired frequency, you can choose
the color format and sound. With the
arrow keys select the "search" option
and press the ENTER key to start, select
the best frequency.
Select the signal information option, press the ENTER key to enter the intensity of the
signal will be displayed.

14

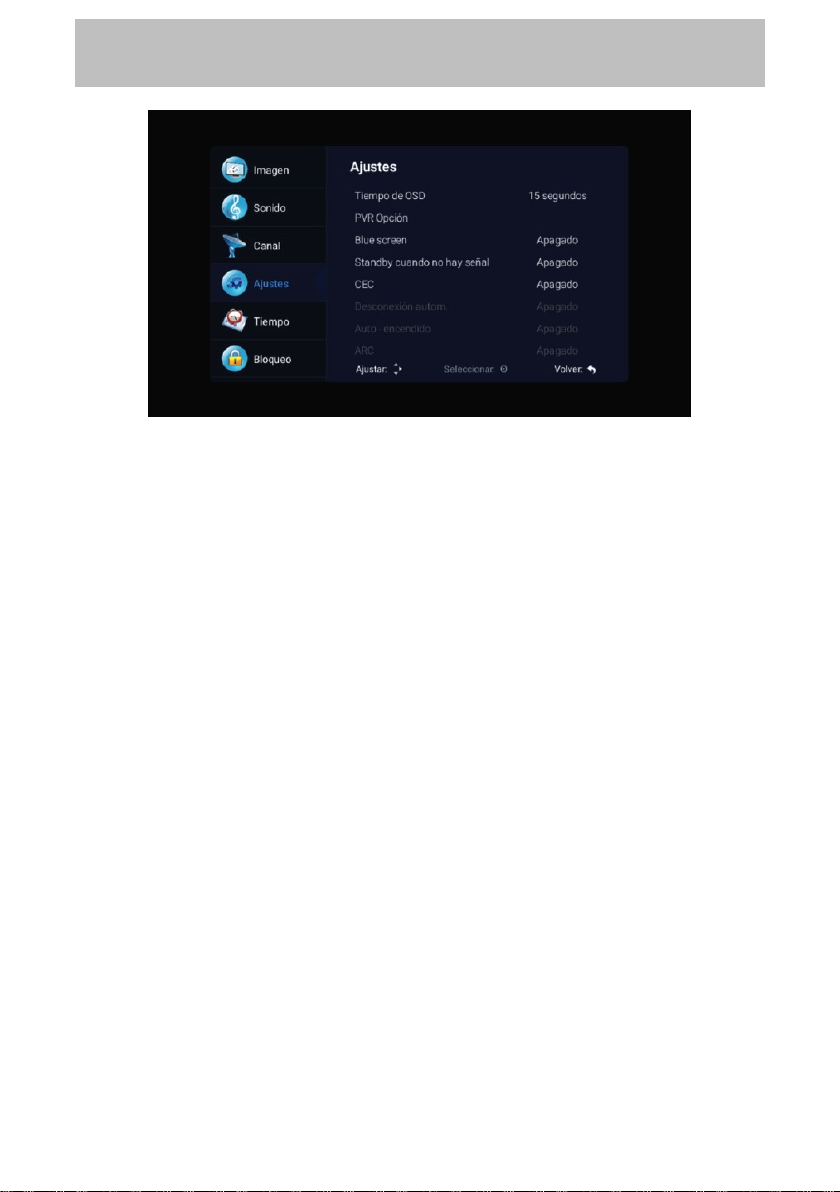

ADJUSTMENTS
OSD time
Press the "menu display time" option, through the Left and right
arrow keys can be changed to 5 seconds, 10 seconds, 15
seconds, 20 seconds and 30 seconds.
PVR Option
Press the up / down button (to select the option "Option PVR ".
No signal on hold
Press the up / down button to select the option "No signal
activated." Press the left / right button to select "On" or "Off". If
set to "On", the TV will automatically put on hold after 10
minutes without signal, the message "No Signal" will be
displayed. (In VGA mode, if there is no operation 15 seconds
later, the TV will enter standby mode.)
CEC
Press the up / down key to select the option, and then activate
the CEC function with the left and right keys. enable, you can
choose to activate or deactivate the standby mode automatic,
automatic start, ARC, list of devices and
TV off, CEC devices will
also turn off automatically.
Audio language settings

15

16
TIME SETTING
Date, current time
It is not adjustable, the calibration signal is automatic.
Sleep time
The system provides many suspension time options.
BLOCKING

17

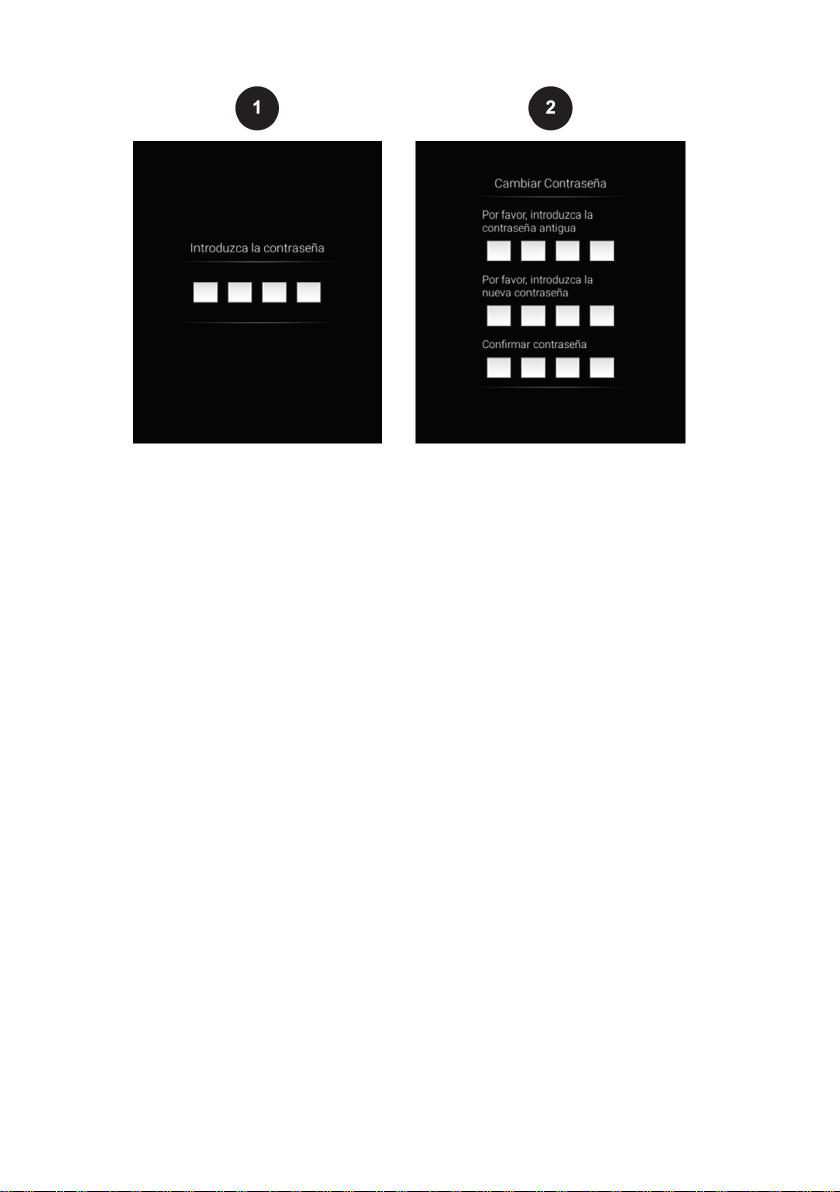

Choose the Lock system option with the up and down keys
down. Then, open the lock function with the left and right.
Remember that the initial password is 0000.
If you want to adjust the password, you must first select the
option of set the password and then enter the previous
password and the new password.
When you enter the new password again, you make sure
that
confirm the previous one, this means that you have reset
the password correctly.
When you want to protect some programs that you do not
like, select the option to block program and enter the number
of channel.

18

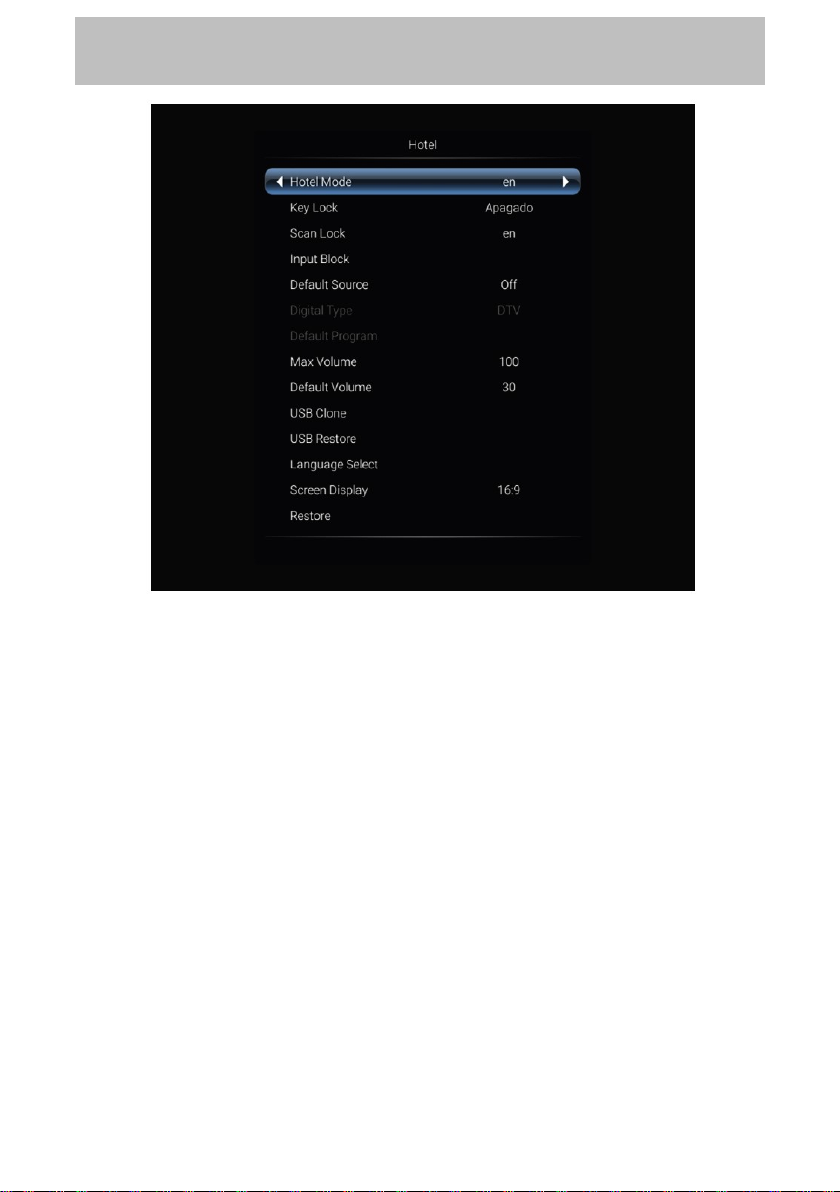

HOTEL
In this mode, you can manage the opening and closing of
channels relevant, establish the language and the screen
relation operation.

19

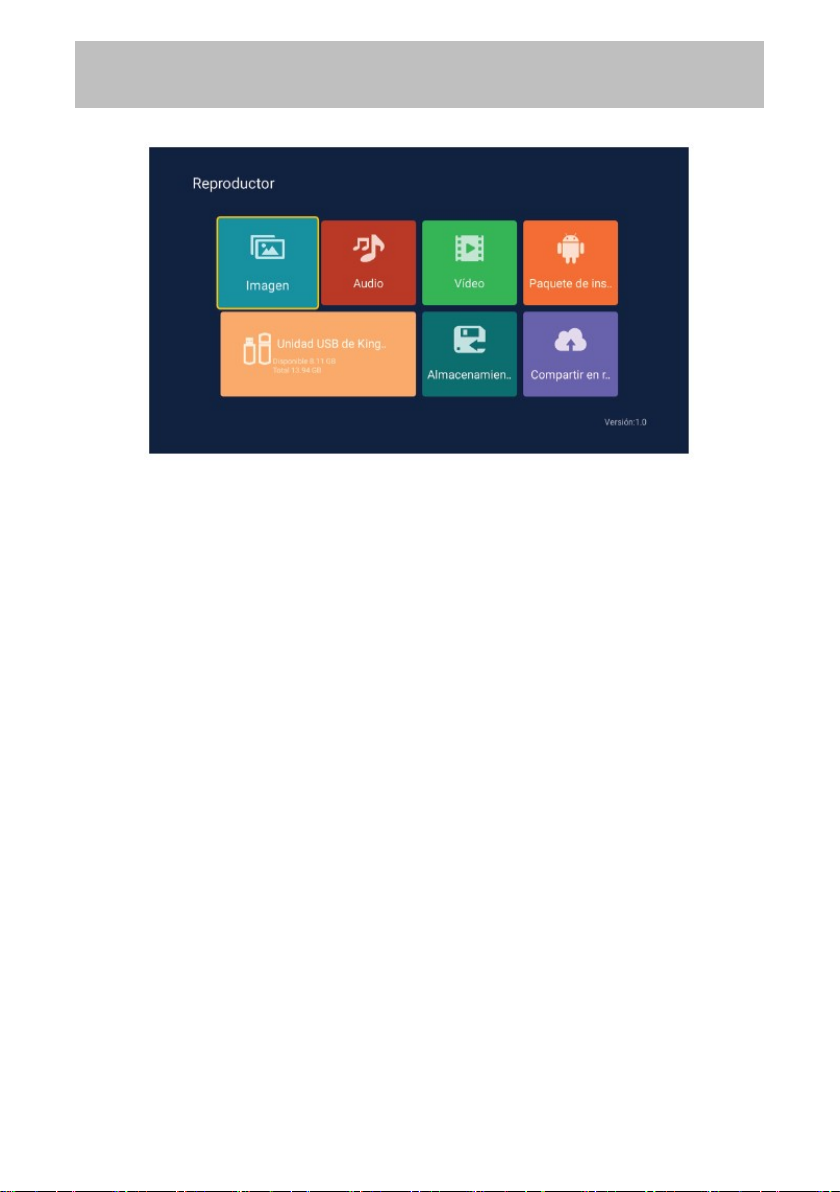

MULTIMEDIA
With the keys up and down select the icon of "image", press the
confirmation button to confirm, and then press to the right to go to
the folder, press the button confirmation to open the appropriate
folder. After selecting the image, press the confirmation key to
open the image, you can perform some operation using the left
and right.
Music
Through the up and down keys you can select the "song" icon,
press the confirmation button to confirm, and then press right to
go to the folder, press the confirmation button to open the
corresponding folder. To select the song, press the confirmation
key to open the song, you can perform some operation with the
left and
right.
Video
Through the upper and lower keys, select the icon “video”, press
the confirmation key to confirm, then press to the right to go to
the carpet, press the confirmation to open the corresponding
folder after select the, press the confirmation key to open the
video, You can perform some operations on the left and on the
right。

20
Android
Star
The main page used is divided into: NOVELTIES,
APPLICATIONS
, MUSICA, SPORTS
