Sansui SMX24Z1SMB User manual

1
User Manual
SMX24Z1SMB
BEFORE USING THIS PRODUCT PLEASE READ THE INSTRUCTION AND CONSERVE FOR FUTURE REFERENCE, IF A
INCREASING CORD BECOMES A FULL OR PARTIAL DAMAGE, DO NOT ATTEMPT TO REPAIR IT GO TO THE SERVICE CENTER
MARKED IN YOUR GUARANTEE; WITH A SPECIALIST TECHNICIAN, OR, WITH YOUR MANUFACTURER.
.
IMPORTED BY:
CTM DIGITAL S.A. de C.V.
Av. Lago Zurich No. 219, 12th floor, Plaza Carso Building, Col. Amplicon Granada, 11529
Mexico, Mexico City. Tel. [phone]
ELECTRICAL SPECIFICATIONS: 100-240 See 50/60 Hz 70W
THE REMOTE CONTROL USES 2 "AAA" TYPE BATTERIES OF 1.5 V DC each (3 Vcc)
24” LED SMART
HD TV
60.96cm

2
The exclamation symbol within the
equilateral triangle is used to prevent the
user from the presence of important points
that must be observed in the operation and
maintenance of this product.
Caution
The lightning symbol enclosed in an
equilateral triangle is used to warn the user
about the presence of non-isolated "high
voltage" parts, sufficient to be considered a
danger factor by electric shock or
electrocution.
Safety information
High voltages are used in the
operation of this product, to
avoid the risk of electric shock,
do not remove the back cover
of the TV. Please go to the
qualified personnel for service.
The use of controls, adjustments or carrying out procedures
other than those specified here, may cause dangerous
radiation levels.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION

3
.
Important security
1. Read these instructions.
2. Keep this instruction manual.
3. Follow all warnings.
4. Follow all instructions.
5. Do not use this equipment near water.
6. Clean only with soft and dry cloth.
7. Do not block the ventilation slots. Install according to the manufacturer's
instructions.
8. Do not install the equipment near sources that emit heat, such as radiators, stoves,
stoves, or other appliances (including amplifiers) that emit heat.
9. Do not try to avoid the purpose of the polarized plug. This TV is equipped with a
polarized plug (one blade wider than the other). This plug must fit correctly in the
outlet. This is a safety feature.
If it is not possible to fully insert the plug, try inverting it. If this is still not possible,
consult an electrician to replace the plug with an appropriate one.
10. Protect the power cord from being stepped on or being bent, particularly at the
plug and at the part where it joins the equipment.
11. Use only the accessories specified by the manufacturer. 12. Use only furniture or
shelves recommended by the manufacturer or sold together with the equipment.
When an unstable piece of furniture or shelf is used, be very careful, the equipment
may fall and cause personal injury.
13. Disconnect the equipment during lightning storms or when it is not used for a long
time.
14. Refer all service to qualified personnel only. Service is required when the
appliance has been damaged in some way, if the power cord or plug is damaged,
liquid has been spilled or objects have fallen into the appliance, been exposed to rain
or moisture, does not operate normally, or has fallen.
15. The equipment must be disconnected from the main socket and place the On /
Standby switch in the Standby position and disconnect the power cord of the
appliance from the AC receiver.
16. The contact must be installed near the equipment and must have easy access.
17. This equipment should be placed in an environment where ventilation is not good,
such as a bookshelf or enclosed space, unless good ventilation is provided.
18. Do not expose the device to dripping or splashing liquids.
19. Do not place any source of danger on the device （e.g. objects filled with liquids,
candles).
20. Wall or ceiling mounting - The appliance must be installed on the wall or sky only
as recommended by the manufacturer.
21. Never place the TV, remote control or batteries near flames or other sources of
heat, including direct sunlight. To prevent the spread of fire, keep candles or other
flames removed from the TV, remote control and batteries all the time.
22. The USB terminal must be charged with 0.5 A under normal operation.

4
Installing the TV on the wall
1. First, put the TV on a flat table, on which you must put something soft to prevent the panel
from being scratched or damaged.
2. Use the screwdriver to remove the 4 screws that hold the base of the TV (the direction of
the arrows, reference image 1) and, remove the base (guard the screws and the base carefully).
3. Make or buy support with which the TV can be mounted on the wall, according to the size
of the part marked with the arrows in image 2 and 3.
4. Make 4 holes in the wall in the right place (the size is only for reference) and put the part of
the bracket that goes on the wall with the 4 screws (optional parts).
5. According to step 4, use a screwdriver to put the screws to the part of the bracket that goes
on the TV, for wall mounting.
Wall installation
A
Product family Centimeters VESA Specification (A*B) Standard Screw
<co>
Quantity
LED Television 81.28 20cm x 10cm M6*L10 4
NOTE: "D" is the effective length of the thyme in the mounting hole.
The figures and illustrations in this manual are provided for reference only
and may different from your actual appearance. Product design and
specifications may change without prior notice.
Note:
1. Wall mounting bracket is an optional part.
2. When installing the TV, there should be no other items around or in front, please keep a
distance from other items.
3. When installing the TV, please ask qualified personnel about safety to avoid risks.
4. Installation images are for reference only.
5. Please follow the instructions in the manual about the installation of the TV.
6. The VESA wall mount kit is compatible with this TV.
Important security instructions
B
C
D

5
Button functions
Function Icons Bar.
Show \ Hide Function Icons: Press the button, to show the bar icons. The function icons will
be shown on the screen, the bar will be hidden automatically after 5 seconds of inactivity.
Function Selection: Press the button momentarily or press again to scroll to the right and
select the icon of the desired function.
Function Icon Selection: Press and hold the button, above the icon of the
function that you want to select.
Functions of the Icons:
: Shutdown Icon: Allows Shutdown : Volume + Icon: Turn up the
the television. television sound.
: Menu icon: Enter the Function Menu. :Volume – Icon: Turn down the TV
: Input Selection Icon: Allows toggle the sound.
signal input (AV, HDMI, TV, COMPONENT). :CH + Icon:Change to the next channel
:CH – Icon:Swith to the previous
channel.
Connection terminals
Note: The following drawings show various connection terminals, the position,
the accommodation and the number between the different models may vary.
AV Audio Inputs External AV
signal inputs and related sound
Right / Left,
Headphone outp
ut(Earephone)
When the headphones are
connected, the speakers are
deactivated
Video Inputs Y / VIDEO Pb Pr
Connections for video input from
your DVD / VCP
*Video input AV Y/VIDEO
* Composite video Y/VIDEO Pb
Pr
U
SB input
Connection for usb
HDMI inp
ut
Digitel line input from an HDMI
video corrector.
Digital audio output(COAXIAL)
digital audio output connection
to connect to the audio input of
an amplifier
Connection for antenna ANT 75
Input connection of TV antenna
or cache (75WHF / UHF).
O
pti
cal
Digital audio output
Entrada VGA
Entrada de sensl analoga ds PC.
P
C audio input
Audio input when you have the
VGA connection
TV buttons and connection

6
Installation and Connection of the TV
TV installation
Put the TV in a firm place, which must support the
weight of the TV.
To avoid risks, please do not expose the TV to hot or
humid places (as well as near lights, candles
heaters), and do not block the ventilation on the
back of the TV.
Connection of antenna and power cord
1. Connect the antenna cable to the antenna input
terminal of the TV.
2. Connect the TV power cord
(100-240V ~ 50/60Hz)
Ignition of the TV
3. Press the power button of the TV and the
indicator light will turn green. If the indicator light is
in standby mode (the light is red), press the power
button on the remote control or TV panel.
Note:
Reference image only.
Installation instructions of the base
1. Turn the TV with the LED screen down on a smooth and flat surface. Make sure there is
no material strange on the flat surface.
2. Put the base on the buckle and fix it.

7
Remote Control
Operation of the remote control
POWER
Turn on or off (standby) the TV
Mute
Press to suspend the sound.
Press again or press VOL + to
reset the sound
SLEEP
Select the time in which the TV
will automatically turn off
.
S.SMODE
Press repeatedly to cycle
through the available sound
modes.
P.MODE
Press repeatedly to go through
the modalities available image.
Buttons
Allows you to navigate through the
menus on screen and adjust the
system according to your preference.
EXIT
Press to exit the menu or sub-
menu and cancel the function in
progress (if applicable).
DISPLAY
Press to see the source and
channel information.
FAV
: Select or cancel the
current channel as favorite.
HOME: A buttons to return to
the home page of android
E P G:
Electronic program guides.
DEL
: Delete.
CHLIST: Press in TV mode, to
display the channel list.
SET: Open the Configuration
menu of network.
ASPECT: Aspect function.
NUMERIC BUTTONS
Press 0-9 to select a channel
directly when it is watching TV.
The channel changes after 2
seconds.
Press “-“to enter a multiple
channel number, as well as 2-
1.etc.
Return to the channel previously
Tuned.
MENU
Allow you to navigate in the
system of menus.
SOURCE
Press to change cyclically the
signal source of entry as follows:
TV->AV->YPBPR->HDMI->PC
->MEDIA
CH+/
-
:
Press to change channel.
VOL+/-: Press to increase or
reduce the volume level.
MTS
Press to select the audio mode,
you can select Stereo. Mono or
SAP.
CC
Activate or deactivate the subtitle
menu.
Fast rewind in USB mode)
Fast forward (in USB mode)
Previous (in USB mode)
Next (in USB mode)
Stop (in USB mode)
Play / Pause (in USB mode)
MOUSE
: Start the Mouse of the
remote control.
EXPLORER: To open the browser.
RED / GREEN / YELLOW / CYAN:
Without function.

8
I
nstallation of the batteries in the remote control
1. Open the back cover.
2. Use AAA batteries. When inserting the batteries, make sure that the polarity is correct,
that is, that the "+" marks are oriented as indicated in the compartment.
3. Position the back cover.
To prevent battery leakage that may cause damage to the remote control.
1. Install the batteries correctly according to what is indicated on the remote control.
2. Do not mix the batteries, (old and new, carbon and alkaline, etc.) Remove the batteries
from the control
remote when it is not goi
ng to be used for a long per
iod
.

9
Initial installation
Connect one RF cable to the "RF-ln" input on the TV, and the other end to your Aerial
antenna.
Press the ENTER button to select and start the configuration (start establish).
Press the buttons [▼ ] /[▲ ] to select your preferred language.
Press ENTER and press the button [▶] to select the time zone.
Press the buttons [▼ ] /[▲ ] to select the time zone.
Press ENTER and press the [►] button to configure your network connection.

10
Initial Installation
Press the
ENTER
button to configure your preferred network connection.
Press the [►] button to select the preferred signal source.
Press the [▼] / [▲] buttons to select the preferred signal source.

11
Initial Installation
Press the
ENTER
button to display the sources of available input signals.
Press the [▼] / [▲] buttons to select the desired option.
Press ENTER to select the desired entry.
Main menu
Press MENU to display the main menu.
HOME (Main Screen)
Press the [▼] / [▲] buttons to select the desired option.
Press [▼] / [▲] button to select.

12
APPLICATIONS / FAVORITE APPLICATIONS
Press the [
▼
] / [
▲
] buttons to select Applications / Add Applications.
Main menu
Press the [▼] / [▲] / [◄] / [►] buttons to select Install Application.

13
Adjustments
Press the [▼] / [▲] / [◄] / [►] buttons to select Settings.
IMAGEN
Press the [◄] / [►] buttons to select the option.
Press the
ENTER
button to enter the image menu.
1. Press the [▼] / [▲] buttons to select Picture Mode / Contrast / Brightness / Color
/ Sharpness / Backlight / Noise Reduction / Temperature Color / More Settings.
2. Press [◄] / [►] the desired setting.

14
Image Mode
Press the [▼] / [▲] buttons to select the Picture mode, press the buttons [◄]/'[►] to select the
desired option: Standard, Movie, Lived, Energy Saving, User Image).
Standard Default mode for a high quality image experience in normal light.
Movie Recommended mode for movies.
Vivid More vivid image colors.
Energy Saving Reduces screen brightness, improves contrast to save energy.
User Image settings defined by the user.
Contrast / Brightness / Color / Sharpness / Backlight
Press the [▼] / [▲] buttons to select and press the [◀] / [►] buttons to adjust.
Contrast Adjust the contrast of the image.
Brightness Adjust the brightness of the image
Color Adjusts the color density of the image.
Sharpness Adjust the clarity of the image
Light of Adjusts the light intensity of the screen
Background
Noise Reduction
Set the option to eliminate the intensity of noise in the image.
Press the [▼] / [▲] buttons to select Noise Reduction, press [◄] / [►] to select the desired
option: Off, Low, Medium, High, and Auto.
Color Temperature
Adjusts the color temperature of the image.
Press the [▼] / [▲) buttons to select the desired Color temperature. Press the buttons
[◄] [►] to select the desired option: Cool, Normal, and Warm).
Cold It produces a nice blue tonality image.
Normal It produces a vivid image.
Warm
It produces an image of red hue.
More Adjustments
Press the [▼] / [▲] buttons to select More Settings.
Adjustments

15
Adjustments
Press [▼] / [▲] to select: Sound Mode: Bass / Treble / Balance / AVC / More Settings.
Press
ENTER
/ [◄] /
[►] to select or adjust.
DLC
Press the [▼] / [▲] buttons to select DLC, press the [◀] buttons. [►] to select Dark / Normal /
Bright / Off.
Sound
Press the MENU button to display the menu. Press the [◄] / [►] buttons to select SOUND in
the menu
.
Sound Mode
Press the [▼] / [▲] buttons to select Sound Mode, press the buttons [◄] / [►] to select
the desired option .: Standard, Music, Movie, News, User.
Standard It produces a balanced sound in all environments.
Music Preserves the original sound ideal for music programs.
Movie Improves bass and treble for a good sound experience.
News Improve the voice.
User Select to customize the settings.
Serious Adjustment of Graves.
Treble Treble Adjustment
Balance Right and left channel balance adjustment. Press the buttons
[ ▼ ]/[ ▲] to select Balance, press the [4] / [►] buttons to adjust.
AVC (Automatic Volume Control)
Press the [▼] / [▲] buttons to select AVL, press the [◄] / [►] buttons to select ON /
OFF. This function allows you to automatically level the sound of each channel.

16

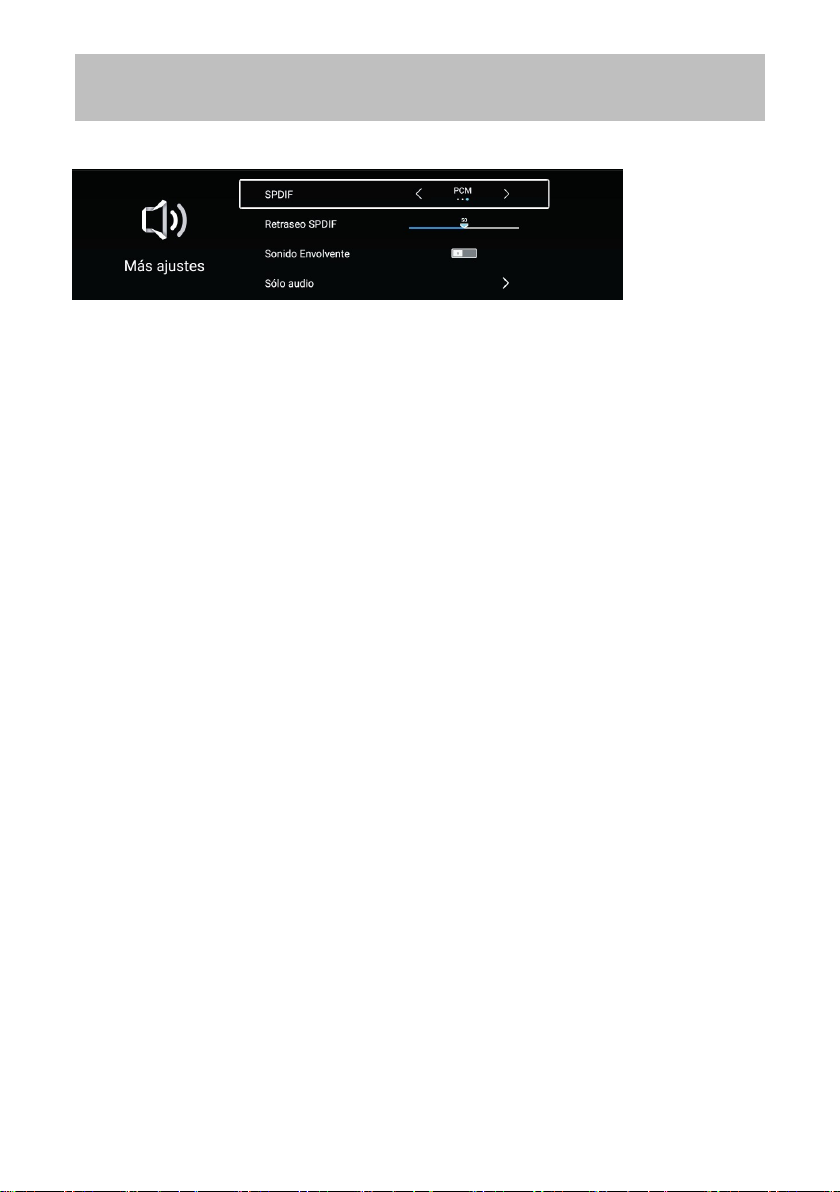

More Adjustments
Adjustments
SPDIF
Press the [▼] / [▲] buttons to select SPDIF, press [◄] / [►] to select OFF / RAW / PCM.
Delay SPDIF
Press the [▼] / [▲] buttons to select SPDIF Delay, press [◄] / [►] buttons to adjust.
Surround Sound
It allows to generate a greater sound effect.
Press the [▼] / [▲] buttons to select Surround Sound, press [◄] / [►] for ON / OFF.
Only Audio
When activated, the screen will not show image and will only play Audio.
Press the [▼] / [▲] buttons to select Audio Only, press [◄] [►] to ON / OFF.

17
Channel
Channel
Press the MENU button to display the channel menu. Press [◄] / [►] to select CHANNEL.
Press the[▼] / [▲] buttons to select and press ENTER [◄] / [►] to activate your selection.
Type of Antenna (Air)
Select Air / Cable to tune channels.
Automatic Search
Press the [▼] / [▲] buttons to select Auto Search, press ENTER to start the search
automatically.
Sound Mutt-Track
Press the [▼] / [▲] buttons to select Multi-Track Sound. Press ENTER to select
Mono / Stereo / SAP.
Channel List
Press the [▼] / [▲] buttons to select Channel List, press ENTER on the menu edit
to select the desired option: Skip / Delete / Fav.

18

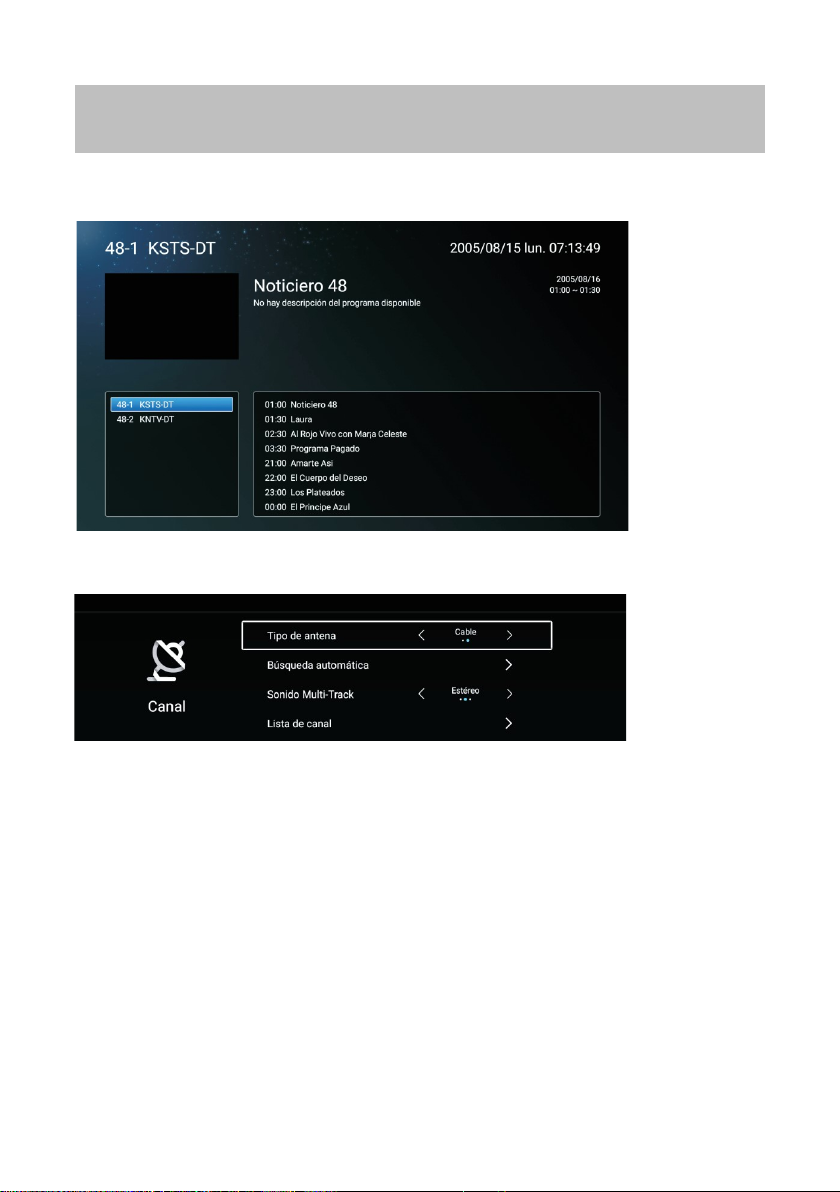

EPG (Electronic Programming Guide)
Press the [▼] / [▲] buttons to select EPG.
EPG
Type of Antenna (Cable)
Select Air / Cable to tune channels.
Automatic Search
Press the [▼] / [▲] buttons to select Automatic Search press
ENTER
To start the automatic search.
Preferred Audio Language
Press the buttons [▼] / [▲] to select Preferred Audio Language, press ENTER to
select the preferred language.
Channel List
Press the [▼] / [▲] buttons to select Channel List, press ENTER on the menu edit
to select the desired option: Skip / Delete / Fav.

19
Lock (Block)
Press the
MENU
button to display the main menu.
Press the [◄] / [►) buttons to select Lock (Bock).
Press the [▼] / [▲] buttons to select Change Password / Lock.
Press ENTER / [◄] / [►] to select.
Change Password
Press the [▼] / [▲] buttons to select Change Password.
Block System
Press the [▼] / [▲] buttons to select Block / Lock Unclassified TV / USA Control
Parental / Canada Parental Control.

20

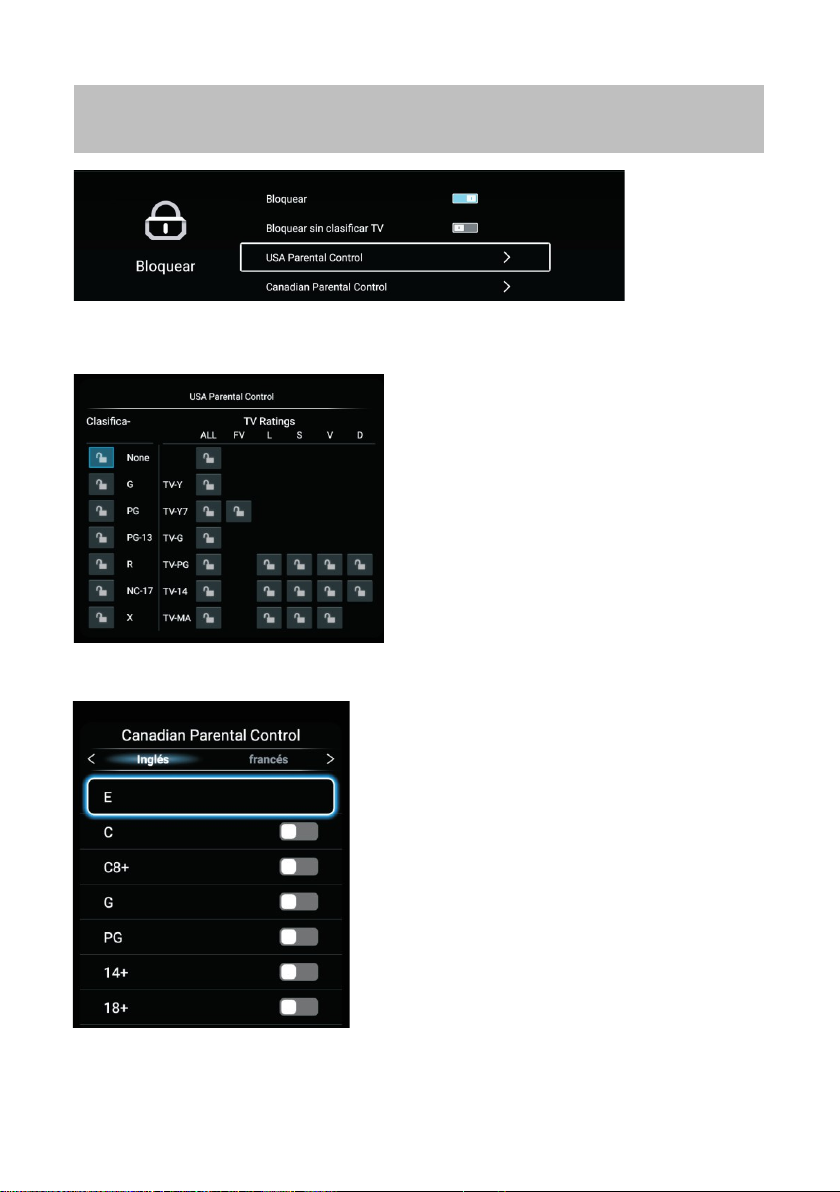

Lock (Block)
USA Parental Control
Press the [▼] / [▲] / [◄] / [►] buttons to lock / unblock programs.
Canada
Parental Control
Press the [◄] / [►] buttons to select and the [▼] / [▲] buttons to ON / OFF.
