Sansui HDPDP5050 User manual

R
50” WIDE PLASMA TELEVISION WITH DIGITAL
TUNER
HDPDP5050
OWNER’S MANUAL
Before operating the unit, please read this manual thoroughly.
ATTENTION
If you purchase a universal remote control from your local retailer, please contact the remote
manufacturer for the required programming code.
IF CONTACT WITH CUSTOMER SERVICE IS REQUIRED
PLEASE HAVE THE MODEL NUMBER READY PRIOR TO THE CALL
CUSTOMER SERVICE – 1-800-289-0980
ORION WEBSITE
FOR INFORMATION ON OUR OTHER PRODUCTS, PLEASE VISIT OUR WEBSITE AT
www.orionsalesinc.com
3X81001A_En_cover 06.8.22, 4:08 PM1

2
Location of the required Marking
The rating sheet and the safety caution are on the rear of the unit.
The lightning flash with arrowhead
symbol, within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product's enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servic-
ing) instructions in the literature
accompanying the appliance.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
FCC Declaration of Conformity Compliance Statement (Part 15):
The Sansui HDPDP5050, WIDE PLASMA TELEVISION WITH DIGITAL TUNER complies with
Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
The party responsible for compliance to these rules is:
ORION SALES, INC
HIGHWAY 41 ORION PLACE, PRINCE, PRINCETON, INDIANA 47670
Ph: 1-800-289-0980
WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec-
tion against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the partly responsible for compliance with
the FCC Rules could void the user's authority to operate this equipment.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE
FULLY INSERTED TO PREVENT BLADE EXPOSURE.
3X81001A_En_p02-05 06.8.22, 4:08 PM2

3
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long
periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
15) Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such a vases,
shall be placed on the apparatus.
16) An outside antenna system should not be located in the vicinity of overhead power lines or other electric
light or power circuits, or where it can fall into such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep from touching such power lines or circuits, as
contact with them might be fatal.
17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.
18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short
out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.
S3126A
PORTABLE CART WARNING
(symbol provided by RETAC)
3X81001A_En_p02-05 06.8.22, 4:08 PM3

4
IMPORTANT SAFETY INSTRUCTIONS
19) If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is
grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the
National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for
the grounding electrode.
20) When replacement parts are required, be sure the service technician uses replacement parts specified by
the manufacturer or those that have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other hazards.
21) Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to
determine that the unit is in proper operating condition.
22) Keep your fingers clear of the disc slot as it is closing. It may cause injury.
23) When you connect the product to other equipment, turn off the power and unplug all of the equipment from
the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner's
manual of the other equipment carefully and follow the instructions when making any connections.
24) Reduce the volume to the minimum level before you turn on the product. Otherwise, sudden high volume
sound may cause hearing or speaker damage.
25) Do not allow the product to output distorted sound for an extended period of time. It may cause speaker
overheating and fire.
26) Do not look into the opening of the disc slot or ventilation opening of the product to see the source of the
laser beam. It may cause eye damage.

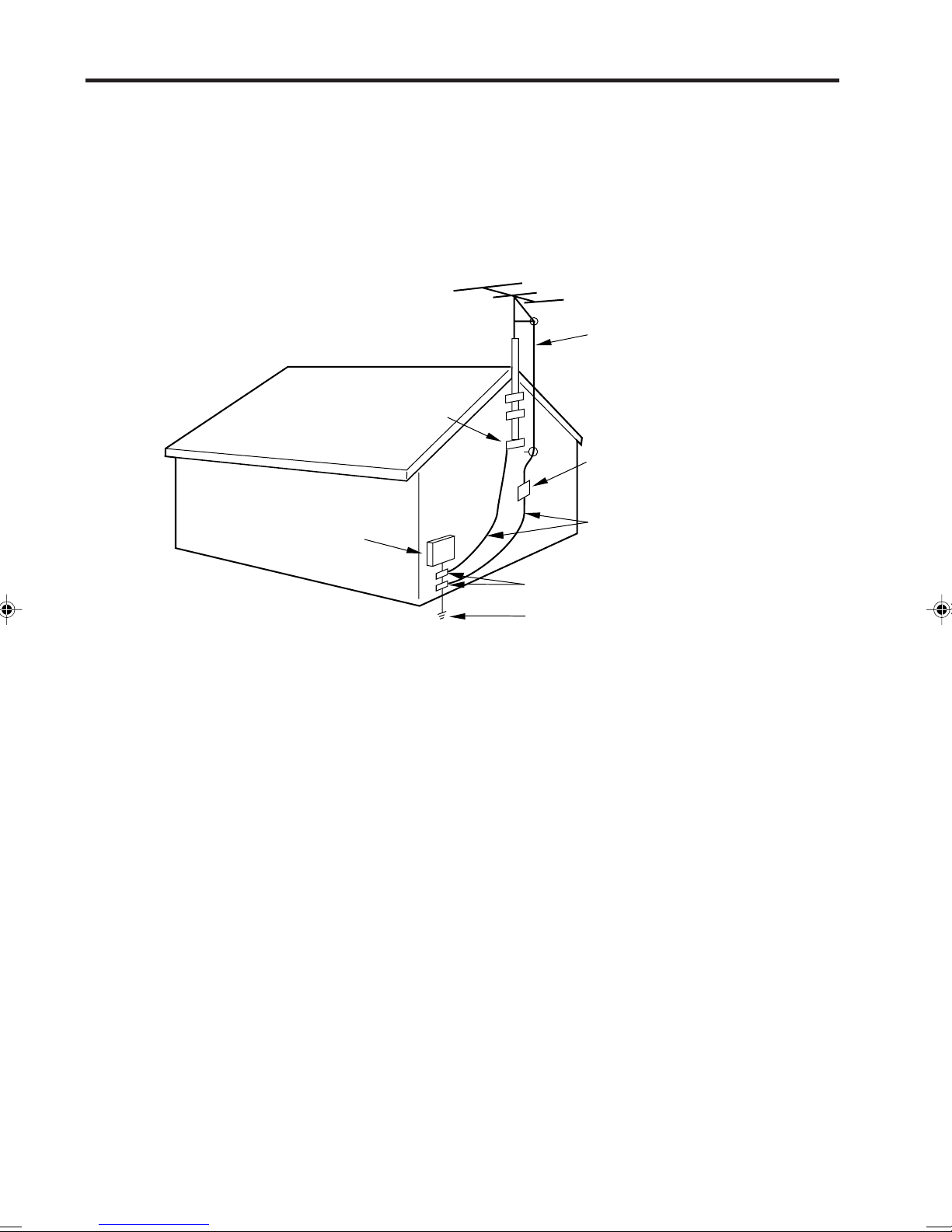

EXAMPLE OF ANTENNA GROUNDING AS PER THE
NATIONAL ELECTRICAL CODE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
ANTENNA LEAD
IN WIRE
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
GROUND
CLAMP
ELECTRIC SERVICE
EQUIPMENT
NEC-NATIONAL ELECTRICAL CODE
S2898A
3X81001A_En_p02-05 06.8.22, 4:08 PM4

5
IMPORTANT SAFETY INSTRUCTIONS
Cleaning instructions for your Plasma TV.
Safety note:
Before you begin to clean, turn the unit power off, and disconnect from the power source.
Be careful not to scratch the plastic coated front panel - it is highly vulnerable to accidental scratching (e.g. by
fingernails or other sharp items).
While cleaning, do not wear jewelry that could cause surface scratching (such as rings, wrist-watch, etc.).
Use a moist lint-free cloth and pure water to clean the Plasma TV, assure the cloth is only damp and not wet -
and that the cloth is free from any dirt particles that could cause scratches to the surface.
Wipe the set clean using minimal pressure.
DO NOT USE STANDARD WINDOW CLEANER! ITS ALCOHOL / AMMONIA WILL DISSOLVE THE FRONT
WINDOW'S COATING!! NEVER USE SOLVENT OR THINNER. NEVER USE SPECIAL CLEANERS WHICH
ARE DESIGNED FOR CLEANING PC MONITORS OR CRT TV’S.
Carefully dry with a clean dry lint-free cloth.
Do not use paper towels or tissues to clean the set - paper can disintegrate when wet or may leave a trail of
dust behind. Some paper is abrasive and may scratch your screen.
CONDENSATION
Moisture will form in the operating section of the player if the player is brought from cool surroundings into a
warm room or if the temperature of the room rises suddenly. When this happens, player's performance will
be impaired.
To prevent this, let the player stand in its new surroundings for about an hour before switching it on, or
make sure that the room temperature rises gradually.
Condensation may also form during the summer if the player is exposed to the breeze from an air condi-
tioner. In such cases, change the location of the player.
27) Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious
personal injury and product malfunction.
28) This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be con-
nected to the grounding system of the building, as close to the point of cable entry as practical.
3X81001A_En_p02-05 06.8.22, 4:08 PM5

6
The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause
overheating. Do not block ventilation holes, or set up near radiators. Do not place in direct sunshine. When
placing on a shelf leave 10 cm (4 inches) free space around the entire unit.
Notes when mounting the Plasma TV on a wall
•When installing the unit on a wall, allow at least 6 cm (2 1/2 inches) clearance between the rear of the Plasma
TV and the wall. Clearance of less than 6 cm (2 1/2 inches) will obstruct the vents and may cause the interior
of the unit to overheat, resulting in damage to the unit.
•If the unit is to be mounted on the wall, contact the retailer where you purchased the Plasma TV for advice,
and have the equipment professionally installed. Incomplete or improper installation may cause injury to you
and/or the Plasma TV.
•Bracket holes: To attach a wall mounting bracket (not supplied) here, remove the screws.
IMPORTANT NOTICE
Possible Adverse Effects on Plasma Screen: If a fixed (non-moving) pattern remains on the plasma screen
for long periods of time, the image can become permanently engrained in the plasma TV panel and cause
subtle but permanent ghost images. This type of damage is NOT COVERED BY YOUR WARRANTY. Never
leave your plasma TV on for long periods of time while it is displaying the following formats or images:
•Fixed Images, such as stock tickers, video game patterns, TV station logos, and websites.
•Special Formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on a
normal (4:3) display (gray bars at top and bottom of screen); or viewing normal style (4:3) media on a
widescreen (16:9) display (gray bars on left and right sides of screen).
To avoid the engraining, we recommend that you use the screen saver function (see P.41).
The following symptoms are not signs of malfunction but technical limitation. Therefore we disclaim
any responsibility for these symptoms.
•Plasma TV panels are manufactured using an extremely high level of precision technology,
however sometimes parts of the screen may be missing picture elements or have luminous spots.
This is not a sign of a malfunction.
•Do not install the Plasma TV near electronic equipment that is susceptible to electromagnetic waves.
Some equipment placed too near this unit may cause interference.
•Effect on infrared devices – There may be interference while using infrared devices such as infrared
cordless headphones.
Bracket holes
SAFETY PRECAUTIONS
10cm
3X81001A_En_p06-13 06.8.22, 4:08 PM6

7
Memorizing channels .................................................................. 23
TV operation ................................................................................ 25
Labeling channels ....................................................................... 27
Selecting the video input source ................................................. 28
Labeling the video input source .................................................. 28
Setting the V-chip ........................................................................ 29
Setting the panel lock .................................................................. 32
Setting the clock .......................................................................... 33
Setting the on timer ..................................................................... 34
Closed Caption............................................................................ 35
CC advanced .............................................................................. 36
Setting the picture size ................................................................ 37
Setting the picture scroll .............................................................. 39
Selecting the cinema mode ......................................................... 40
Using the aspect feature ............................................................. 40
Screen Saver function ................................................................. 41
Adjusting the picture preference ................................................. 42
Picture control adjustment........................................................... 42
Selecting the color temperature .................................................. 43
Resetting your picture adjustments ............................................. 43
Selecting Stereo/Second Audio Program (SAP) ......................... 44
Sound control adjustment ........................................................... 44
Setting the stable sound.............................................................. 45
Turning off the built-in speakers .................................................. 45
Using the WOWTM surround sound feature.................................. 46
Selecting the HDMI audio input source ....................................... 46
Selecting the audio language ...................................................... 47
Selecting the digital output .......................................................... 47
Resetting your audio adjustments ............................................... 47
Checking the Digital-signal strength............................................ 48
Picture/Audio control adjustment in the PC mode....................... 49
IMPORTANT SAFETY INSTRUCTIONS ....................................... 3
SAFETY PRECAUTION ................................................................ 6
IMPORTANT NOTICE ................................................................... 6
Contents ........................................................................................ 7
Features ........................................................................................ 8
Power source ................................................................................ 8
Parts and functions ....................................................................... 9
Remote control ............................................................................ 10
Antenna connections................................................................... 14
Cable TV connections ................................................................. 15
Connections to other equipment ................................................. 16
Setting the language ................................................................... 22
PREPARATIONS
OPERATION
Contents
Reception disturbances............................................................... 51
Troubleshooting ........................................................................... 52
Specifications .............................................................................. 53
Limited warranty .......................................................................... 54
OTHERS
3X81001A_En_p06-13 06.8.22, 4:08 PM7

8
Features
•Integrated Digital Tuner - You can view digital broadcasting without using a Digital TV Set-Top Box.
•Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for
hearing impaired viewers.
•Picture Adjustments Using The Remote Control - The On-Screen display allows precise remote control
adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS.
•Programmable TV Sleep Timer - Operable from the remote control, the Plasma TV can be programmed up
to 120 minutes to turn off automatically.
•V-Chip - The V-Chip function can read the rating of a broadcast program or movie content if the program is
encoded with this information. V-chip will allow you to set a restriction level.
•Digital Audio Jack (Coaxial/Optical) - When a component with a built-in Dolby Digital decoder is connected,
Dolby Digital sound can produce the effect of being in a movie theater or a concert hall.
•S-Video/Component Video Jacks - A VCR, DVD player, satellite receiver or other audio/video component
can be connected to this unit.
•Video Input Jacks - This unit is equipped 3 types of video input jacks. The component video in jacks and
S-video in jack enable you to watch the DVD player or the video devices with high quality picture.
•On-Screen 3 Language Display - You can select one of 3 languages, English, Spanish or French for on-
screen programming.
NOTES:
•Please make sure to insert the cord securely at both the Plasma TV and the wall outlet.
•The AC Cord has a grounding-type AC line plug. If the supplied AC cord does not match you AC outlet,
contact a qualified electrician, do not defeat the purpose of a grounding plug.
WARNING:
•DO NOT CONNECT THIS UNIT TO THE POWER USING ANY DEVICE OTHER THAN THE SUPPLIED AC
CORD. THIS COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.
•DO NOT USE WITH A VOLTAGE OTHER THAN THE POWER VOLTAGE DISPLAYED. THIS COULD
CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.
CAUTION:
•WHEN THIS UNIT IS NOT USED FOR A LONG TIME, (E.G., AWAY ON A TRIP) IN THE INTEREST OF
SAFETY, BE SURE TO UNPLUG IT FROM THE AC OUTLET.
•DO NOT PLUG/UNPLUG THE PLUG WHEN YOUR HANDS ARE WET. THIS MAY CAUSE ELECTRICAL
SHOCK.
•IF YOU NEED TO REPLACE THE SUPPLIED AC ADAPTER OR AC CORD, THE SPECIFIED ONE IS
RECOMMENDED. CONTACT CUSTOMER SERVICE AT 1-800-289-0980.

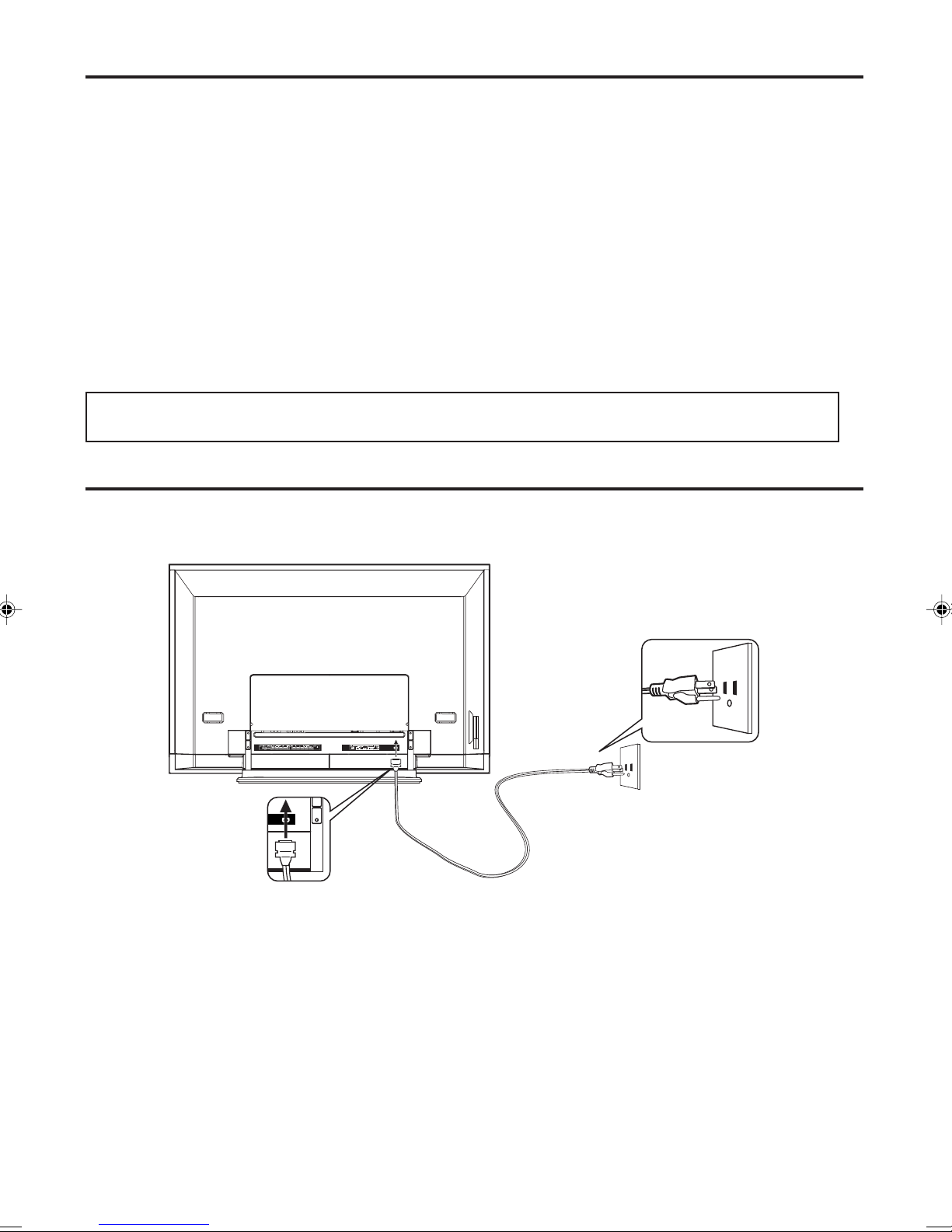

Power source
TO USE AC POWER
1. Connect the AC cord plug into this unit's AC IN jack.
2. Connect the AC cord into an AC outlet.
AC cord (supplied)
AC 120V, 60Hz
*Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of
Dolby Laboratories.
3X81001A_En_p06-13 06.8.22, 4:08 PM8

9
AUDIO (L/R)/VIDEO OUT jacks
COMPONENT-2 IN jacks
COMPONENT-1 IN jacks
VIDEO-1 IN jacks AC power cord socket
PC IN jack
PC AUDIO/HDMI-1 AUDIO (LR) IN jacks
HDMI-1 IN jack
VIDEO-2 IN jacks HDMI-2 IN jack
HDMI-2 AUIDIO IN jack
OPTICAL DIGITAL AUDIO OUT jack
RF (ANT) IN jack
COAXIAL DIGITAL
AUDIO OUT jack
Parts and functions
Front
Rear
Left side
VIDEO-3 IN
Remote sensor
STANDBY/ON
indicator
*To display the menu screen.
Press both VOLUME ▲/▼ buttons at the same time to display the menu screen.
CURSOR ▲/▼buttons and VOLUME ▲/▼ buttons can be used to select the desired setting during the menu
screen operations.
Right side
POWER button
INPUT button
*VOLUME
▲/▼ buttons
*CURSOR
▲/▼ buttons
3X81001A_En_p06-13 06.8.22, 4:08 PM9

10
Remote control
12. DISPLAY Button - When the TV is receiving an
analog signal pressing this button will display the
current information on-screen. When the TV is
receiving a digital, pressing this button once will
display the digital information on-screen; pressing it a
second time will display the analog information on-
screen. To remove the display from the screen, press
this button again.
13. QUICK VIEW Button - This button allows you to go
back to the previous input source selected by just
pressing the QUICK VIEW button. Press this button
again to return to the channel you were watching.
14. INPUT SELECT Button - Press to display SOURCE
SELECTION menu.
15. CH ENTER/– Button* - Some connected equipment
such as a Cable/Satellite box, VCR, or DVD may
require this button to input selected channels. This
button is also the “–” button used when selecting
digital channels.
16. CLOSED CAPTION Button - Displays text captions
or full screen text on the screen for hearing impaired
viewers.
17. ENTER Button - Use to enter or select information
for On-Screen operations.
18. VOL (VOLUME) + / – / CURSOR / Buttons -
Used to operate the menu functions of the Plasma
TV. Press the button to increase, or the button
to decrease the sound level.
19. EXIT Button - Press to remove setup menu.
20. DVD Operation Buttons* - Press to operate your
DVD if programmed properly using a code listed on
page 13.
1. PLASMA TV, VCR, CBL (Cable/Satellite box), DVD
POWER Button* - Used to turn the Plasma TV,
VCR, Cable/Satellite box or DVD on or off after you
select the operating mode.
2. SLEEP Button - To set the Plasma TV to turn off
after a preset amount of time, use the SLEEP button
on the remote control.
3. Direct Channel Selection Buttons (0-9)* - Allows
direct access to any channel of the VCR, Cable/
Satellite box or DVD.
4. MUTE Button - To turn off the sound, press this
button once. The Plasma TV will be silenced and the
symbol “MUTE” will appear on the screen. The
muting feature can be released by pressing the
MUTE button again or one of the VOL (VOLUME) +
or –buttons.
5. RESET Button - Press to reset the On-Screen
picture adjustments to their factory preset positions.
6. CH (CHANNEL)/CURSOR ▲ /▼ Buttons* - Used to
operate the menu functions of the Plasma TV, and to
change the channels of a Cable/Satellite box.
7. MENU Button - Use to display the On-Screen menu
function.
8. 16:9 Button - Press to display PICTURE SIZE menu.
9. VCR Operation Buttons* - Press to operate your
VCR if programmed properly using a code listed on
page 12.
10. TV, VCR, CBL (Cable/Satellite box), DVD Selector
Switch - Slide to select the Plasma TV, VCR, Cable/
Satellite box or DVD to be operated.
11. CODE SET Button - Used to register the 3-digit
codes to operate your VCR or Cable/Satellite box.
(See page 12 and 13).
*You can use these buttons to operate
your VCR, Cable/Satellite box or DVD
after you have programmed the re-
mote control for the code that oper-
ates your VCR, Cable/Satellite box or
DVD (see page 12 and 13).
2
3
14
6
10
12
16
1
9
8
7
18
17
15
11
13
5
20
19
4
3X81001A_En_p06-13 06.8.22, 4:09 PM10

11

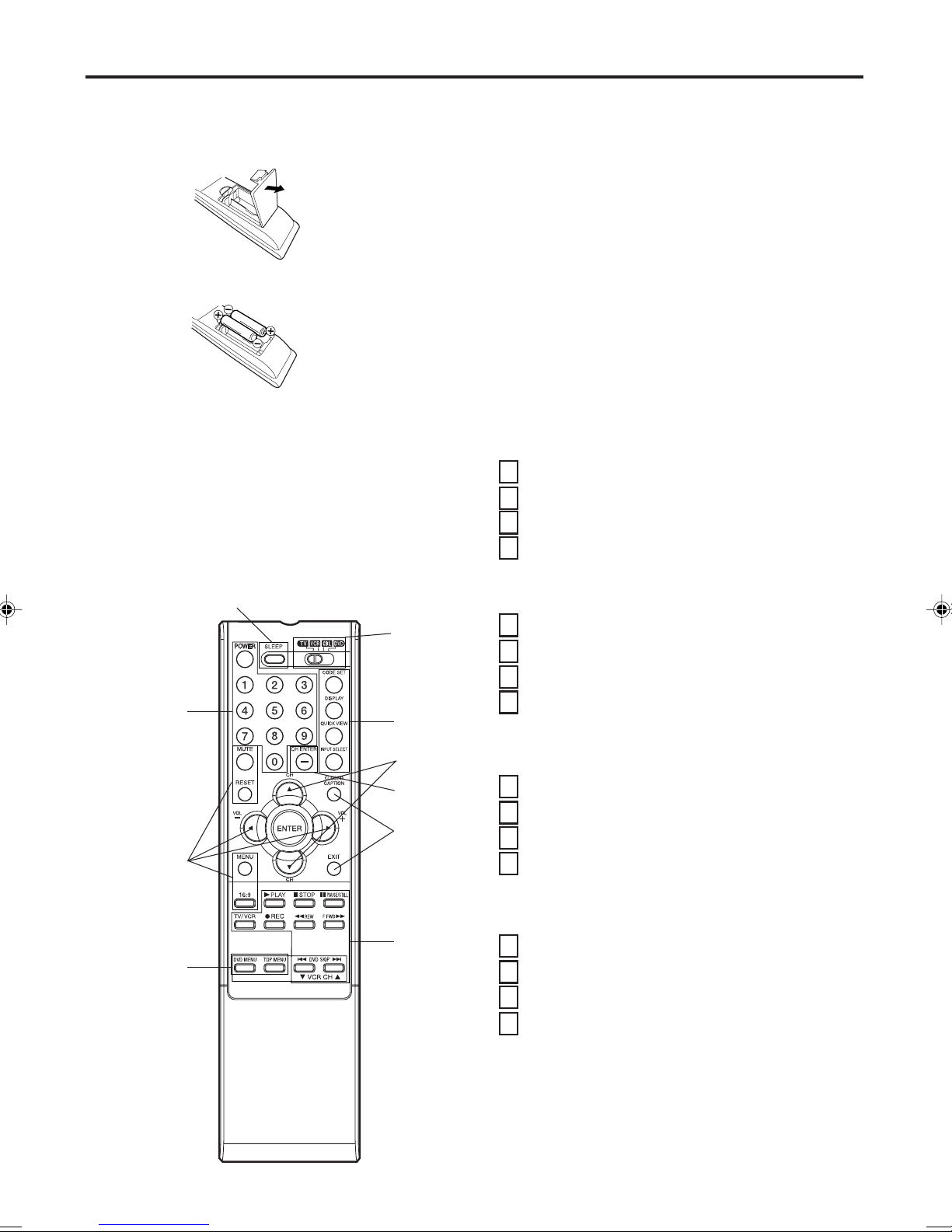

1. Open the battery compartment cover.
2. Install two “AA” batteries (supplied).
HOW TO INSTALL BATTERIES
Before using the remote control, batteries must first be installed.
3. Replace the battery compartment cover.
BATTERY PRECAUTIONS
These precautions should be followed when using batteries
in this device:
•Use only the size and type of batteries specified.
•Be sure to follow the correct polarity when installing the
batteries as indicated in the battery compartment.
Reversed batteries may cause damage to the device.
•Do not mix different types of batteries together (e.g.
Alkaline and Carbon-zinc) or old batteries with fresh ones.
•If the device is not to be used for a long period of time,
remove the batteries to prevent damage or injury from
possible battery leakage.
• Do not try to recharge batteries not intended to be recharged;
they can overheat and rupture. (Follow battery manufacturer's
directions.)
Use two “AA” size batteries. The batteries may last approximately
one year depending on how much the remote control is used. For
best performance, it is recommended that batteries should be
replaced on a yearly basis, or when the remote operation becomes
erratic. Do not mix old and new batteries or different types.
HOW TO USE THE REMOTE CONTROL
You may be able to use the remote control to operate
your VCR, Cable/Satellite box and DVD along with the
Plasma TV after the batteries are installed and you have
registered the codes that operate your products.
Some buttons are used exclusively for each product and
some buttons are used in common with each product.
To operate your products correctly using this universal
remote control follow each step below.
A. For PLASMA TV
Slide the selector switch to select “TV” first.
B. For VCR
Slide the selector switch to select “VCR” first.
C. For CABLE/SATELLITE box
Slide the selector switch to select “CBL” first.
Aim remote at CABLE/SATELLITE box.
NOTES:
•Some buttons that have same functions are called different
names according to the brand and model of the product. For
example, RESET may be called “CANCEL”.
•The buttons A, B, Cand Dare used exclusively for each
product. You can use these buttons whenever you want.
Press other buttons to operate the features of your
Plasma TV. You can use the VOL + and – buttons, the
0-9 buttons.
Press other buttons to operate the features of your VCR.
You can use the VCR CH ▲and ▼buttons, the 0-9
buttons, the CH ENTER button.
Aim remote at VCR.
Press the POWER button.
Aim remote at Plasma TV.
Press other buttons to operate the features of your
CABLE/SATELLITE box. You can use the CH ▲and ▼
buttons, the 0-9 buttons, the CH ENTER button.
Press the POWER button to turn on your CABLE/SATELLITE box.
D. For DVD
Slide the selector switch to select “DVD” first.
Aim remote at DVD.
Press other buttons to operate the features of your DVD.
You can use the DVD SKIP 6and 7buttons, the
TOP MENU button, the DVD MENU button, the 0-9
buttons, the CH ENTER button.
Press the POWER button to turn on DVD.
Press the POWER button to turn on VCR.
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
Remote control
A, B, C, D
A,B,C,D
A
D
A
B,C,D
A
A,C
B,D
A
3X81001A_En_p06-13 06.8.22, 4:09 PM11

12
REGISTRATION CODES BY PRODUCT AND BRAND NAME
Slide the selector switch to select the product you want to register (VCR, CBL or DVD).
Press and hold the CODE SET button while inputting a 3-digit code from the following lists using the Direct
Channel Selection buttons (0-9).
TO REGISTER YOUR VCR, CABLE/SATELLITE BOX OR DVD WITH THE REMOTE CONTROL
1
2
Remote control
VCR
Admiral 014, 024 Motorola 005, 014
Adventura 000 Multitech 000, 017
Aiko 027 NEC 007, 009, 016, 019
Aiwa 000, 006 Nikko 006
Akai 009 Noblex 026
America Action 027 Olympus 005
American High 005 Optimus 006, 014, 019, 022, 029, 030, 045, 047, 051
Asha 026 Orion 001, 023, 024, 031, 053
Audiovox 006, 027 Panasonic 005, 022, 025, 030, 033, 042, 045, 047, 051
BEAUMARK 026 Penney 005, 006, 007, 010, 026, 042, 050
Bell & Howell 019 Pentax 010
Broksonic 001, 020, 023, 024, 031, 053 Philco 005, 024, 031
CCE 017, 027 Philips 005, 018, 034, 036, 046, 048
Calix 006 Pilot 006
Canon 005 Pioneer 016
Carver 018 Polk Audio 018
Cineral 027 Profitronic 026
Citizen 006, 027, 052 Proscan 015, 037, 044
Colt 017 Protec 017
Craig 006, 013, 017, 026 Pulsar 008
Curtis Mathes 015, 005, 009, 022, 037, 042 Quasar 005, 022, 030, 042, 047
Cybernex 026 RCA 010, 015, 026, 037, 038, 042, 044
Daewoo 012, 027, 052 Radio Shack 000, 043
Denon 010 Radix 006
Dynatech 000 Randex 006
Electrohome 006 Realistic 000, 005, 006, 013, 014, 019
Electrophonic 006 Replay TV 033
Emerex 003 Runco 008
Emerson 000, 001, 006, 011, 020, 023, 024, 027, 031, STS 010
052 Sumsung 012, 026
Fishir 013, 019 Sanky 008, 014
Fuji 004, 005 Sansui 000, 009, 016, 024, 031, 053
Funai 000 Sonyo 013, 019, 026
Garrard 000 Socott 011, 012, 020, 023
GE 005, 015, 026, 037, 038, 042, 044 Sears 000, 005, 006, 010, 013, 019, 050
Go Video 029 Semp 012
Goldstar 006, 007, 050 Sharp 014, 038, 040
Grandiente 000 Shintom 017
HI-Q 013 Shogun 026
Harley Davidson 000 Singer 017
Harman/Kardon 007, 018 Sonic Blue 033
Harwood 017 Sony 000, 003, 004, 005, 035, 041, 049
Hitachi 000, 009, 010 Sylvania 000, 005, 011, 018, 054
JVC 009, 016 Symphonic 000
Jensen 009 TMK 026
KEC 006, 027 Tatung 009
KLH 017 Teac 000, 009
KENWOOD 007, 009, 016 Tecnics 005, 022
Kida 005, 006 Teknika 000, 005, 006
Lloyd 000 Thomas 000
Logik 017 Tivo 034, 035
LXI 006 Toshiba 011, 012, 039
MEI 000 Totevision 006, 026
MGA 011, 026 Unitech 026
MGN Technology 026 Vector 012
MTC 000, 026 Vector Research 007
Magnasonic 052 Video Concepts 012
magnavox 000, 005, 008, 018, 032 Videomagic 006
Magnin 026 Videosonic 026
Marantz 005, 018 Villain 000
Marta 006 Wards 000, 005, 010, 013, 014, 015, 017, 018, 026, 037
Matsushita 005, 022, 030 White Westinghouse 017, 024, 052
Memorex 000, 005, 006, 008, 013, 014, 022, XR-1000 000, 005, 017
024,026, 030, 031, 043, 047, 050, 051 Yamaha 007
Minolta 010 Zenith 000, 004, 008, 031, 053
Mitsubishi 016, 011, 038
NOTES: •When shipped from the factory, the remote control is set to operate your Plasma TV.
•If you enter the non-listed code below, this operation is canceled.
•When you install or replace batteries, you may need to register the codes again for the products you want
to control.
3X81001A_En_p06-13 06.8.22, 4:09 PM12

13
Remote control
CBL(CABLE)
ABC 001, 007, 012, 046, 056 Philips 009, 034, 041, 047, 048, 052, 053, 057
ADELPHIA 017 Pioneer 004, 028, 058
Allegro 006, 010 Pulsar 013
Americast 023 RADIO SHACK 010
Antronix 025, 033 RCA 021, 039
Archer 025, 033, 040, 047 Realistic 033
AT&T 049 Regency 018
Cabletenna 025 Rembrandt 056
Cableview 025 Runco 013
Century 047 Samsung 002, 004
Citizen 047 Scientific Atlanta 011, 012, 014, 017, 020, 024, 028, 032
Colour Voice 052, 057 Signal 002, 026
Comtronics 002, 008 Signature 056
Eastern 018 SL MARX 002
Garrard 047 Sprucer 039
GC Electronics 033 Starcom 026, 046
GE 038 Stargate 002, 026
Gemini 016, 026, 034 Starquest 026
General Instruments 005, 030, 031, 035, 037, 045, 049, 051, 056, Starsight 044
060 Starsight Cable Service 021
Hitachi 056 TANDY 042
JASCO 047 TELEVIEW 002
Jerrold 001, 003, 007, 015, 026, 031, 035, 037, 043, Tocom 001, 060
046, 049, 056 Toshiba 013
Magnavox 009 Tusa 026
Memorex 013 TV86 019
Motorola 001, 003, 005, 007, 023, 026, 030, 031, 035, Unika 025, 033, 047
037, 043, 045, 046, 049, 051, 056, 060 United Cable 046
Movie Time 019 Universal 025, 033, 040, 047, 054
NSC 019 View Star 008, 009, 019, 042
Panasonic 029, 039 Zenith 006, 010, 013, 022, 023, 027, 036, 044, 050,
Paragon 013 055, 059, 061, 062
CBL(SATELLITE)
Bell ExpressVu 125, 140, 142 Philips 108, 133, 145, 150
Dish Network 125, 131, 140, 141, 142, 144, 146 Philips/Magnavox 133, 145, 150
Drake 121, 137, 148 Pioneer 122
Echosphere 142 Primestar 147
Echostar 125, 140, 141, 142, 144, 146 Proscan 100, 101, 105, 106, 110, 134, 151
GE 100, 101, 105, 106, 110, 134, 151 RCA 100, 101, 105, 106, 110, 118
Gemini 127 RCA DDS 134
General Instruments 120, 124, 126, 130, 132, 147, 152, 154, 155 Realistic 138
Hitachi 107 Samsung 114, 116
Hughes Network Systems 104, 107, 109, 112 Sony 102, 113, 119
Jerrold 138 Star Choice 130, 147
Magnavox 108 Toshiba 149
Magnavox DDS 133, 145 VIDEO CIPHER 11 121
Motorola 100, 101, 105, 106 Zenith 121, 123, 127, 128, 129, 135, 136, 137, 139,
PACE 128, 135 148, 153
Panasonic 103, 111, 115
DVD
Apex 017 Onkyo 001
Blue Parade 008 Oritron 014
Broksonic 016 Panasonic 000, 012, 023, 024, 025
DVD2000 002 Philips 001, 006, 019
Denon 000 Pioneer 004, 008, 012
Emerson 010 Polk Audio 006
Enterprise 010 Potel 011
GE 003, 017 Proscan 003
Gradiente 014 RCA 003, 008, 017, 021
Greenhill 017 Samsung 009, 018
Hitachi 009 Sansui 016
JVC 007, 011, 020 Sony 005
KLH 017 Sylvania 015
Kenwood 000 Shinsonic 005
Koss 014 Technics 000
Magnavox 001, 015 Theta Digital 008
Marantz 006 Toshiba 001, 016, 022
Microsoft 003 Urban Concepts 001
Mintek 017 Xbox 003
Mitsubishi 002 Yamaha 000, 006
Nesa 017 Zenith 001, 010
3X81001A_En_p06-13 06.8.22, 4:09 PM13

14
If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna
system. If you are using a Cable TV service, see page 15 for Cable TV connections.
Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm twin-lead wires)
Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire)
Antenna connections
75 ohm
Coaxial
Cable 300-75 ohm
Matching
Transformer
VHF 75 ohm
Separate VHF/UHF Antennas (75 ohm VHF cable and 300 ohm UHF twin-lead wires)
Antenna
Jack
Connect the 75 ohm cable from the combination
VHF/UHF antenna to the antenna jack.
If your combination VHF/UHF antenna has a 300
ohm twin-lead wire, the use of the 300-75 ohm
matching transformer may be necessary.
Connect the UHF 300 ohm twin-lead wire to the
Combiner (not supplied). Connect the VHF 300
ohm twin-lead wire to the 300-75 ohm Matching
Transformer. Attach the Transformer to the Com-
biner, then attach the Combiner to the Antenna
Jack.
Connect the VHF 75 ohm cable and UHF 300 ohm
twin-lead wire to the Combiner (not supplied).
Attach the Combiner to the Antenna Jack.
Antenna
Jack
300-75 ohm Matching Transformer
UHF 300 ohm VHF 300 ohm
Antenna
Jack
Combiner
Antenna
Jack
Combiner
UHF 300 ohm
3X81001A_En_p14-21 06.8.22, 4:09 PM14

15
FOR SUBSCRIBERS TO BASIC CABLE TV SERVICE
For basic Cable TV service not requiring a Converter/
Descrambler box, connect the 75 ohm Coaxial Cable directly to
the Antenna Jack on the back of the TV.
Cable TV connections
FOR SUBSCRIBERS TO SCRAMBLED CABLE TV SERVICE
75 ohm
Coaxial Cable
If you subscribe to a Cable TV service in which basic channels are unscrambled and premium channels require the
use of a Converter/Descrambler box, you may wish to use a signal Splitter and an A/B Switch box (available from
the Cable TV company or an electronics supply store). Follow the connections shown below. With the switch in the
“B” position, you can directly tune any nonscrambled channels on your TV. With the switch in the “A” position, tune
your TV to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/Descrambler
box to tune scrambled channels.
FOR SUBSCRIBERS TO UNSCRAMBLED BASIC CABLE TV SERVICE WITH
SCRAMBLED PREMIUM CHANNELS
Splitter B
A
Incoming
75 ohm
Cable TV
Cable A/B Switch 75 ohm Cable to TV
Incoming
75 ohm
Cable TV
Cable 75 ohm Cable to TV
Converter/
Descrambler
Antenna
Jack
Antenna
Jack
Antenna
Jack
Converter/
Descrambler
This TV has an extended tuning range and can tune most cable channels without using a Cable TV
Converter box. Some cable companies offer “premium pay channels” where the signal is scrambled.
Descrambling these signals for normal viewing requires the use of a descrambler device which is
generally provided by the Cable TV company.
If you subscribe to a Cable TV service which requires the use of a Converter/Descrambler box, connect the
incoming 75 ohm Coaxial Cable to the Converter/Descrambler box. Using another 75 ohm Coaxial Cable,
connect the output jack of the Converter/Descrambler box to the Antenna Jack on the TV. Follow the
connections shown below. Set the TV to the output channel of the Converter/Descrambler box (usually channel
3 or 4) and use the Converter/Descrambler box to select channels.
3X81001A_En_p14-21 06.8.22, 4:09 PM15

16
Connections to other equipment
The exact arrangement you use to interconnect various video and audio components to the Plasma TV is
dependent on the model and features of each component. Check the Owner's Manual provided with each
component for the location of video and audio inputs and outputs.
The connection diagrams below are offered as suggestions. You may need to modify them to accommodate
your particular assortment of components. The diagrams are intended to show component video and audio
interconnections only.

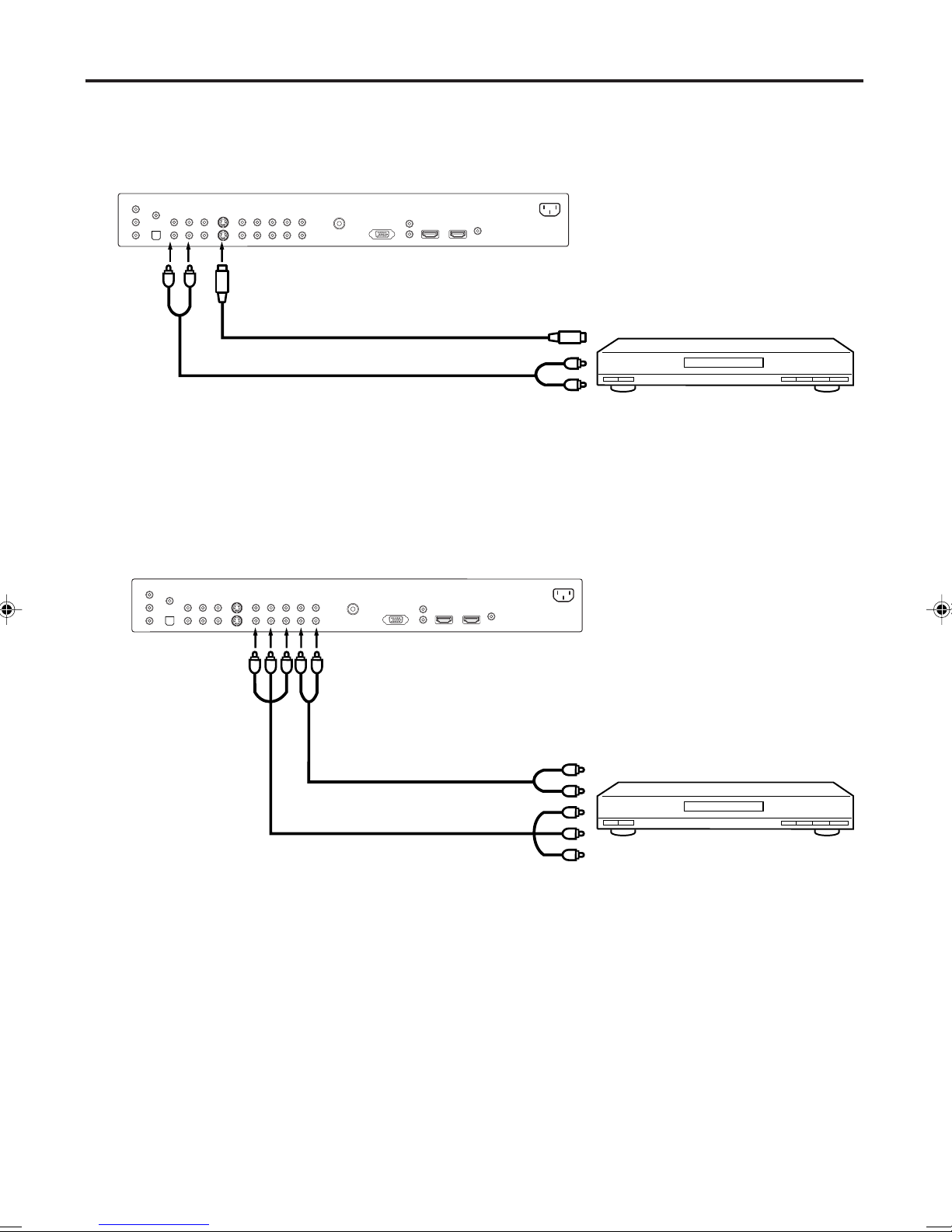

To connect the Plasma TV to a VCR with an S-Video cord
If you connect a VCR with a S-VIDEO cord to the S-VIDEO IN jack on the rear of the Plasma TV , you must also
connect the audio cords to the AUDIO IN jacks on the rear of the Plasma TV. The S-VIDEO cord only carries the
video signal. The audio signal is separate.
NOTE:
When the S-video cord and the video cord are connected to each jack at the same time, the S-video cord takes
precedence over the video cord.
To S-Video OUT
To Audio OUT
Audio cord (not supplied)
S-Video cord (not supplied)
To S-VIDEO IN 1 (or 2)
To connect the Plasma TV to a VCR
Rear lower of the Plasma TV
To Audio/Video OUT
Audio/Video cord (not supplied)
To AUDIO/VIDEO IN 1 (or 2)
To AUDIO
IN 1 (or 2)
Rear lower of the Plasma TV
3X81001A_En_p14-21 06.8.22, 4:09 PM16

17
Y
PB
PR
Rear lower of the Plasma TV

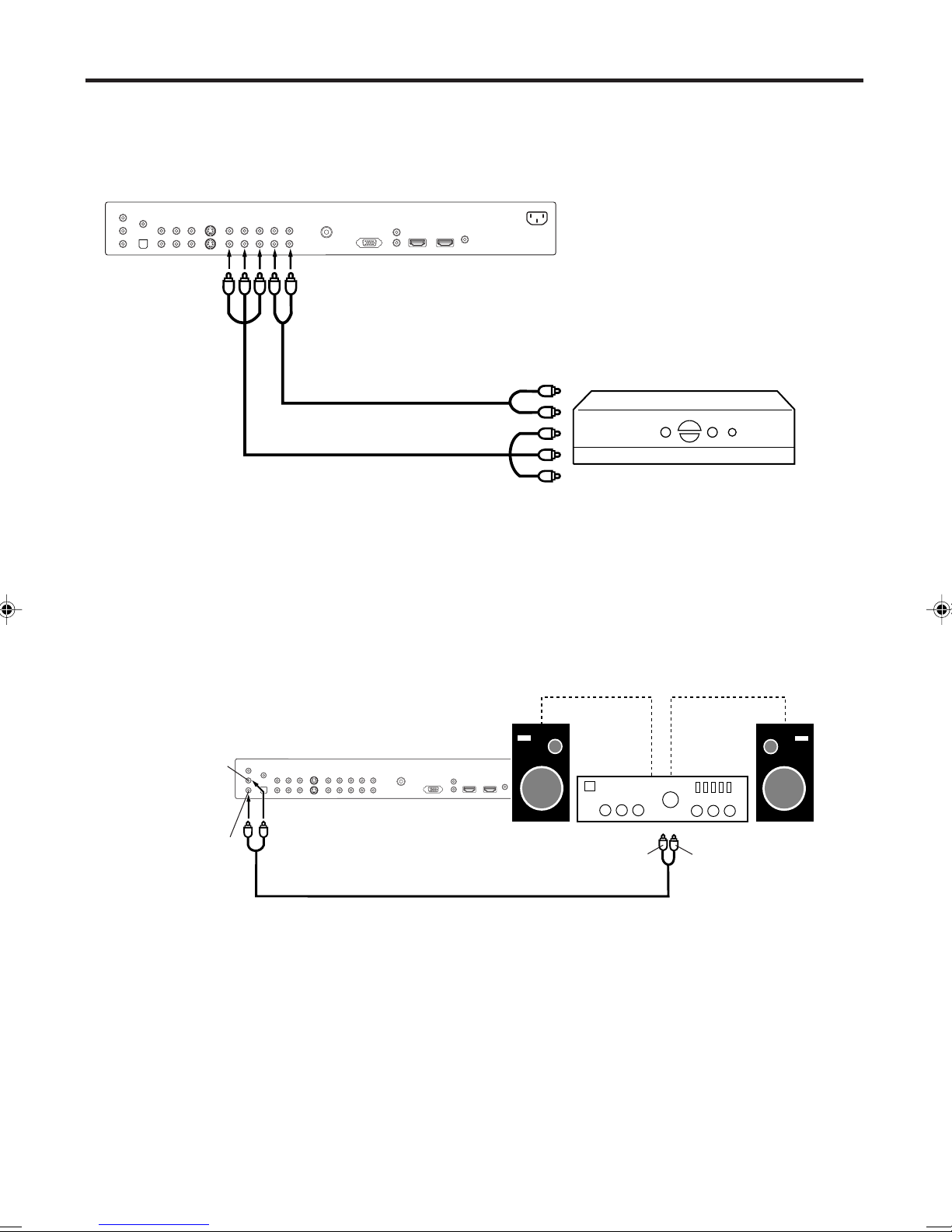

To connect the Plasma TV to a DVD player/Satellite receiver
If your DVD player or Satellite receiver has a S-Video out jack, connect cords as shown.
Rear lower of the Plasma TV
To S-Video OUT
Audio cord (not supplied)
To Audio OUT
S-Video cord (not supplied)
To S-VIDEO IN 1 (or 2)
To connect the Plasma TV to a DVD player with component video
If your DVD player has component video out jacks, connect your Plasma TV to a DVD player using a component
video cord. It can greatly enhance picture quality and performance.
To Component OUT
To Audio OUT
Audio cord (not supplied)
Video cord (not supplied)
To AUDIO
IN 1 (or 2)
To COMPONENT IN 1 (or 2)
NOTE:
Component Video input of this unit are for use of device which output 480i/1080i interlaced signals and 480p/
720p progressive signals.
Connections to other equipment
3X81001A_En_p14-21 06.8.22, 4:09 PM17

18
Y
PB
PR
Connections to other equipment
To connect the Plasma TV to a DTV receiver/set-top box
If you connect a DTV receiver/set-top box, connect your Plasma TV to a DTV receiver/set-top box using a
component video cord.
Rear lower of the Plasma TV
To Component OUT
To Audio OUT
Video cord (not supplied)
Audio cord (not supplied)
To COMPONENT IN 1 (or 2)
To connect an audio system
This connection allows you to use an audio amplifier and external speakers, and adjust the audio level using
the Plasma TV’s remote control.
To control the audio, turn on the Plasma TV and the stereo amplifier, and turn off the Plasma TV’s built-in
speakers (see “Turning off the built-in speakers” on page 45).
NOTE:
To hear sound when using an external audio amplifier, the volume of both the Plasma TV and the amplifier
must be set above 0 (zero).
For example, if the volume of the Plasma TV is set to 0, you will not be able to hear any sound, even if the
volume of the amplifier is at its highest level.
To Audio (L) Input To Audio (R) Input
Audio cord (not supplied)
Amplifier
VARIABLE AUDIO (R)
OUTPUT
VARIABLE AUDIO (L)
OUTPUT
Rear lower of the Plasma TV
3X81001A_En_p14-21 06.8.22, 4:09 PM18

19
HDMI device
DVI device
Connections to other equipment

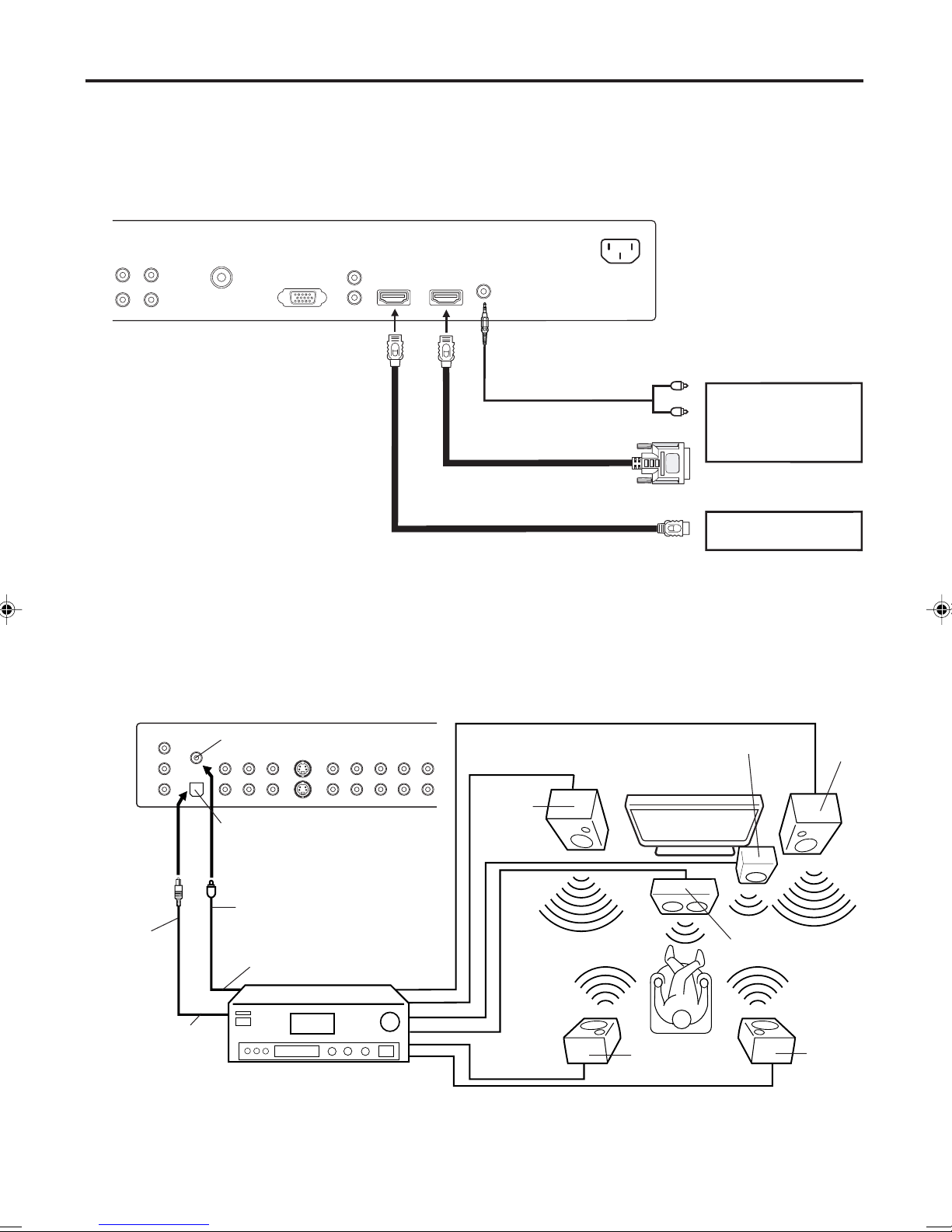

To connect the Plasma TV to a HDMI or a DVI device
Rear lower of the Plasma TV
HDMI - to - DVI adapter cable
(HDMI type A connector)
(not supplied)
Audio cord (not supplied)
HDMI cable (type A connector)
(not supplied)
To DVI output
To HDMI out
or
The HDMI input receives digital audio and uncompressed video from a HDMI device or uncompressed digital
video from a DVI device.
When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only the video signal. Separate
analog audio cords are required.
NOTES:
•You must choose an appropriate setting for each connection (see “Selecting the HDMI audio input source” on page 46).
•You can also use HDMI-1 IN for DVI device connection. In this case, you must connect the audio cables to AUDIO L/R, not
AUDIO.
NOTES:
•When you make the connection above, on the AV Amplifier, do not set DOLBY DIGITAL to DOLBY DIGITAL “ON”. If you do, a
loud noise will emit from the speakers possibly causing damage to your hearing or to the speakers.
•This unit does not apply to DTS audio. There will be no sound output if connected to AV amplifier with built-in DTS decoder.
Coaxial digital cable
(not supplied)
AV Amplifier with built-in digital surround
decoder as listed above
Center Speaker
Coaxial Digital Audio Output
To Coaxial Digital Audio Input
Rear lower of the Plasma TV
Using an AV Amplifier with built-in digital surround
If you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including
Dolby Digital Surround audio that sounds just like the movie.
Connect an AV amplifier with built-in Dolby Digital decoder, or etc as shown below.
Front
Speaker
(Left)
Front
Speaker
(Right)
Subwoofer
Surround
Speaker (Left) Surround
Speaker
(Right)
TV
Optical Digital Audio Output
Optical
digital
cable (not
supplied)
To Optical Digital
Audio input
3X81001A_En_p14-21 06.8.22, 4:10 PM19

20
TV GAME

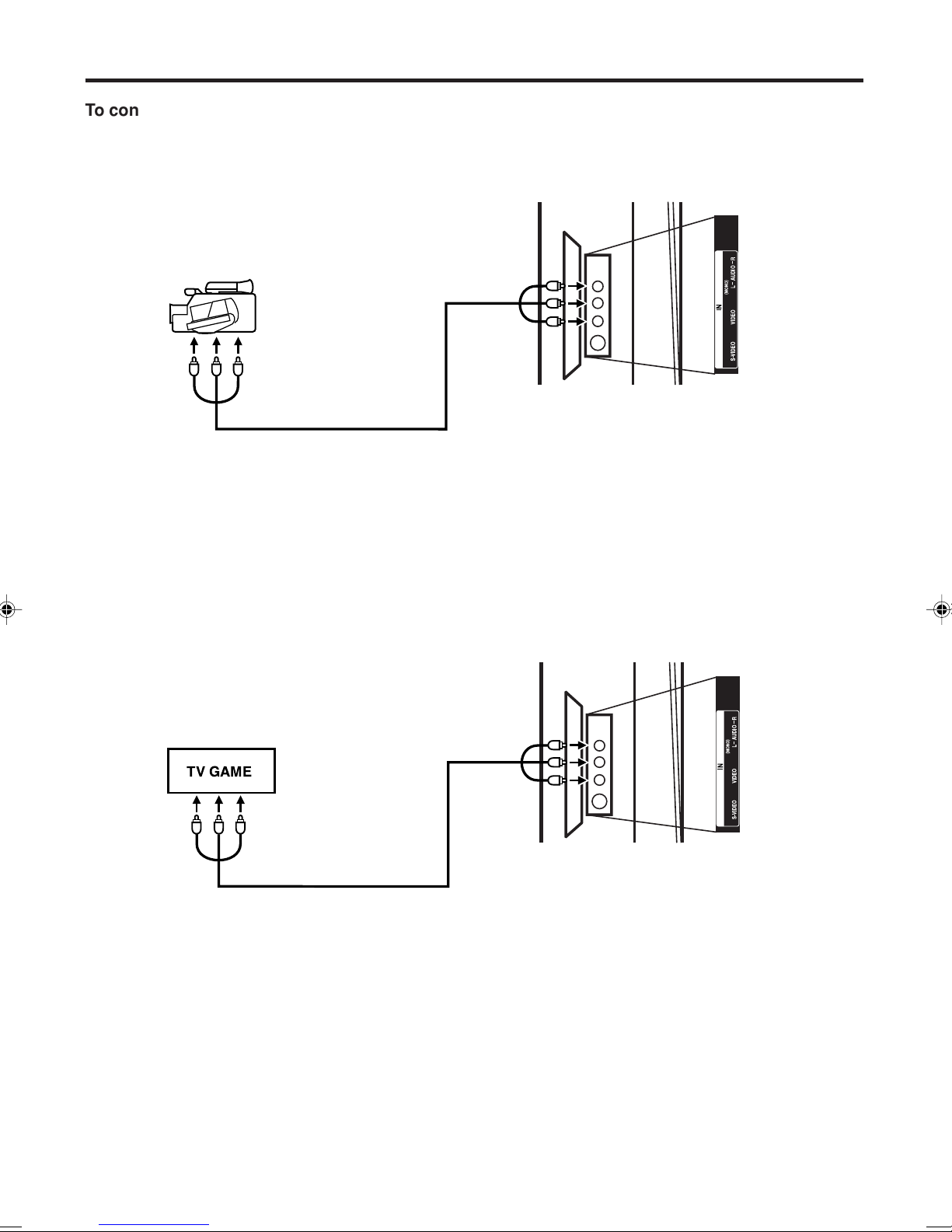

To connect the Plasma TV to a camcorder
To connect the Plasma TV to a Game
The Plasma TV can also be used as a TV device for many video games. However, due to the wide variety of
signals generated by these devices and subsequent hook-up variations required, they have not all been
included in the suggested connection diagrams. You'll need to consult each component's Owner's Manual for
additional information.
To playback from a camcorder, connect the camcorder to the Plasma TV as shown.
Side of the Plasma TV
Audio/Video cord (not supplied)
To Audio/Video OUT
Side of the Plasma TV
To Audio/Video OUT
Audio/Video cord (not supplied)
Connections to other equipment
3X81001A_En_p14-21 06.8.22, 4:10 PM20
