Santec LCOS-SLM SLM-200 Quick start guide

1
Operational Manual
LCOS-SLM
Liquid Crystal Based Spatial Light Modulator
SLM-200
OPERATIONAL MANUAL
Doc.#: SS-18-0442-04
Date: 26, Sep. 2018
Ver.4.0

2
Contents
Notes to Users
1) Copyright 2018, santec Corporation.All rights reserved. No part of this Operation
Manual may be reproduced or transmitted in any form or by any means, electronic
or mechanical, for any purpose, without the prior written permission of santec.
2) Information in this Operation Manual is subject to change without notice.
3) Information of this Operation Manual is prepared with careful examination, however, in
the event of any mistake, please contact us.
Notes in Bringing This Product Out of Japan
1) When this product is brought out of Japan, some laws or regulations of a destination
country may prohibit this product from being used there. In such countries, the use
of this product may lead to punishment. Please note, that in such cases santec
Corporation shall not be held responsible in any way.
2) When this product is exported (or brought out of Japan), this product is applicable to a
strategic material specified in the “Foreign Exchange and Foreign Trade Control
Law”, then under law of the Japanese Government, an export permit is required.

3
Contents
1. Introduction
1.1 Description
1.2 Features
1.3 Care
1.4 Package Contents
1.5 Warranty
2. Display specifications
2.1 Parameters
2.2 Operating principles
2.3 Part names and functions
2.4 LED status notifications
2.5 Trigger signal specifications
3. SLM handling instructions
3.1 Connections
3.2 Power up sequence
3.3 Mounting
3.4 Cleaning
4. Software package
4.1 Installation
4.2 Software operation
4.3 CGH generator
5. Contact

4
Introduction
1. Introduction
1.1 Description
The santec spatial light modulator (SLM) is based on reflective liquid crystal on silicon
(LCOS) microdisplay technology. The SLM has an active matrix display with 1920 x
1200 resolution (WUXGA) and a 0.63 diagonal which enables the SLM to modulate
optical phases freely and generate arbitral 2D phase patterns (gratings, phase mask,
holograms, etc.) on a LCOS pixel-by-pixel basis. The phase response of SLM is
adjusted even for different wavelengths (450 to 1600 nm) automatically using proprietary
GUI software with built-in adjustable gamma control. The signal is addressed via a
standard DVI (Digital Visual Interface) signal e.g. by a PC’s graphics.
The SLMs are characterized by ultra-low phase fluctuation from high drive frequency over
1kHz and 10bit high resolution addressing. These abilities are suitable for various
applications including laser material processing, optical switching devices, wavefront
correction and pulse shaping.
1.2 Features
Stable operation with no mechanical motion
All-in one compact design
Pure, linear and precise phase control: Addressing bit depth 10 Bit
Telecom qualified high reliability: Telcordia GR-1221 Core
Ultra-low phase fluctuation: Typ. < 0.001prad.
Wide wavelength range (450 to 1600 nm) by adjustable gamma control
Figure 1: SLM body.
(a) All-in-one model (b) Separate model

5
Introduction
1.3 Care
The unit should not be operated in any of the following circumstances:
If water or other liquid is spilled on the unit.
When the unit is exposed to moisture.
When the unit is cleaned or moved.
If damage is found to the main cord.
When the unit condenses.
Pay attention to the following guidelines for safe, trouble-free operation:
Do not place in direct sunlight.
Do not place in an environment with high temperature and high humidity.
Do not place in an environment with dust, dirt, salt, or corrosive gas.
Do not place in an area subject to large vibrations.
Do not place in an area subject to noise by electric field, magnetic field, etc.
Do not place in an area where the unit is subject to falling objects.
Do not place in an area with possible exposure to water.
General usage guidelines:
All electrical interfaces have to be connected without applied voltage.
It is required to boot up the instrumentAFTER connecting all devices, even if the DVI
output instrument is available.
Do not touch the surface of the display because the LCD has the potential of damage
by static electricity.
If you plan to illuminate the SLM with high power light or shorter wavelength light like
ultraviolet, please consult the santec service site.
If you handle the LCOS unit, please wear a wristband for ESD on a earth grounded
table as shown in figure 2.

6
Introduction
Figure 2: LCOS unit handling.

7
Introduction
1.4 Package Contents
This product is composed of the SLM body and accessories.
The following parts are included:
All-in-one model
(1) LCOS-SLM body
(4) AC adapter
(5) DVI/HDMI cable
(6) USB3.0 TypeA/B cable
(7) SMB/BNC cable
(8) Polarizer( Wavelength: 450~700 nm)
(9) CD-ROM (Control software GUI / User operational manual)
Separate model
(1) LCOS-SLM body
(2) LCOS unit
(3) Bracket for LCOS unit
(4) AC adapter
(5) DVI/HDMI cable
(6) USB3.0 TypeA/B cable
(7) SMB/BNC cable
(8) Polarizer( Wavelength: 450~700 nm)
(9) CD-ROM (Control software GUI / User operational manual)
Figure 3: Contents
1
23
46
8
7
59

8
Introduction
1.5 Warranty
The warranty of the product is based on santec document (Doc: SA-15-0308).

<AR coating option>
Item Units
Ordering code number -01 -02 -03 -04 -12 -
AR coat range 450-550 750-850 1000-1100 1500-1600 400-800 nm
AR coat reflectance 4) <1.5 %
4)Angle of incidence = 0 degree
Parameter
-14
450-550 / 1500-1600
<0.5
<0.6
<Optical Characteristics>
Min Max Units Notes
450 1600 nm (Refer to appended table about AR coating option)
2p- rad. -
%
Depending on specified wavelength range
% -
mm -
mm Active area
pixels -
ms Depending on LCOS phase pattern
Hz -
rad. -
bit -
W/cm21550nm CW, 2.0mm beam diameter
15 35 °C No condensation
040 °C No condensation
1) Specification on the defect pixels are no object.
2) Tr, Tf : Response time between 10% and 90% levels at 25degC typ.
3) The value is not guaranteed.
<Electrical and Mechanical characteristics>
Min Max Units Notes
-
-
Hz -
100 240 VAC
-
mm -
All-in-one model kg -
Separate model kg
- -
Width x Depth x Height
117.6 x 117.6 x 33.7
Weight
0.39
0.48
Control software
GUIfor windows
Item
Interface
Digital Video Interface (DVI-D),
USB3.0 (typeB)
DVIframe rate
60
Input voltage to AC adapter
Gray level
10 (1024)
Optical power handling 3)
Typ. 10
Operating temperature
Storage temperature
Response speed 2)
Typ. 300
LCOS drive frequency
1200
Relative phase fluctuation
Typ. <0.001 p
Pixel size / pitch
7.8 / 8.0
Panel size
(H)15.36 x (V)9.6
Addressable Active matrix 1)
(H)1920 x (V)1200
Item
Wavelength Range
Phase shift
Panel reflectivity
Typ. >80
Aperture ratio
95
9
Display specifications
2. Display specifications
2.1 Parameters
Table 1: Specifications.

10
Display specifications
Six types of AR coating are available as shown in Figure 4, 5.
(1) 450-550nm
(2) 750-850nm
(3) 1000-1100nm
(4) 1500-1650nm
(5) 400-700nm
(6) 450-550/1500-1650nm
Figure 4:AR reflectivity (angle: 0 degree).

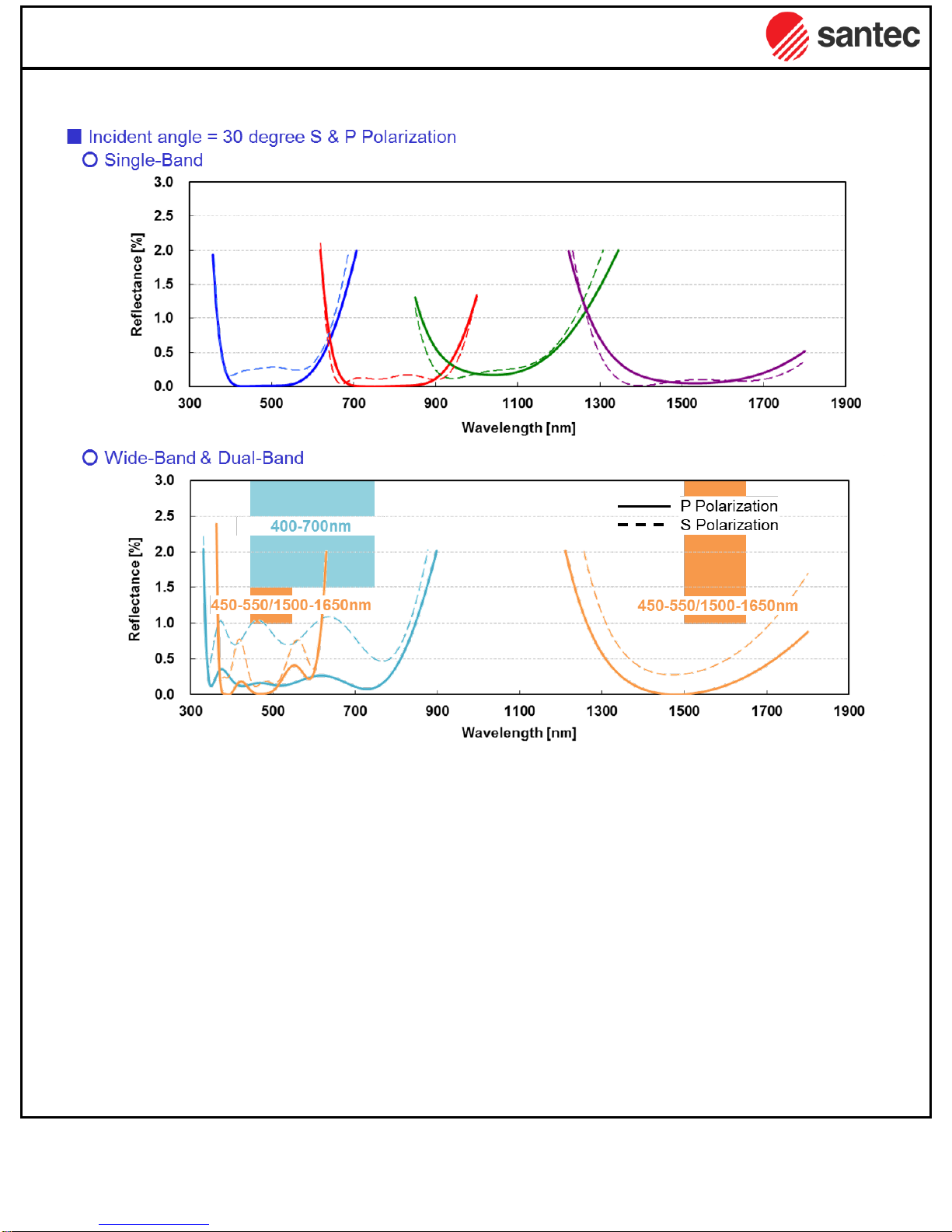

Figure 5: AR reflectivity (angle: 30 degree).
11
Display specifications
Reference data
Reference data

12
Display specifications

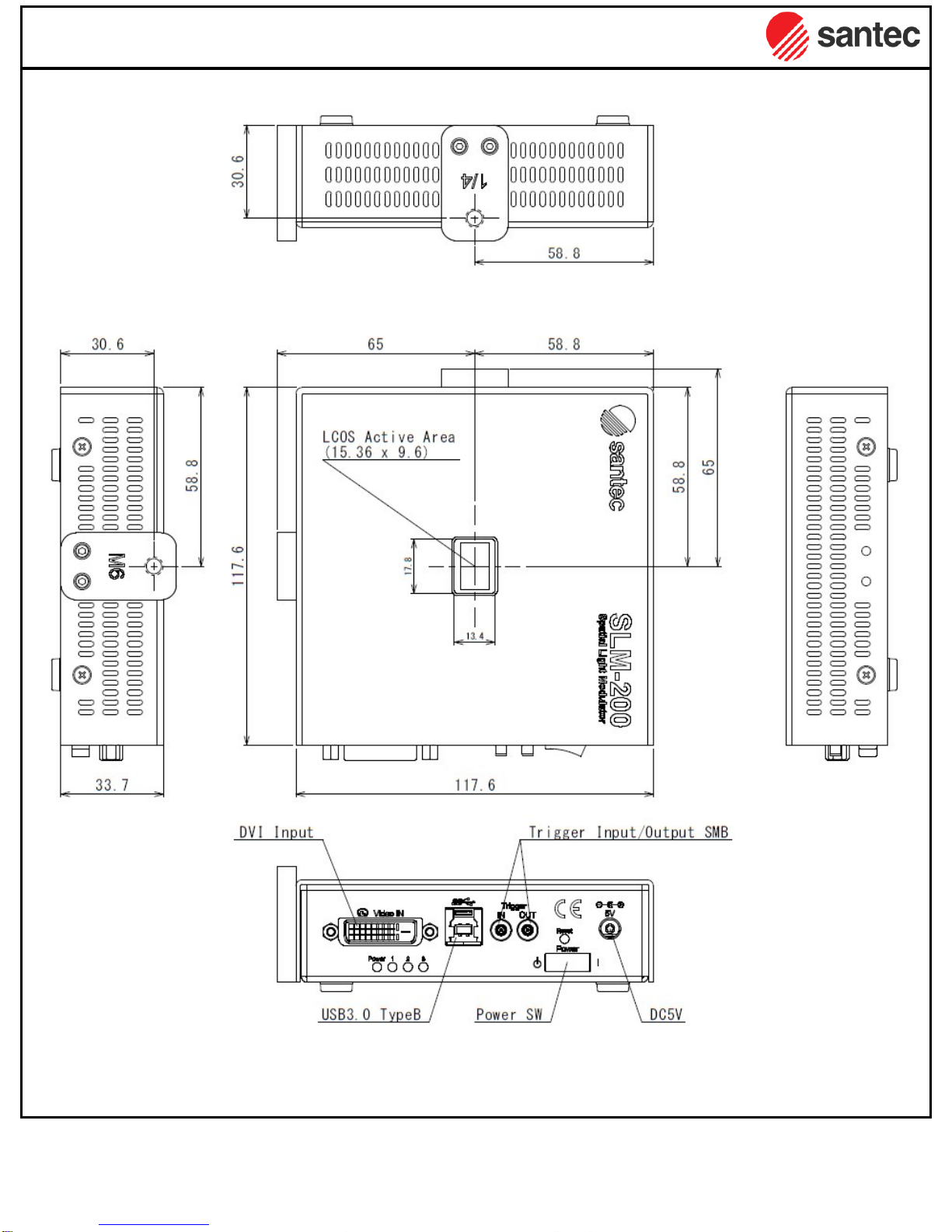

Figure 6: Dimensions (All-in-one model).
Unit : mm

13
Display specifications
Figure 7: Dimensions (Separate model).
Unit : mm

14
Display specifications

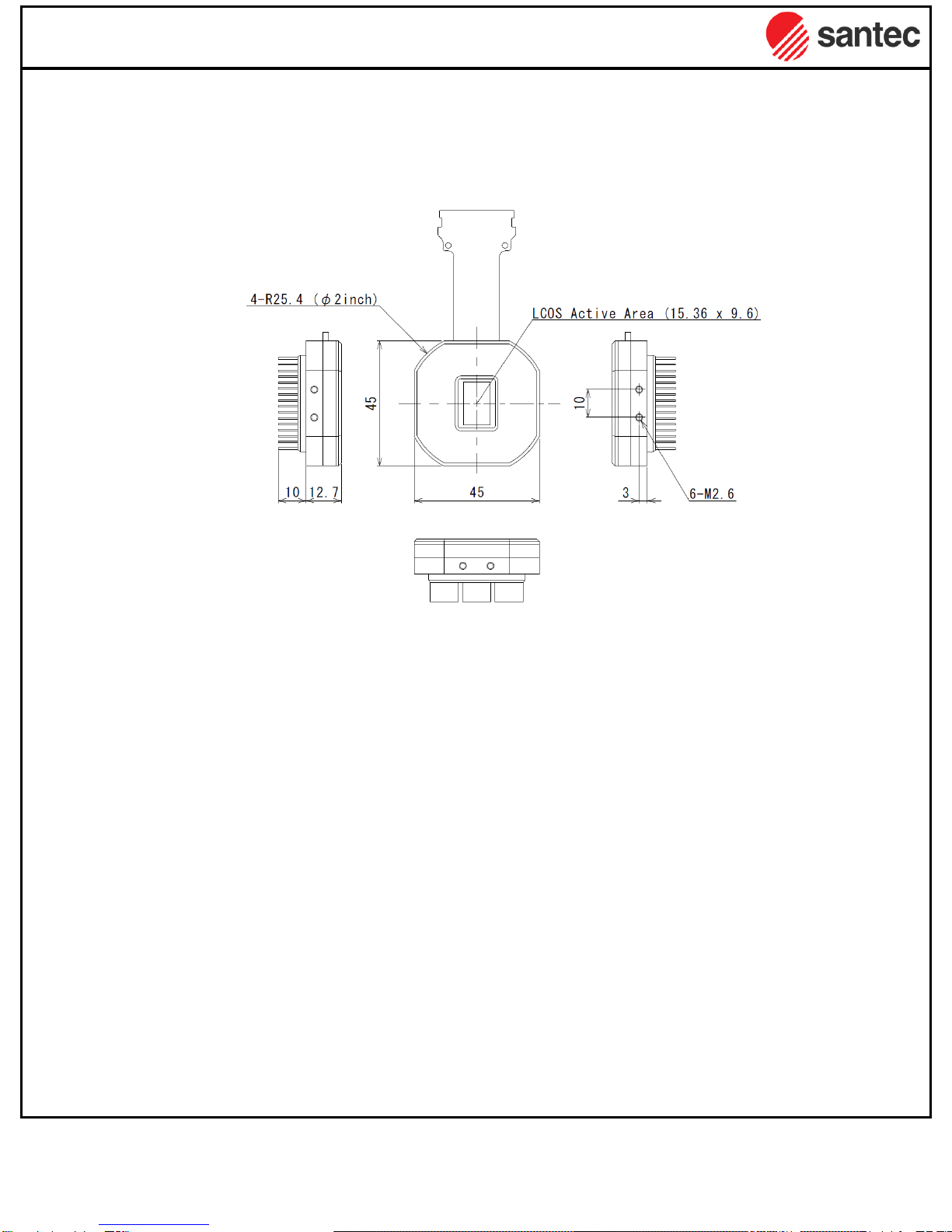

Figure 8: Dimensions (LCOS unit).
Unit : mm

15
2.2 Operating principle
The SLM is an optical intensity or phase modulator using LCOS display technology that
consists of a silicon-based reflective, active matrix CMOS driver which uses a nematic
liquid crystal. LCOS has several million 2-dimensional pixels separated by a few tenths
of a micron and can address pixel-by-pixel. Optical phase or intensity can be controlled
spatially by the voltage level applied to each pixel.
The SLM can be controlled via a PC using the DVI and USB interface. Easy control using
the attached optical phase (intensity) editor and graphical user interface (GUI),
wavelength independent precise and linear phase modulation with software built-in
gamma control can be accomplished.

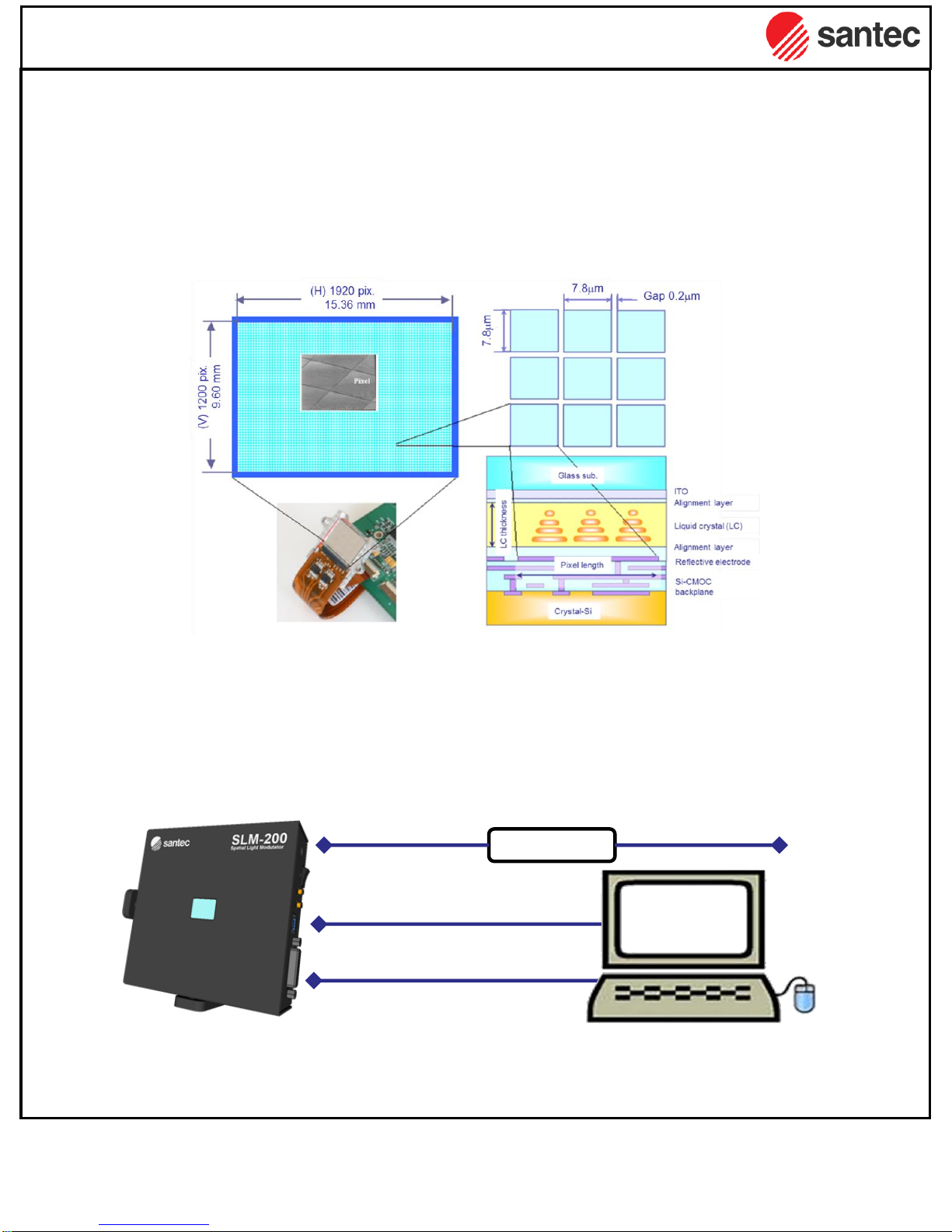

Figure 9: LCOS structure.
Figure 10: SLM connection.
Display specifications
AC adapter
DC+5V AC100~240V
USB3.0
DVI-D HDMI

16
2.3 Part names and functions
All-in-one model
Figure 11: Front view.
Figure 12: Back view.
Display specifications
Rubber legs x4
Label
(Model name and S/N)
Side view1
(Control panel)
Side view2
(M6 screw for mounting)
Side view3
(1/4 inch screw for mounting)
display
LCOS panel
M6 screw for mounting
¼ inch screw
for mounting
LC director
Note: Input linear polarized light
shall be parallel to the LC director.
LCOS display
Side view4
(M2.6 screw)

17

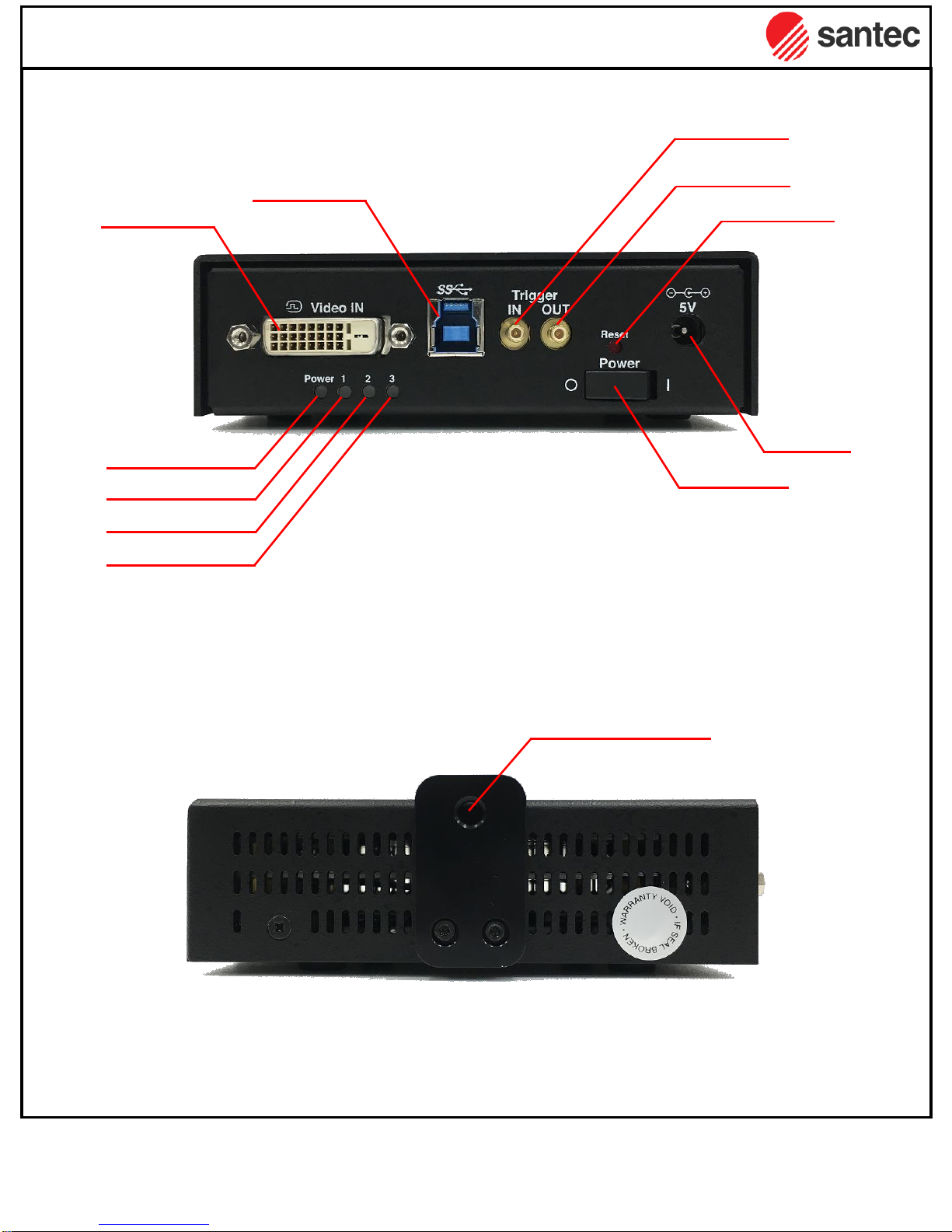

Figure 13: Side view 1 (Control panel).
Figure 14: Side view 2 (M6 screw for mounting).
Display specifications
DVI interface
DC socket
Reset button
Power status LED
Clock status LED
Signal status LED
Clock status LED
M6 screw for mounting
Trigger Input
Power switch
USB interface Trigger output

18
Figure 15: Side view 3 (1/4 inch screw for mounting).
Display specifications
1/4 inch screw for mounting
Figure 16: Side view 4 (M2.6 screw).
M2.6 Screw
M6 and 1/4 inch mounting blocks can be fixed to user preferable sides.

19
Separate model

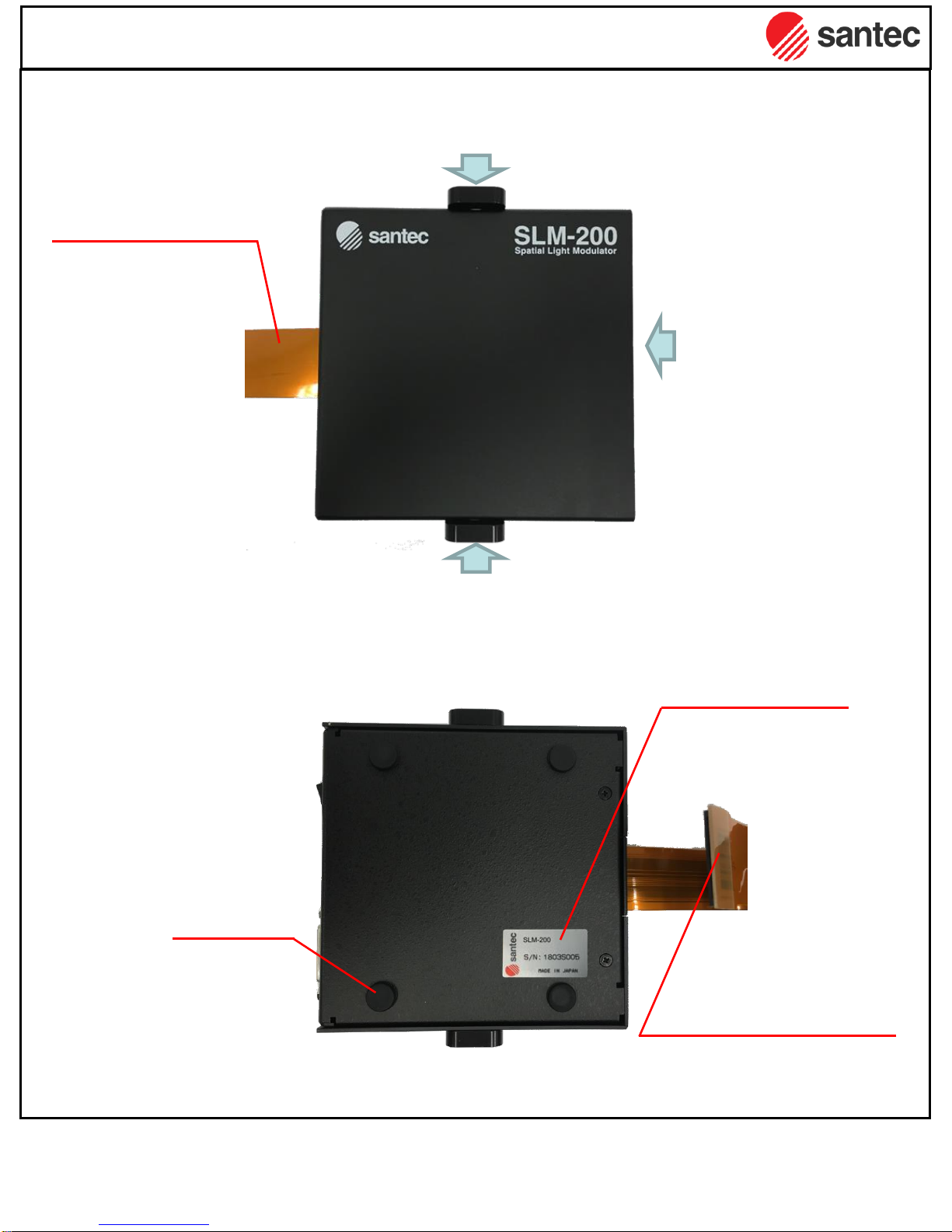

Figure 17: Front view.
Figure 18: Back view.
Display specifications
Flex cable for
connecting LCOS unit
Label
(Model name and S/N)
Connector
for connecting LCOS unit
Side view2
(M6 screw for mounting)
Side view3
(1/4 inch screw for mounting)
Side view1
(Control panel)
Rubber legs x4

20
Display specifications
Figure 19: Side view 1 (Control panel).
Figure 20: Side view 2 (M6 screw for mounting).
DVI interface
DC socket
Reset button
Power status LED
Clock status LED
Signal status LED
Clock status LED
M6 screw for mounting
Trigger input
Power switch
USB interface Trigger output
