SANTO S 64140 TK User manual

SANTO
Table Top Refrigerator
Operating instructions
S 64140 TK
PERFECT IN FORM AND FUNKTION
A/AE/2. (05.)
200380053

2
Dear customer,
Before switching on your new appliance please read these operating
instructions carefully. They contain important information for safe use, for
installation and for care of the appliance. Please keep these operating
instructions for future reference. Pass them on to possible new owners of the
appliance.
These operating instructions are for use with several technically comparable
models with varying accessories. Please observe the notes which apply to
your model.
Notes which are important for your safety or for the proper functioning of
the appliance are stressed with a warning triangle and/or with signal words
(Warning!, Caution!, Important!). Please observe the following carefully.
1. This symbol guides you step by step in the operation of the appliance.
2. .....
Supplementary information regarding operation and practical applications of
the appliance appear after this symbol.
Tips and notes concerning economical and environmentally sound use of the
appliance are marked with the cloverleaf. Explanations of the technical
terminology used in the operating instructions can be found at the end in
the section "TechnicalTerminology". The operating instructions contain
instructions for the correction of possible malfunctions by the user in the
section "What to do if ...". If these instructions should not be sufficient,
contact your local ServiceForce Centre.
Printed on paper manufactured with environmentally sound processes
he who thinks ecologically acts accordingly...

3
Contents
Important Safety Instruction ..............................................................................................5
Disposal........................................................................................................................................7
Appliance Packaging Information........................................................................................7
Disposal of Old Appliances.....................................................................................................7
Remove Transport Packaging................................................................................................7
Installation..................................................................................................................................8
Installation Location ...............................................................................................................8
Your Refrigerator Needs Air....................................................................................................9
Detaching the Worktop ...........................................................................................................9
Levelling......................................................................................................................................10
Reversing the Door..................................................................................................................10
Changing Over the Freezer Compartment Door ...........................................................12
Plug Socket ...............................................................................................................................13
Electrical Connection.............................................................................................................14
Description of the Appliance ............................................................................................15
View of the Appliance............................................................................................................15
Using the Appliance.............................................................................................................16
Switching Off the Appliance.............................................................................................17
Interior Accessories...............................................................................................................17
Storage Shelves........................................................................................................................17
Variable Inner Door.................................................................................................................18
Correct Storage.......................................................................................................................18
Freezing and Storing Frozen Food...................................................................................19
Preparation of Ice Cubes ....................................................................................................20
Defrosting.................................................................................................................................20
The Fridge Defrosts Automatically ....................................................................................20
Cleaning and Care.................................................................................................................22

Contents
4
Energy Saving Tips.................................................................................................................23
What to do if .........................................................................................................................24
Correcting Malfunctions.......................................................................................................24
Changing the Light Bulb ......................................................................................................26
Noises During Operation ....................................................................................................26
Regulations, Standards, Guidelines................................................................................26
Technical Terminology..........................................................................................................27

5
Important Safety Instructions
These warnings are provided in the interests of your safety. Ensure you fully
understand them before installing or using the appliance. Your safety is of
paramount importance. If you are unsure about the meaning of these
warnings contact the Customer Care Department for assistance.
Intended use
The refrigerator is intended for use in the home. It is suitable for the cooling,
freezing and storing of frozen food, as well as for making ice. If the
appliance is used for purposes other than those intended or used incorrectly,
no liability can be accepted by the manufacturer for any damage that may
be caused.
Alterations or changes to the refrigerator are not permitted for reasons of
safety.
If you use the refrigerator in a commercial application or for purposes other
than the cooling, freezing or frozen storage of foods, the manufacturer
accepts no liability for any damages which may occur.
Prior to initial start–up
Check the appliance for transport damage. Under no circumstance should
a damaged appliance be plugged in. In the event of damage, please
contact your supplier.
Ensure that the appliance does not stand on the electrical supply cable.
Important: if the supply cable is damaged, it must be replaced by
authorised service or qualified personnel using a special cable of the same
type.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant circuit
of the appliance, a natural gas with a high level of environmental
compatibility, which is nevertheless flammable.
Warning- During transportation and installation of the appliance, be
certain that none of the components of the refrigerant circuit become
damaged.
If the refrigerant circuit should become damaged:
- avoid open flames and sources of ignition;
- thoroughly ventilate the room in which the appliance is situated.
Safety of children
Packaging (e.g. wraps, polystyrene) can be dangerous for children. There is
a risk of suffocation! Keep packaging material away from children!
Please make old appliances unusable prior to disposal. Pull out the mains
plug, cut off the mains cable, break or remove spring or bolt catches, if
fitted. By doing this you ensure that children cannot lock themselves in
the appliance when playing (there is risk of suffocation!) or get themselves
into other dangerous situations.

Important Safety Instructions
6
Often children cannot recognise the hazards present in household
appliances. It is therefore important that you ensure adequate supervision
and never let children play with the appliance!
Daily Operation
Containers with flammable gases or liquids can leak at low temperatures.
There is a risk of an explosion! Do not store any containers with flammable
materials such as spray cans, fire extinguisher refill cartridges etc. in the
refrigerator/freezer.
Bottles and cans must not be placed in the freezer compartment. They can
burst when the contents freeze, high carbonate content drinks can even
explode! Never store lemonade, juices, beer, wine, sparkling wine etc. in the
freezer compartment.
Do not place ice cream or ice cubes in the mouth immediately after
removal from the freezer compartment. Very cold ice can freeze to the lips
or tongue and cause injury.
Do not touch frozen food with wet hands. Your hands could freeze to the
food.
Warning- Do not operate any electrical appliances in the refrigerator
and/or freezer (e.g. electric ice cream makers, mixers etc.).
Warning- In order not to impair the function of the appliance, never cover
or obstruct the ventilation openings.
Warning- Do not damage the cooling circuit.
Warning- Do not use any mechanical devices or other artificialmeans to
speed up defrosting unless they are recommended by the manufacturer.
Before cleaning the appliance, always switch off the appliance and unplug
it, or disconnect from the electricity supply.
When unplugging always pull the plug from the mains socket, do not pull
on the cable.
In case of malfunction
If a malfunction occurs on the appliance, please look first in the "What to do if
..." section of these instructions. If the information given there does not help,
please do not perform any further repairs yourself.
This product should be serviced by an authorised engineer and only
genuine spare parts should be used.
Under no circumstances should you attempt to repair the appliance
yourself. Repairs carried out by inexperienced persons may cause injury or
serious malfunctioning. Contact your local Service Force centre.

7
Disposal
Appliance Packaging Information
All materials are environmentally sound! They can be disposed of orburned
at an incinerating plant without danger.
About the materials: The plastics can be recycled and are identified as
follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the interior.
>PS< for polystyrene foam, e.g. the pads, which are all free of chloro-
fluorocarbon. The carton parts are made from recycled paper and should be
disposed of at a wastepaper recycling collection location.
Disposal of Old Appliances
For environmental reasons, refrigeration appliances must be disposed of
properly. This applies to your old appliance, and - at the end of its service life
- for your new appliance as well.
Warning! Before disposing of old appliances make them inoperable. Remove
plug from mains, sever the power cable, remove or destroy any snap or latch
closures. This ensures that children do not lock themselves inside the
appliance (danger of suffocation!) or place themselves into other life-
endangering situations.
Disposal:
The appliance may not be disposed of with domestic waste or bulky refuse.
The refrigerant circuit, especially the heat exchanger at the back of the
appliance, must not be damaged.
The symbol on the product or on its packaging indicates that this
product may not be treated as household waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you
purchased the product.
Remove Transport Packaging
The appliance and the interior fittings are protected for transport.
1. Pull off the adhesive tape on the left and right side of the door.
2. Remove all adhesive tape and packing pieces from the interior of the
appliance.

Installation
Installation Location
The appliance should be set up in a well ventilated, dry room.
Energy use and efficient performance of the appliance is affected by the
ambient temperature. The appliance should therefore
- not be exposed to direct sunlight;
- not be installed next to radiators, cookers or other sources of heat;
- only be installed at a location whose ambient temperature corresponds to
the climate classification, for which the appliance is designed.
The climate classification can be found on the serial plate, which is located
at the left on the inside of the appliance.
The following table shows which ambient temperature is correct for each
climate classification:
Climate classification for an ambient temperature of
SN +10 to +32 °C
N +16 to +32 °C
ST +18 to +38 °C
T +18 to +43 °C
If the refrigeration appliance is installed next to another refrigerator or
freezer a clearance of 5 cm at the sides is required, in order to prevent the
formation of condensation on the outside of the appliance.
8

Installation
9
Your Refrigerator Needs Air
For correct operation this
appliance must be located in a
dry atmosphere, away from
heatsources, e.g. cookers,
radiators, boilers and direct
sunlight.
You should also ensure that air
can circulate freely around the
back and the top of the
cabinet. There should be
100mm (4”) between the top of
the cabinet and any
overhanging kitchen furniture.
Alternatively allow 50mm (2”) between the top of the cabinet and any
overhanging kitchen furniture and a gap of 25mm (1”) on either side of the
appliance.
If your refrigerator is installed
under a continuous worktop, an
air outlet opening of at least
200 cm2 and a ventilation grille
(A/B) matching the worktop
design should be installed at
the rear of the worktop. The cut
surfaces of the worktop (C)
should be varnished to avoid
swelling due to penetration of
moisture. The appliance wall
distance must beat least 30 mm
and should be checked before
the ventilation grille is inserted.
Detaching the Worktop
After the worktop has been
removed the appliance can be
installed underneath a
continuous worktop. The
procedure is as follows:
1.Unscrew the screws (F) on the
right and the left.
2. Lift the worktop slightly, push it
about 20 mm towards the rear,
and lift it off upwards (G).
Unscrew the holding bracket (H)
and keep it in a safe place.

Levelling
The appliance must be level. Level the
appliance by adjusting the two
adjustable feet (1) at the front of the
appliance.
If required the washer (2) can be
removed.
Reversing the Door
The side at which the door opens can be changed from the right side (as
supplied) to the left side, if the installation site requires.
Warning! When changing the side at which the door opens, the appliance
must not be connected to the mains. Remove plug from the mains
beforehand.
Carefully tilt the equipment to
the back and place an adequate
object under it.
Take care to avoid the compressor
or the condenser touching the
ground.

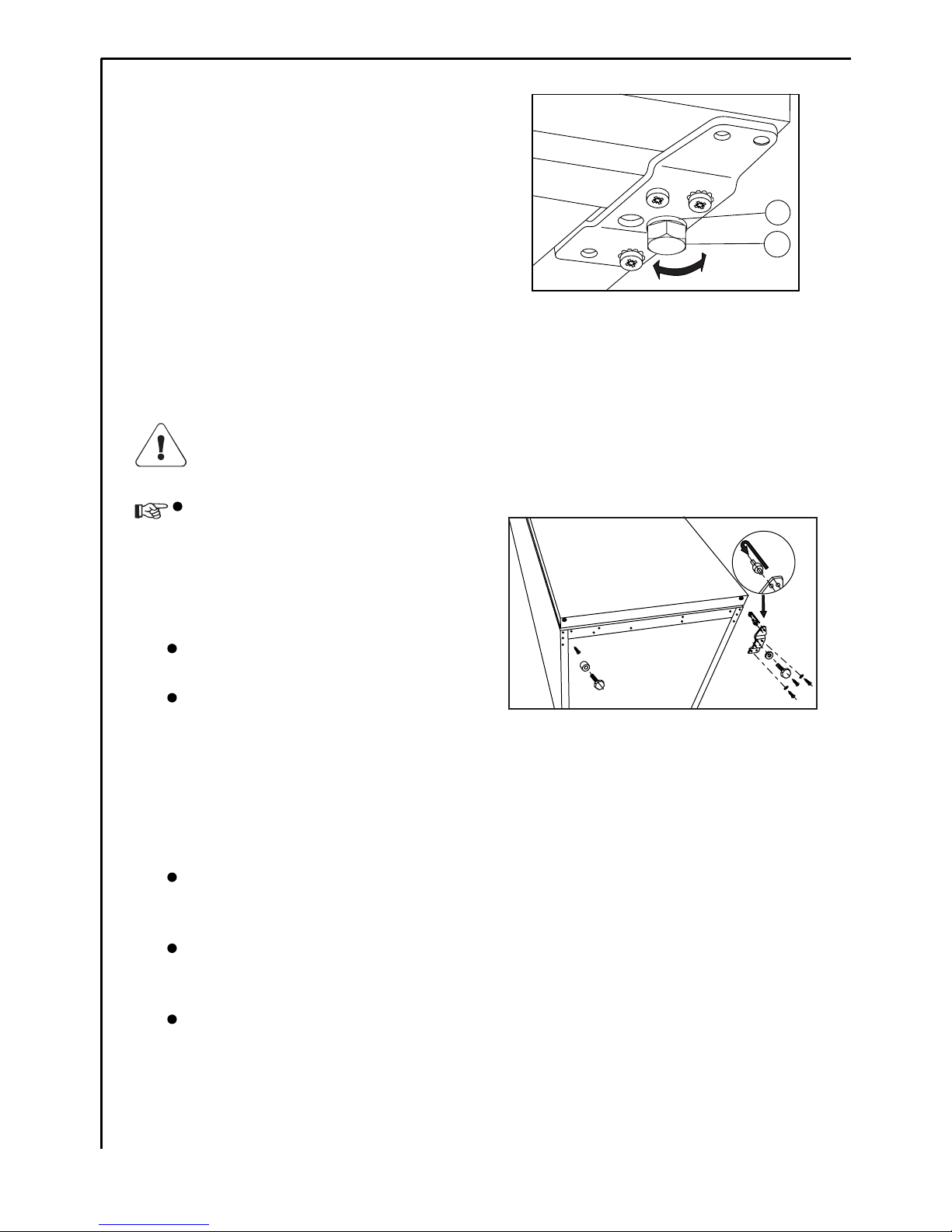

Unscrew both adjustable legs at
the front.
Dismount the door holder at the
bottom on the right side. For this,
drive the three screws out, and
pull the door holder down
together with the door holder
pin. Remove the screw on the left
side, and drive it in on the right
side.
Remove the door by pulling it
downwards while keeping it
slightly opened.
Unscrew the upper door holder,
and screw it in on the opposite
side.
Put the door back in its place.
Installation
10
2
1

Installation
Relocate the door holder pin in
the door holder as per the figure.
Place the door holder pin in the
door at the bottom on the left
side, and fix the door holder with
the screw.
Drive in the two adjustable front
legs, and raise the equipment in
the upright position.
Relocate the door handle from
the left side to the right, and
blind the bore-holes with the
plugs delivered with the
equipment.
To reverse the handle proceed as follows:
Remove screw covers (if fitted)
and handle retaining screws.
Remove blanking plugs on the
opposite side
using a punch.
Relocate the handle to the
opposite side and refit retaining
screws (covers if fitted), and push
the plastic plugs supplied with
the appliance into the holes
where the handle was previously
fitted.
11

Installation
12
Changing Over the Freezer Compartment Door
After reversing the refrigerator
door, it is necessary to reverse the
door of the frozen food
compartment as well.
Proceed as follows.
1. Press the retaining lever inside the
lower doorhinge
2. Tilt the lower doorhinge out
together with the freezer
compartment door then remove it
from the pin of the freezer
compartment door.
3. Remove the rectangular plug and
put it into the opening got free on
the other side.
4. Having the freezer compartment
door turned by 180° put the lower
hinge onto the lower pin of the
freezer compartment door.
5. Put the upper hinge pin of the
freezer compartment door into the
free opening, then push the lower
hinge into its place together with
the freezer compartment door.

13
Plug Socket
The plug socket necessary for
connection of your appliance to
the electricity supply should be
positioned so that it is possible to
pull out the appliance plug. If your
appliance is installed under a
continuous worktop, the plug
socket should be provided as
shown. Alternatively a concealed
spur socket fitted with a 13 A fuse
may be fitted. If the outlet socket
is no longer accessible after
installation of the appliance, the
electrical installation must include
suitable means of isolating the
appliance from the mains (e.g.
fuse, cut-out, current trip or similar with a minimum contact separation of
3 mm). The mains cable may only be changed by a qualified electrician or
competent person. If your appliance needs repairing, please contact your
local Service Force Centre.

Installation
14
Electrical Connection
Any electrical work required to install
this appliance should be carried out by
a qualified electrician or competent
person. This appliance must be earthed.
The manufacturer declines any liability
should these safety measures not be
observed.
Electrical Requirements
Before switching on, make sure the
electricity supply voltage is the same as
that indicated on the appliance rating
plate.
The appliance is supplied with a 13 amp
plug fitted. In the event of having to
change the fuse in the plug supplied, a
13 amp ASTA approved (BS 1362) fuse must be used. Should the plug need
to be replaced for any reason. The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
The wire coloured green and yellow must be connected to the terminal
marked with the letter „E“ or by the earth symbol or coloured green and
yellow.
The wire coloured blue must be connected to the terminal „N“ or coloured
black. The wire coloured brown must be connected to the terminal marked
„L“ or coloured red.
Upon completion there must be no cut, or stray strands of wire present
and the cord clamp must be secure over the outer sheath.
Important!The plug must still be accessible after the appliance has been
installed. The appliance should not be connected to the electrical supply
by means of an extension cable. In case that the electrical cable has to be
replaced, please contact your local Service Force Centre.
Warning! A cut off plug inserted into a 13 amp socket is a serious safety
(shock) hazard. Ensure that it is disposed of safely.

15

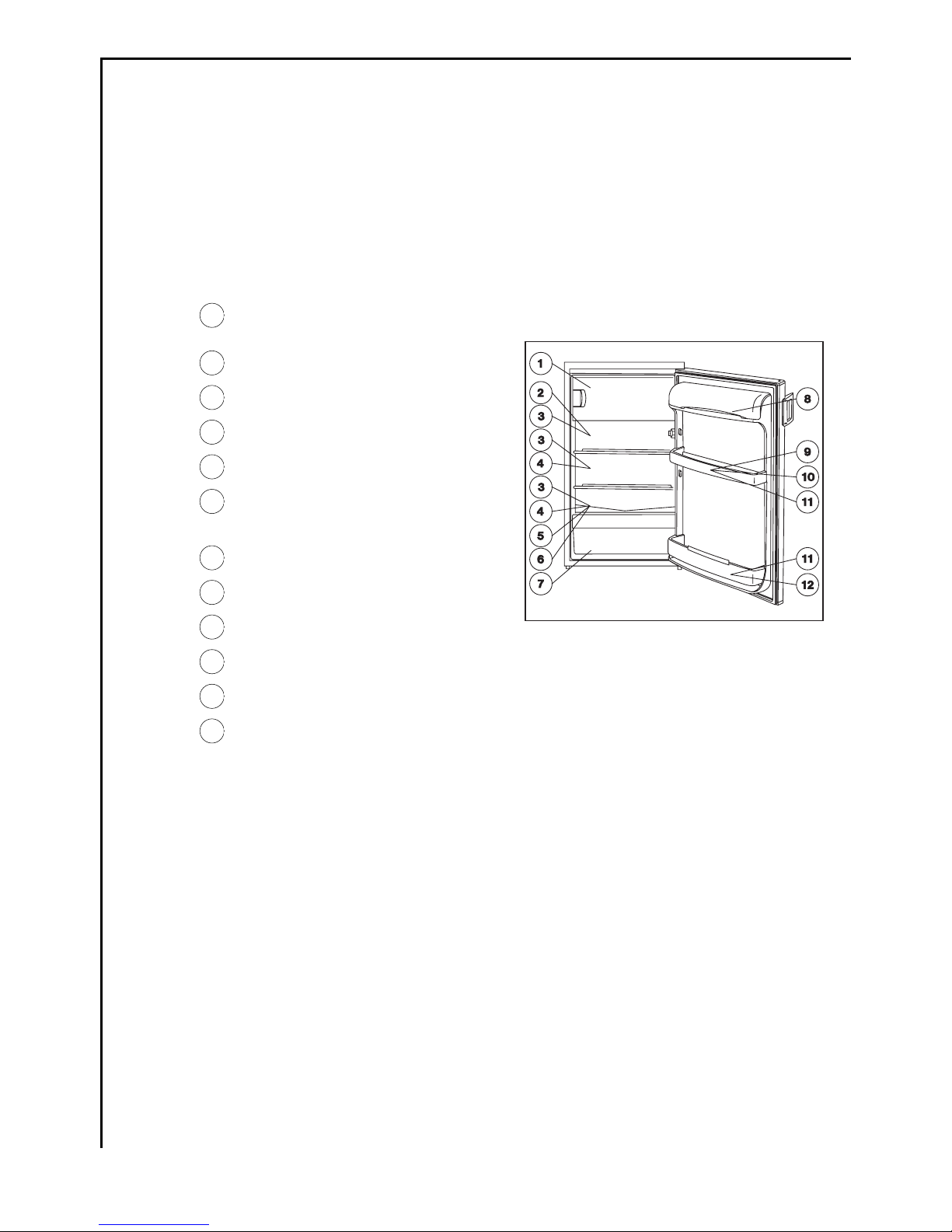

1. Frozen food compartment
2. Glass shelf
3. Defrost water drain
4. Salad drawer
5. Rating Plate
6. Adjustable feet
7. Ice tray
8. Butter compartment
9. Interior light/Thermostat control
10. Door shelf
11. Gasket
12. Bottle shelf
13. Egg tray
14. Air circulation
15. Air vent
16. Condenser
17. Evaporator tray
18. Compressor
Description of the Appliance
View of the Appliance

16
Using the Appliance
Before Use
Remove all securing tapes.
Wash the inside of the appliance
with lukewarm water with a little
bicarbonate of soda added (5 ml
to 0,5 litre of water). Do not use
soap or detergent as the smell
may linger. Dry the appliance
thoroughly.
Do not use detergents, abrasive
powders, highly perfumed cleaning products, wax polishes or products
containing alcohol.
To Start the Appliance
1. Allow the appliance to stand for 2 hrs after installation.
2. Plug in the appliance and switch on at the mains supply.
3. Turn the thermostat control to the required setting. A setting of 3 - 4 is
usually suitable for normal operation (see thermostat control).
4. Leave the appliance for approximately 4 hours for the correct temperature to
be reached before placing food inside.
Thermostat Control
The thermostat control situated inside the refrigerator regulates the
temperature of the larder compartment. Thermostat control is marked from
1-5 the higher the number, the colder the setting.
Position 0 - Off
Position 1 - minimum coldness
Position 5 - maximum coldness

17
Switching Off the Appliance
To switch off the appliance, turn the temperature regulator to position"0".
If the appliance is not going to be used for an extended period:
1. Remove all refrigerated and frozen packages.
2. Switch off the appliance by turning the thermostat knob to position"0".
3. Remove the mains plug or switch off or disconnect from the electricitysupply.
4. Clean thoroughly (see section: “Cleaning and Care”).
5. Leave the door open to avoid the build up of odours.
Interior Accessories
Storage Shelves
Various glass storage shelves are
included with your appliance. The
height of the storage shelves can be
adjusted:

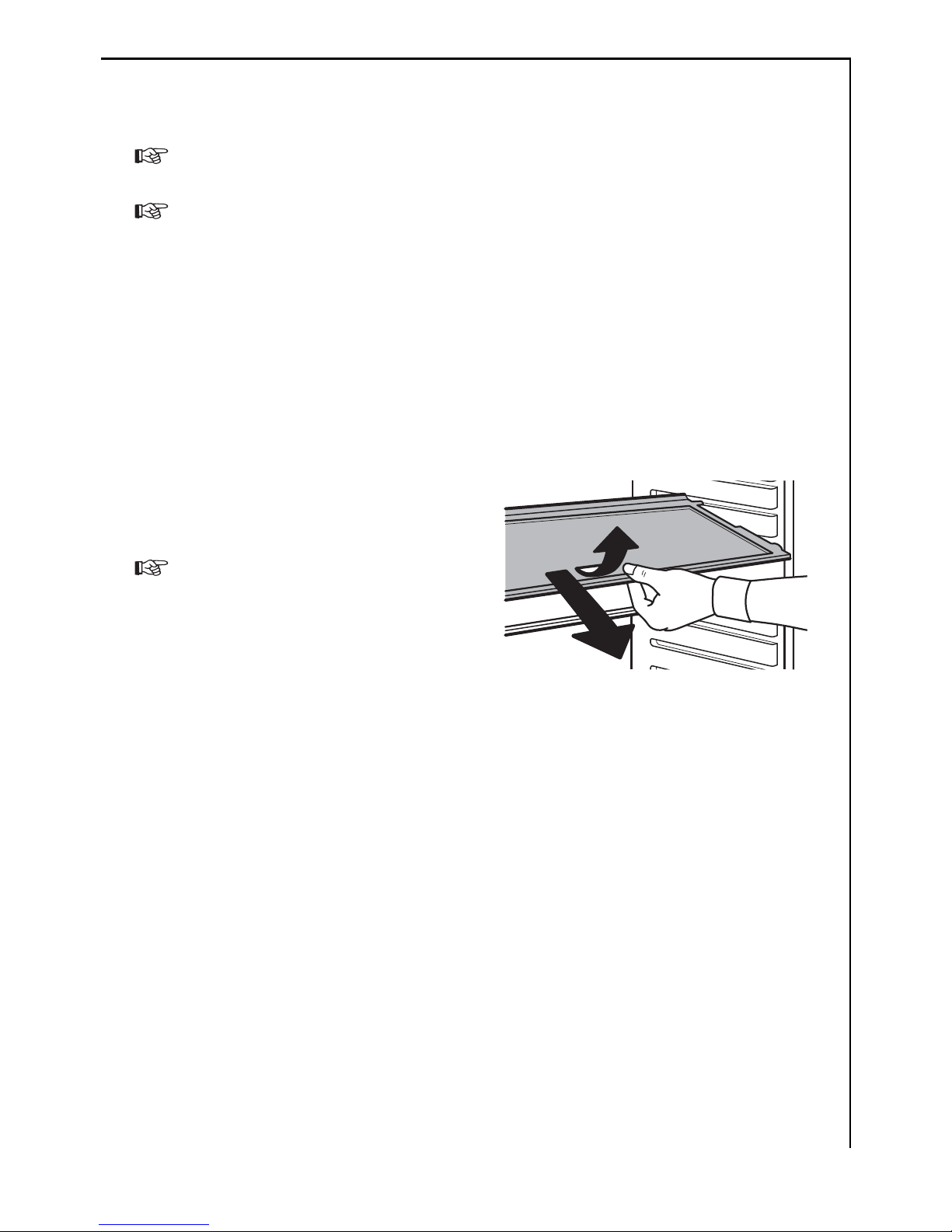

1. To do this pull the storage shelf for-
ward until it can be swivelled
upwards or downwards and
removed.
2. Please do the same in reverse to
insert the shelf at a different height.
Inbetriebnahme und Temperaturregelung

Variable Inner Door
The door compartments can be pulled up and removed, and inserted
atother positions as needed.
Correct Storage
Below is the recommended storage positions for various food types:
1 Frozen food storage &ice
making
2 Ready-cooked foods
3 Foods in dishes
4 Opened cans
5 Milk, dairy products
6 Fresh meat, cold cuts, sausages,
etc.
7 Fruits, vegetables, salads
8 Cheese, butter
9 Eggs
10 Yoghurt, Cream
11 Small bottles, soft drinks
12 Large bottles, drinks
18

19
Freezing and Storing Frozen Food
The freezer compartment is for freezing and storing food.
Important!
The temperature in the freezer compartment must be –18°C or colder
before freezing fresh food or storing food already frozen.
Do not freeze too large a quantity at any one time (max. 2 kg per 24hrs).
The quality of the food is best preserved when it is frozen right through
to the core as quickly as possible.
Allow warm food to cool down before freezing. The warmth will cause
increased ice formation and increase the power consumption.
Please note the maximum storage times specified by the manufacturer.
Thawed foods which have not been processed further (cooked into meals)
may not under any circumstances be frozen a second time.
1. All foods must be packed into airtight packages or containers prior to
freezing, so that they do not dry out or lose their flavour, and so that no
flavour contamination of other frozen goods occurs.
Caution! Do not touch frozen food with wet hands. Your hands could stick to
the food causing skin abrasions.
2. Lay the packaged food on the base of the freezer compartment. Unfrozen
food must not touch items already frozen, otherwise the frozen food could
begin to defrost.
Tips:
The following are suited for the packaging of frozen goods:
- freezer bags and polyethylene wraps;
- special cans for frozen goods;
- extra–thick aluminium foil.
The following are suitable for sealing bags and wrappings:
plastic clips, rubber bands or tape.
Smooth the air out of the bag before sealing; air makes it easier for the
frozen food to dry out.
Make flat packages, because these freeze more quickly.
Do not fill cans for frozen goods to the brim with liquid or paste–like
goods, because liquids expand during freezing.

20
Preparation of Ice Cubes
1. Fill the ice cube tray 3/4 full with cold water, place it in the freezer
compartment and leave to freeze.
2. To loosen the frozen cubes, either bend the ice cube tray or hold it under
running water for a few seconds.
Important! Never try to free an ice tray that is frozen to the freezer
compartment using pointed or sharp edged objects, since you may damage
the refrigerating circuit. Use the plastic scraper.
Defrosting
The Fridge Defrosts Automatically
The rear wall of the fridge covers with frost when the compressor is running,
and defrosts when the compressor is off. The water from the thawing frost
evaporates by itself.
The refrigerator automatically defrosts every time the compressor stops. The
water is discharged, via the pipe, into a tray located below the appliance,
where it evaporates.

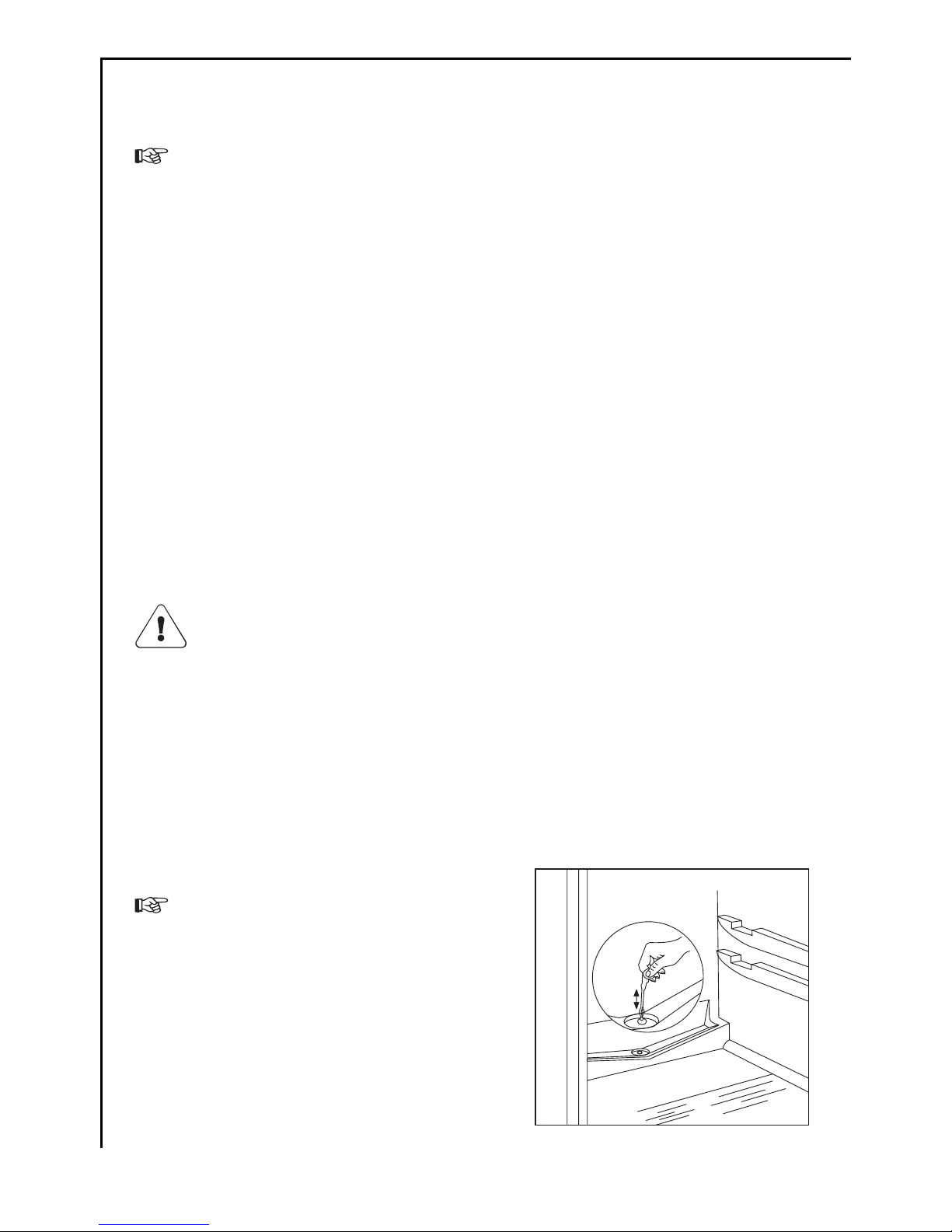

Important! To avoid defrost water overflowing into the fridge, periodically
clean the water discharge hole in the centre of the V shaped drip collector at
the back of the refrigerator compartment behind the salad drawer(s). Use the
special cleaner provided which you will find already inserted into the
discharge hole.
While in operation the ****-star compartment becomes progressively covered
with frost.
This frost, which acts as an insulator and thus prevents the cold from
reaching the food should be removed whenever the thickness of the frost
exceeds 6 mm (1/4”).
To carry out complete defrosting
proceed as follows:
1. Remove any food from inside the ****-
star compartment, wrap it in several
sheets of newspaper and store in a cool
dry place.
2. Turn the thermostat knob to position
<< 0 >>. To accelerate defrosting,
place a bowl of hot water inside the
compartment (with a piece of
cardboard underneath the bowl as
protection).
